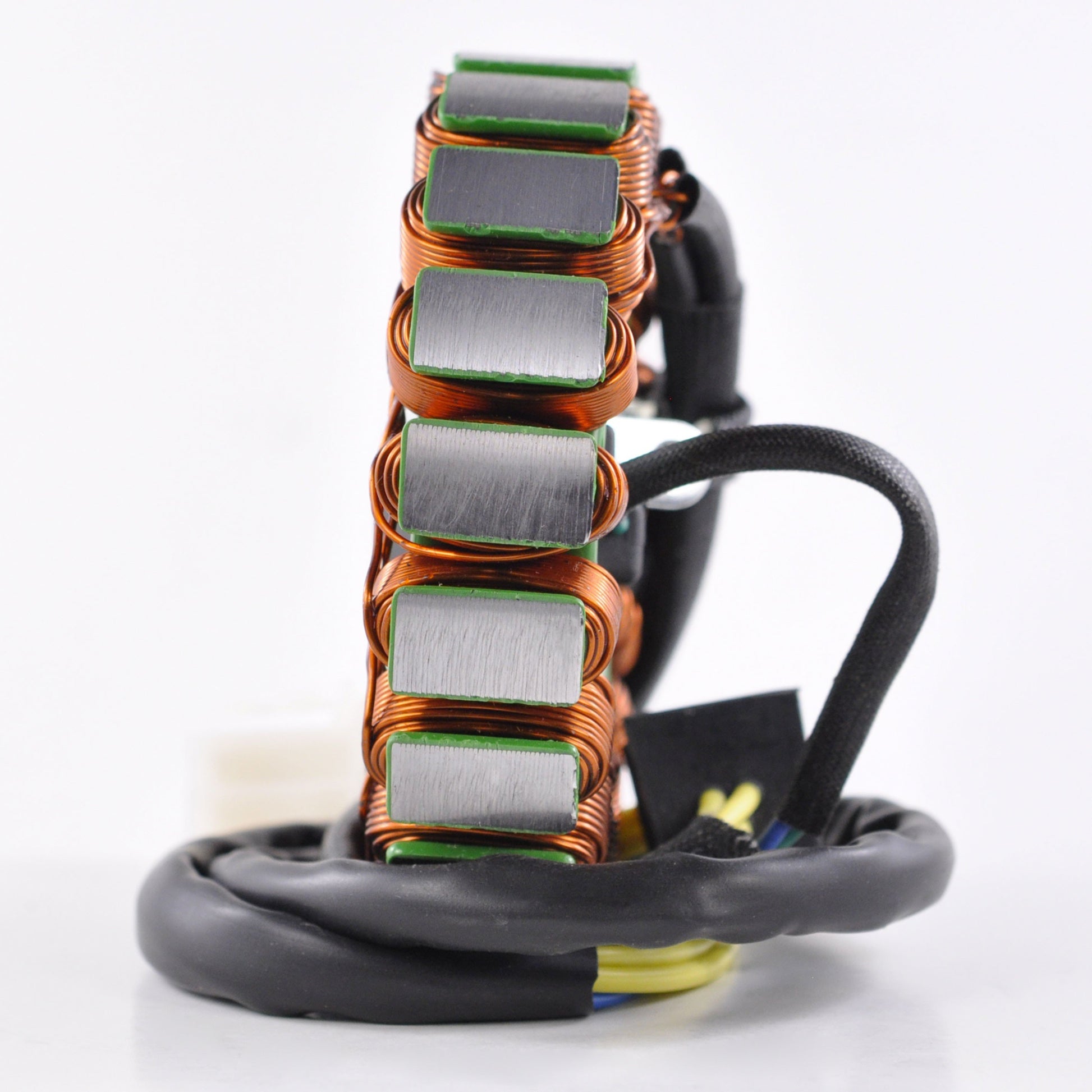

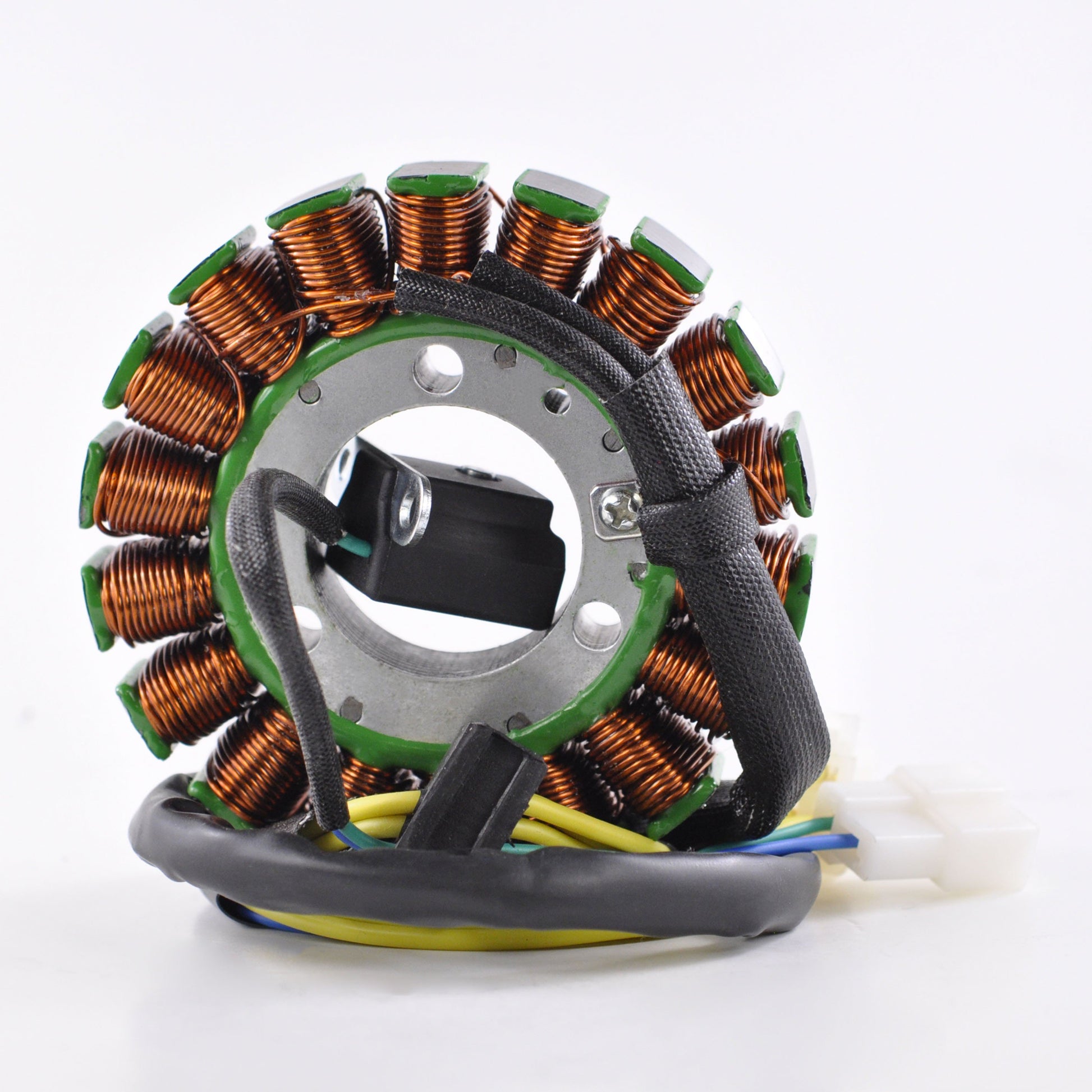

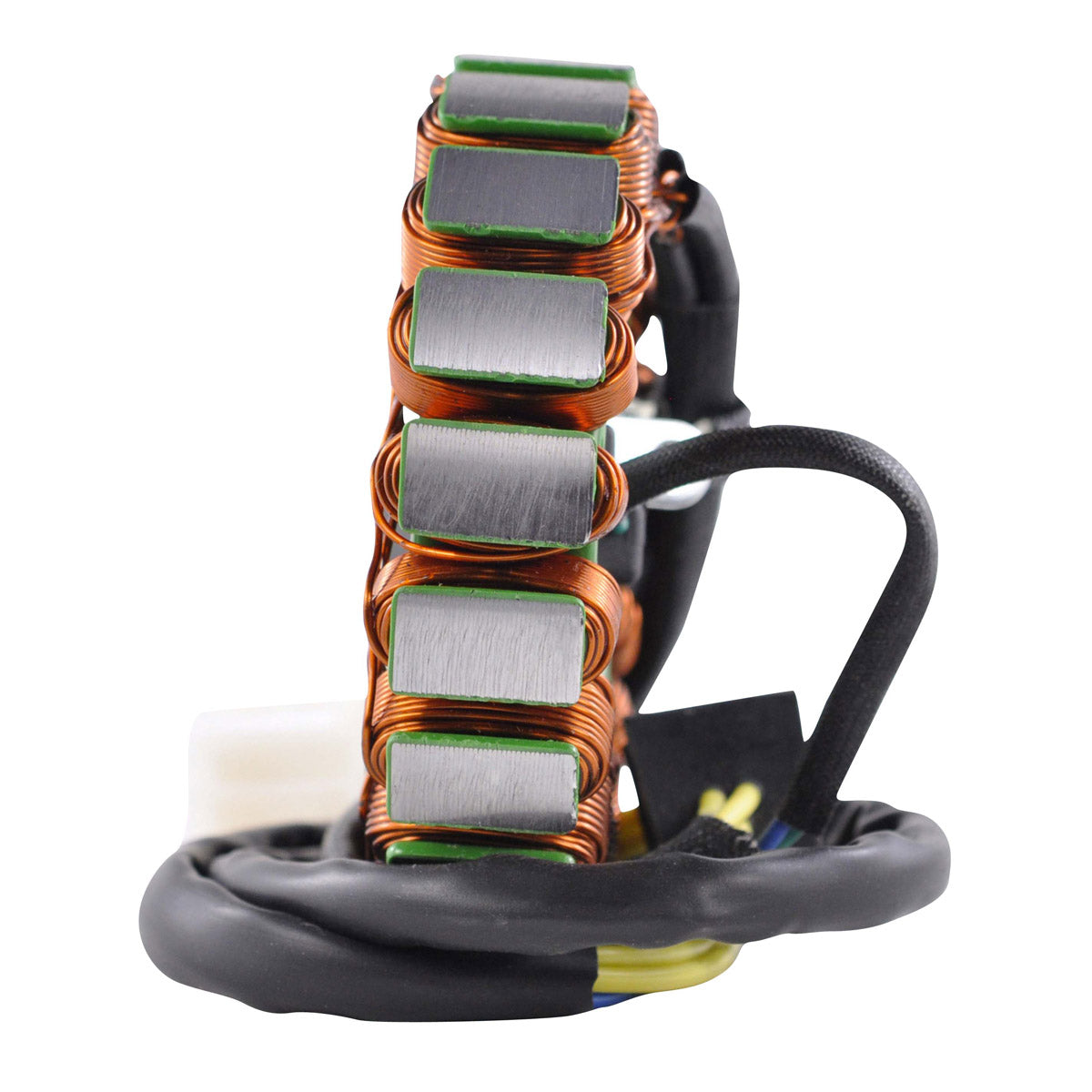

Generator Stator for Hyosung GT 650 & GV 650
GT 650, GT 650 R, GT 650 S, GV 650 Aquila and ST7, carb and EFI - 2005 to 2015 - Part RMS010-101583

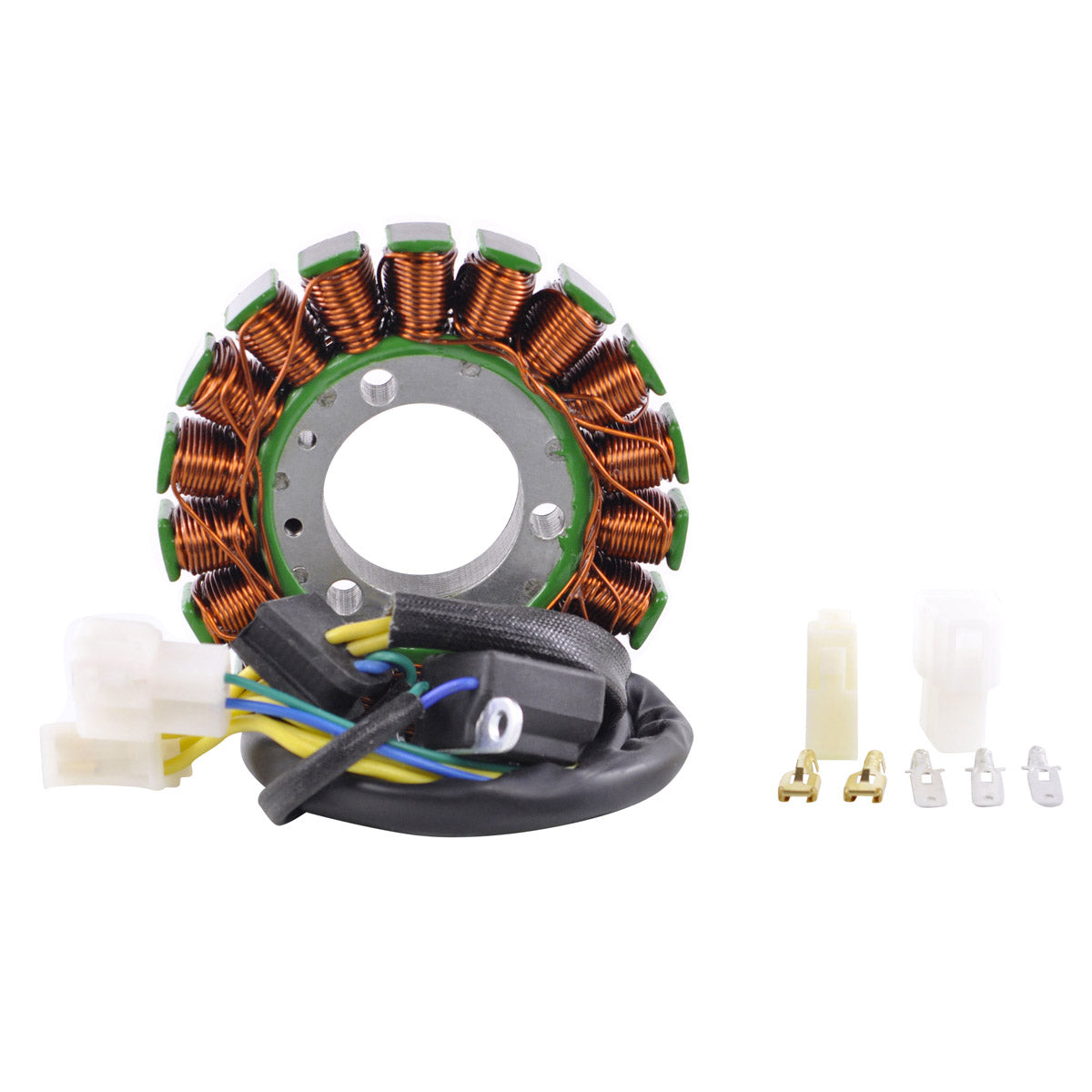

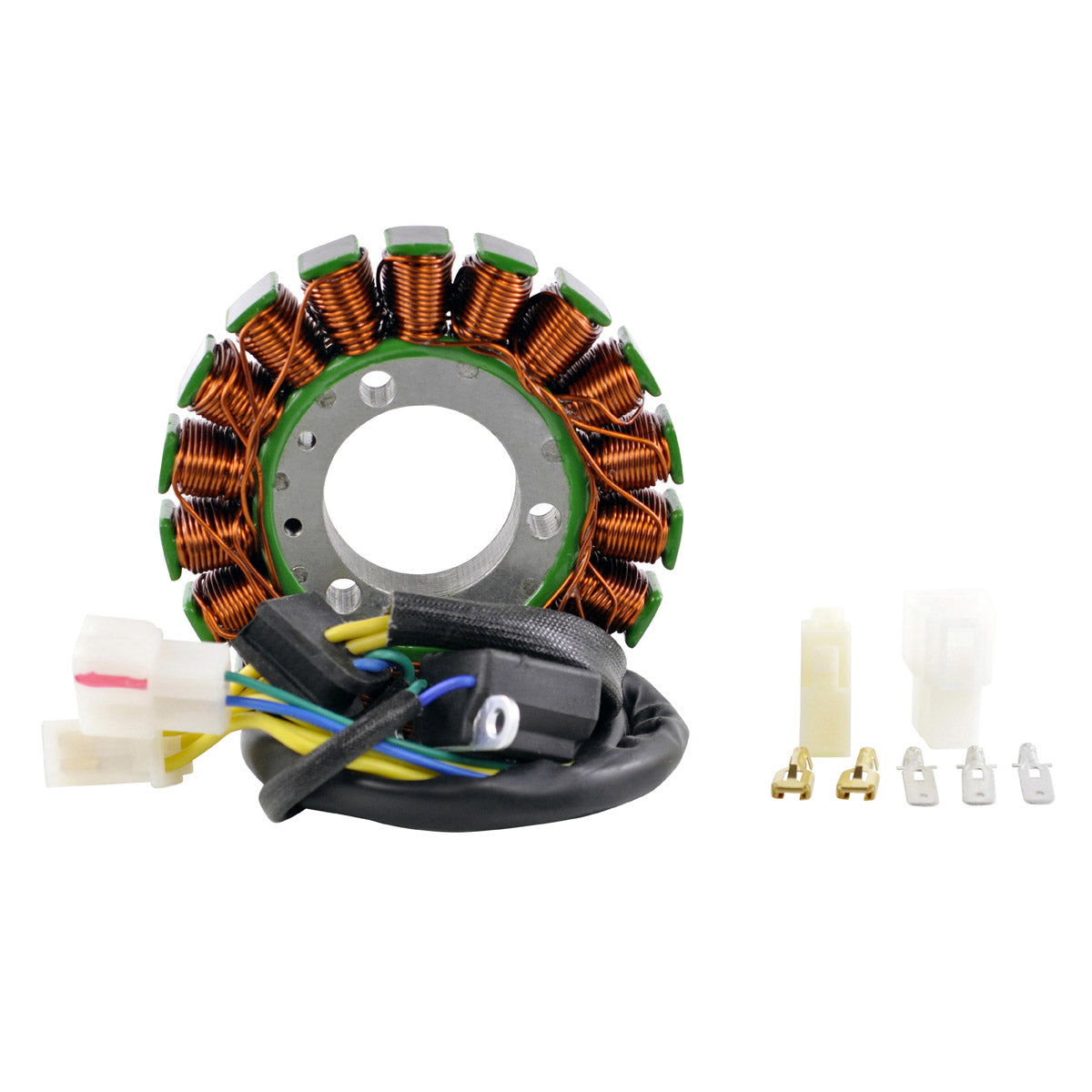

A brand new aftermarket stator built as a direct replacement for the original charging unit fitted to the Hyosung GT 650 range and the GV 650 Aquila. It is a plug-and-play, direct fit part, so the original loom, plugs and engine cases stay exactly as they are and the charging system is returned to full output without improvisation.
Construction uses the highest grade lamination materials with the highest grade copper windings, insulated to resist 200 degrees Celsius. Heat is what finishes off an original stator on these twins, so the higher rating is the difference between a repair that lasts and one that repeats. The stator is supplied complete with the pickup pulsar coil, the connector and the rubber grommet, along with the opposite connector for the main harness side. Please note this part does not fit the EFI version of the GT250 and GT250R models.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

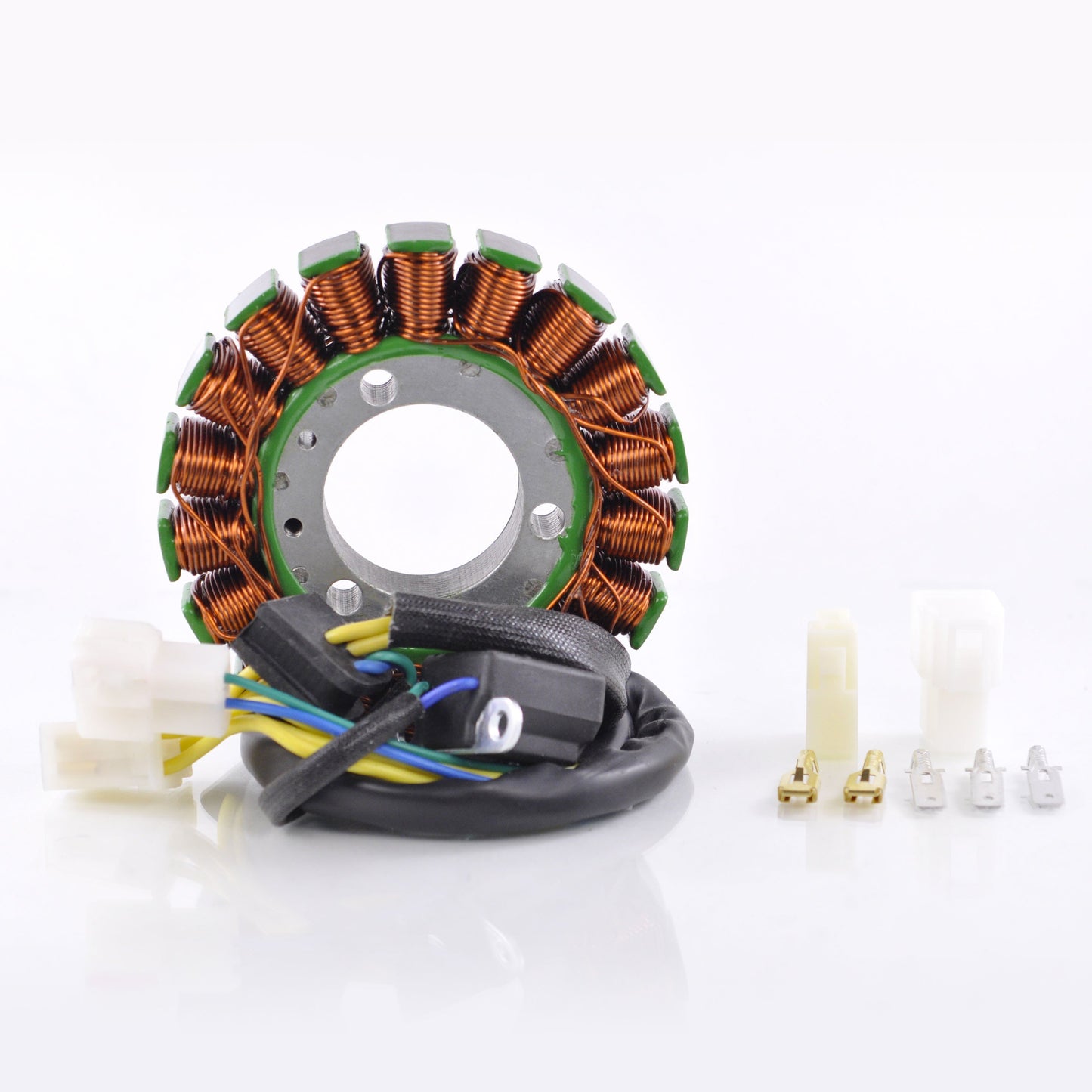

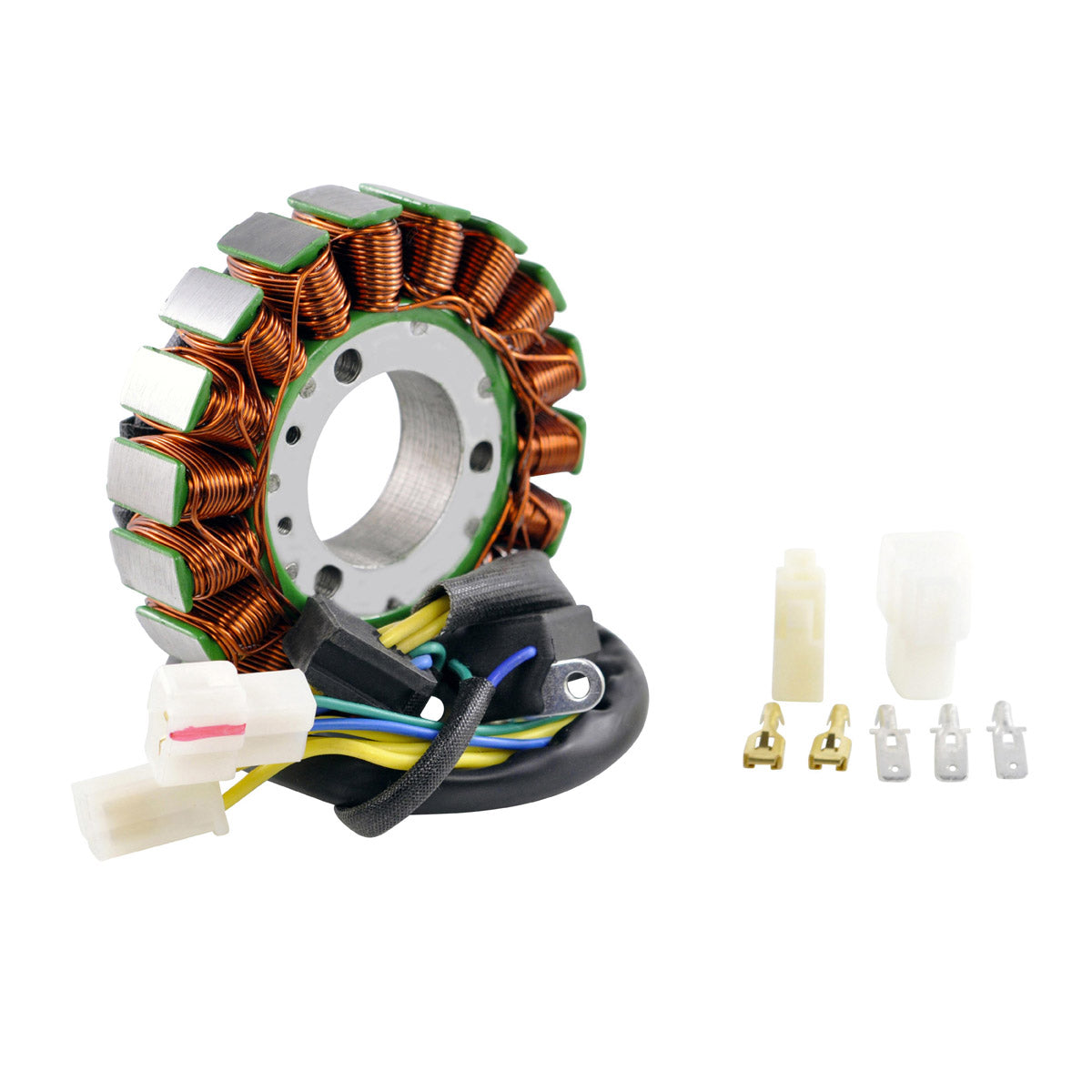

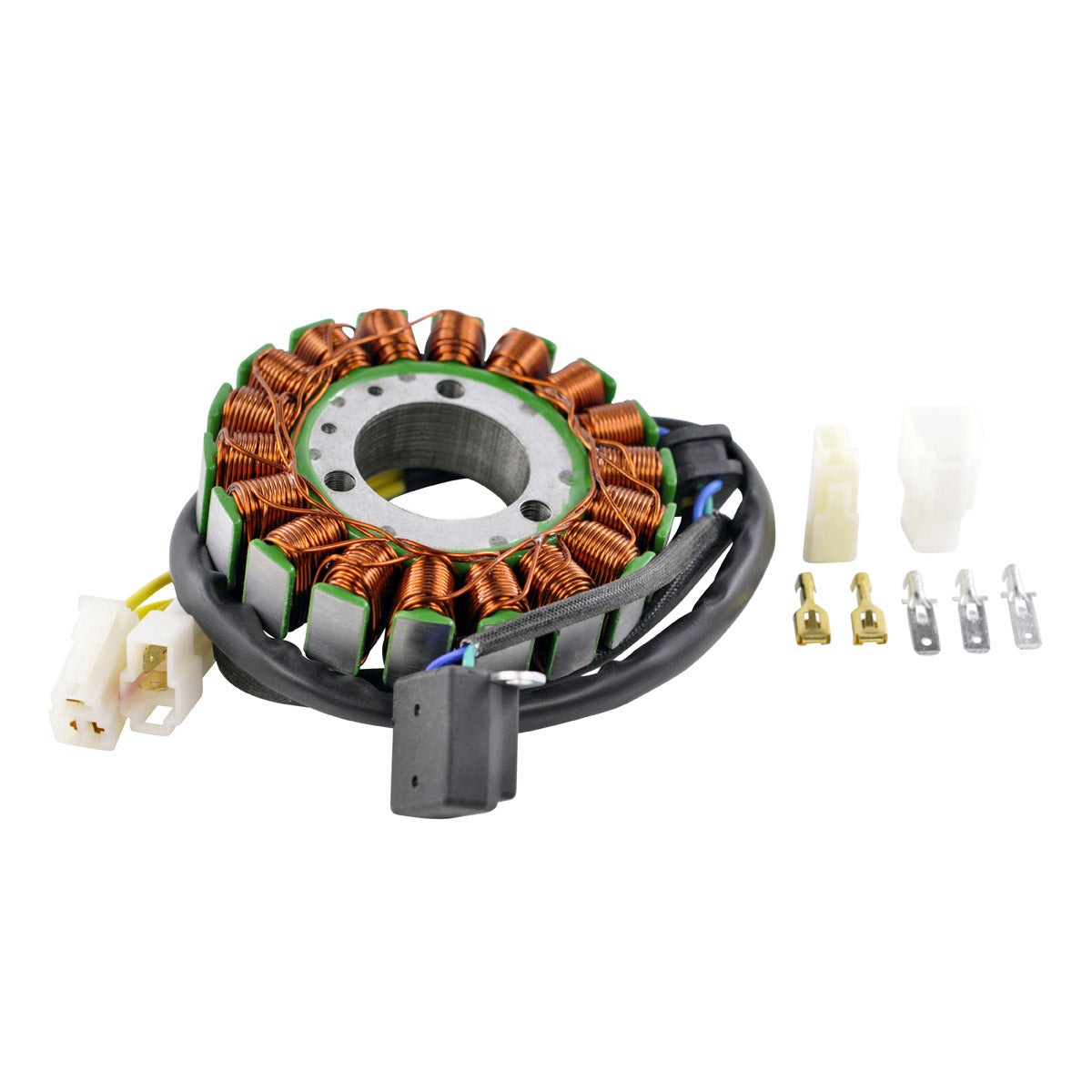

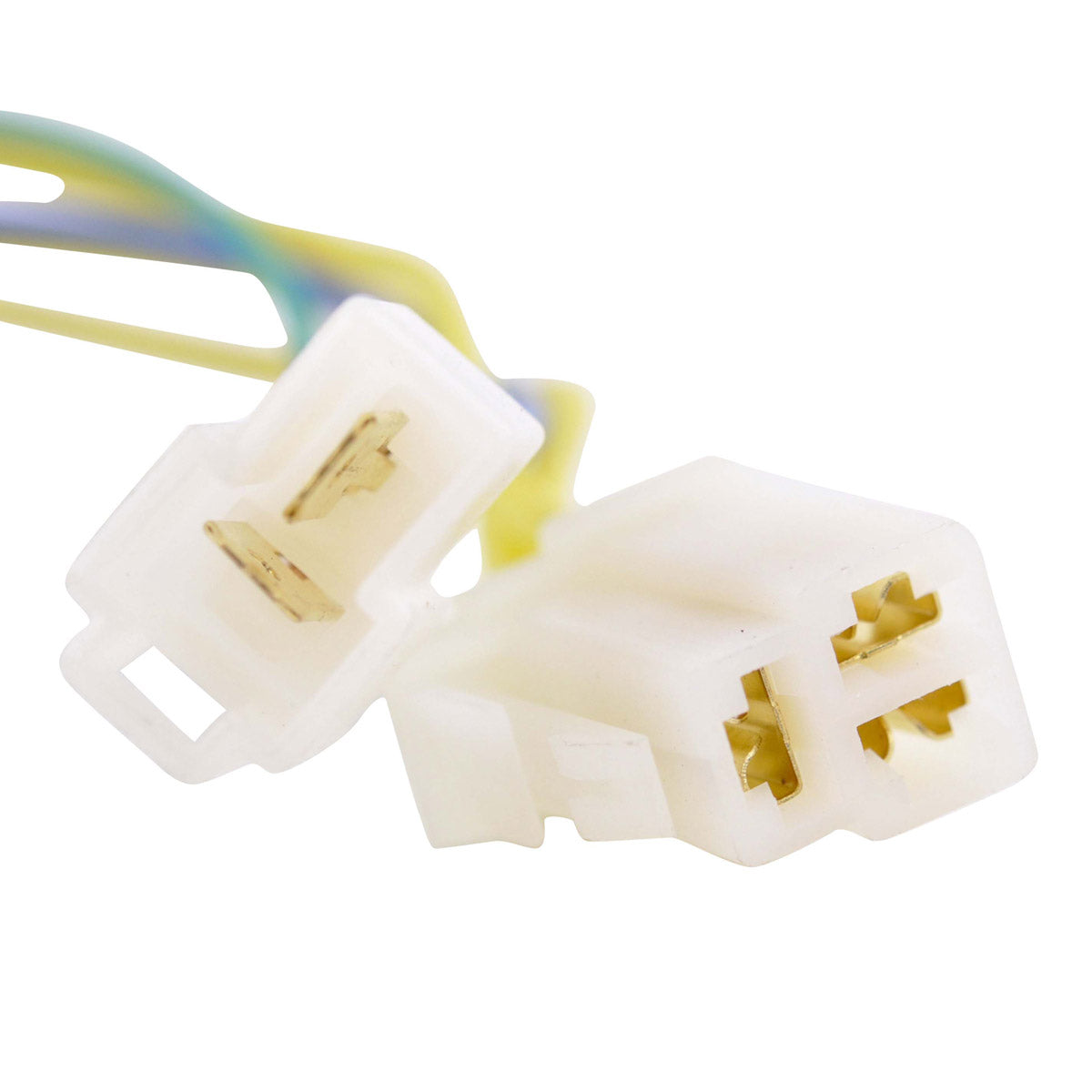

- Pickup pulsar coil, connector and rubber grommet included

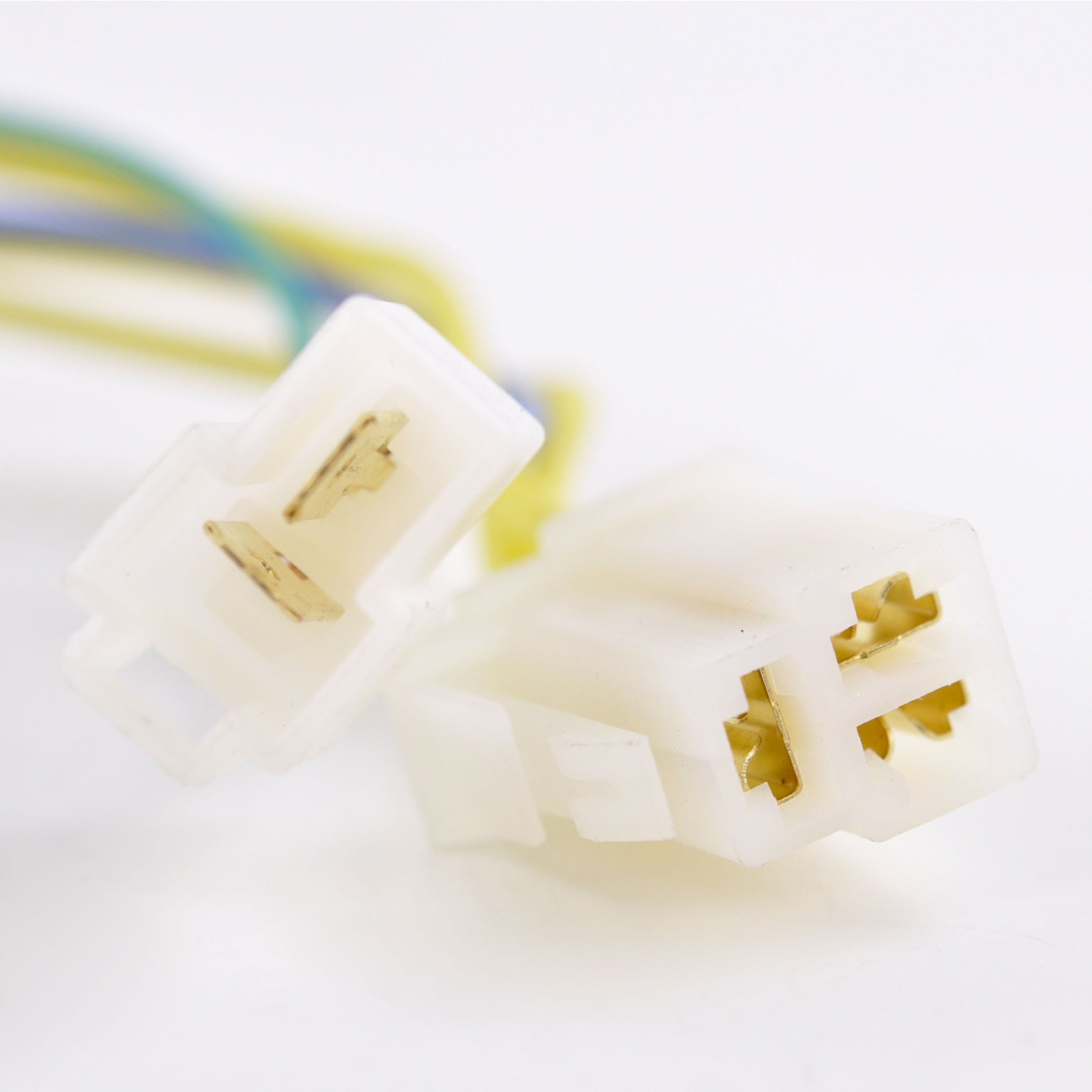

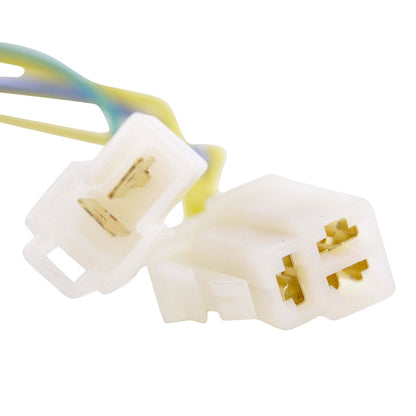

- Opposite connector for the main harness side supplied
- Covers both carburettor and EFI versions of the listed 650 models
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 38 mm |
| Exterior diameter | 104 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 150 mm |
| Wire length, grommet to plug | 515 mm |
| Pickup coil wire length | 75 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, yellow to yellow | 0.5 ohms, plus or minus 20 percent |
| Pickup resistance, blue to green | 129 ohms, plus or minus 20 percent |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Hyosung GT 650, carb and EFI | 2005-2015 |
| Hyosung GT 650 R, carb and EFI | 2005-2015 |
| Hyosung GT 650 S, carb and EFI | 2005-2015 |
| Hyosung GV 650 / GV650 Aquila | 2005-2015 |
| Hyosung ST7 | 2005-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101HN9101 | Hyosung |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the listed Hyosung 650 models. The original wiring and plugs are retained.
What is included?
The stator unit, the pickup pulsar coil, the connector, the rubber grommet, and the opposite connector for the main harness side.
How do I confirm the old stator has failed?
Measure the alternator windings yellow to yellow, which should read about 0.5 ohms, plus or minus 20 percent, and the pickup coil blue to green, which should read about 129 ohms, plus or minus 20 percent. An open circuit, a short to earth, or readings well outside those figures point to a failed stator. Persistent flat batteries and dimming lights at idle are the common symptoms.
Does this fit the GT250 or GT250R?
No. This stator does not fit the EFI version of the GT250 and GT250R models. It is intended for the 650 models listed in the fitment guide above.
