Stator for Kawasaki Jet Ski JT1200 & JT1500 STX-12F and Ultra 250-310 2003-2026
Stator for Kawasaki Jet Ski JT1200 & JT1500 STX-12F and Ultra 250-310 2003-2026
SKU:RM01536
Free shipping over £150. Terms apply
Couldn't load pickup availability

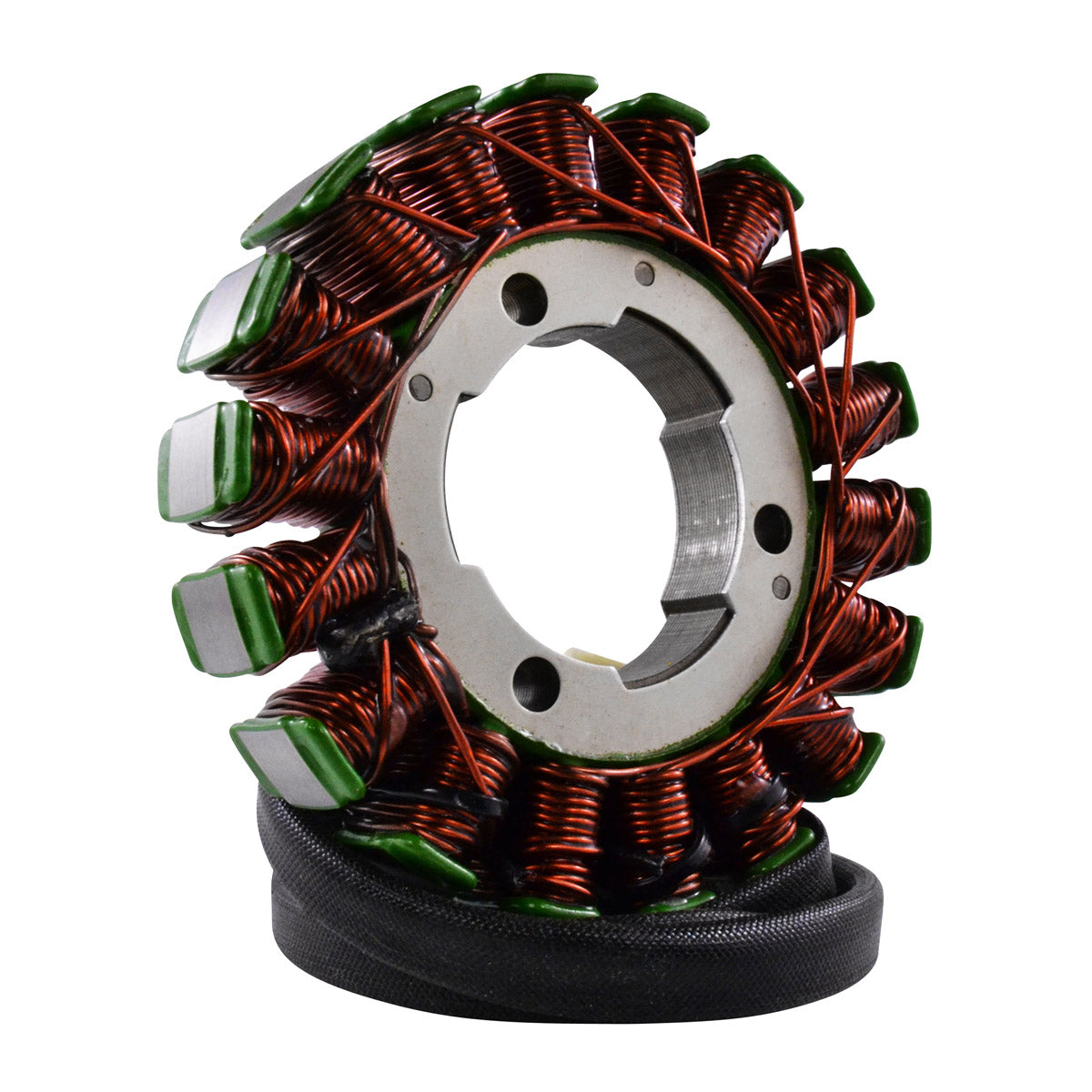

Kawasaki Jet Ski Generator Stator - RM01536
JT1200 and JT1500 - STX-12F, Ultra 250, 260, 300, 310, LX, R and X - 2003-2026

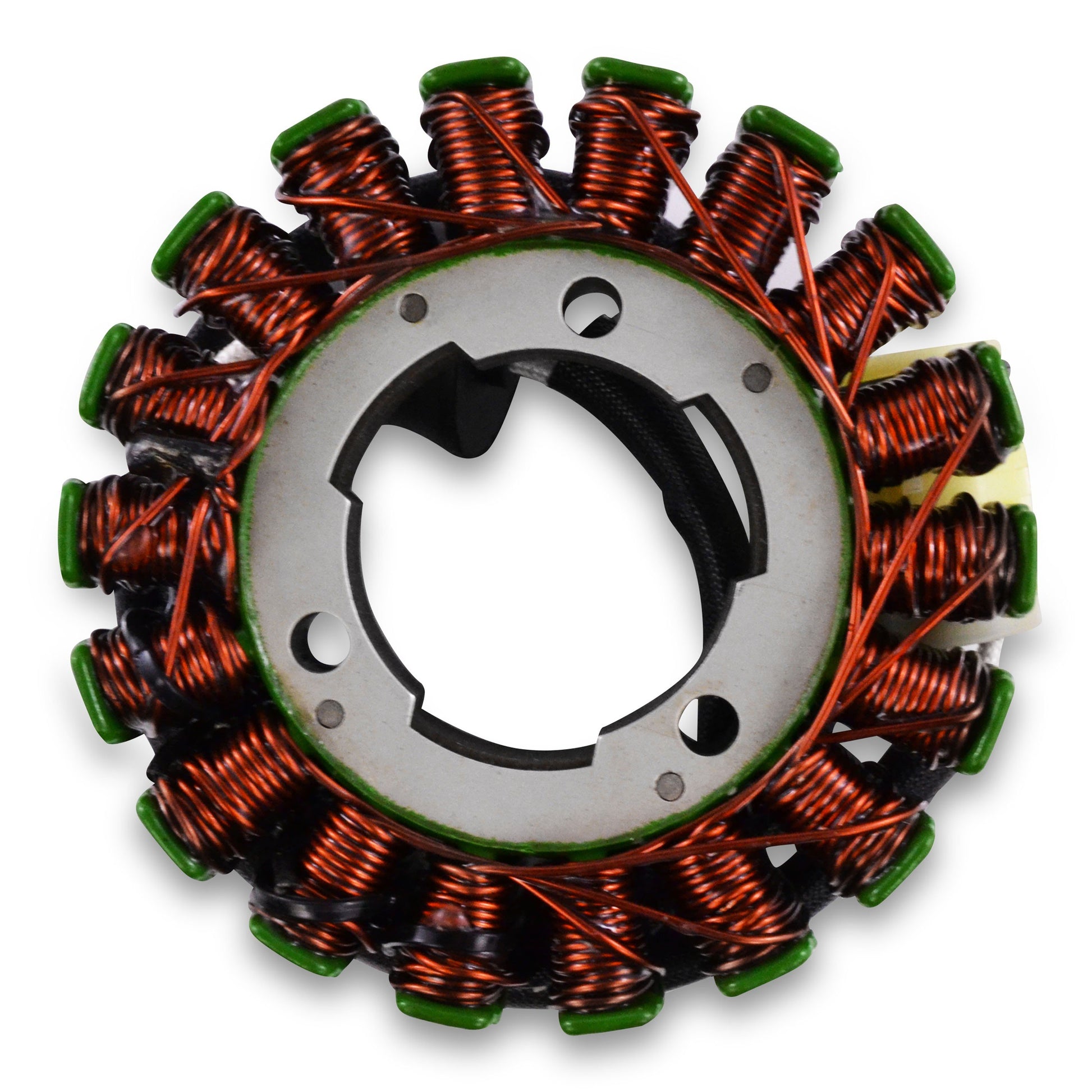

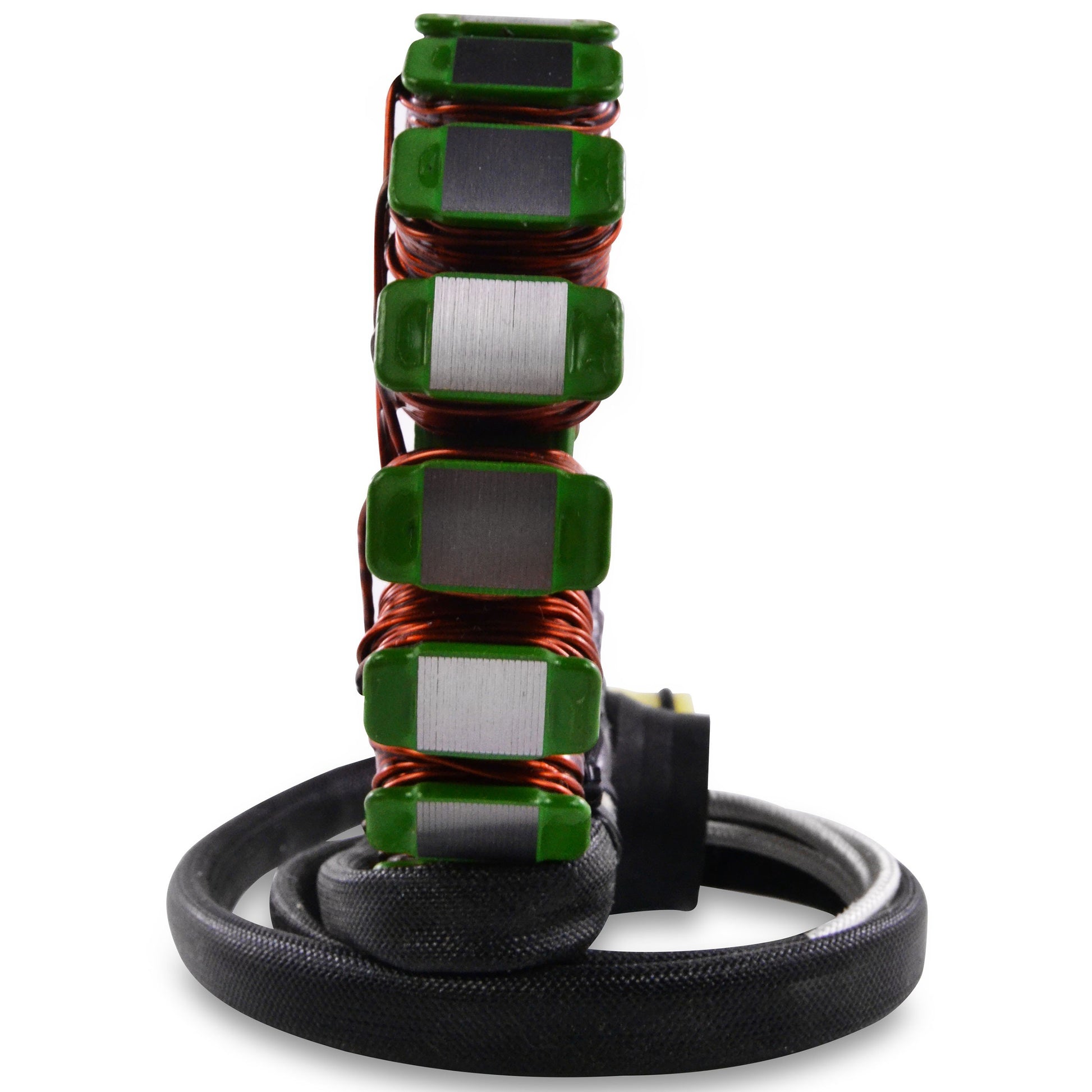

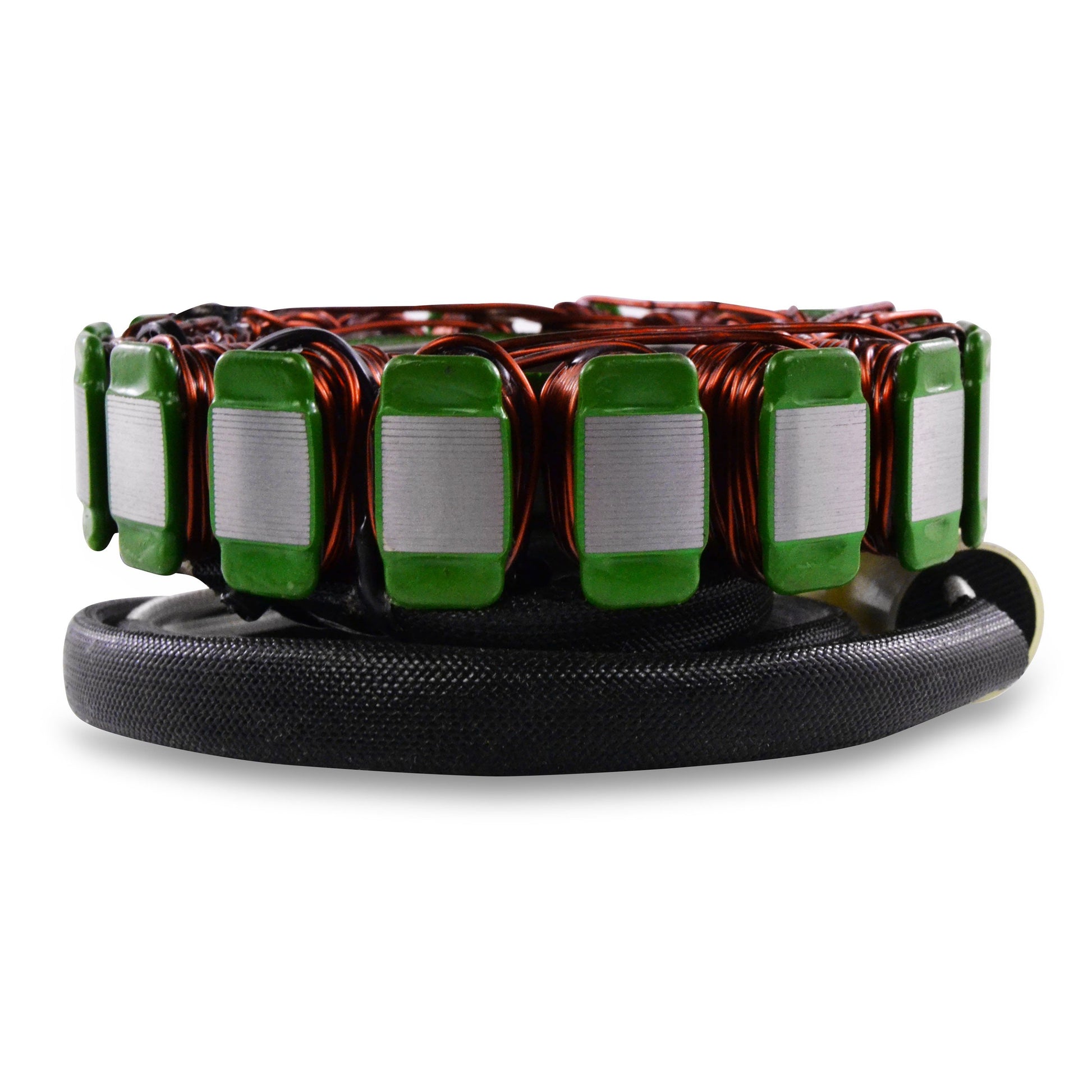

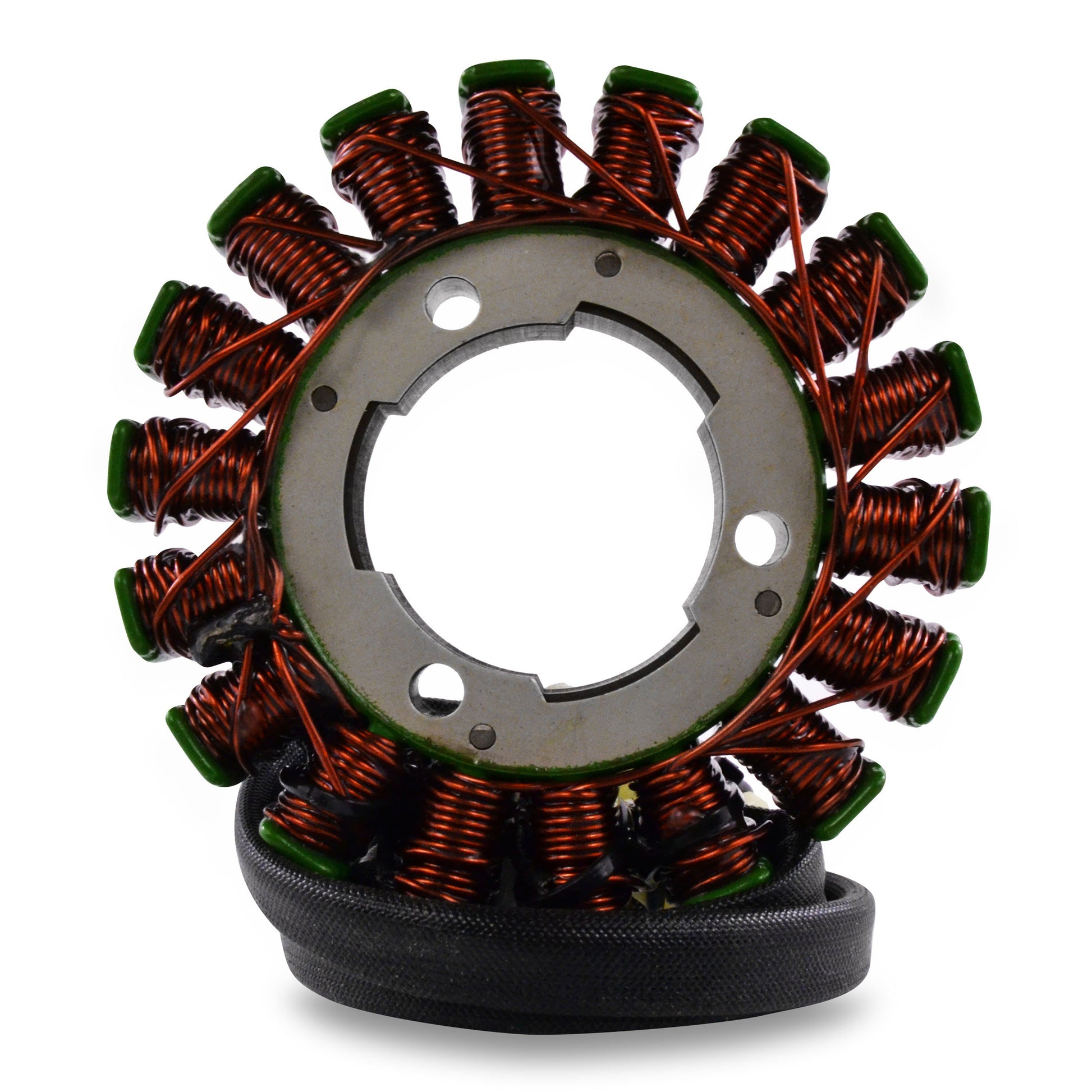

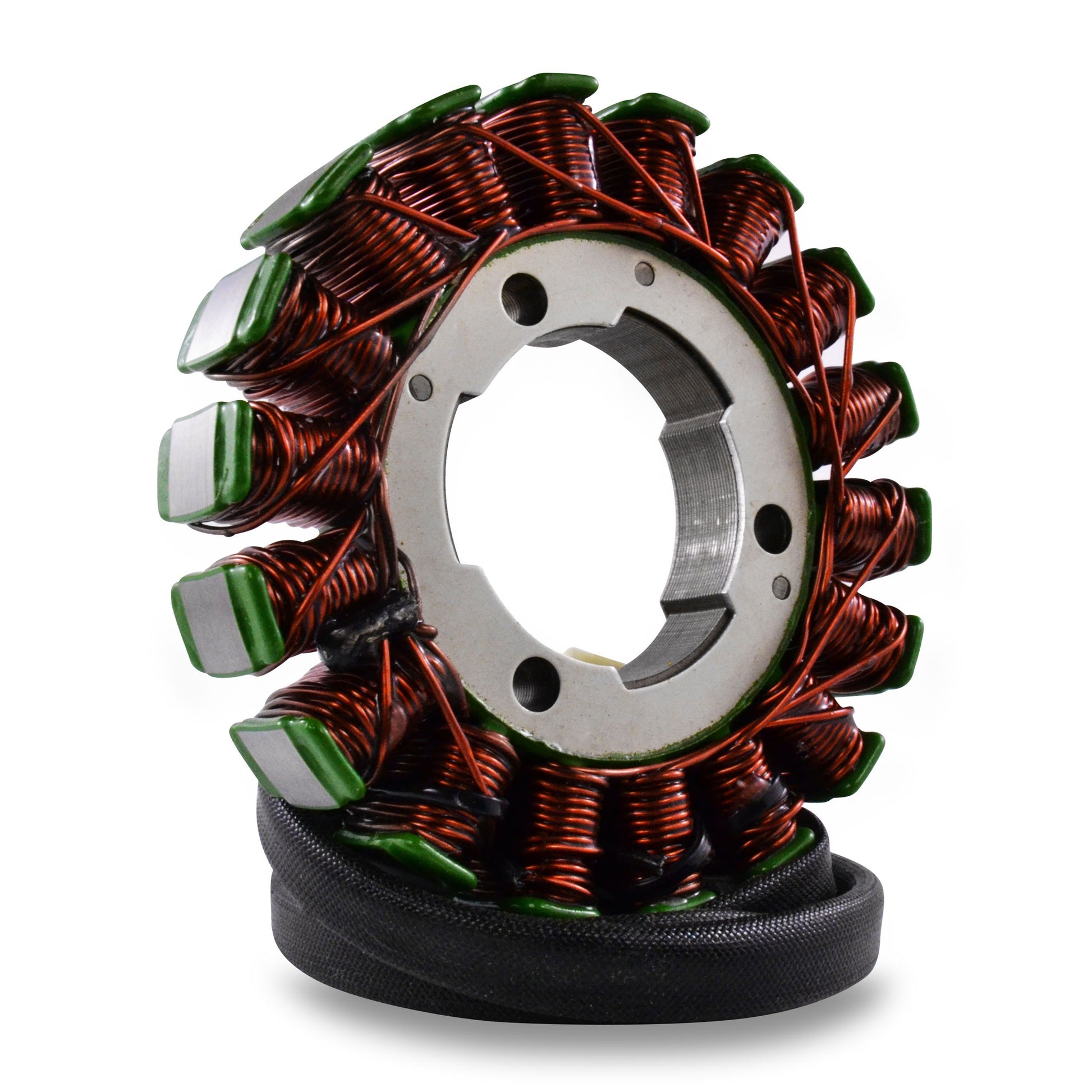

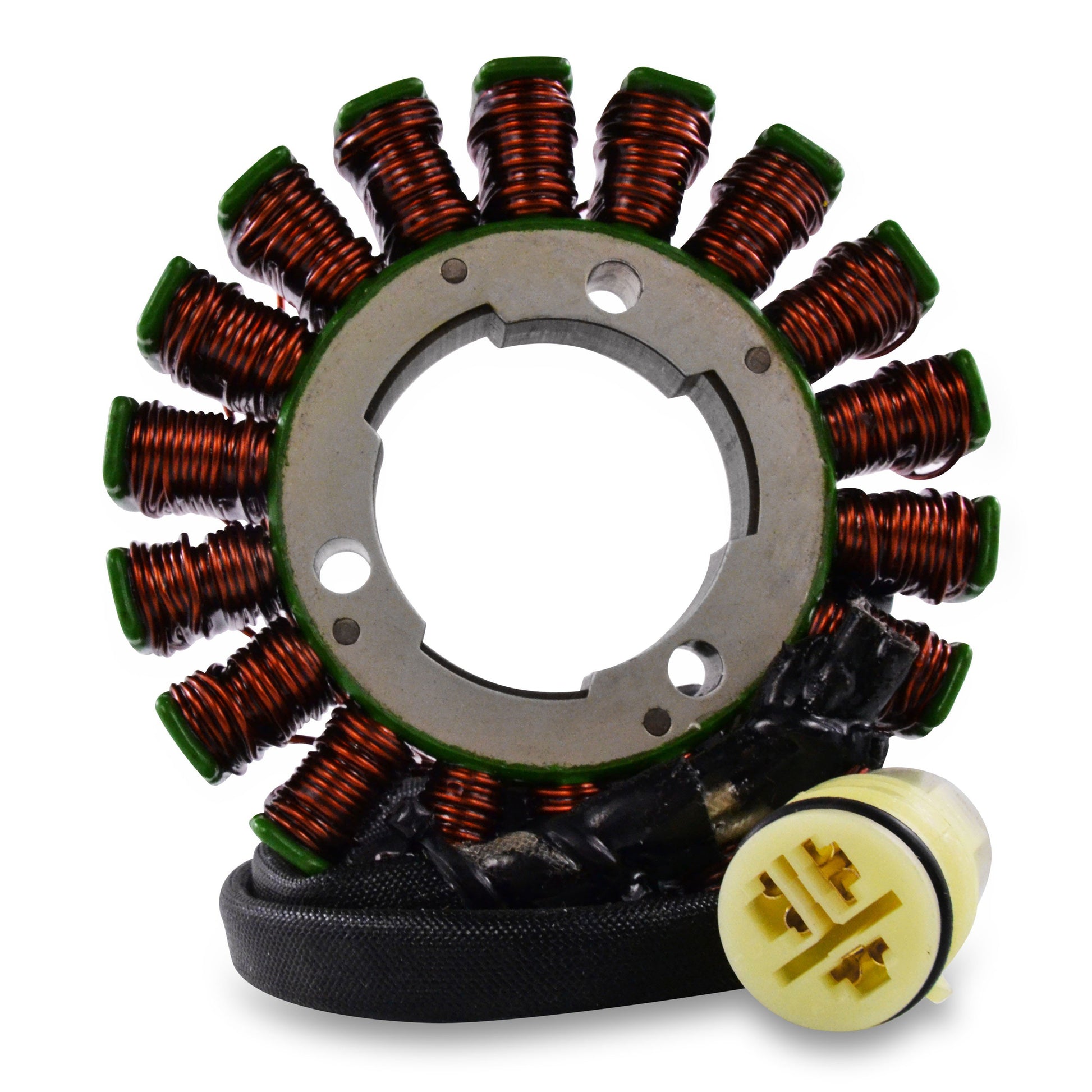

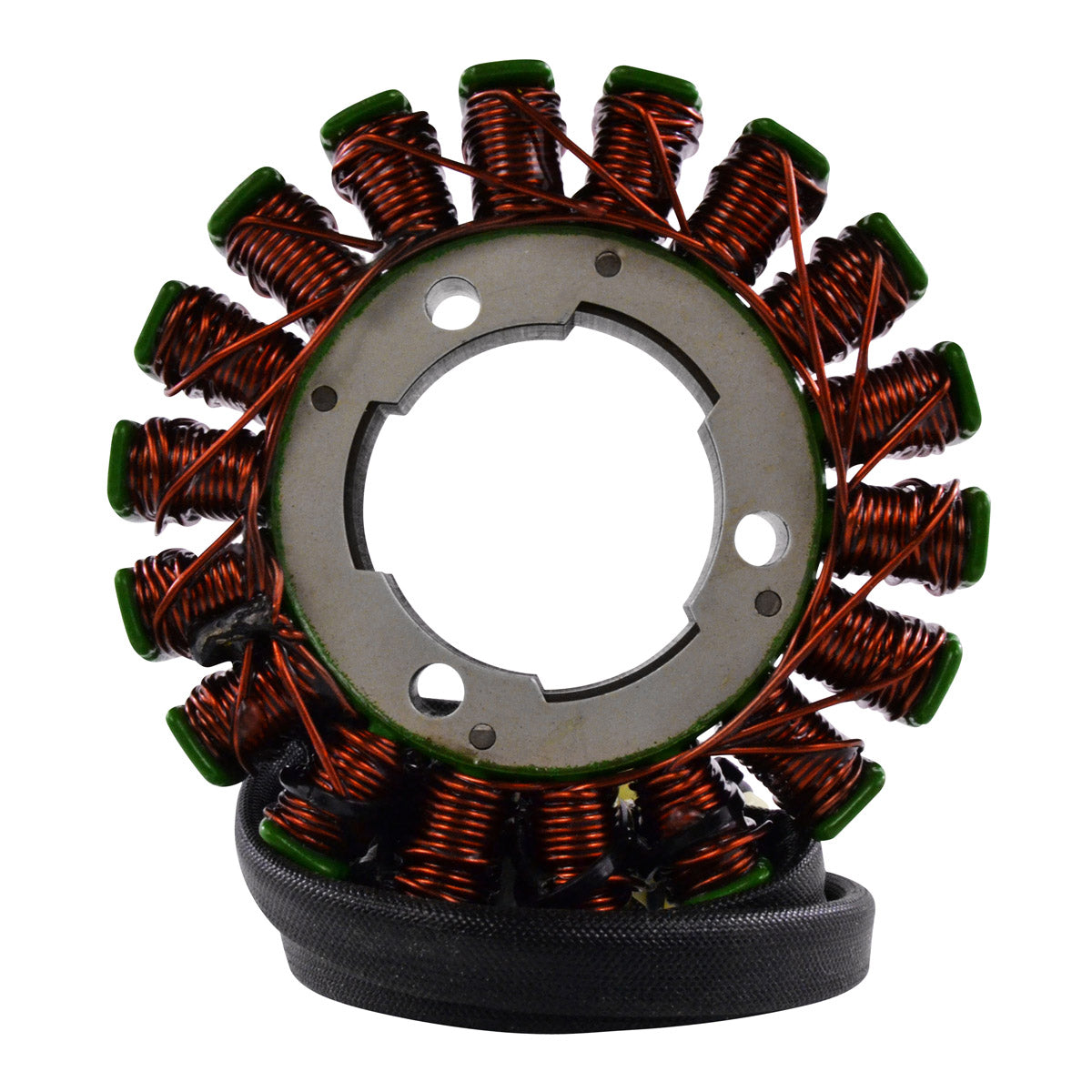

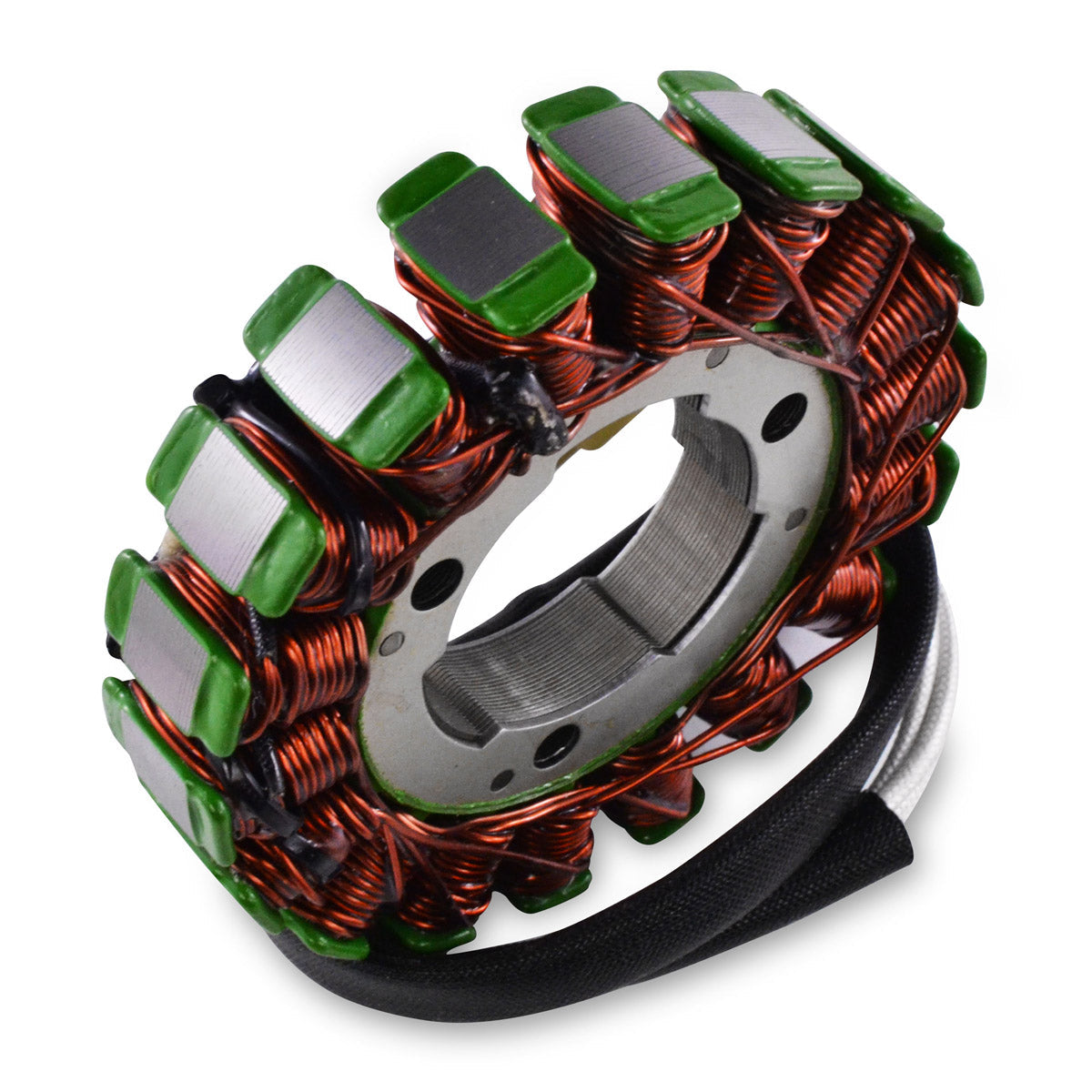

This is a brand new aftermarket generator stator supplied as a direct replacement for the original charging unit on Kawasaki Jet Ski JT1200 and JT1500 personal watercraft. It is a plug-and-play, direct fit part built to the original 41 mm interior diameter, 104 mm exterior diameter and 14 mm thickness, with the original short 75 mm lead to the grommet and 60 mm run to the plug, so it drops straight into the standard housing and connects to the untouched loom.
The stator is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. Charging output on a personal watercraft has to survive constant heat, vibration and a damp engine bay, and the temperature rating of the winding insulation is what decides how long the unit lasts. The connector and rubber grommet are both included so the loom seals correctly on refit, and every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

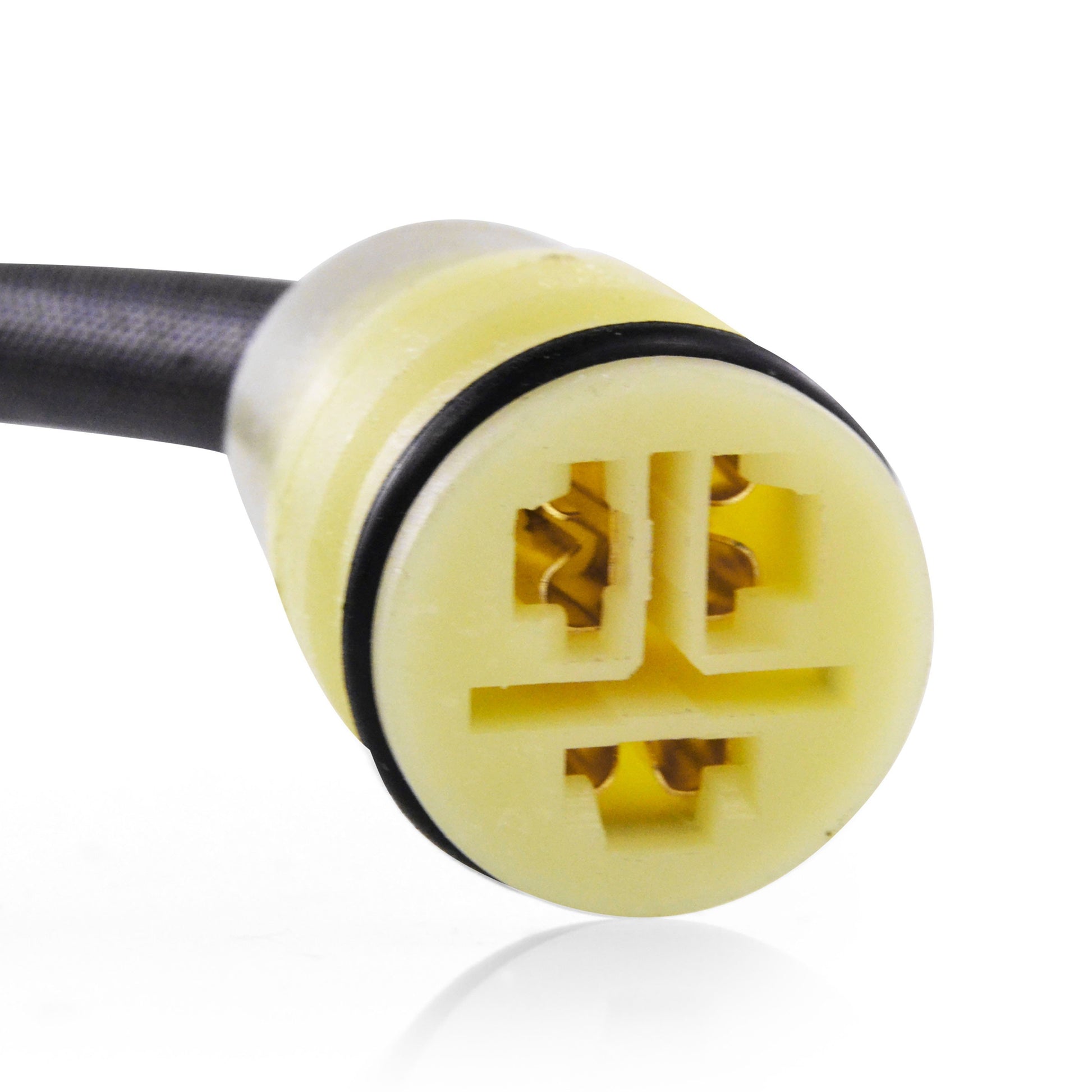

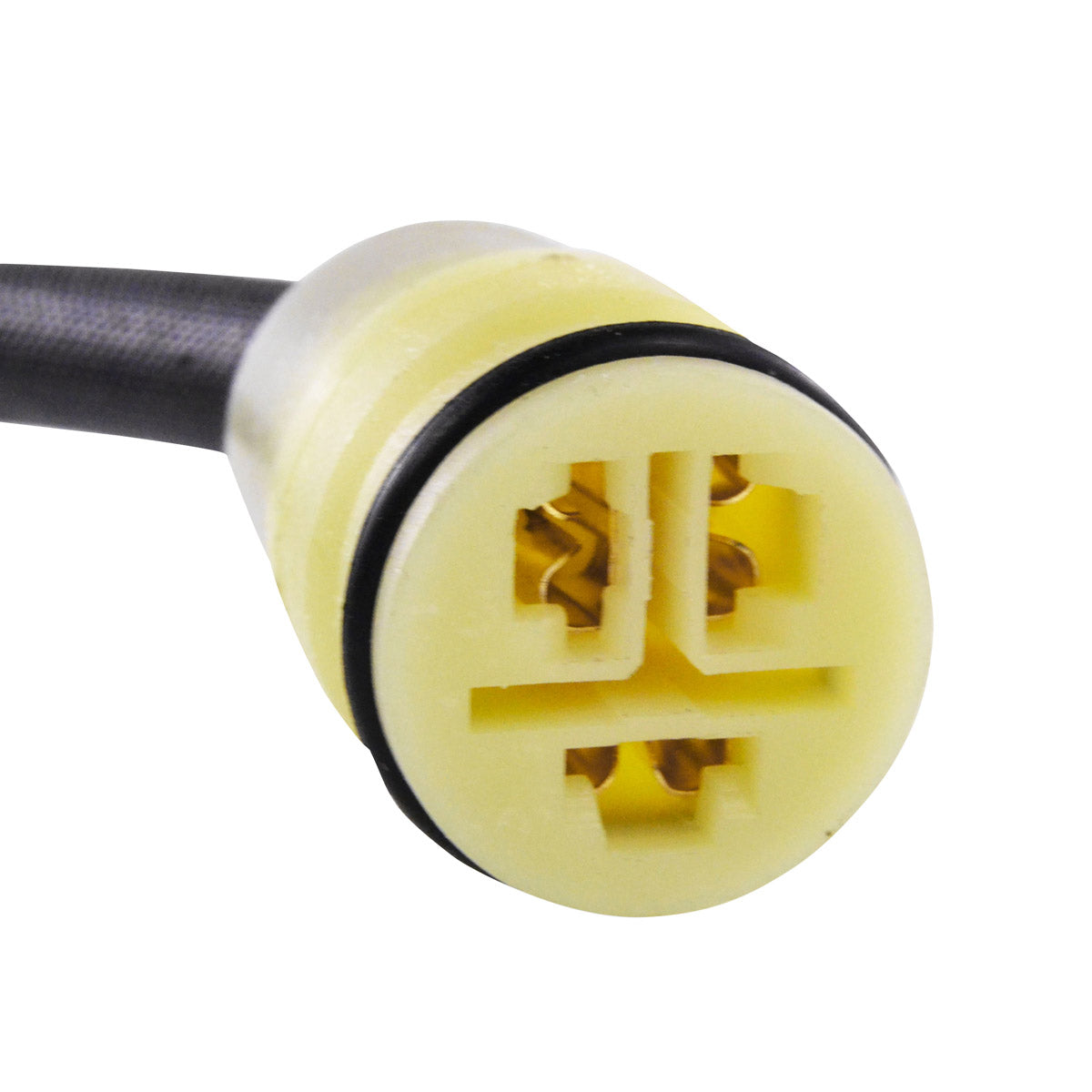

- Three-wire, three-pin single plug output
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 41 mm |
| Exterior diameter | 104 mm |
| Thickness | 14 mm |
| Wire length, stator to grommet | 75 mm |
| Wire length, grommet to plug | 60 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator wire-to-wire resistance | Between each White = 1.1 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part reference | RM01536 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Jet Ski STX-12F (JT1200) | 2003-2026 |
| Kawasaki Jet Ski Ultra 250 (JT1500) | 2003-2026 |
| Kawasaki Jet Ski Ultra 260 (JT1500) | 2003-2026 |
| Kawasaki Jet Ski Ultra 300 (JT1500) | 2003-2026 |
| Kawasaki Jet Ski Ultra 310 (JT1500) | 2003-2026 |
| Kawasaki Jet Ski Ultra LX (JT1500) | 2003-2026 |
| Kawasaki Jet Ski Ultra R (JT1500) | 2003-2026 |
| Kawasaki Jet Ski Ultra X (JT1500) | 2003-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-3747 | Kawasaki |
Frequently Asked Questions
Does fitting this require modification?
No. It is a direct, plug-and-play replacement matching the original dimensions, wire lengths and three-pin plug, so it mounts in the standard location and connects to the existing harness with no cutting or splicing.
What is included?
The stator assembly with the connector and the rubber grommet included. All products shipped are tested.
How do I confirm the old stator has failed?
With the plug disconnected, measure between each pair of white wires. Every combination should read 1.1 ohms +/- 20%. An open circuit on any leg, a reading well outside that band, or continuity between any white wire and the stator core or engine case indicates a failed stator.
Is this the same part as the STX-15F stator?
No. This unit cross references to Kawasaki 21003-3747 and is 14 mm thick. Other Jet Ski stators in the same family use a different OEM number and a different thickness, so check the number stamped on or supplied with your original unit before ordering.
