Generator Stator for Kawasaki Jet Ski STS and STX
STS 900, STX 900 and STX 1100 - 1999-2006

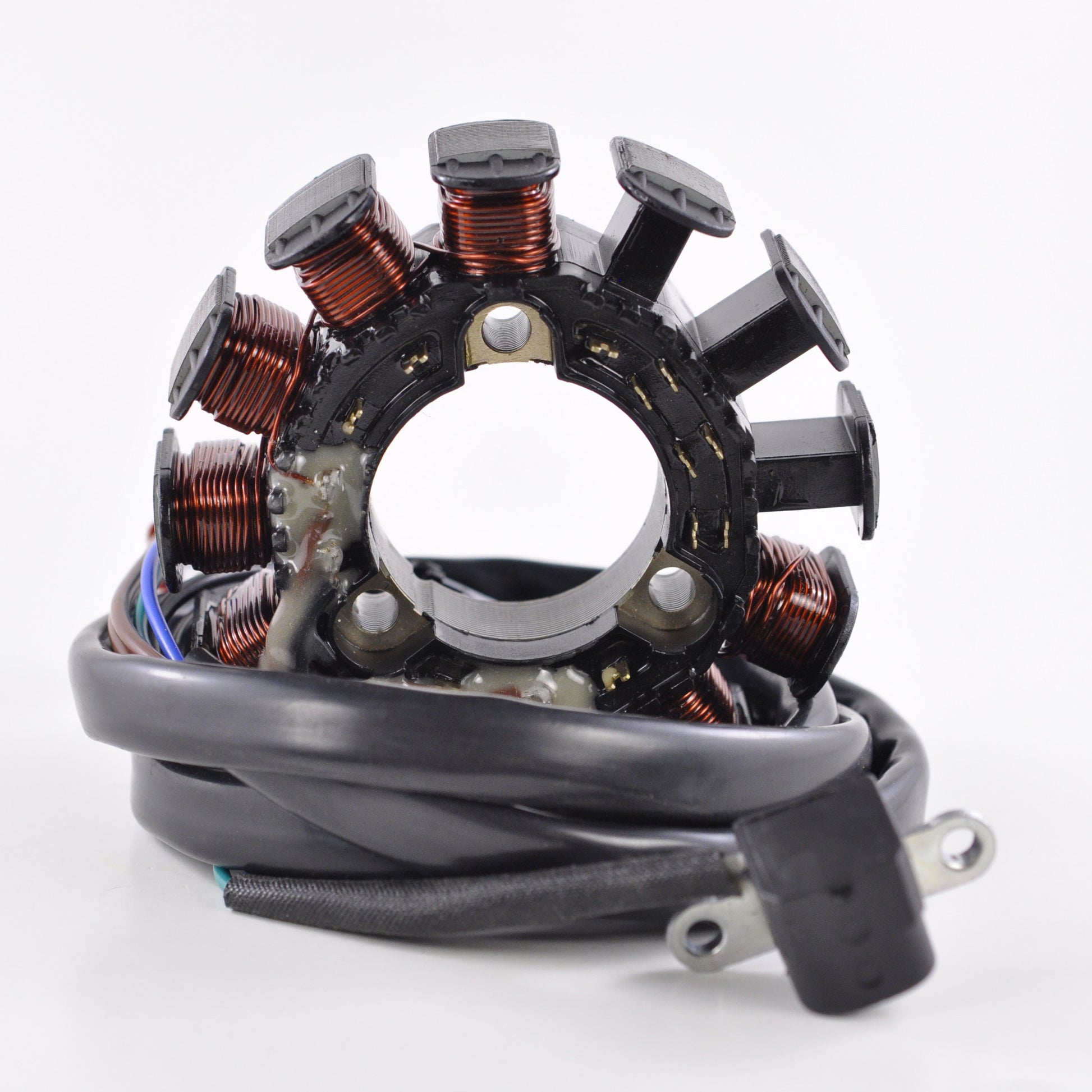

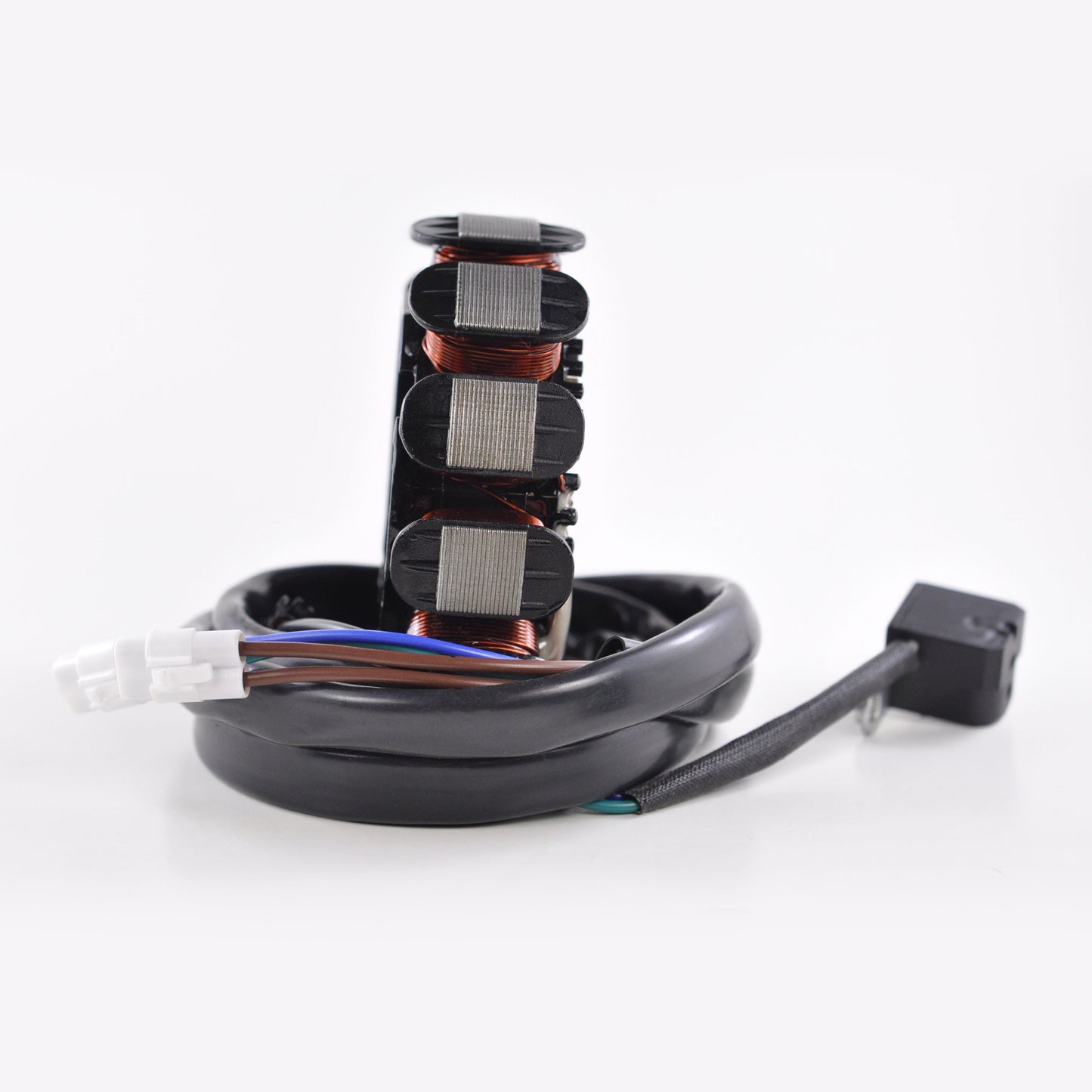

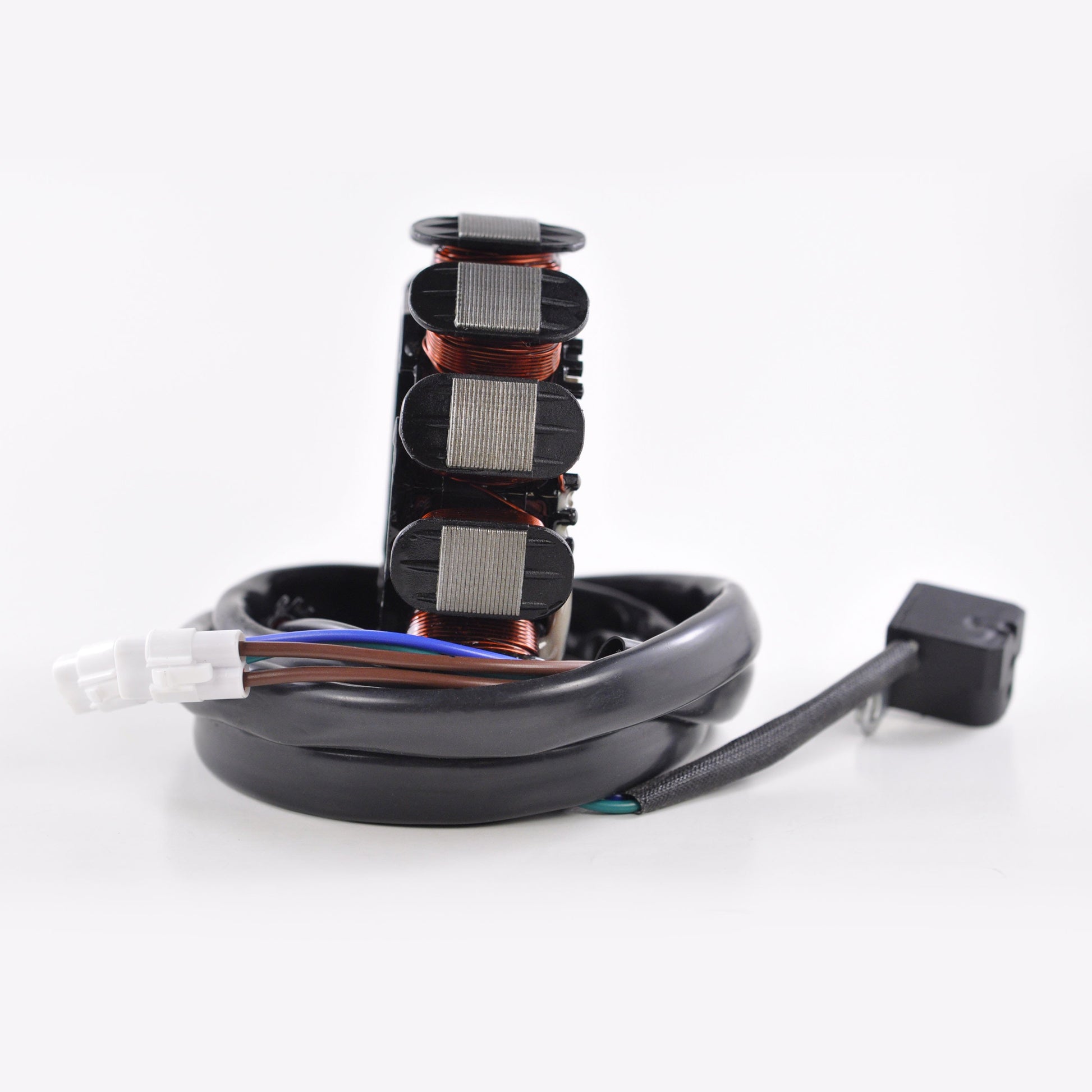

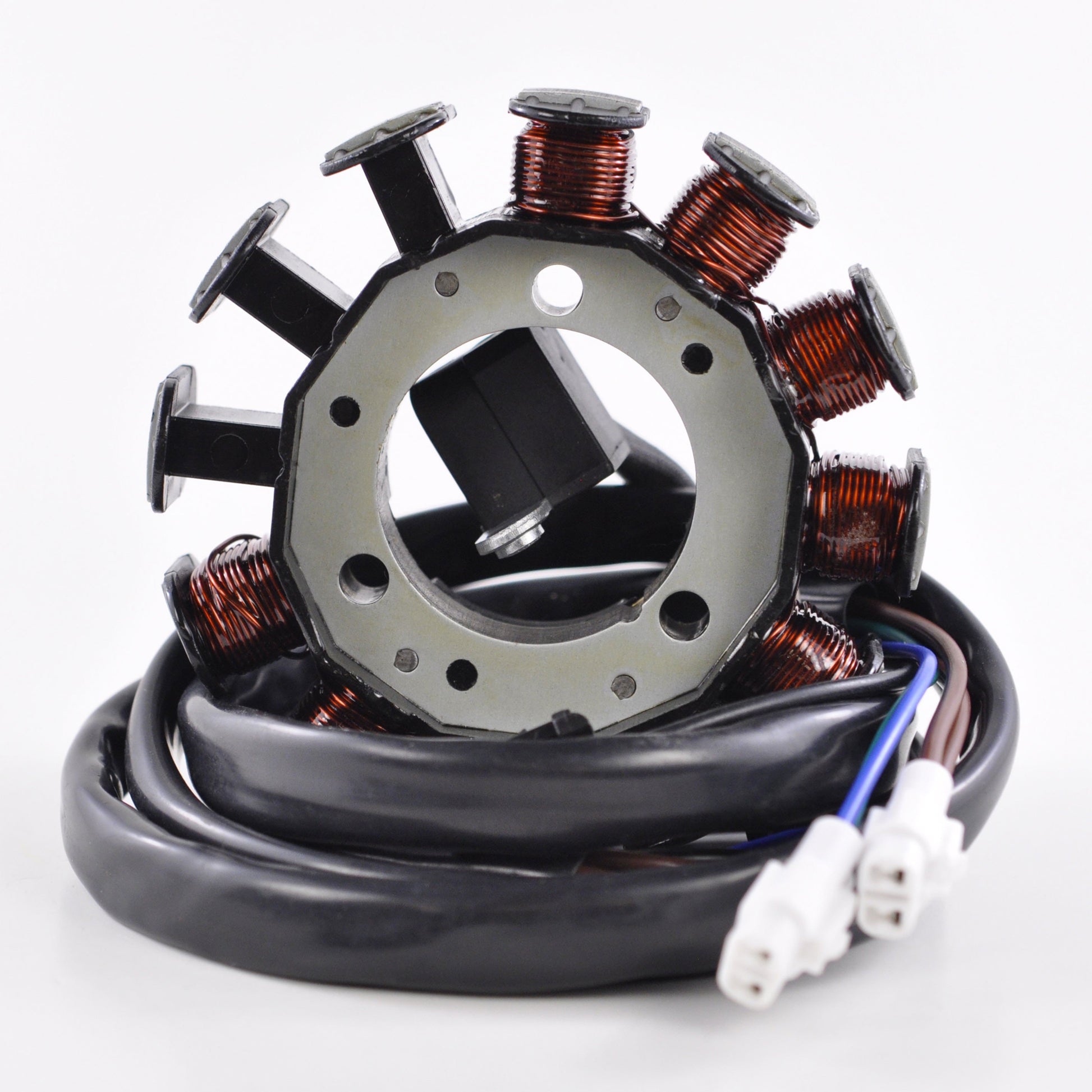

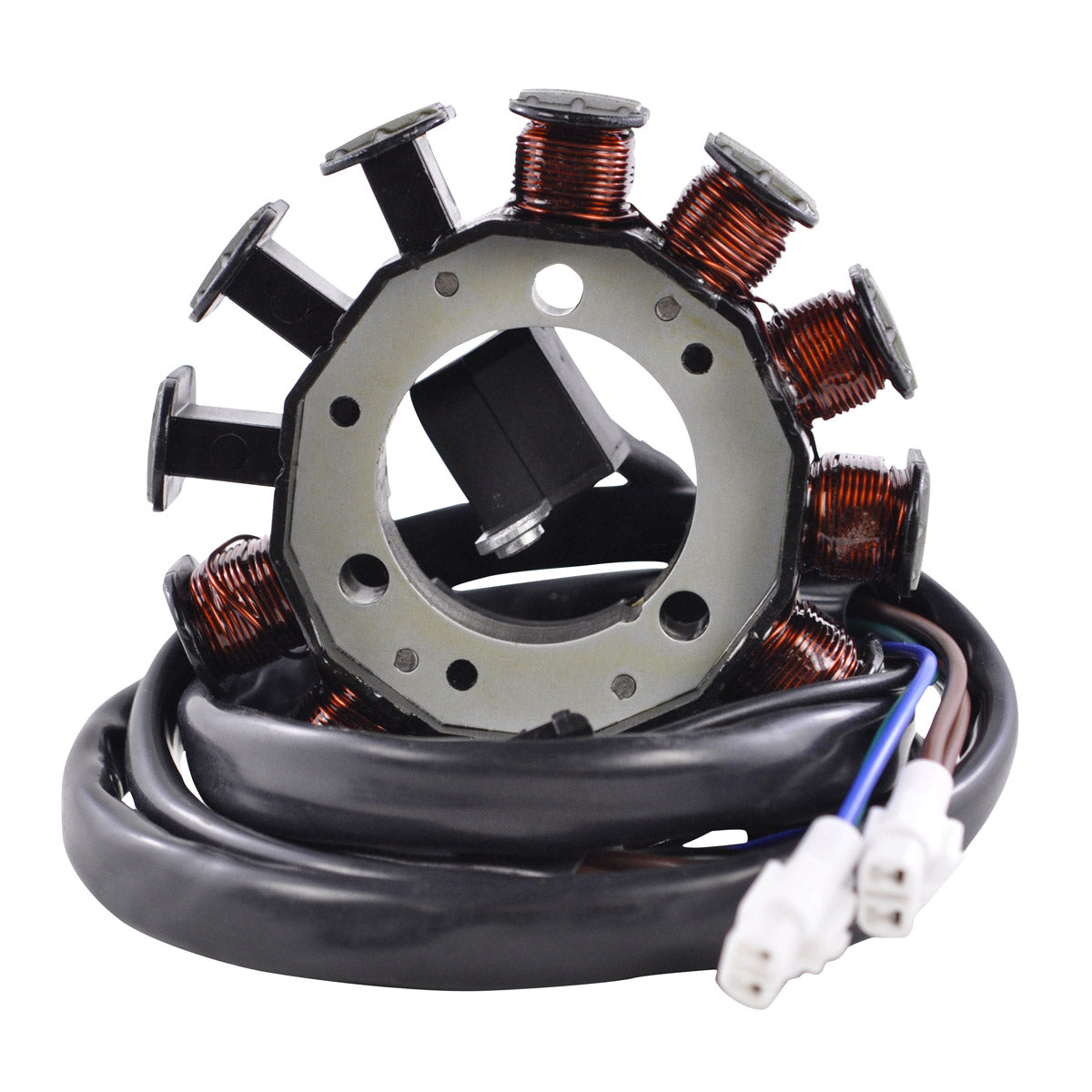

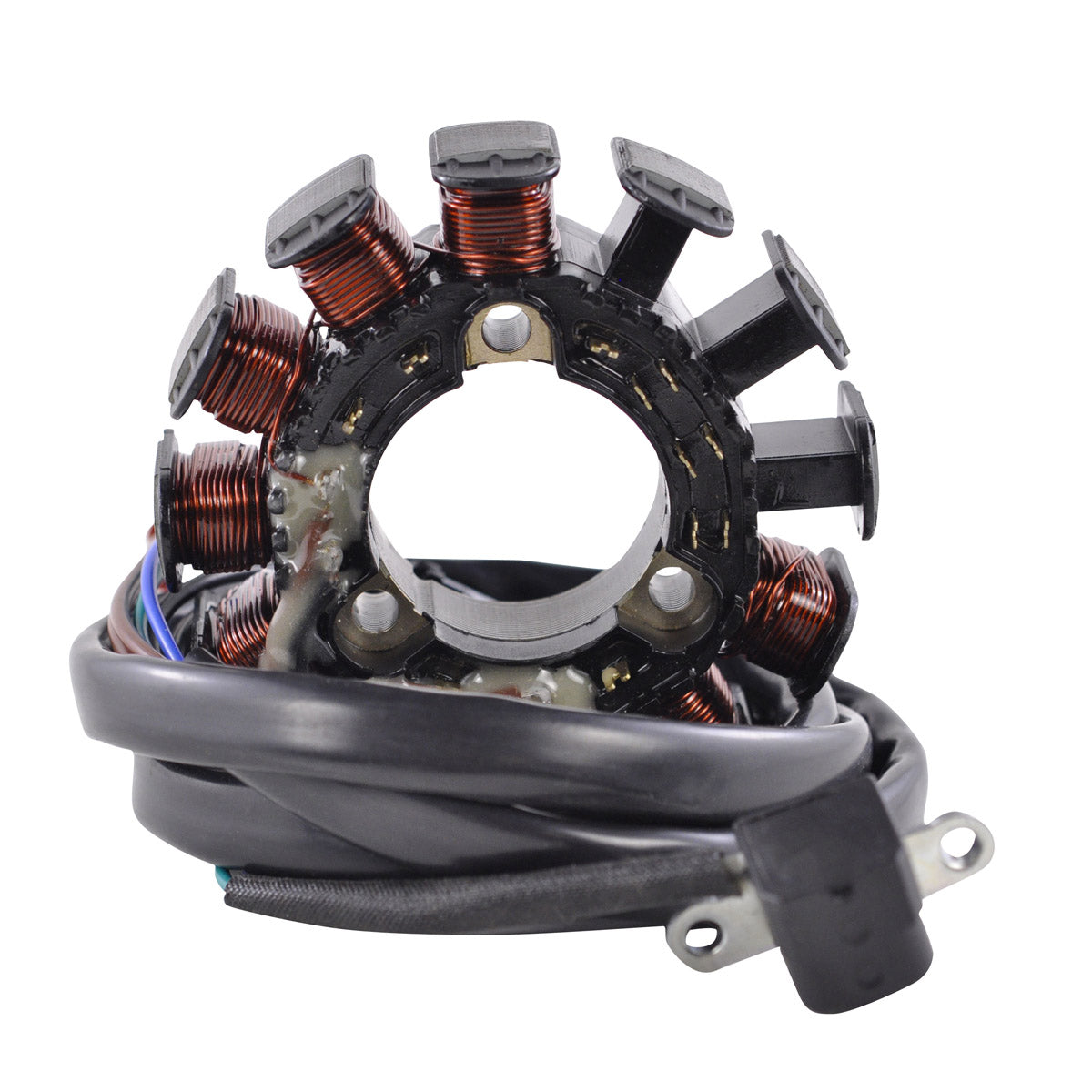

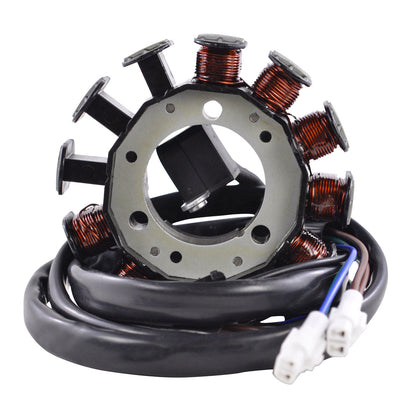

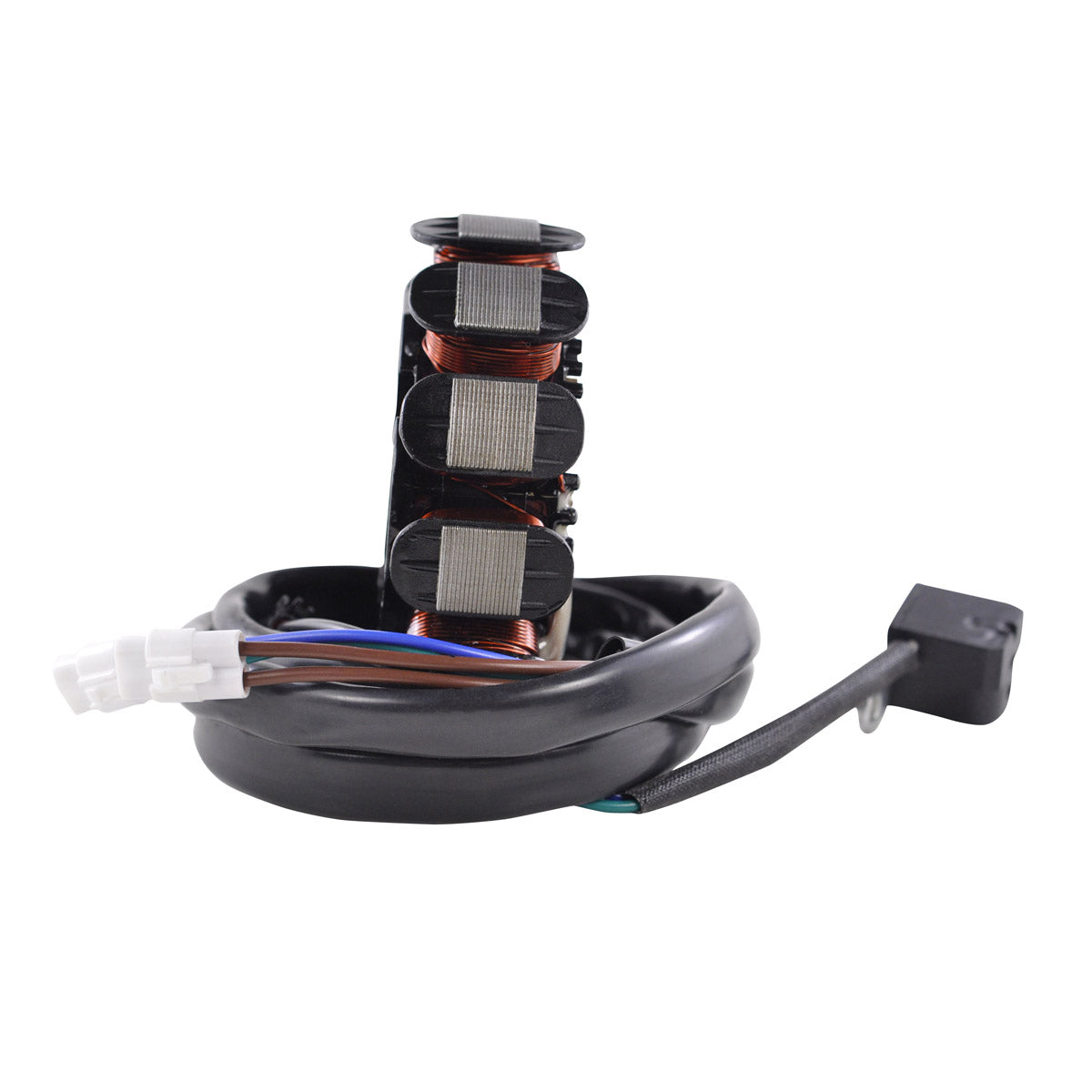

This is a brand new aftermarket generator stator, part number RM01527, built as a direct replacement for the original unit fitted to the Kawasaki Jet Ski STS 900, STX 900 and STX 1100 from 1999 to 2006. It replaces Kawasaki OEM number 21003-3736. The assembly is plug-and-play and a direct fit, so it drops onto the original mounting points and reconnects to the standard loom through the same three plugs, with no cutting, splicing or drilling required anywhere on the craft.
The unit is built on the highest grade lamination stack and wound with the highest grade copper, and the winding insulation is rated to withstand 200 degrees Celsius. That rating is what keeps a stator alive inside a sealed magneto cover on a marine two stroke, where there is almost no airflow and the case runs hot for the whole time the engine is running. Note the unusually long lead from the grommet to the plug at 1,270 mm, which is what allows the loom to route the full way back to the electrical box on these hulls. The pickup pulsar coil, the connector and the rubber grommet are all supplied with the stator, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pickup pulsar coil included
- Connector and rubber grommet included
- Long 1,270 mm lead from grommet to plug for full factory routing
- All products tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |
| Thickness | 16 mm |
| Wire length, stator to grommet | 110 mm |
| Wire length, grommet to plug | 1,270 mm |
| Pickup coil wire to grommet | 95 mm |
| Number of wires | 5 |

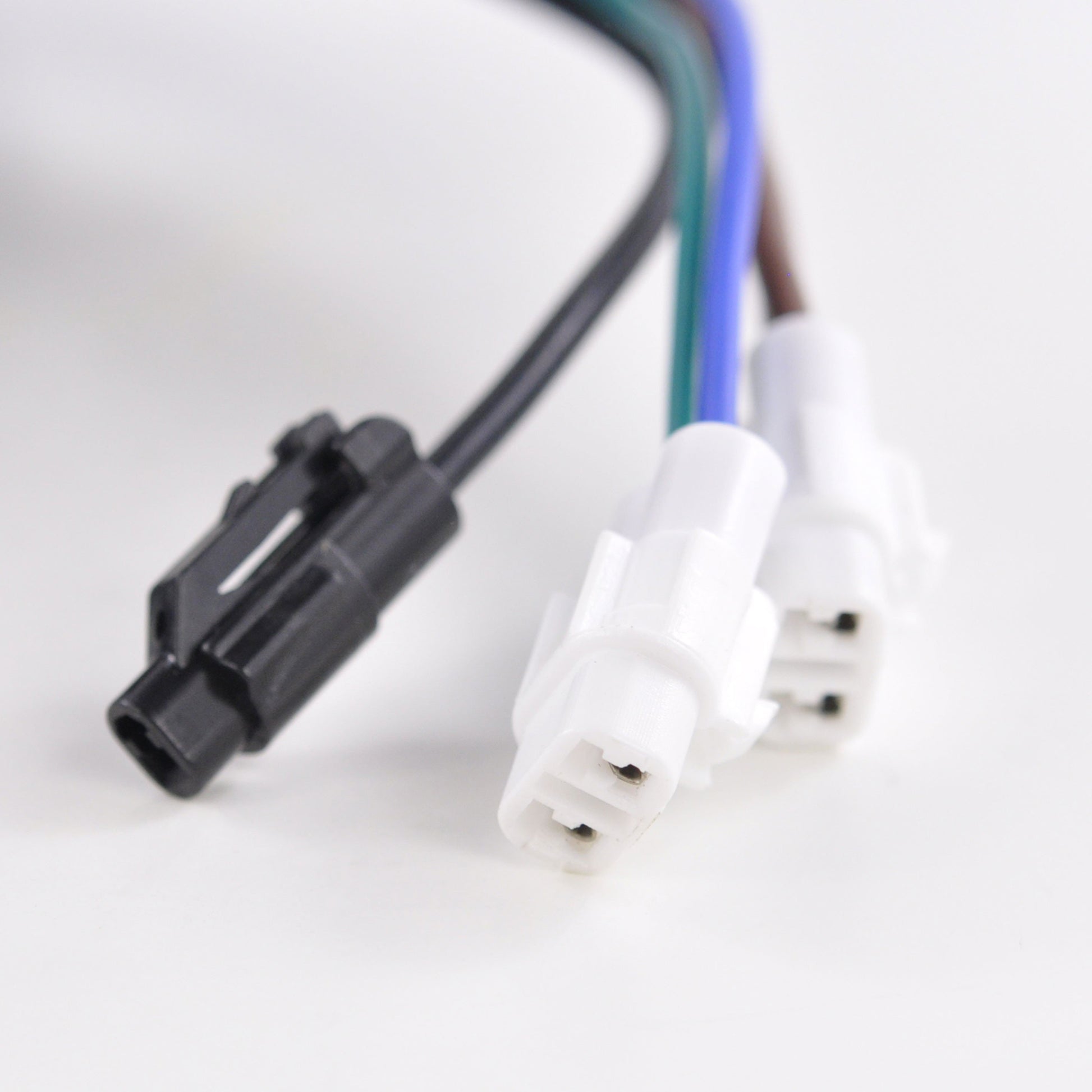

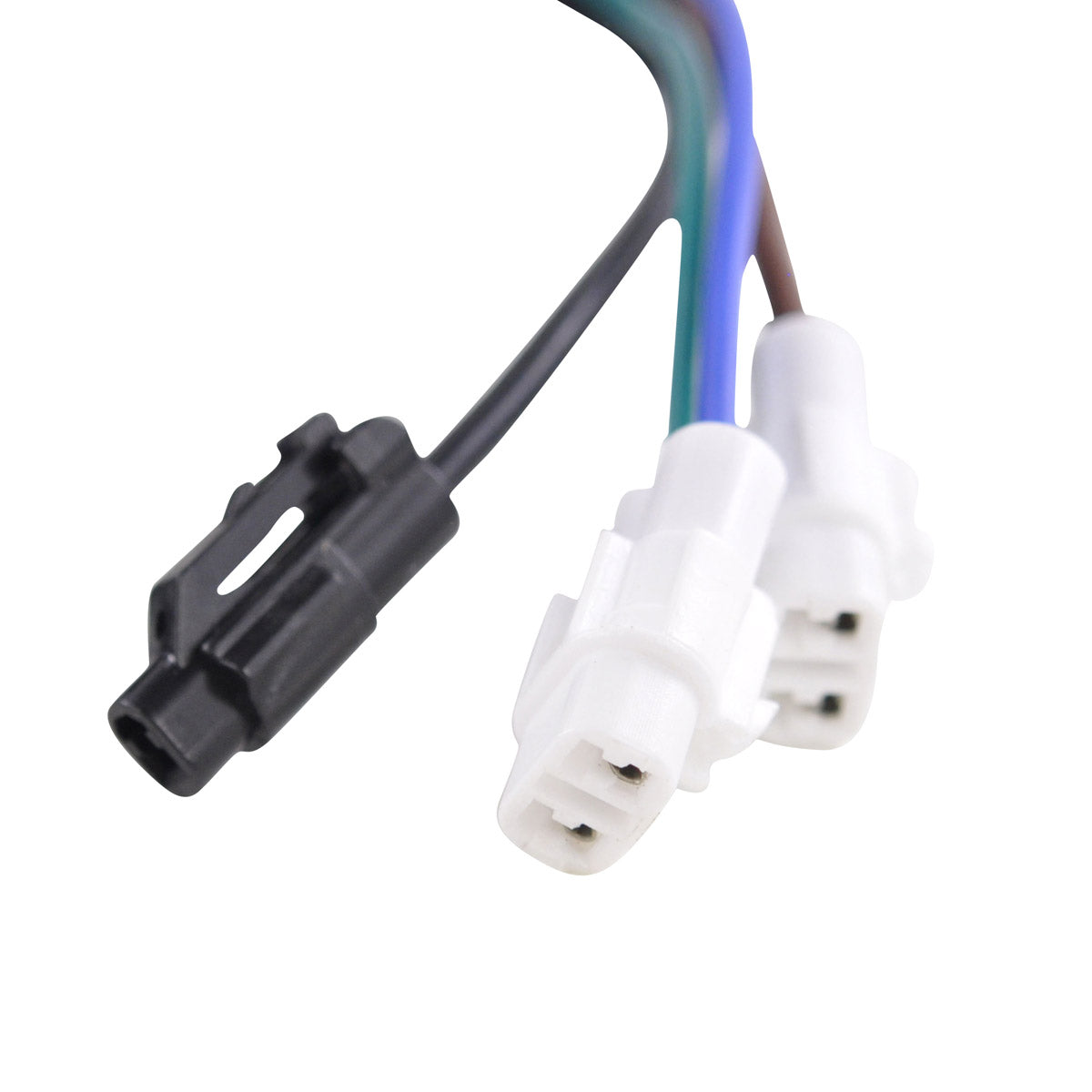

| Number of plugs | 3 |
| Number of pins | 5 |
| Alternator resistance, brown to brown | 1.2 ohms, plus or minus 20% |
| Pickup resistance, green to blue | 523 ohms, plus or minus 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RM01527 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Jet Ski STS 900 | 1999-2006 |
| Kawasaki Jet Ski STX 900 | 1999-2006 |
| Kawasaki Jet Ski STX 1100 | 1999-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-3736 | Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit part that uses the original mounting points and the original three plugs. Nothing needs to be cut, spliced or drilled on a craft that carries Kawasaki OEM number 21003-3736.
What is included?
The stator unit, the pickup pulsar coil, the connector and the rubber grommet. All units are tested before they are shipped.
How do I know my old stator has failed?
Check it cold with a multimeter. Brown to brown across the alternator winding should read about 1.2 ohms and green to blue on the pickup about 523 ohms, both within 20%. An open circuit, a near zero reading, or continuity between any winding and the stator core means the unit has failed. The usual signs on the water are a battery that will not hold charge, an intermittent or absent spark, and an engine that becomes hard to restart once it is hot.
Does the same part cover both the 900 and the 1100 hulls?
Yes. The STS 900, STX 900 and STX 1100 all share the same magneto and the same Kawasaki part number 21003-3736 across the 1999 to 2006 span, so this single stator covers all three.
