Stator for Kawasaki Jet Ski STX-12F, STX-15F, JT1200, JT1500 & Ultra LX 2004-2019
Stator for Kawasaki Jet Ski STX-12F, STX-15F, JT1200, JT1500 & Ultra LX 2004-2019
SKU:RM01528
Free shipping over £150. Terms apply
Couldn't load pickup availability

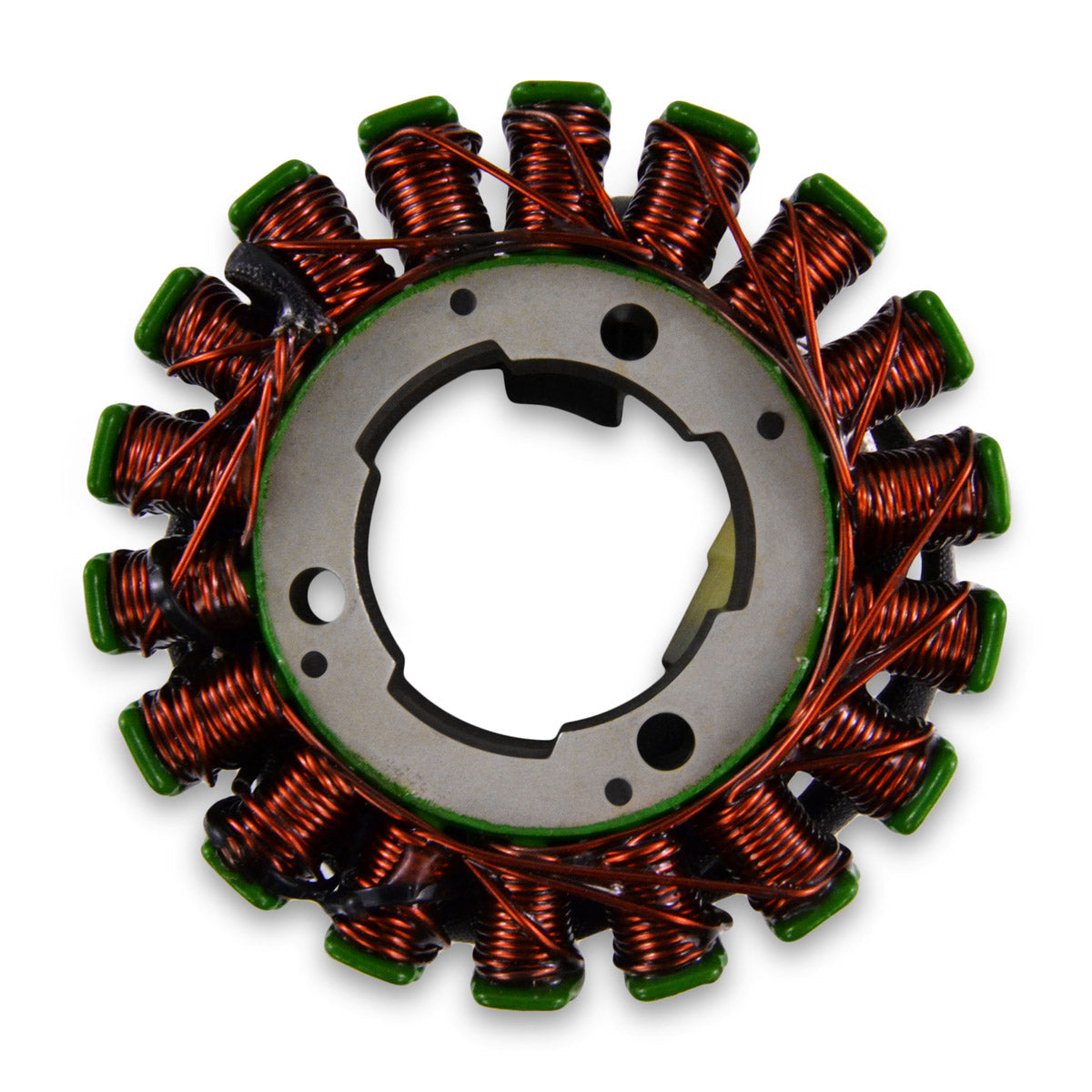

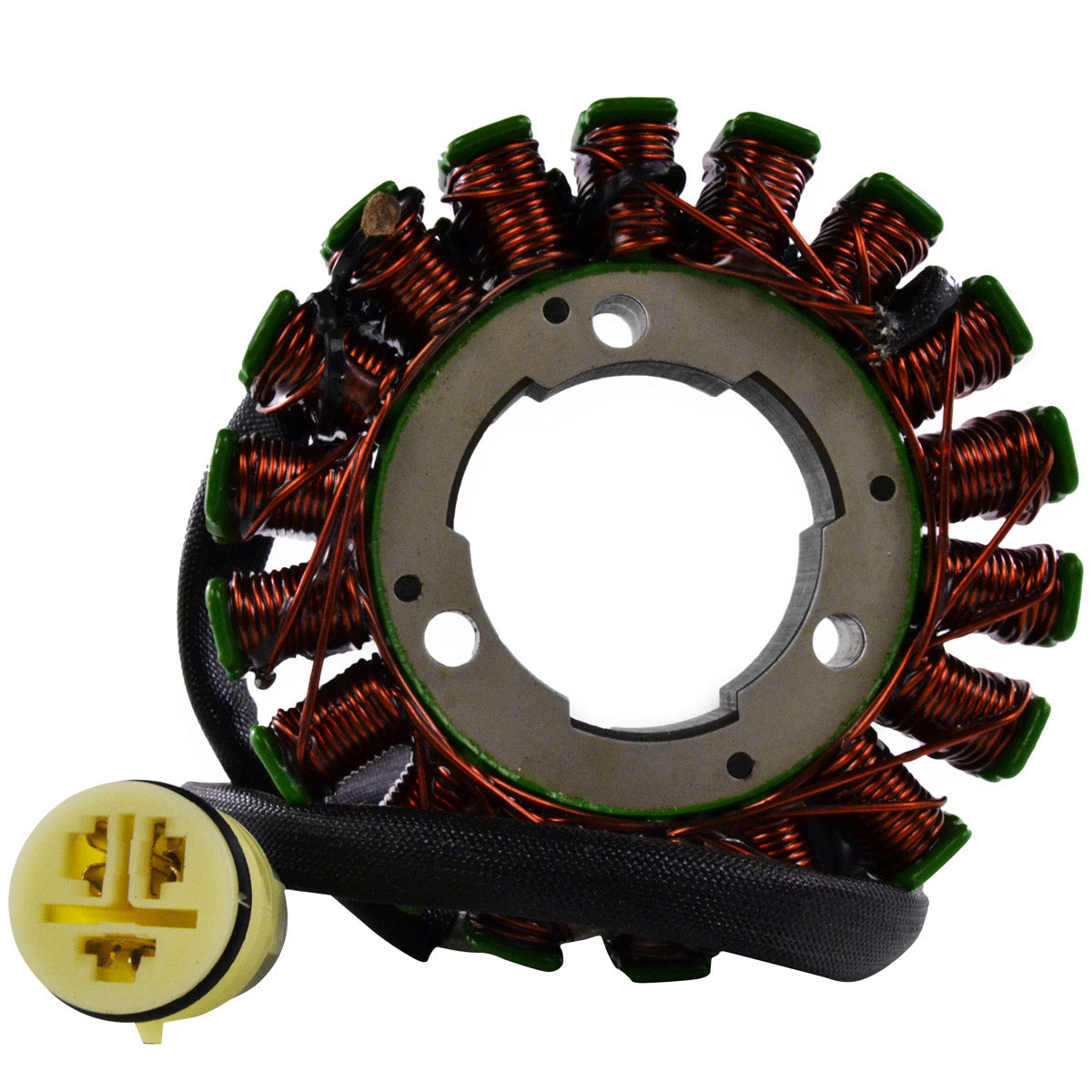

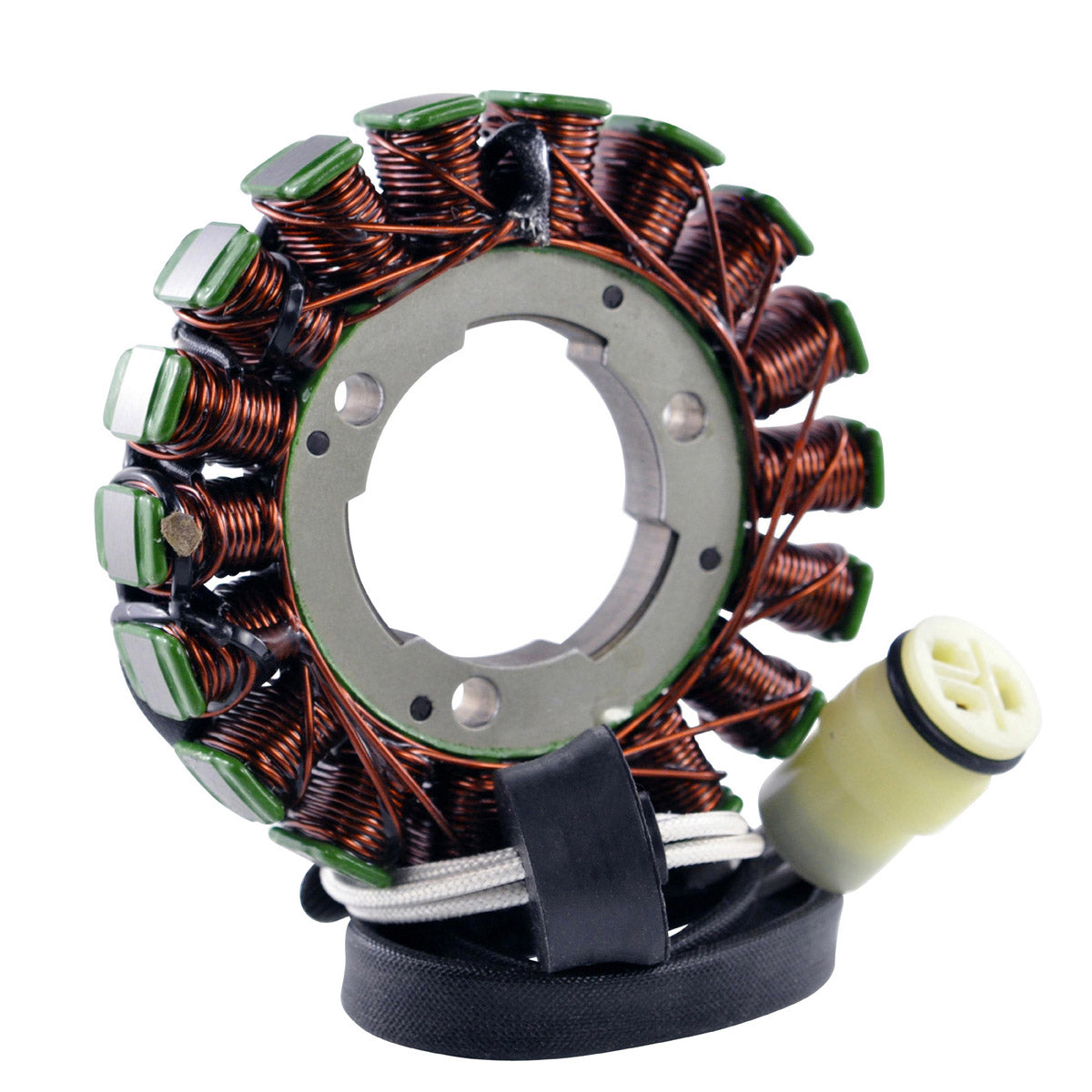

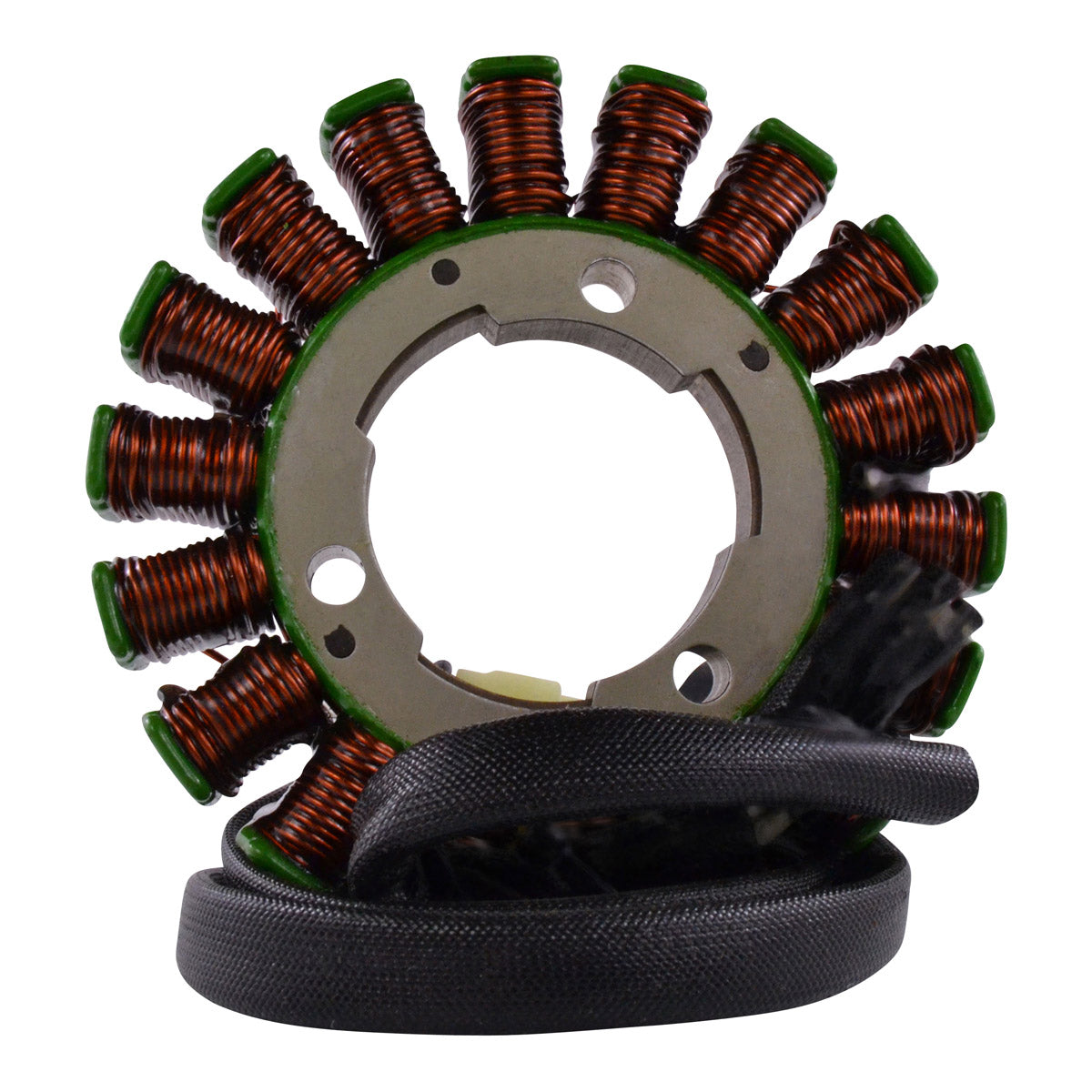

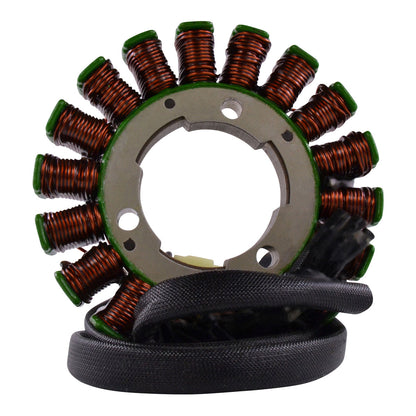

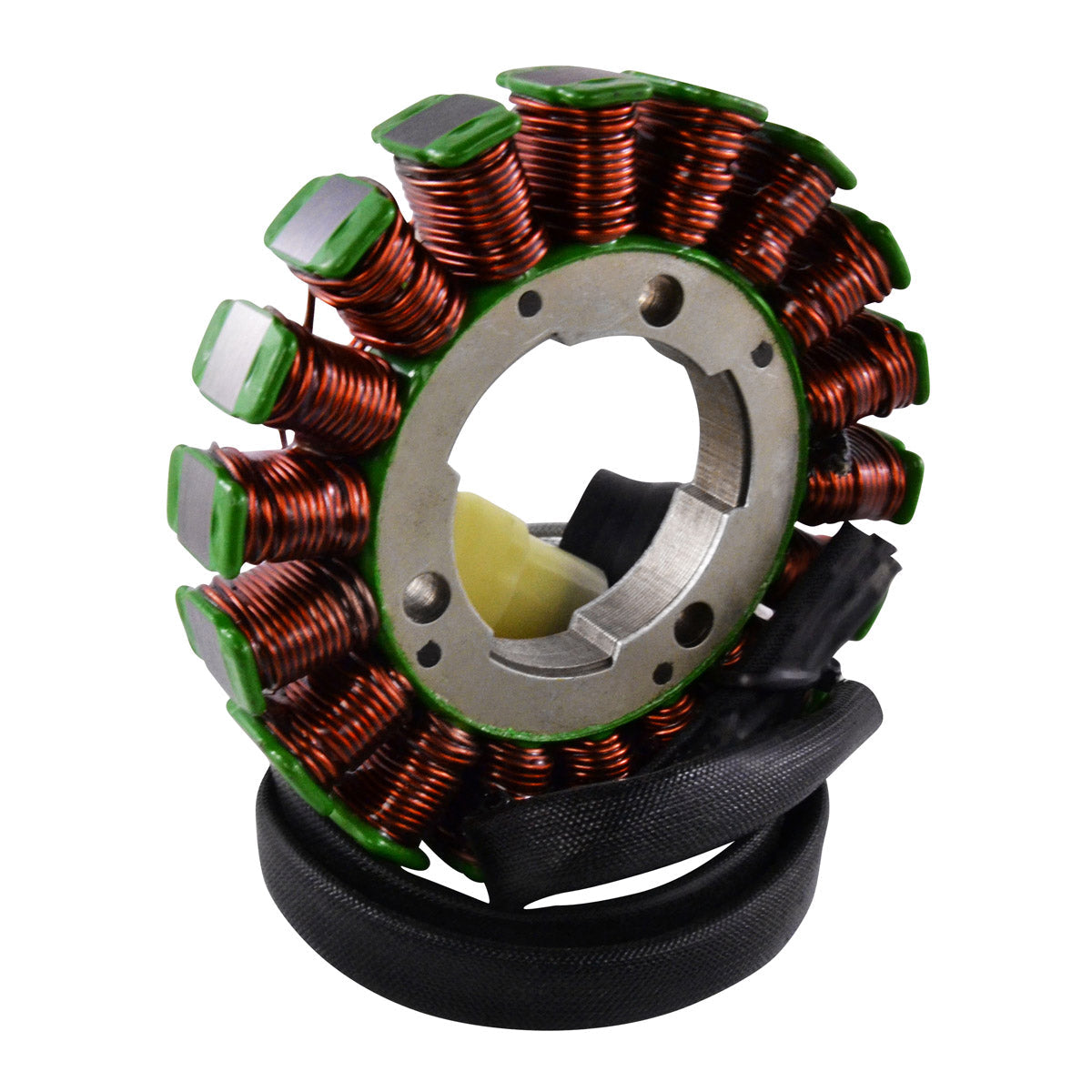

Generator Stator for Kawasaki Jet Ski - Replaces 21003-3749
STX, STX-12F, STX-15F, JT1200, JT1500, SX-R JS1500 and Ultra LX, 2004-2019

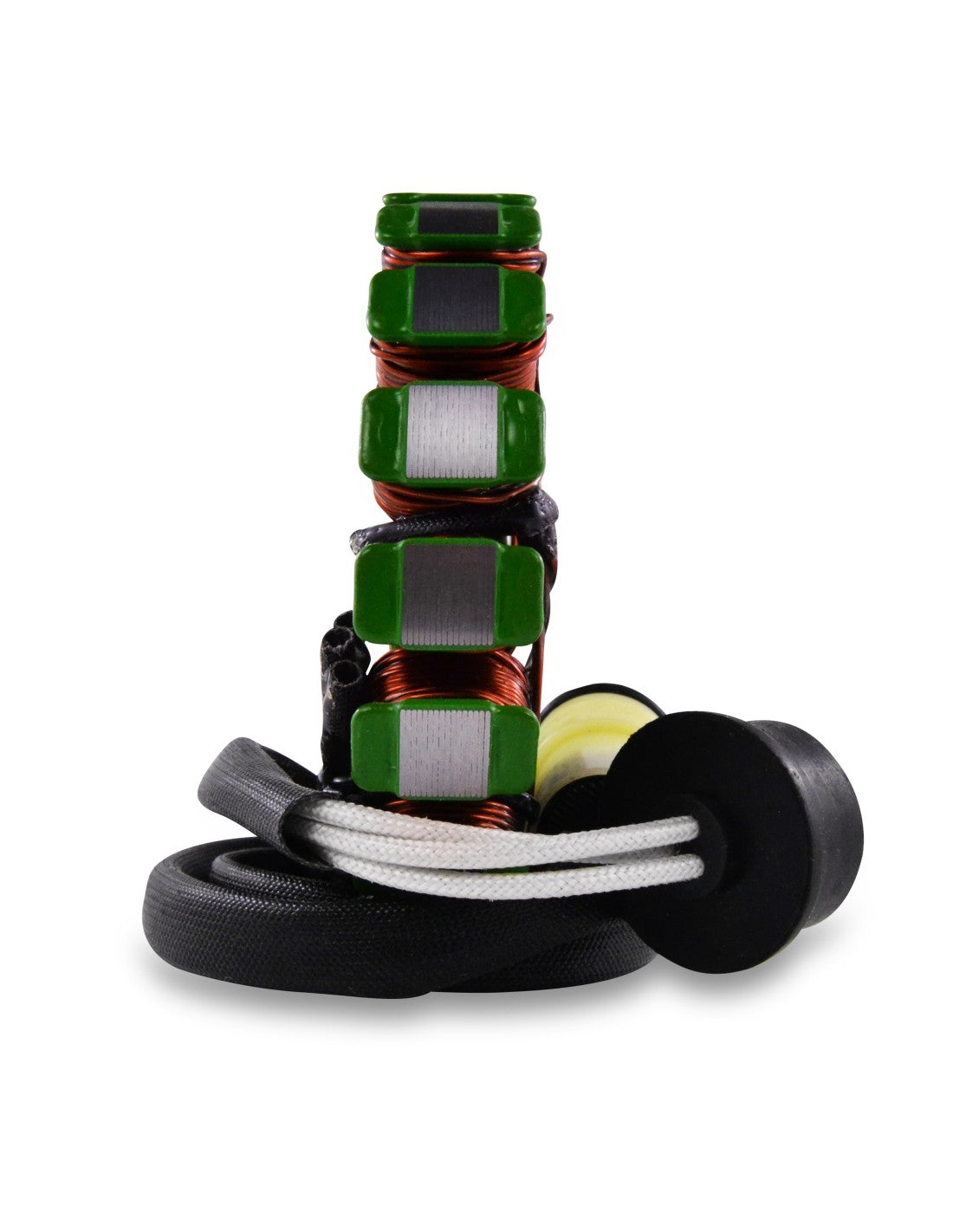

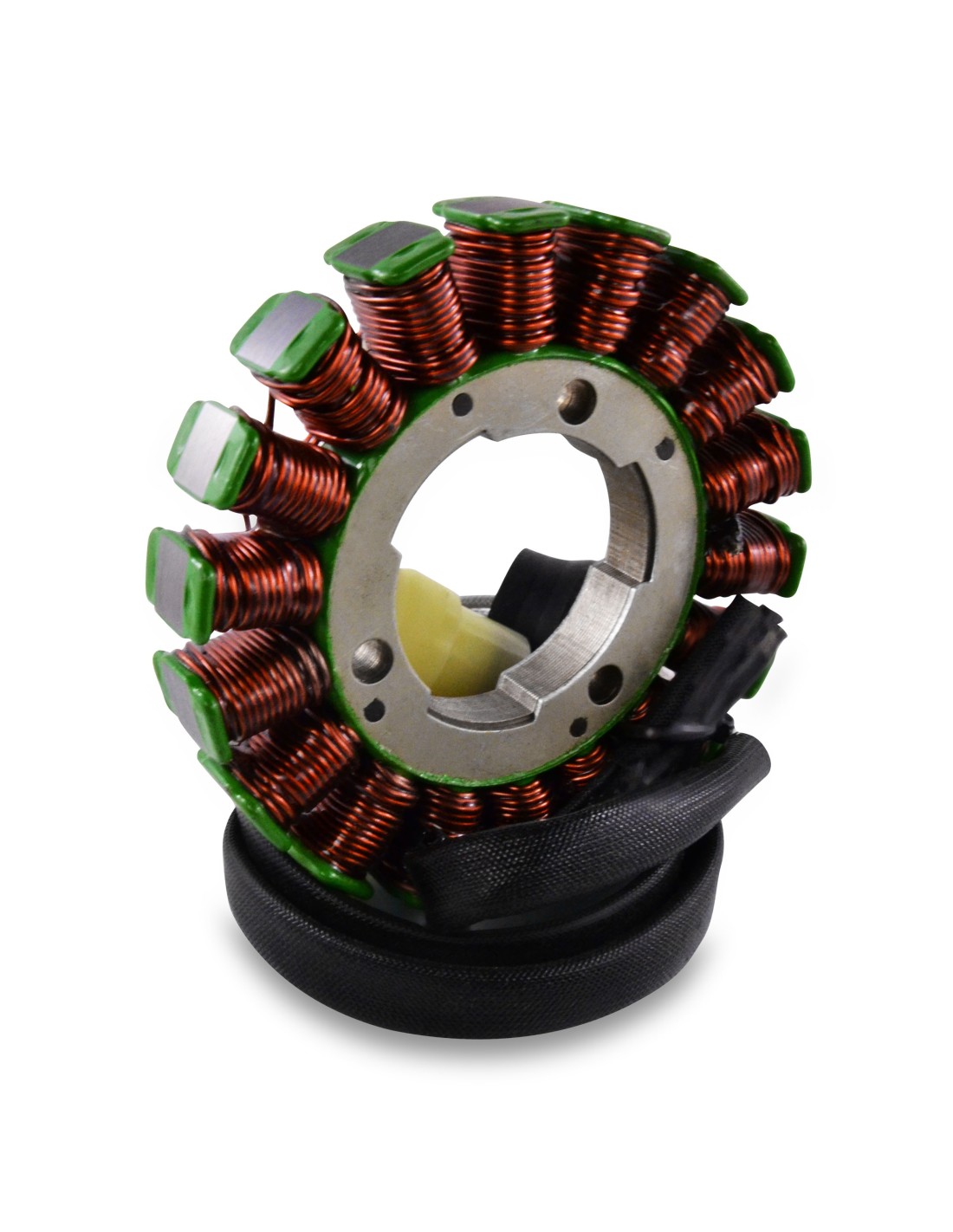

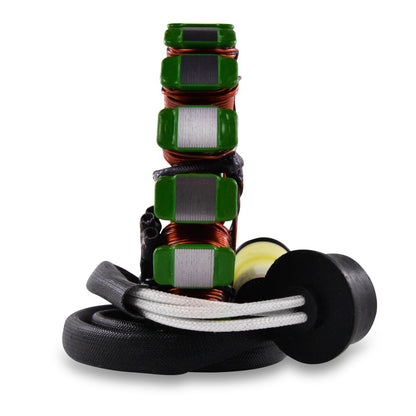

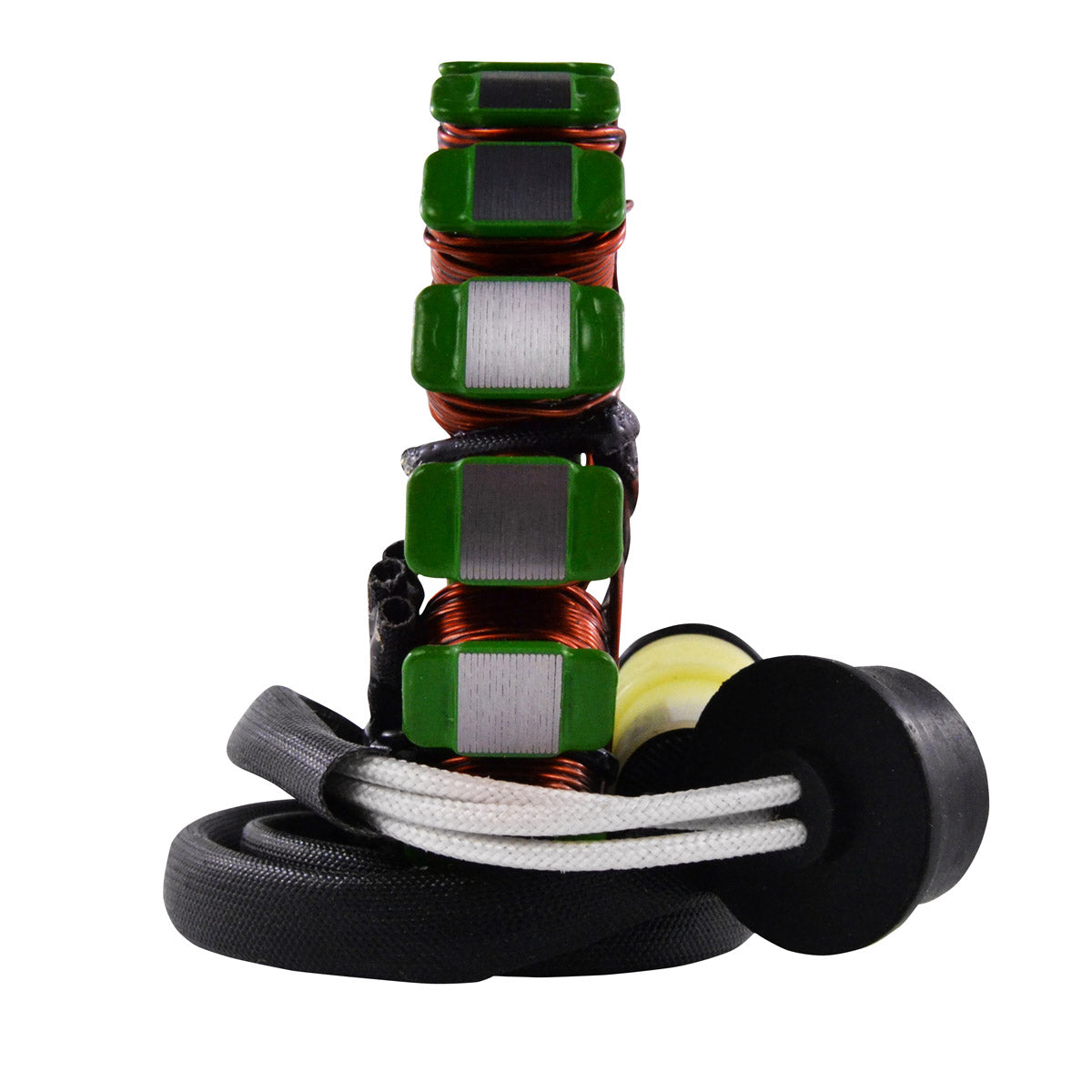

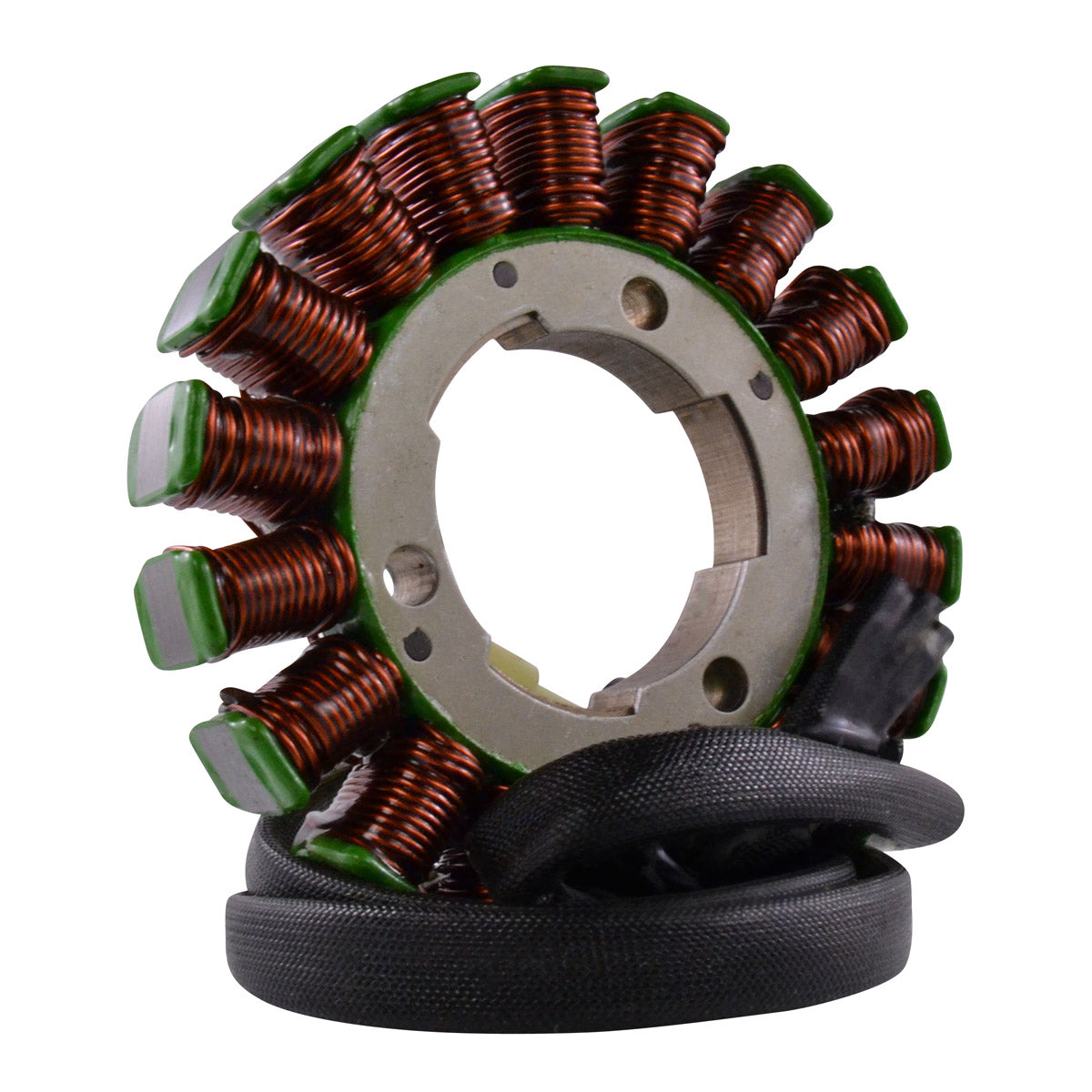

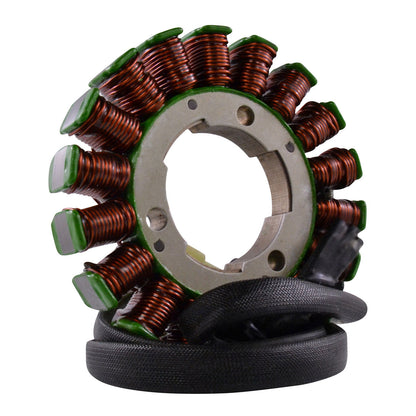

This is a brand new aftermarket generator stator for the Kawasaki Jet Ski range built between 2004 and 2019, covering the STX, STX-12F, STX-15F, JT1200 and JT1500 hulls along with the SX-R JS1500 and the Ultra LX. It is a direct replacement for the original unit and is plug-and-play, so it mounts in the original position and connects to the existing loom without cutting, splicing or modification. Part number RM01528, replacing Kawasaki OEM number 21003-3749.
The core uses the highest grade lamination materials and the windings are the highest grade copper, rated to resist 200 degrees Celsius - a real benefit in a personal watercraft engine bay where heat soak is high and ventilation is limited. The connector and rubber grommet are included and already fitted. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for Kawasaki OEM part 21003-3749
- Plug-and-play, direct fit, straightforward installation
- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included and already fitted
- Rubber grommet included
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01528 |
| Interior diameter | 41 mm |
| Exterior diameter | 104 mm |
| Thickness | 12 mm |
| Wire length, stator to grommet | 90 mm |
| Wire length, grommet to plug | 480 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, between each white | 1.1 ohms +-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Jet Ski STX | 2004-2019 |
| Kawasaki Jet Ski STX-12F | 2004-2019 |
| Kawasaki Jet Ski STX-15F | 2004-2019 |
| Kawasaki Jet Ski JT1200 | 2004-2019 |
| Kawasaki Jet Ski JT1500 | 2004-2019 |
| Kawasaki Jet Ski SX-R JS1500 | 2004-2019 |
| Kawasaki Jet Ski Ultra LX | 2004-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-3749 | Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct, plug-and-play replacement for the original stator. It uses the original mounting points and the supplied connector mates with the factory loom, so there is no cutting, splicing or rewiring. Confirm that your original unit carries Kawasaki part number 21003-3749 before ordering.
What is included in the box?

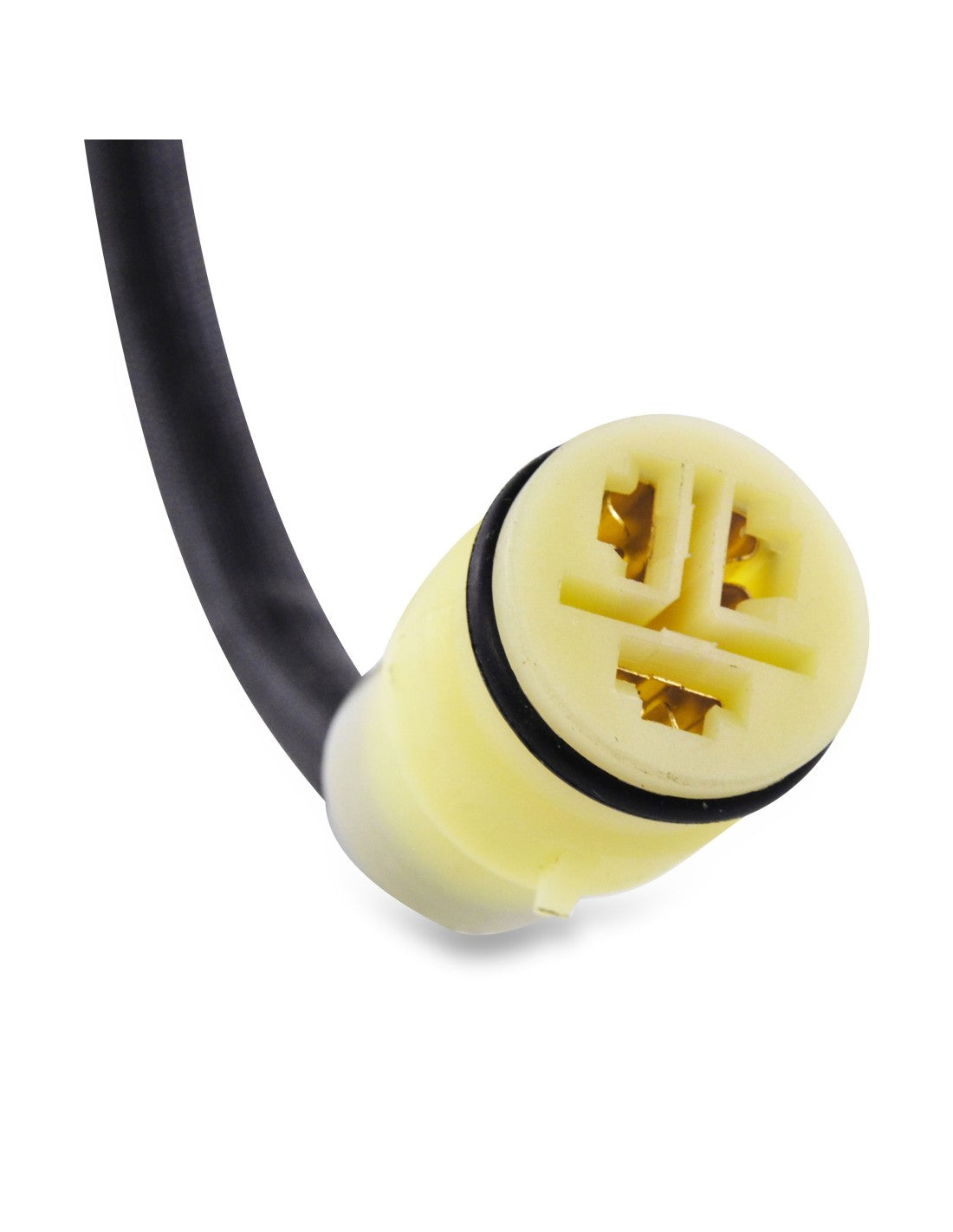

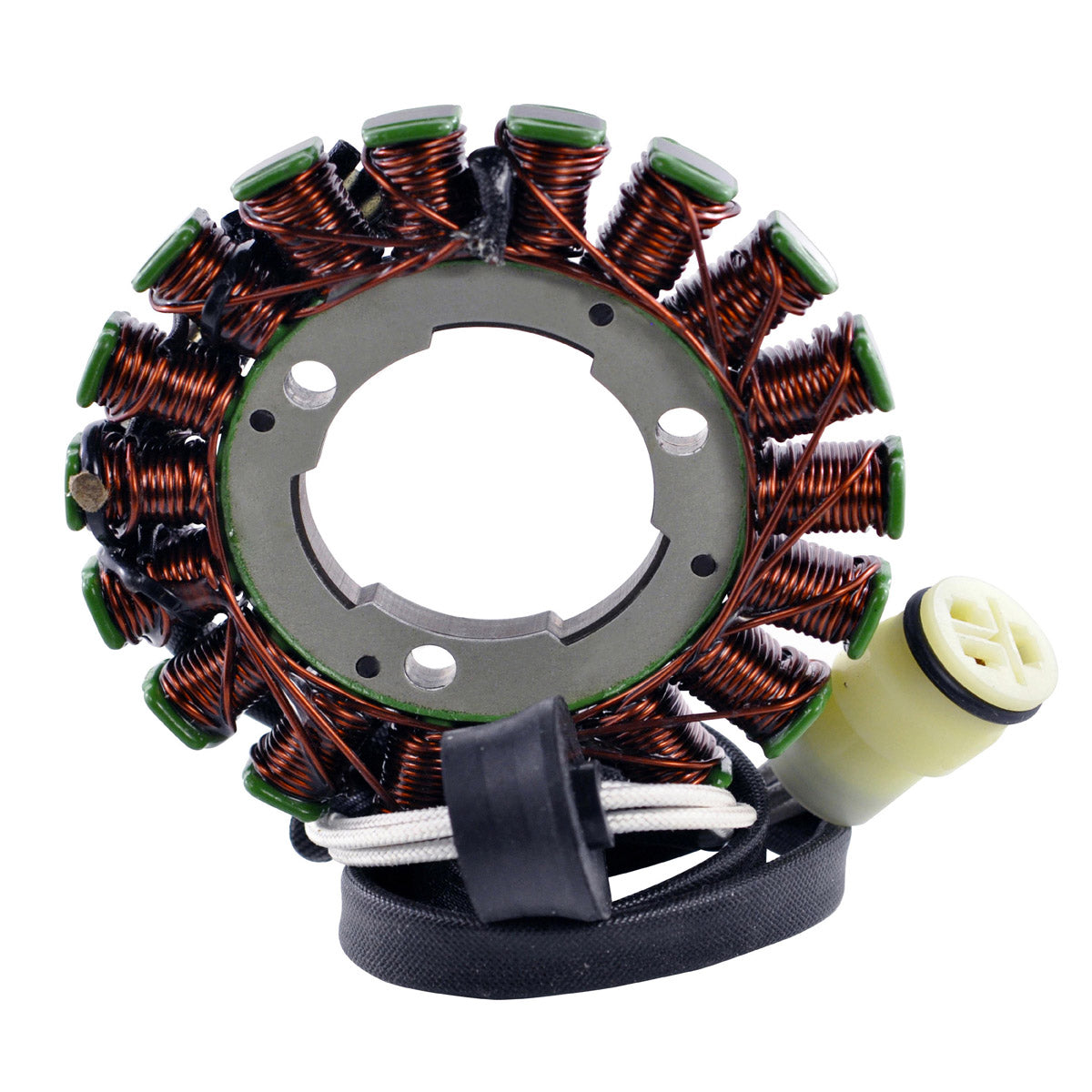

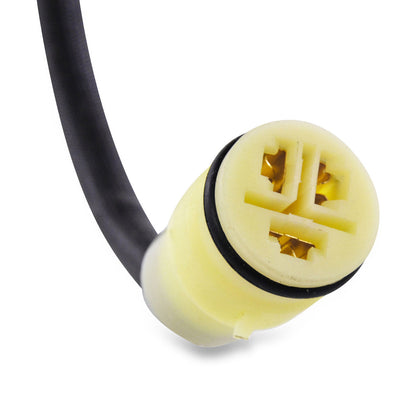

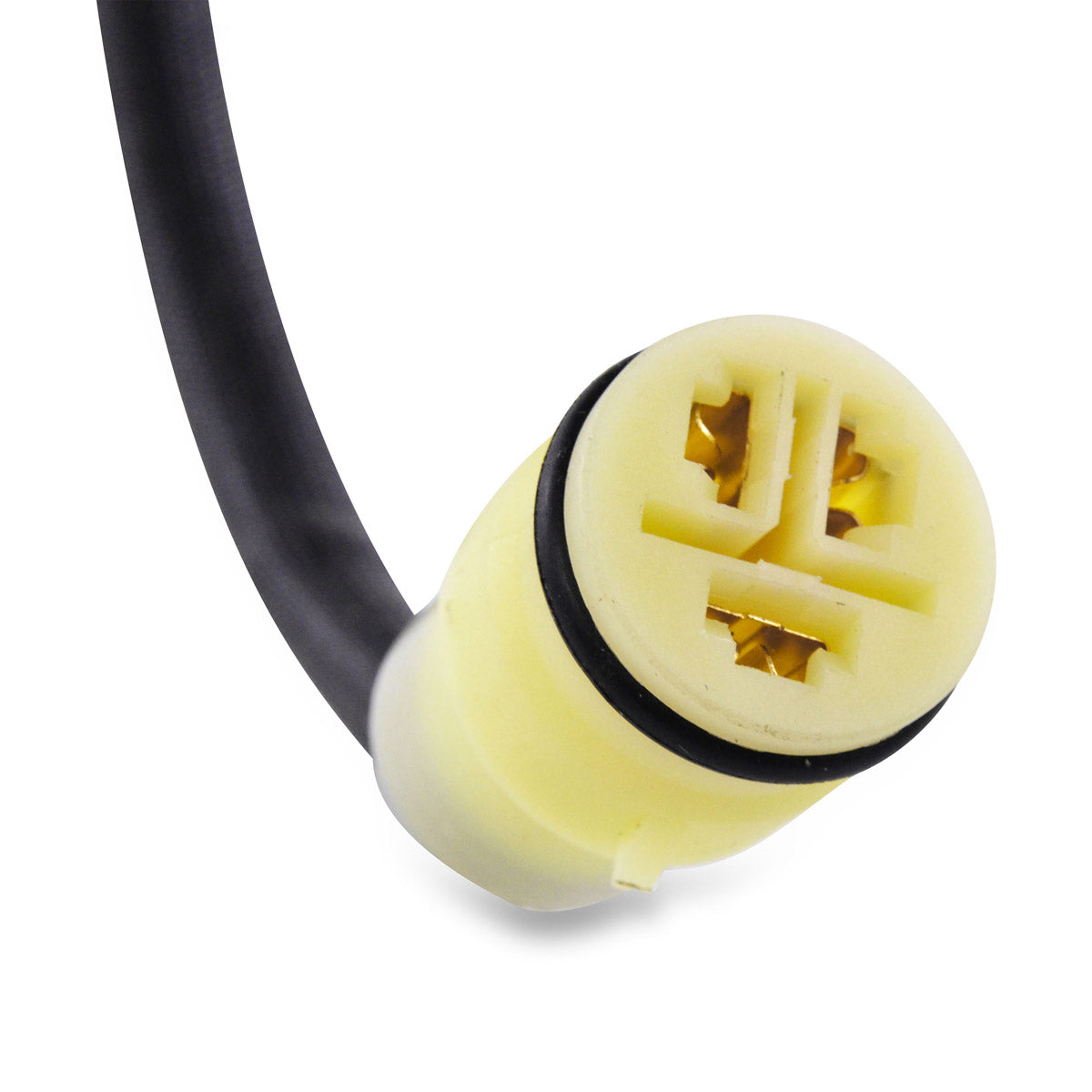

The stator complete with its connector and rubber grommet. Three white wires exit the unit into a single three-pin plug, with 90 mm from the stator to the grommet and 480 mm from the grommet to the plug.
How do I tell whether my old stator has failed?
On a personal watercraft the usual signs are a battery that will not stay charged between outings, a machine that cranks slowly or not at all after a short run, and charging voltage that does not rise with engine speed. With a multimeter, resistance between each pair of white wires should read approximately 1.1 ohms with a 20 percent tolerance. An open or shorted winding, a value well outside that range, or continuity between a white wire and the stator body confirms a failed stator.
Why do watercraft stators fail more often than motorcycle ones?
A Jet Ski engine bay is sealed, poorly ventilated and runs hot, so the stator windings spend their life close to their thermal limit. That is why this unit is wound with copper rated to 200 degrees Celsius and built on high grade laminations, giving more thermal headroom than a standard replacement.
