Generator Stator for Kawasaki KLX 250 S & SF 2009-2014
Generator Stator for Kawasaki KLX 250 S & SF 2009-2014
SKU:RMS010-101405
Free shipping over £150. Terms apply
Couldn't load pickup availability
Generator Stator for Kawasaki KLX 250 S and KLX 250 SF
Kawasaki KLX 250 S / SF 2009-2014 - Part number RMS010-101405

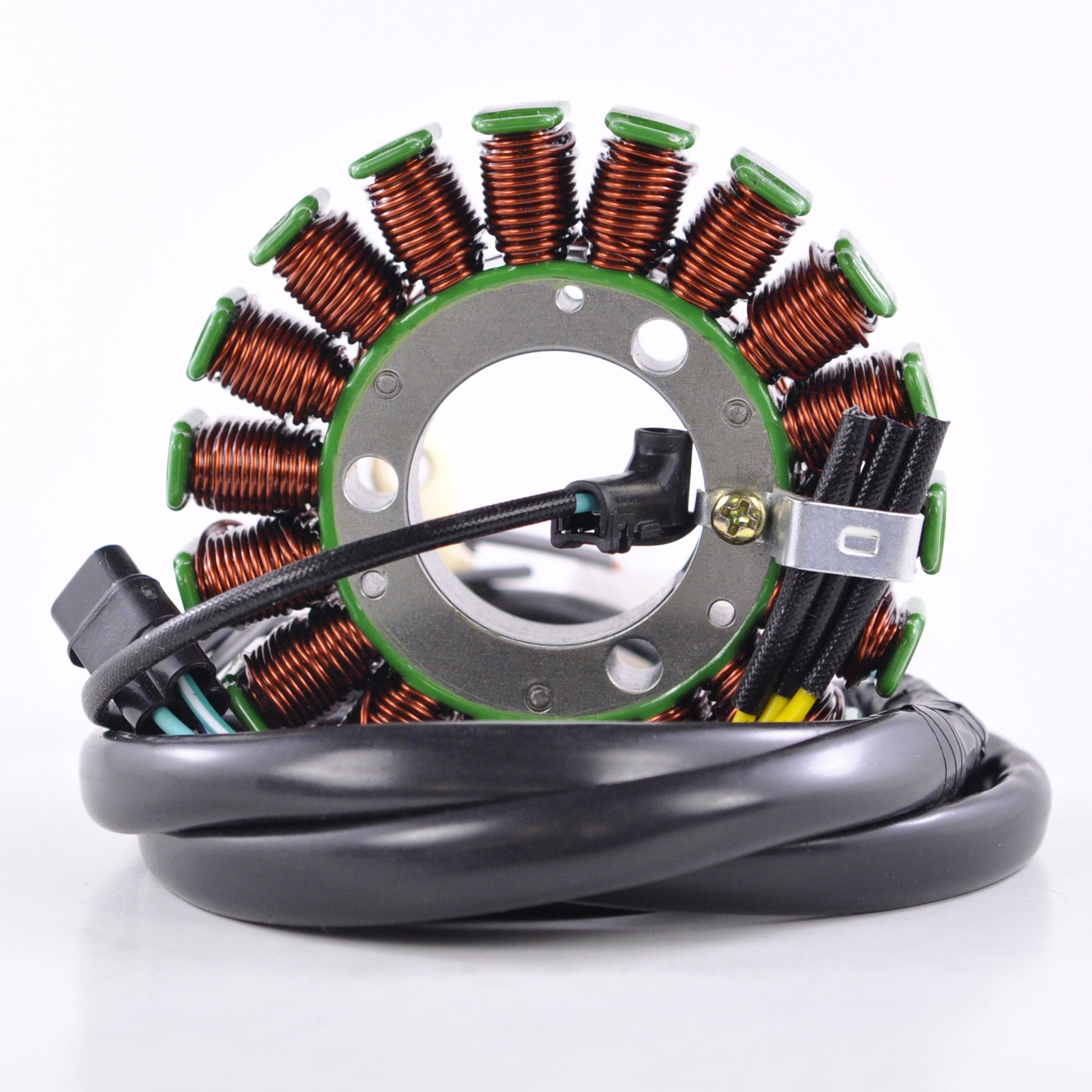

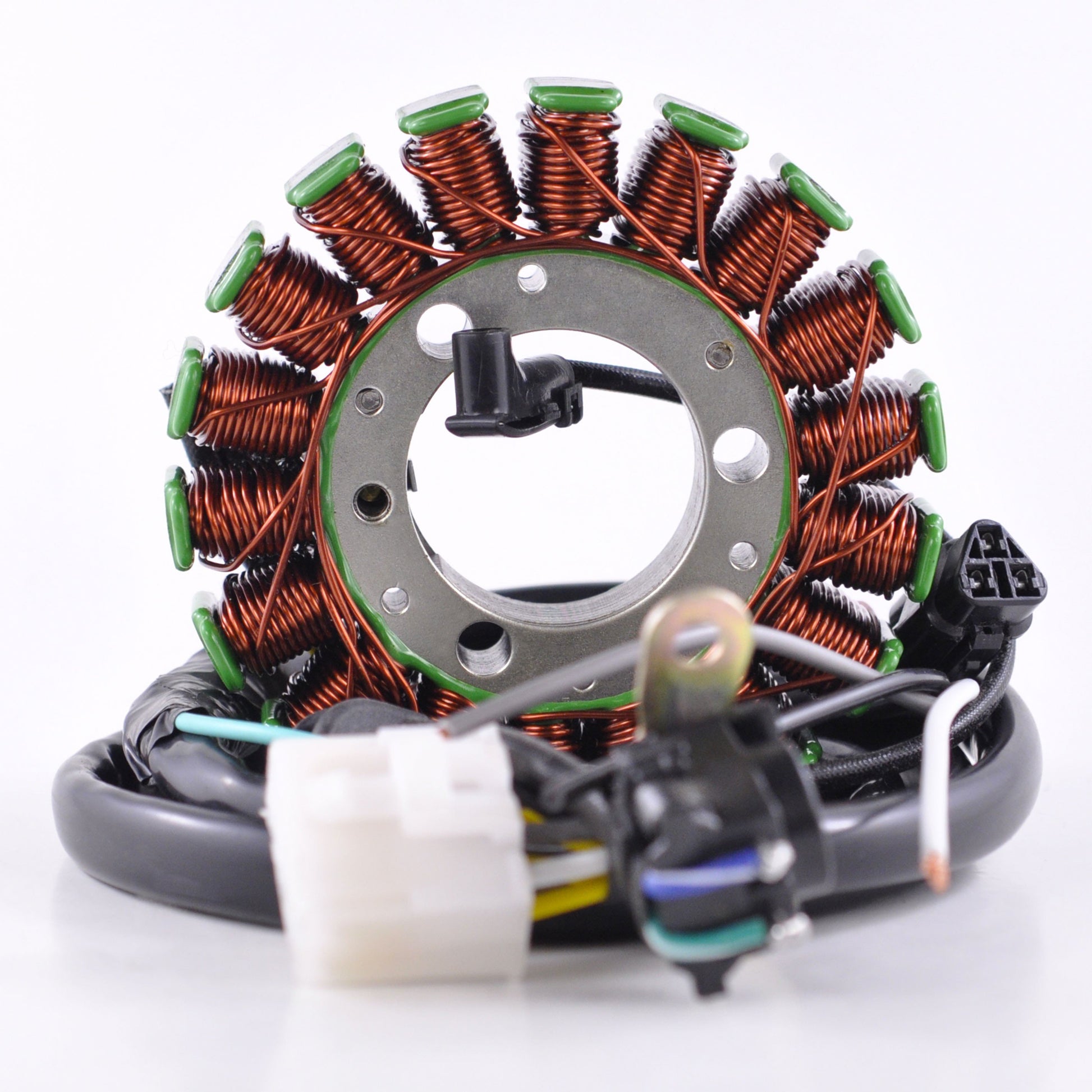

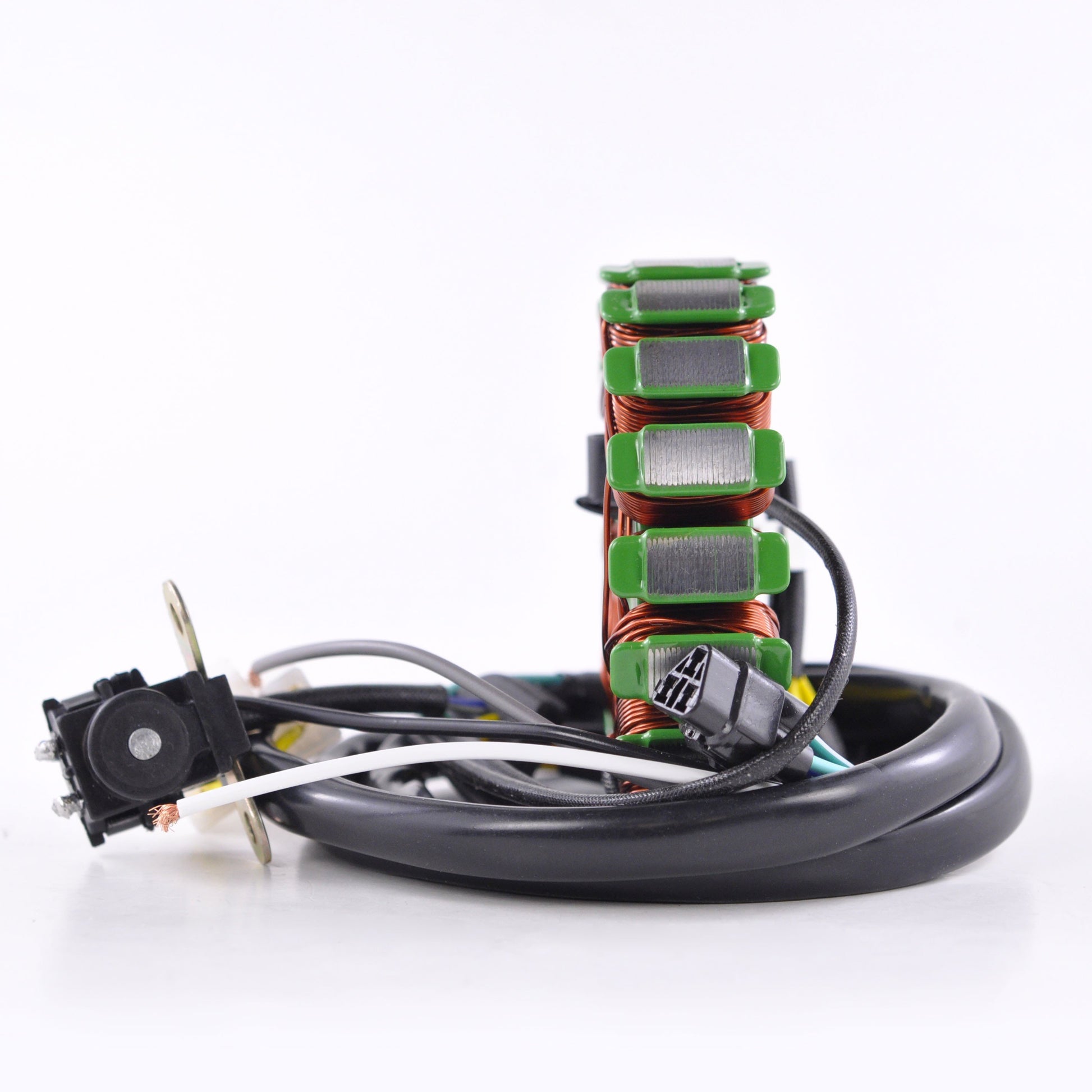

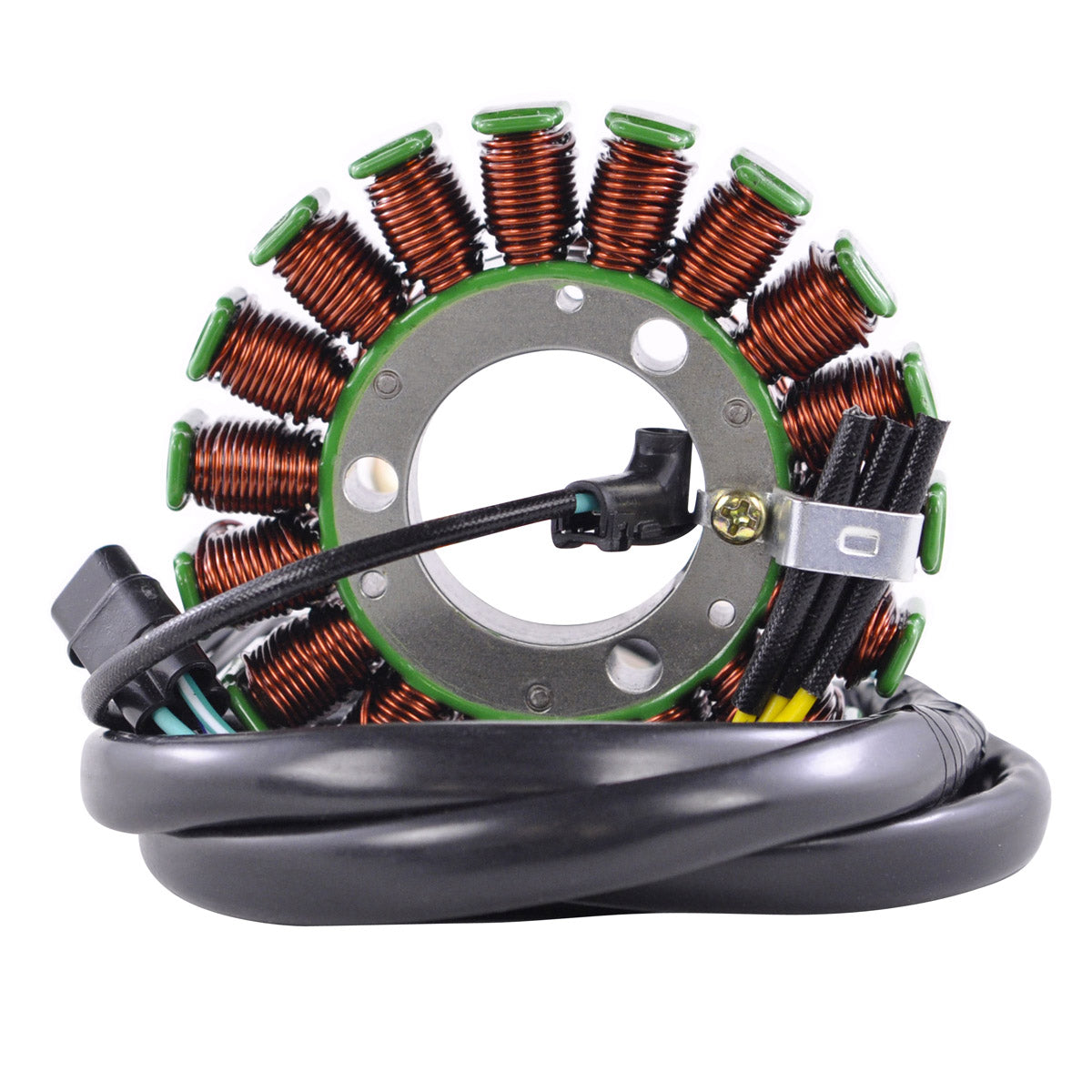

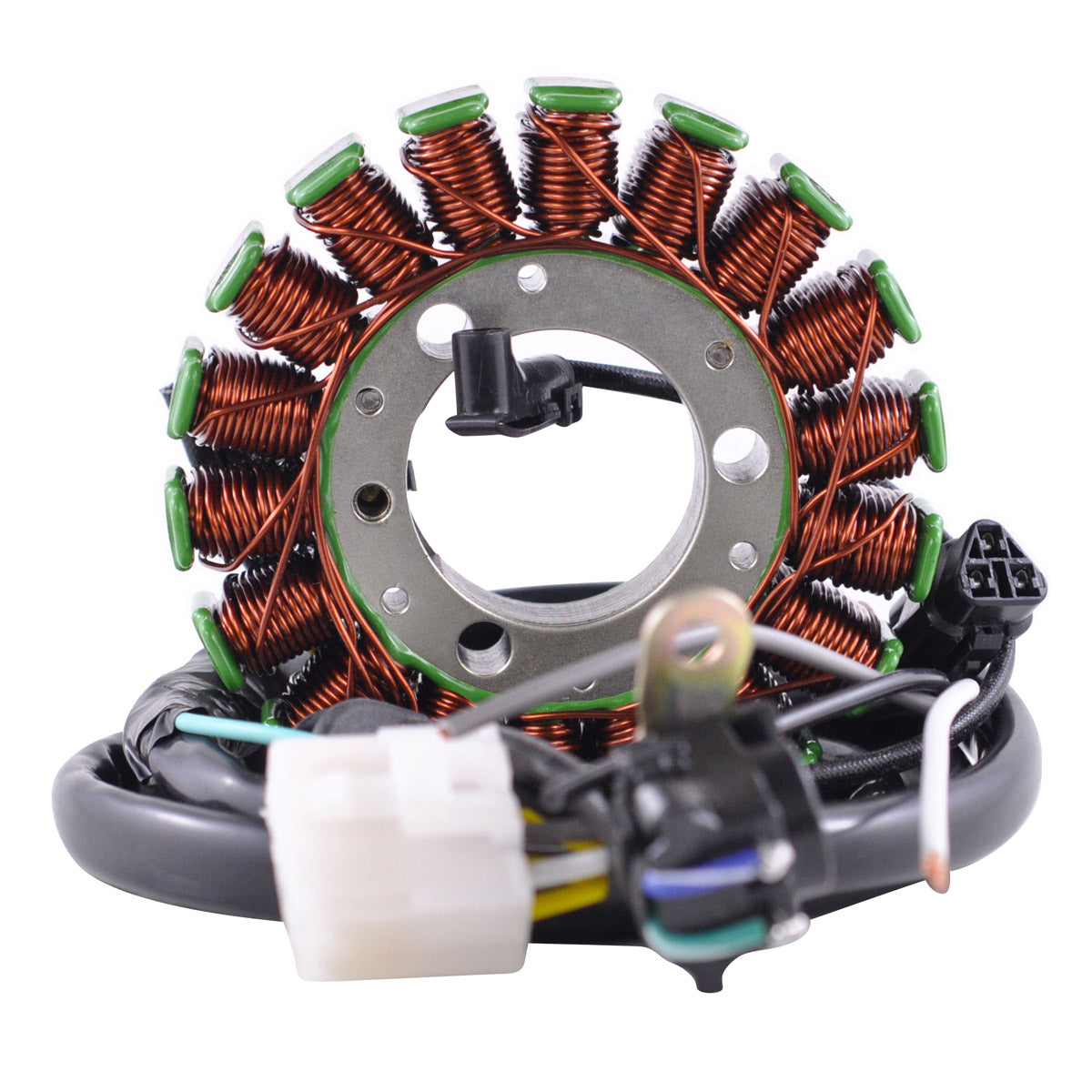

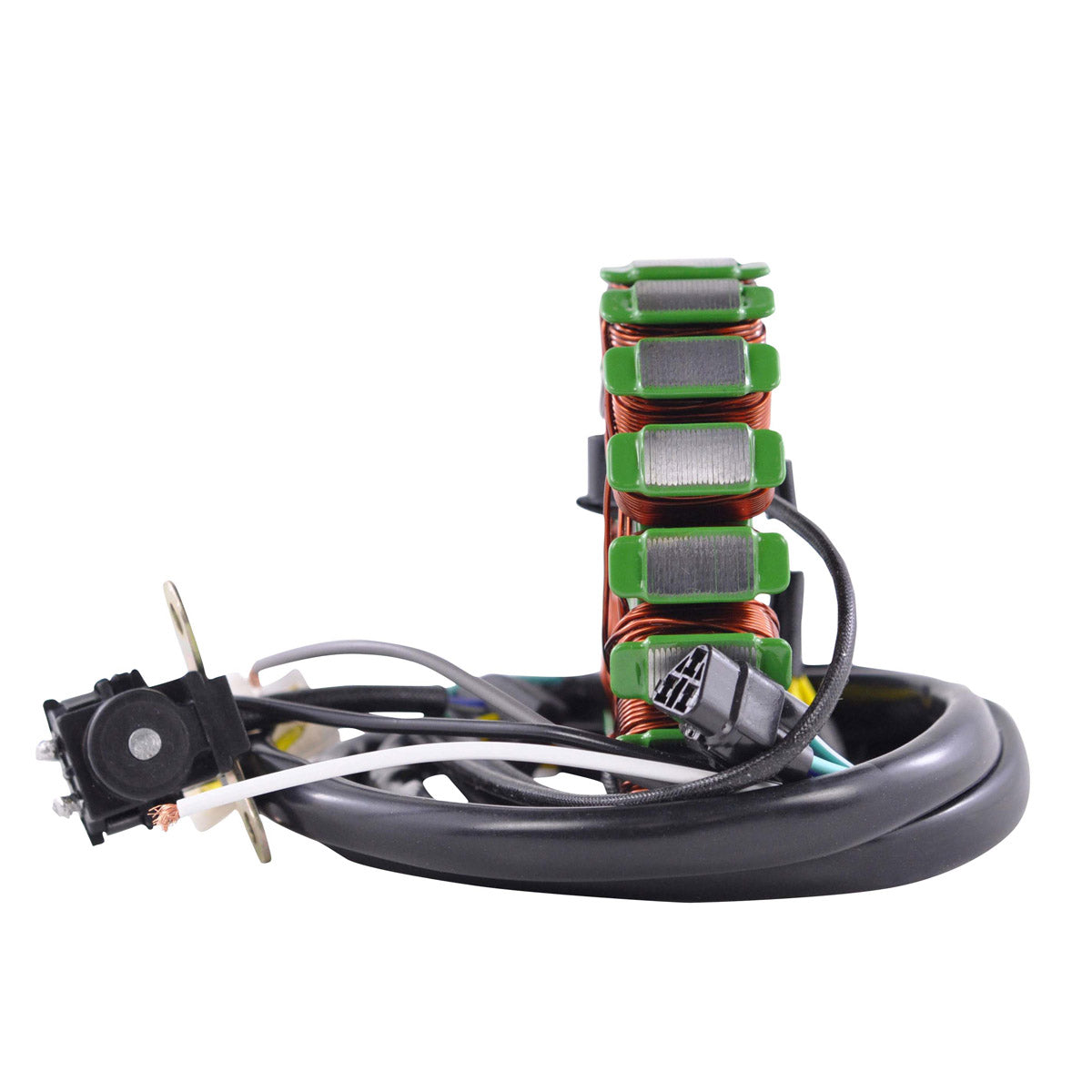

This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to the Kawasaki KLX 250 S and KLX 250 SF. It is a plug-and-play, direct fit assembly that mounts in the original position and uses the original connectors, so no modification of the wiring loom is required.
The core uses the highest grade lamination materials and the windings are the highest grade copper, resistant to 200 degrees Celsius. This is a complete 13-wire assembly with four plugs, and the pick-up pulsar coil is supplied already fitted, along with the connector and the rubber grommet. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- Complete 13-wire, 4-plug assembly
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-101405 |
| Interior diameter | 35 mm |
| Exterior diameter | 93 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet 1 | 155 mm |
| Wire length, grommet to plug 1 | 505 mm |
| Wire length, grommet to plug 2 | 810 mm |
| Wire length, grommet to pick-up coil plug | 72 mm |
| Pick-up coil wire length to grommet | 60 mm |
| Number of wires | 13 |
| Number of plugs | 4 |
| Number of pins | 13 |
| Alternator resistance (Yellow to Yellow) | 0.9 ohms +/-20% |
| Pick-up resistance (Blue/White to Green/White) | 244 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KLX 250 S / SF | 2009-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0080 | Kawasaki |
| 21003-0087 | Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the KLX 250 S and KLX 250 SF, 2009-2014. All four plugs match the original, so no cutting or splicing of the loom is required. Please confirm the OEM part number on your original unit before ordering.
What is included in the box?

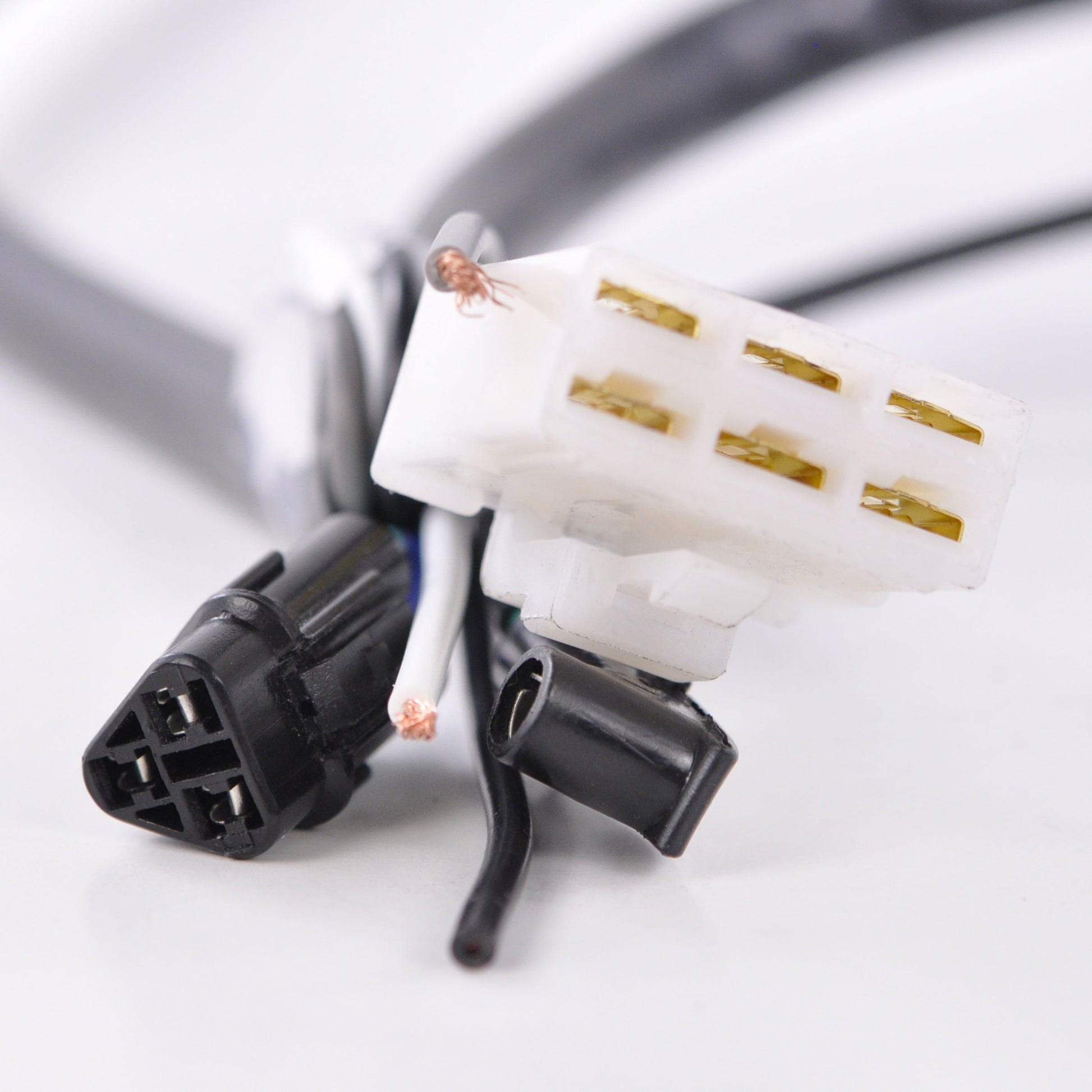

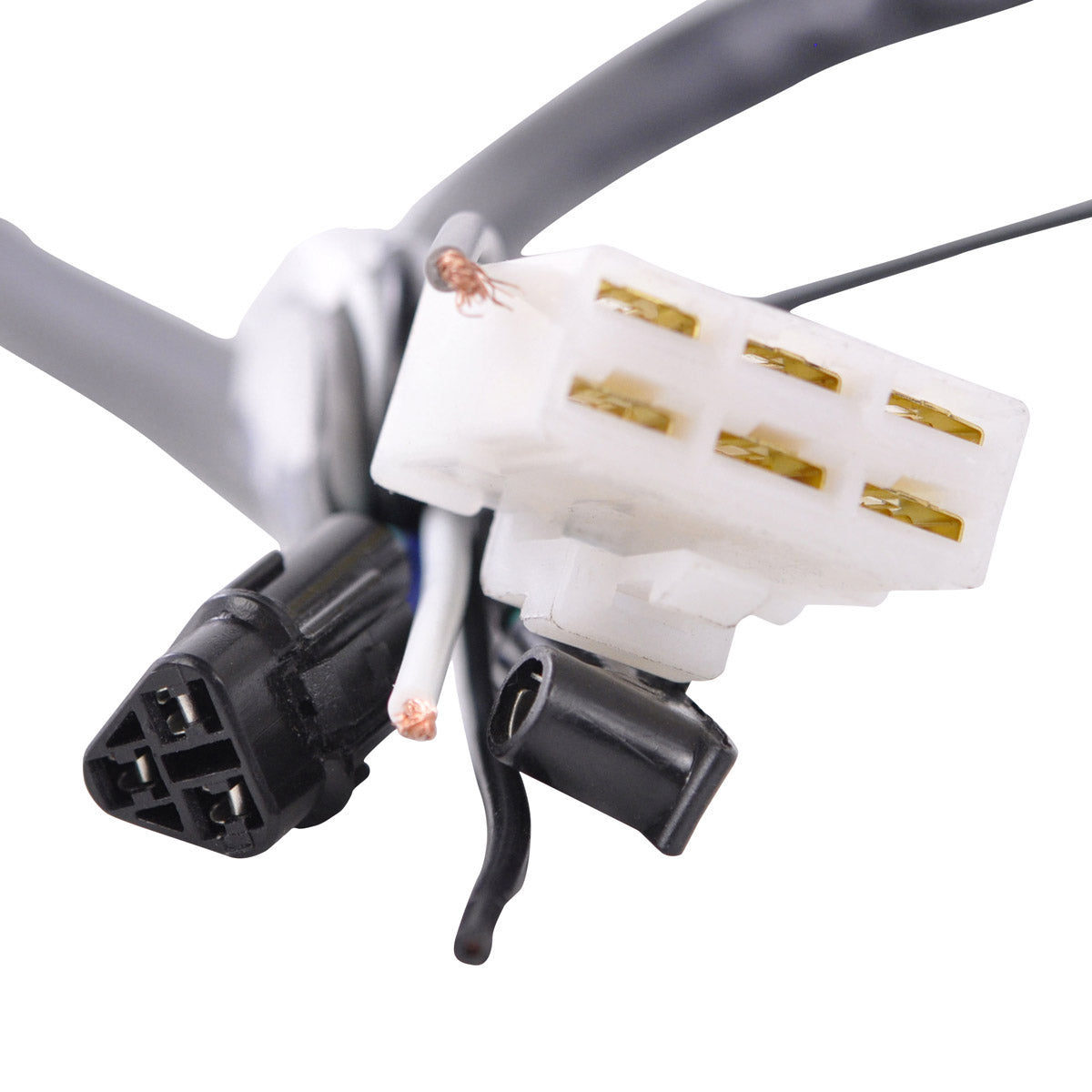

You receive the complete stator assembly with the pick-up pulsar coil already fitted, the connector and the rubber grommet - 13 wires and 4 plugs in total.
How do I tell if my old stator has failed?
Use a multimeter and compare against the figures in the specification table. Across the alternator windings, yellow to yellow, you should read 0.9 ohms +/-20%. Across the pick-up, blue/white to green/white, you should read 244 ohms +/-20%. Readings well outside those values, an open circuit, or continuity between any winding wire and the stator core indicate a failed unit.
Why does this assembly have so many wires?
The KLX 250 stator plate carries the three-phase alternator windings, the pick-up pulsar coil and the additional coils that feed the machine's other circuits. That is why this unit has 13 wires, 13 pins and 4 separate plugs, with two different grommet-to-plug lead lengths of 505 mm and 810 mm.
