Generator Stator for Kawasaki ZR-7, ZR-7S & ZR 750 2000-2005
Generator Stator for Kawasaki ZR-7, ZR-7S & ZR 750 2000-2005
SKU:RM01487
Free shipping over £150. Terms apply
Couldn't load pickup availability
Generator Stator for Kawasaki ZR-7, ZR-7S and ZR 750 - OEM 21003-1349
Kawasaki ZR-7 ZR-7S ZR750 ZR-750 2000-2005 - part number RM01487

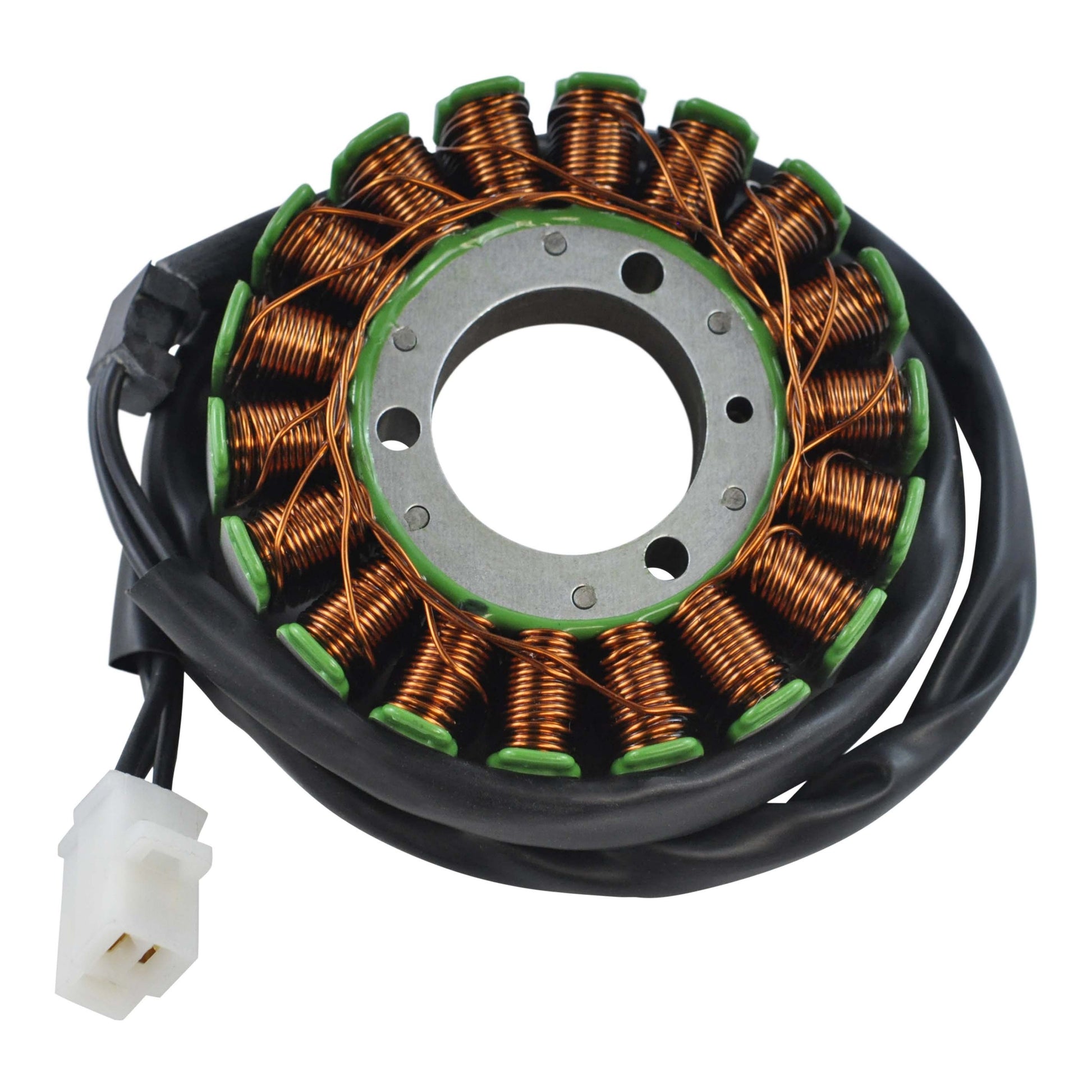

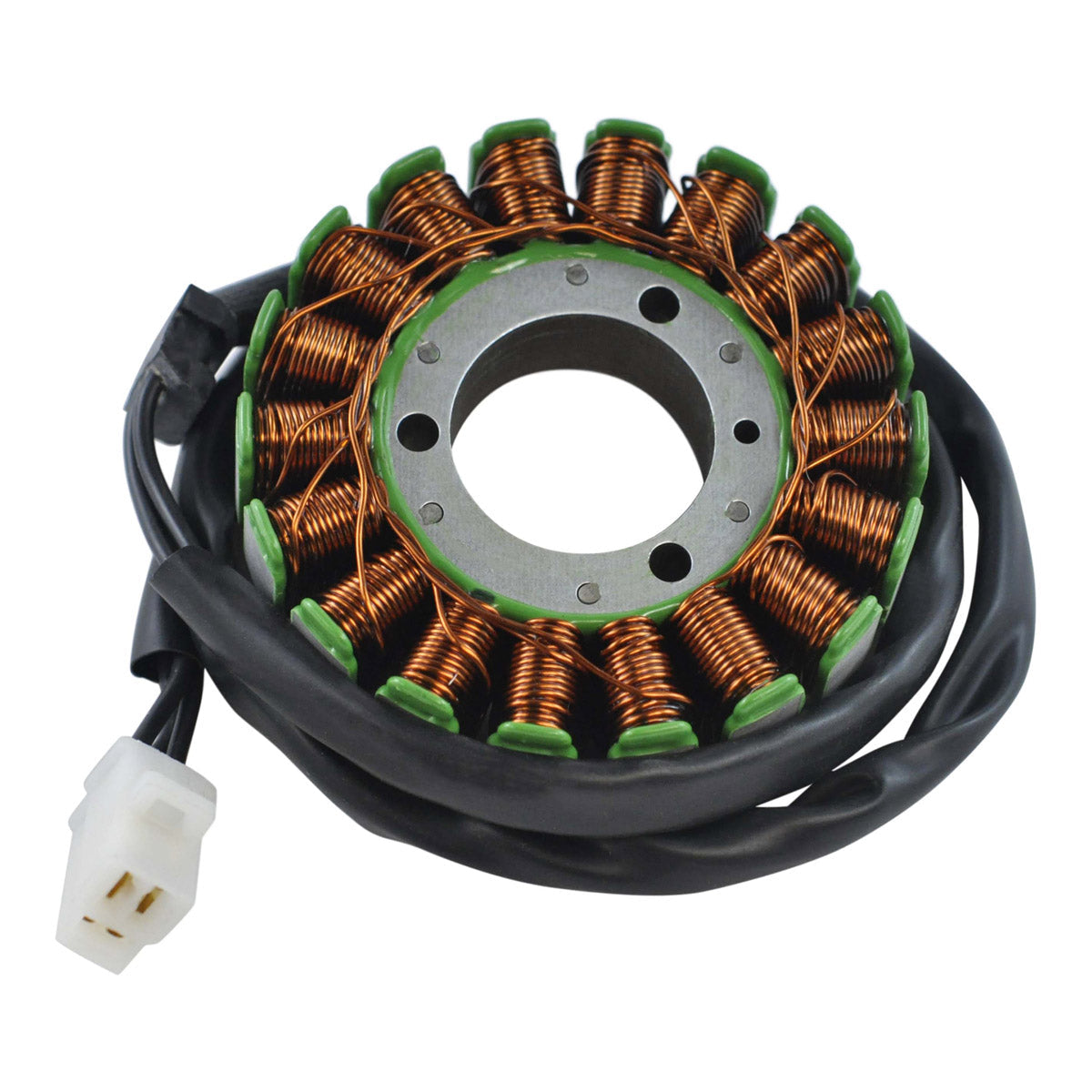

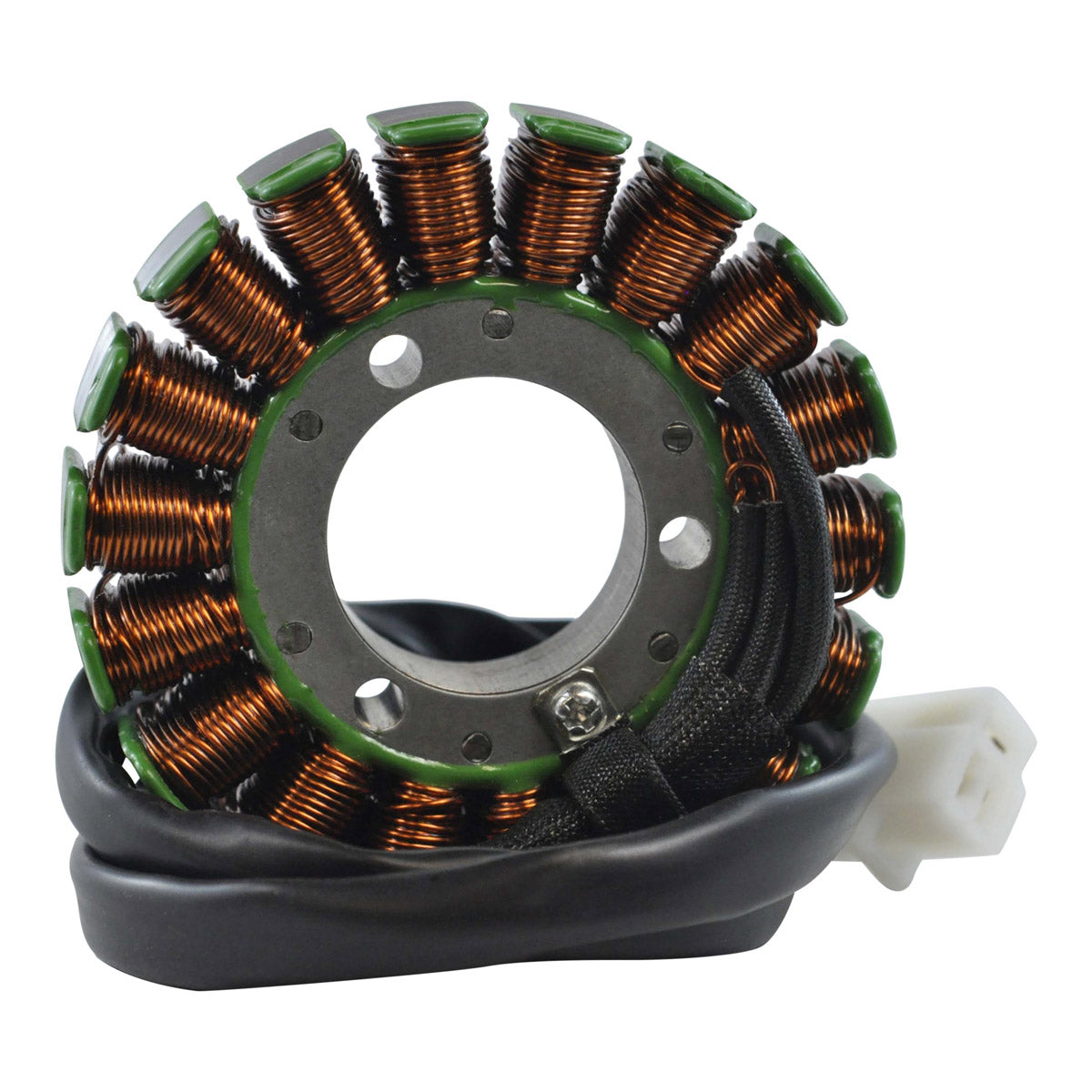

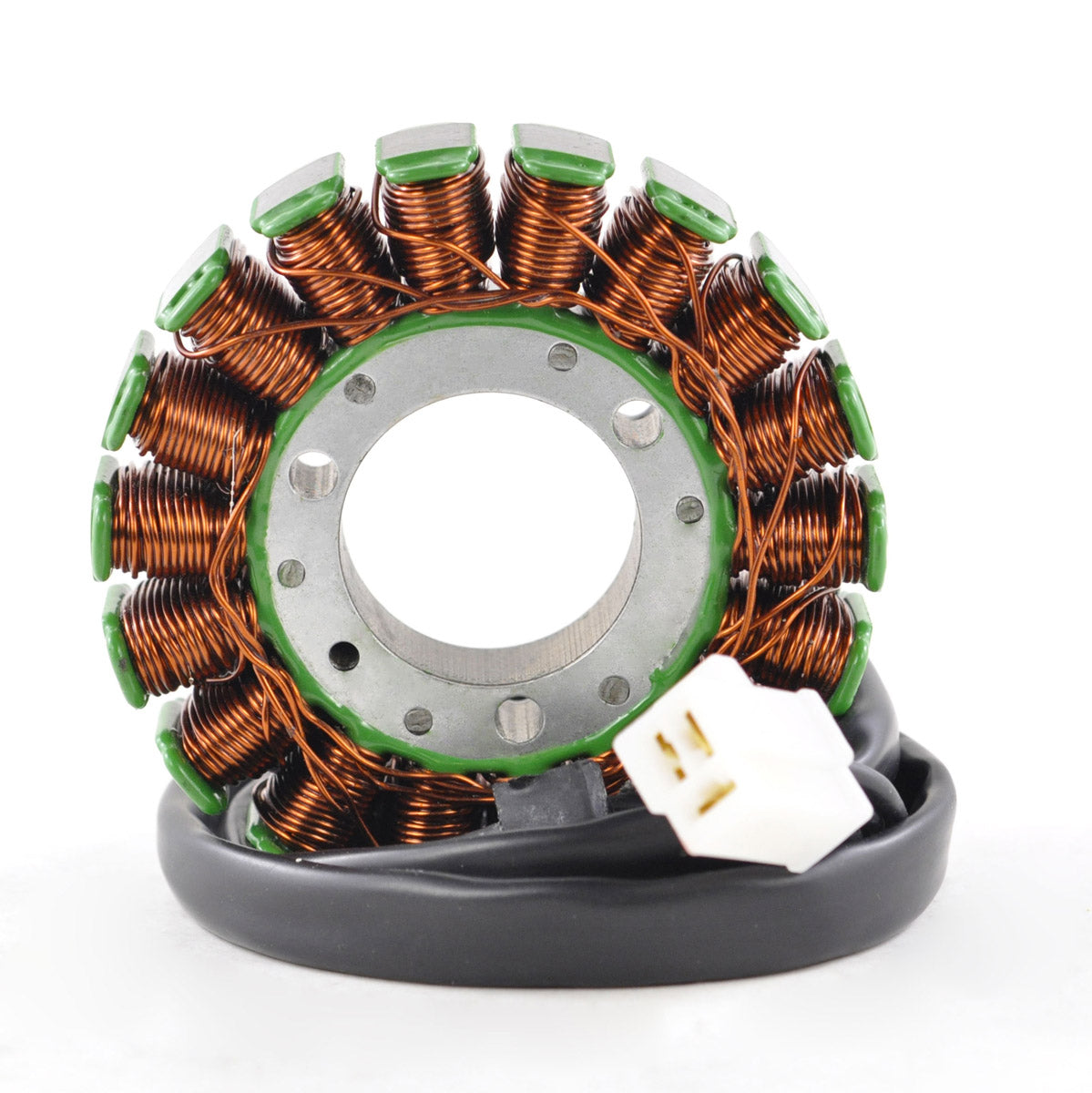

A brand new aftermarket generator stator for the Kawasaki ZR-7, ZR-7S and ZR 750 of 2000 to 2005, supplied as a direct replacement for the original charging unit. It is plug-and-play and a direct fit, using the standard mounting holes and the standard three-pin connector, so the swap is a straight exchange behind the generator cover with no rewiring and no modification to the machine.
The stator is built on highest grade lamination materials with highest grade copper windings rated to resist 200 degrees Celsius, which is what an air-cooled in-line four asks of the charging system once it is sitting in traffic on a warm day. The compact 92 mm outer diameter and 630 mm lead from the grommet to the plug match the original part, so the harness routes exactly as it did before. Every unit is tested before it is shipped. The opposite connector for the main harness side is supplied as well, because those plugs are frequently melted, corroded or defective by the time a stator fails and are a major cause of repeat electrical problems.
Key Features
- Brand new aftermarket generator stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01487 |
| Interior diameter | 34 mm |
| Exterior diameter | 92 mm |

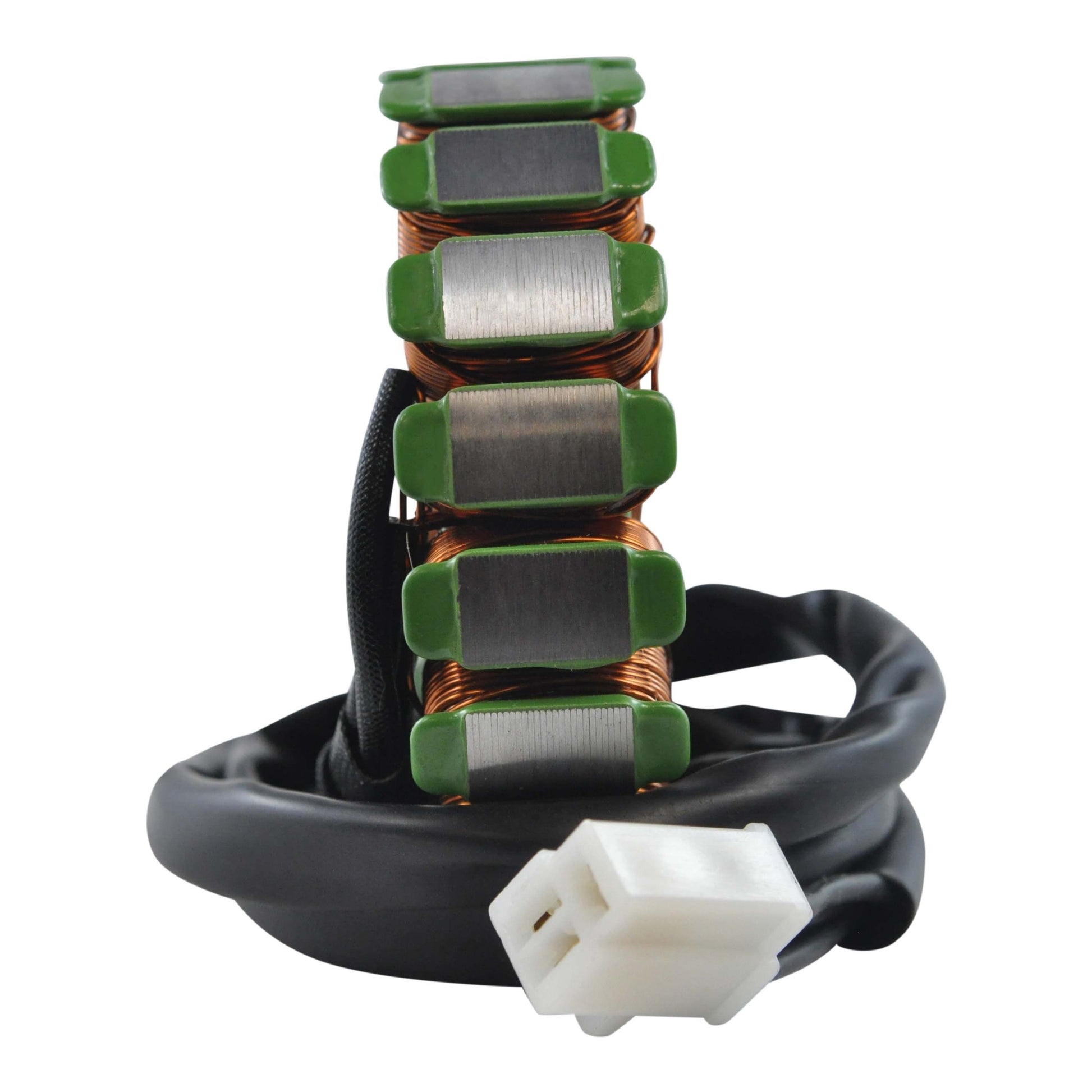

| Thickness | 16 mm |
| Wire length, stator to grommet | 70 mm |
| Wire length, grommet to plug | 630 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, Black/Red between each | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki ZR-7 | 2000-2005 |
| Kawasaki ZR-7S | 2000-2005 |
| Kawasaki ZR 750 / ZR-750 | 2000-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1349 | Kawasaki |
Frequently Asked Questions
Do I have to modify anything to fit it?
No. It is a direct replacement for the original unit and installs plug-and-play on the standard mounts and connector. Check that the number on your existing stator reads 21003-1349 before ordering.
What is included?

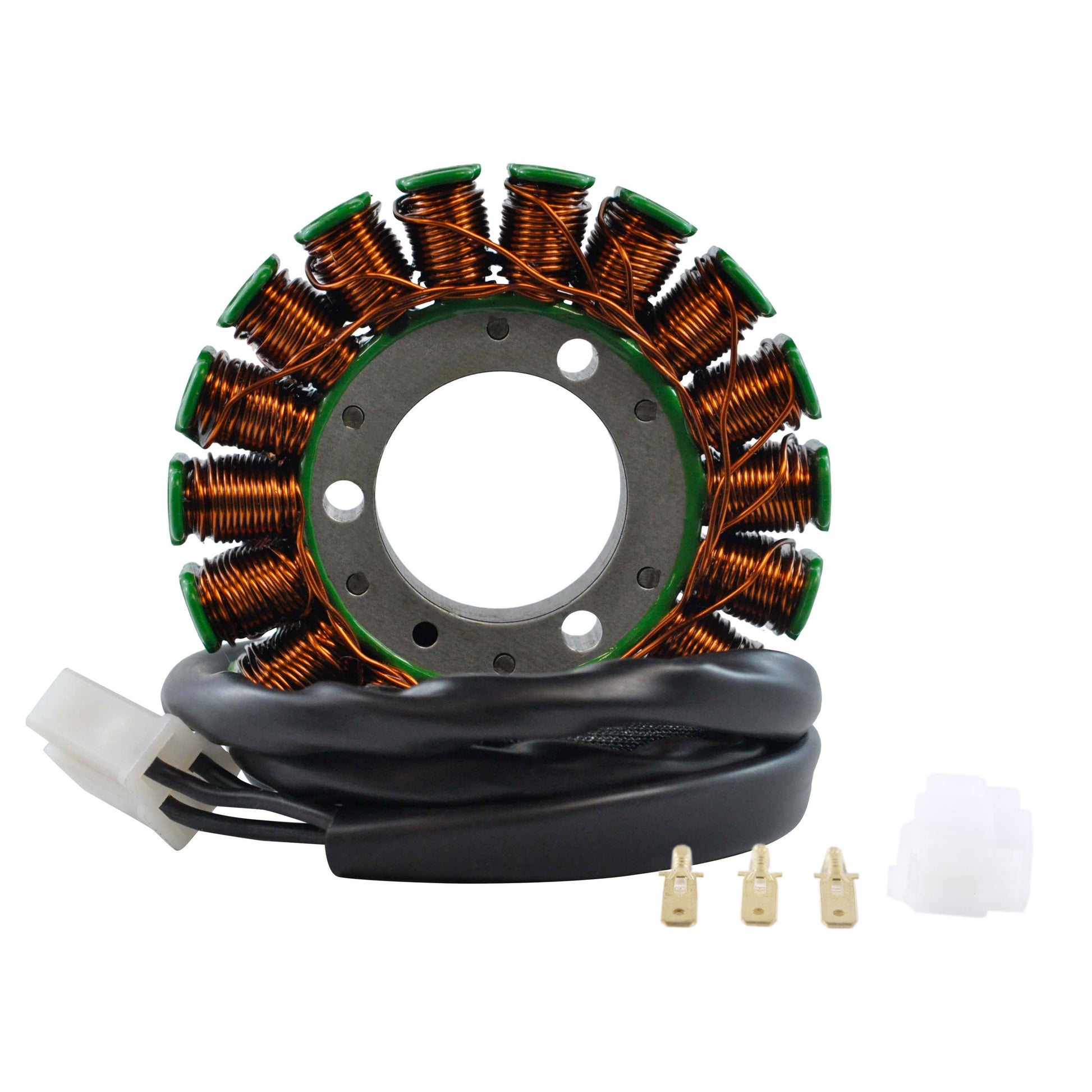

The generator stator, the connector, the rubber grommet, and the opposite connector for the main harness side. All units are tested before they are shipped.
How do I check whether the old stator has failed?
Disconnect the plug and measure across each pair of the three black and red output wires. Each pair should read about 0.4 ohms, plus or minus 20 per cent, with all three readings similar. An open circuit on any pair, or continuity from a winding to the stator body, confirms a failure.
Why replace the harness-side connector too?

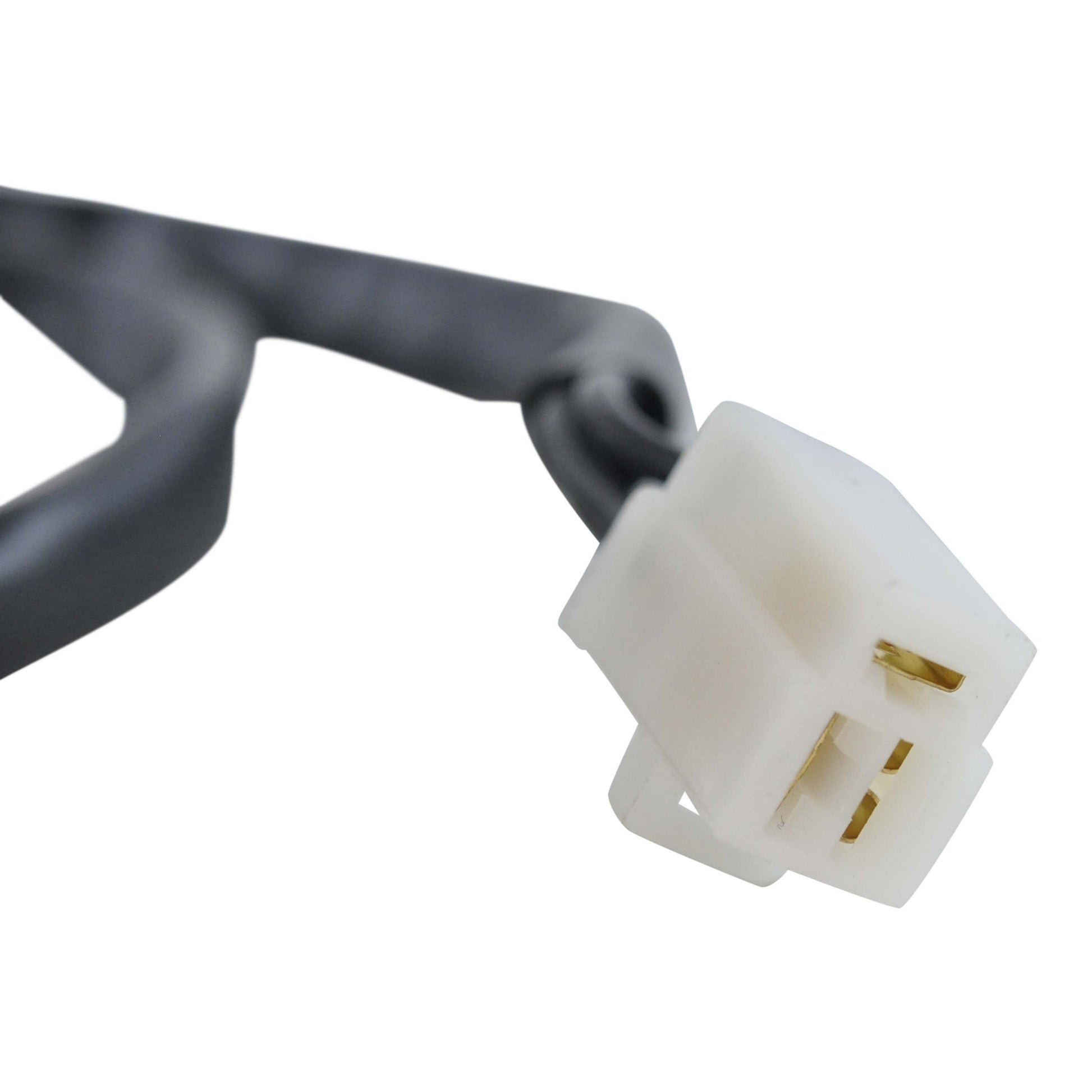

The three-pin joint carries the full alternator output and heat damage there is common on a bike that has lost a stator. Fitting the supplied opposite connector at the same time removes a known repeat-failure point instead of leaving a burnt plug in circuit with a new stator.
