Generator Stator for Kawasaki Ninja 250 R & ZL 250 Eliminator 1986-2007
Generator Stator for Kawasaki Ninja 250 R & ZL 250 Eliminator 1986-2007
SKU:RMS010-100187
Free shipping over £150. Terms apply
Couldn't load pickup availability

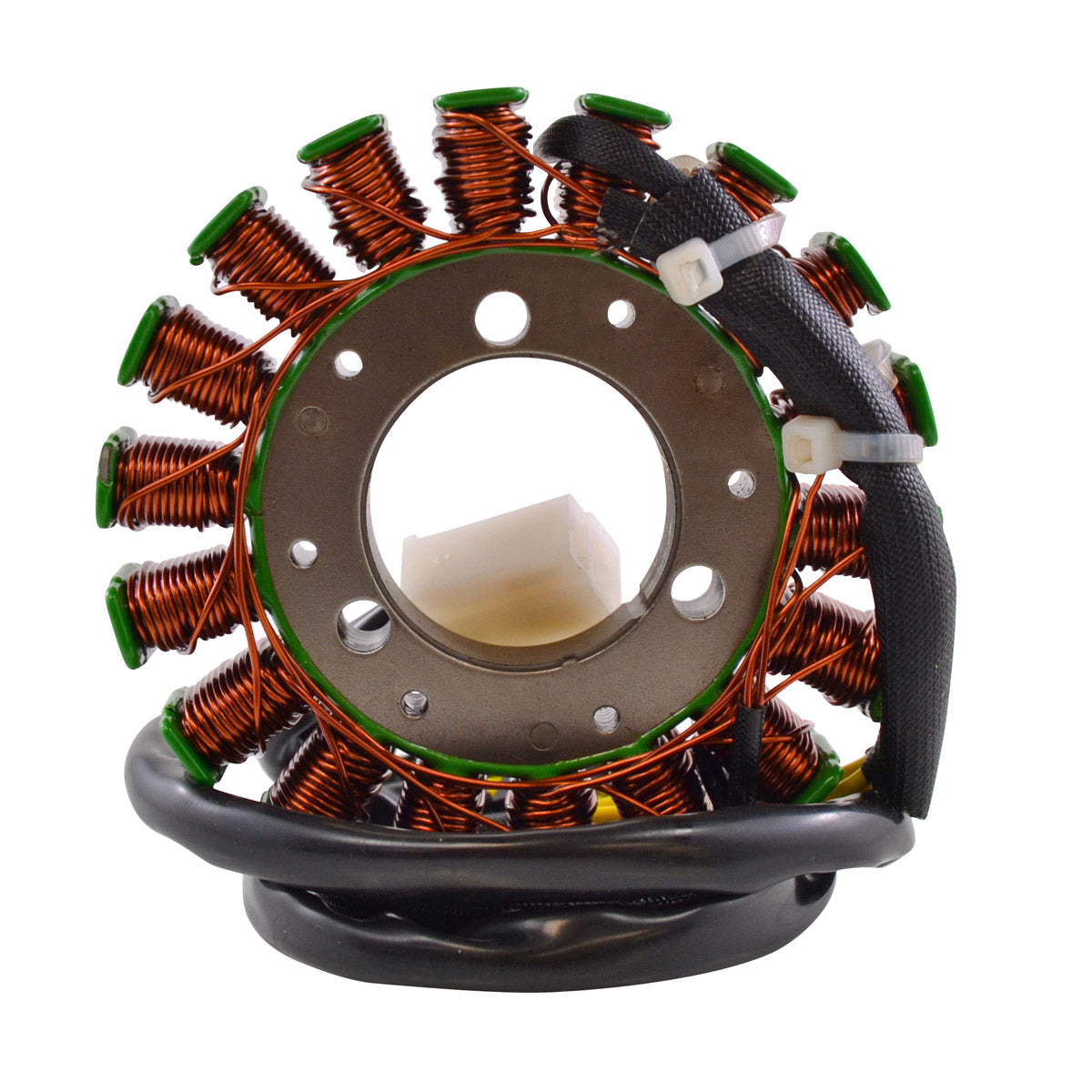

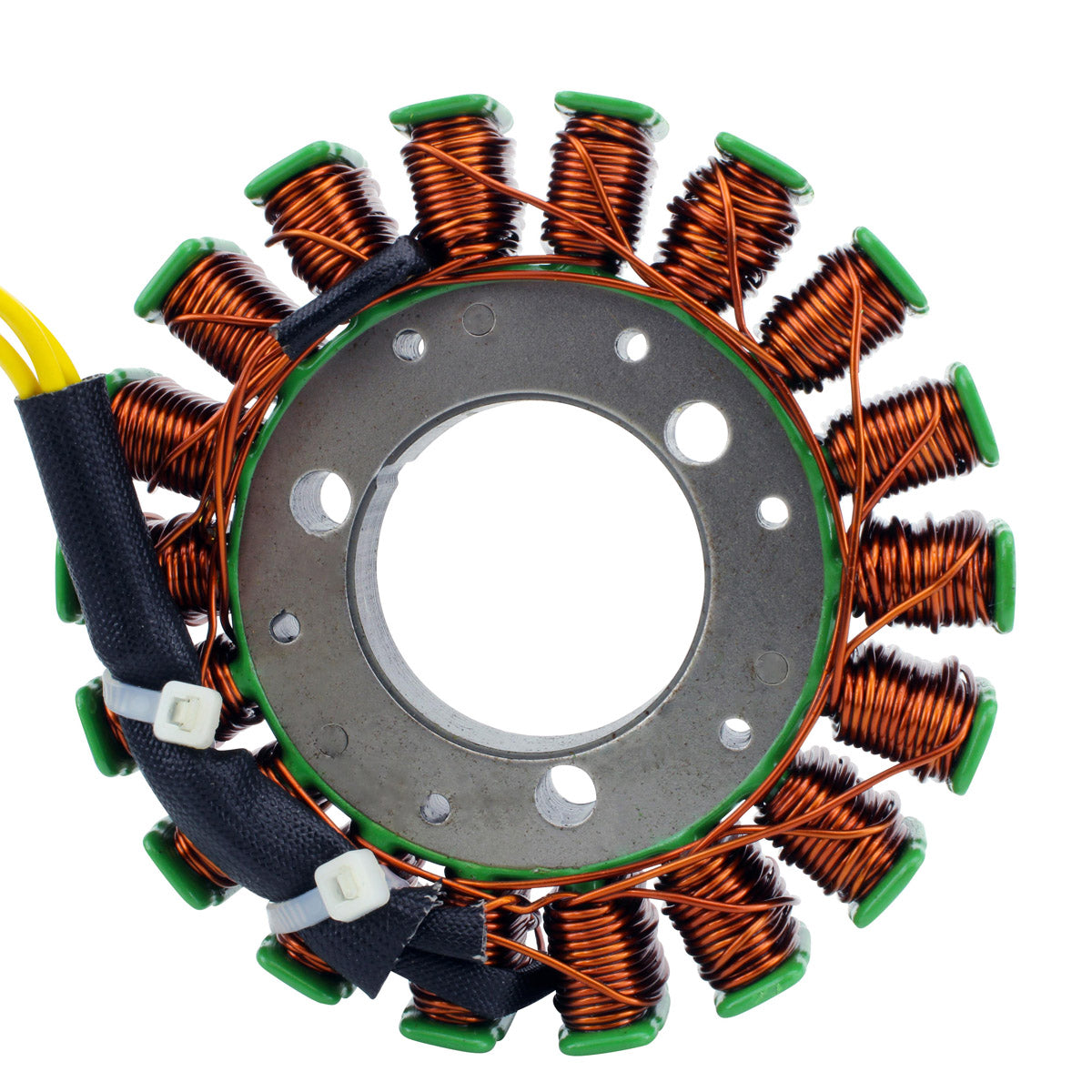

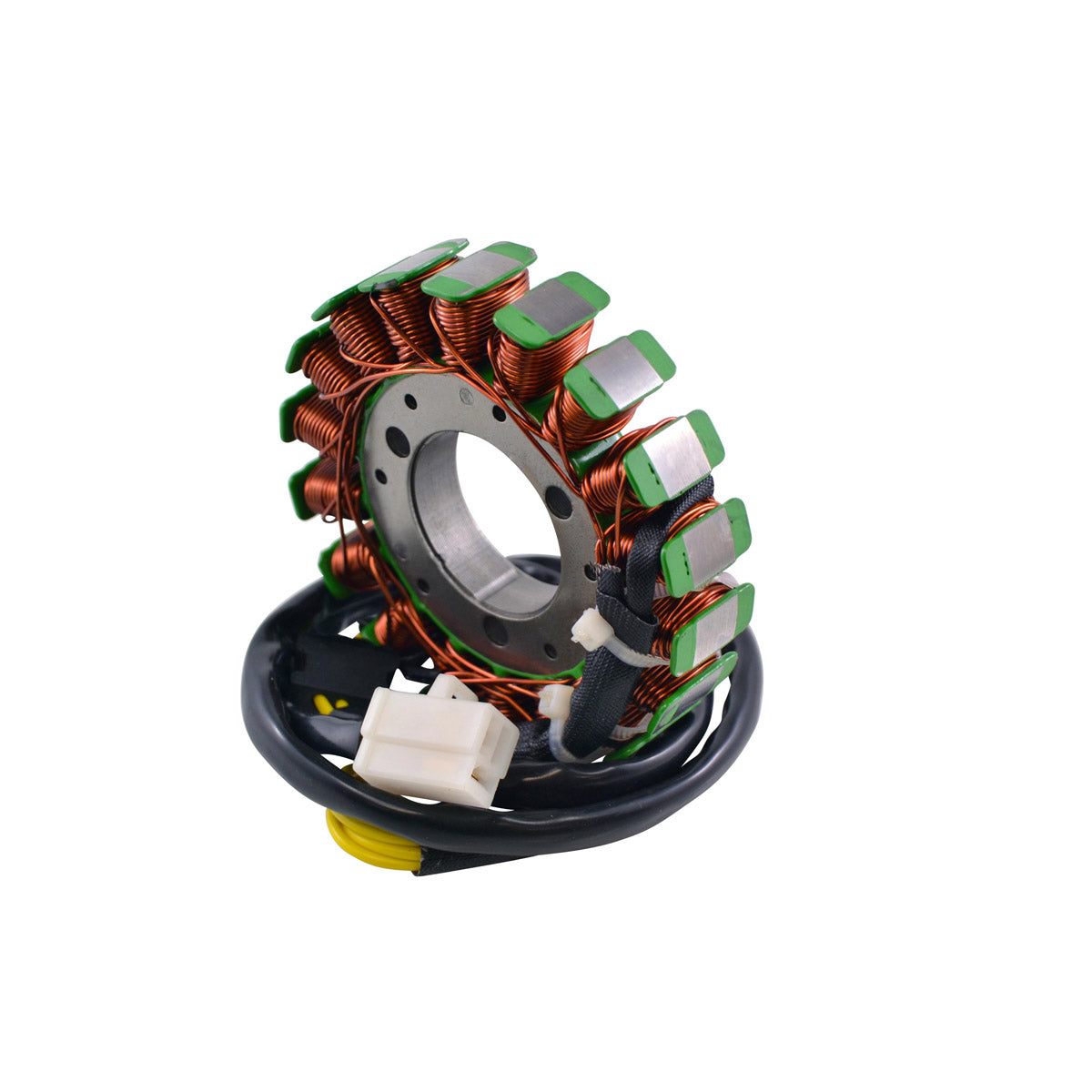

Generator Stator for Kawasaki Ninja 250 R and ZL 250 Eliminator
Kawasaki Ninja 250 R, ZL 250 Eliminator 1986-2007 - Part number RMS010-100187

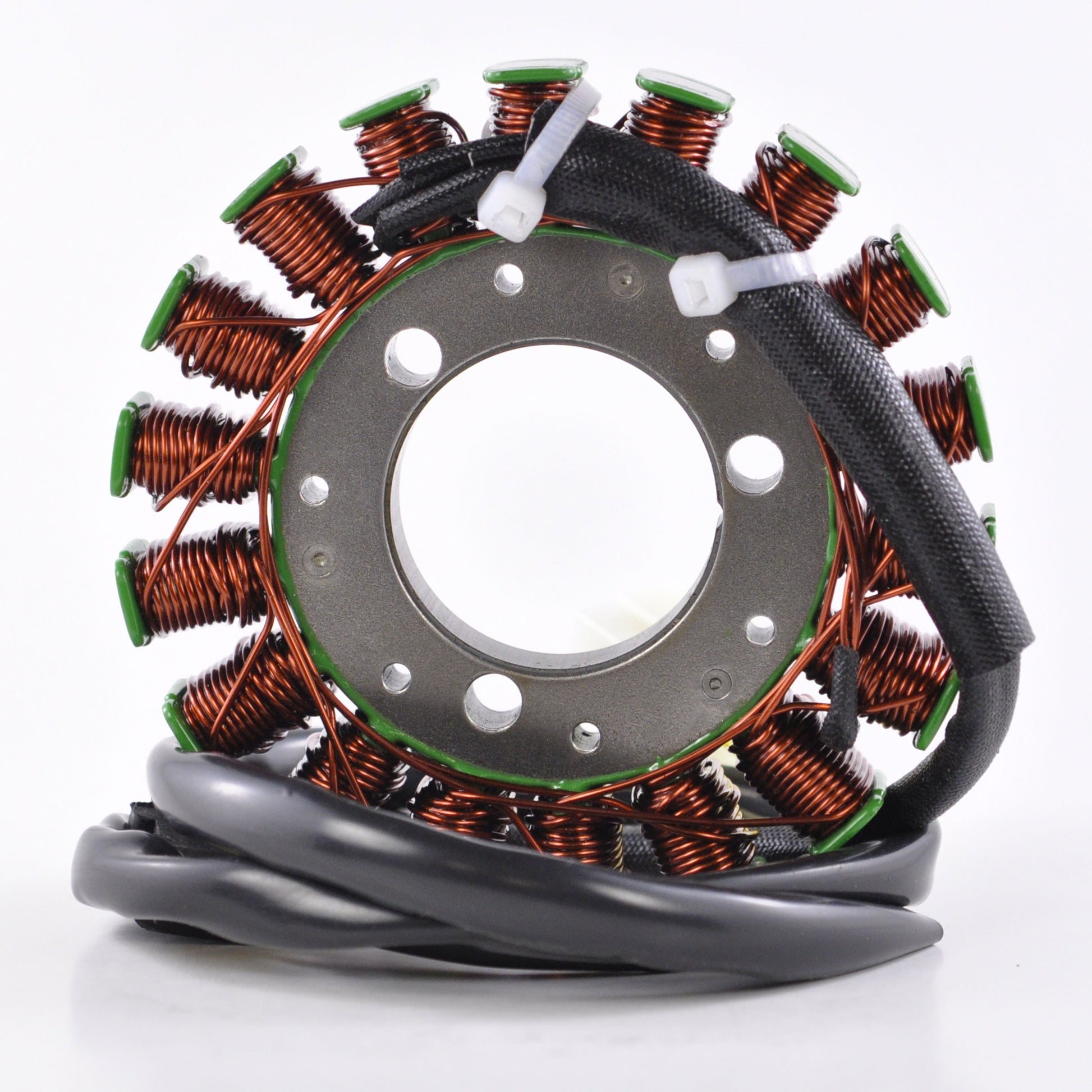

This is a brand new aftermarket generator stator built as a direct replacement for the original unit on the Kawasaki Ninja 250 R and the ZL 250 Eliminator. It is a plug-and-play, direct fit part, so it drops straight into the original location and uses the original connector - no cutting, splicing or modification of the loom is required.

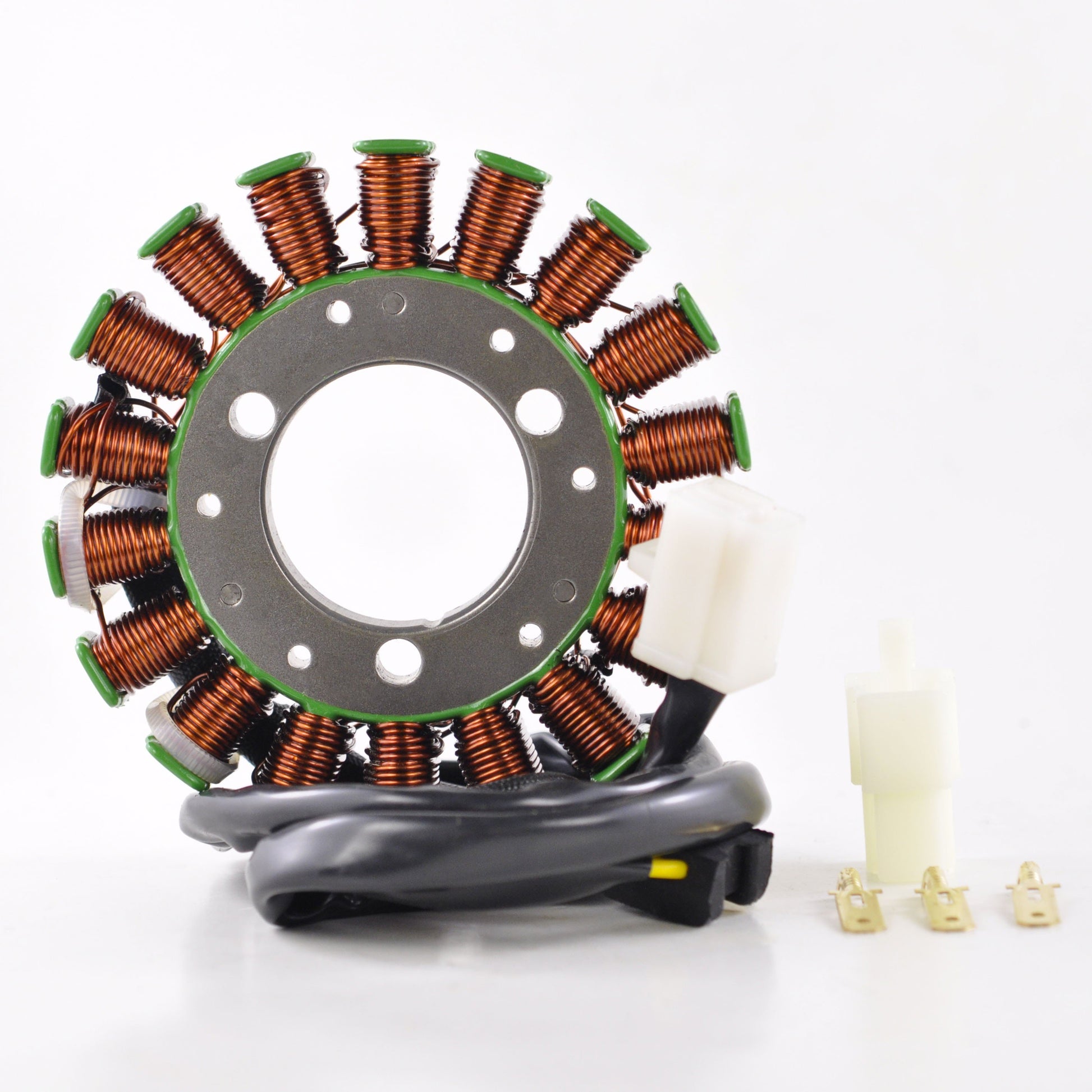

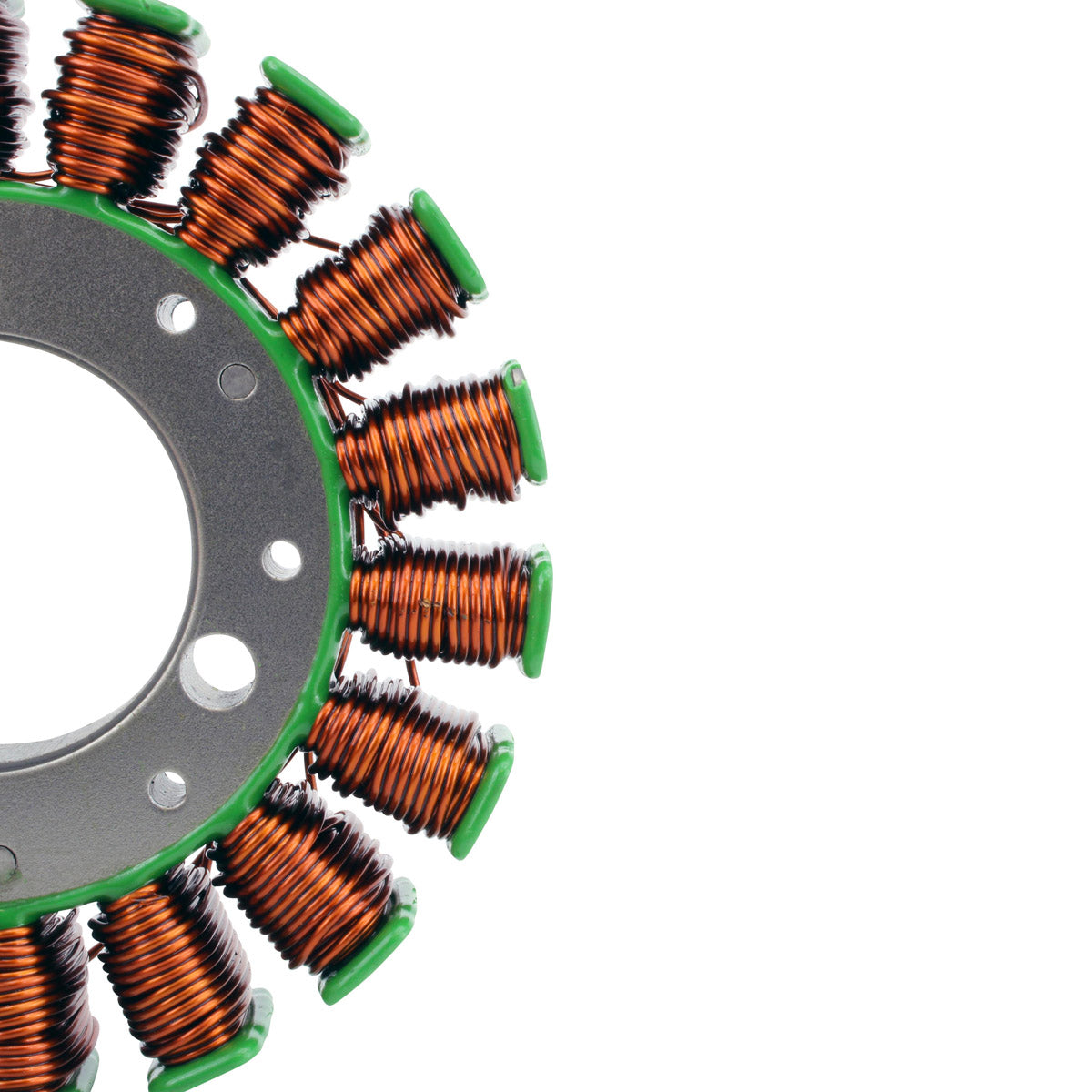

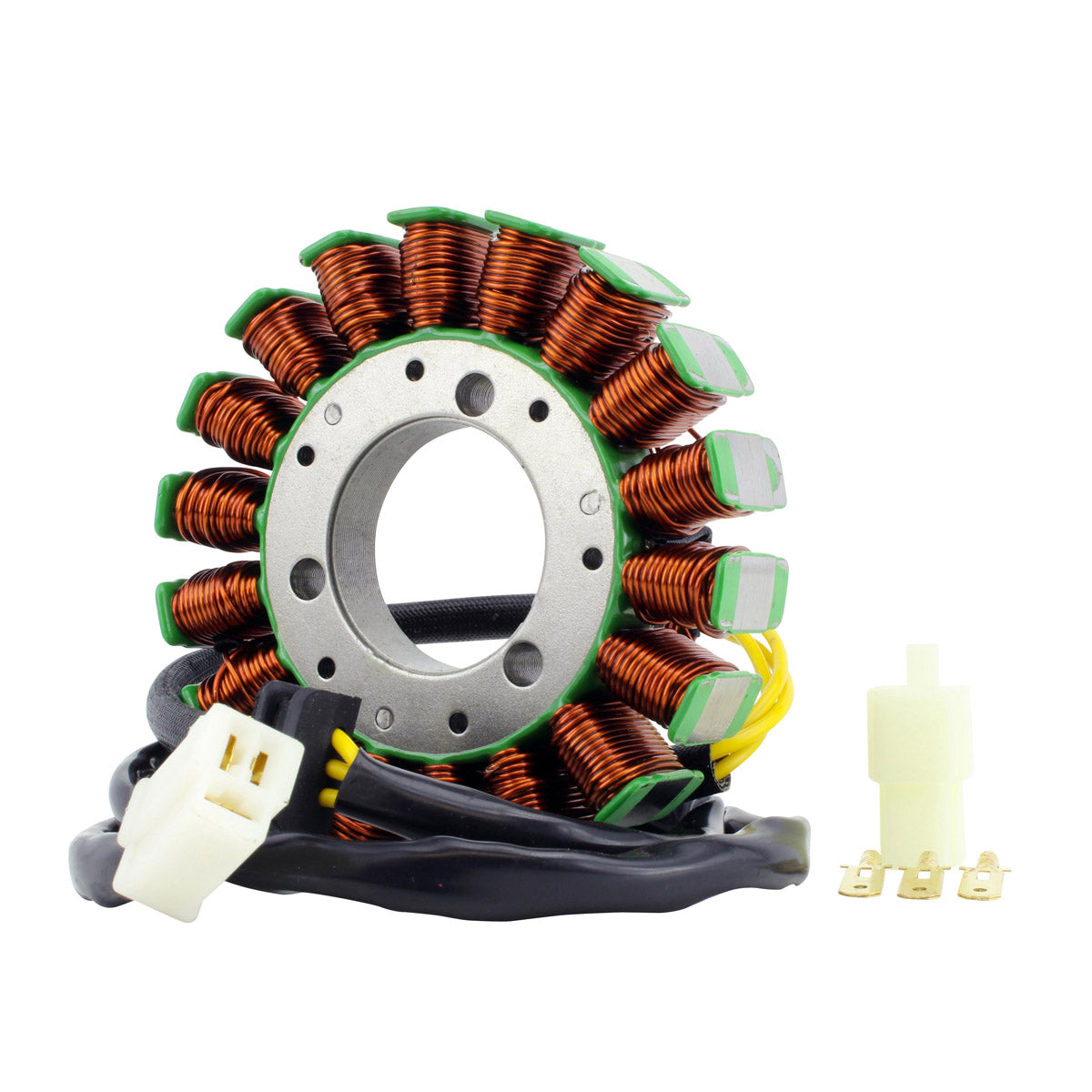

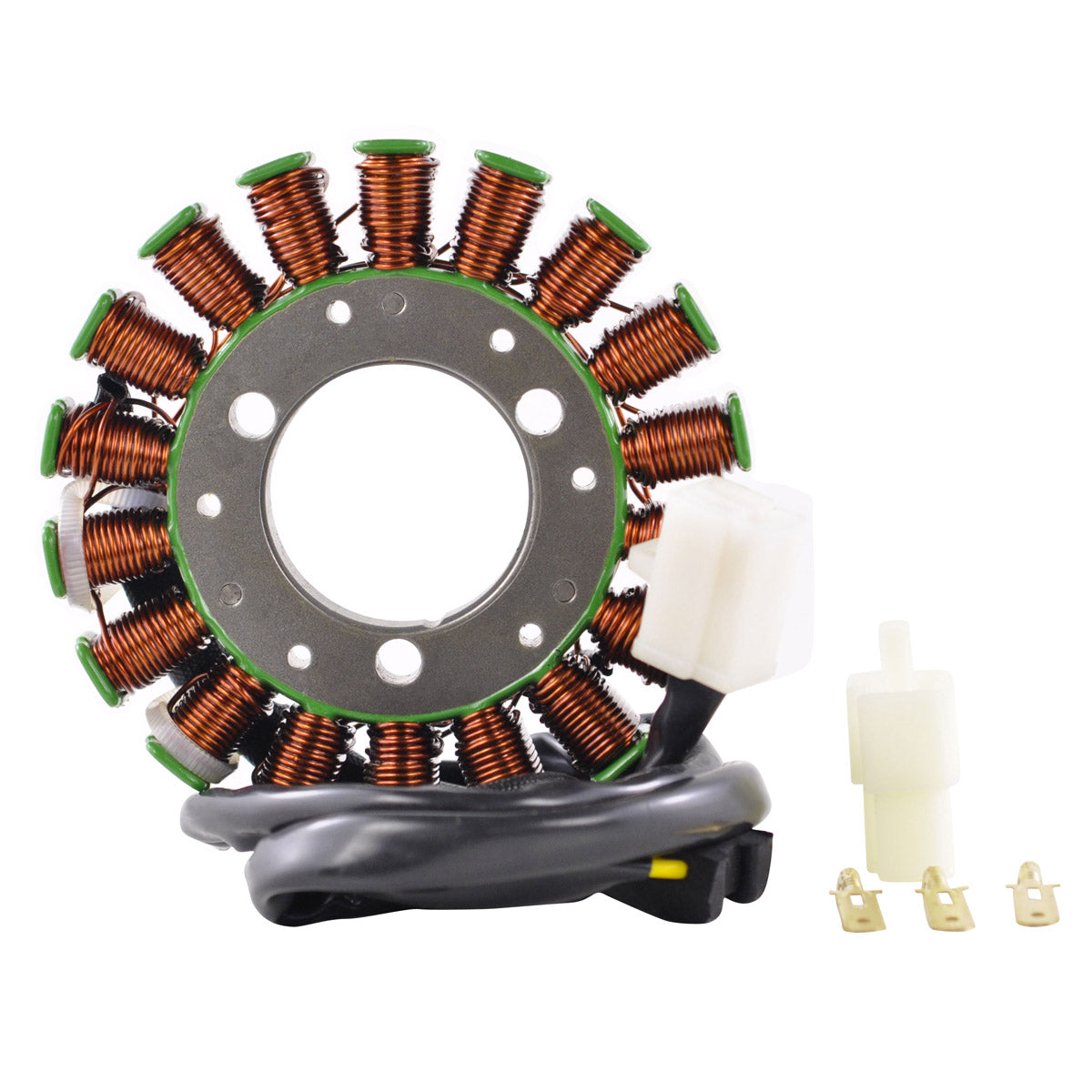

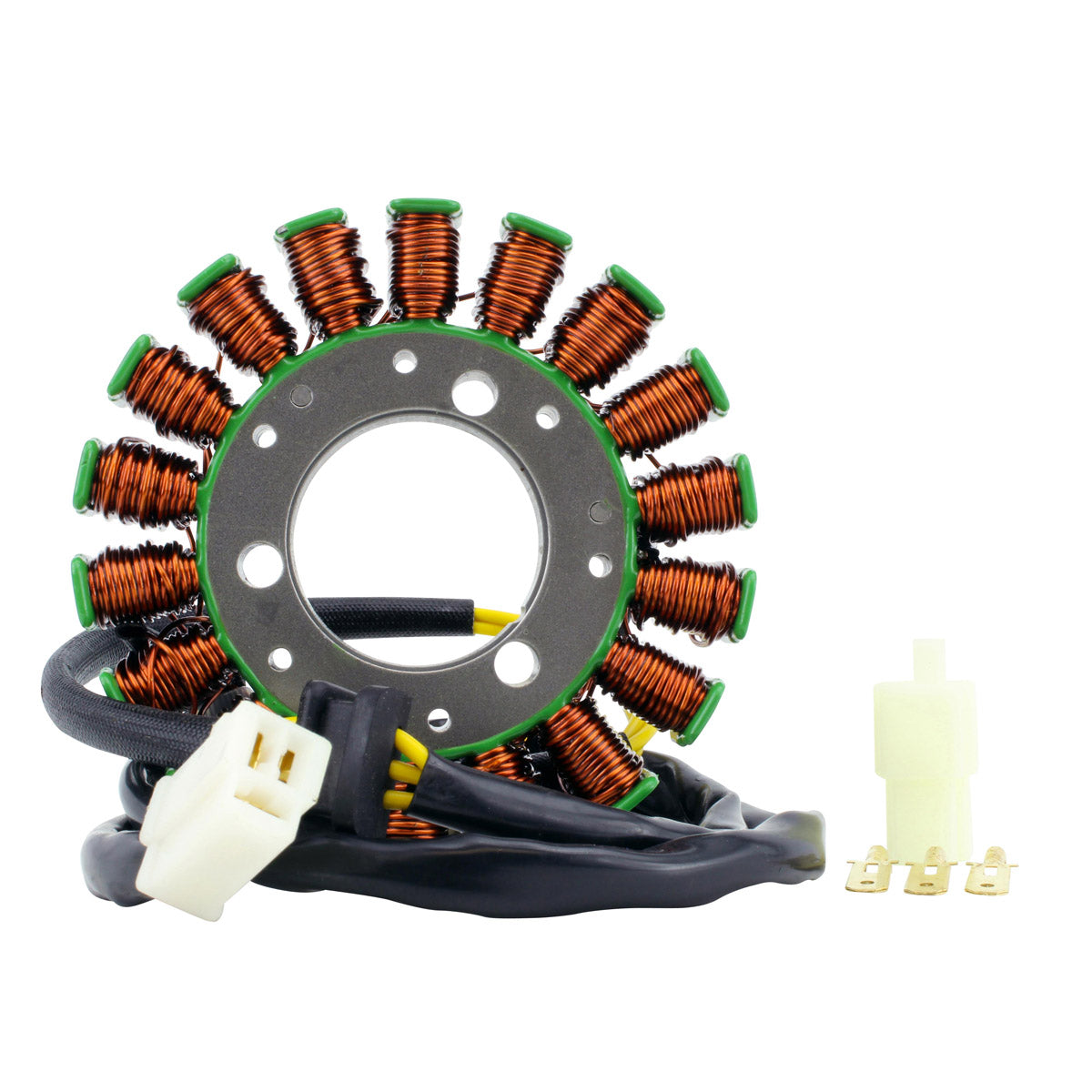

Construction uses the highest grade lamination materials for the core and the highest grade copper windings, resistant to 200 degrees Celsius. The stator is supplied with the connector and the rubber grommet already fitted, and we also include the opposite connector - the main harness side - because these are frequently melted, corroded or defective and are a major cause of repeat electrical issues. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

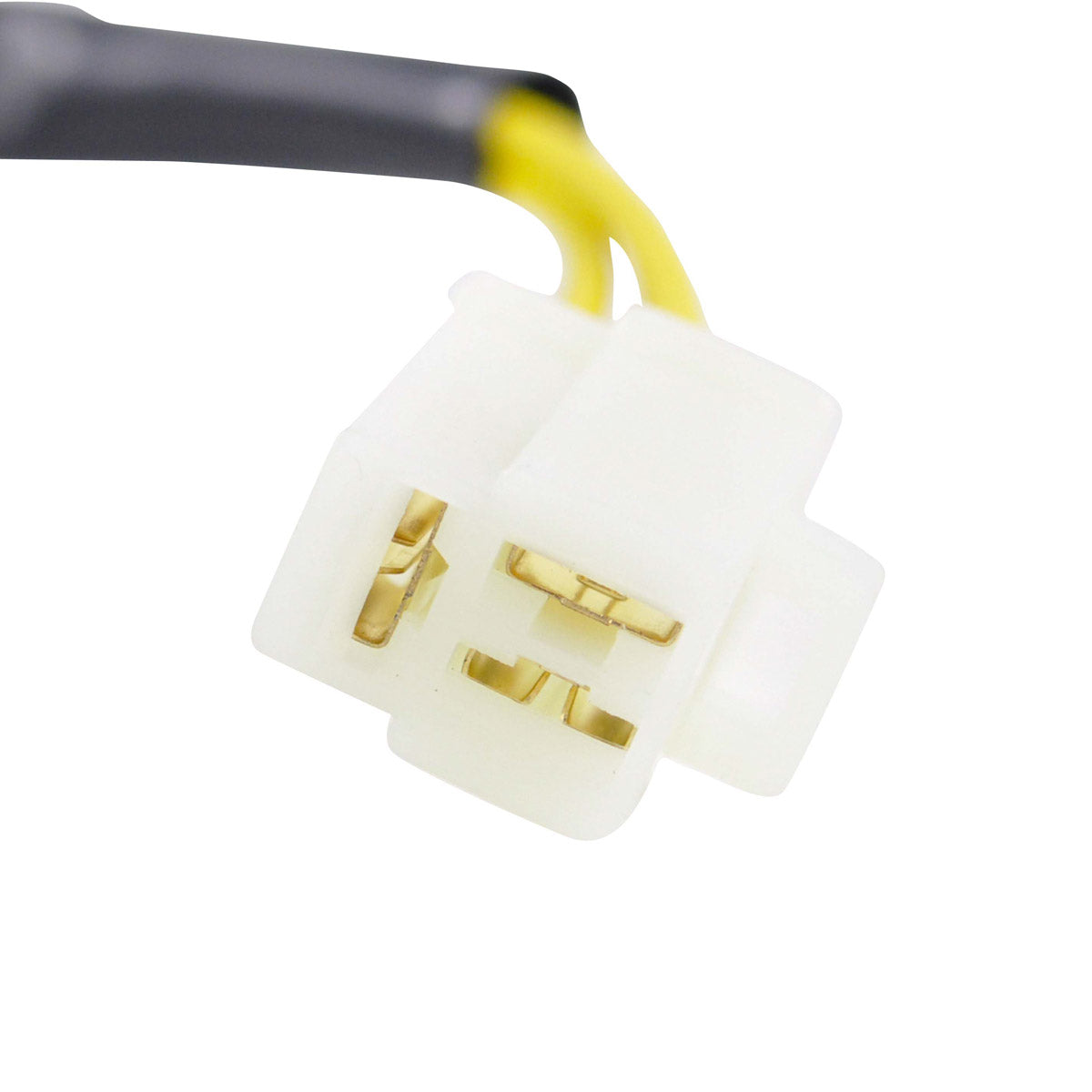

- Connector included
- Rubber grommet included

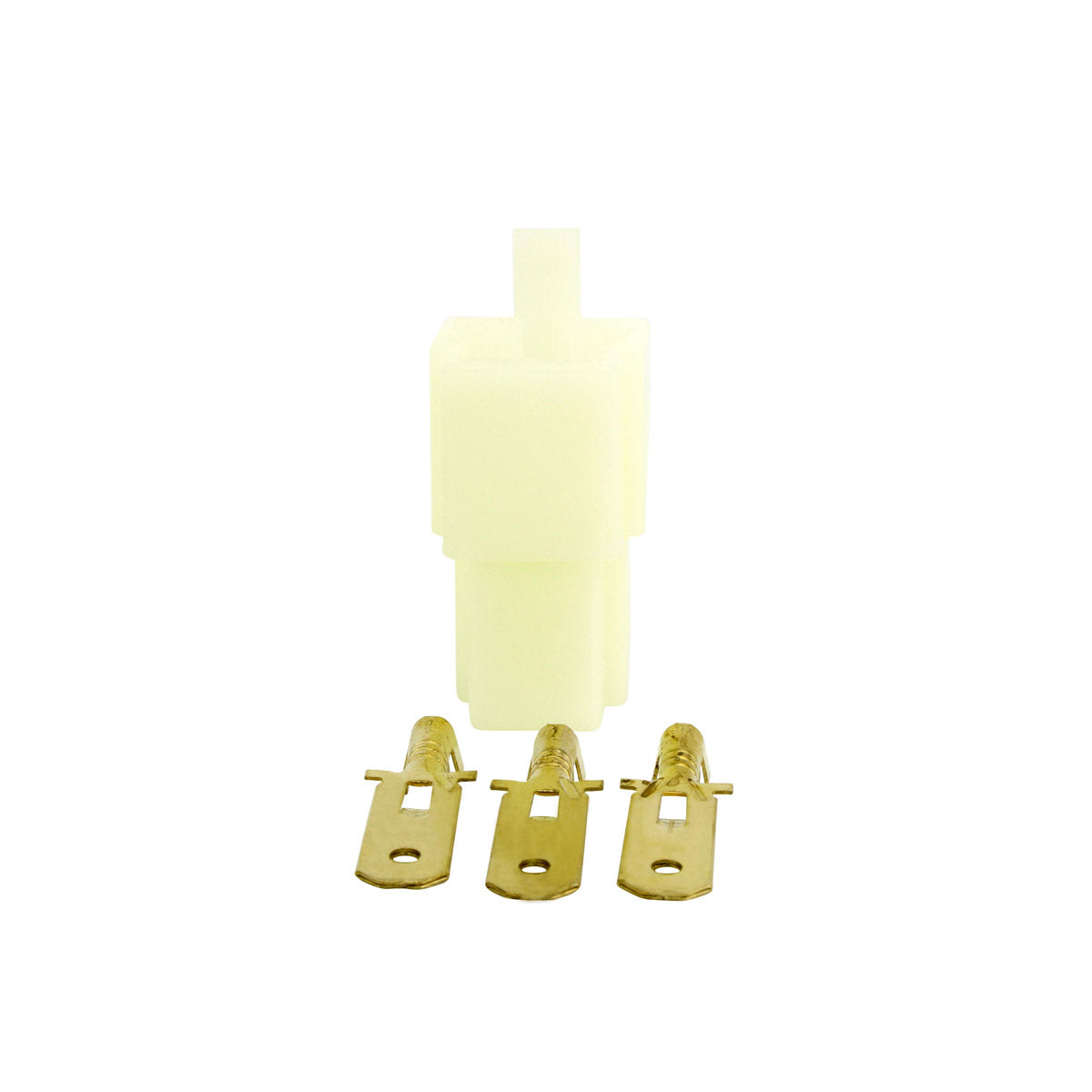

- Opposite connector (main harness side) also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-100187 |
| Interior diameter | 38 mm |
| Exterior diameter | 103 mm |

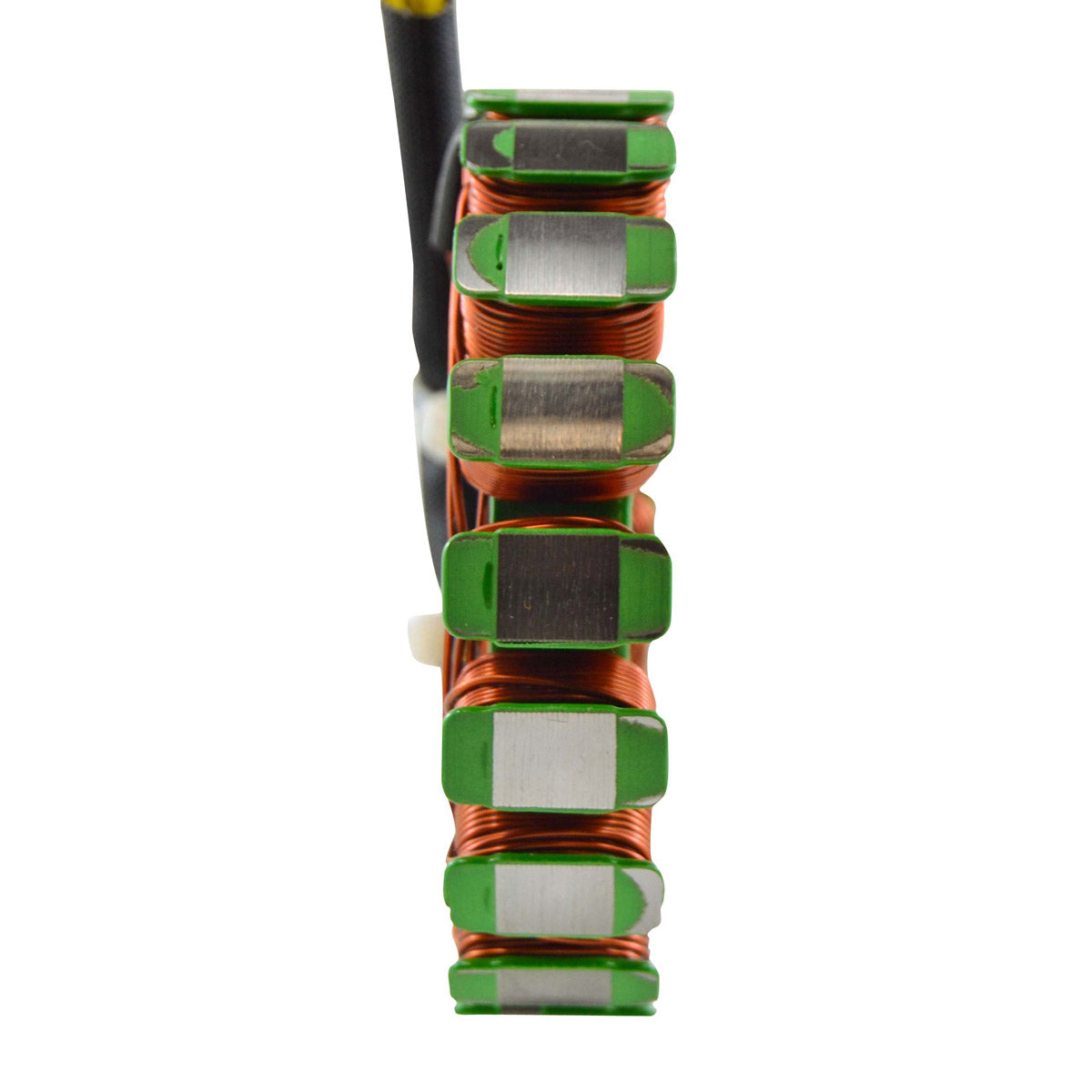

| Thickness | 15 mm |
| Wire length, stator to grommet | 175 mm |
| Wire length, grommet to plug | 650 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire to wire resistance (Yellow to Yellow) | 0.9 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Ninja 250 R | 1986-2007 |
| Kawasaki ZL 250 Eliminator | 1986-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1154 | Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit replacement that uses the original mounting points and the original single 3-pin plug. No cutting or splicing of the harness is needed. Please confirm the OEM number on your original unit before ordering.
What is included in the box?
You receive the stator with its connector and rubber grommet already fitted, plus the opposite connector for the main harness side. That spare connector is included because the original is often melted, corroded or defective and is a common cause of recurring charging faults.
How do I tell if my old stator has failed?
With the plug disconnected, measure resistance between any two of the three yellow wires. It should read 0.9 ohms +/-20%. Then check for continuity between any yellow wire and the stator core or engine case - there should be none. A reading well outside 0.9 ohms, an open circuit, or a short to earth all point to a failed stator.
Does this unit include a pick-up or pulsar coil?

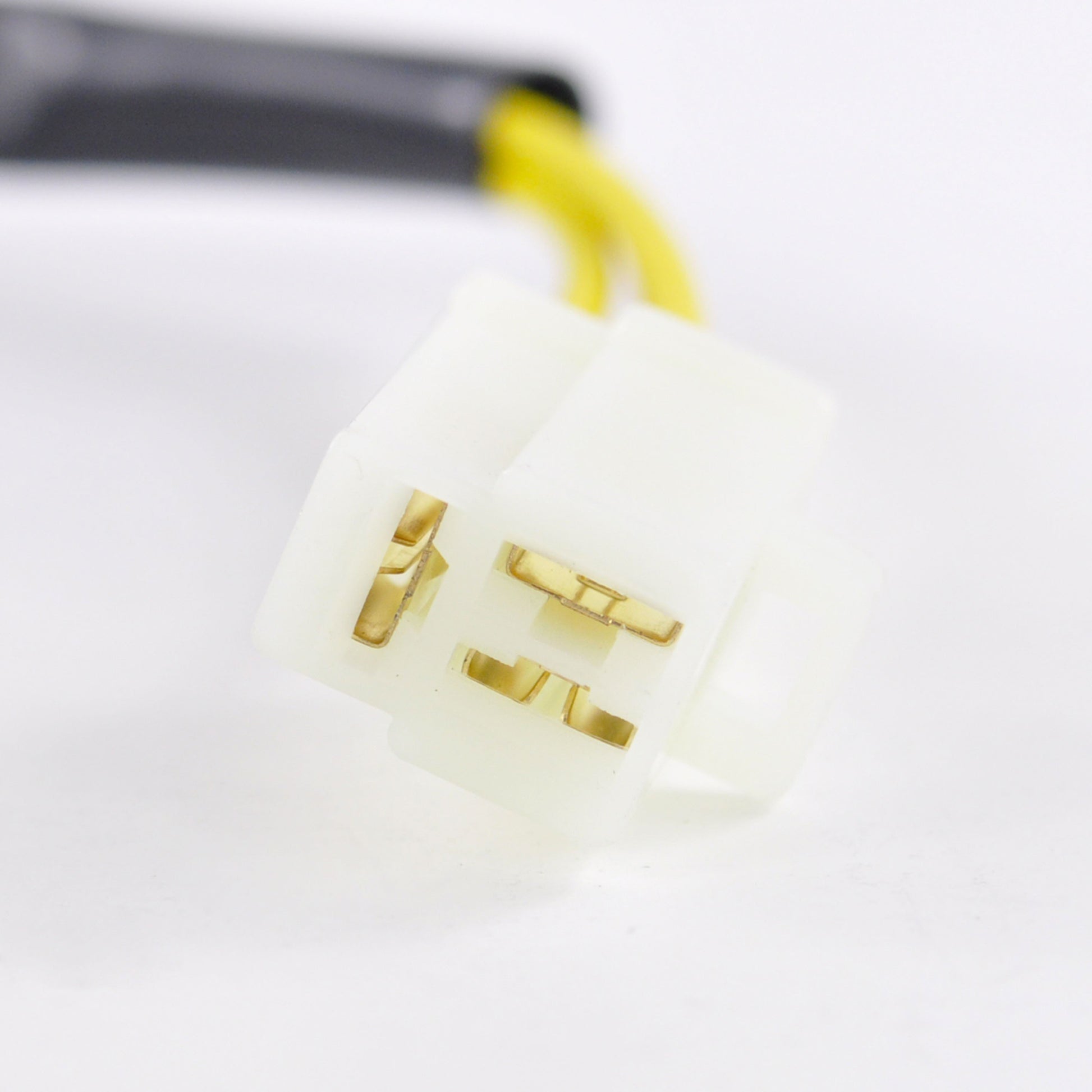

No. This is the three-phase alternator stator only, with 3 wires into a single 3-pin plug. The pick-up coil is a separate component on these models and is not part of this assembly.
