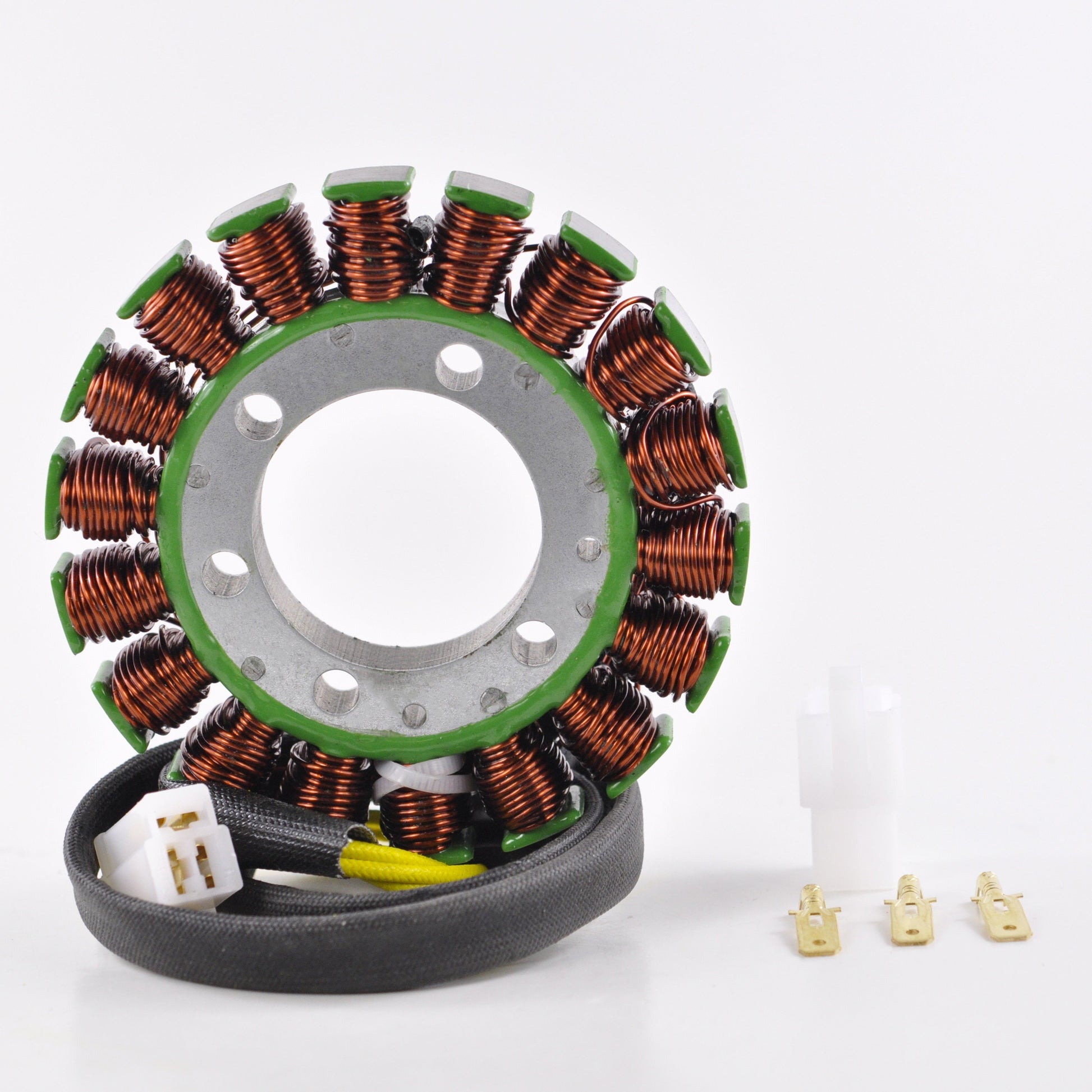

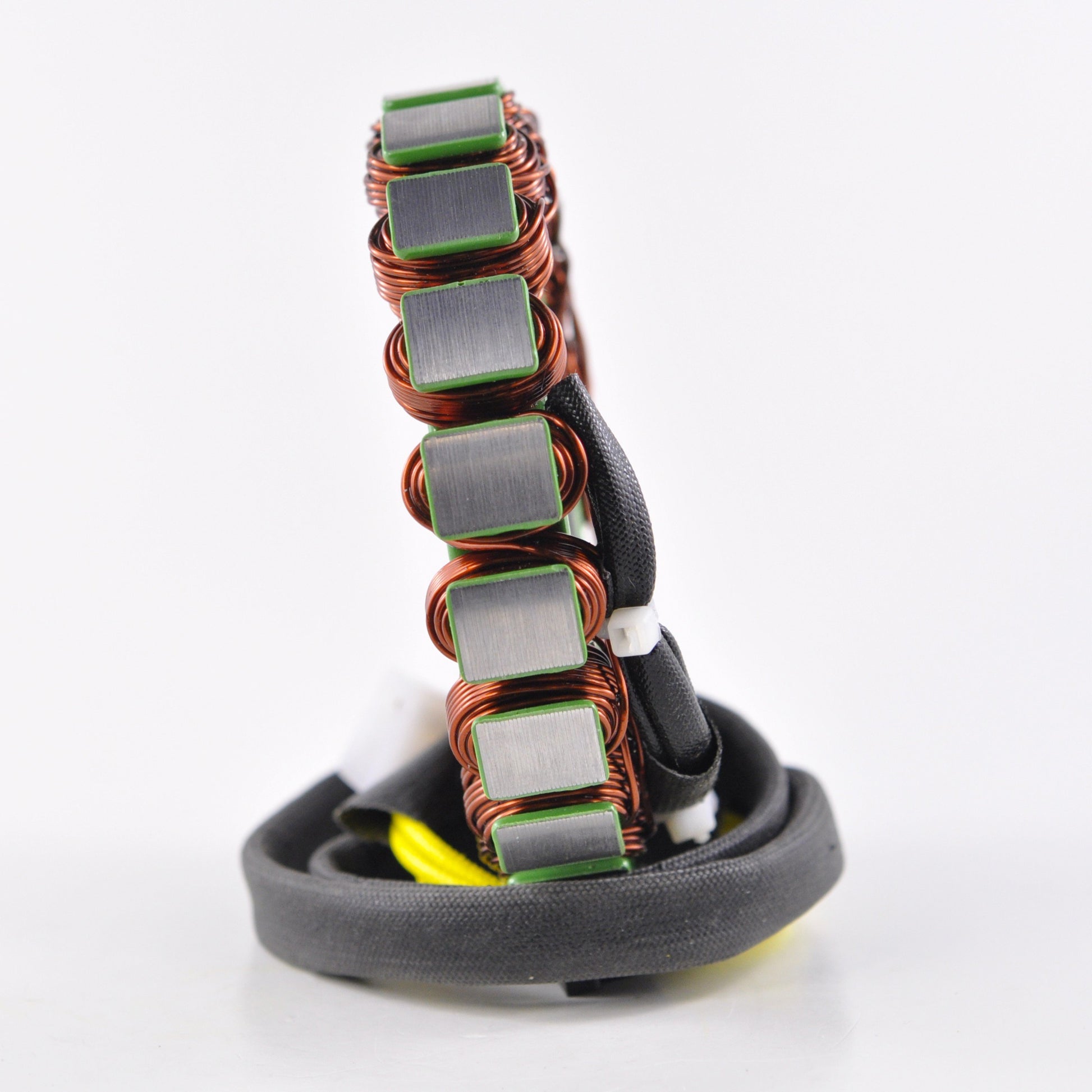

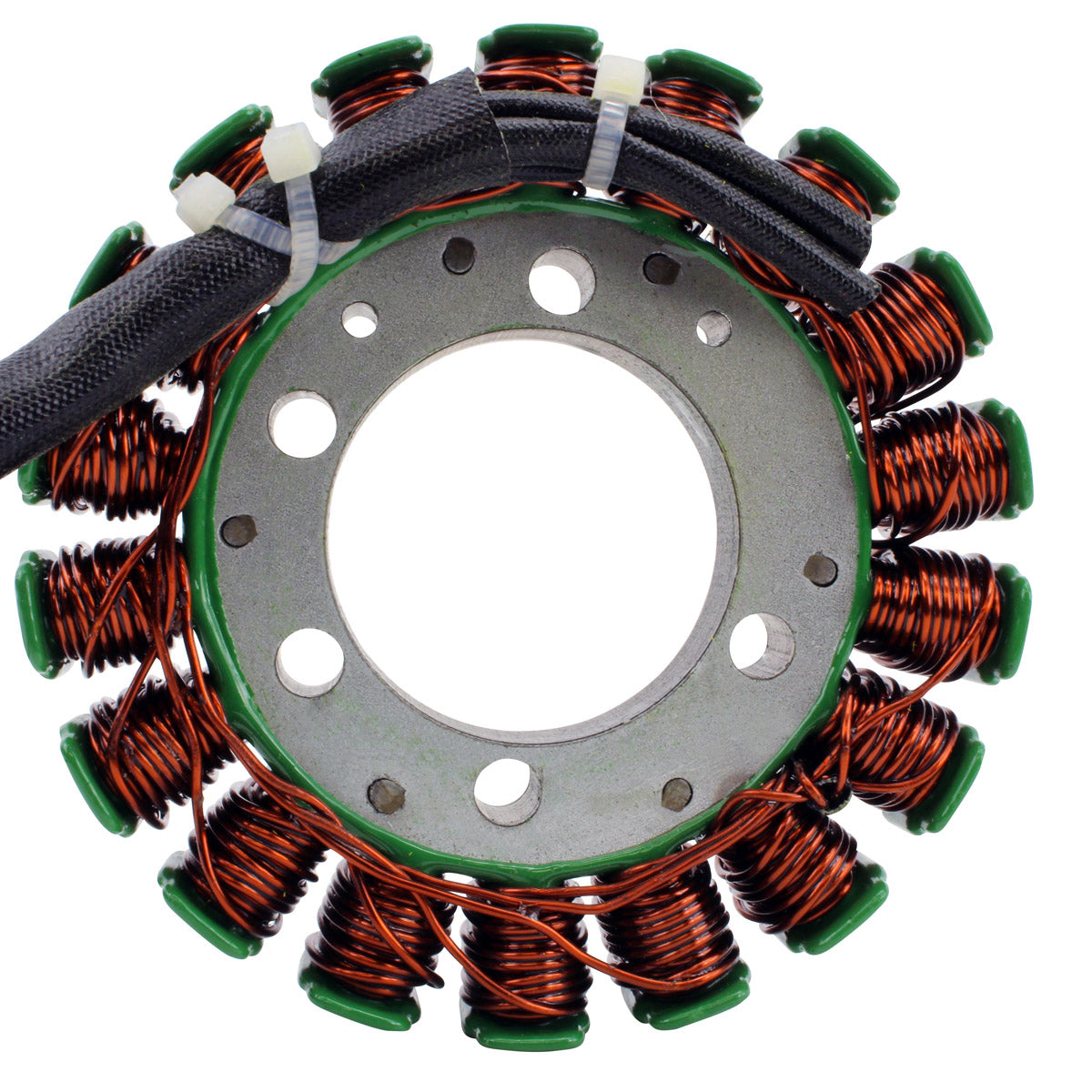

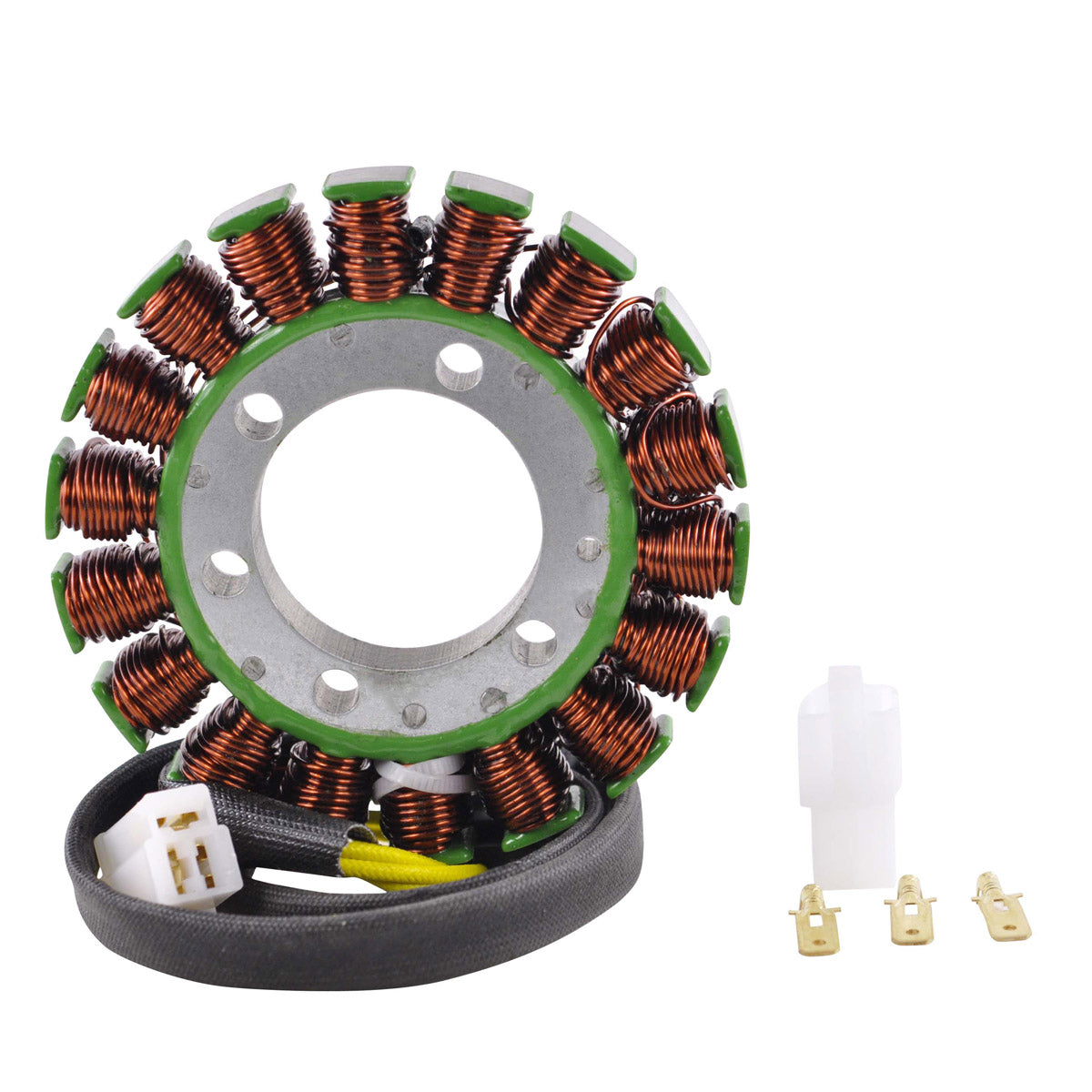

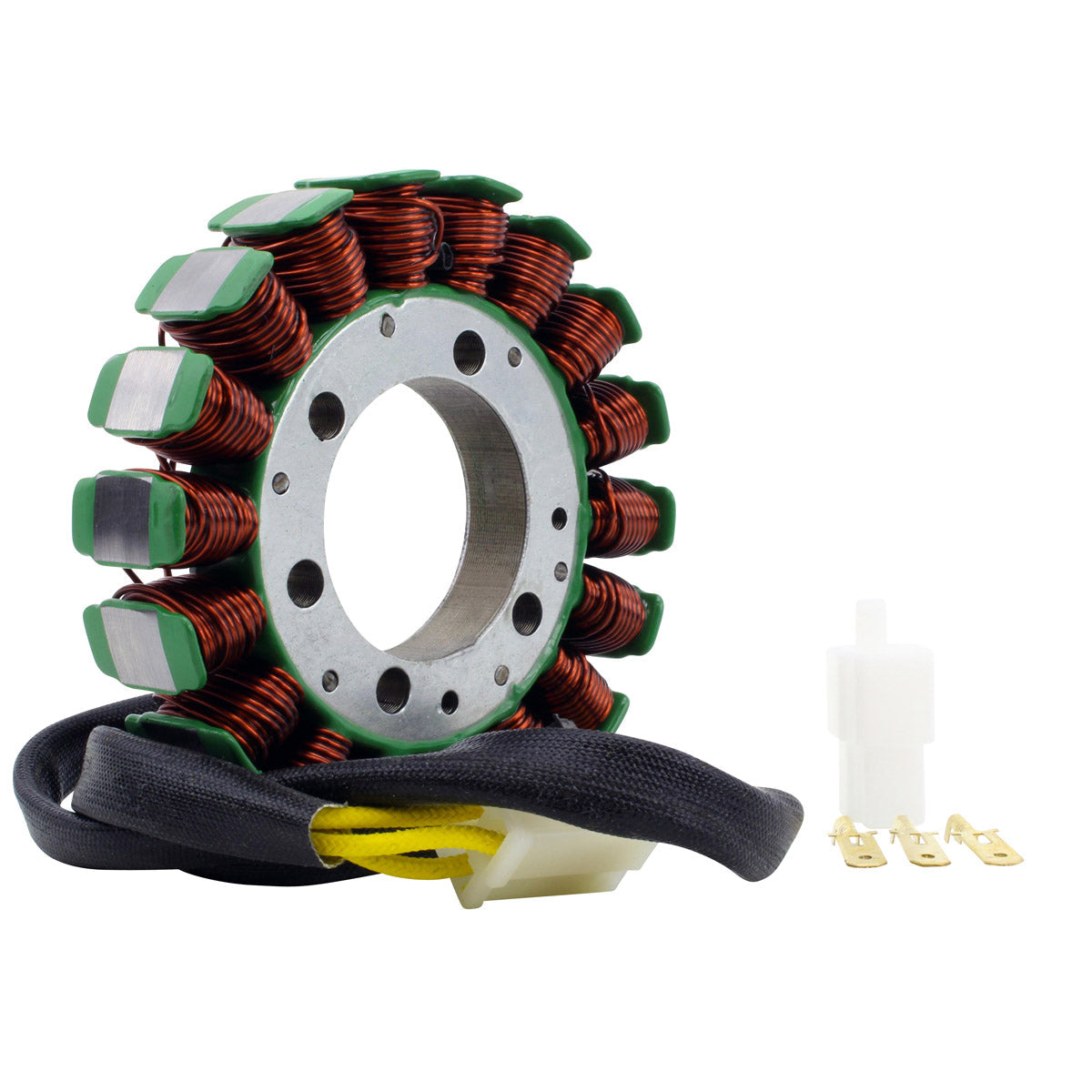

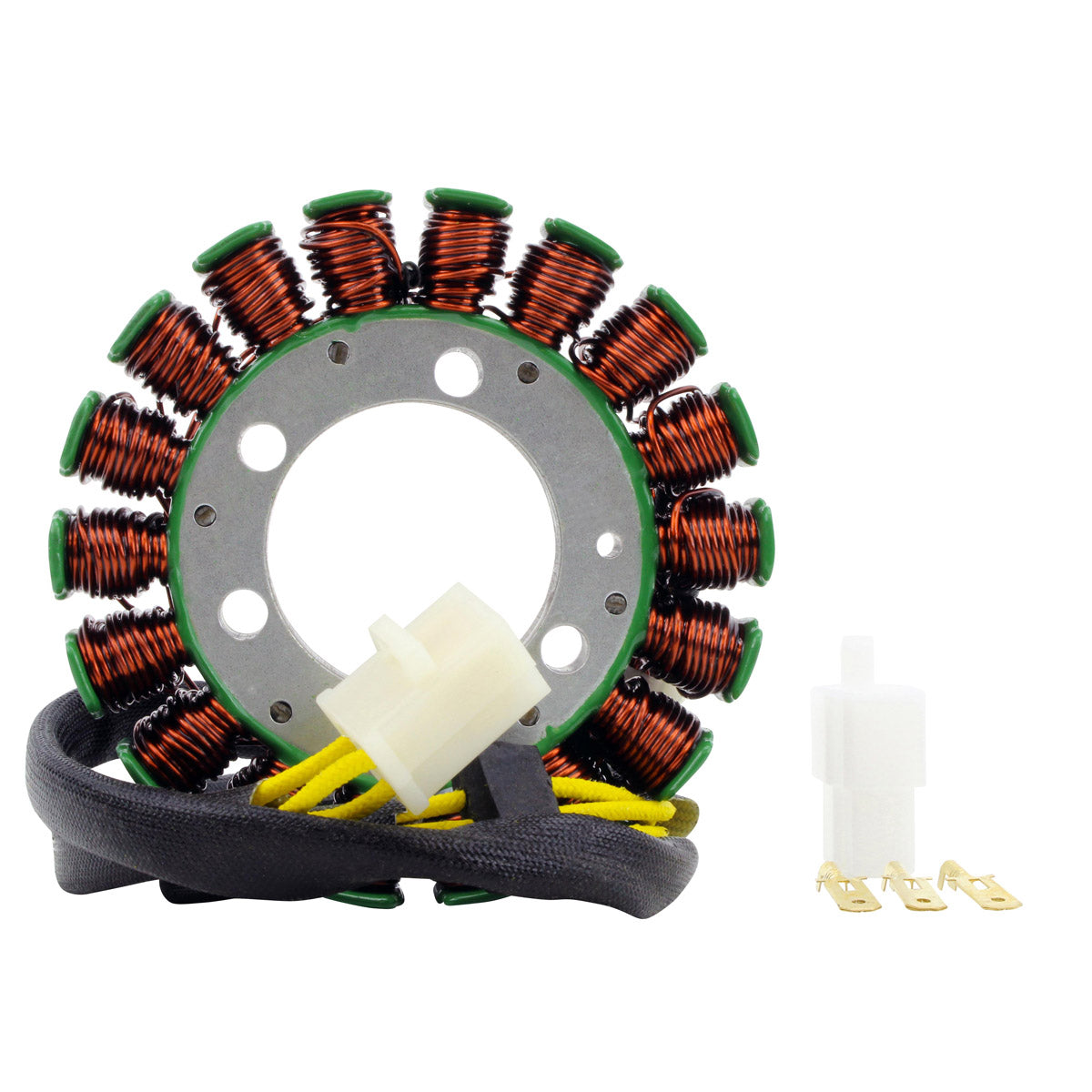

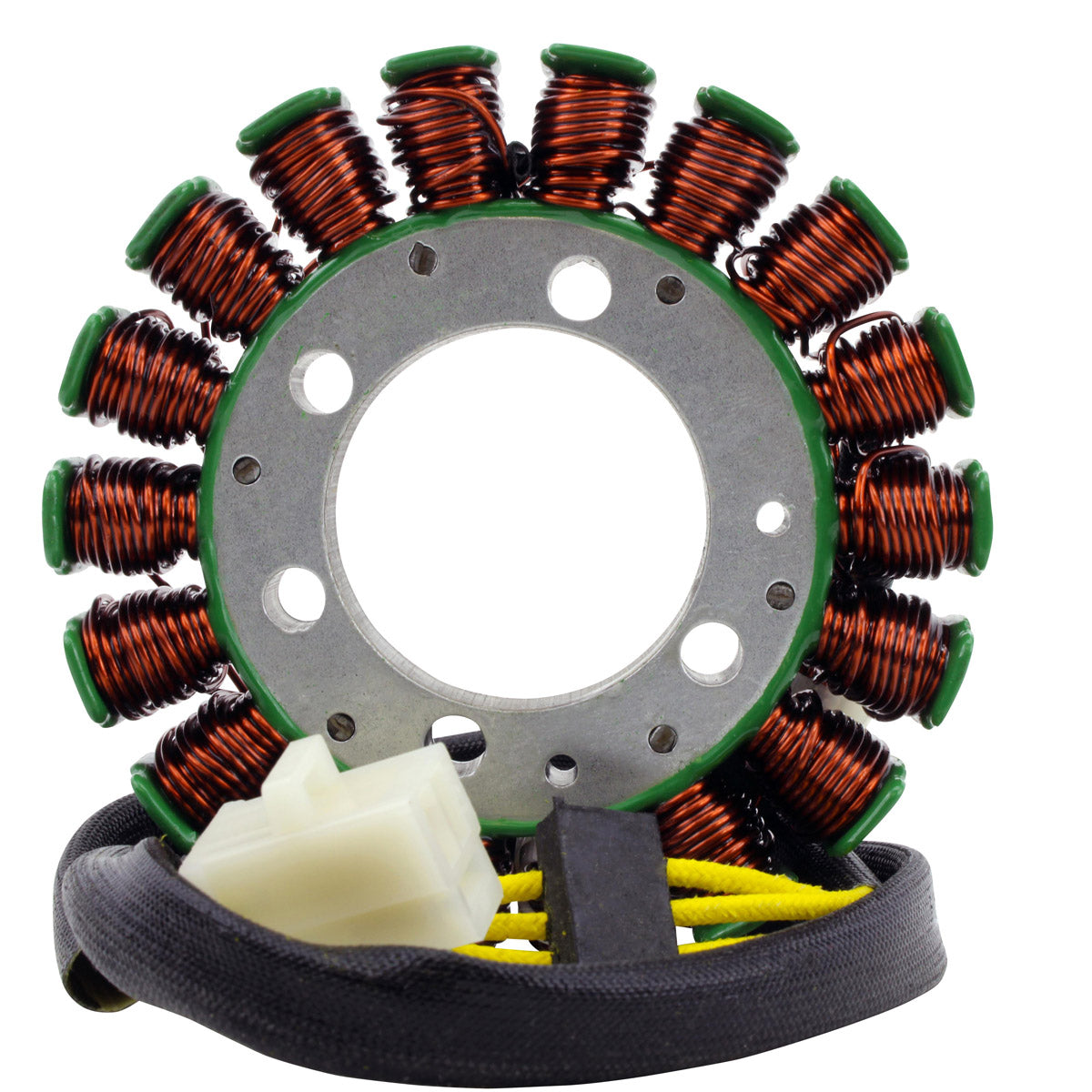

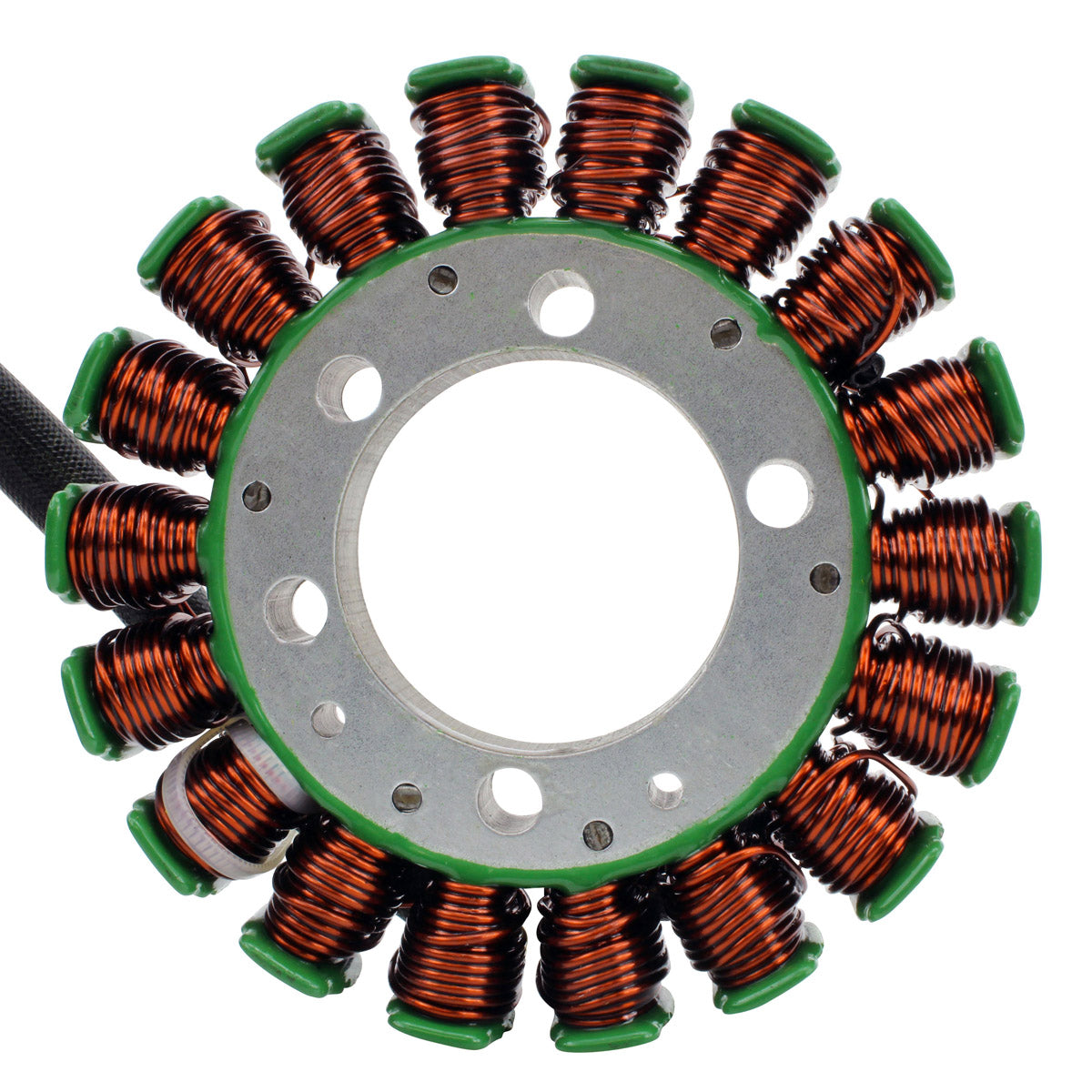

This is a brand new aftermarket replacement stator for the Kawasaki Ninja ZX-6 and ZZR600 across the 1990 to 2005 coverage span. It is a direct replacement for the original Kawasaki unit, so it uses the same mounting pattern, the same wire routing and the same factory plug. Installation is plug-and-play and needs no cutting, splicing or modification to the loom or to the charging circuit.
The core is built from the highest grade lamination materials and the windings use the highest grade copper, rated to resist 200 degrees Celsius, which is what keeps charging output steady once the engine and the oil bathing the stator reach full working temperature. Because the connector on the harness side of these bikes is a well known corrosion point, an additional opposite connector for the main harness side is supplied in the box, so a burnt or green-corroded plug can be replaced at the same time rather than being re-used. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewound used core
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

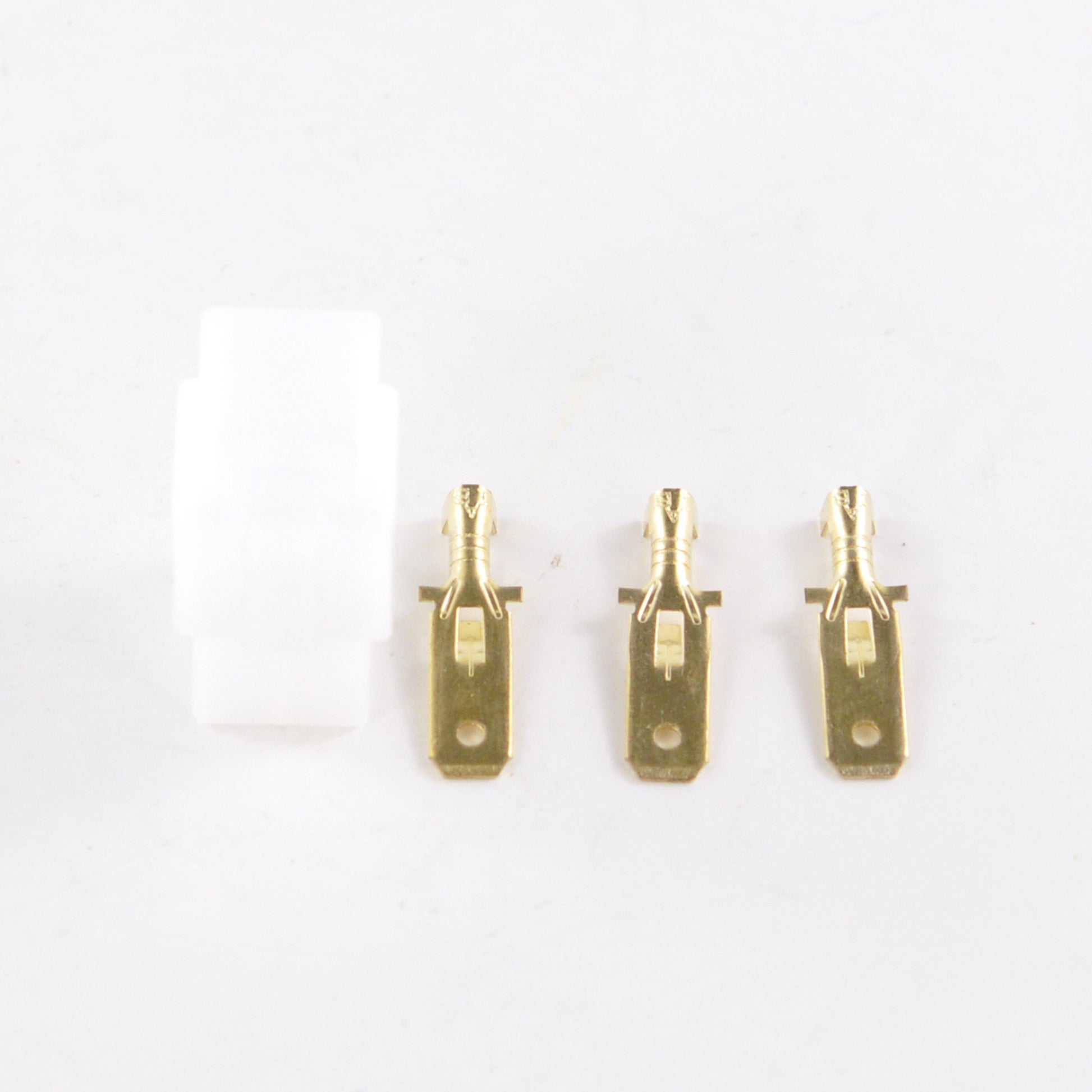

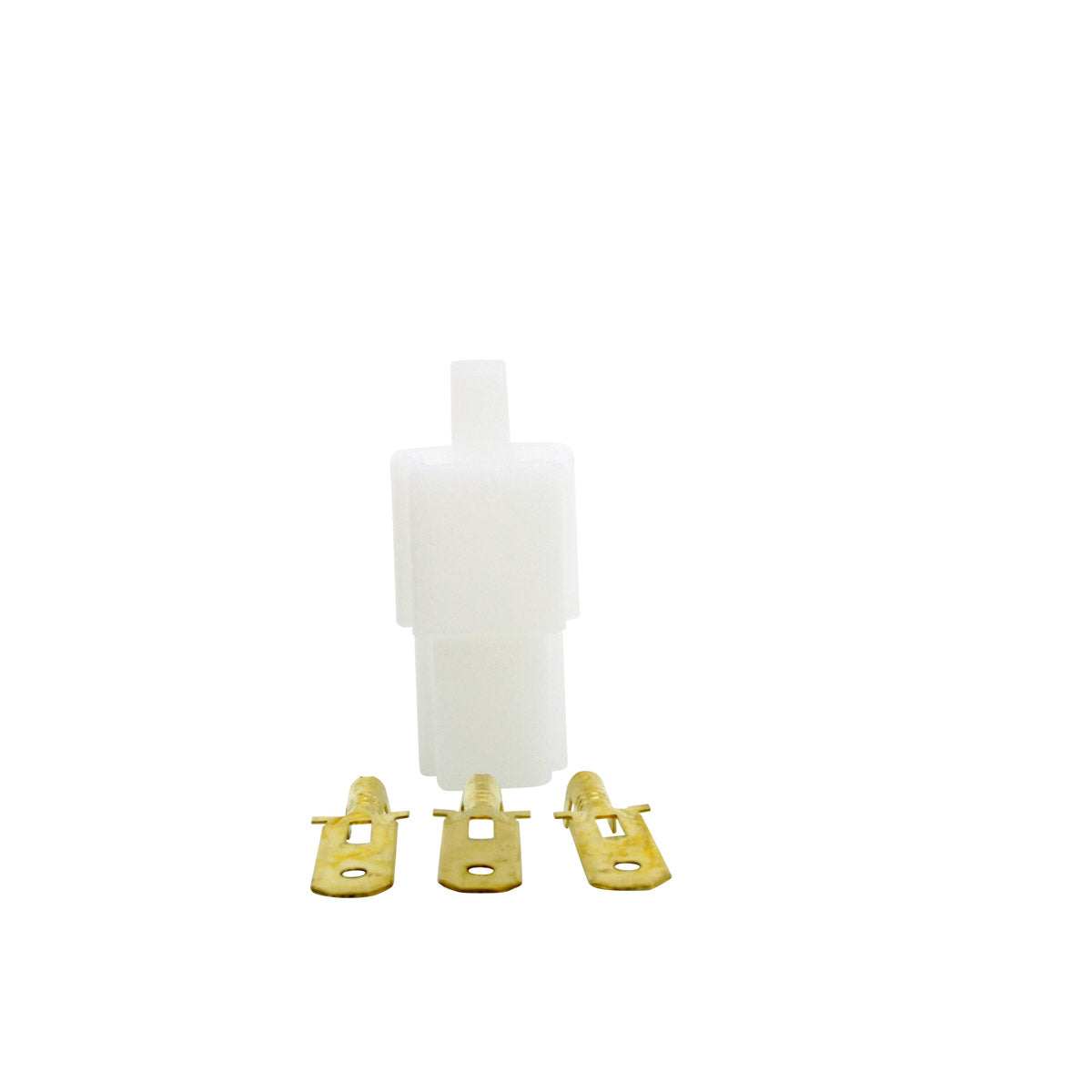

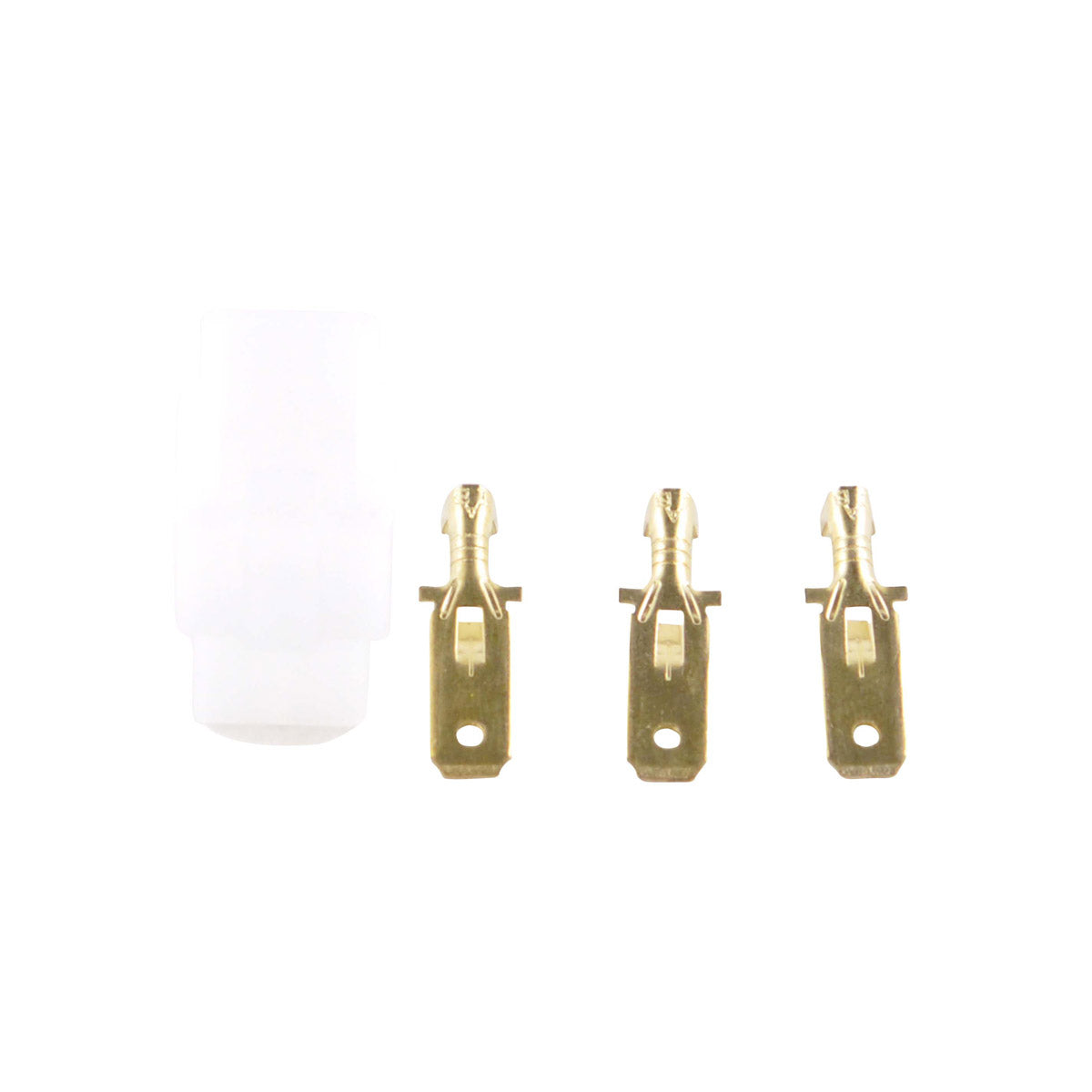

- Additional opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
103 mm |
| Thickness |
16 mm |
| Wire length, stator to grommet |
125 mm |
| Wire length, grommet to plug |
495 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator wire-to-wire resistance |
0.6 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki Ninja ZX-6 / ZX6R |
1990-2005 |
| Kawasaki ZZR600 |
1990-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1214 |
Kawasaki |
| 21003-1368 |
Kawasaki |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit on the listed models and years, with the same mounting points, the same three-wire output and the same factory plug. No cutting, splicing or adapter loom is required.
What is included in the box?
The stator, the connector, the rubber grommet, and an additional opposite connector for the main harness side so that a corroded or heat-damaged plug on the bike can be renewed at the same time.
How can I tell my old stator has failed?
Common symptoms are a battery that keeps going flat, headlights that dim at idle and brighten with revs, or a charging warning. With a multimeter set to ohms, each pair of the three yellow output wires should read about 0.6 ohms, within plus or minus 20 per cent, and none of them should show continuity to the engine case. An open circuit, a short to earth, or wildly uneven readings between the three pairs indicate a failed stator.
Why is a second connector supplied?

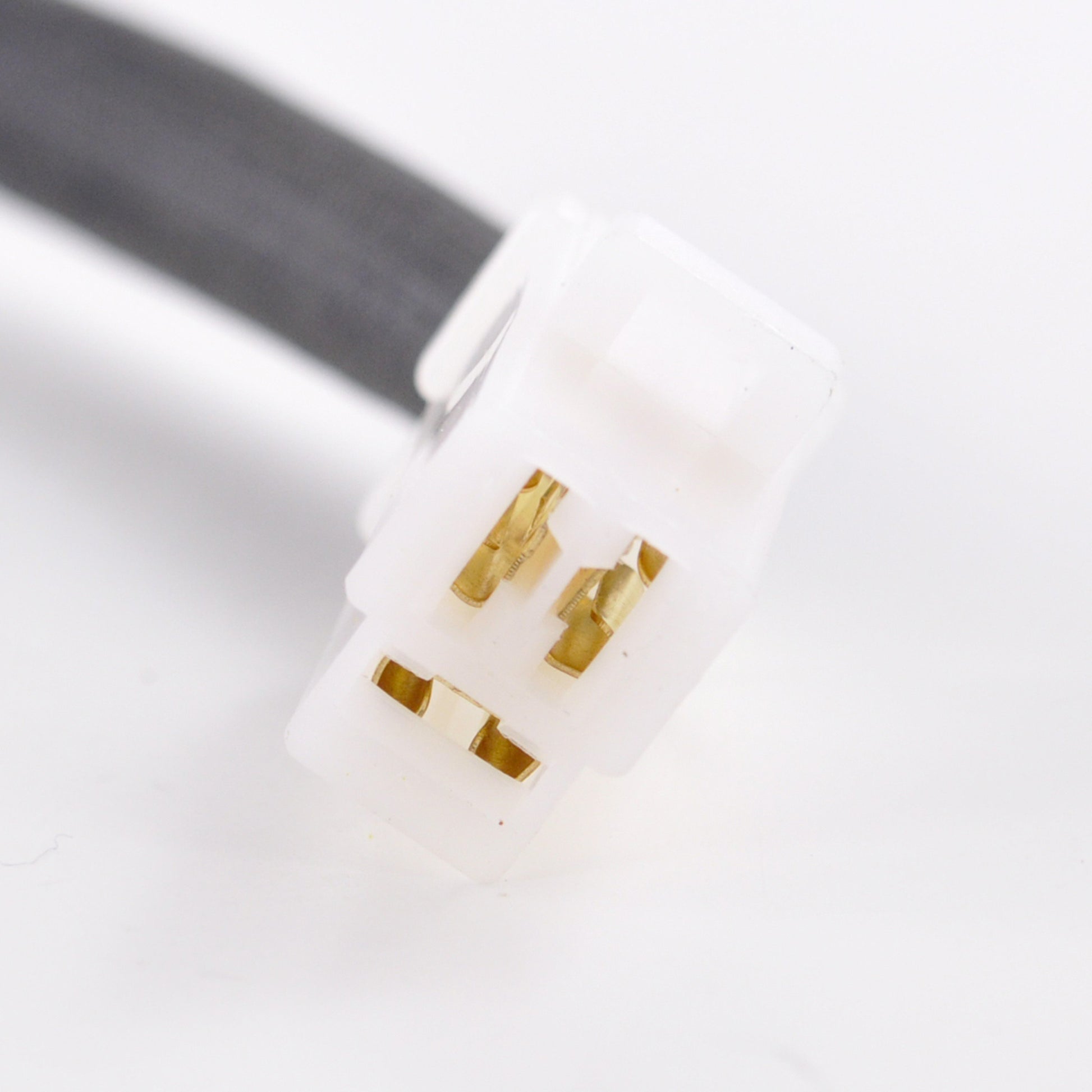

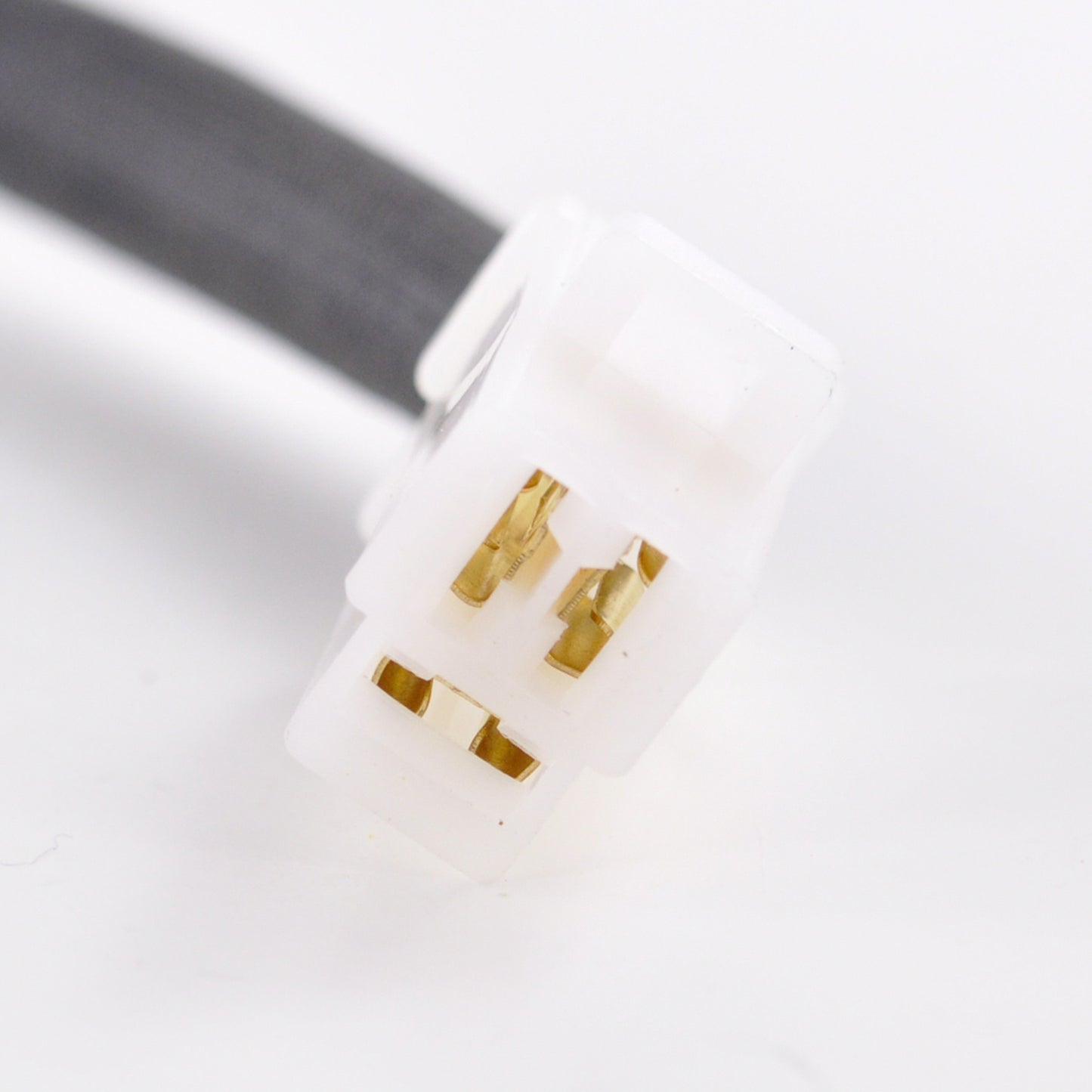

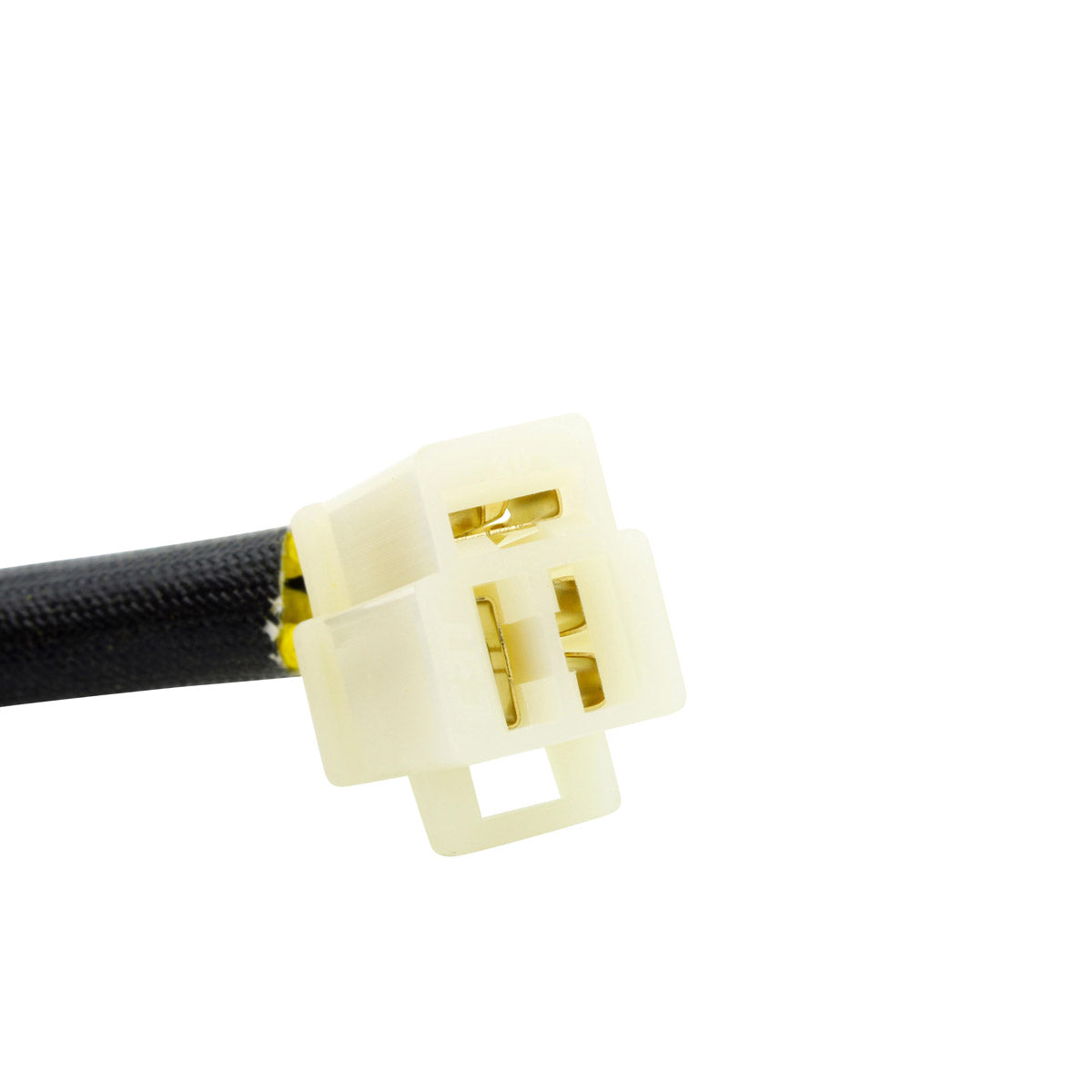

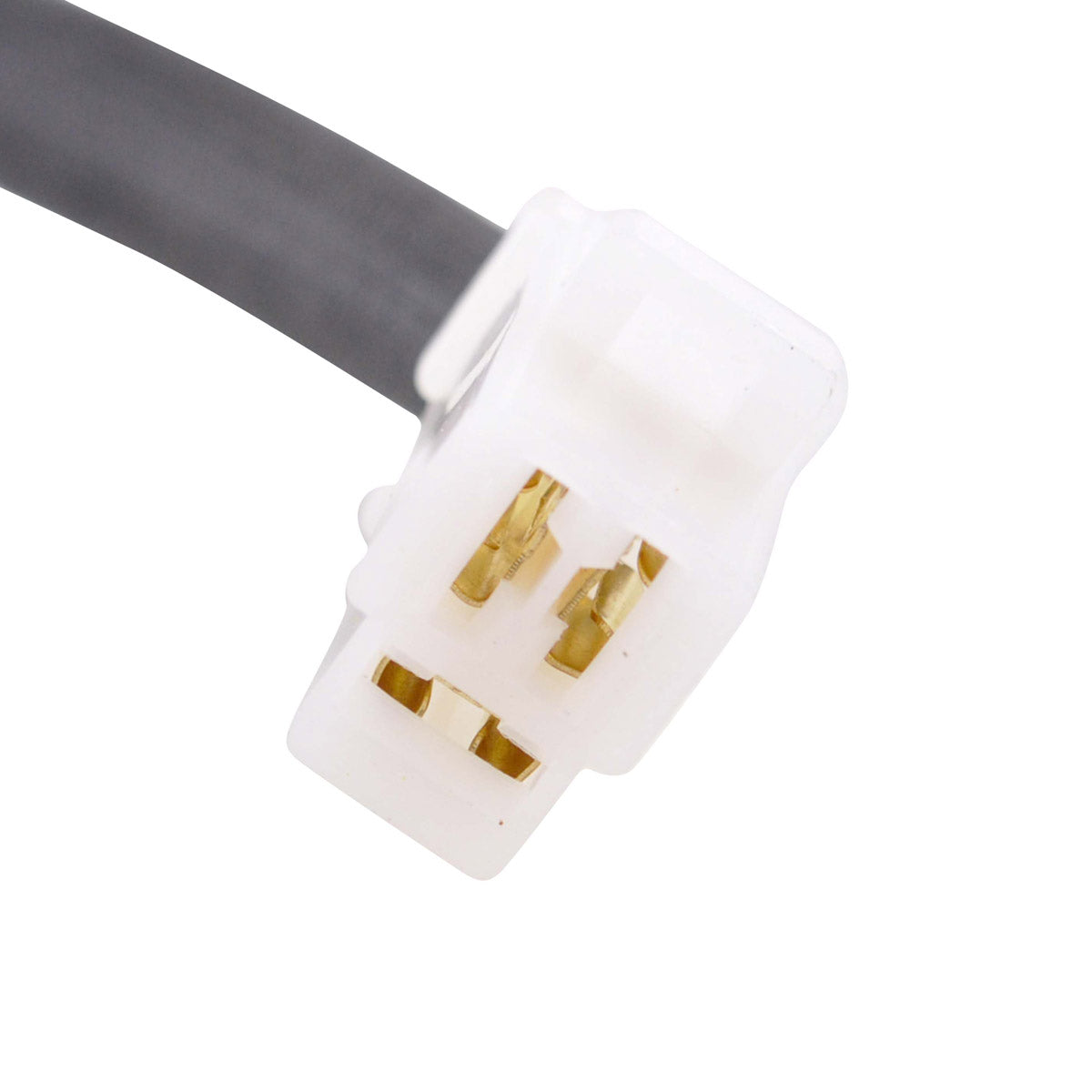

The three-pin plug between the stator and the main harness on these models runs hot and is a known corrosion point. Fitting the supplied harness-side connector removes the high-resistance joint that often destroys the replacement stator and the regulator rectifier, so it is worth changing while the panels are off.
