Stator for Kawasaki Ninja ZX-6R, ZX-6RR, Z 750 & Z 1000 2003-2006
Stator for Kawasaki Ninja ZX-6R, ZX-6RR, Z 750 & Z 1000 2003-2006
SKU:RMS010-101514
Free shipping over £150. Terms apply
Couldn't load pickup availability

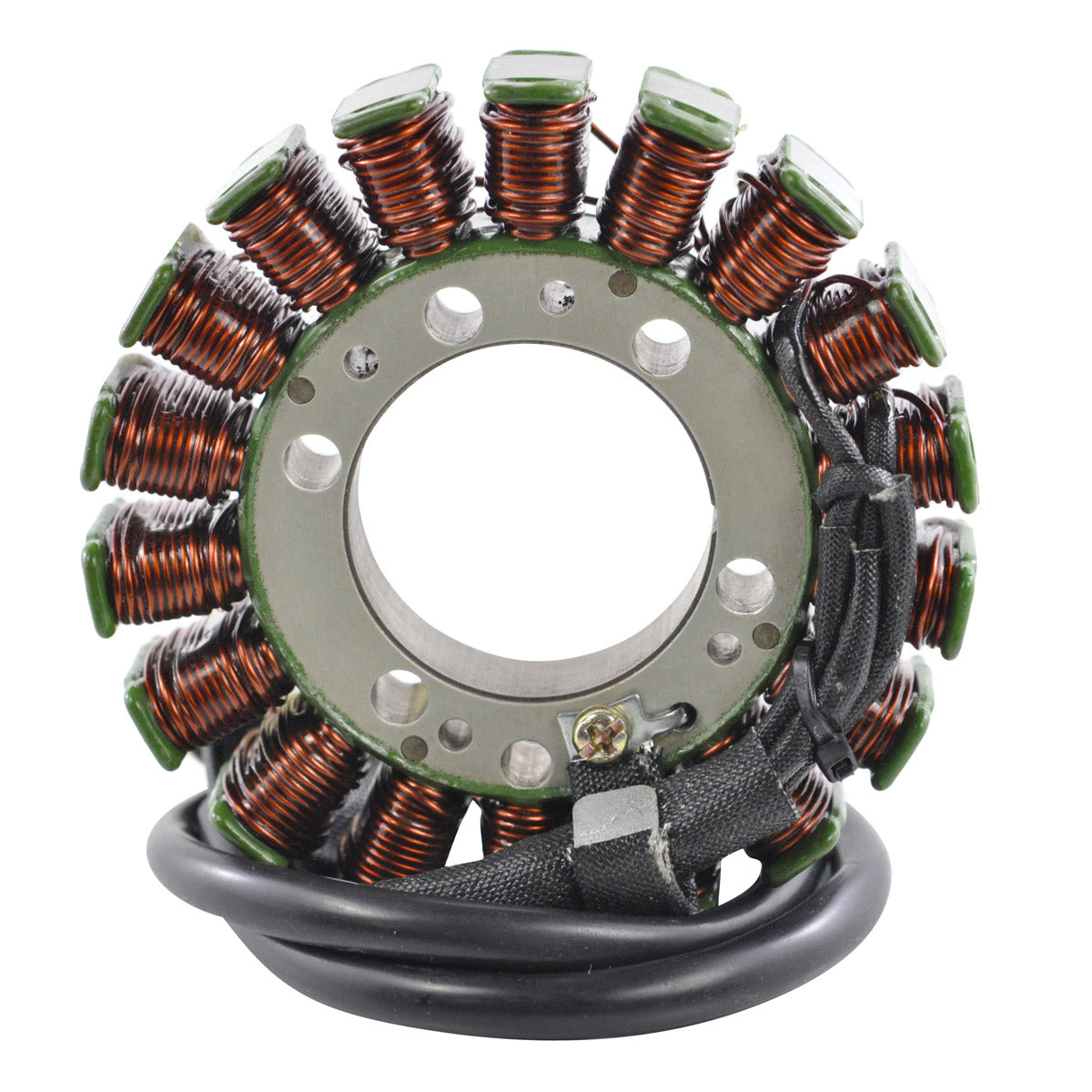

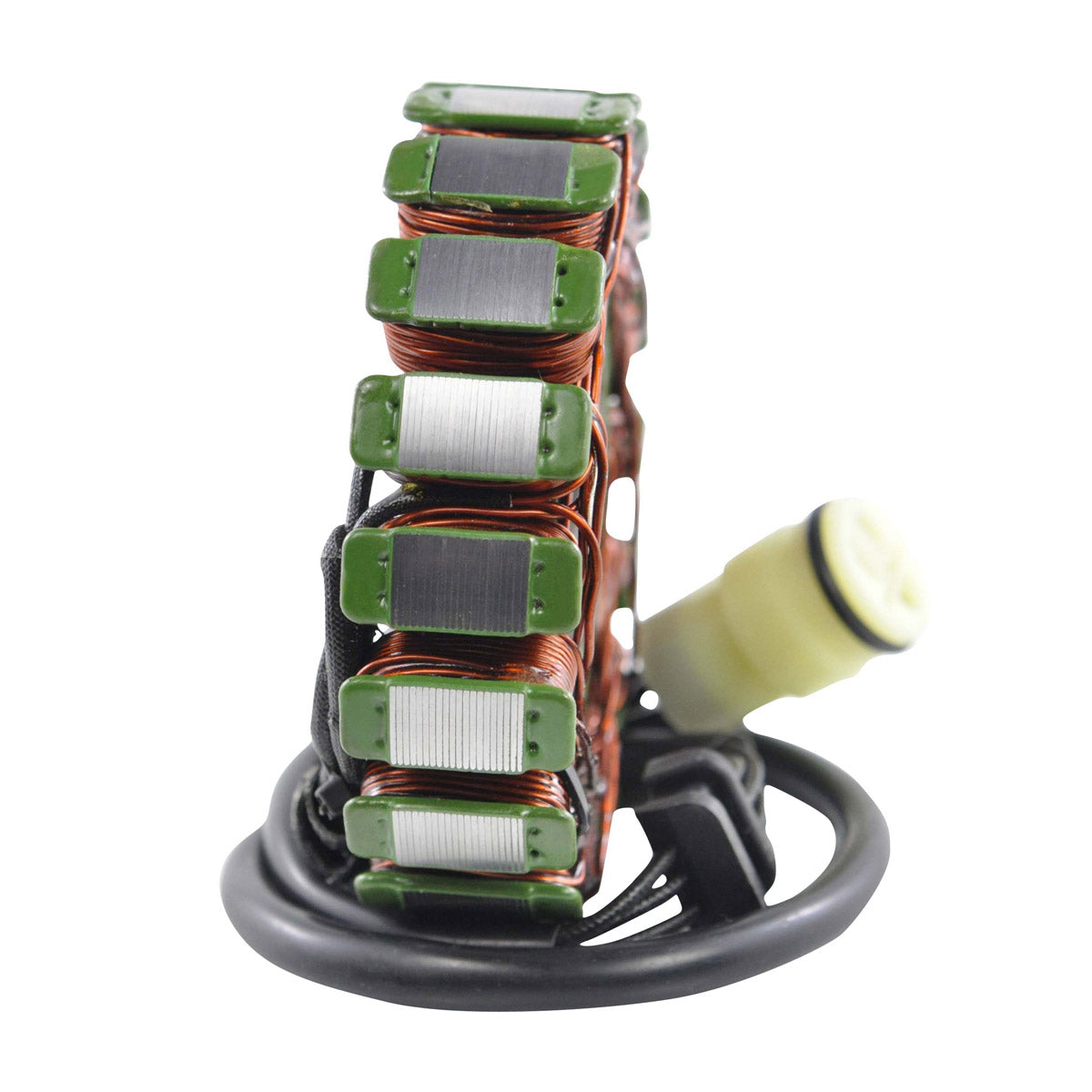

Generator Stator for Kawasaki Ninja ZX-6R, Z 750 and Z 1000
Kawasaki ZX-6R, ZX-6RR, Z 750 and Z 1000, 2003-2006 - OEM 21003-0001

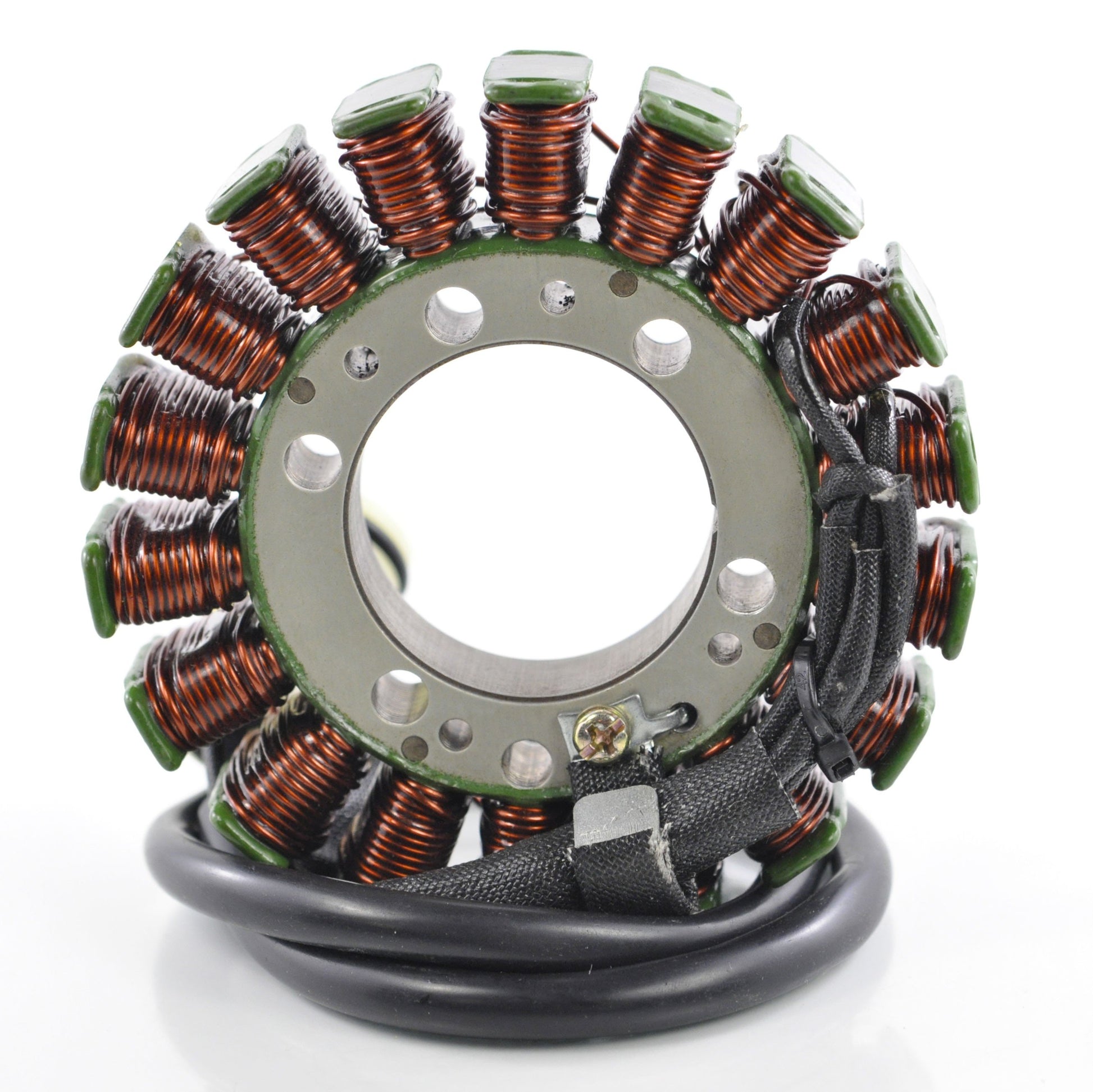

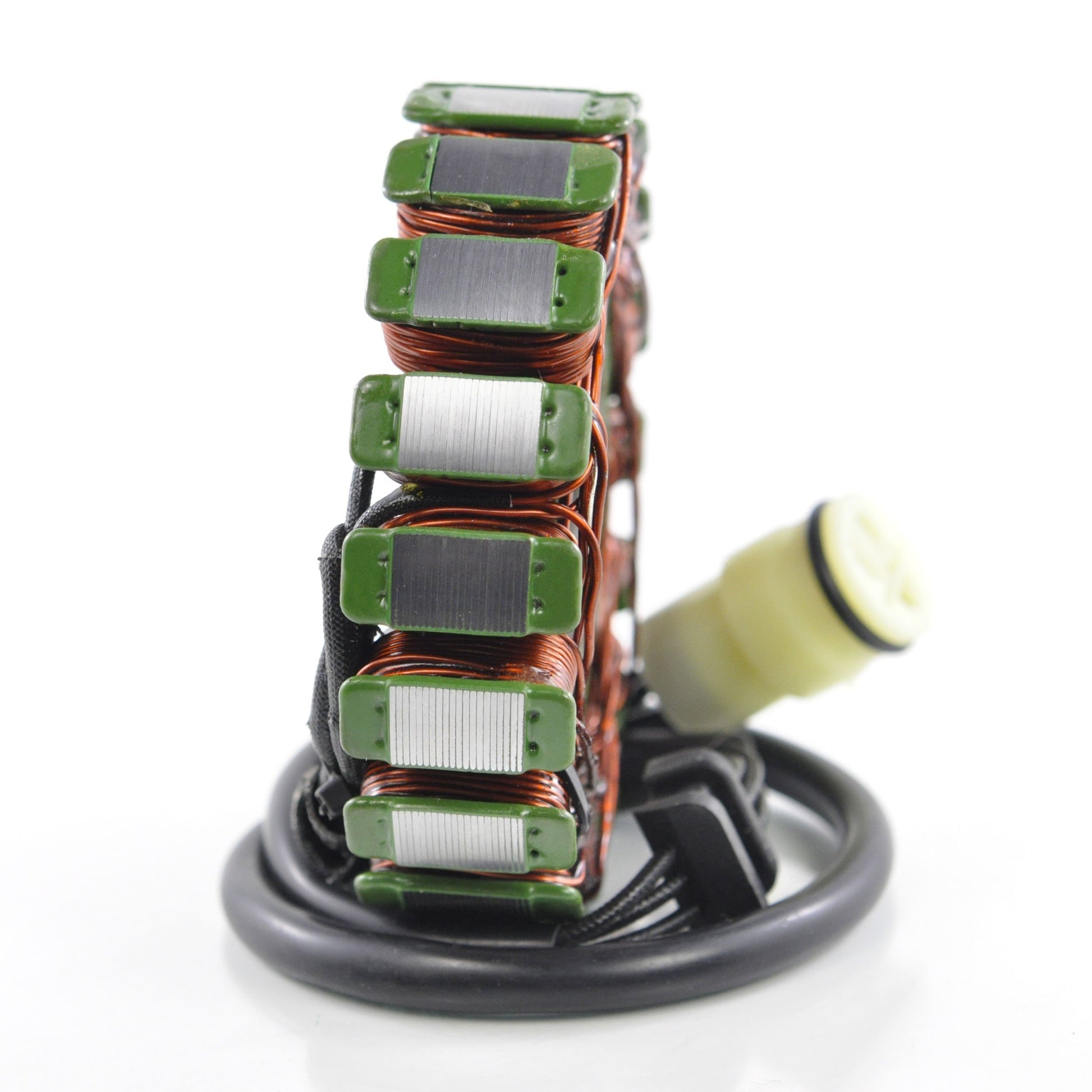

A brand new aftermarket stator for the Kawasaki inline four, supplied as a direct replacement to your original unit. It is a plug-and-play, direct fit item that uses the standard mounting points and the single three-pin connection, so the failed original comes out and this one goes straight in without altering the loom. The three-phase winding is made to the original electrical specification, so the regulator rectifier sees the AC input it expects.

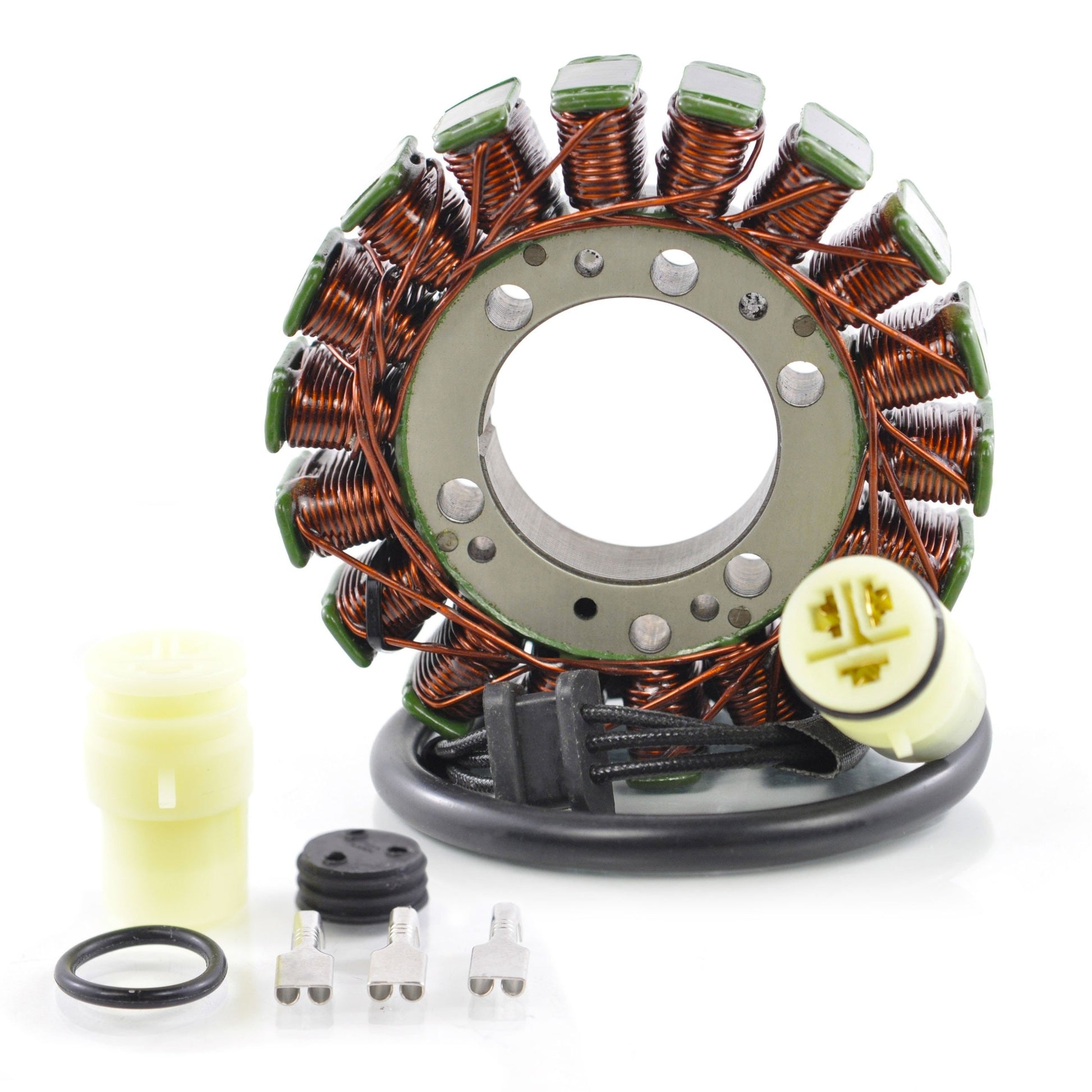

Construction uses the highest grade lamination materials and the highest grade copper windings, resistant to 200 degrees Celsius. Along with the stator you get a connector, a rubber grommet and the opposite connector for the main harness side. That last item is worth having: those plugs are often found melted, corroded or defective and are a major cause of repetitive electrical issues, so renewing both halves at once removes the most common source of a repeat failure. All products shipped are tested. The part reference is RMS010-101514.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-101514 |
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 90 mm |
| Wire length, grommet to plug | 400 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire to wire resistance, black to black | 0.5 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki Ninja ZX-6R | 2003-2006 |
| Kawasaki Ninja ZX-6RR | 2003-2006 |
| Kawasaki Z 750 | 2003-2006 |
| Kawasaki Z 1000 | 2003-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0001 | Kawasaki |
Frequently Asked Questions
Is any modification needed to fit it?
No. It is a plug-and-play, direct fit replacement using the original mounting points and the same single three-pin plug, so the loom stays untouched.
What is in the box?
The stator, a connector, a rubber grommet and the opposite connector for the main harness side so both halves of a heat damaged plug can be replaced together.
How do I confirm my stator has failed?
Look for a battery that will not stay charged, lights that dim as revs drop, or a bike that dies once the battery is exhausted. With a multimeter the wire to wire resistance black to black should be around 0.5 ohms plus or minus 20 per cent. An open circuit, a reading far from that figure, or continuity between a winding and the stator core all mean the unit has gone.
Why does the connector matter so much on these models?

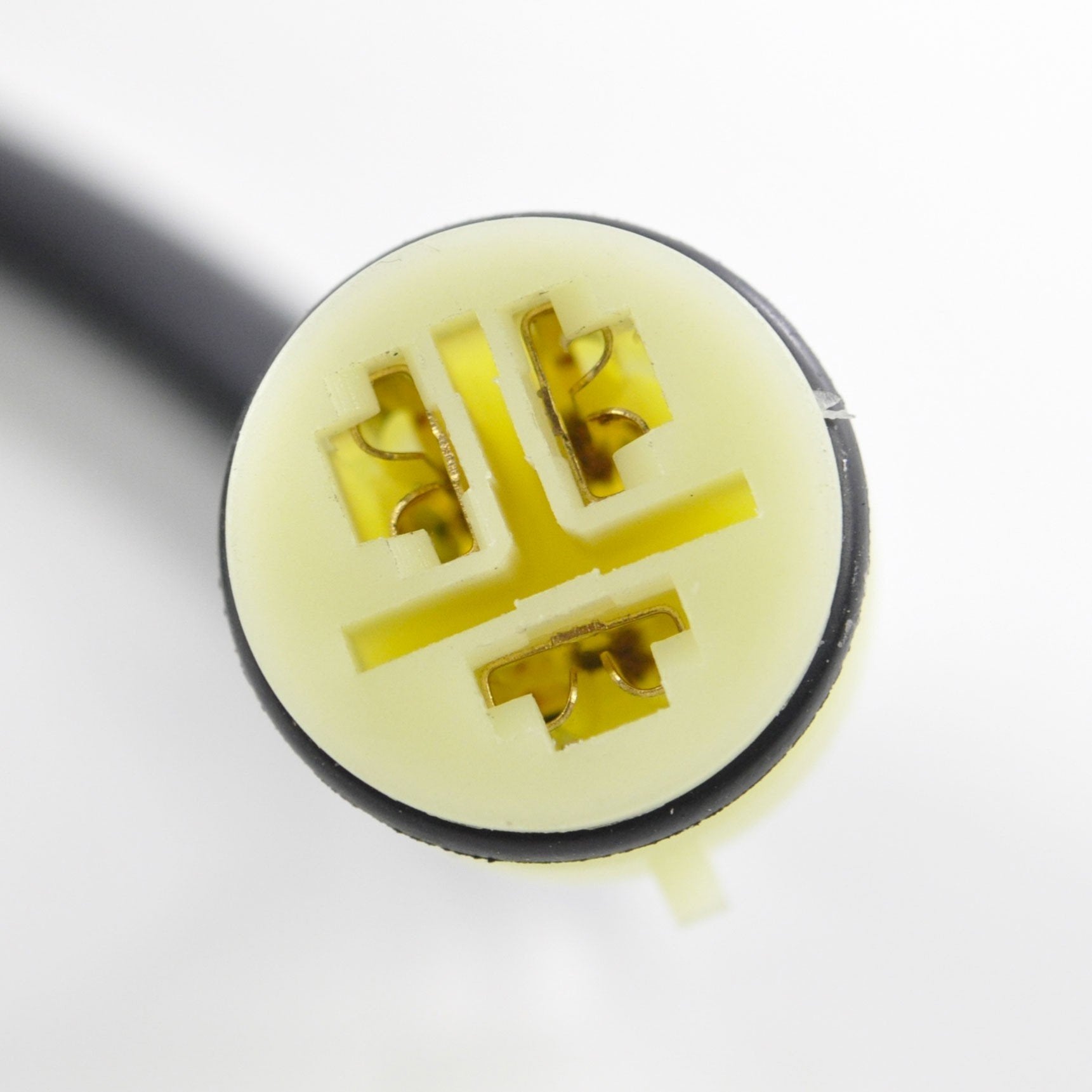

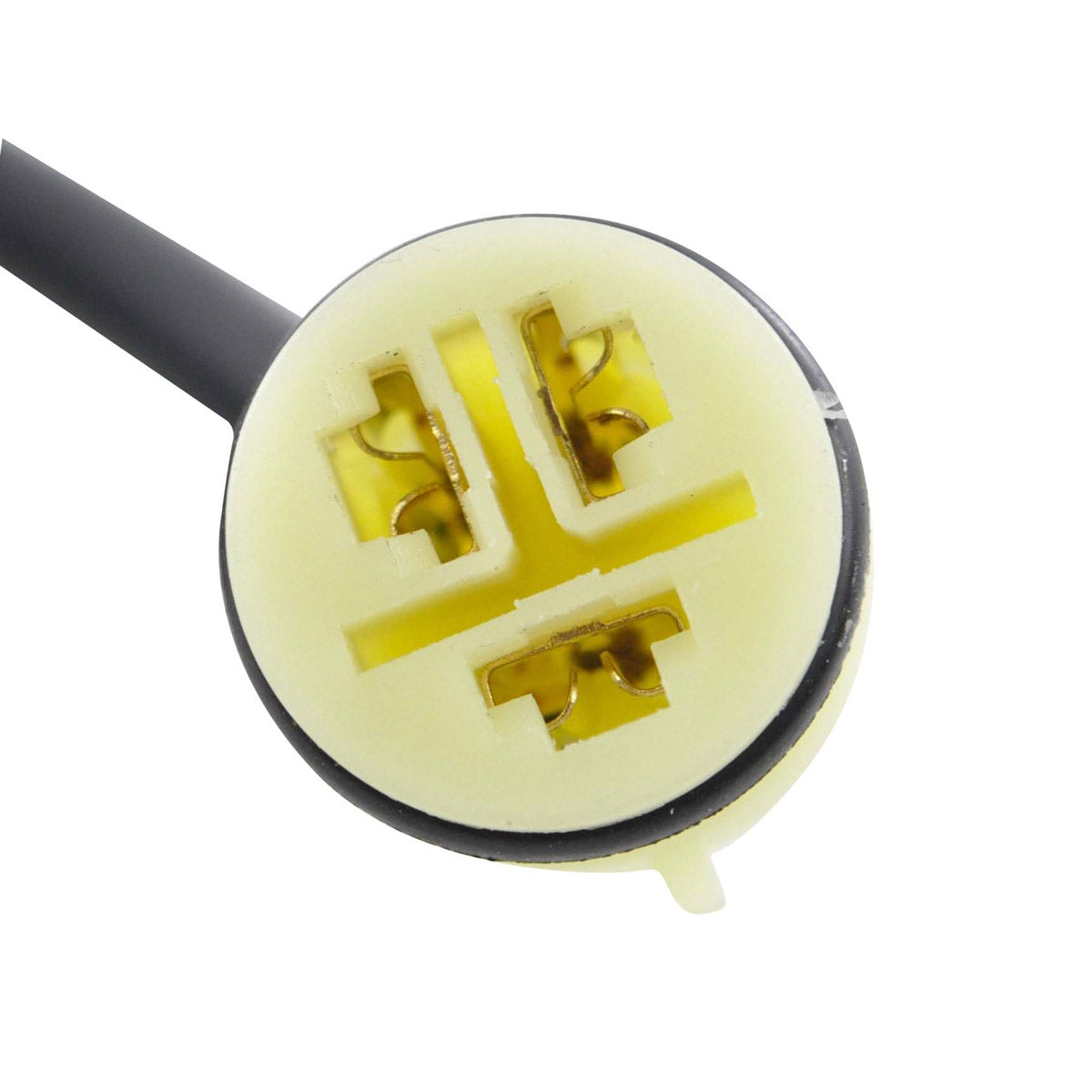

The three-phase plug carries the full alternator output and runs hot. Once a pin has started to melt or corrode, resistance rises and the new stator is put under the same stress that killed the last one. Fitting the supplied opposite connector at the same time is the standard way to break that cycle.
