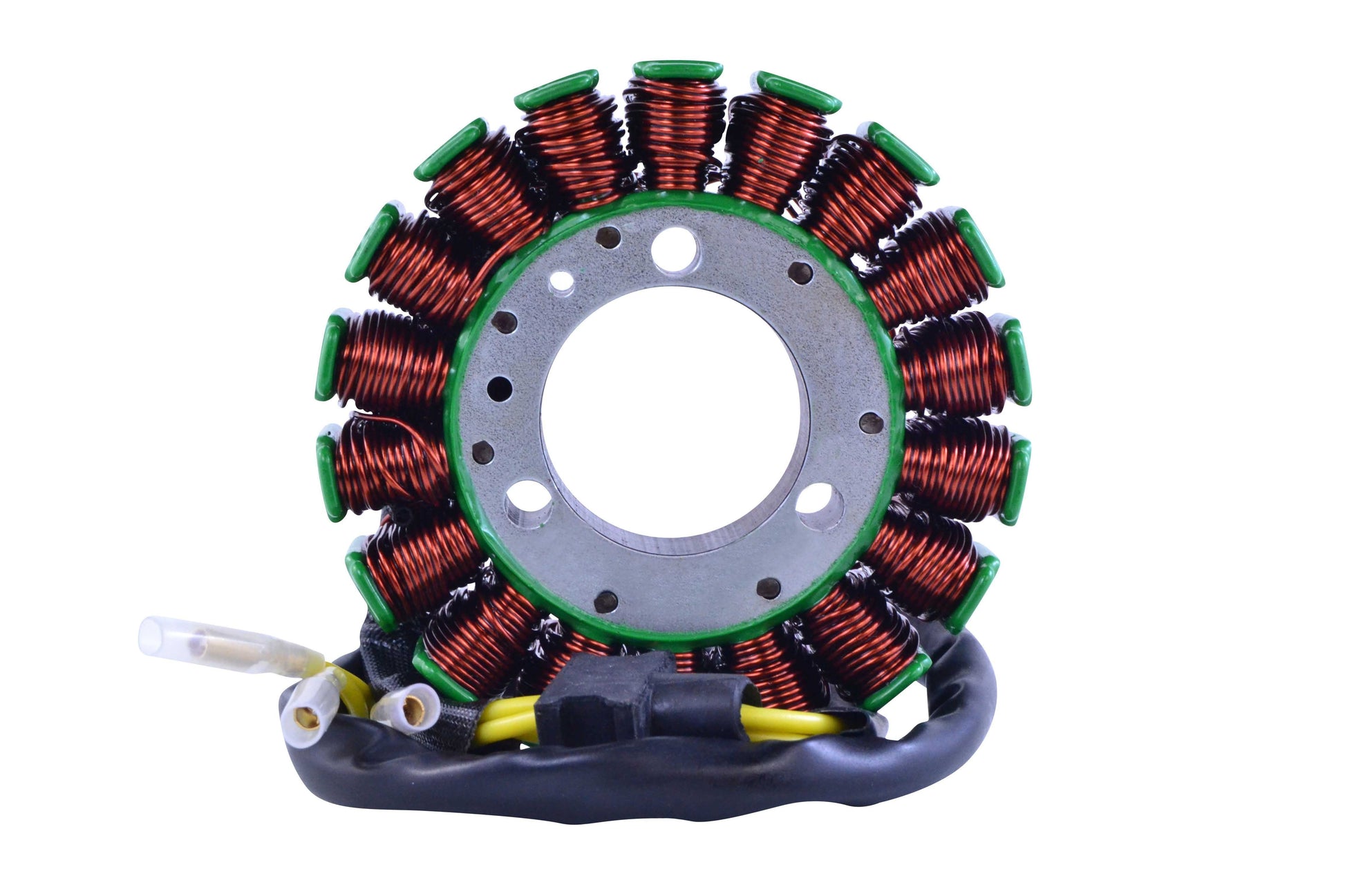

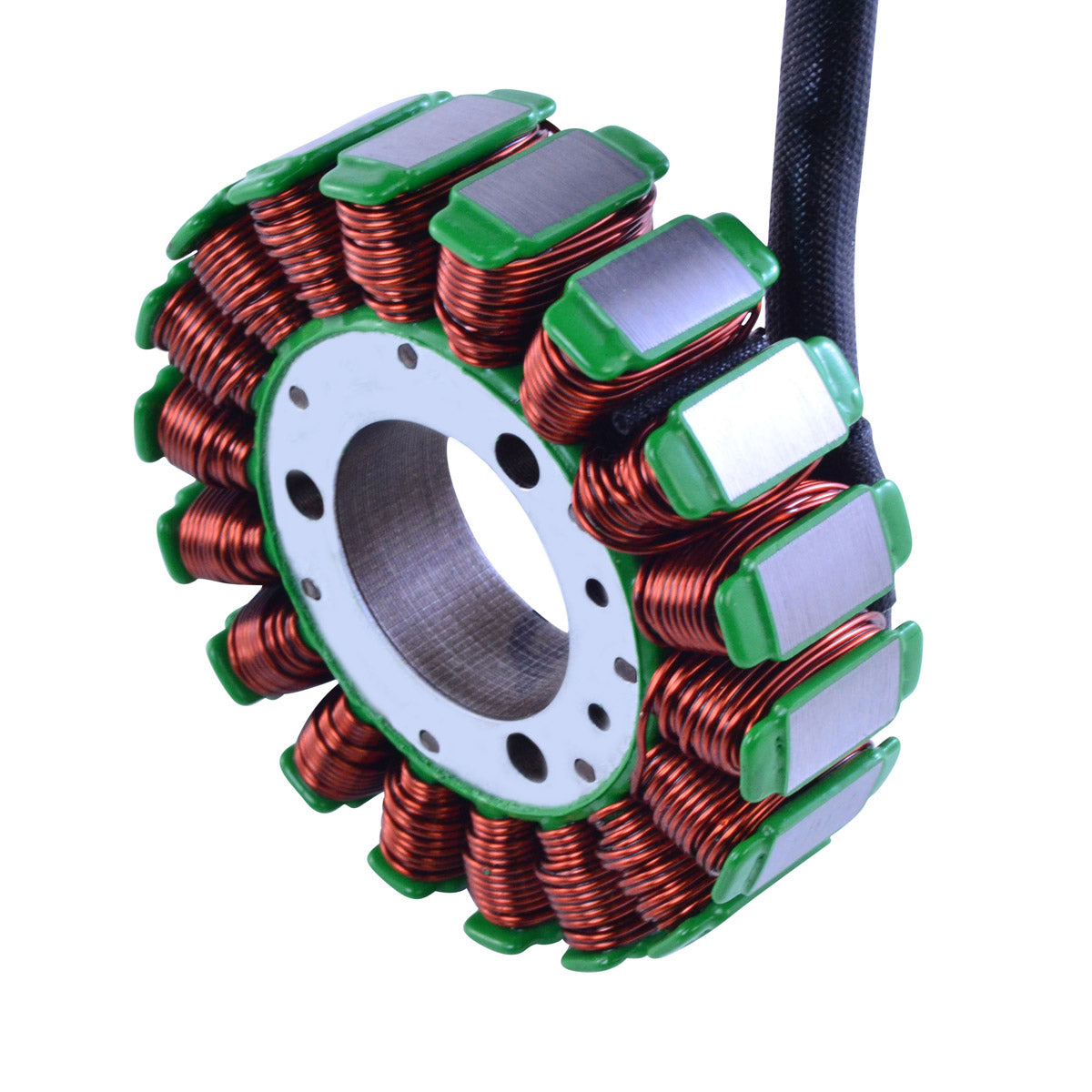

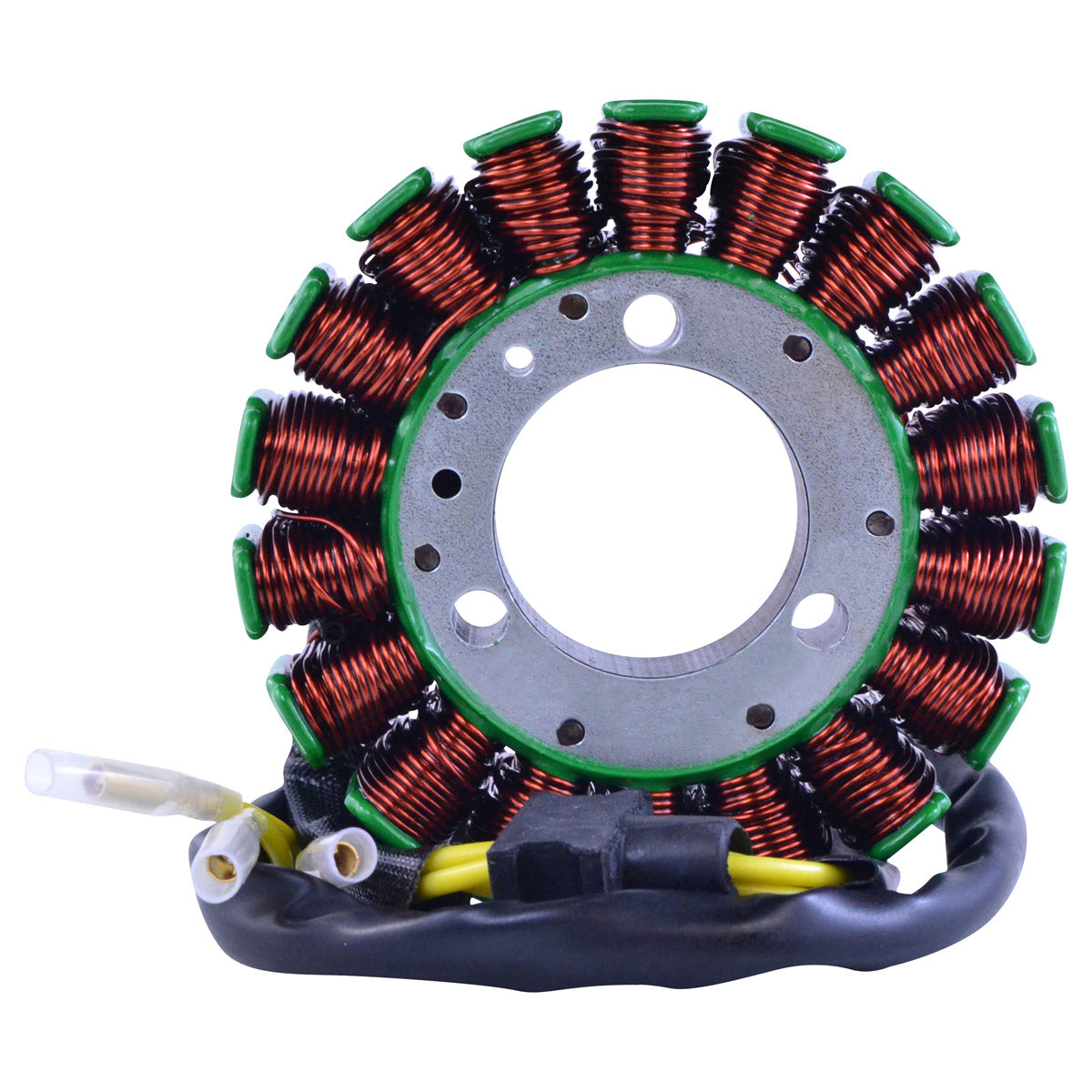

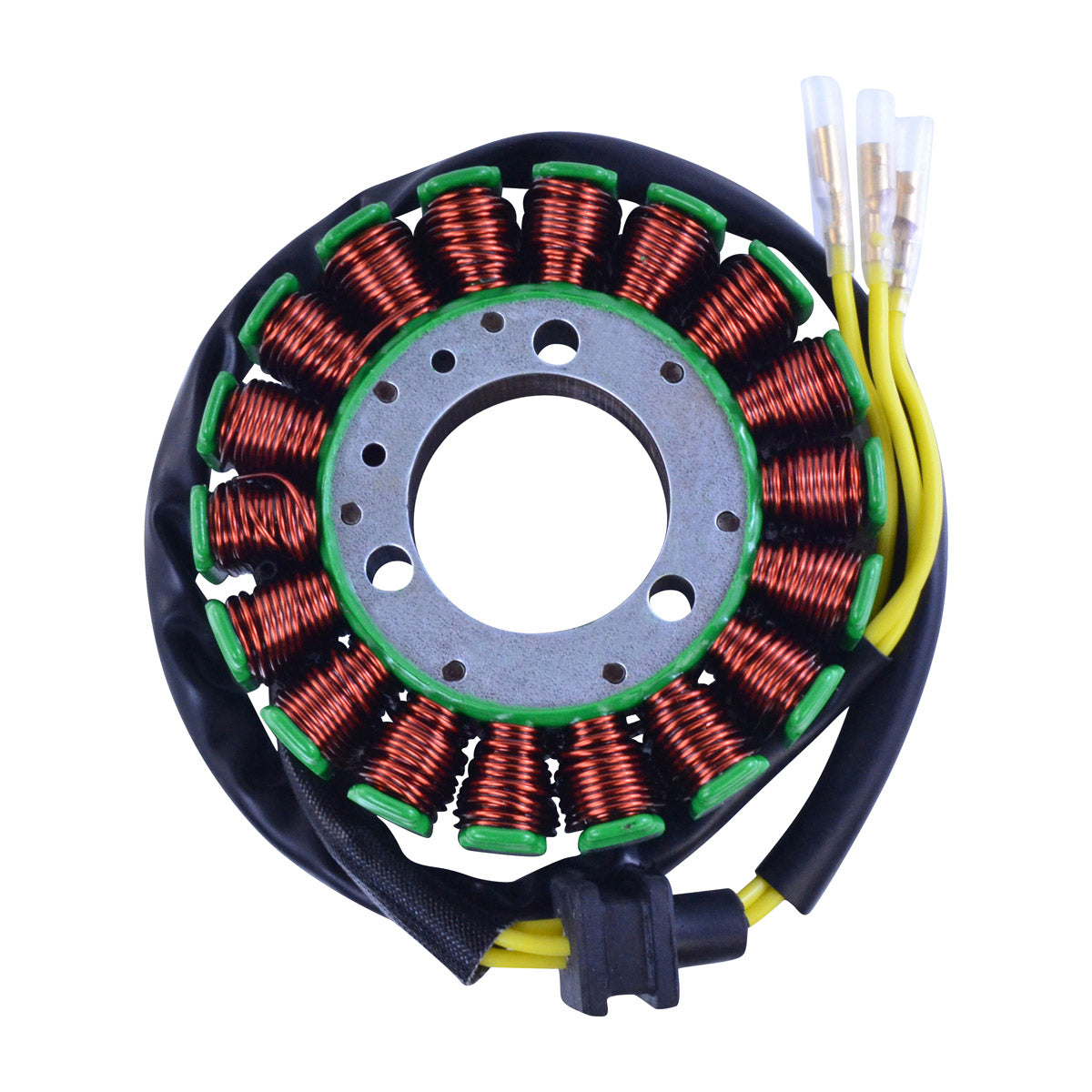

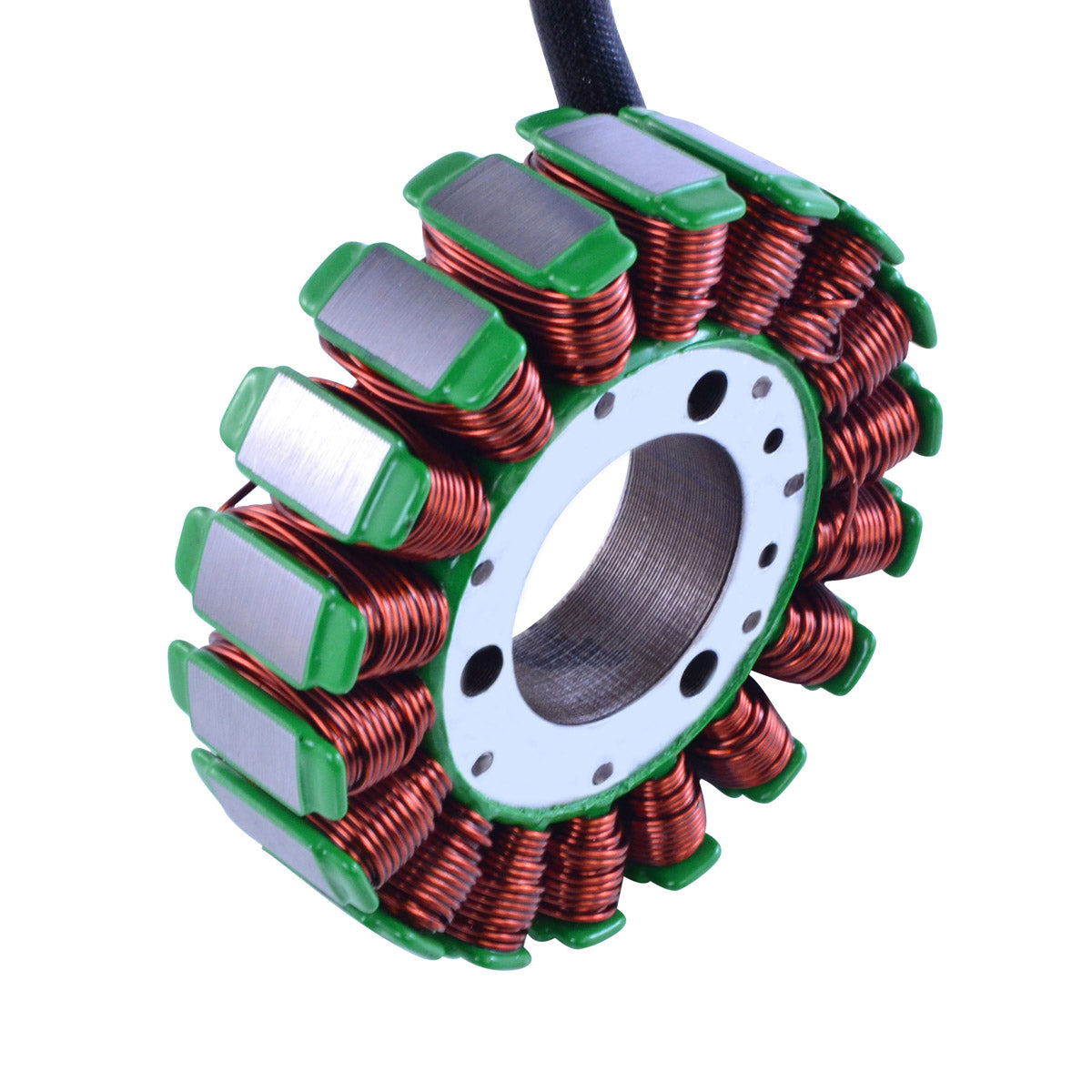

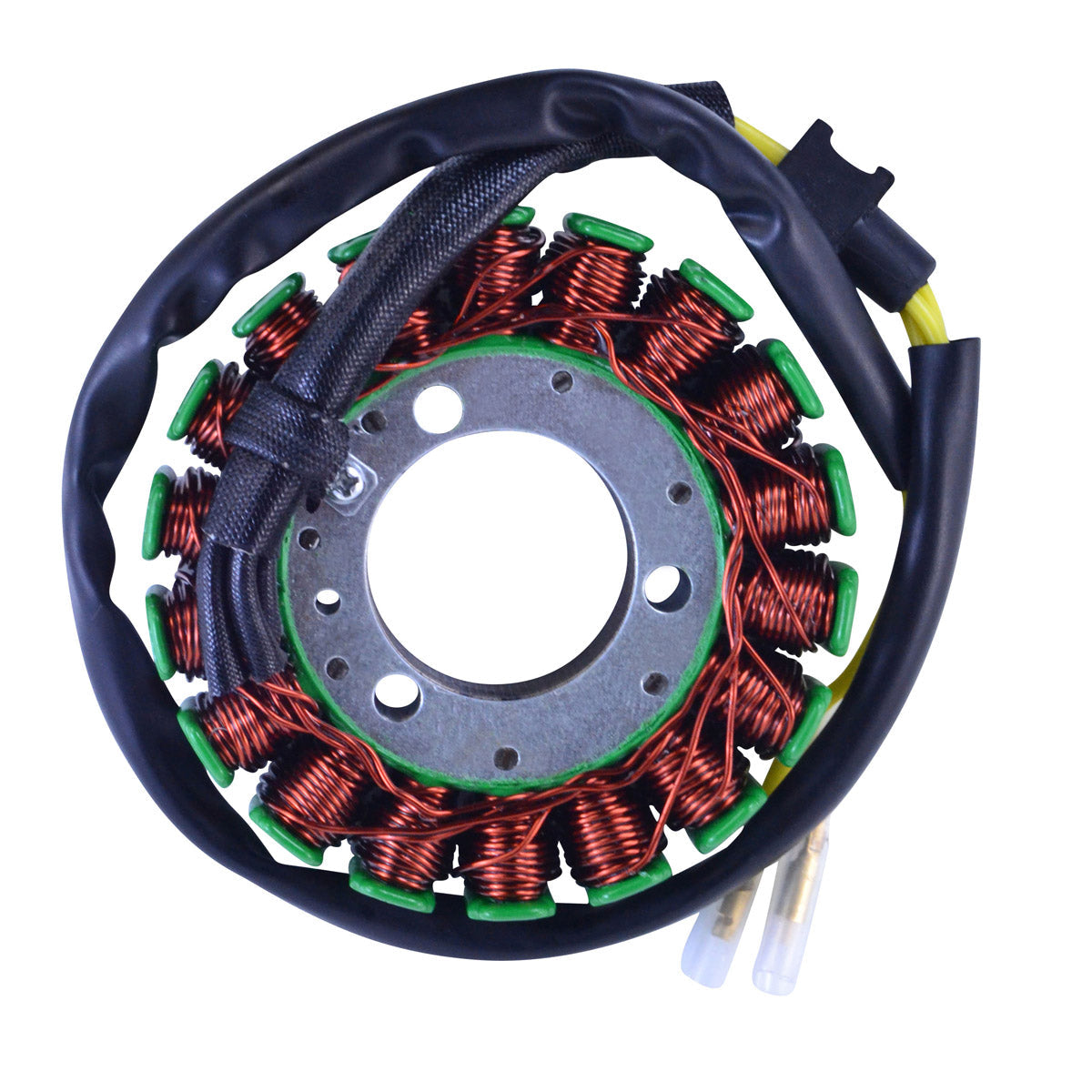

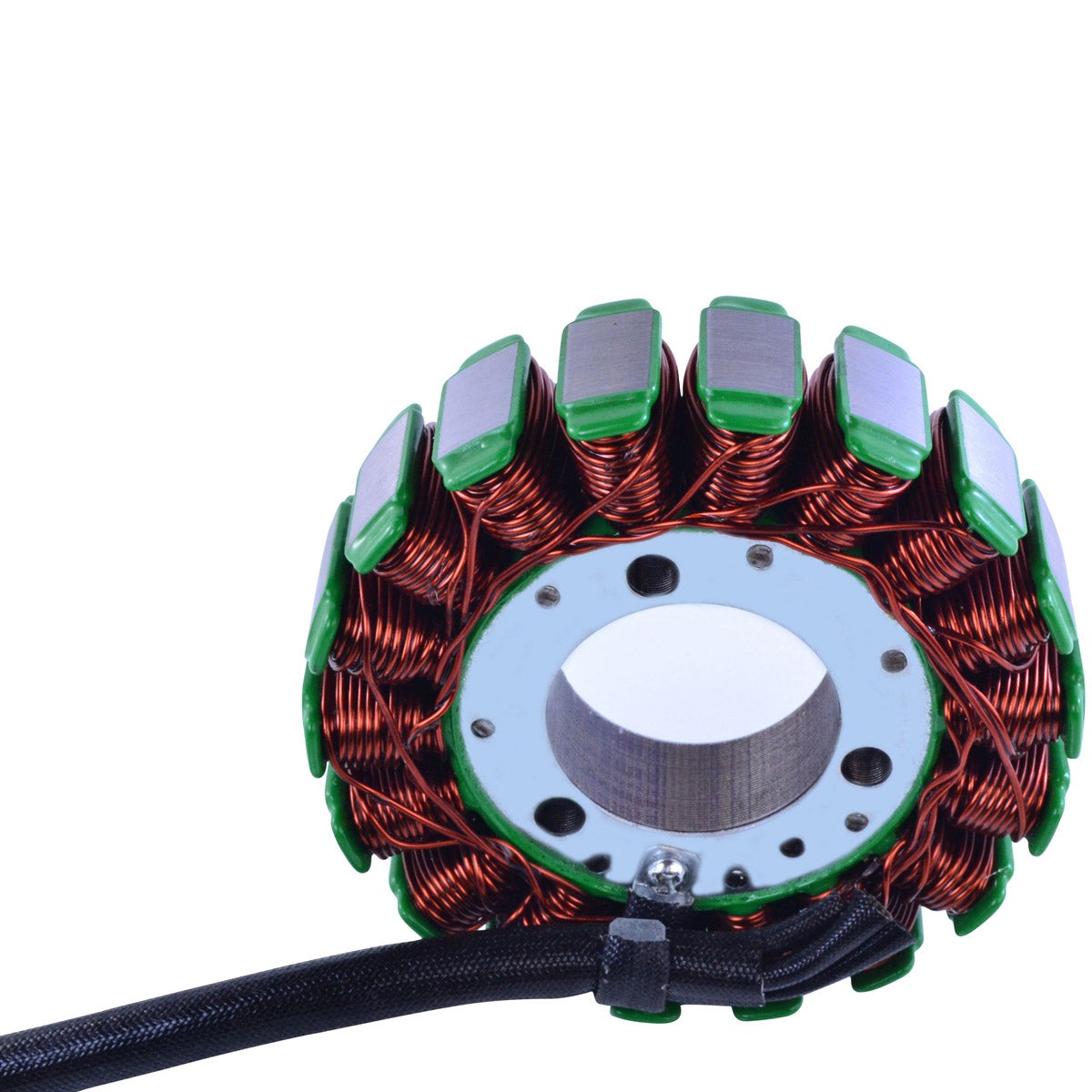

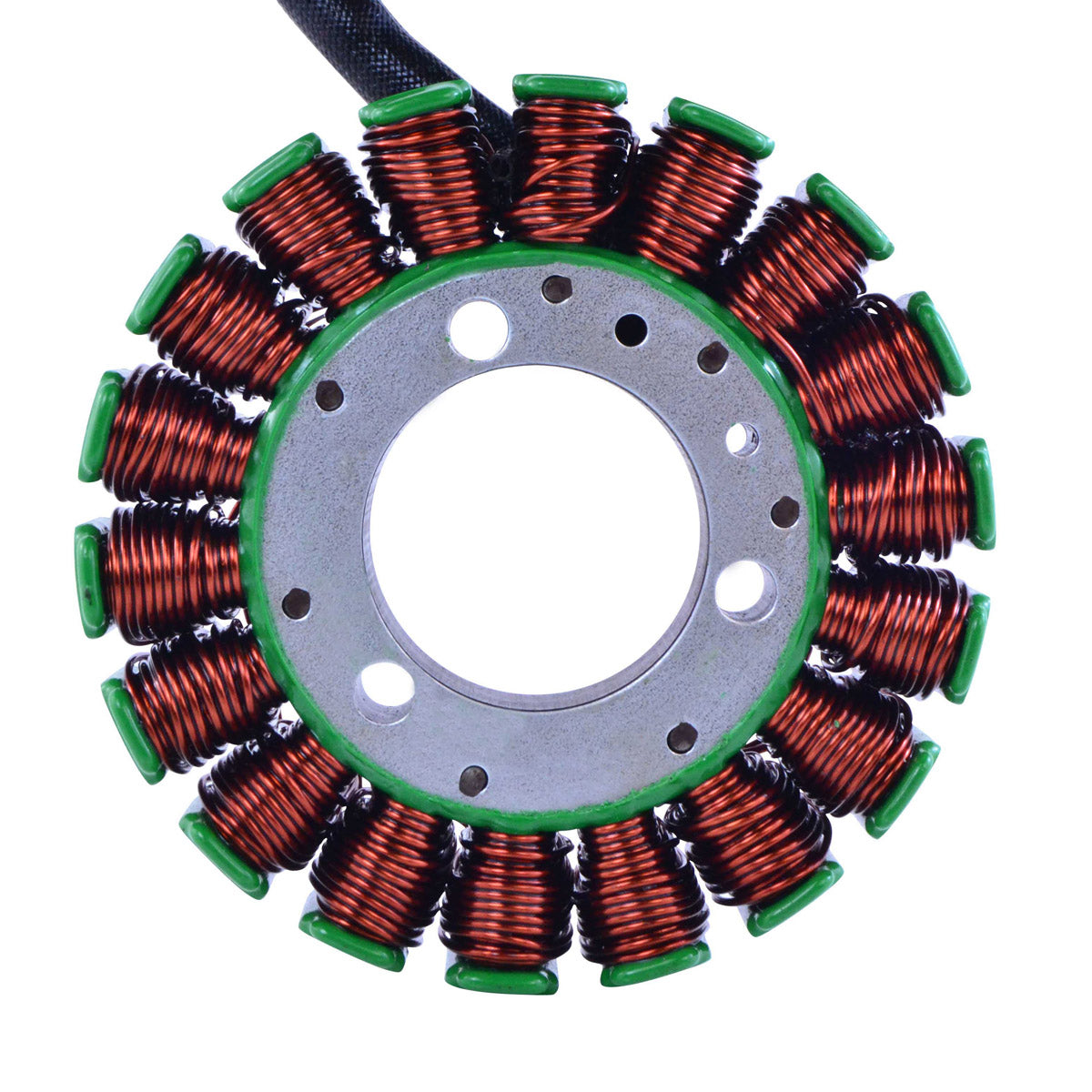

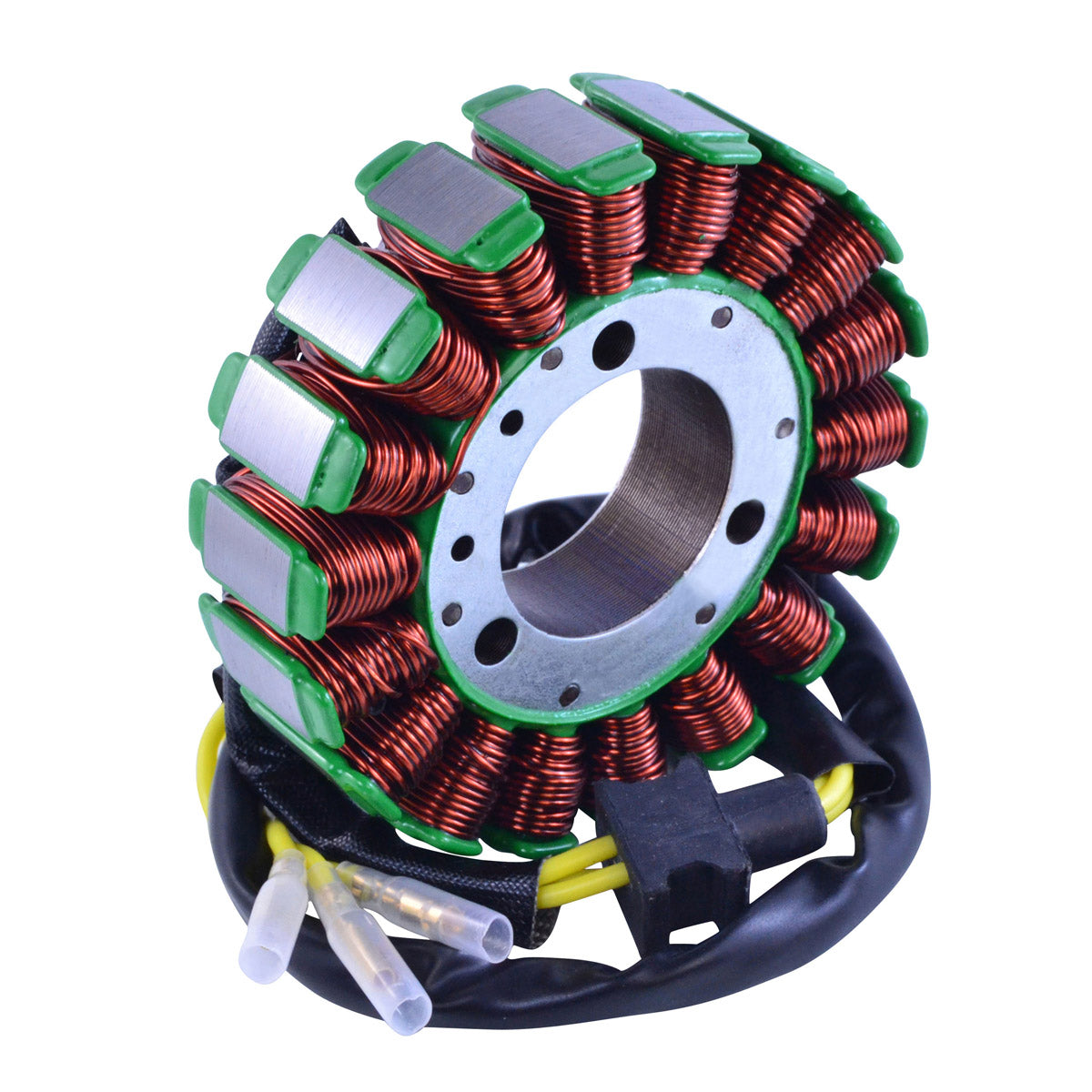

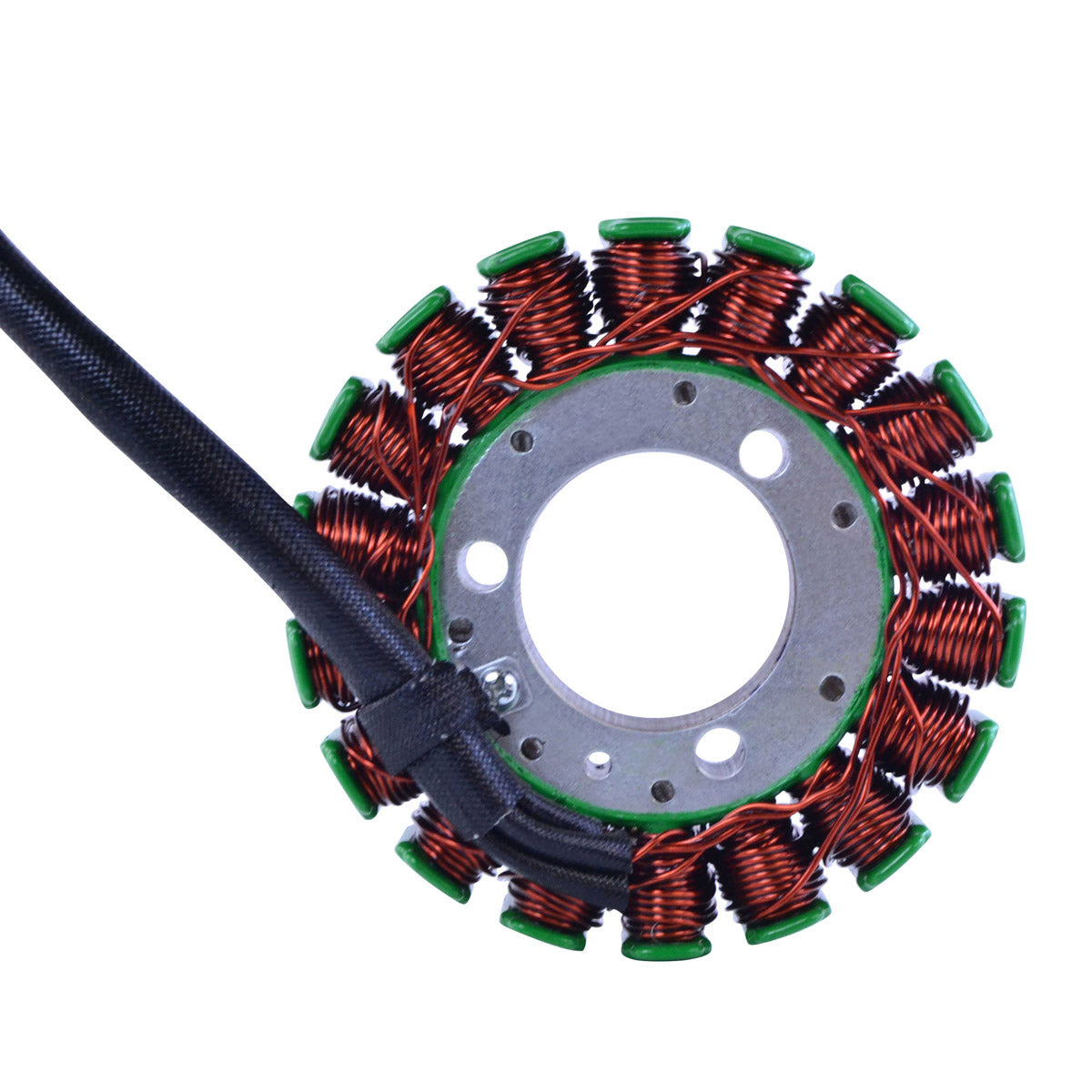

A brand new aftermarket generator stator built as a direct replacement for the original unit fitted to the Kawasaki VN 700 and the VN 750 Vulcan. It is a plug-and-play, direct fit part, so installation is straightforward and no modification to the wiring loom or the engine cases is required.

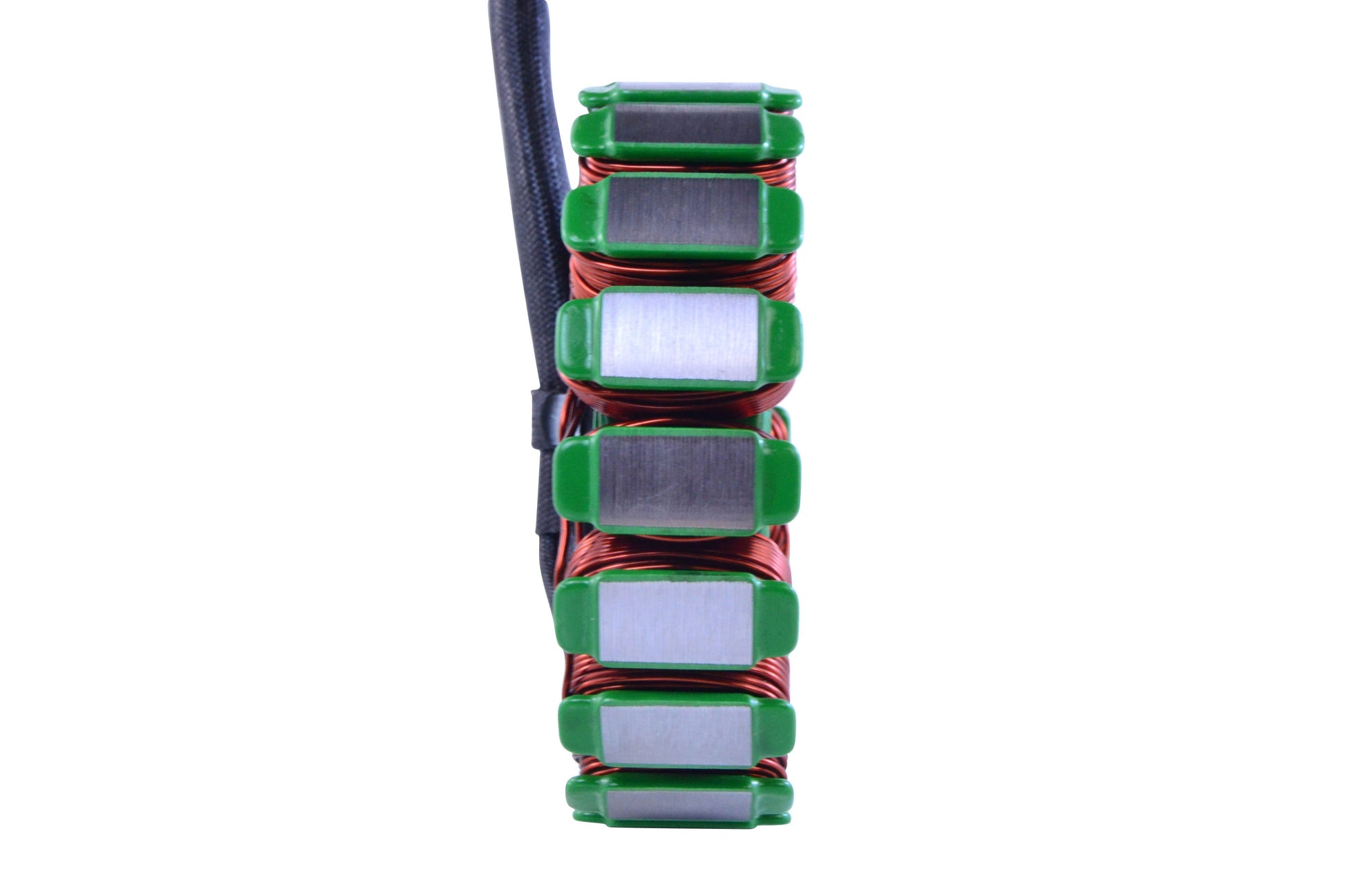

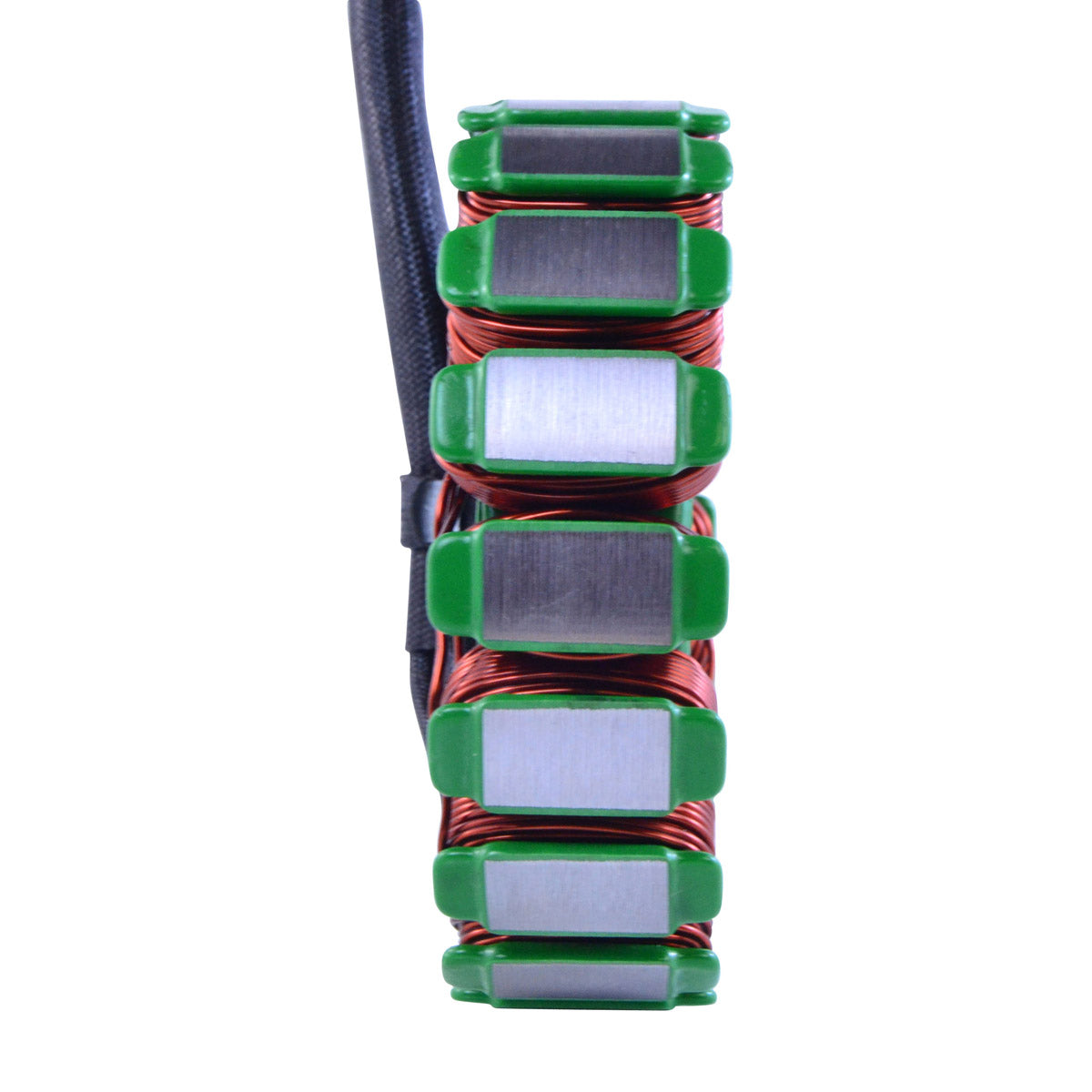

The stator uses the highest grade of lamination materials and the highest grade of copper winding, resistant to 200 degrees Celsius. The 18-pole assembly measures 102 mm across the outside with a 38 mm interior diameter and a thickness of 19.5 mm, and carries three wires terminating in three plugs with three pins. A rubber grommet, connector and pins are supplied with the stator, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket generator stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

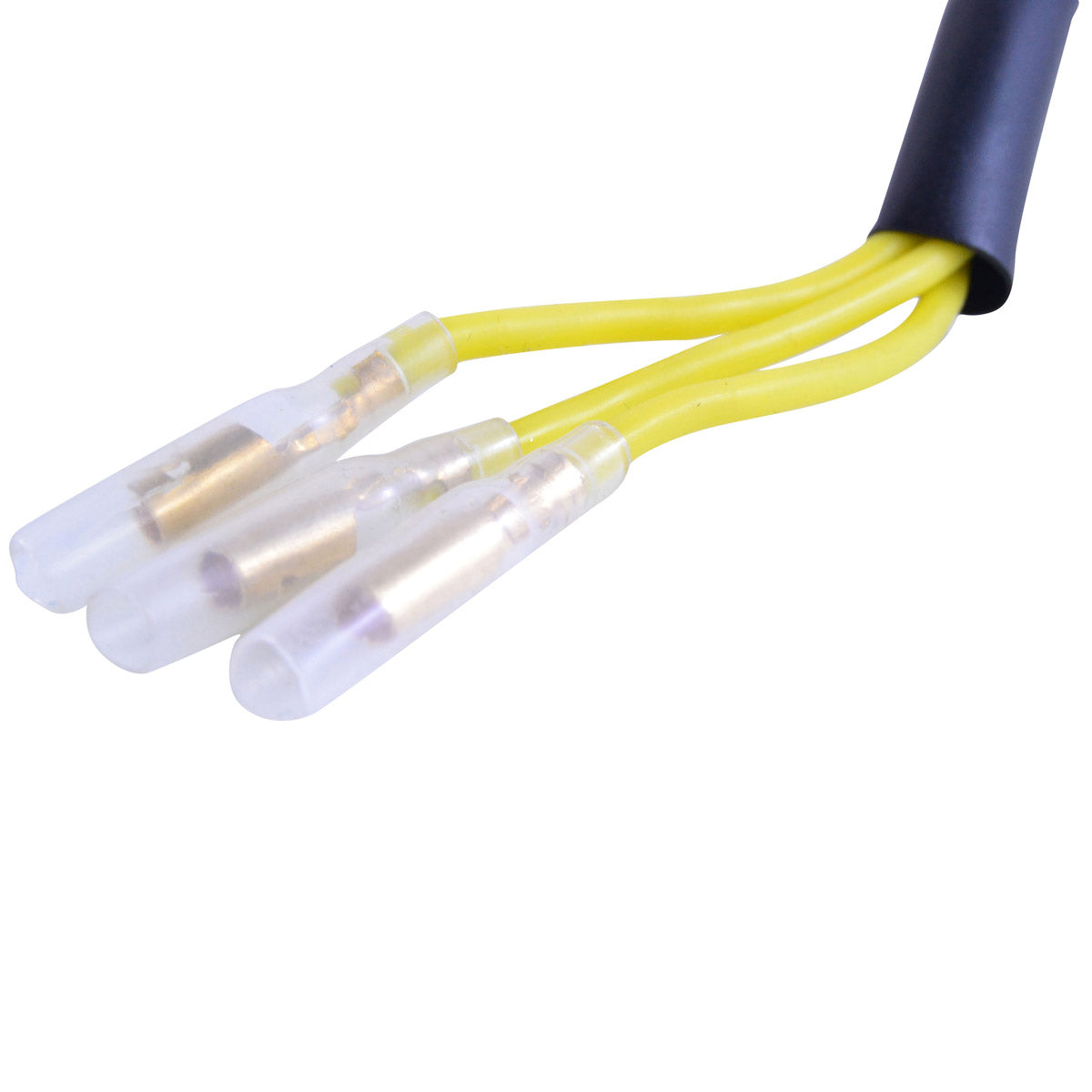

- 18 poles, 3 wires, 3 plugs and 3 pins

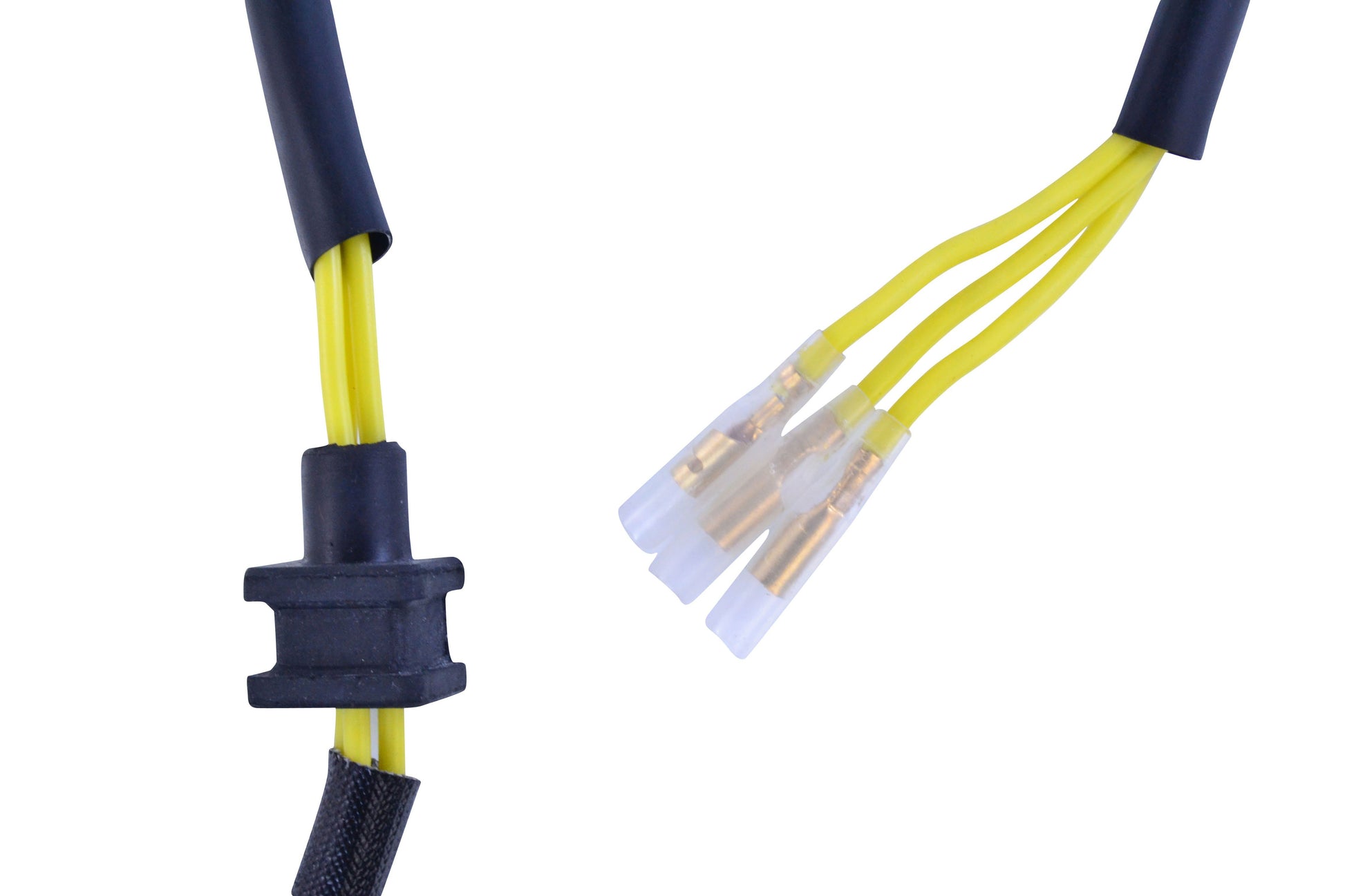

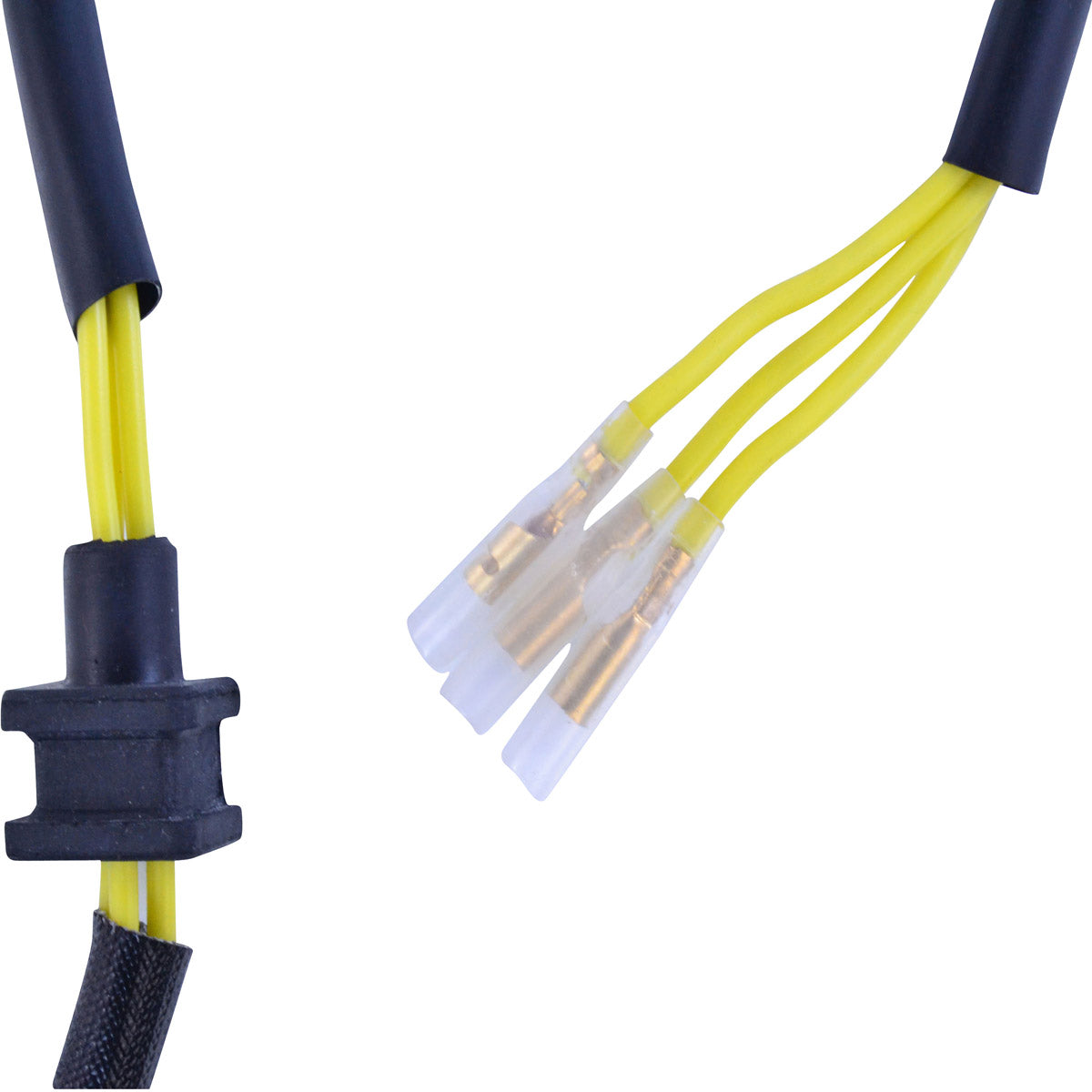

- Rubber grommet, connector and pins included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
38 mm |
| Exterior diameter |
102 mm |
| Thickness |
19.5 mm |
| Wire length (stator to grommet) |
80 mm |
| Wire length (grommet to plug) |
500 mm |
| Number of wires |
3 |
| Number of plugs |
3 |
| Number of pins |
3 |
| Number of poles |
18 |
| Wire-to-wire resistance (alternator) |
0.4 ohms +/-20% |
| Alternator to ground |
O.L |
| Temperature rating |
Resistant to 200 degrees Celsius |
| Part number |
RMS010-104835 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki VN 700 |
1985 |
| Kawasaki VN 750 Vulcan |
1986-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1118 |
Kawasaki |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the Kawasaki models listed above, so no cutting, splicing or machining is needed.
What is included?
The generator stator, a rubber grommet, and a connector with pins.
How can I tell my old stator has failed?
The usual signs are a battery that will not hold its charge, dim or flickering lights and low charging voltage at the battery with the engine running. As a bench check, the resistance between each pair of the three stator wires should read around 0.4 ohms, and any stator wire measured to ground should read open circuit (O.L). A reading well outside those figures points to a failed winding or a short to the core.
How is it built to survive engine heat?
The windings use the highest grade of copper wire rated to resist 200 degrees Celsius, laid on the highest grade of lamination materials, which is why the unit tolerates the temperatures inside the generator cover.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
