Generator Stator for Kawasaki ZN 1300 Voyager
Kawasaki ZN 1300 Voyager - 1983 to 1988

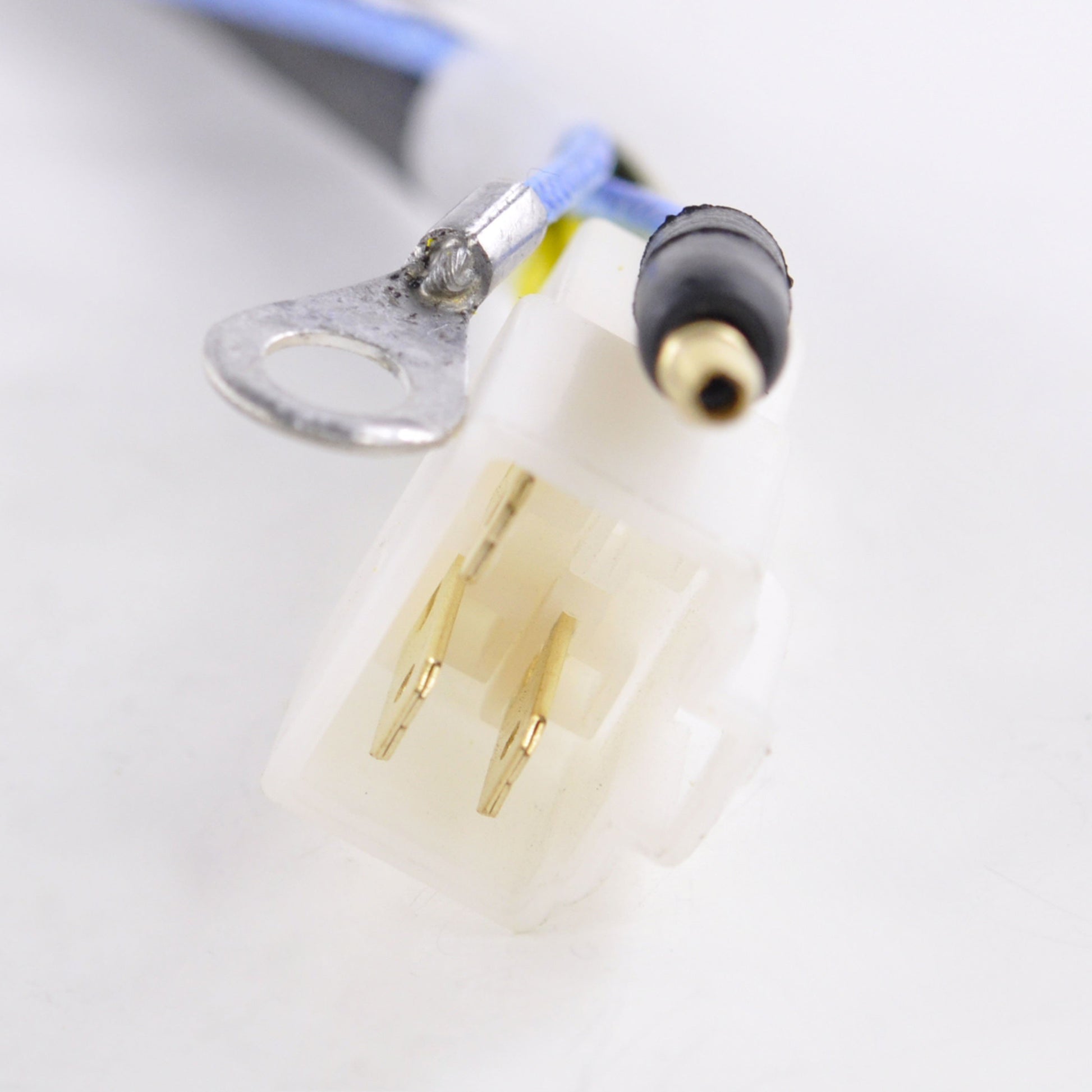

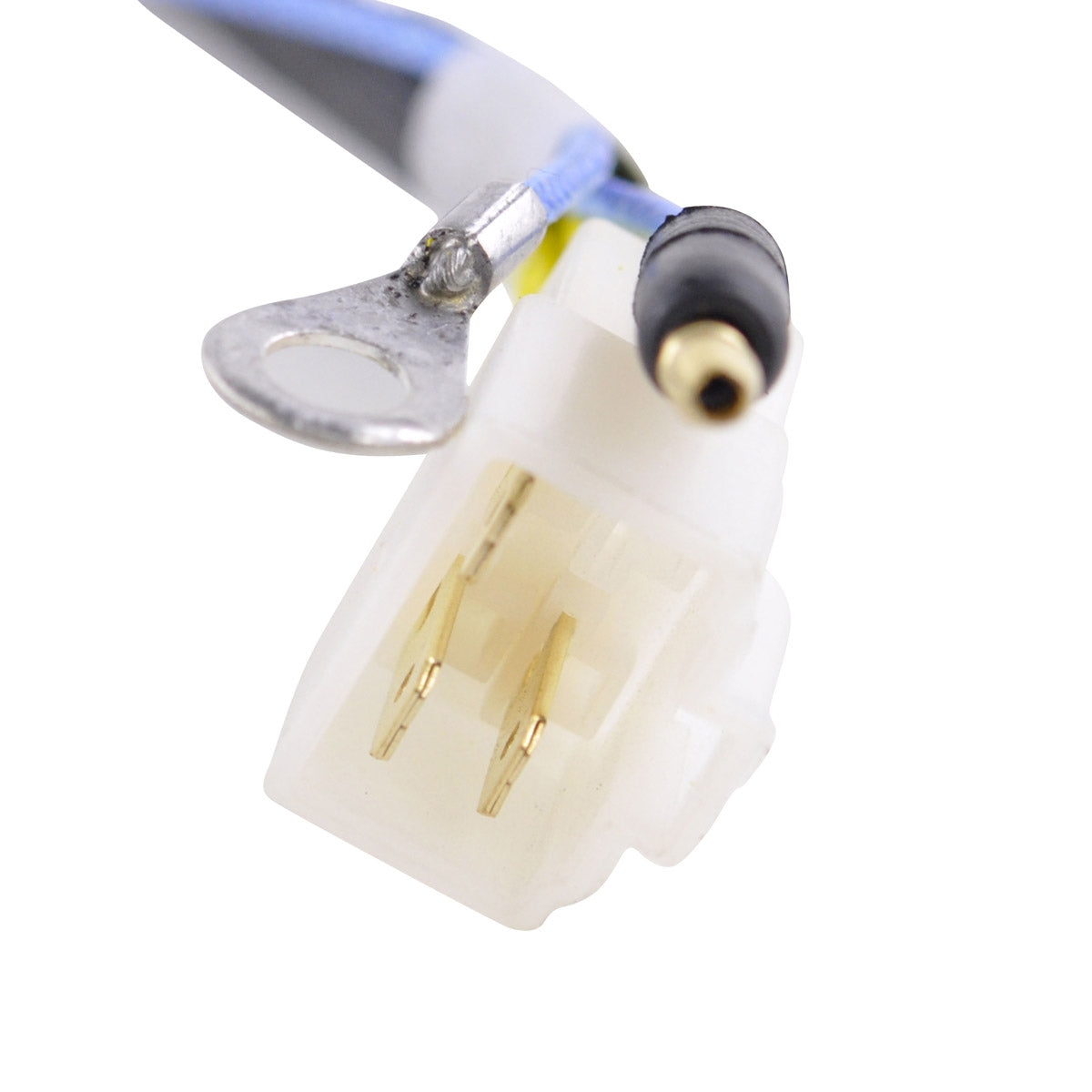

This is a brand new aftermarket generator stator, built as a direct replacement for the original charging unit fitted to the Kawasaki ZN 1300 Voyager. It is a plug-and-play, direct fit part: it uses the standard mounting position and the standard loom connectors, so it goes on without cutting, splicing or any modification to the bike. The connector and the rubber grommet come already fitted to the harness tail.

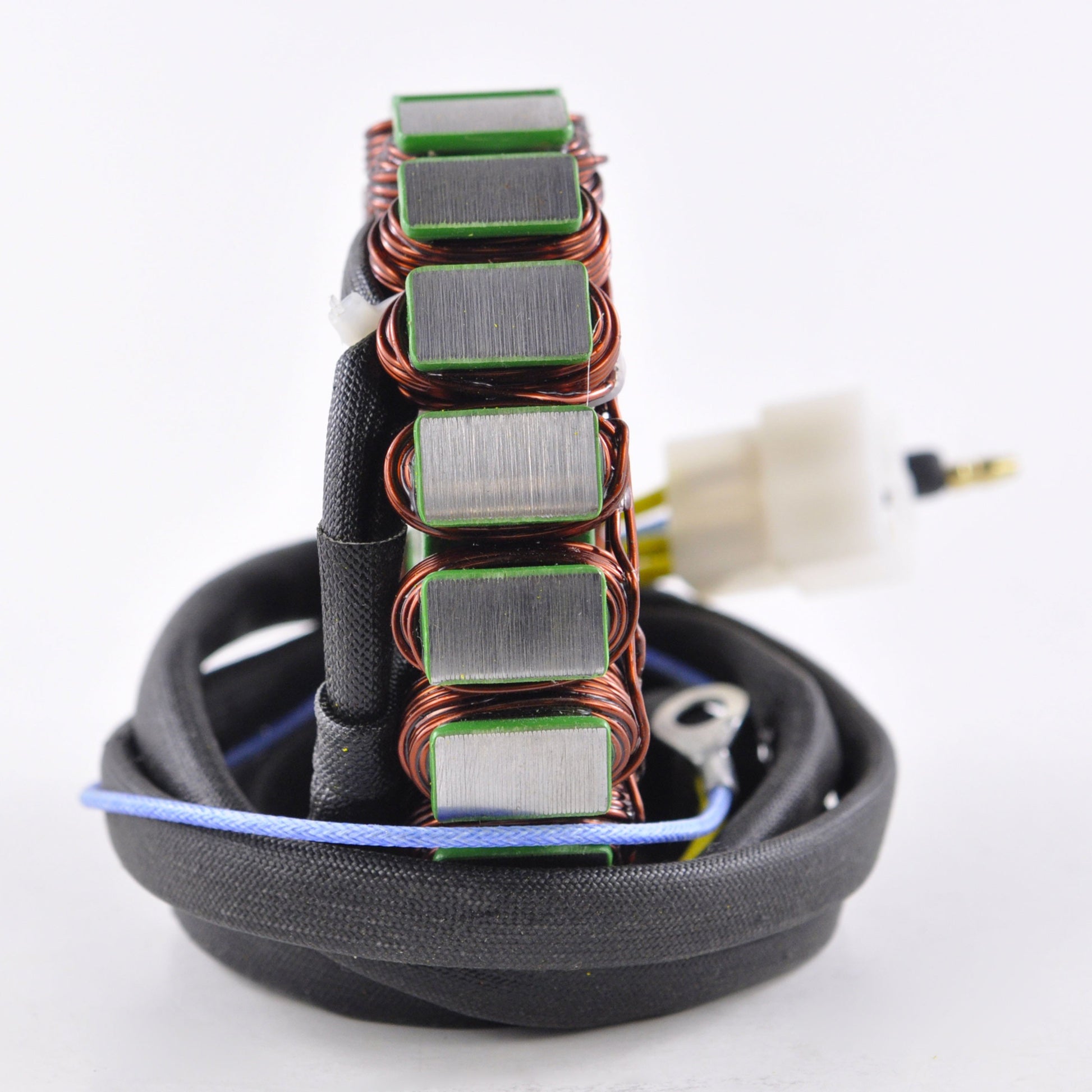

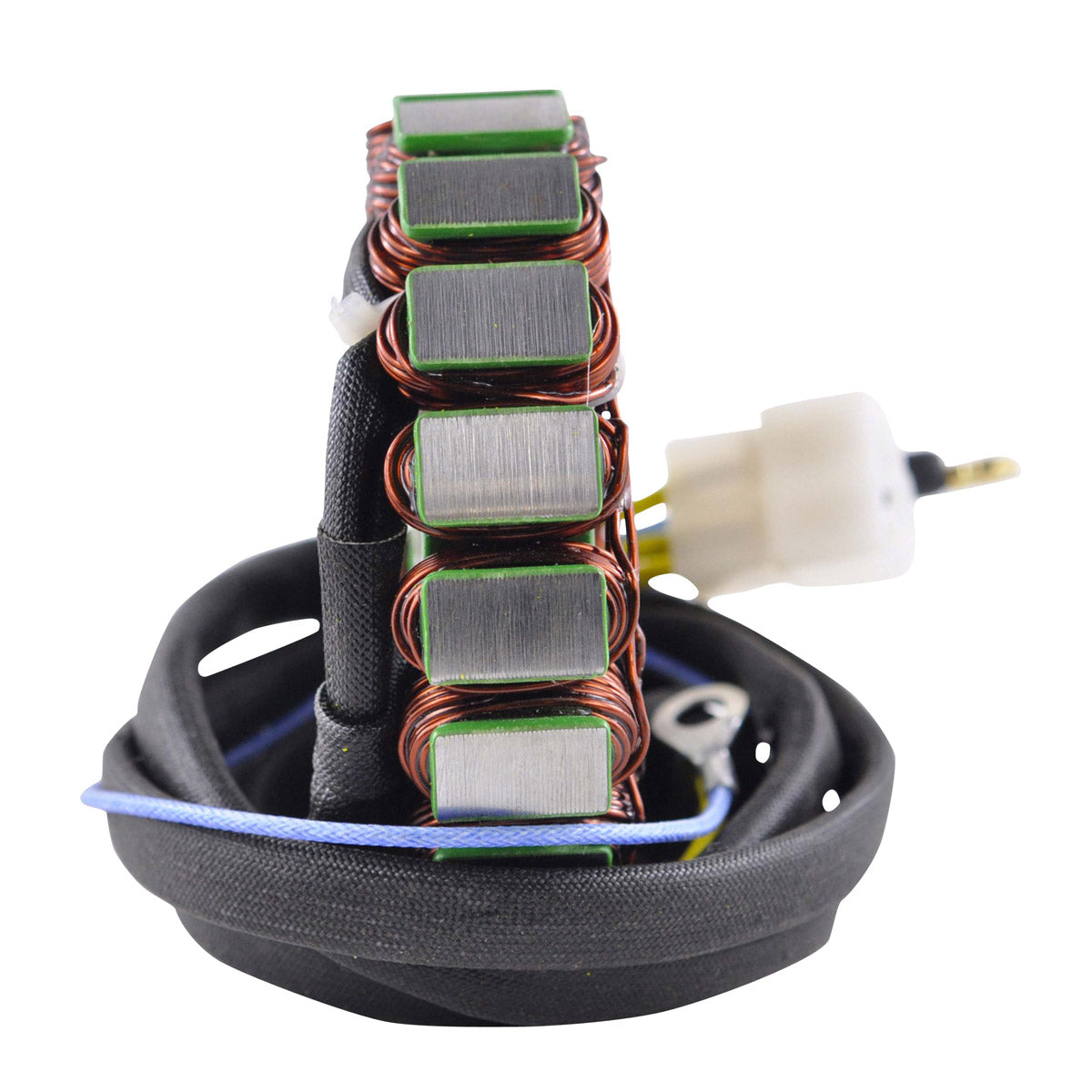

The stator is built on the highest grade lamination materials and wound with the highest grade copper, with the winding insulation resistant to 200 degrees Celsius. The ZN 1300 carries a heavy electrical load for a machine of its era, and a stator that runs hot for years is exactly the sort that fails by shorting a winding to the case, so the temperature rating is the important number here. Every unit is tested before it leaves the factory. An additional connector for the main harness side is supplied as well, because those plugs are commonly found melted or corroded on a bike of this age and are a major cause of recurring charging faults. Part number RMS010-102015.
Key Features
- Brand new aftermarket generator stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet supplied
- Additional opposite connector for the main harness side included
- All products are tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 38 mm |
| Exterior diameter | 103 mm |
| Thickness | 25 mm |
| Wire length, stator to grommet | 135 mm |
| Wire length, grommet to plug | 910 mm |
| Number of wires | 4 |
| Number of plugs | 2 |
| Number of pins | 3 |
| Wire resistance, black to black | 0.7 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RMS010-102015 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki ZN 1300 Voyager | 1983-1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1071 | Kawasaki |
| 21003-1104 | Kawasaki |
Frequently Asked Questions
Will it fit without modification?
Yes. This is a plug-and-play, direct fit replacement for the original generator stator on the Kawasaki ZN 1300 Voyager, 1983 to 1988. It uses the standard mounting and the standard connectors, so no cutting or splicing is required. Check the number on your existing unit against 21003-1071 or 21003-1104 before ordering.
What is included in the box?

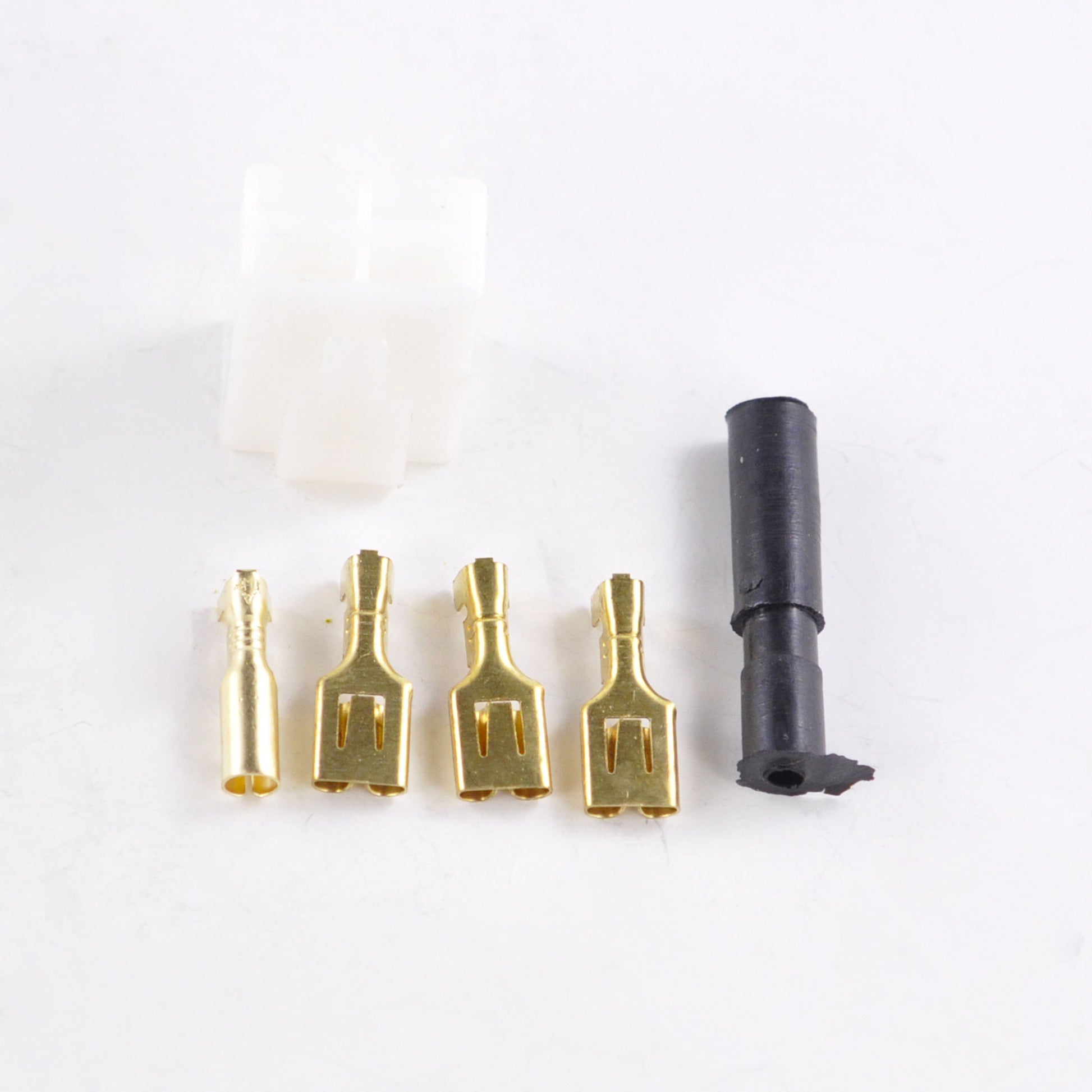

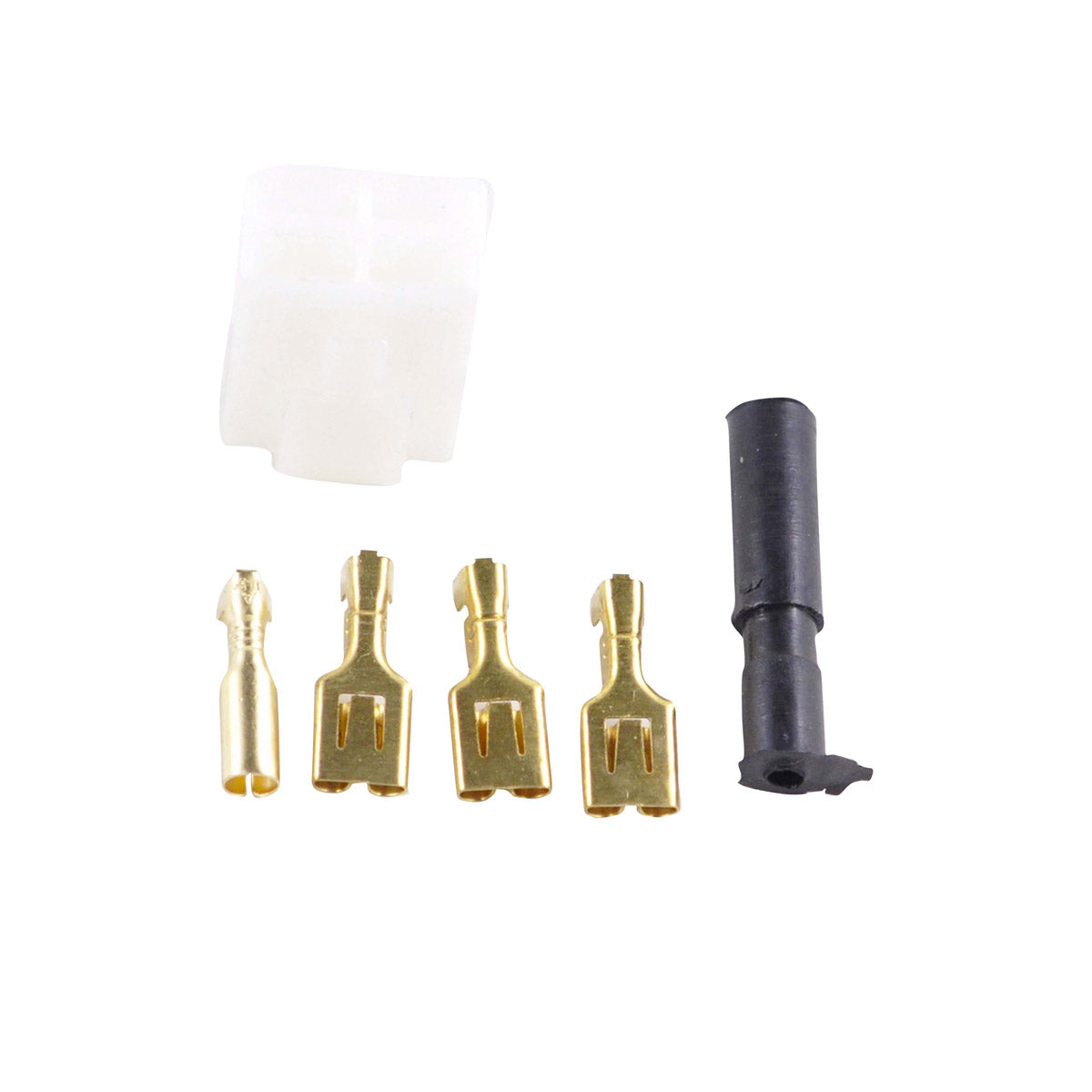

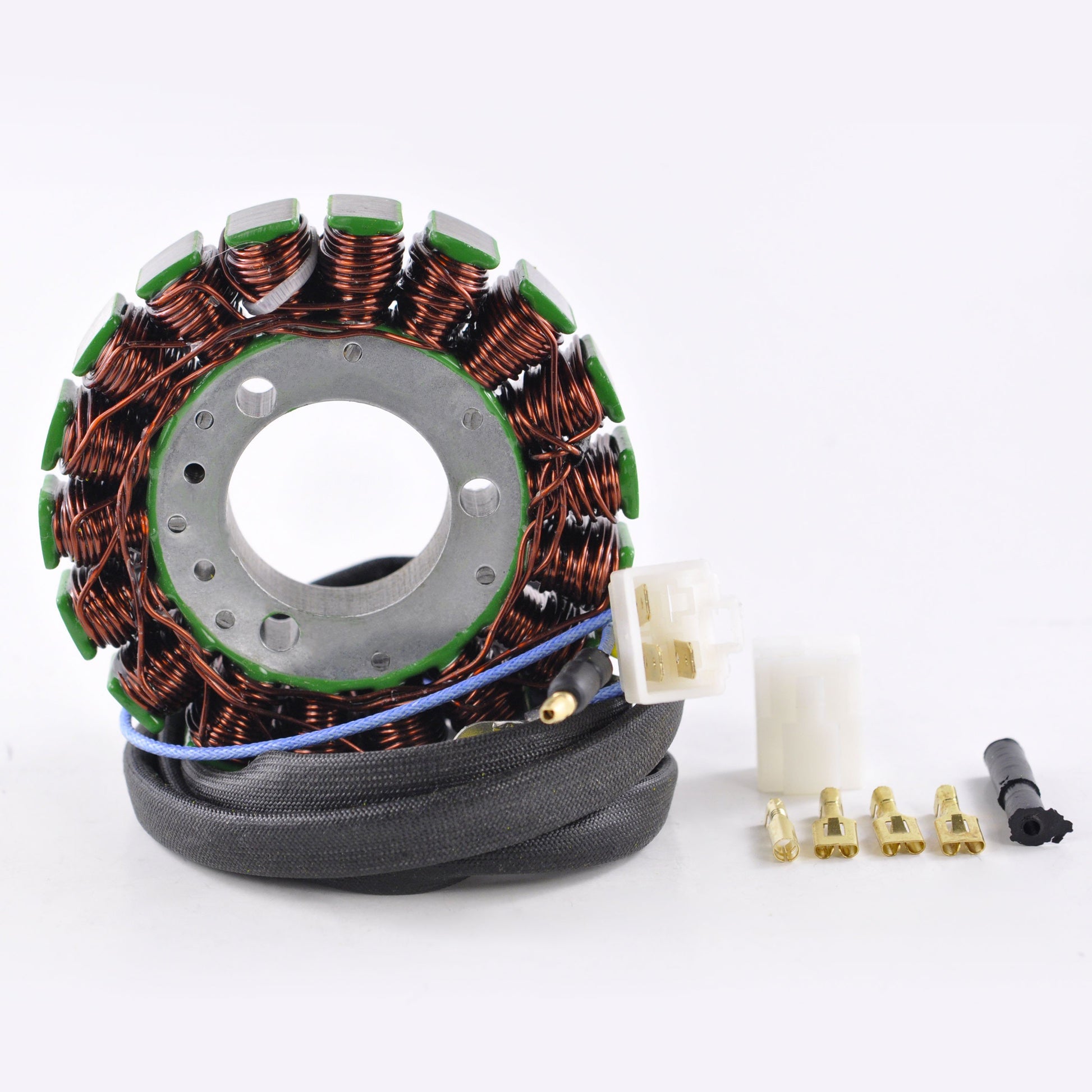

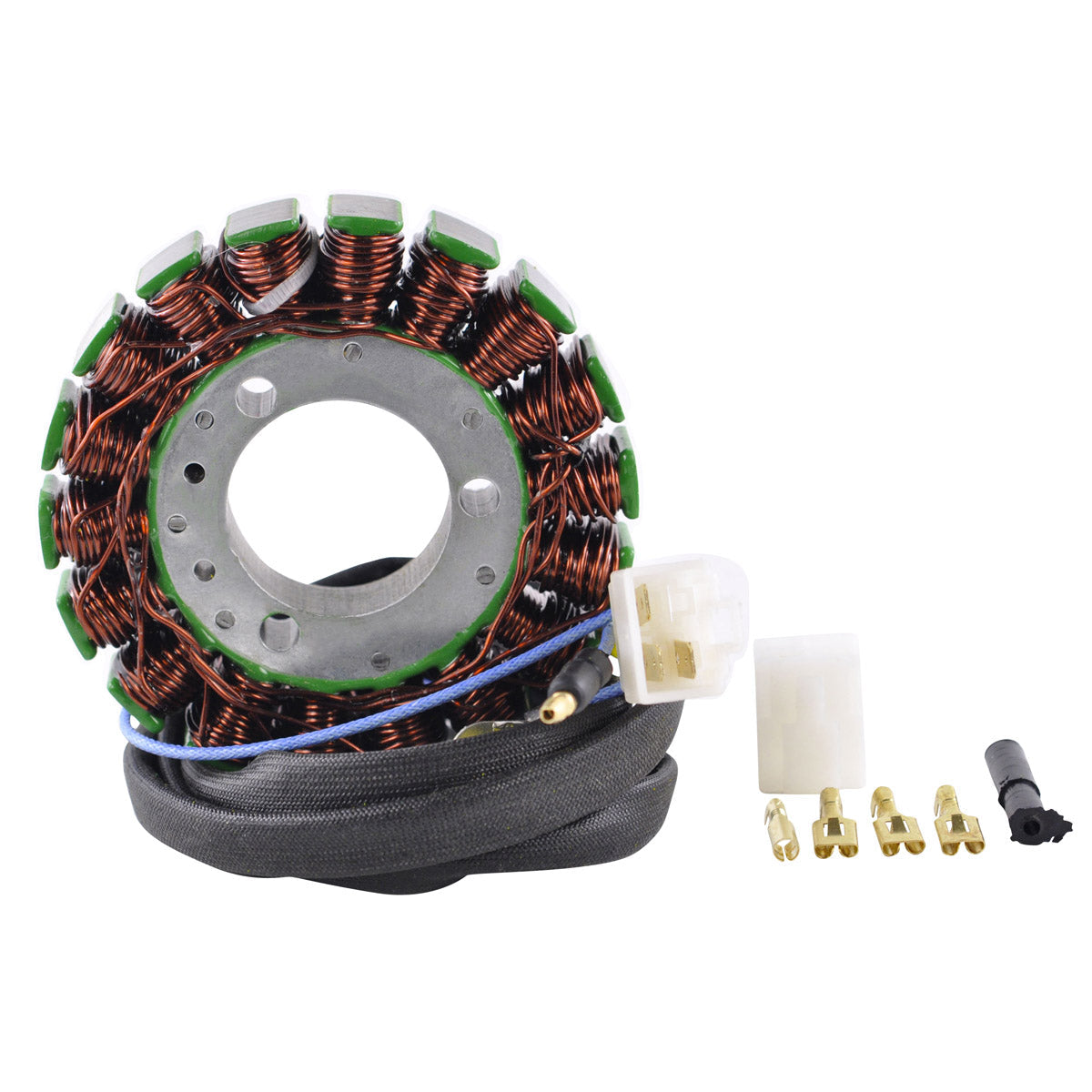

The generator stator unit, the connector, the rubber grommet, and an additional opposite connector for the main harness side.
How do I tell whether my old stator has failed?
With the engine off and the connector unplugged, measure between the black wires. The reading should be about 0.7 ohms, within plus or minus 20 per cent. An open circuit or a reading far outside that band means a winding has gone. Next check each black wire against the engine case: any continuity to earth means the winding insulation has broken down. A battery that will not hold charge while the regulator rectifier tests good is the usual symptom on this model.
Why is there a second connector in the box?
Main harness side connectors are often melted, corroded or defective and are a major cause of repeat electrical issues. On a bike of this age the plug has usually had thirty years of heat cycles, so replacing it at the same time as the stator saves stripping the machine down twice.
