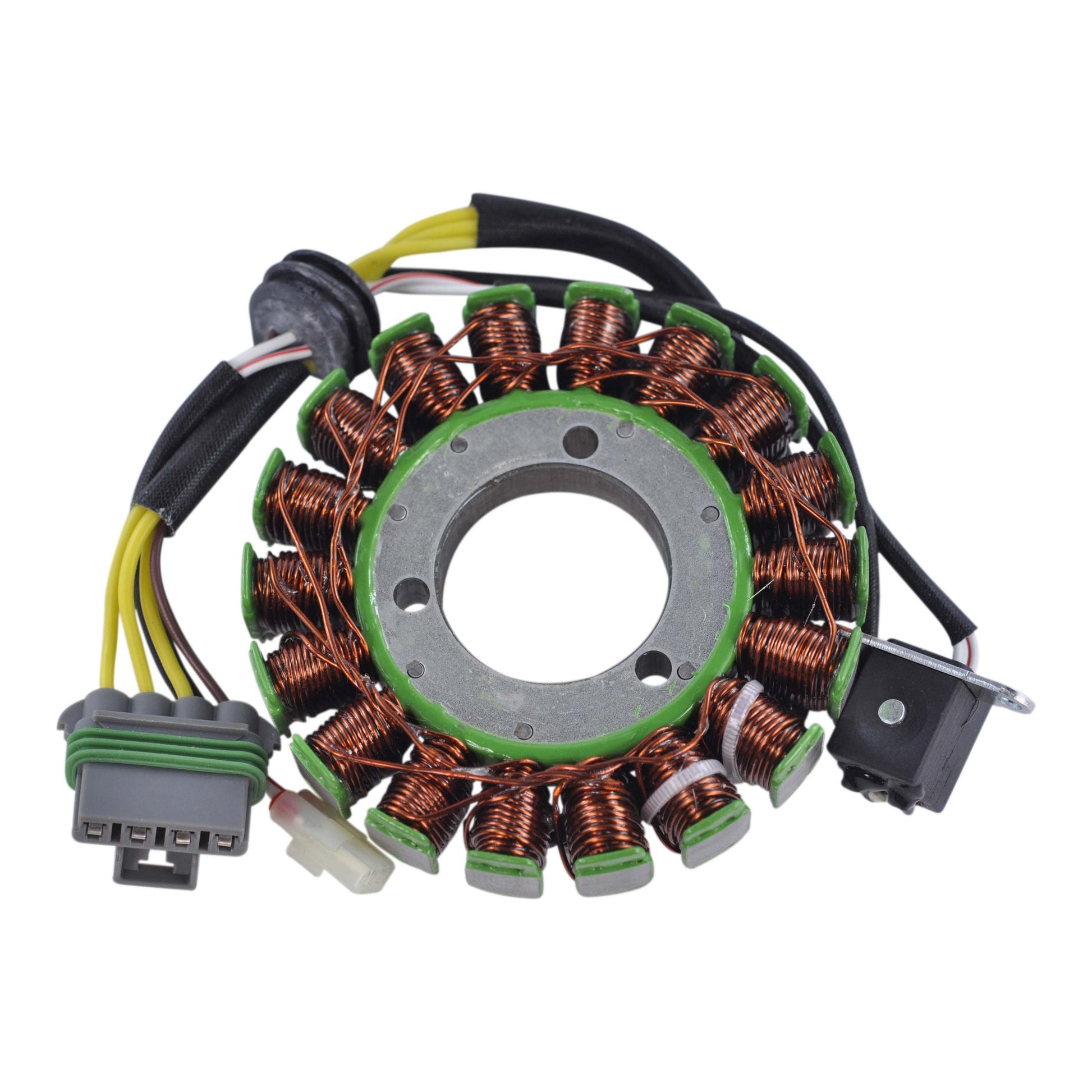

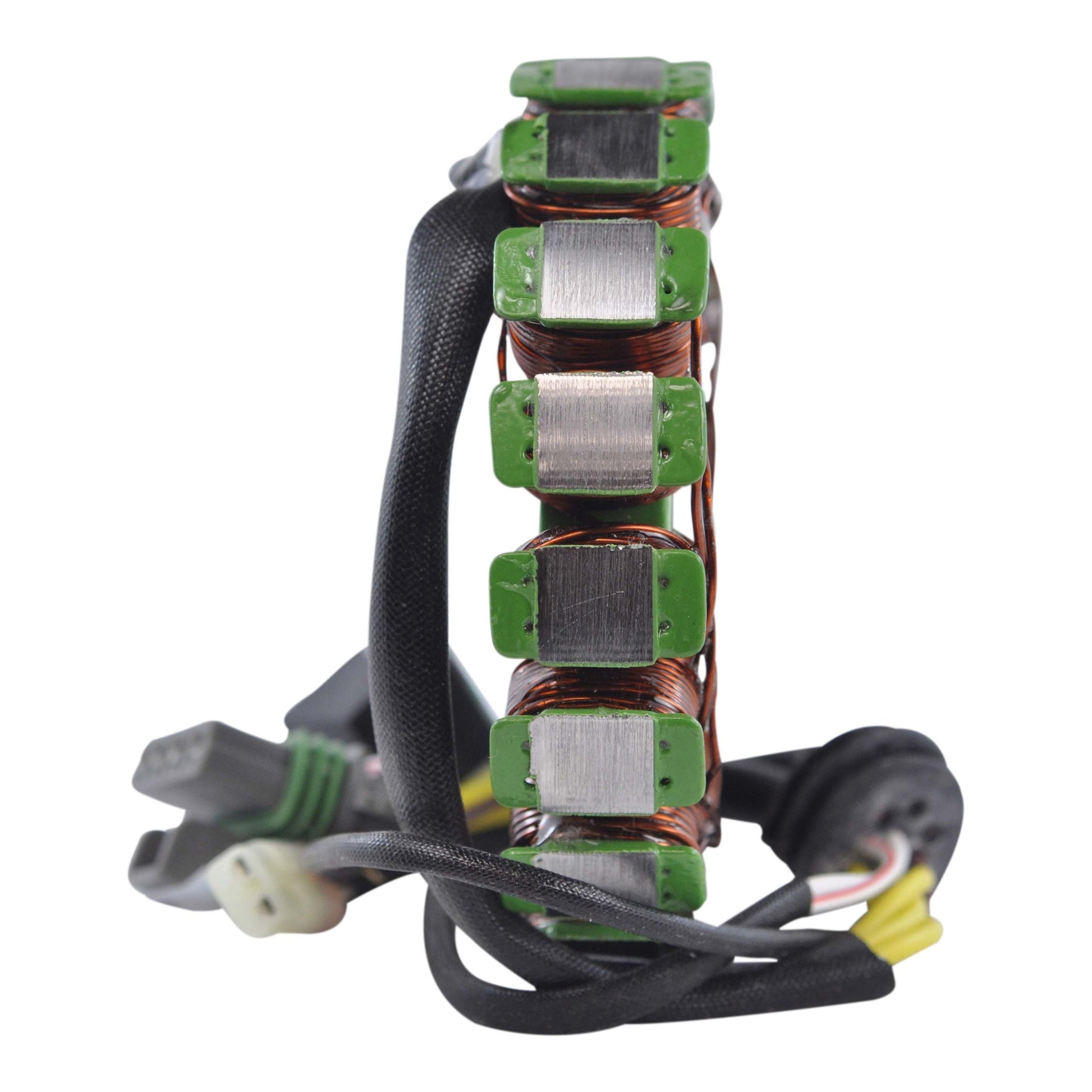

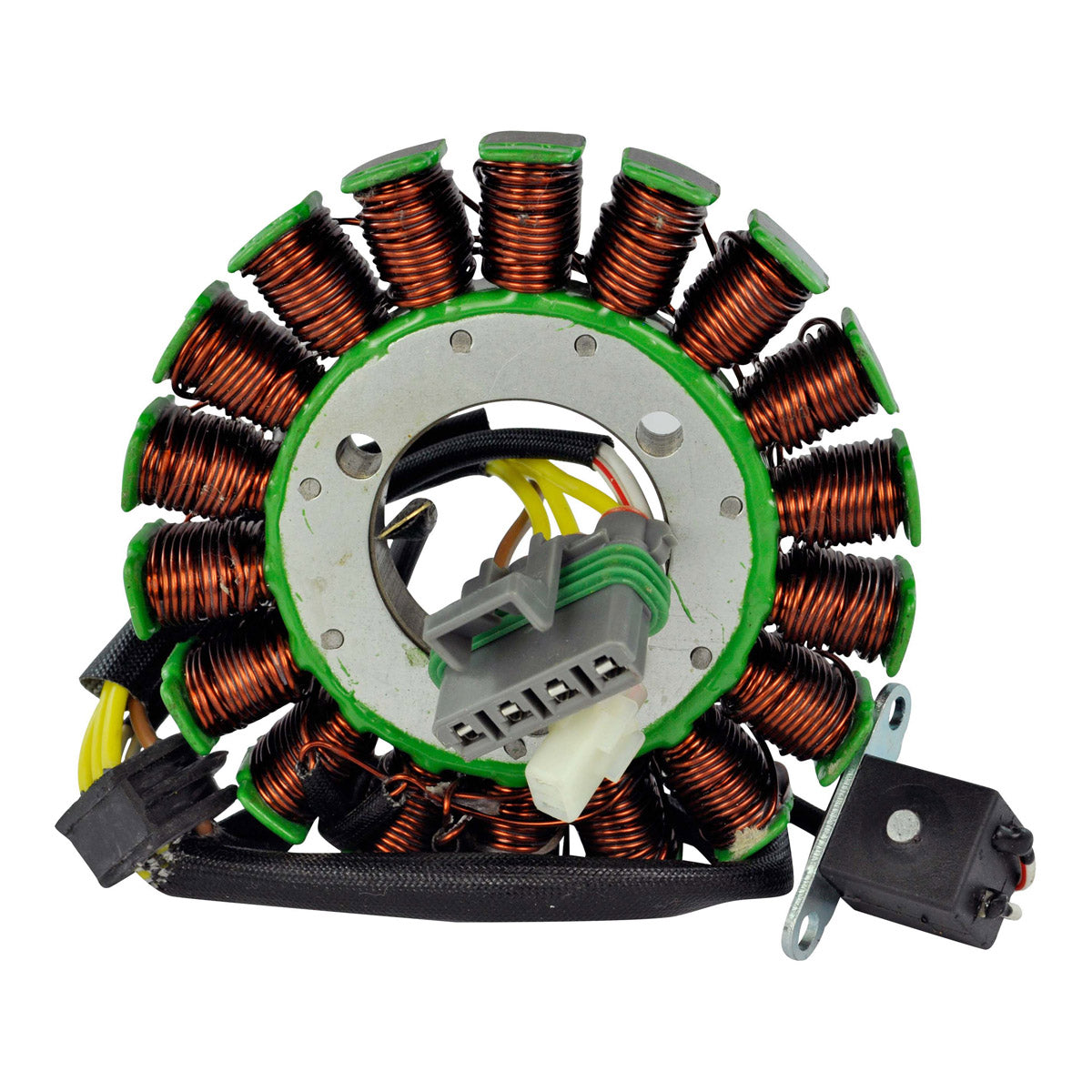

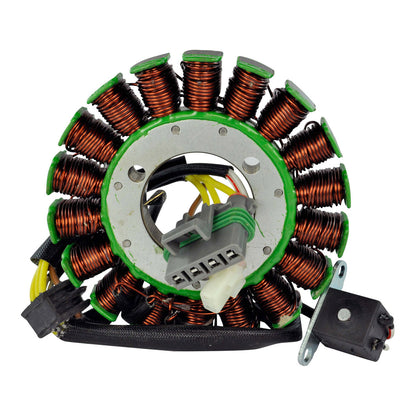

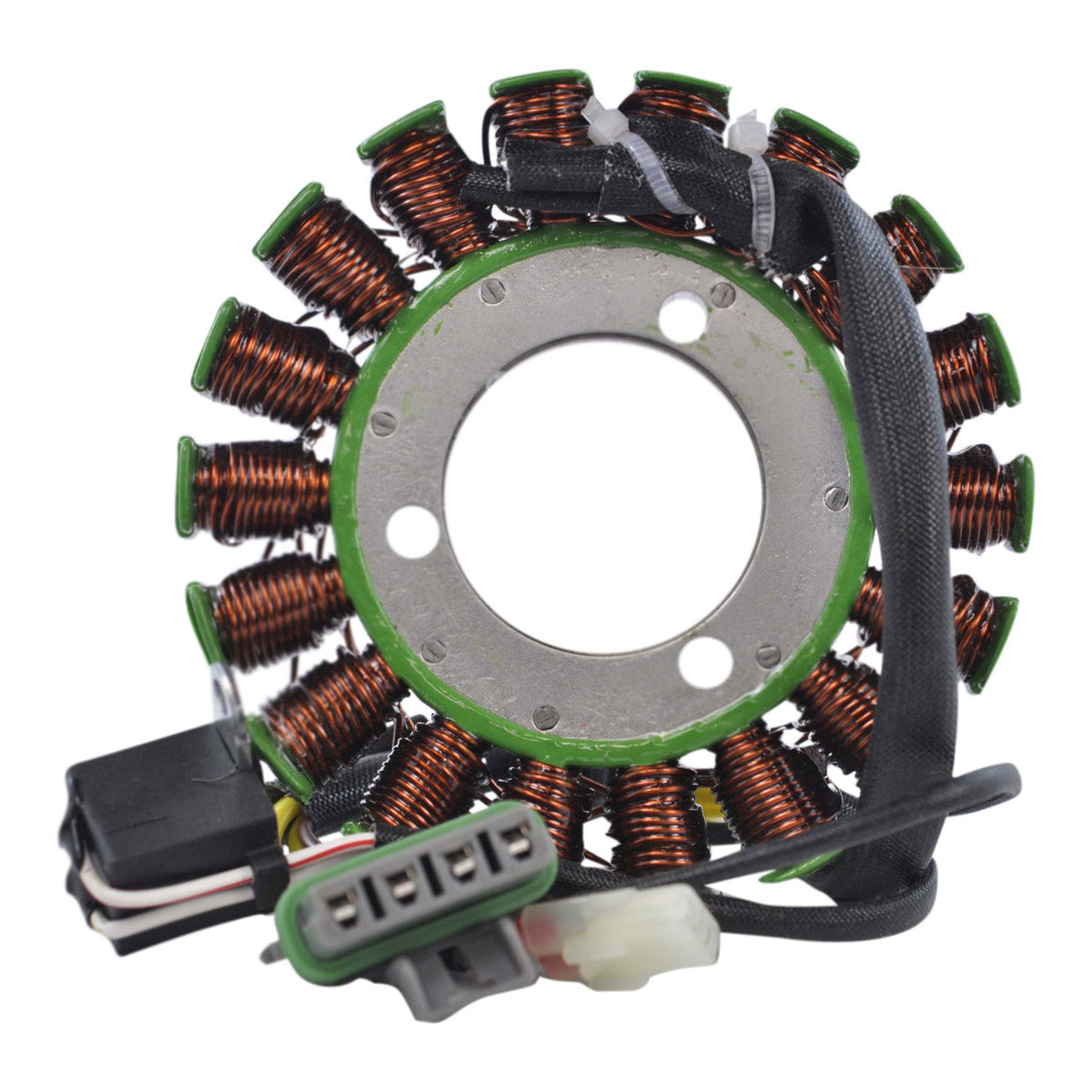

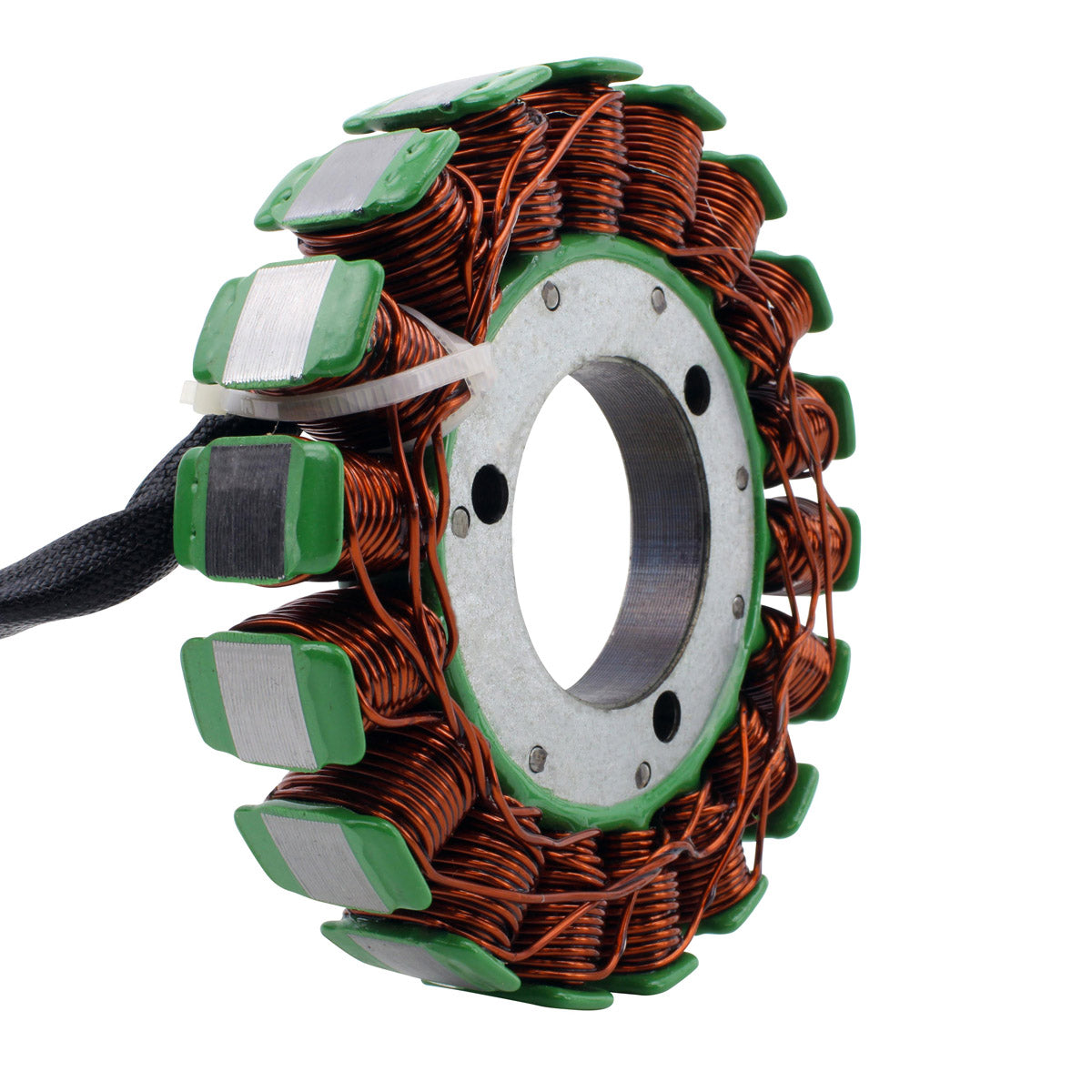

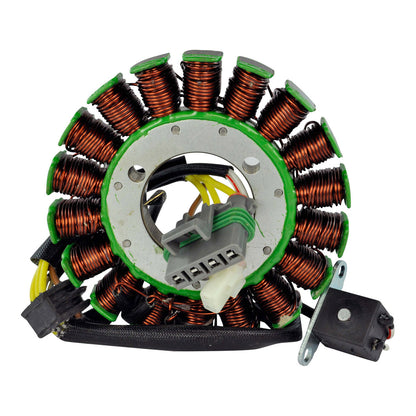

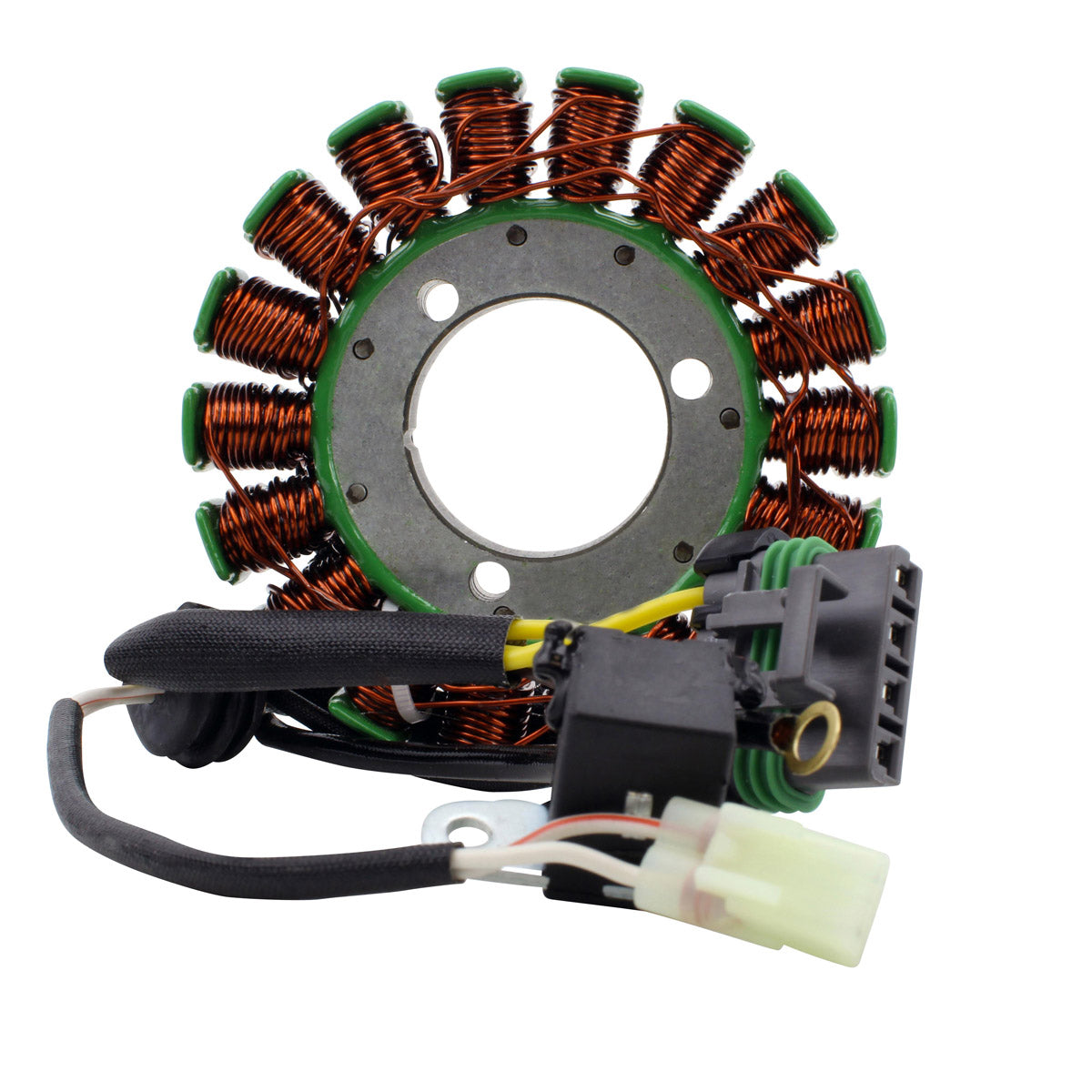

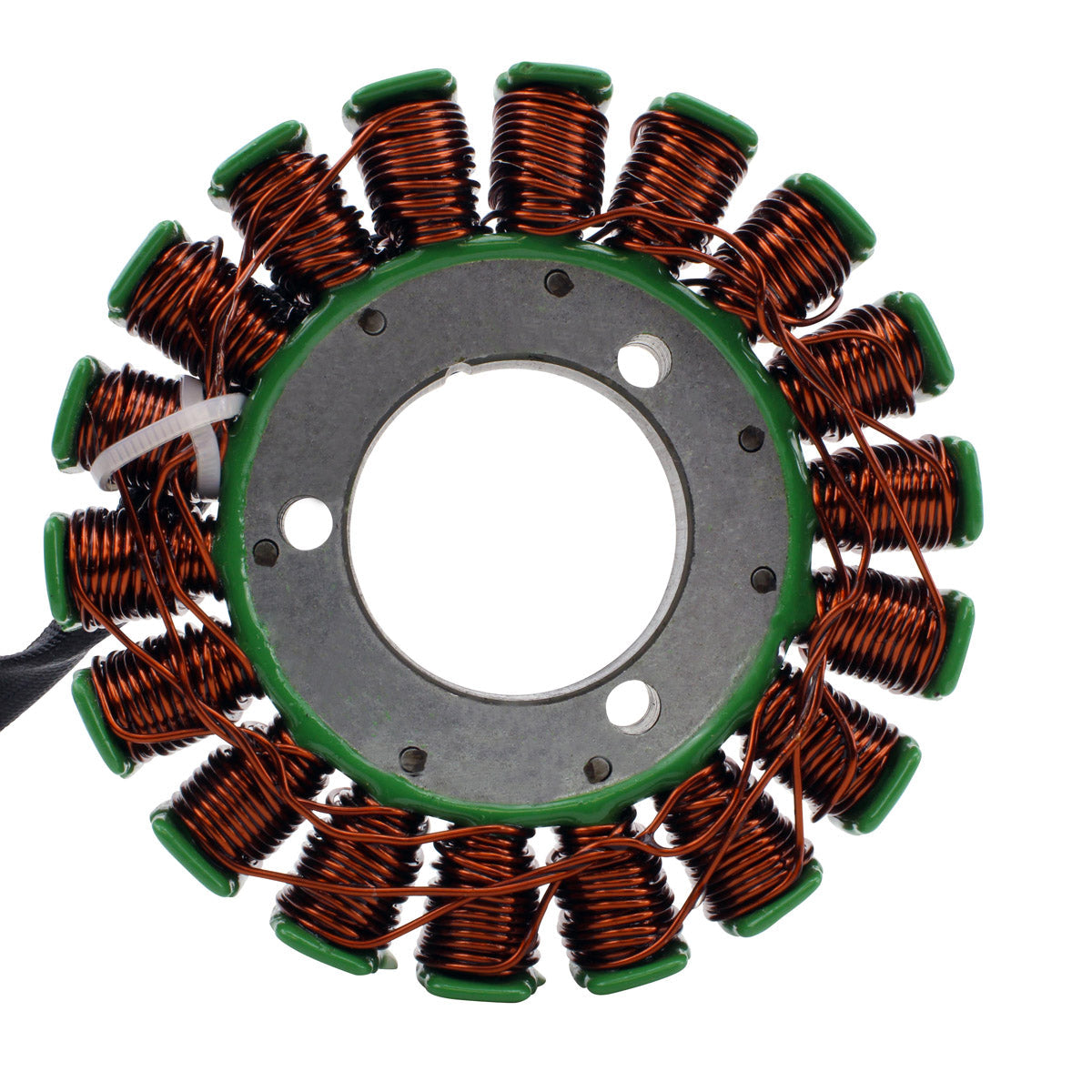

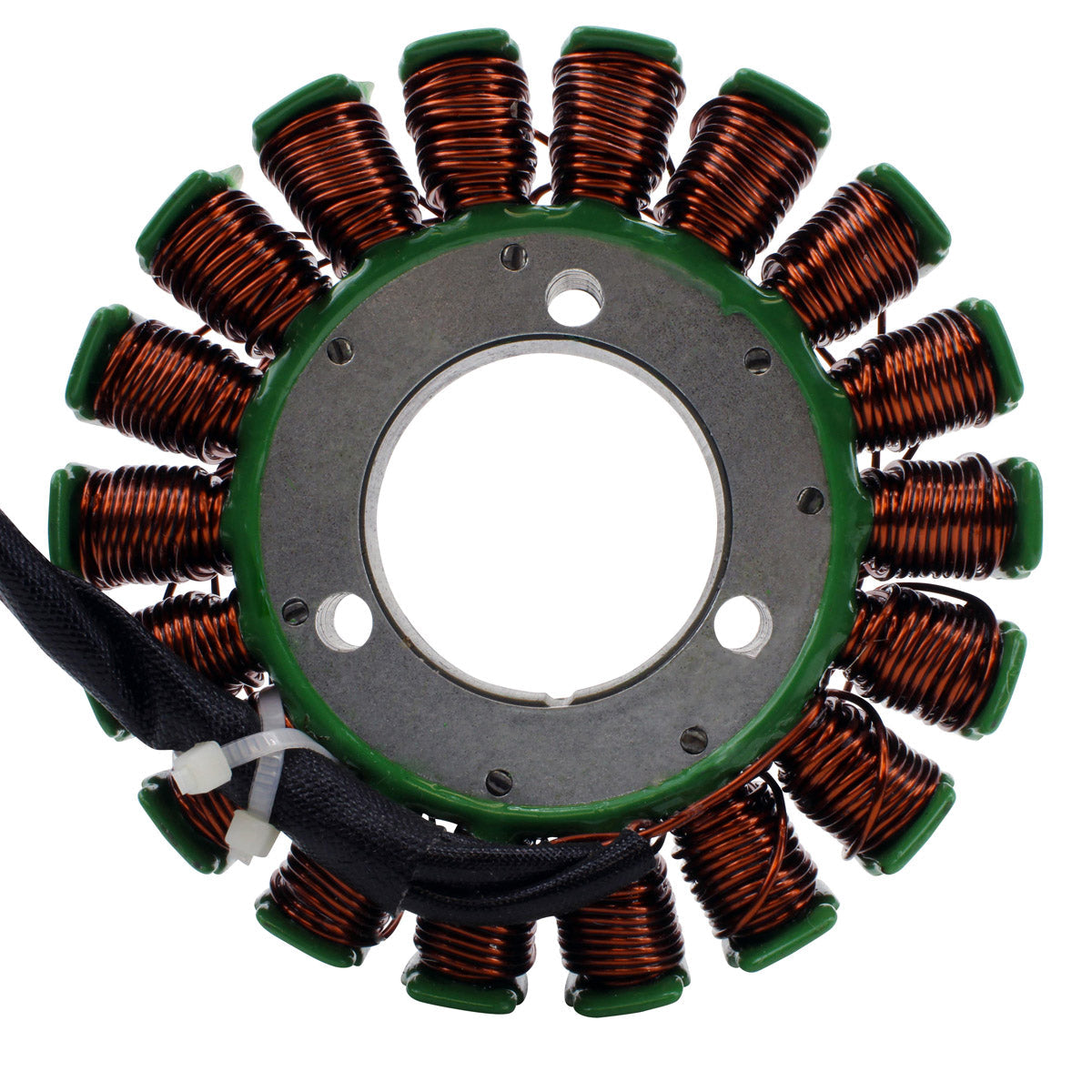

The RM01291 is a brand new aftermarket generator stator for the Polaris Ranger 500, Ranger Crew 500 and Sportsman 500 HO X2 built between 2006 and 2014. It is a direct replacement for the original charging coil and cross references to Polaris part numbers 3089906, 3089959 and 3090081.
Installation is plug-and-play and direct fit, using the standard mounting points and the original connectors, so no cutting, drilling or splicing of the loom is required. The stator is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius. The pick-up pulsar coil, the connector and the rubber grommet are all included in the box, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket generator stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included

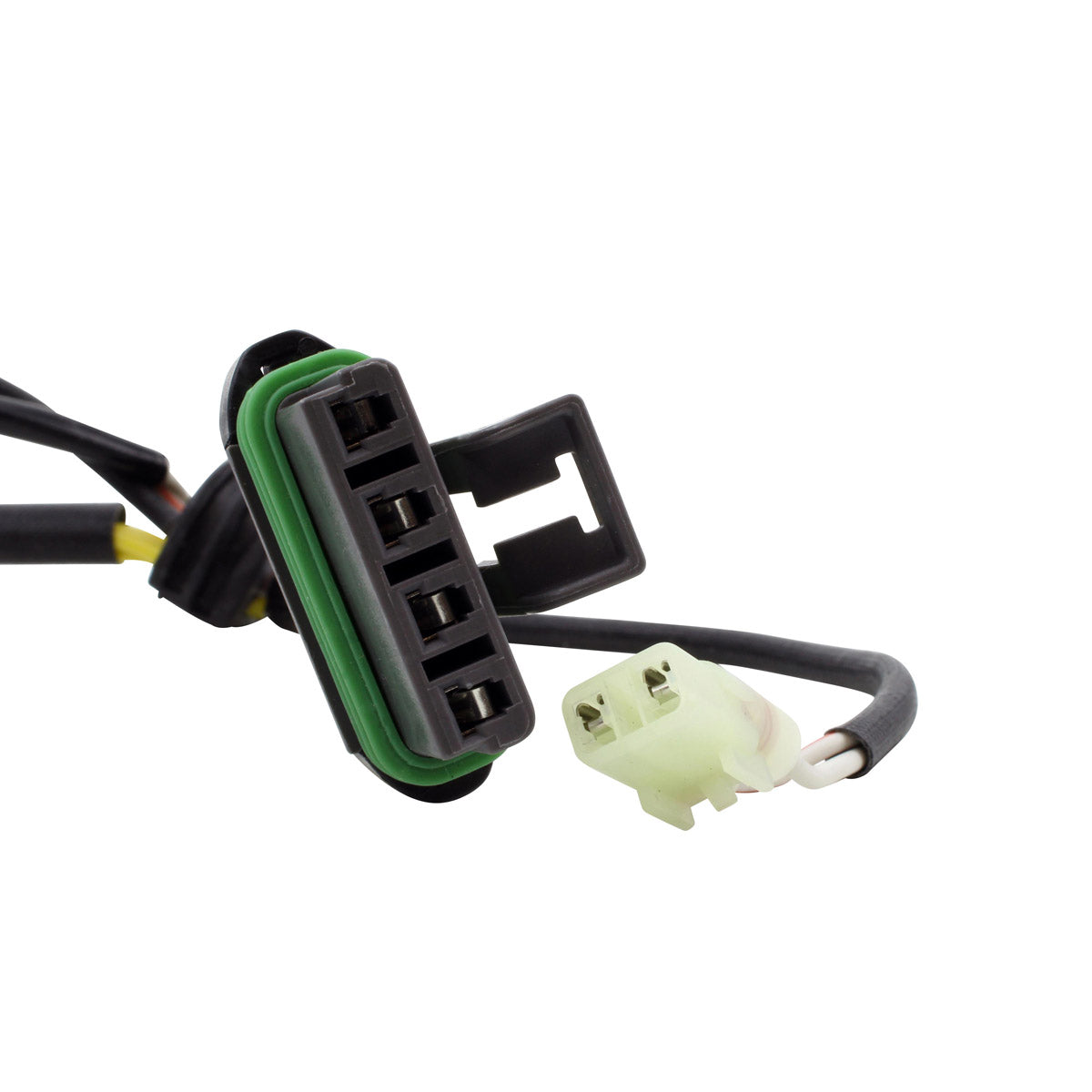

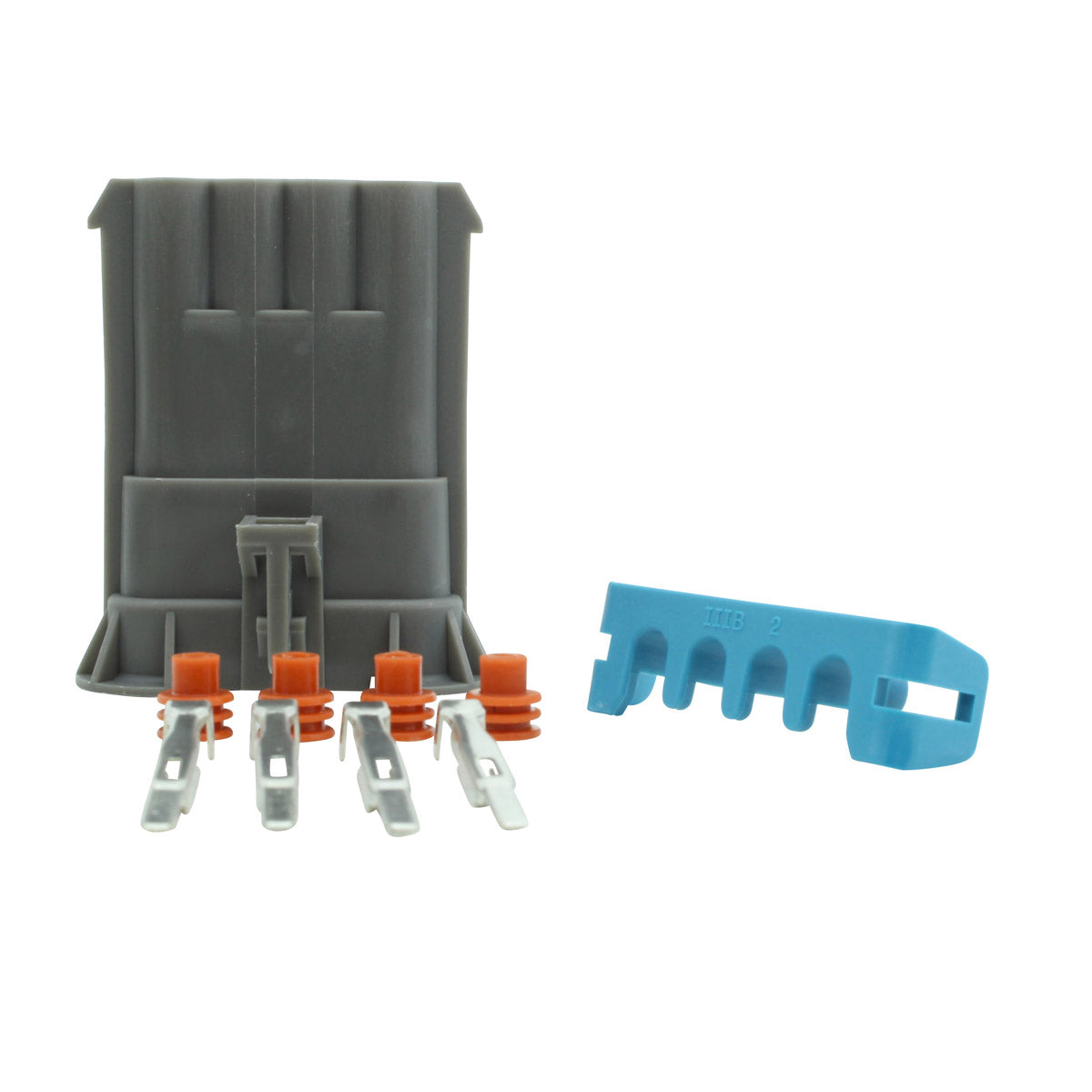

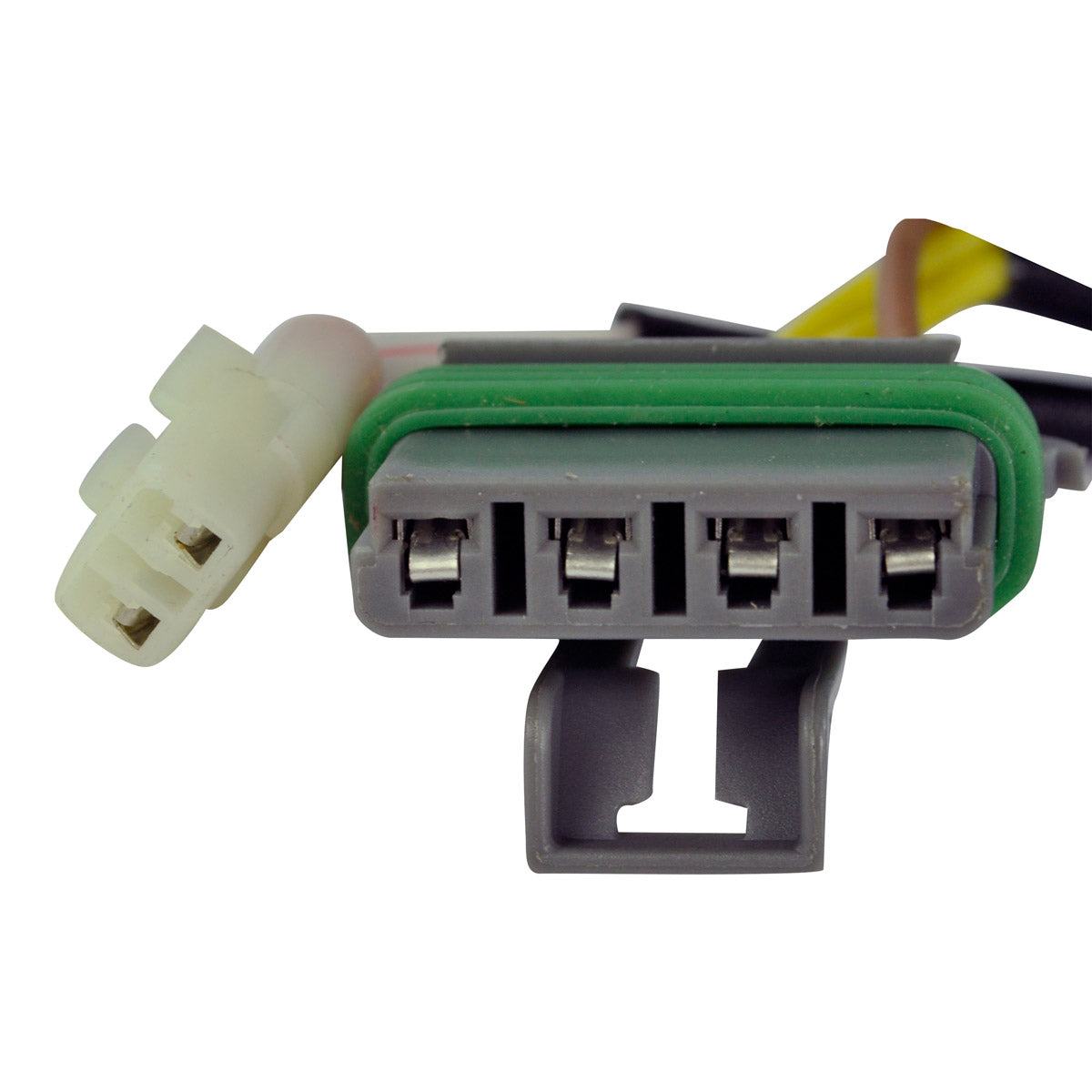

- Connector and rubber grommet included
- Covers Ranger, Ranger Crew and Sportsman HO X2 applications
- Every unit tested before dispatch
Technical Specs
| Specification |
Detail |
| Part number |
RM01291 |
| Interior diameter |
41 mm |
| Exterior diameter |
114 mm |
| Thickness |
14 mm |
| Wire length, stator to grommet |
170 mm |
| Wire length, grommet to plug |
130 mm |
| Pick-up coil wire to grommet |
110 mm |
| Number of wires |
6 |
| Number of plugs |
2 |
| Number of terminals |
7 |
| Alternator resistance, Yellow to Yellow |
0.4 ohms +/-20% |
| Pick-up resistance, White to White/Red |
200 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris Ranger 500 |
2006-2014 |
| Polaris Ranger Crew 500 |
2006-2014 |
| Polaris Sportsman 500 HO X2 |
2006-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3089906 |
Polaris |
| 3089959 |
Polaris |
| 3090081 |
Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. The RM01291 is a direct replacement for the original stator on the Polaris Ranger 500, Ranger Crew 500 and Sportsman 500 HO X2 from 2006 to 2014. It is plug-and-play, uses the standard mounting points and connects to the existing harness, so no cutting, drilling or splicing is required.
What is included in the box?

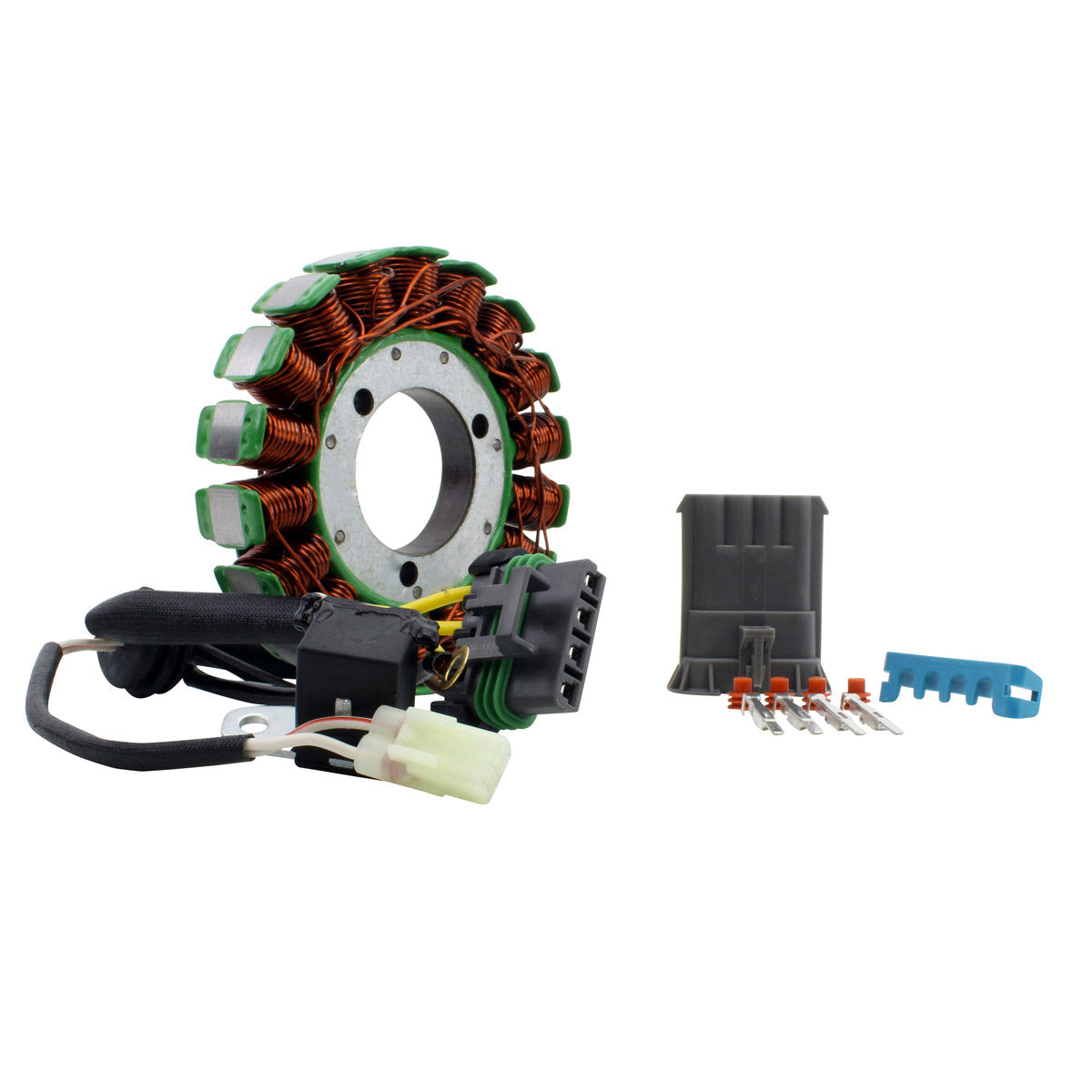

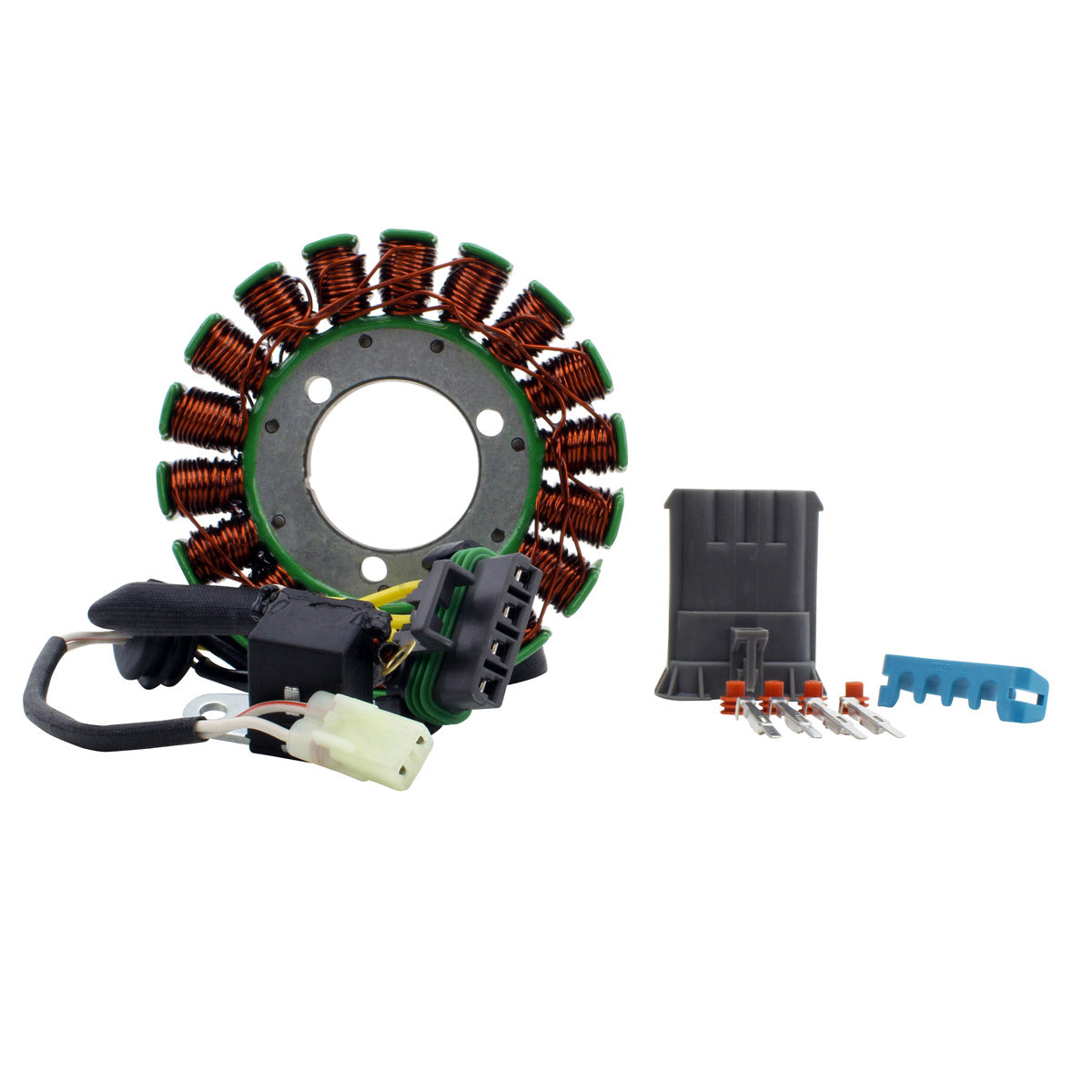

You receive the generator stator, the pick-up pulsar coil, the connector and the rubber grommet.
How do I tell whether my old stator has failed?
Measure the wire-to-wire resistance with a multimeter and compare against the table above. The alternator should read about 0.4 ohms between the Yellow wires and the pick-up about 200 ohms from White to White/Red, each within 20 percent. Check each output wire to ground as well, which should show no continuity. Readings that are open circuit, shorted to ground or far outside those bands indicate a failed stator.
Which OEM numbers does this part replace?
The RM01291 cross references to Polaris 3089906, 3089959 and 3090081. If your machine carries any of those numbers on the original stator, this is the correct replacement. It uses 6 wires across 2 plugs with 7 terminals, so compare the plug layout against your original part if you are unsure.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
