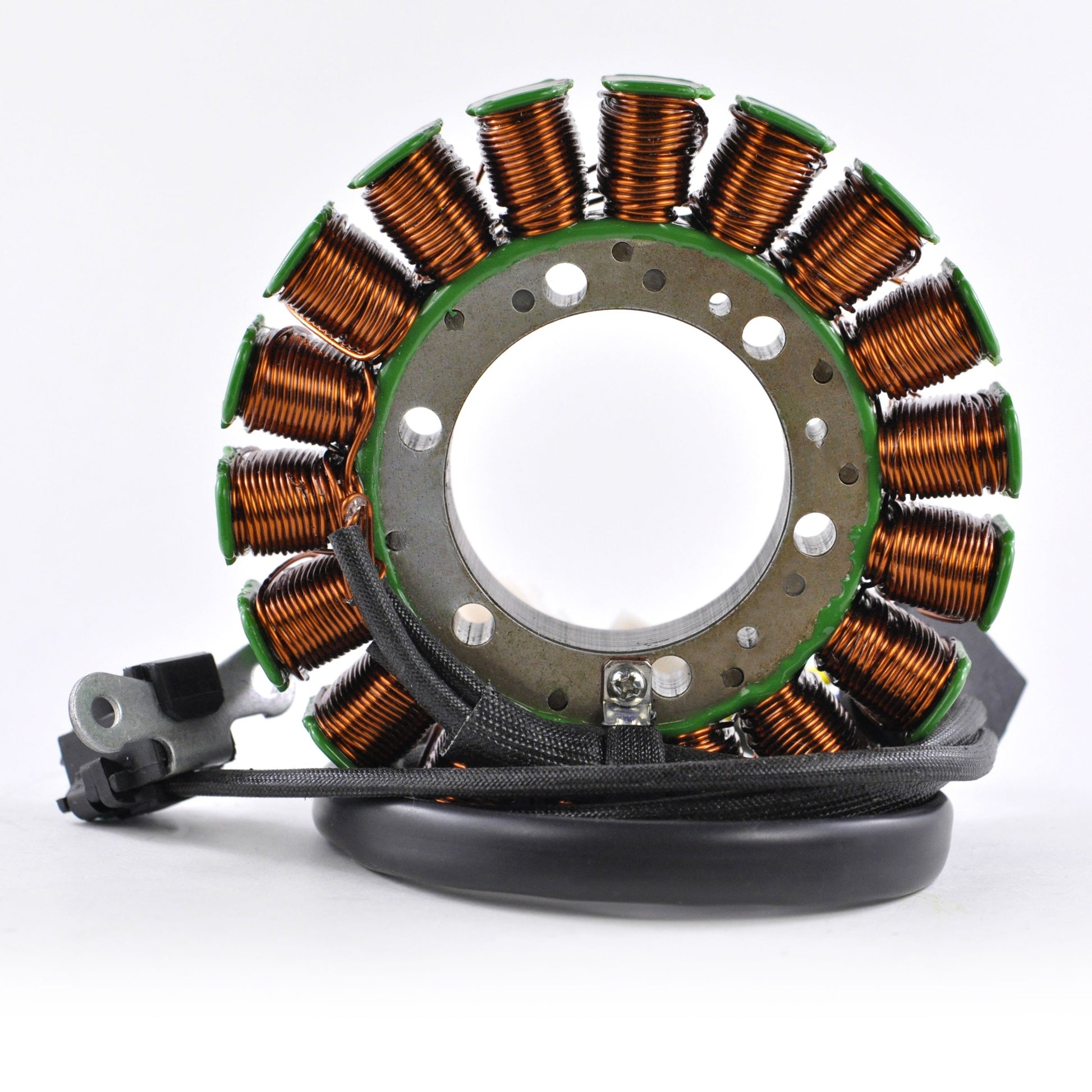

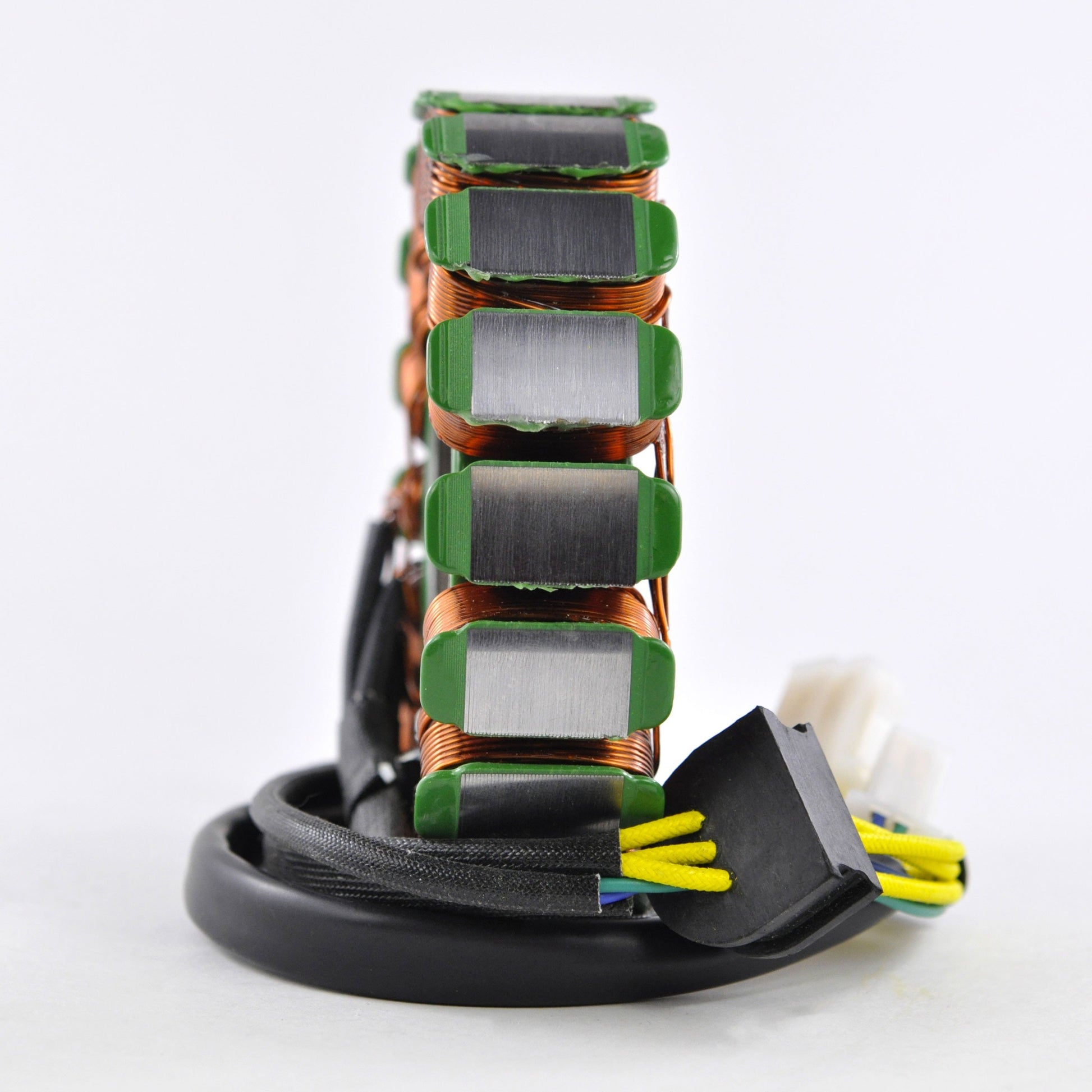

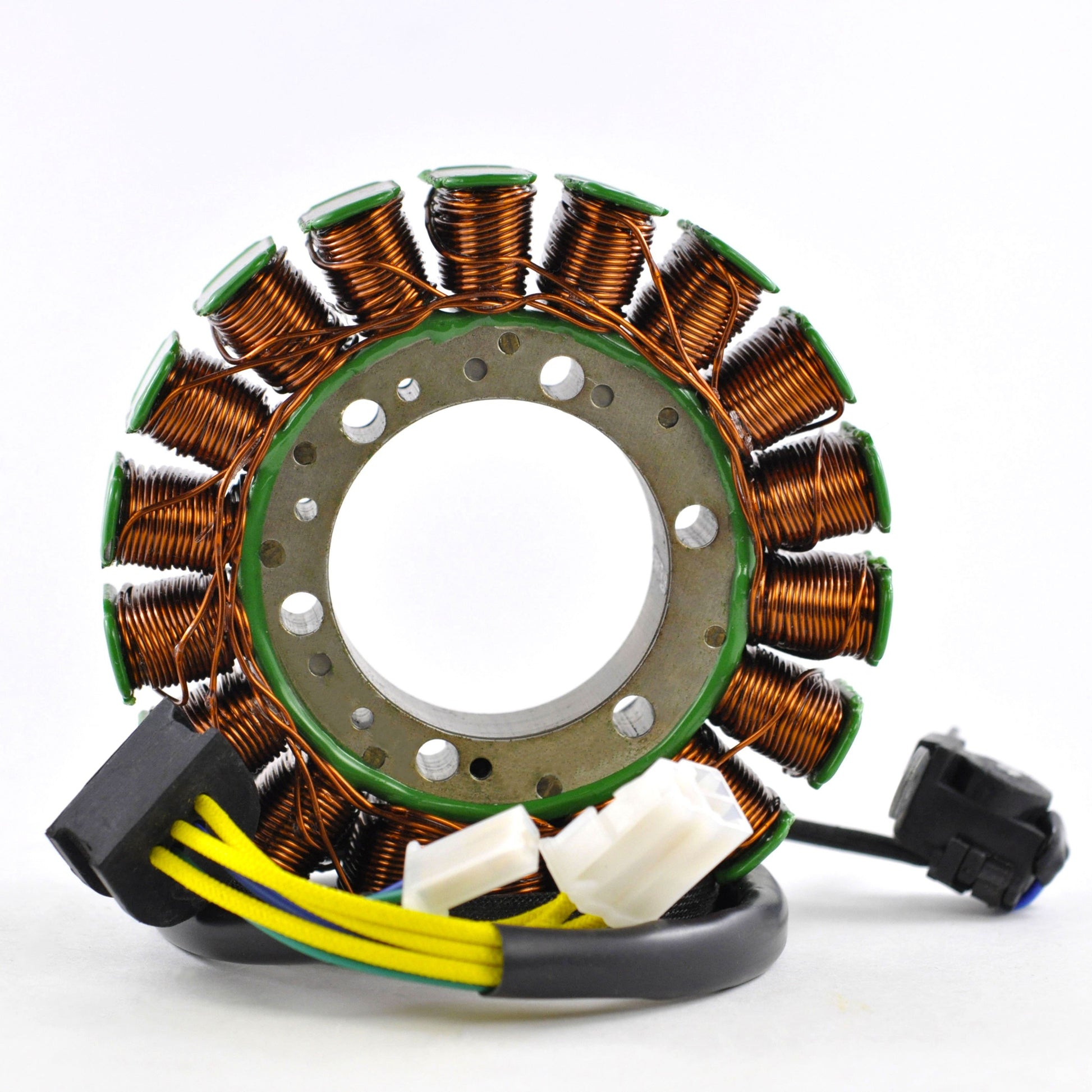

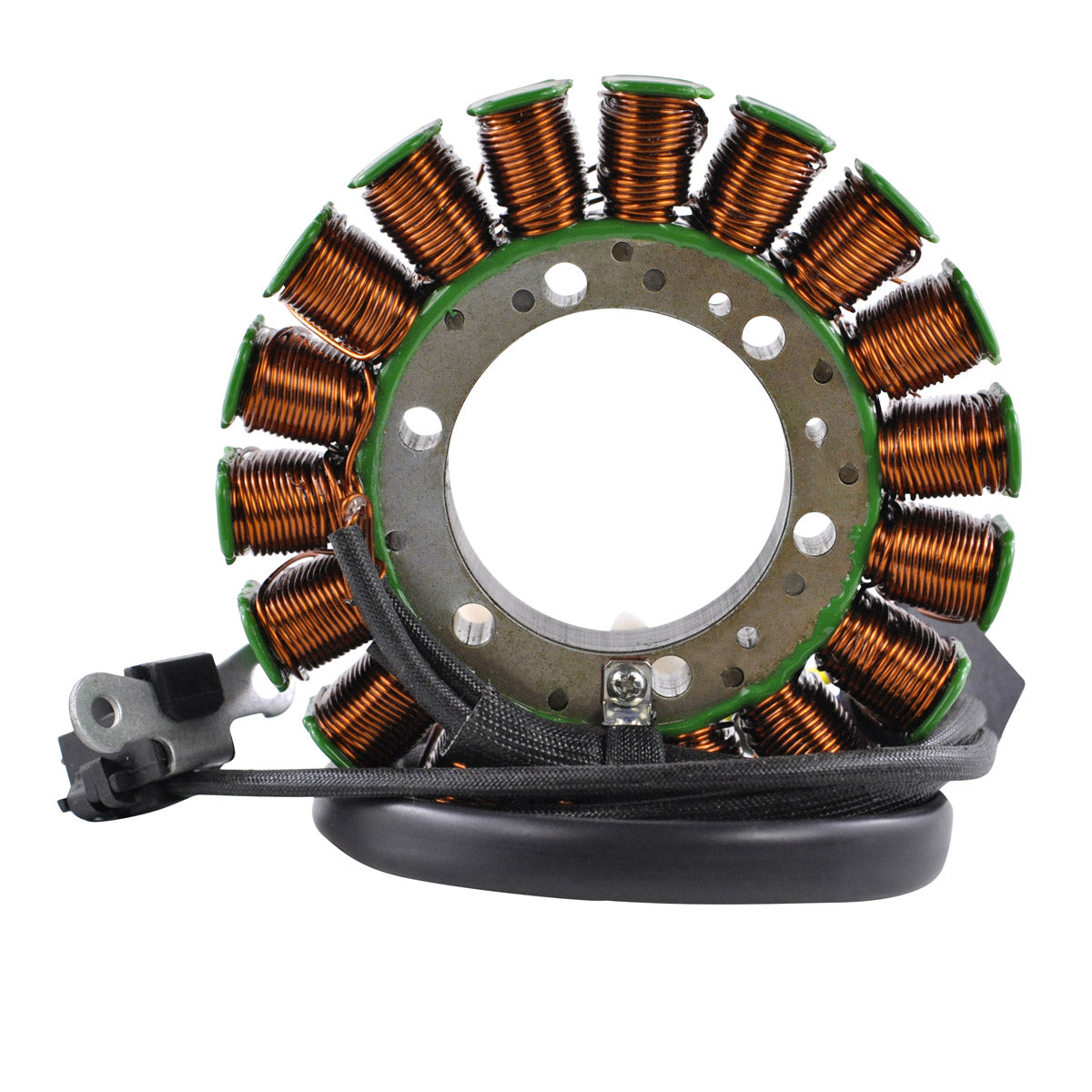

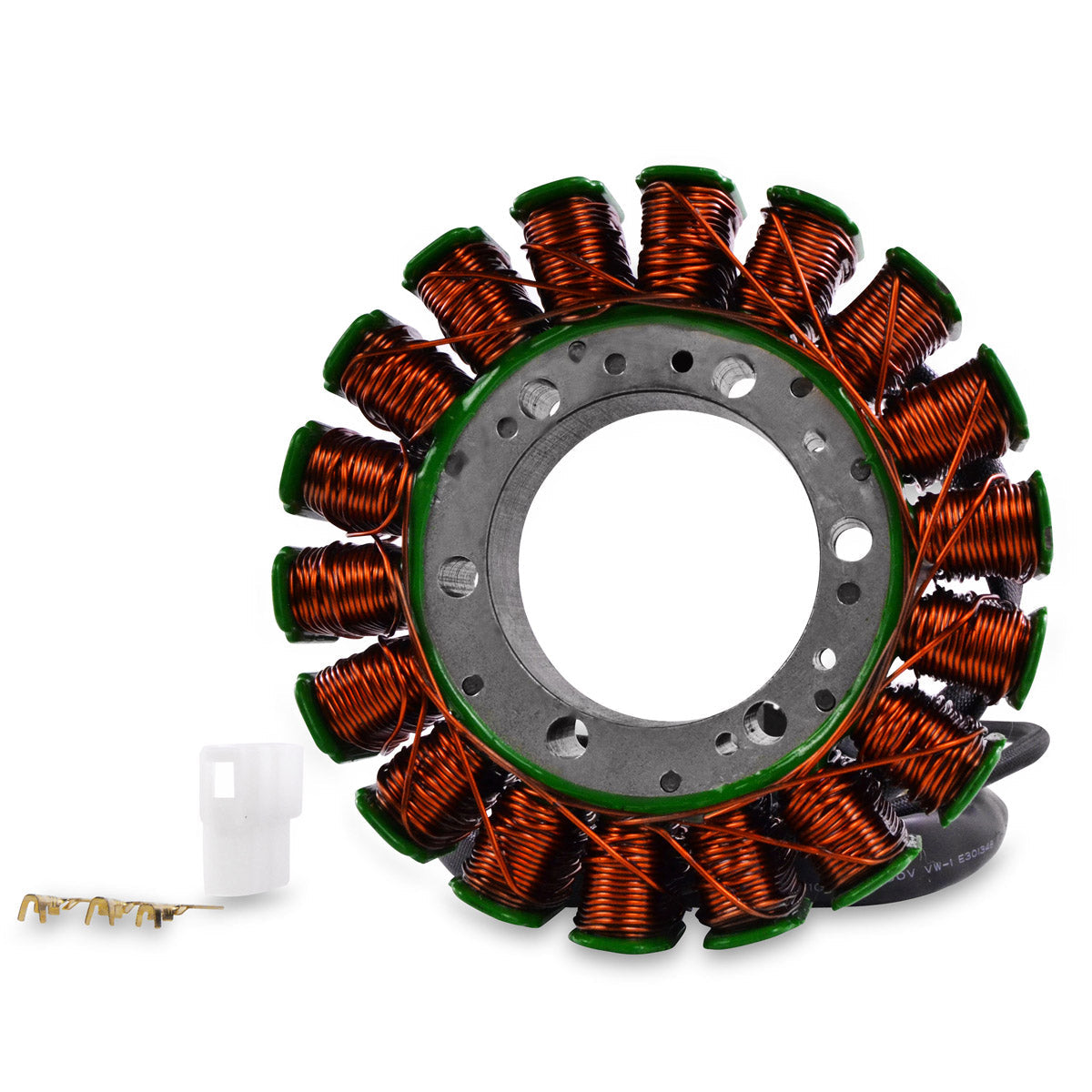

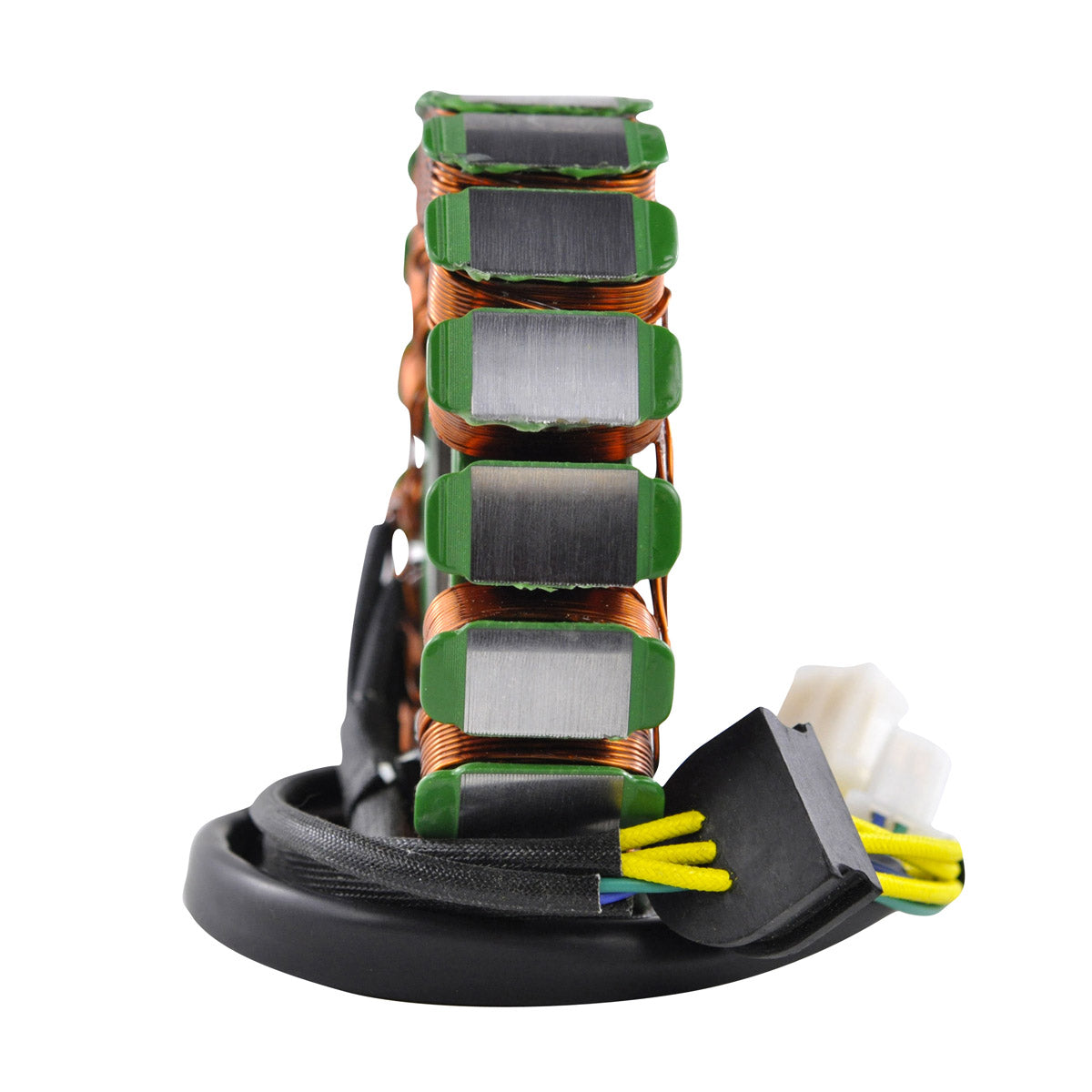

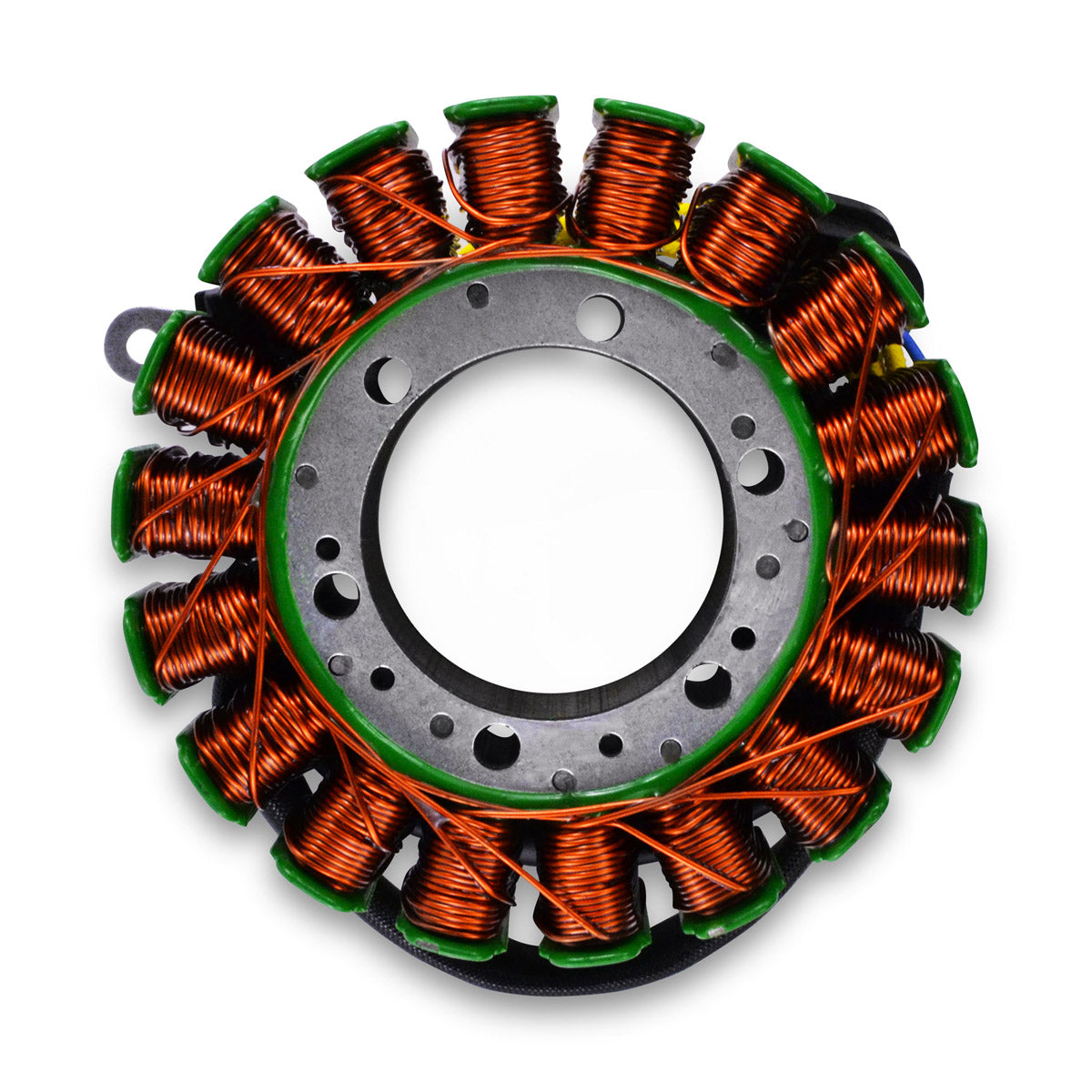

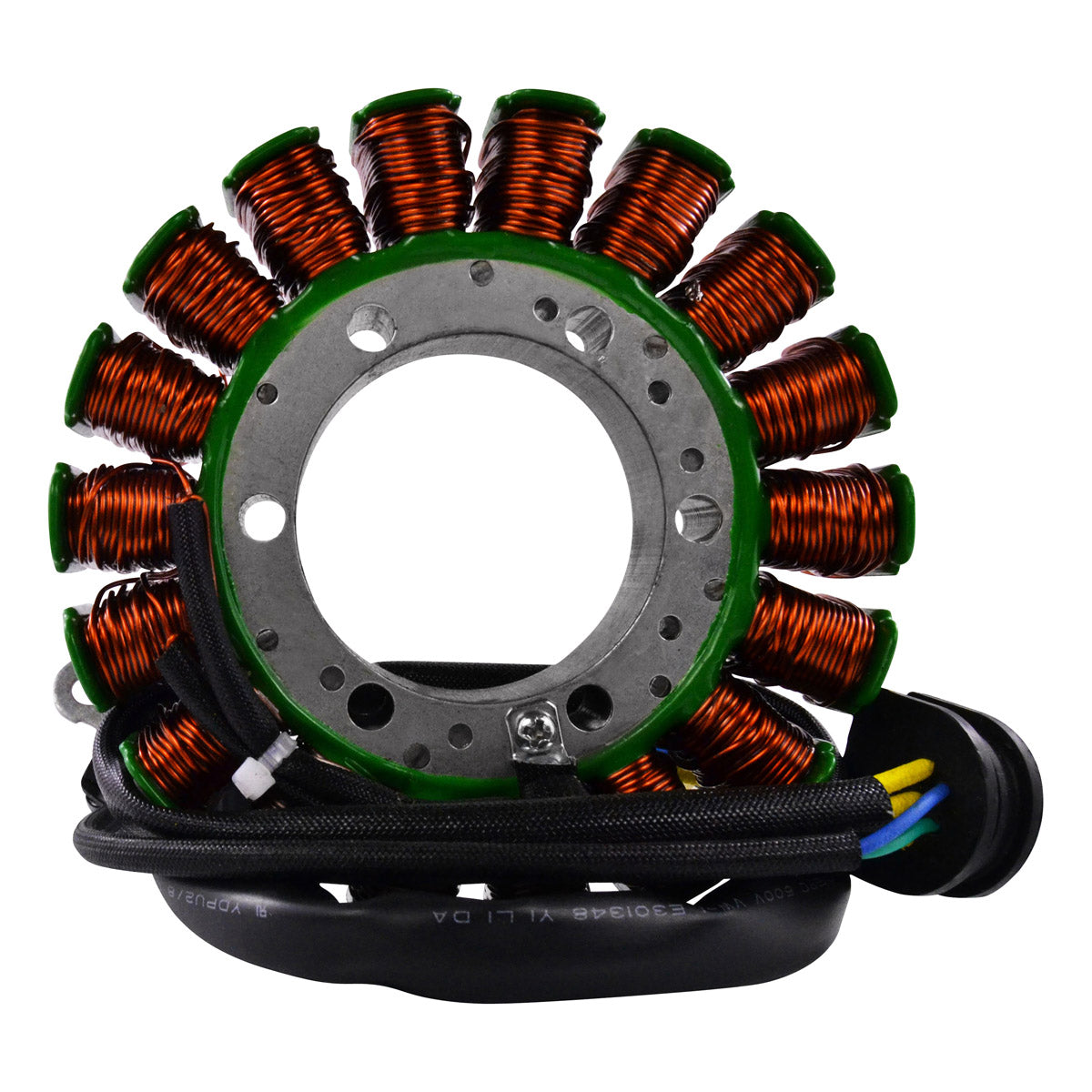

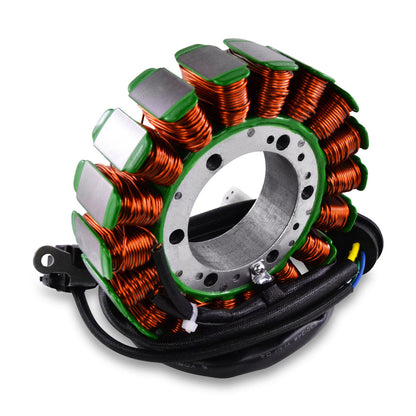

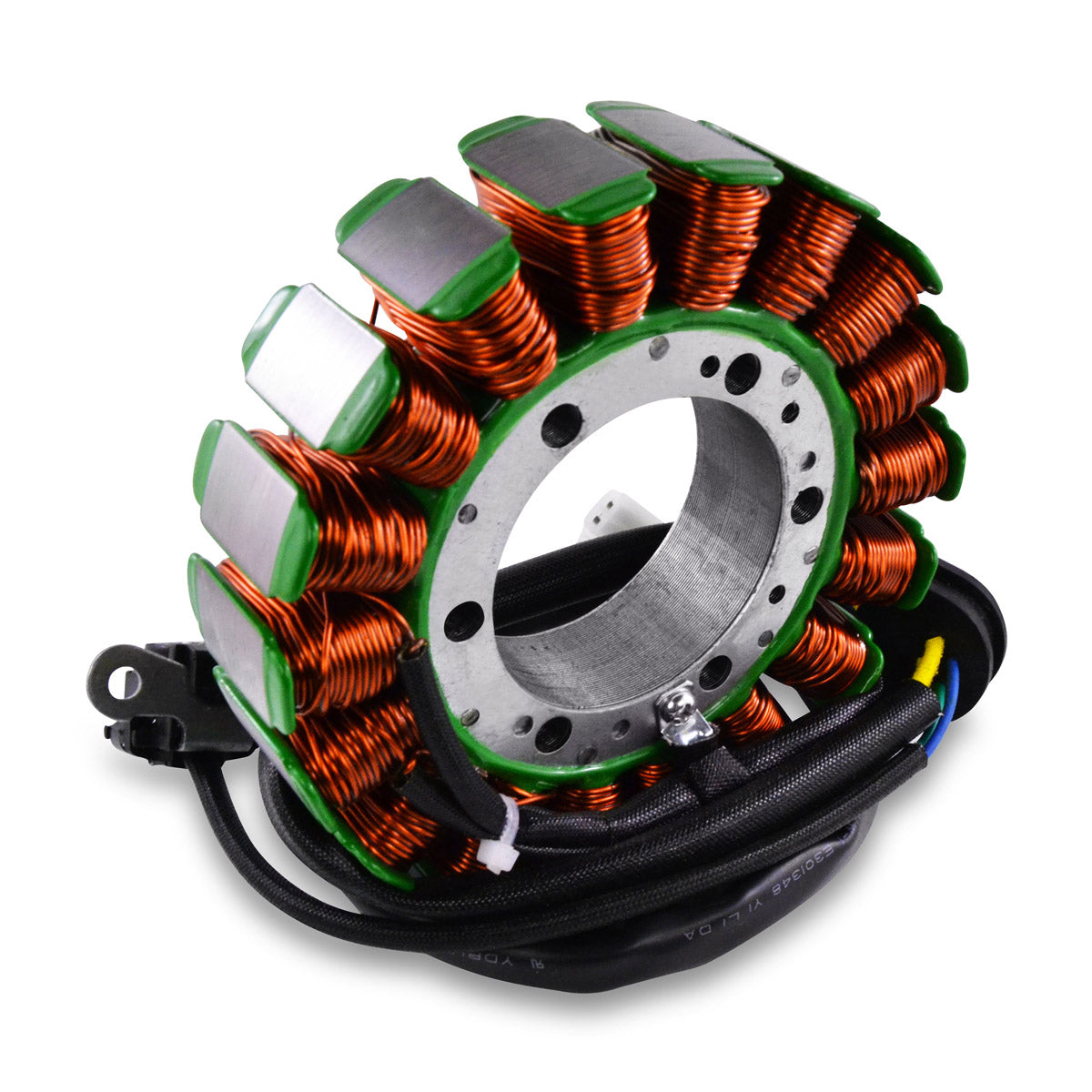

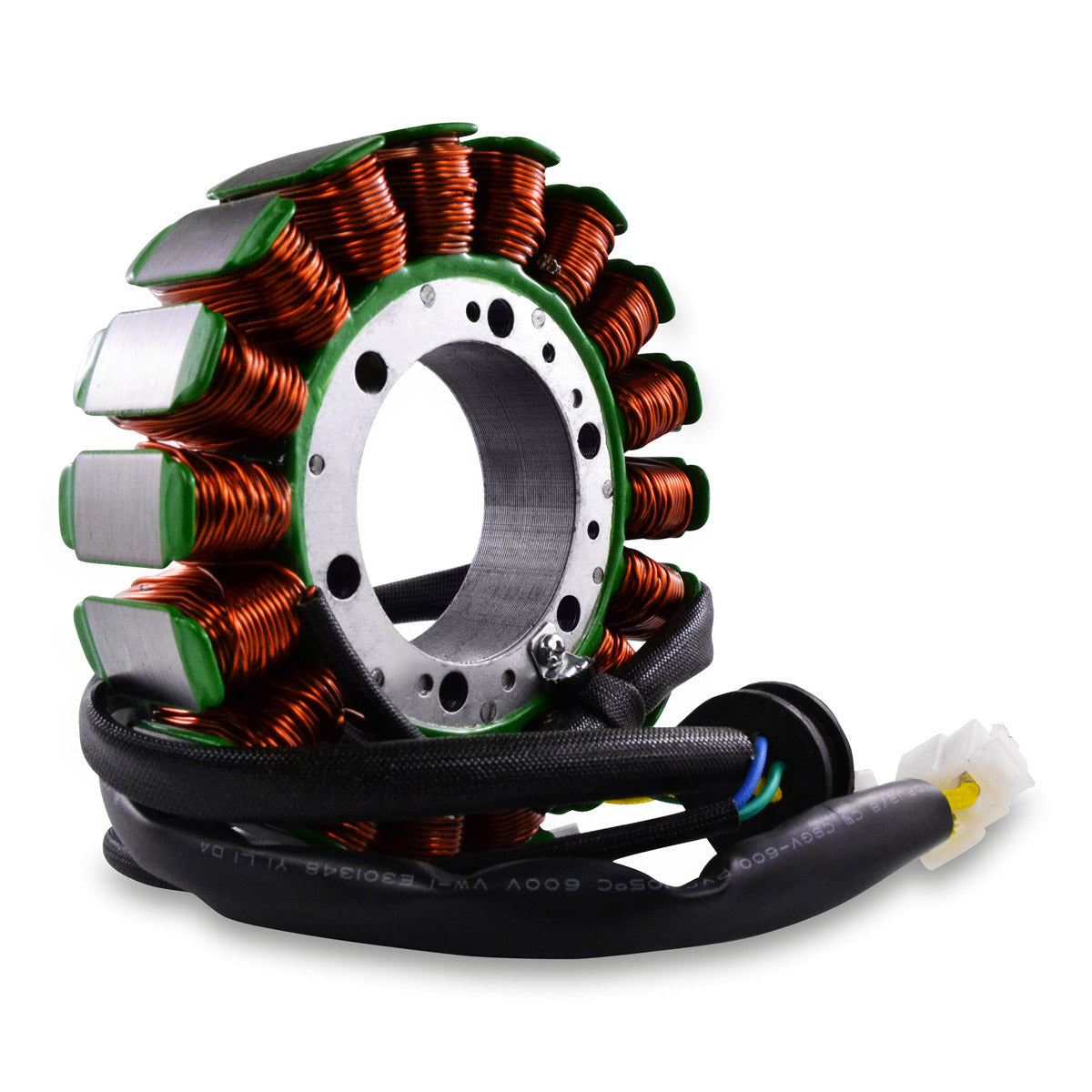

A brand new aftermarket generator stator that is a direct replacement for the original unit on the Suzuki Boulevard C50 VL800 Volusia K5, the C50T VL800T and the M50 VZ800. It is plug-and-play and a direct fit, so the charging system is restored without cutting the loom or modifying the engine cases.

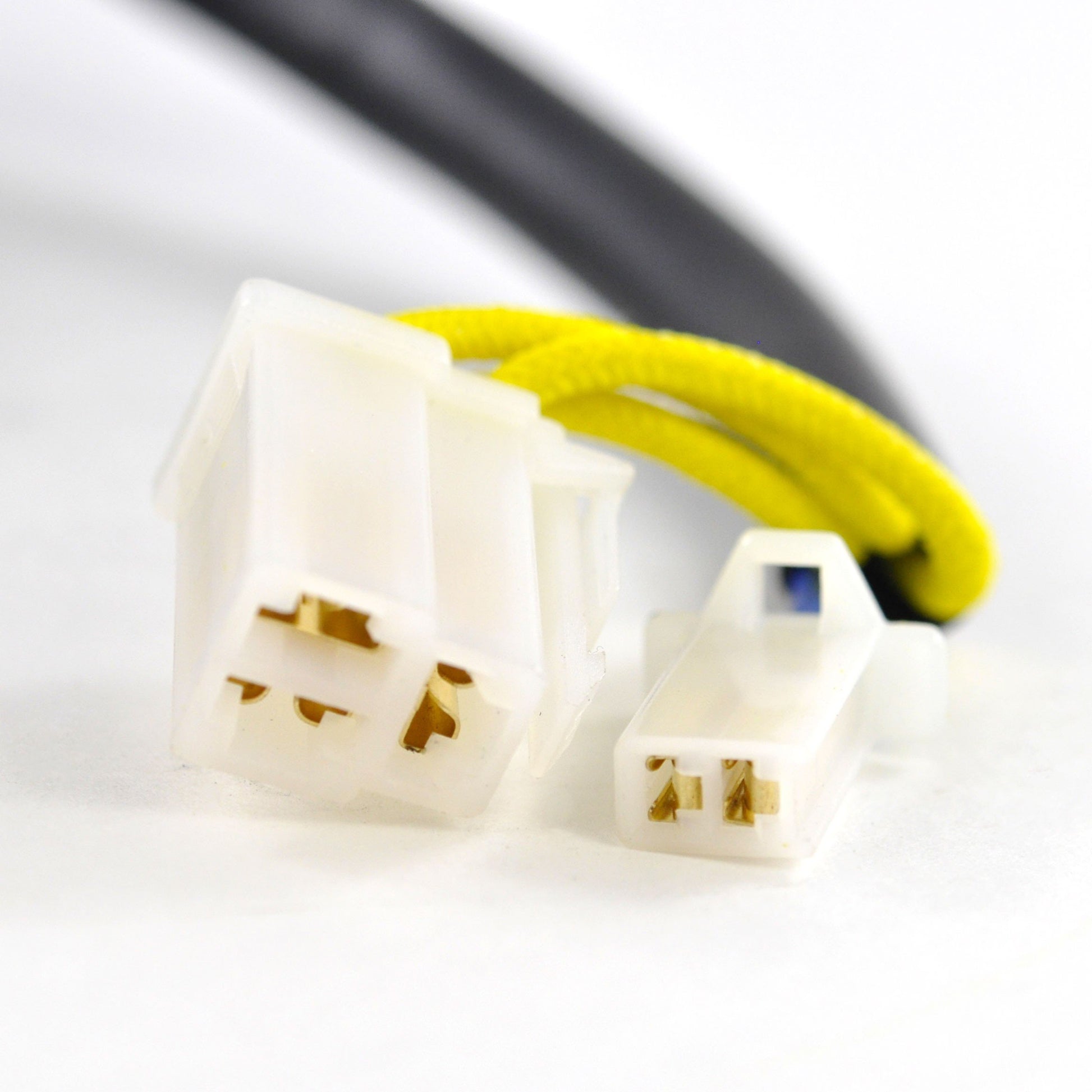

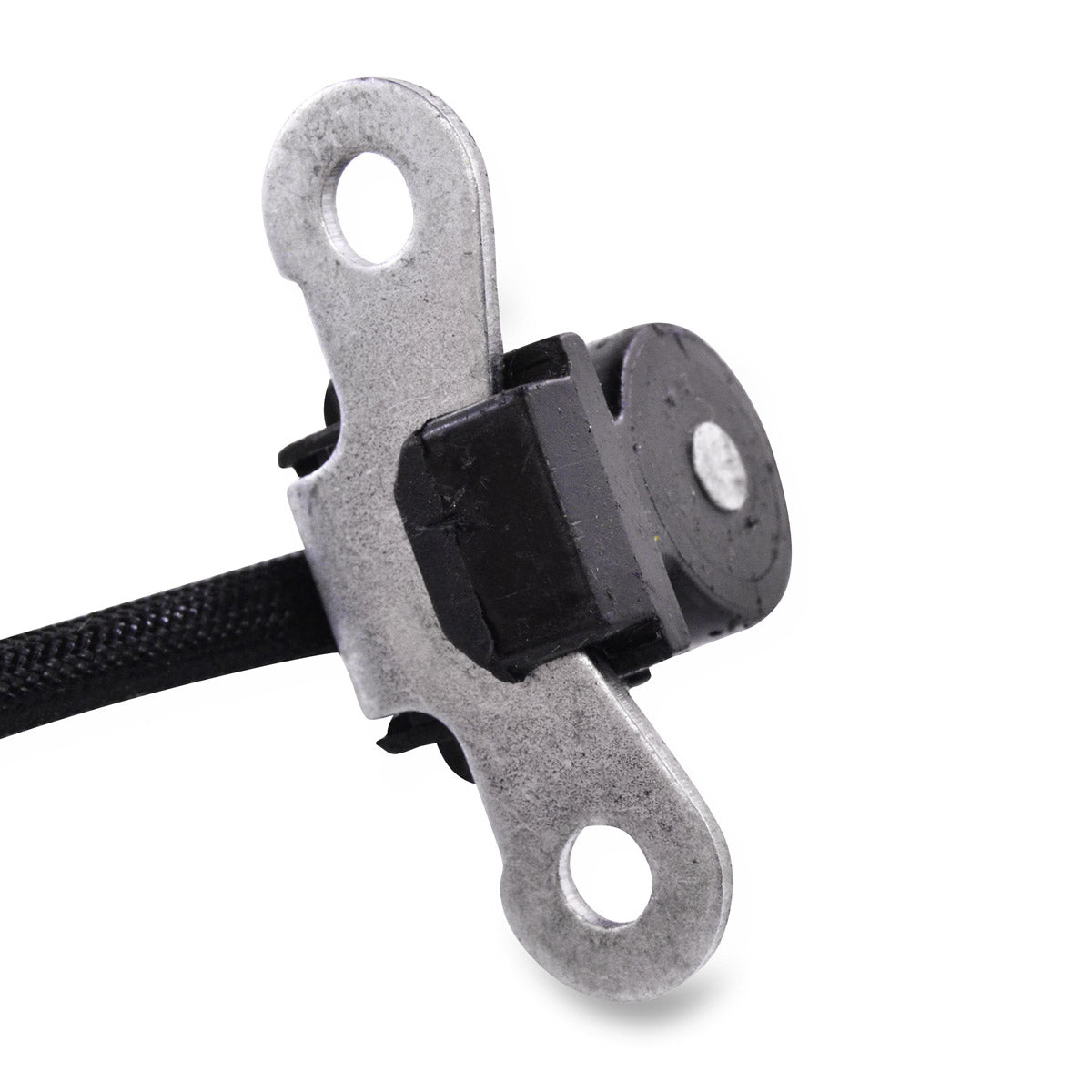

The unit is built on the highest grade lamination materials and wound with the highest grade copper, insulated to withstand 200 degrees Celsius. That heat rating matters on these cruisers, because it is sustained heat that cooks the windings of a tired original stator and eventually leaves the battery flat. The stator arrives complete with the pickup pulsar coil, the connector and the rubber grommet fitted, plus the opposite connector for the main harness side. Every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pickup pulsar coil, connector and rubber grommet included

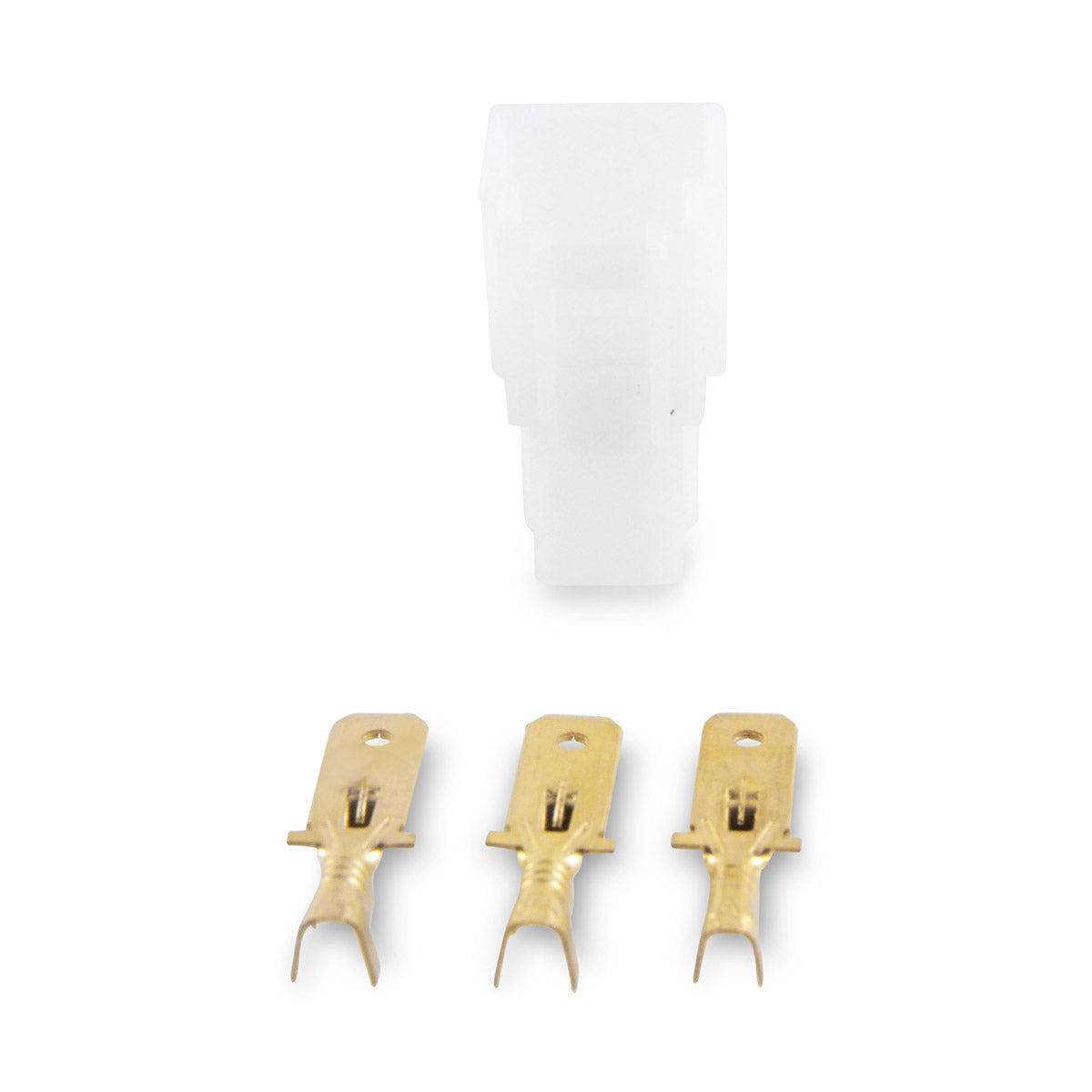

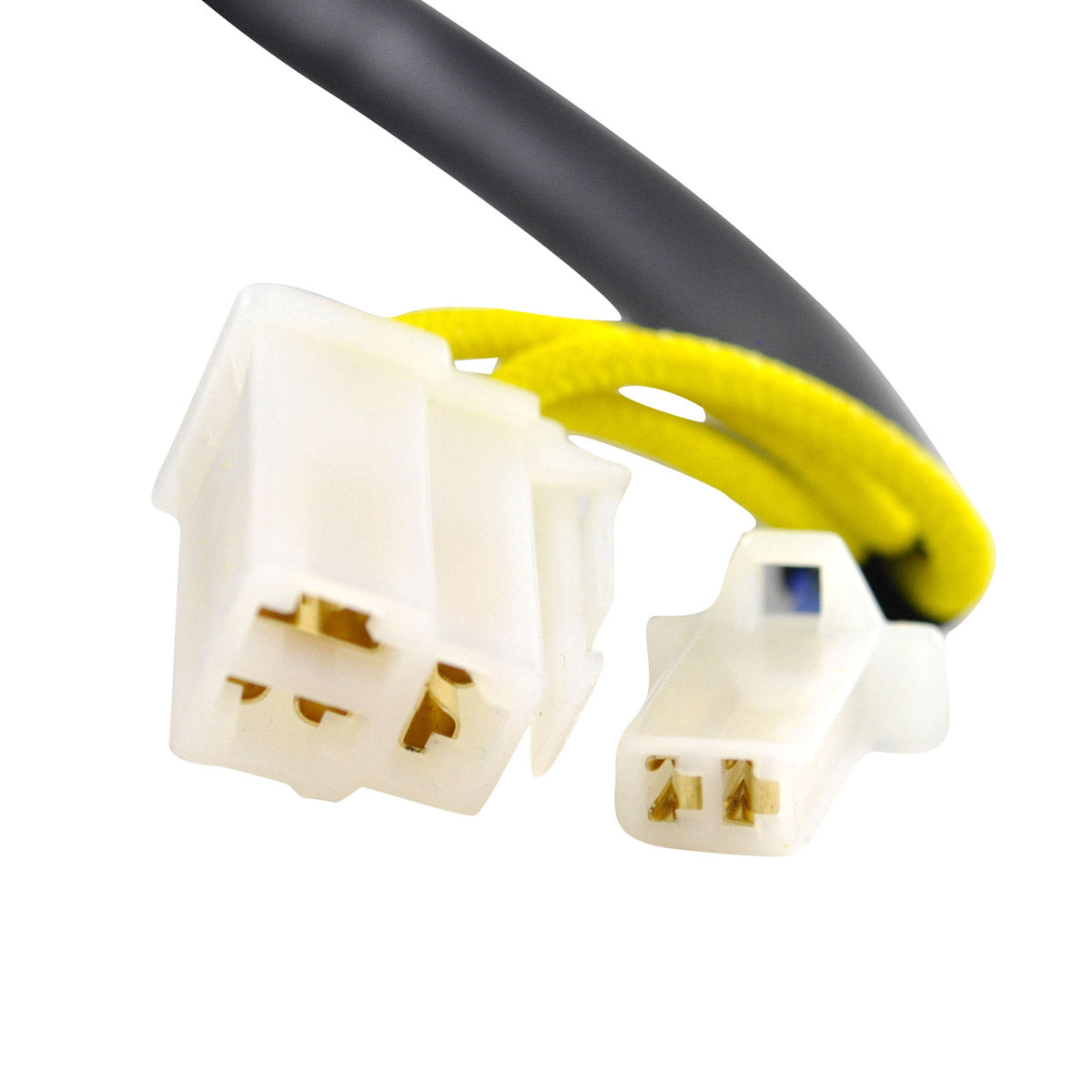

- Opposite connector for the main harness side supplied
- All units tested before shipment
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
126 mm |
| Thickness |
24 mm |
| Wire length, stator to grommet |
325 mm |
| Wire length, grommet to plug |
340 mm |
| Pickup coil wire length |
175 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, yellow |
0.6 ohms, plus or minus 20 percent |
| Pickup resistance, blue to green |
246 ohms, plus or minus 20 percent |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki Boulevard C50 VL800 Volusia K5 |
2005-2025 |
| Suzuki Boulevard C50T VL800T |
2005-2025 |
| Suzuki Boulevard M50 VZ800 |
2005-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-41F20 |
Suzuki |
| 32101-41F10 |
Suzuki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the listed Boulevard C50, C50T and M50 models. No cutting or splicing of the loom is required.
What comes in the box?
The generator stator, the pickup pulsar coil, the connector, the rubber grommet, and the opposite connector for the main harness side.
How can I tell my old stator has failed?
Check the alternator windings on the yellow wires: a good unit reads about 0.6 ohms, plus or minus 20 percent. Check the pickup coil blue to green: about 246 ohms, plus or minus 20 percent. Any winding that is open circuit, shorted to earth or well outside those values indicates a failed stator. A battery that will not stay charged while the engine is running is the usual warning sign.
Why does the kit include a second connector?
The main harness side of the plug often suffers heat damage or corrosion alongside the stator itself. Replacing it at the same time removes a common cause of repeat charging faults.
