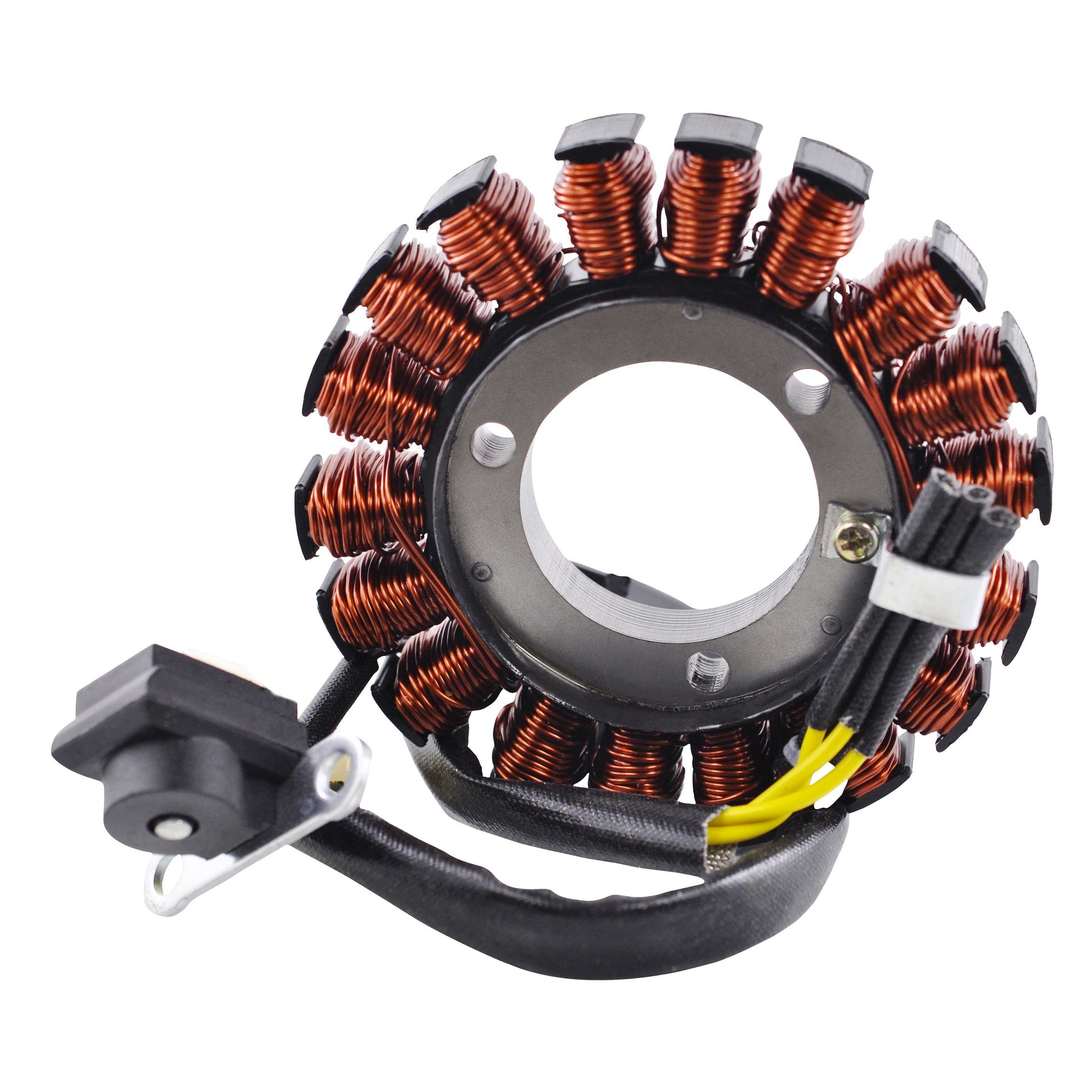

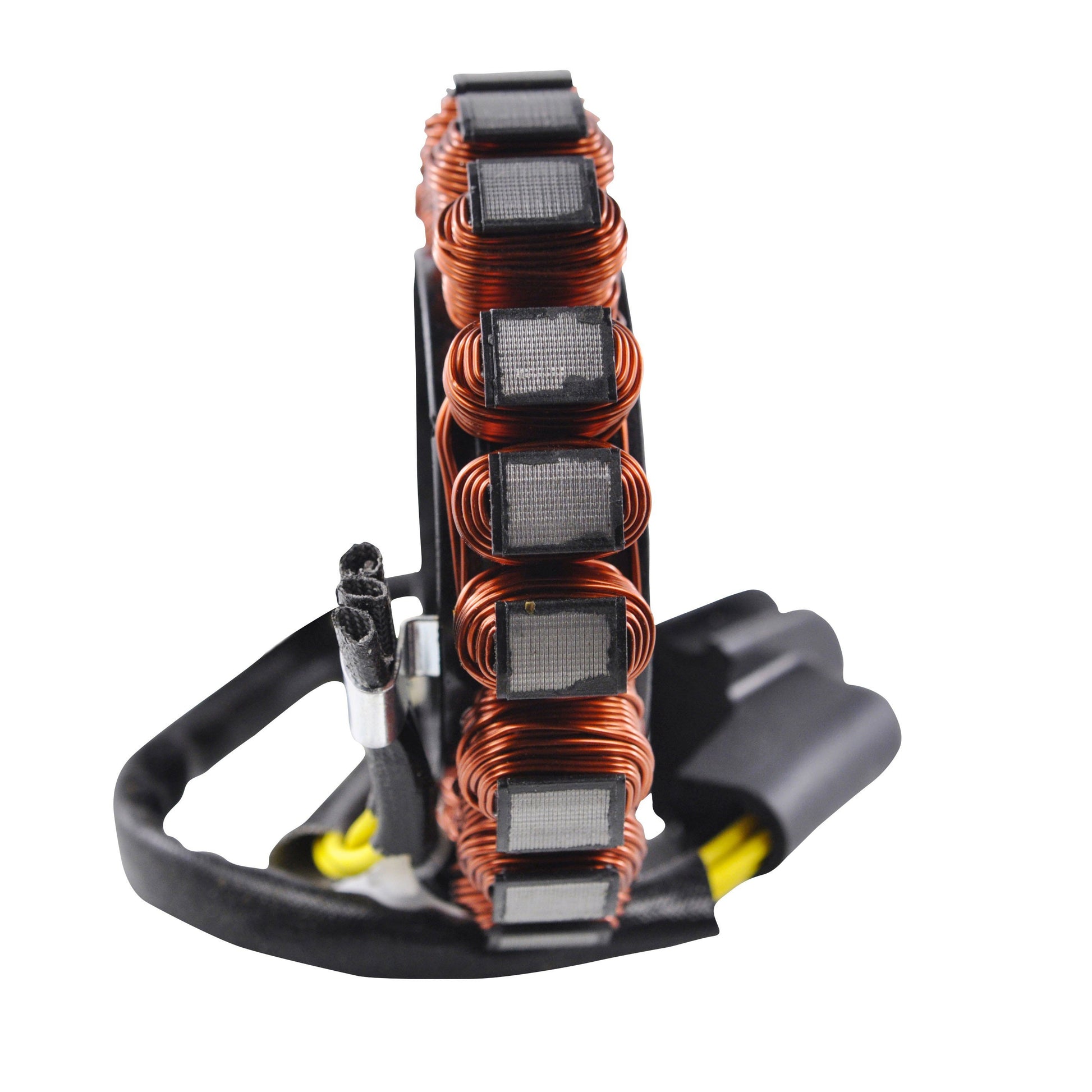

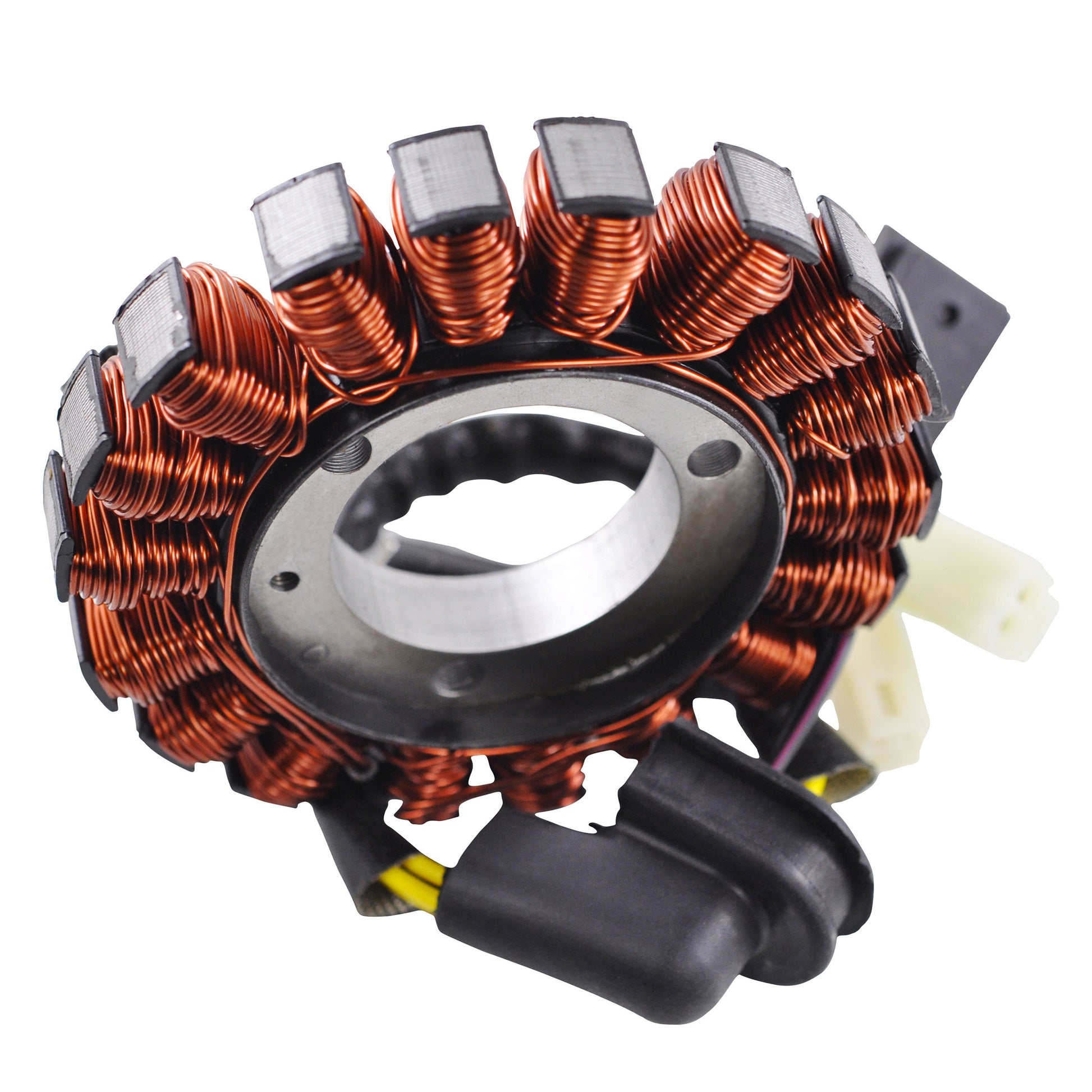

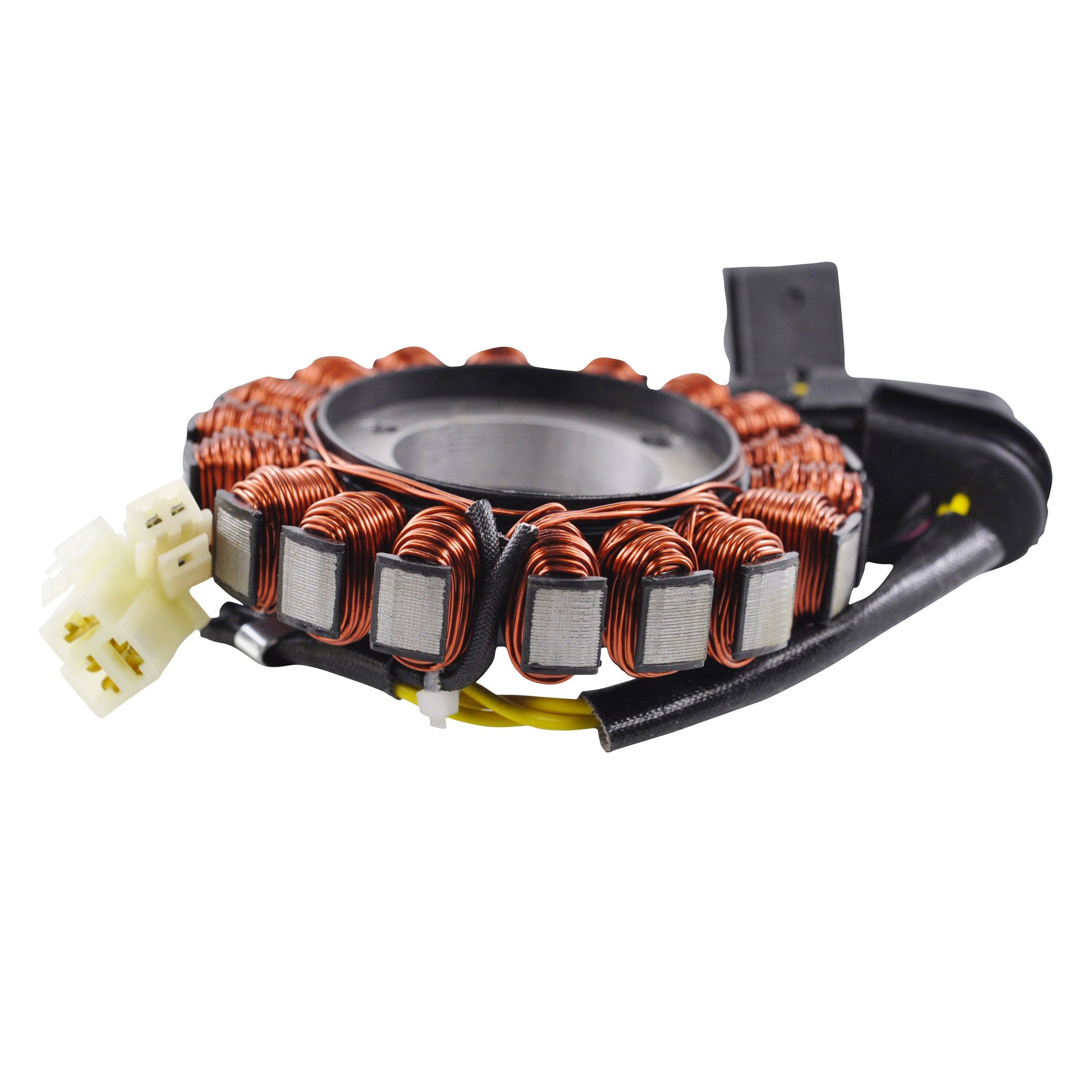

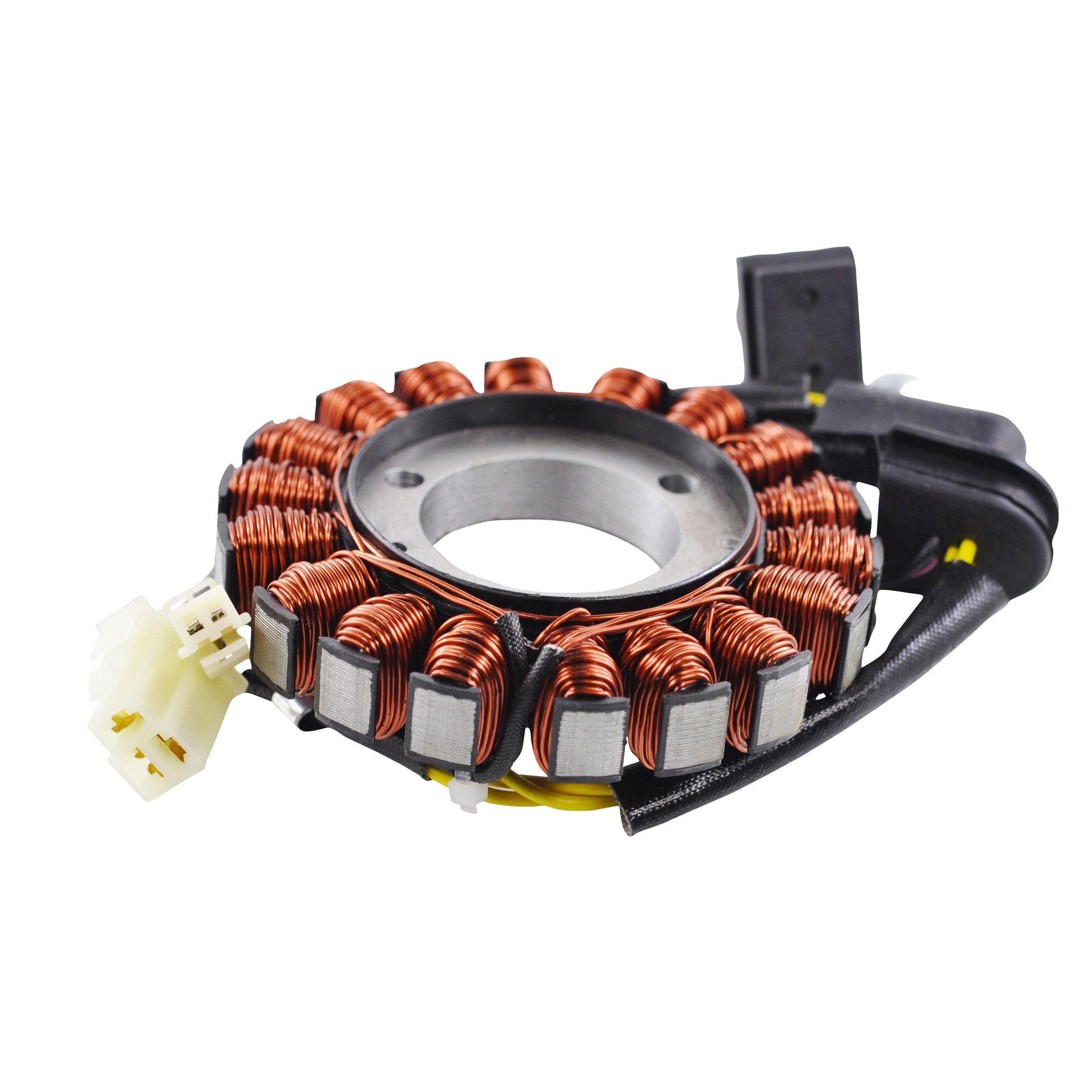

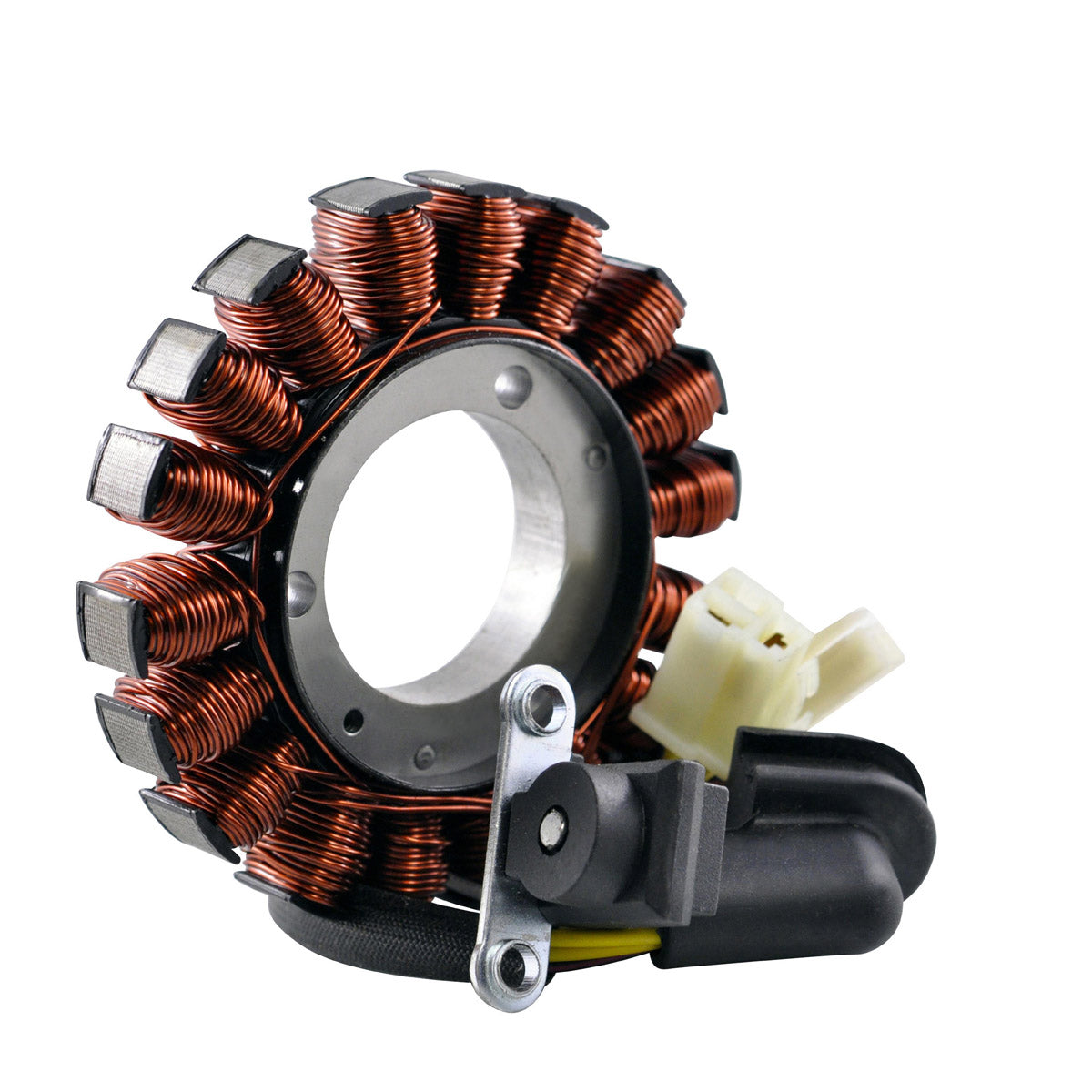

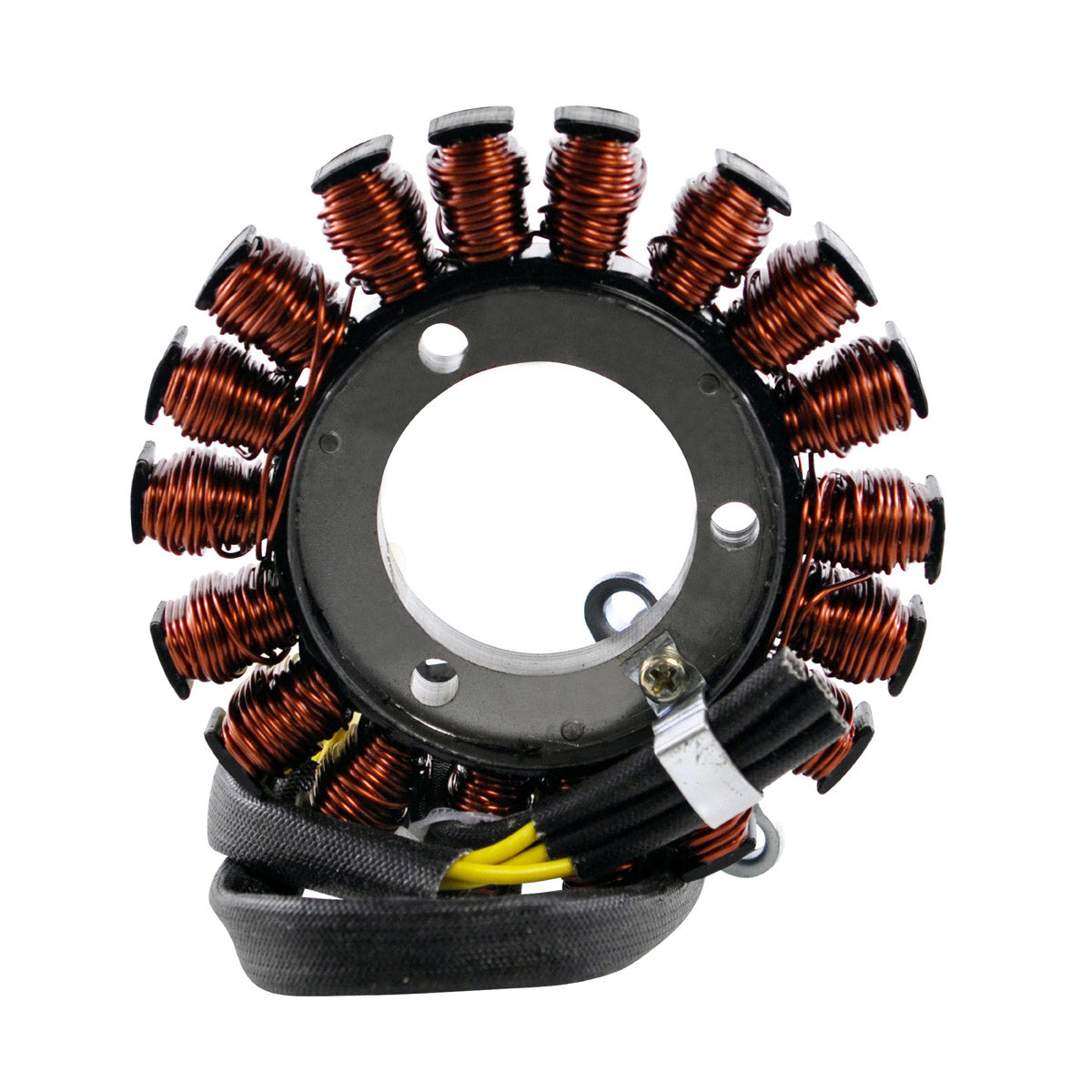

A brand new aftermarket stator supplied as a direct replacement for the original unit on the Suzuki GSX 650 F, the GSF 1250 S Bandit and the GSX 1250 FA. It is plug-and-play and a direct fit, so the original loom and mounting points are used exactly as Suzuki intended and no cutting or splicing is needed.
The stator uses the highest grade lamination materials and copper windings insulated to 200 degrees Celsius, which is the specification that keeps a rebuilt charging system alive on a big touring twin or four that spends long periods at sustained revs. It comes complete with the pickup coil, the connector and the rubber grommet. An additional connector for the main harness side is included as well, since the manufacturer notes that this part is often found melted, corroded or otherwise defective when a stator is replaced. All shipped products are tested.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Copper windings rated to 200 degrees Celsius

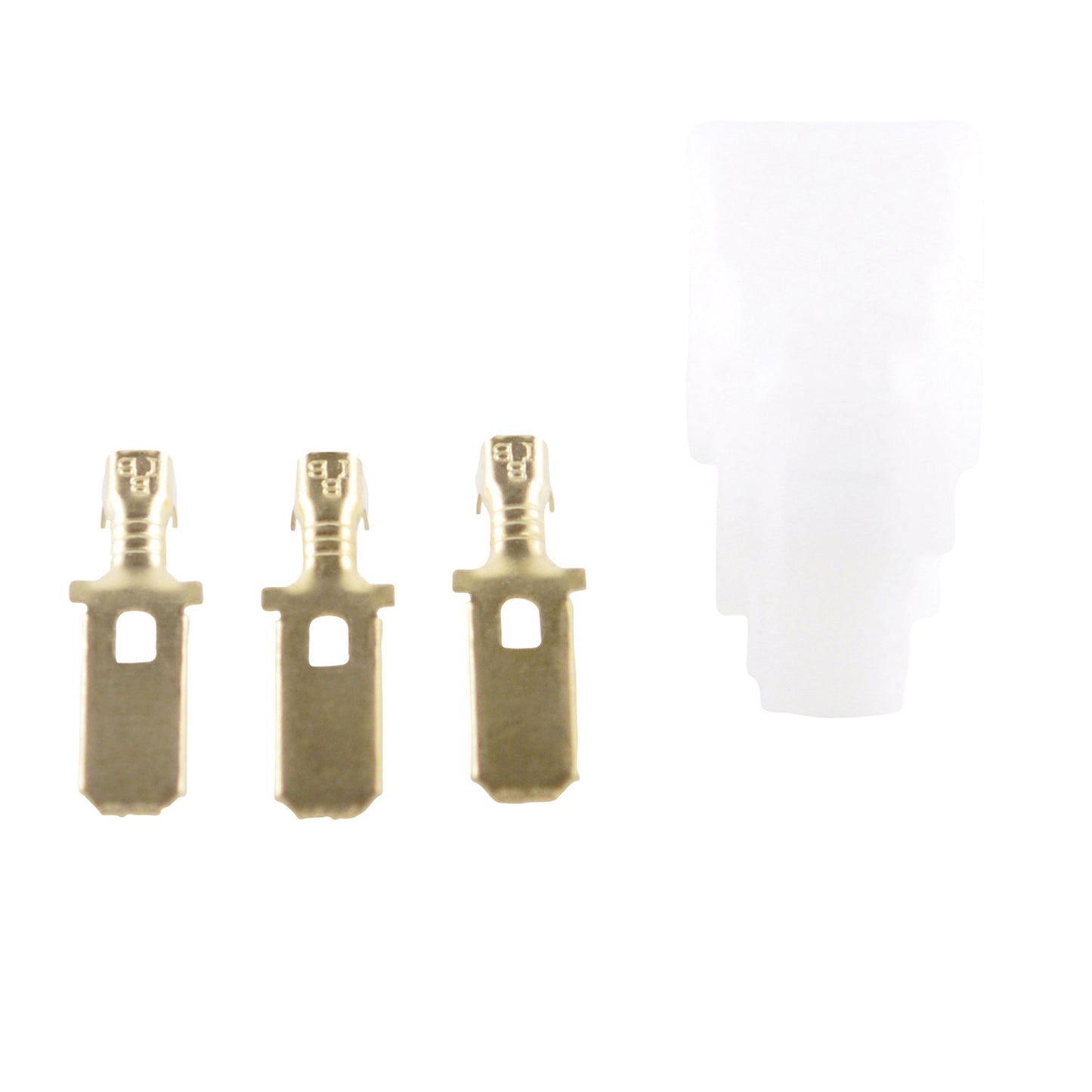

- Pickup coil, connector and rubber grommet included

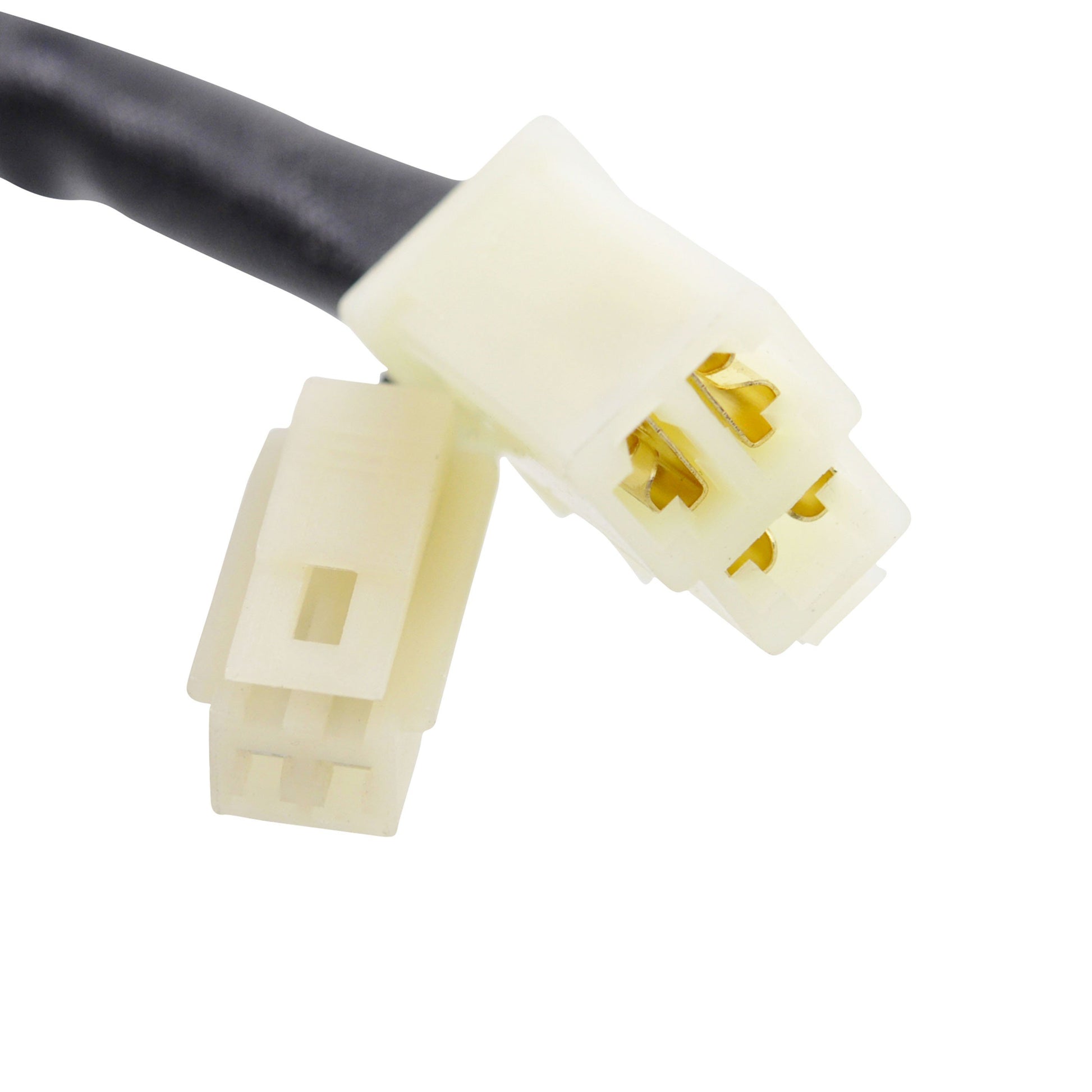

- Additional main-harness-side connector supplied
- All shipped products are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
107 mm |
| Thickness |
12 mm |
| Wire length, stator to grommet |
100 mm |
| Wire length, grommet to plug |
170 mm |
| Pickup coil wire length |
35 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, black to black |
0.5 ohms, plus or minus 20 percent |
| Pickup coil resistance, black to black/red |
117 ohms, plus or minus 20 percent |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki GSX 650 F |
2008-2009 |
| Suzuki GSF 1250 S Bandit |
2007-2009, 2016 |
| Suzuki GSX 1250 FA |
2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-18H00 |
Suzuki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct fit, plug-and-play replacement for the original stator on the models and years listed above. No modification to the loom or the engine cases is required.
What is in the box?

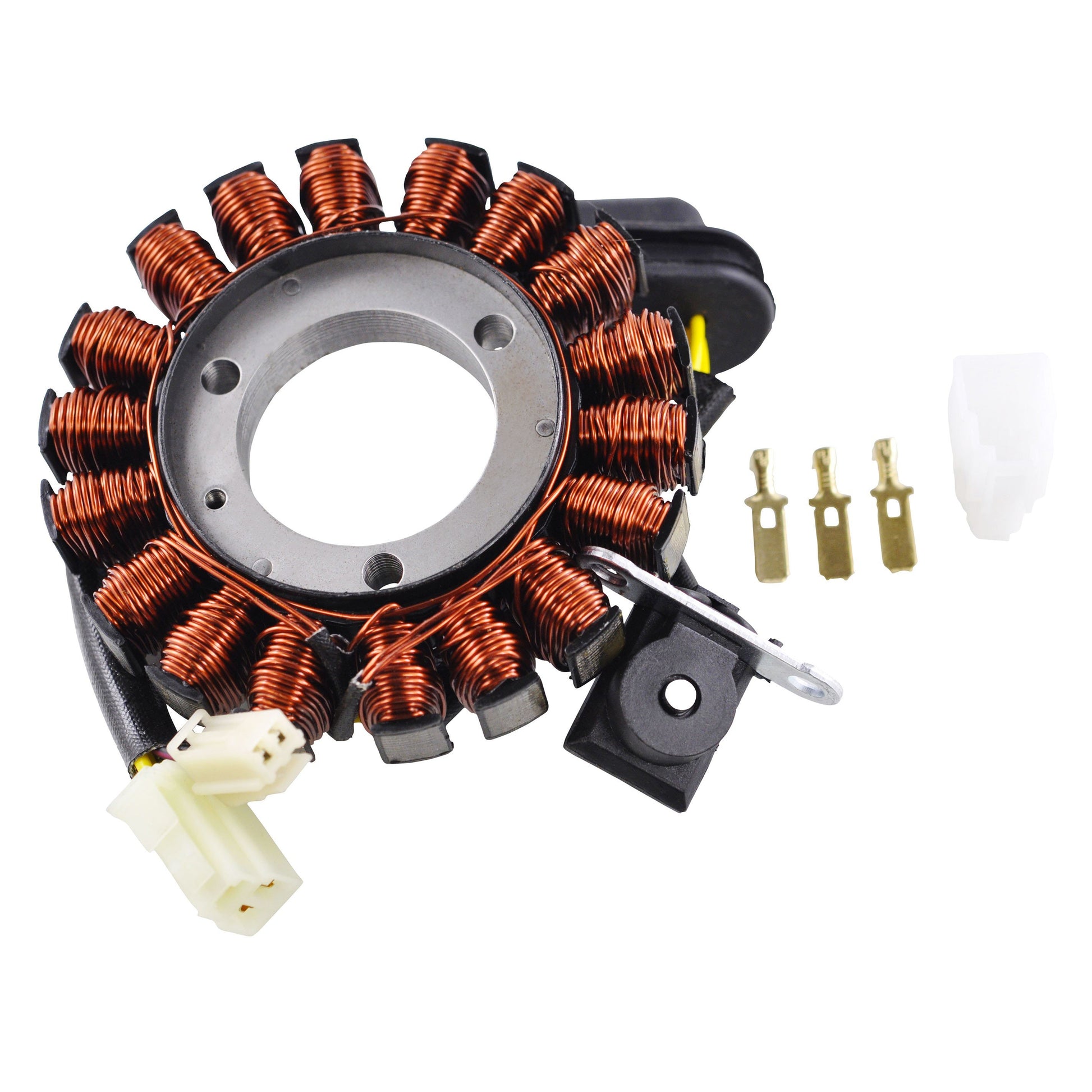

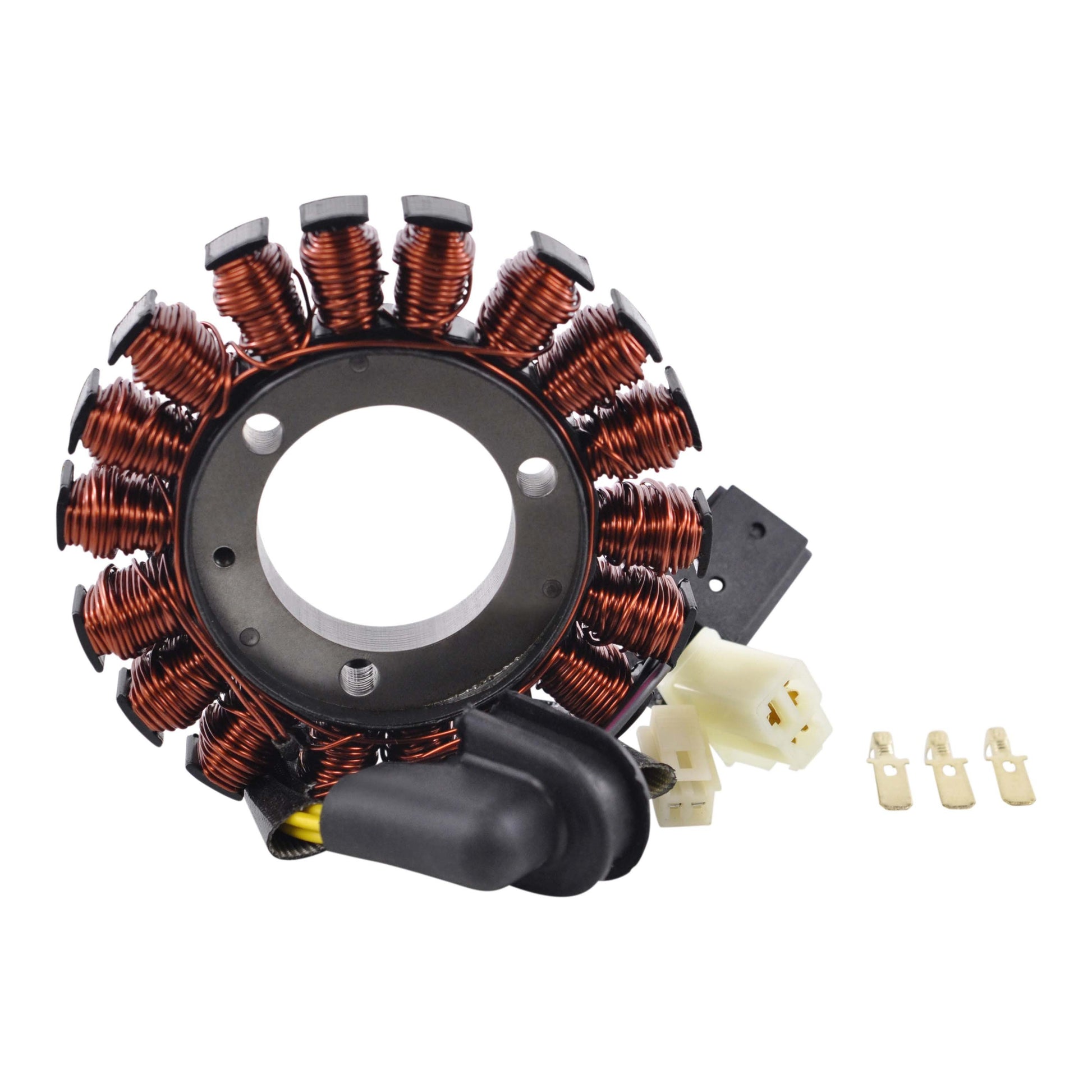

The generator stator, the pickup pulsar coil, the primary connector, an additional connector for the main harness side, and the rubber grommet.
How do I tell whether my old stator has failed?
With the stator unplugged, measure black to black across the alternator windings: a healthy unit reads about 0.5 ohms, plus or minus 20 percent. Measure the pickup coil black to black/red: about 117 ohms, plus or minus 20 percent. Readings that are open circuit, shorted to earth, or well away from those figures confirm a failed stator.
Why is a second connector supplied?
The manufacturer supplies an extra connector for the main harness side because that half of the plug is often melted, corroded or defective by the time the stator is changed. Replacing both halves together prevents the new stator from being damaged by a poor connection.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
