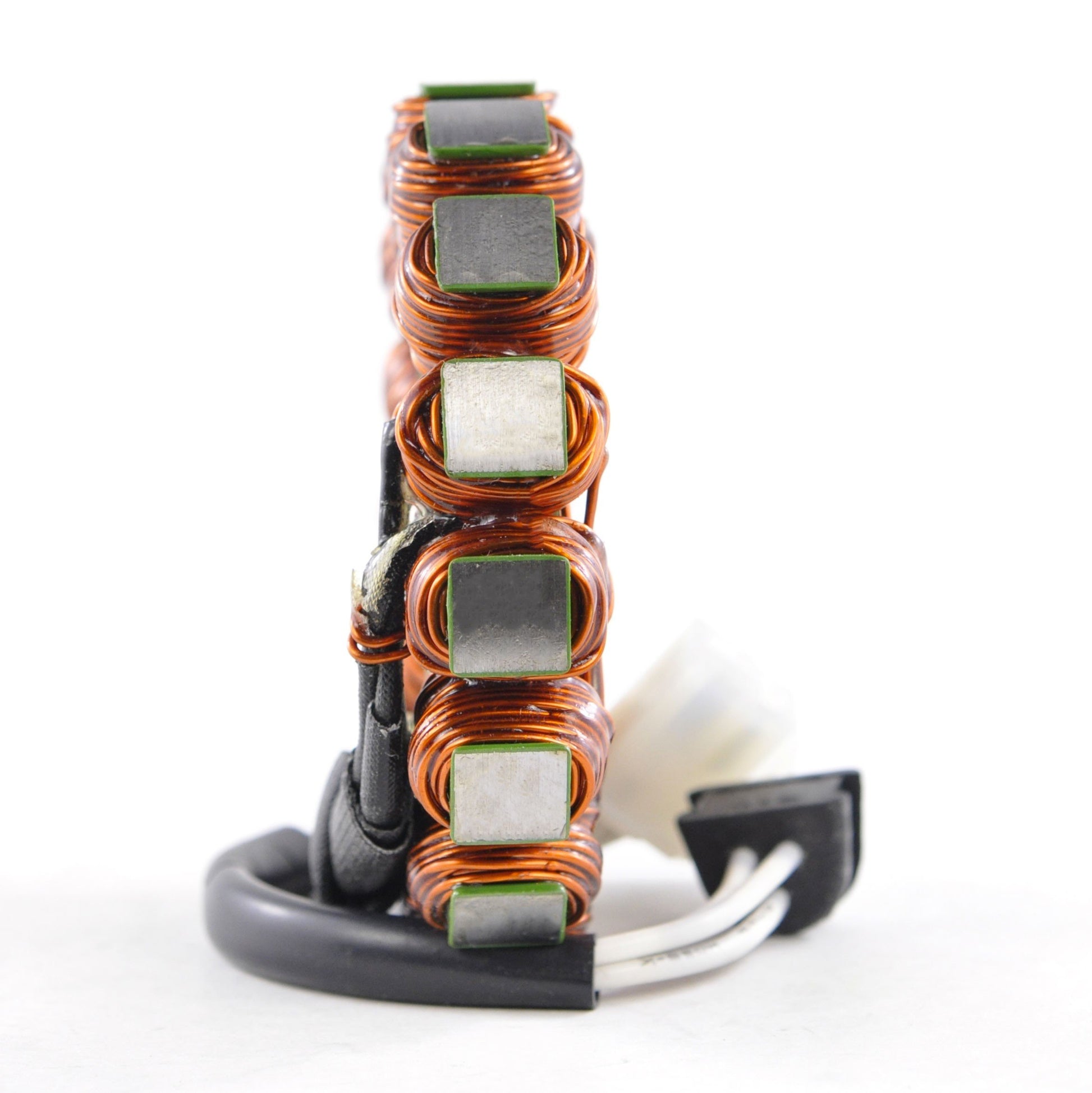

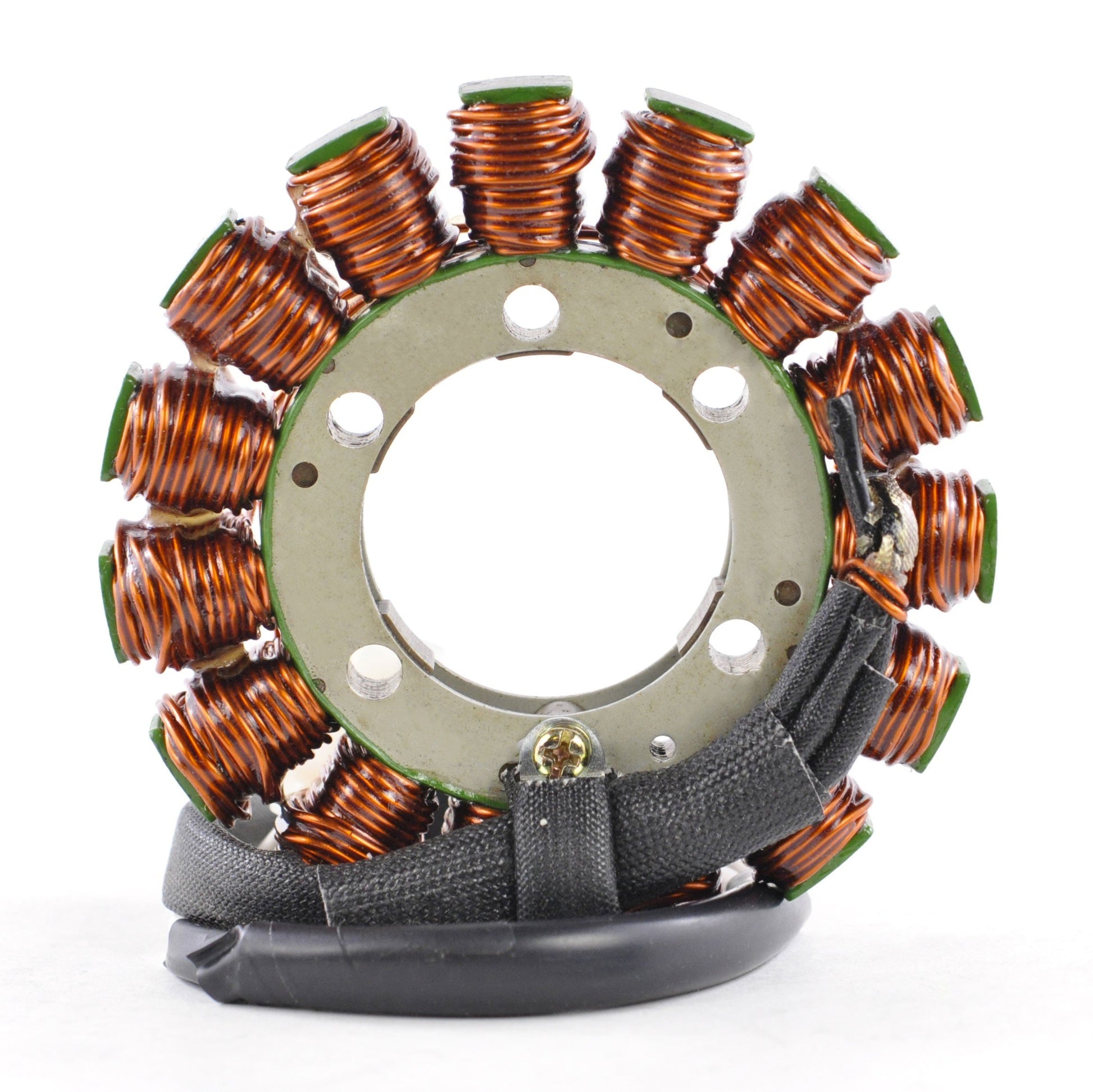

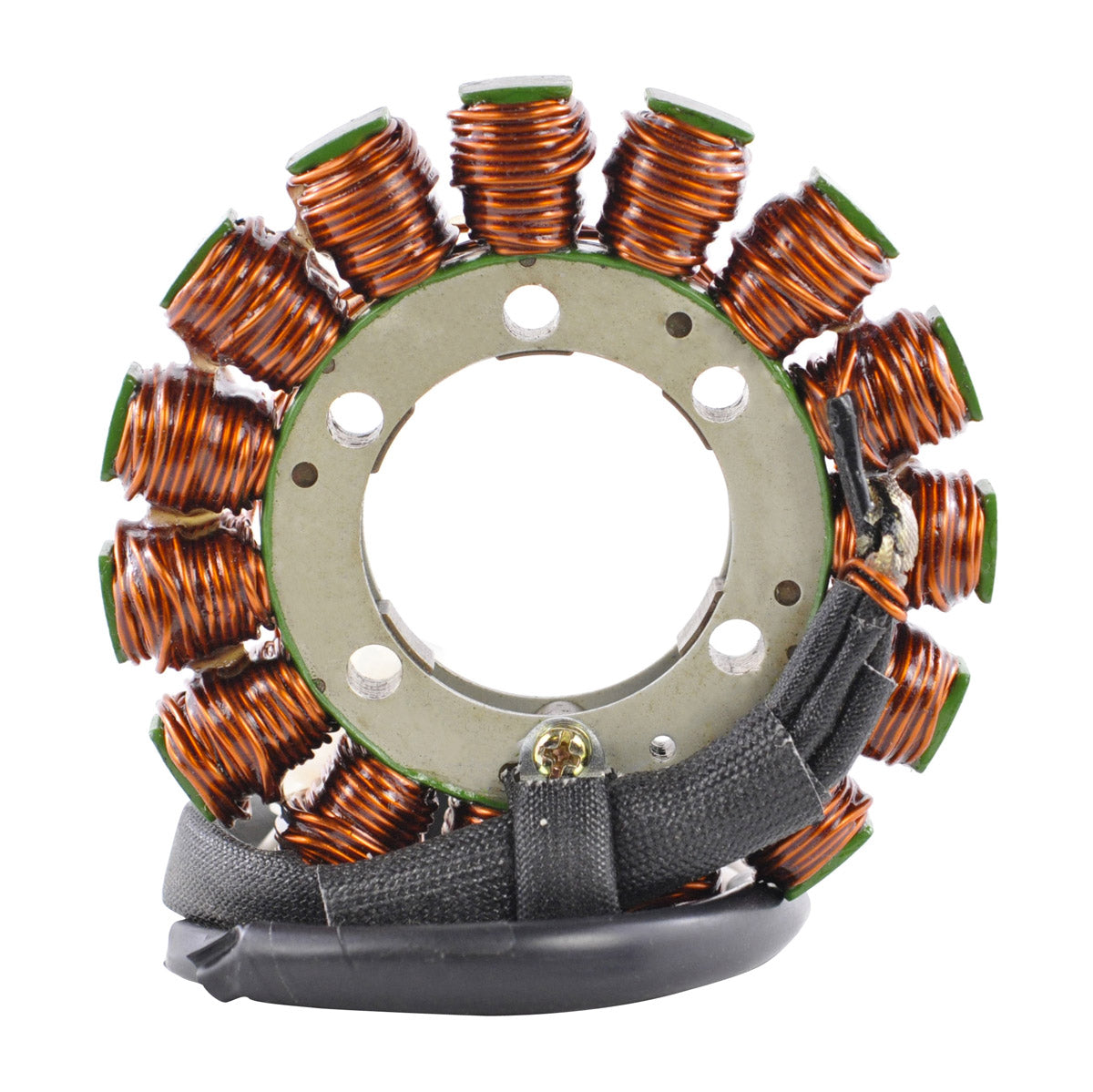

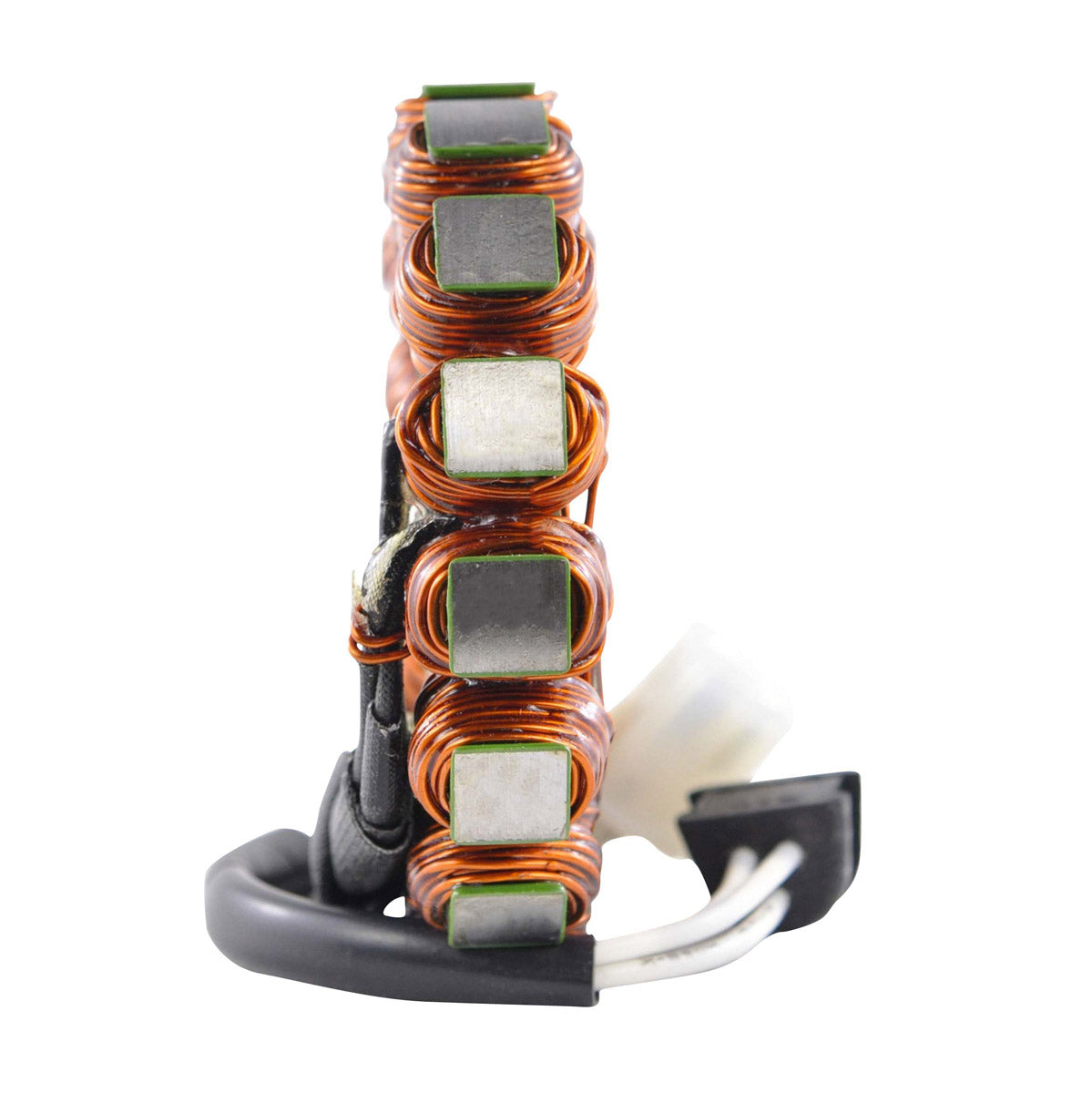

Generator Stator for Suzuki GSXR 1000
Suzuki GSXR 1000 2012-2016 - Part number RMS010-101425
This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to the Suzuki GSXR 1000. It is a plug-and-play, direct fit part that mounts in the original position and plugs into the original three-pin connector, so no modification of the wiring loom is required.
The core is built from the highest grade lamination materials and wound with the highest grade copper, resistant to 200 degrees Celsius - an important margin on a litre sportsbike where the stator sits in a hot, hard-working charging system. The connector and rubber grommet are included, and we also supply the opposite connector for the main harness side, because the original is frequently found melted, corroded or defective and is a major cause of repeat electrical issues. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

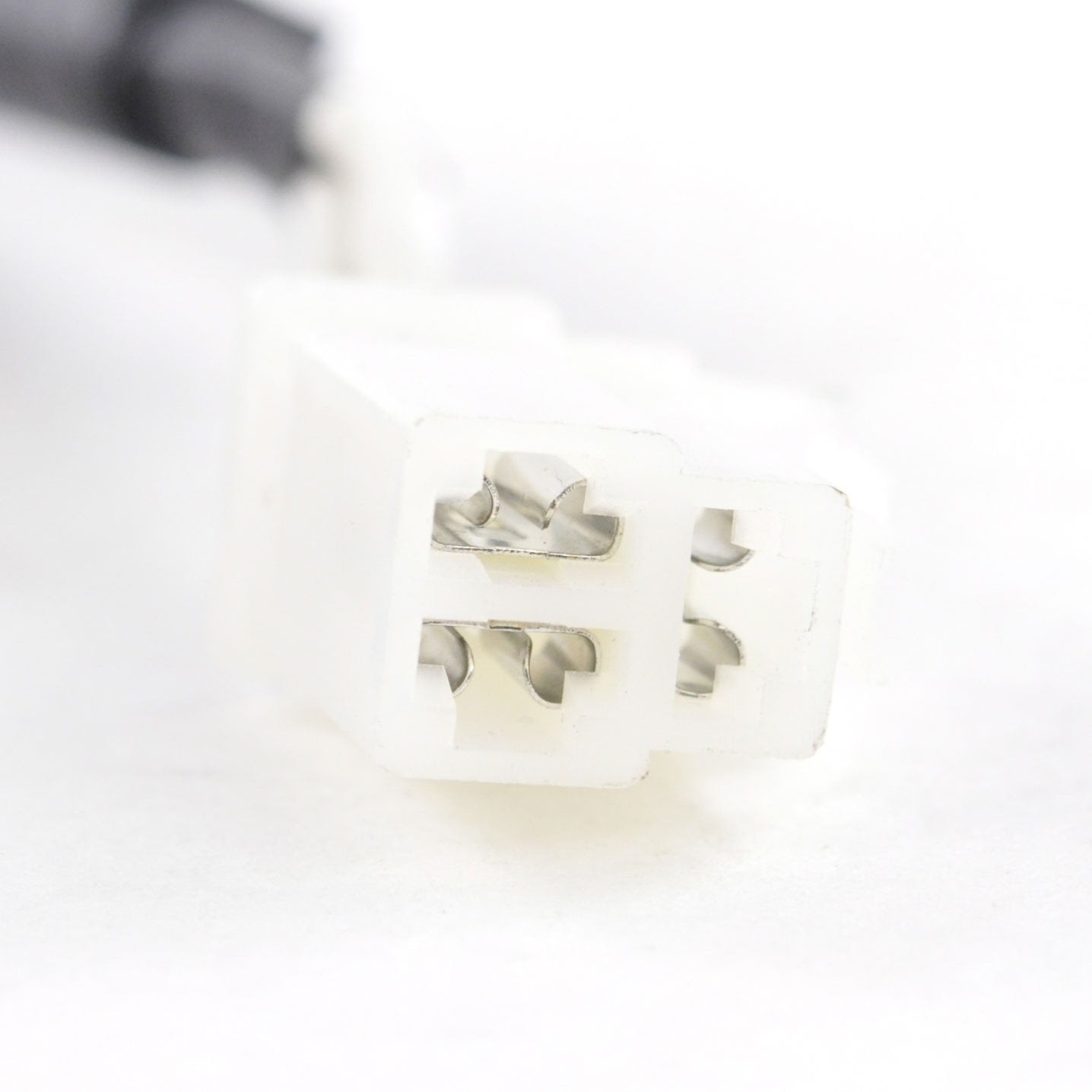

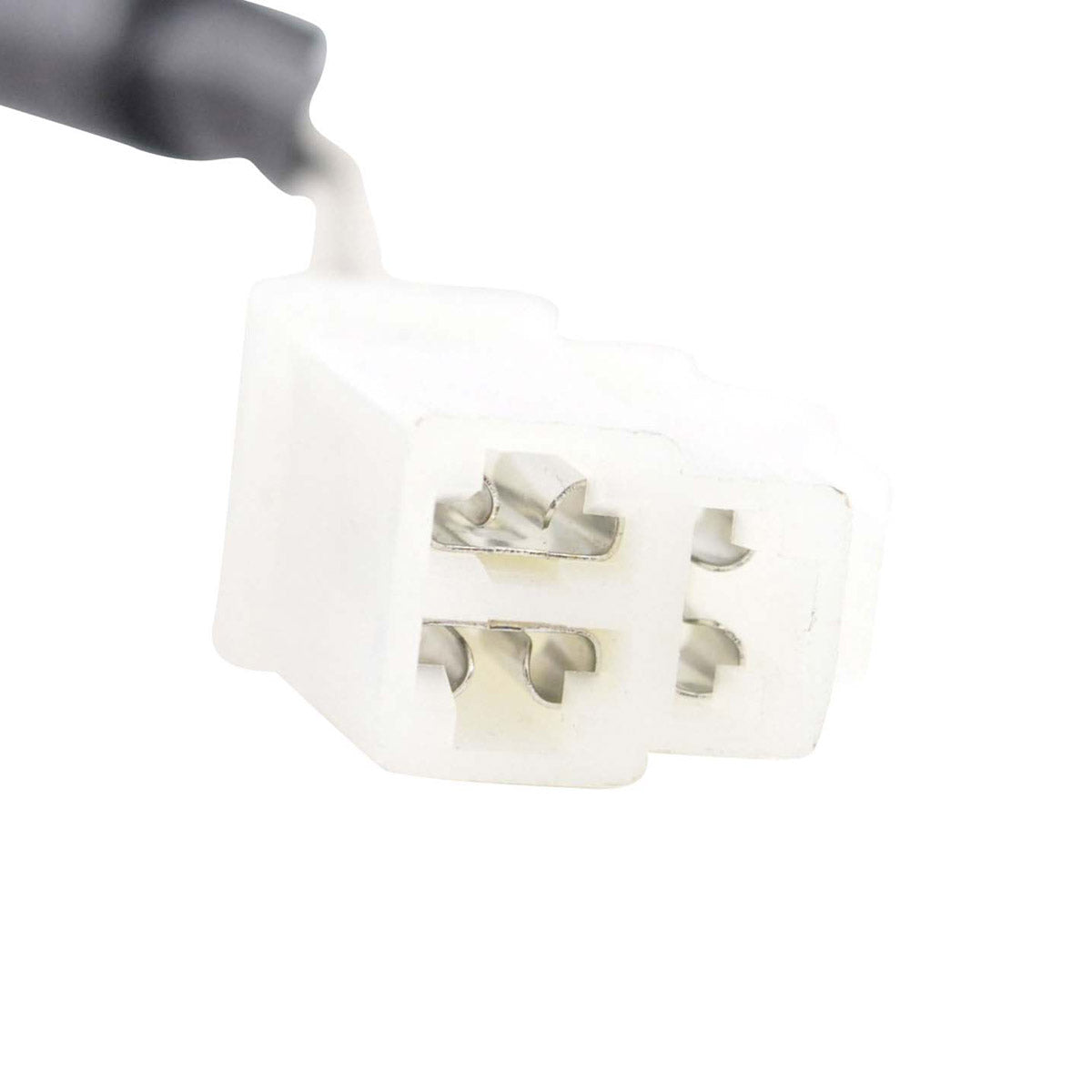

- Connector included
- Rubber grommet included
- Opposite connector (main harness side) also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-101425 |
| Interior diameter | 44 mm |
| Exterior diameter | 105 mm |
| Thickness | 12 mm |
| Wire length, stator to grommet | 80 mm |
| Wire length, grommet to plug | 160 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance (White to White) | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki GSXR 1000 | 2012-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31401-47H10 | Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the GSXR 1000, 2012-2016. It uses the original mounting and the original 3-pin plug, so no cutting or splicing is needed. Please confirm the OEM number on your original unit before ordering.
What is included in the box?

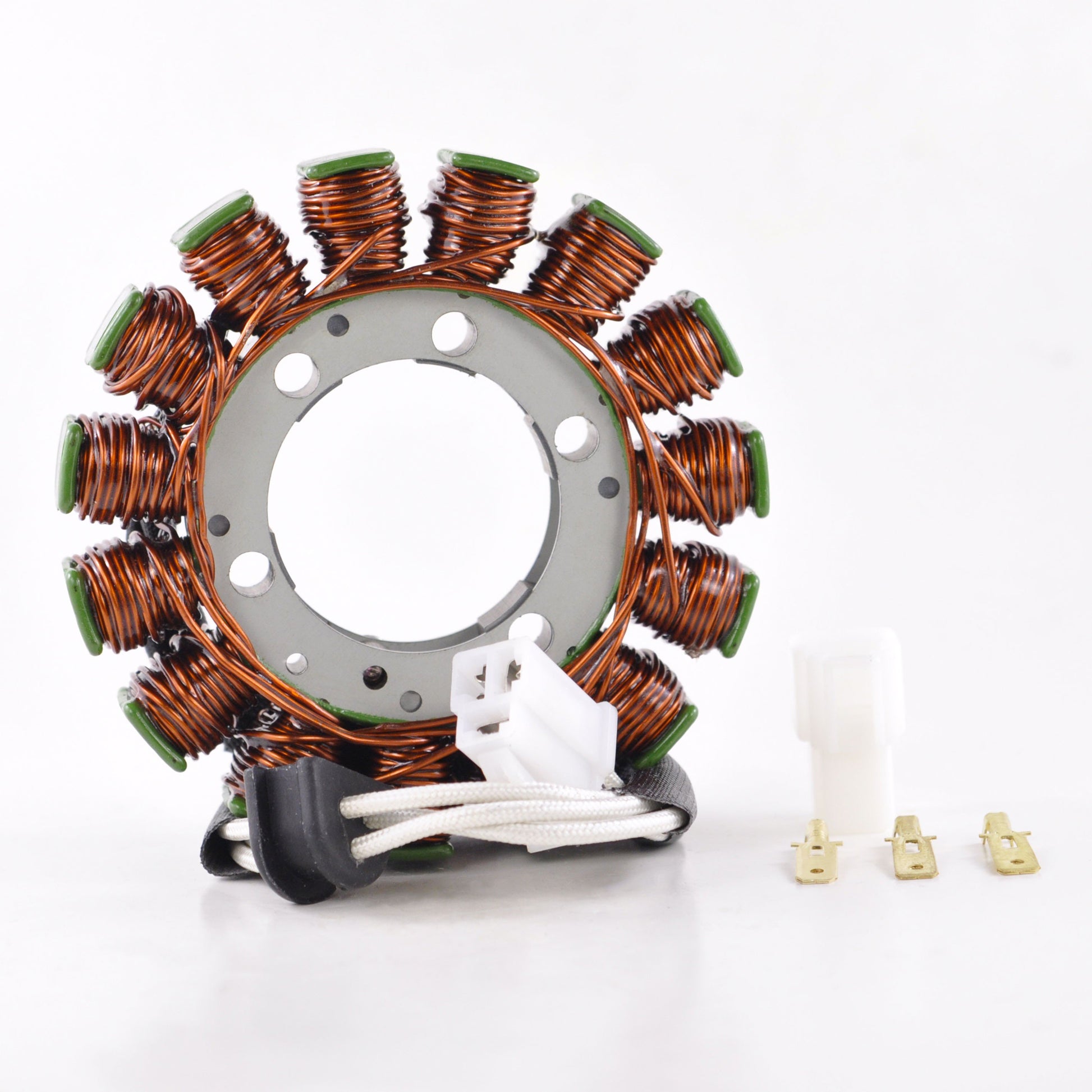

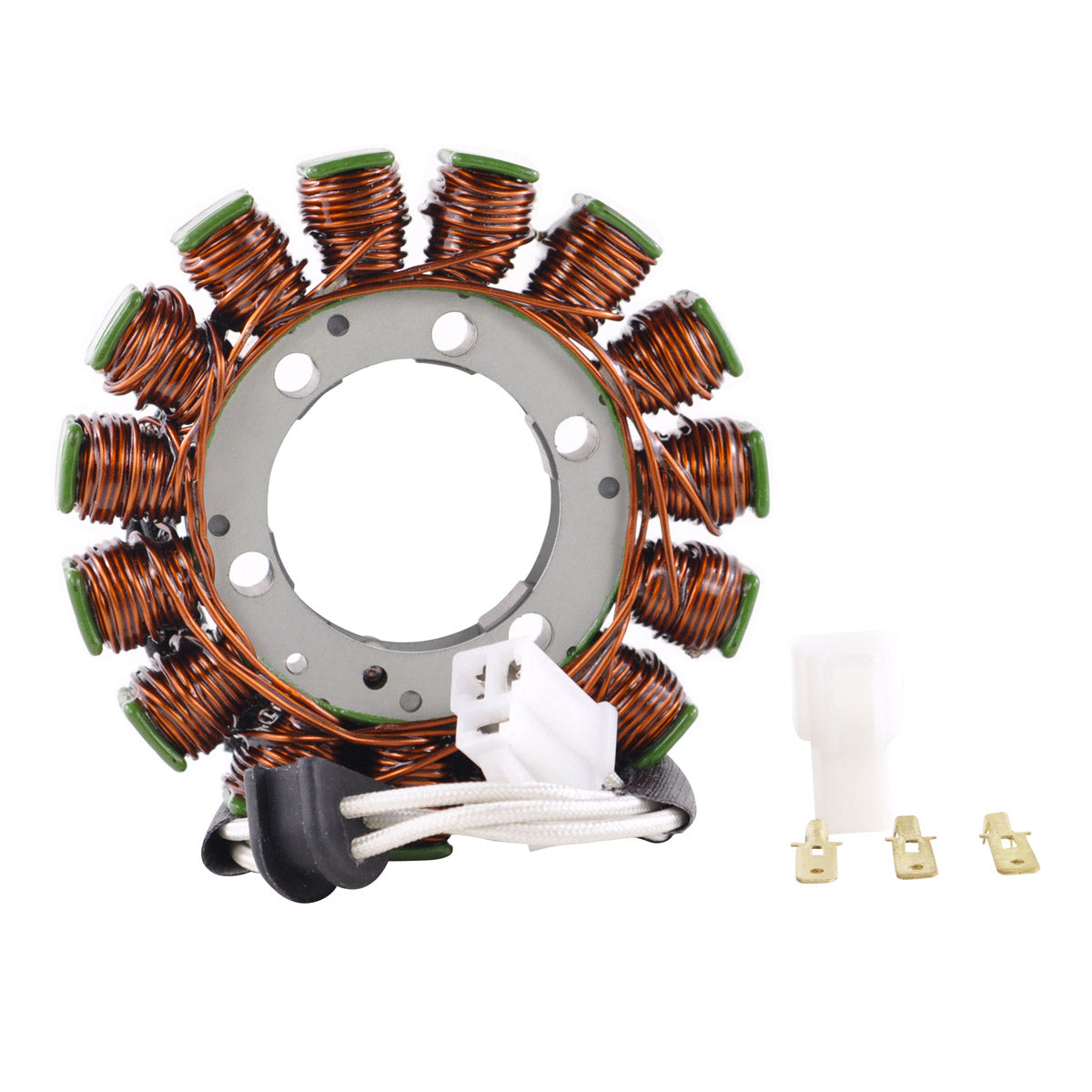

You receive the stator with the connector and rubber grommet fitted, plus the opposite connector for the main harness side. That second connector is included because the original often melts or corrodes and causes recurring charging problems even after the stator itself has been replaced.
How do I tell if my old stator has failed?
Unplug the stator and measure resistance between each pair of the three white wires. Each pair should read 0.4 ohms +/-20%. Then check between any white wire and the engine case - there should be no continuity. An open circuit, a badly unbalanced reading between pairs, or a short to earth all indicate a failed stator.
How long are the leads on this stator?
The leads run 80 mm from the stator body to the rubber grommet, then a further 160 mm from the grommet to the plug. These are the original lengths, so the connector reaches its factory position on the loom.
