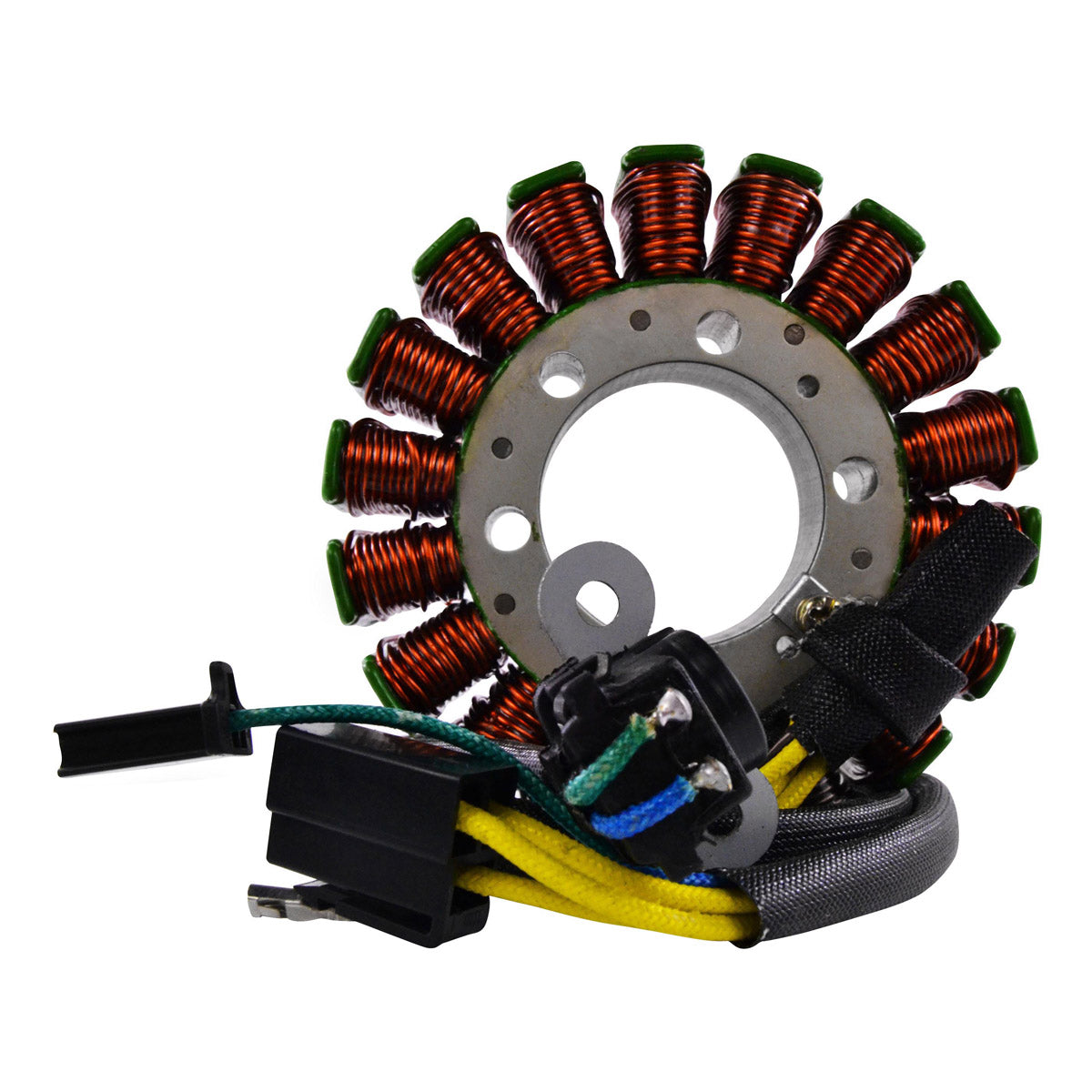

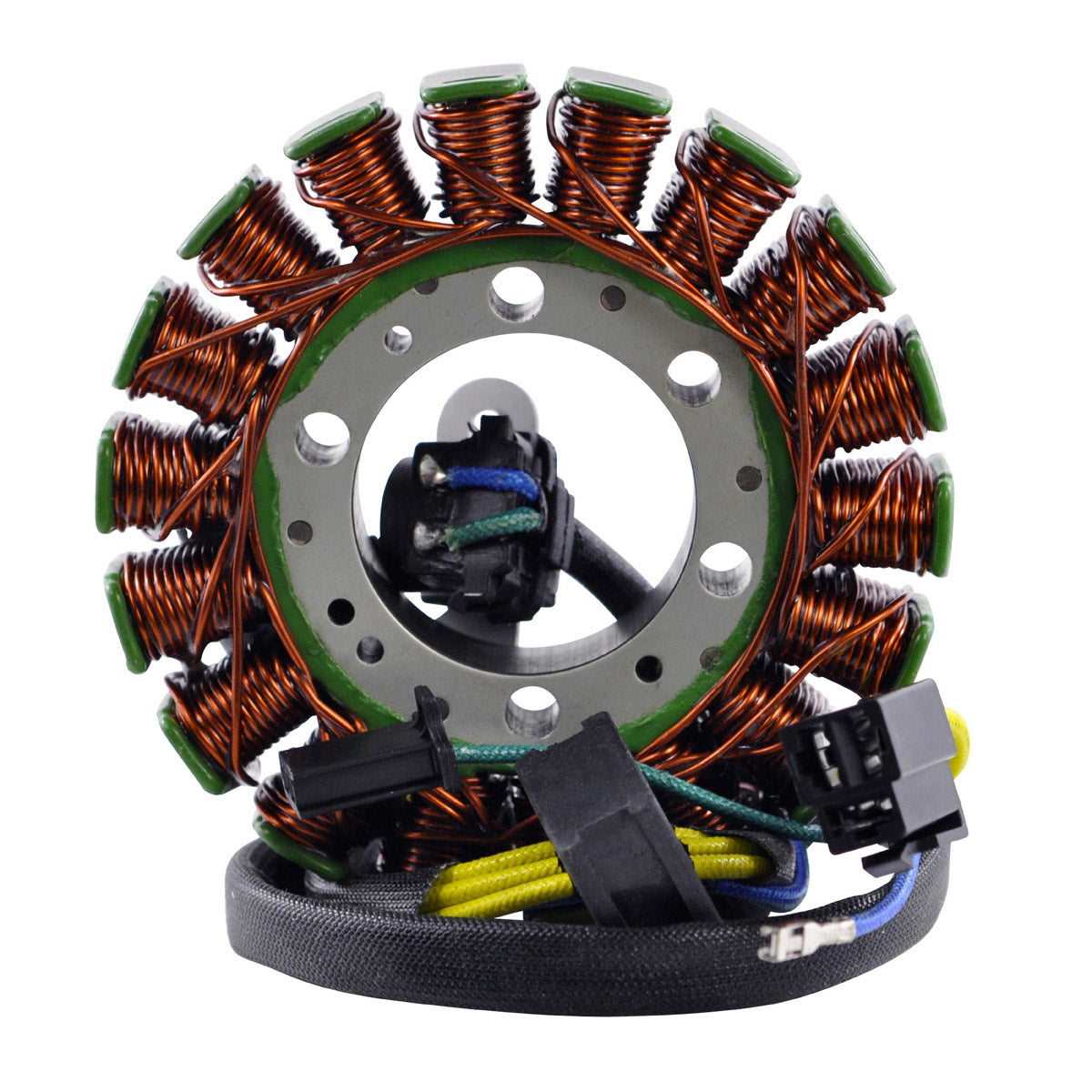

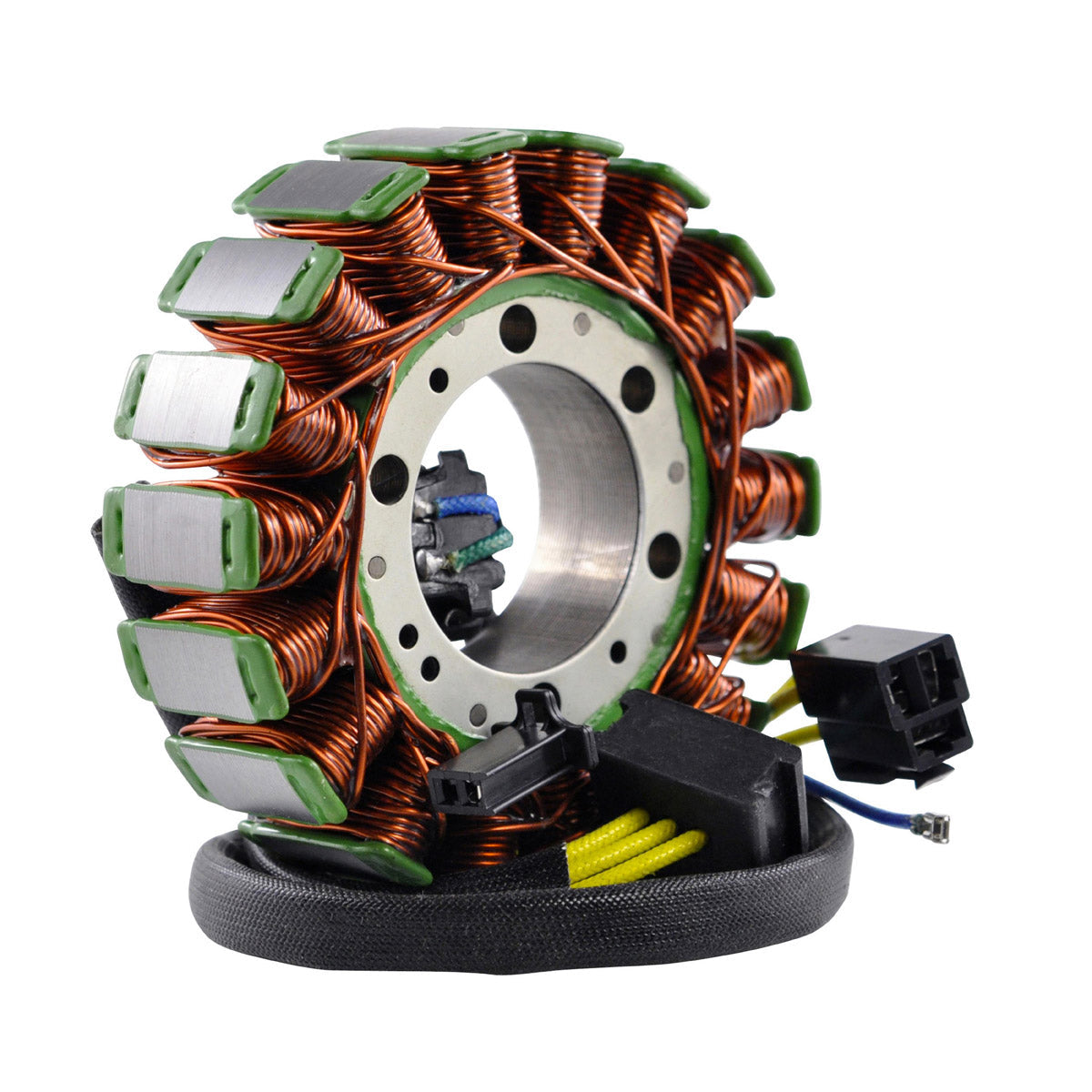

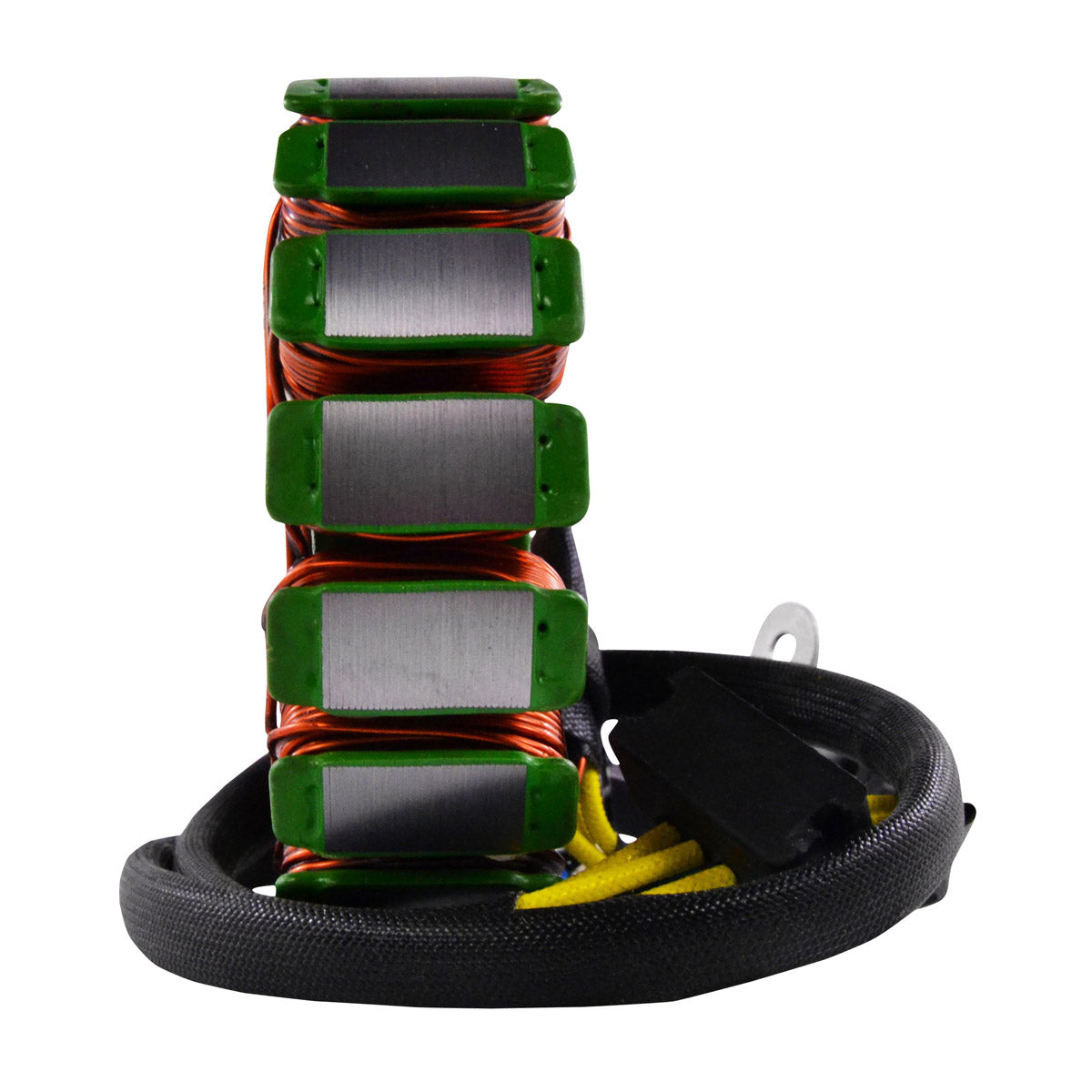

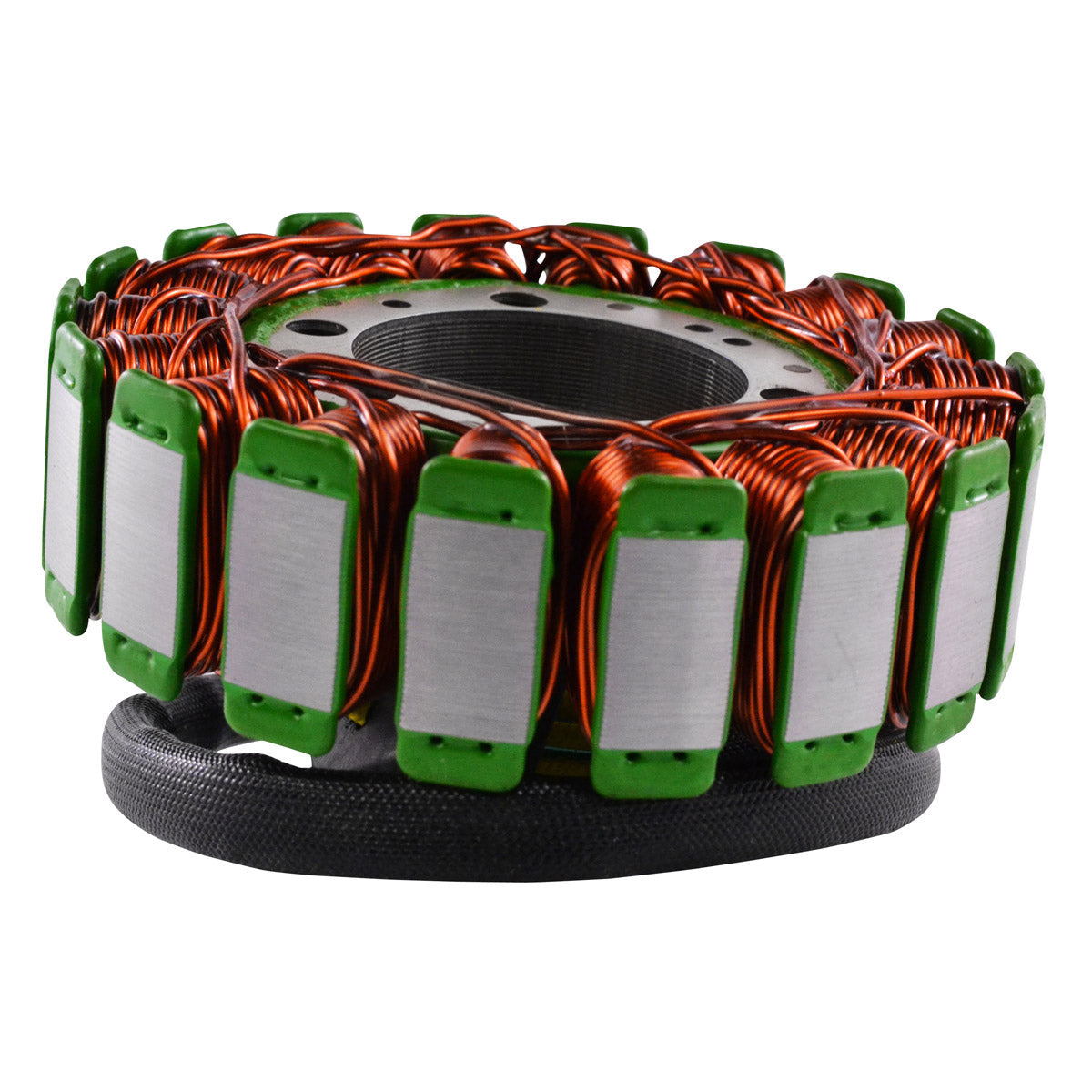

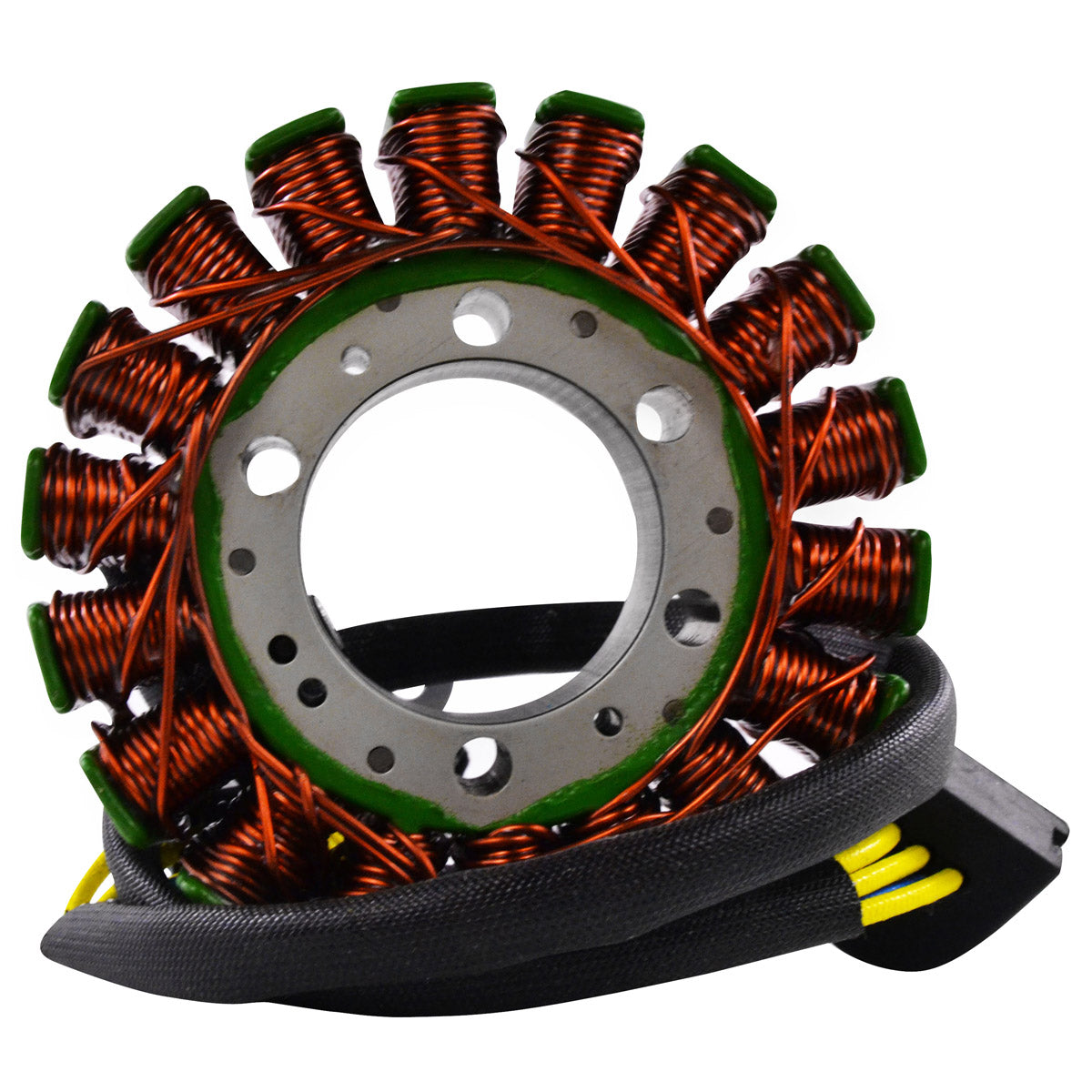

This is a brand new aftermarket generator stator for the Suzuki GSXR 1300 Hayabusa built between 1999 and 2007. It is a direct replacement for the original unit and is plug-and-play, so it fits the original position and mating connectors with no cutting, splicing or modification required. Part number RM01563.

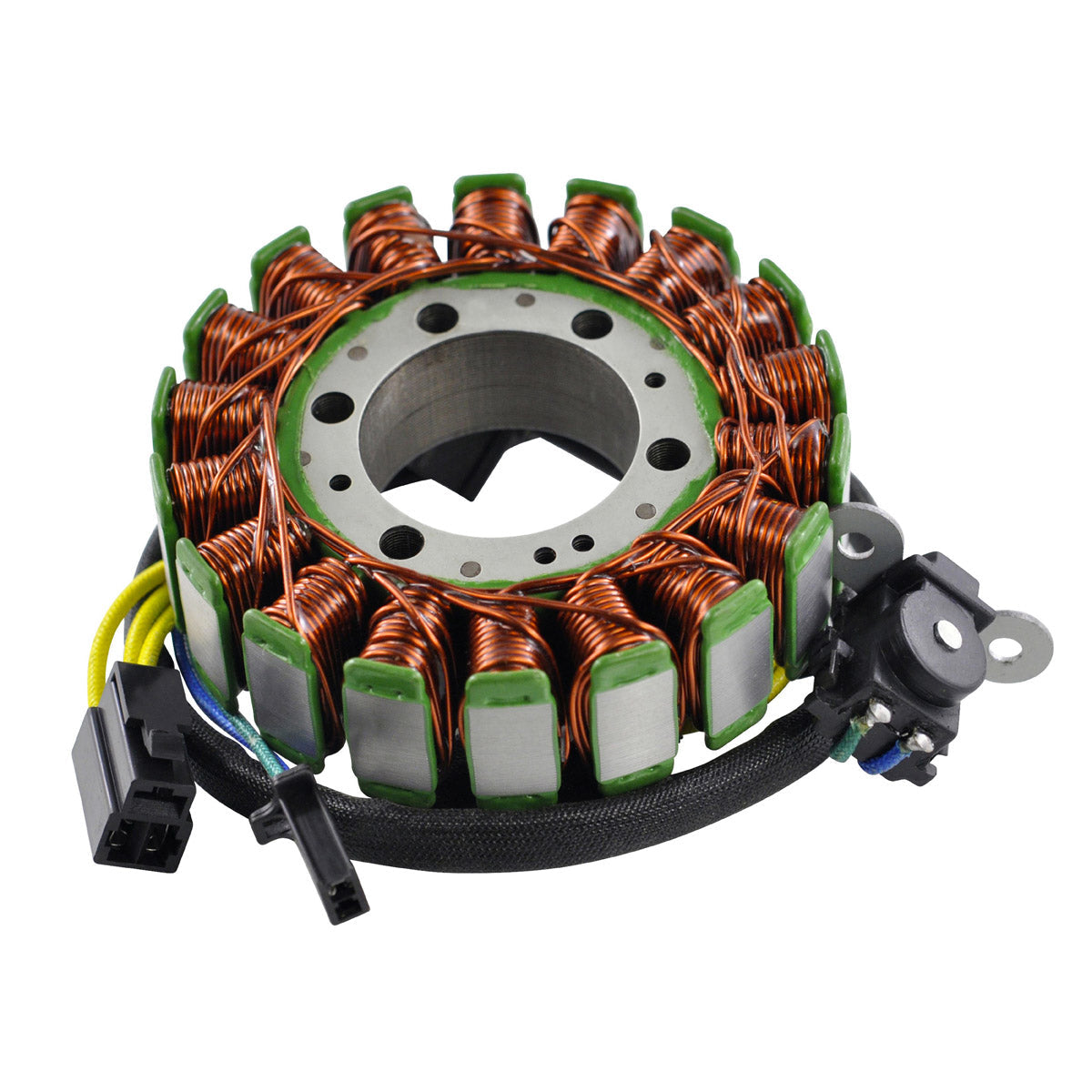

Unlike a bare stator, this assembly is supplied complete with the pick-up pulsar coil already mounted, so the ignition trigger is replaced at the same time as the charging windings. The unit uses the highest grade lamination materials and the highest grade copper windings, rated to resist 200 degrees Celsius. The connector and rubber grommet are included and fitted. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core

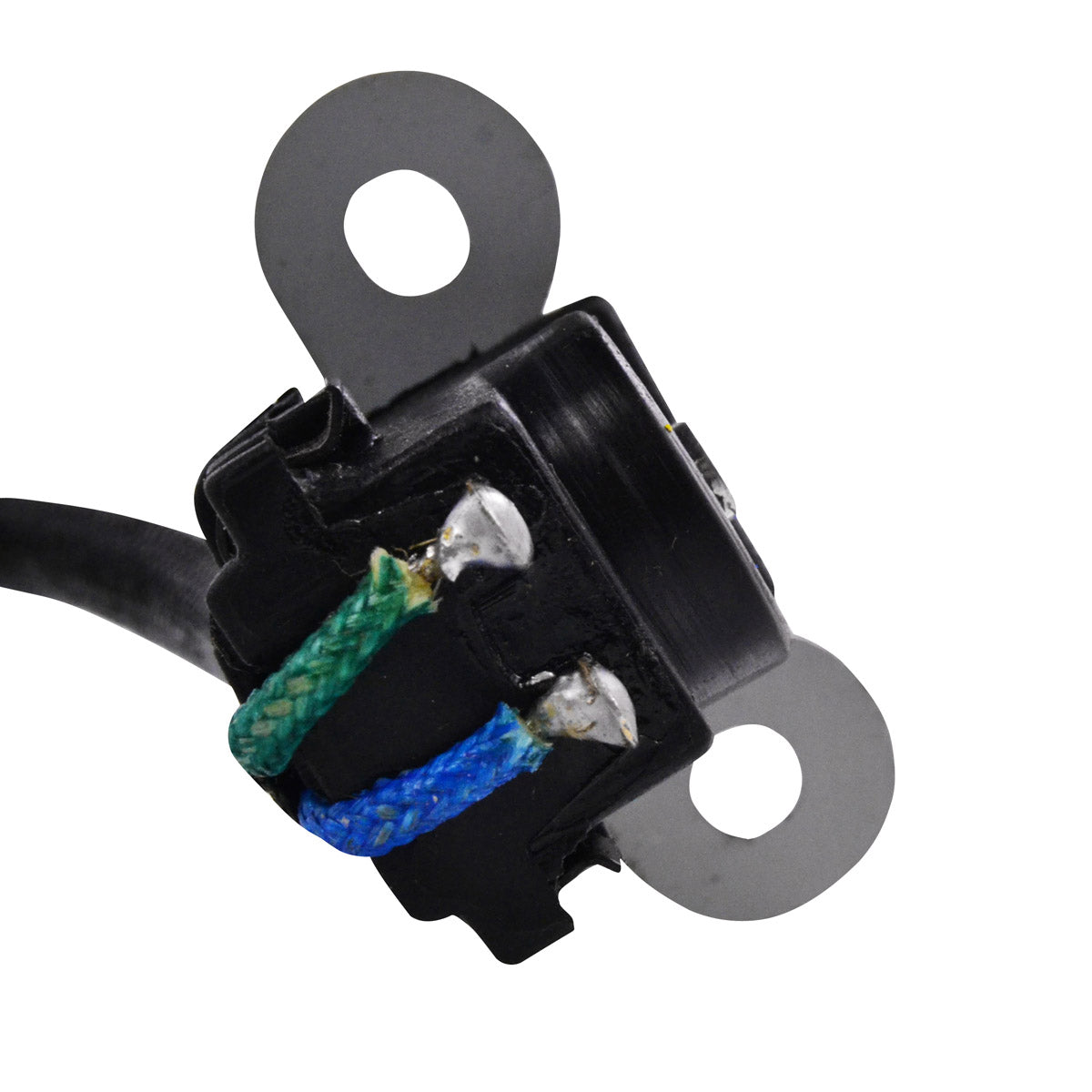

- Pick-up pulsar coil included and already fitted
- Direct replacement for the original unit - no modification required
- Plug-and-play, direct fit, straightforward installation
- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius

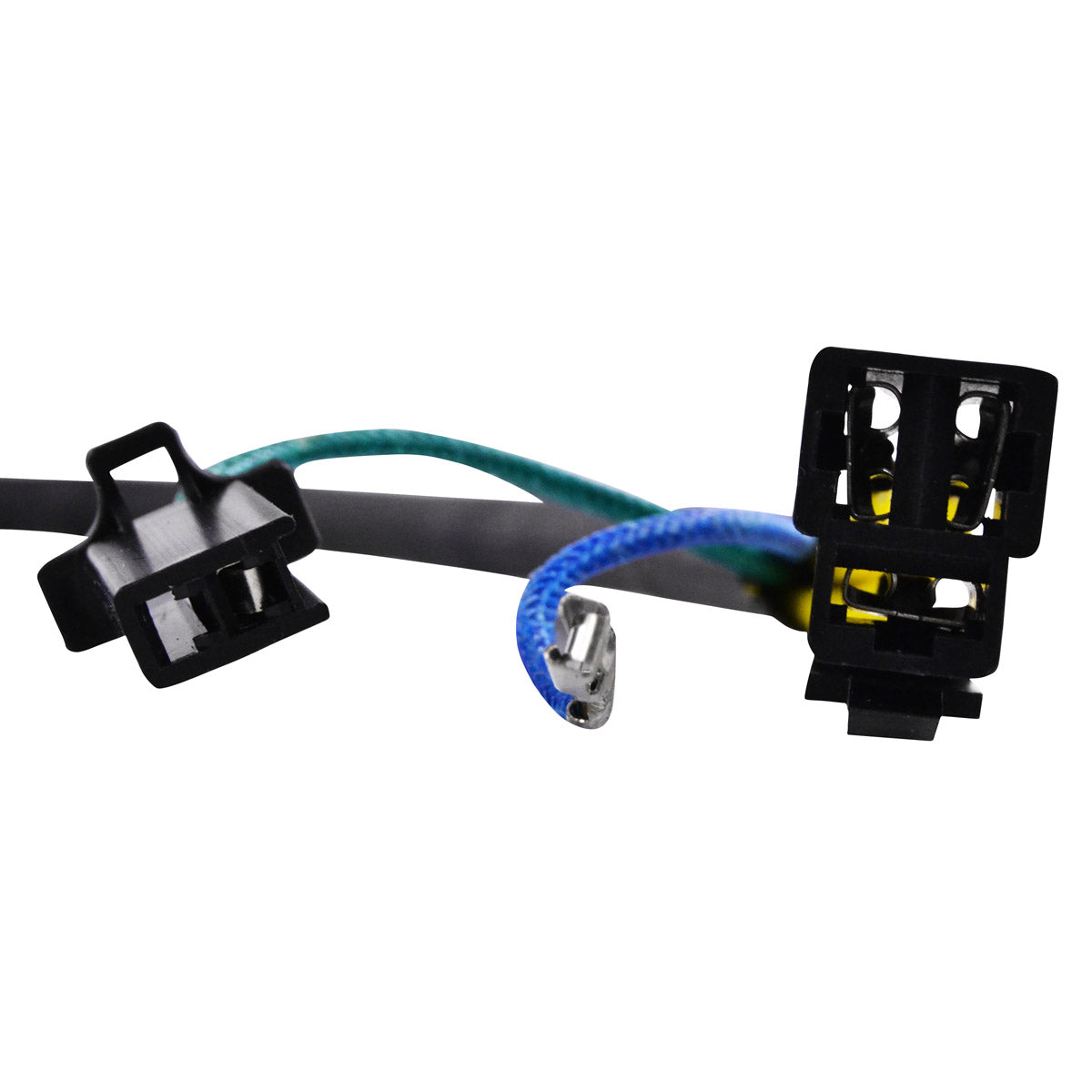

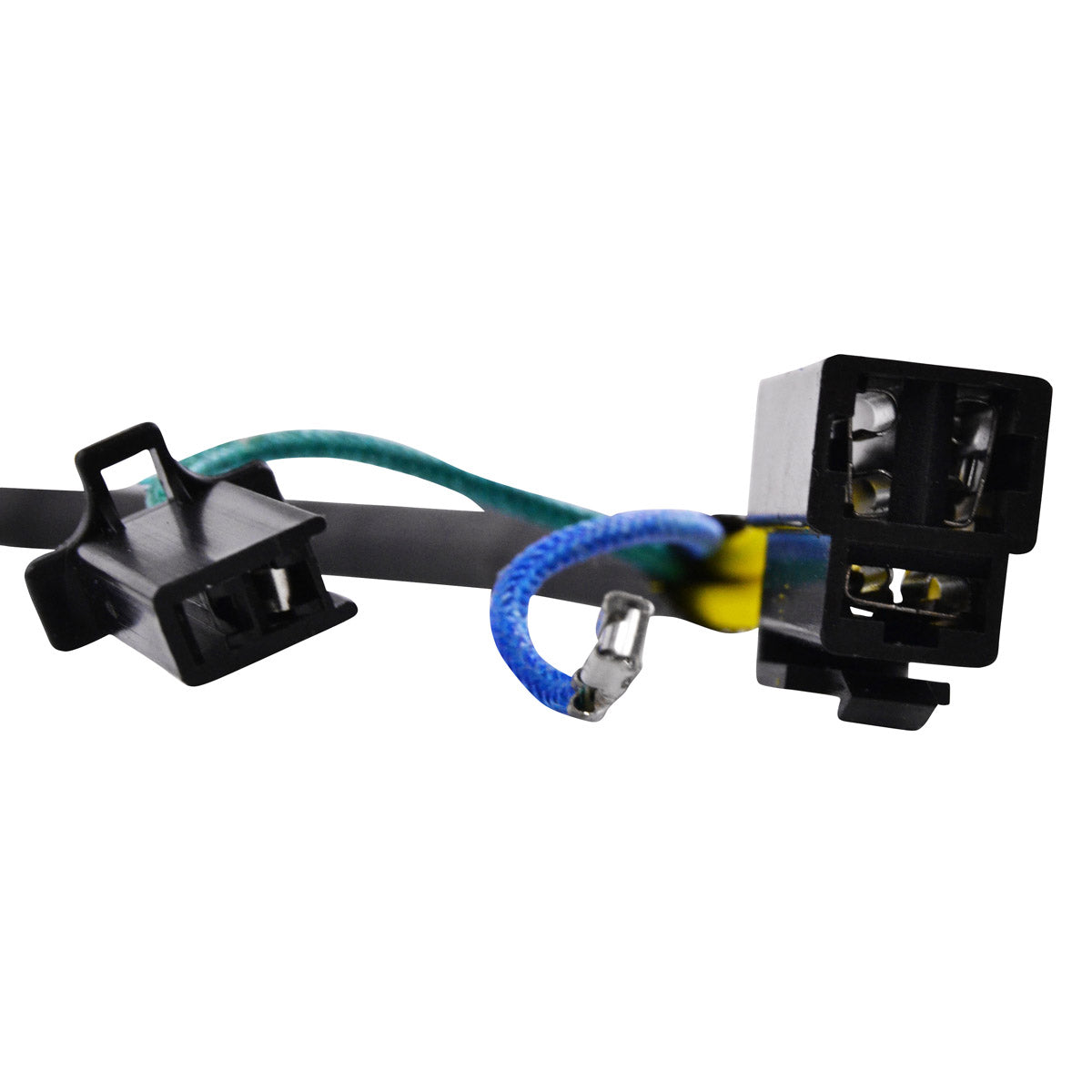

- Connector and rubber grommet included
- Every unit is tested before shipping
Technical Specs
| Specification |
Detail |
| Part number |
RM01563 |
| Interior diameter |
42 mm |
| Exterior diameter |
106 mm |
| Thickness |
22 mm |
| Wire length, stator to grommet |
100 mm |
| Wire length, grommet to plug |
490 mm |
| Pick-up coil wire to grommet |
55 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, yellow to yellow |
0.6 ohms +-20% |
| Pick-up resistance, green to blue |
238 ohms +-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki GSXR 1300 Hayabusa |
1999-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-24F00 |
Suzuki |
| 32101-24F10 |
Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original Hayabusa stator and is plug-and-play. It mounts in the original position and the two supplied plugs mate with the factory loom, so no cutting, splicing or rewiring is needed. Confirm the OEM number on your original unit against the cross reference table above before ordering.
What is included in the box?
You receive the stator complete with the pick-up pulsar coil fitted, the connectors and the rubber grommet. Five wires and two plugs come out of the assembly - three for the alternator windings and two for the pick-up coil.
How do I tell whether my old stator has failed?
A failing stator usually shows up as a battery that will not hold charge, dim lights, or charging voltage that stays at battery level with the engine running. With a multimeter, the alternator windings should read approximately 0.6 ohms between any two yellow wires, and the pick-up coil approximately 238 ohms between green and blue, both with a 20 percent tolerance. Readings that are open, shorted or well outside those figures, or any continuity to the stator body, point to a failed unit.
Why does this stator come with the pick-up pulsar coil?
On this application the pick-up pulsar coil is mounted on the same plate as the charging windings, so it is supplied as one assembly. That means the ignition trigger signal source is renewed at the same time as the charging coils, which removes a second common failure point without a separate job.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
