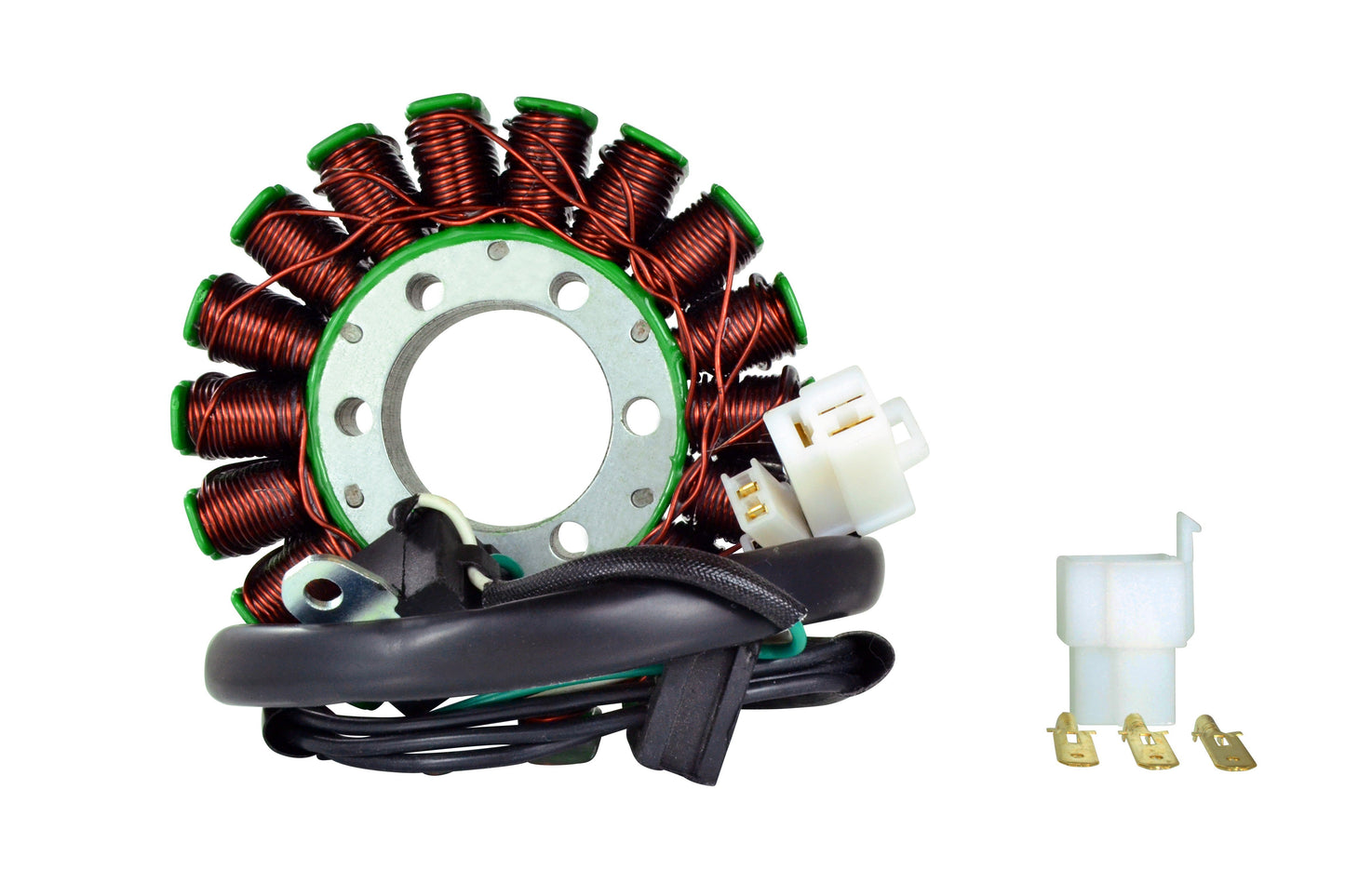

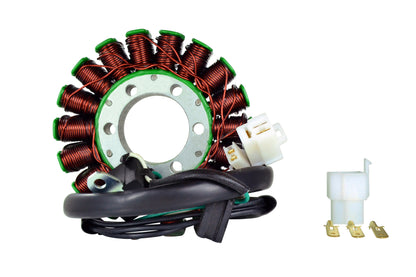

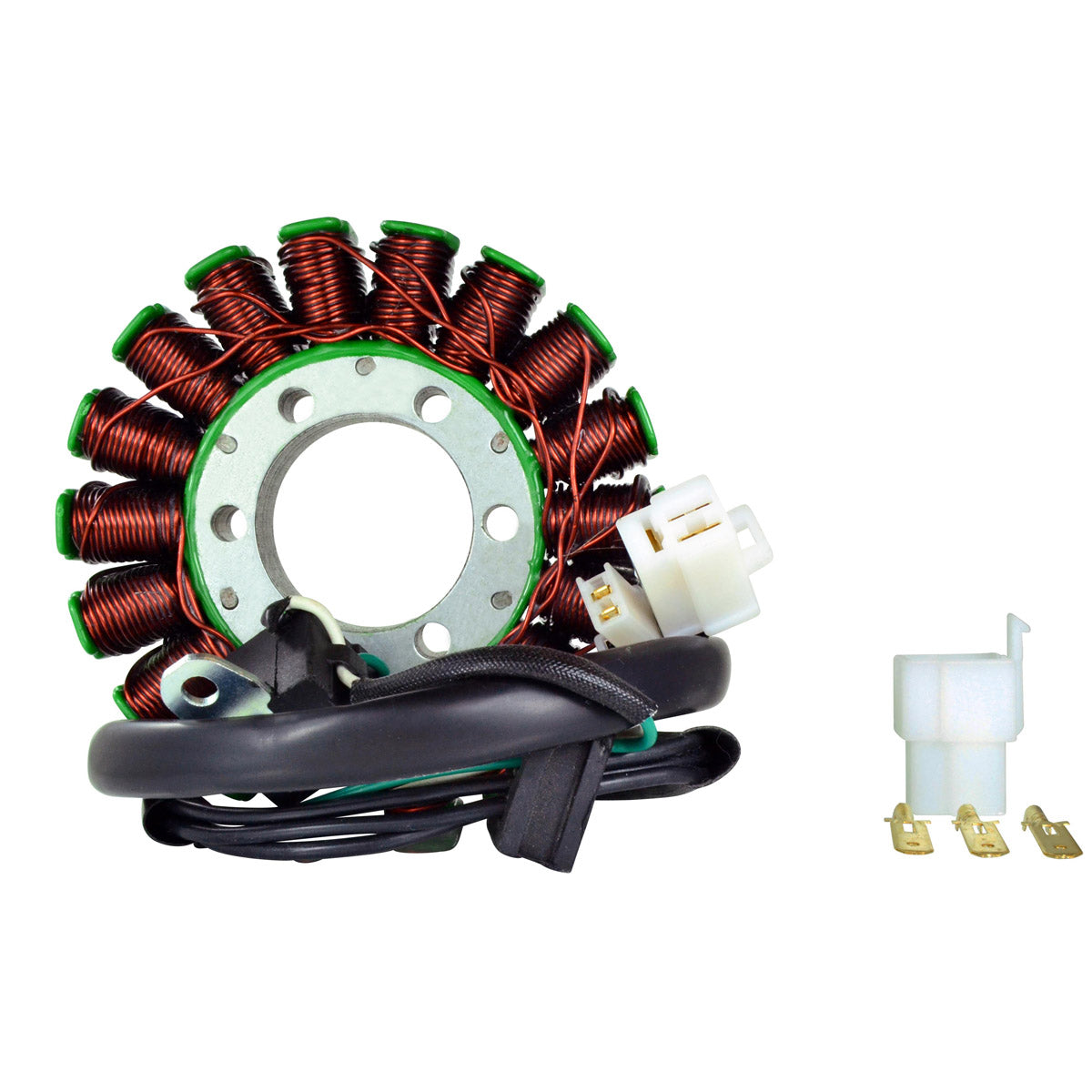

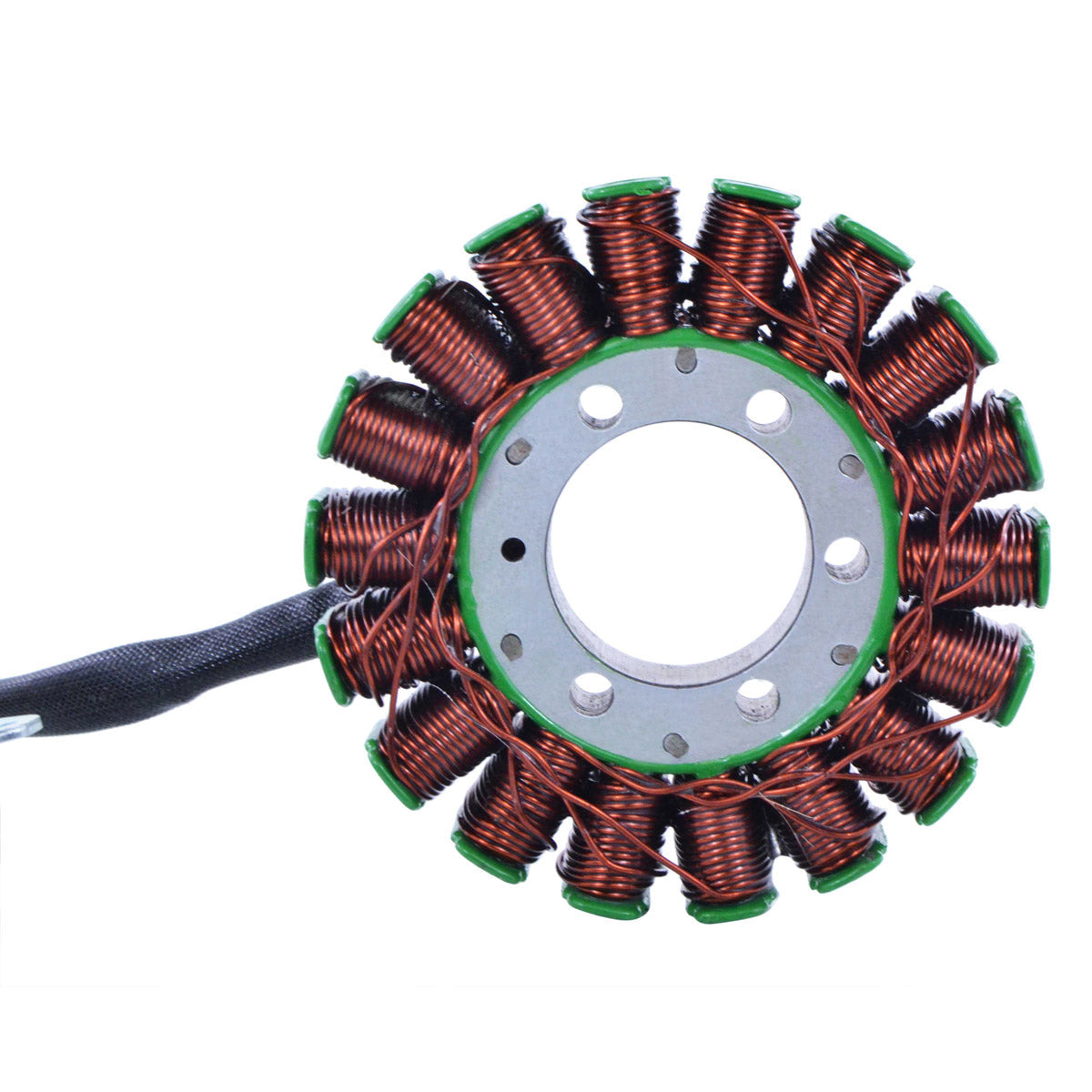

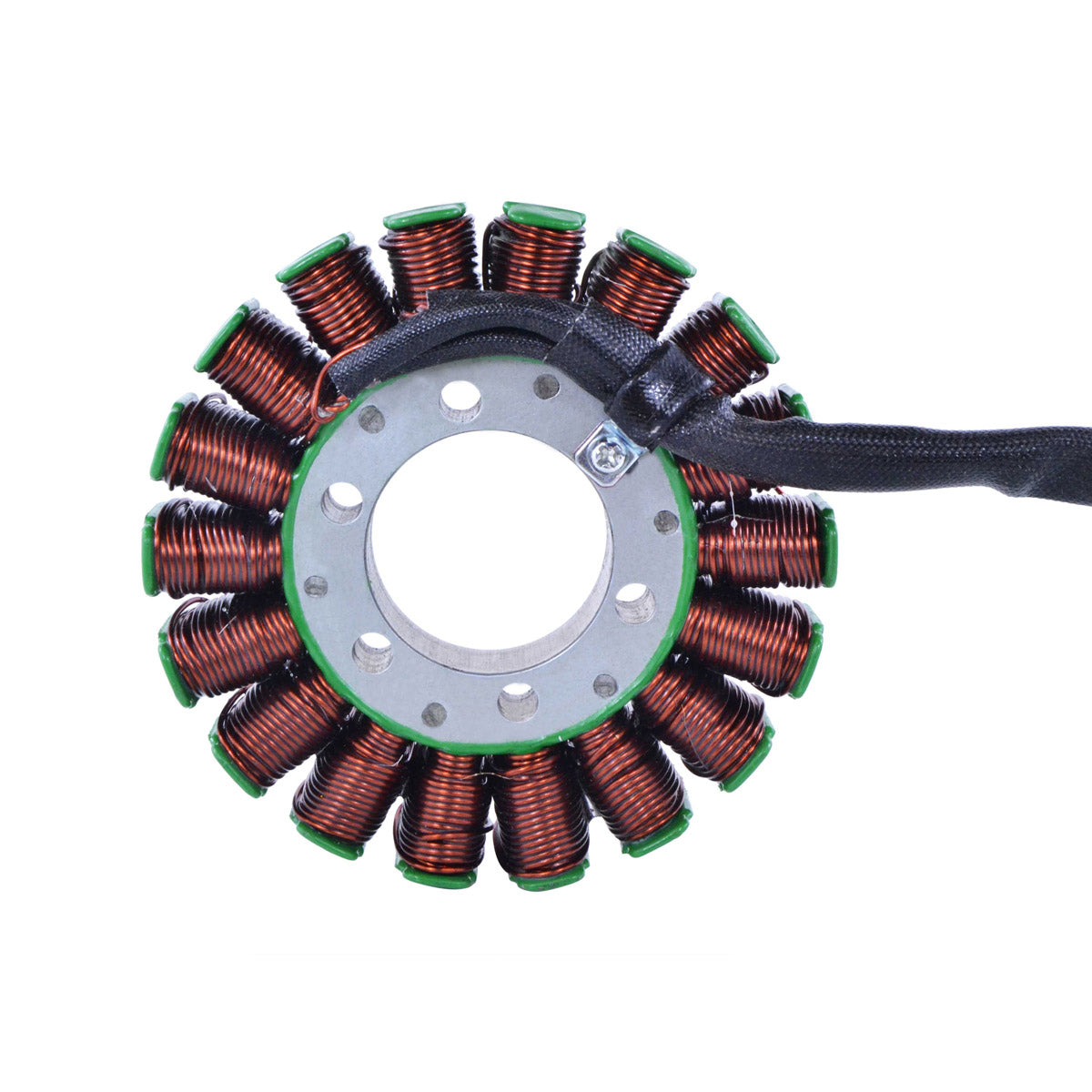

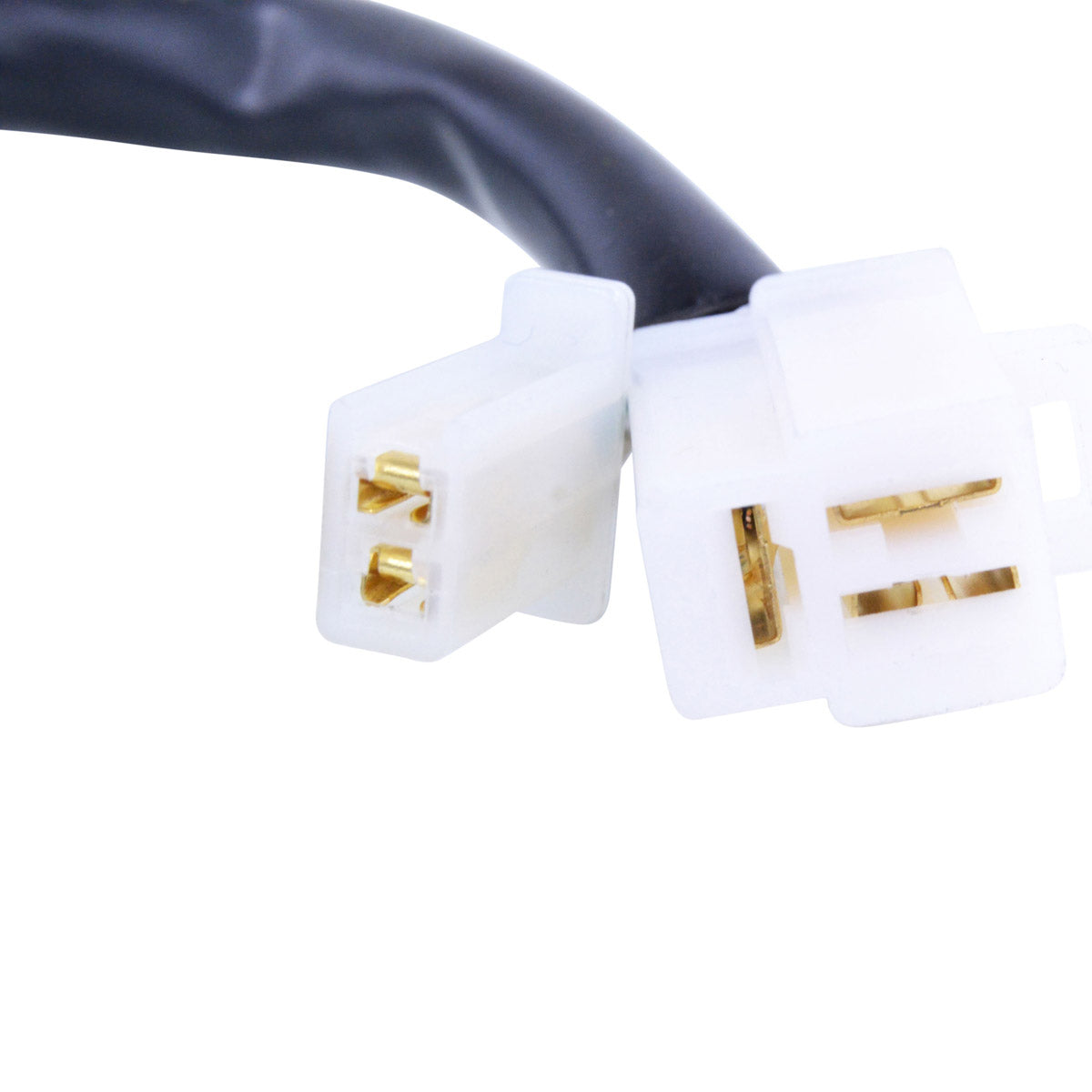

This is a brand new aftermarket generator stator for the Suzuki SV 650 and V-Strom 650, supplied complete with the pickup pulsar coil. The stator produces the three-phase alternating current that the regulator-rectifier turns into charging voltage for the battery, while the pickup coil provides the timing signal the ignition system needs to fire. Because both are mounted together behind the same cover on these engines, replacing them as one assembly saves splitting the case twice.

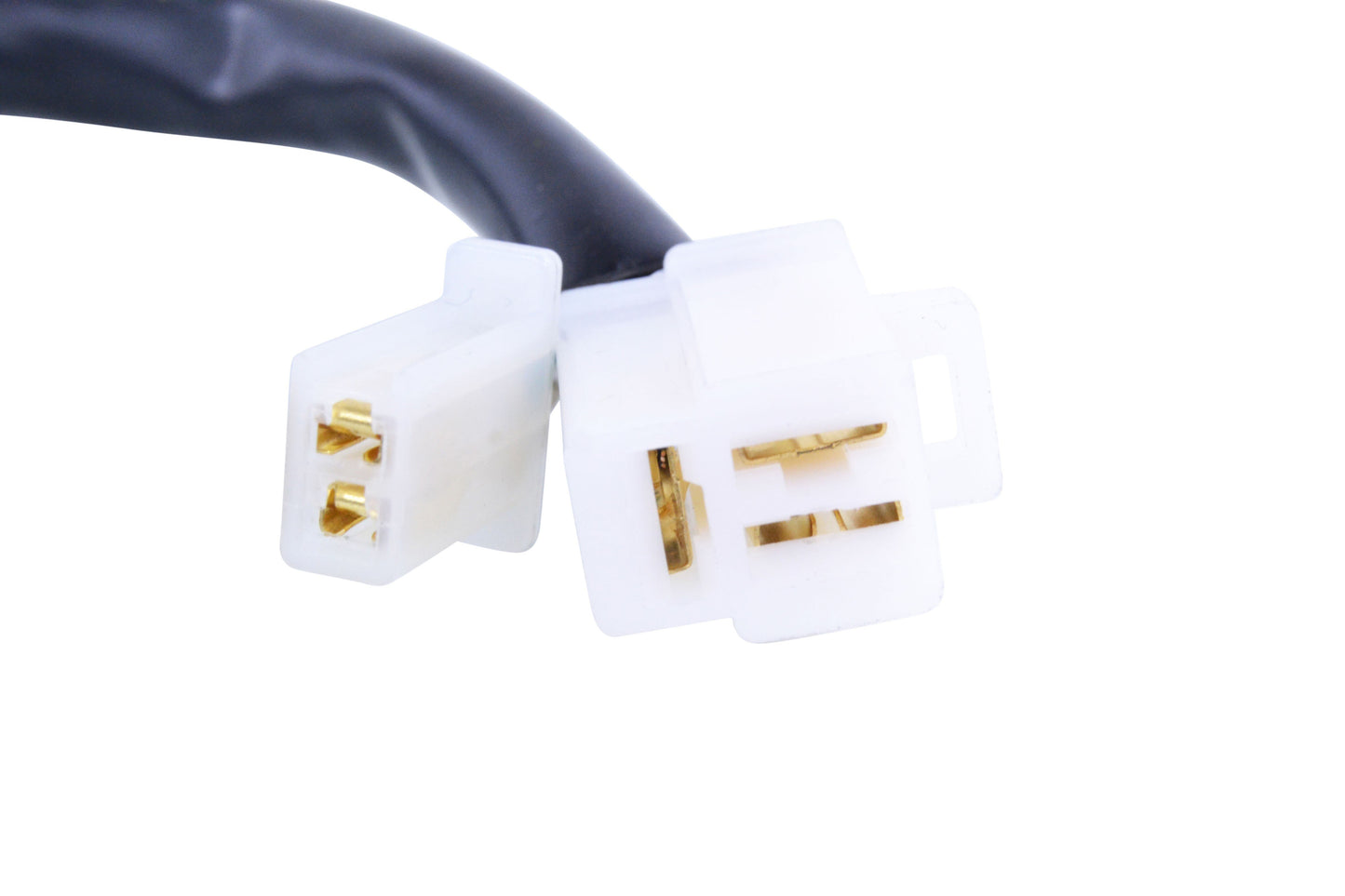

The unit is a plug-and-play, direct fit replacement for the original: same lamination dimensions, same five-wire output, same two plugs, so nothing in the loom has to be cut or spliced. It uses the highest grade lamination materials and the highest grade copper winding, rated to resist 200 degrees Celsius, which matters on a compact V-twin where the alternator cavity runs hot. The connector and rubber grommet are fitted, every unit is tested before shipping, and the opposite connector for the main harness side is supplied as well - those plugs are frequently found melted, corroded or defective and are a common cause of repeat electrical faults.
Key Features
- Brand new aftermarket generator stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation

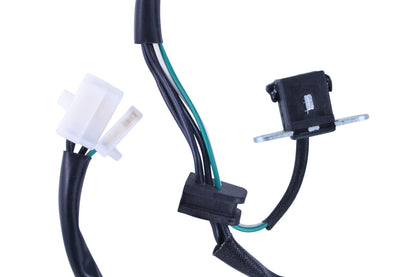

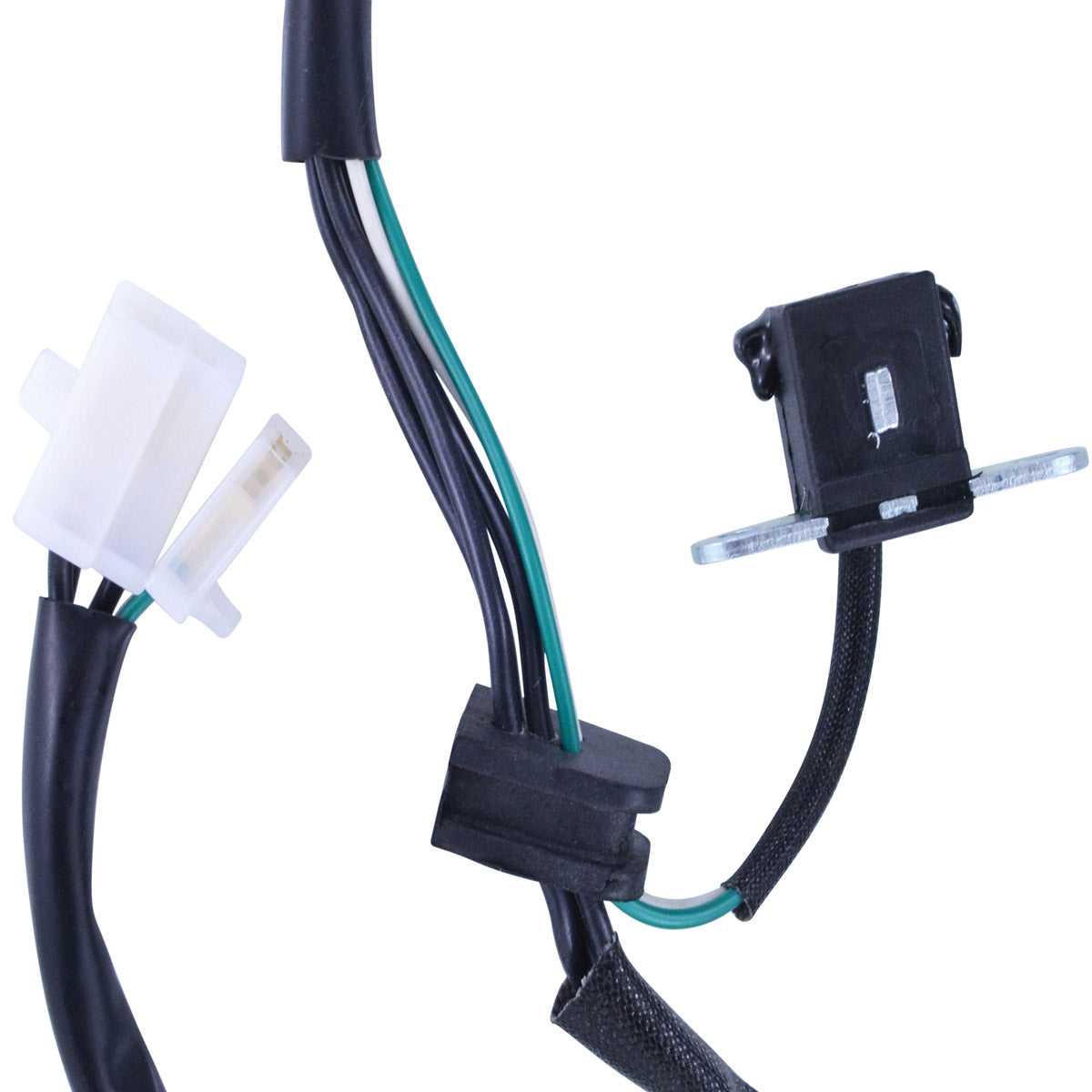

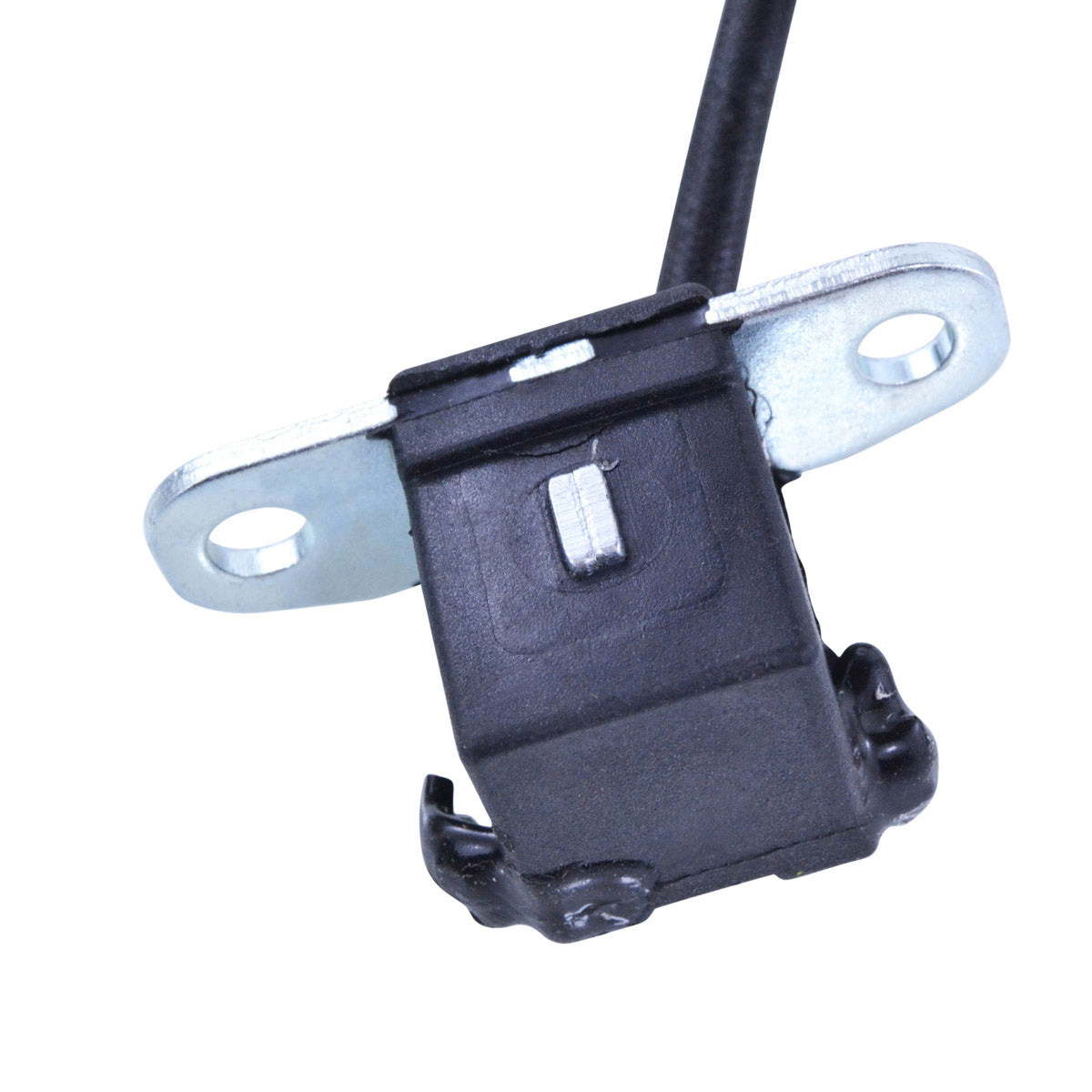

- Pickup pulsar coil included on the assembly
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

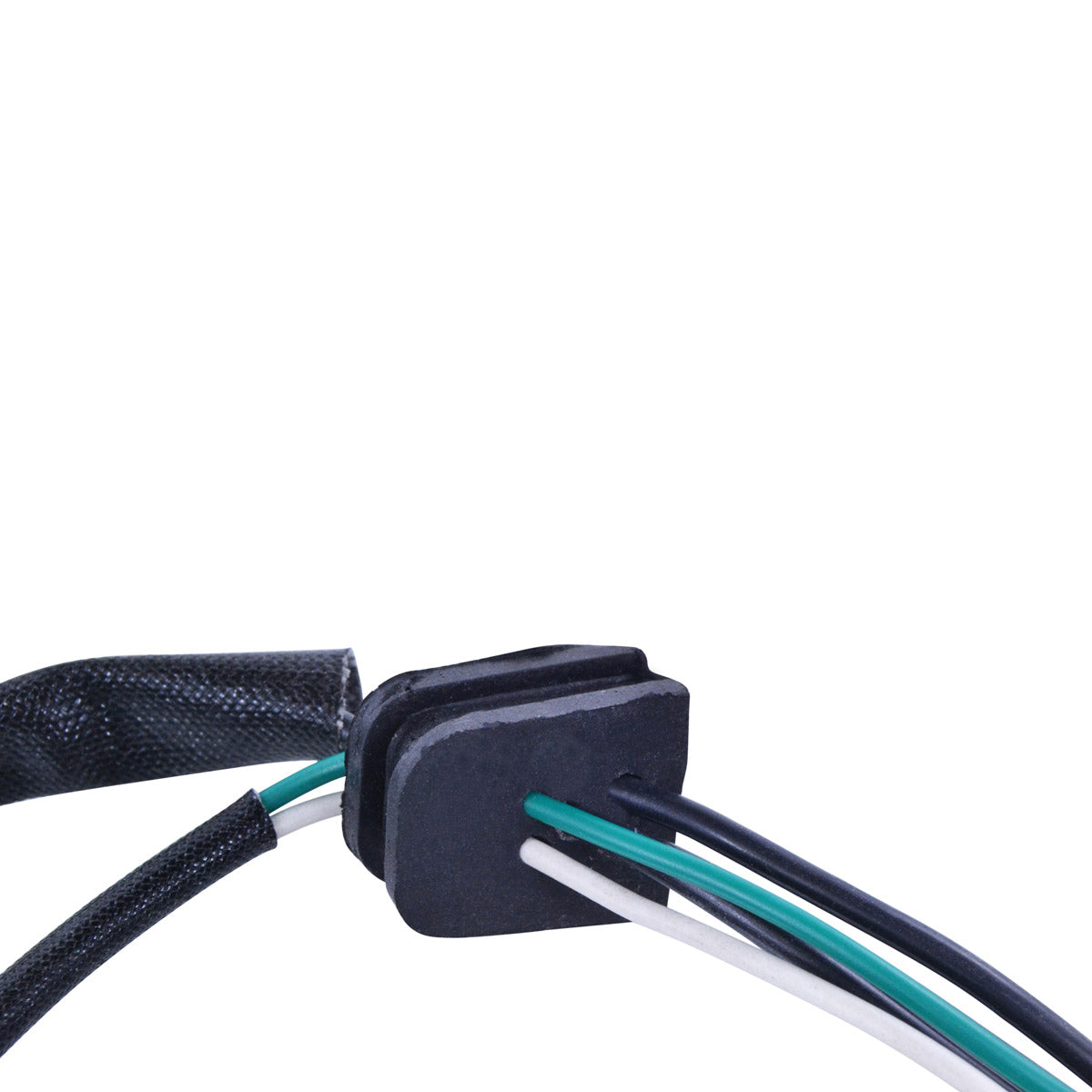

- Connector and rubber grommet included

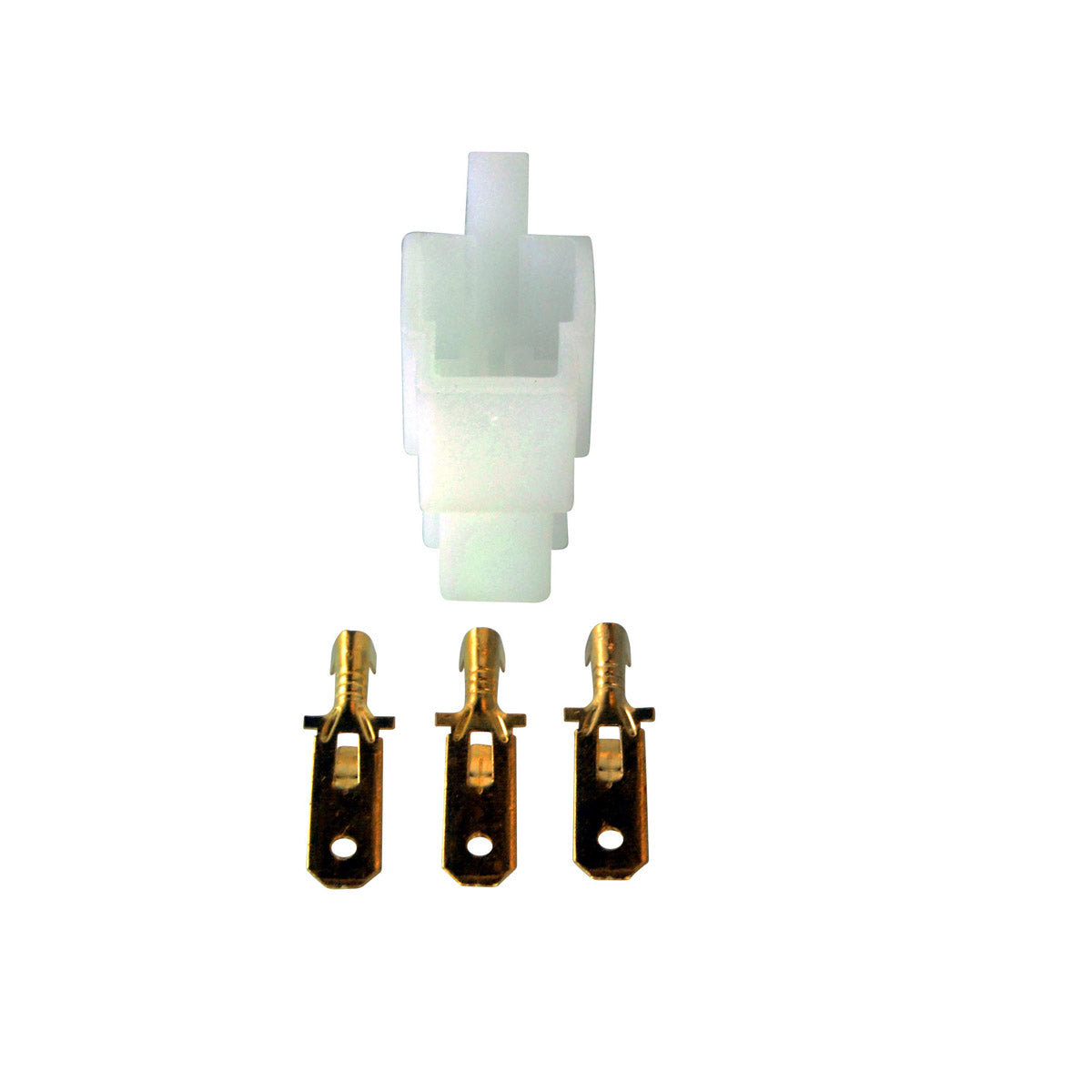

- Opposite connector for the main harness side included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-102166 |

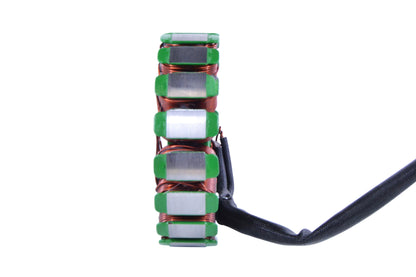

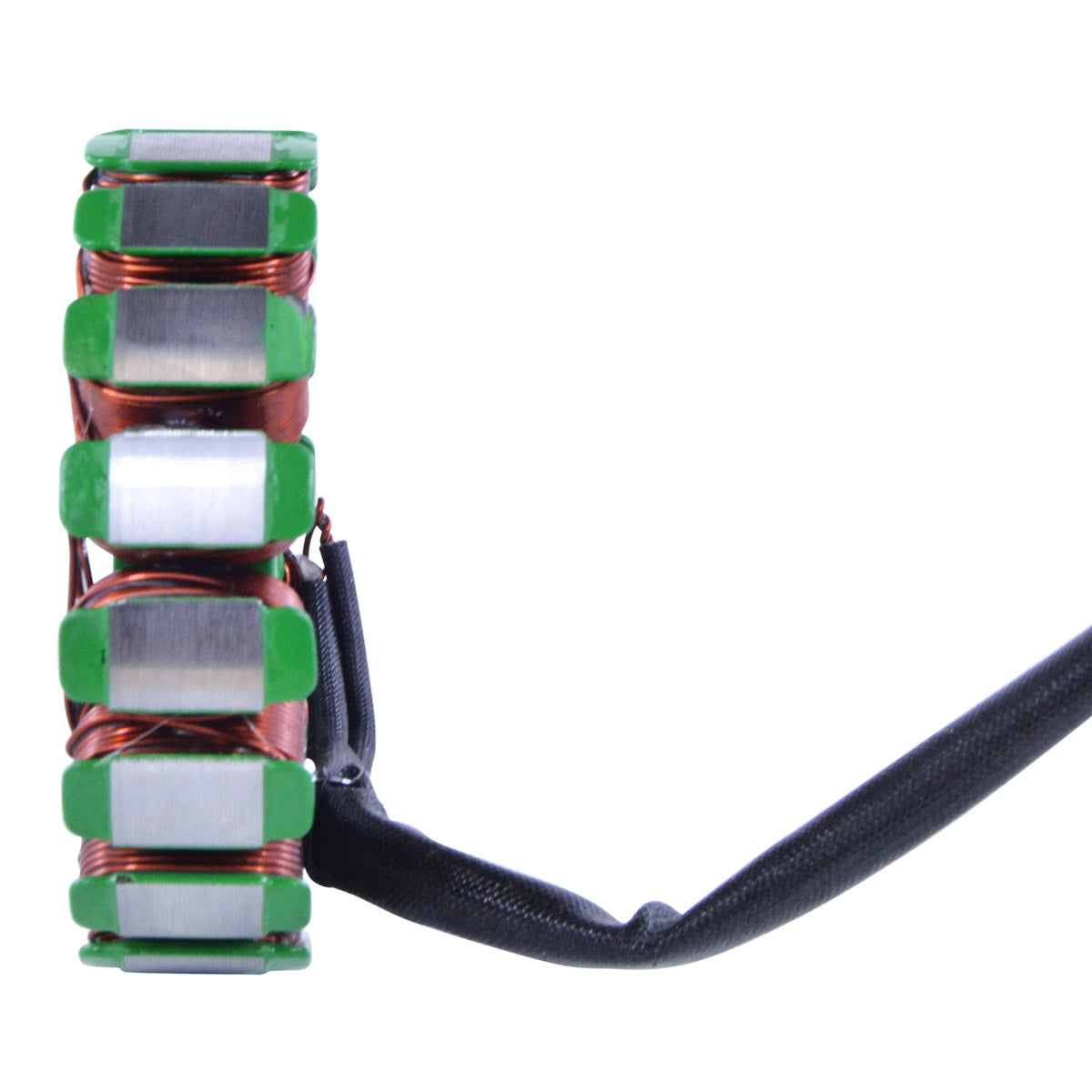

| Interior diameter |
38 mm |
| Exterior diameter |
108 mm |
| Stack thickness |
19 mm |
| Wire length, stator to grommet |
120 mm |
| Wire length, grommet to plug |
550 mm |
| Pickup coil wire length to grommet |
59 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, black to black |
0.5 ohms +/- 20% |
| Pickup coil resistance, green to white |
194 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki SV 650 |
2003-2009 |
| Suzuki V-Strom 650 |
2003-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-17G00 |
Suzuki |
| 32101-17G02 |
Suzuki |
Frequently Asked Questions
Does anything need modifying to fit it?
No. This is a plug-and-play, direct fit replacement. The lamination dimensions, the five-wire output and both plugs match the original, so it mounts in the standard position and connects to the existing harness without cutting or splicing.
What is included in the box?

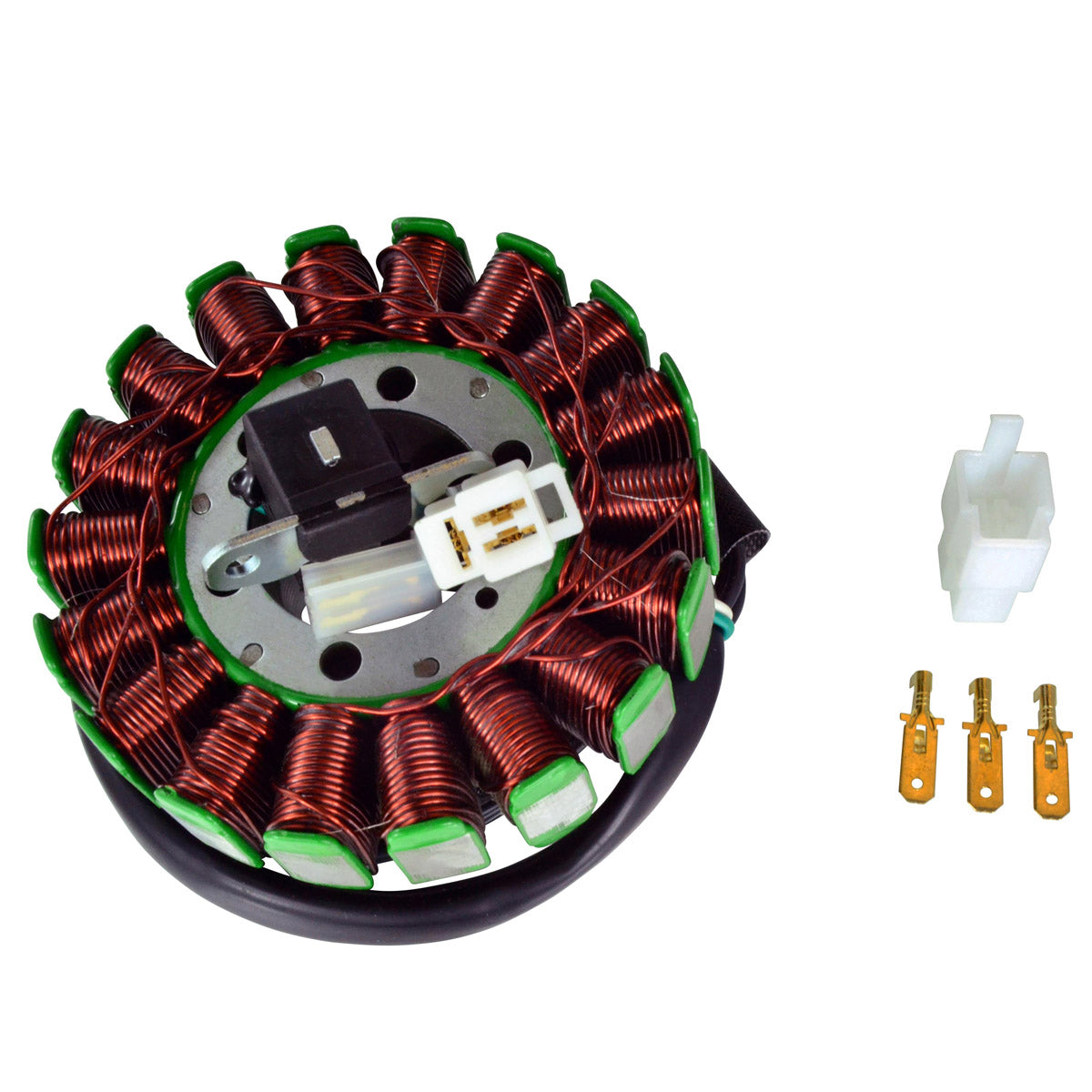

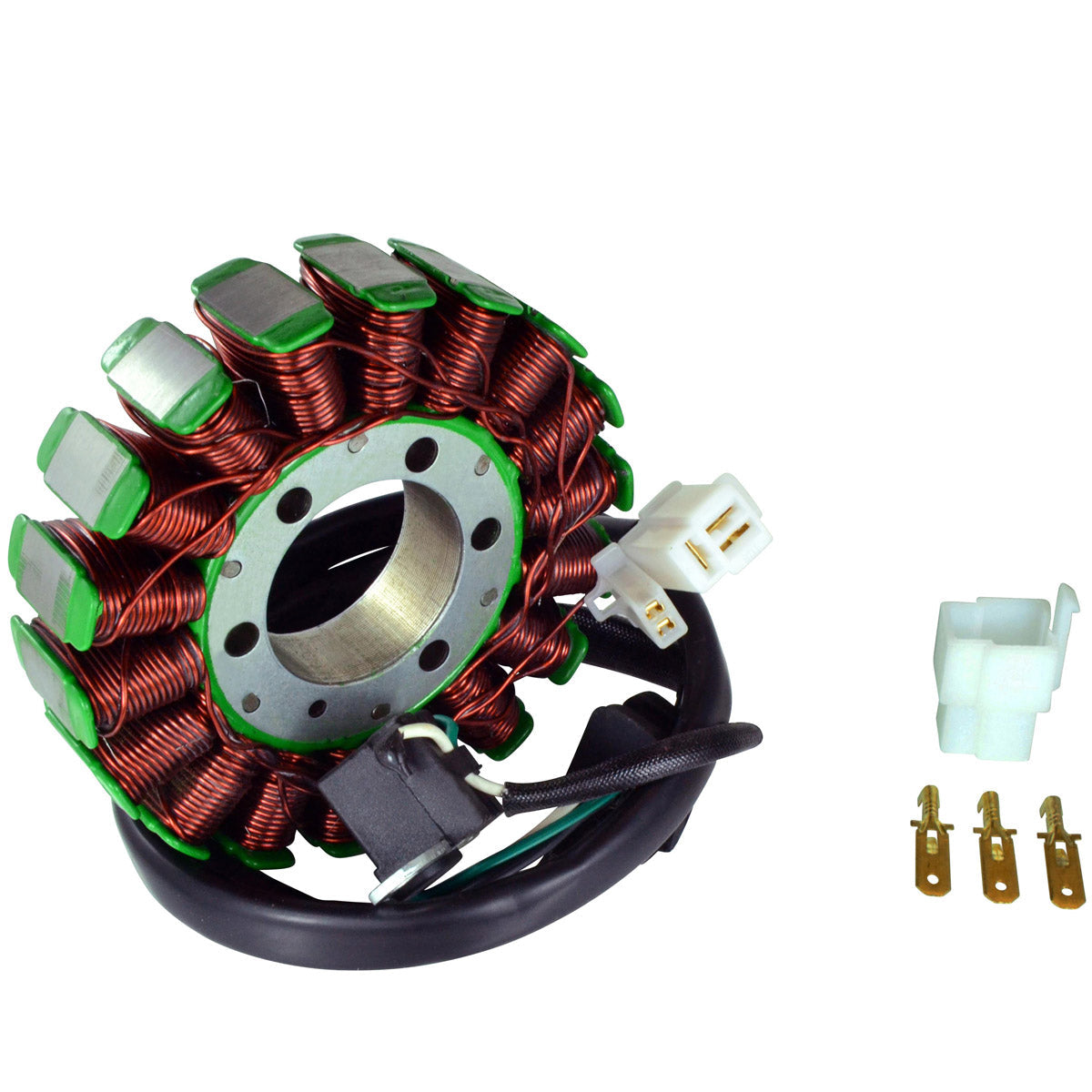

The stator with its connector, the pickup pulsar coil, the rubber grommet, and the opposite connector for the main harness side.
How do I confirm my old stator has failed?
With the plugs disconnected, measure between each pair of black alternator wires - each reading should be around 0.5 ohms, within about 20 per cent. Then measure the pickup coil between the green and white wires, which should read about 194 ohms. An open circuit, a wildly different reading, or continuity from any output wire to the engine casing all indicate a failed unit.
Do I get the pickup coil as well, or just the stator?

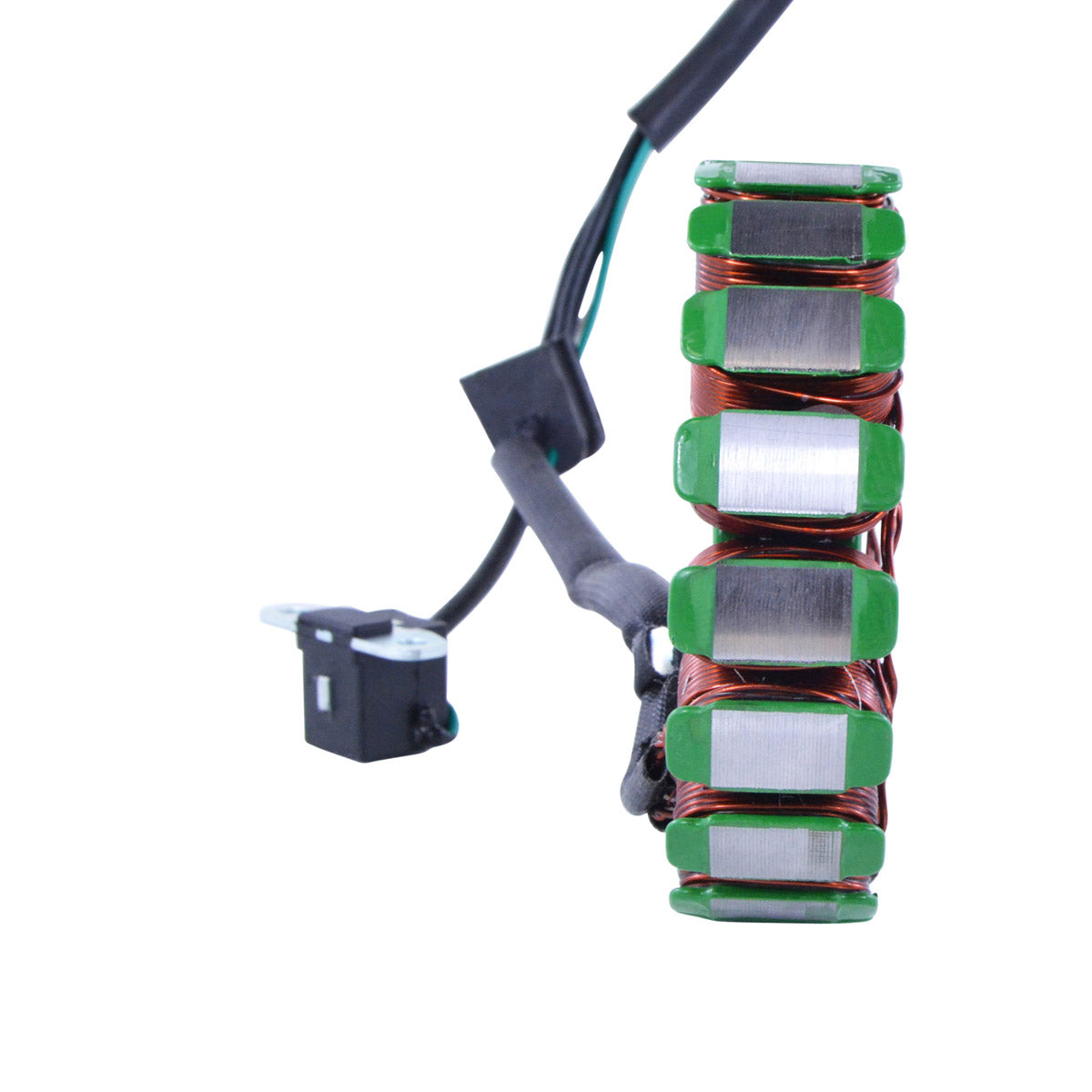

The pickup pulsar coil is included on this assembly. That is useful on the SV 650 and V-Strom 650 because both components sit under the same cover, so a single job replaces the charging winding and the ignition timing sensor together.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
