Stator for Suzuki VL 800 Volusia & VL 800 Z Boulevard C50 2001-2005
Stator for Suzuki VL 800 Volusia & VL 800 Z Boulevard C50 2001-2005
SKU:RMS010-101441
Free shipping over £150. Terms apply
Couldn't load pickup availability

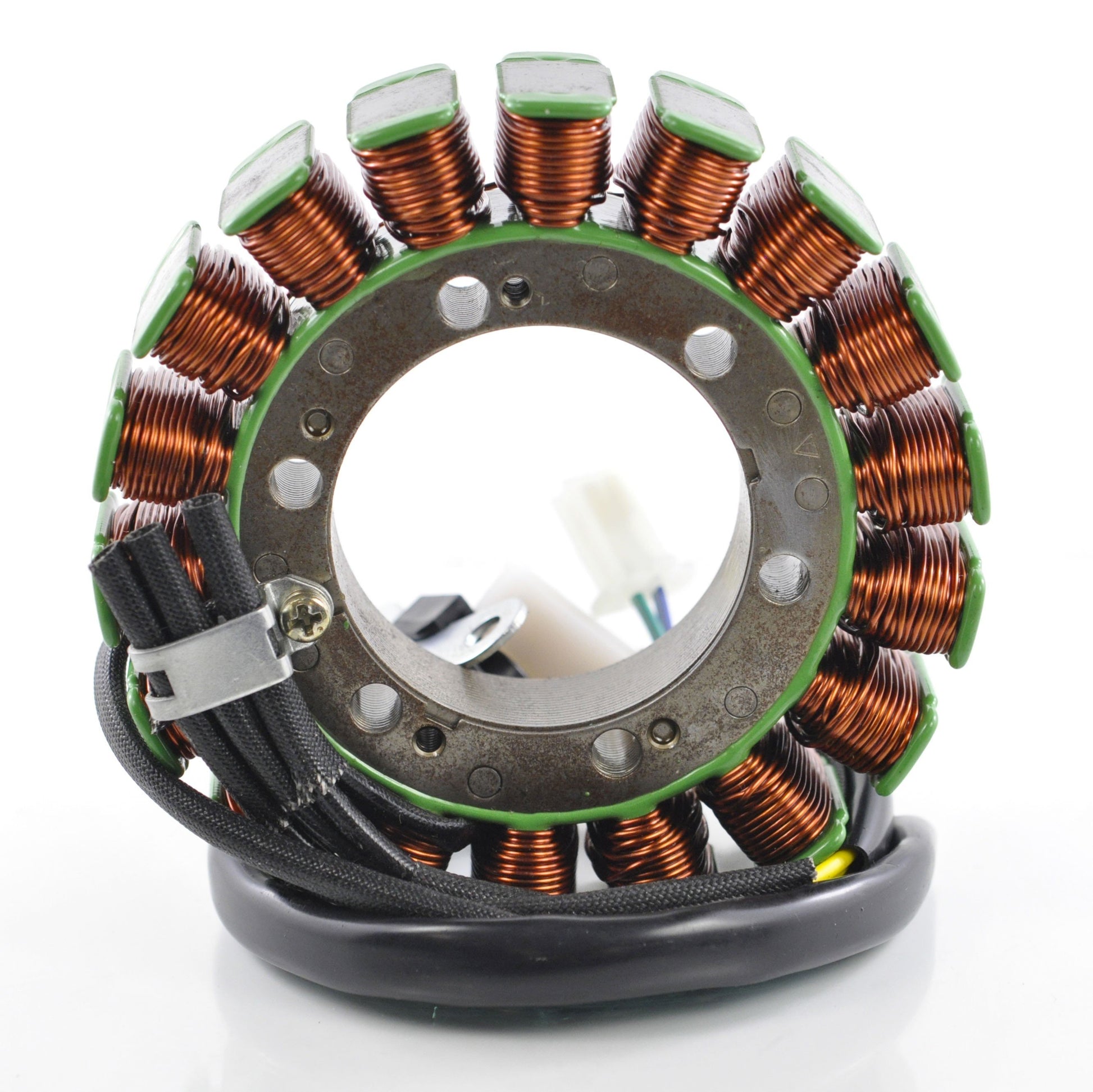

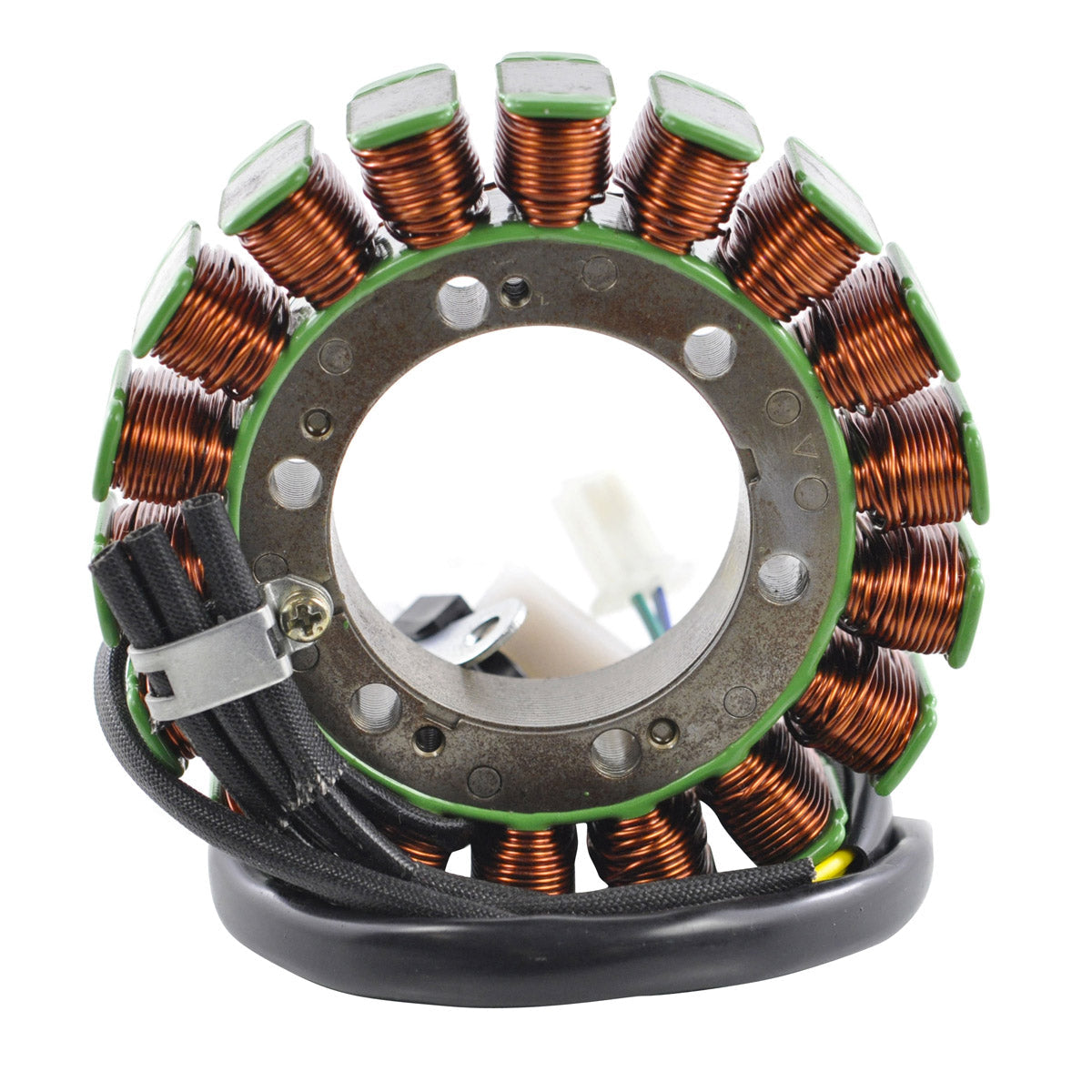

Generator Stator for Suzuki VL 800 Volusia Boulevard C50
Suzuki VL800 Volusia and VL800Z Volusia Limited Boulevard C50, 2001-2005 - OEM 32101-41F00

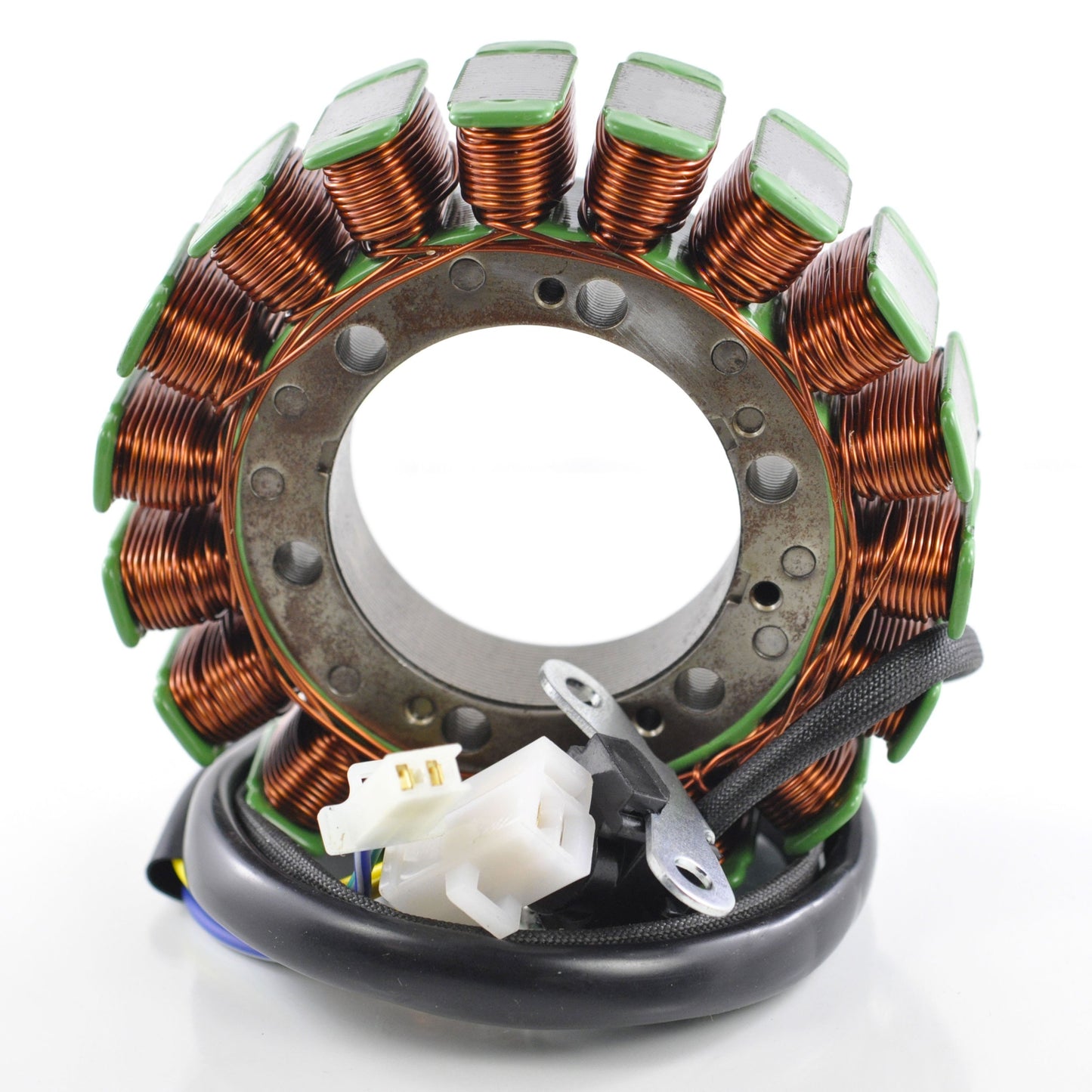

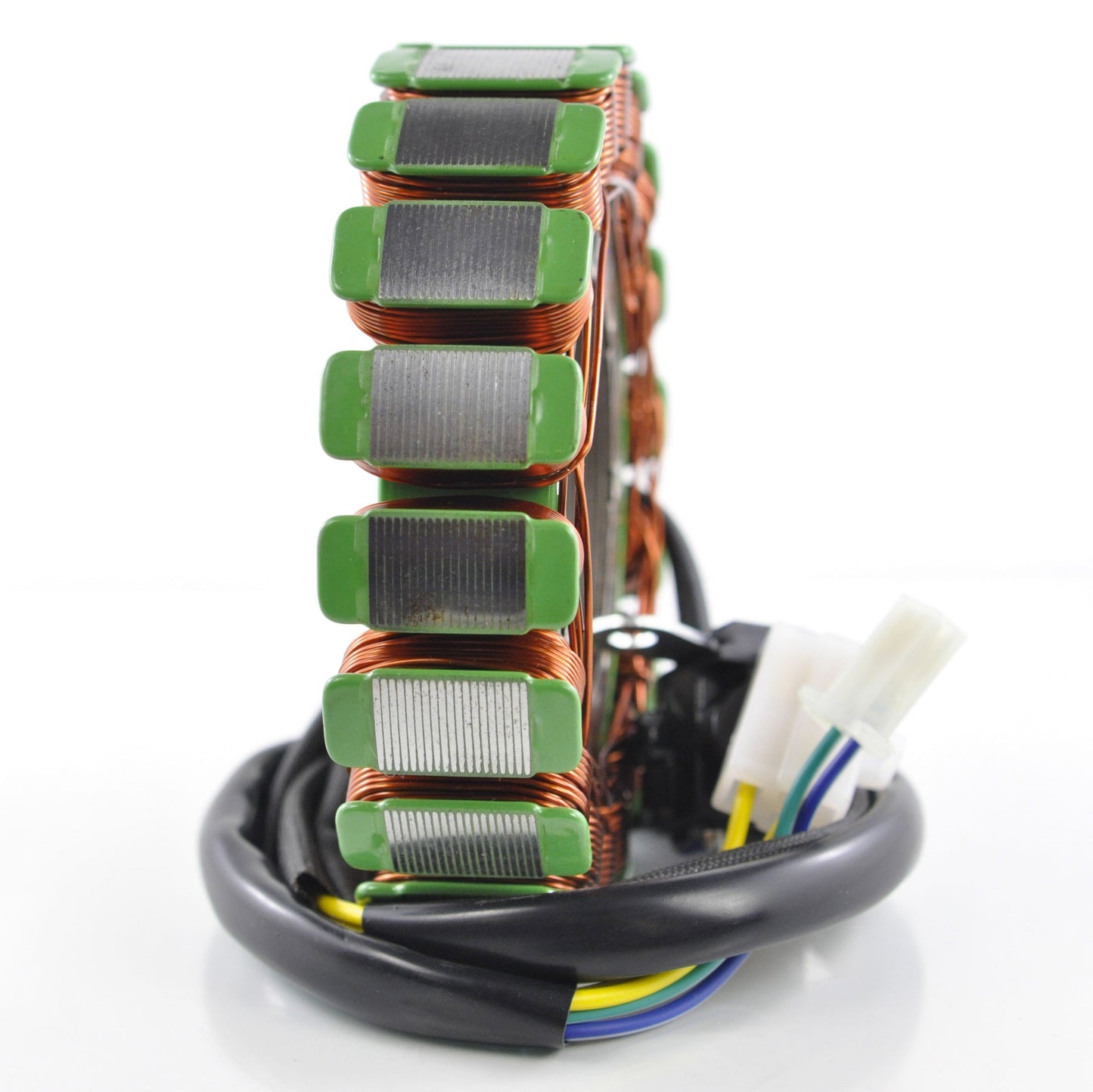

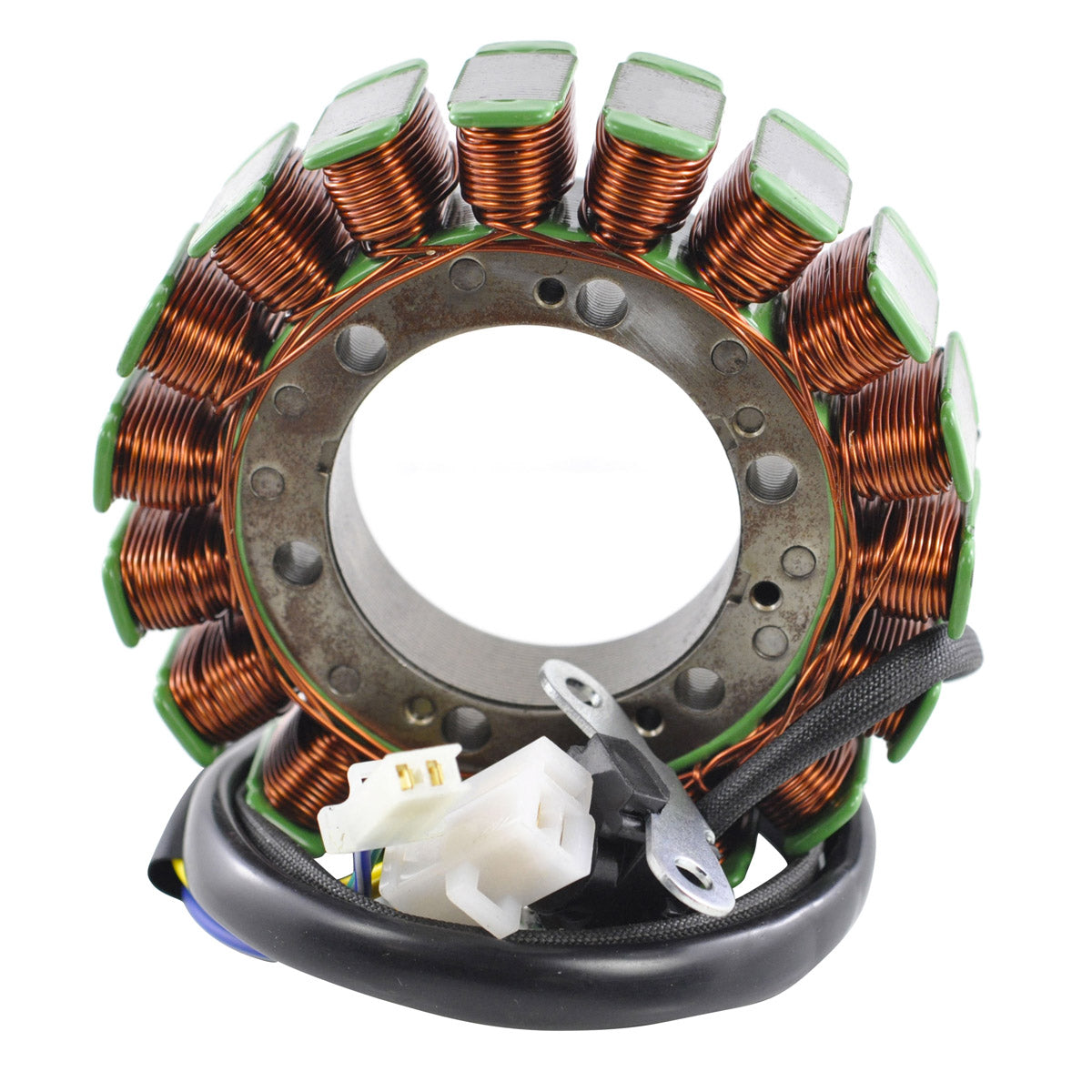

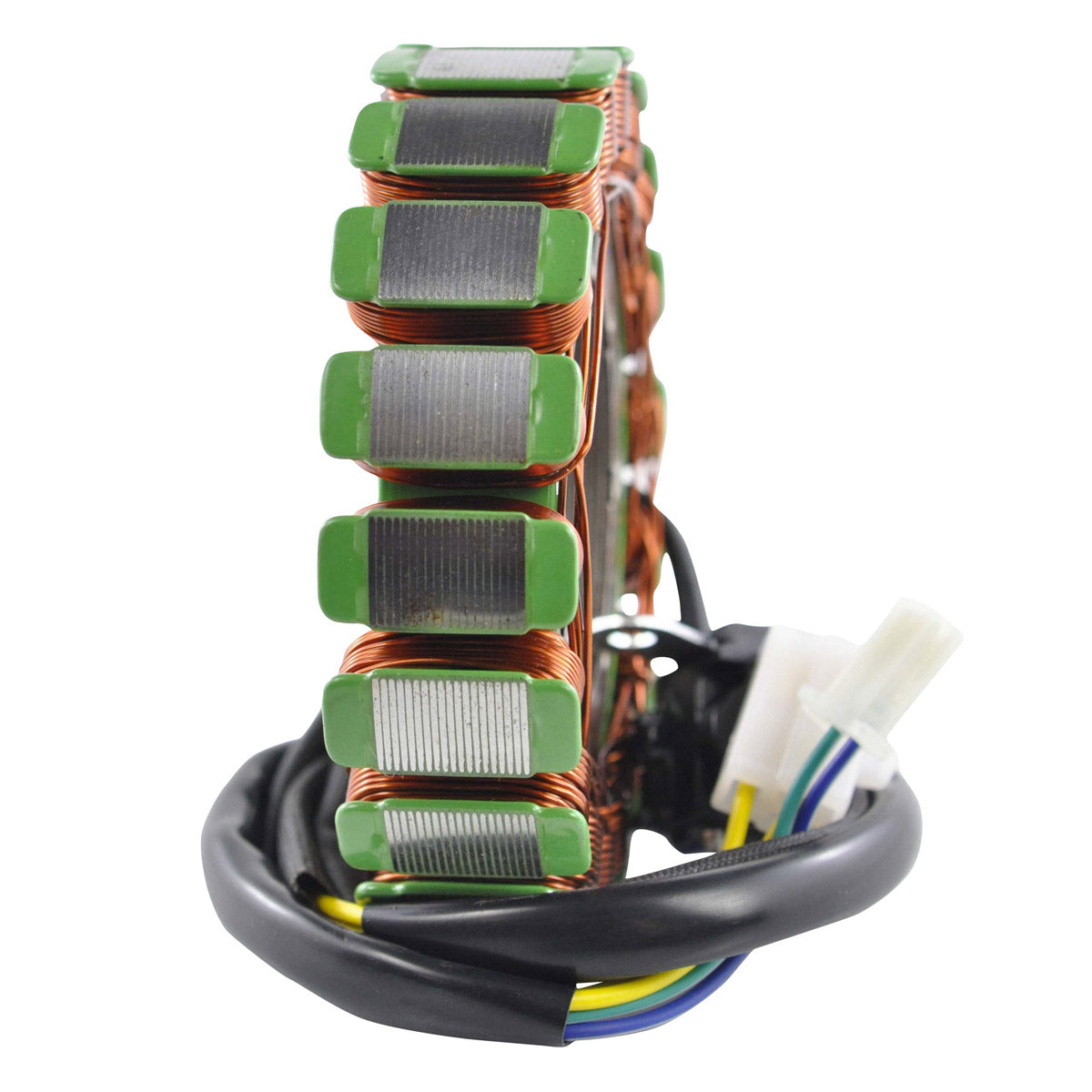

A brand new aftermarket generator stator for the Suzuki VL 800 Volusia and Boulevard C50, built as a direct replacement to your original unit. The pick up pulsar coil is supplied already mounted on the assembly, so the complete plate goes in as one piece rather than needing parts moved across from the old stator. Fitting is plug-and-play and direct fit using the standard mounting points and the two original plugs, with no loom modification.
The windings are made from the highest grade copper, resistant to 200 degrees Celsius, on the highest grade lamination materials. On a big-bore cruiser that spends time at low speed in traffic, heat is what eventually kills the factory stator, and this is the area the specification addresses. A connector and a rubber grommet are supplied so the harness can be resealed properly, and all products shipped are tested before dispatch. The part reference is RMS010-101441.
Key Features
- Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included

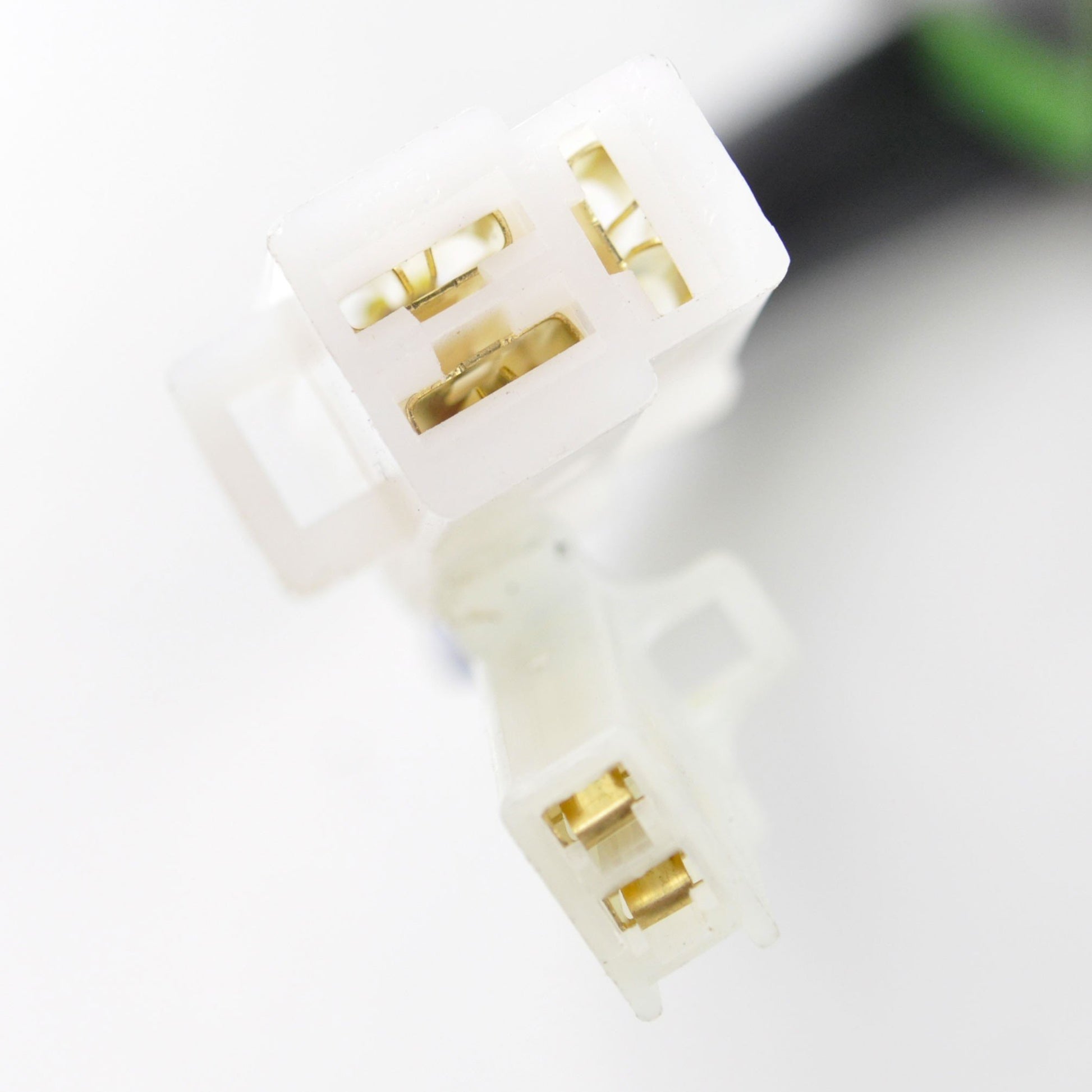

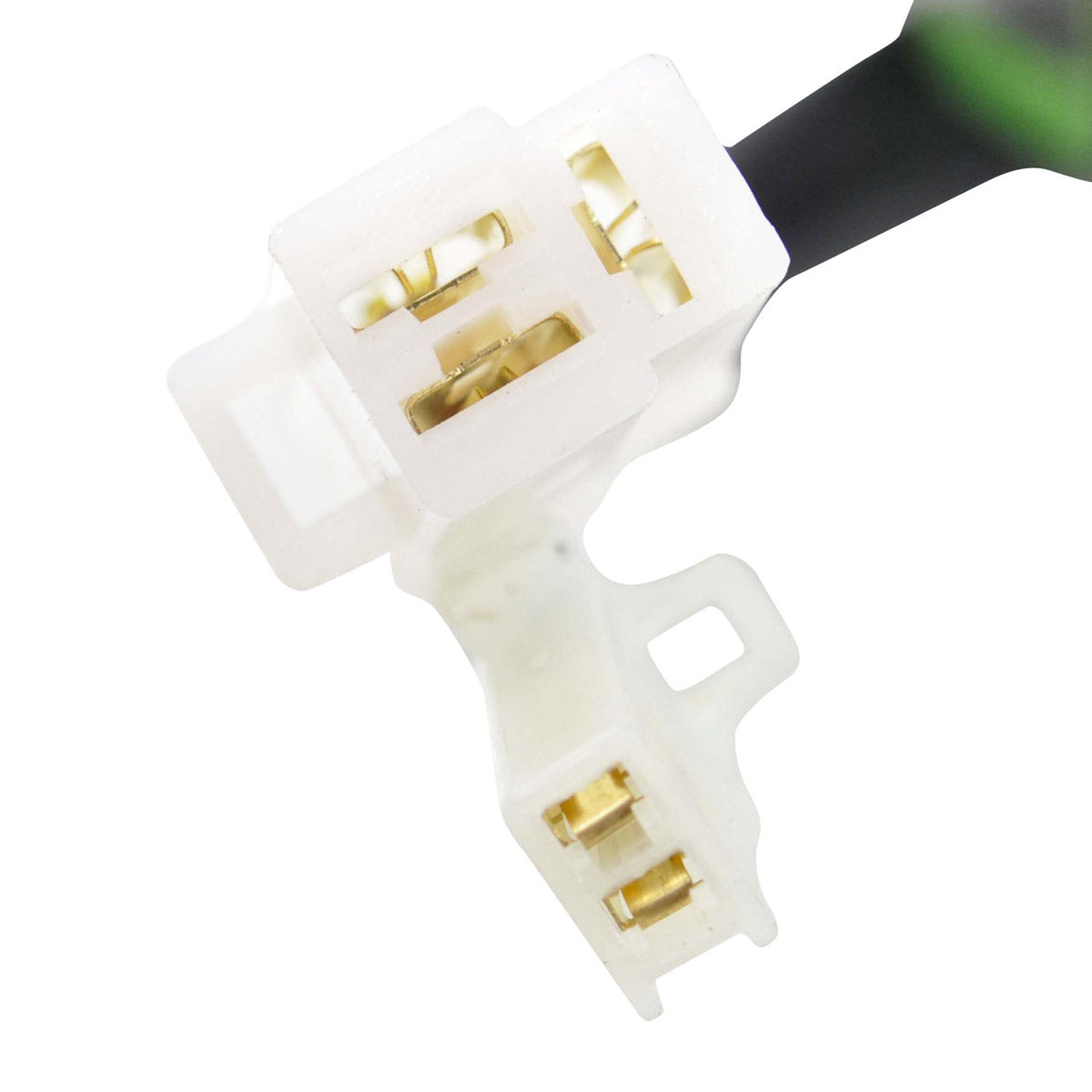

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-101441 |
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 22 mm |
| Wire length, stator to grommet | 330 mm |
| Wire length, grommet to plug | 355 mm |
| Pickup coil wire to grommet | 175 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, yellow to yellow | 0.6 ohms +/- 20% |
| Pickup resistance, green to blue | 251 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki VL 800 Volusia | 2001-2005 |
| Suzuki VL 800 Z Volusia Limited | 2001-2005 |
| Suzuki Boulevard C50 | 2001-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-41F00 | Suzuki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original Suzuki stator, with five wires, two plugs and five pins matching the factory arrangement. There is no cutting, splicing or drilling involved.
What is supplied with it?
The generator stator, the pick up pulsar coil already fitted, a connector and a rubber grommet. Nothing needs to be transferred from the old assembly other than the mounting bolts.
How do I know the old stator is the problem?
Repeated flat batteries, dimming lights at idle, or a machine that will not restart after a run all point at the charging side. Test with a multimeter: the alternator should read about 0.6 ohms plus or minus 20 per cent between each yellow wire, and the pickup about 251 ohms plus or minus 20 per cent from green to blue. Readings well away from those, an open circuit, or a short to the core confirm a failed stator.
Will the wiring reach the standard connector position?
Yes. The harness runs 330 mm from the stator body to the grommet and a further 355 mm from the grommet to the plug, with 175 mm from the pickup coil to its grommet, which follows the original routing on the VL 800.
