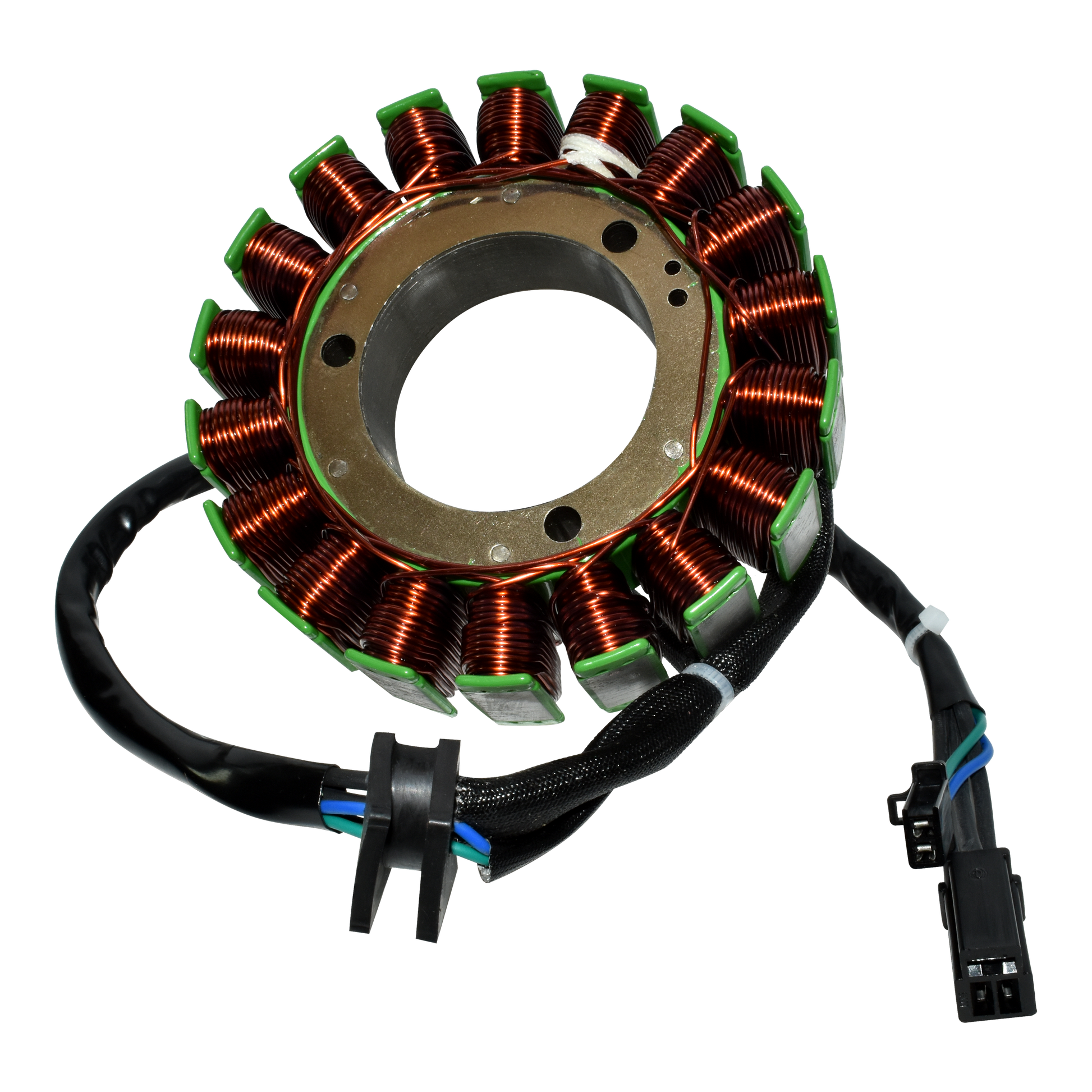

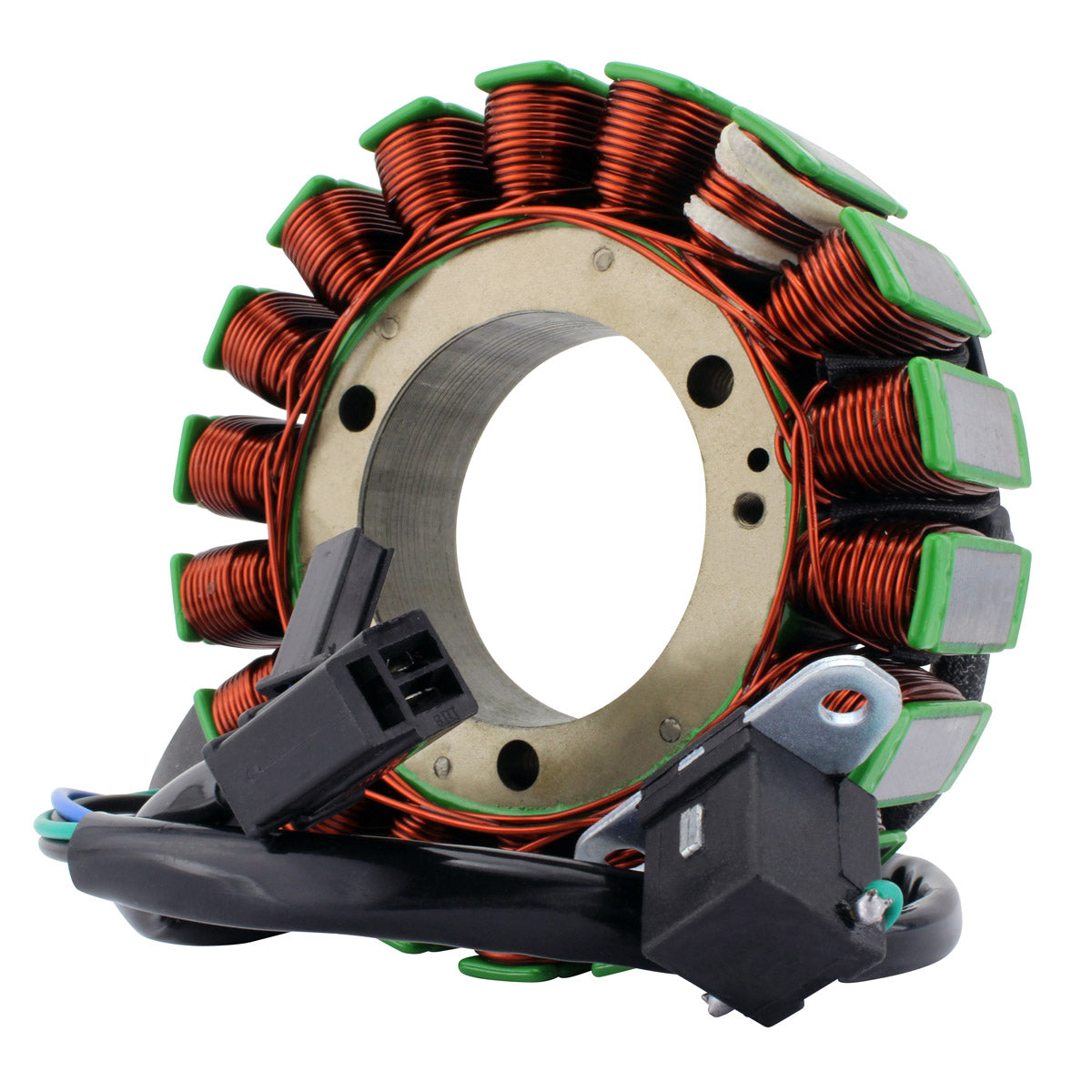

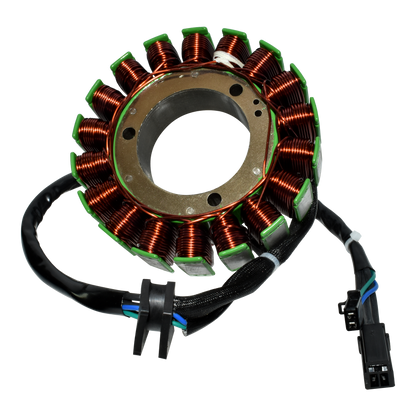

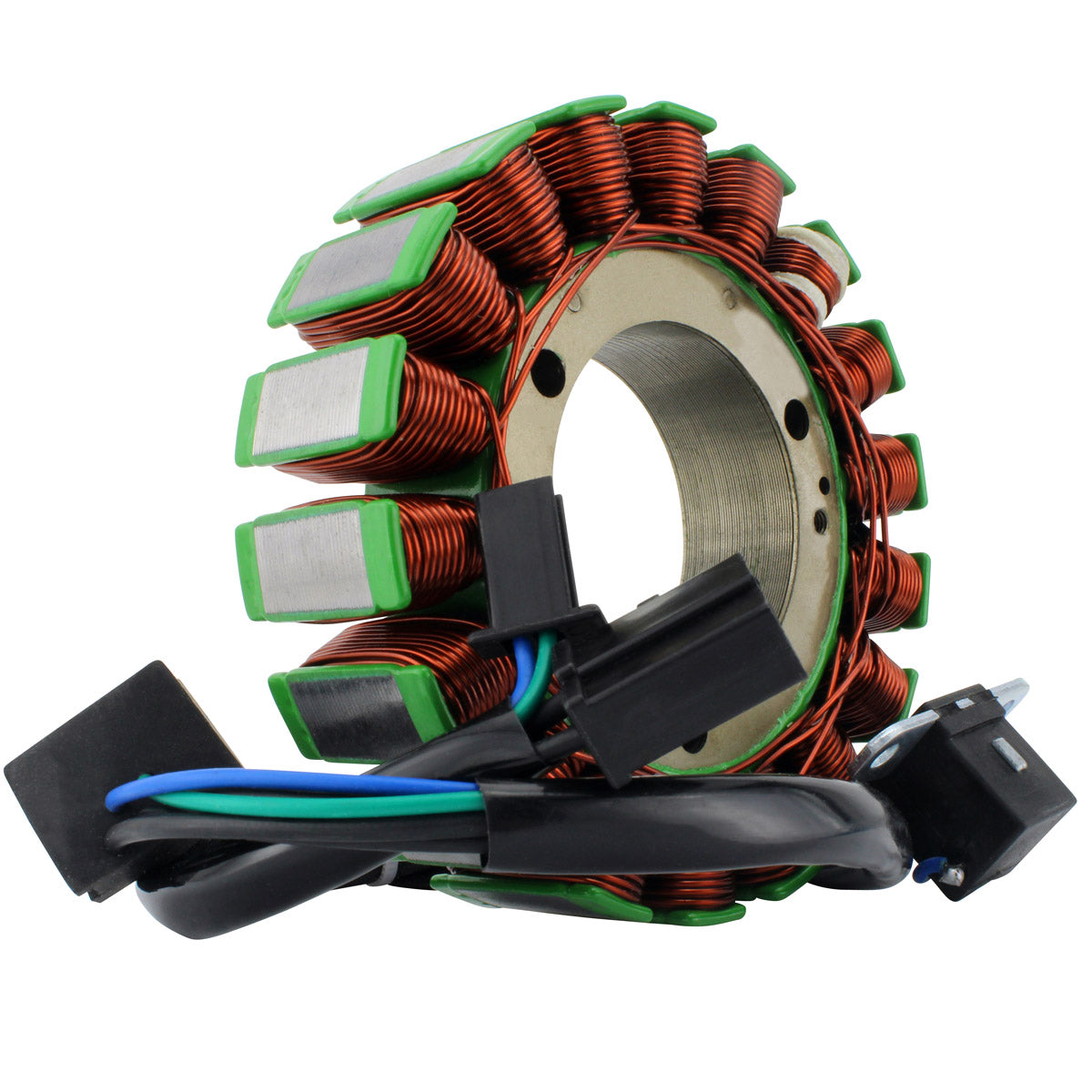

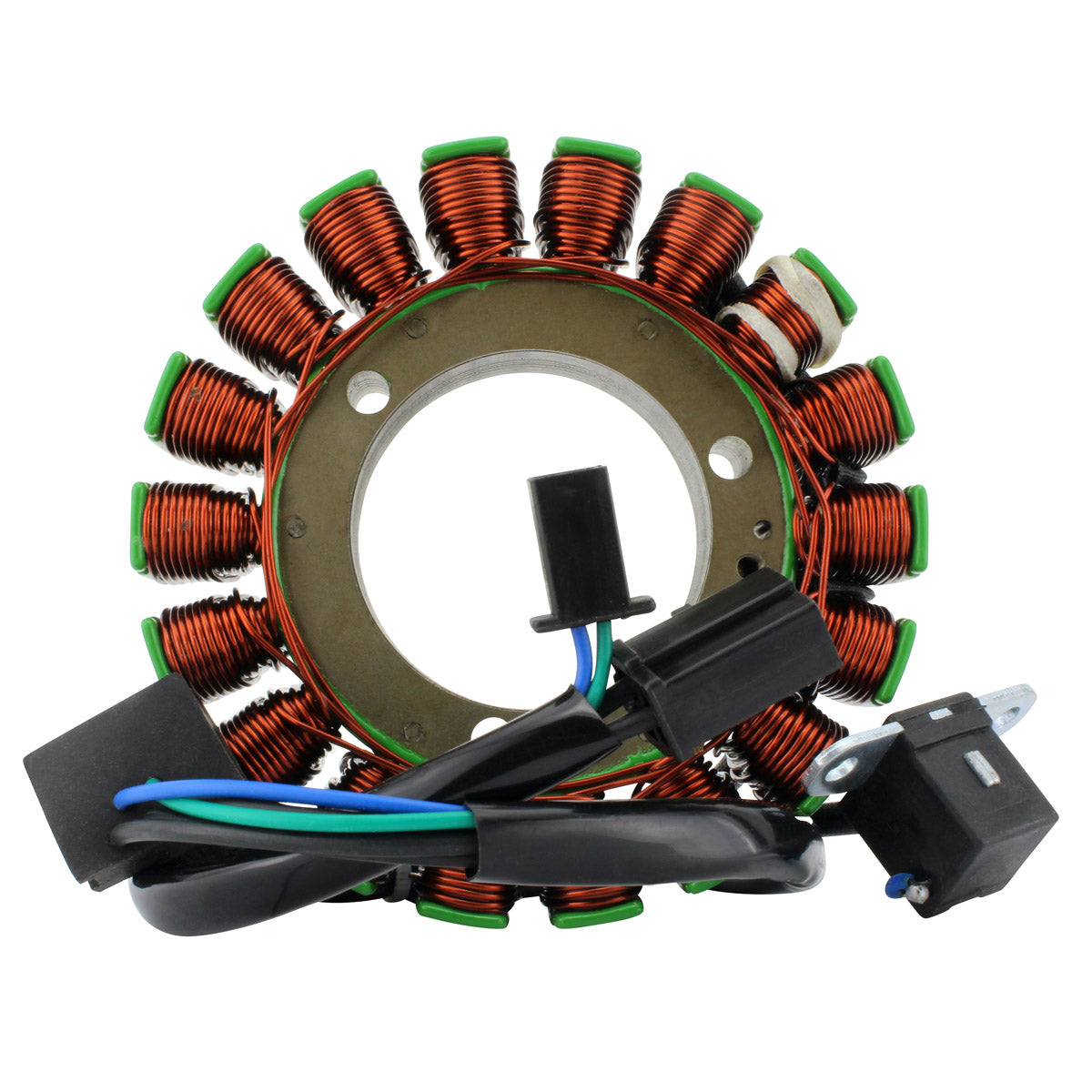

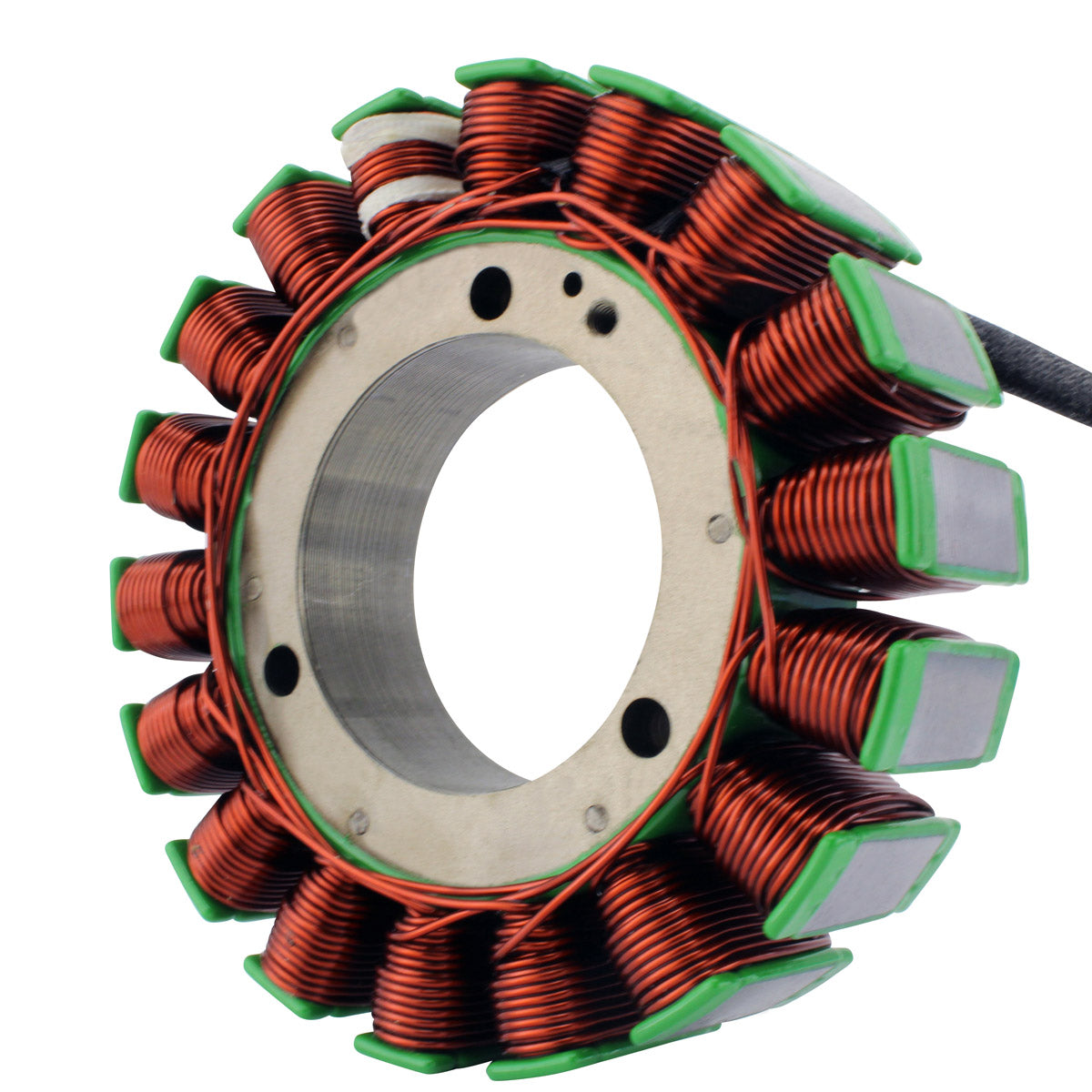

This is a brand new aftermarket generator stator for the Suzuki V-Strom DL 1000, supplied as a direct replacement for the original unit. It is plug-and-play and a direct fit: the 18-pole core, the two plugs and the long 430 mm lead from the grommet to the plug all match the factory part, so the stator mounts into the generator cover and plugs into the standard harness without modification.
Construction is the highest grade of lamination material with the highest grade of copper winding, resistant to 200 degrees Celsius - an important margin on a large V-twin where the generator cover runs hot. The pick-up pulsar coil, the connectors and the rubber grommet are included, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a repaired or rewound core
- Direct replacement for the original unit - plug and play, direct fit

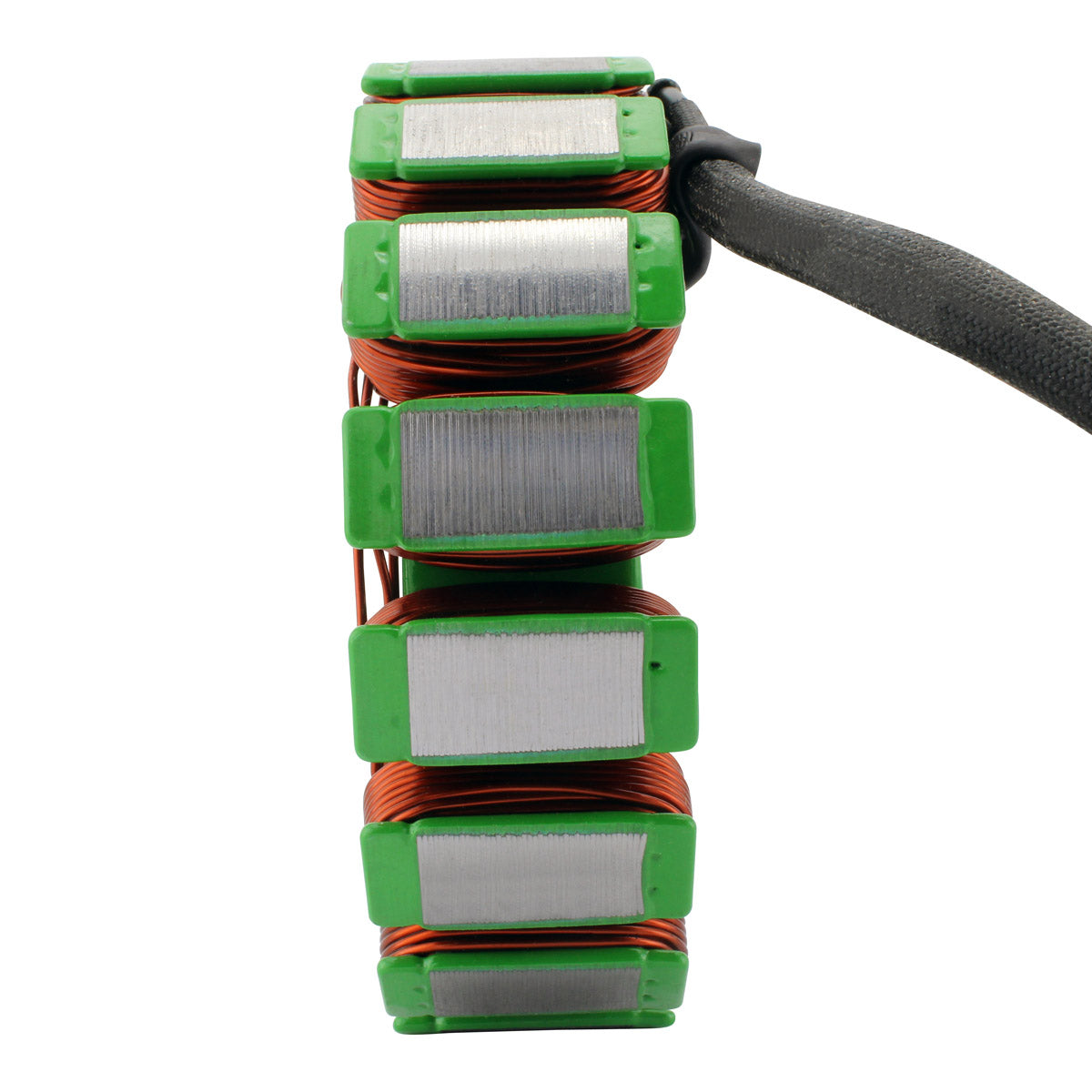

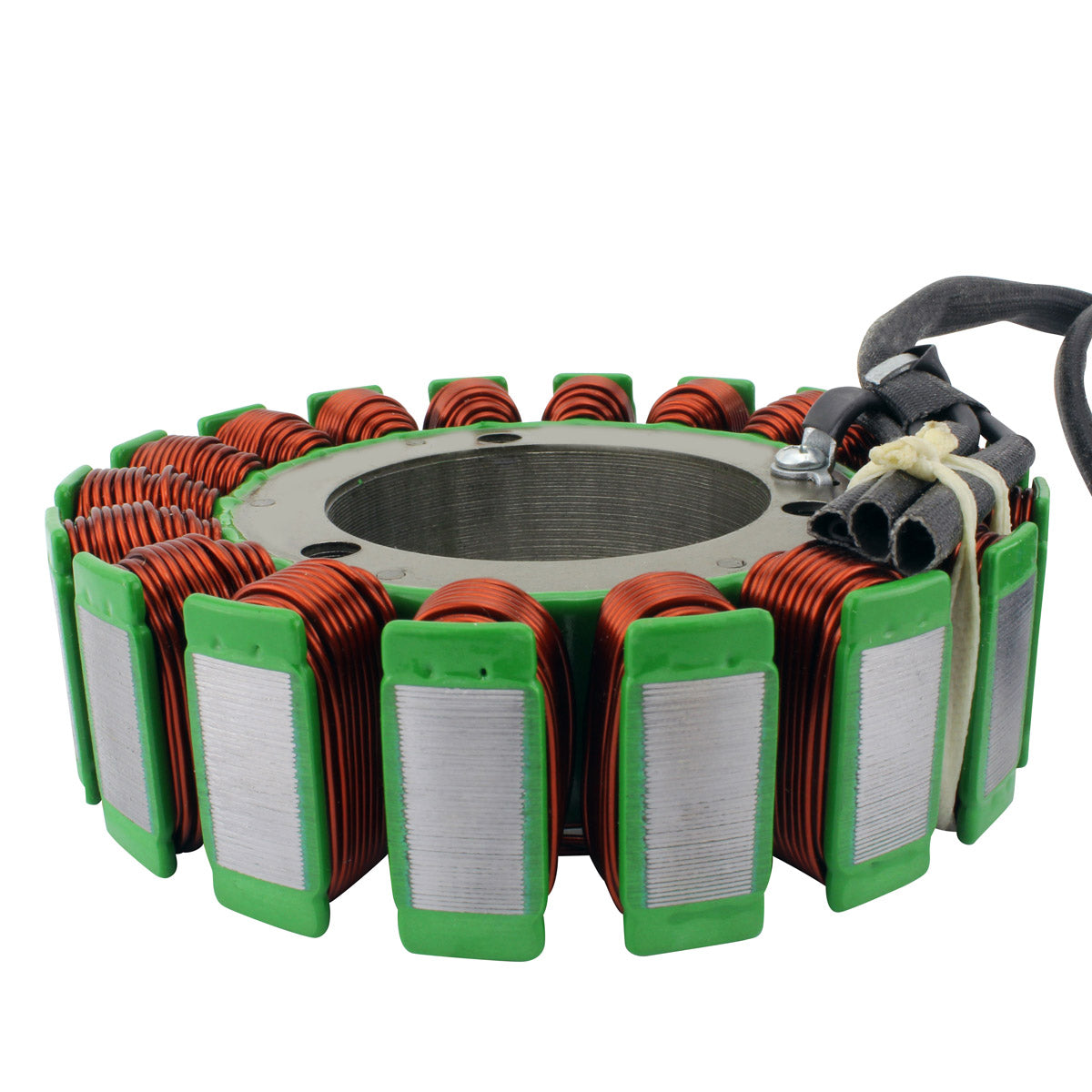

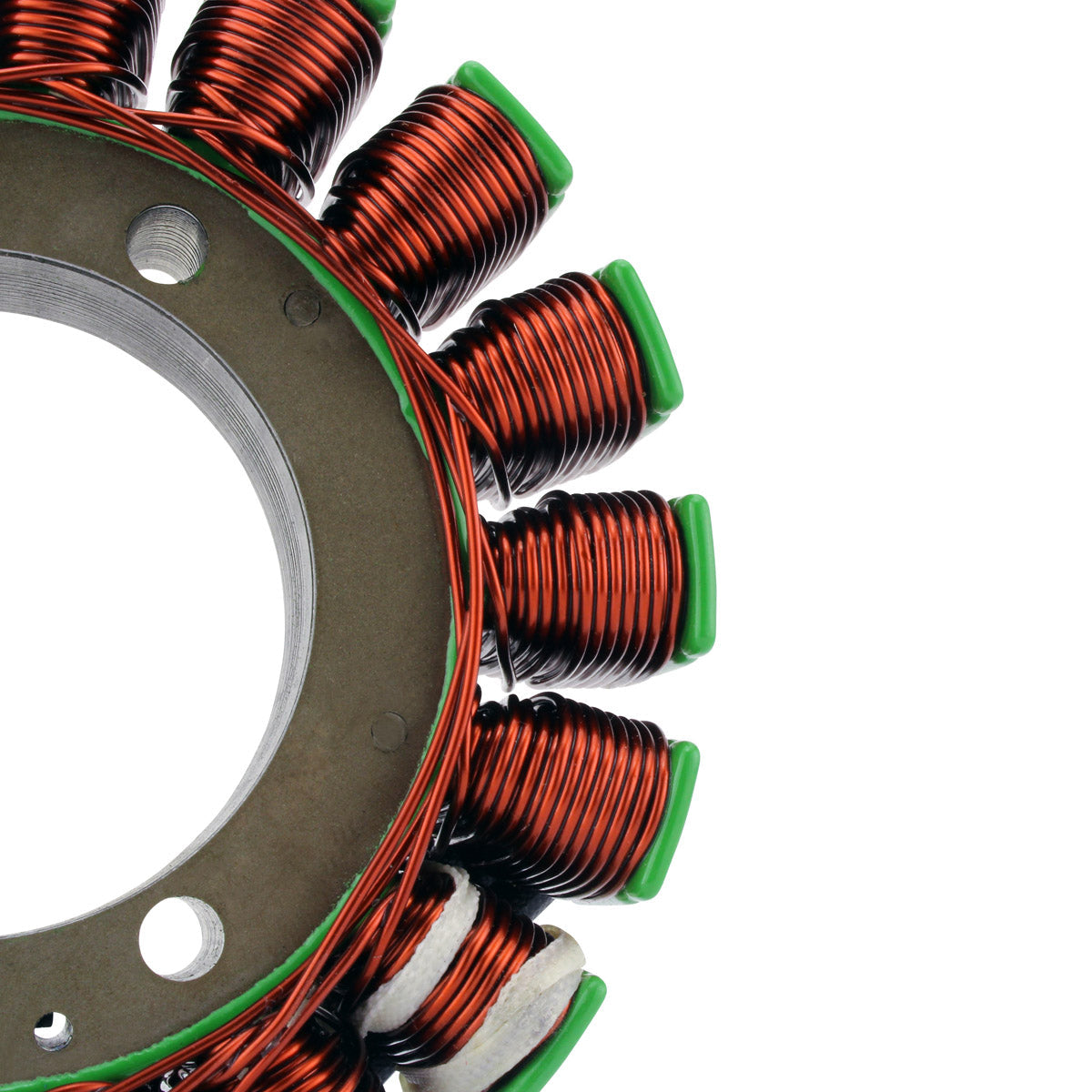

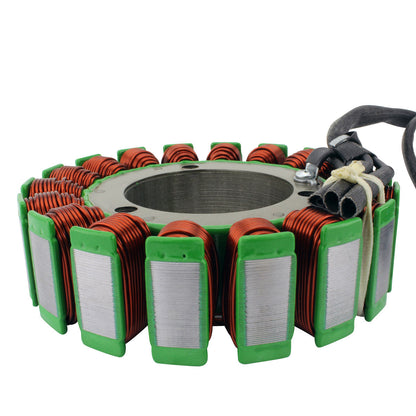

- Highest grade lamination materials for stable magnetic performance
- Highest grade copper winding, resistant to 200 degrees Celsius

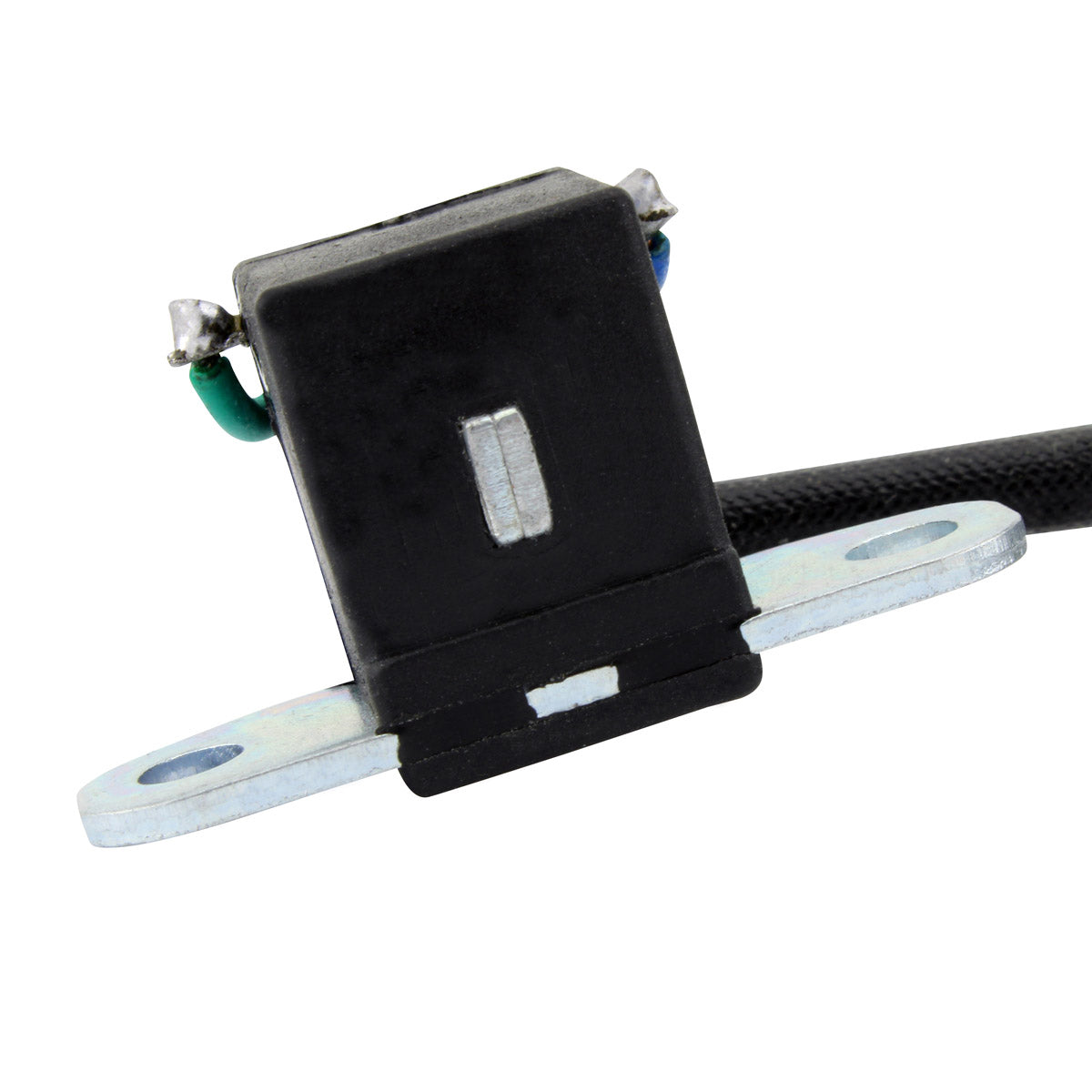

- Pick-up pulsar coil included

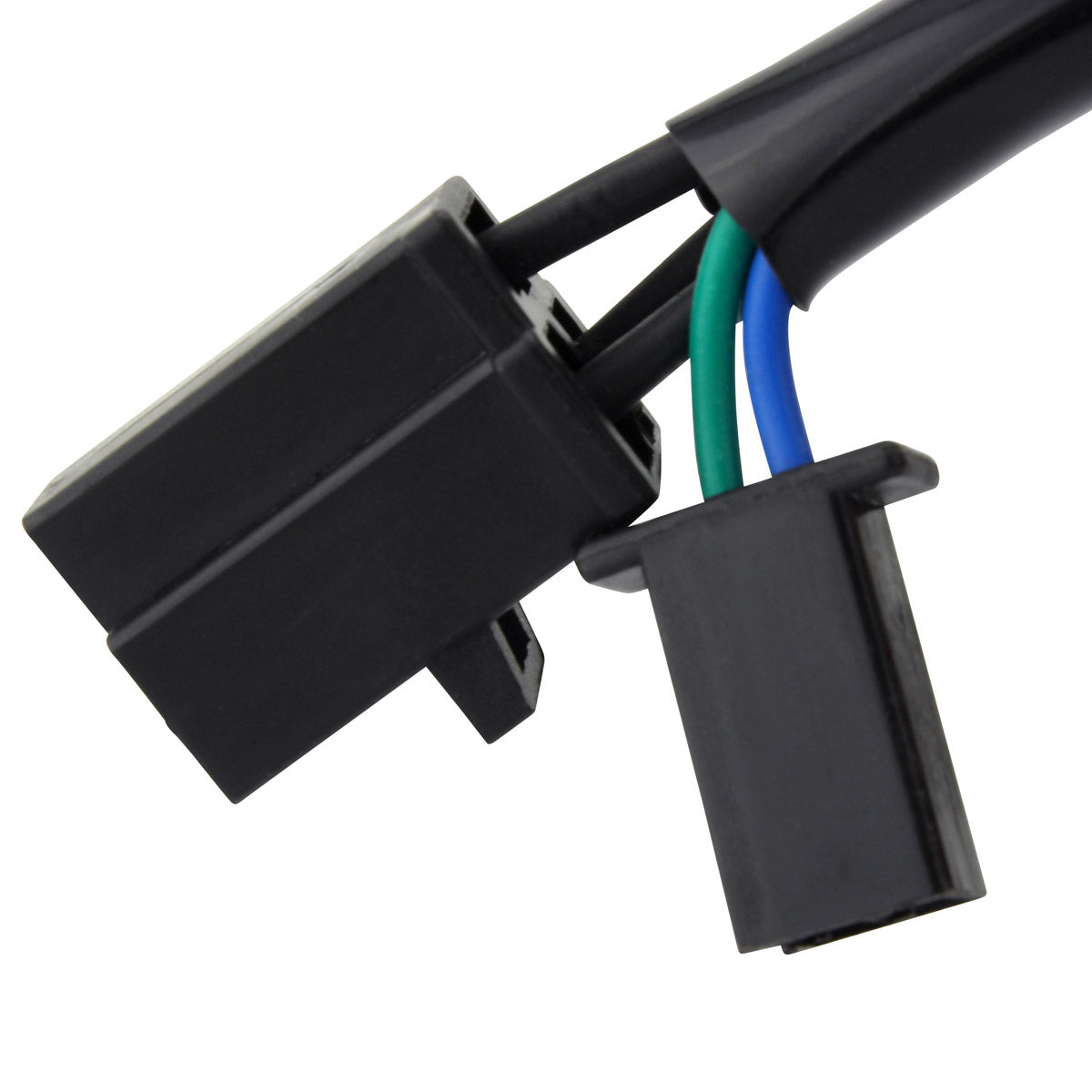

- Connectors included

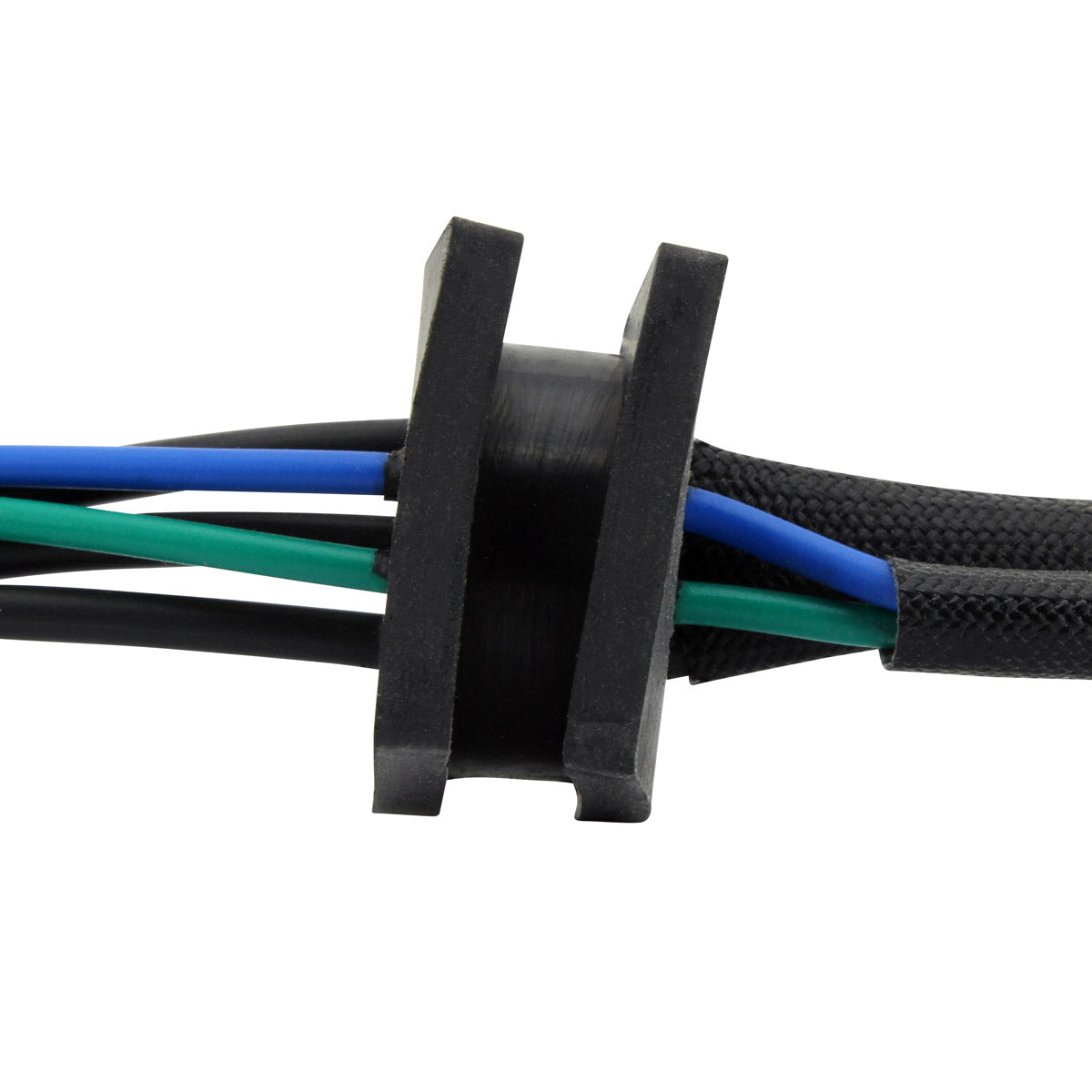

- Rubber grommet included
- Every unit is tested before it is shipped

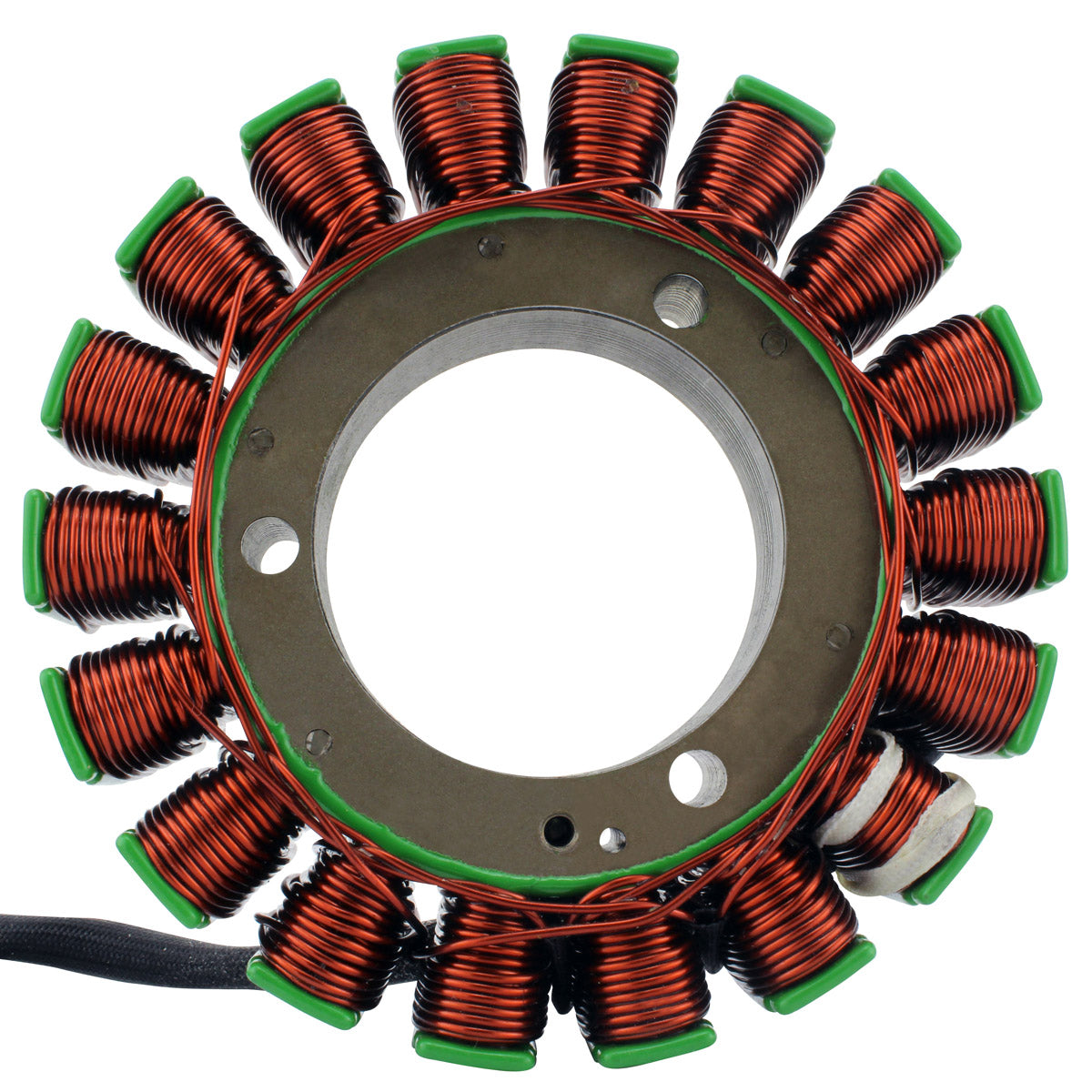

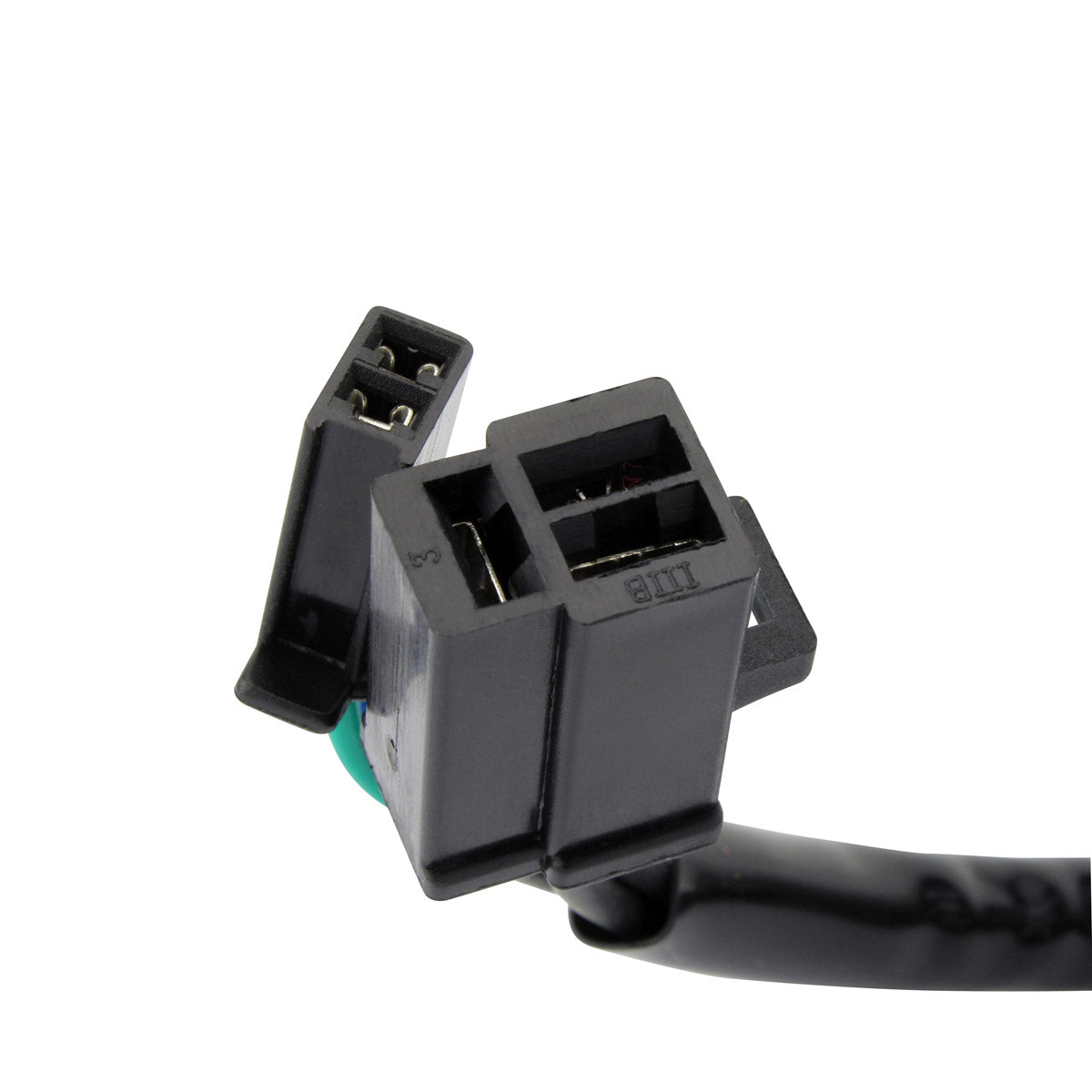

- 18-pole core with 5 wires across 2 plugs
Technical Specs
| Specification |
Detail |
| SKU |
RMS010-107577 |
| Interior diameter |
54 mm |
| Exterior diameter |
119 mm |
| Thickness |
25 mm |
| Wire length (stator to grommet) |
160 mm |
| Wire length (grommet to plug) |
430 mm |
| Pick-up coil wire to grommet |
150 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance (Black to Black) |
0.6 ohms +/-20% |
| Pick-up resistance (Blue to Green) |
193 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki V-Strom / DL 1000 |
2002-2009 |
| Suzuki V-Strom / DL 1000 |
2012 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-06G00 |
Suzuki |
| 32101-06G10 |
Suzuki |
| 32101-06G11 |
Suzuki |
Frequently Asked Questions
Will this fit my bike without modification?
Yes. It is a direct, plug-and-play replacement for the original Suzuki stator on the V-Strom DL 1000 for the years listed above. The connectors and mounting points match the factory unit, so the loom does not need to be cut or spliced.
What is included?
The stator assembly with its integrated pick-up coil, the connectors and the rubber grommet.
How do I know my old stator has failed?
Typical symptoms on the DL 1000 are a battery that keeps discharging, charging voltage that will not rise at revs, or the bike cutting out once the battery is drained. Confirm with a multimeter: the alternator legs should read about 0.6 ohms Black to Black and the pick-up about 193 ohms Blue to Green, each within plus or minus 20 percent. Any leg reading open circuit, or showing continuity to the stator core, means the stator has failed.
Which Suzuki part numbers does this replace?
It cross references to Suzuki 32101-06G00, 32101-06G10 and 32101-06G11. Check the number stamped or listed for your original unit before ordering.
