This is a brand new aftermarket generator stator, built as a direct replacement for the original charging unit fitted to the Yamaha FZ6 R and XJ 600, sold as the FZ6R, XJ600 and XJ6, from 2009 to 2017. It is a plug-and-play, direct fit part, so the standard loom does not need to be cut, spliced or modified in order to install it.

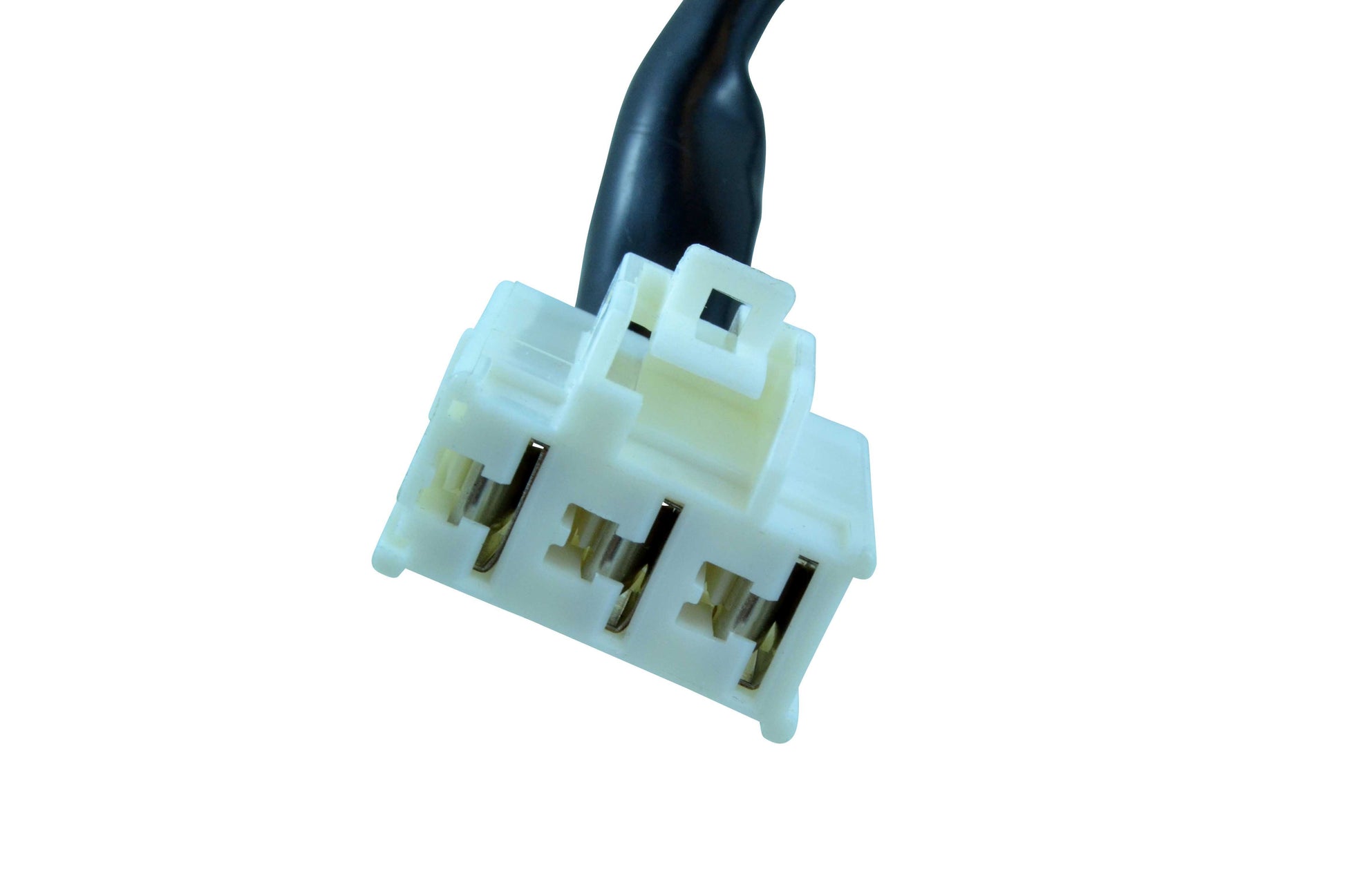

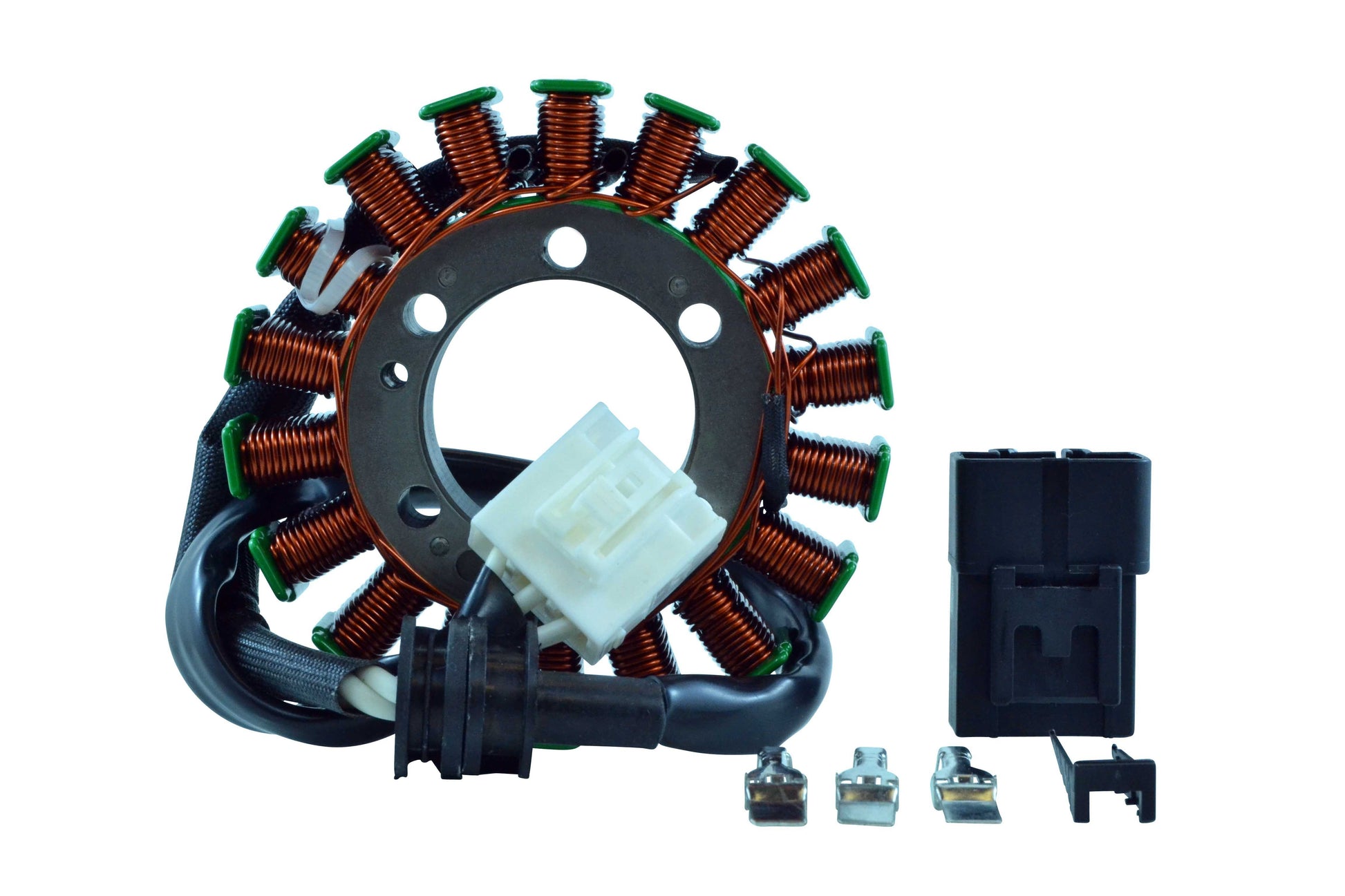

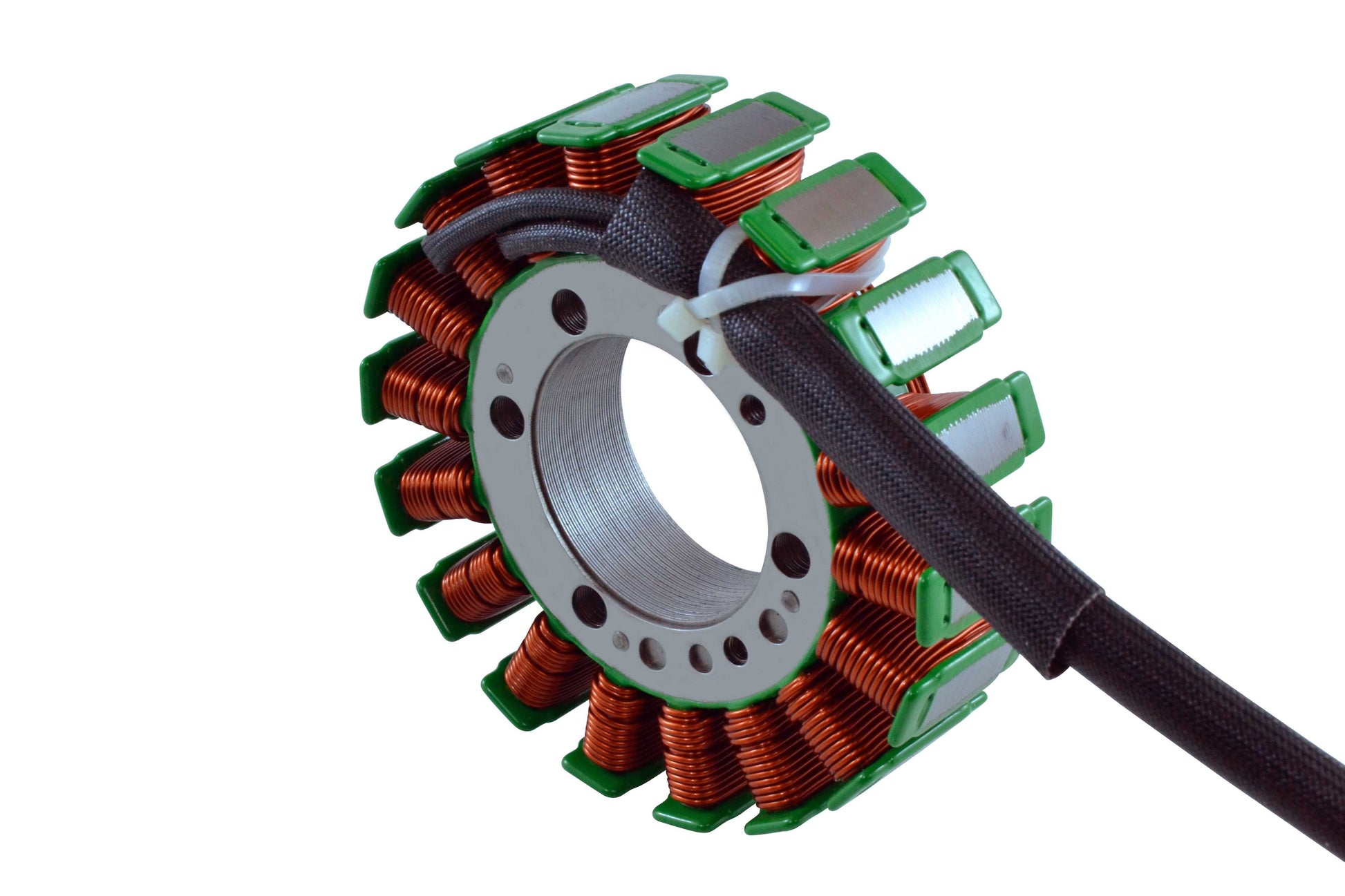

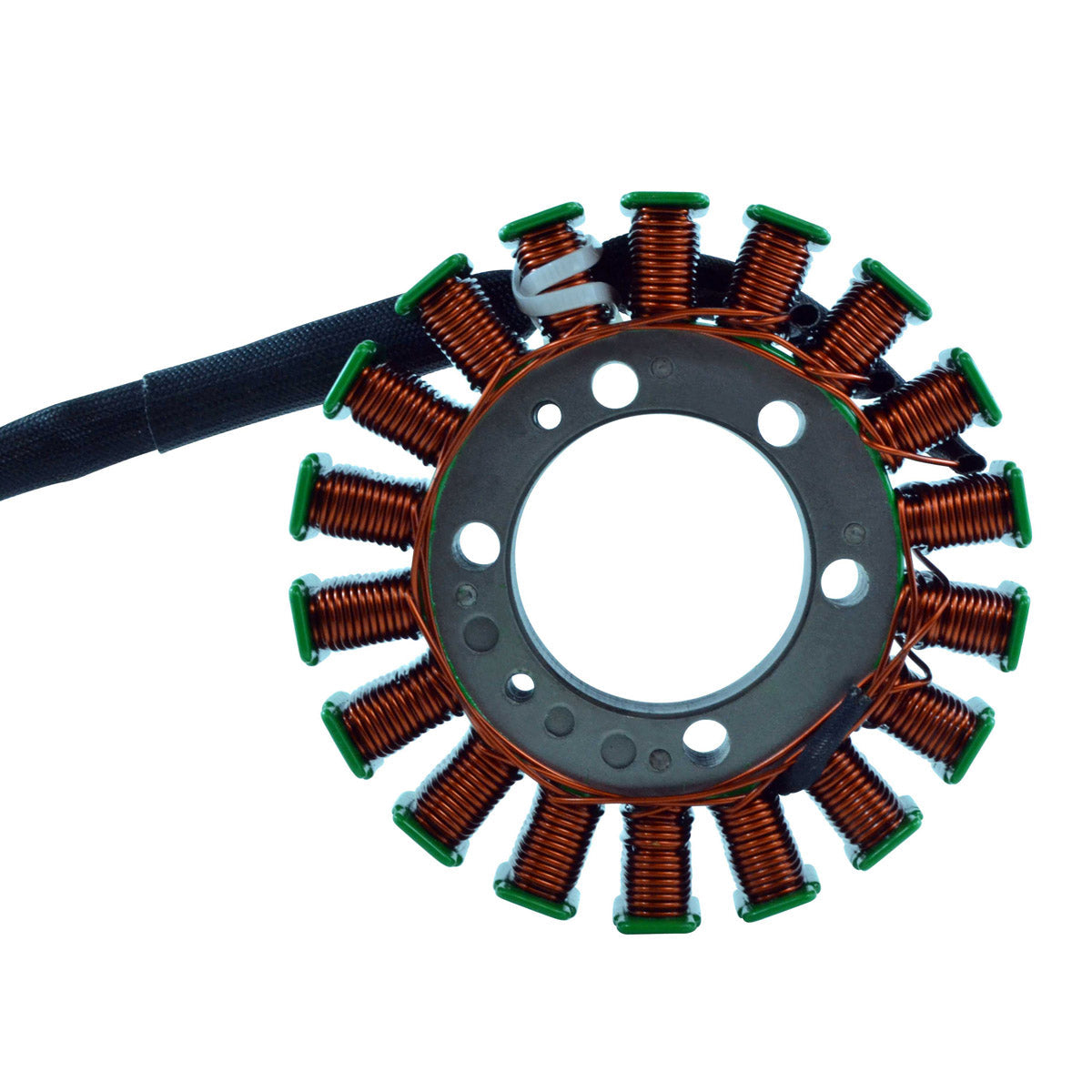

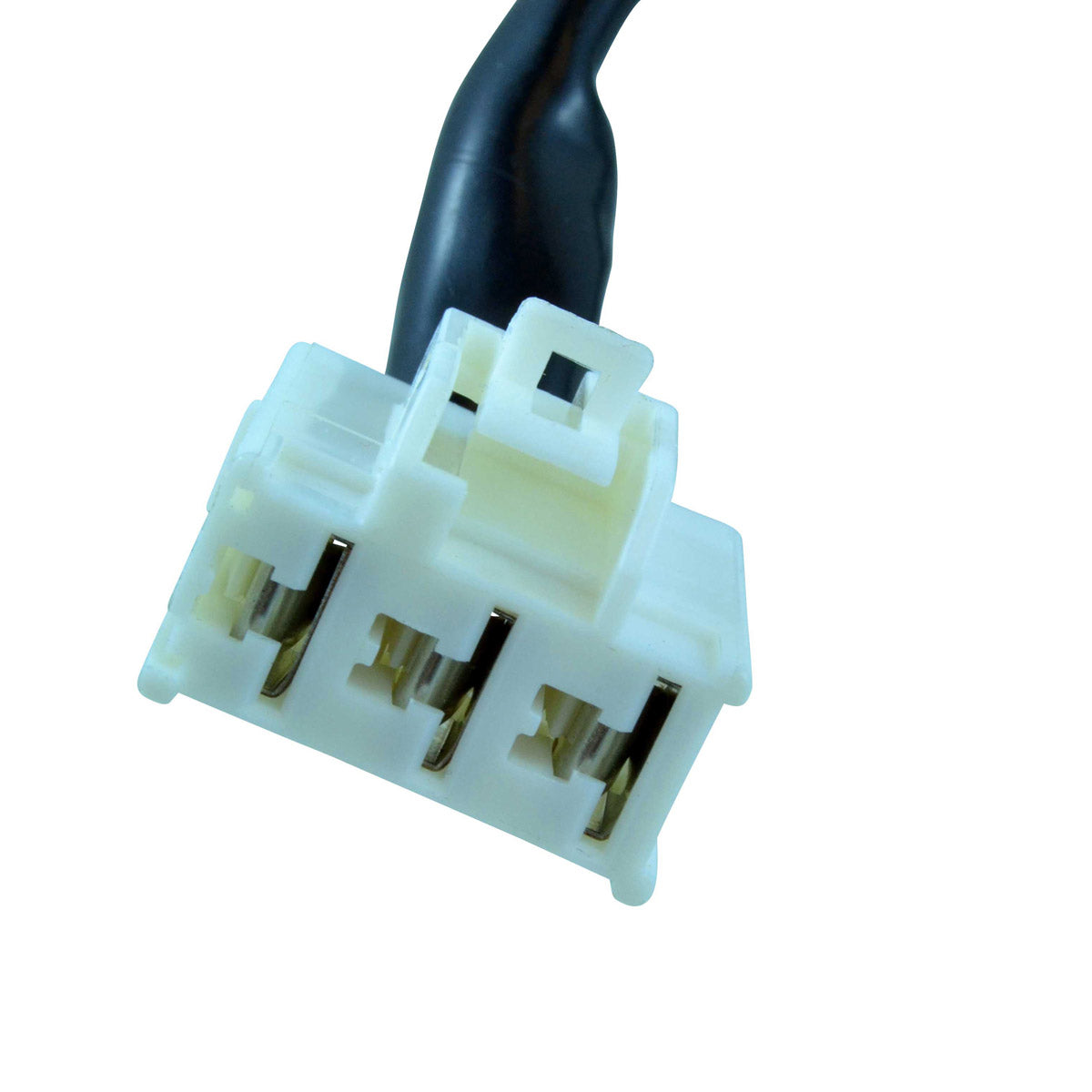

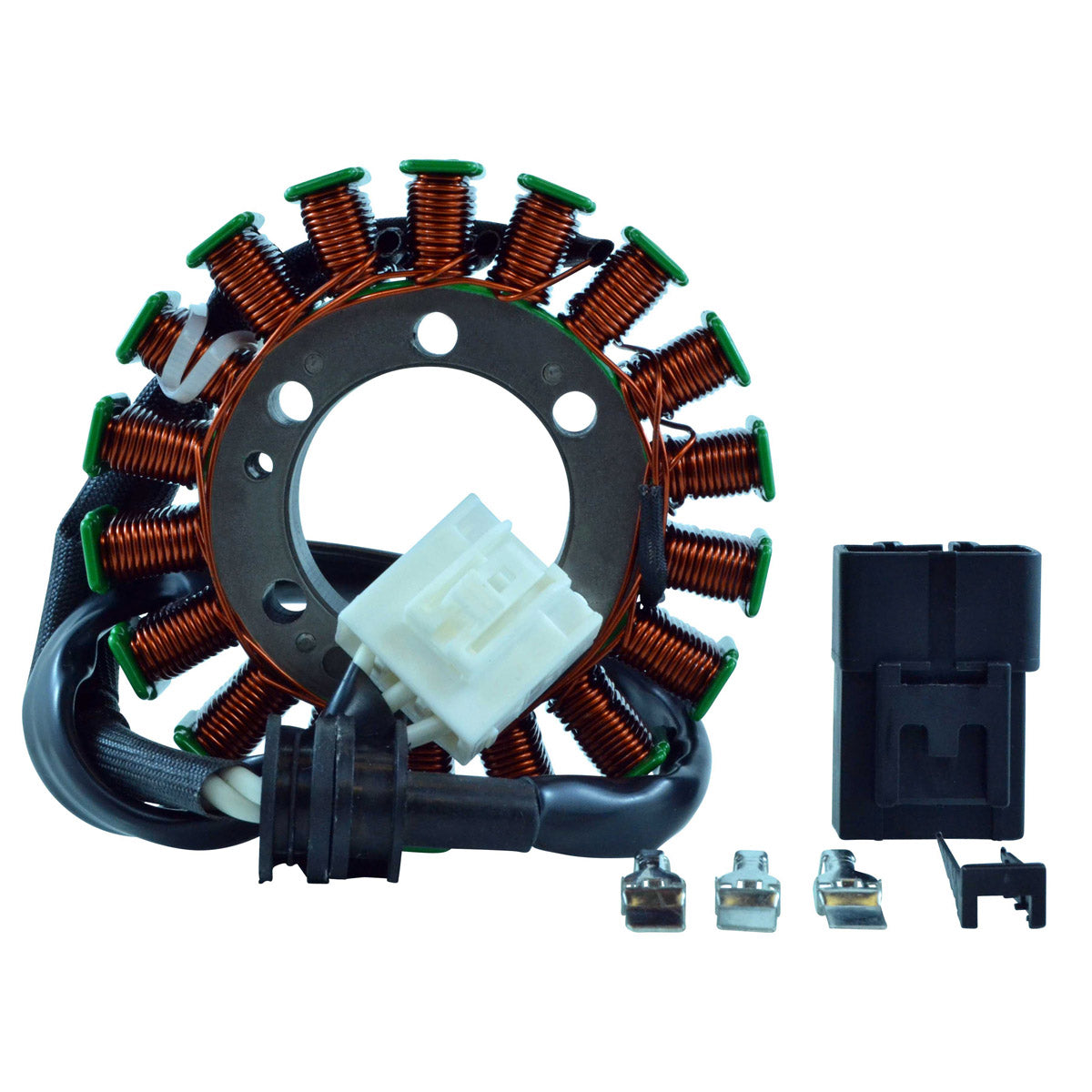

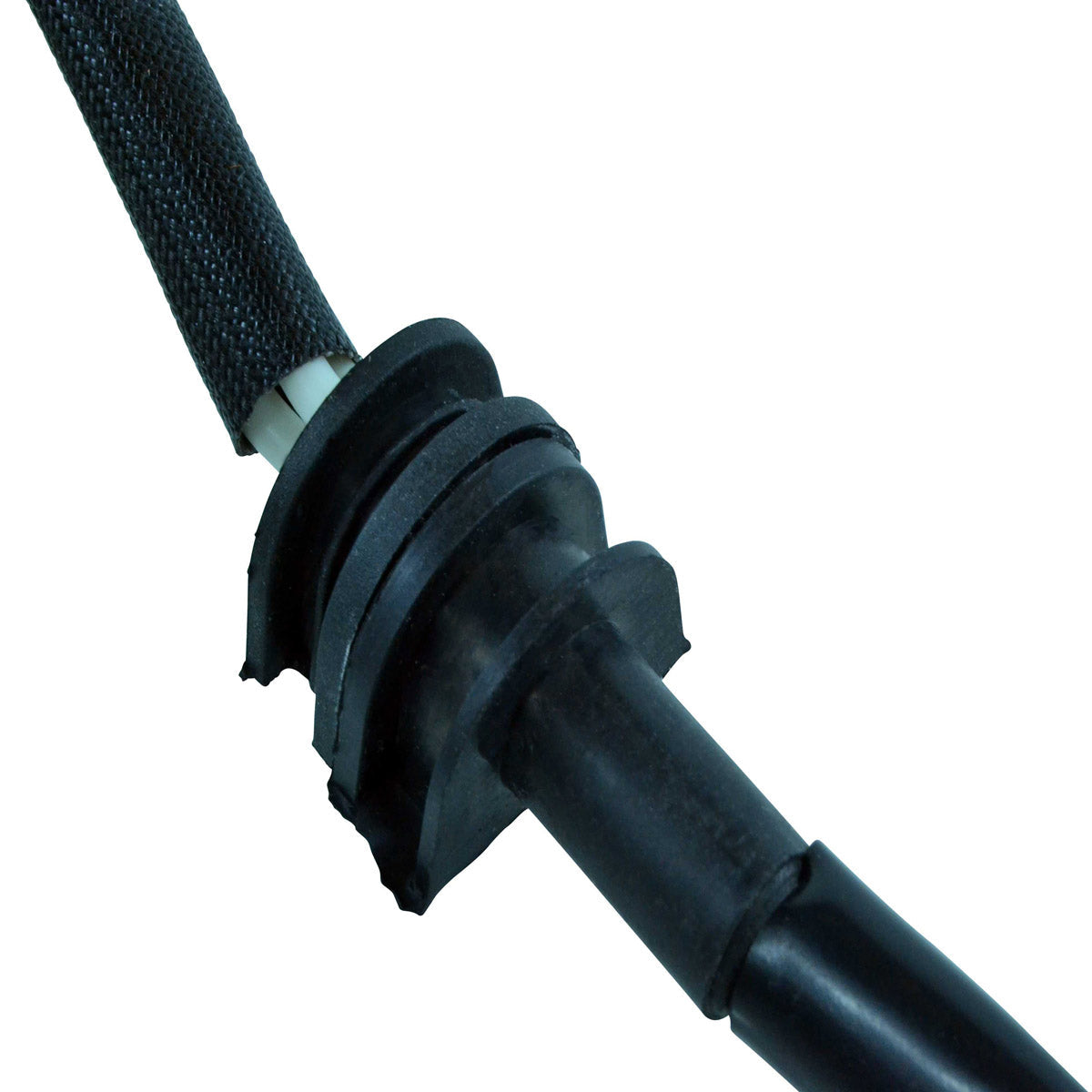

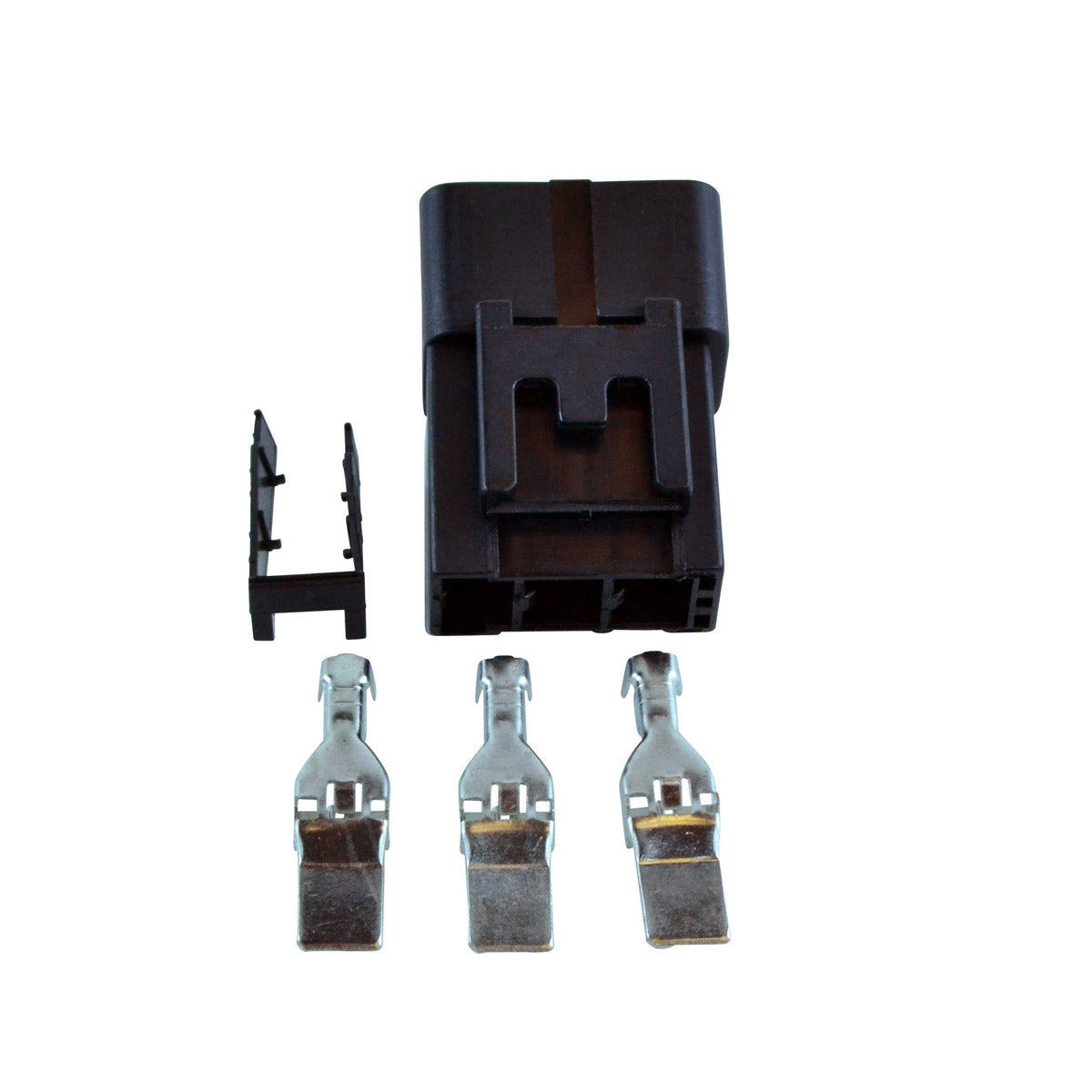

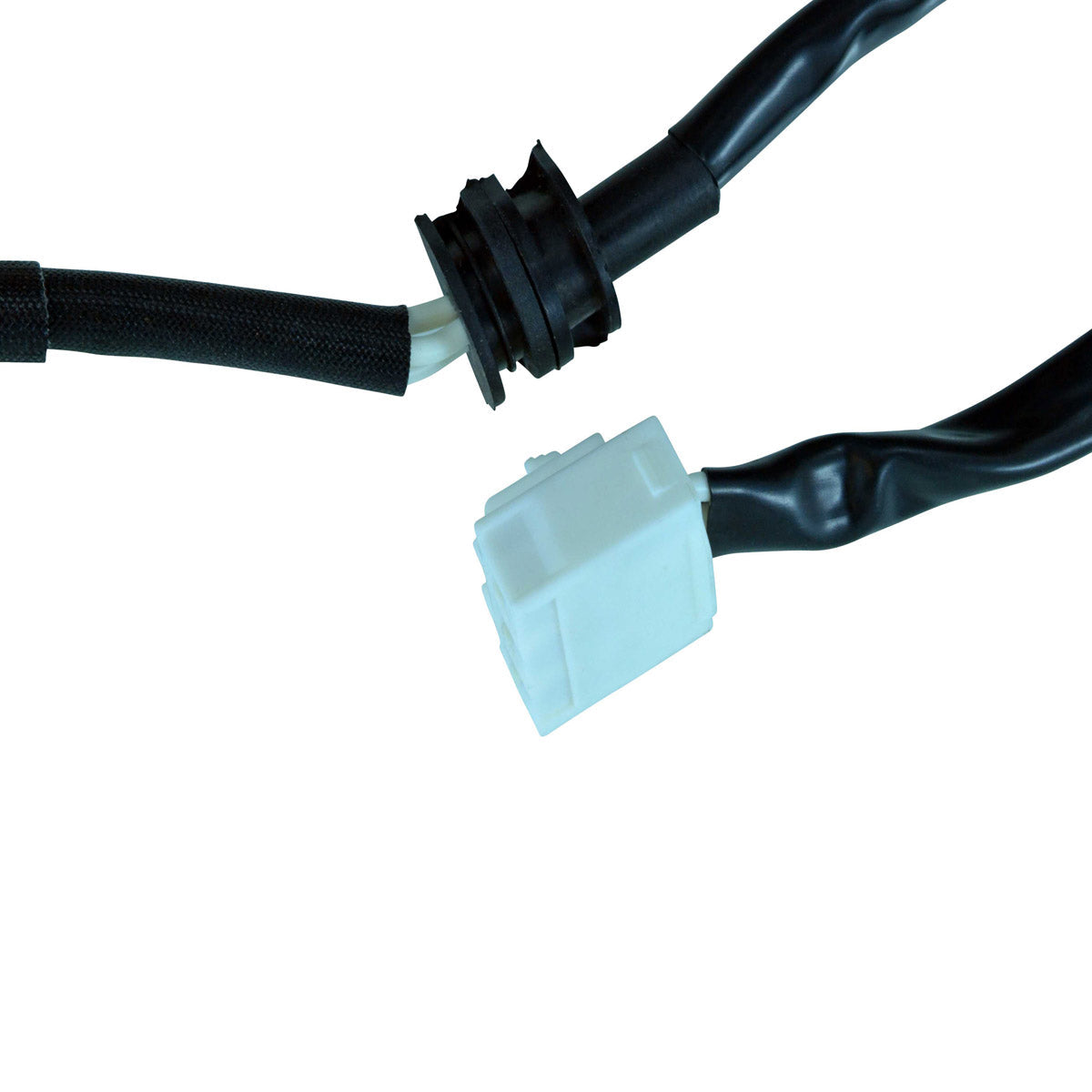

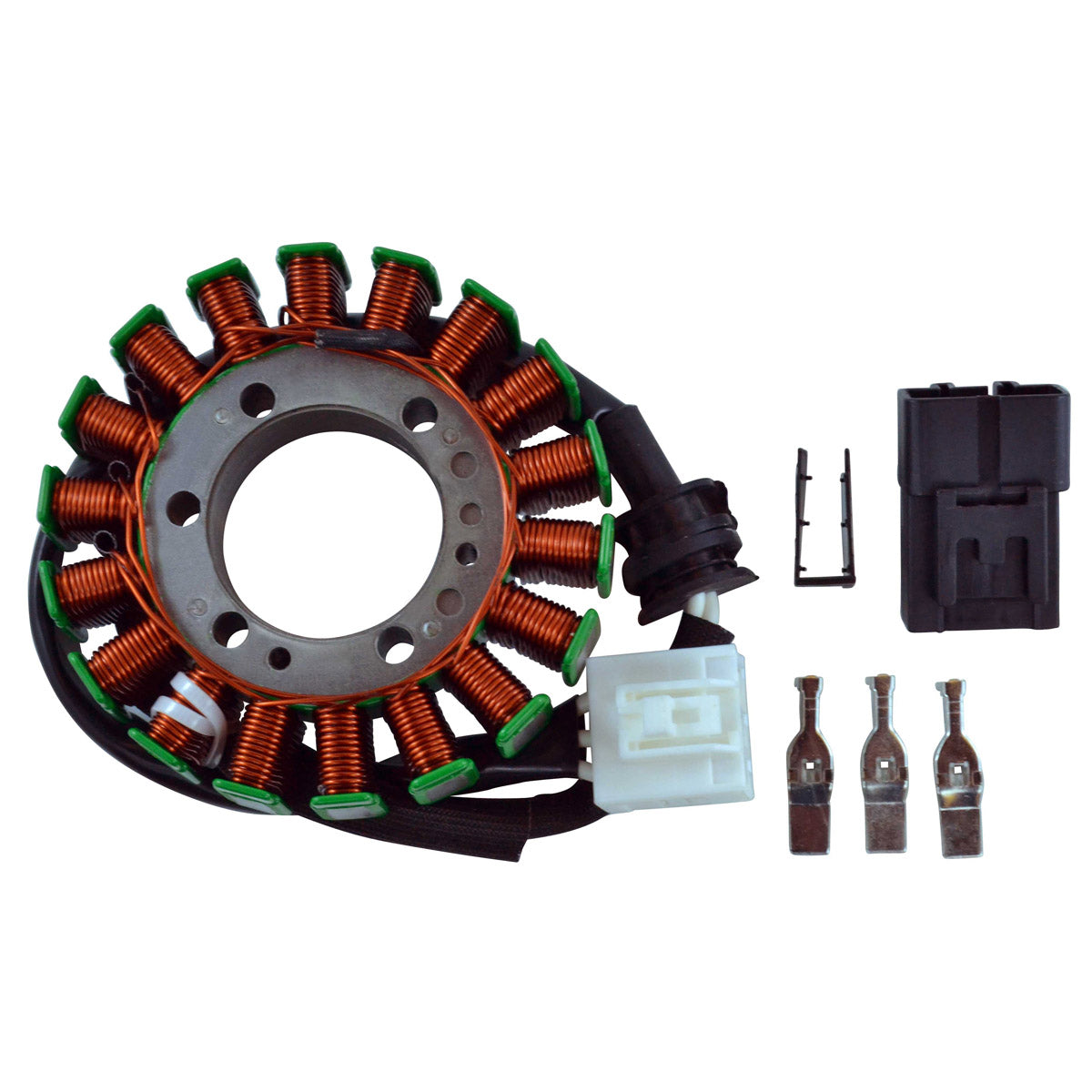

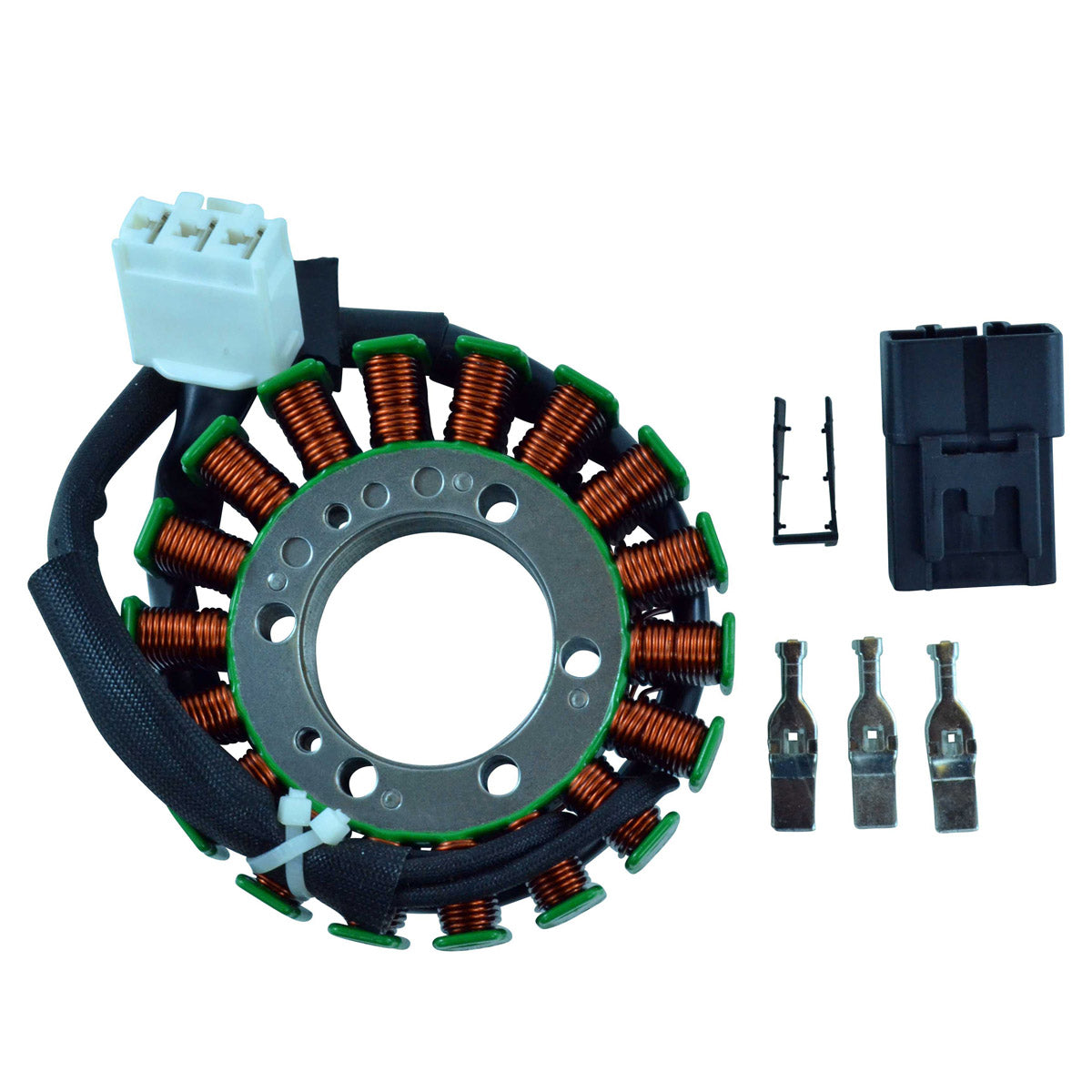

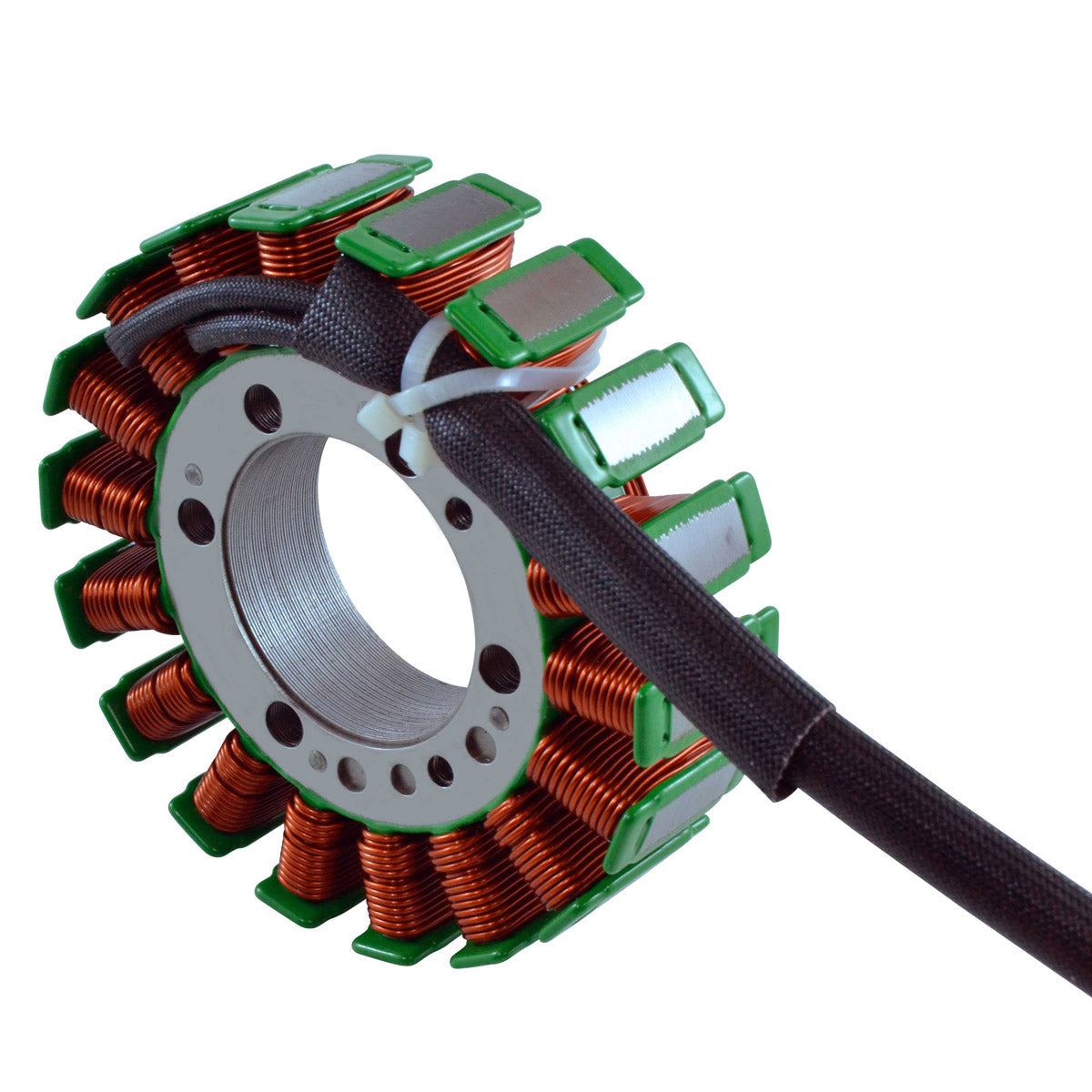

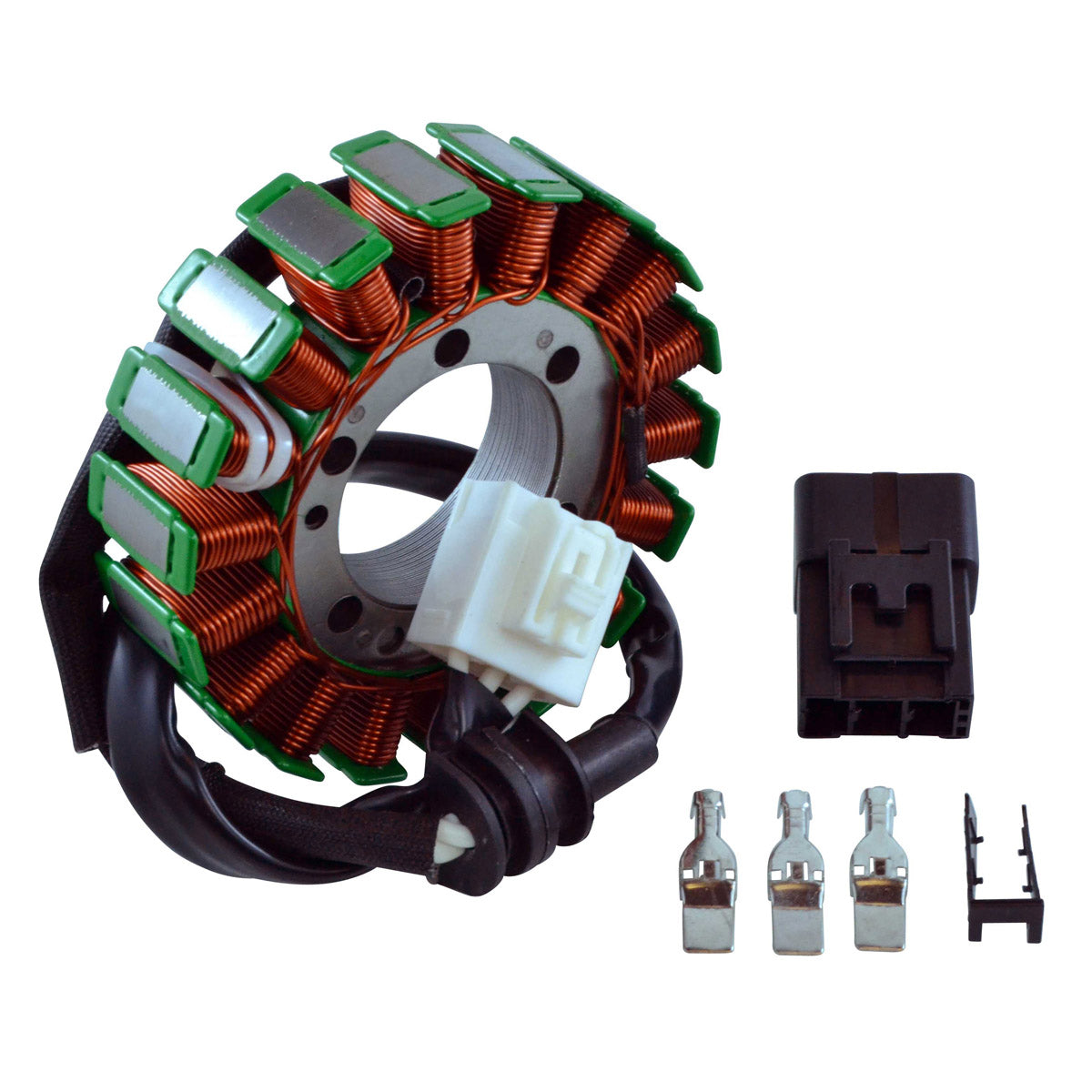

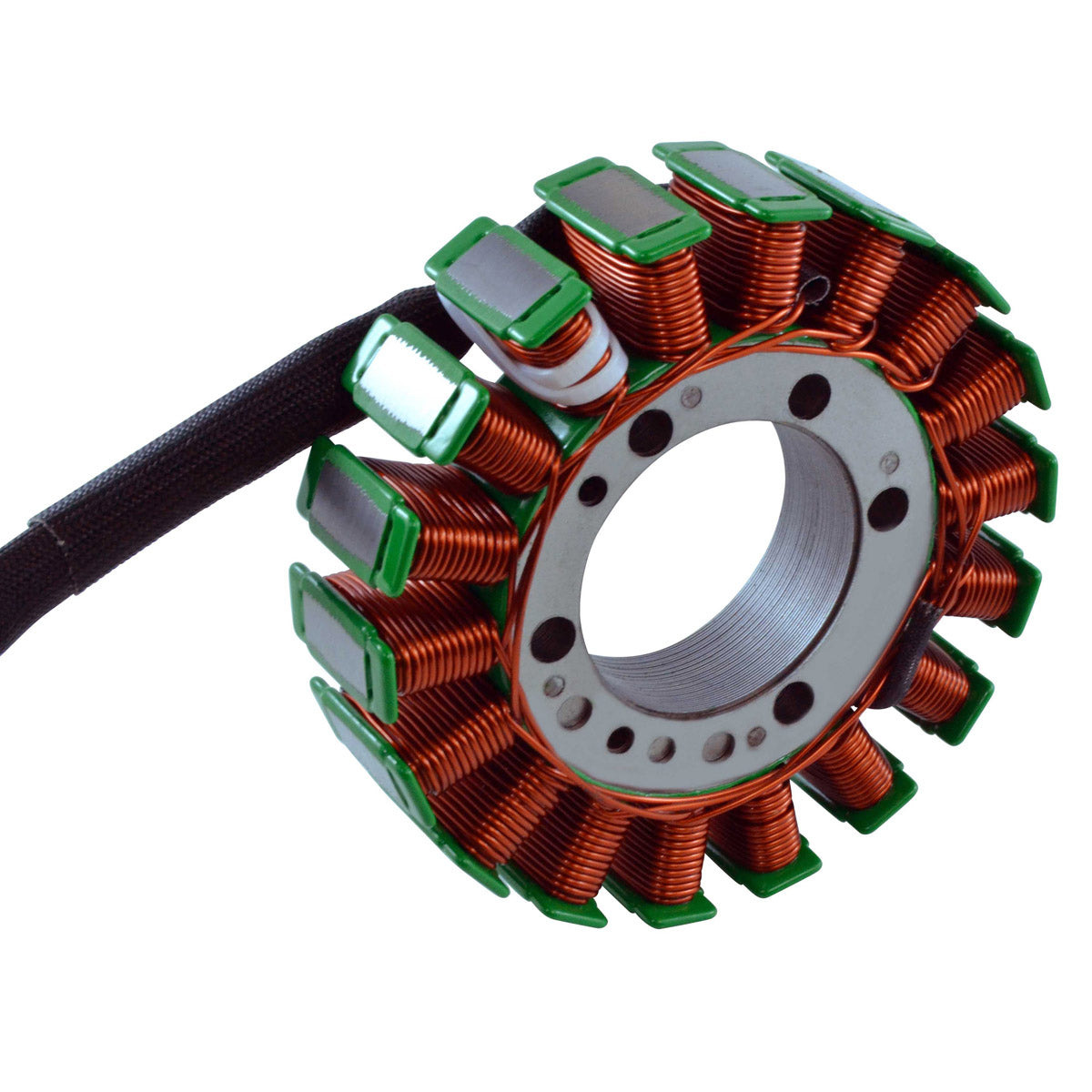

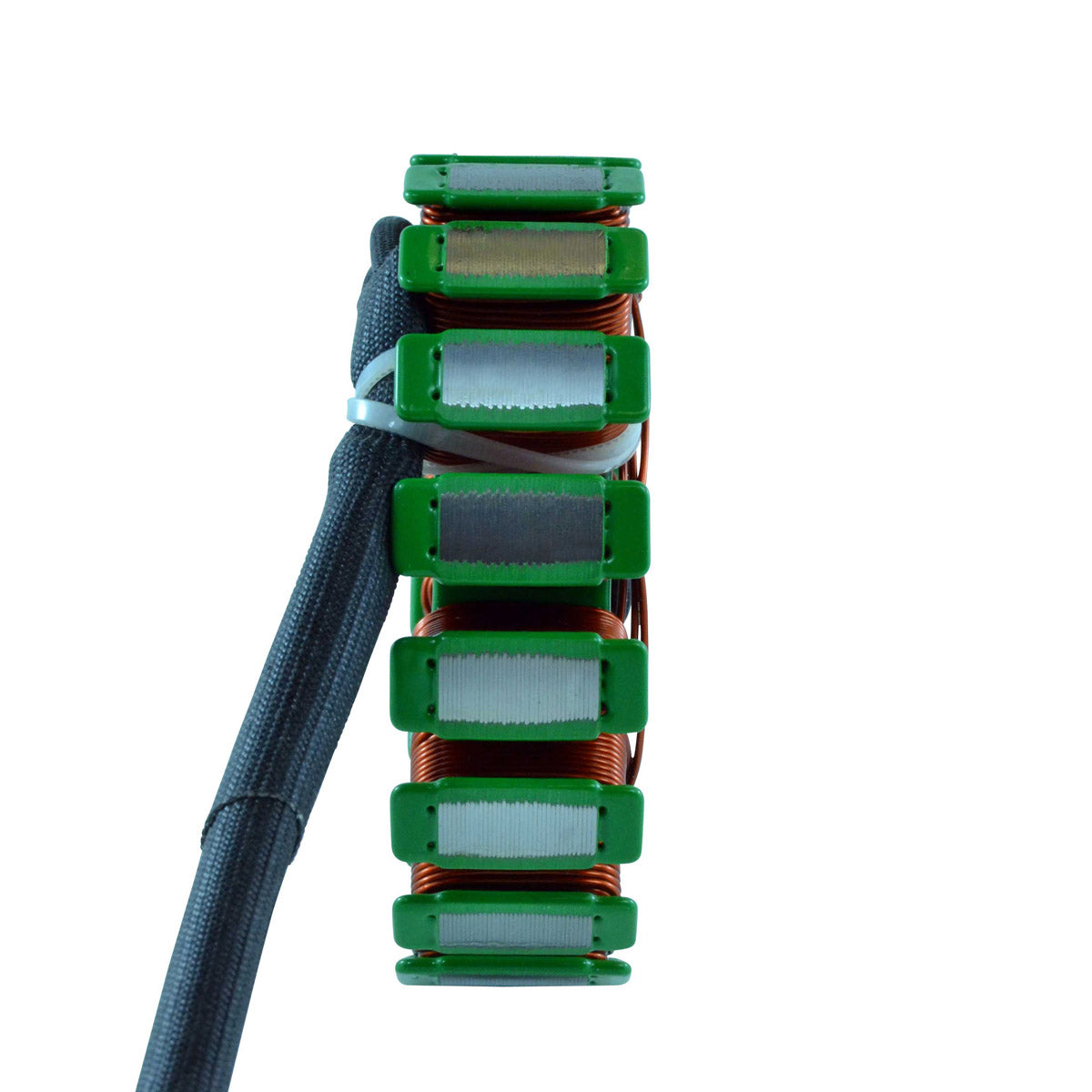

The unit is an eighteen-pole stator wound with the highest grade of copper winding, rated to resist 200 degrees Celsius, on the highest grade of lamination materials. Three white output wires run to a single three-pin plug, matching the original arrangement. The stator is supplied with its connector and rubber grommet already fitted, and an additional opposite connector for the main harness side is included in the box, since these connectors commonly suffer from melting and corrosion and are best renewed at the same time as the stator itself.
Key Features
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Eighteen-pole winding, three white wires to a single three-pin plug
- Highest grade copper windings, resistant to 200 degrees Celsius
- Highest grade lamination materials
- Supplied with connector and rubber grommet fitted
- Additional opposite connector for the main harness side included
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
105 mm |
| Thickness |
31 mm |
| Wire length, stator to grommet |
122 mm |
| Wire length, grommet to plug |
285 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
18 |
| Alternator resistance, white to white |
0.4 ohms, plus or minus 20% |
| Winding temperature rating |
200 degrees Celsius |
| Part number |
RMS010-104664 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha FZ6 R (FZ6R) |
2009-2017 |
| Yamaha XJ 600 (XJ600 / XJ6) |
2009-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 20S-81410-00-00 |
Yamaha |
Frequently Asked Questions
Will it fit without modifying the wiring?
Yes. This is a direct fit, plug-and-play replacement that uses the same three-wire, three-pin plug as the original Yamaha stator, so the standard loom is left untouched.
What is included in the box?
The stator with its connector and rubber grommet fitted, plus an additional opposite connector for the main harness side.
How can I confirm my old stator has failed?
Unplug the three-pin connector and measure between each pair of white wires. Each pair should read about 0.4 ohms, within roughly 20%. An open circuit between any pair, or continuity from a white wire to the stator body, means the winding has gone. A battery that keeps going flat despite a good regulator rectifier and a healthy battery is the usual complaint.
Why does the kit include a spare connector?
The harness-side half of the stator plug is a known weak point on these models, as it is often melted or corroded. Fitting the supplied opposite connector at the same time restores a clean, low-resistance joint and helps protect the new stator.
