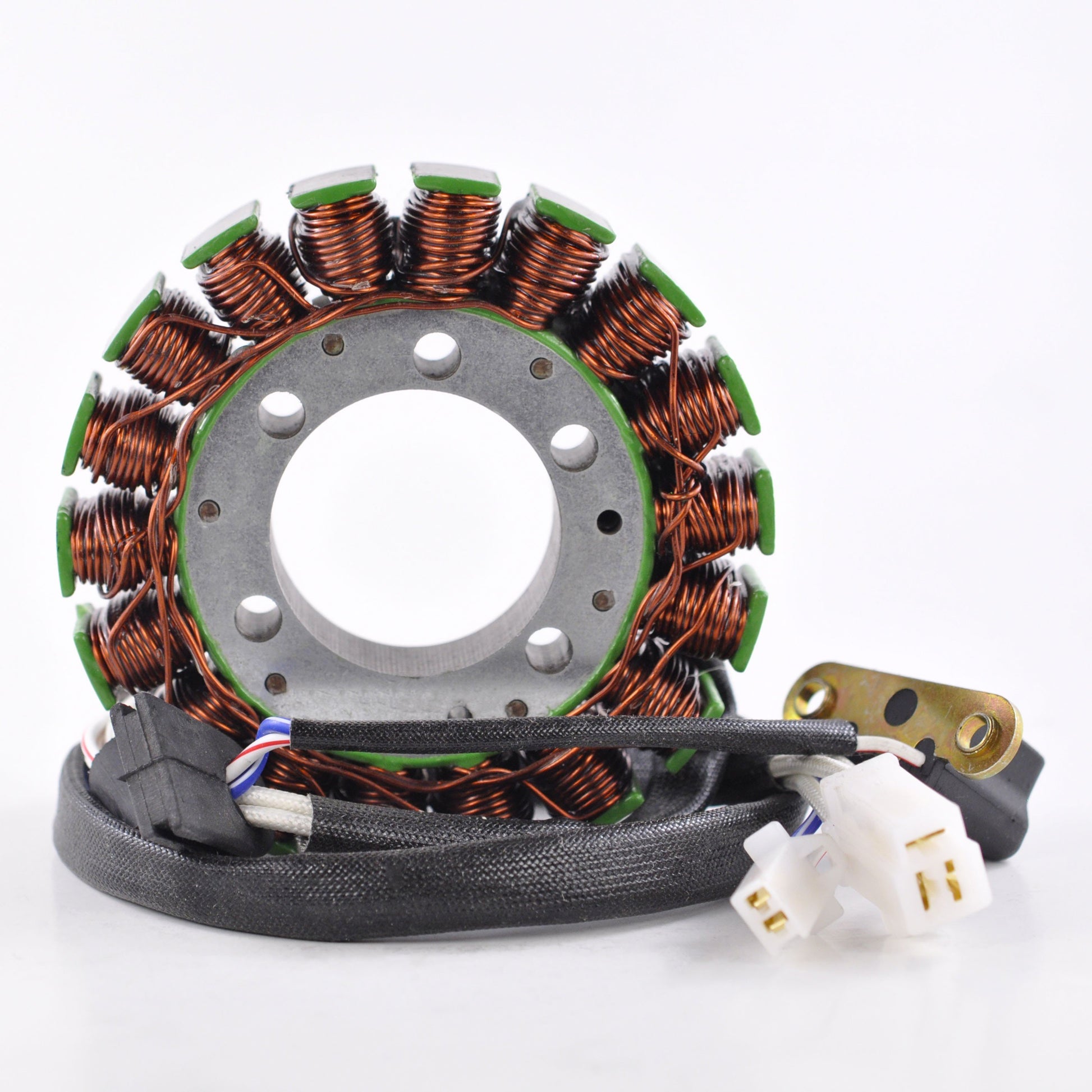

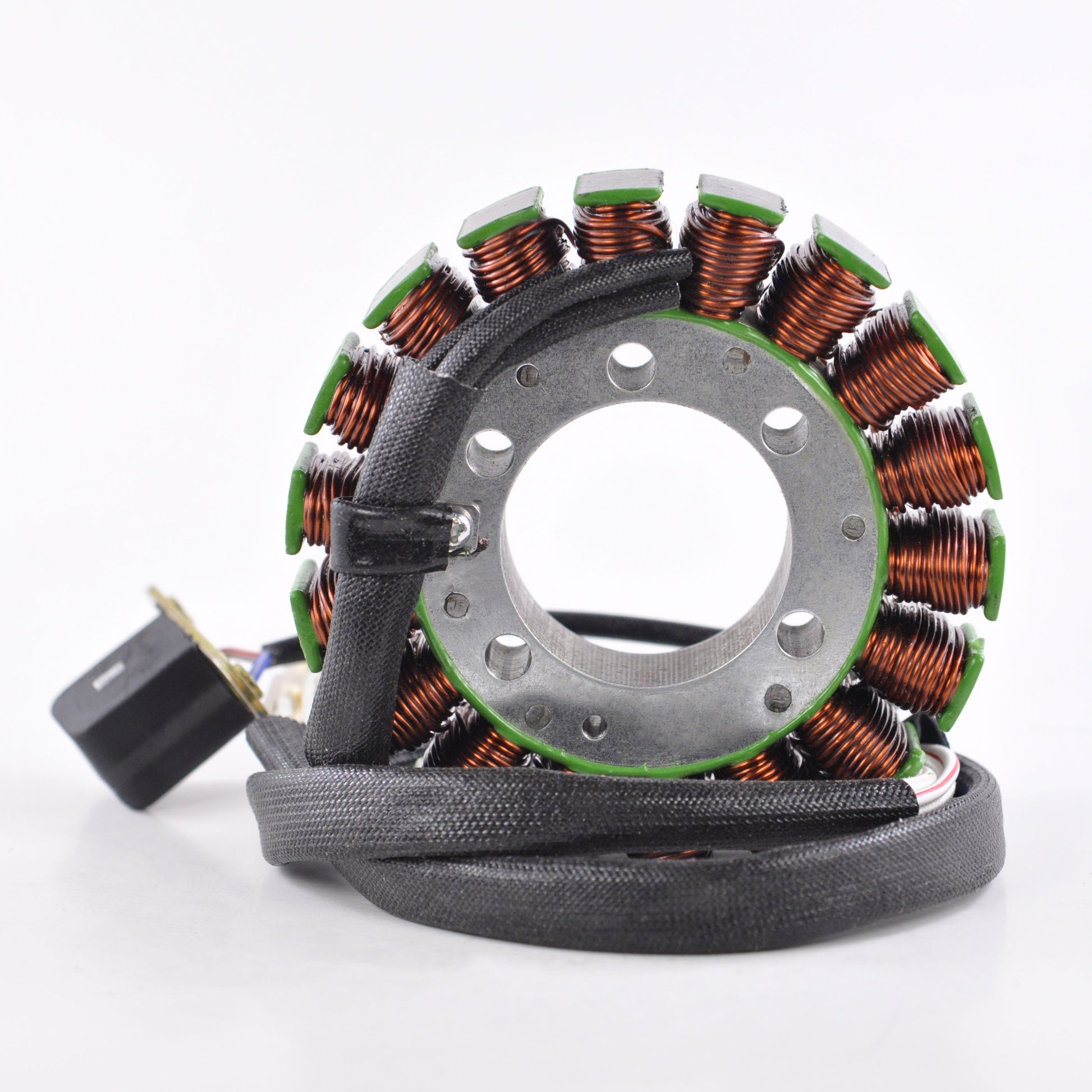

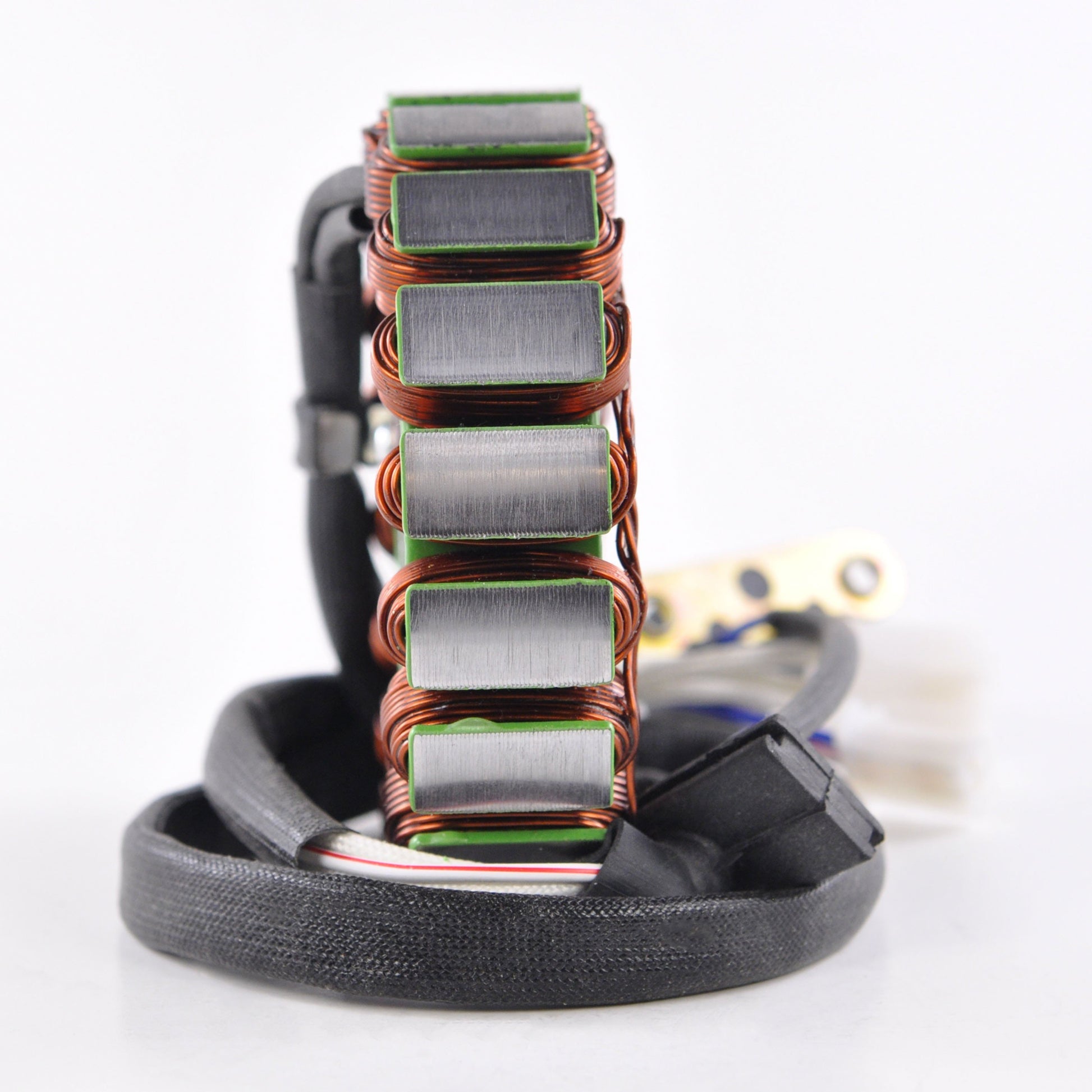

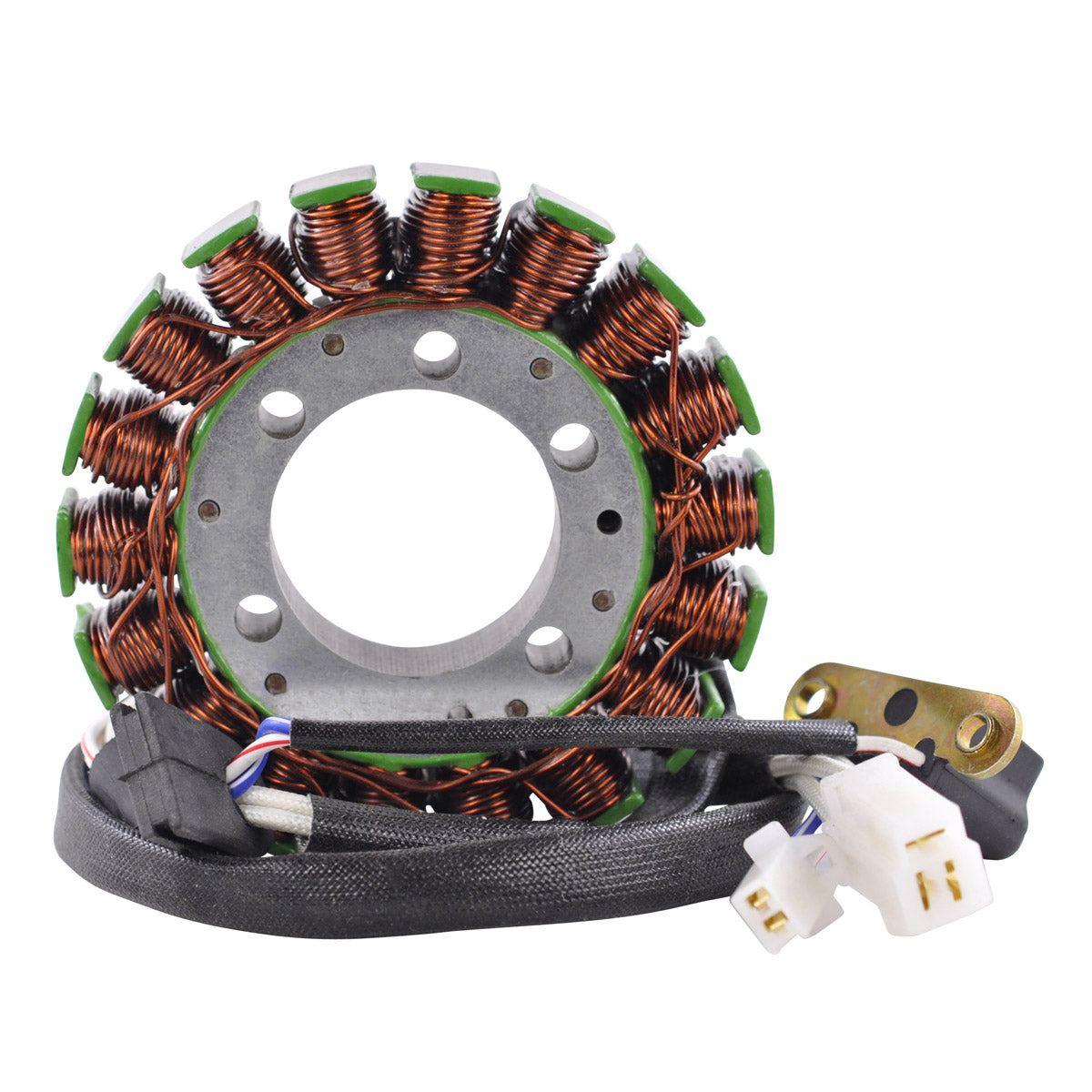

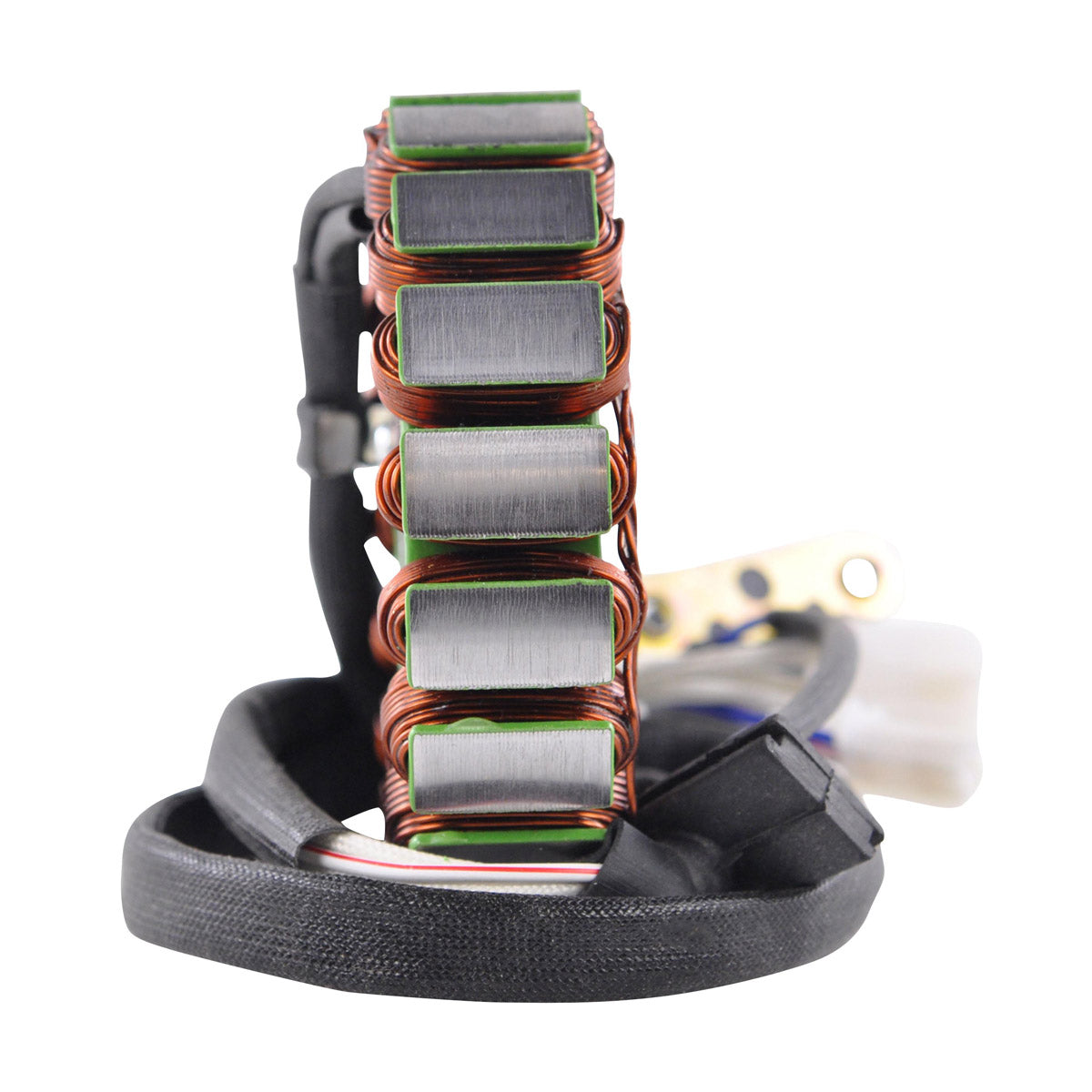

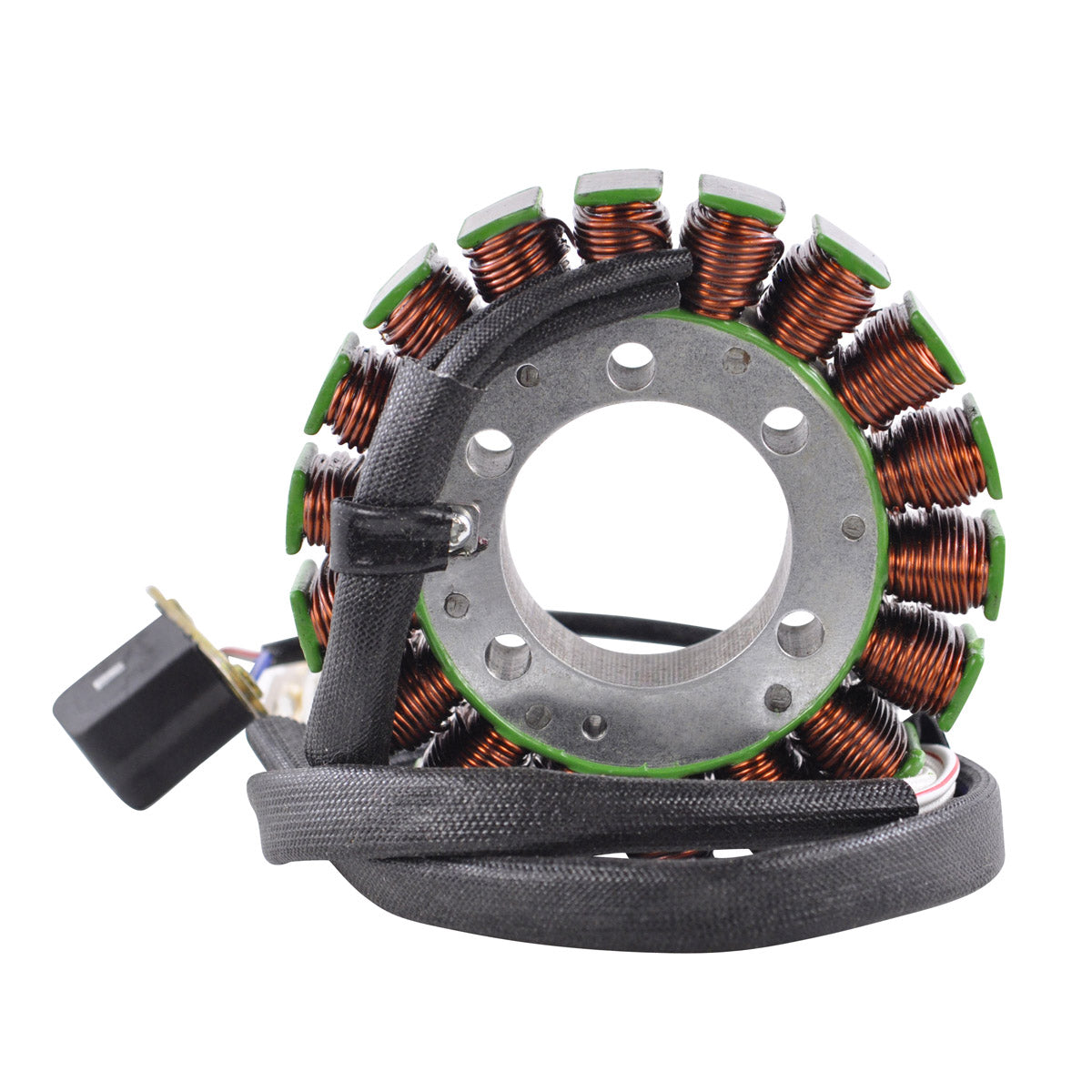

Generator Stator for Yamaha FZR 600 & FZR 600R
Yamaha FZR 600 / FZR 600 R - 1989 to 1999 - Part RM01561
A brand new aftermarket generator stator built as a direct replacement for the original unit fitted to the Yamaha FZR 600 and FZR 600 R between 1989 and 1999. It is a plug-and-play, direct fit assembly, so the charging system can be brought back to full health without cutting the loom, splicing wires or modifying the engine cases.

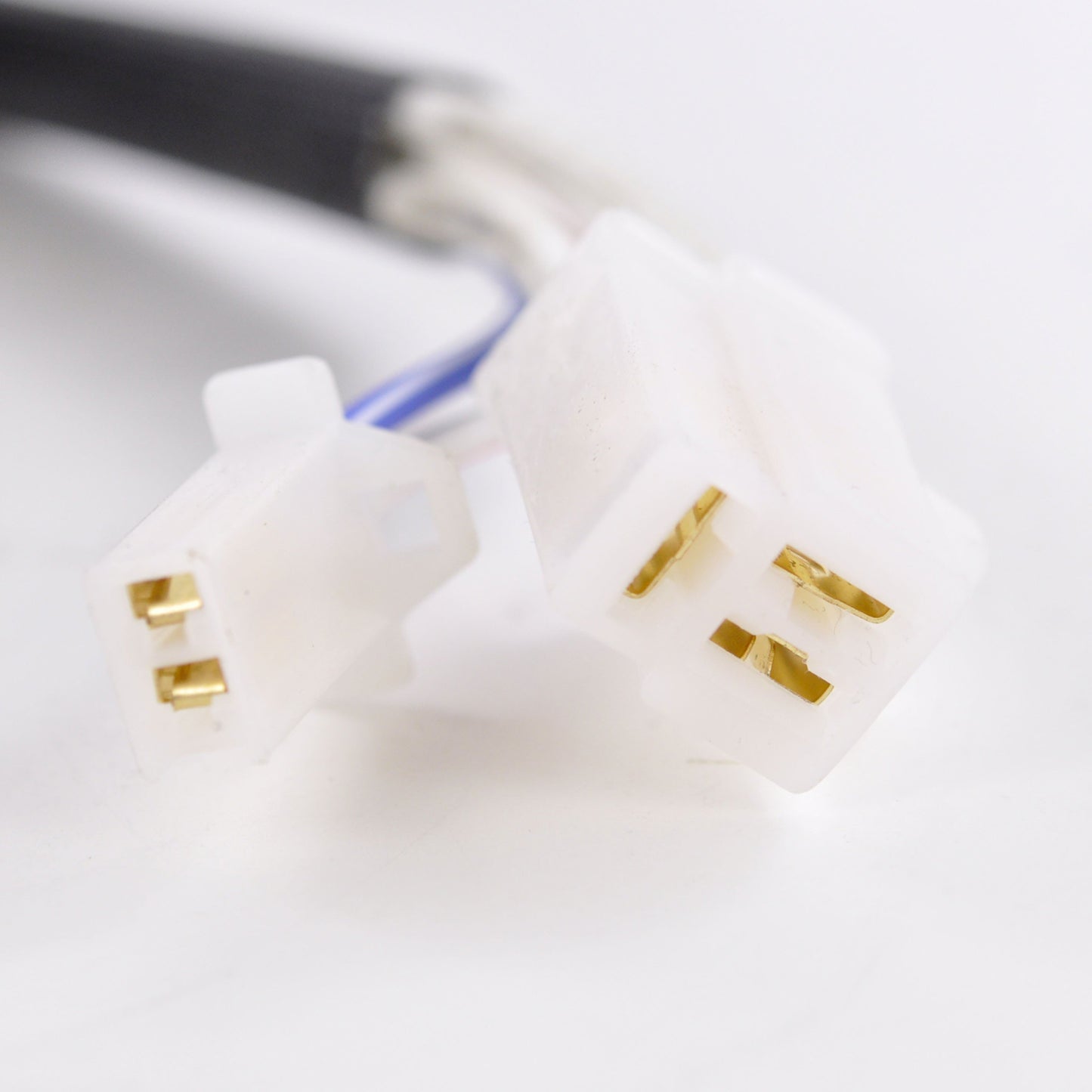

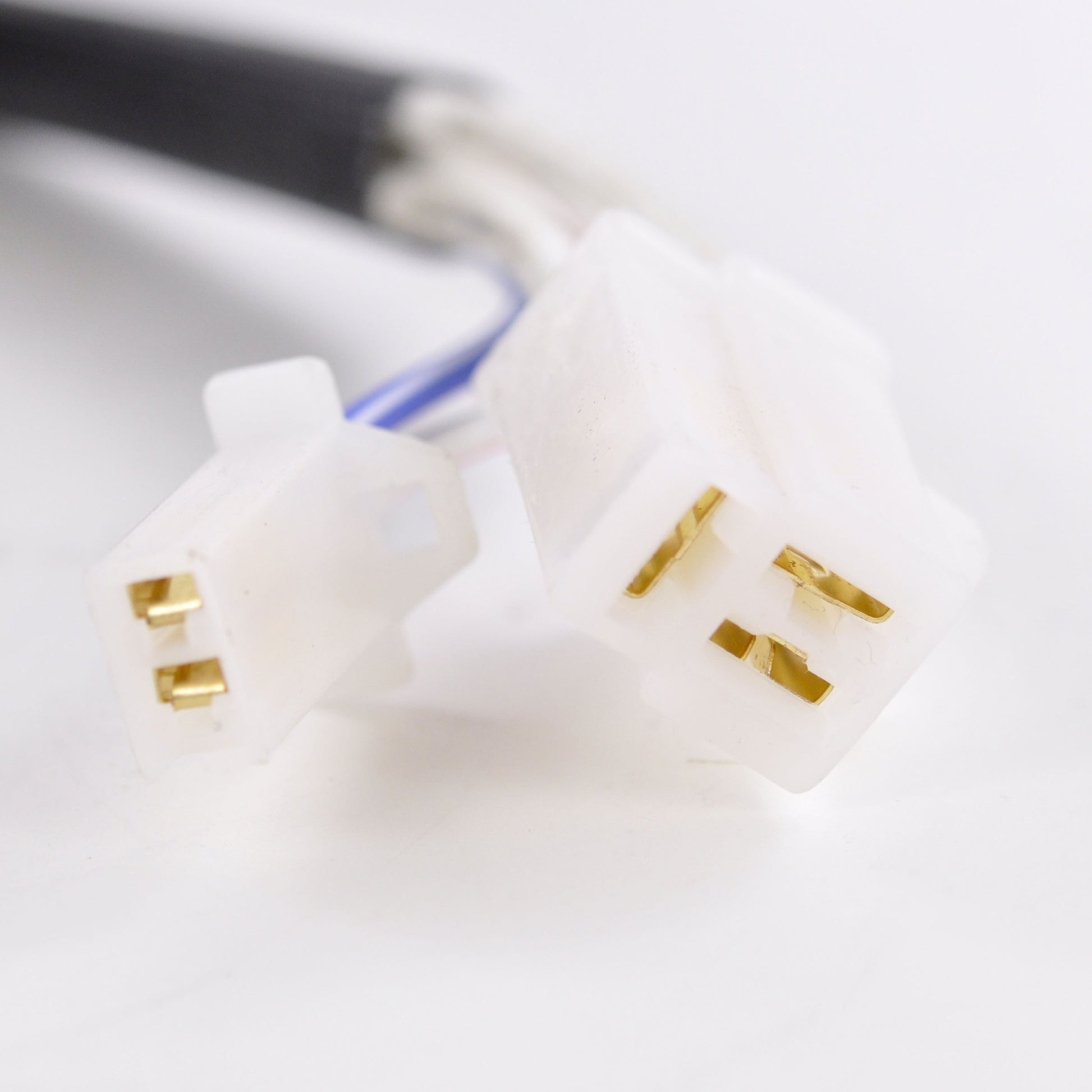

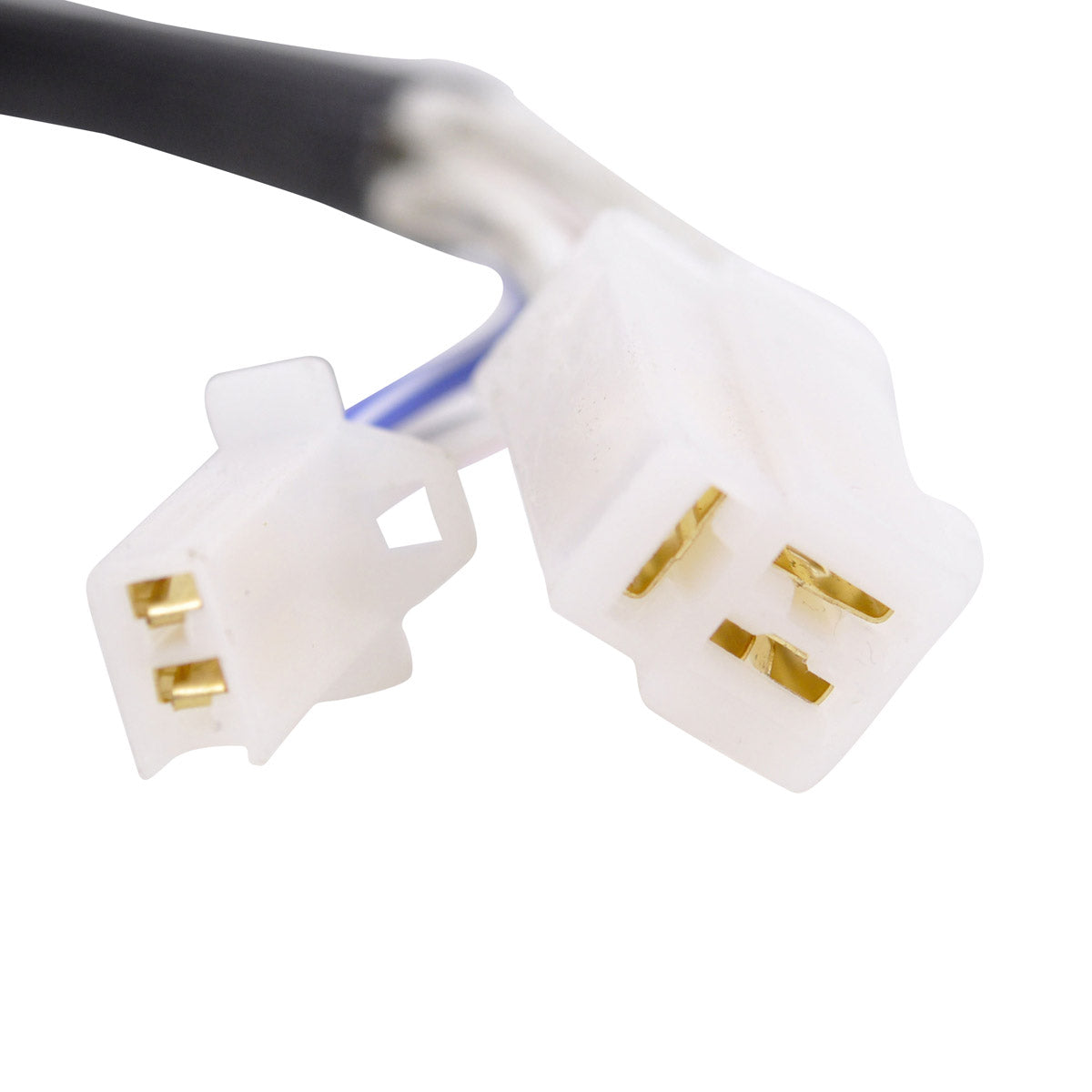

The stator is wound with the highest grade copper and built on the highest grade lamination materials, with insulation rated to 200 degrees Celsius so the windings survive the heat that kills tired original stators. The assembly ships complete with the pickup pulsar coil, the connector and the rubber grommet already fitted, and every unit is tested before it leaves the factory. An additional connector for the main harness side is supplied as well, because that half of the plug is very often melted or corroded by the time the stator itself fails.
Key Features
- Direct replacement for the original Yamaha unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings rated to 200 degrees Celsius
- Pickup pulsar coil, connector and rubber grommet included
- Spare main-harness-side connector supplied
- Every unit tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 105 mm |
| Thickness | 22 mm |
| Wire length, stator to grommet | 110 mm |
| Wire length, grommet to plug | 450 mm |
| Pickup coil wire length | 70 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, white to white | 0.6 ohms, plus or minus 20 percent |
| Pickup resistance, white/red to white/black | 101 ohms, plus or minus 20 percent |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha FZR 600 | 1989-1999 |
| Yamaha FZR 600 R | 1989-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3HE-81410-01-00 | Yamaha |
| 3HE-81410-00-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct fit, plug-and-play replacement for the original stator on the listed Yamaha FZR 600 and FZR 600 R models. No cutting, splicing or case modification is needed.
What is included?
The generator stator assembly, the pickup pulsar coil, the connector, the rubber grommet, and an additional connector for the main harness side.
How do I know my old stator has failed?
Measure the alternator windings white to white: a healthy unit reads about 0.6 ohms, plus or minus 20 percent. Measure the pickup coil white/red to white/black: it should read about 101 ohms, plus or minus 20 percent. A reading that is open circuit, shorted to earth, or far outside those figures points to a failed stator. A battery that keeps going flat on a bike that runs is the usual first symptom.
Why is the extra connector supplied?
The connector half that lives on the main harness is frequently melted or corroded by the time a stator fails. Fitting the supplied replacement connector at the same time avoids a repeat failure caused by a poor connection rather than by the stator itself.
