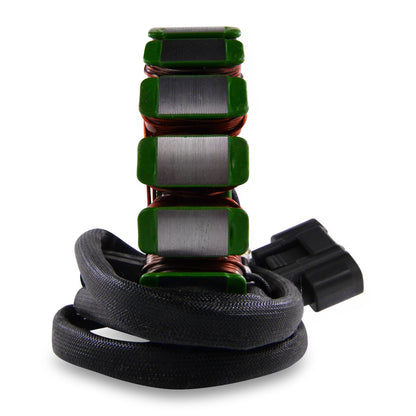

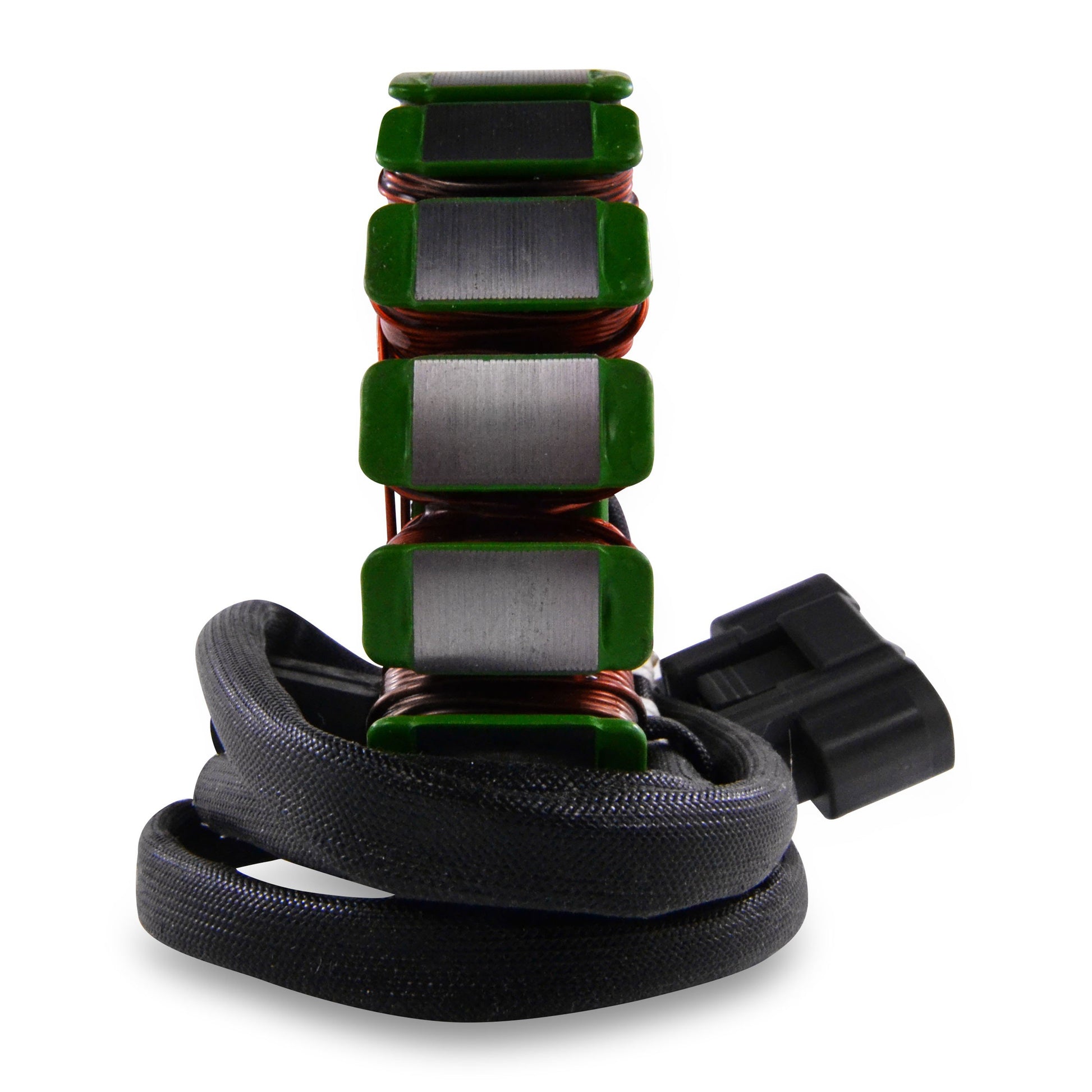

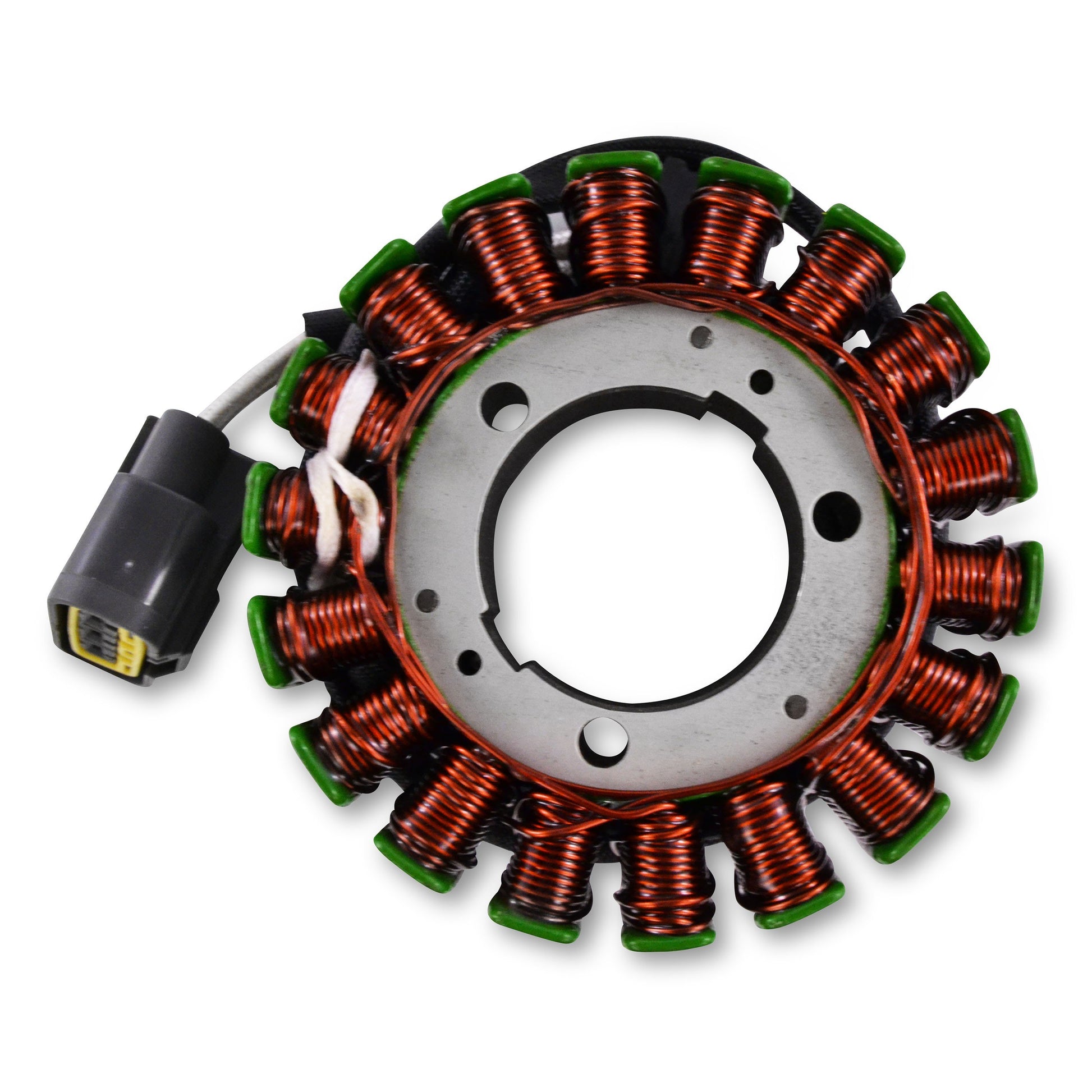

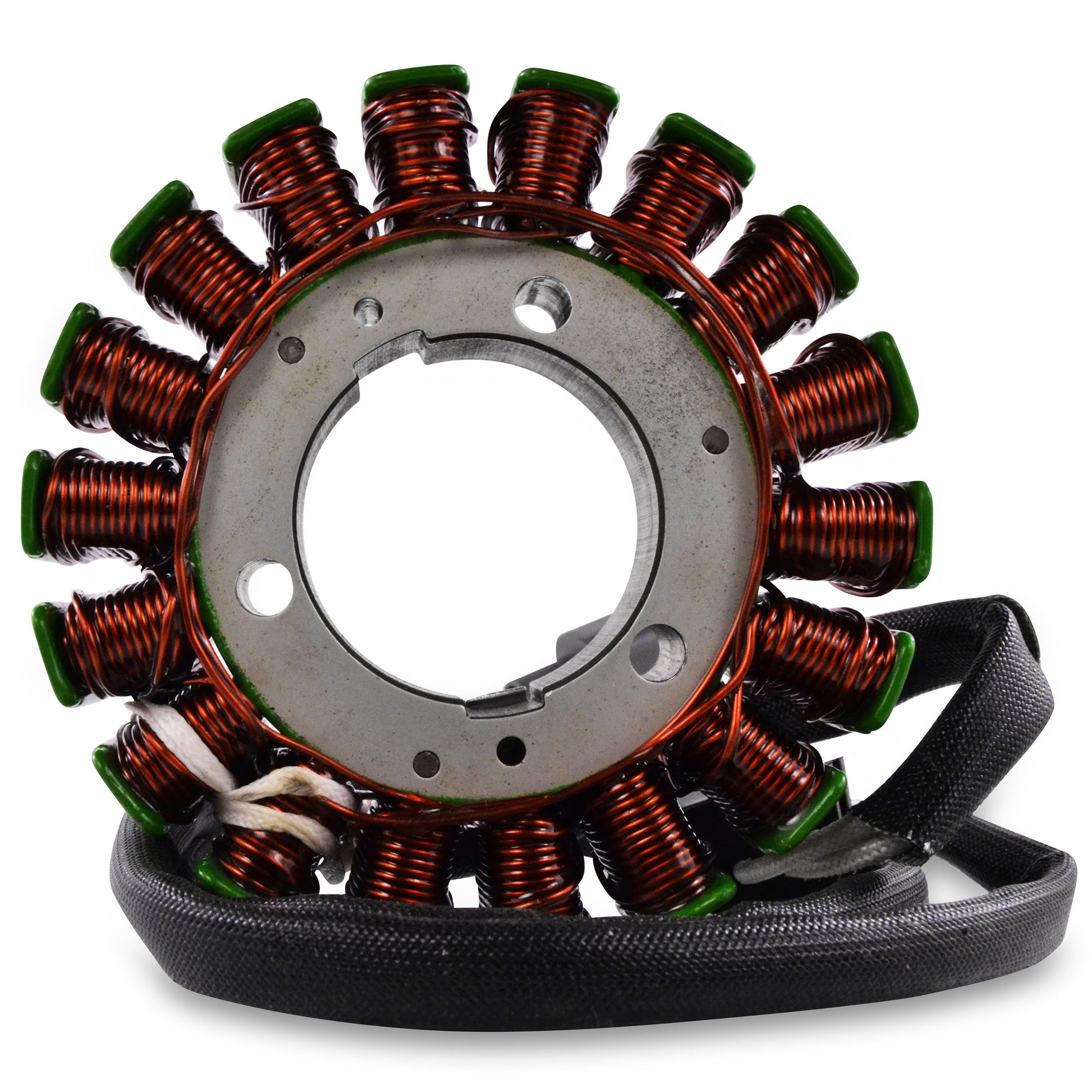

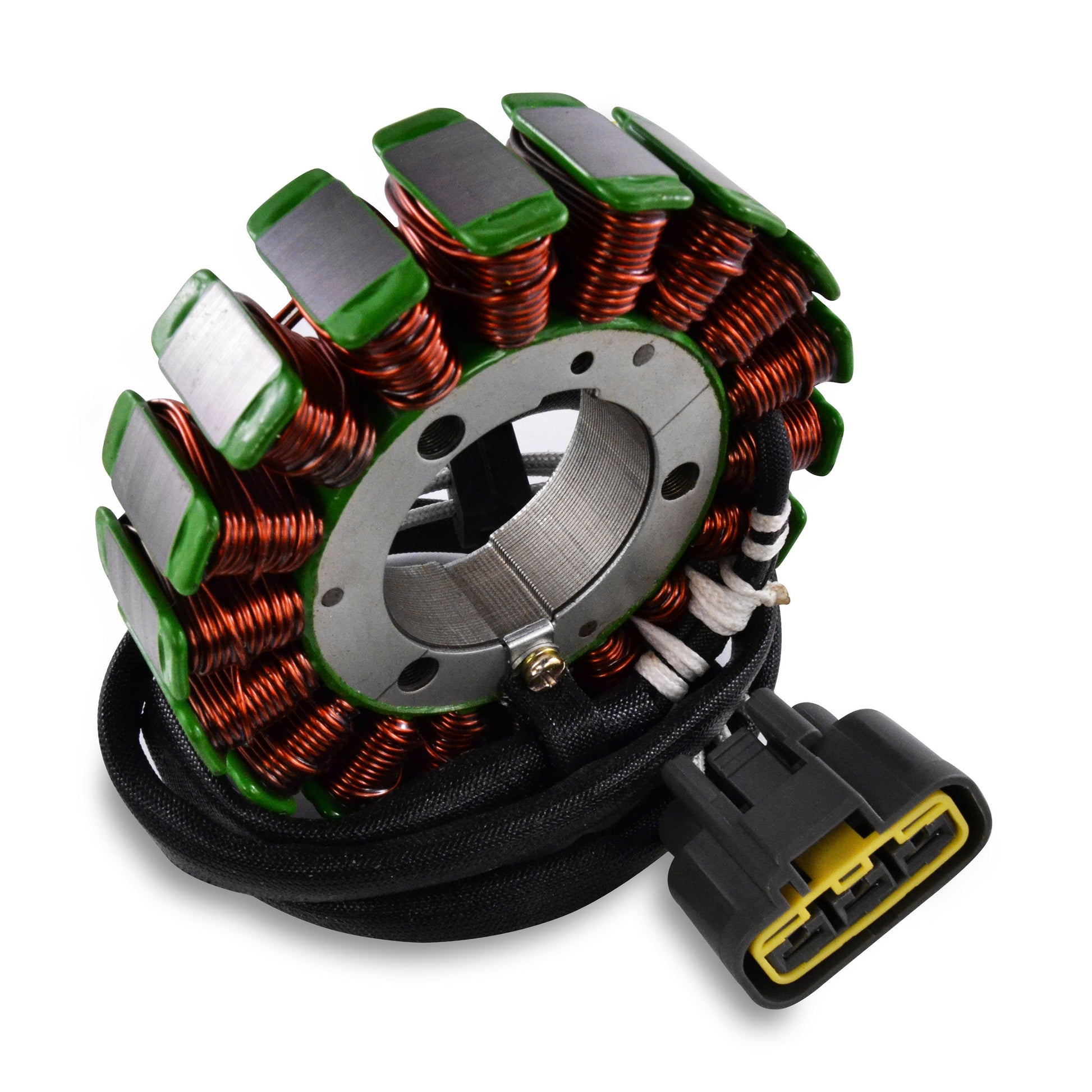

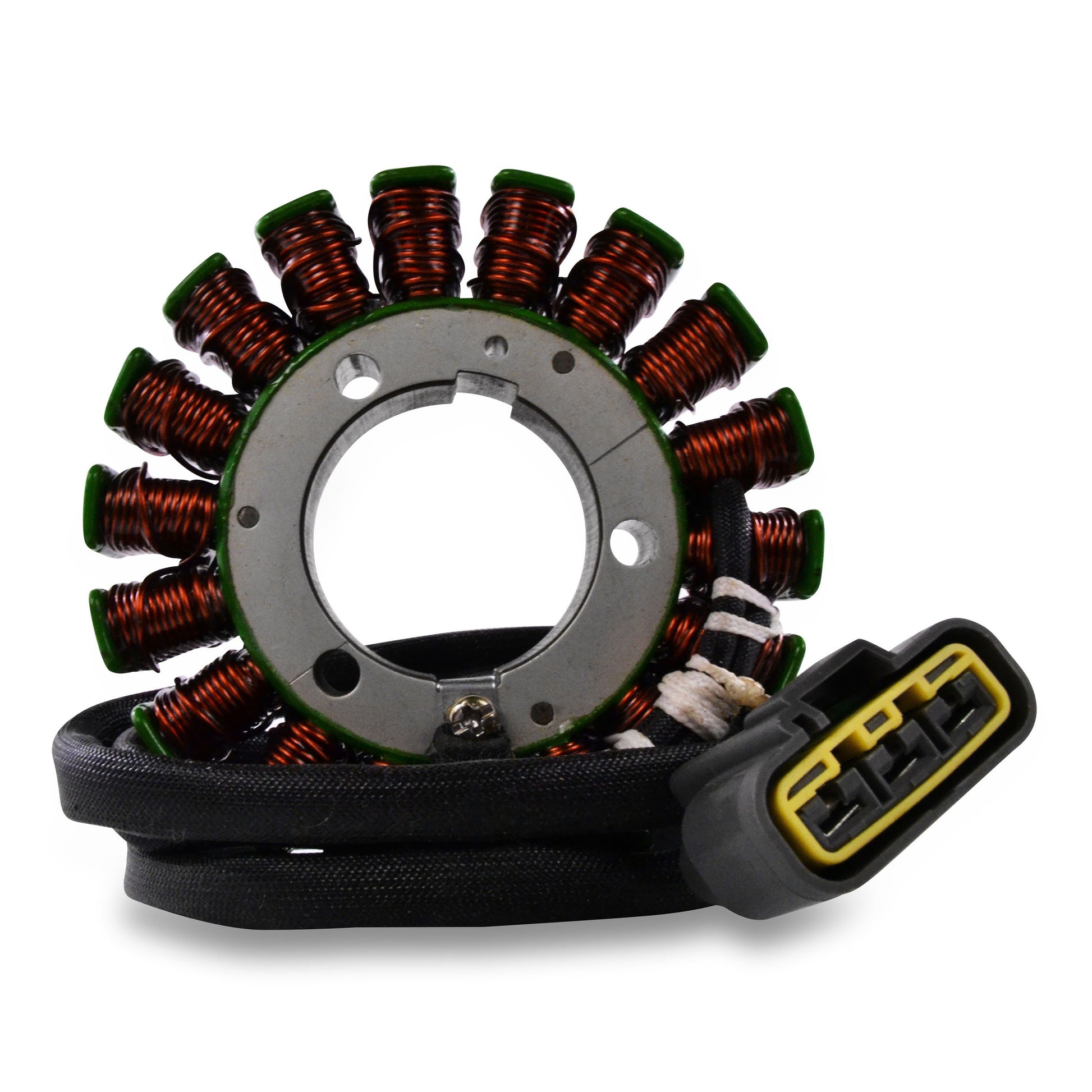

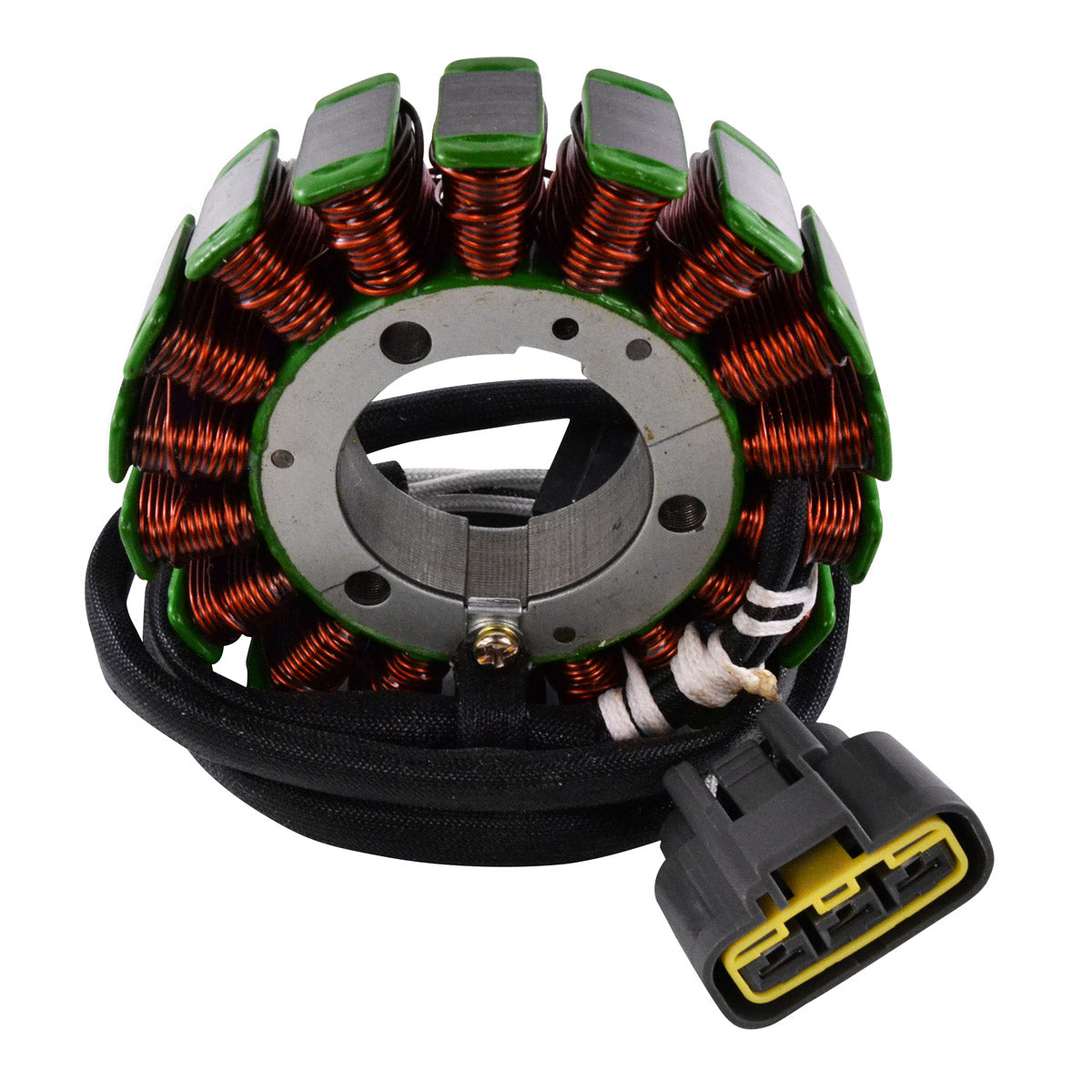

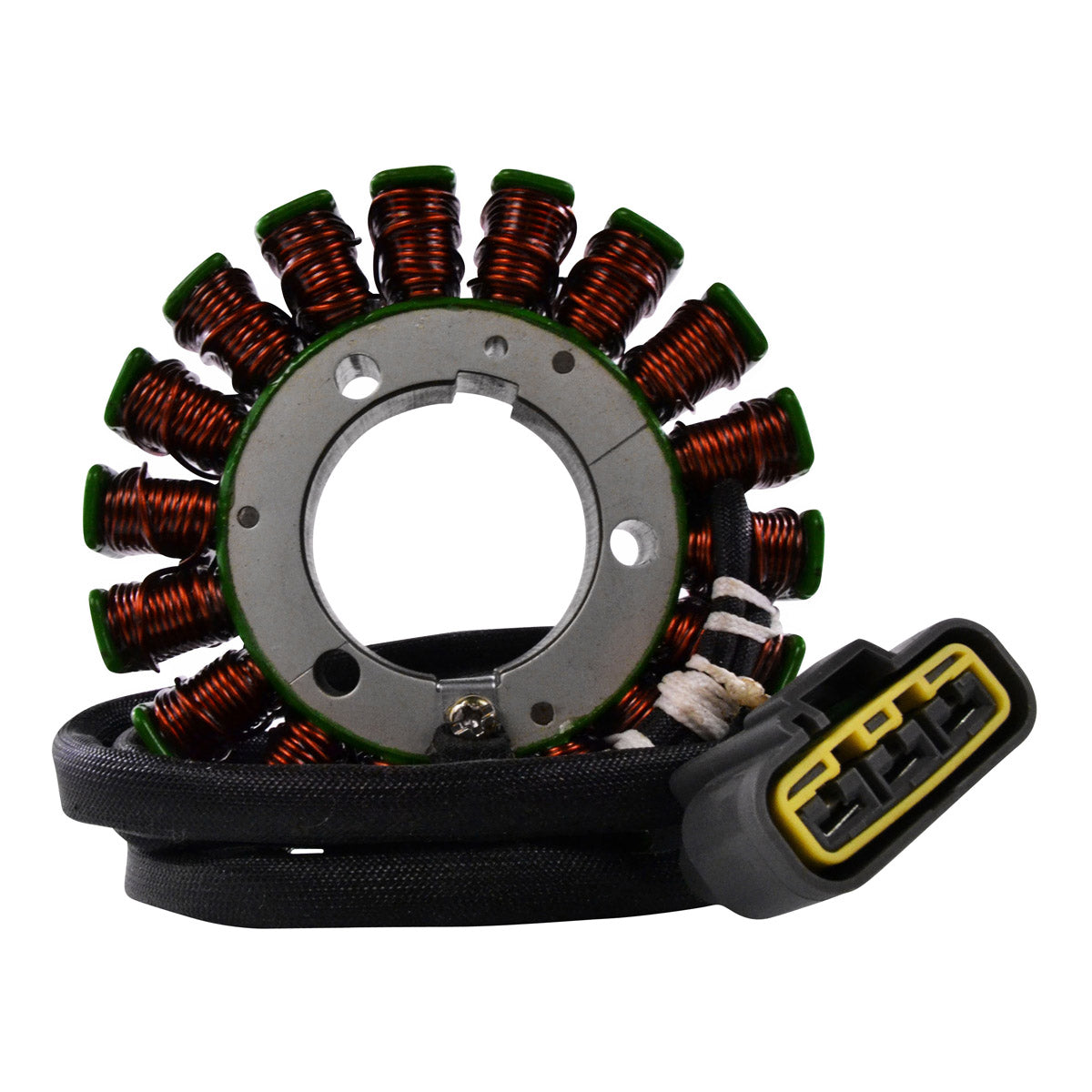

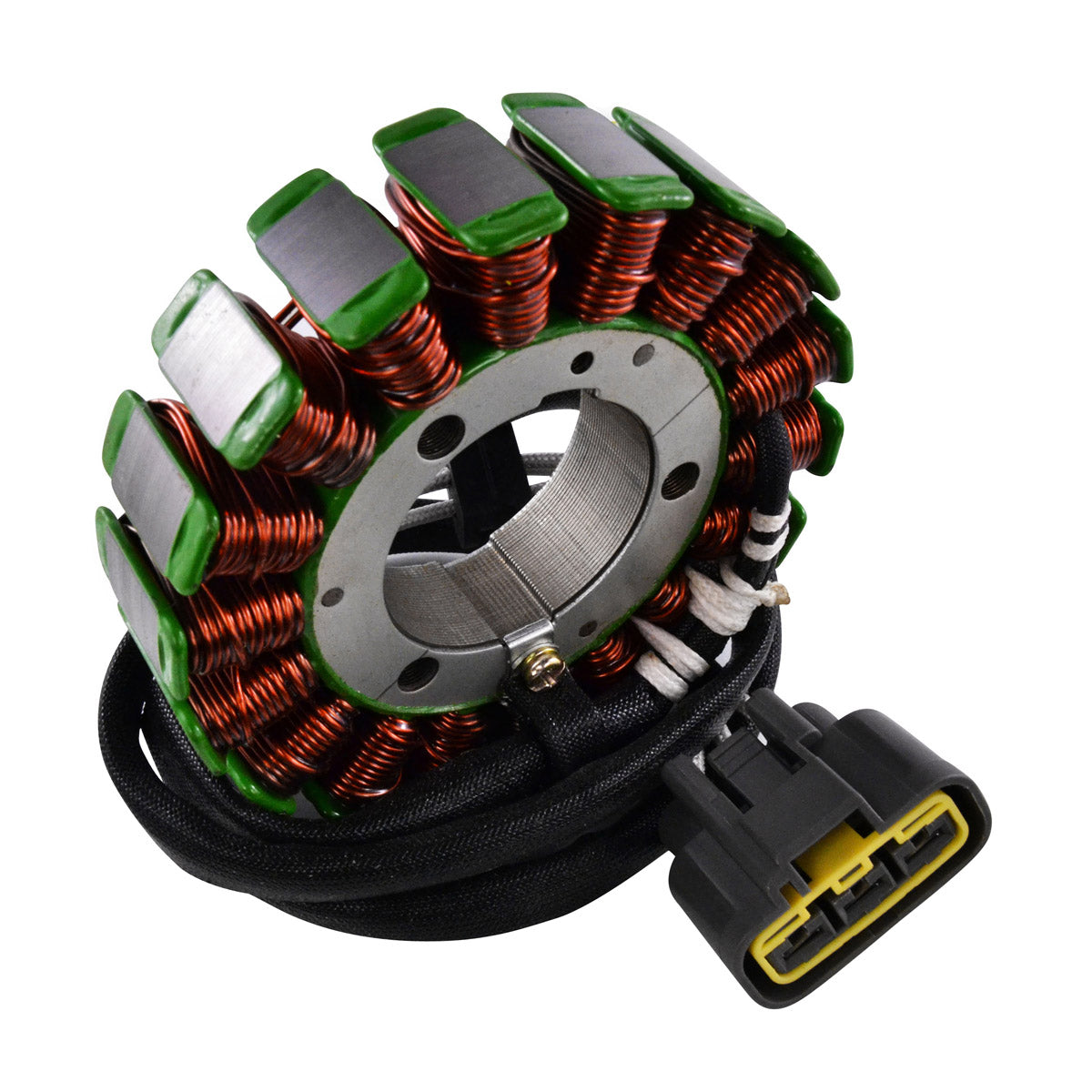

Generator Stator for Yamaha Road Star S 1700
Road Star S 1700 and Road Star Silverado S 1700, 2008-2014
This is a brand new aftermarket generator stator for the Yamaha Road Star S 1700 and Road Star Silverado S 1700 built between 2008 and 2014. It is a direct replacement for the original unit and is plug-and-play, mounting in the original position and connecting to the factory loom with no cutting, splicing or modification. Part number RMS010-100038.
The core uses the highest grade lamination materials and the windings are the highest grade copper, rated to resist 200 degrees Celsius - an important margin on a big air-cooled twin where stator heat is the usual cause of failure. The connector is fitted and two rubber grommets are included. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for the original unit - no modification required
- Plug-and-play, direct fit, straightforward installation
- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included and already fitted
- Two rubber grommets included
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-100038 |
| Interior diameter | 42 mm |
| Exterior diameter | 105 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 115 mm |
| Wire length, between grommets | 5 mm |
| Pick-up coil wire length to grommet | 600 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, white to white | 0.4 ohms +-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Road Star S 1700 | 2008-2014 |
| Yamaha Road Star Silverado S 1700 | 2008-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5VN-81410-20-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original unit and is plug-and-play. It uses the original mounting points and the supplied connector matches the factory loom, so no cutting, splicing or modification is required. Match the OEM number 5VN-81410-20-00 against your original unit before ordering.
What is included in the box?

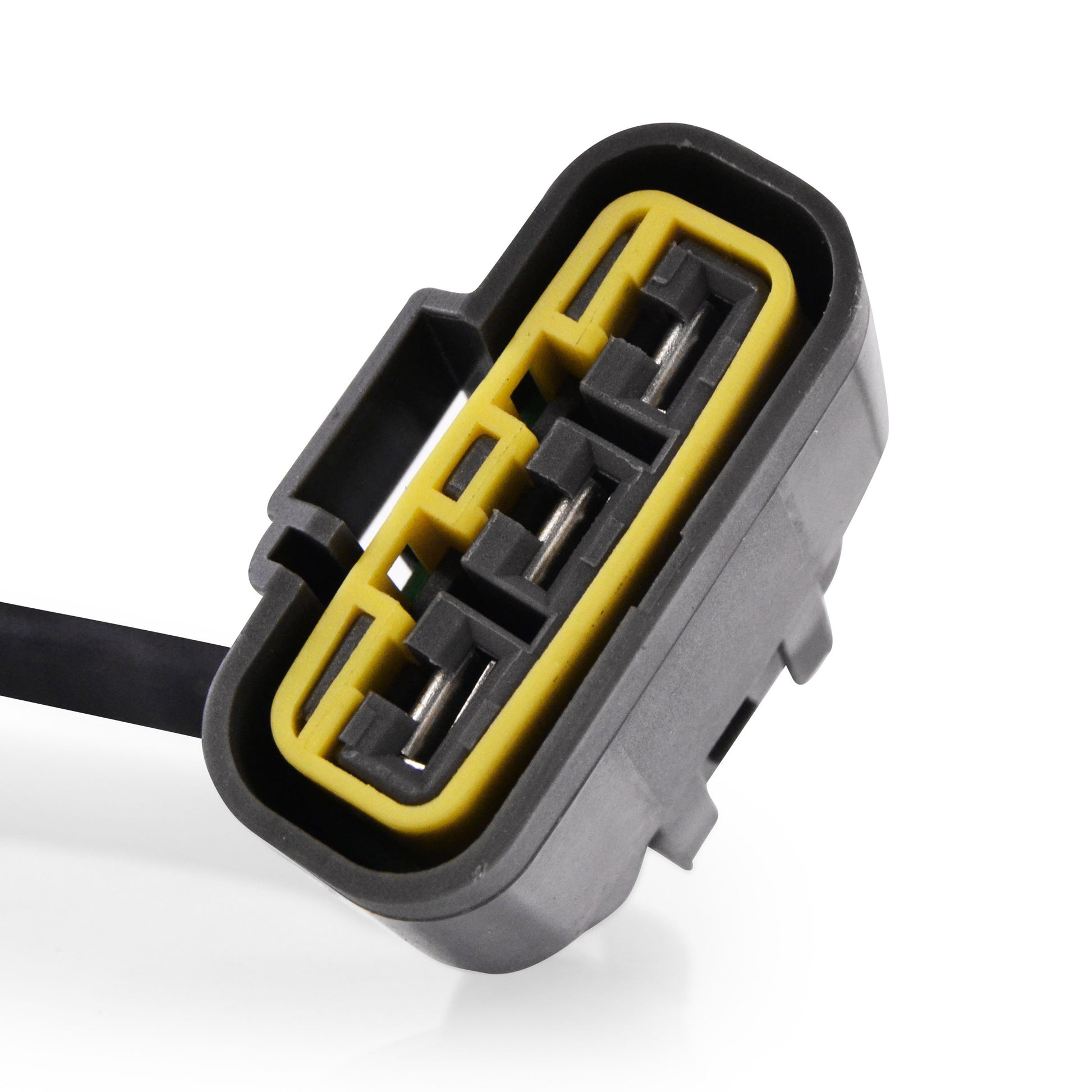

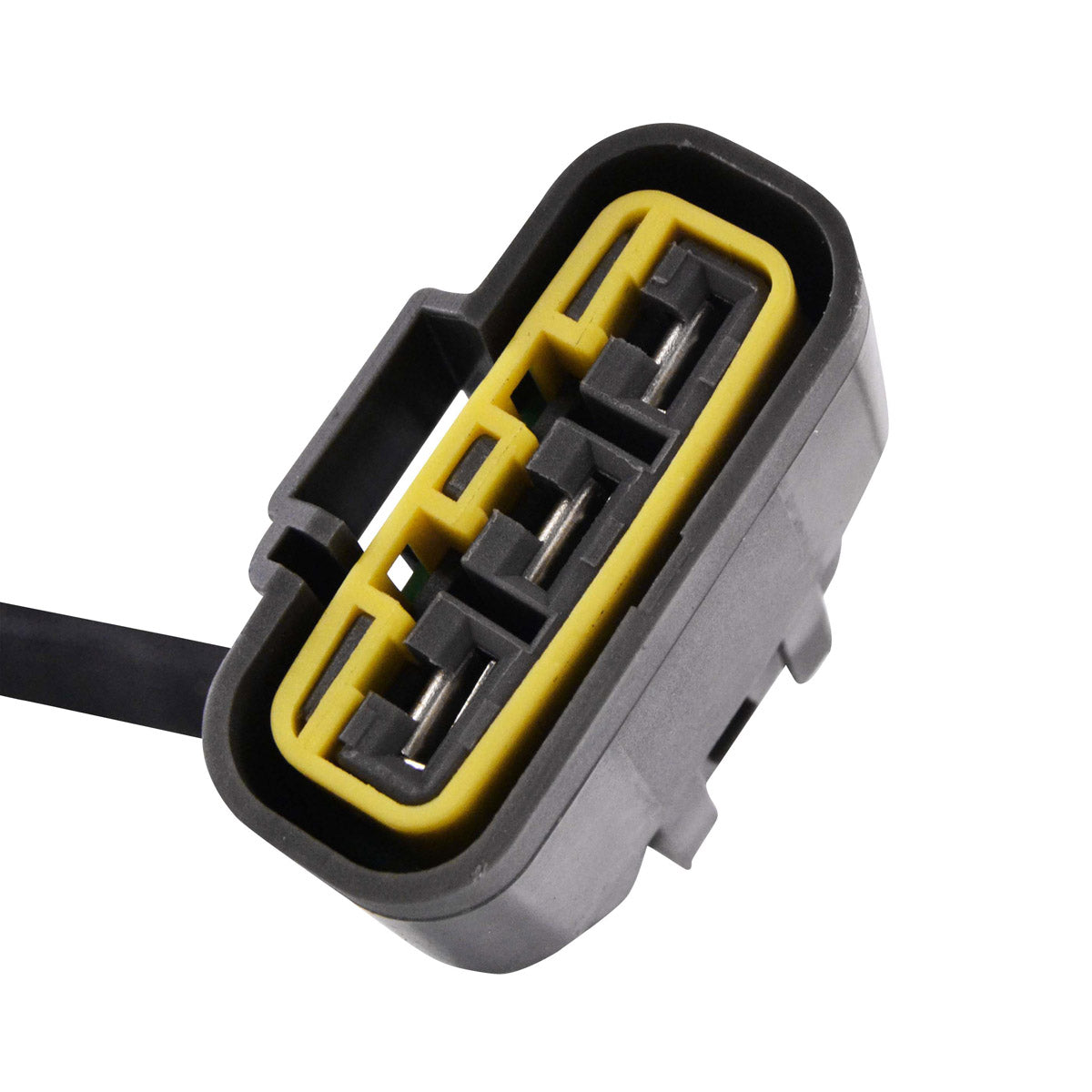

You receive the stator with its connector already fitted and two rubber grommets. Three wires exit the unit into a single three-pin plug.
How do I tell whether my old stator has failed?
Typical signs are a battery that keeps going flat, dim or flickering lights, and charging voltage that will not rise above battery voltage as engine speed increases. With a multimeter, resistance between any two of the three white wires should read approximately 0.4 ohms with a 20 percent tolerance. Open circuit, short circuit, a reading well outside that figure, or continuity between a white wire and the stator body all indicate a failed stator.
Does the Silverado use the same stator as the standard Road Star S?
Yes. The Road Star S 1700 and the Road Star Silverado S 1700 share the same charging system over the 2008 to 2014 span, and both are covered by OEM number 5VN-81410-20-00. The Silverado differences are touring bodywork and equipment rather than engine electrics.
