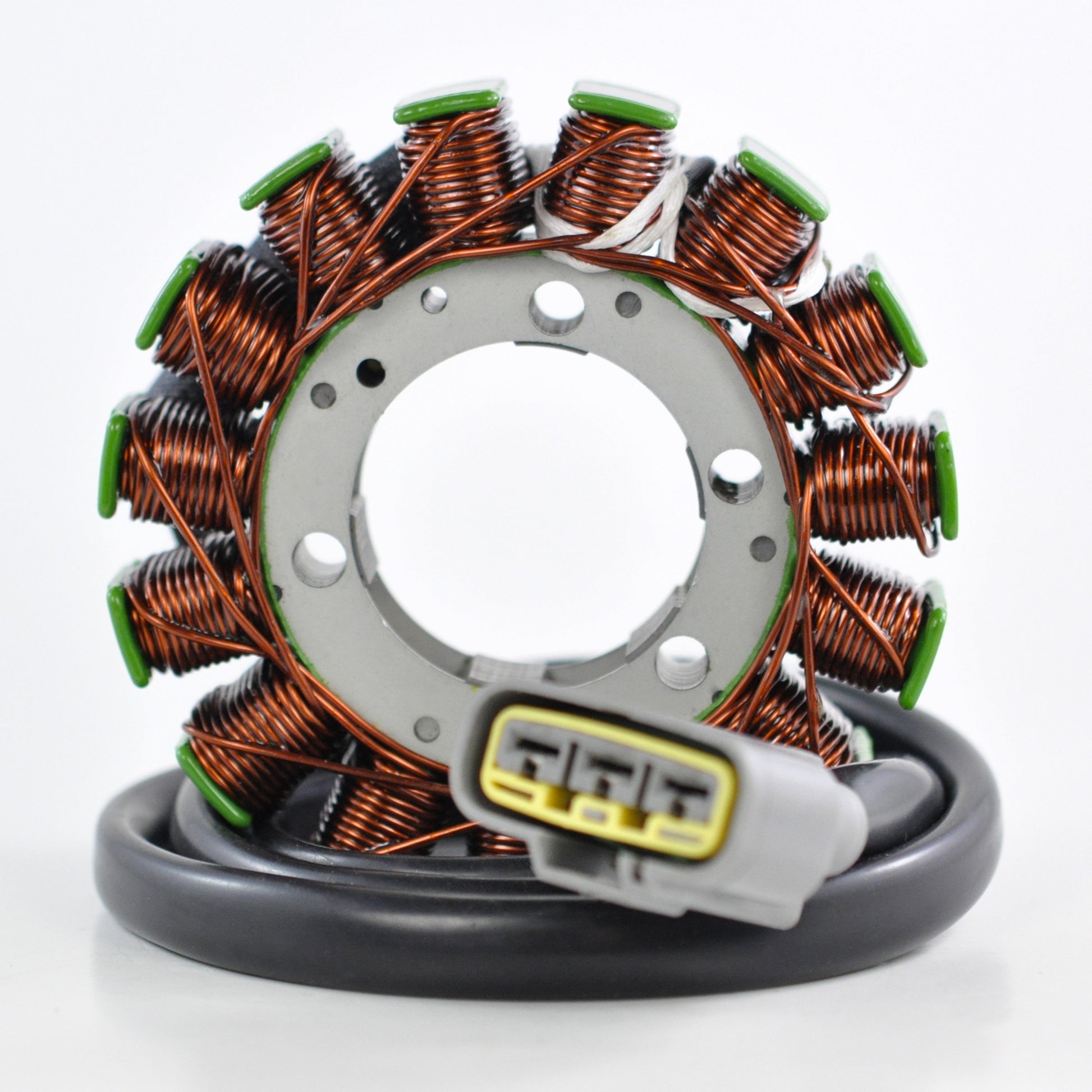

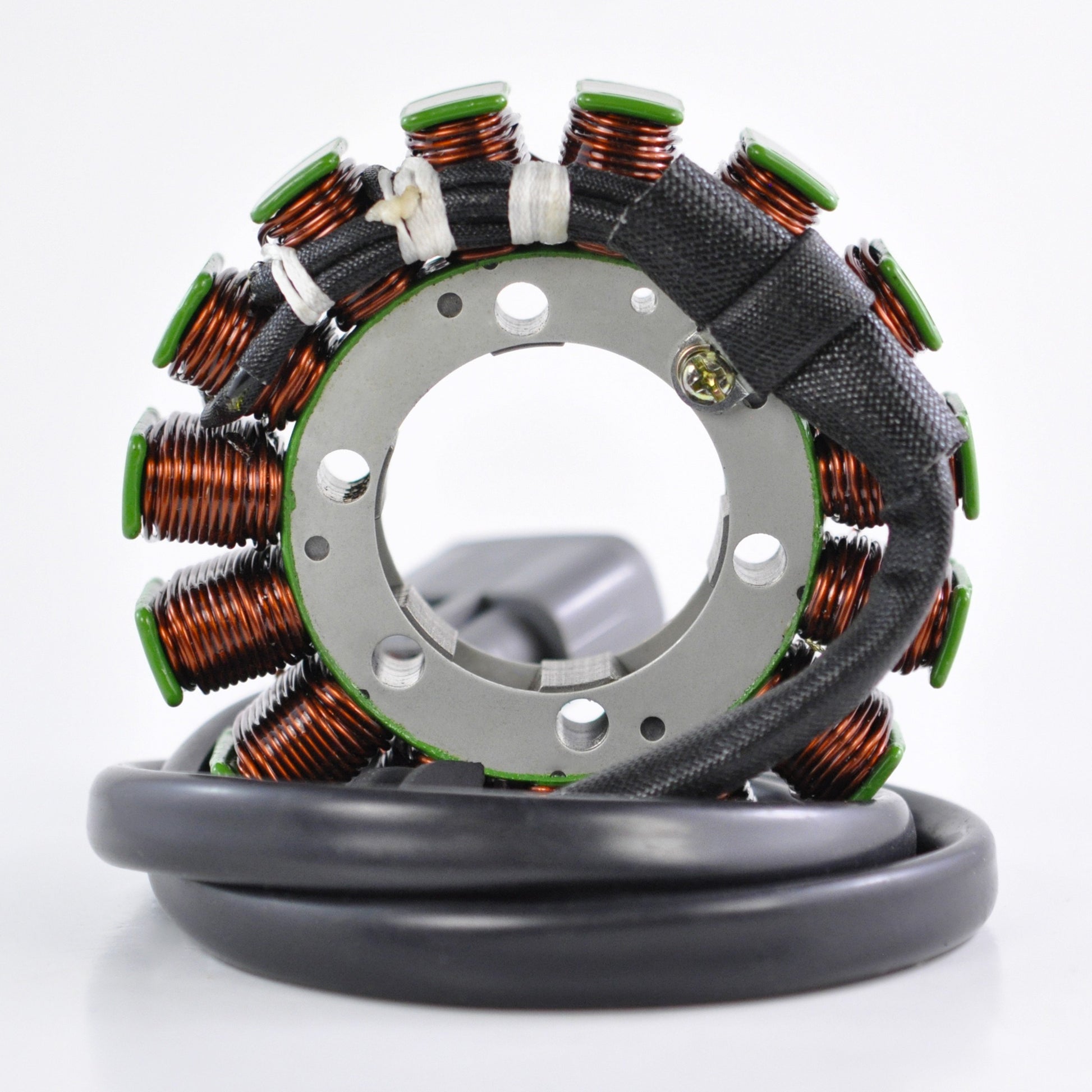

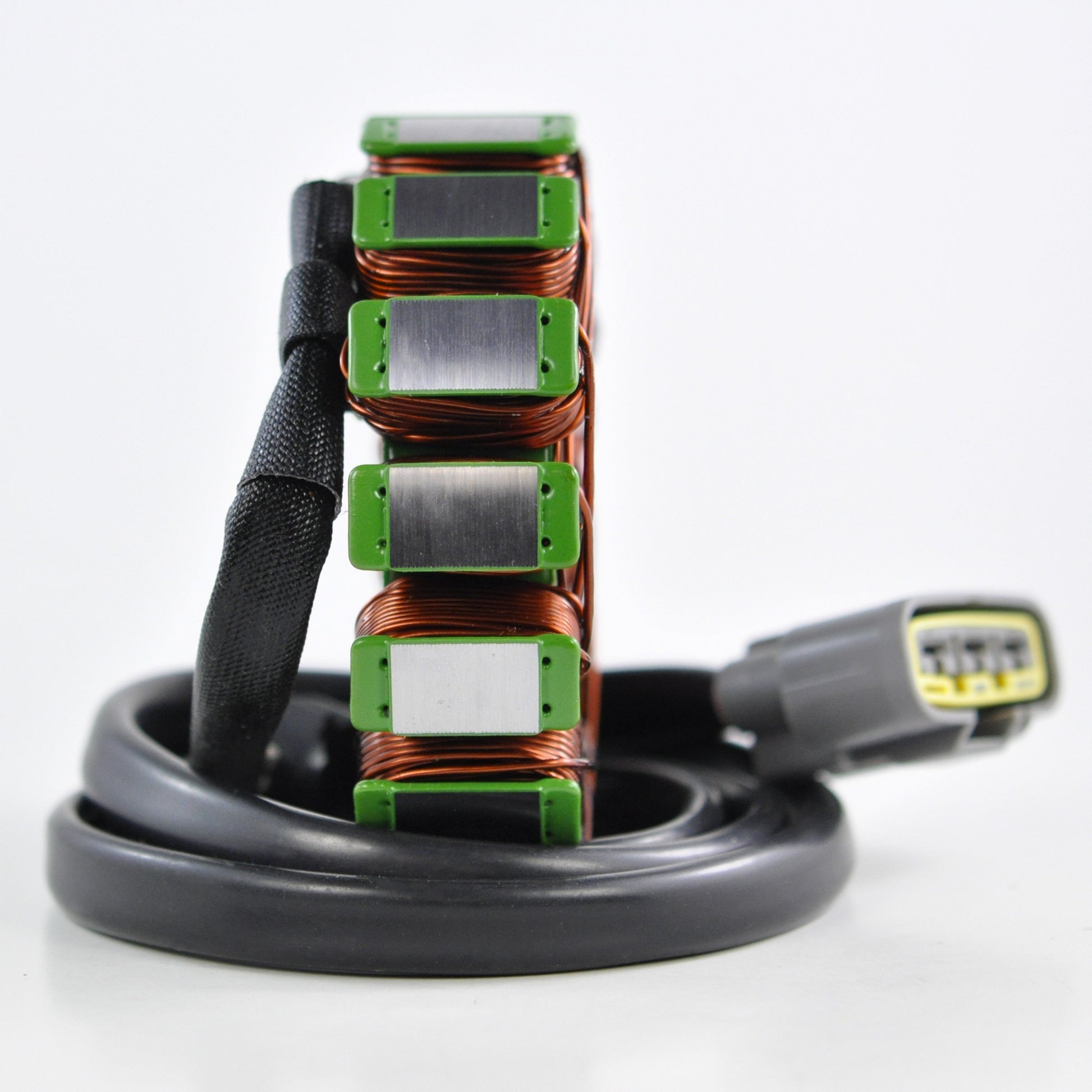

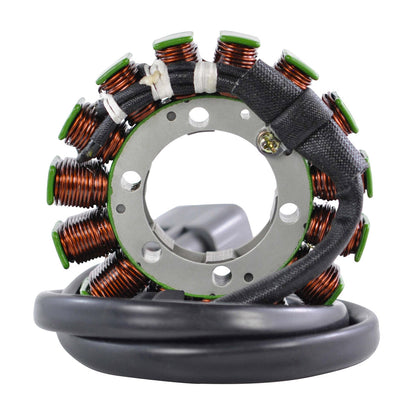

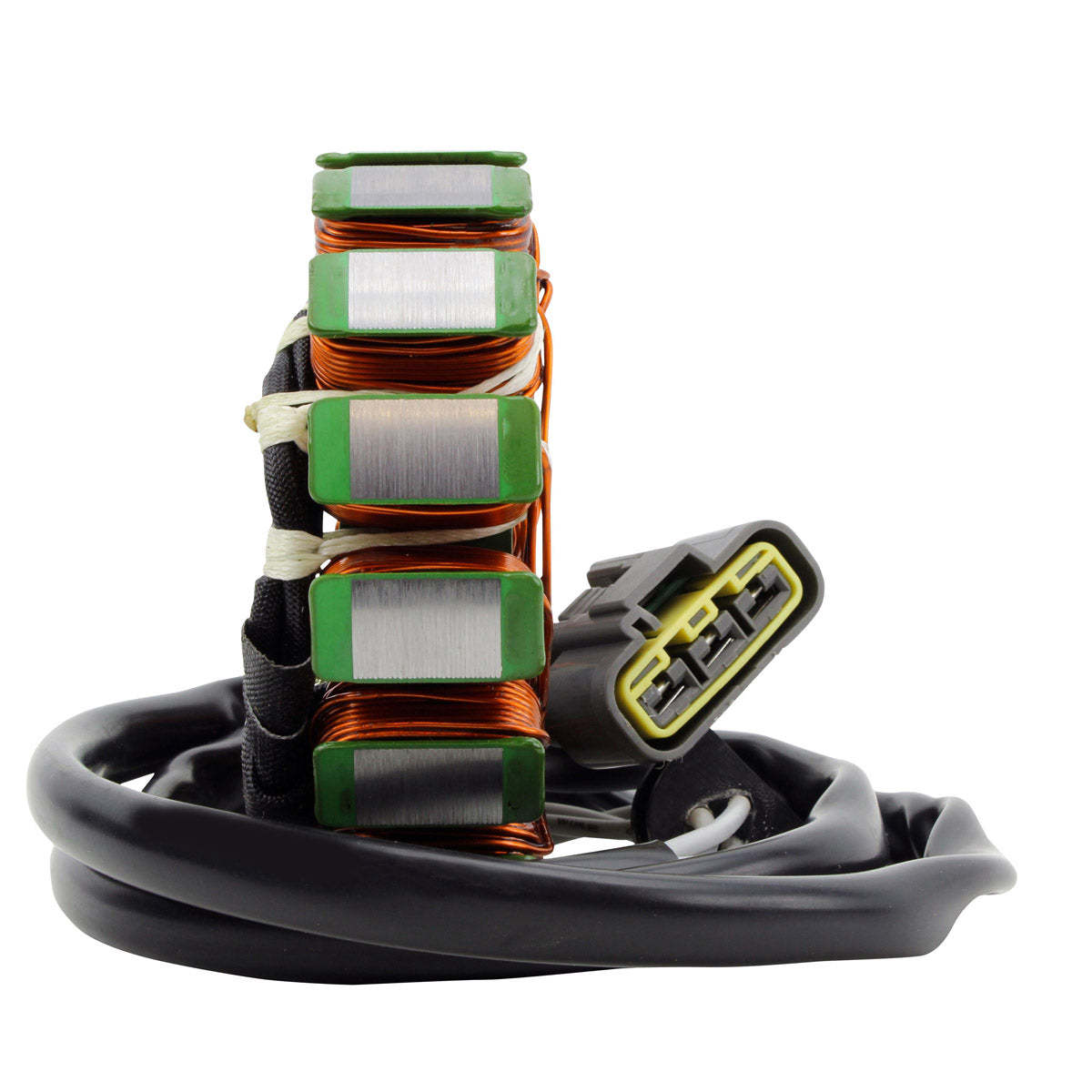

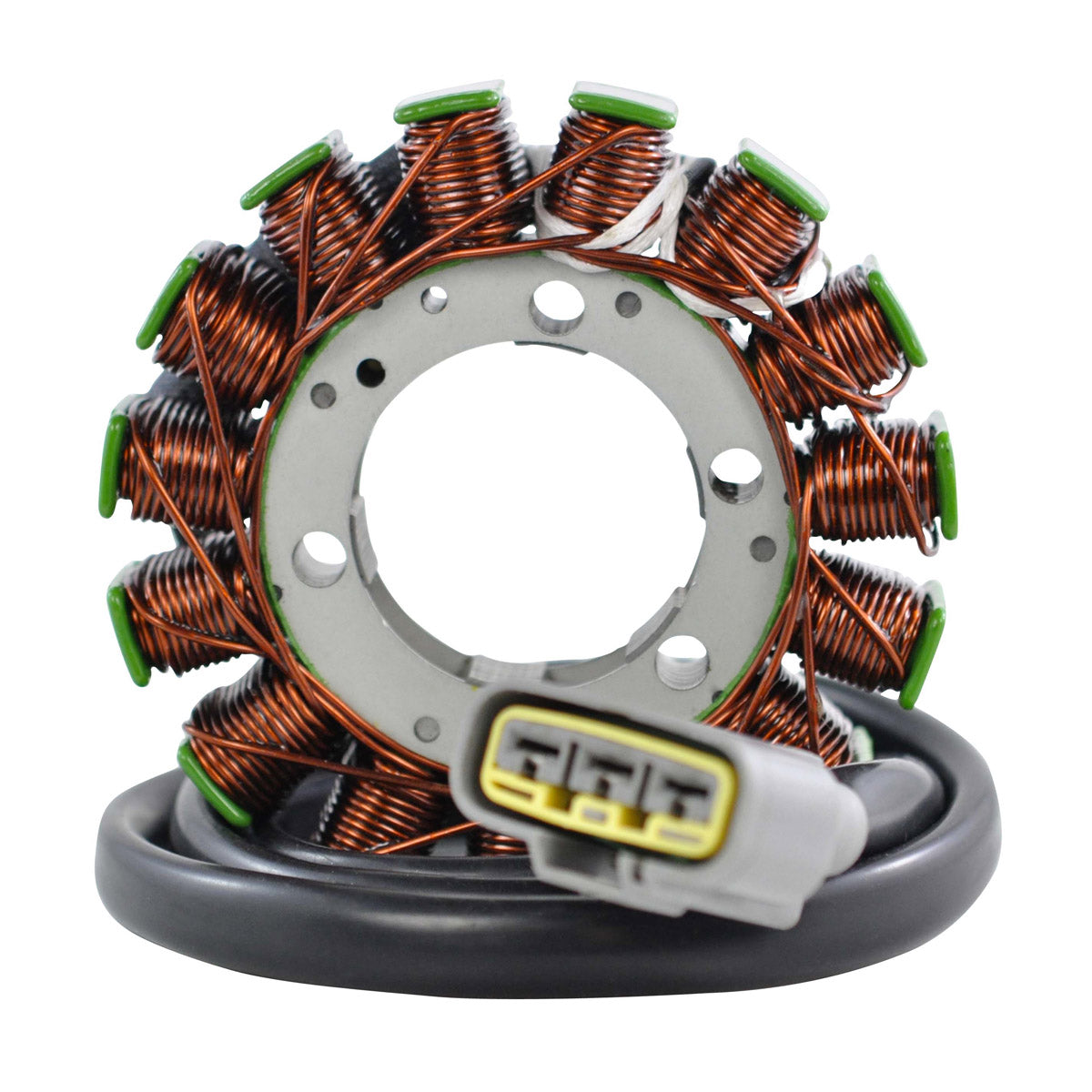

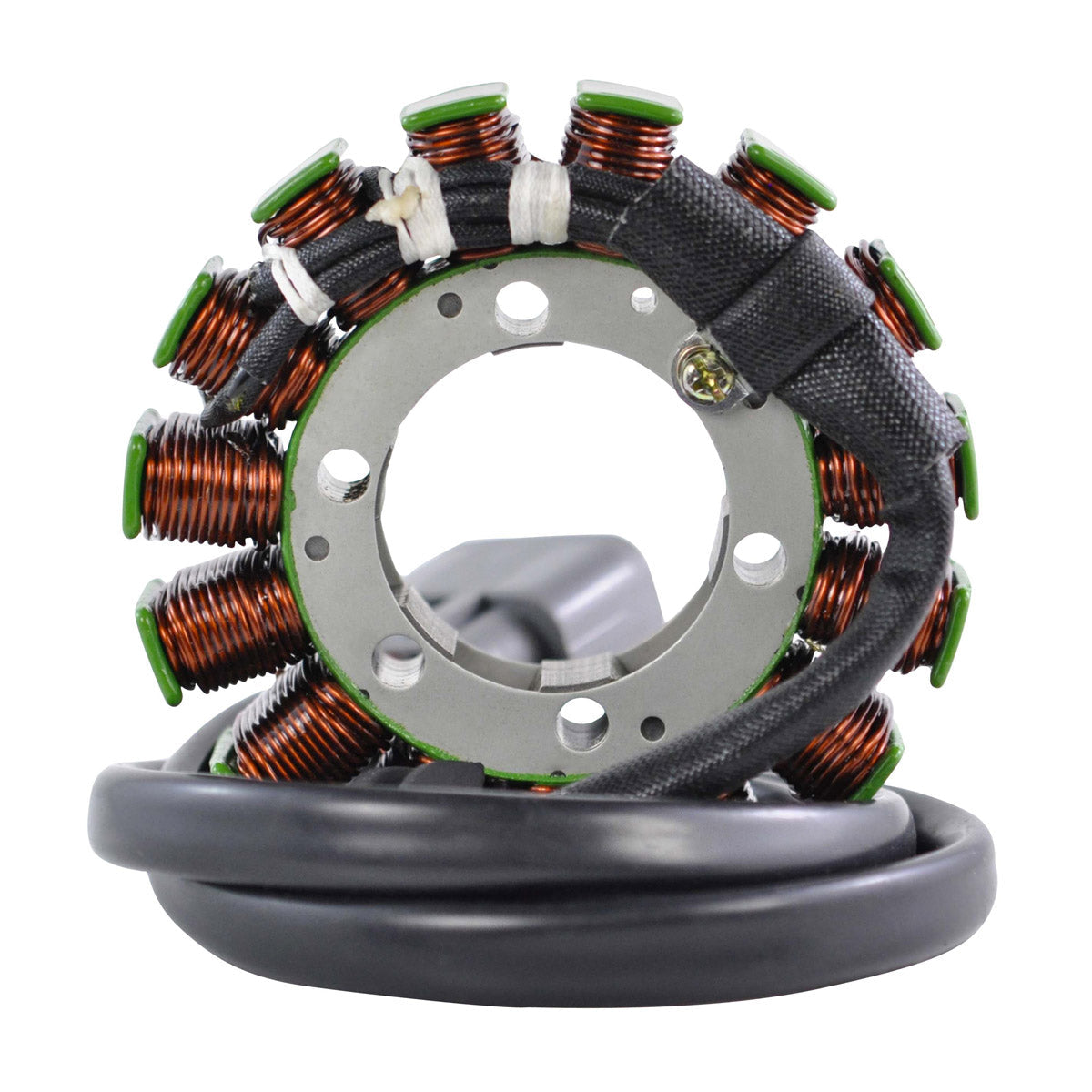

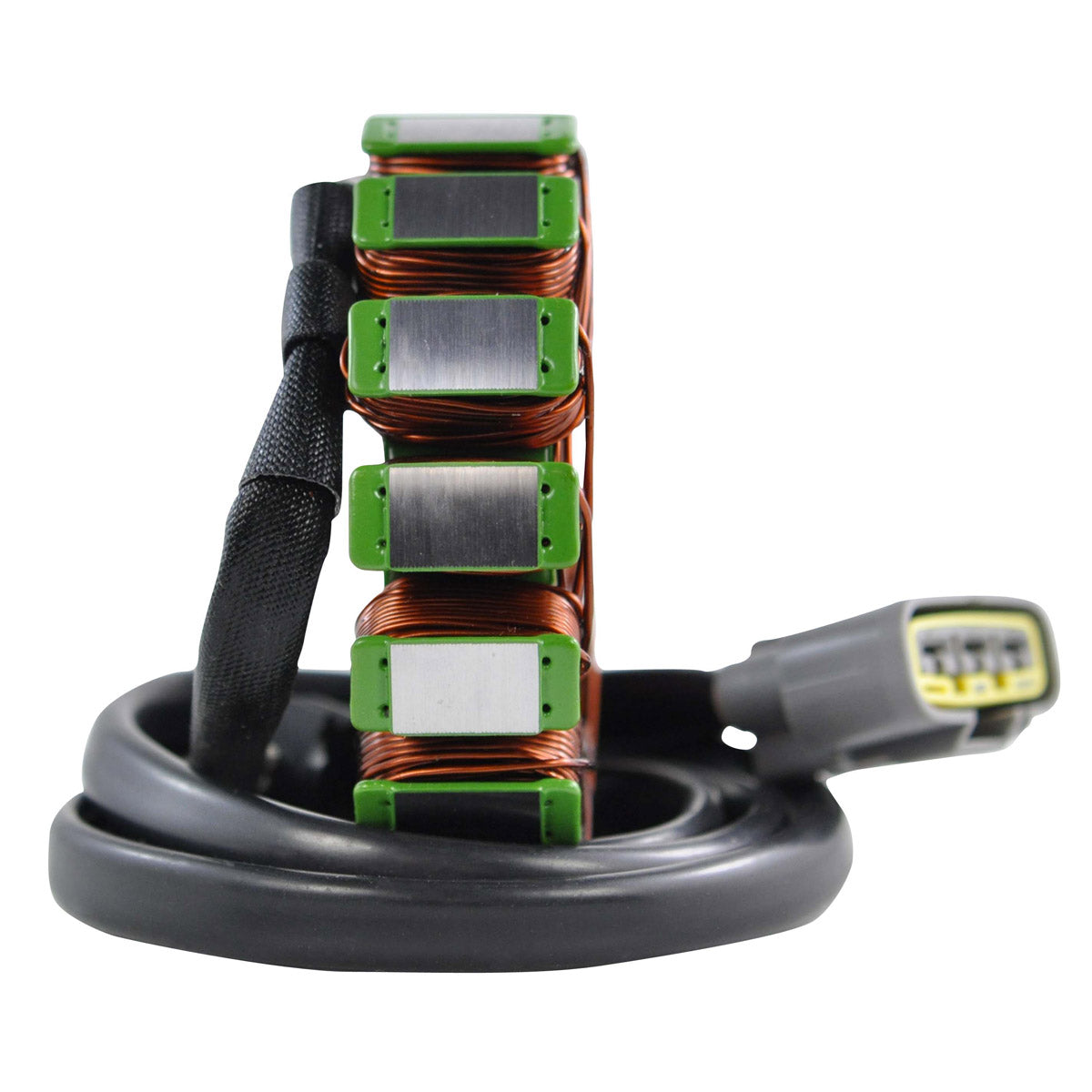

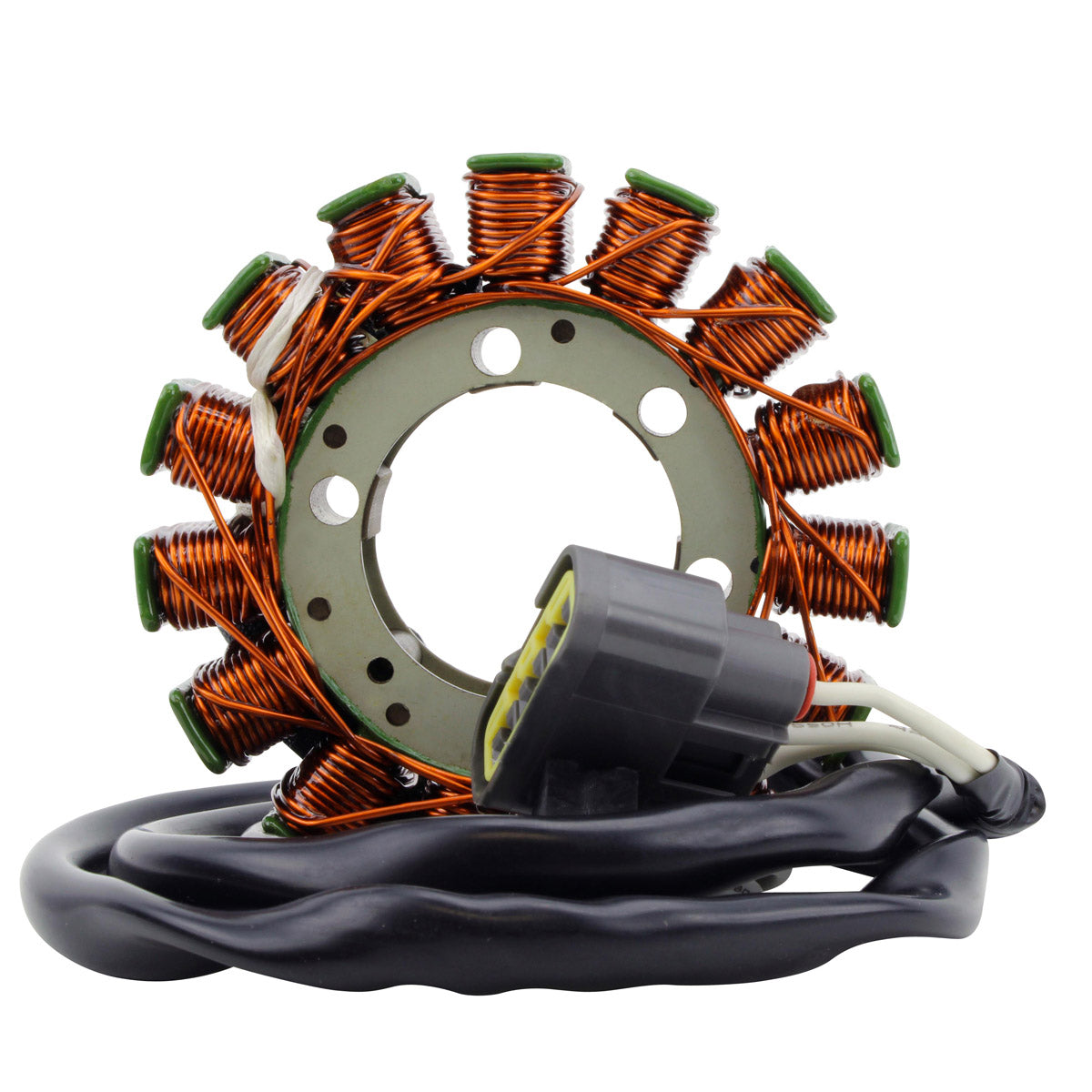

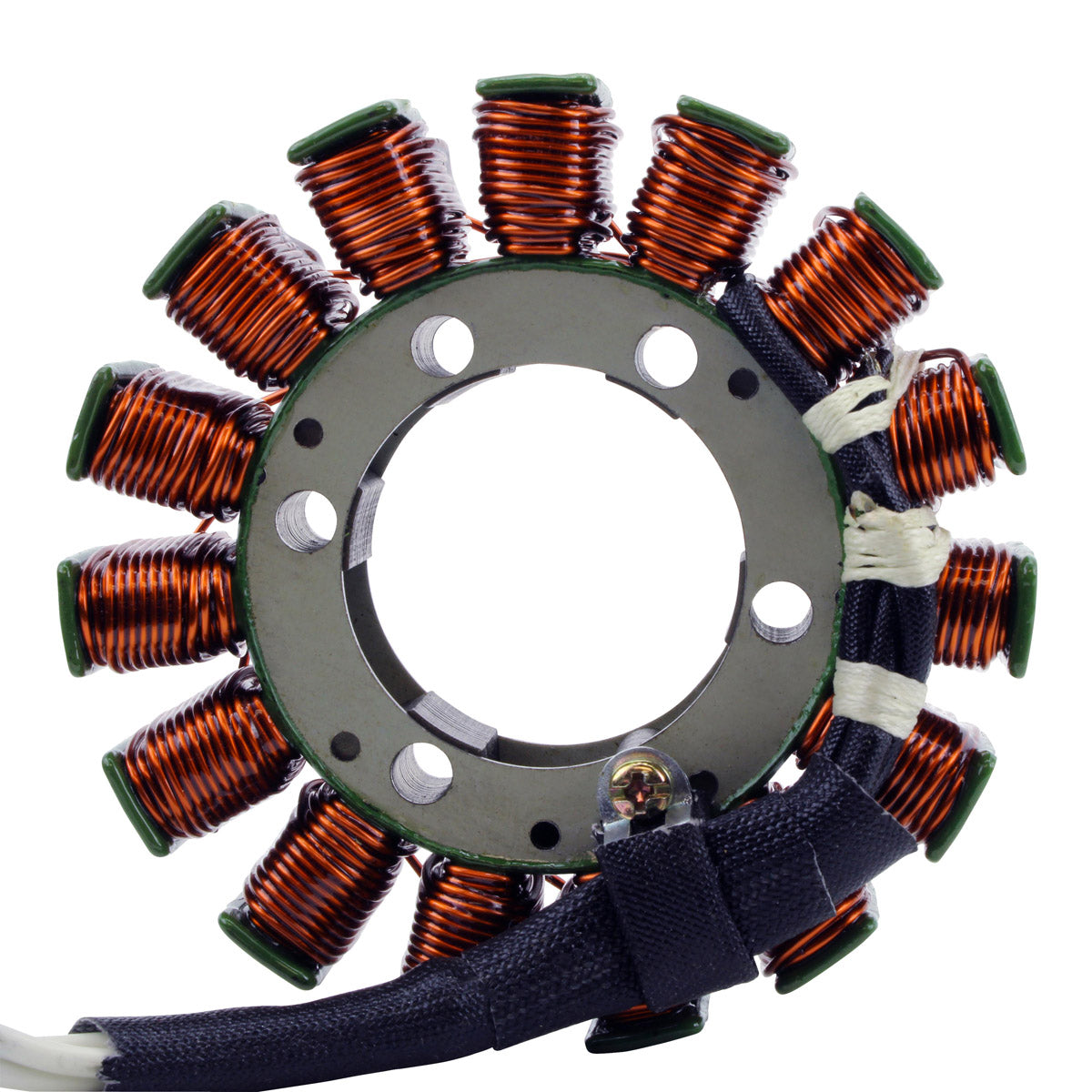

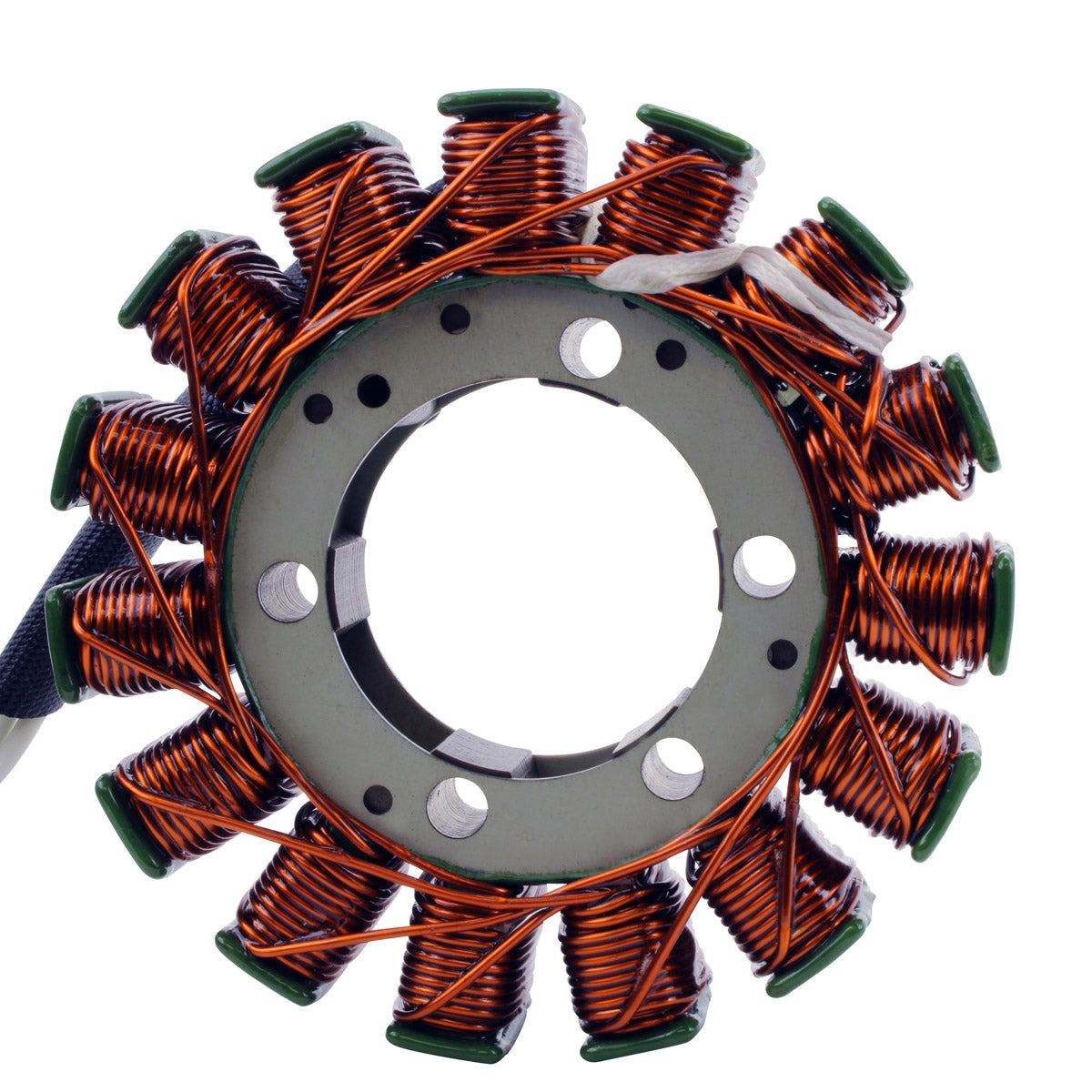

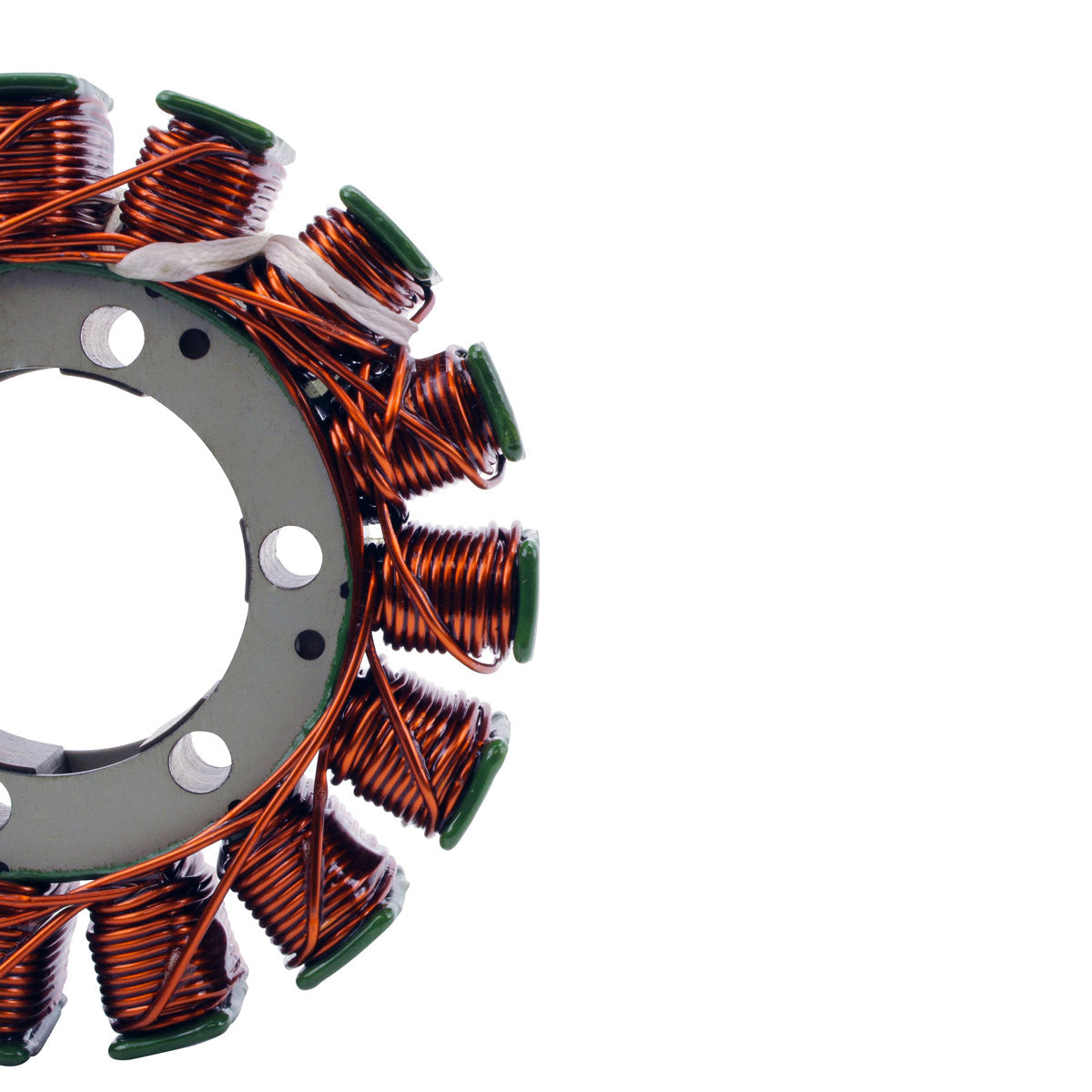

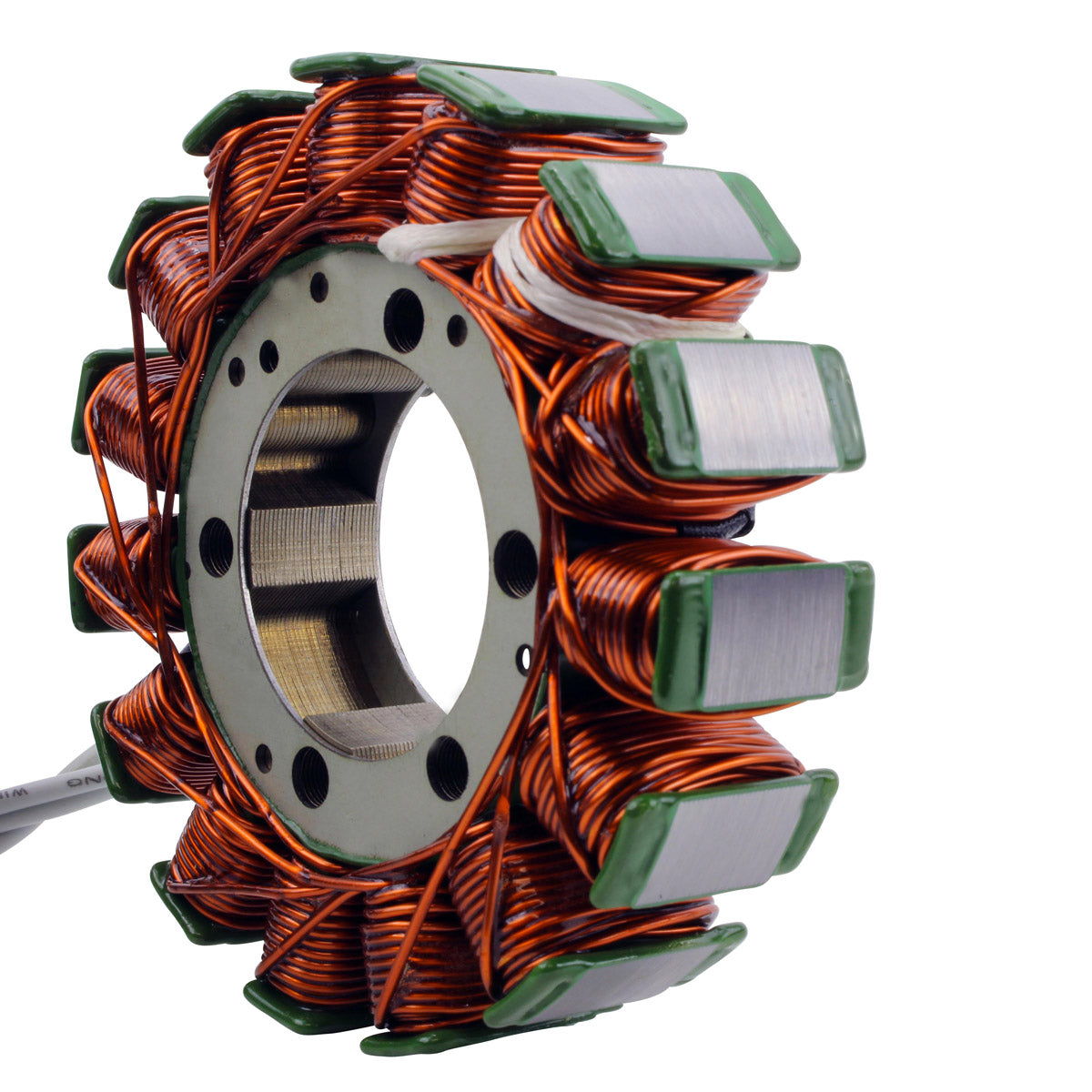

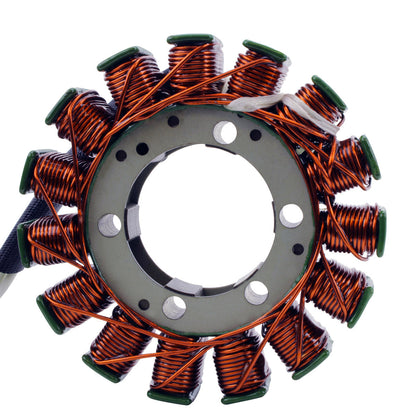

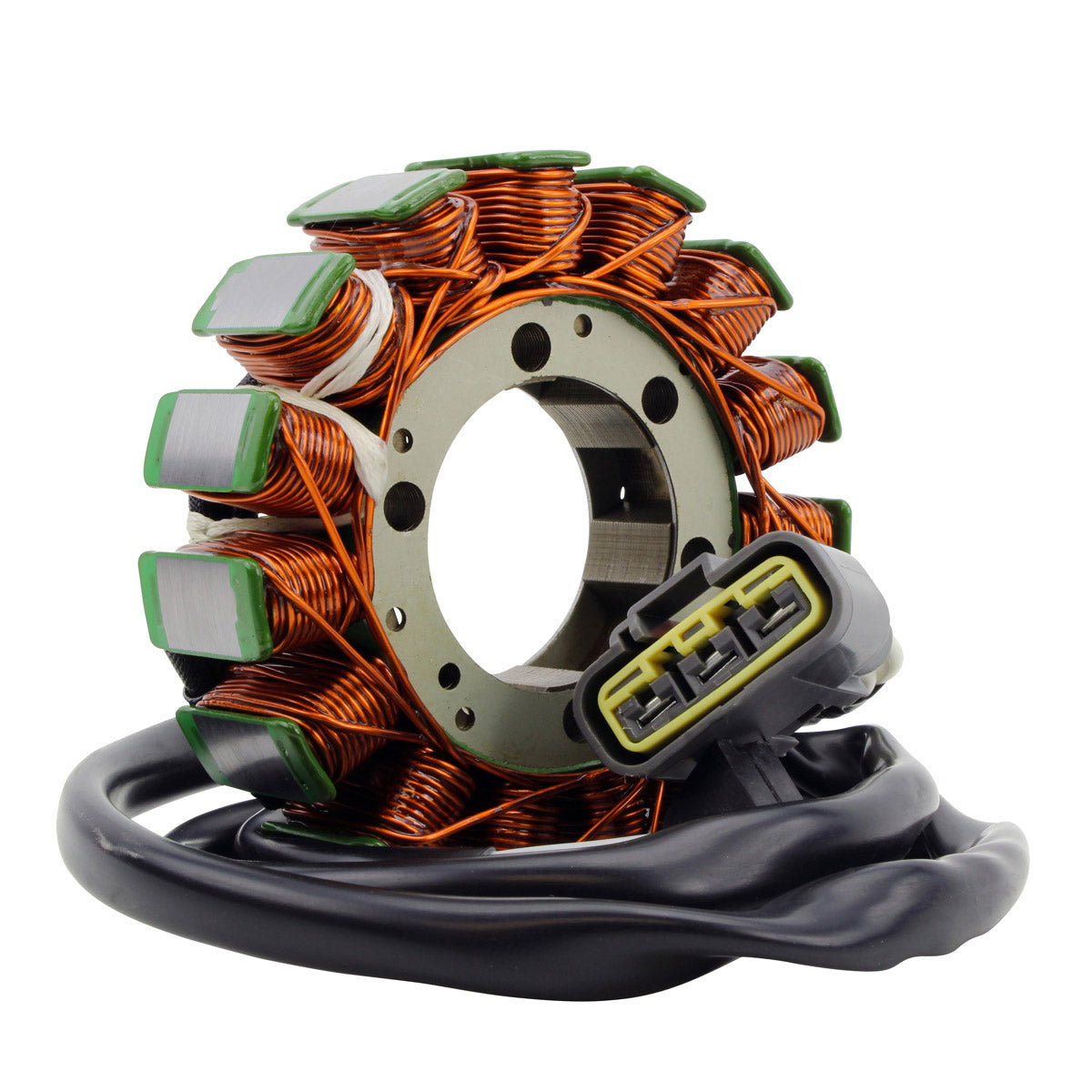

This is a brand new aftermarket generator stator for the Yamaha 1900 cruiser family - the Roadliner, the Stratoliner Midnight and the Raider S. It is a direct replacement for the original unit that sits behind the flywheel and feeds the regulator rectifier, so a machine that will not hold charge, drops its lights at idle or flattens a battery on a long run can be put back to standard output.
The stator is plug-and-play and a direct fit, and the connector and rubber grommet are supplied with it, so no splicing into the standard loom is needed. It is built on the highest grade lamination materials and wound with the highest grade copper, insulated to withstand 200 degrees Celsius.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Connector and rubber grommet included
- Highest grade copper windings, resistant to 200 degrees Celsius
- Highest grade lamination materials

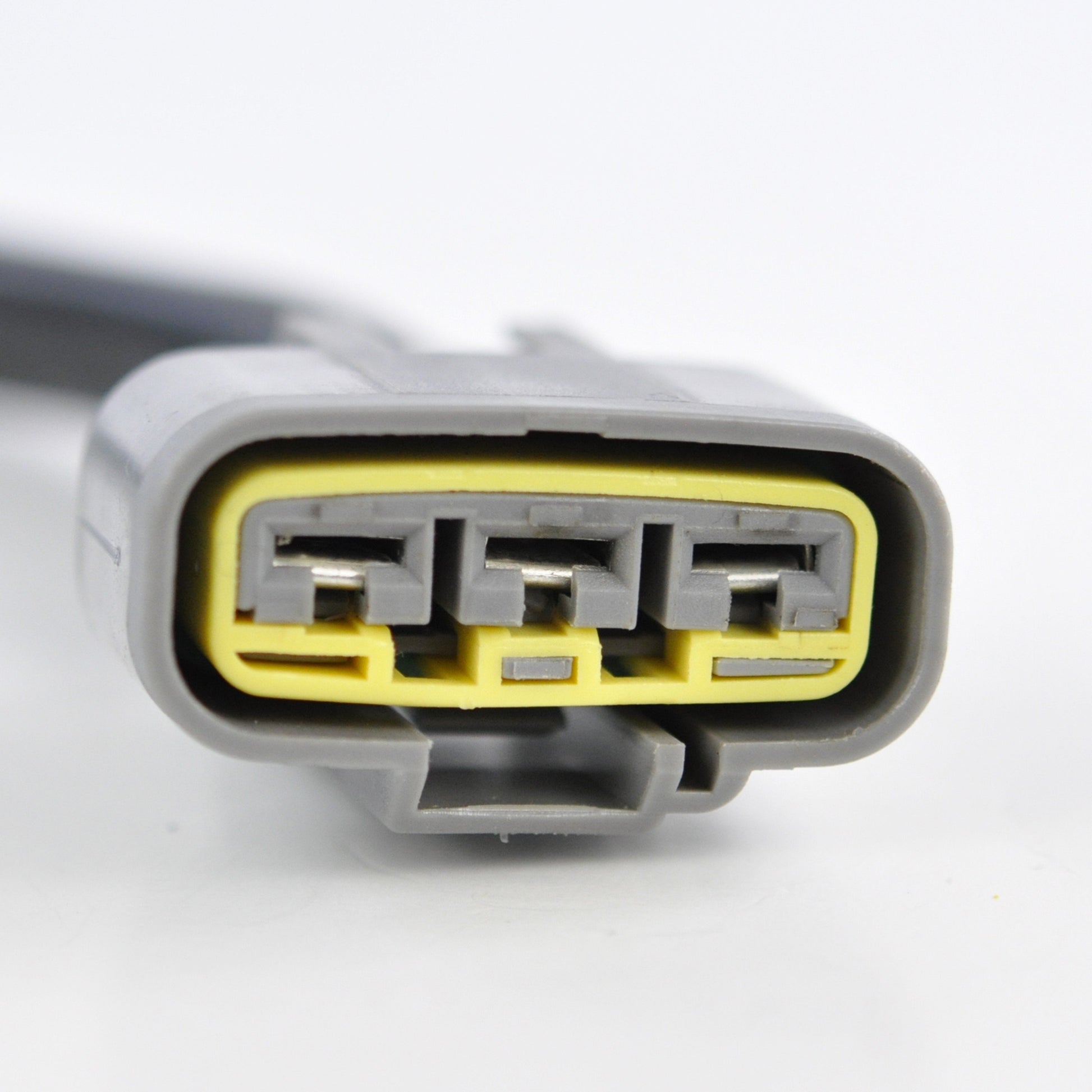

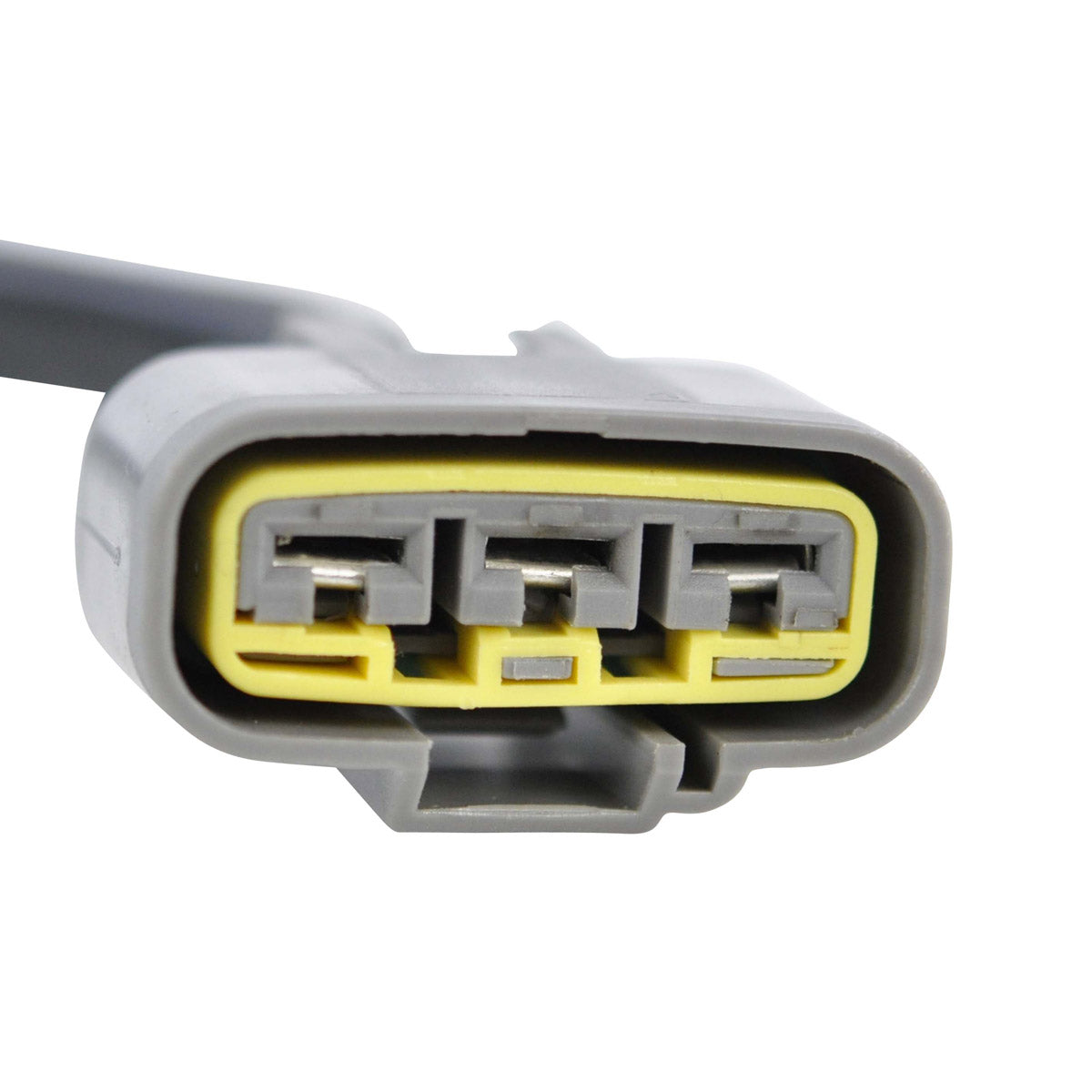

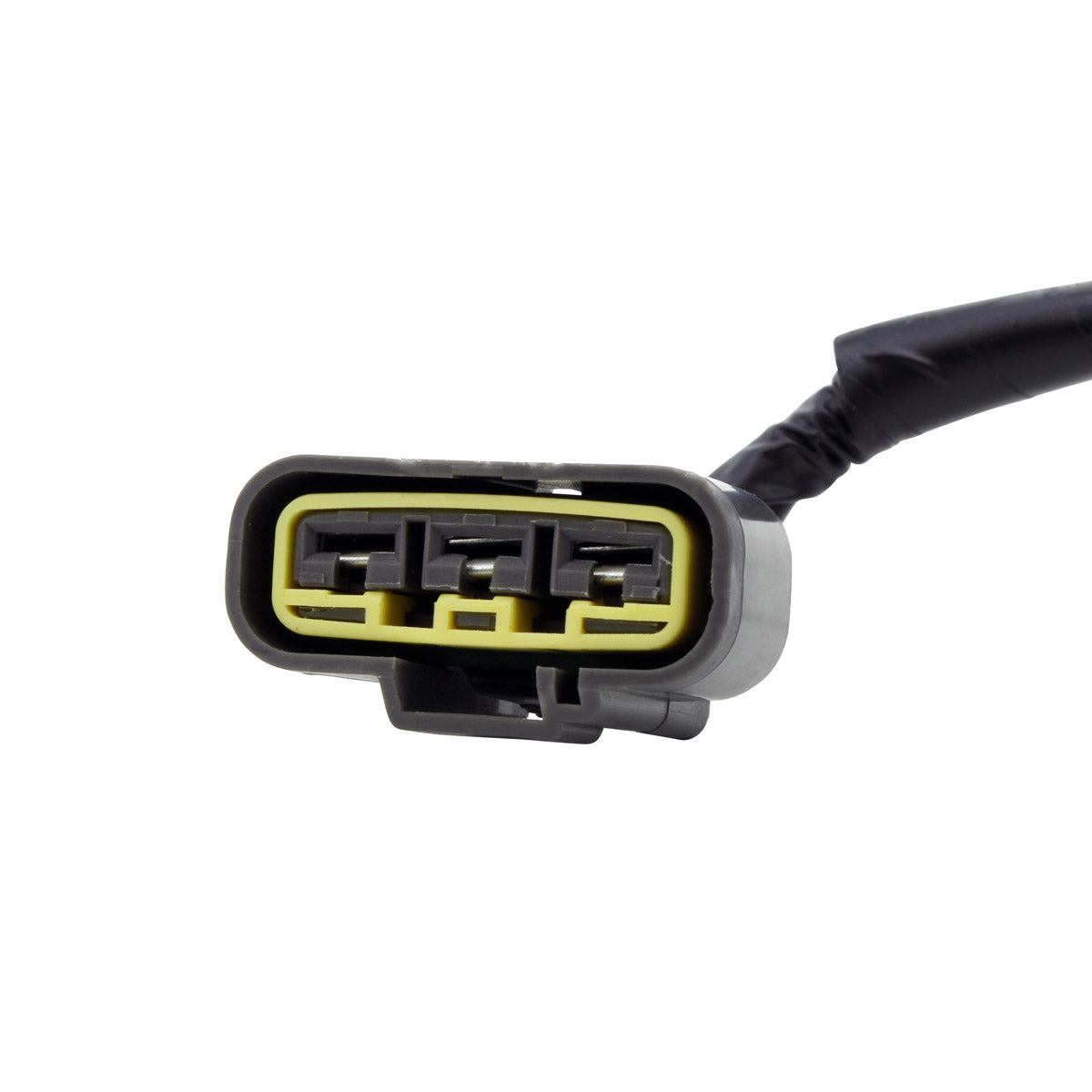

- Three wires, one plug, three pins - the original layout
Technical Specs
| Specification |
Detail |
| Part number |
RM01552 |
| Interior diameter |
42 mm |
| Exterior diameter |
105 mm |
| Thickness |
20 mm |
| Wire length, stator to grommet |
100 mm |
| Wire length, grommet to plug |
900 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Wire to wire resistance, white to white |
0.5 ohms +/- 20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha Roadliner 1900 |
2006-2017 |
| Yamaha Stratoliner Midnight 1900 |
2006-2017 |
| Yamaha Raider S 1900 |
2006-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 1D7-81410-00-00 |
Yamaha |
| 1D7-81410-01-00 |
Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. On the models and years listed above it is a direct replacement for the original unit and installs plug-and-play. The connector and rubber grommet are supplied, so the standard loom does not need to be cut or spliced.
What is included?
The stator, the connector and the rubber grommet.
How can I tell my old stator has failed?
Look for a battery that will not stay charged, headlights that dim as the revs drop, and a bike that eventually stops because it has been running on the battery alone. On the bench, the three white wires should read about 0.5 ohms between any two of them, within 20 per cent. An open circuit between a pair, a badly unbalanced set of readings, or continuity from any white wire to the stator body means the winding has gone.
The lead on this part looks long - is that right?
Yes. The 1900 cruisers route the charging lead a long way forward, so this stator carries 100 mm of wire from the windings to the grommet and a further 900 mm from the grommet to the plug. That matches the original routing and lets the plug reach its factory position.
