Generator Stator for Yamaha V Star 650
V Star 650 Custom, Silverado, Classic and Midnight Custom, 2004-2016

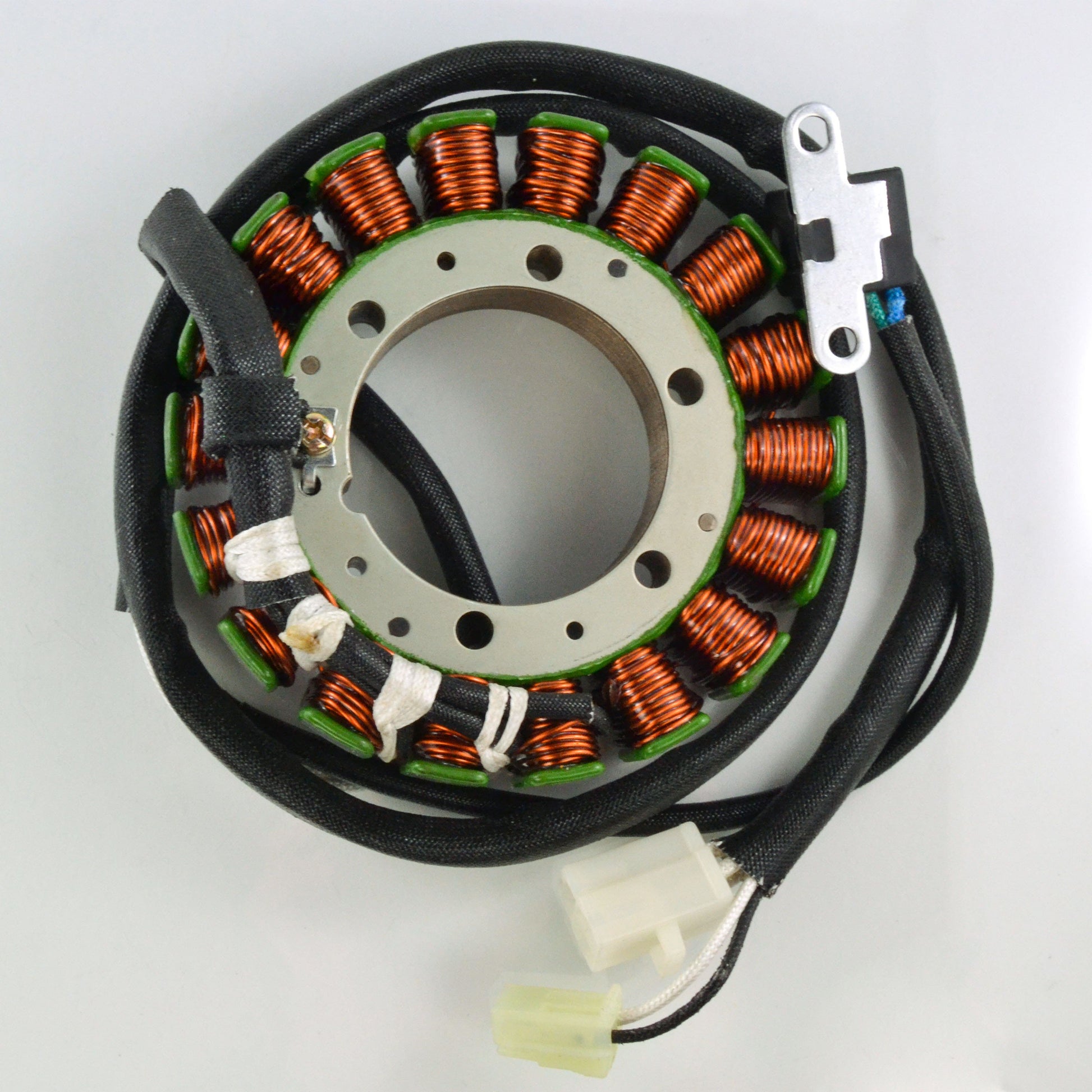

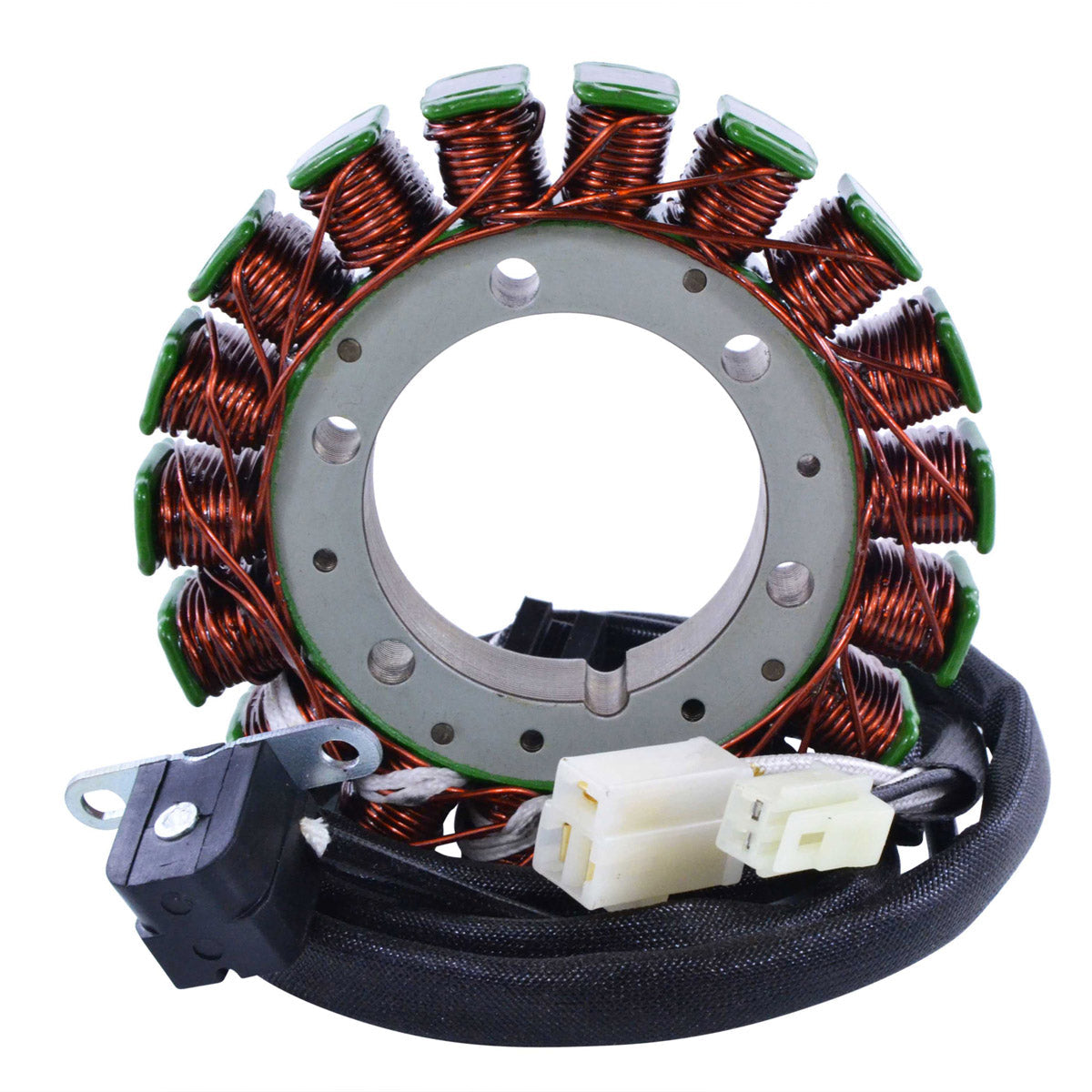

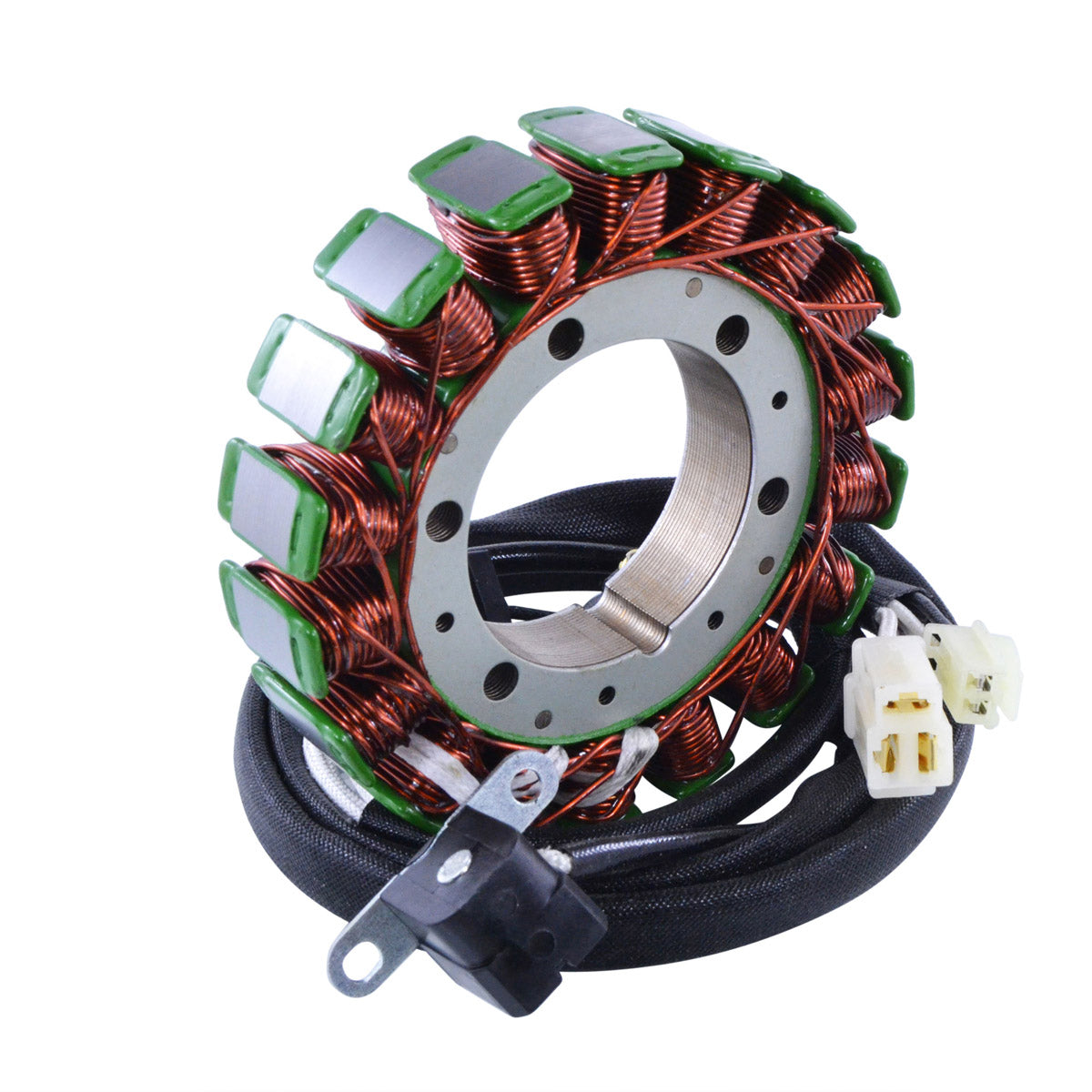

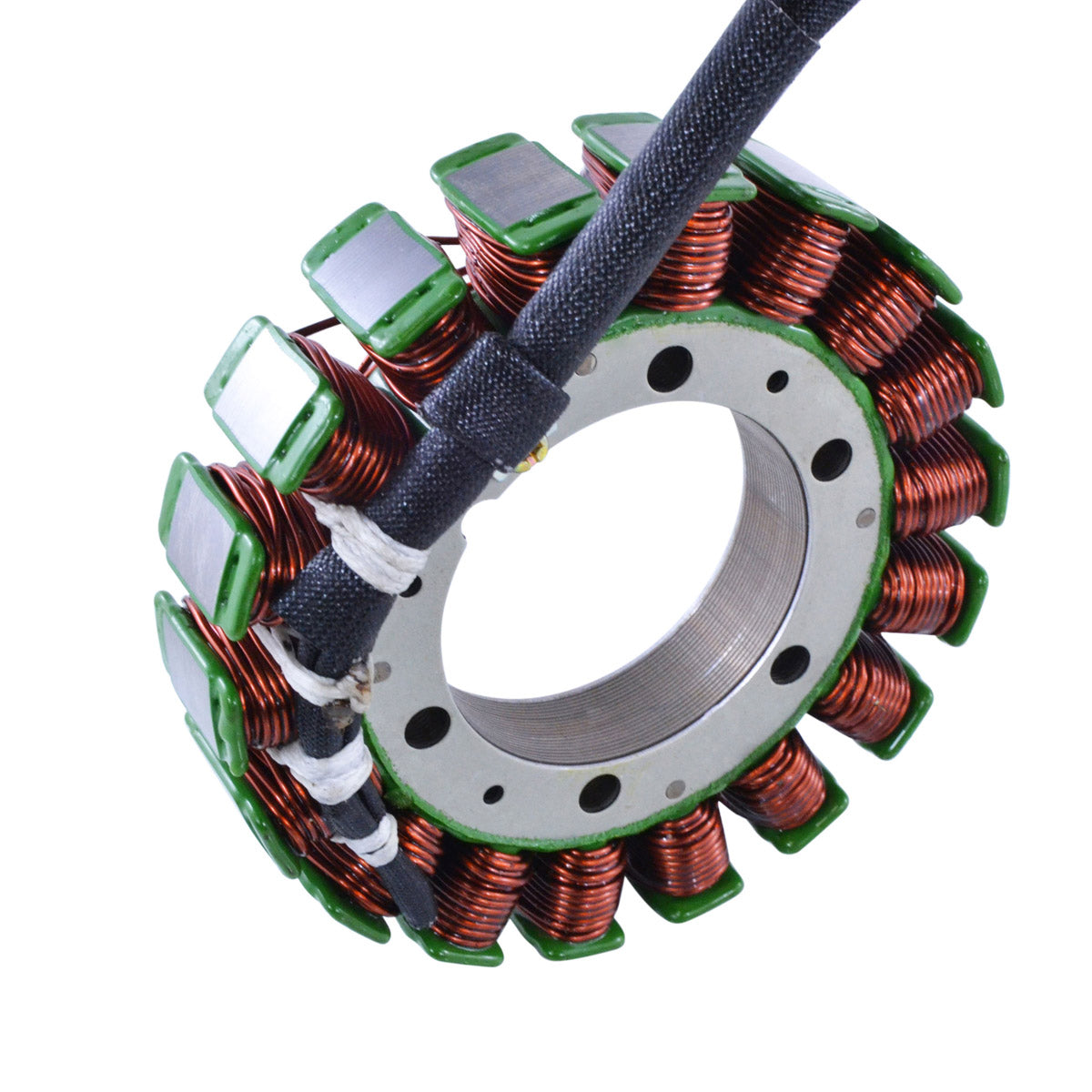

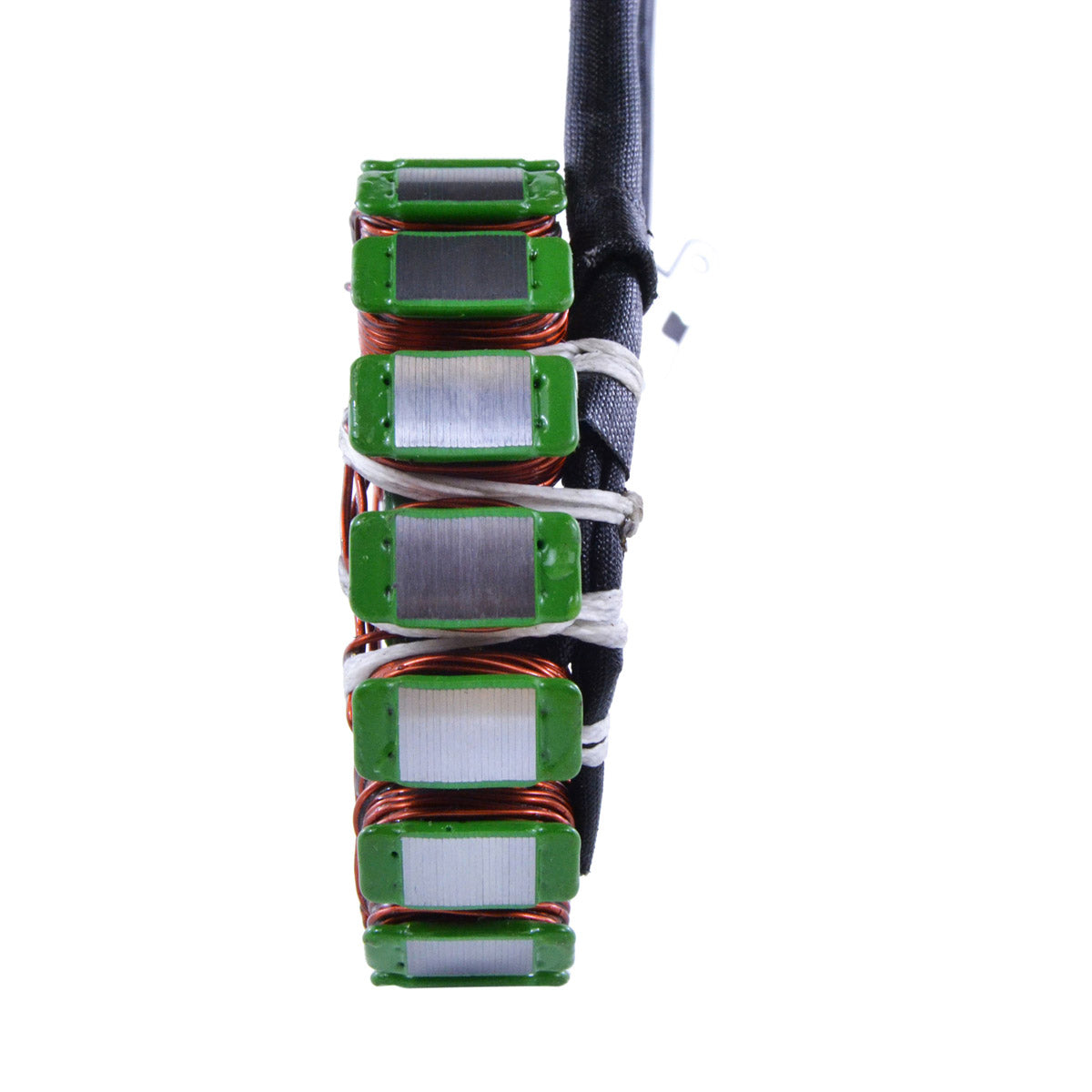

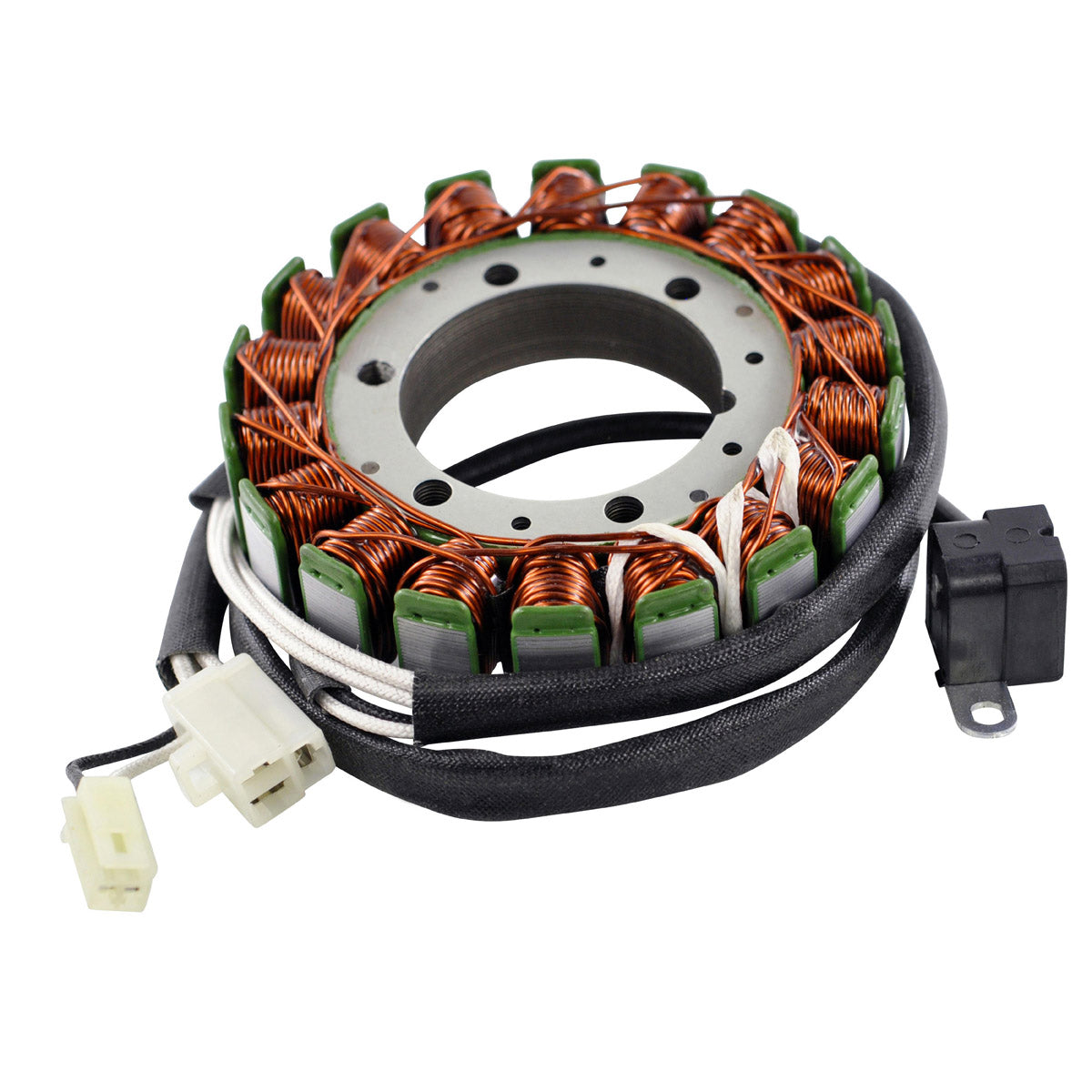

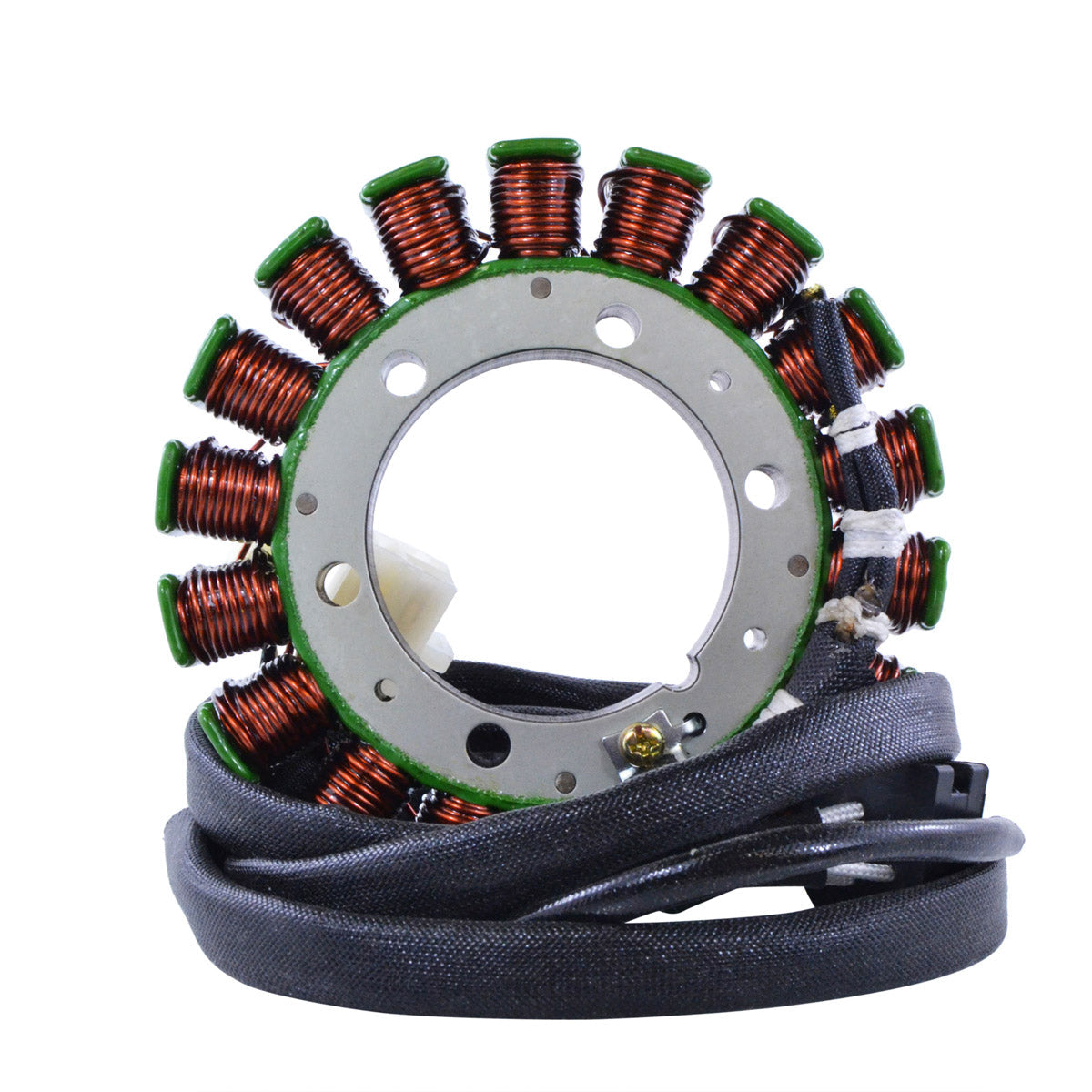

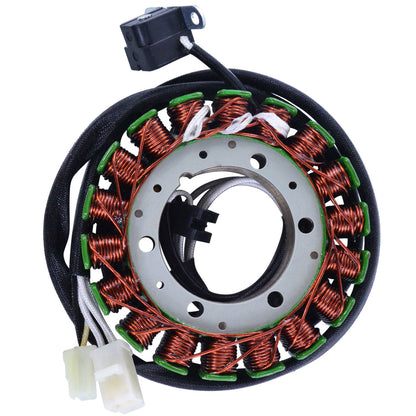

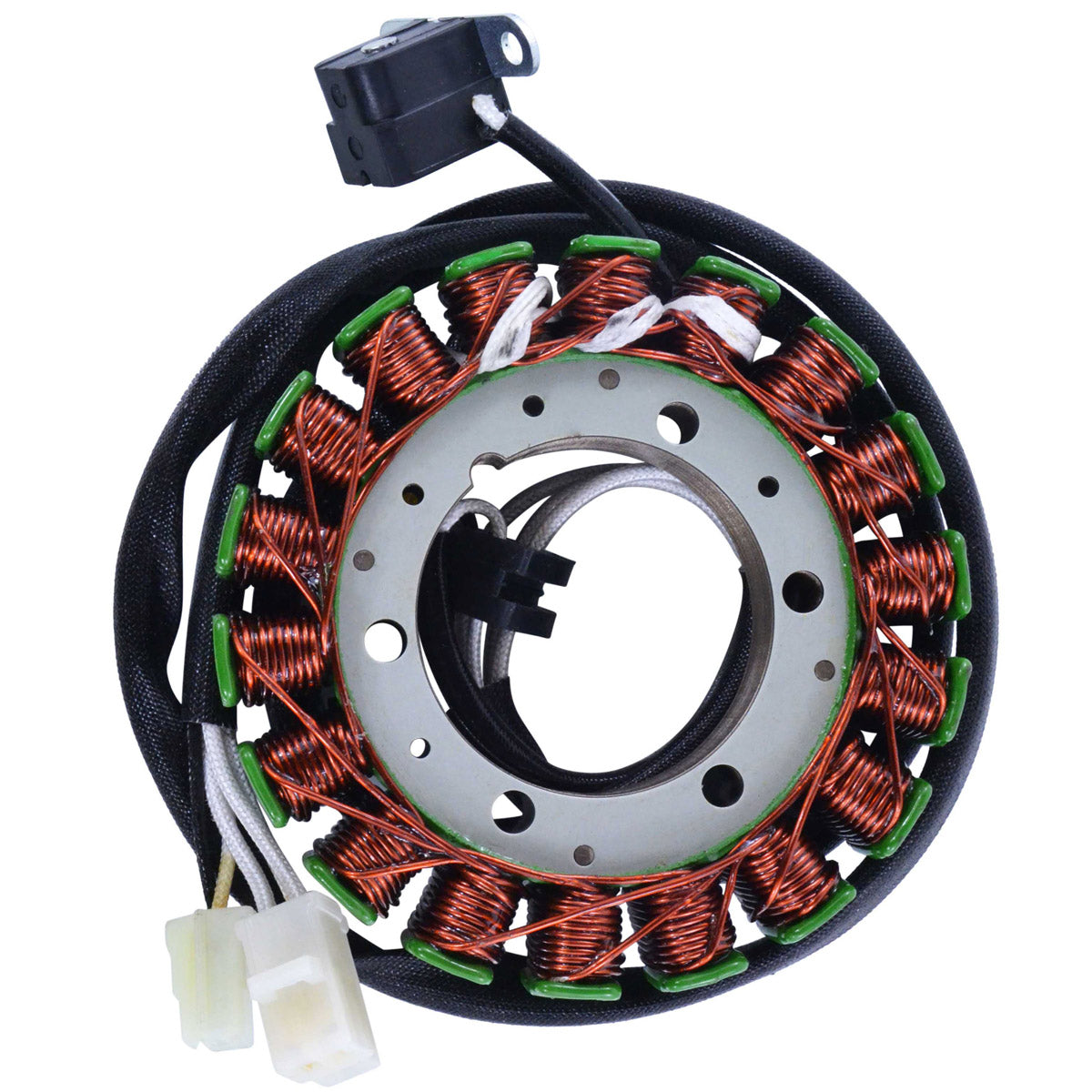

This is a brand new aftermarket generator stator supplied as a direct replacement for the original unit fitted to the Yamaha V Star 650 Custom, Silverado, Classic and Midnight Custom from 2004 through to 2016. It is a plug-and-play, direct fit assembly with easy installation: the mounting pattern, the wire lengths and the connector all match the factory part, so nothing on the bike needs to be cut, drilled or rewired.

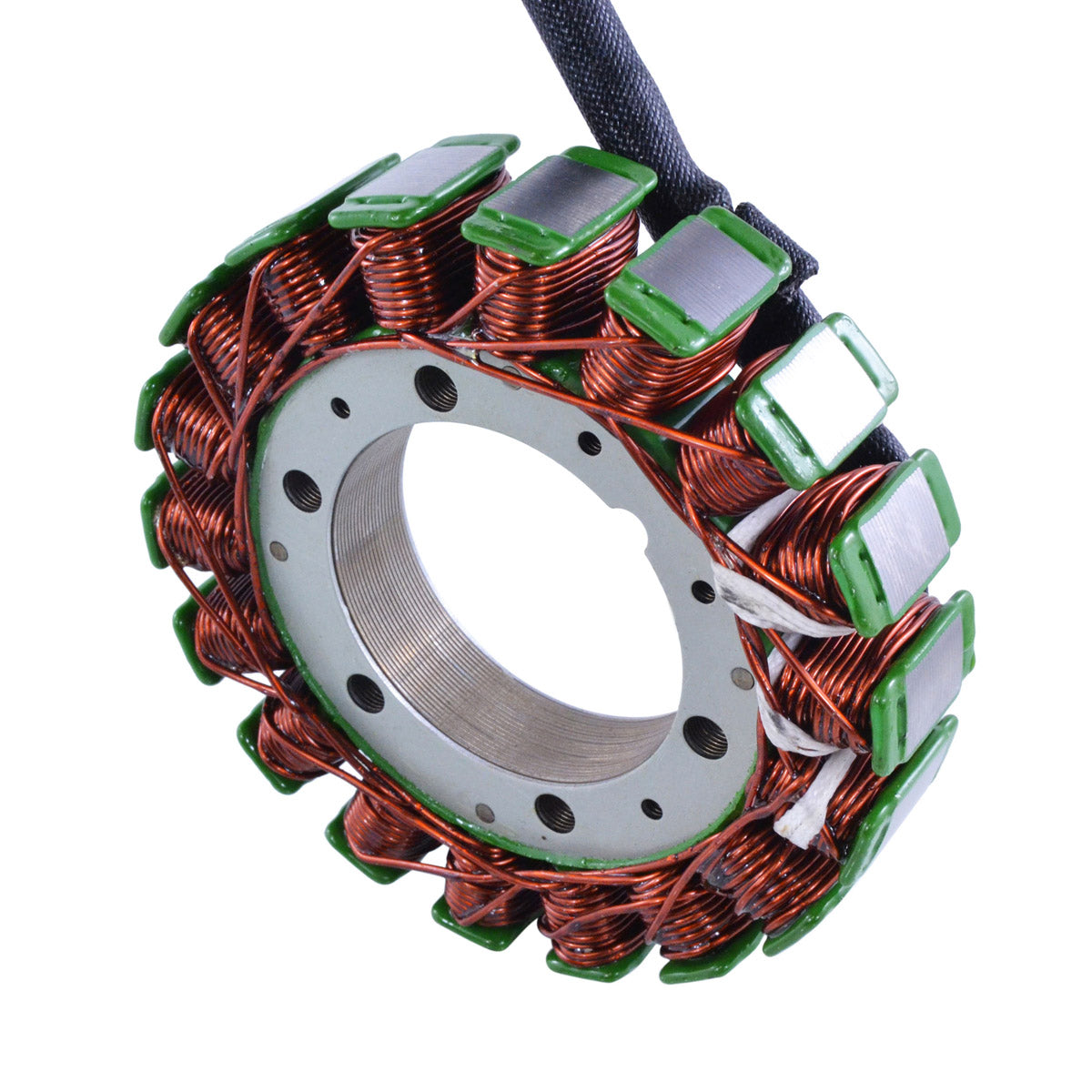

The stator is built on the highest grade lamination materials and wound with the highest grade copper, insulated to resist 200 degrees Celsius. The pickup pulsar coil is supplied with the assembly, so both the charging winding and the ignition trigger are renewed in one go. An extra connector for the main harness side is included as well, because the original connector on a bike of this age is very often melted, corroded or otherwise defective by the time the stator fails. All products shipped are tested.
Key Features
- Plug and play, direct fit replacement - easy installation
- Highest grade lamination materials and copper windings
- Insulation resistant to 200 degrees Celsius

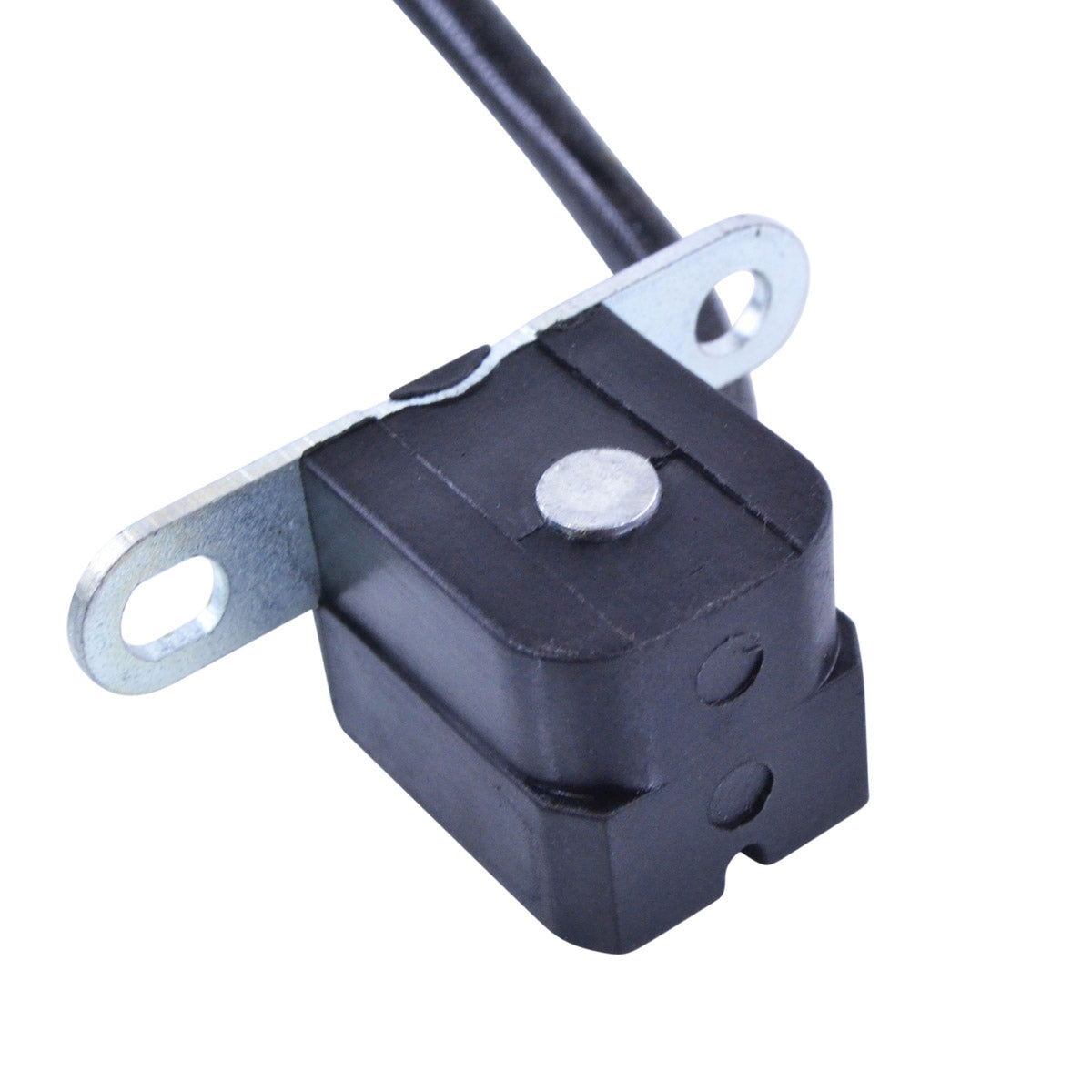

- Pickup pulsar coil supplied with the assembly

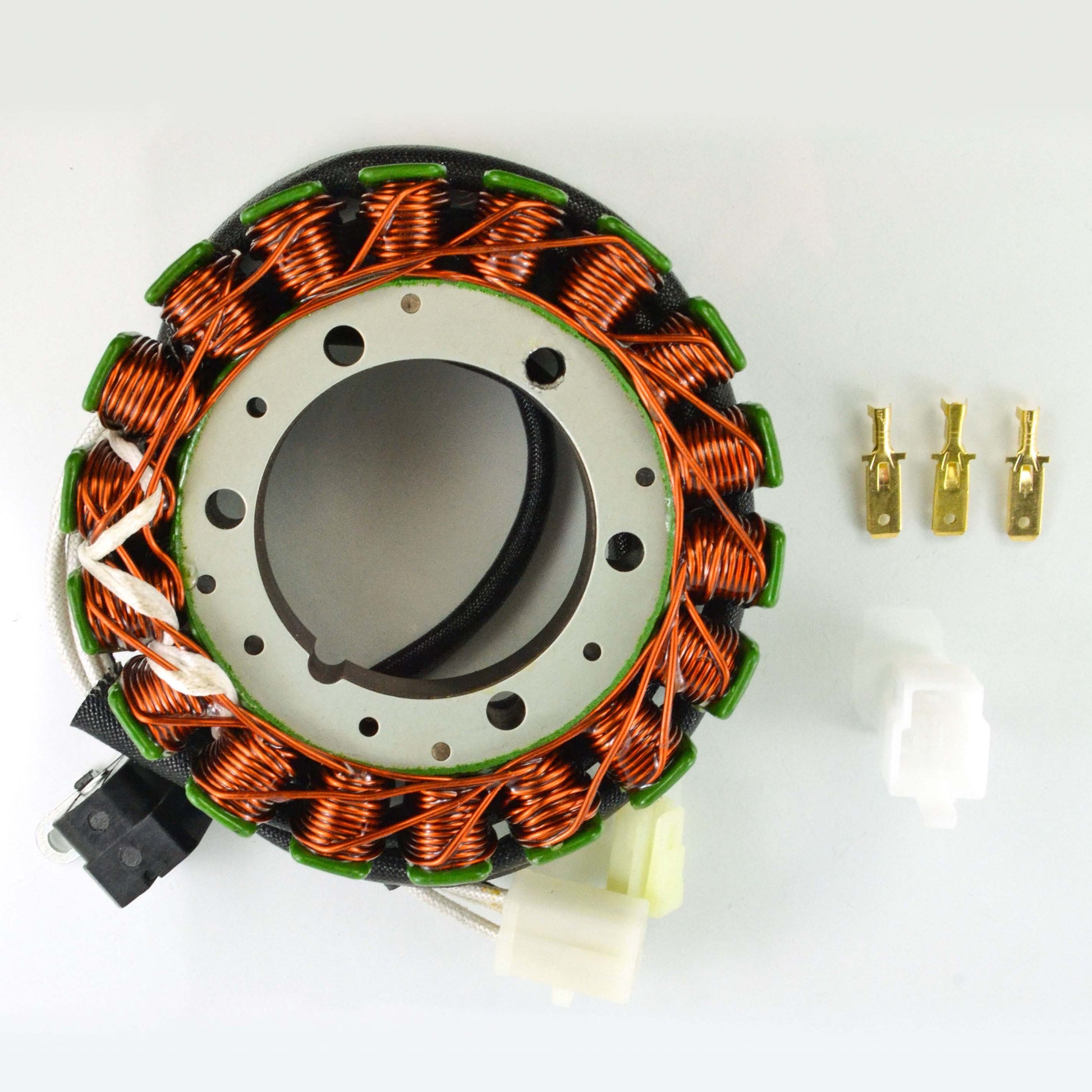

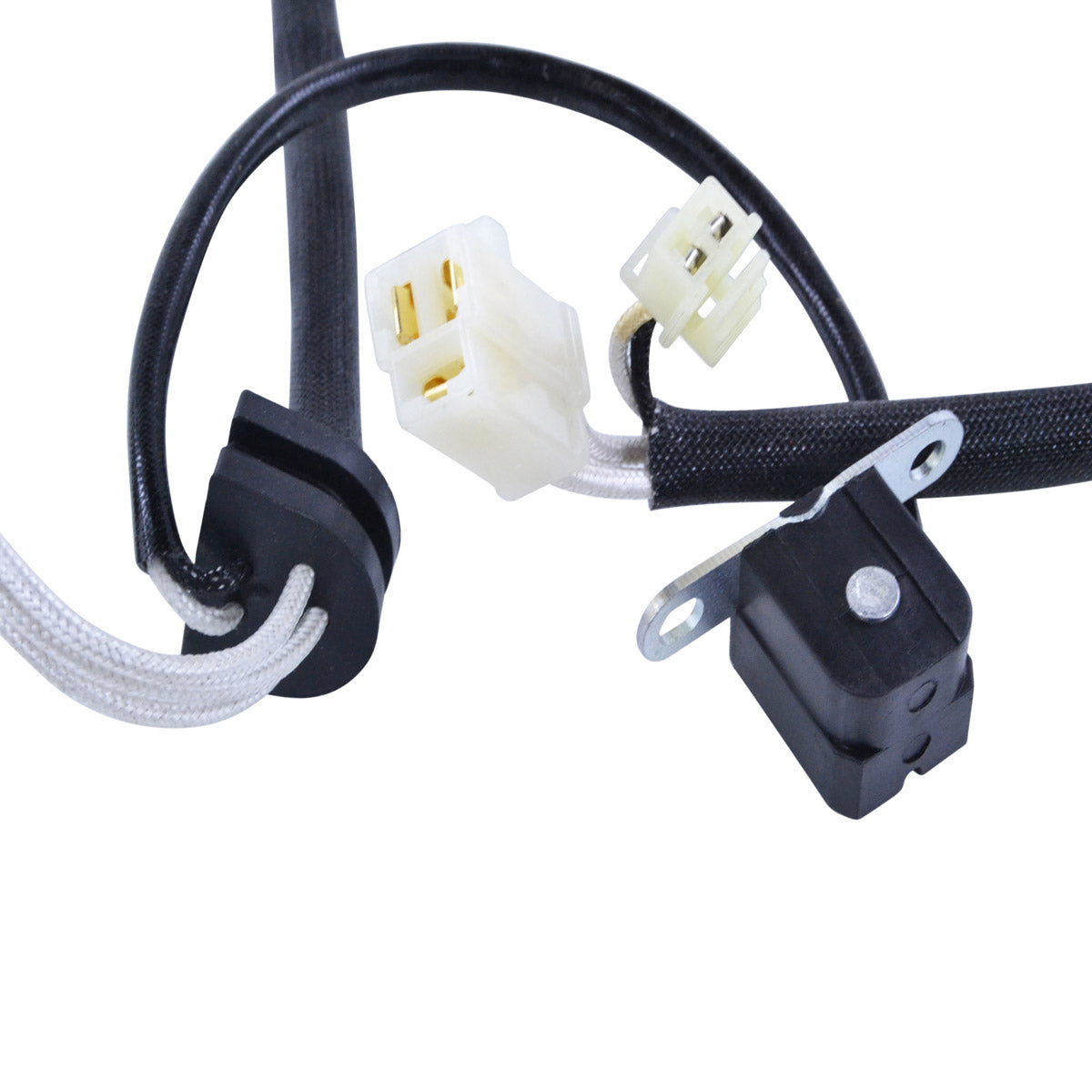

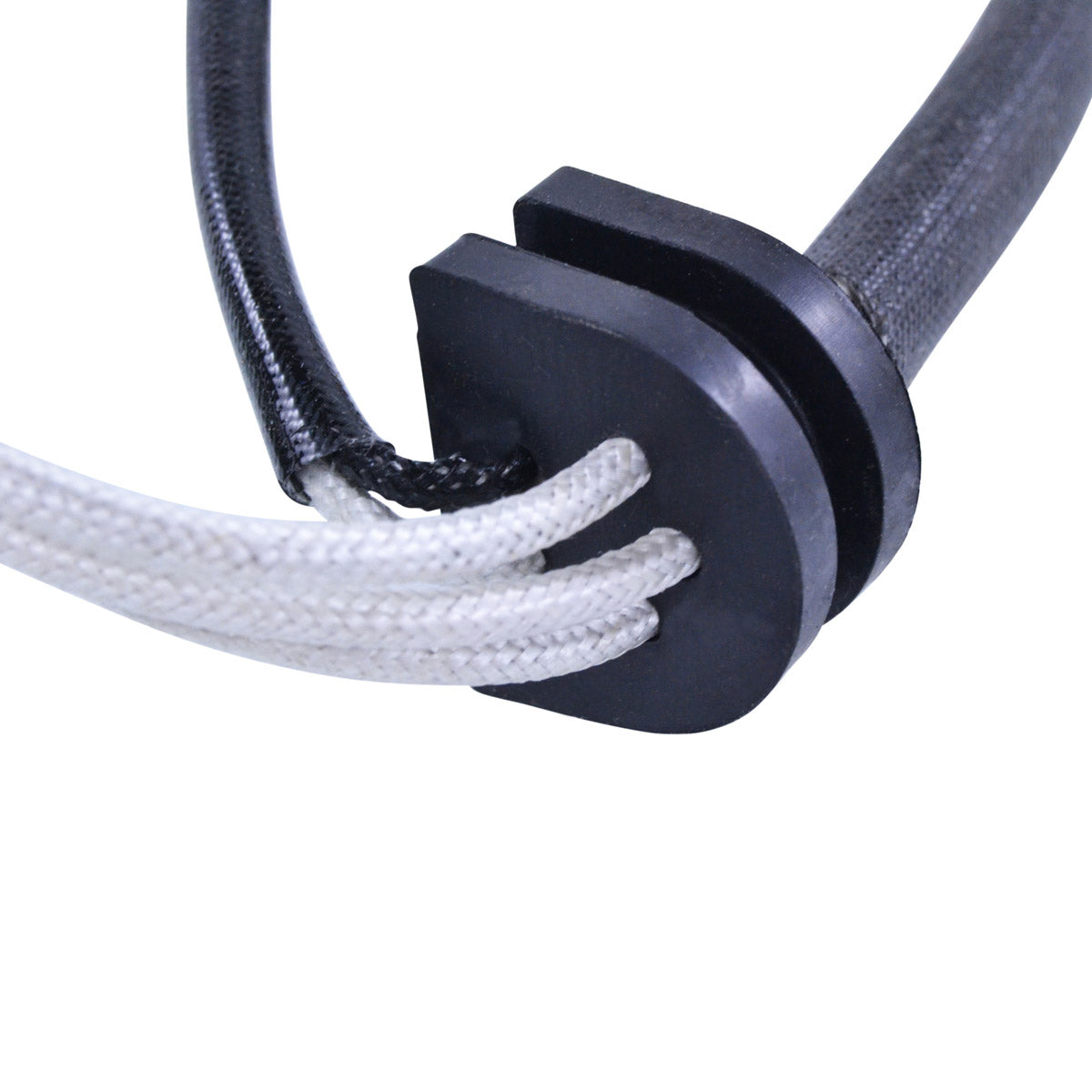

- Connector, rubber grommet and an extra harness-side connector included

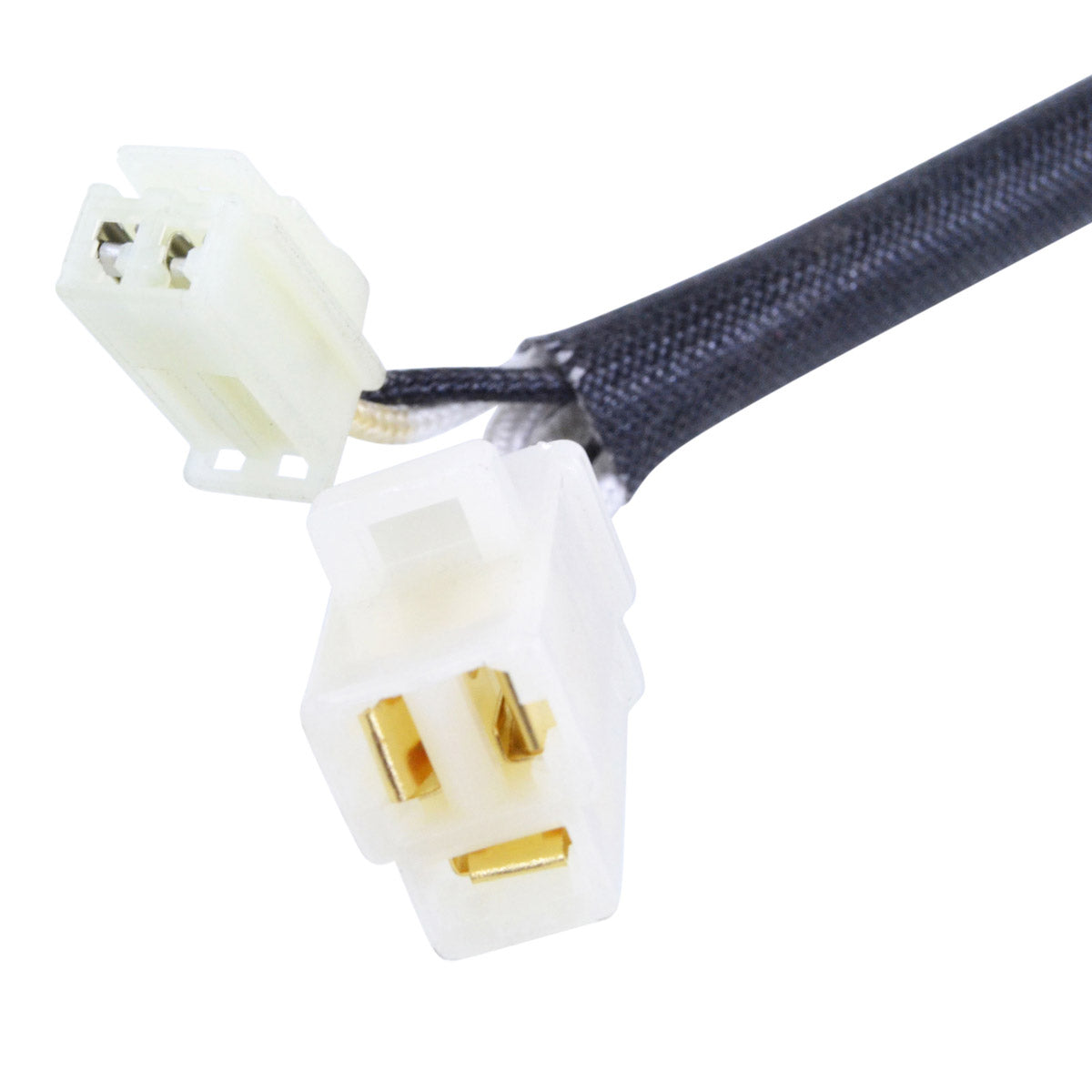

- Five wires, two plugs and five pins
- All units tested before shipping
Technical Specs
| Specification |
Detail |
| Part Number |
RMS010-103240 |
| Interior Diameter |
54 mm |
| Exterior Diameter |
115 mm |
| Thickness |
18 mm |
| Wire Length (stator to grommet) |
235 mm |
| Wire Length (grommet to plug) |
736 mm |
| Pickup Coil Wire Length |
200 mm |
| Number of Wires |
5 |
| Number of Plugs |
2 |
| Number of Pins |
5 |
| Alternator Resistance (White to White) |
0.4 ohms +/- 20% |
| Pickup Resistance (White to Black) |
200 ohms +/- 20% |
| Temperature Rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha V Star 650 Custom |
2004-2016 |
| Yamaha V Star 650 Silverado |
2004-2016 |
| Yamaha V Star 650 Classic |
2004-2016 |
| Yamaha V Star 650 Midnight Custom |
2004-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5SC-81410-00-00 |
Yamaha |
| 5SC-81410-01-00 |
Yamaha |
| 5SC-81410-02-00 |
Yamaha |
| 5SC-81410-03-00 |
Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct fit, plug-and-play replacement for the original Yamaha unit. The stator bolts to the same points behind the left-hand cover and the loom plugs straight in, so no cutting, splicing or drilling is required.
What is included?
The generator stator, the pickup pulsar coil, the connector with both plugs, a rubber grommet, and an extra connector for the main harness side. That spare connector lets you renew the plug on the bike at the same time, which is worth doing whenever the old one shows heat damage or green corrosion.
How do I confirm my stator has failed?
Look for a battery that will not hold charge, headlight brightness that drops at idle, or a bike that will not restart once warm. Test with a multimeter across the three white leads, which should read about 0.4 ohms between any pair, and across the pickup white to black, which should read about 200 ohms - both within plus or minus 20 per cent. Any open circuit, or continuity from a winding to the stator body, means it needs replacing.
Does it cover the Midnight Custom as well as the Classic?
It does. The same stator covers the V Star 650 Custom, Silverado, Classic and Midnight Custom across the 2004 to 2016 span. Cross-check the number on your original unit against 5SC-81410-00-00, -01-00, -02-00 or -03-00 before ordering.
