Generator Stator for Yamaha WR 250 F
Yamaha WR 250 F 2005-2013 - Part number RMS010-100184

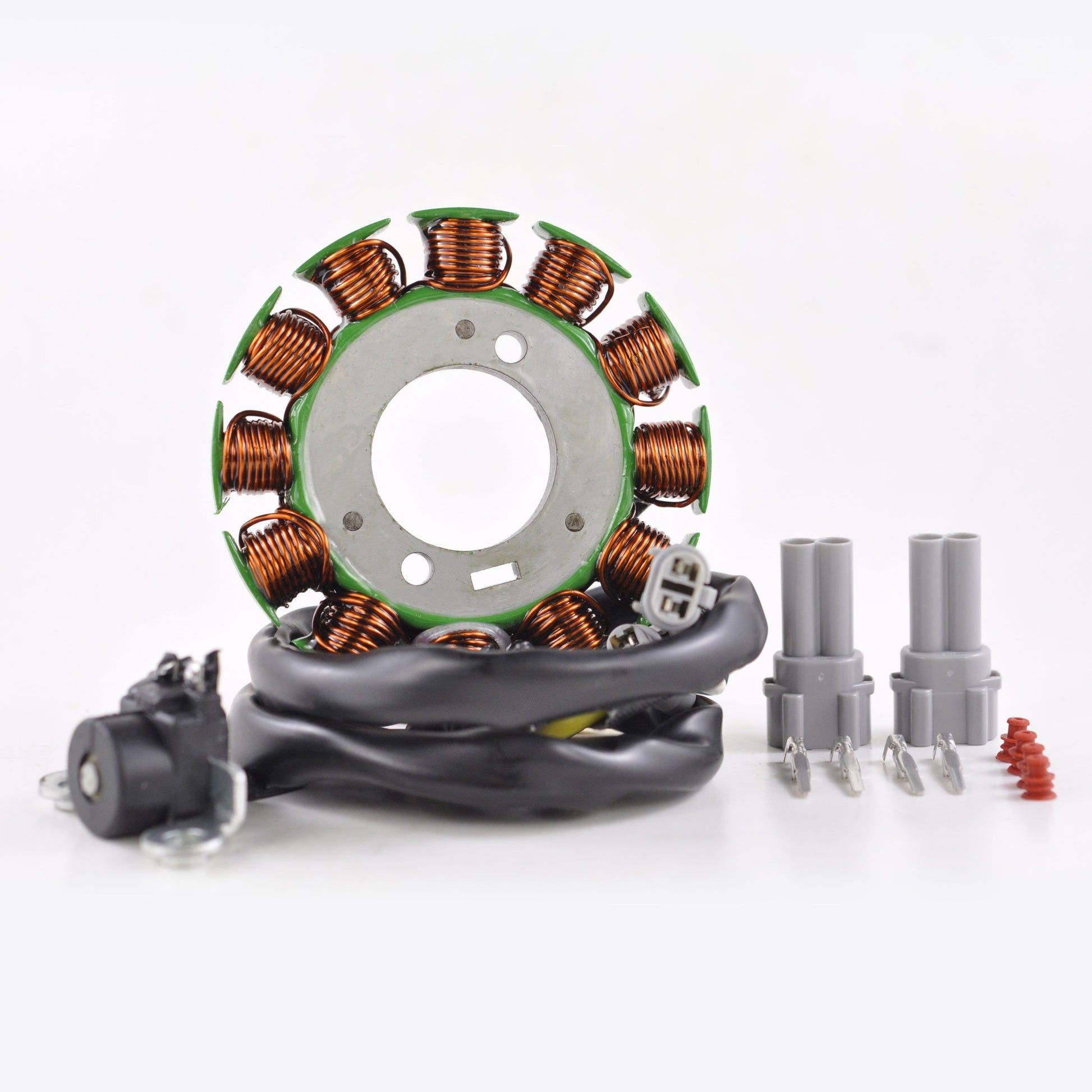

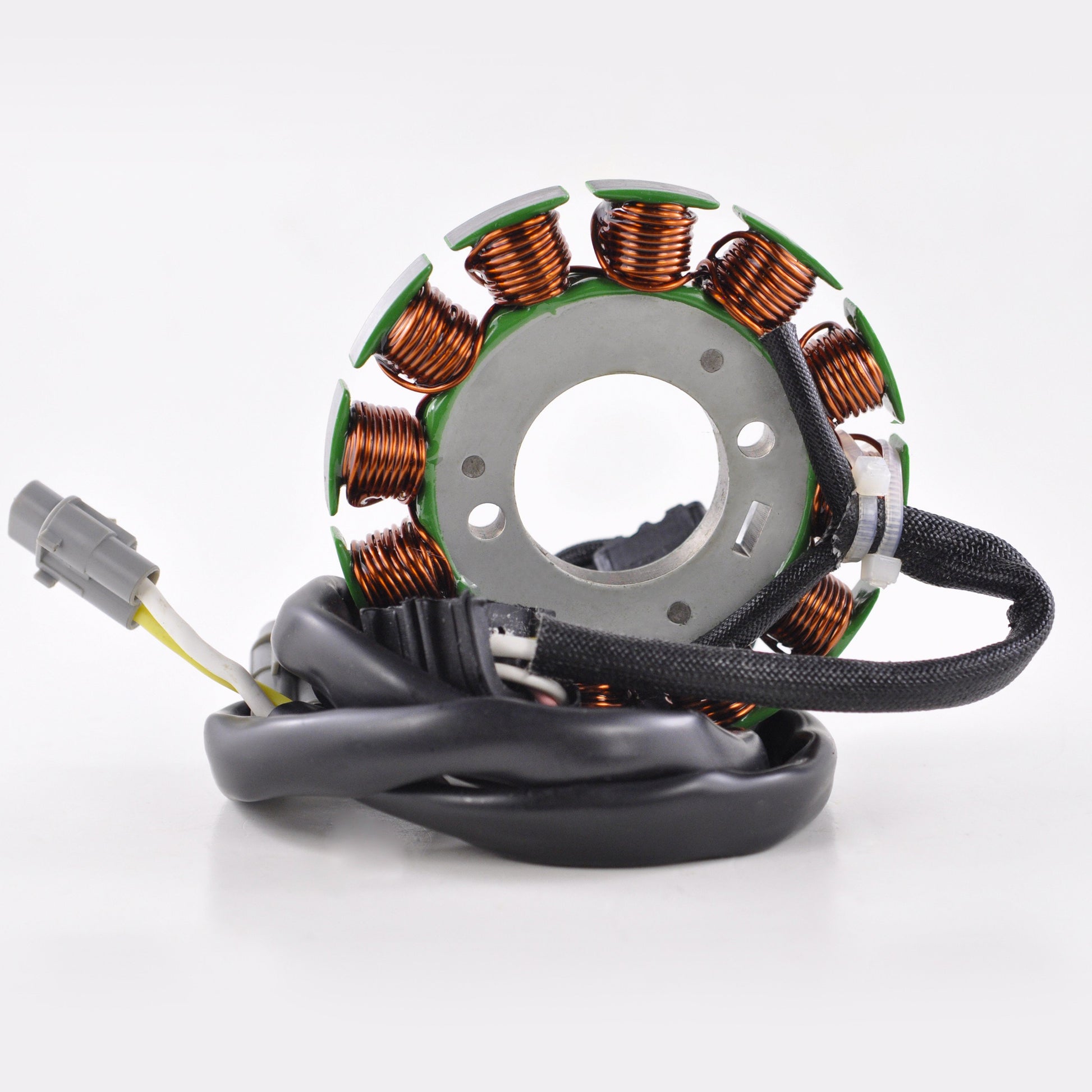

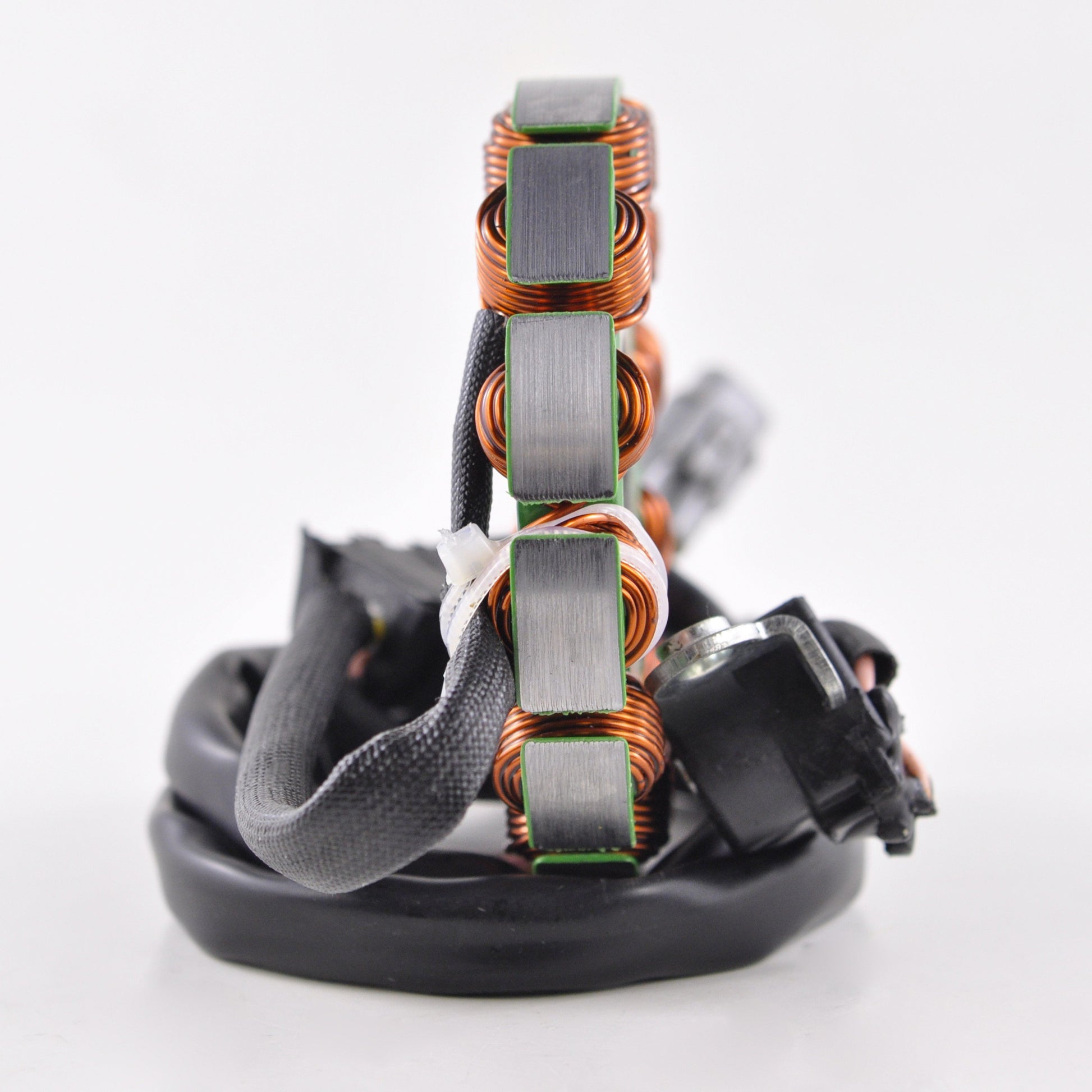

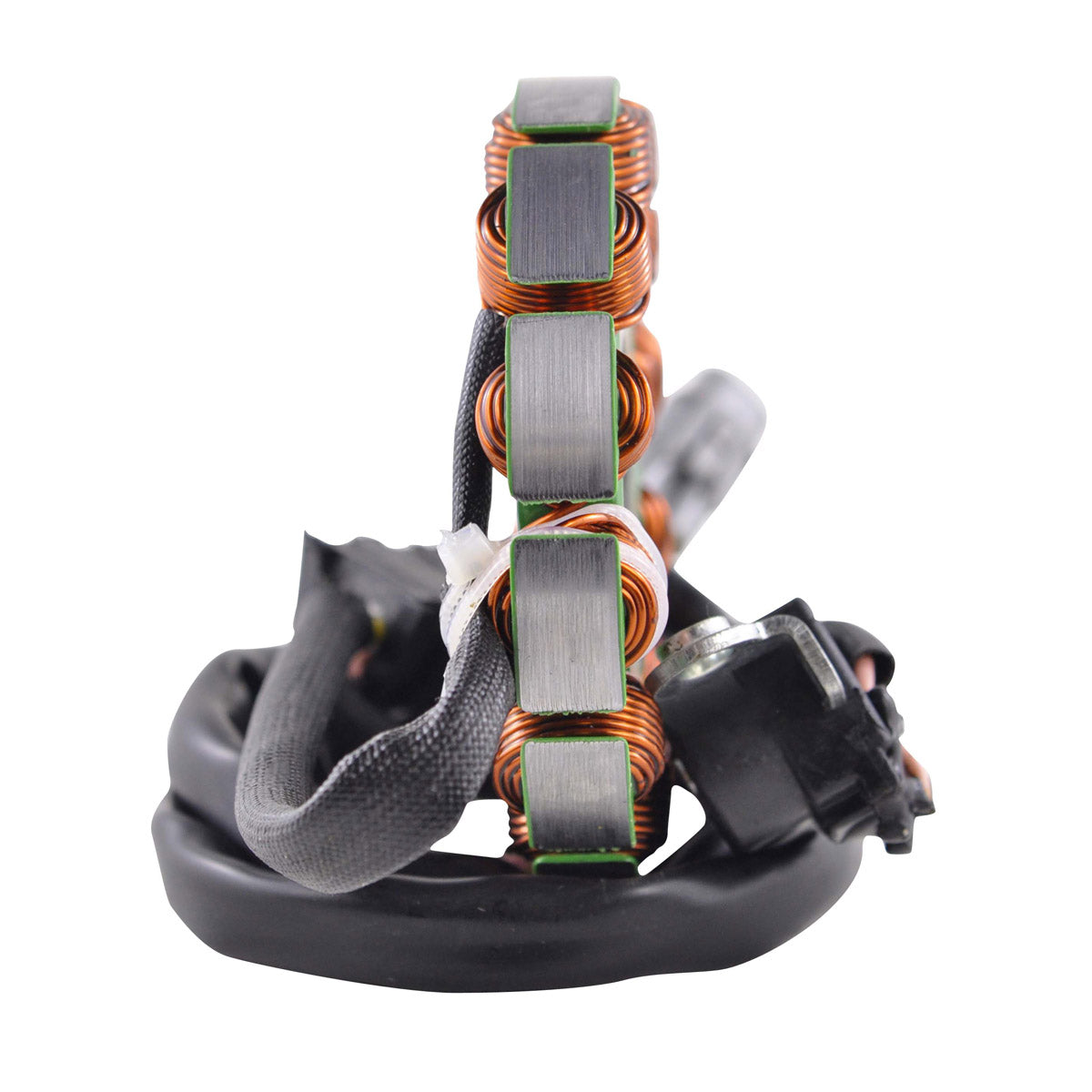

This is a brand new aftermarket generator stator built as a direct replacement for the original unit fitted to the Yamaha WR 250 F. It is a plug-and-play, direct fit component, so installation is straightforward and no modification of the wiring loom is required. The stator is wound with the highest grade copper windings, rated to resist 200 degrees Celsius, and uses the highest grade lamination materials for the core.

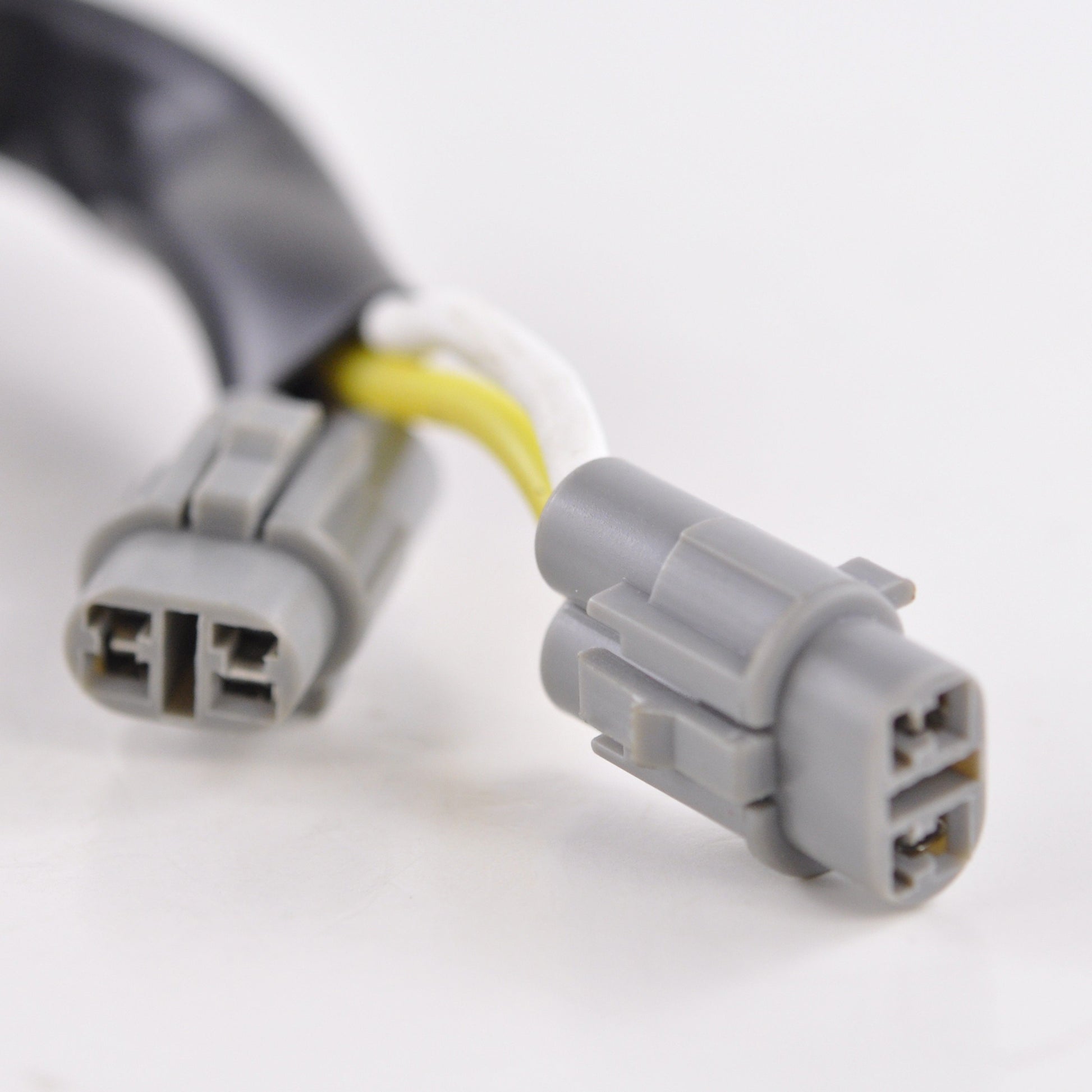

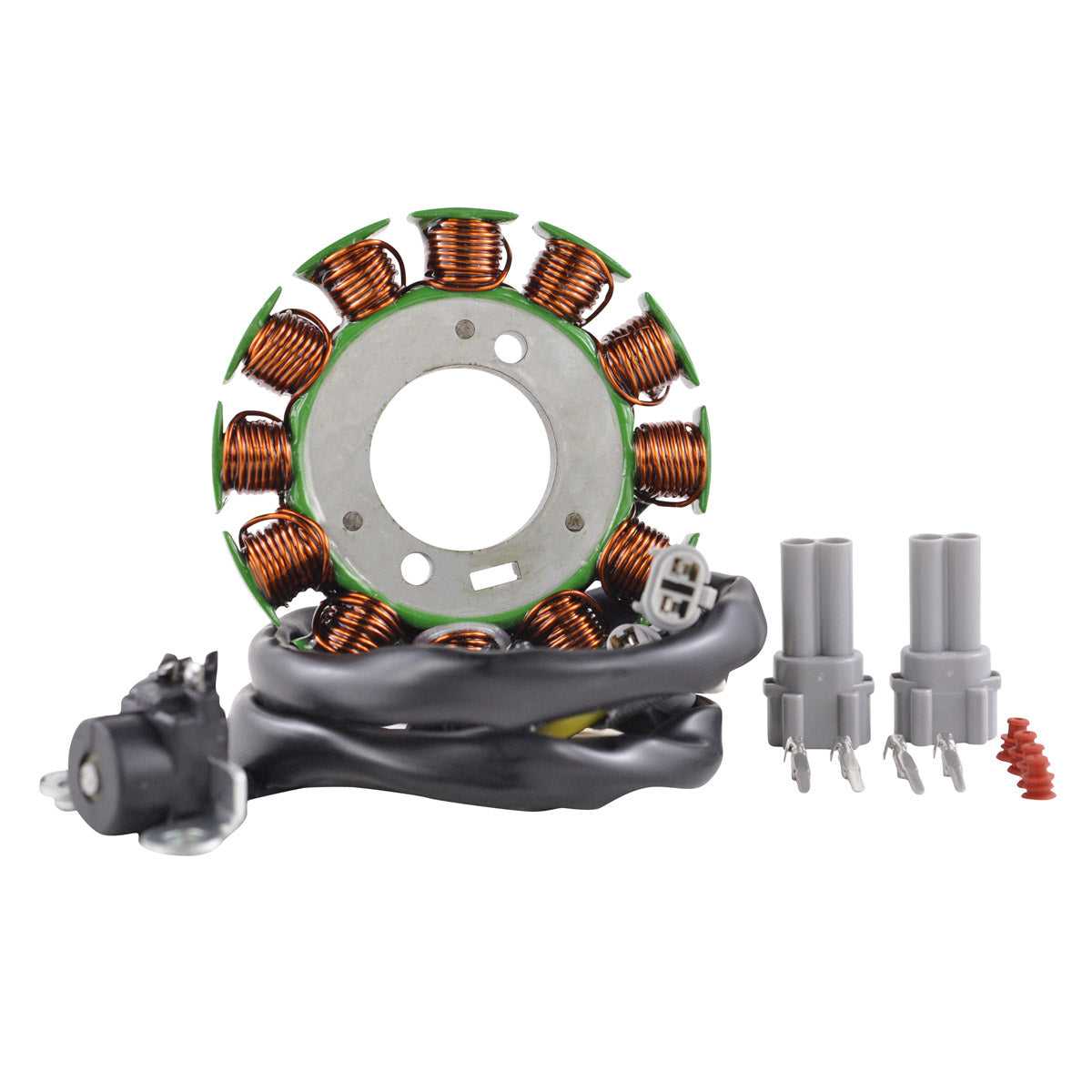

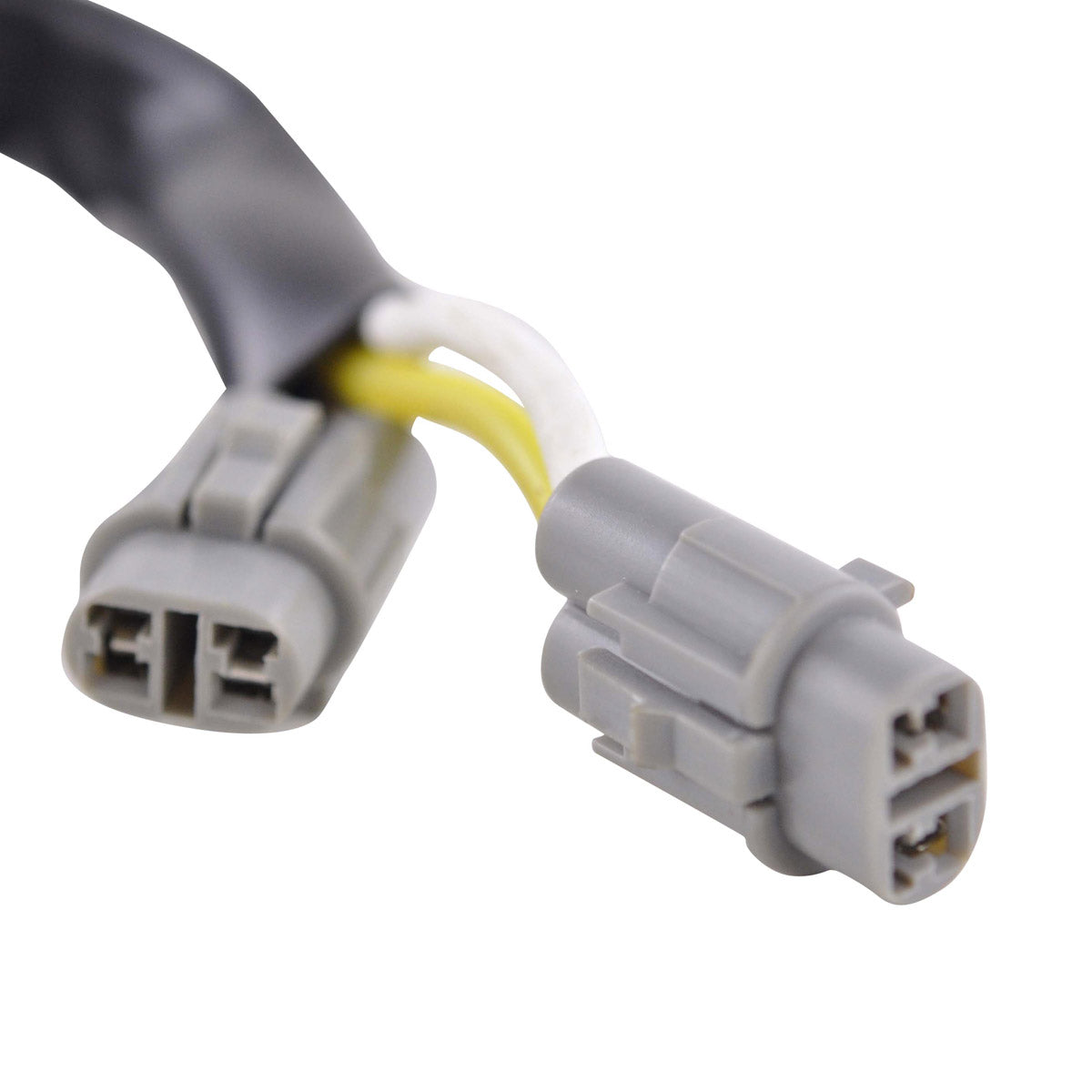

The assembly is supplied complete with the pick-up pulsar coil, the connector and the rubber grommet, so everything needed to replace a failed charging system component comes in the box. We also include the opposite connector - the main harness side - because these are frequently found melted, corroded or defective and are a major cause of repeat electrical faults. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- Opposite connector (main harness side) also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-100184 |
| Interior diameter | 30 mm |
| Exterior diameter | 84 mm |
| Thickness | 9 mm |
| Wire length, stator to grommet | 110 mm |
| Wire length, grommet to plug | 545 mm |
| Pick-up coil wire length to grommet | 90 mm |
| Number of wires | 4 |
| Number of plugs | 2 |
| Alternator resistance (Yellow to White) | 0.4 ohms +/-20% |
| Pick-up resistance (Pink to White) | 280 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha WR 250 F | 2005-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5UM-81410-10-00 | Yamaha |
| 5UM-81410-20-00 | Yamaha |
| 5UM-81410-30-00 | Yamaha |
| 5UM-81410-31-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. This is a plug-and-play, direct fit replacement for the original unit on the Yamaha WR 250 F 2005-2013. It uses the same mounting and the same connectors, so no cutting or splicing of the loom is needed. Please confirm the OEM part number on your original unit before ordering.
What is included in the box?
You receive the stator, the pick-up pulsar coil, the connector and the rubber grommet. We also include the opposite connector, the main harness side, because these are often melted, corroded or defective and are a major cause of repeat electrical issues.
How do I tell if my old stator has failed?
Measure the resistance across the windings with a multimeter and compare against the figures in the specification table above: 0.4 ohms +/-20% from Yellow to White on the alternator side, and 280 ohms +/-20% from Pink to White on the pick-up. A reading far outside those values, or continuity between any winding wire and the stator core, indicates a failed unit.
Does this include the pick-up pulsar coil?
Yes. The pick-up pulsar coil is supplied already fitted to the stator plate, with 90 mm of wire from the coil to the grommet. The complete assembly has 4 wires and 2 plugs.
