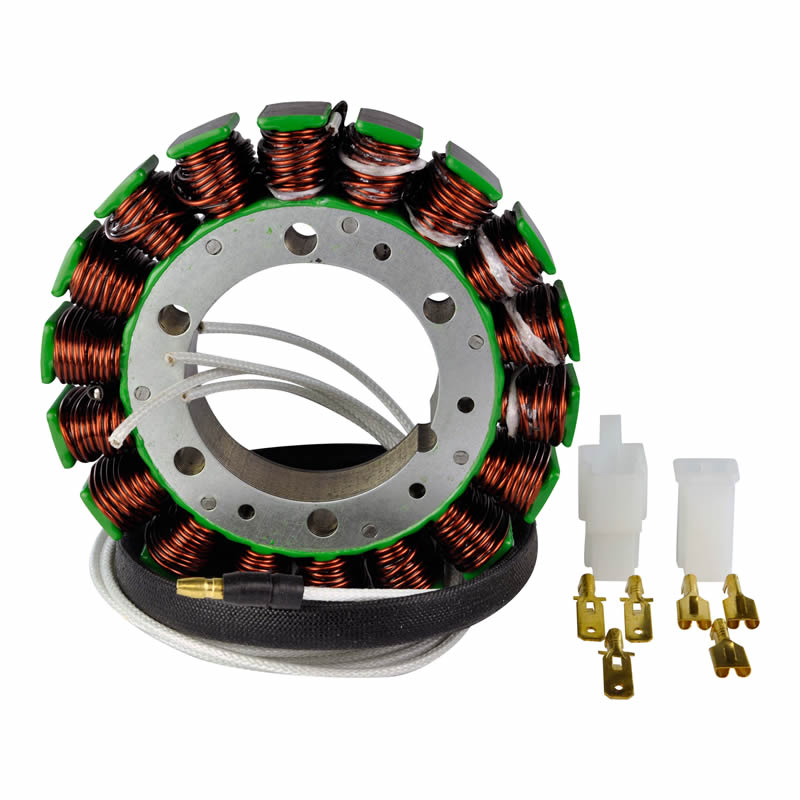

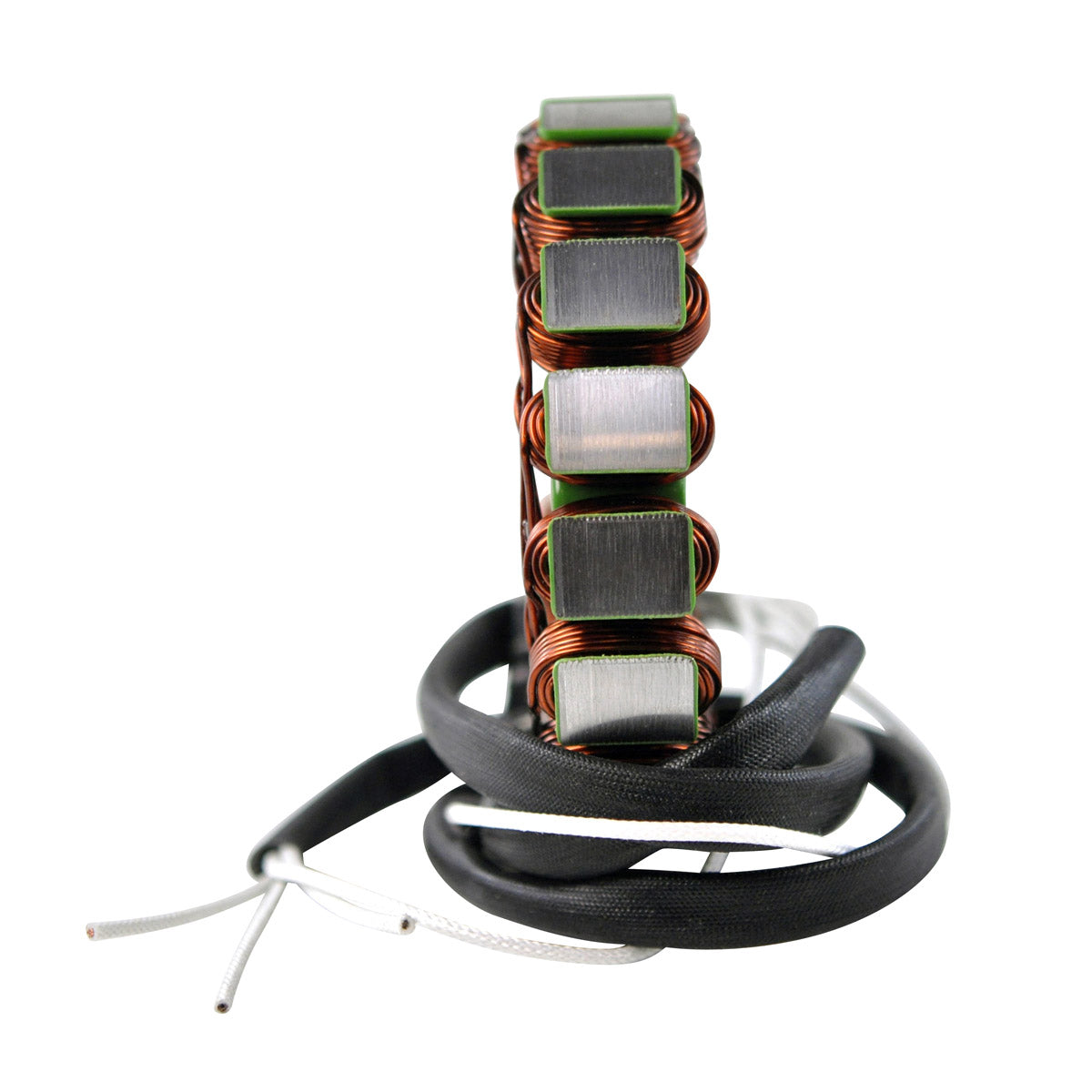

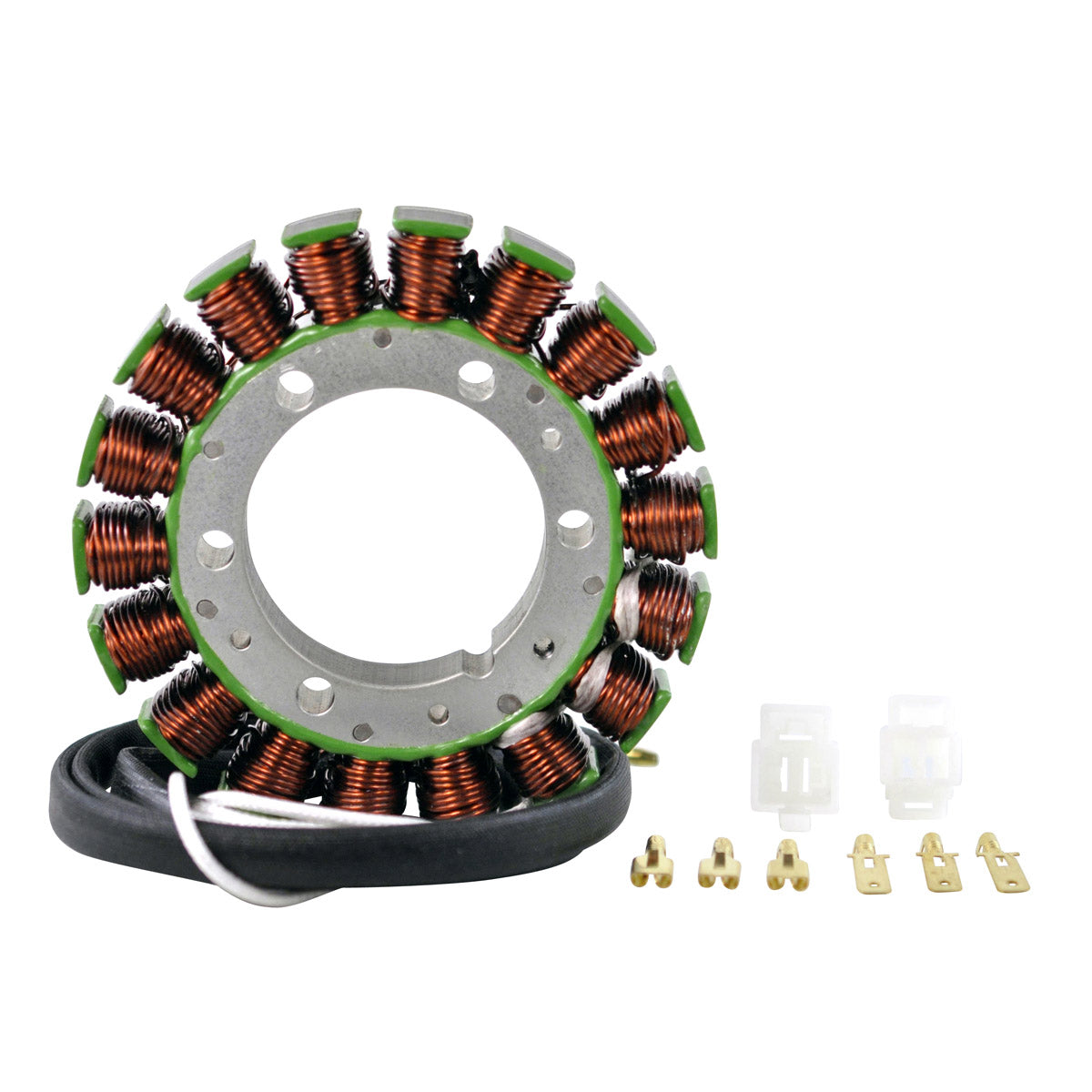

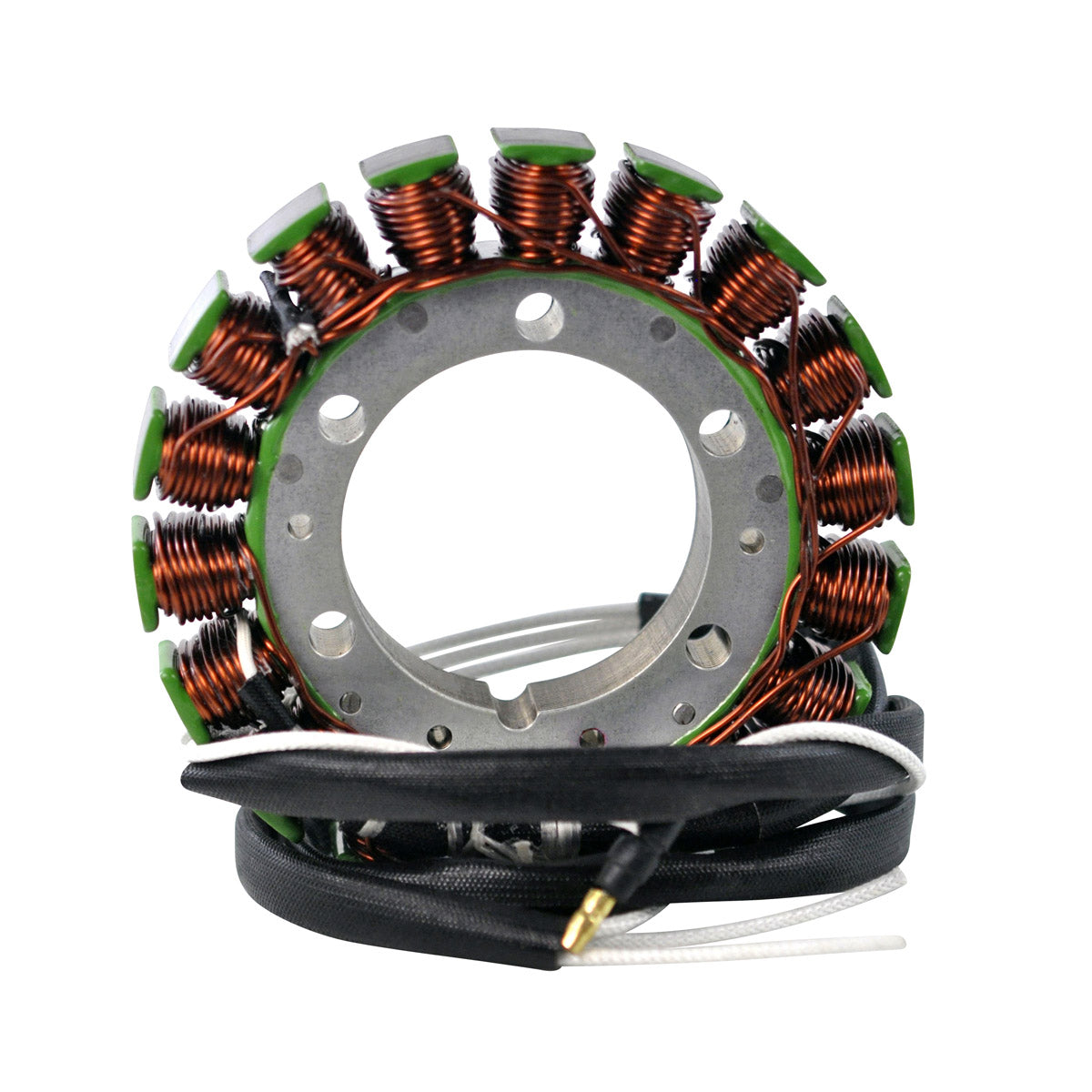

Generator Stator for Yamaha XV Virago
Fits Yamaha XV 700, XV 750 and XV 1100 Virago 1986-1999 - RMSTATOR part RM01059
A brand new RMSTATOR generator stator for the Yamaha XV Virago family, supplied as a direct replacement for the original charging coil assembly. Once your original grommet has been re-installed with the new connector supplied, the unit is plug-and-play, a direct fit, and very easy to install.
It is wound with the highest grade lamination materials and the highest grade copper windings, rated to resist 200 degrees Celsius, which is what keeps the insulation intact under the heat and vibration of a hard-worked V-twin. All units are tested before they are shipped. A second, opposite connector for the main harness side is supplied with the stator, because the harness-side plug is frequently melted or corroded on a bike old enough to need a new stator.
Key Features
- Brand new generator stator, direct replacement for the original Yamaha unit
- Plug-and-play and easy to install once the original grommet is refitted
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and opposite connector for the main harness side included

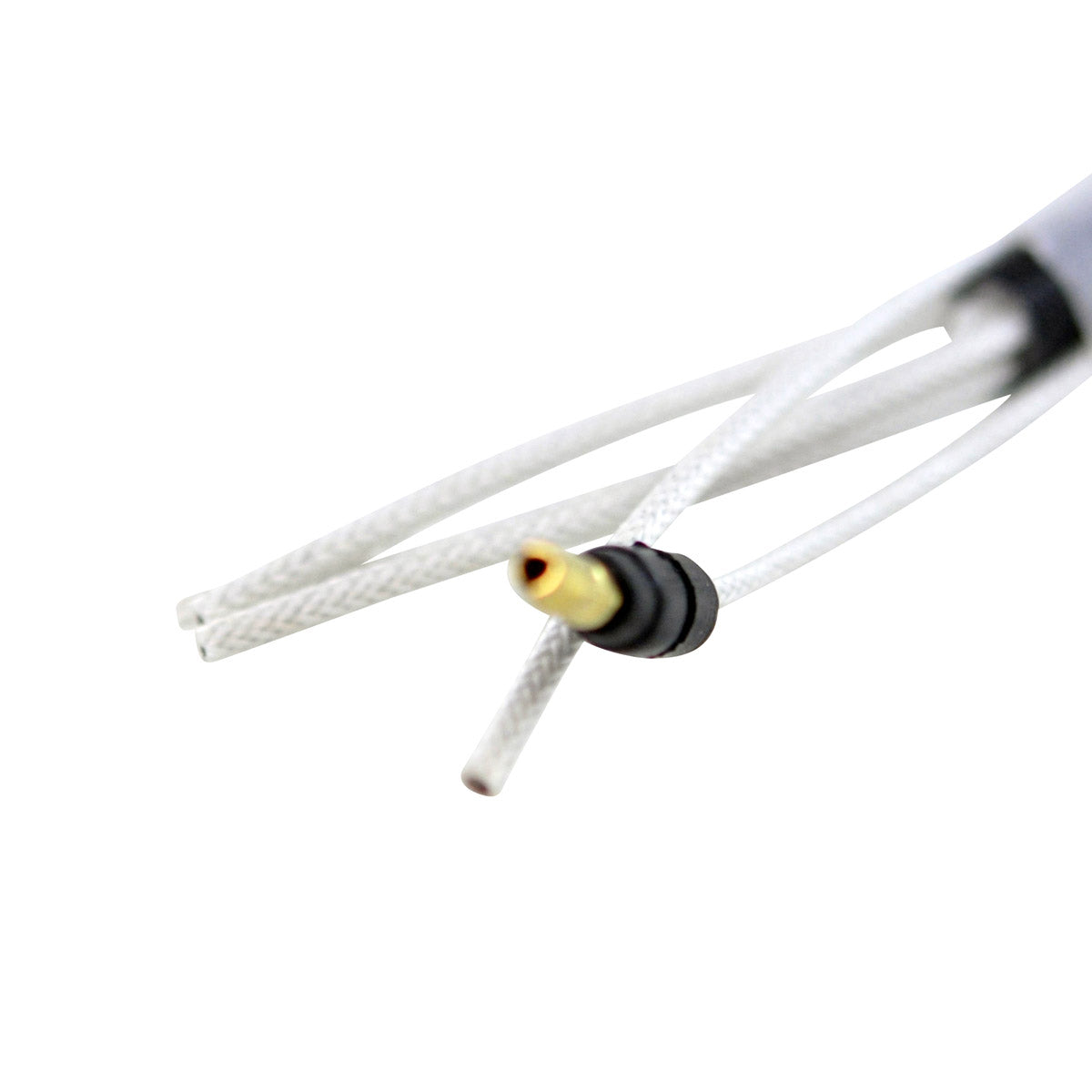

- Four wires, four pins, 700 mm harness
- All units tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 17 mm |
| Wire length | 700 mm |
| Number of wires | 4 |
| Number of pins | 4 |
| Alternator resistance, White between each White | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01059 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha XV 700 Virago | 1986-1999 |
| Yamaha XV 750 Virago | 1986-1999 |
| Yamaha XV 1100 Virago | 1986-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1TA-81410-20-00 | Yamaha |
| 4PP-81410-00-00 | Yamaha |
| 1RM-81410-20-00 | Yamaha |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is built as a direct replacement for the original Yamaha unit. Re-install your original grommet with the new connector supplied and the stator is plug-and-play and a direct fit.
What is included in the box?
The generator stator assembly, a connector, and an opposite connector for the main harness side.
How do I know my old stator has failed?
Measure the alternator windings with a multimeter. Between each White wire the reading should be 0.4 ohms +/-20%. A reading that is open circuit, shorted to the stator body, or far away from that figure indicates a failed winding and explains a battery that will not hold charge.
Which Virago models does this cover?
RMSTATOR lists the XV 700 Virago, the XV 750 Virago and the XV 1100 Virago across the 1986 to 1999 span. Check the OEM number on your original stator against the cross reference table above before ordering.
