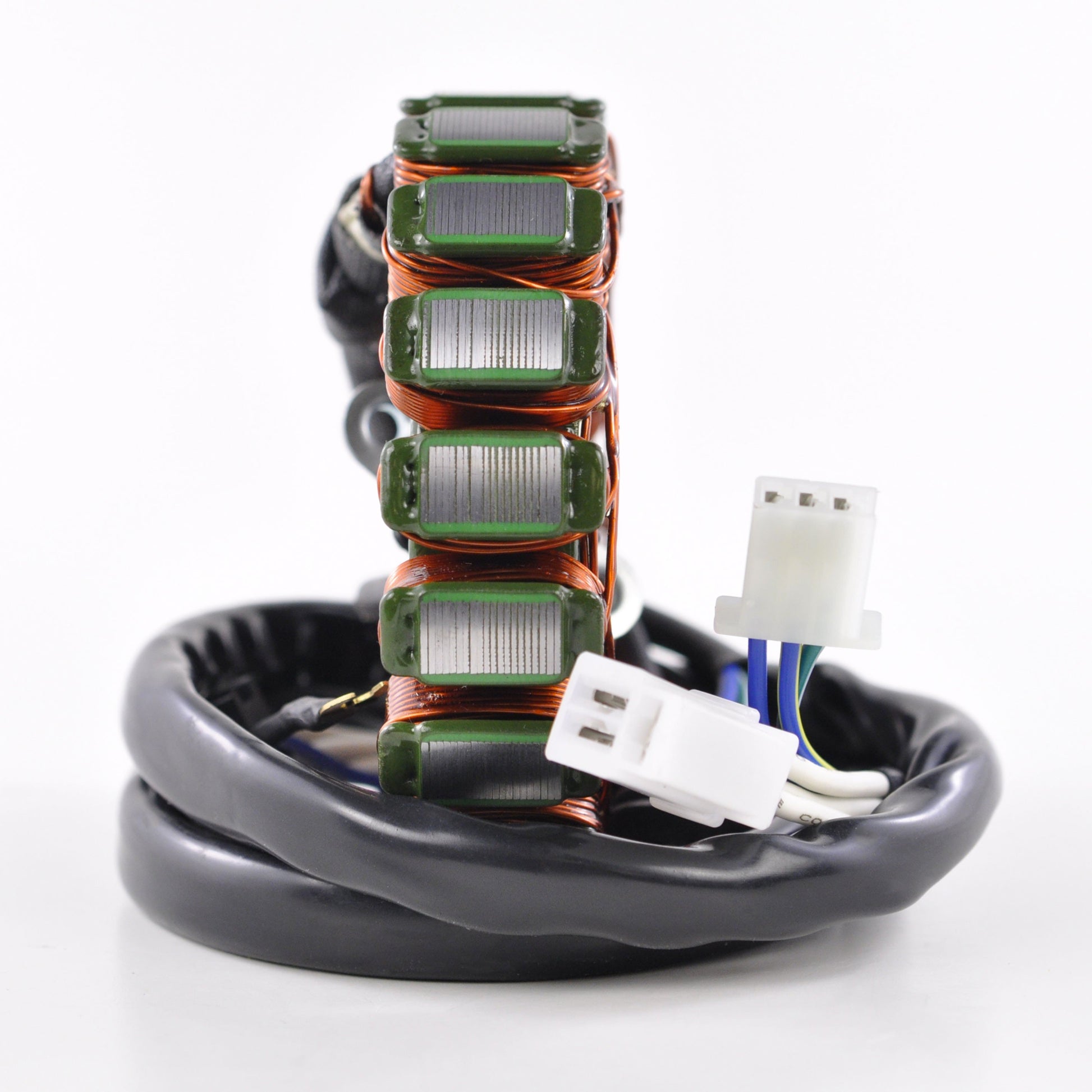

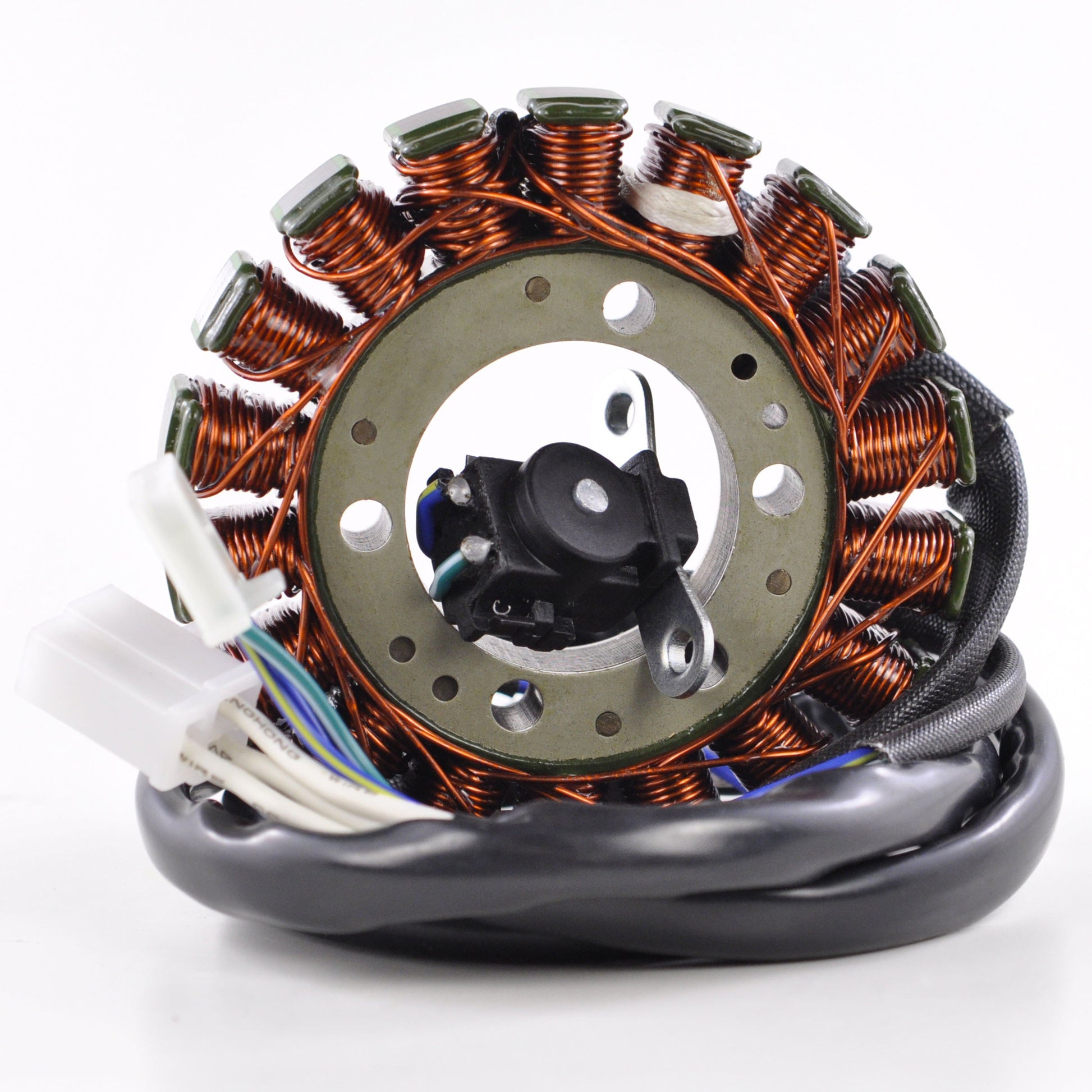

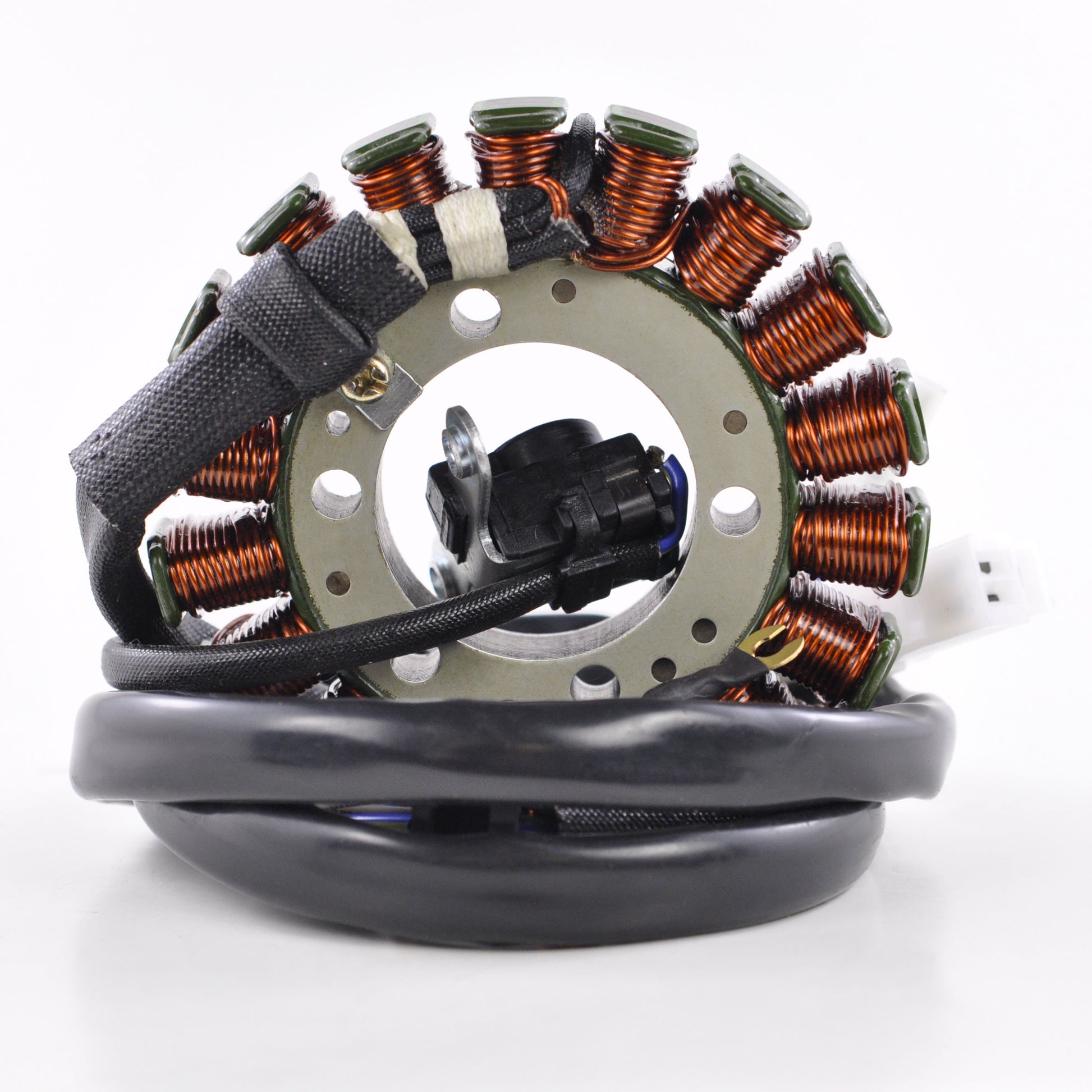

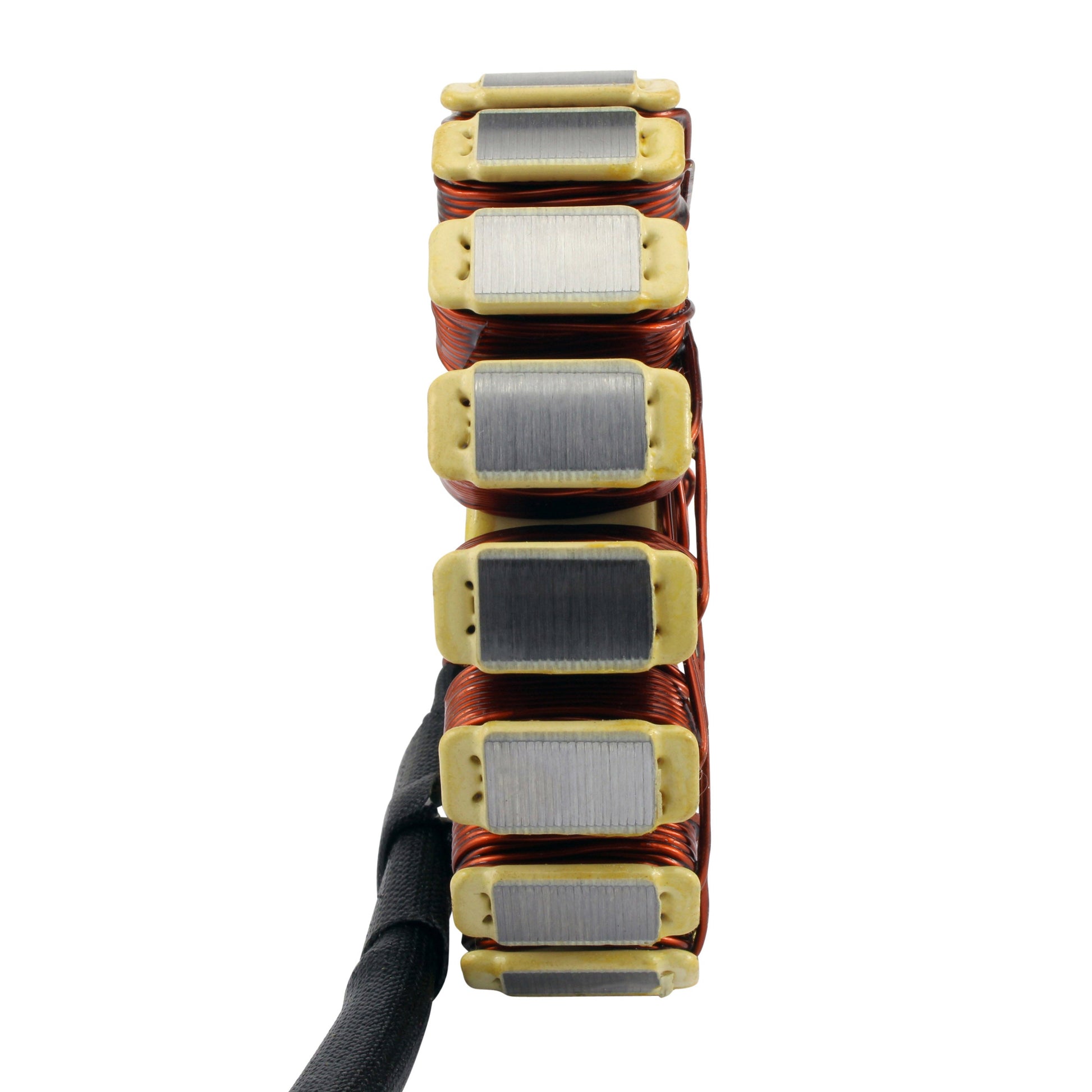

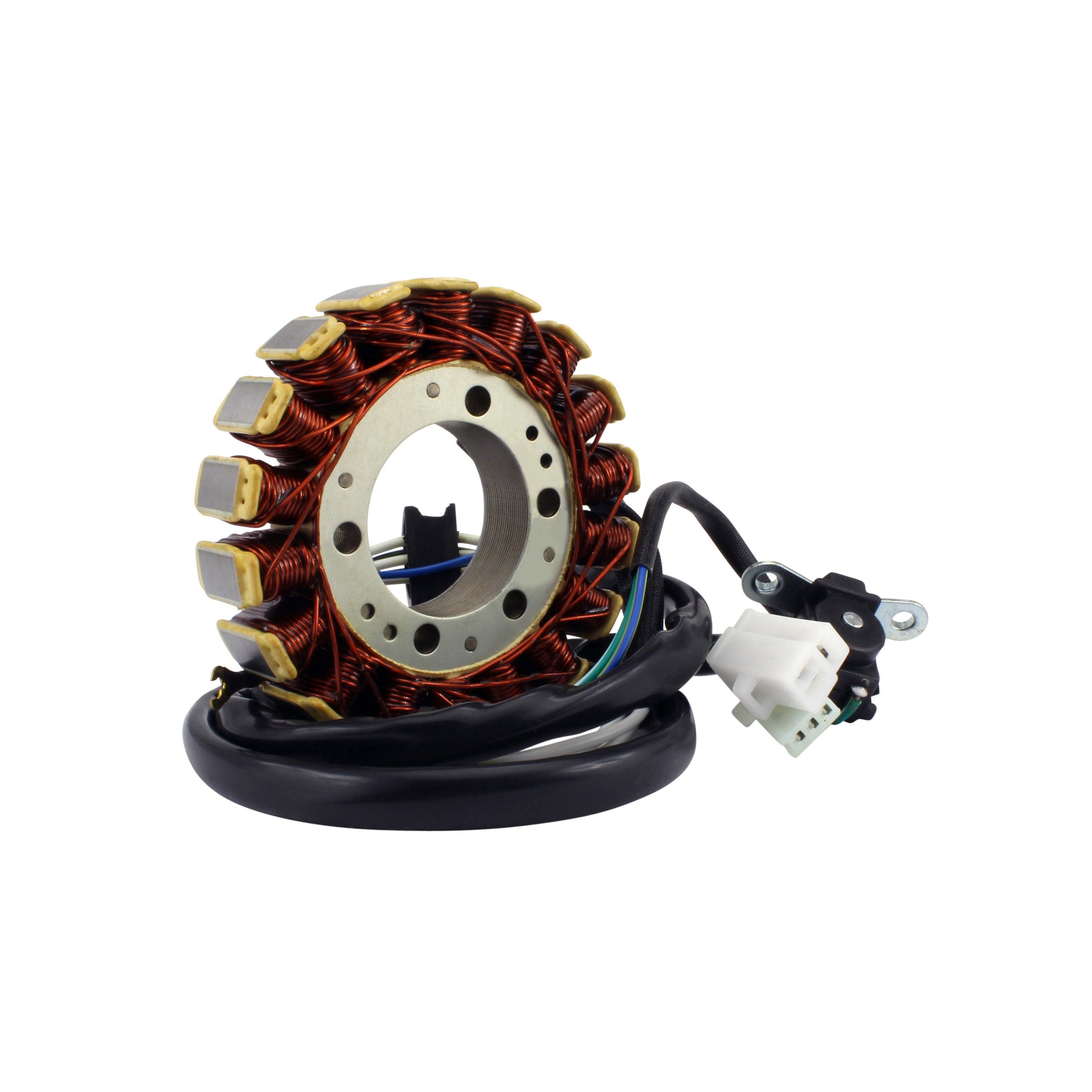

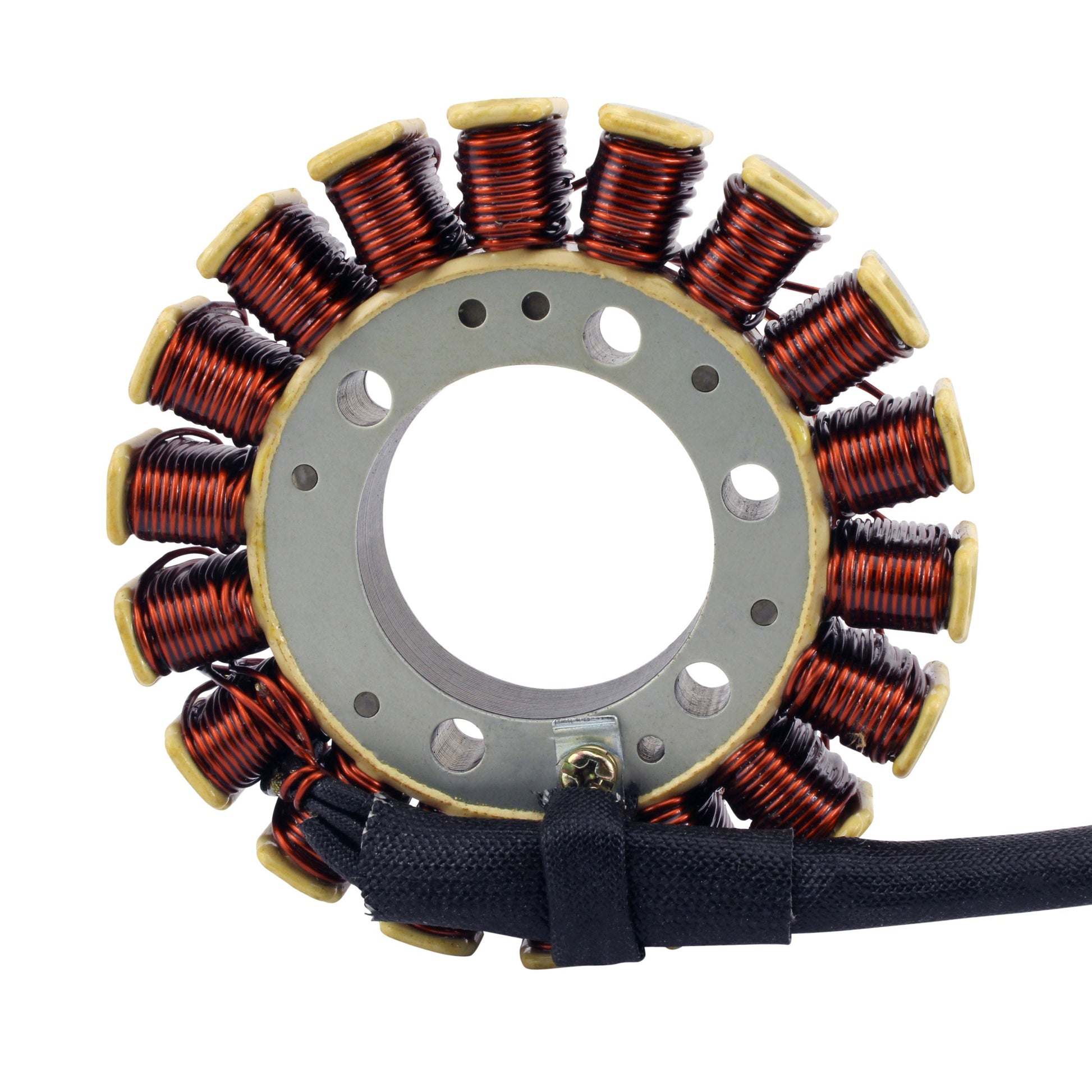

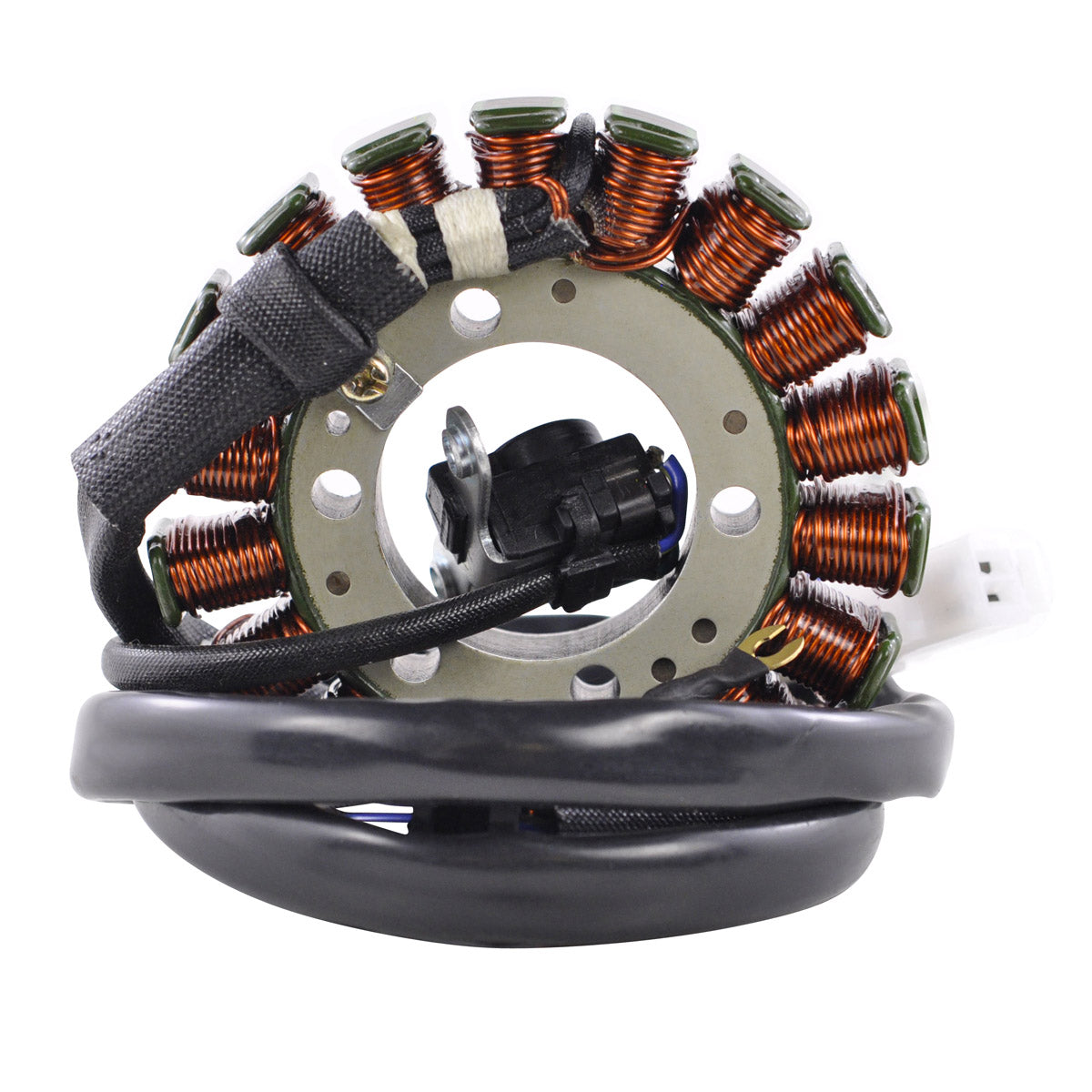

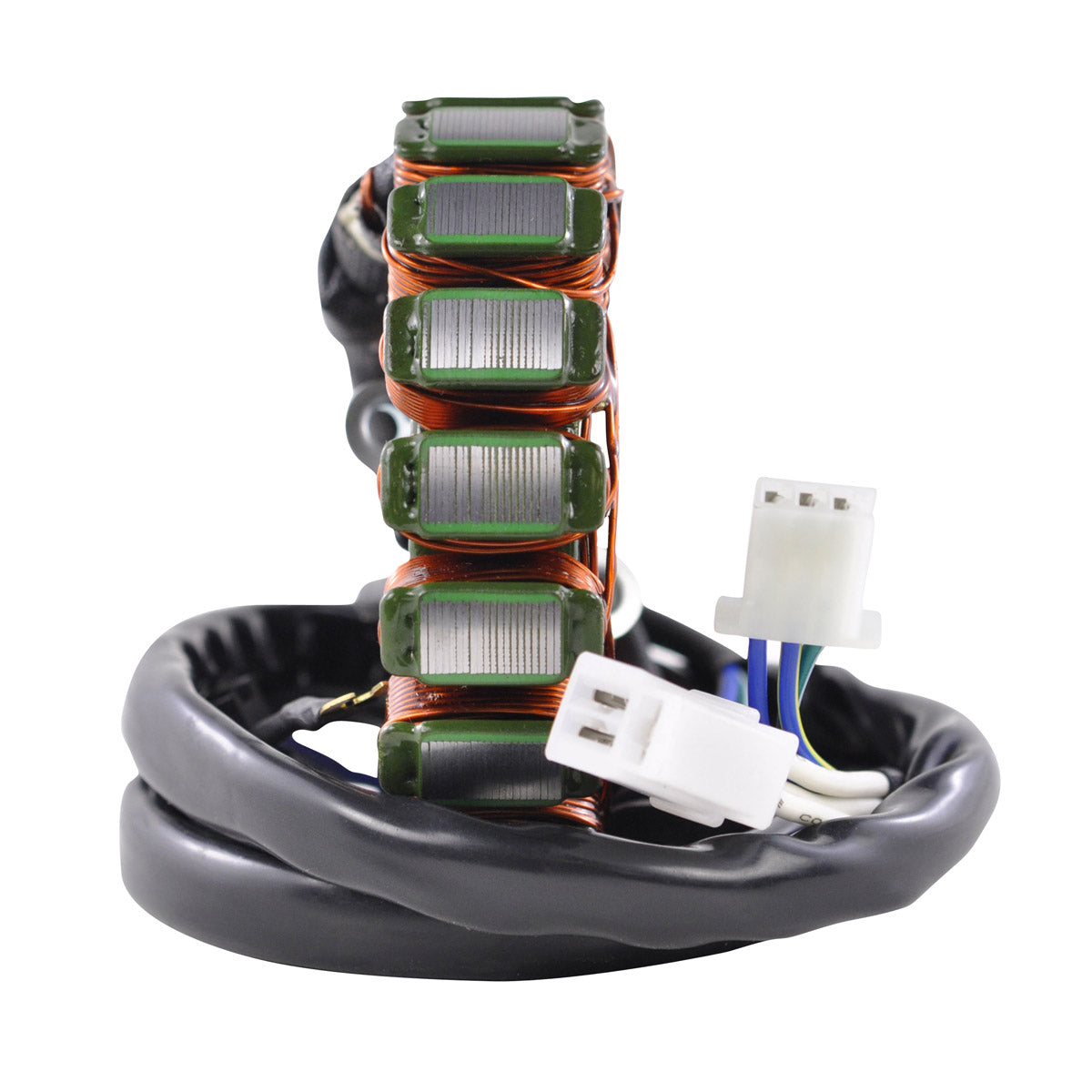

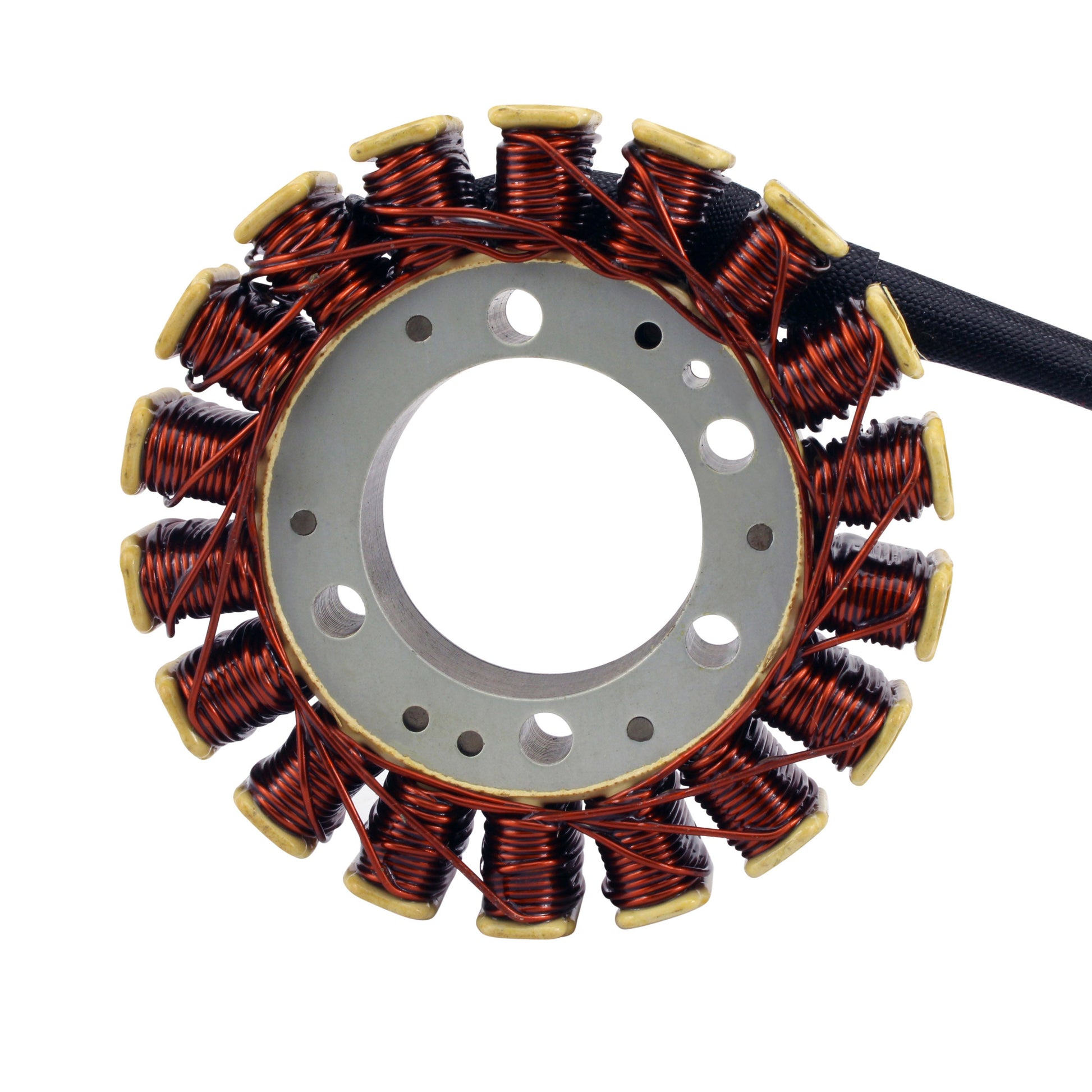

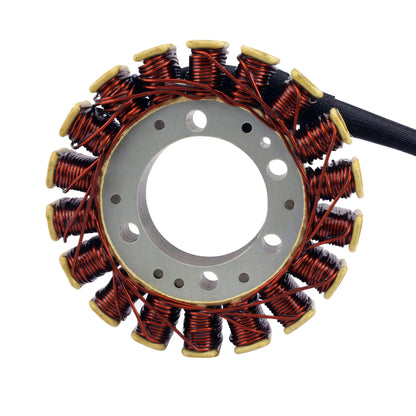

A brand new aftermarket stator for the Yamaha 250 twin, supplied as a direct replacement to your original unit and fitted with the pickup pulsar coil already in place. That matters on this engine, because the pulsar coil sits on the same backplate as the charging windings and a stator sold without it means transferring the old one across. Here the assembly is complete, plug-and-play and a direct fit, so the standard mounting points and the standard plugs are all that is needed.

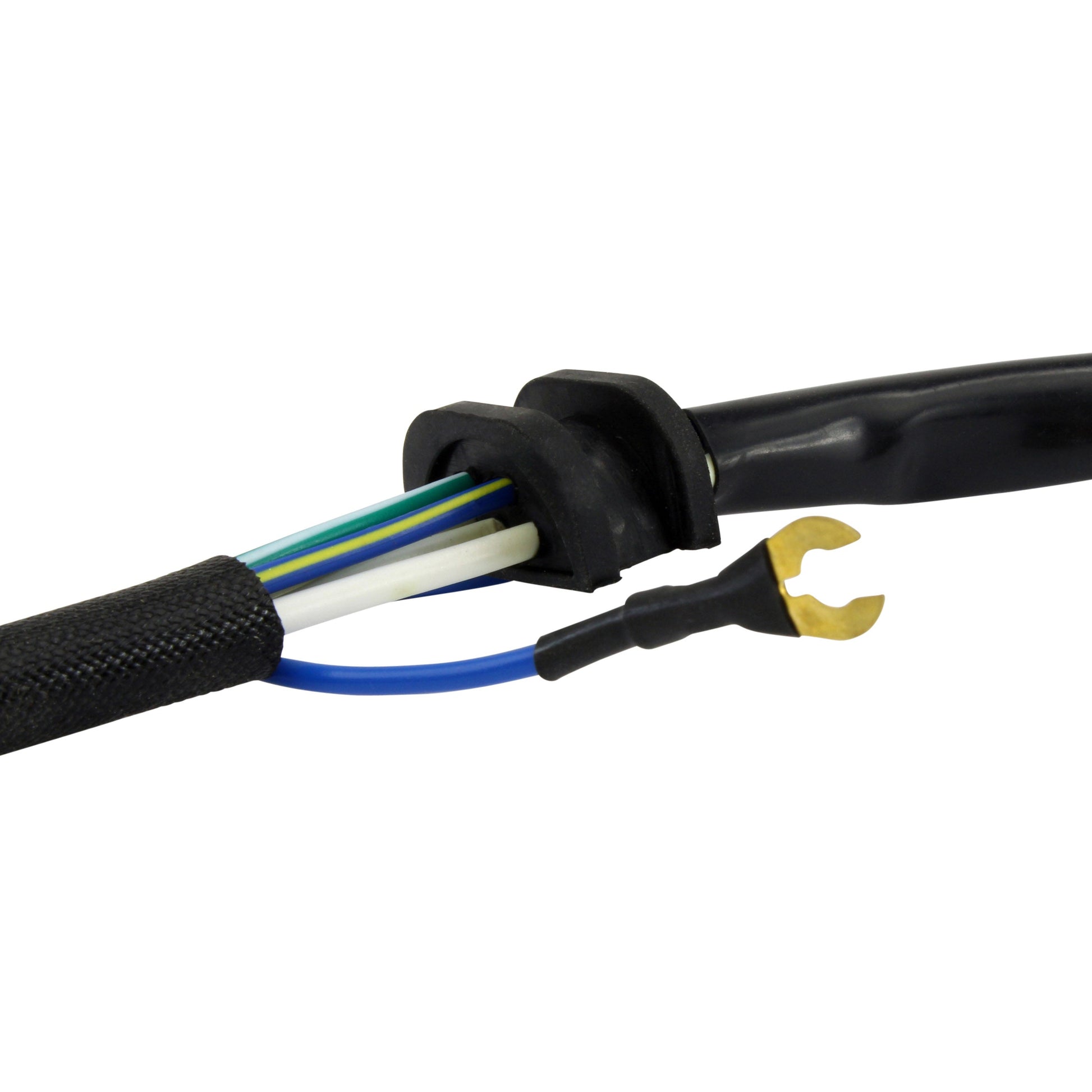

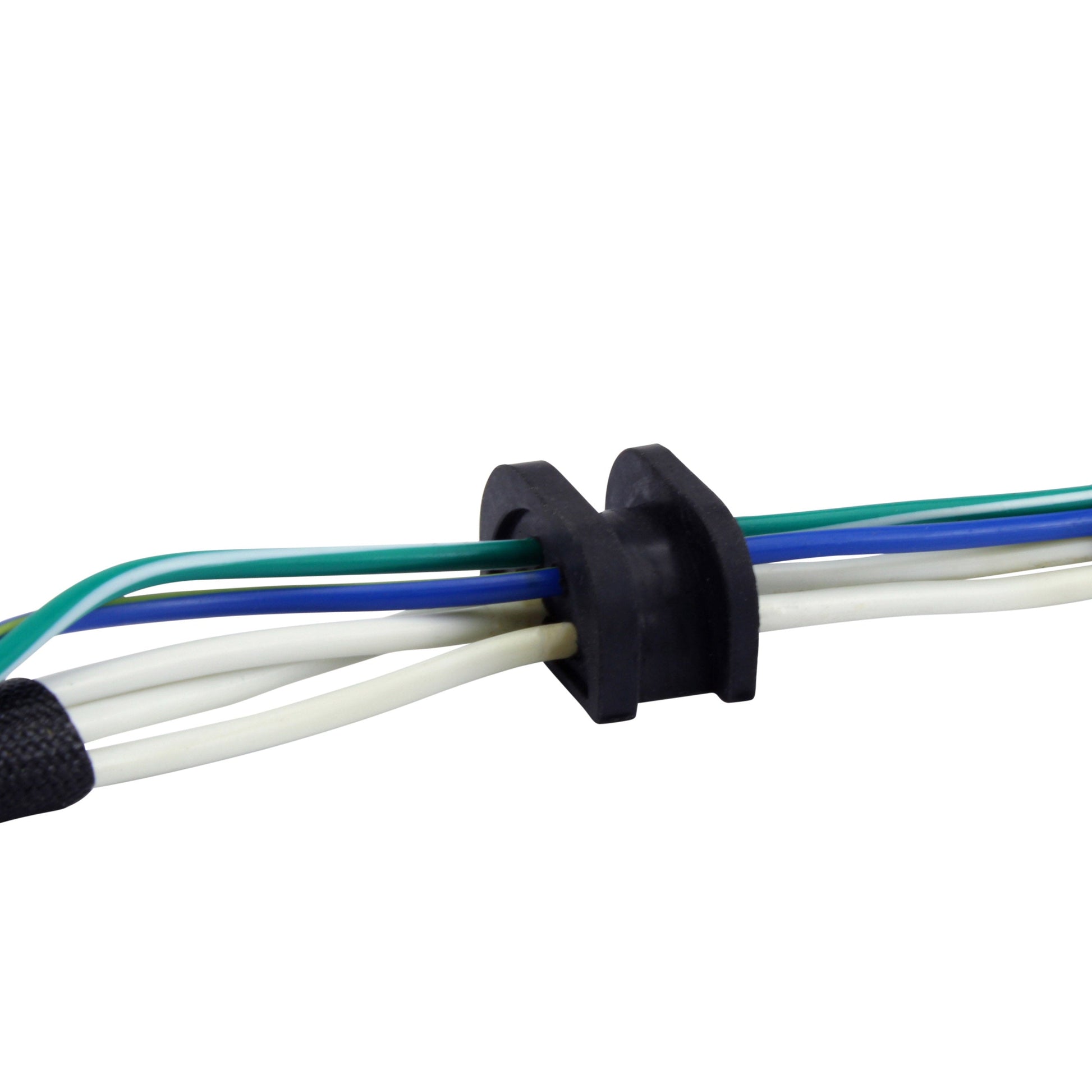

The windings use the highest grade lamination materials and the highest grade copper, resistant to 200 degrees Celsius, which is where the original commonly fails after long service in a small, tightly enclosed engine case. A connector and a rubber grommet are included so the harness can be sealed correctly on reassembly, and all products shipped are tested before they leave. The part reference is RM01557.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included

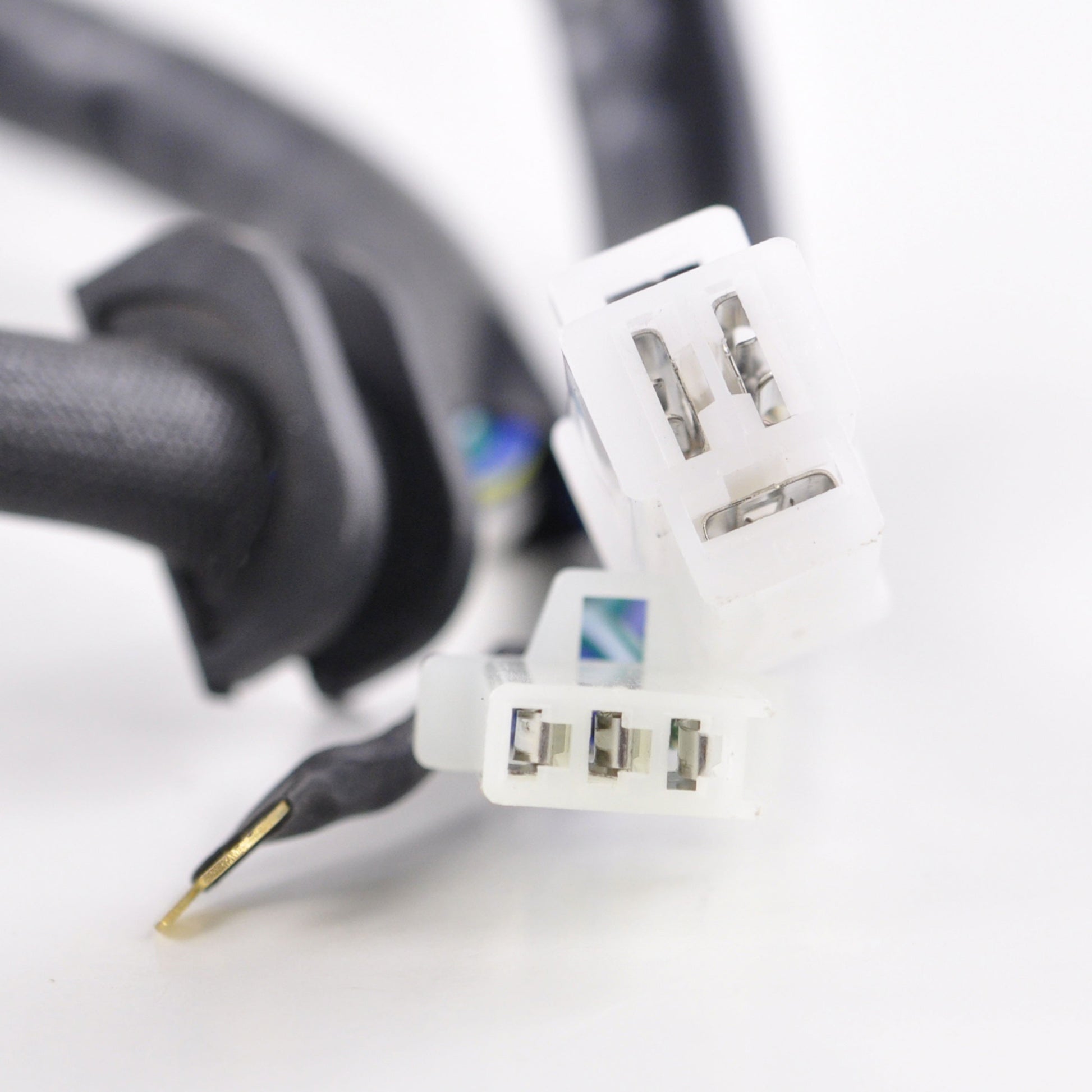

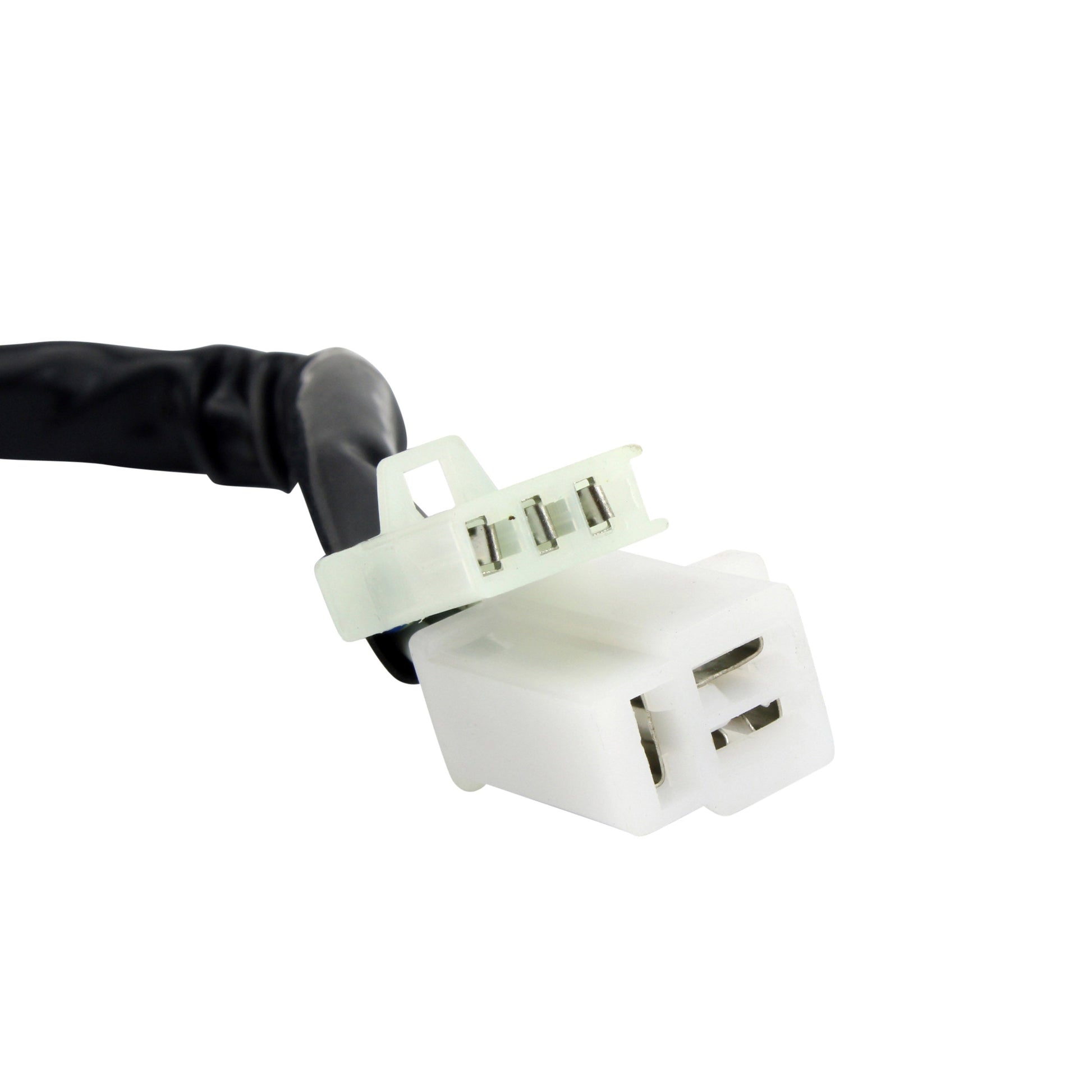

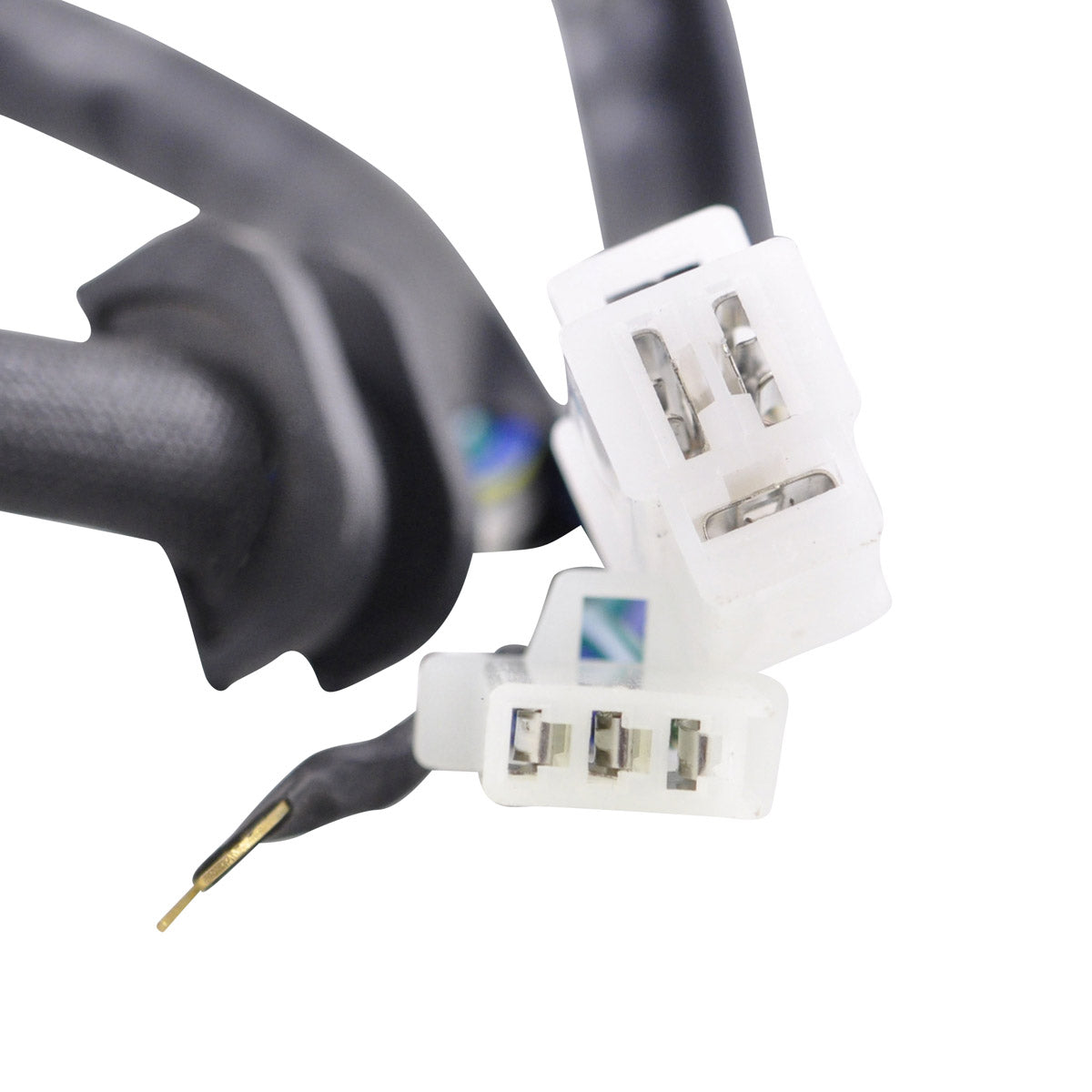

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01557 |
| Interior diameter |
42 mm |
| Exterior diameter |
103 mm |
| Thickness |
18 mm |
| Wire length, stator to first grommet |
122 mm |
| Wire length between grommets |
80 mm |
| Wire length, grommet to plug |
805 mm |
| Pickup coil wire to grommet |
125 mm |
| Number of wires |
6 |
| Number of plugs |
2 |
| Number of pins |
6 |
| Alternator resistance, white to white |
0.5 ohms +/- 20% |
| Pickup resistance, green/white to blue/yellow |
240 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha XV250 |
1995-2026 |
| Yamaha V Star 250 |
1995-2026 |
| Yamaha Virago 250 |
1995-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3DM-81410-00-00 |
Yamaha |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a plug-and-play, direct fit replacement using the original mounting points, six wires, two plugs and six pins. No cutting or splicing of the loom is required.
Does the pickup coil come with it?

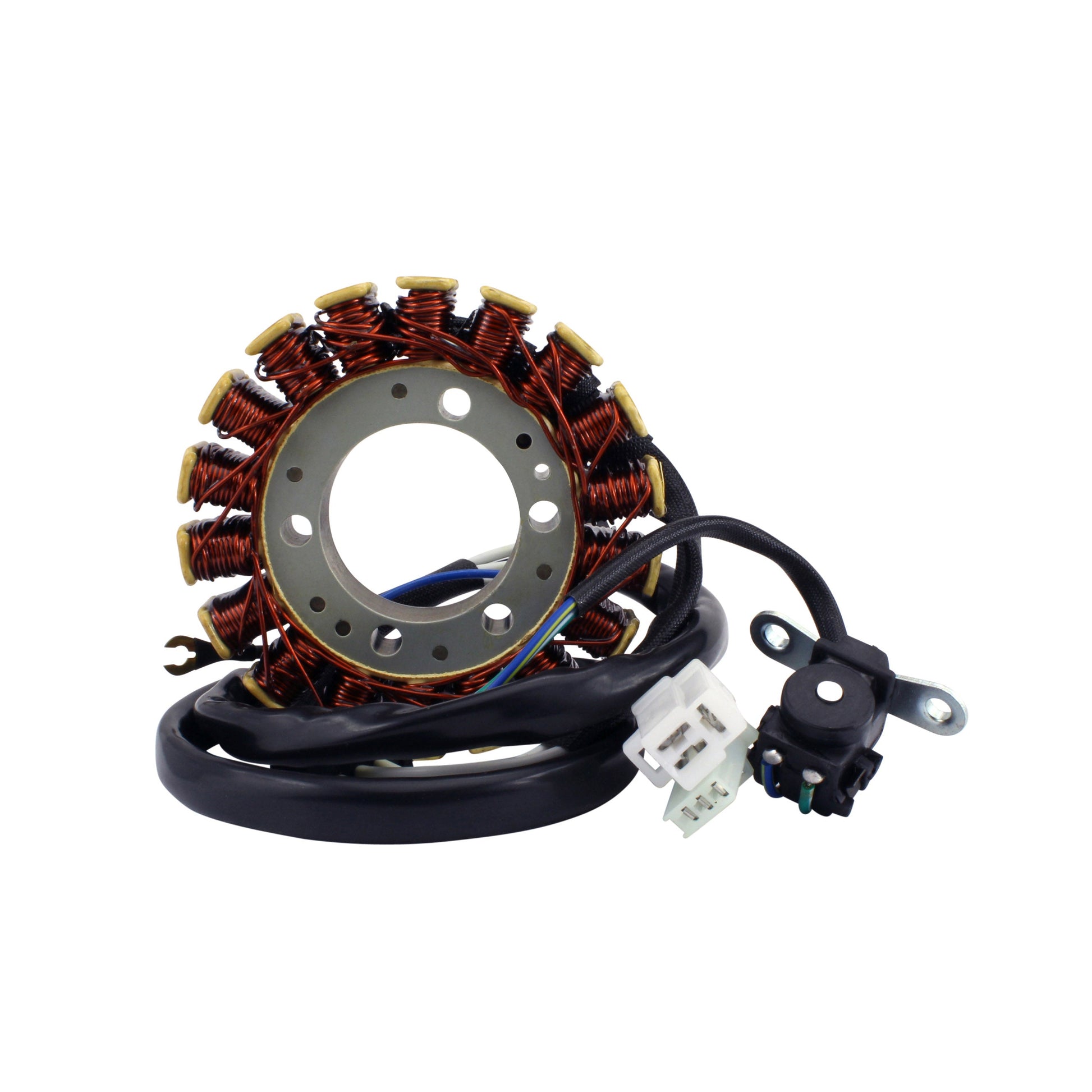

It does. The pick up pulsar coil is supplied fitted to the assembly, along with a connector and a rubber grommet, so nothing has to be salvaged from the old stator plate.
How can I tell the old stator has failed?
A battery that goes flat on a run, dim or flickering lights, or a bike that stops firing once the battery drops are the usual signs. Confirm with a multimeter: the alternator windings should read about 0.5 ohms plus or minus 20 per cent white to white, and the pickup about 240 ohms plus or minus 20 per cent from green/white to blue/yellow. Values far outside those, or any short from a winding to the core, mean the unit has failed.
How long is the wiring harness?
The main run measures 122 mm from the stator to the first grommet, 80 mm between grommets and 805 mm from grommet to plug, with a further 125 mm from the pickup coil to its grommet. That matches the standard routing on the XV250 chassis.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
