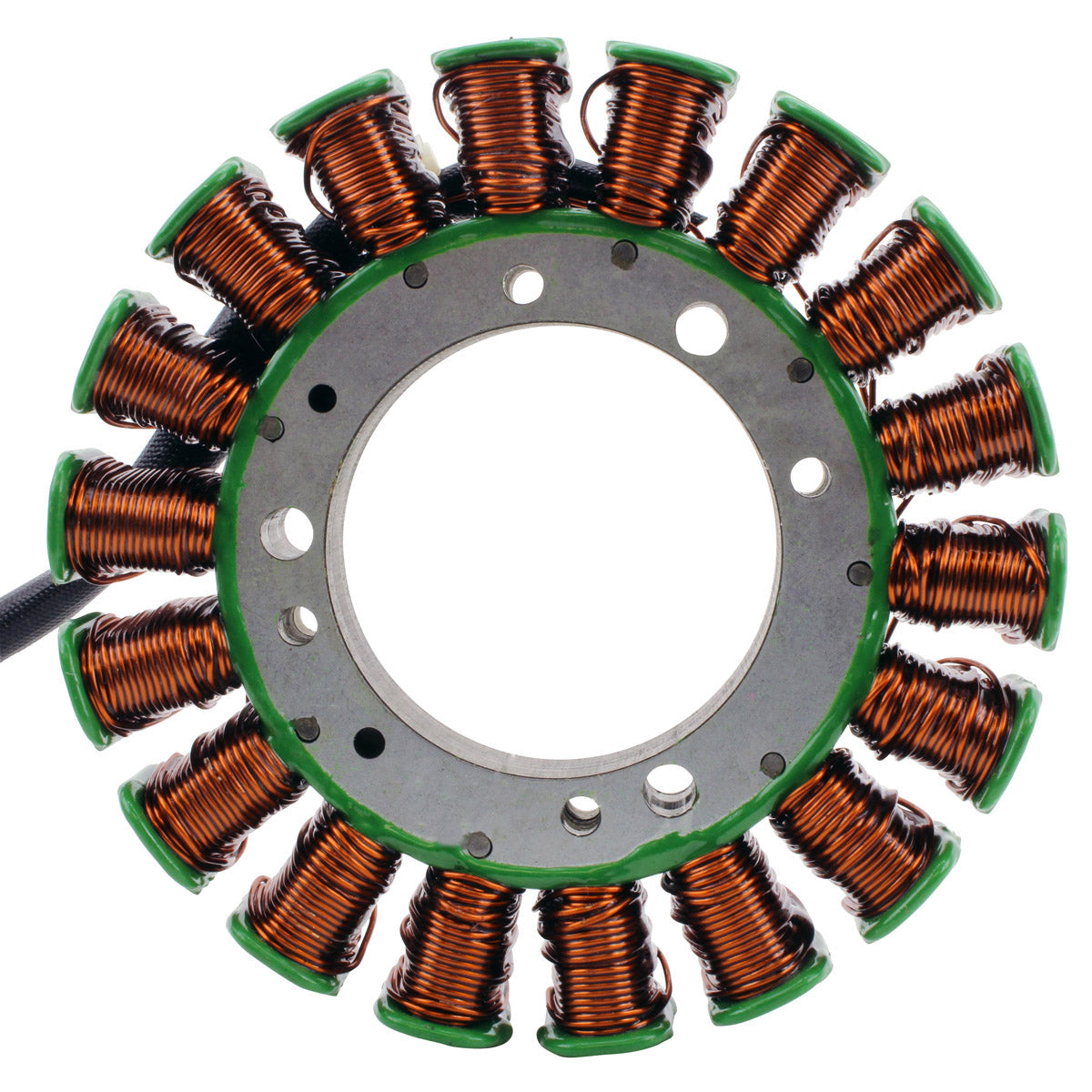

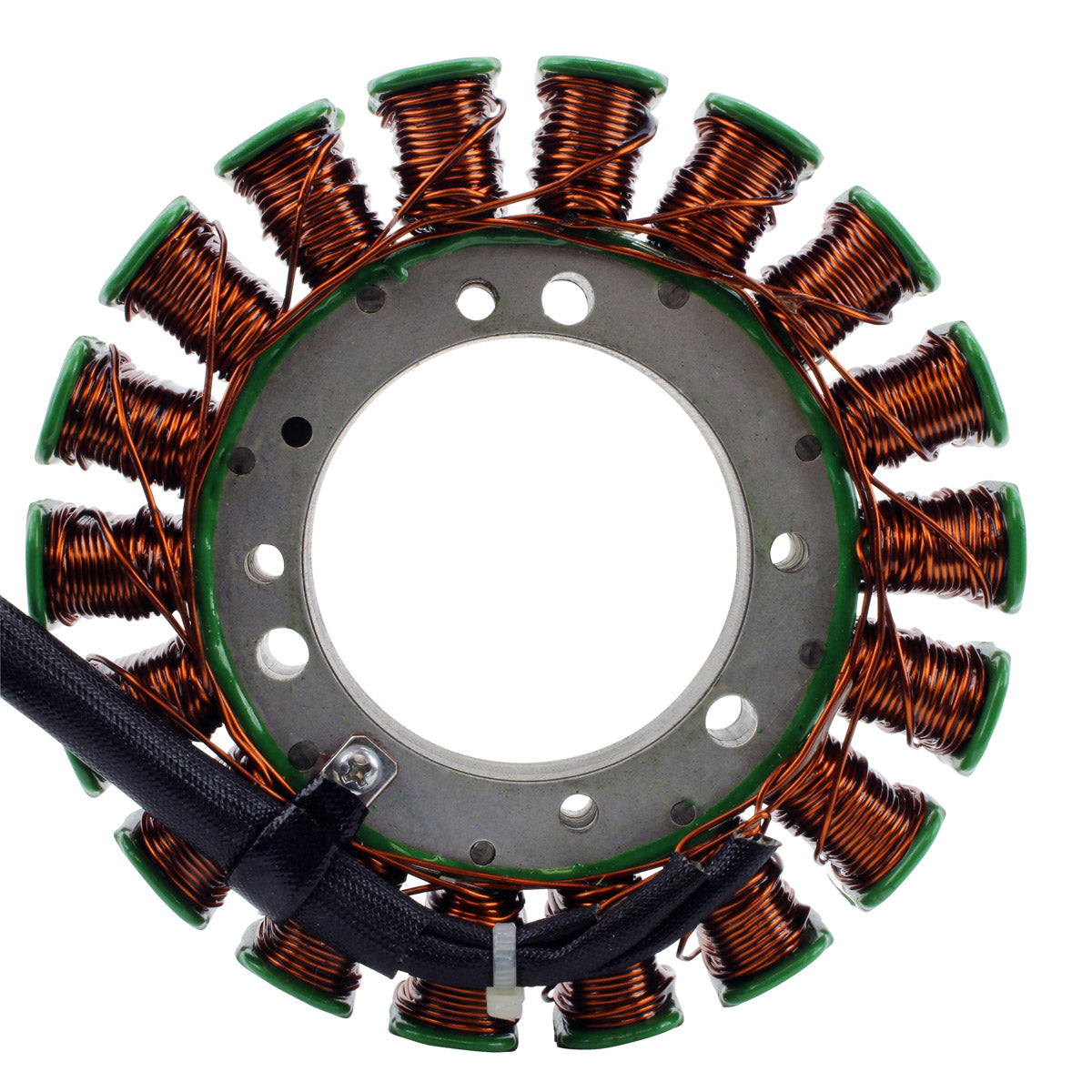

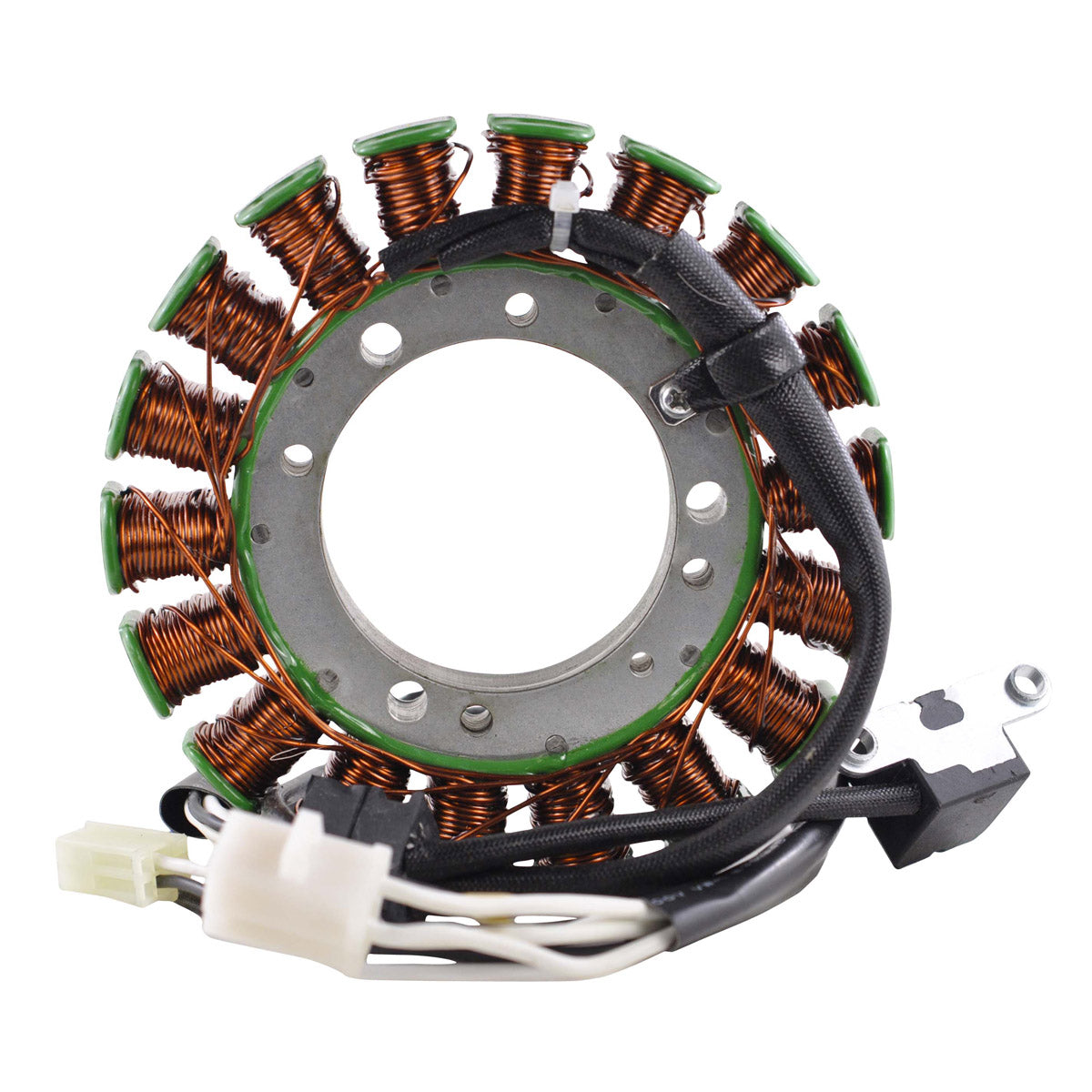

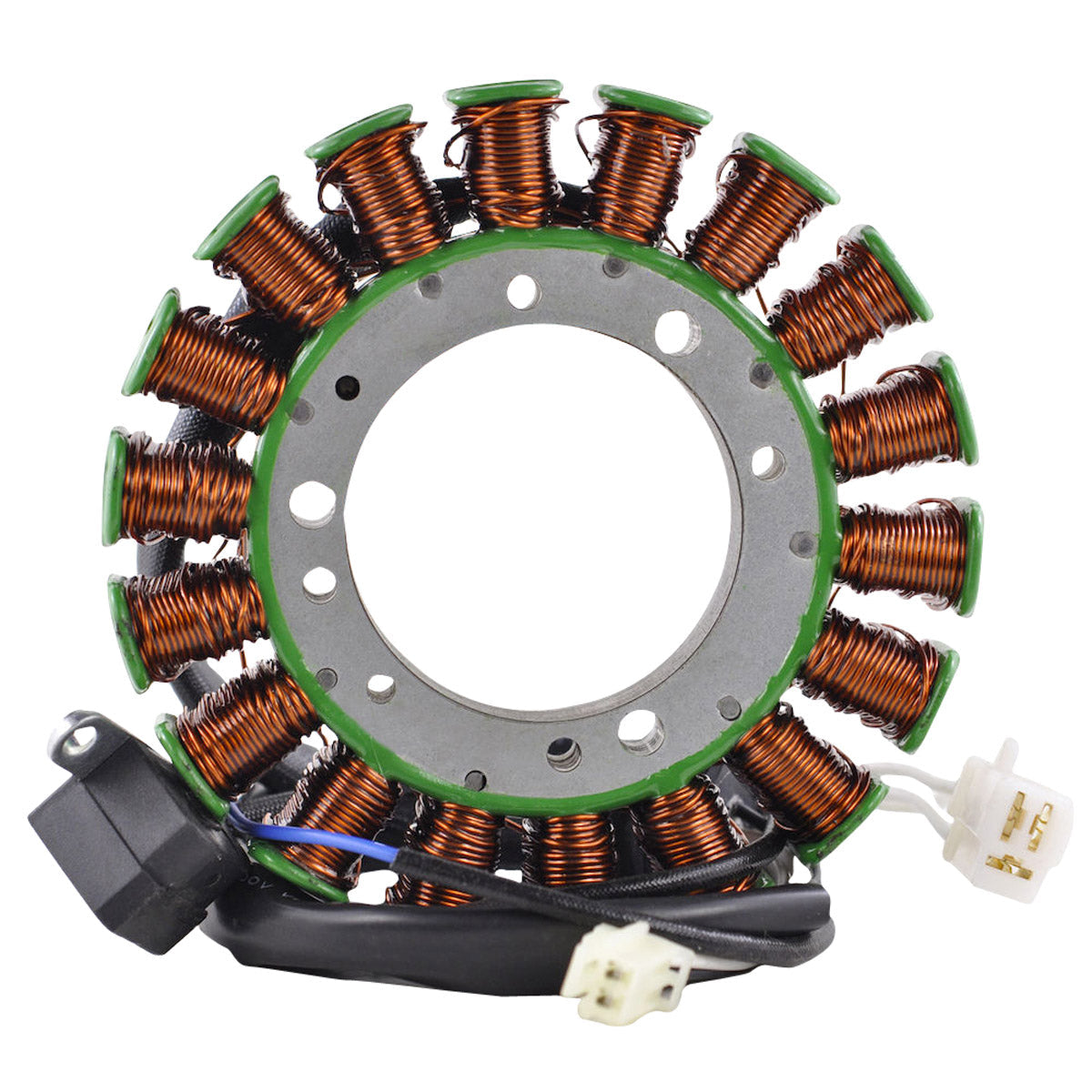

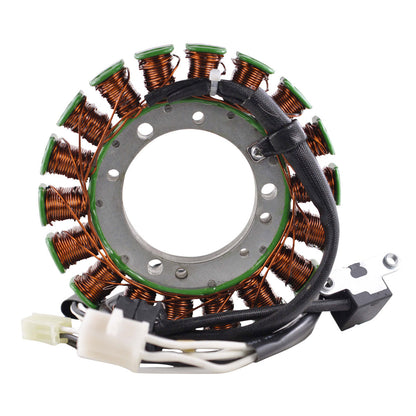

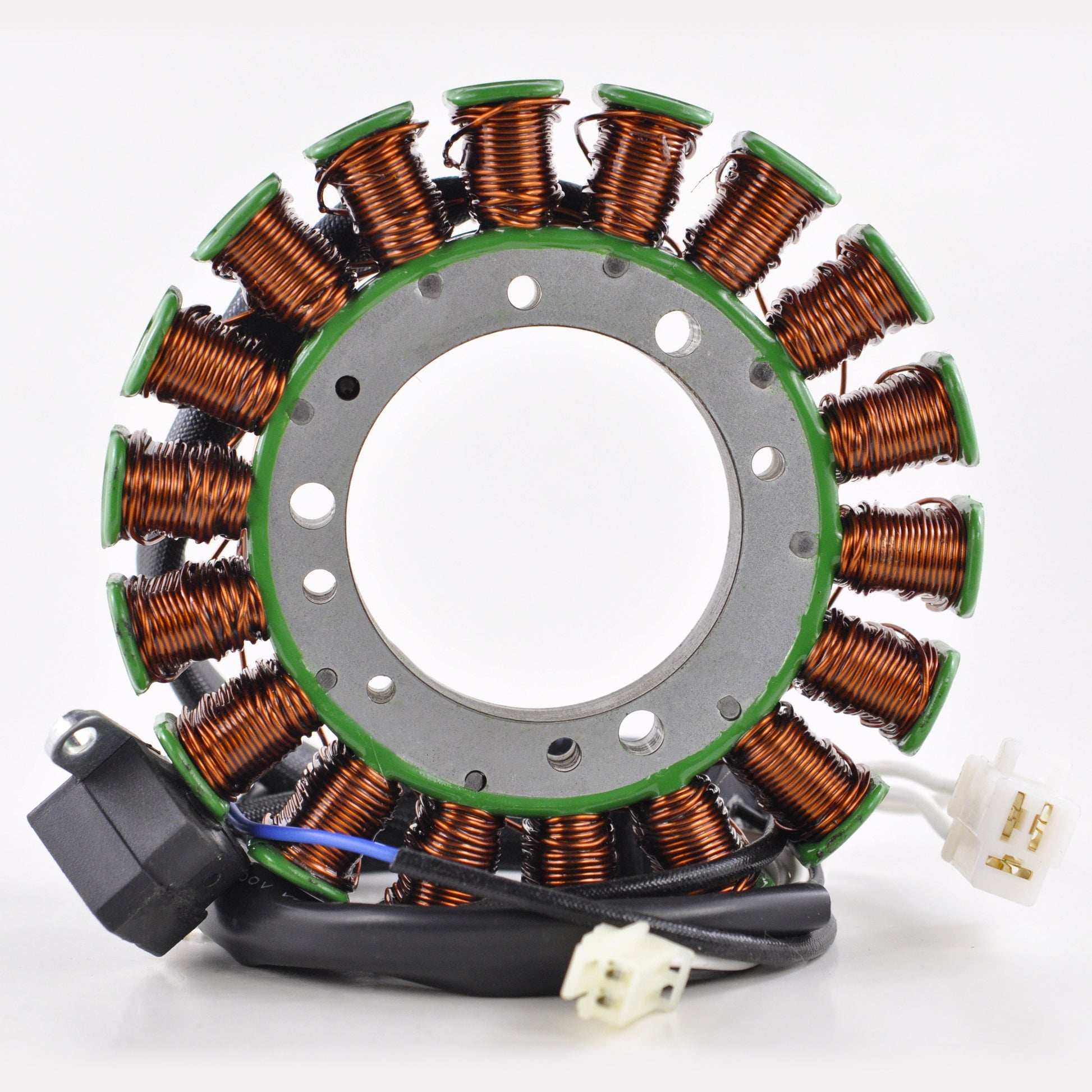

This is a brand new aftermarket generator stator, built as a direct replacement to your original unit on the Yamaha XVS 1100 V Star in Silverado, Midnight, Custom and Classic trim. It is a plug-and-play, direct fit part with easy installation: the connector, the rubber grommet and the pick up pulsar coil are all supplied with it, so the new assembly drops into the standard loom without cutting, splicing or re-pinning anything.
The stator is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on the highest grade lamination materials. On a large air-cooled V-twin cruiser the charging coils sit in a hot, constantly vibrating position behind the left-hand case, and heat is what eventually breaks down the original insulation. A tired stator on these machines usually announces itself with a battery that goes flat on a run, headlights that dim and brighten with engine speed, or a charging voltage at the battery that never climbs above resting voltage. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

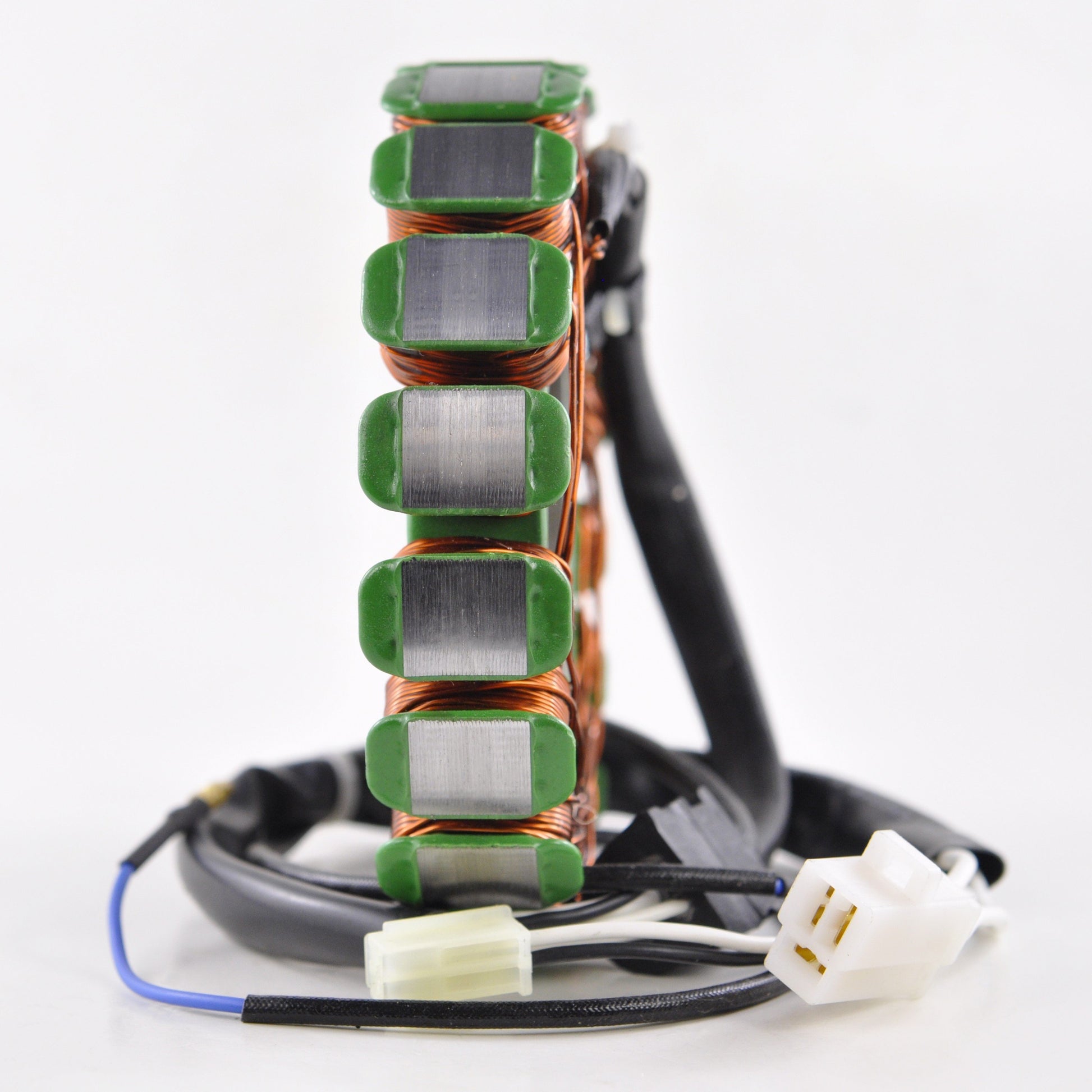

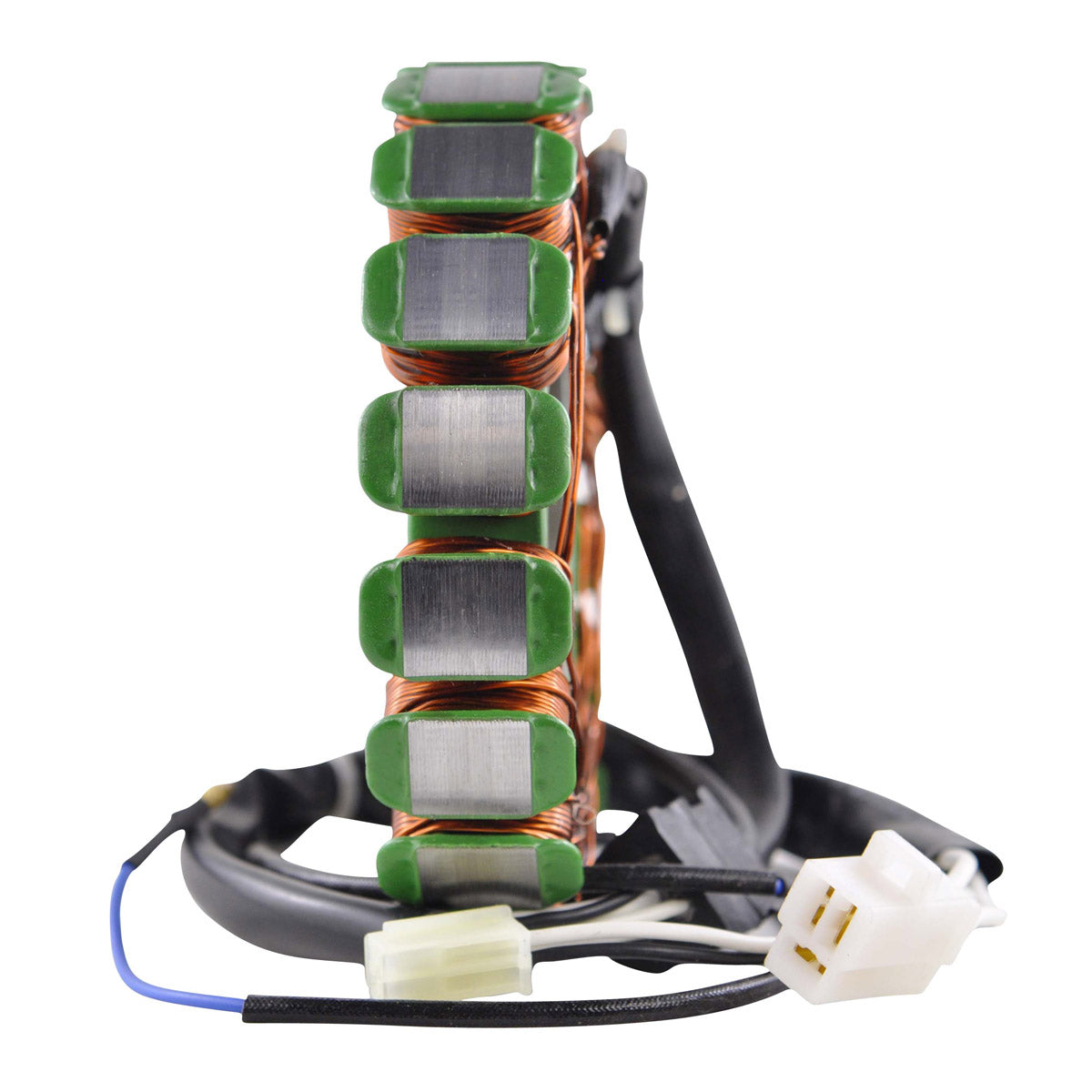

- Highest grade lamination materials

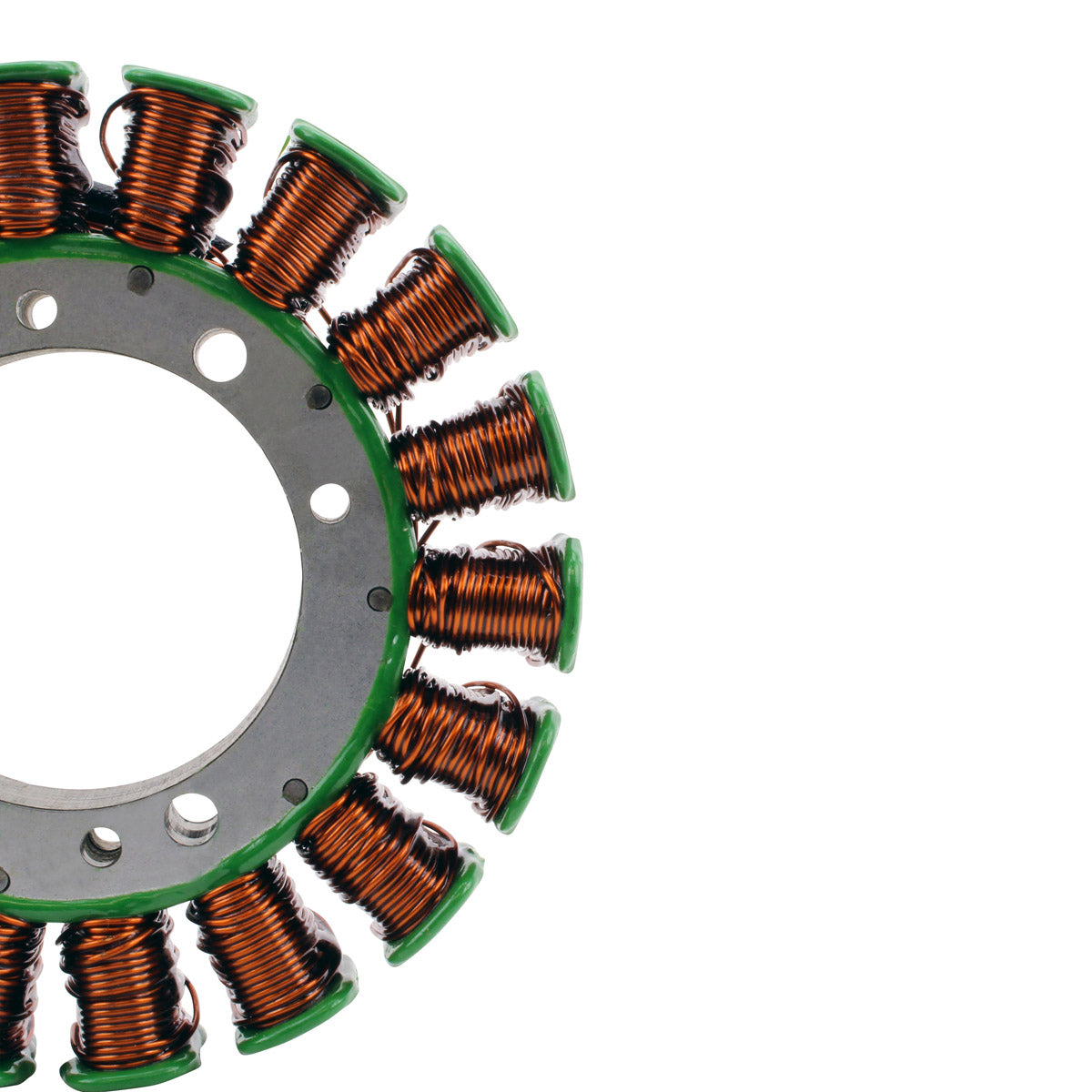

- Highest grade copper windings, resistant to 200 degrees Celsius

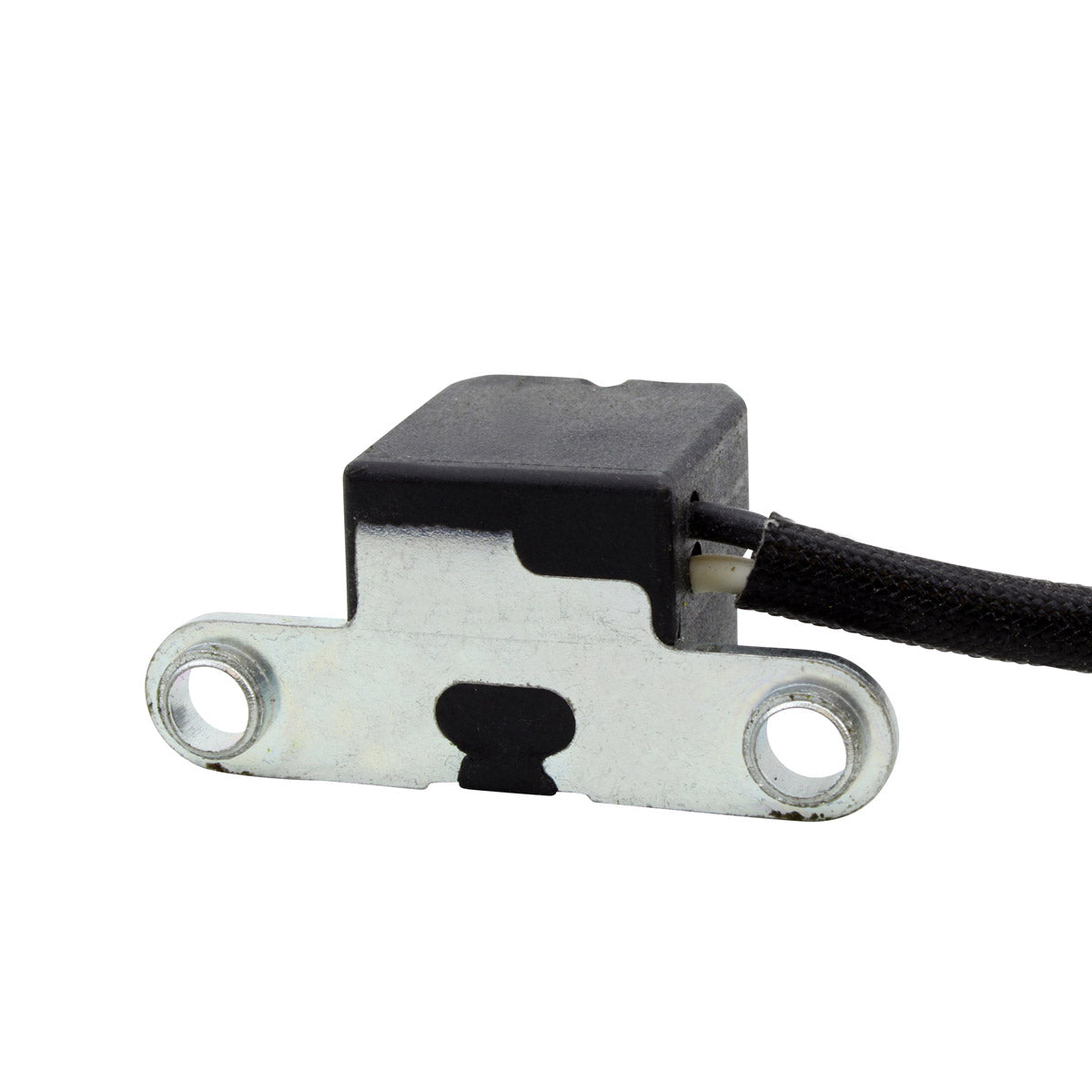

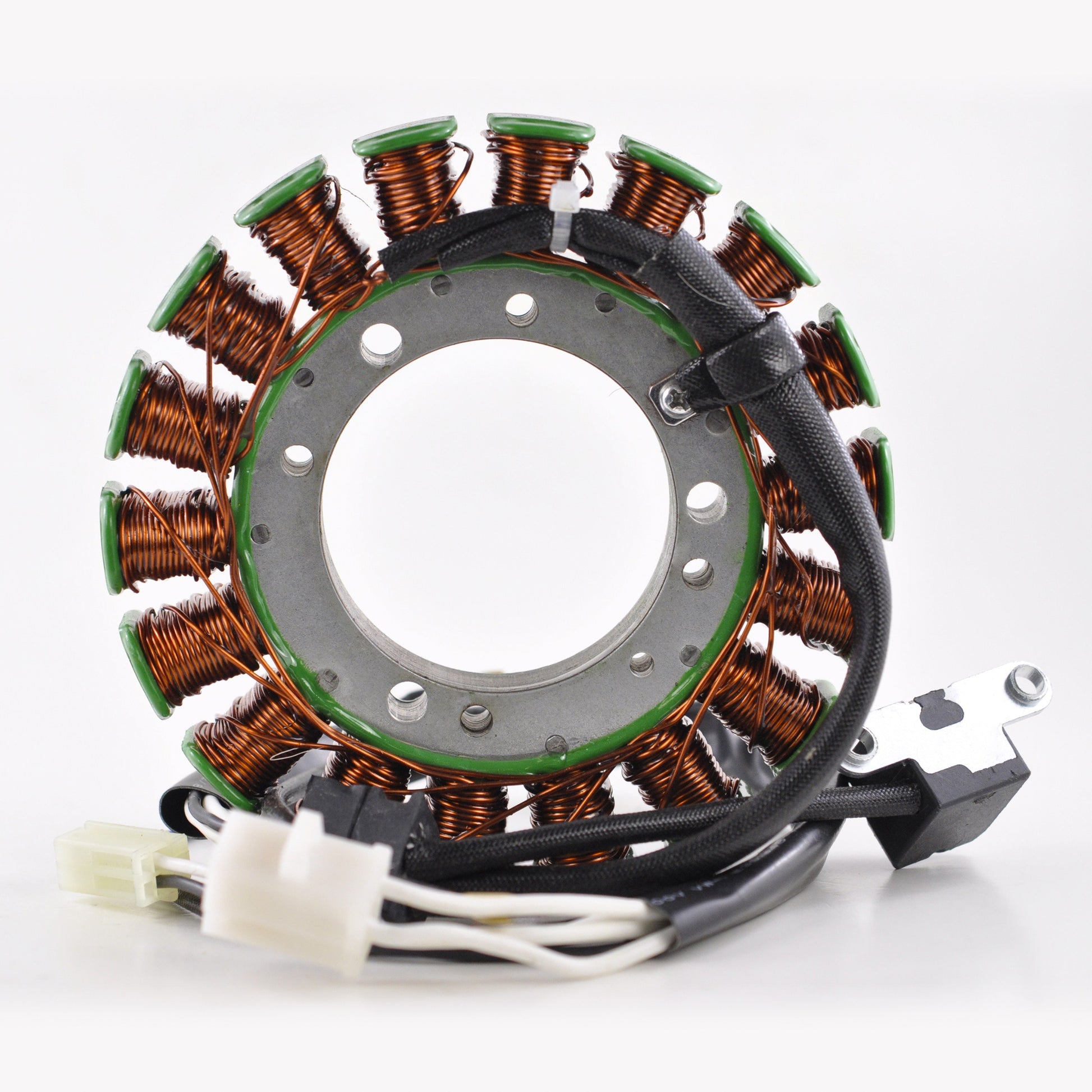

- Pick up pulsar coil included

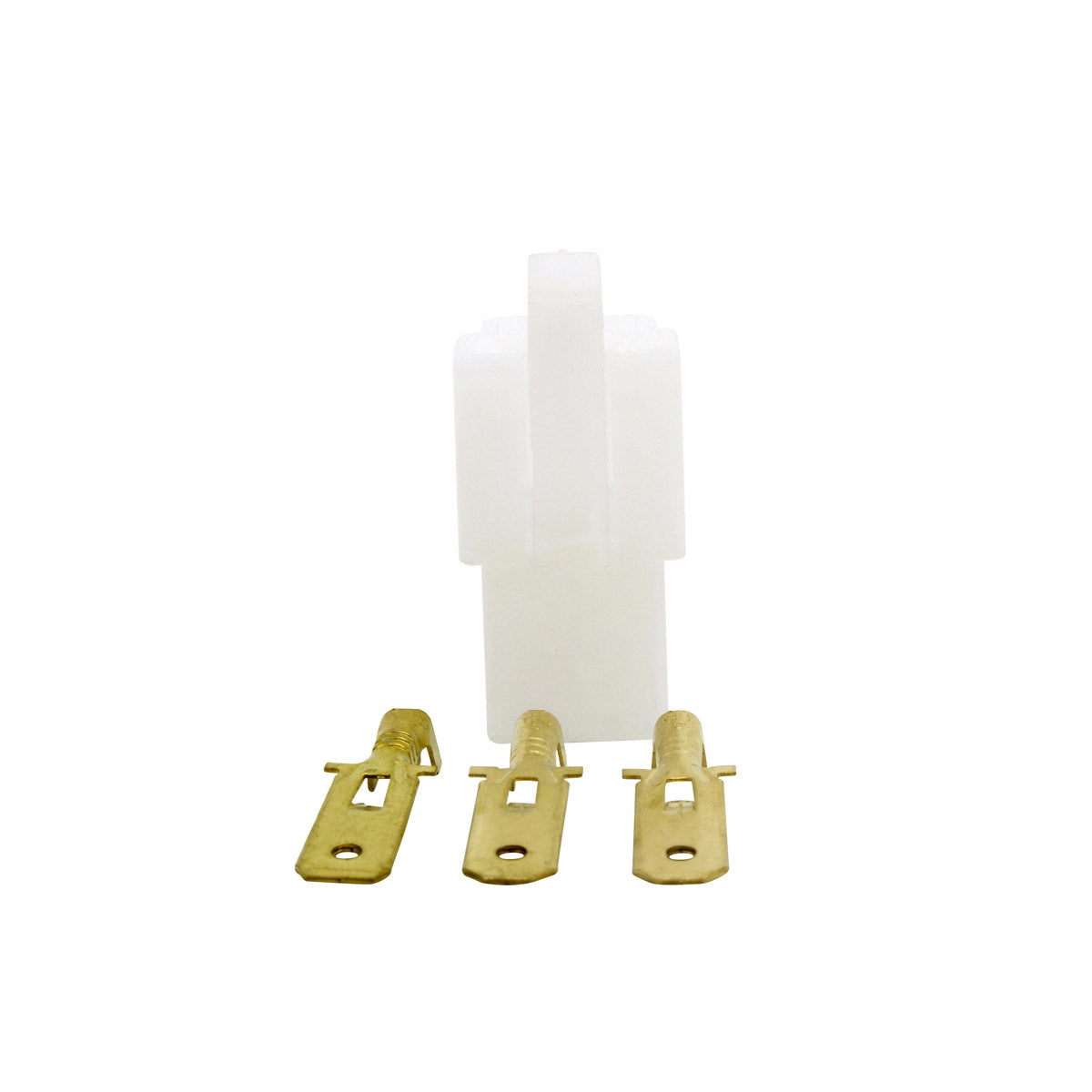

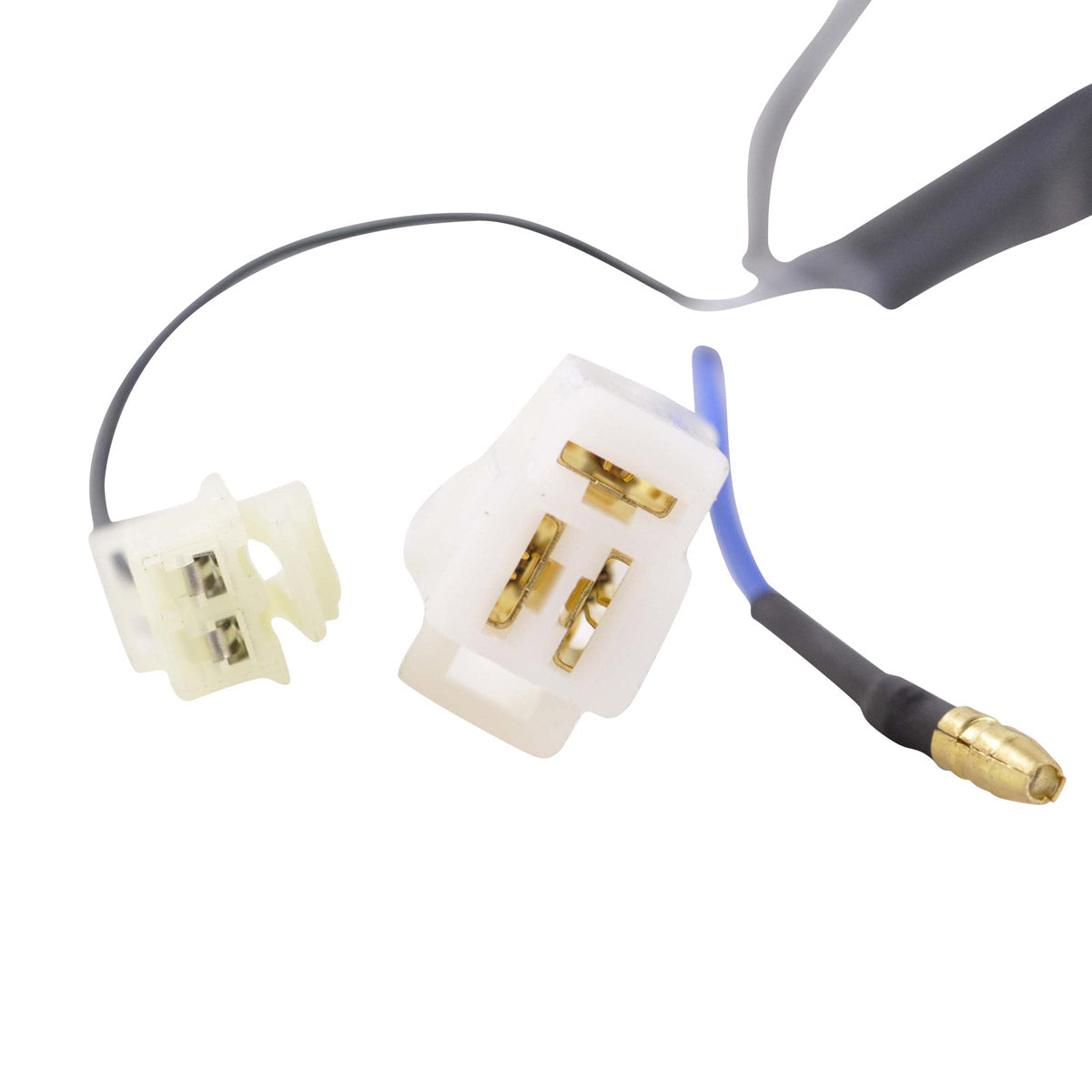

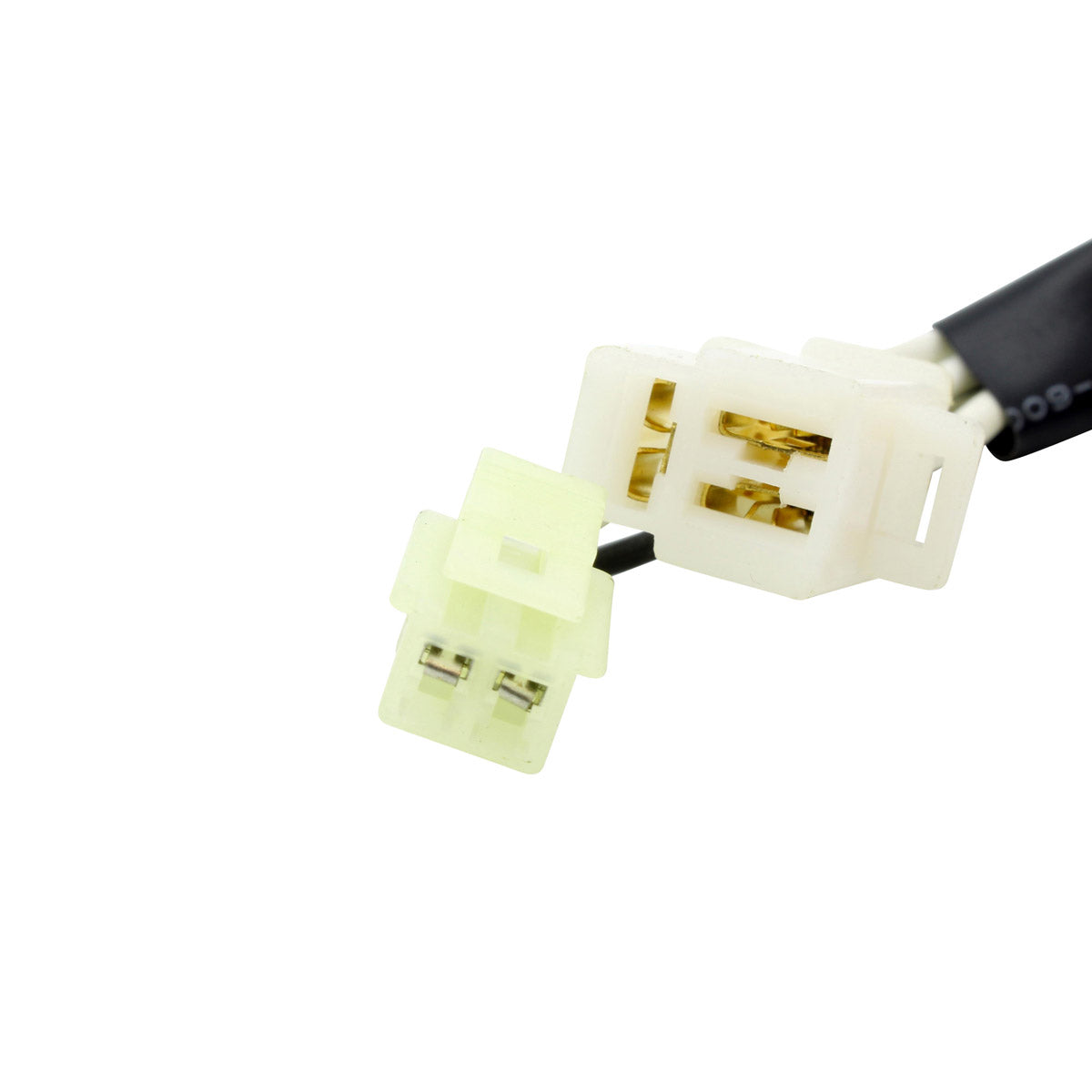

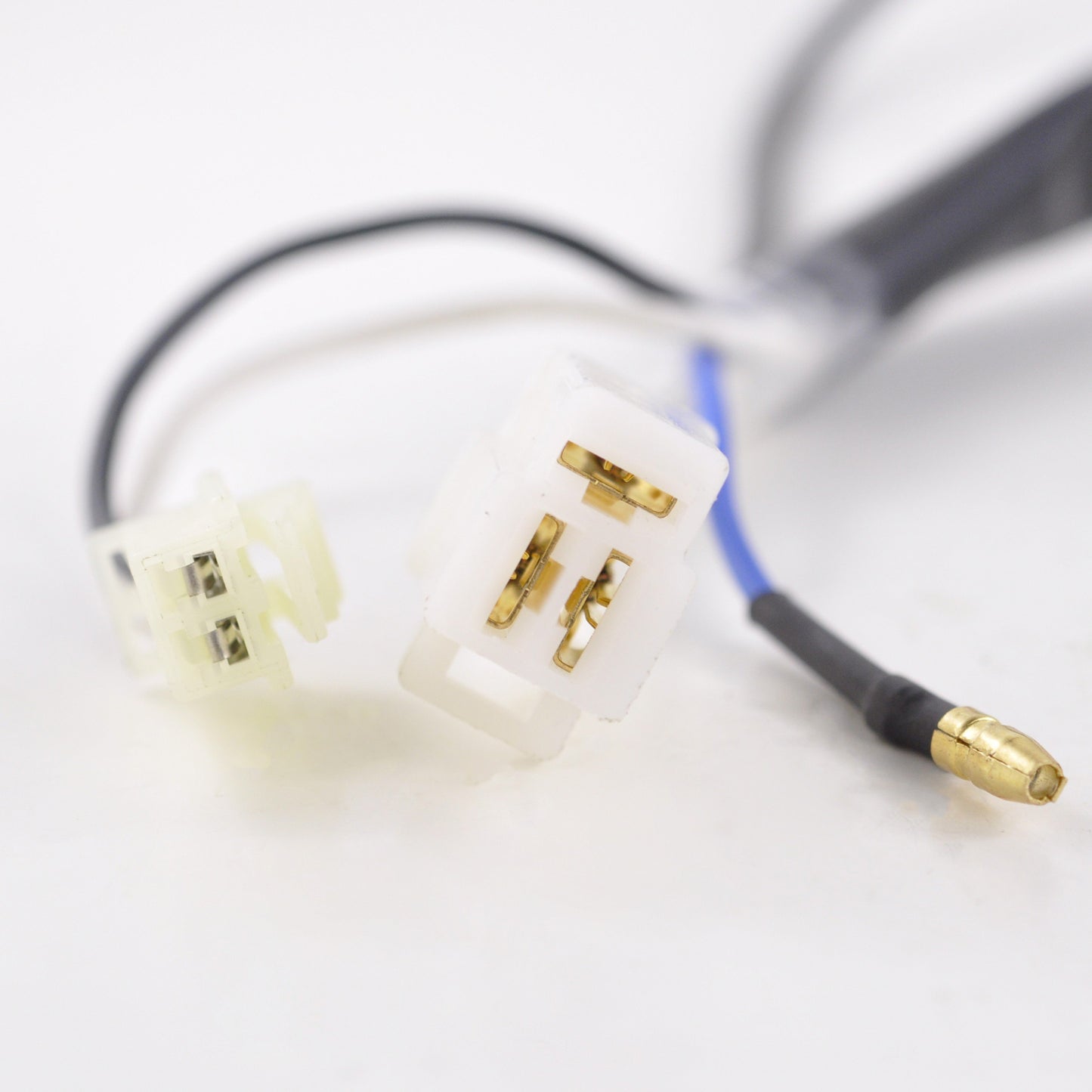

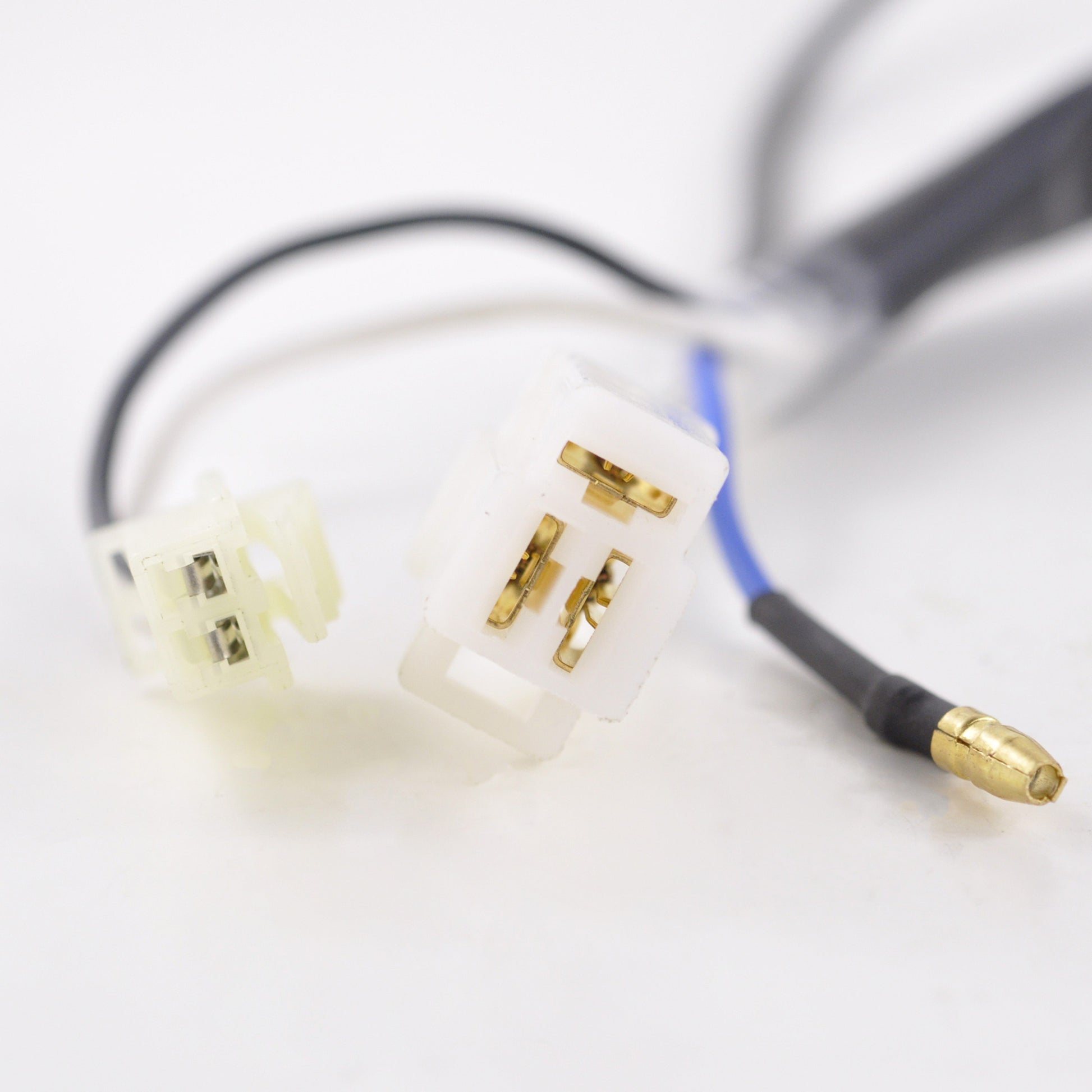

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
58 mm |
| Exterior diameter |
130 mm |
| Thickness |
18 mm |
| Wire length, stator to grommet |
140 mm |
| Wire length, grommet to plug |
250 mm |
| Pick up coil wire length |
90 mm |
| Number of wires |
6 |
| Number of plugs |
3 |
| Number of pins |
6 |
| Alternator resistance, white to white |
0.8 ohms +/-20% |
| Pickup resistance, black to grey |
209 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| Part number |
RM01554 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha XVS 1100 V Star Silverado |
2003-2009 |
| Yamaha XVS 1100 V Star Midnight |
2003-2009 |
| Yamaha XVS 1100 V Star Custom |
2003-2009 |
| Yamaha XVS 1100 V Star Classic |
2003-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5KS-81410-00-00 |
Yamaha |
| 5KS-81410-01-00 |
Yamaha |
| 5KS-81410-02-00 |
Yamaha |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a plug-and-play, direct fit replacement for the original unit and comes with the correct connector and rubber grommet, so it mates with the standard XVS 1100 wiring as supplied.

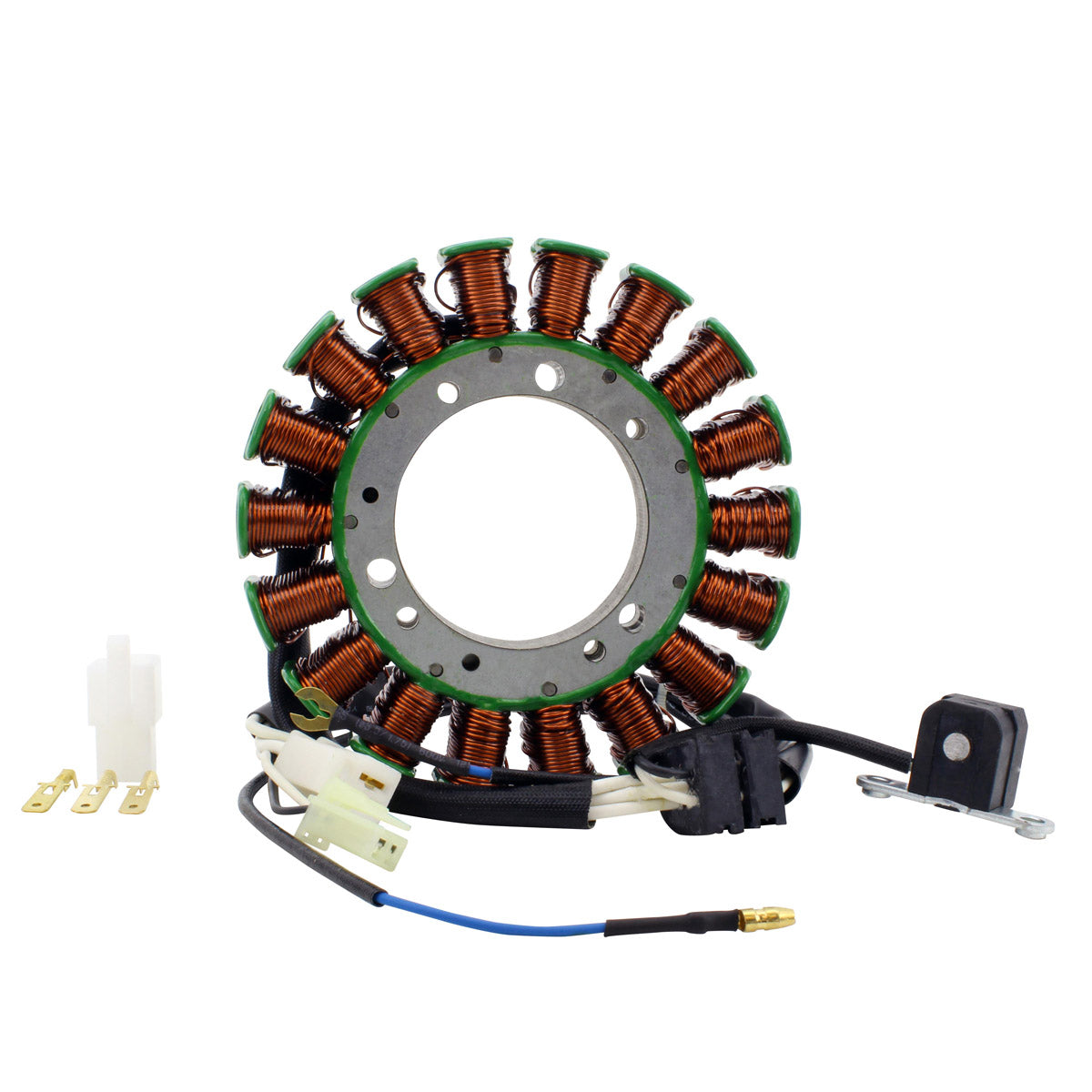

What is included in the box?

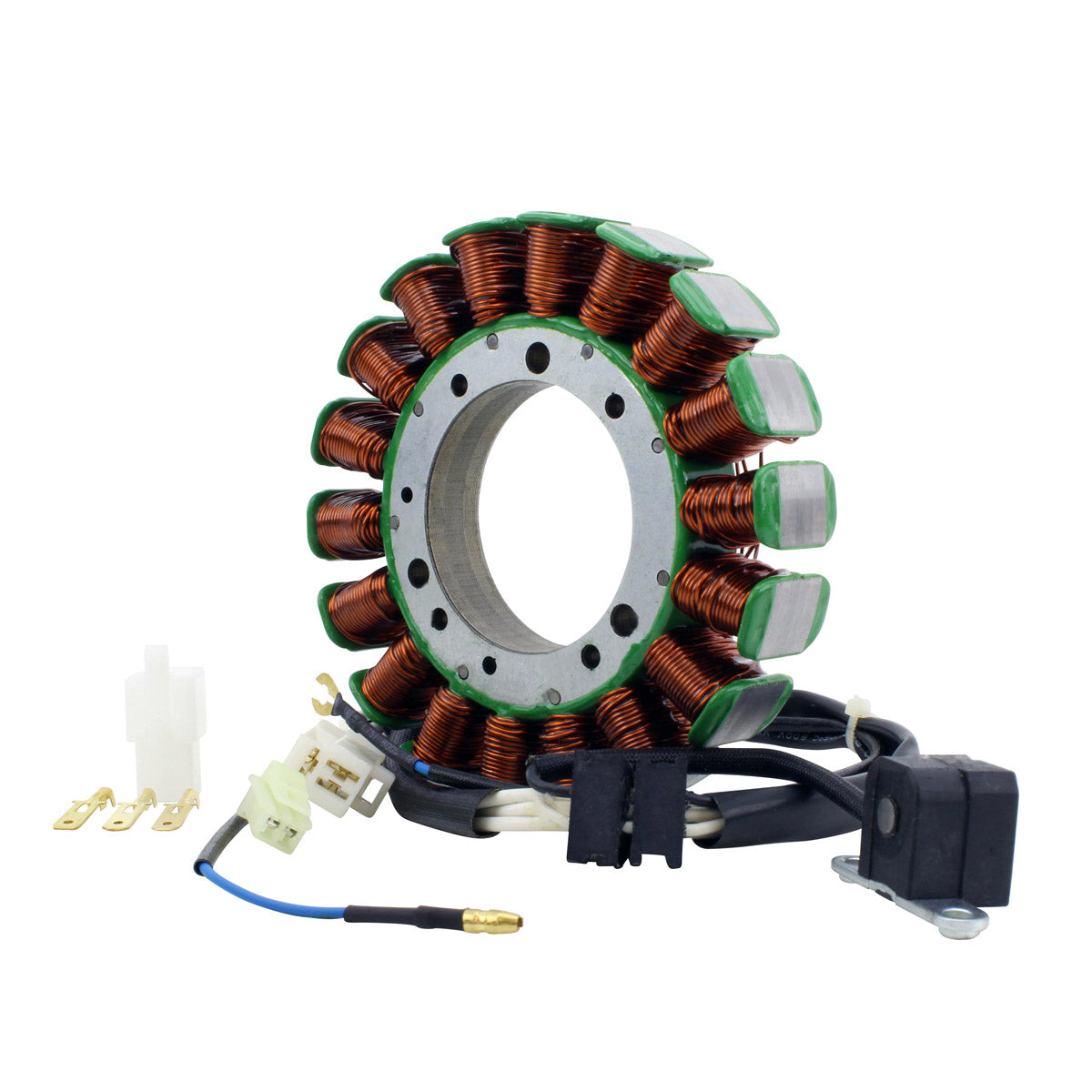

The stator, the pick up pulsar coil, the connector and the rubber grommet. Every unit is tested before it leaves the factory.
How do I tell whether my original stator has failed?
With the engine off and the stator unplugged, measure across the three alternator wires: each white to white pair should read about 0.8 ohms, plus or minus 20 per cent. Then check the pickup, black to grey, which should read about 209 ohms plus or minus 20 per cent. An open circuit, a short to the stator core, or a reading far outside those figures points to a failed winding.
Does it fit the Silverado and the Classic as well as the Custom?
Yes. The same stator covers the XVS 1100 V Star in Silverado, Midnight, Custom and Classic form across the 2003 to 2009 coverage span. Confirm the number on your original unit against 5KS-81410-00-00, 5KS-81410-01-00 or 5KS-81410-02-00 before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
