Replacement Generator Stator
Kawasaki VN 1500 Vulcan and Ninja ZX-9R, Suzuki Savage LS 650 and Boulevard S40, Honda XR 650 L - 1986-2024 - Part RM01021

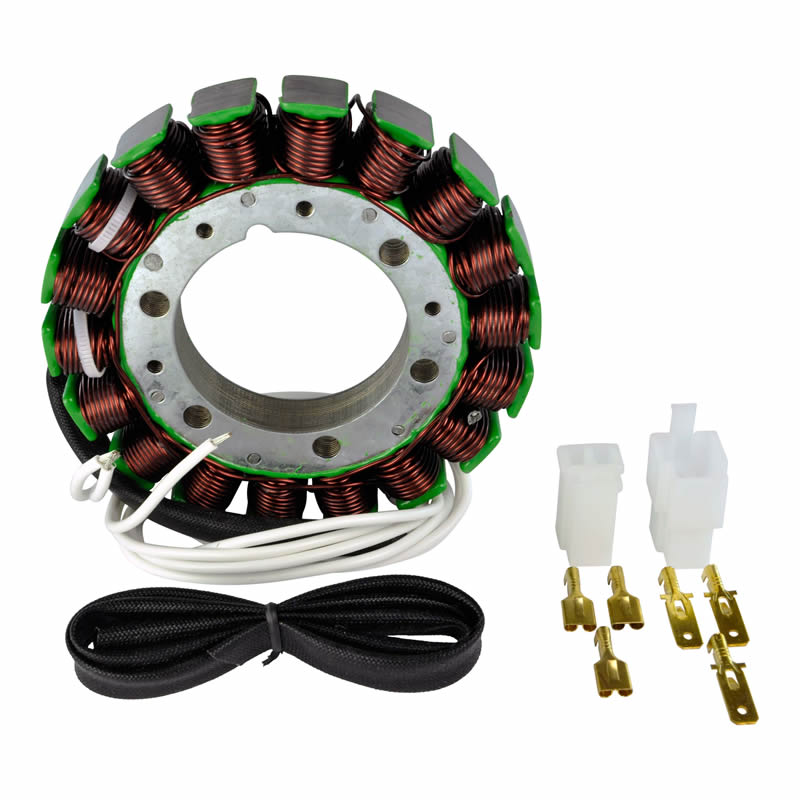

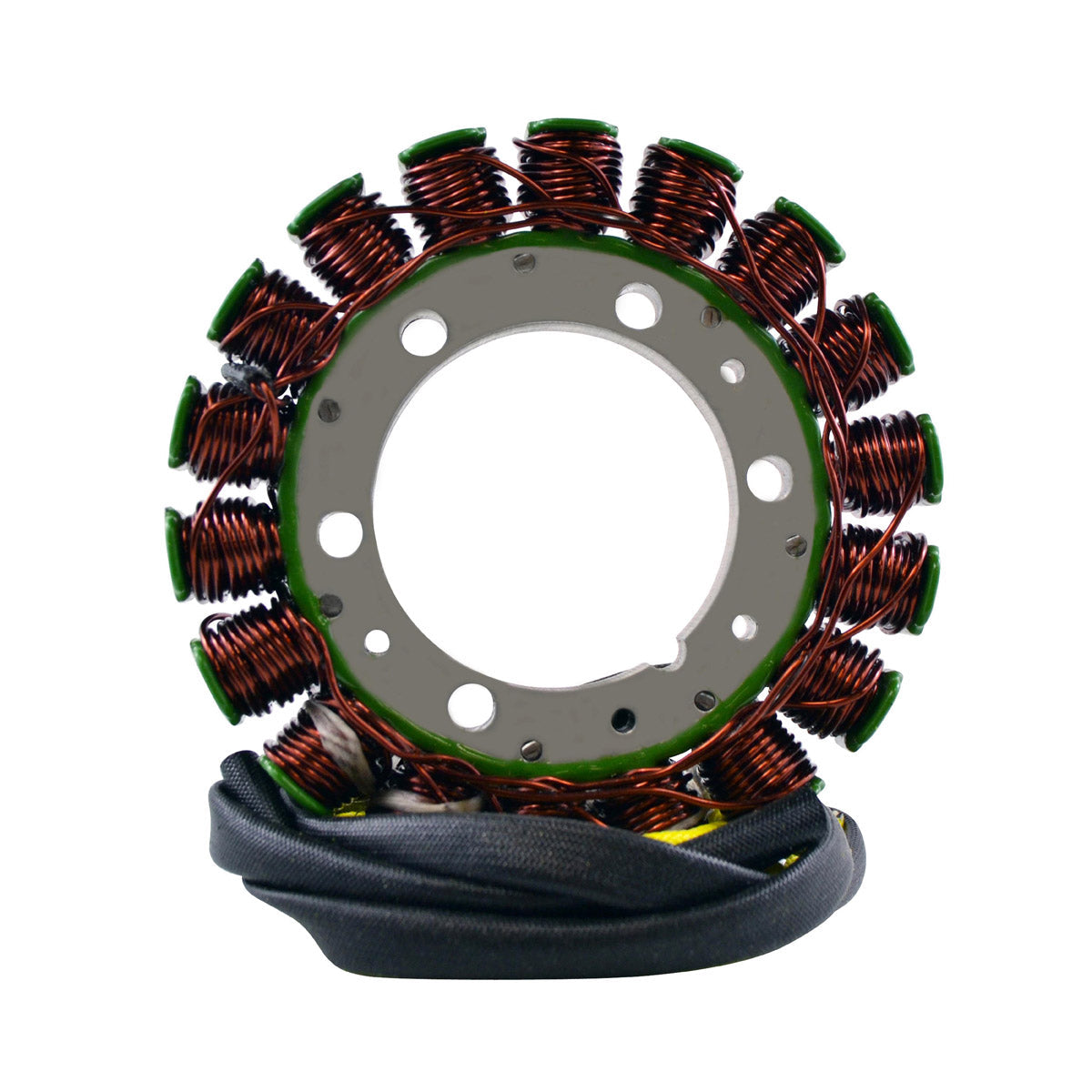

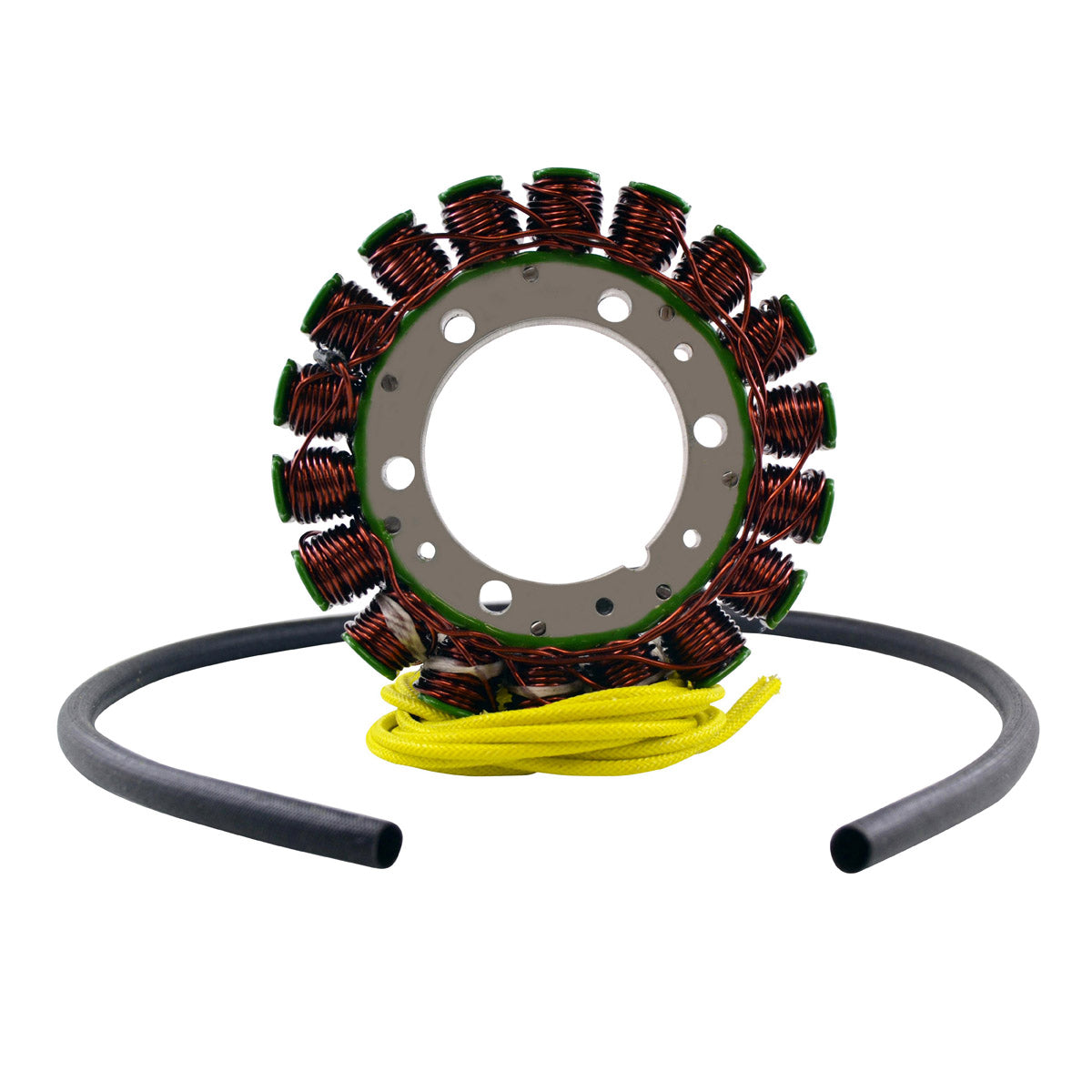

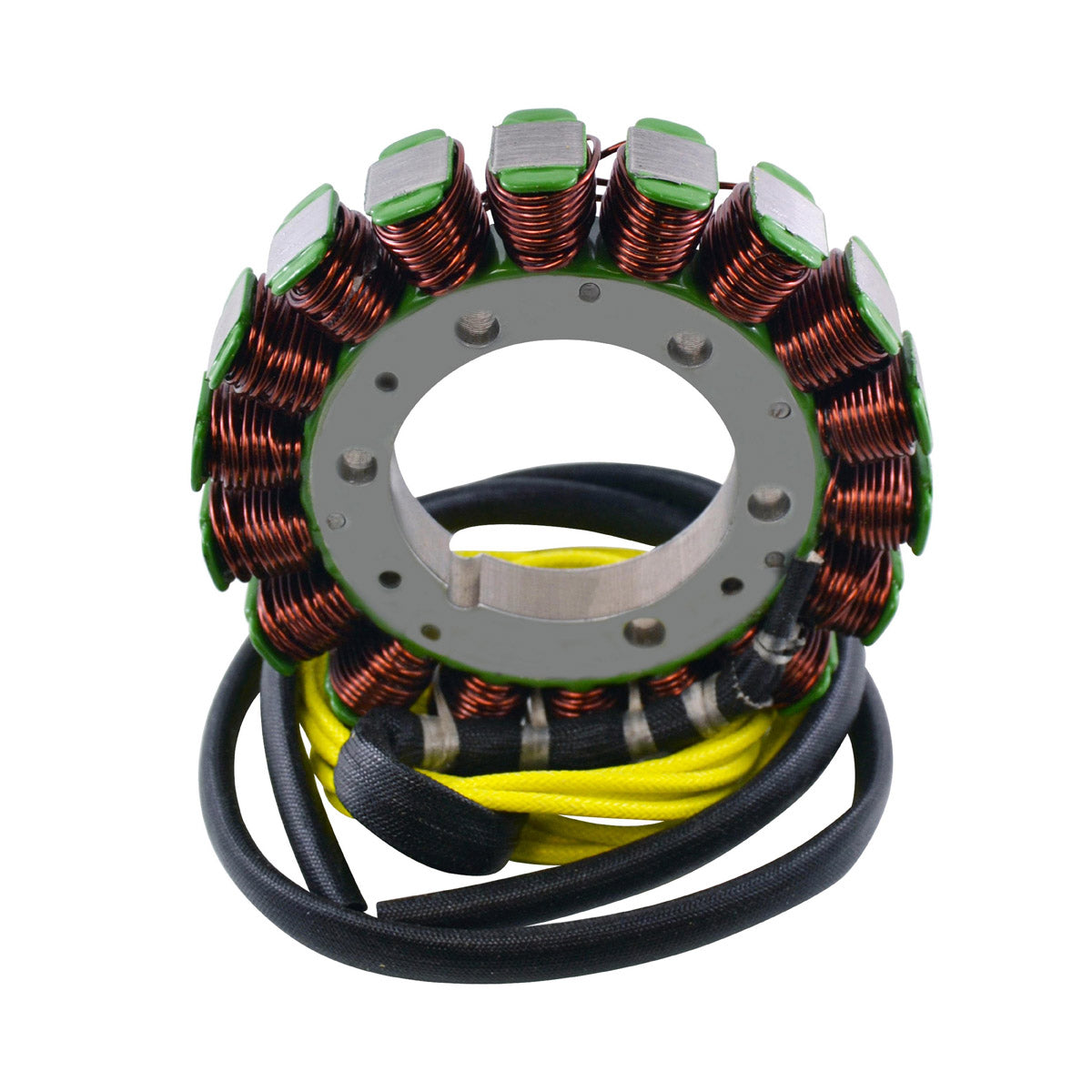

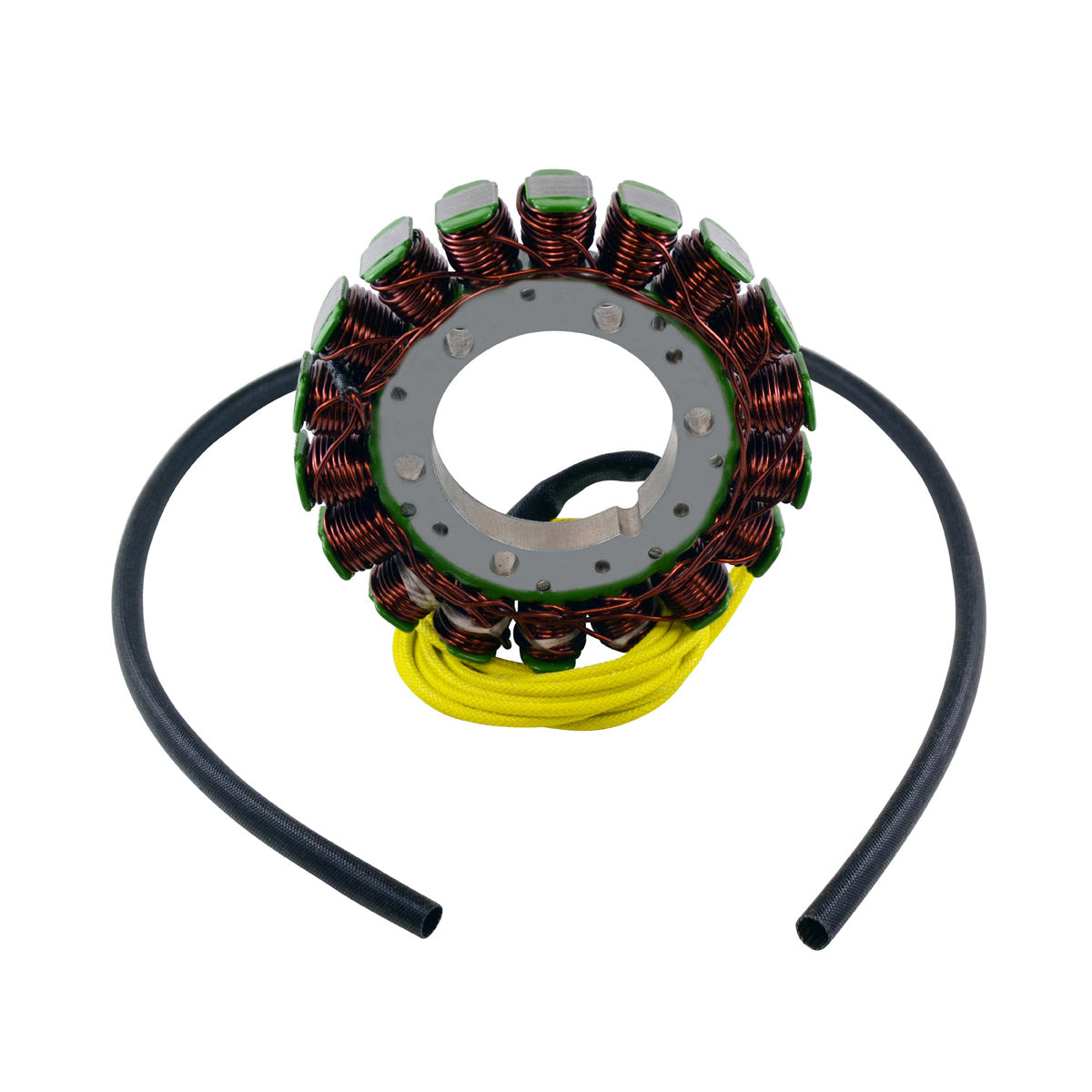

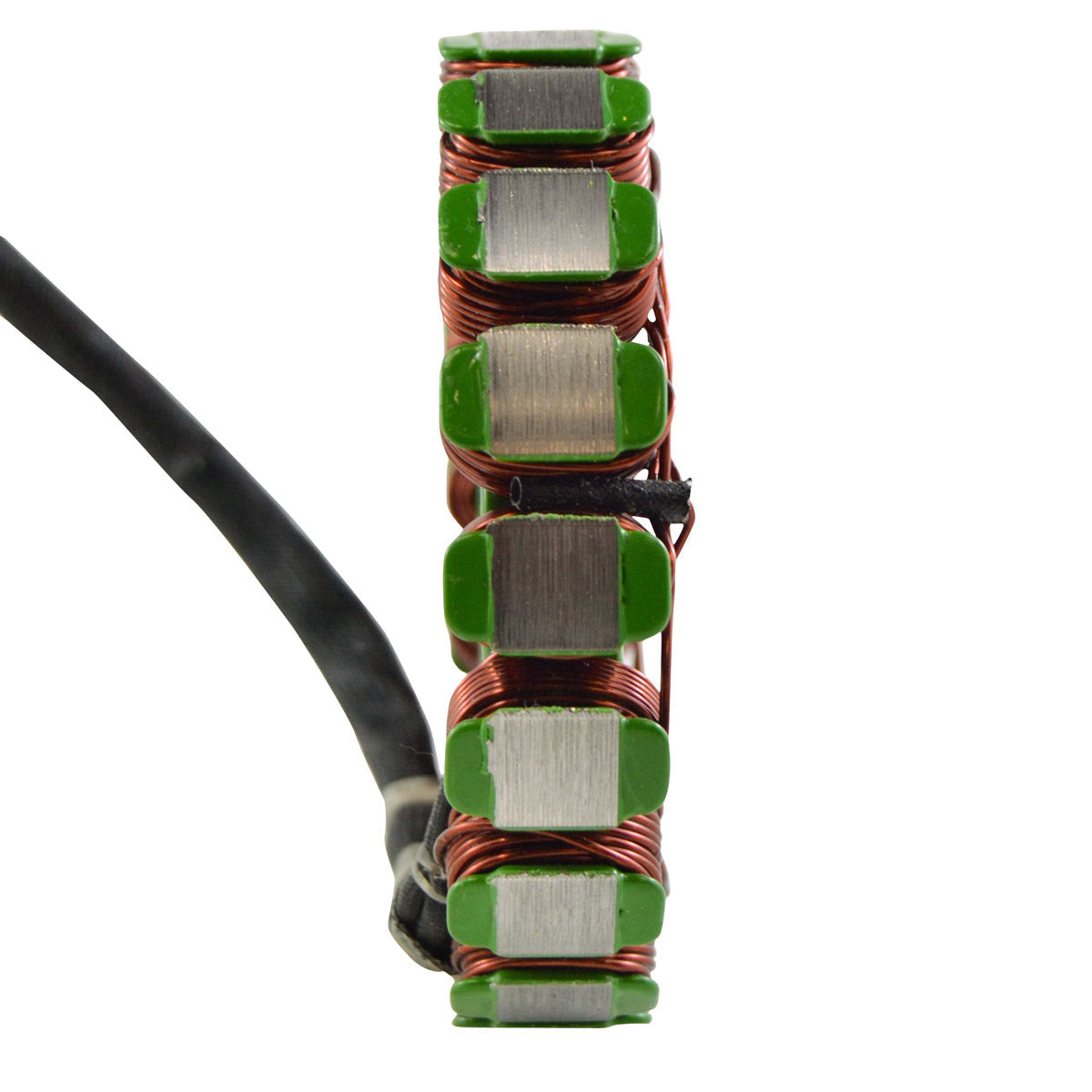

This is a brand new aftermarket stator built to replace the original charging coil on a wide group of Kawasaki, Suzuki and Honda machines. The design is shared across the Kawasaki VN 1500 Vulcan and Ninja ZX-9R, the Suzuki Savage LS 650 and Boulevard S40, and the Honda XR 650 L, which is why one part covers models built between 1986 and 2024.
The original connector and grommet are reinstalled onto this stator during fitting. Once they are transferred across, the unit is plug-and-play, a direct fit, and very easy to install with no modification to the loom. Higher grade electrical components are used throughout, with the highest grade of copper winding, resistant to 200 degrees Celsius. An additional connector for the main harness side is supplied in the box, because those connectors are often found melted, corroded or defective on a machine that has suffered a charging failure. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket generator stator
- Plug-and-play and direct fit once the original connector and grommet are reinstalled
- Higher grade electrical components throughout
- Highest grade copper winding, resistant to 200 degrees Celsius
- Additional connector for the main harness side included

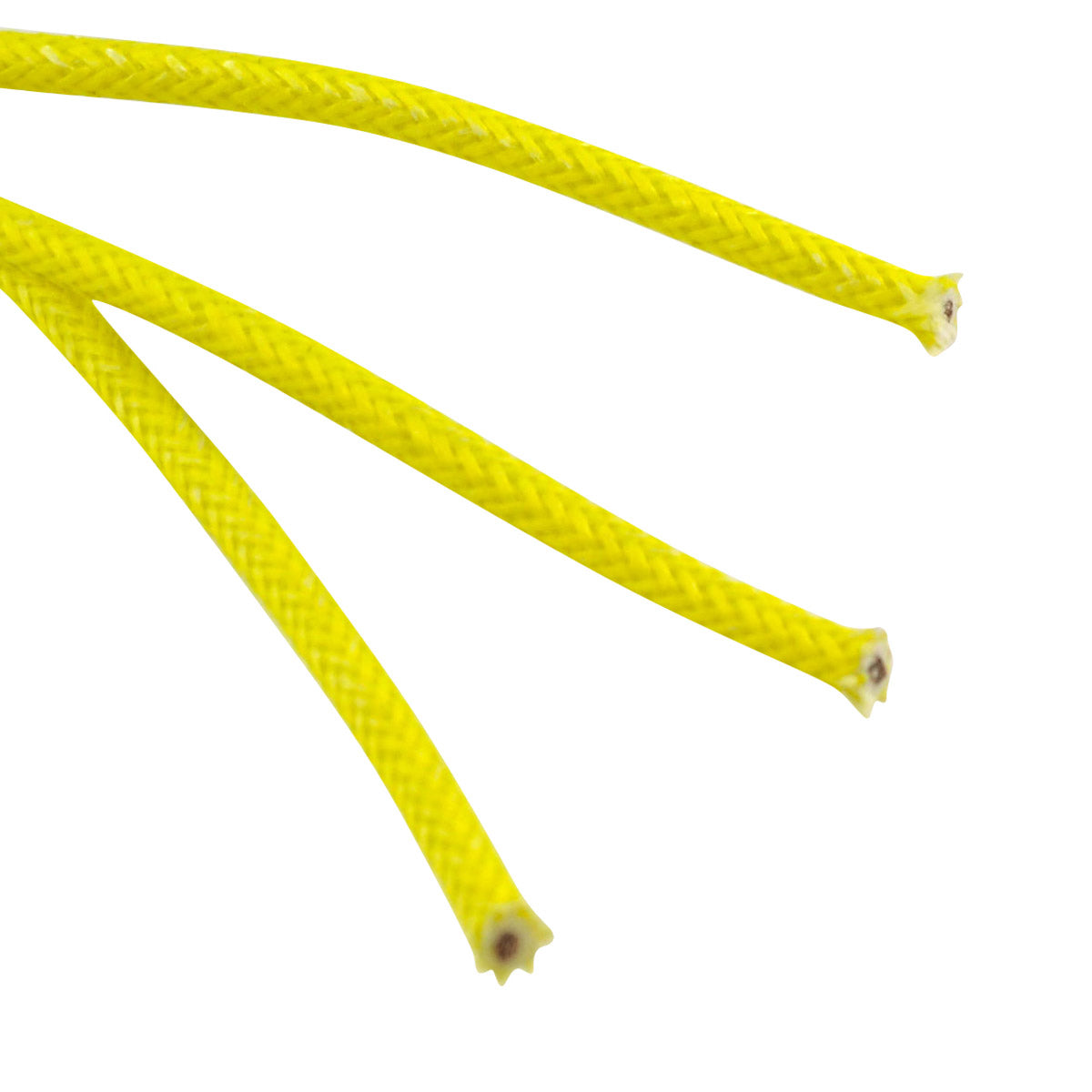

- 700 mm harness from the stator to the terminals
- Every unit tested before shipping
- No modification to the wiring loom required
Technical Specs
| Specification | Detail |
|---|---|
| Interior Diameter | 54 mm |
| Exterior Diameter | 115 mm |
| Thickness | 28 mm |
| Wire Length (stator to terminals) | 700 mm |
| Number of Wires | 3 |
| Number of Pins | 3 |
| Alternator Wire-to-Wire Resistance | 0.4 ohms +/-20% |
| Winding Temperature Rating | 200 degrees Celsius |
| Manufacturer Part Number | RM01021 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki VN 1500 Vulcan | 1986-2024 |
| Kawasaki Ninja ZX-9R | 1986-2024 |
| Suzuki Savage LS 650 | 1986-2024 |
| Suzuki Boulevard S40 | 1986-2024 |
| Honda XR 650 L | 1986-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1164 | Kawasaki |
| 21003-1320 | Kawasaki |
| 21003-1330 | Kawasaki |
| 21003-1353 | Kawasaki |
| 21003-1385 | Kawasaki |
| 21003-1397 | Kawasaki |
| 32101-24B00 | Suzuki |
| 32101-24B01 | Suzuki |
| 32101-24B02 | Suzuki |
| 31120-MN9-005 | Honda |
| 31120-MN9-015 | Honda |
| 31120-MN9-025 | Honda |
| 31120-MK4-602 | Honda |
| 31120-MW2-781 | Honda |
Frequently Asked Questions
Does this need any modification to fit?
No. Reinstall the original connector and grommet onto the new stator and it becomes a plug-and-play, direct fit unit. No cutting or splicing of the loom is needed.
What is included in the box?

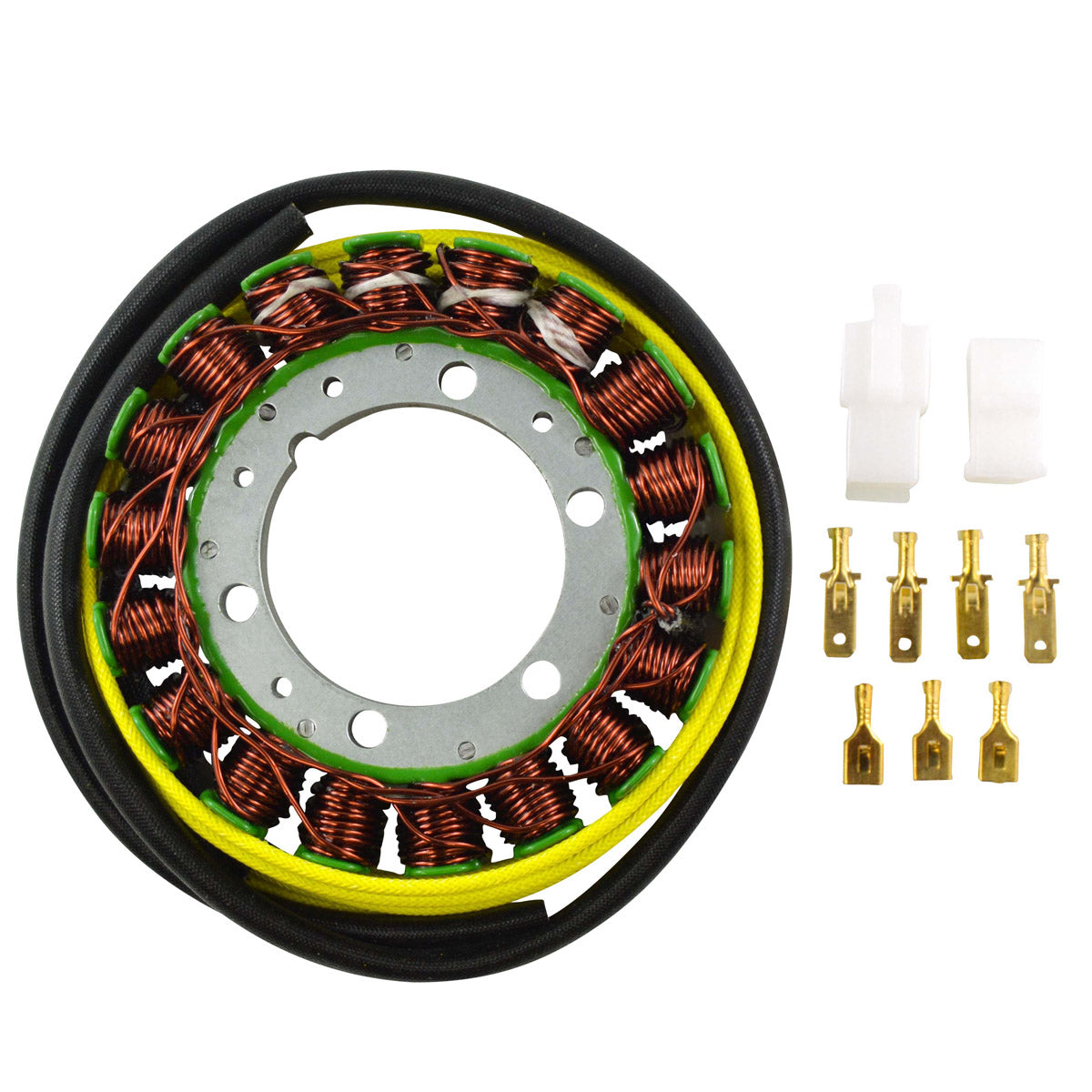

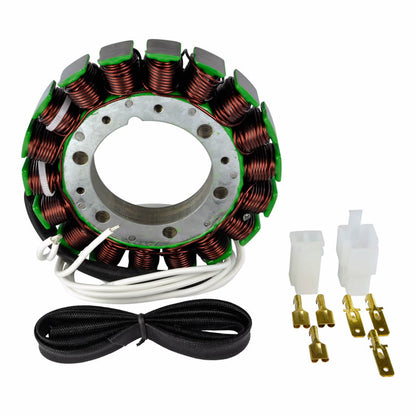

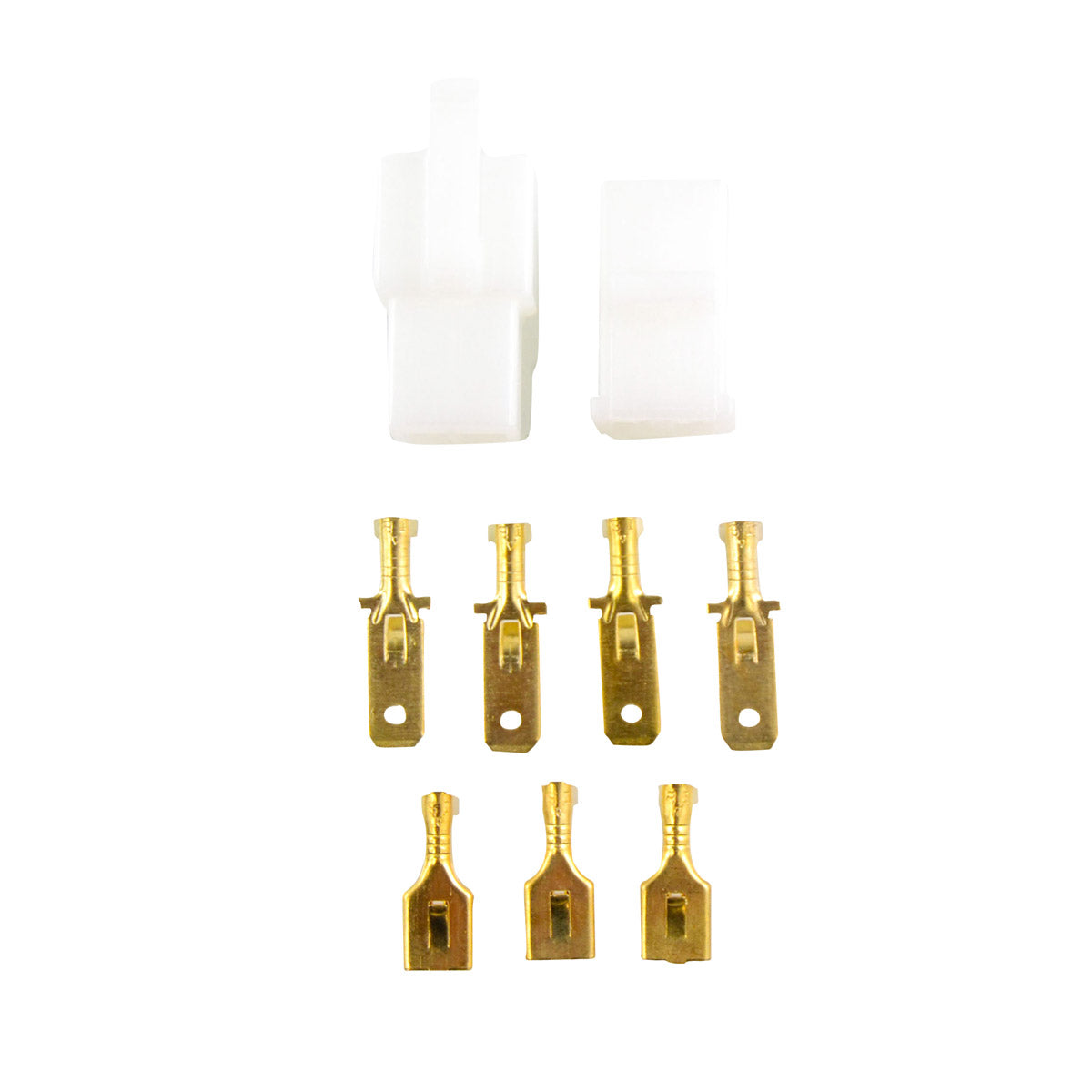

The stator unit with its integrated connector, an additional connector for the main harness side, and the grommet.
How can I tell my old stator has failed?
With a multimeter, measure the resistance between each pair of the three stator wires. Each pair should read approximately 0.4 ohms, within plus or minus 20 percent. Any leg reading open circuit, or reading short to the engine case, means the winding has failed. A battery that goes flat while riding is the common symptom.
Why is a second connector supplied?
The connector on the main harness side is often melted, corroded or defective by the time a stator fails, because heat and resistance at that joint are frequently what caused the problem. Replacing both halves at the same time avoids repeating the fault.
