Generator Stator for Kawasaki KLF 300 Bayou
Kawasaki KLF 300 Bayou, 1986-1987 - direct replacement, connector and grommet fitted

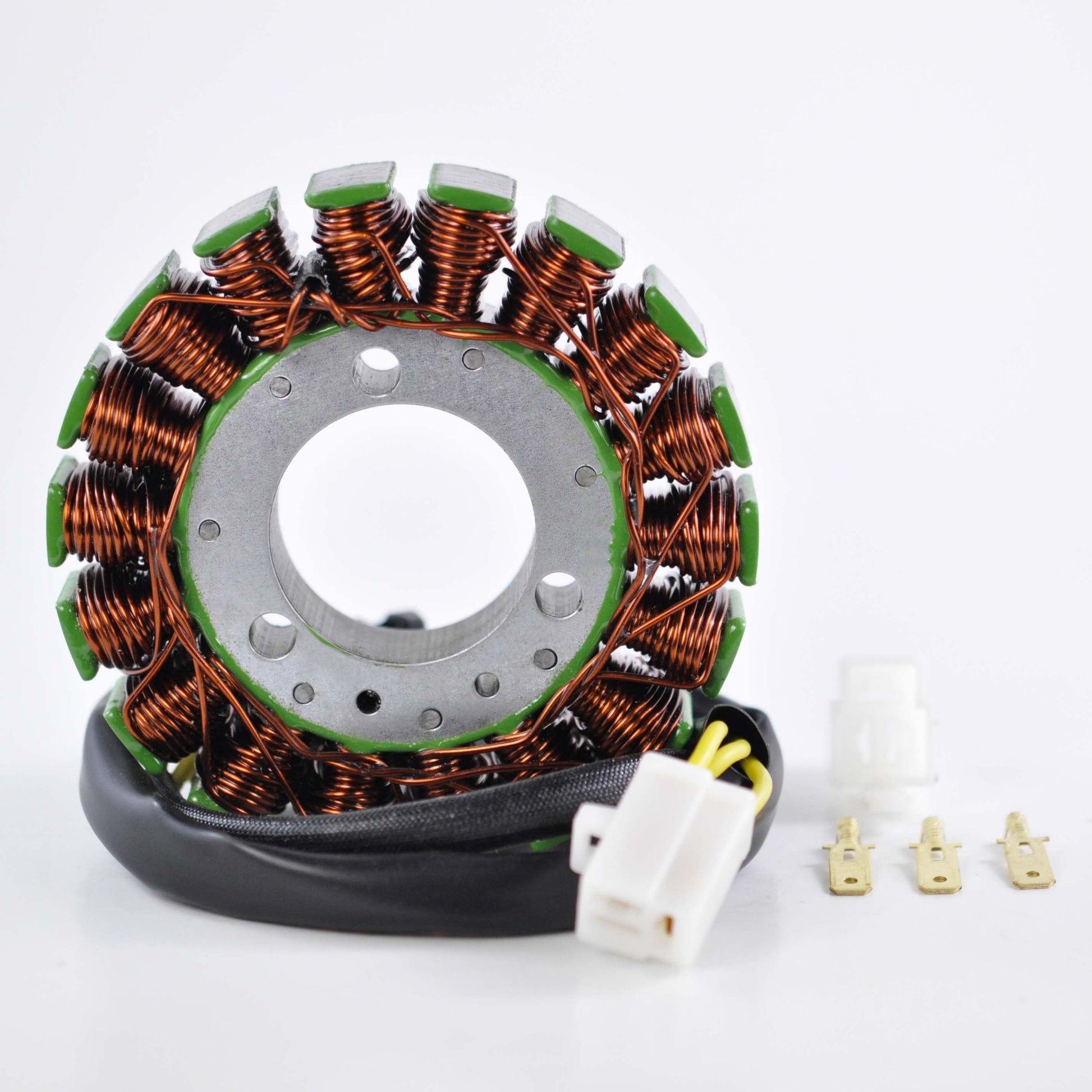

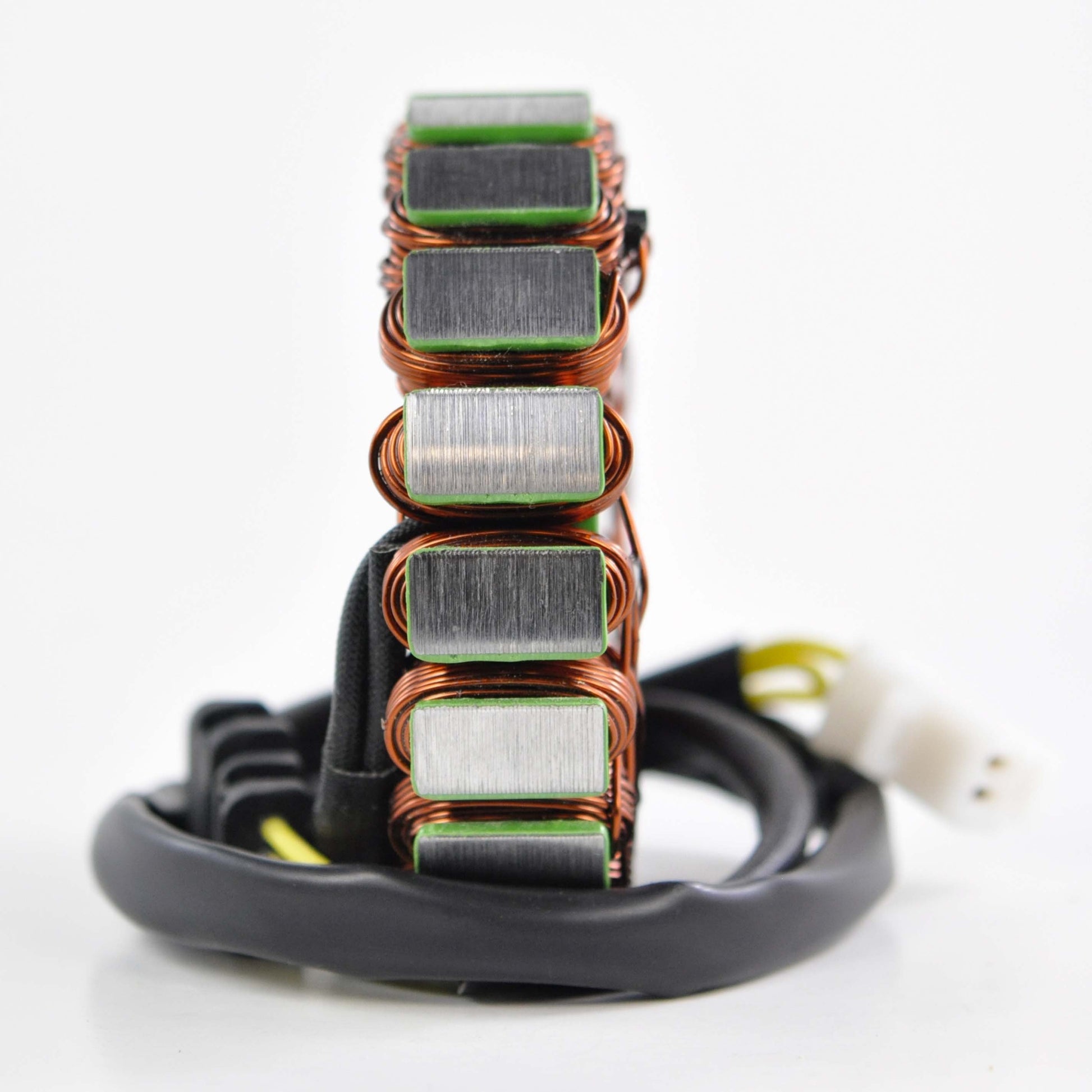

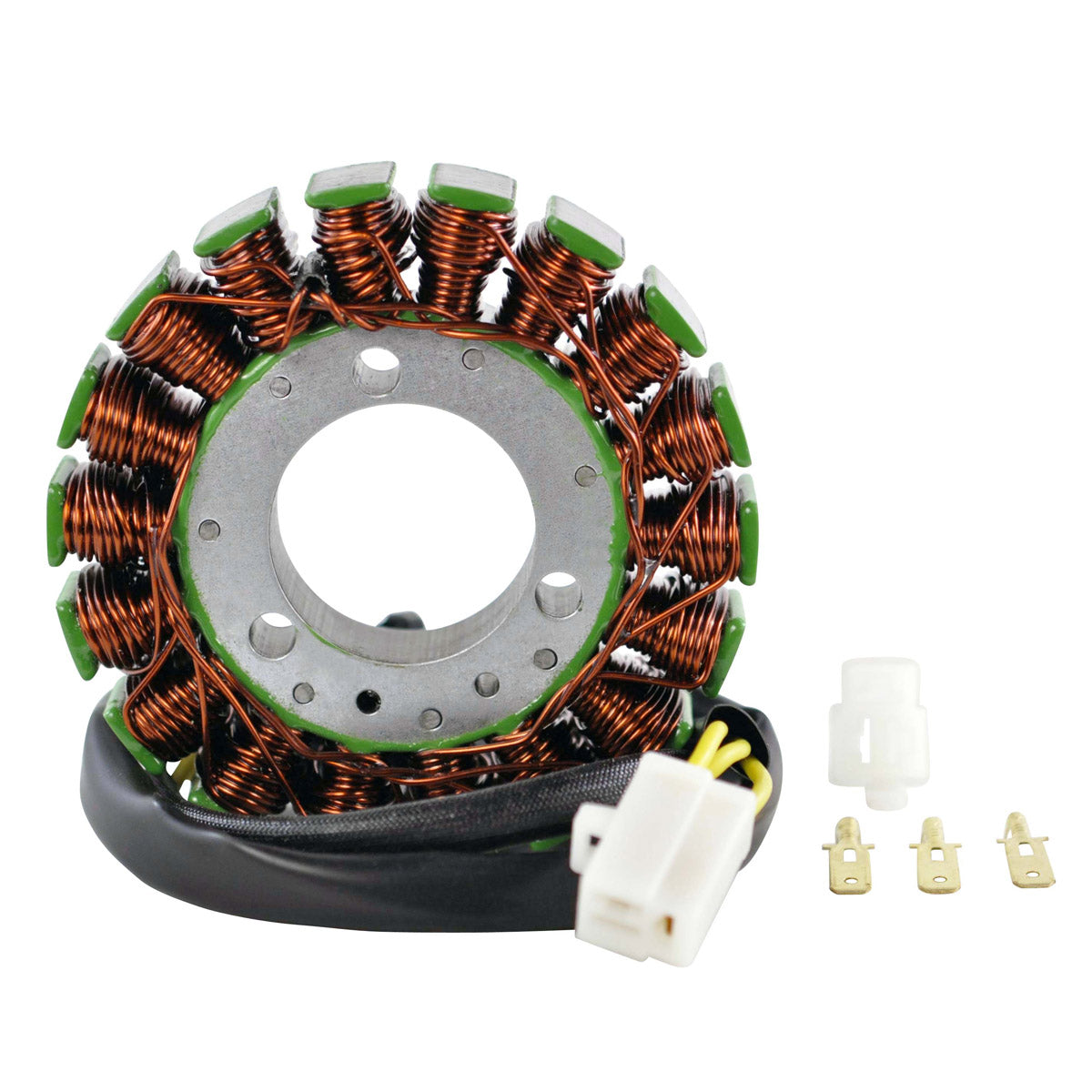

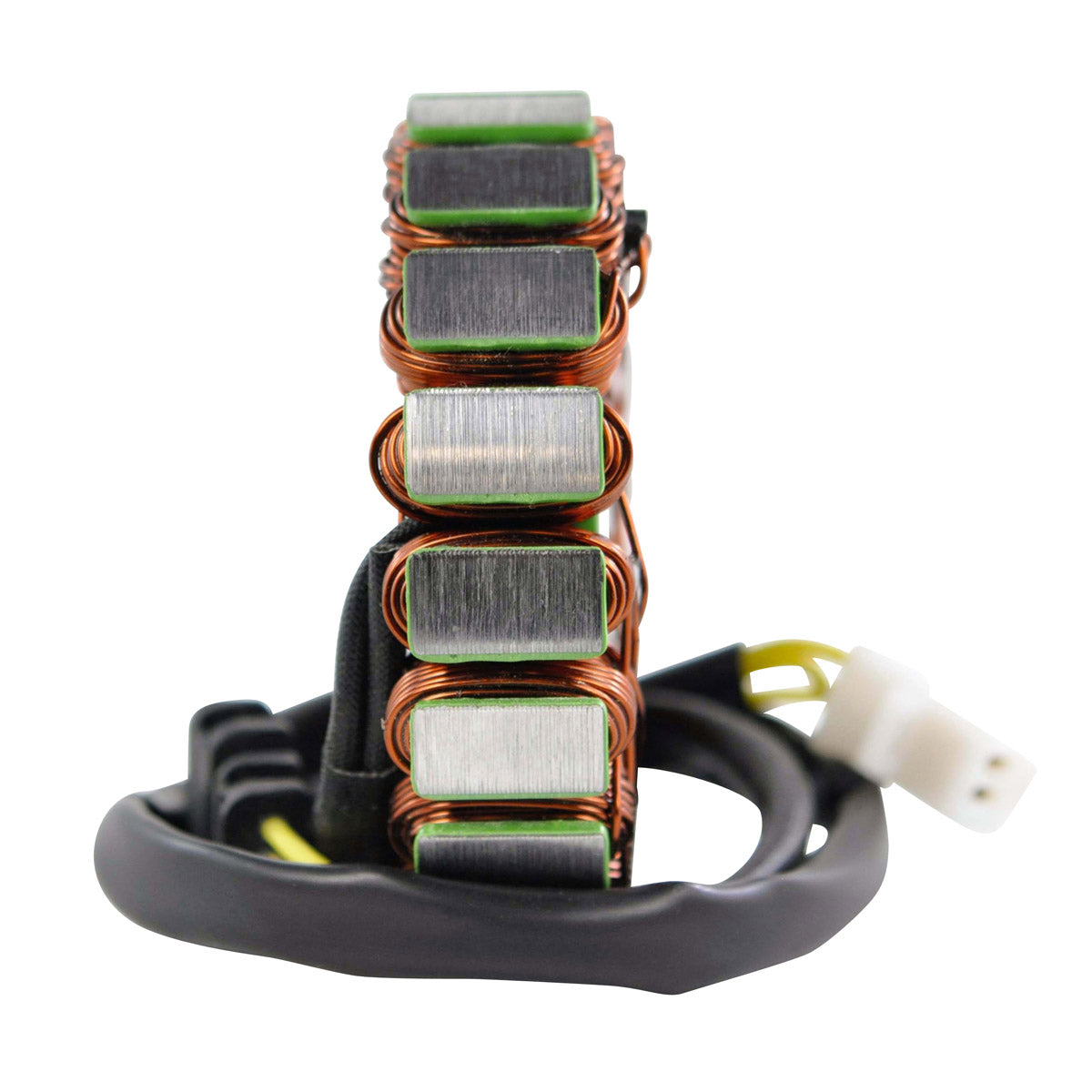

This is a brand new aftermarket generator stator for the Kawasaki KLF 300 Bayou, covering the 1986 and 1987 model years. It is a direct replacement for your original unit - plug-and-play, direct fit and easy to install, with no modification needed to the loom or the engine cases. The core uses the highest grade lamination materials and the windings are the highest grade copper, rated to resist 200 degrees Celsius, which is the point at which cheaper rewound units usually break down.

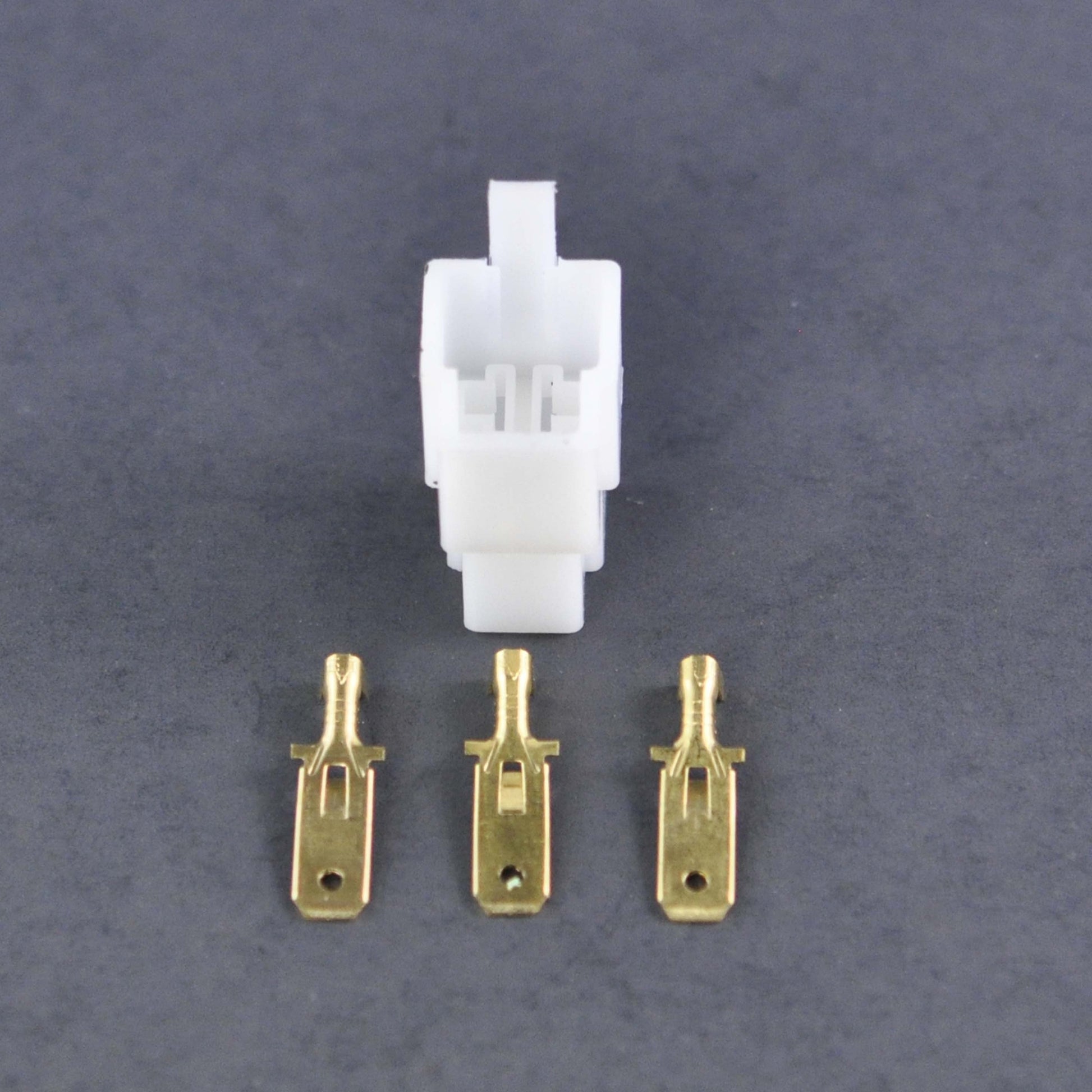

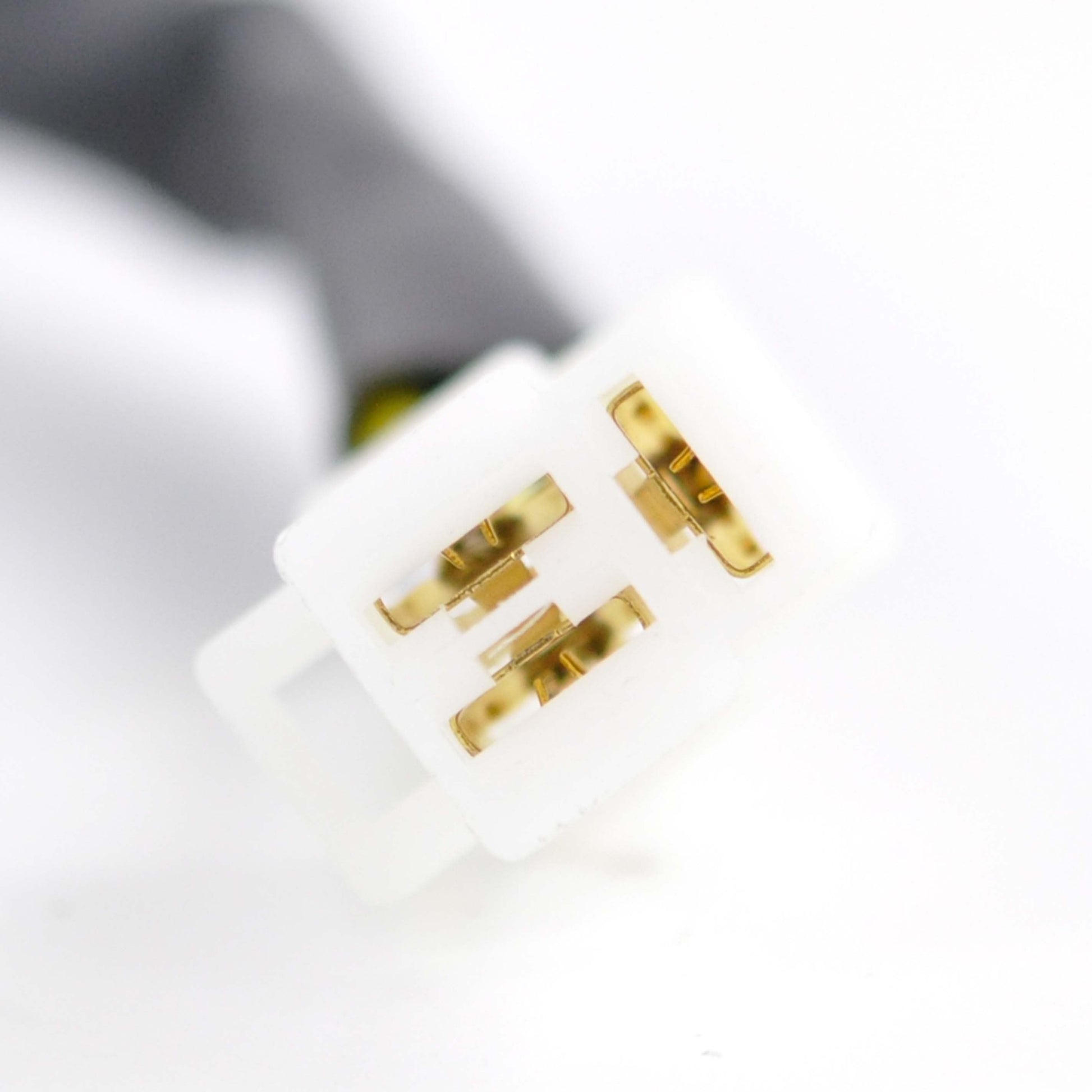

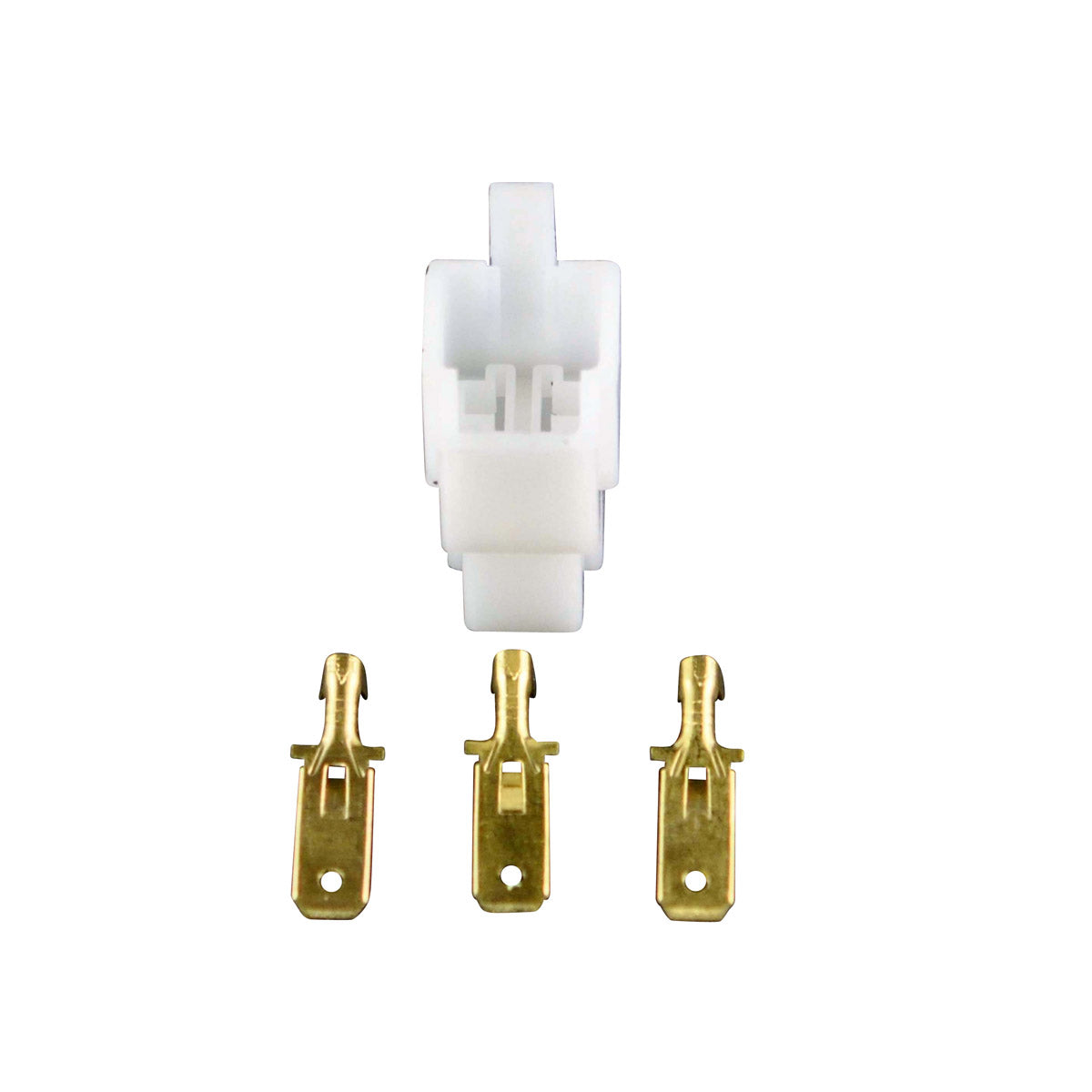

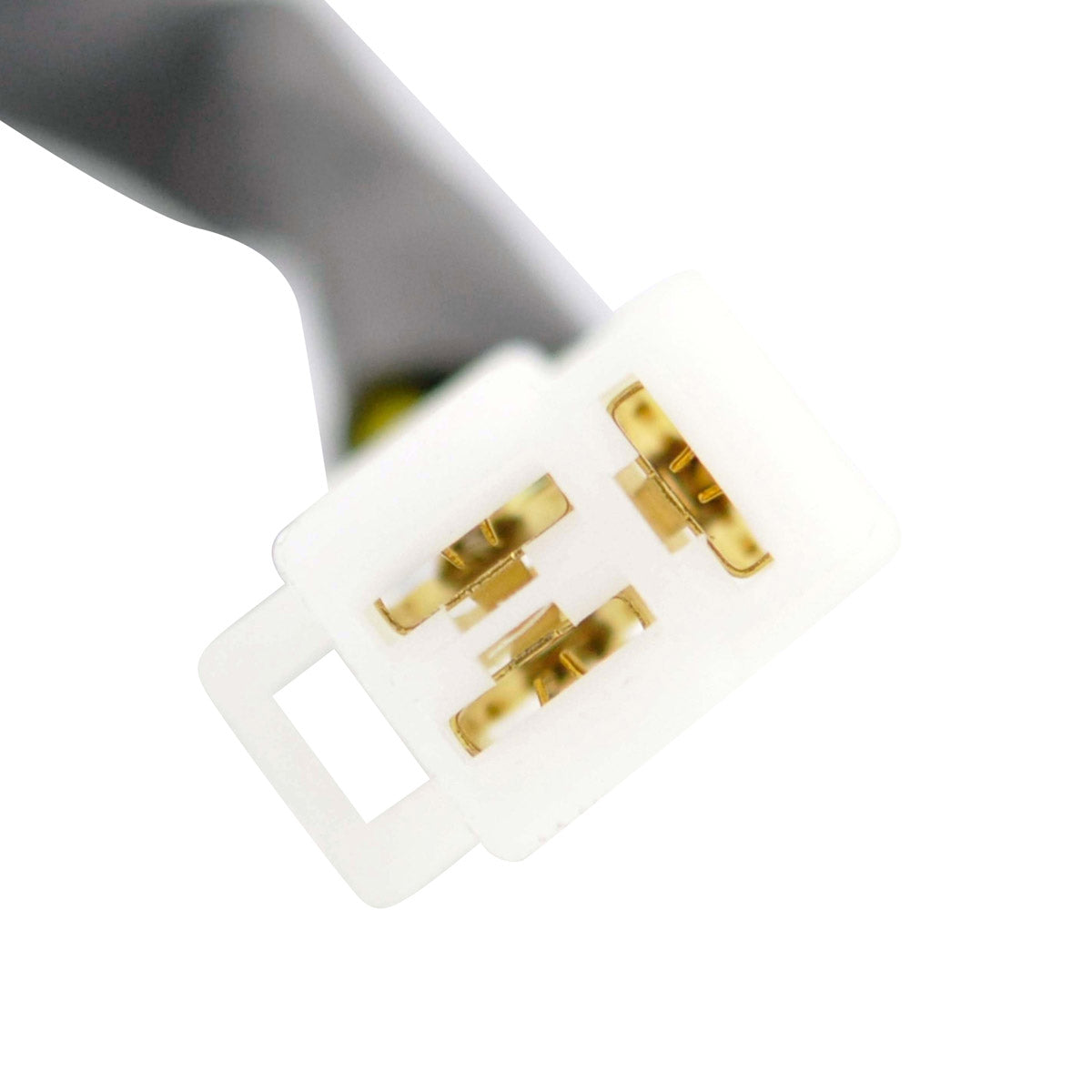

The connector and the rubber grommet are supplied already fitted to the harness, so the unit goes straight in. We also include the opposite connector from the main harness side, because on a machine of this age that plug is very often melted, corroded or otherwise defective, and it is a major cause of repeat electrical faults that survive a stator change. Every product shipped is tested before it leaves us. The photographs shown are of the actual item - if you are in any doubt, compare them against your original part before ordering.
Key Features
- Brand new aftermarket stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Opposite connector for the main harness side also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 38 mm |
| Exterior diameter | 102 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 155 mm |
| Wire length, grommet to plug | 390 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, White between each White | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KLF 300 Bayou | 1986-1987 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1128 | Kawasaki |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original Kawasaki unit, so no cutting, splicing or drilling is needed. Check the OEM part number stamped or labelled on your original stator against the cross reference table above before ordering.
What is included?
The stator with its connector and rubber grommet already fitted, plus the opposite connector for the main harness side so that you can renew both halves of the plug in one go.
How do I tell whether my old stator has failed?
Typical symptoms are a battery that goes flat in normal use, headlights that dim or brighten with engine speed, or a machine that will only run for as long as the battery holds out. Test with a multimeter against the figures in the specification table: between each of the three White wires you should read about 0.4 ohms plus or minus 20 per cent. An open circuit, a short between windings, or continuity from a White wire to the stator body all indicate a failed unit.
Why is a second connector supplied?
On a KLF 300 of this age the harness-side plug has usually taken the same heat as the stator itself. Fitting a new stator into a melted or corroded connector reintroduces the resistance that caused the problem, so the matching harness-side connector is included to let you replace both sides together.
