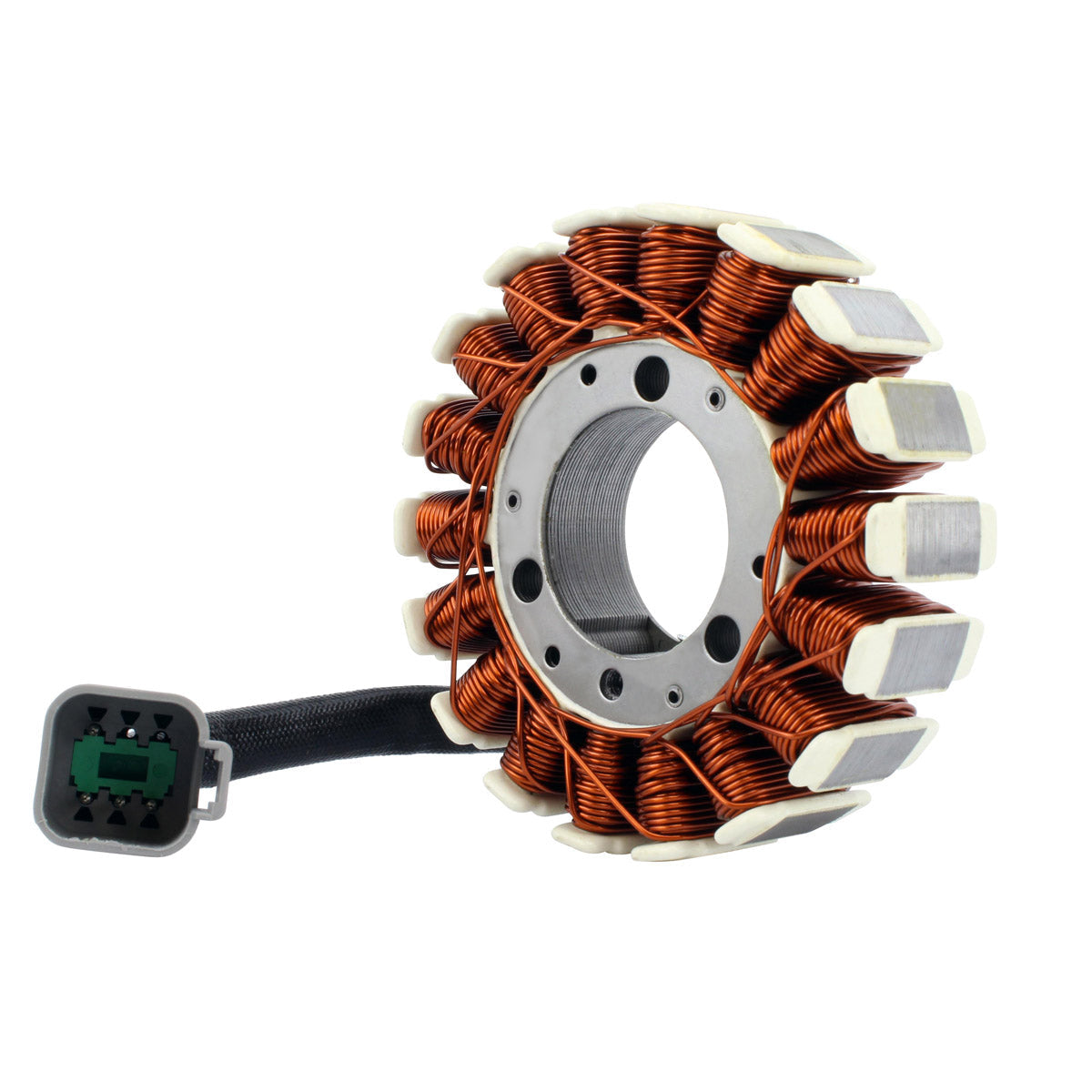

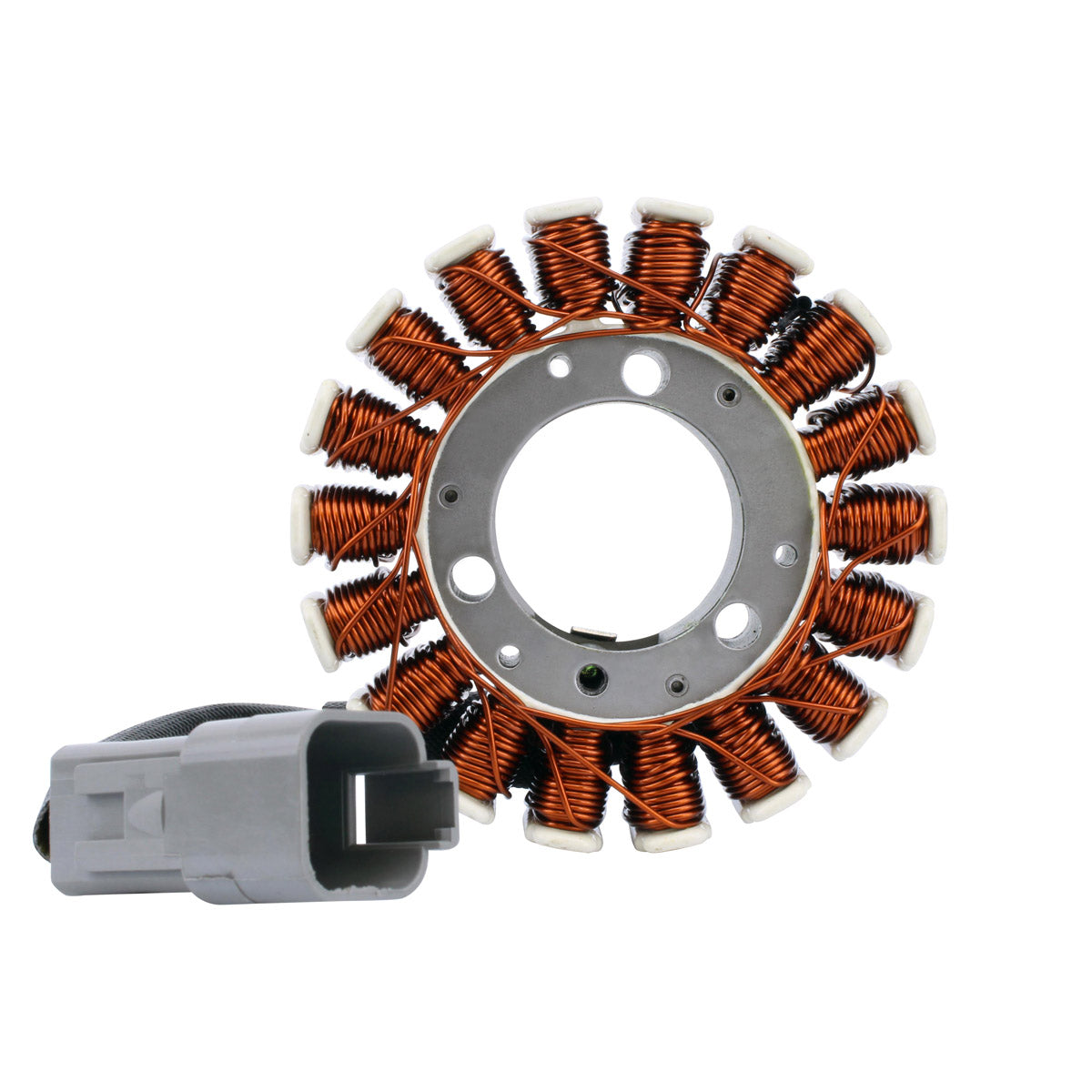

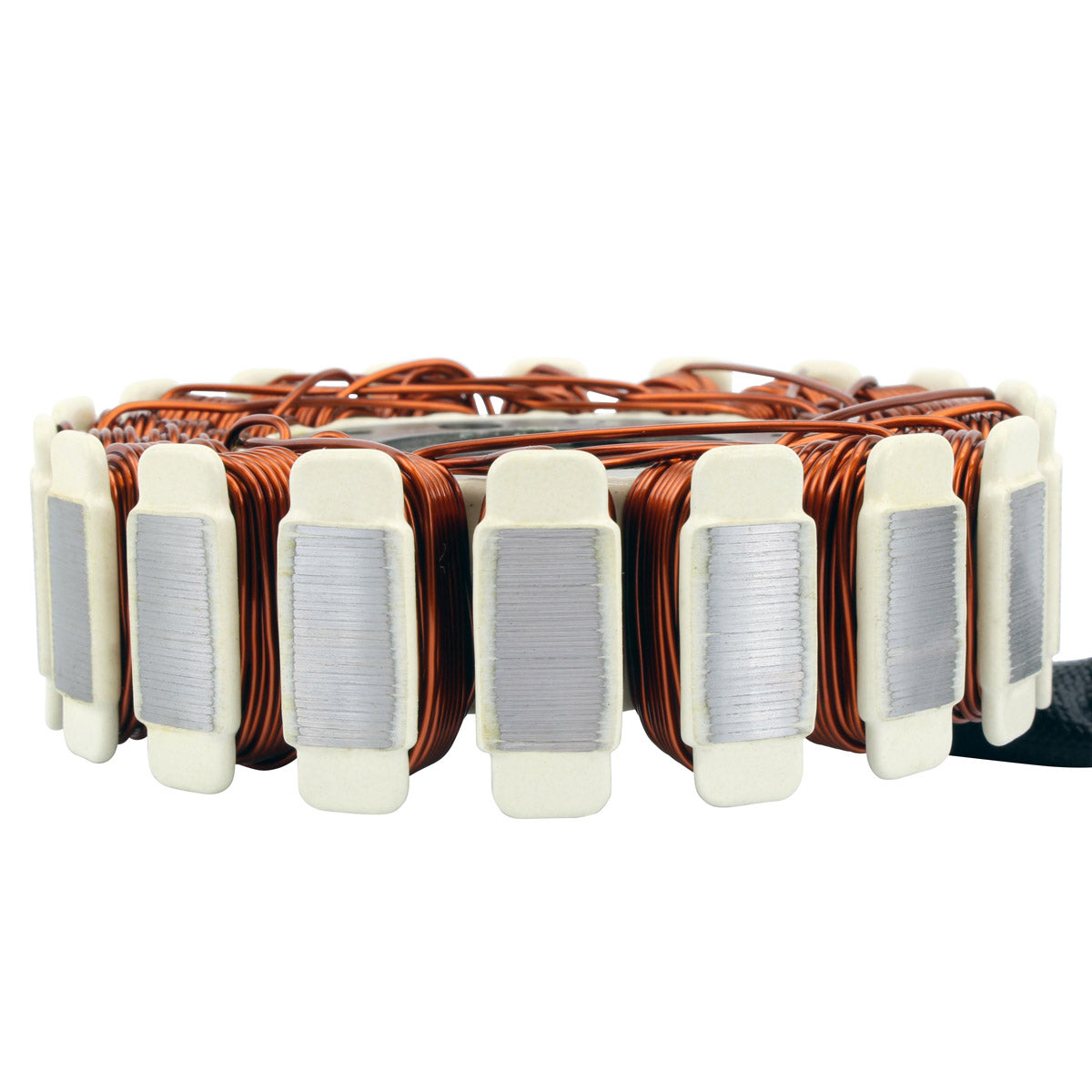

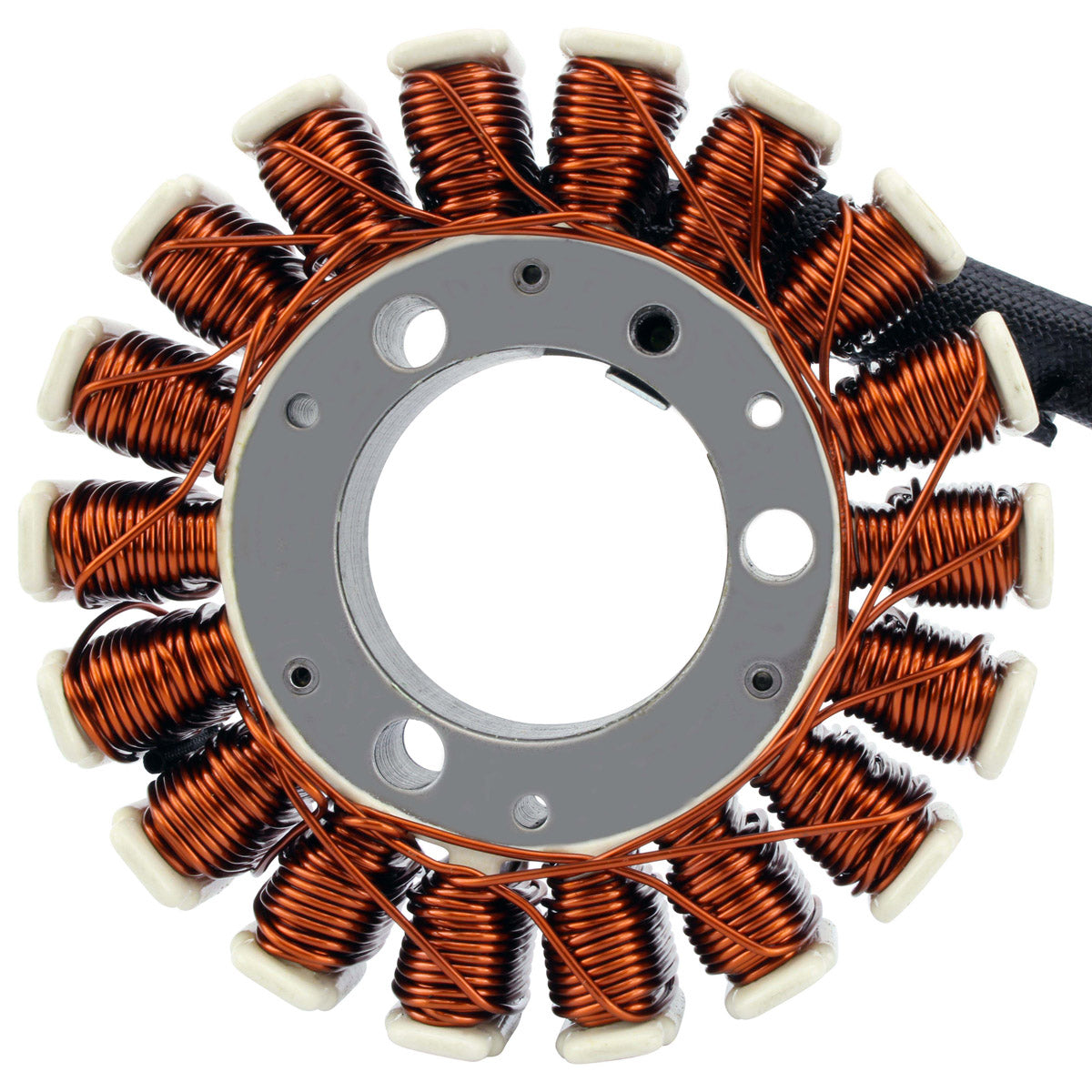

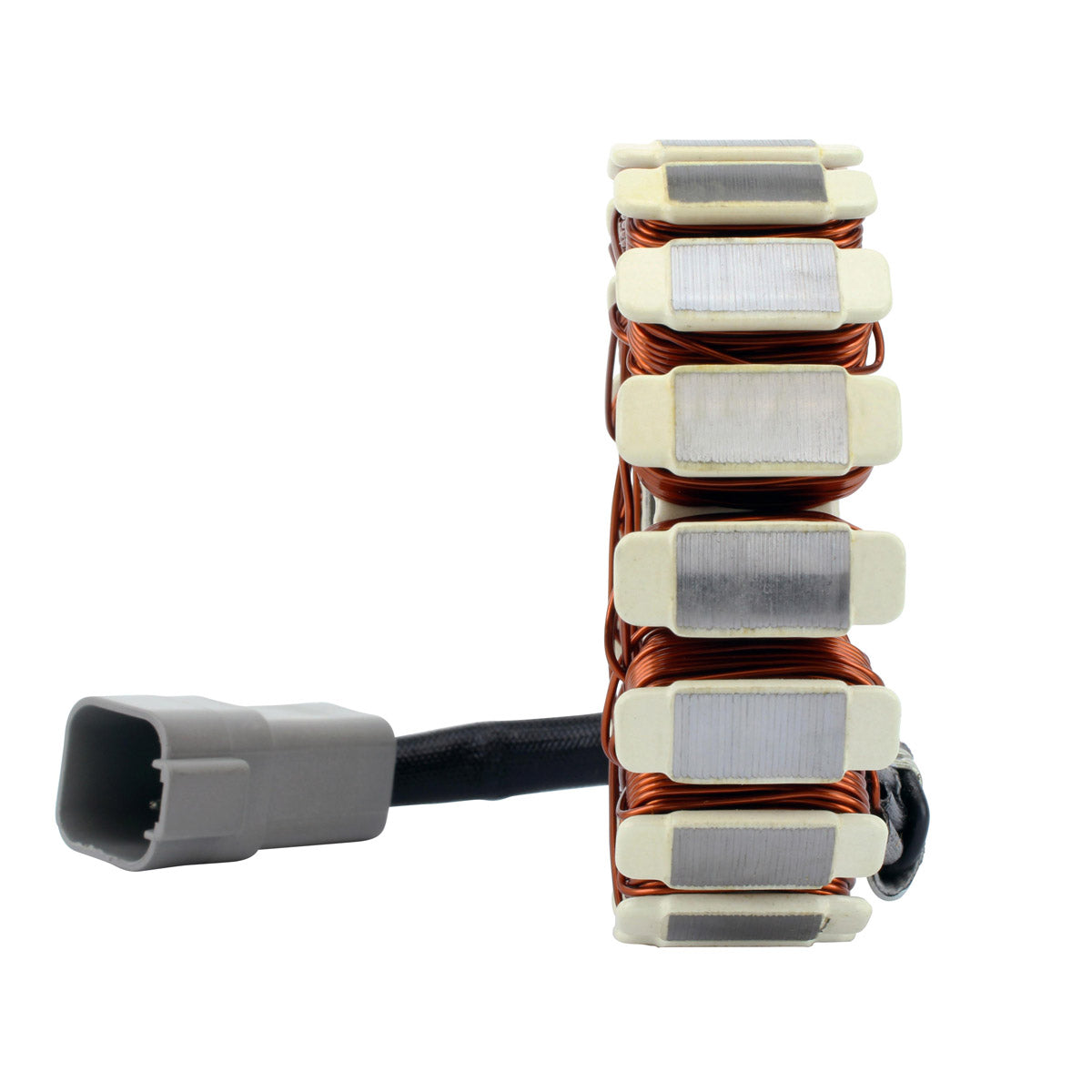

Generator Stator for Sea-Doo GSX, GTX, SPX, RX and XP
GSX, GTX, SPX, LRV, RX, XP, Challenger, Speedster and Sportster 780 800 950 951 - 1995 to 2003 - RMSTATOR RM01340

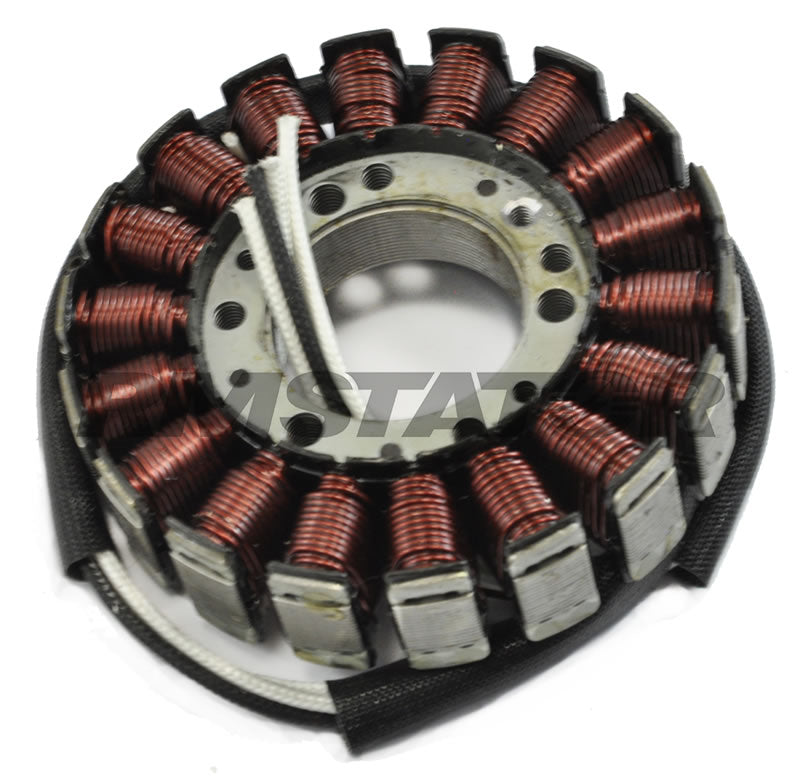

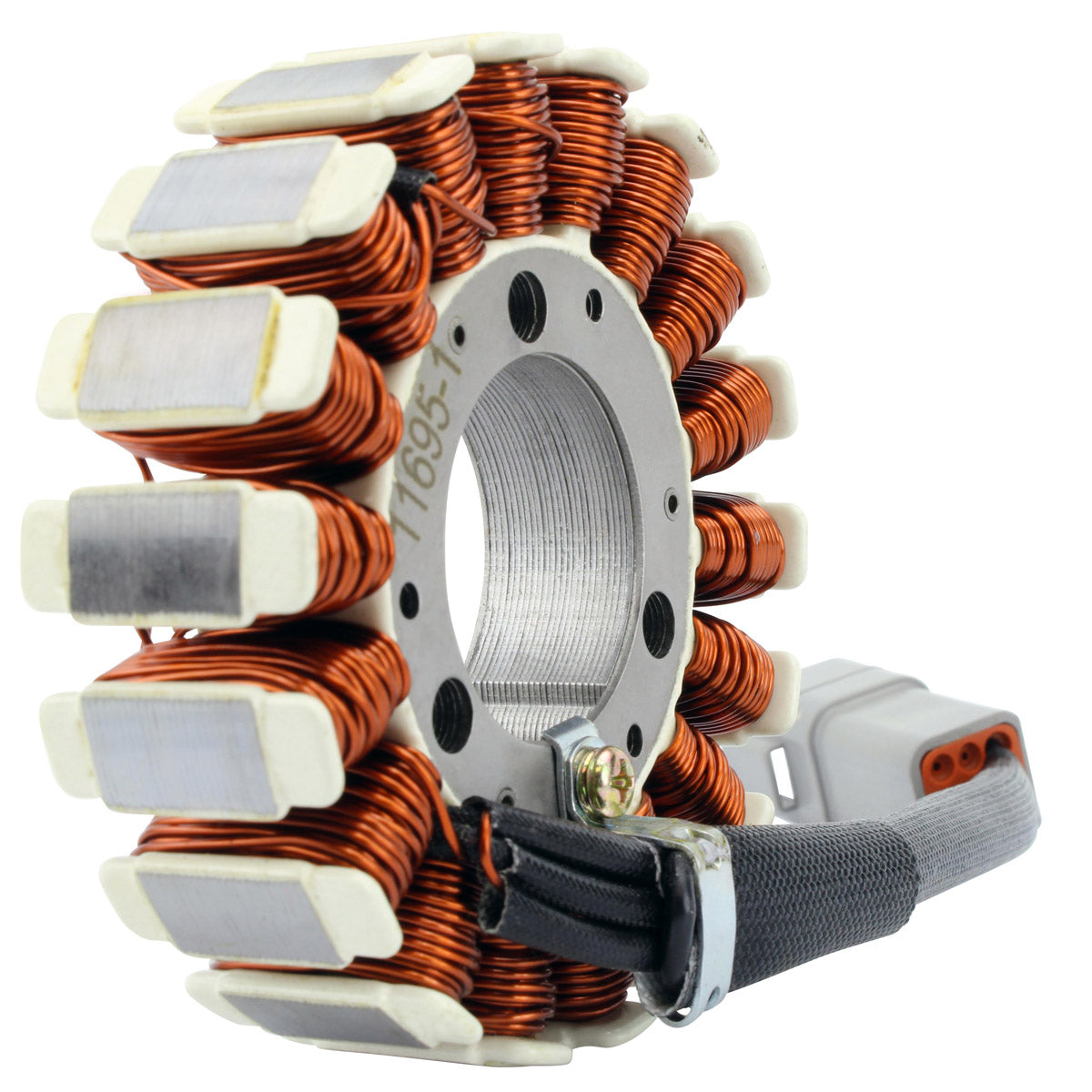

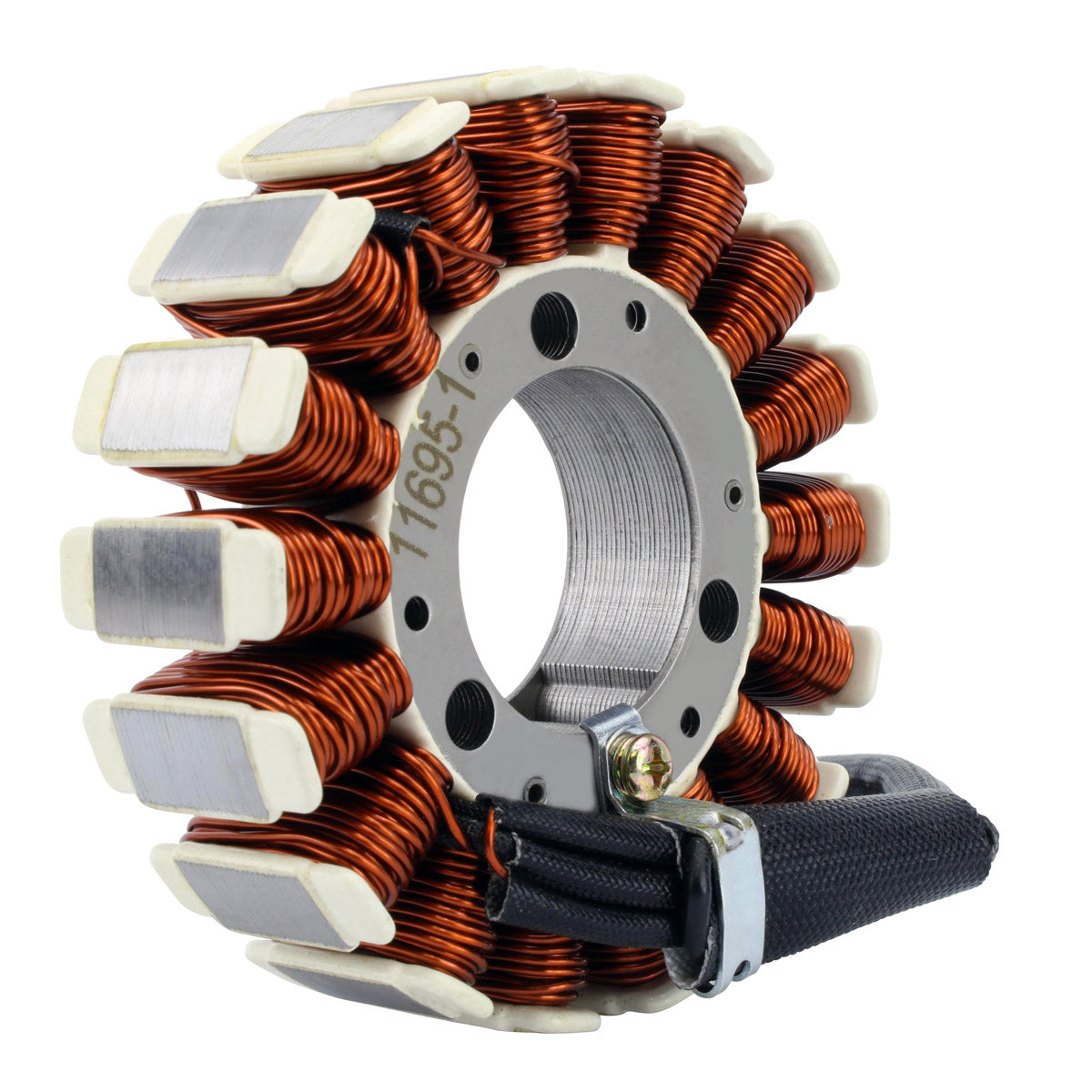

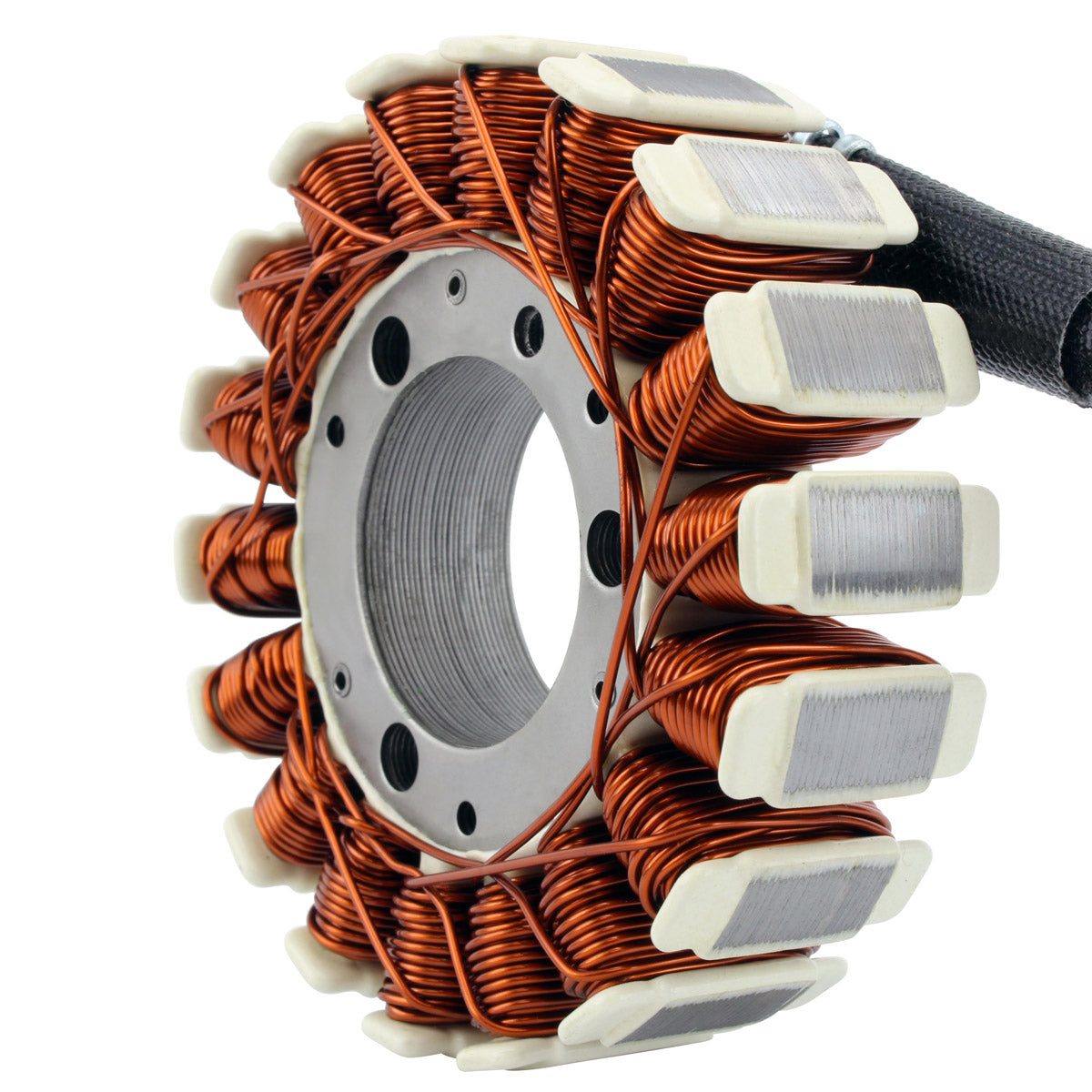

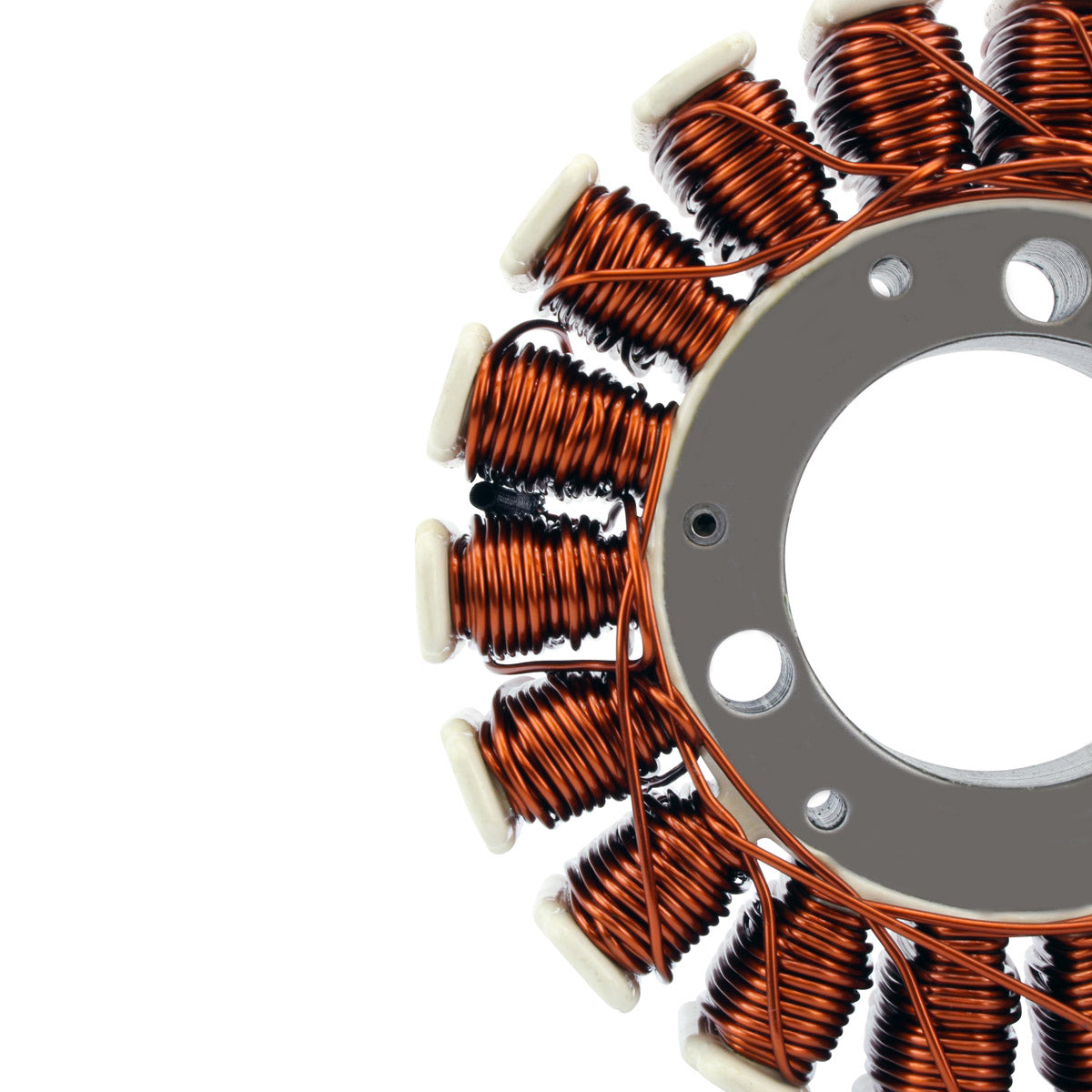

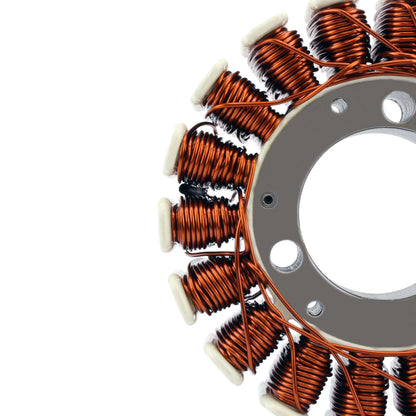

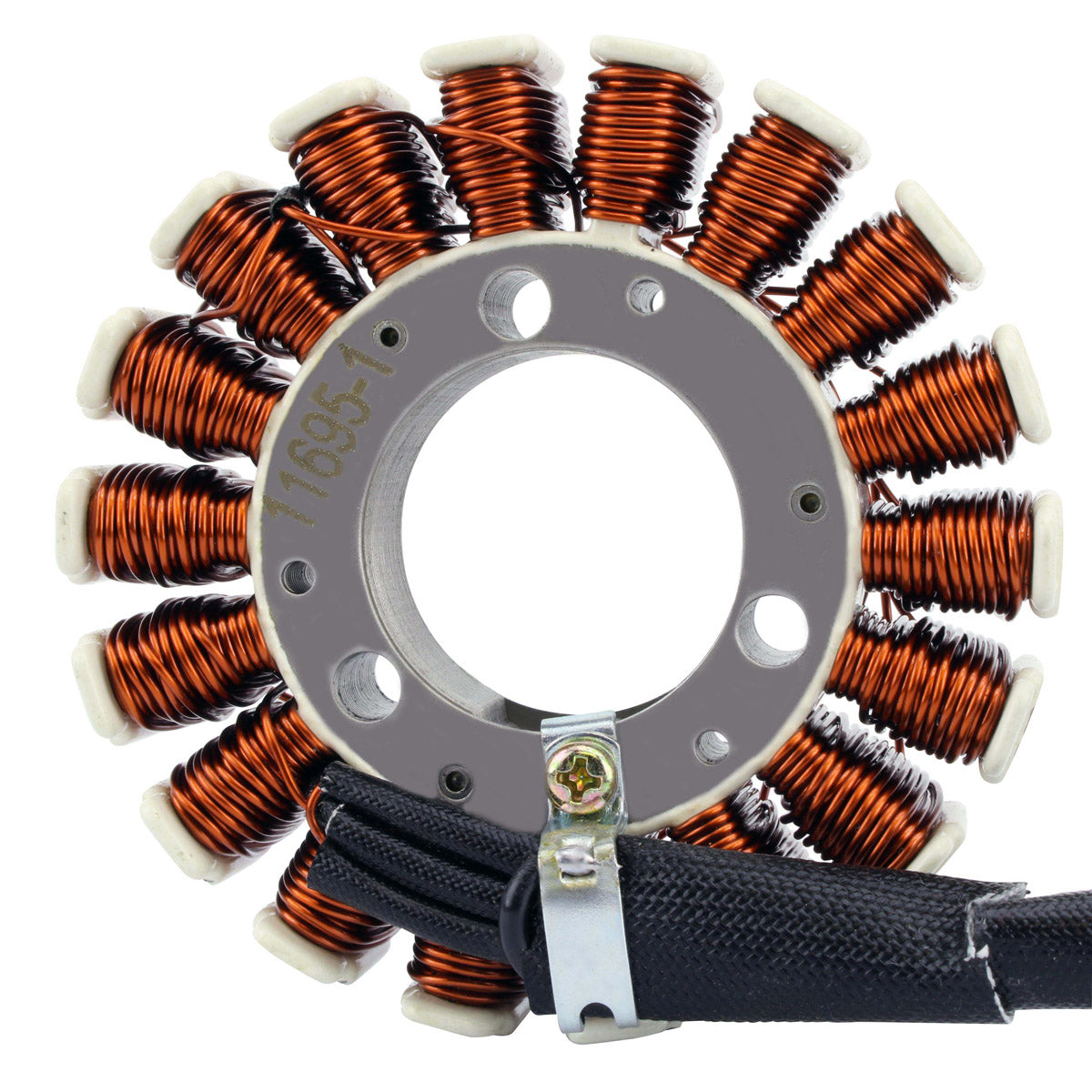

A brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to Sea-Doo personal watercraft and sport boats with the 780, 800, 950 and 951 engines, covering model years 1995 to 2003. It is a plug-and-play unit, a direct fit in the original position, and very easy to install with no modification to the engine, the flywheel or the wiring loom.

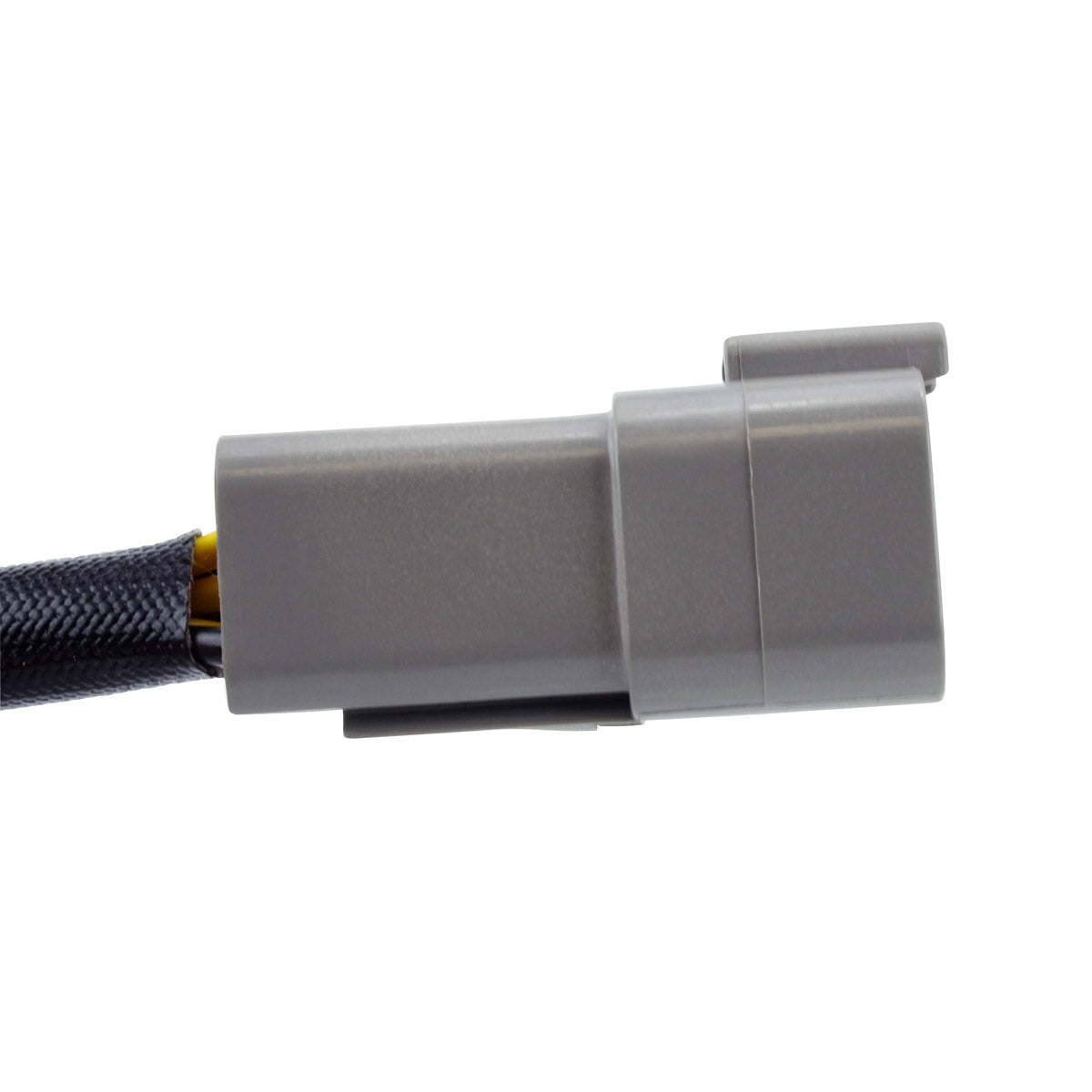

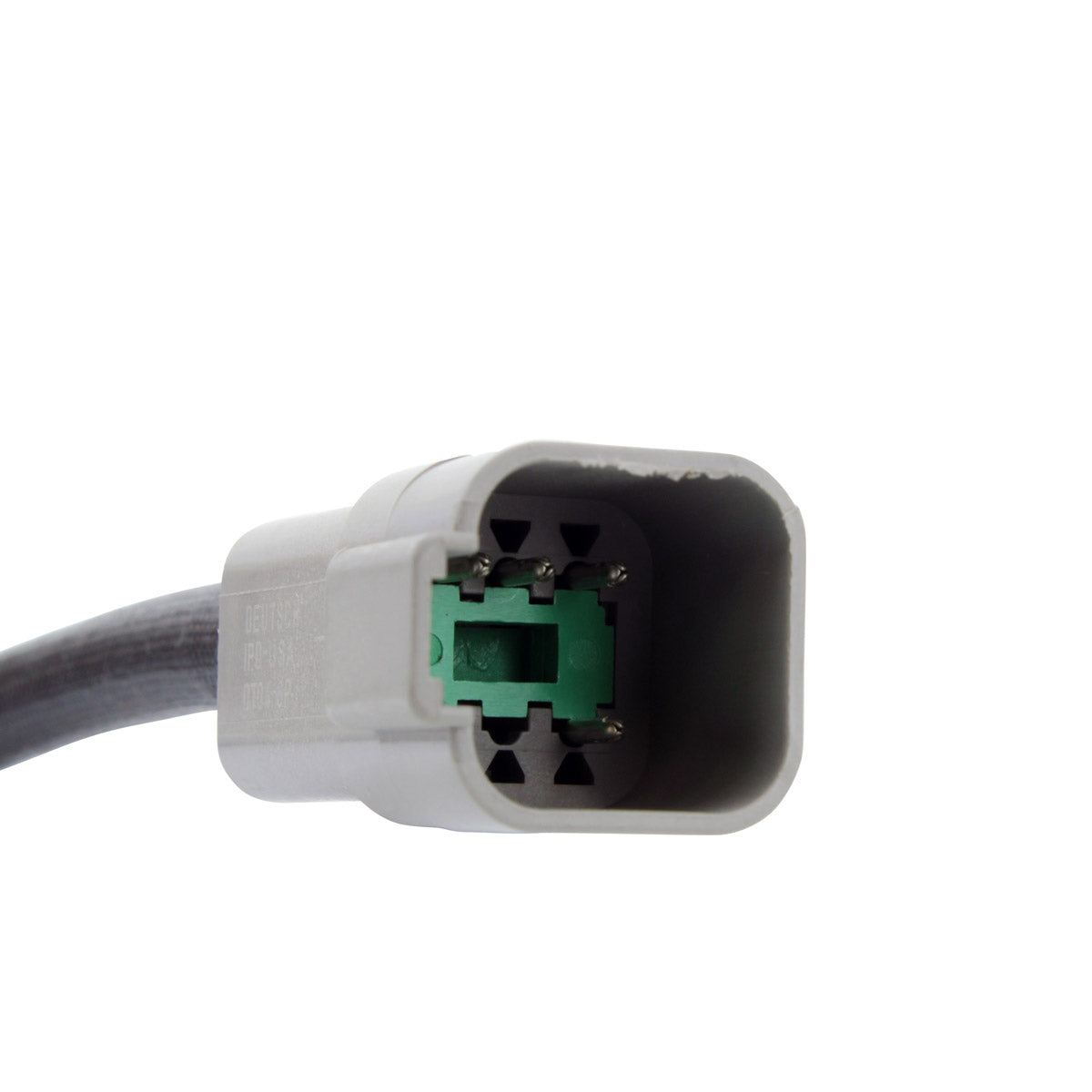

The stator uses a higher grade of electrical components throughout and is wound with the highest grade of copper, rated to withstand 200 degrees Celsius - an important margin in a machine that runs hot and takes a great deal of vibration. It is an 18 pole unit with four wires running to a single four pin plug on a 130 mm lead. Every unit is bench tested before it is shipped.
Key Features
- Direct replacement for the original Sea-Doo stator
- Plug-and-play unit, direct fit, very easy to install
- No modification to engine, flywheel or loom required
- 18 pole construction
- Higher grade of electric components
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Every unit is tested before it is shipped
Technical Specs
| Specification |
Detail |
| Interior diameter |
35 mm |
| Exterior diameter |
93 mm |
| Thickness |
17 mm |
| Length of wires, stator to plug |
130 mm |
| Number of wires |
4 |
| Number of plugs |
1 |
| Number of pins |
4 |
| Number of poles |
18 |
| Alternator resistance |
Yellow to Yellow = 0.9 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| Manufacturer part number |
RM01340 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Sea-Doo GSX 780 800 950 951 |
1995-2003 |
| Sea-Doo GTX 780 800 950 951 |
1995-2003 |
| Sea-Doo SPX 780 800 950 951 |
1995-2003 |
| Sea-Doo LRV 780 800 950 951 |
1995-2003 |
| Sea-Doo RX 780 800 950 951 |
1995-2003 |
| Sea-Doo XP 780 800 950 951 |
1995-2003 |
| Sea-Doo Challenger 780 800 950 951 |
1995-2003 |
| Sea-Doo Speedster 780 800 950 951 |
1995-2003 |
| Sea-Doo Sportster 780 800 950 951 |
1995-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420886588 |
Sea-Doo |
| 290886588 |
Sea-Doo |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the craft listed above, mounts in the factory position on the original fixings, and plugs straight into the existing harness with no cutting or splicing.
What is supplied?
The generator stator itself, with four wires terminating in a single four pin plug on a 130 mm lead. Every unit is bench tested before it is shipped.
How do I tell whether the old stator has failed?
Typical symptoms are a battery that will not hold charge over a day on the water, dim instrument lighting, weak or intermittent spark, and the engine cutting out when hot. Measure the resistance between the two yellow alternator wires - it should read 0.9 ohms plus or minus 20 per cent - and check both wires read open circuit to the stator body.
Does the same stator cover both the 780 800 and the 950 951 engines?
Yes. RMSTATOR list this unit across the 780, 800, 950 and 951 Sea-Doo engines used in the GSX, GTX, SPX, LRV, RX and XP craft and in the Challenger, Speedster and Sportster boats. Check the OEM number on your original unit against the cross reference table above to confirm before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
