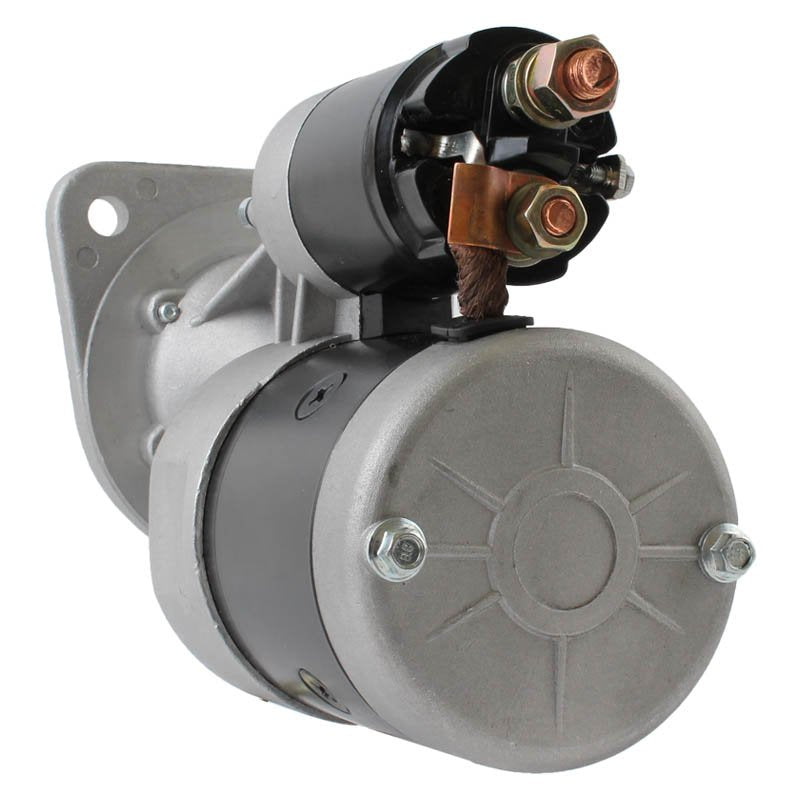

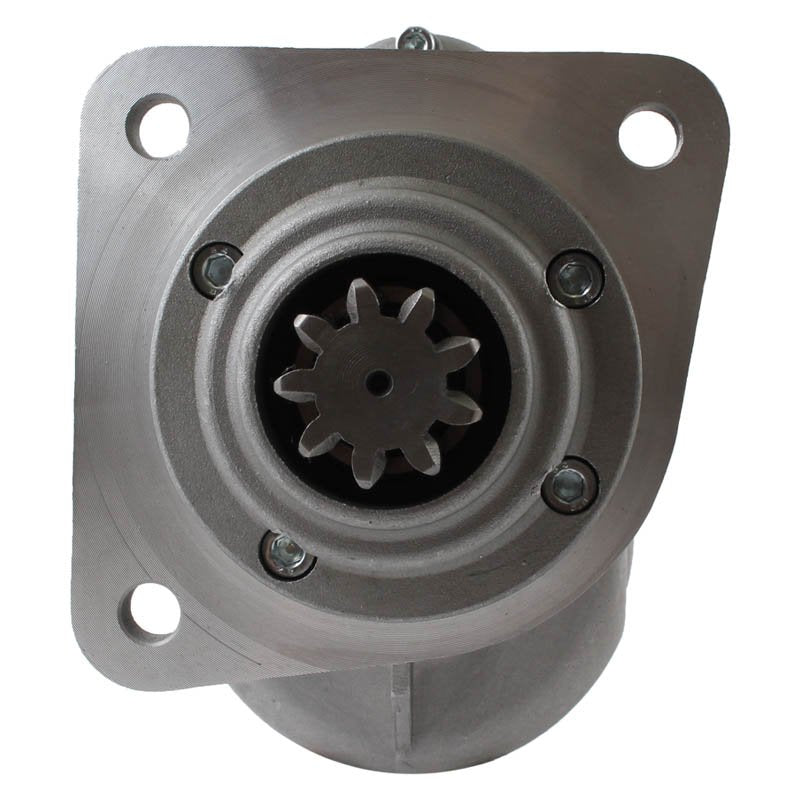

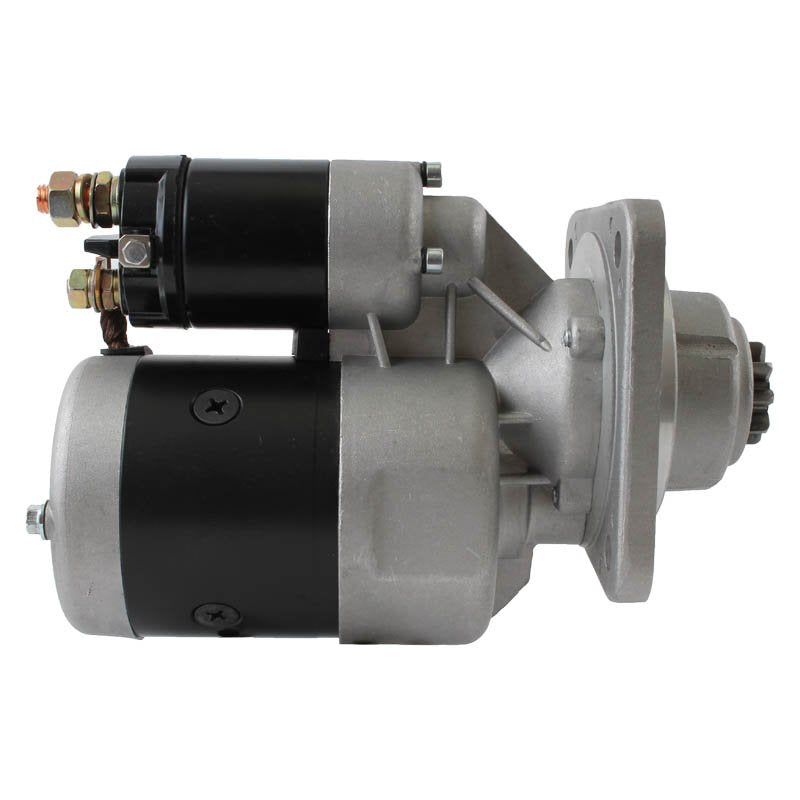

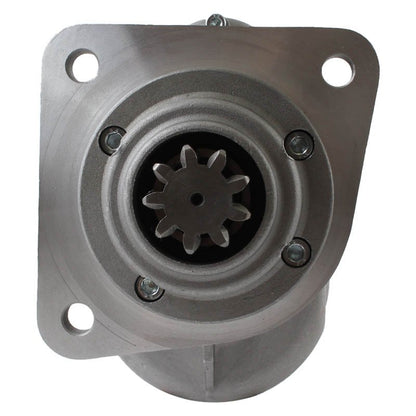

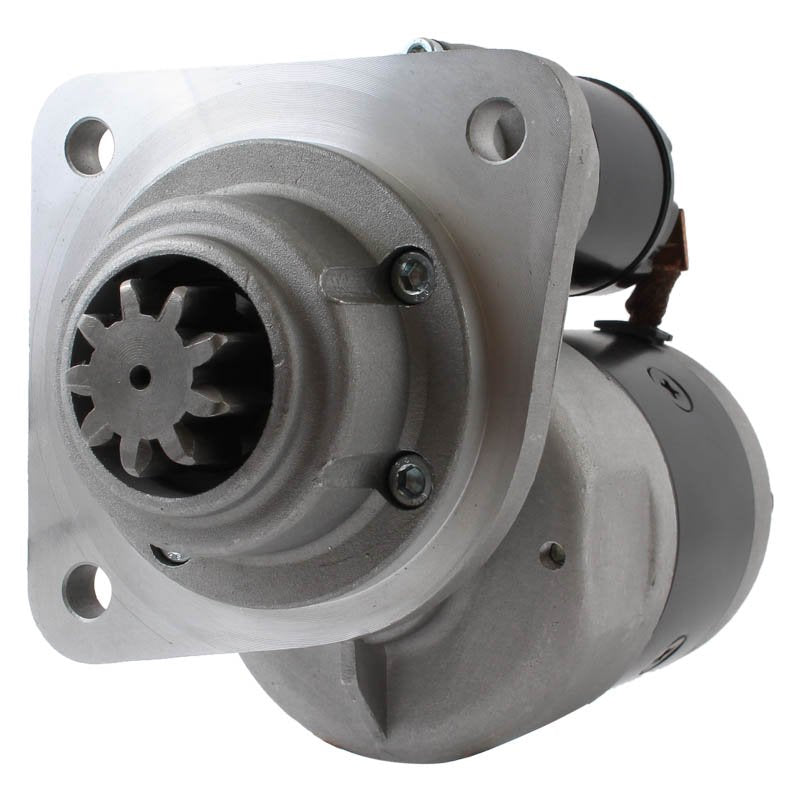

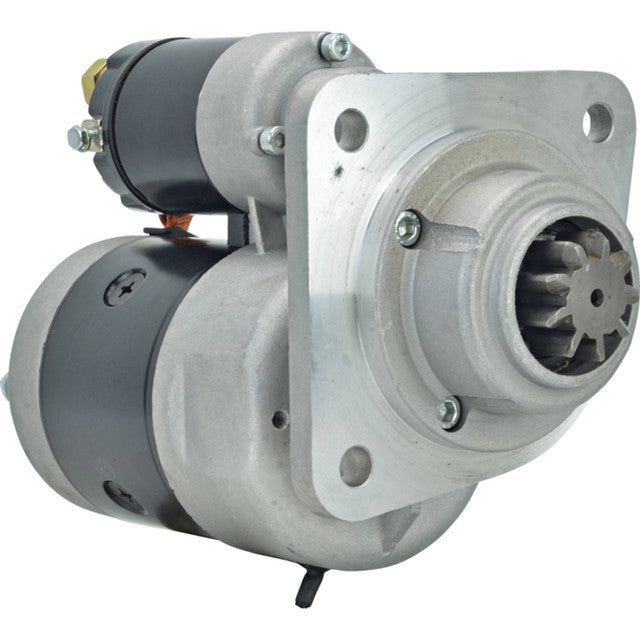

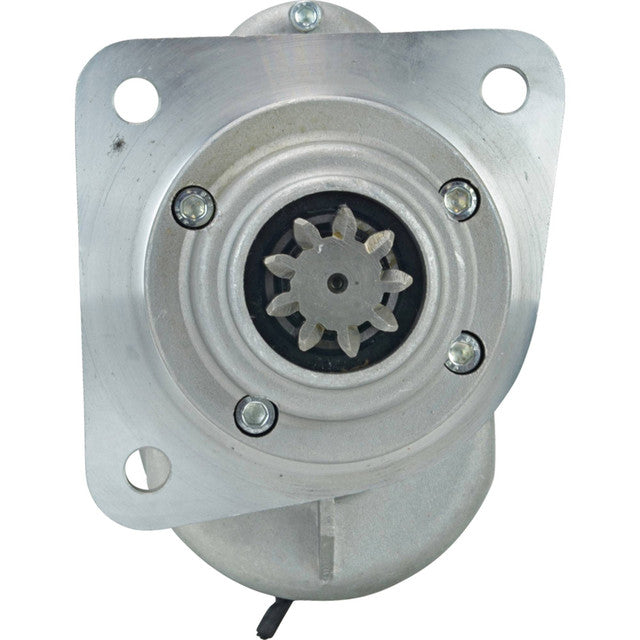

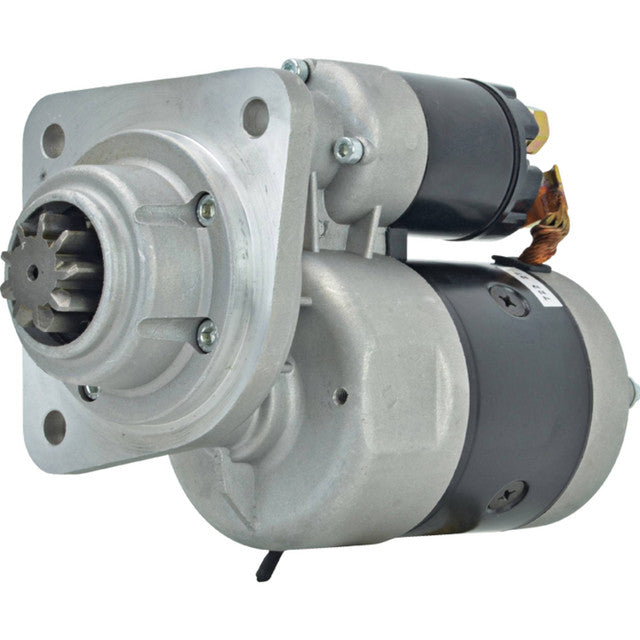

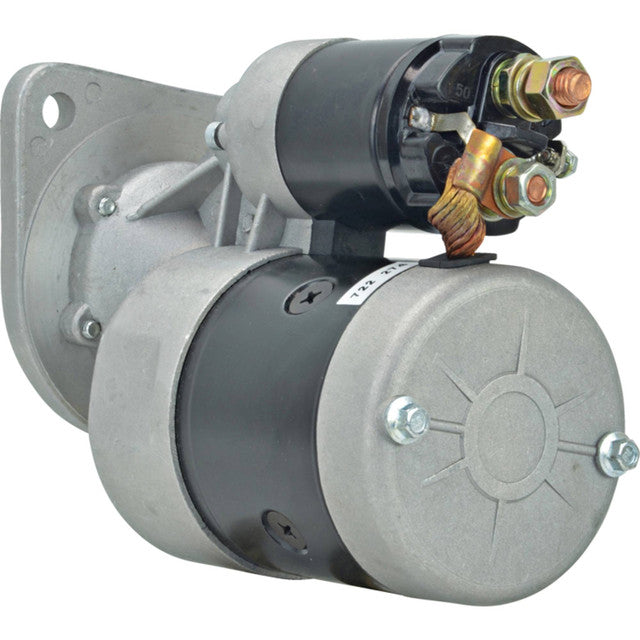

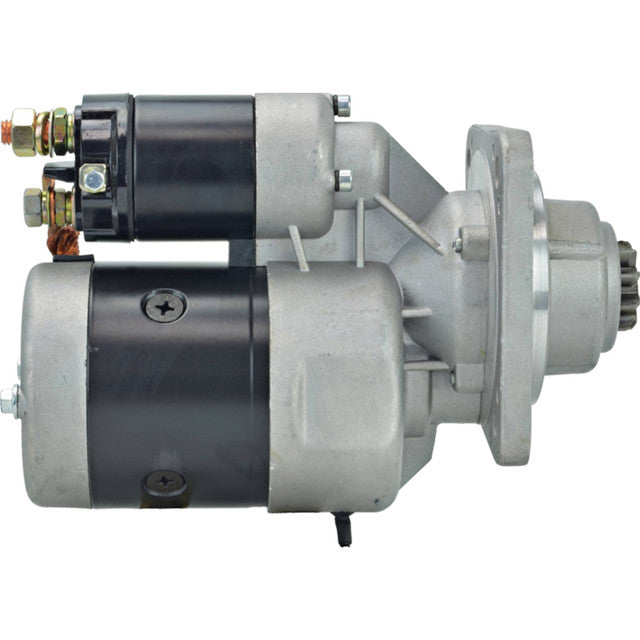

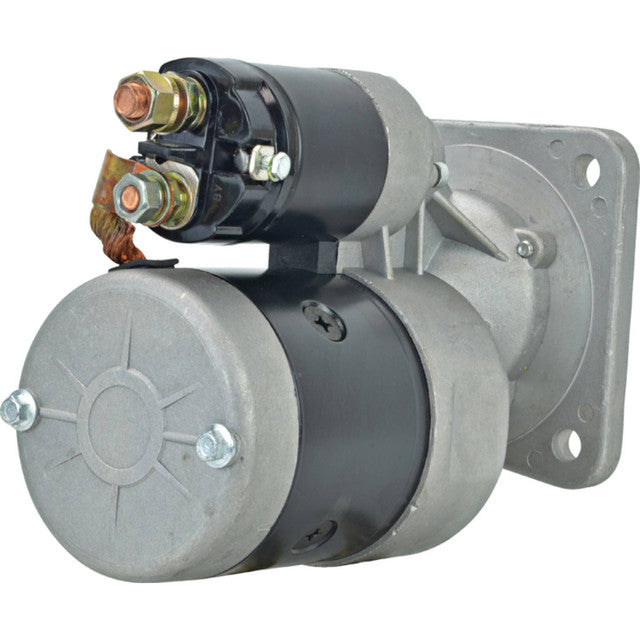

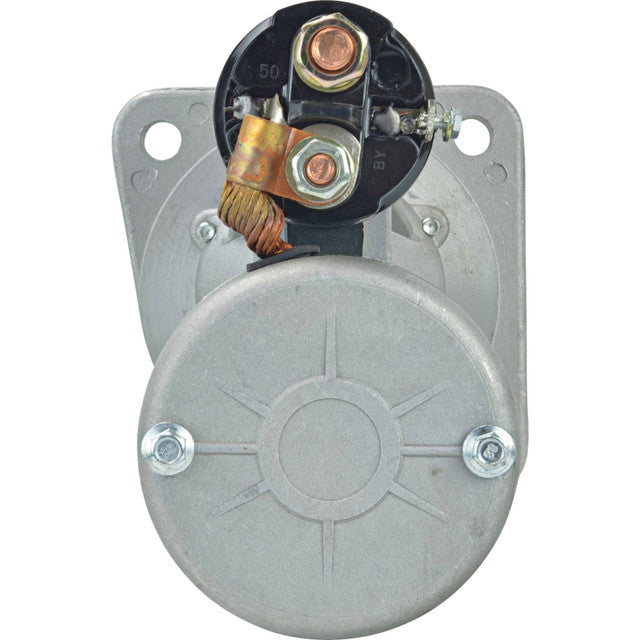

12V Starter for Case 844 845 856 International Backhoe Magneton 9142722 SMA0017
12V Starter for Case 844 845 856 International Backhoe Magneton 9142722 SMA0017
SKU:410-42021
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor Case / International SMA0017
Premium High-Torque Gear Reduction Upgrade
This premium 12-volt gear reduction starter is engineered to provide superior cranking power for Case IH and International Harvester industrial and agricultural equipment. Utilizing an Offset Gear Reduction (OSGR) design, this unit delivers significantly higher torque than traditional direct-drive starters while drawing less current from your battery—an essential upgrade for reliable cold-weather starting.
Key Features
- ✔ Fast Starts: High-grade copper contacts for maximum conductivity.
- ✔ Durability: Sealed housings protect against moisture and debris.
- ✔ Efficiency: OSGR design reduces weight and battery strain.
- ✔ Direct Fit: Precisely machined 3-bolt flange for easy installation.
Technical Specs
| Voltage | 12V |
| Power | 2.7 kW |
| Teeth | 11-Tooth |
| Rotation | Clockwise (CW) |
| Starter Type | OSGR / Magneton |
| Flange Diameter | 88.5mm |
Compatibility / Fitment Guide
| Make | Model / Application | Notes |
|---|---|---|
| Case IH | 844, 844S, 844XL | Tractor Models |
| Case IH | 845, 845XL | Tractor Models |
| Case IH | 856, 856XL | Tractor Models |
| International | Series 844 Backhoe | Industrial Application |
| Zetor | UR I Series (Various) | Cross-Reference Compatible |
OEM Cross Reference
| Magneton | 9142722, 9144722, 443115144722 |
| Case / IH | A186180, 933253 |
| Lester | 18953, 19681 |
| Letrika / Iskra | IS0179, 11.130.179, AZJ3525 |
| Lucas | LRS01162, LRS1162 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU SMA0017 and the Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
What is the benefit of a Gear Reduction starter?
Gear reduction (OSGR) starters use an internal gear set to increase torque while using a smaller, more efficient motor. This provides significantly better performance in cold weather and puts less strain on your battery compared to original direct-drive units.
Frequently Asked Questions
How do I confirm this fits?
Match the part number or OEM reference on your existing part with the details above. If you are unsure, send us your vehicle or engine model and year and we will confirm before you order.
Is this a genuine OEM part?
It is a new aftermarket part built to the original specification. OEM numbers are listed for cross-reference only.
Is it new or reconditioned?
It is brand new – no core charge and no old unit to return.
What if it does not fit?
Contact us with your vehicle details and the part number from your original unit and we will help you sort it out.
Note: Please verify your original part number against the references above before purchasing. For support, please contact 4drive.co.uk.
