High Output Generator Stator for Kawasaki KVF 400 Prairie 1997-1998
High Output Generator Stator for Kawasaki KVF 400 Prairie 1997-1998
SKU:RM01077
Free shipping over £150. Terms apply
Couldn't load pickup availability
High Output Generator Stator - Kawasaki KVF 400 Prairie
Part RM01077 - Kawasaki KVF 400 Prairie 4x4 1997-1998 - OEM reference 21003-1300

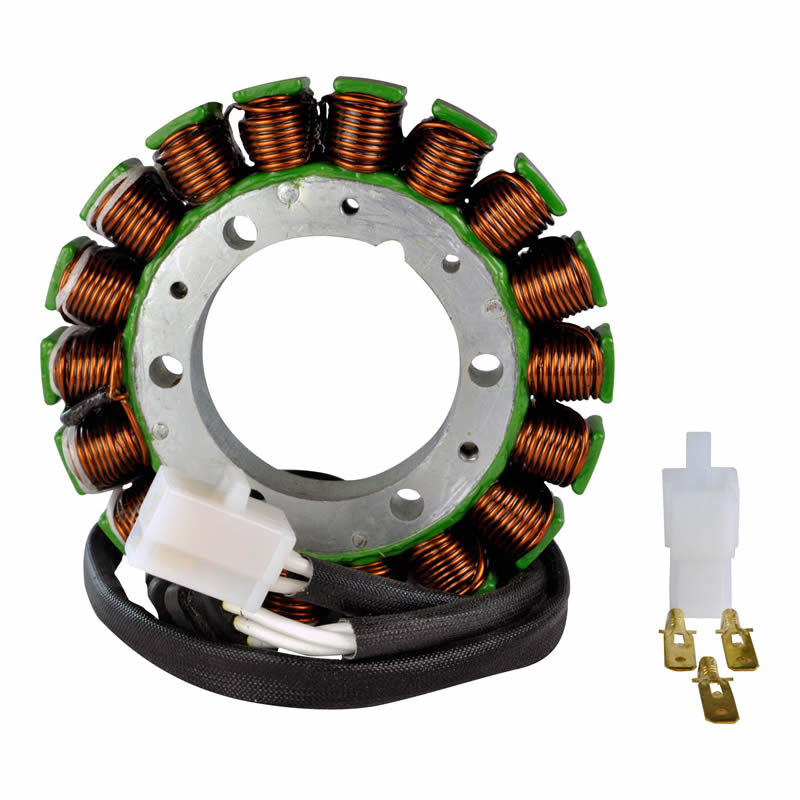

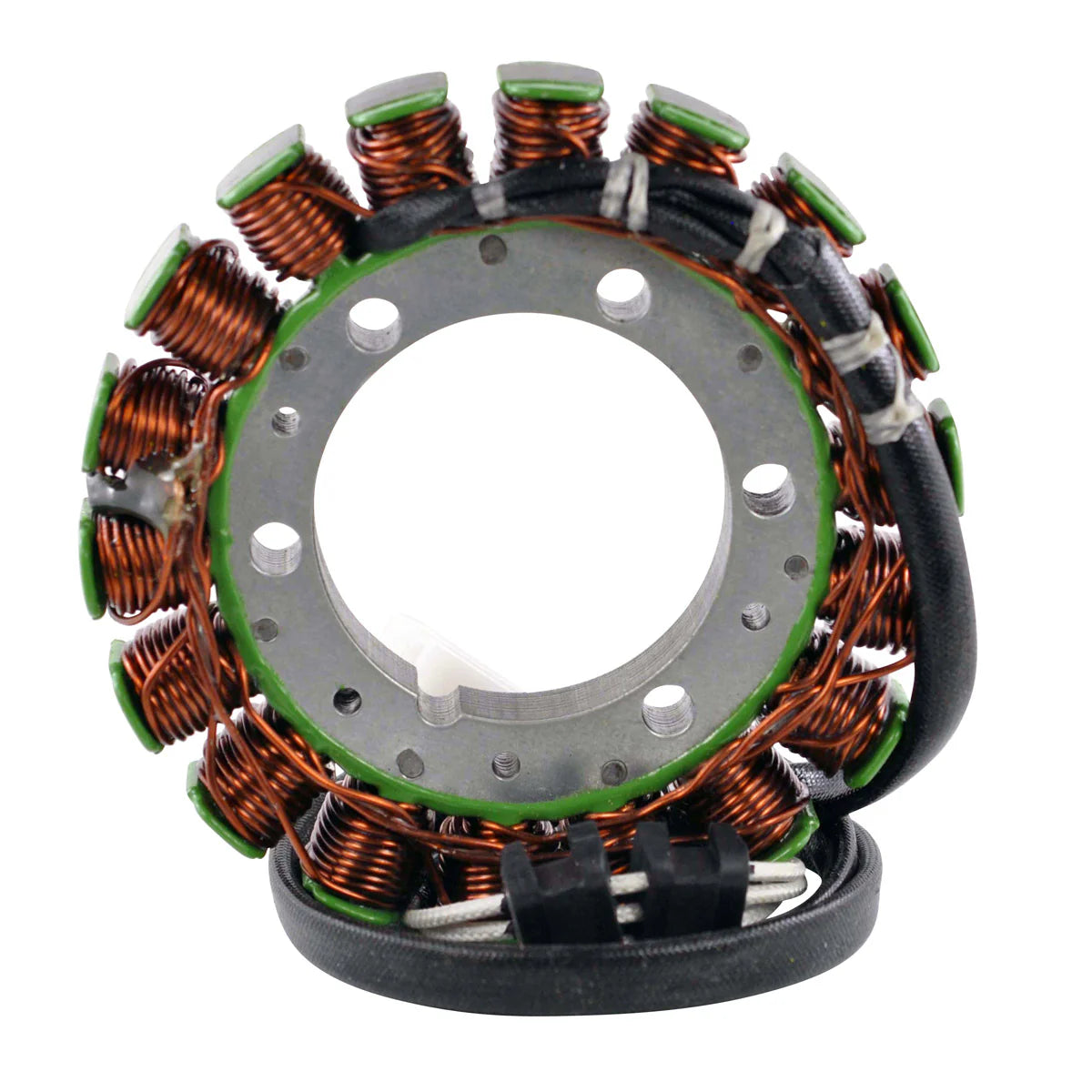

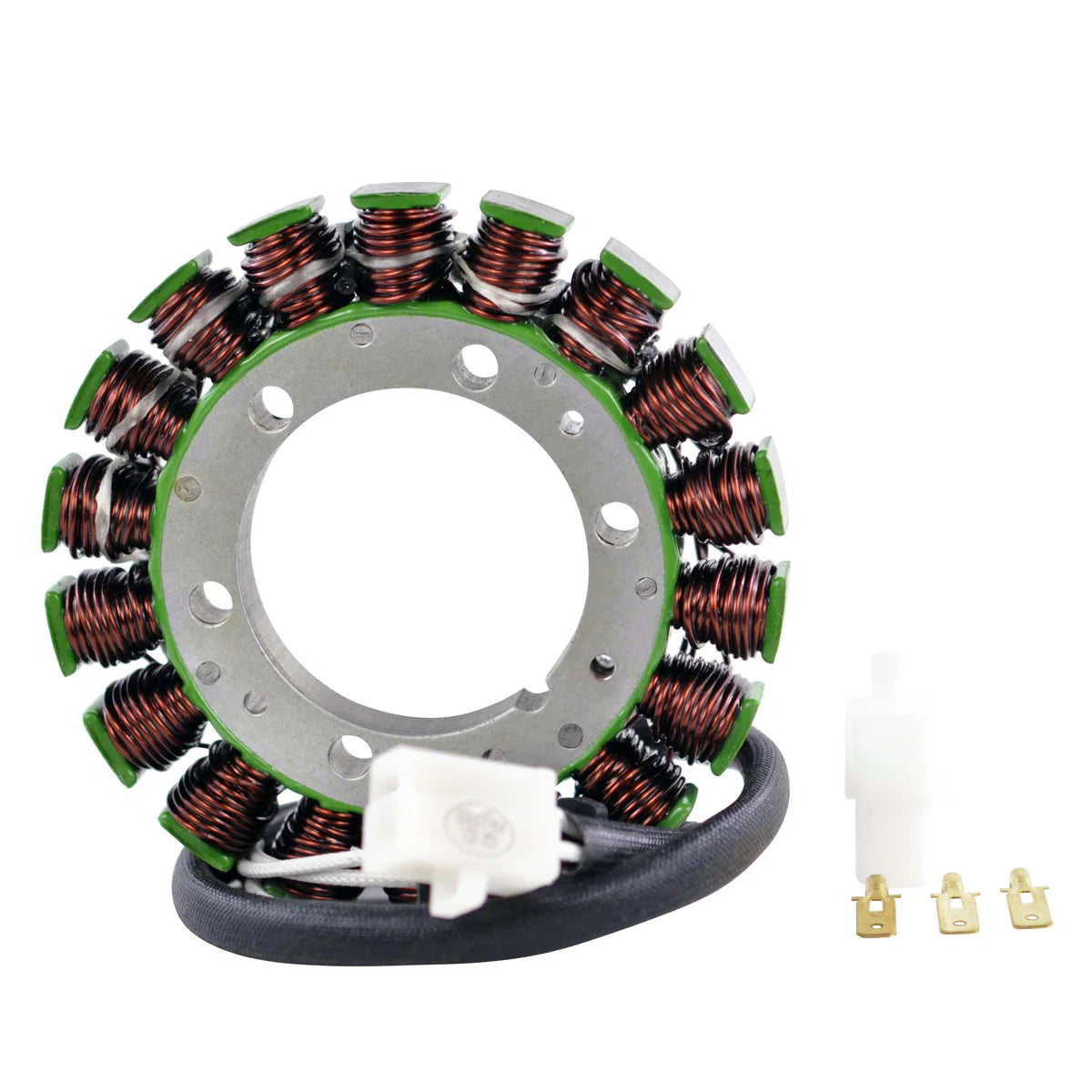

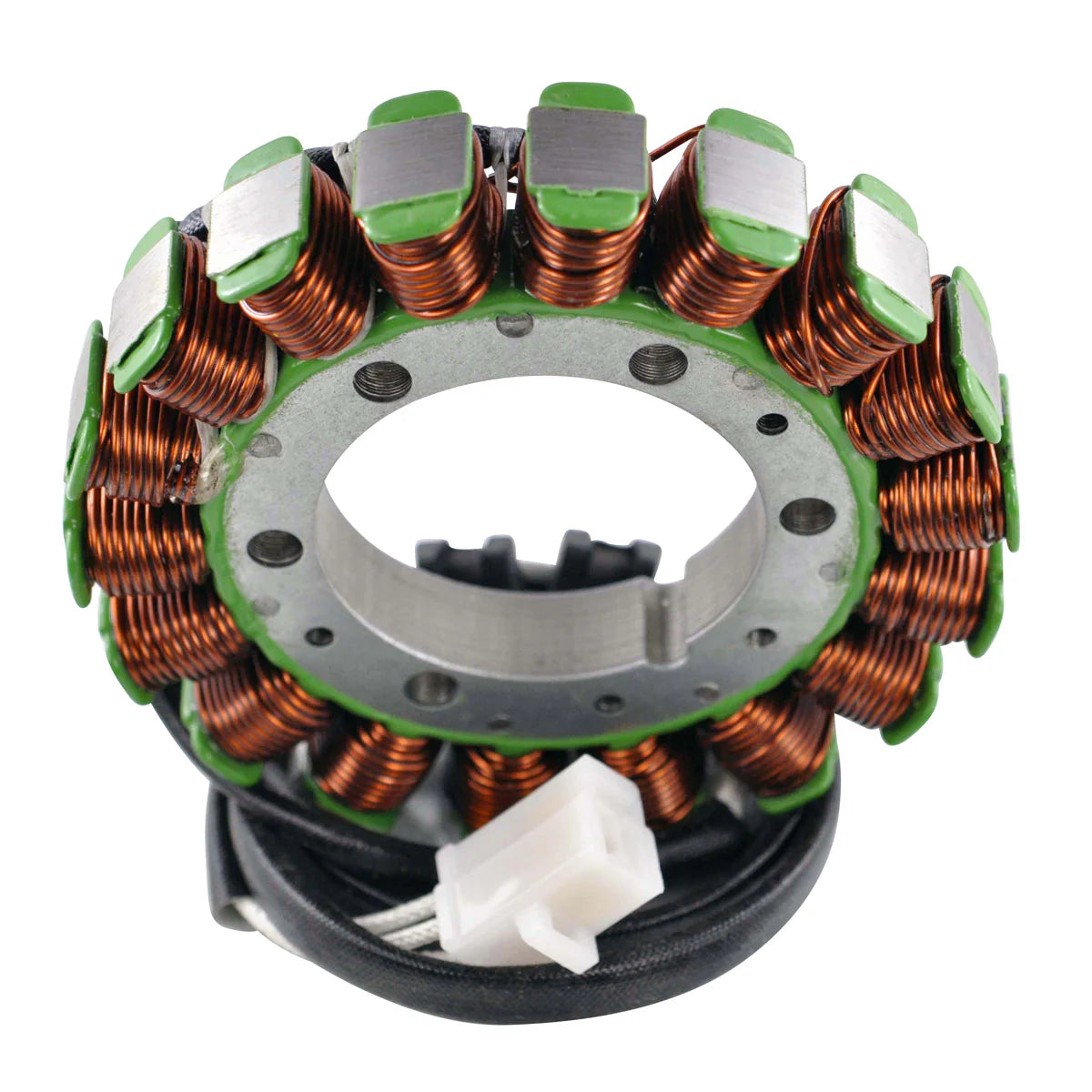

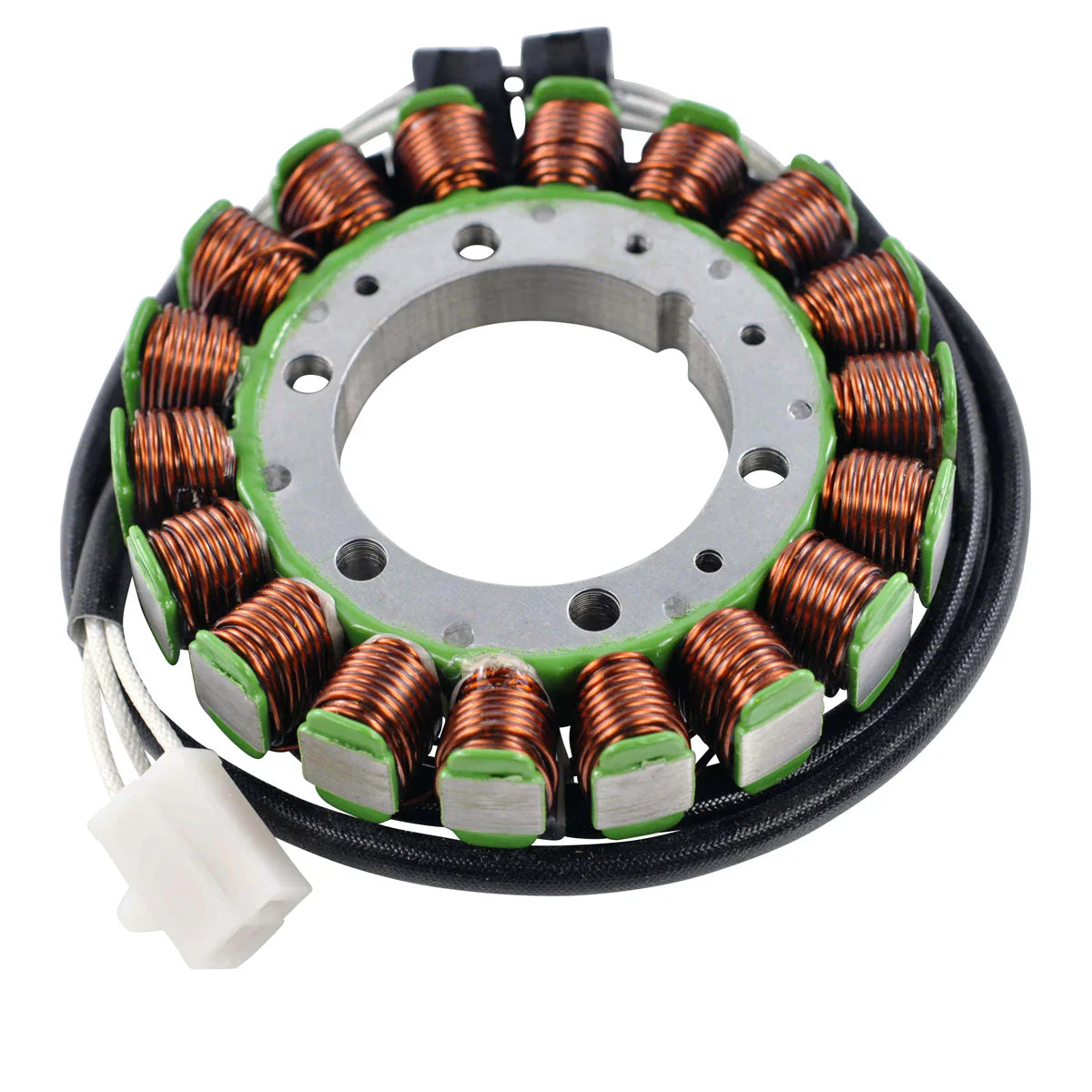

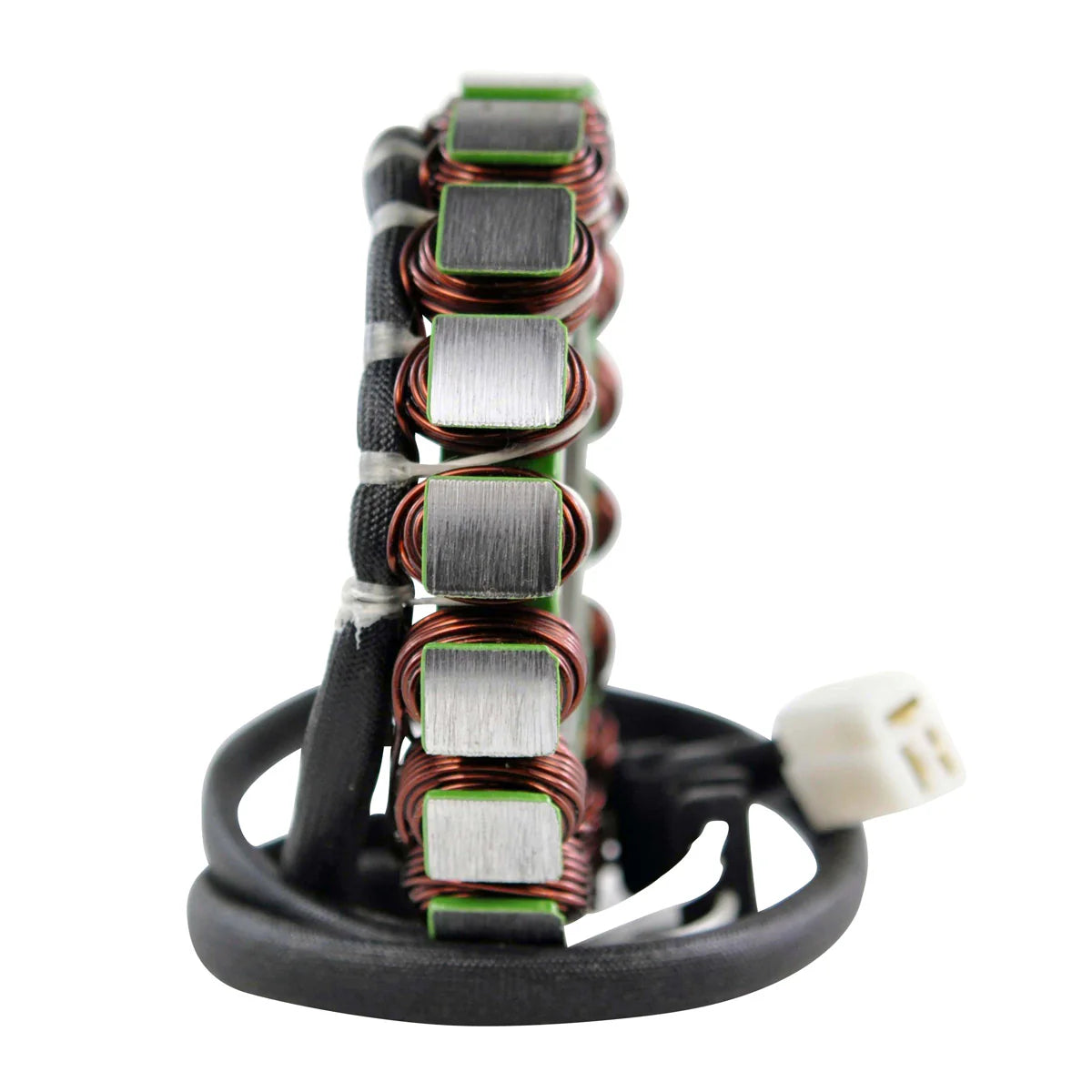

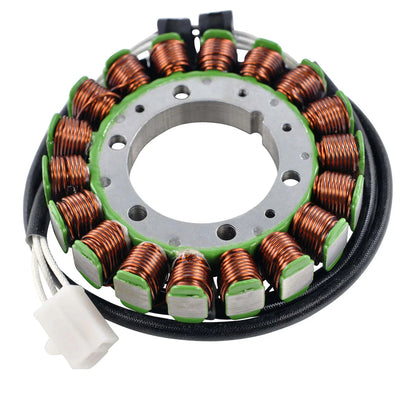

The RM01077 is a brand new high output aftermarket stator for the Kawasaki KVF 400 Prairie built in 1997 and 1998. It is a direct replacement for the original unit, mounting in the standard position and connecting to the existing harness, so installation is plug-and-play with no cutting, drilling or splicing required. Output is approximately 20 percent higher than the standard stator and the part works with all other OEM components.

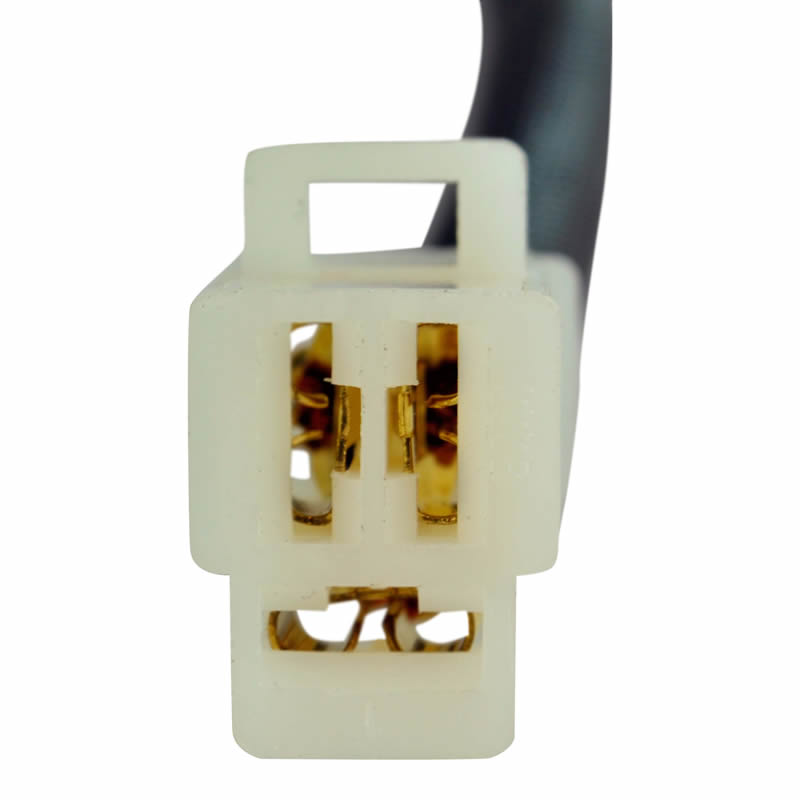

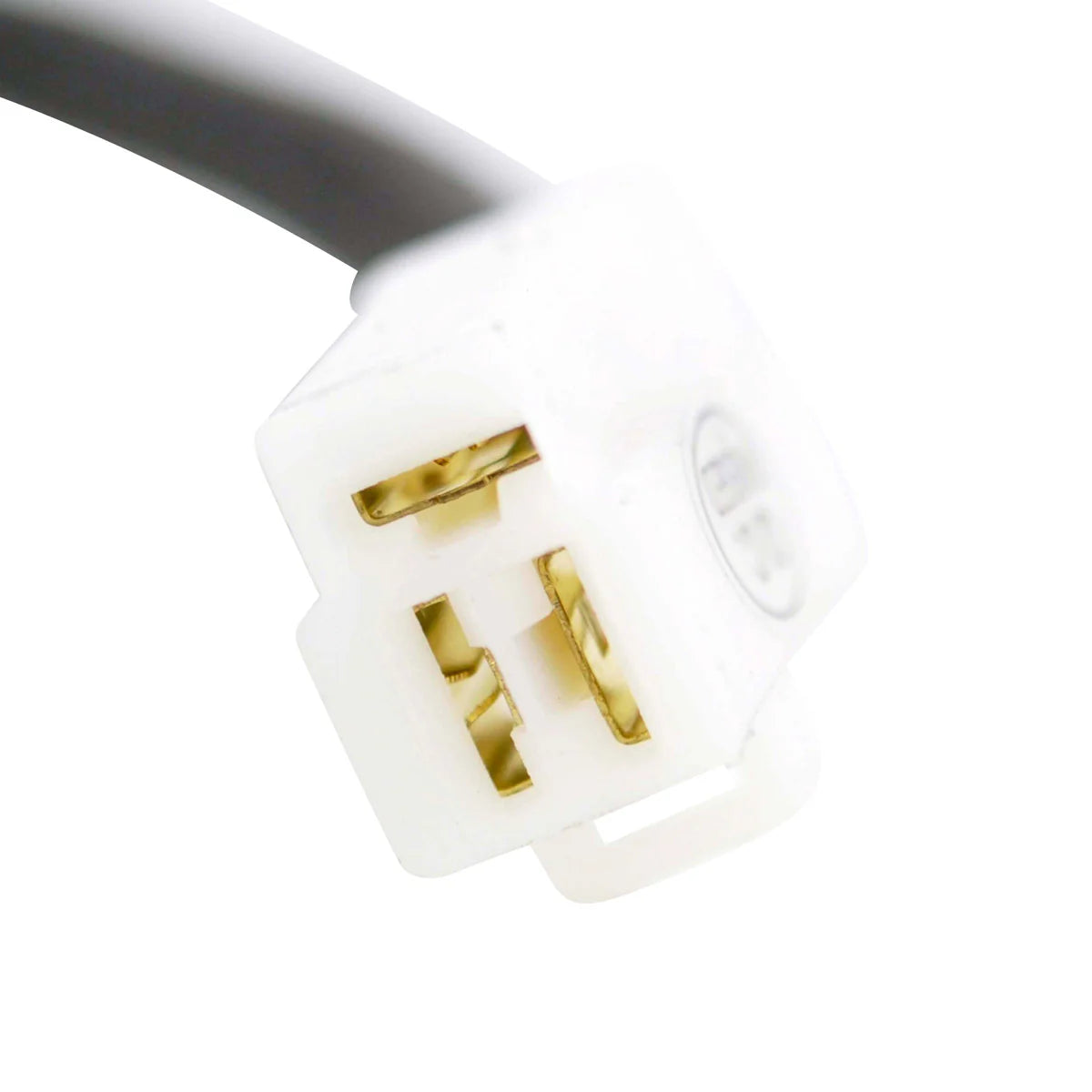

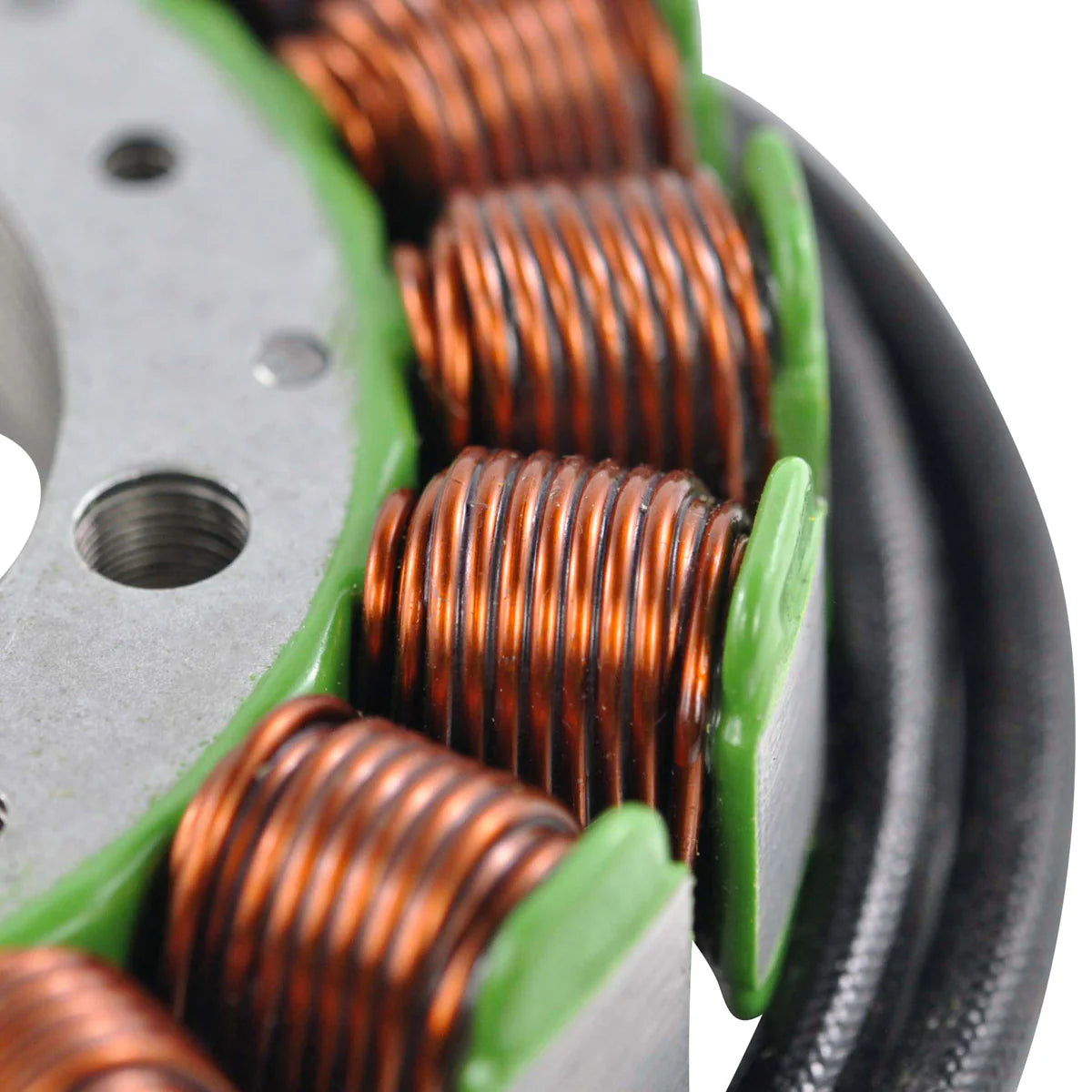

The stator is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius. The connector and the rubber grommet are included. RMSTATOR also supply the opposite connector for the main harness side, since the original is frequently melted, corroded or defective by the time the stator fails. Every unit is tested before it is shipped.
Key Features
- Brand new high output aftermarket stator
- Approximately 20 percent more output than the standard stator
- Works with all other OEM components
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included
- Opposite connector for the main harness side also included
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01077 |
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 14 mm |
| Wire length, stator to grommet | 90 mm |
| Wire length, grommet to plug | 490 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, White between each White | 0.4 ohms +/-20% |
| Alternator, White to ground | O.L on display (open circuit) |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KVF 400 Prairie | 1997-1998 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1300 | Kawasaki |
Frequently Asked Questions
Does this stator need any modification to fit?
No. The RM01077 is a direct replacement for the original unit on the 1997 and 1998 Kawasaki KVF 400 Prairie. It is plug-and-play, uses the standard mounting points and connects to the existing harness, so no cutting or splicing is needed.
What is included in the box?

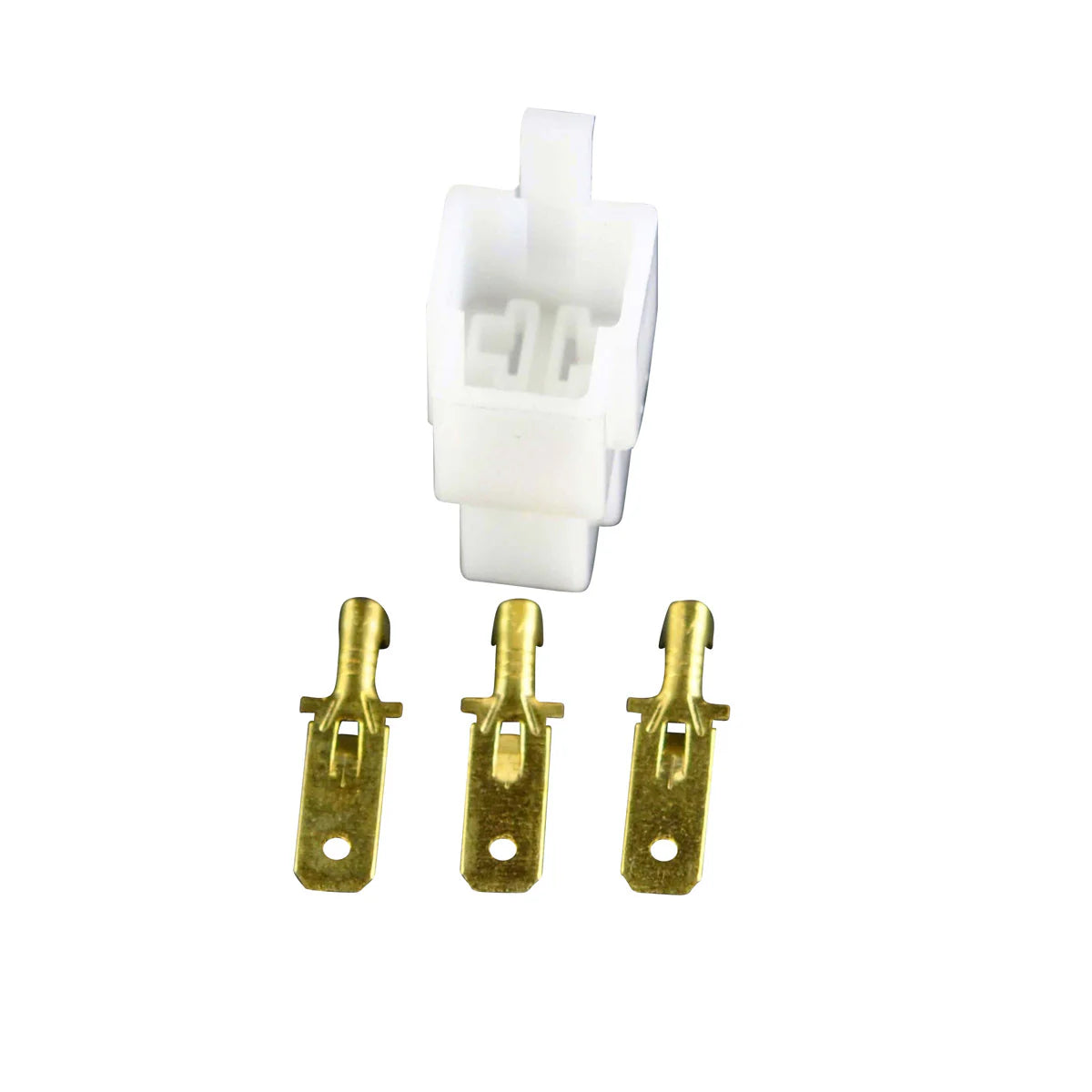

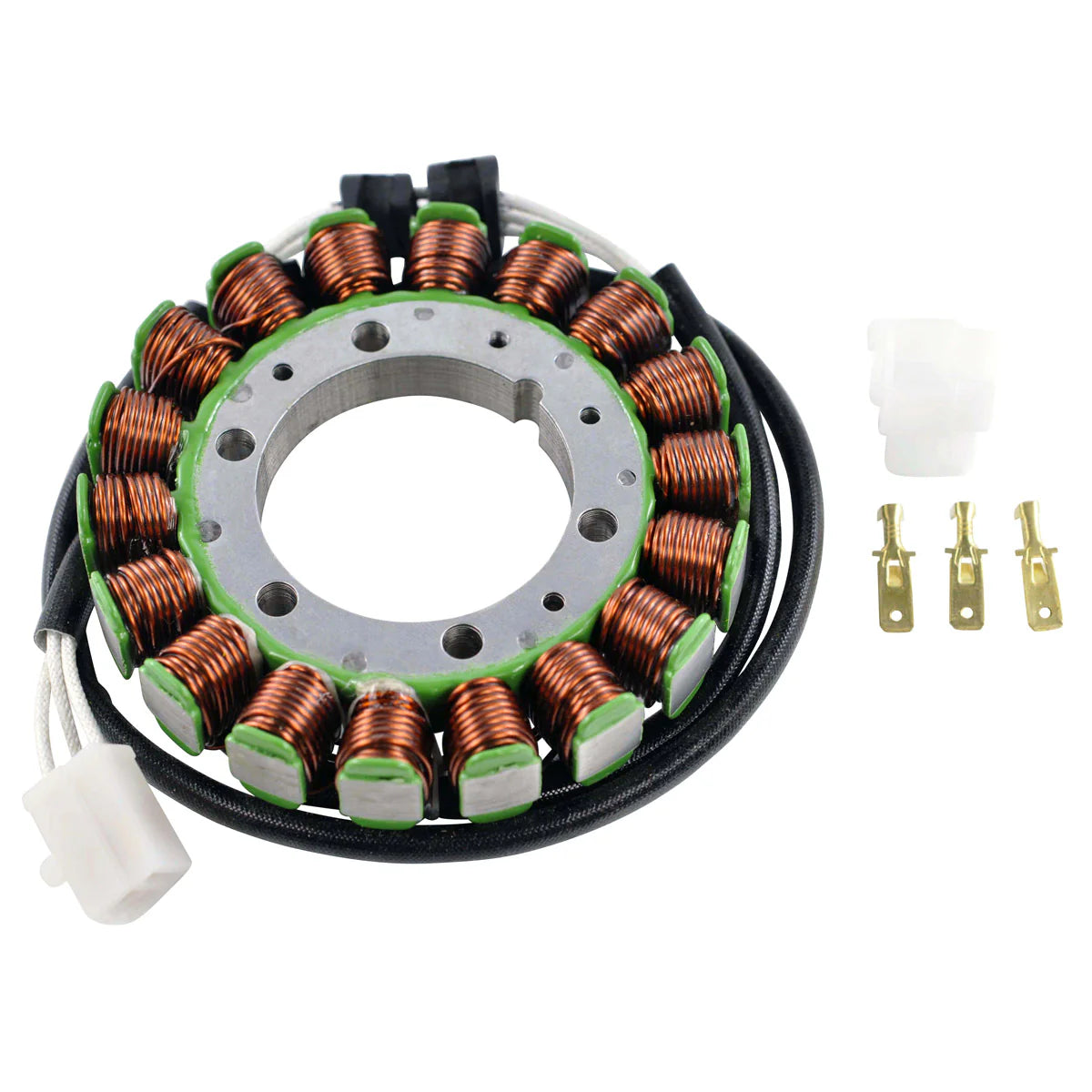

You receive the high output stator, the connector, the rubber grommet and an opposite connector for the main harness side.
How do I test whether my old stator has failed?
Use a multimeter across the three White wires. A healthy alternator winding reads about 0.4 ohms between each pair of White wires, within 20 percent. Then check each White wire to ground: a good stator shows an open circuit, displayed as O.L on most meters. Any continuity to ground, or a reading well outside 0.4 ohms between the phases, means the stator has failed.
What does the high output version give me?
The RM01077 produces approximately 20 percent more output than the standard Prairie stator, which provides extra charging headroom for accessories such as winches and auxiliary lighting, while remaining compatible with all other OEM components including the original regulator rectifier.
