High Output 200W Stator with AC Regulator - Yamaha YFZ 350 Banshee
Part RM01034 - Yamaha YFZ 350 Banshee 1995-2006

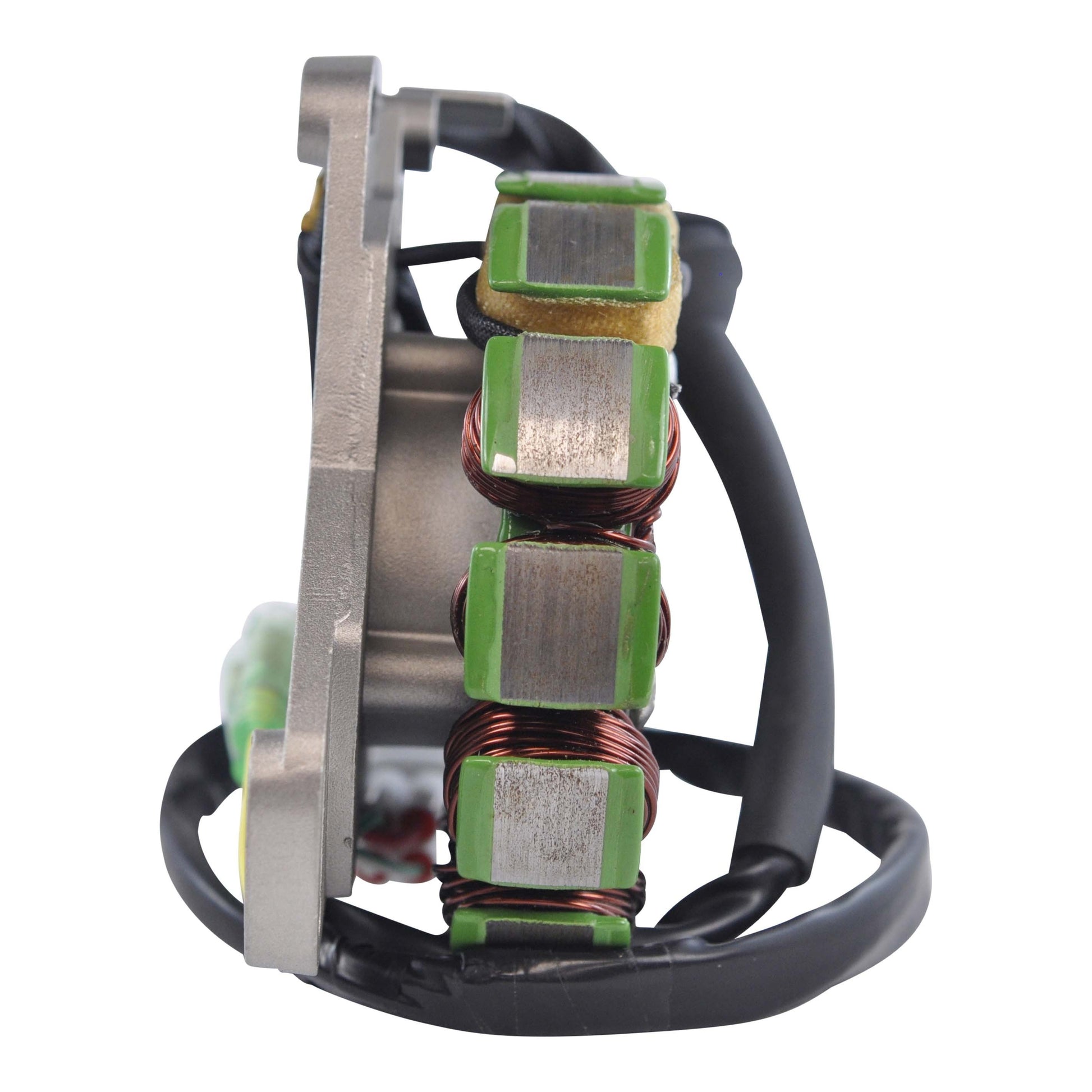

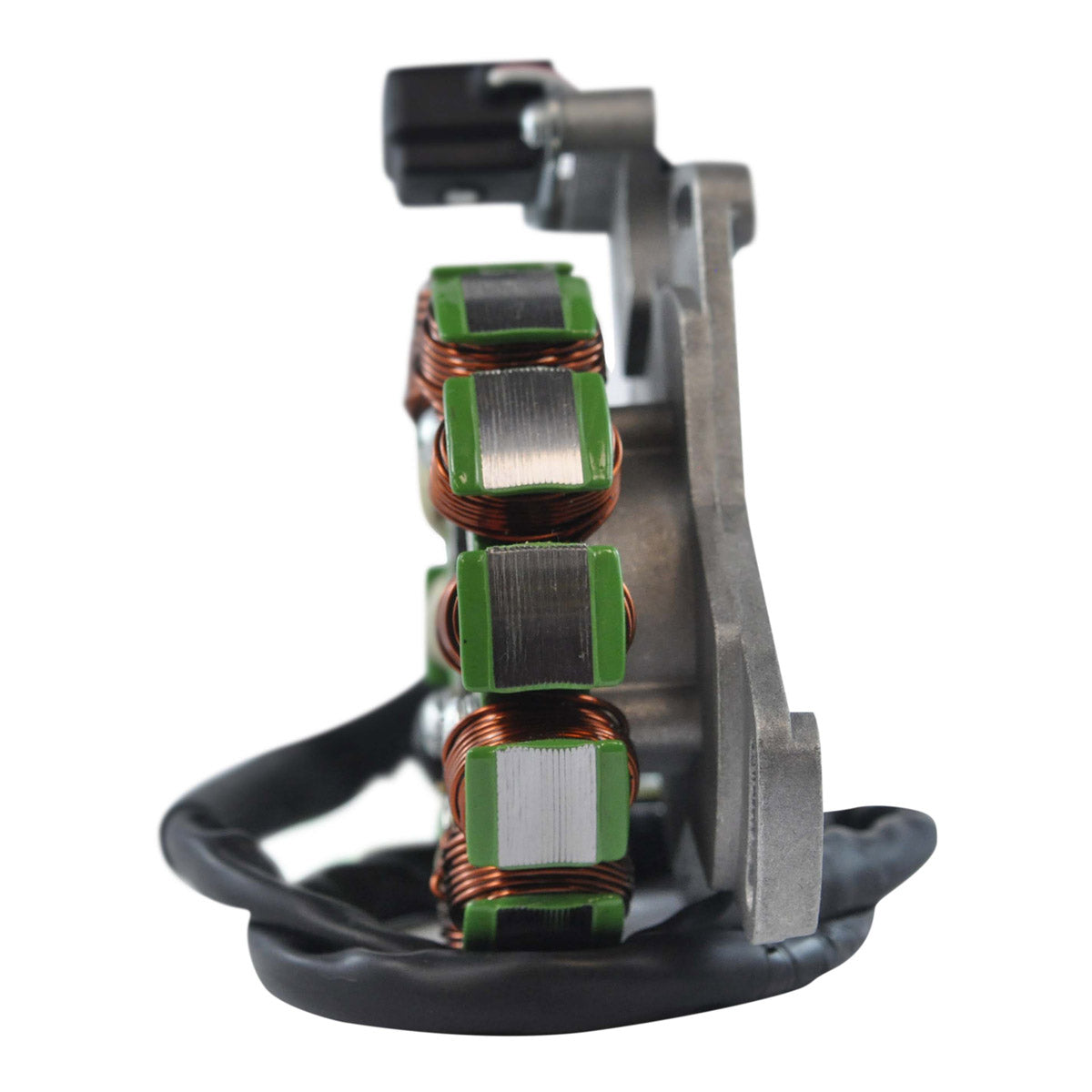

The RM01034 is a brand new high output aftermarket stator rated at 200 watts, supplied complete with a matching AC regulator, for the Yamaha YFZ 350 Banshee built between 1995 and 2006. It is a direct replacement for the original unit, so it mounts in the standard position and connects to the existing harness with no cutting, splicing or modification. Output is approximately 20 percent higher than the stock stator while remaining fully compatible with all other OEM components.
Every unit is built on the highest grade lamination material and wound with the highest grade copper, rated to withstand 200 degrees Celsius. The pick-up pulsar coil, the connector, the rubber grommet and the back plate are all included in the box. The supplied AC regulator is rated at 225 watts and 12 volts and carries two terminals. All stators are tested before they are shipped.
Key Features
- Brand new high output aftermarket stator rated at 200 watts
- AC regulator included, rated 225 watts at 12 volts
- Approximately 20 percent more output than the standard stator
- Works with all other OEM components
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included

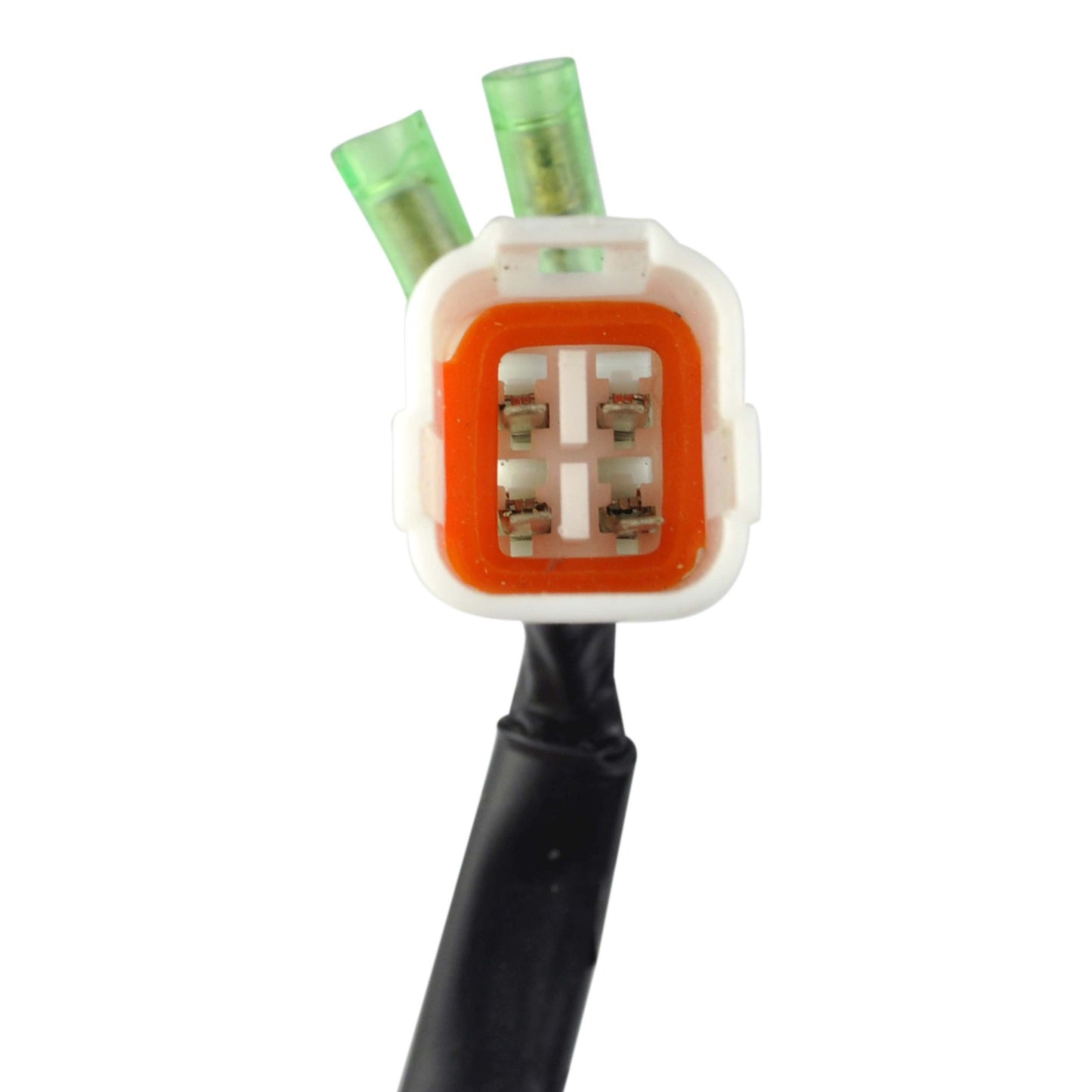

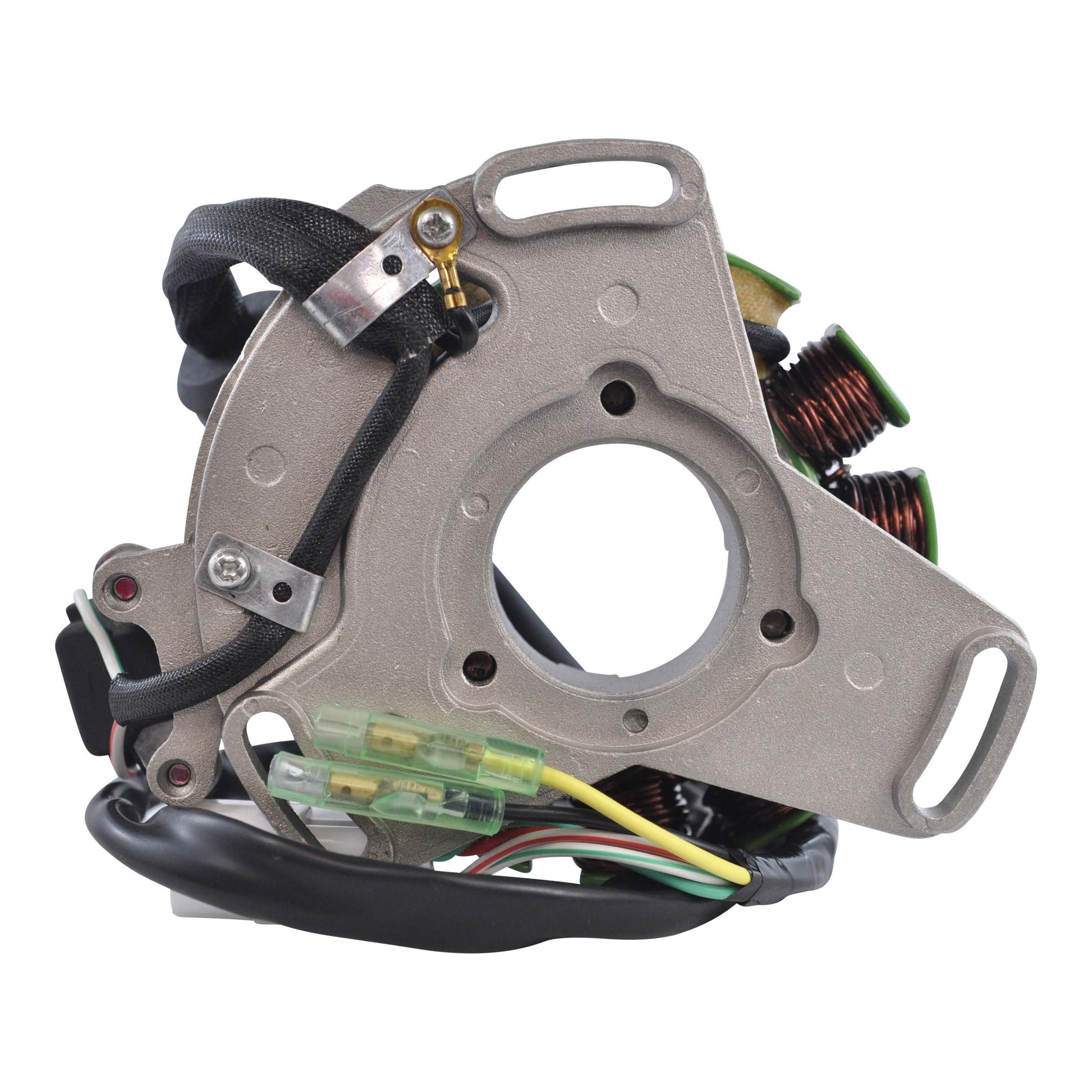

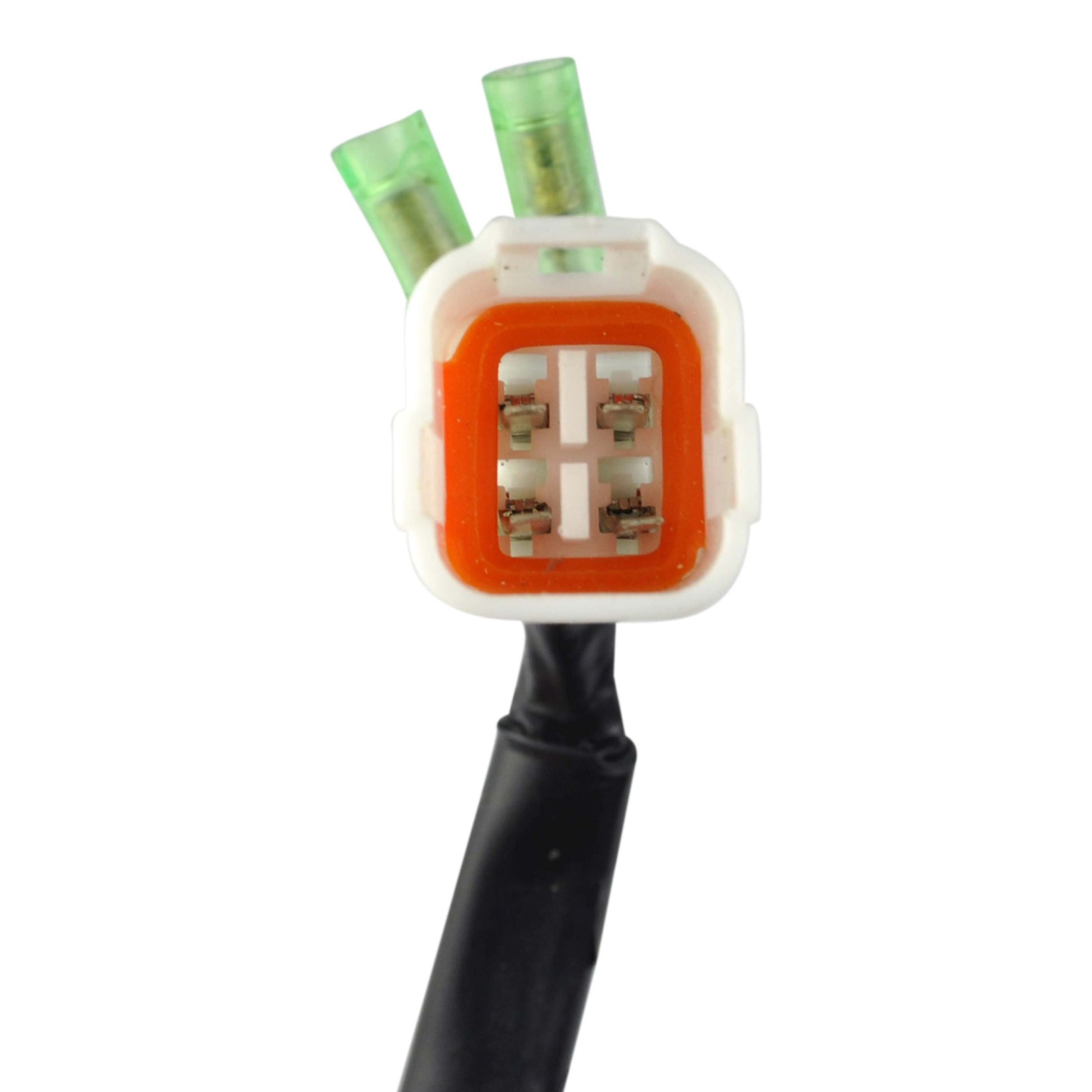

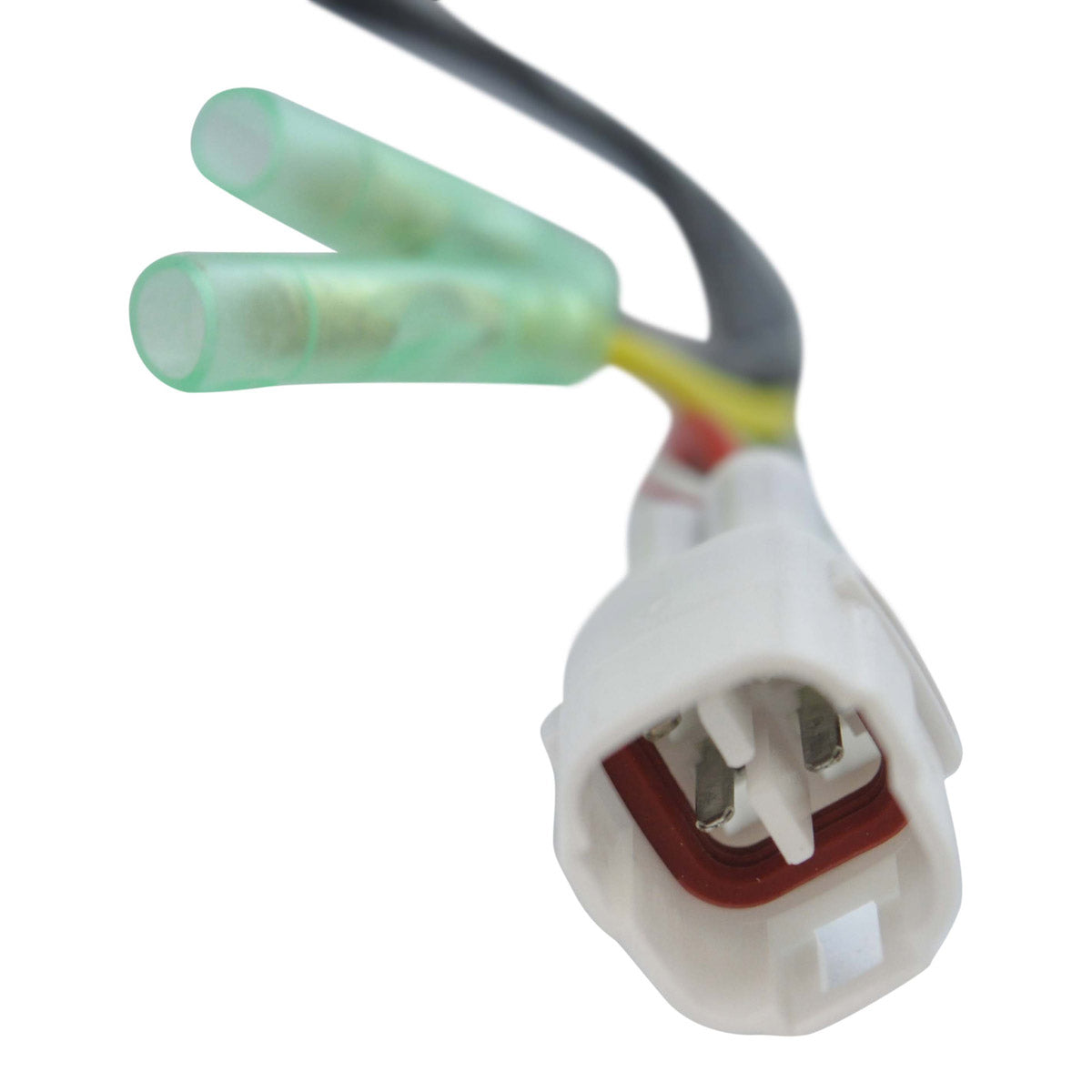

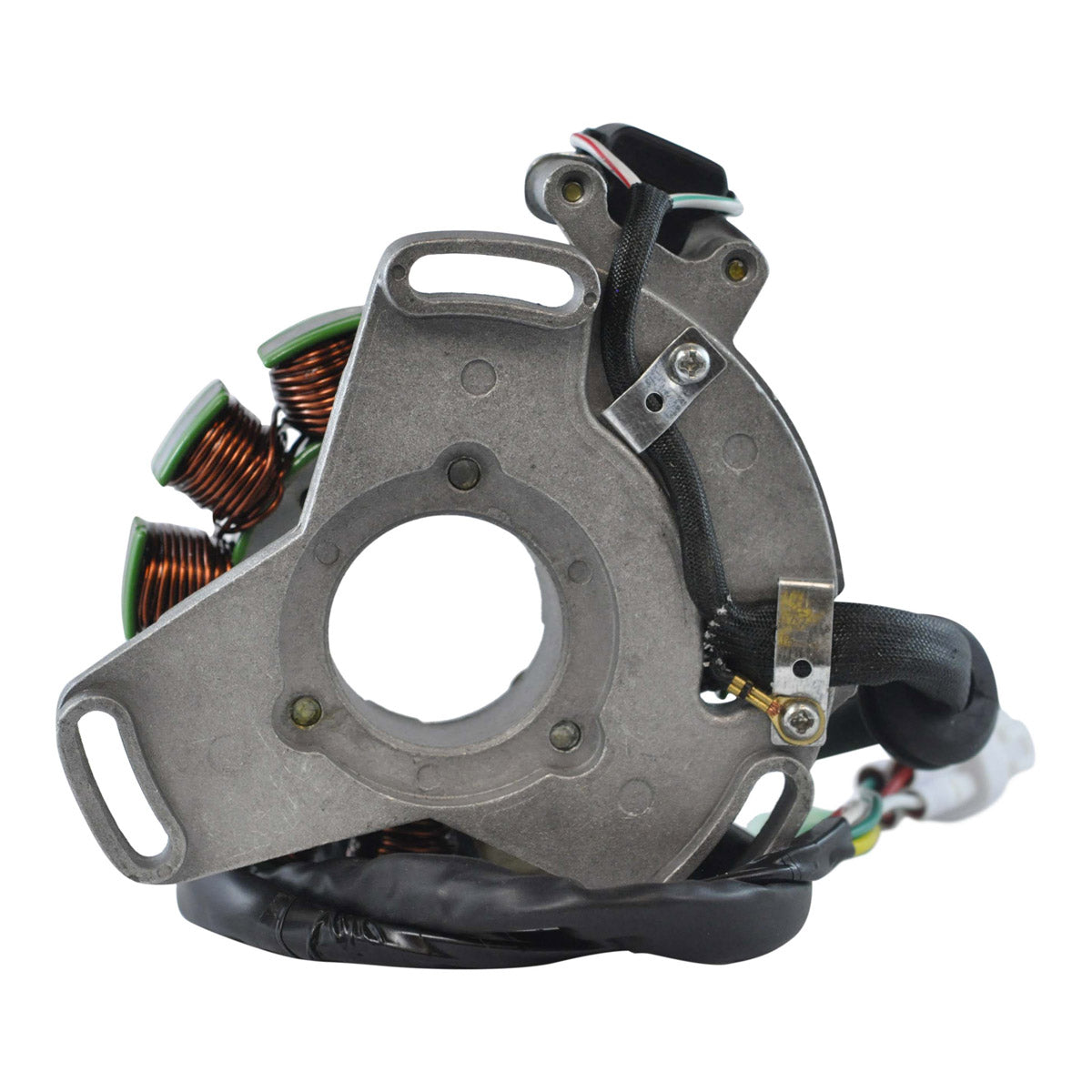

- Connector, rubber grommet and back plate included
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01034 |
| Interior diameter | 103 mm |
| Exterior diameter | 34 mm |
| Thickness | 27 mm |
| Wire length, stator to grommet | 60 mm |
| Wire length, grommet to plug | 520 mm |
| Pick-up coil wire to grommet | 80 mm |
| Number of wires | 6 |
| Number of plugs | 3 |
| Number of pins | 6 |
| Alternator resistance, Yellow to Black | 0.4 ohms +/-20% |
| Pick-up resistance, White/Green to White/Red | 115 ohms +/-20% |
| Source resistance, Green to Red | 12 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| AC regulator rated power | 225 watts |
| AC regulator voltage | 12 volts |
| AC regulator size, H x L x W | 20 mm x 45 mm x 45 mm |
| AC regulator wire length | 130 mm |
| AC regulator terminals | 2 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFZ 350 Banshee | 1995-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3GG-85510-01-00 | Yamaha |
| 3GG-85510-00-00 | Yamaha |
Frequently Asked Questions
Will this stator fit my Banshee without modification?
Yes. The RM01034 is a direct replacement for the original unit on the Yamaha YFZ 350 Banshee from 1995 to 2006. It uses the standard mounting points and the original connector, so no cutting, drilling or splicing is required.
What is included in the box?

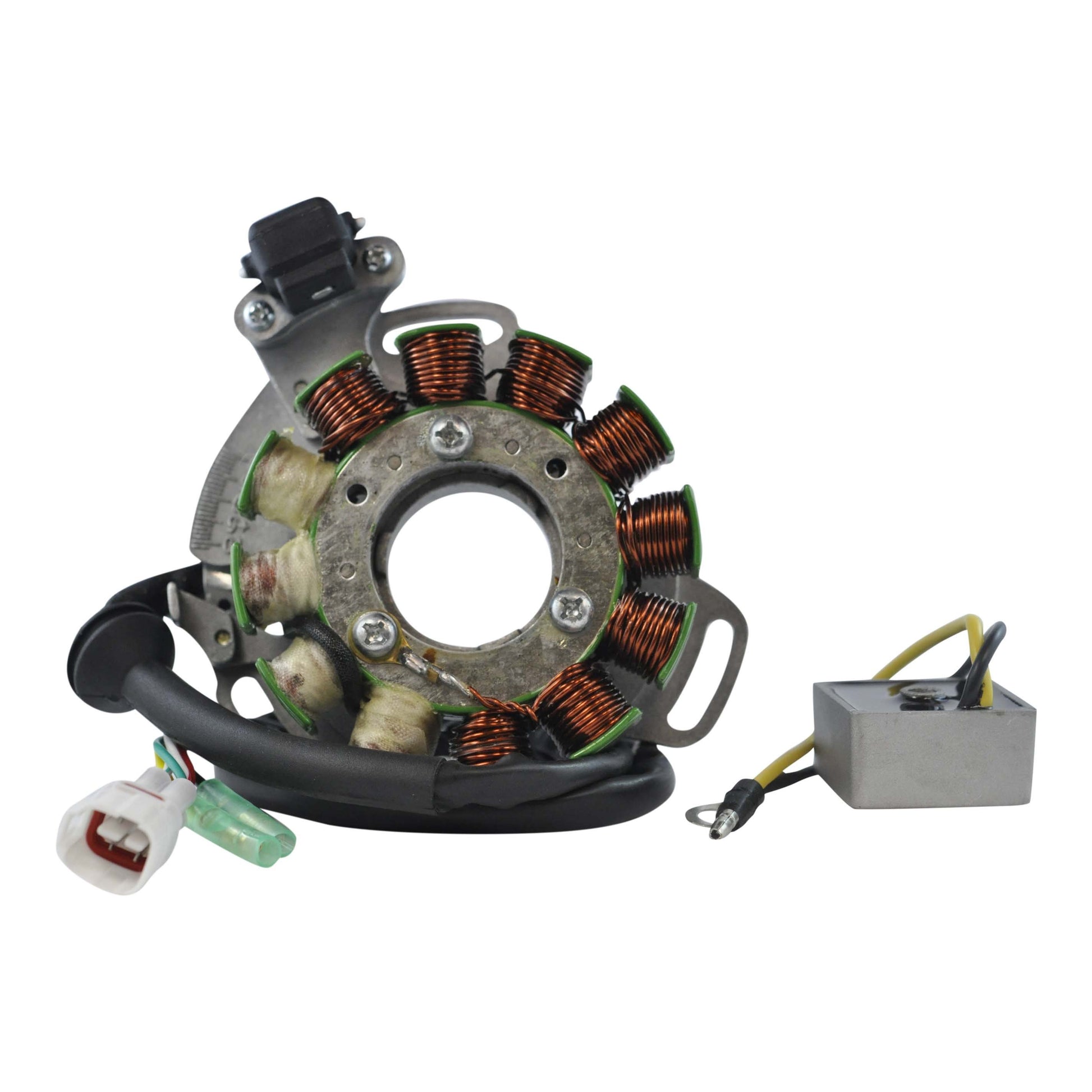

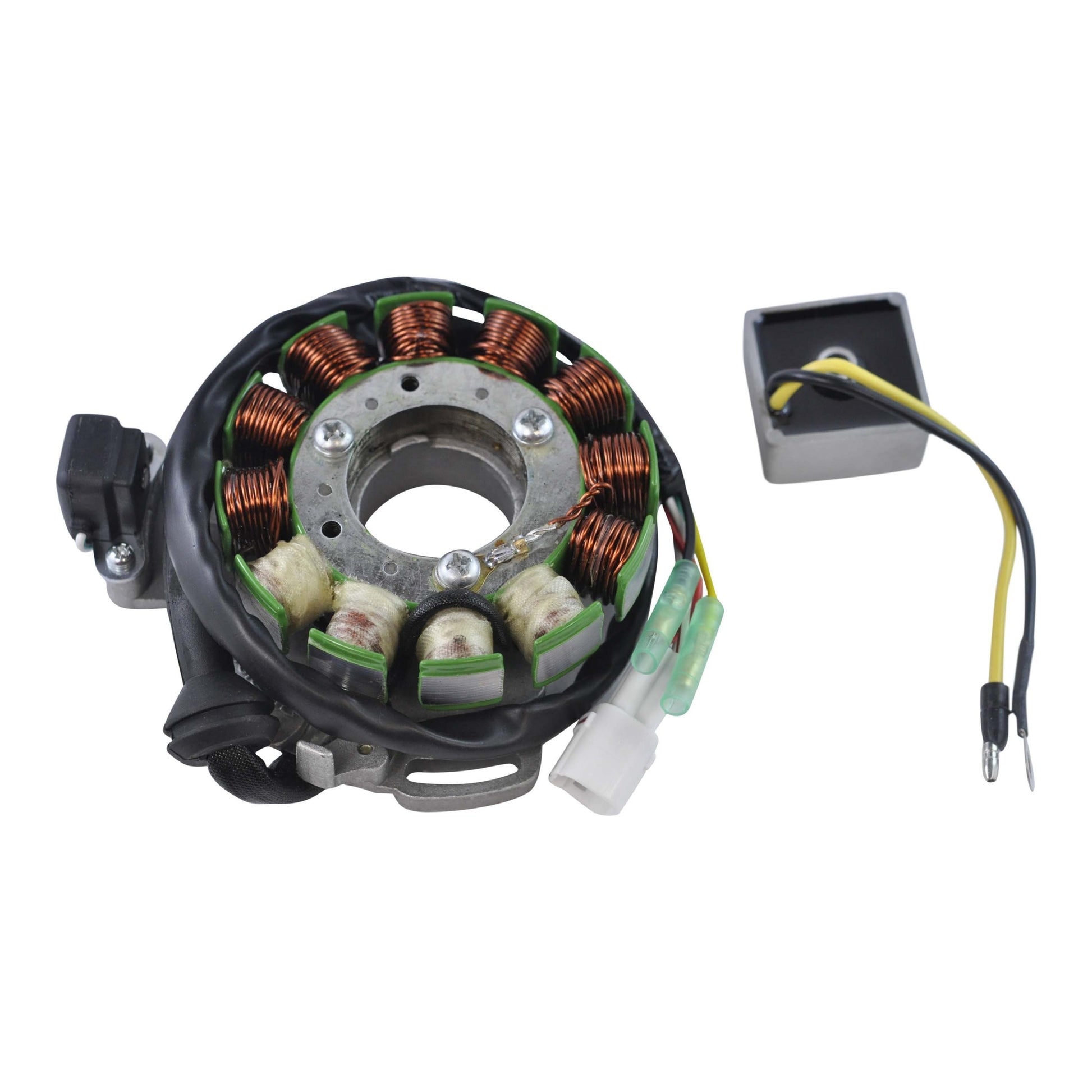

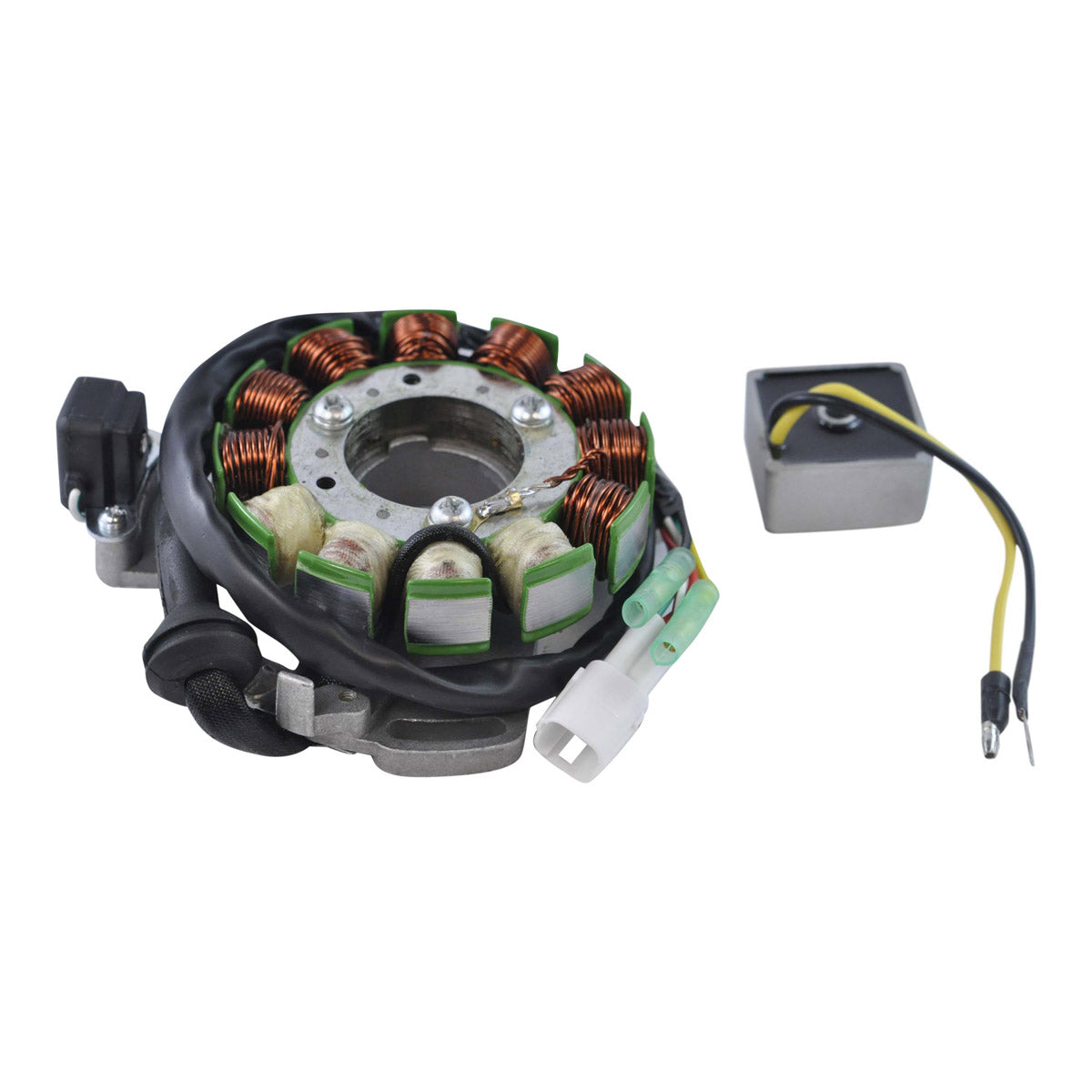

The kit contains the 200 watt stator, the AC regulator, the pick-up pulsar coil, the connector, the rubber grommet and the back plate.
How can I tell whether my old stator has failed?
Measure the wire-to-wire resistance with a multimeter and compare the readings against the figures in the table above. The alternator winding should read about 0.4 ohms, the pick-up about 115 ohms and the source coil about 12 ohms, each within 20 percent. An open circuit, a short to ground or a reading well outside those bands points to a failed stator.
What does the extra output give me?
The RM01034 produces approximately 20 percent more output than the standard stator, giving more headroom for brighter lighting and additional electrical loads, and it still works with all other OEM components. The supplied AC regulator is rated at 225 watts to suit that higher output.
