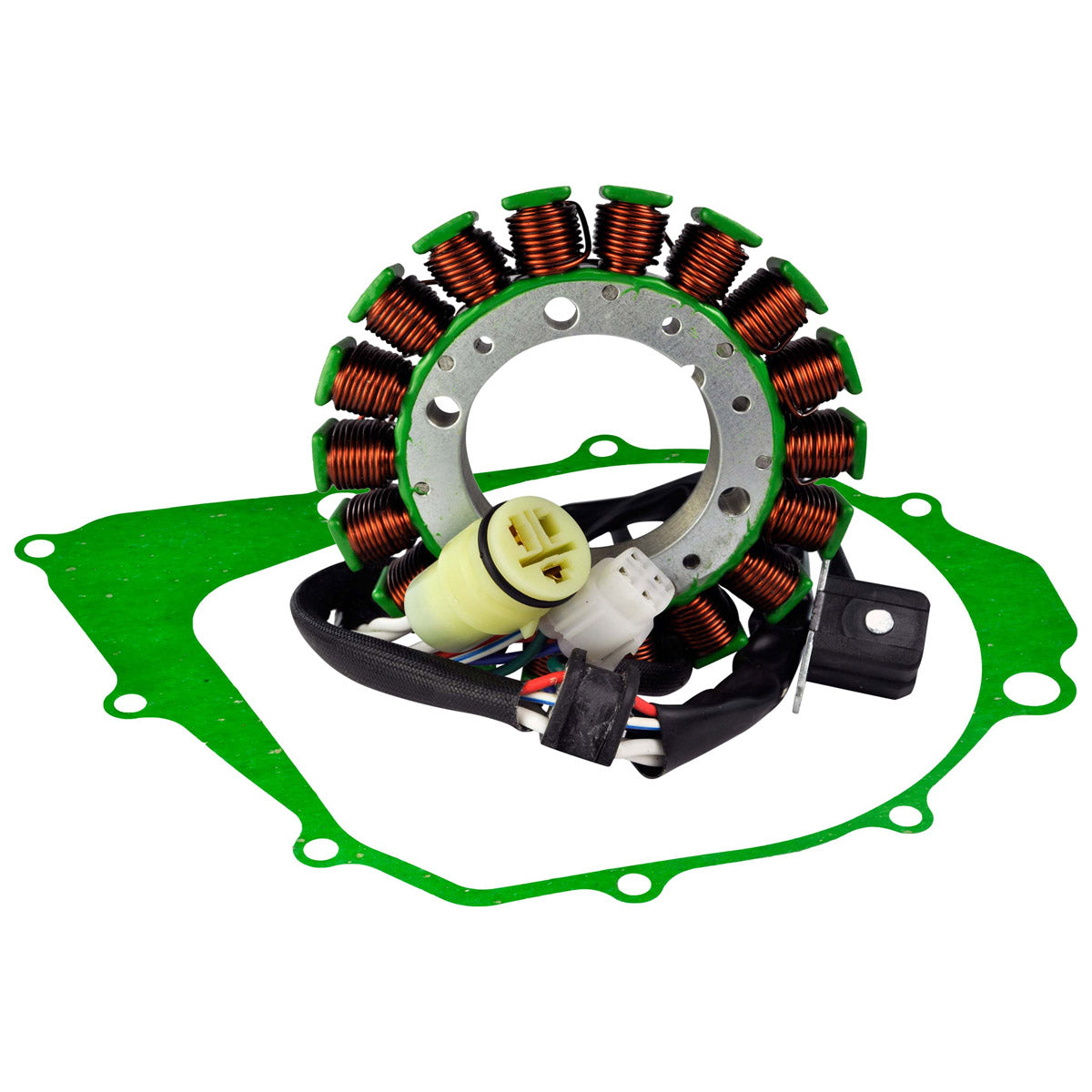

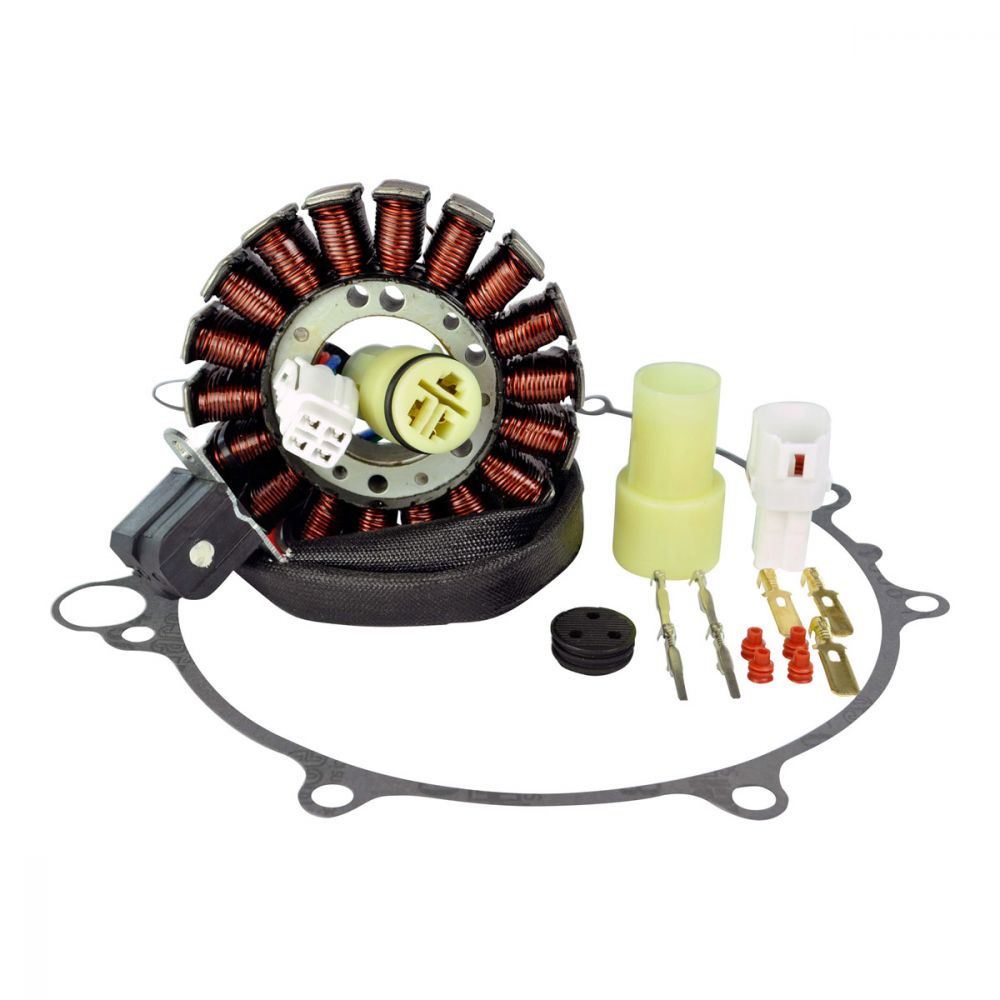

High Output 300 Watt Stator and Cover Gasket Kit
Yamaha Raptor 350, Warrior 350, Wolverine 350 and Big Bear 400 - 2000-2013 - Part RM01017G

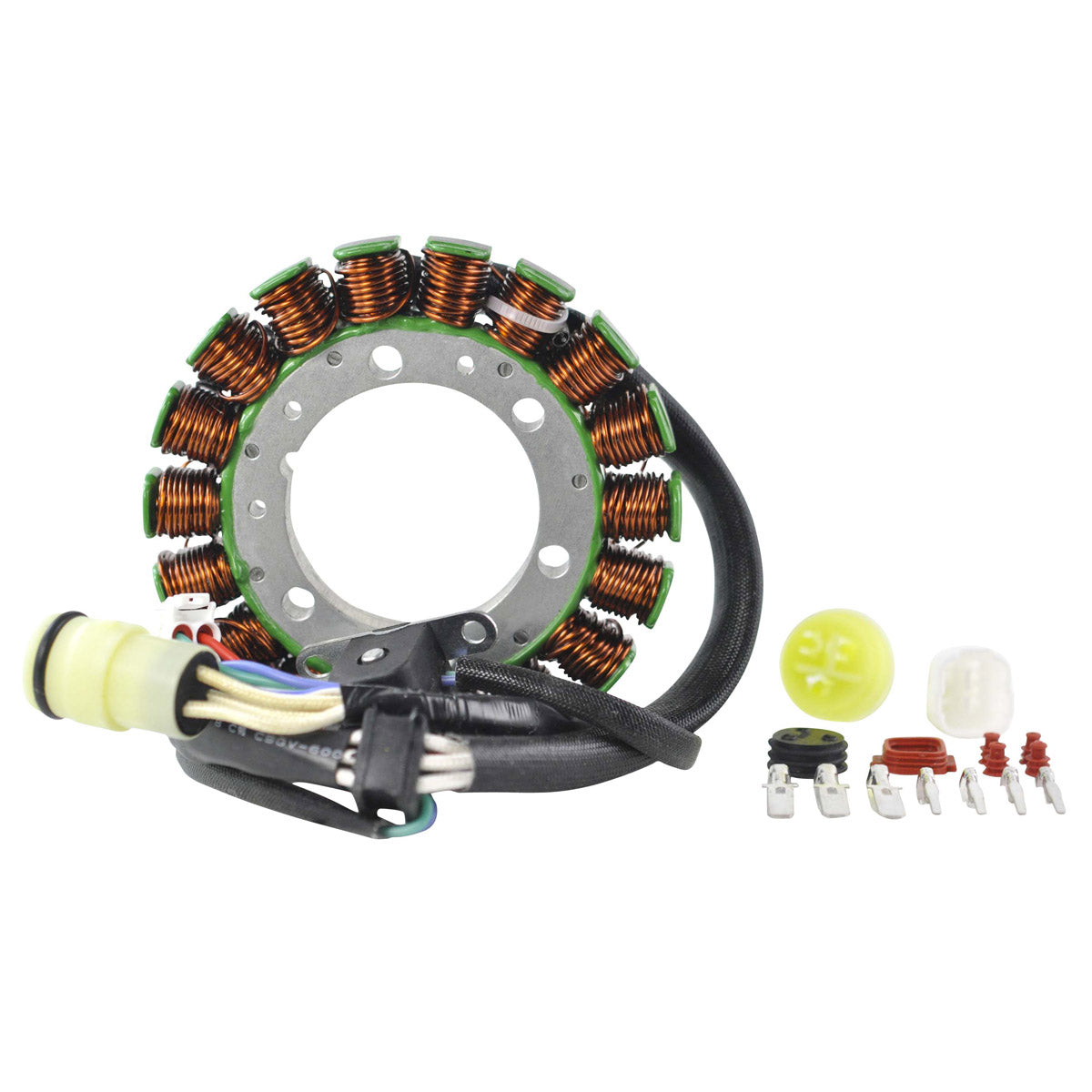

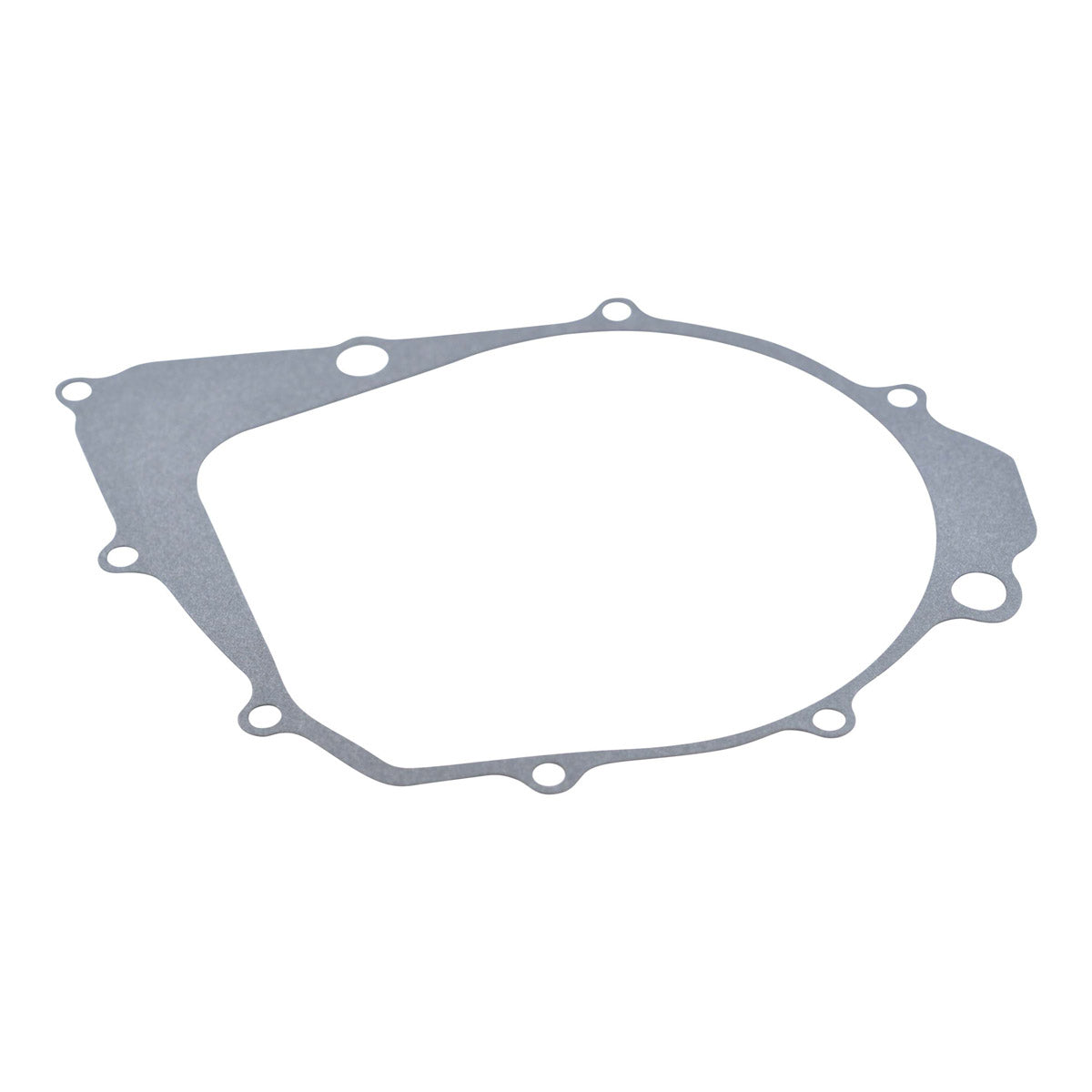

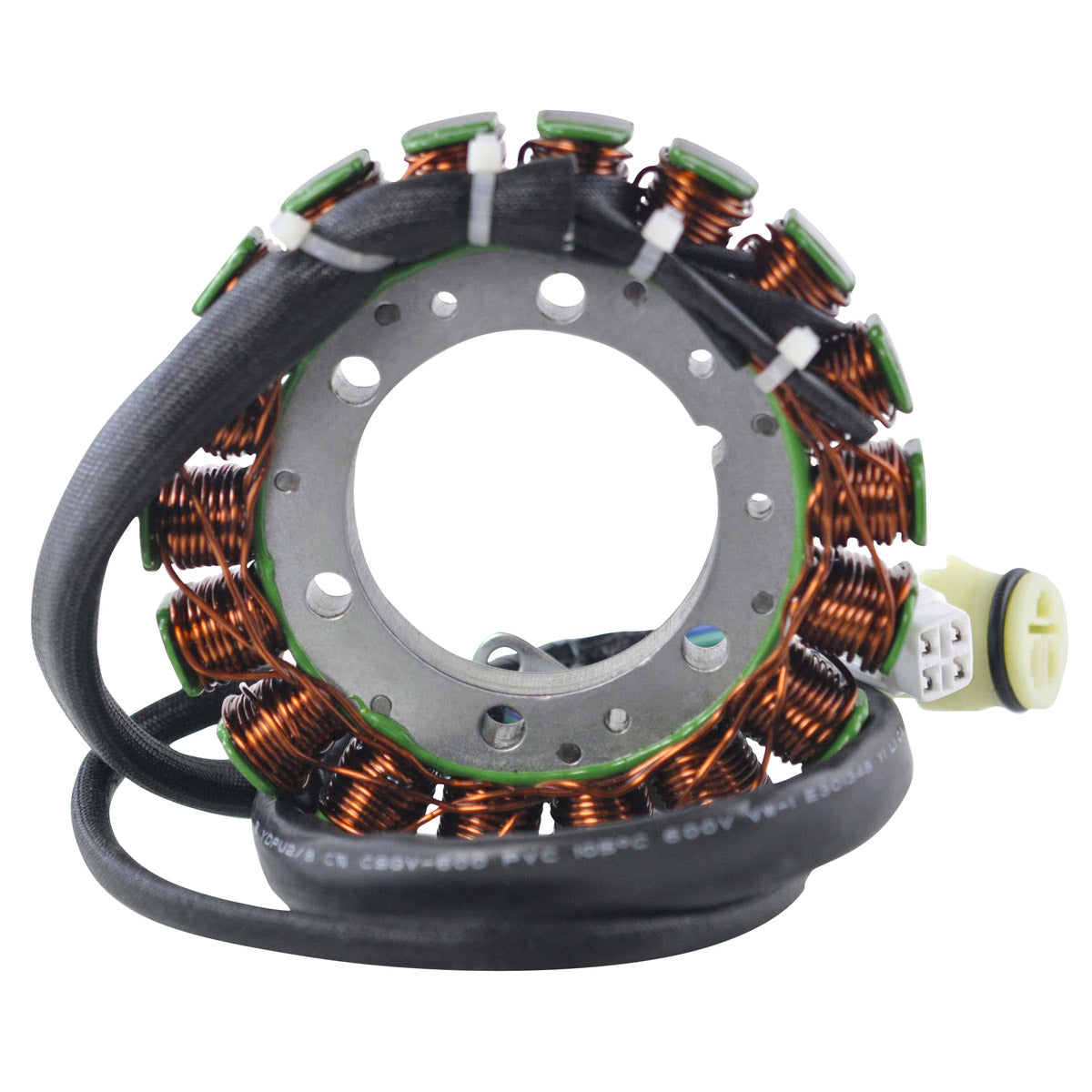

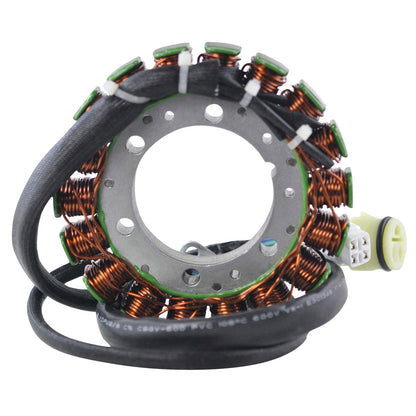

This is a brand new high output stator rated at 300 watts, supplied together with the stator crankcase cover gasket so the charging system can be rebuilt in a single job. It is a direct replacement for the original Yamaha unit fitted to the Raptor 350, Warrior 350, Wolverine 350 and Big Bear 400 between 2000 and 2013. The assembly is plug-and-play and a direct fit, so no cutting, splicing or modification of the loom is required.
The stator is wound with the highest grade of copper, rated to withstand 200 degrees Celsius, and built on highest grade lamination materials for efficient magnetic transfer. The pickup pulsar coil is integrated into the assembly, and the connector and rubber grommet are supplied with the unit. A tube of dielectric grease is included at no extra cost to help seal and protect the connections on reassembly. At 300 watts the output is well above a standard replacement, which gives useful headroom for auxiliary lighting, heated grips or winch use.
Key Features
- Brand new high output stator rated at 300 watts
- Direct replacement for the original unit

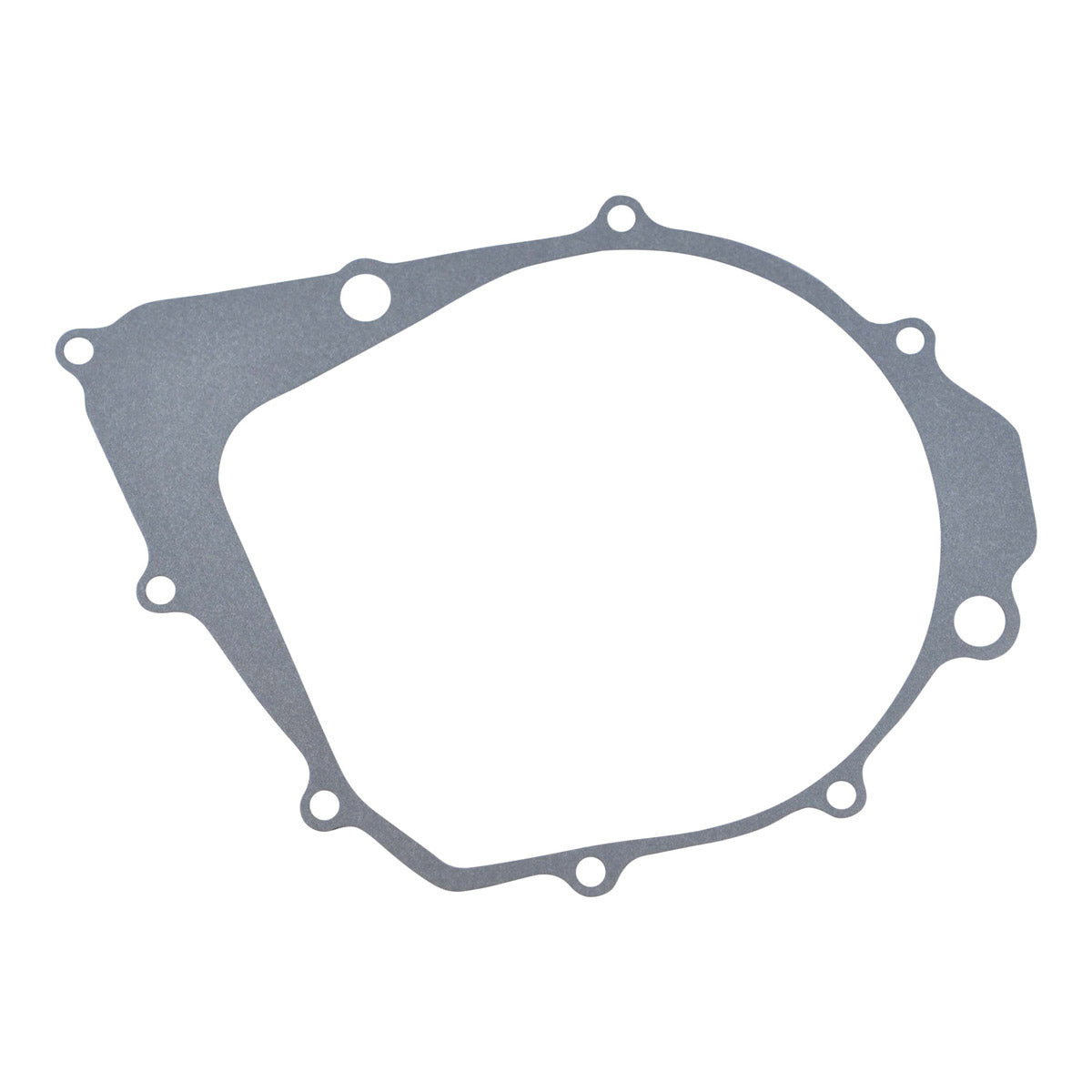

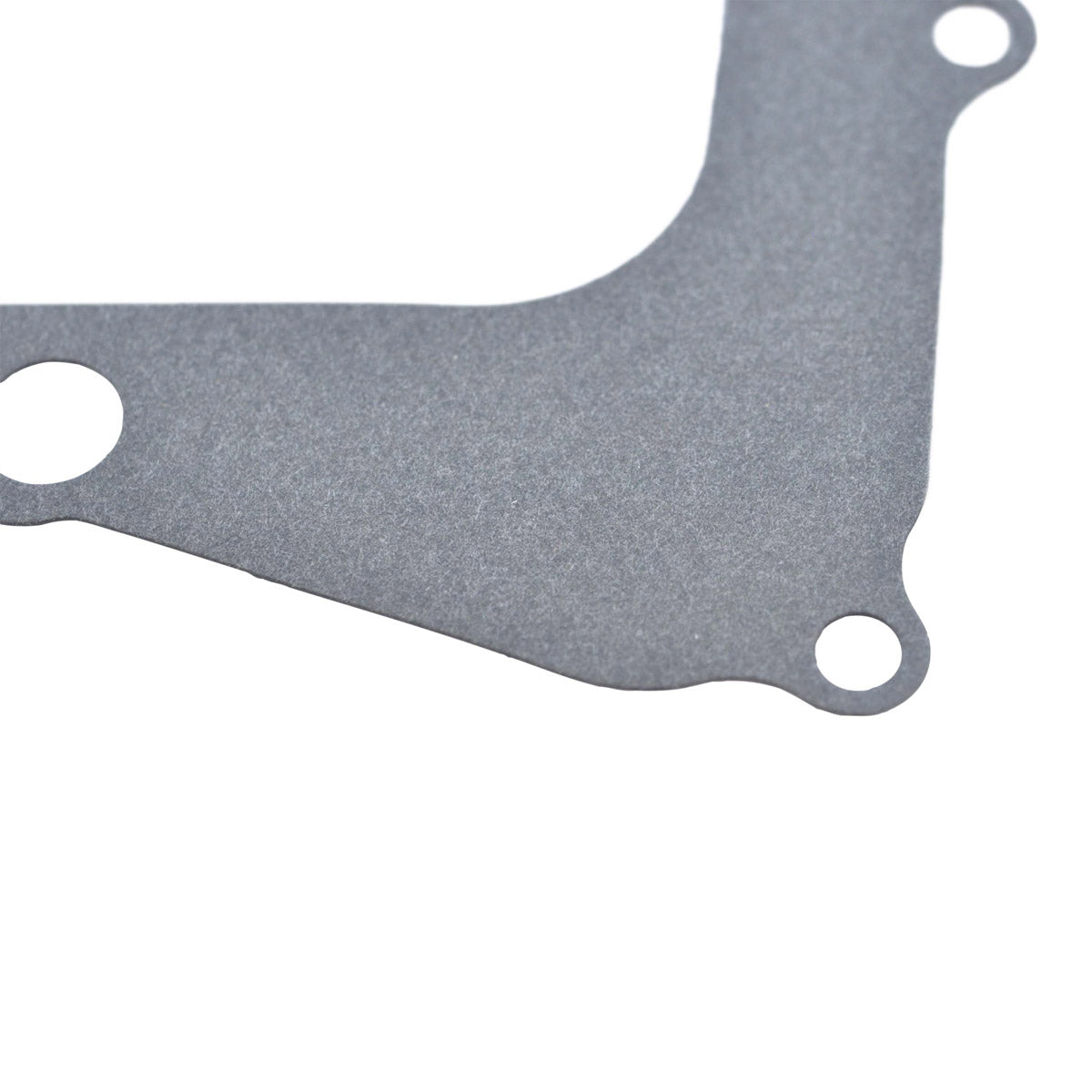

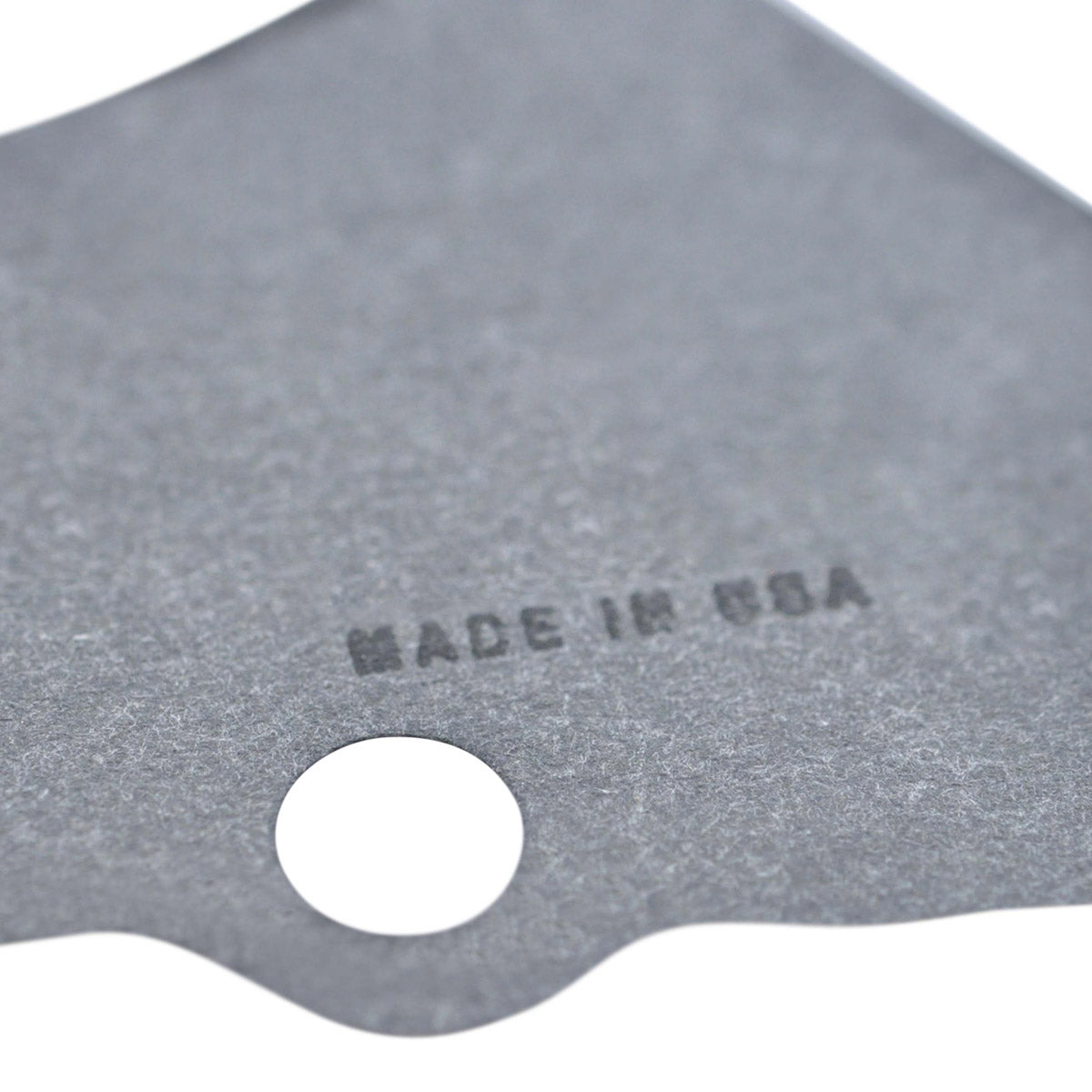

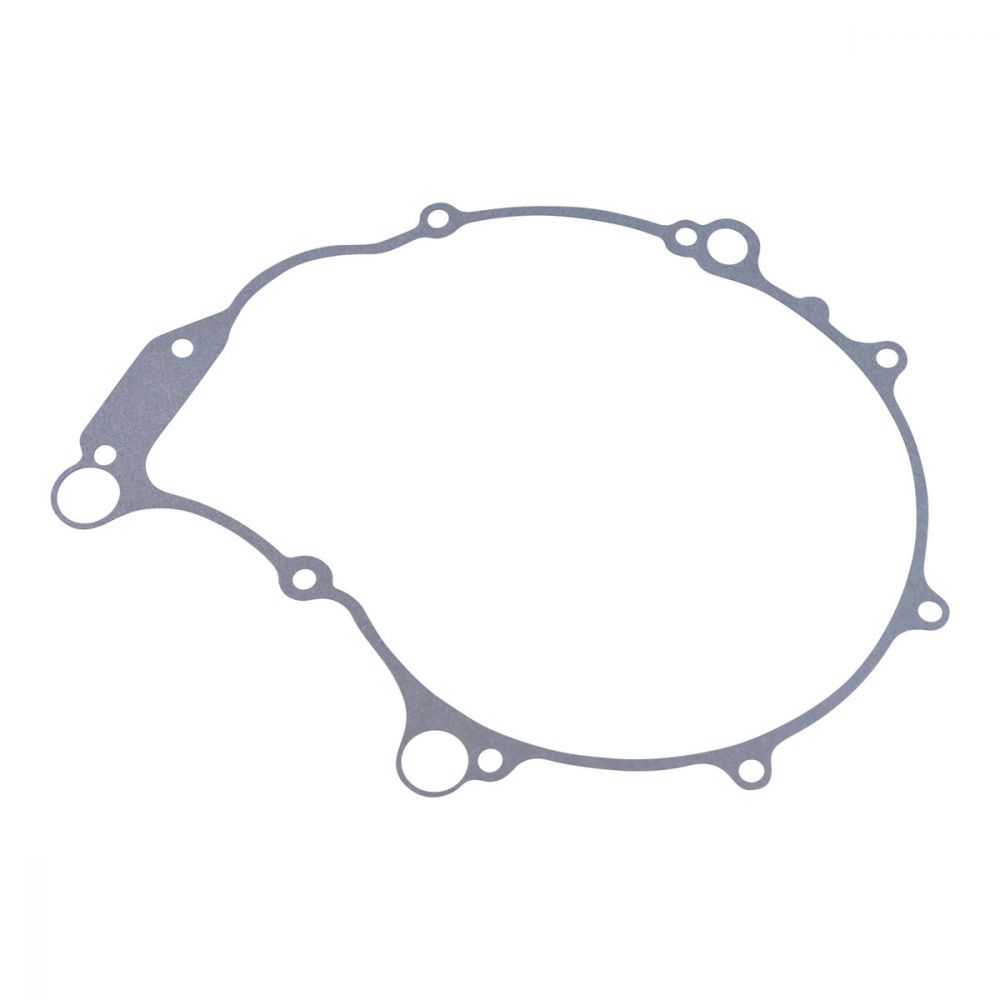

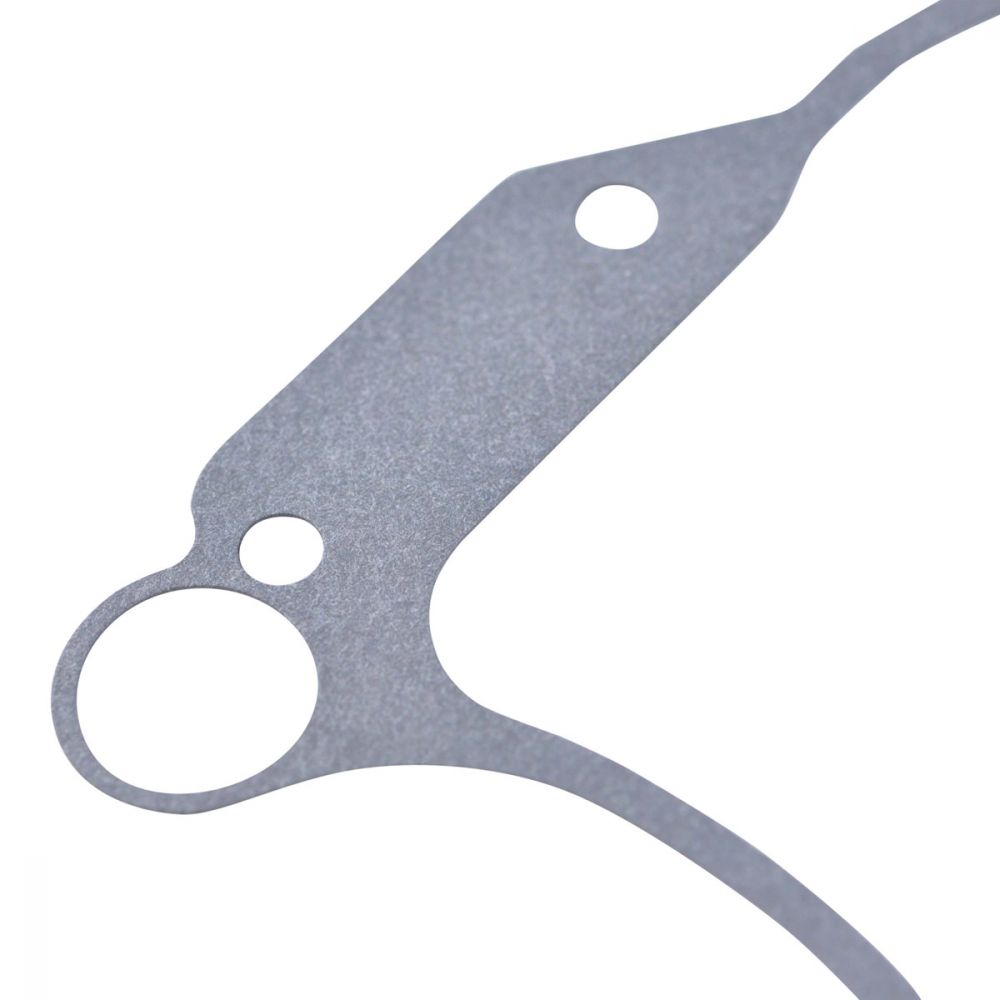

- Supplied as a kit with the stator cover gasket
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper winding, resistant to 200 degrees Celsius

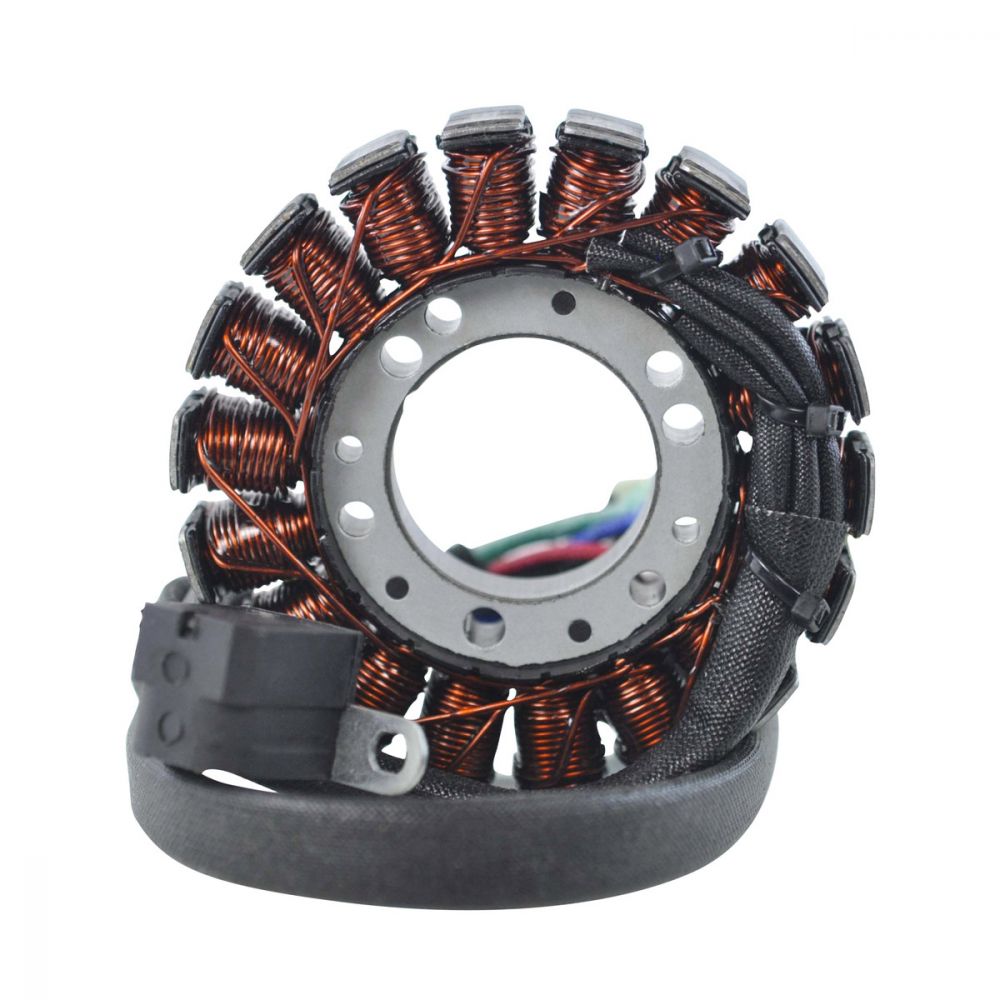

- Pickup pulsar coil integrated into the assembly

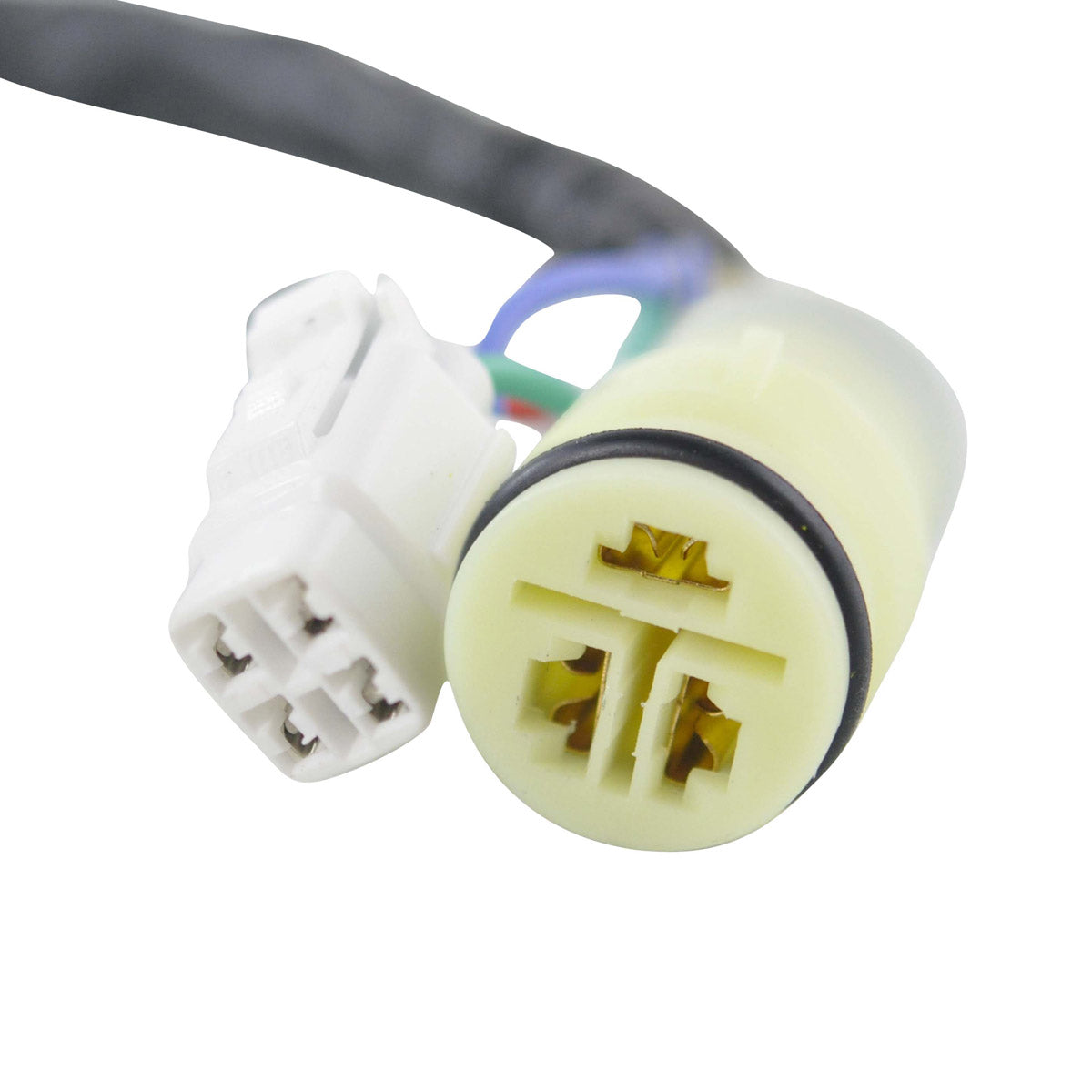

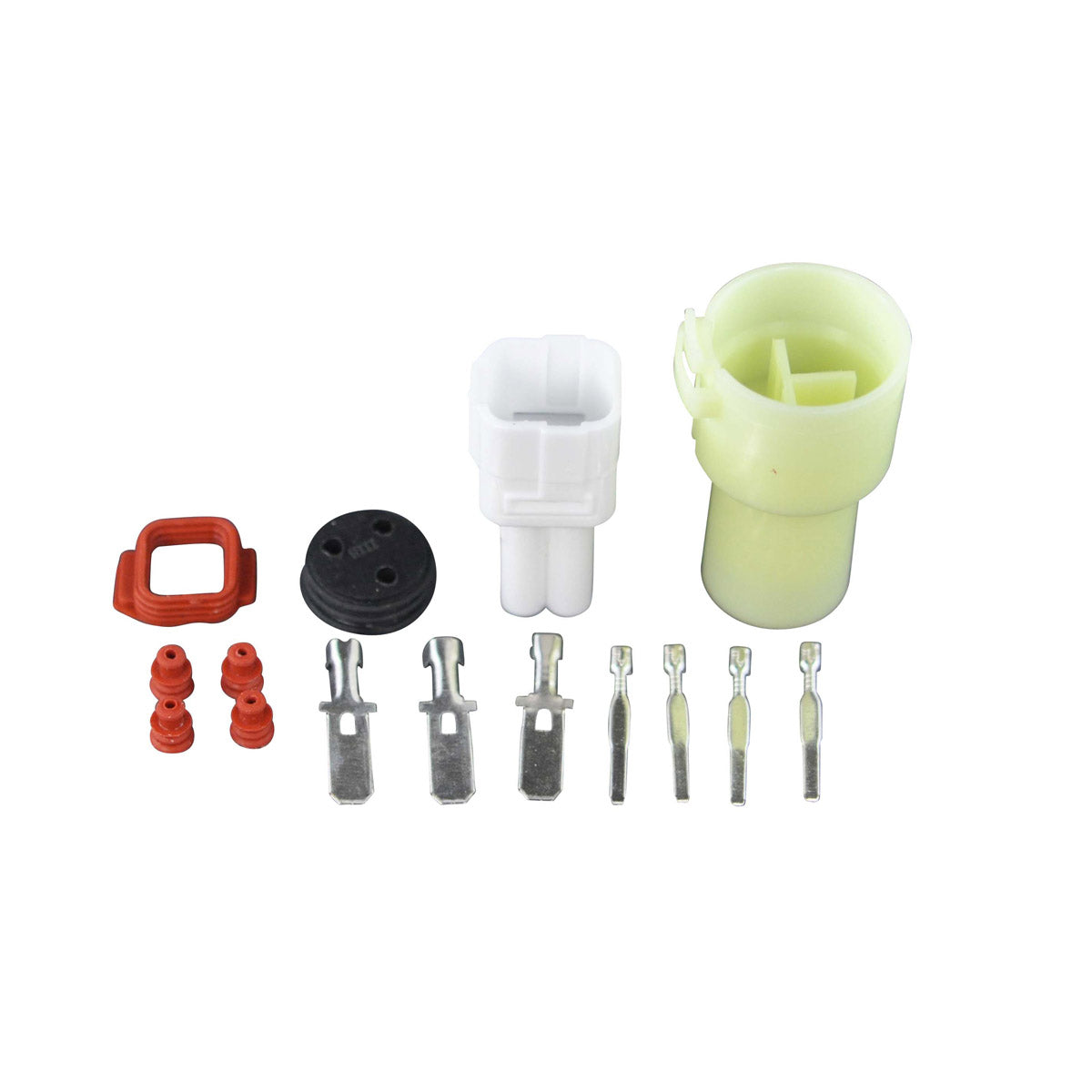

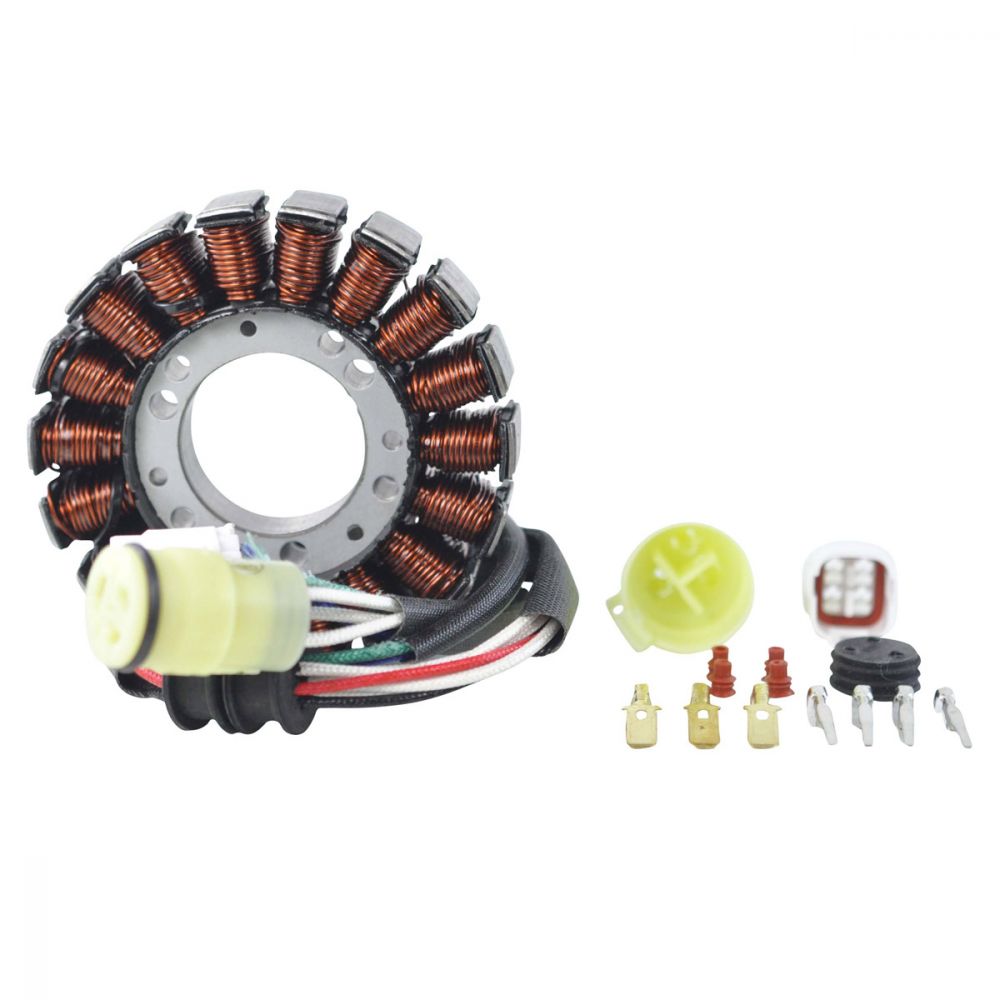

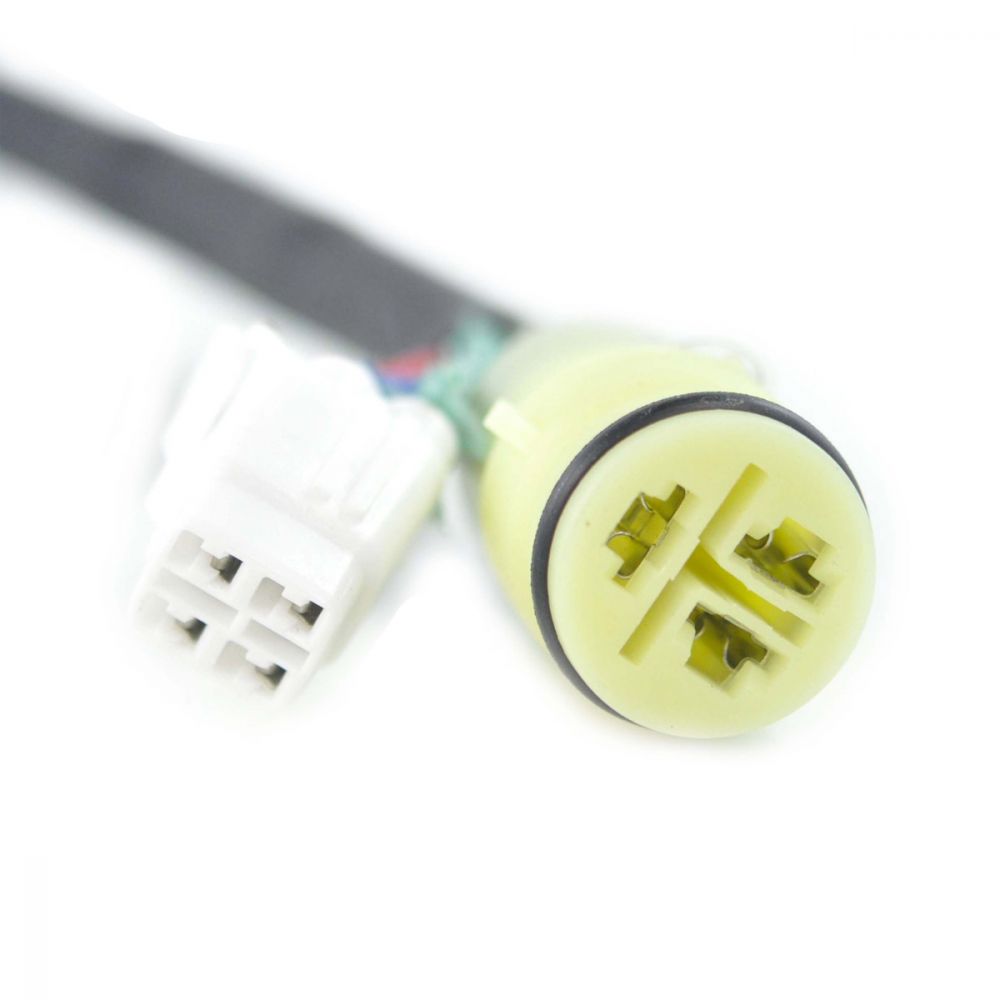

- Connector and rubber grommet included
- Tube of dielectric grease included at no additional cost
Technical Specs
| Specification | Detail |
|---|---|
| Power Output | 300 watts |
| Interior Diameter | 53 mm |
| Exterior Diameter | 115 mm |
| Thickness | 24 mm |
| Number of Wires | 7 |
| Number of Terminals | 7 |
| Alternator (White between each) | 0.4 ohms +/-20% |
| Alternator (White to Ground) | O.L. on display |
| Pickup (Green to Blue) | 450 ohms +/-20% |
| Position Sensor (Orange to White/Blue) | 0.2 ohms +/-20% |
| Winding Temperature Rating | 200 degrees Celsius |
| Manufacturer Part Number | RM01017G |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Raptor 350 | 2000-2013 |
| Yamaha Warrior 350 | 2000-2013 |
| Yamaha Wolverine 350 | 2000-2013 |
| Yamaha Big Bear 400 | 2000-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5NF-81410-00-00 | Yamaha - stator |
| 3GD-15451-00-00 | Yamaha - stator cover gasket |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original unit and installs plug-and-play. The connector and rubber grommet are supplied, so the loom does not need to be cut or spliced.
What is included in the box?
The stator, the stator cover gasket, the pickup pulsar coil, the connector, the rubber grommet and a tube of dielectric grease.
How can I tell my old stator has failed?
Measure the resistance across the windings with a multimeter and compare against the figures in the Technical Specs table above. The alternator legs should read about 0.4 ohms between each white wire, and any white wire to ground should read open line. A reading that is short to ground, or far outside the plus or minus 20 percent tolerance, indicates a failed winding. A battery that will not hold charge while the engine is running is the usual symptom.
What does the 300 watt output give me over a standard stator?
It provides more charging capacity than the original specification, which leaves headroom for accessories such as auxiliary lighting, heated grips or a winch without flattening the battery. It works with the existing regulator rectifier and the rest of the standard charging circuit.
