High Output Stator 300 W & Crankcase Cover Gasket for Yamaha YFM 660 R Raptor 2001-2005
High Output Stator 300 W & Crankcase Cover Gasket for Yamaha YFM 660 R Raptor 2001-2005
SKU:RM01013G
Free shipping over £150. Terms apply
Couldn't load pickup availability

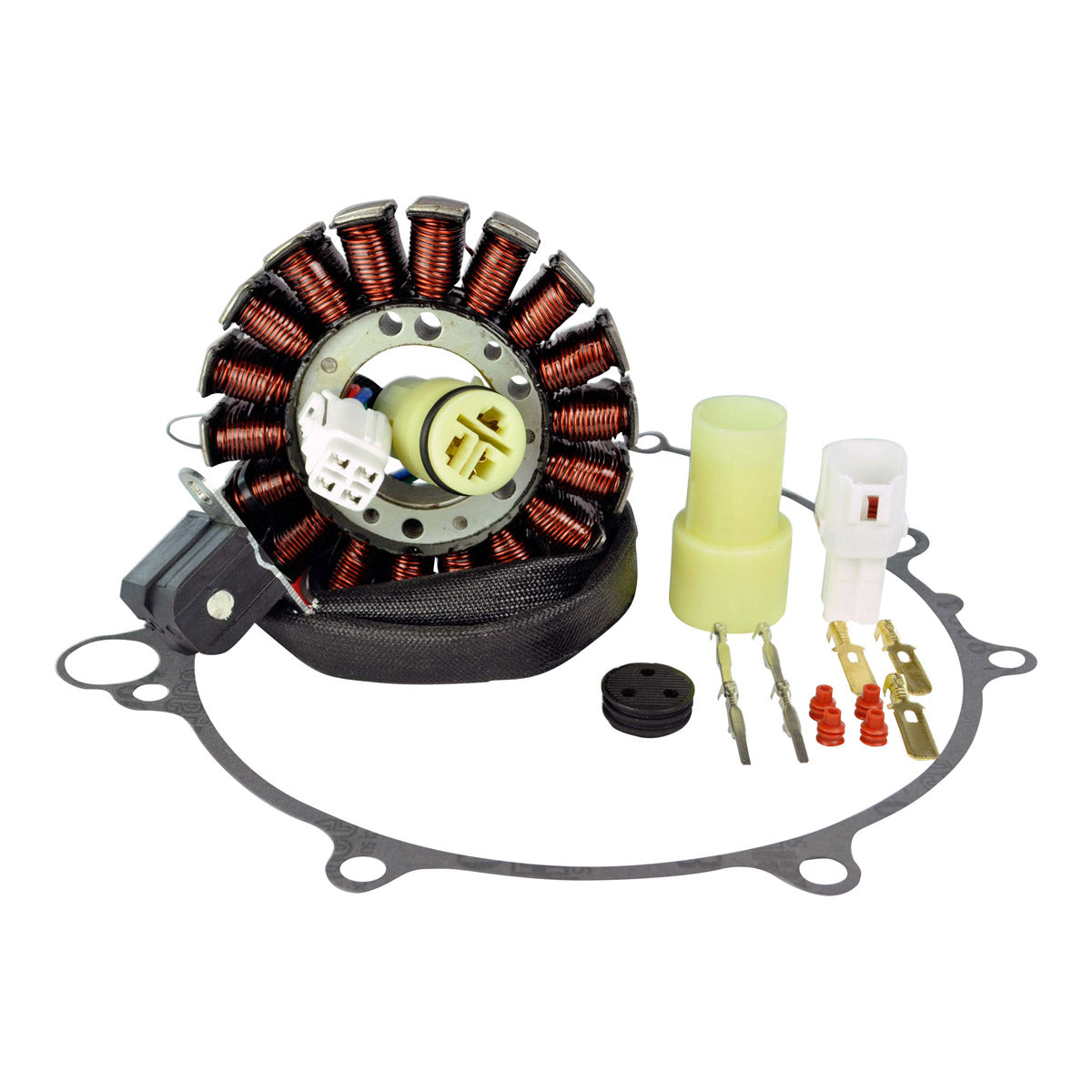

High Output 300 W Stator and Crankcase Cover Gasket Kit
Yamaha YFM 660 R Raptor 2001-2005 - RMSTATOR RM01013G

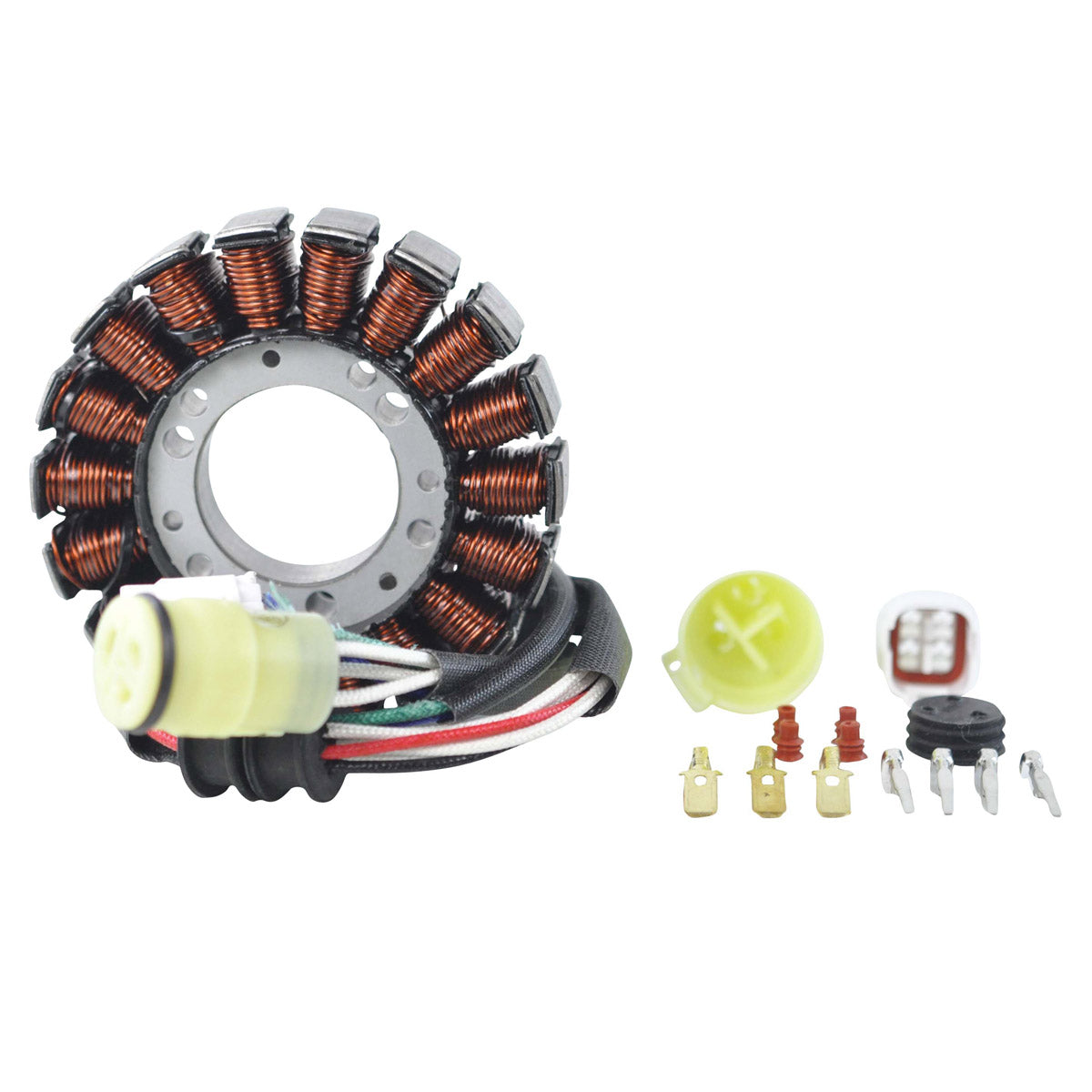

This is a brand new aftermarket high output stator kit for the Yamaha YFM 660 R Raptor built between 2001 and 2005, supplied complete with the matching crankcase cover gasket. It is a direct replacement for the original unit, so it is a plug-and-play, direct fit part that drops straight into the standard stator housing using the standard fixings and the standard wiring route. The stator produces 300 watts, giving the charging system meaningful headroom over a tired or standard-output original, which is useful on a quad that is running heated grips, auxiliary lighting, a winch or any other added electrical load. The pick-up pulsar coil is supplied already mounted on the backing plate, so the ignition trigger and the charging windings are replaced together as one assembly.
RMSTATOR build this unit using the highest grade lamination materials and the highest grade copper winding, insulated to withstand 200 degrees Celsius. That temperature rating matters on an air-cooled single that spends its life at low speed in sand and mud, where the crankcase cover sees very little cooling airflow and the original winding varnish is often what fails first. The kit also includes the opposite connector for the main harness side, because the original connector on that side is frequently melted, corroded or already partly failed, and replacing only the stator while leaving a damaged plug in place is one of the most common reasons a repair does not last. Every unit is bench tested before it is shipped.
Key Features
- 300 watt high output charging capability
- Direct replacement for the original unit - plug-and-play, direct fit installation
- Highest grade lamination materials
- Highest grade copper winding, resistant to 200 degrees Celsius
- Pick-up pulsar coil included and pre-fitted

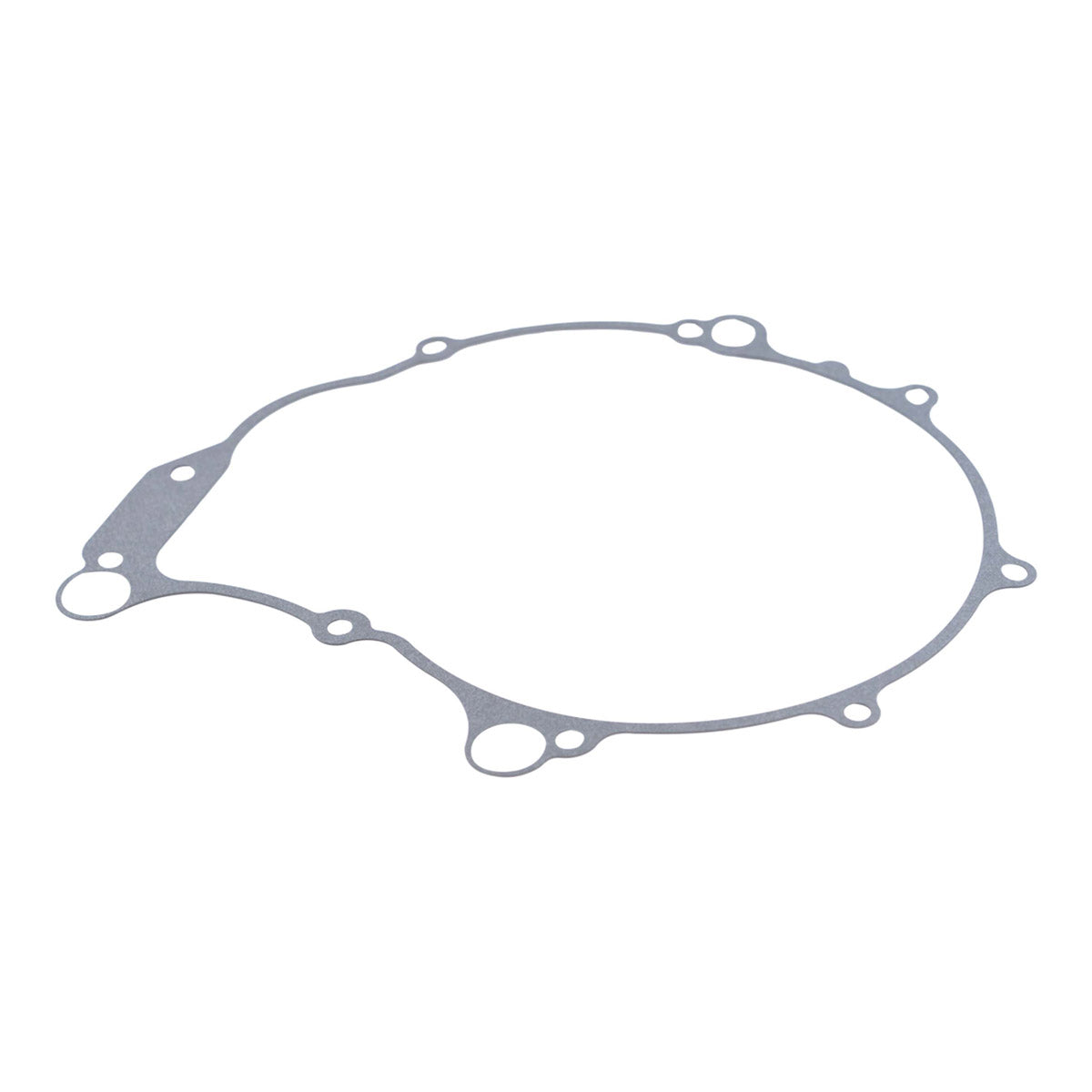

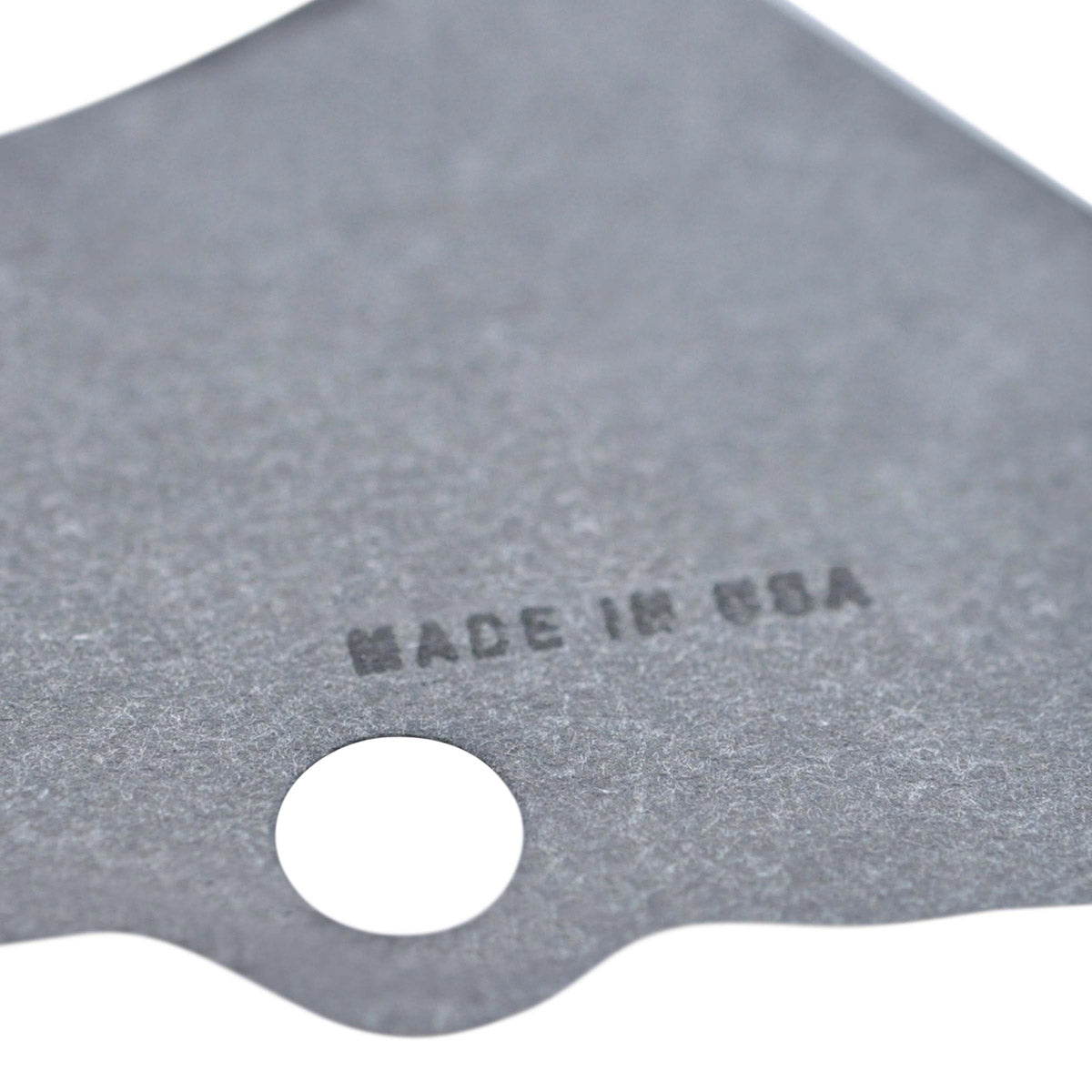

- Crankcase cover gasket included

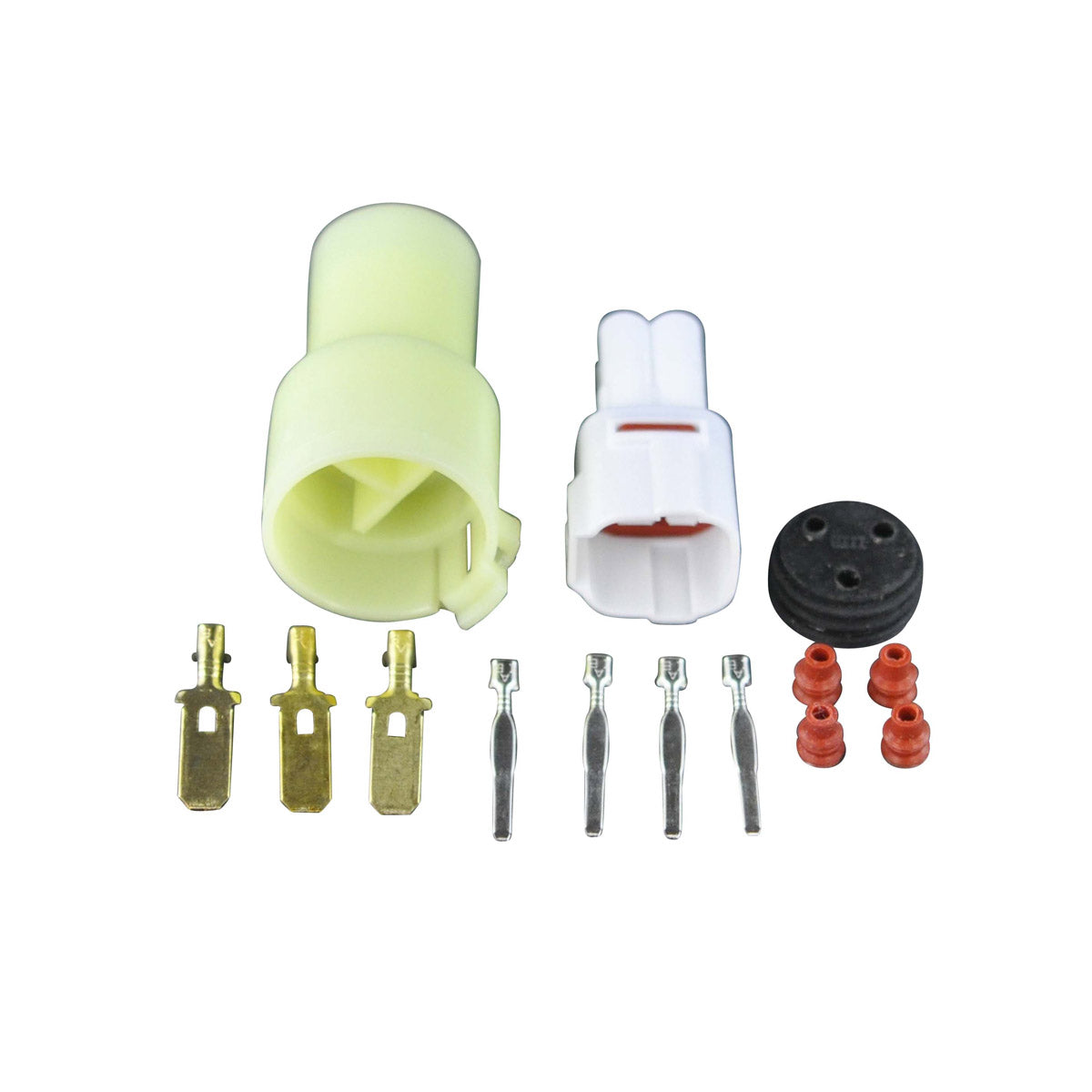

- Connector included
- Rubber grommet included
- Opposite connector for the main harness side included, as the originals are often melted, corroded or defective
- All shipped products are tested
Technical Specs
| Specification | Detail |
|---|---|
| Power output | 300 W |
| Interior diameter | 35 mm |
| Exterior diameter | 93 mm |
| Thickness | 12.3 mm |
| Number of wires | 7 |
| Number of plugs | 2 |
| Number of pins | 7 |
| Wire length, stator to grommet | 70 mm |
| Wire length, grommet to plug | 380 mm |
| Pick-up coil wire to grommet | 80 mm |
| Alternator resistance, White between each White | 0.7 ohms +/-20% |
| Pick-up resistance, Blue to Green | 479 ohms +/-20% |
| Position sensor resistance, Black to Red | 0.2 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RM01013G |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 660 R Raptor | 2001-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5LP-81410-01-00 | Yamaha - stator |
| 5LP-81410-00-00 | Yamaha - stator |
| 5LP-15451-00-00 | Yamaha - crankcase cover gasket |
Frequently Asked Questions
Does this fit without any modification?
Yes. This is a direct replacement for the original unit on the Yamaha YFM 660 R Raptor 2001-2005. It is a plug-and-play, direct fit part, so it uses the standard mounting points, the standard wiring route and the standard connectors. No cutting, splicing or drilling is required.
What is included in the box?
You receive the 300 W high output stator with the pick-up pulsar coil already fitted, the crankcase cover gasket, the connector, the rubber grommet, and the opposite connector for the main harness side.
How do I tell whether my old stator has failed?
Measure the windings with a multimeter and compare against the figures in the specification table above. Alternator resistance should read 0.7 ohms +/-20% between each White wire, the pick-up should read 479 ohms +/-20% between Blue and Green, and the position sensor should read 0.2 ohms +/-20% between Black and Red. A reading that is open circuit, near zero, or well outside the plus or minus 20 percent tolerance indicates a failed winding. Any continuity between a winding wire and the stator body or engine earth also means the stator has shorted and must be replaced.
What does the 300 W high output rating actually give me?
The 300 watt rating describes the electrical output this stator can generate. It provides additional charging capacity compared with a worn or lower-output original, which helps keep the battery properly charged when extra electrical accessories are fitted or when the machine is ridden for long periods at low engine speed.
