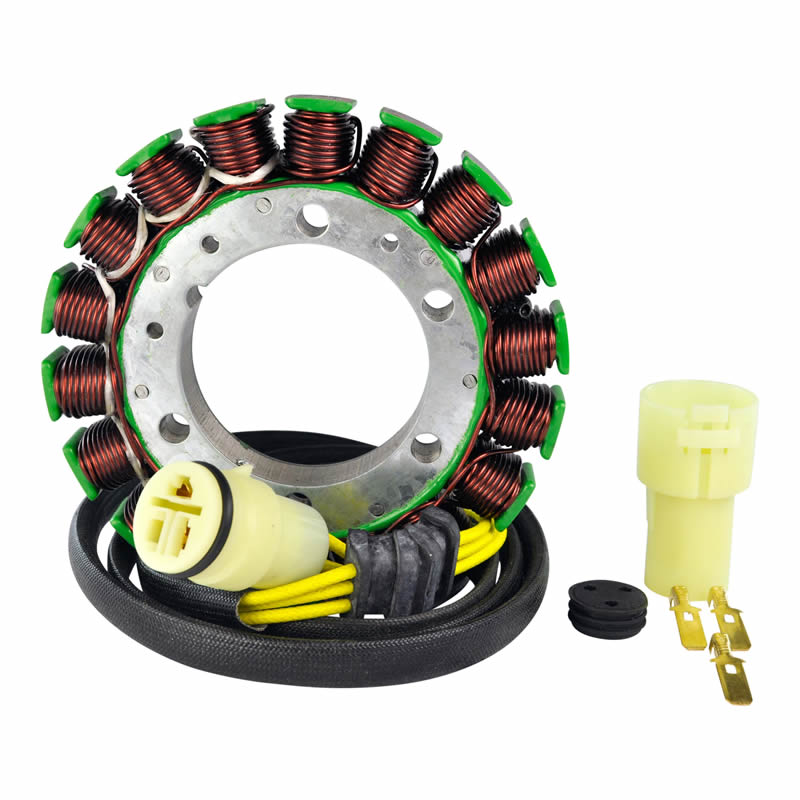

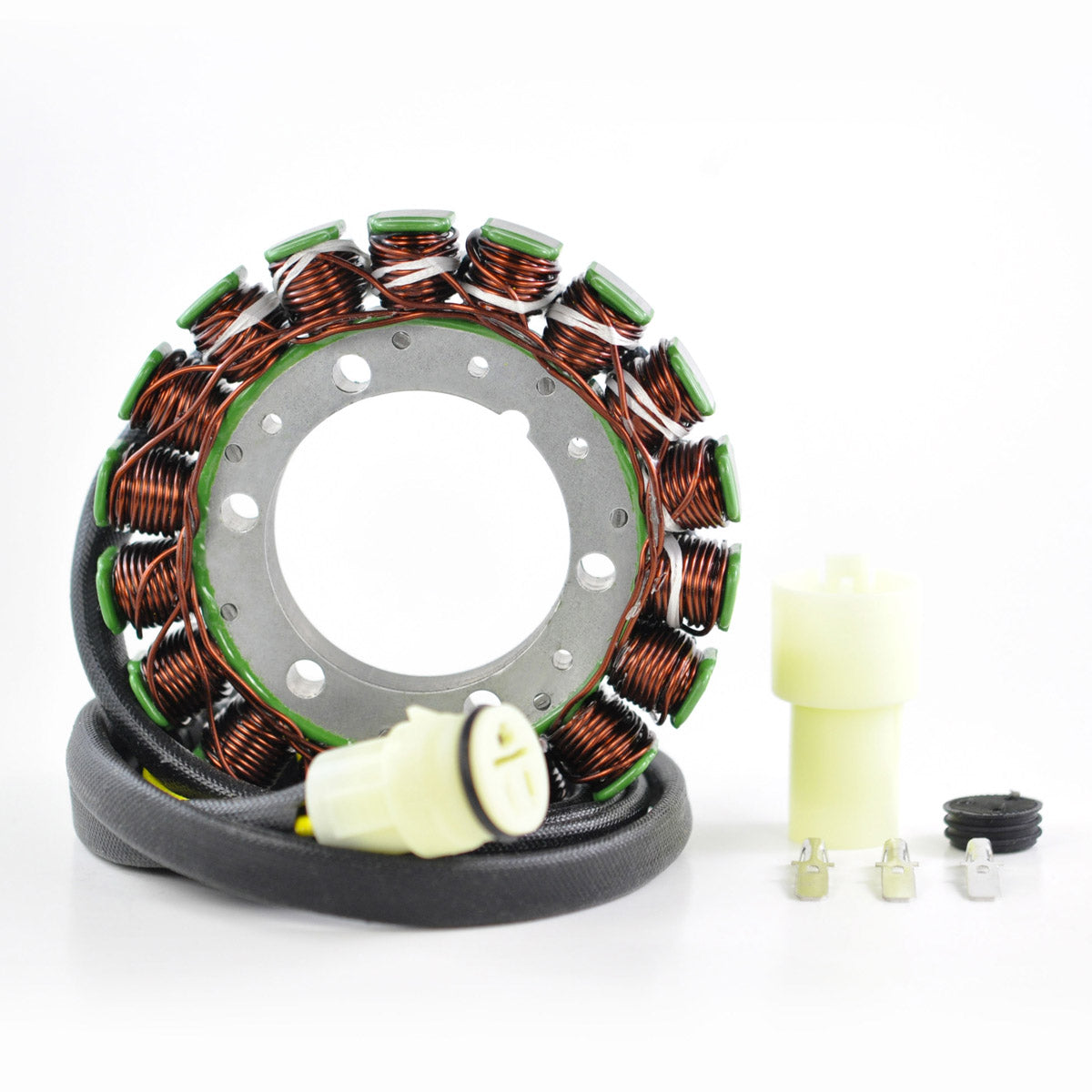

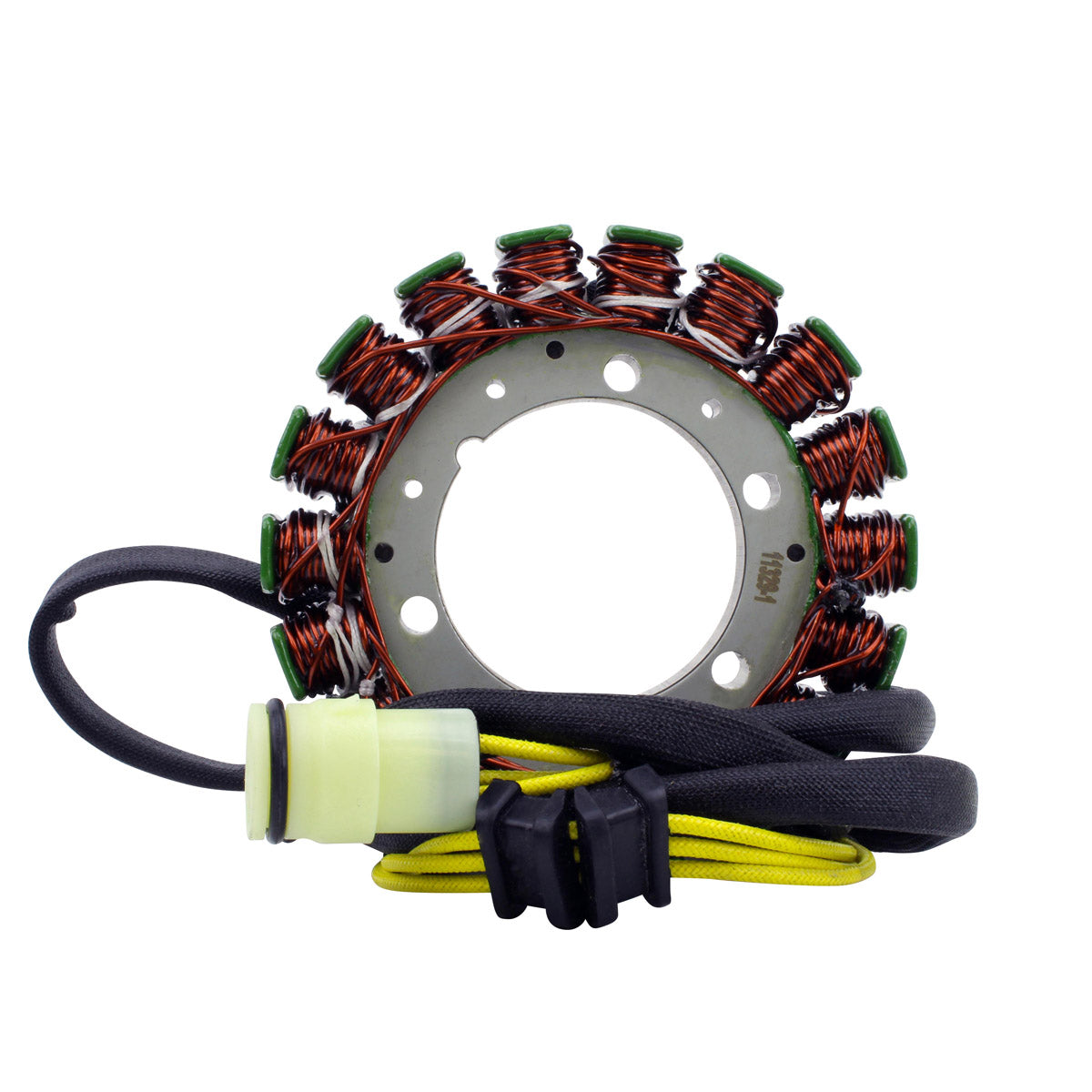

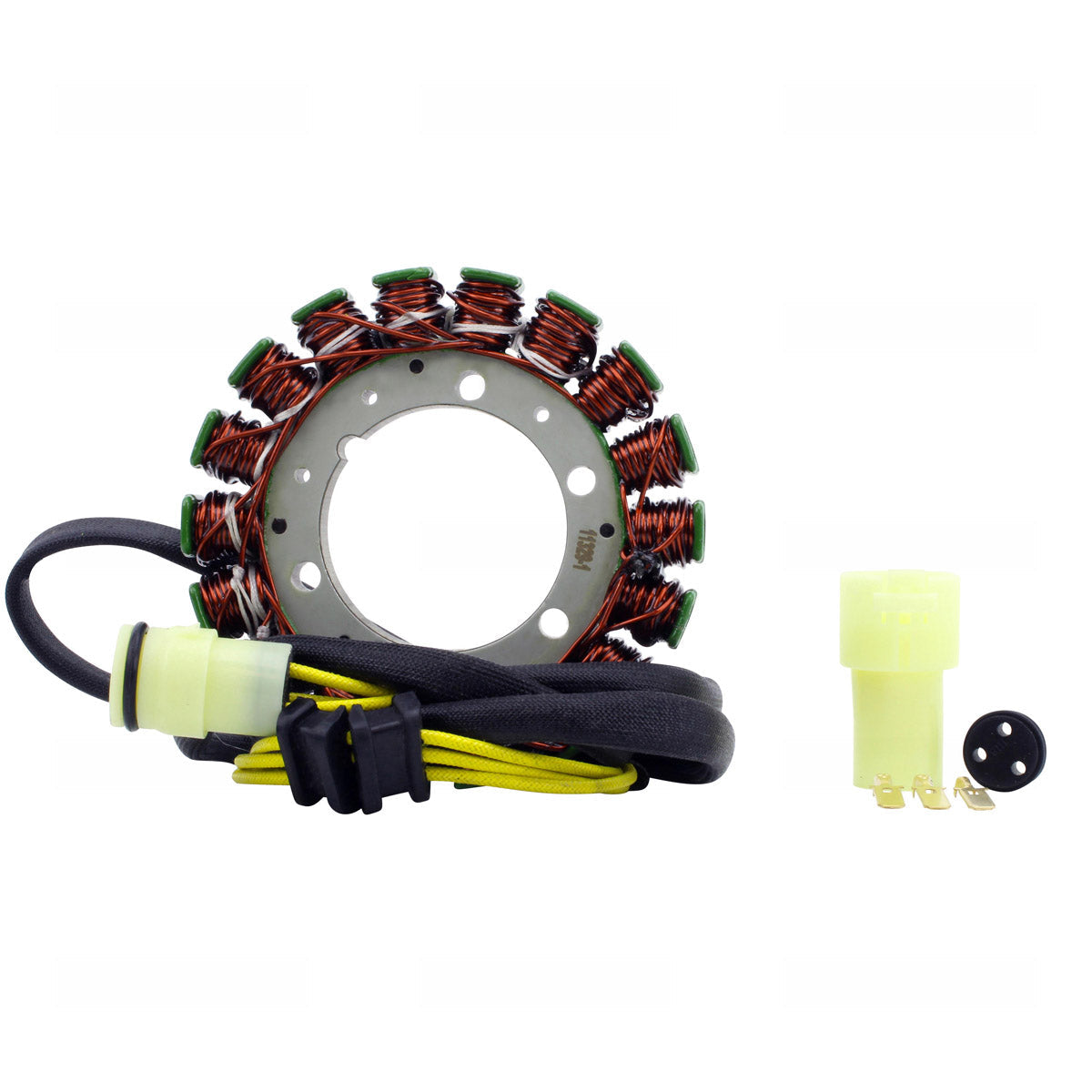

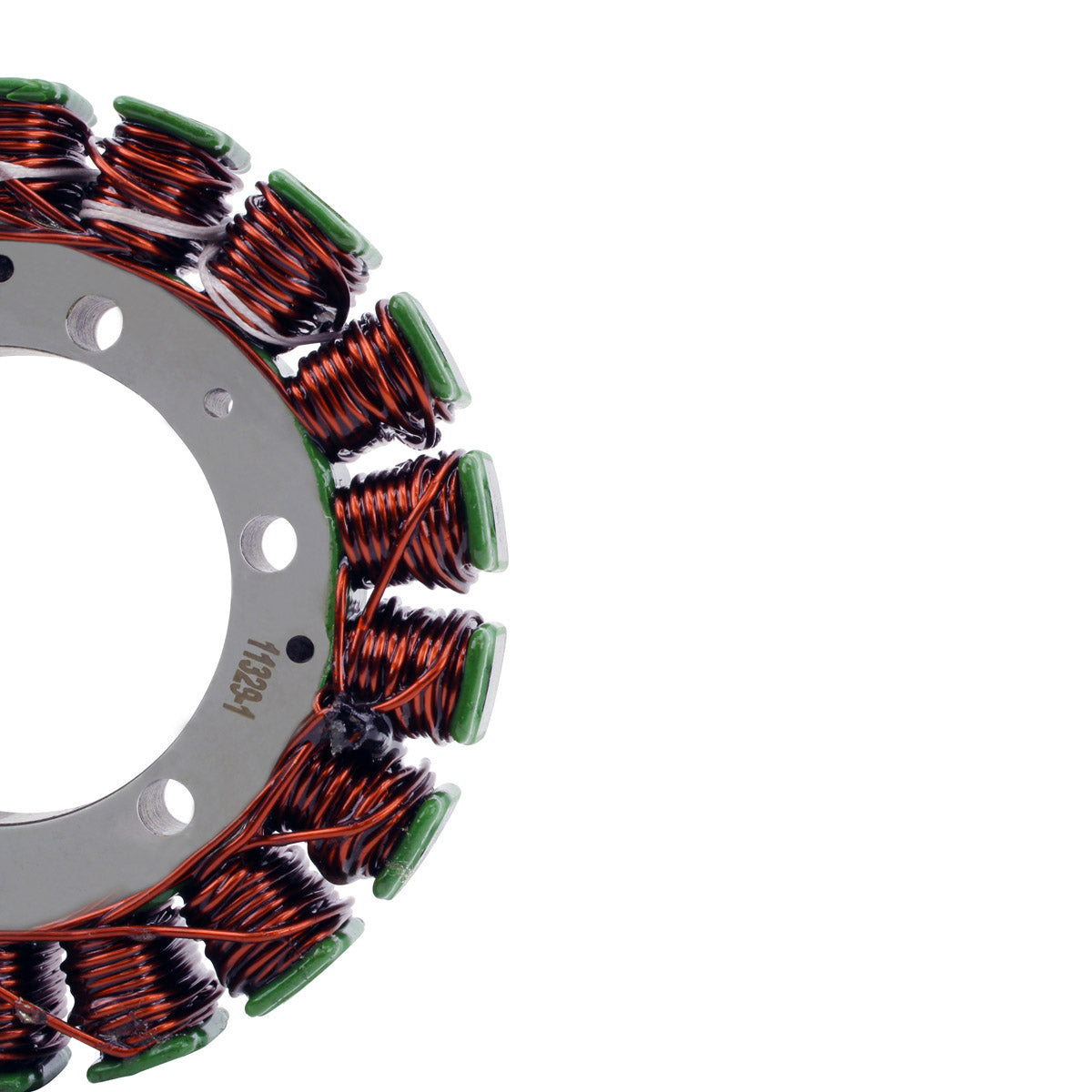

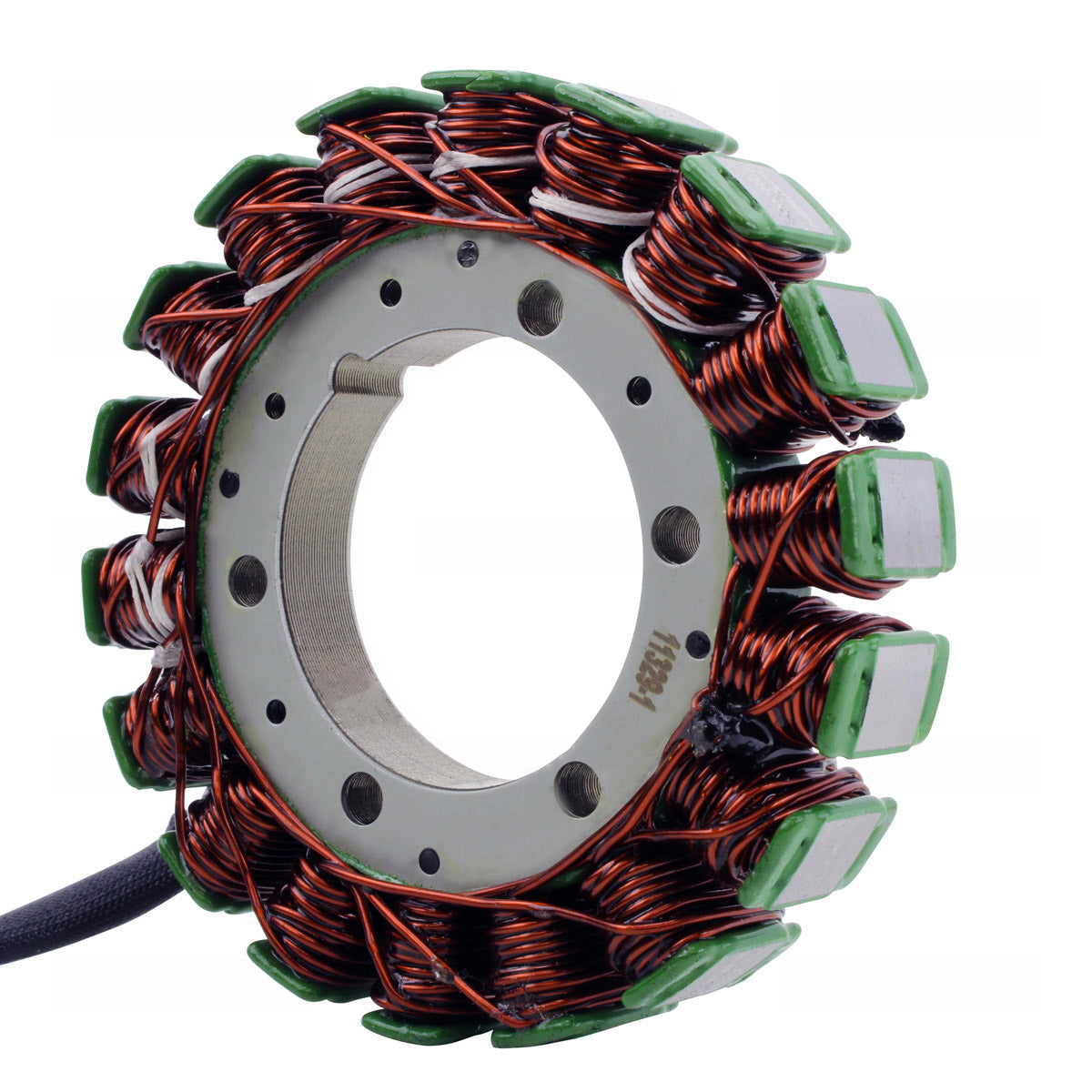

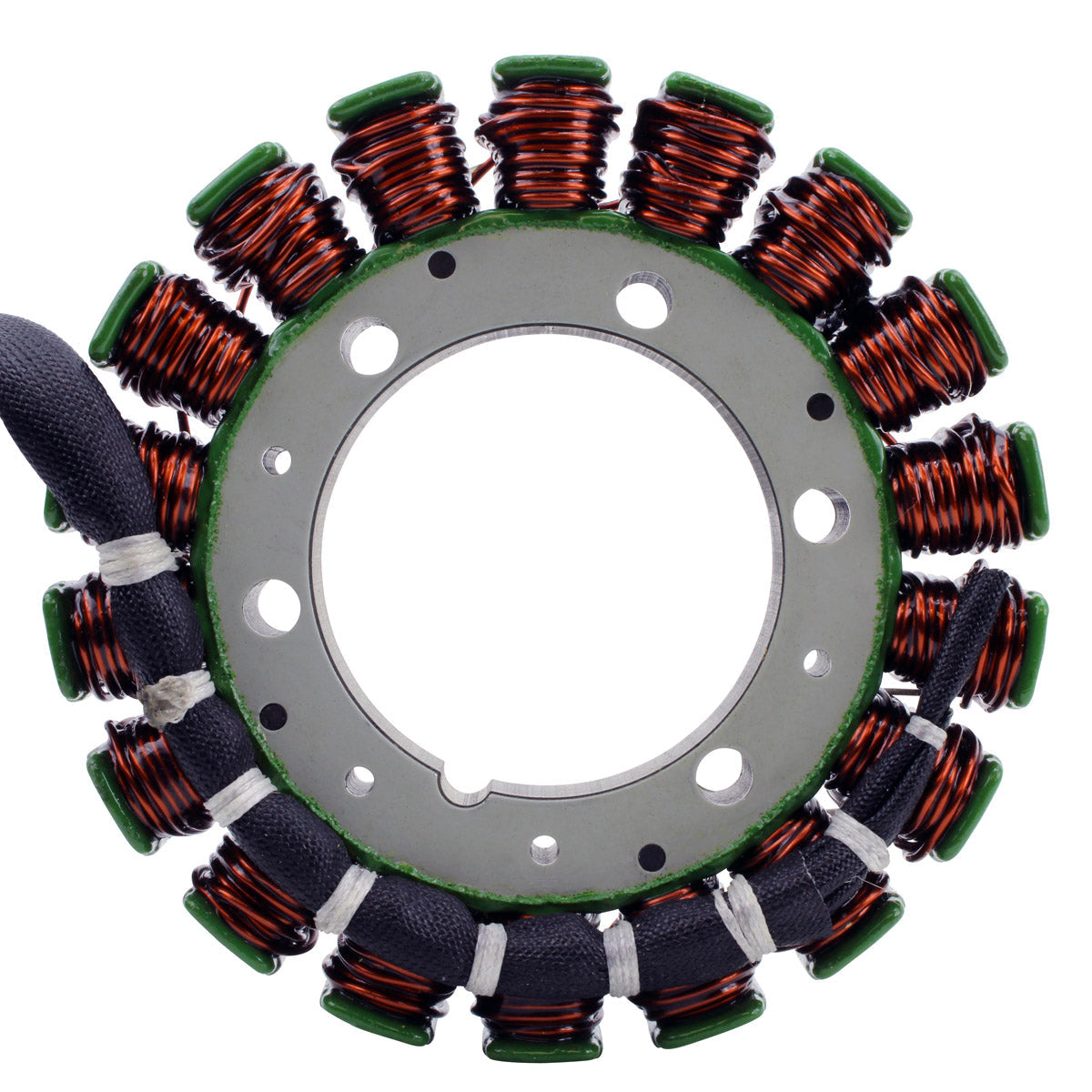

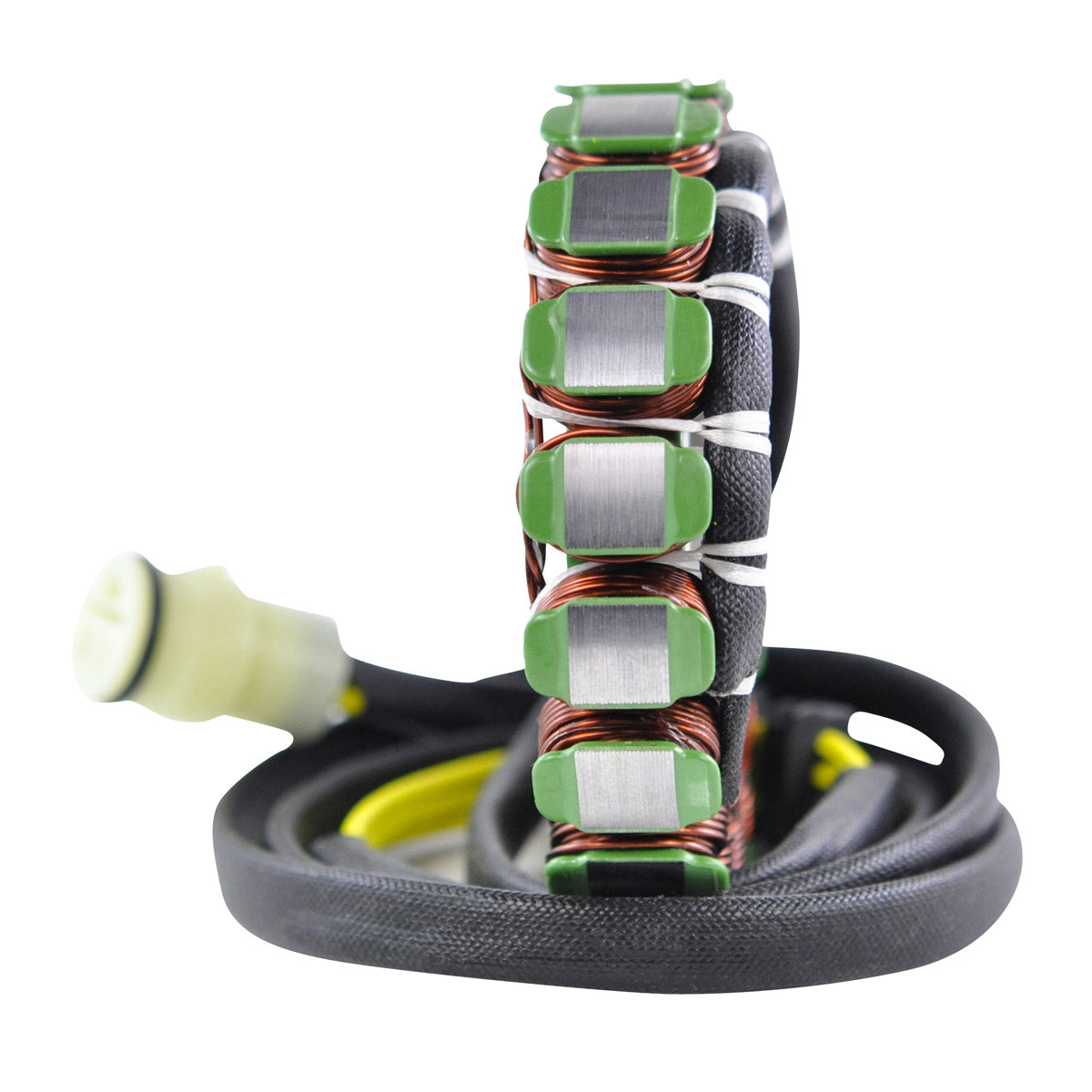

This is a brand new high output aftermarket stator for the Kawasaki KFX 700, the KVF 650 and KVF 750 Brute Force and Prairie, and the Suzuki LTV 700, covering model years 2002 to 2013. It is a direct replacement for the original unit and gives 20 percent more output over stock while continuing to work with all other OEM components, so no changes to the rest of the charging system are needed.
The stator generates the AC current that charges the battery and feeds the ignition. When the windings break down you typically get a flat battery, a weak or intermittent spark, or charging that only comes in at high revs. This unit uses the highest grade lamination materials and copper windings rated to 200 degrees Celsius, and it is supplied with the connector, the opposite connector and the rubber grommet. Every unit is tested before it is shipped.
Key Features
- 20 percent more output over the stock stator
- Works with all other OEM components - no modification required
- Brand new aftermarket unit - not a remanufactured core
- Highest grade lamination materials and copper windings
- Windings rated to 200 degrees Celsius

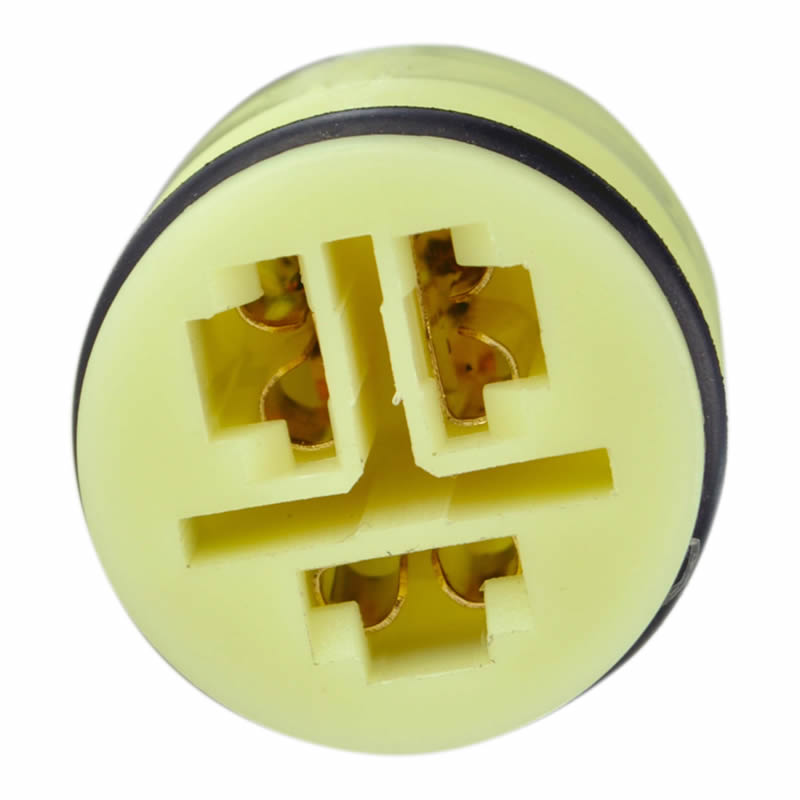

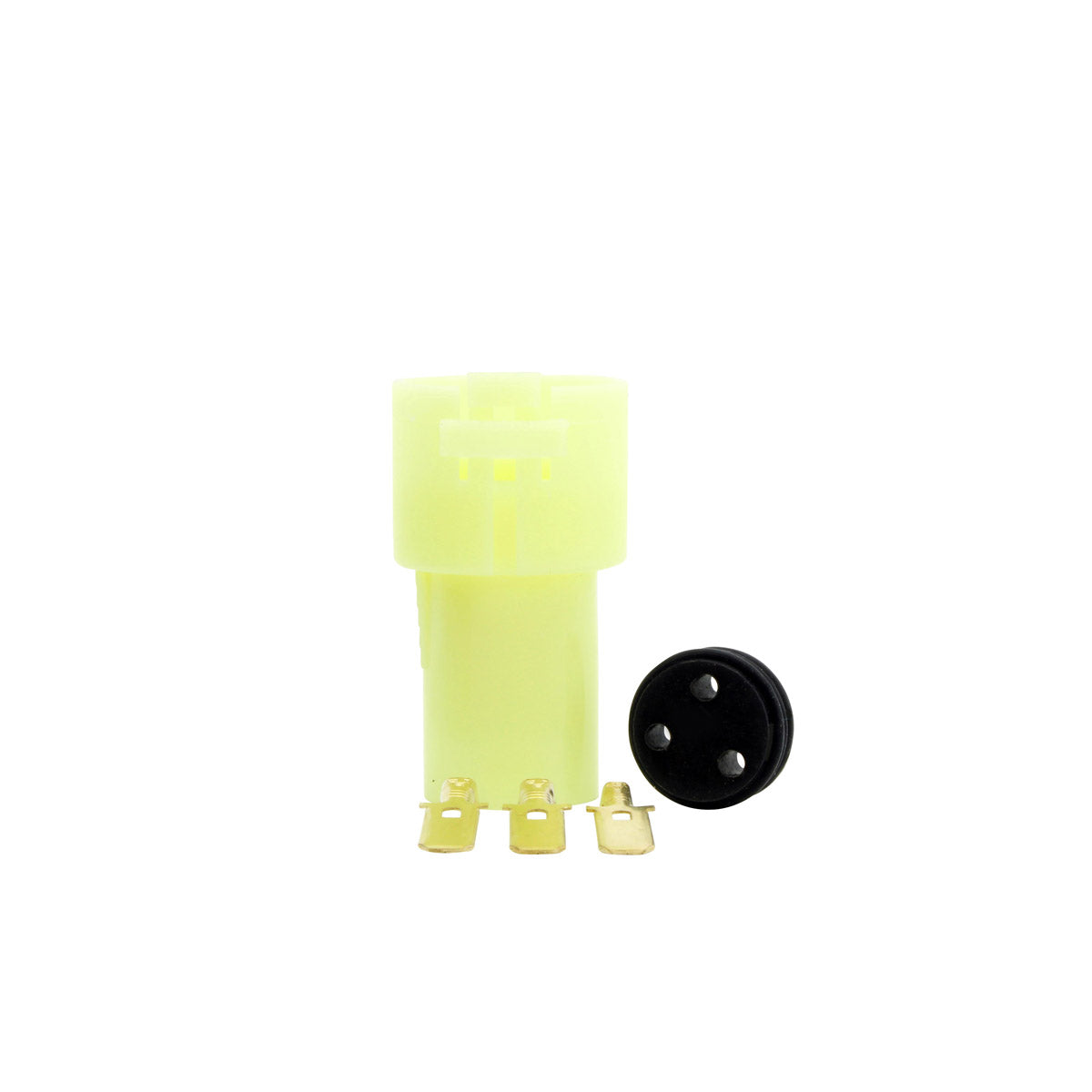

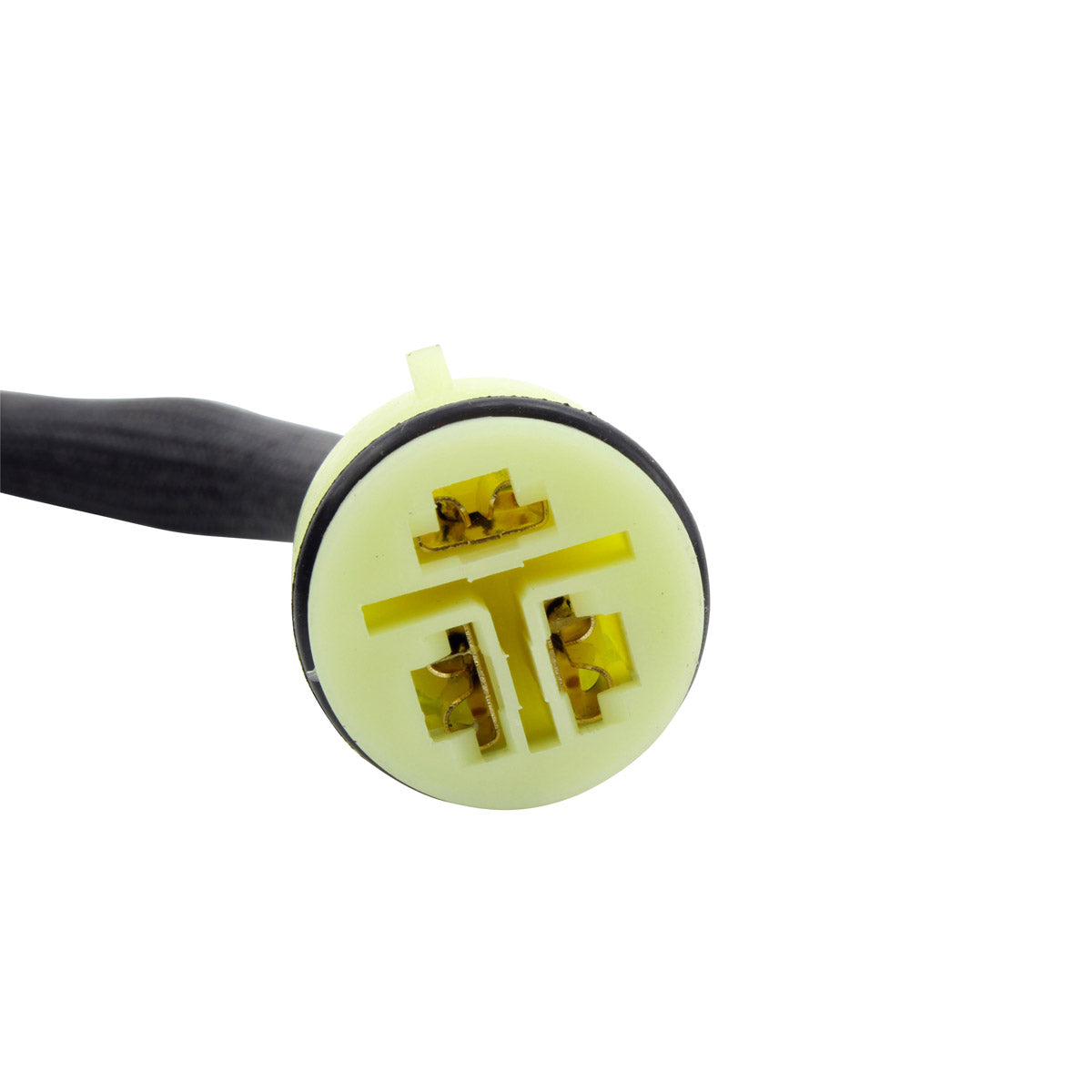

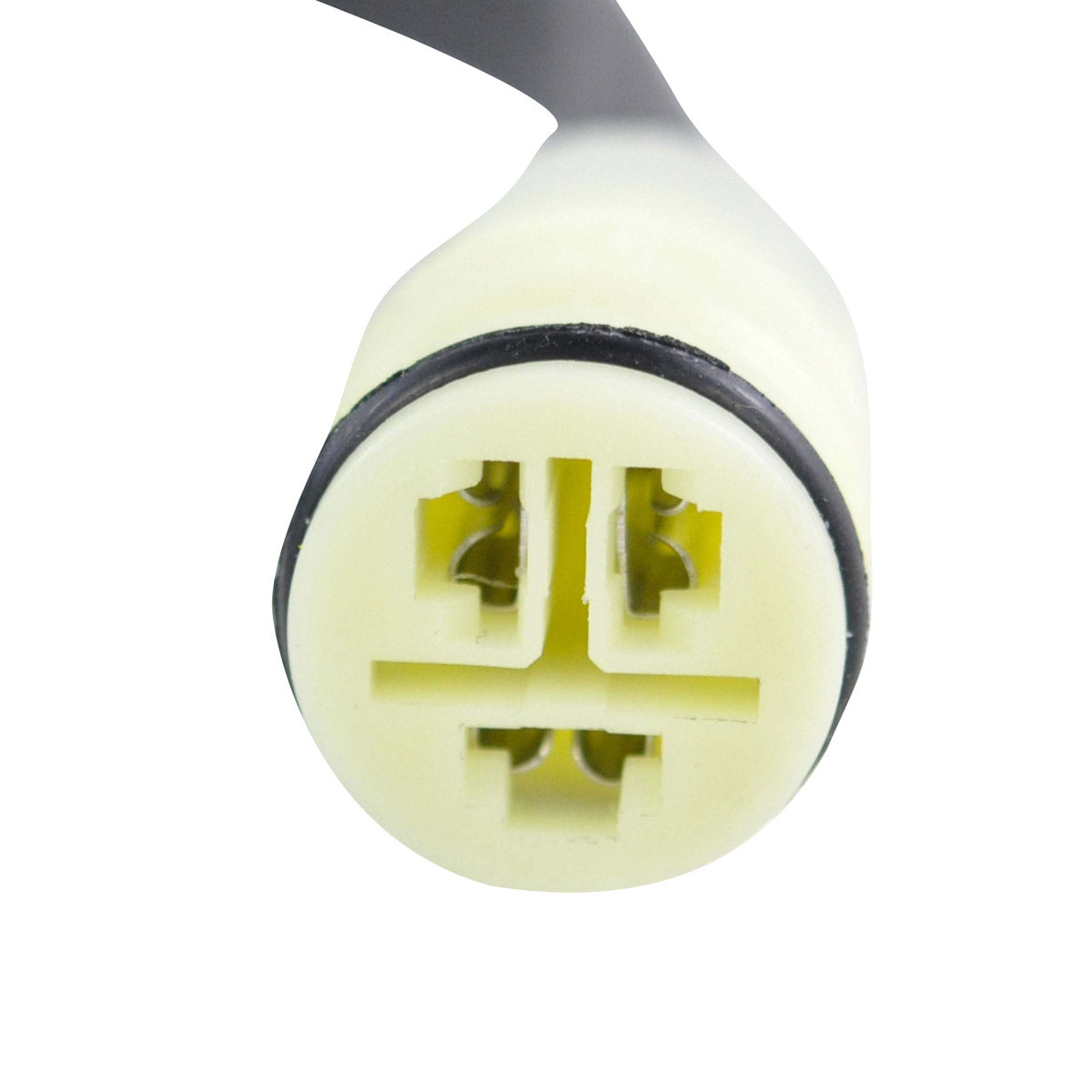

- Supplied with connector, opposite connector and rubber grommet
- Every unit tested before dispatch
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RM01045 |
| Component |
High output stator |
| Interior diameter |
53 mm |
| Exterior diameter |
114 mm |
| Thickness |
14 mm |
| Wire length (stator to grommet) |
320 mm |
| Wire length (grommet to plug) |
870 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
18 |
| Wire-to-wire resistance (Yellow to Yellow) |
0.7 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KFX 700 |
2002-2013 |
| Kawasaki KVF 650 / 750 Brute Force |
2002-2013 |
| Kawasaki KVF 650 / 750 Prairie |
2002-2013 |
| Suzuki LTV 700 |
2002-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0012 |
Kawasaki |
| 21003-0003 |
Kawasaki |
| 21003-0092 |
Kawasaki |
| 21003-0093 |
Kawasaki |
| 21003-1359 |
Kawasaki |
| K2100-31359 |
Kawasaki |
Frequently Asked Questions
Will this fit without modification?
Yes. On the applications listed above it is a direct replacement for the original unit and it works with all other OEM components, so the original regulator, wiring and mounting are all retained. No cutting or splicing is required.
What is included in the box?

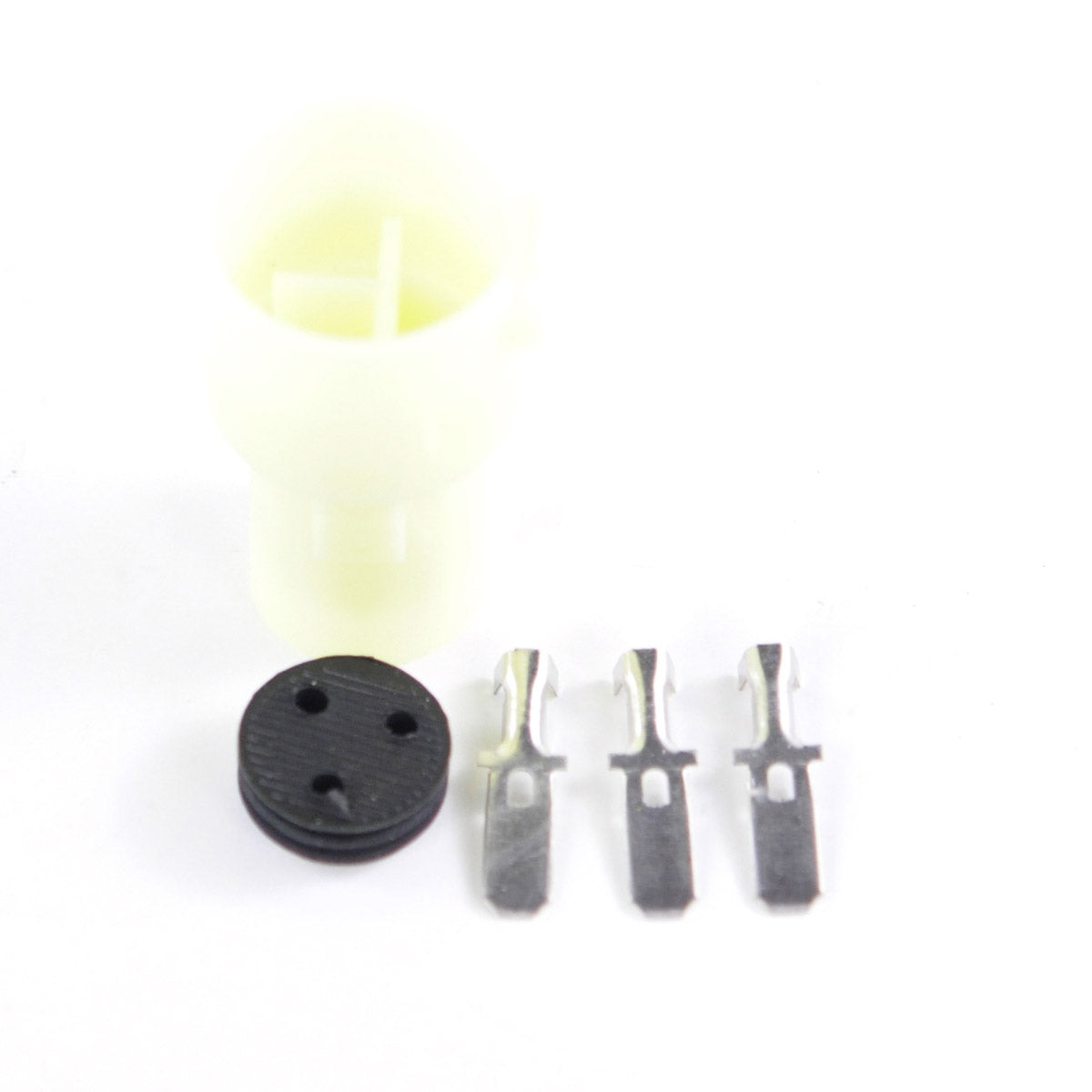

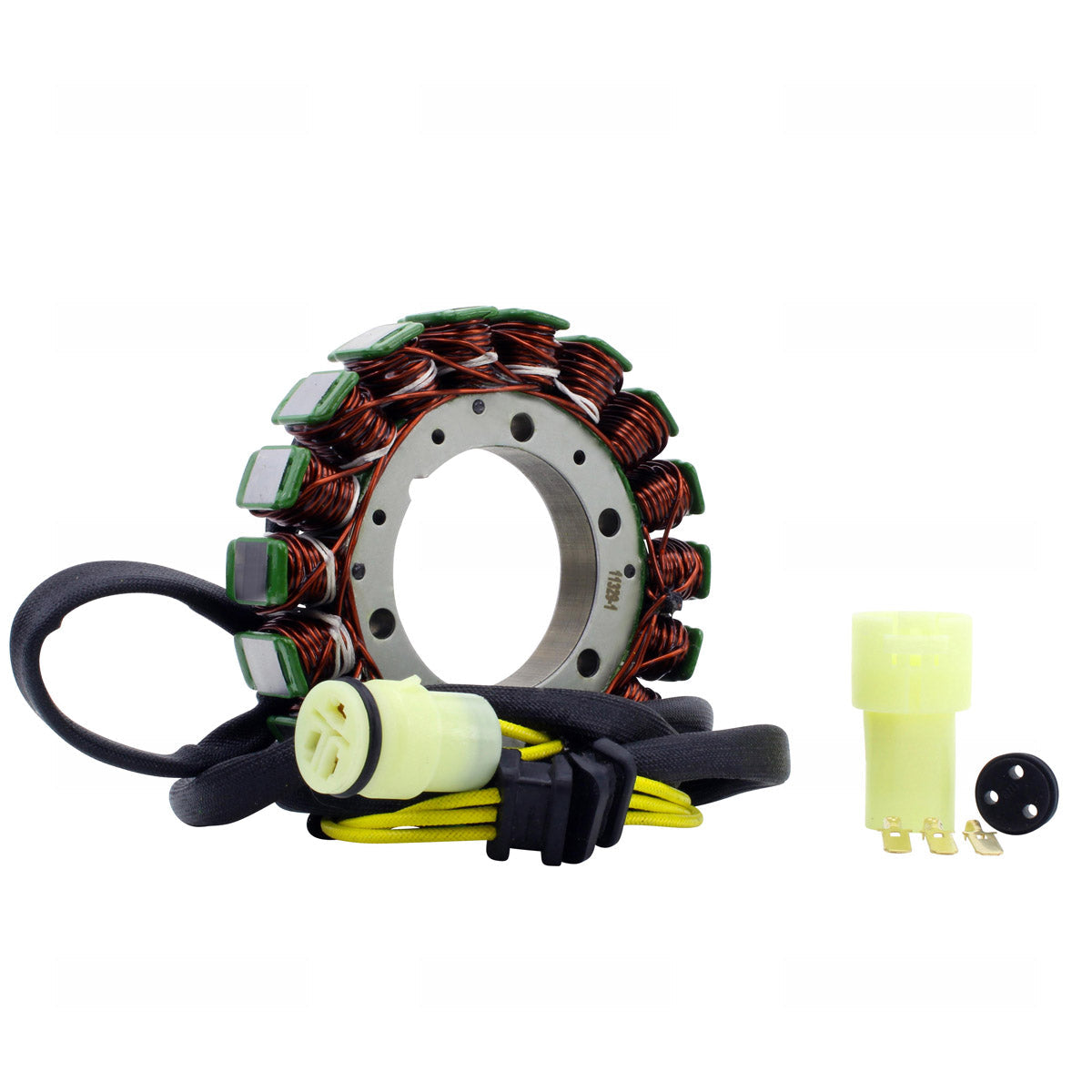

The stator, the connector, the opposite connector and the rubber grommet.
How do I tell the old stator has failed?
With the engine off, measure between the yellow wires - each pair should read about 0.7 ohms, within plus or minus 20 percent - and check that no winding shows continuity to earth. An open circuit, a shorted winding or continuity to earth means the stator has failed.
Do I need a different regulator to use the extra output?
No. This unit gives 20 percent more output over stock and is designed to work with all the other OEM components, including the original regulator or rectifier. It is still worth testing the regulator before fitting, because a shorted regulator can overload a new stator.
