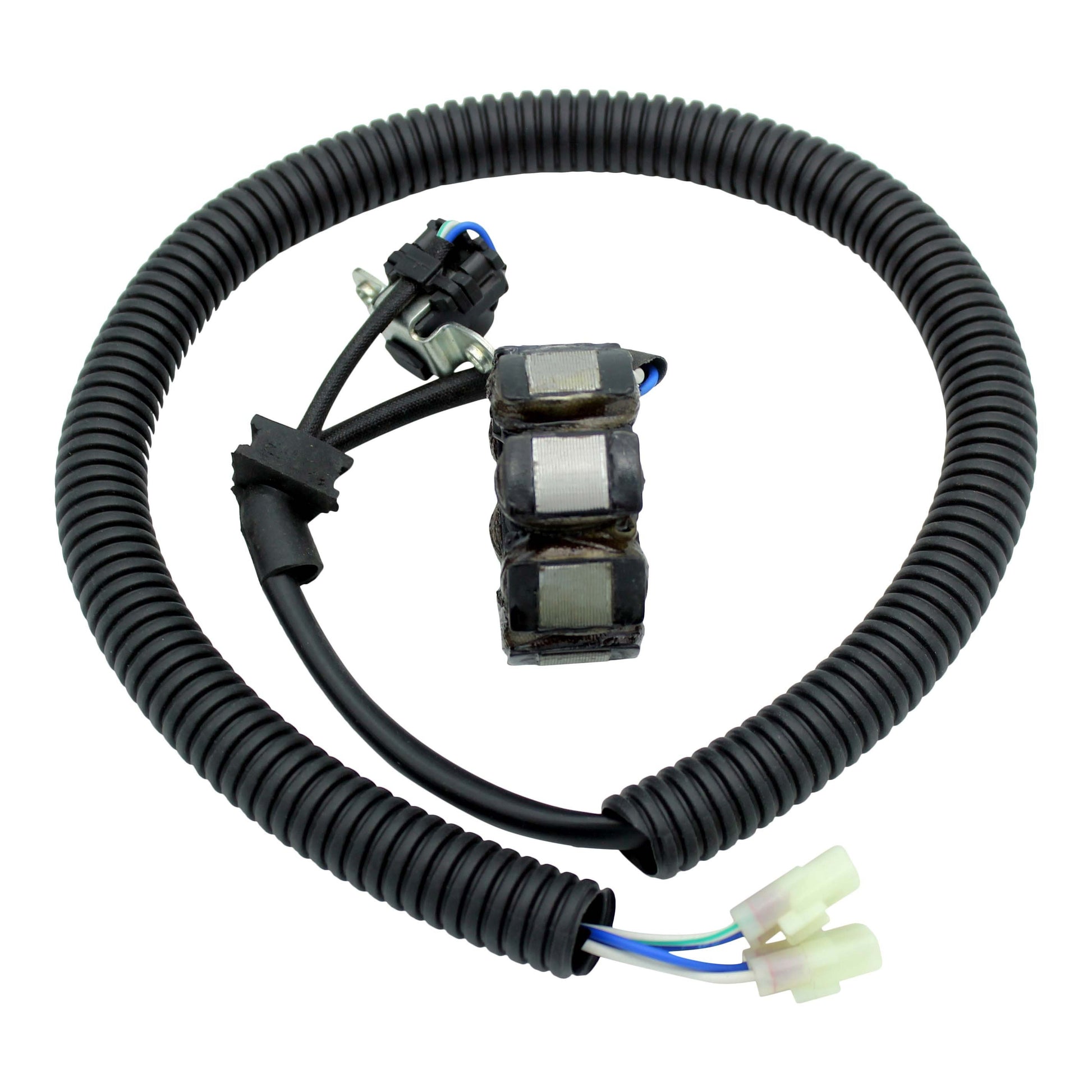

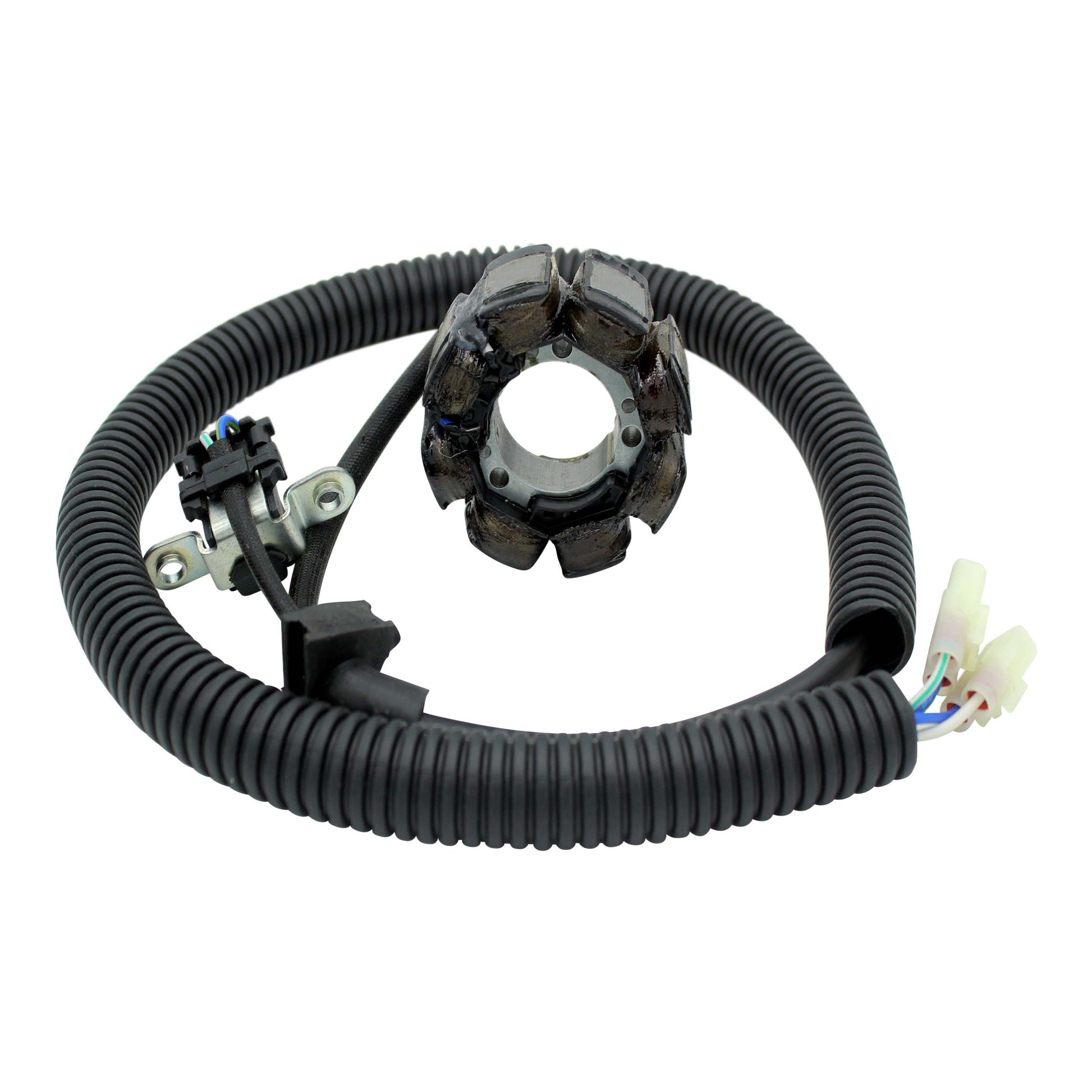

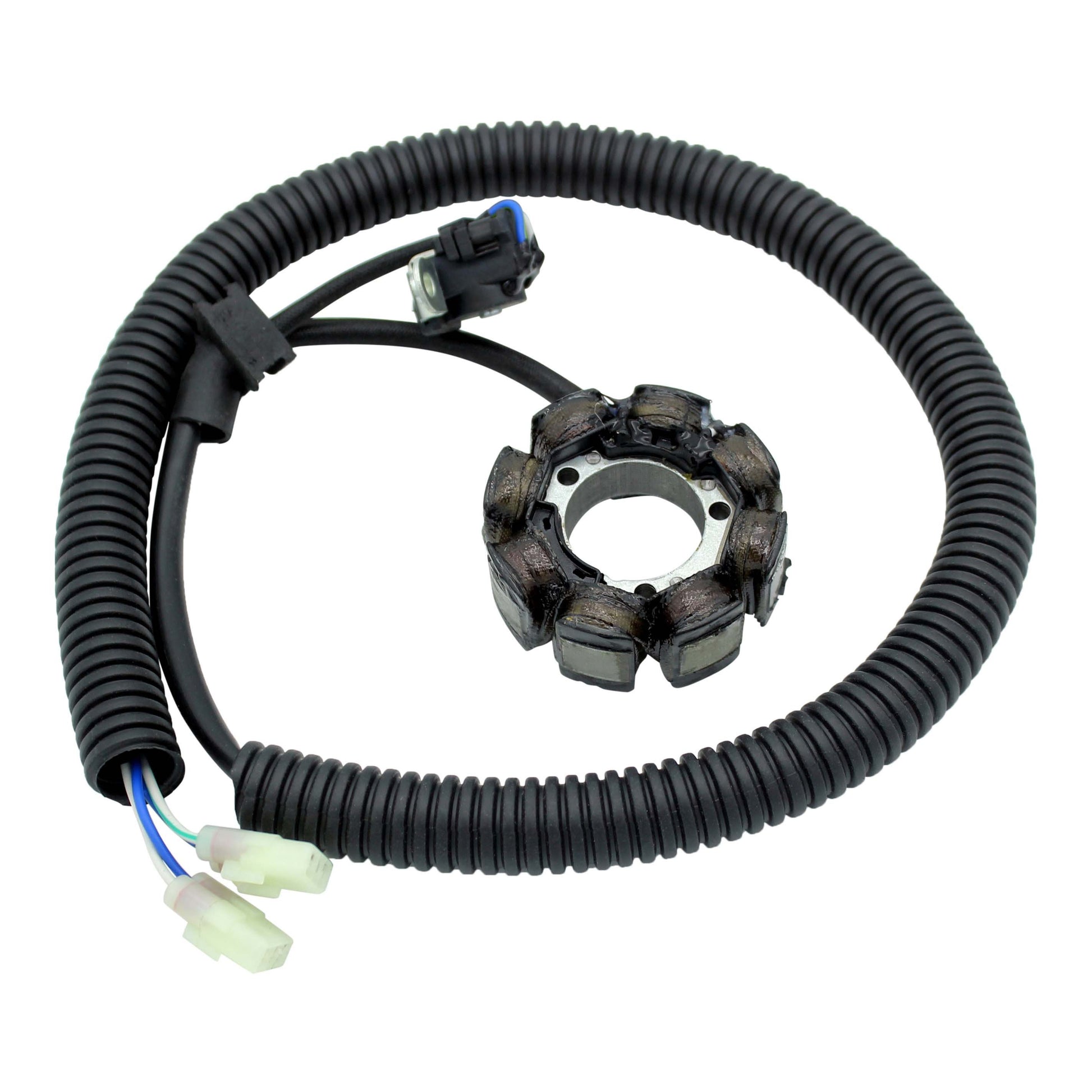

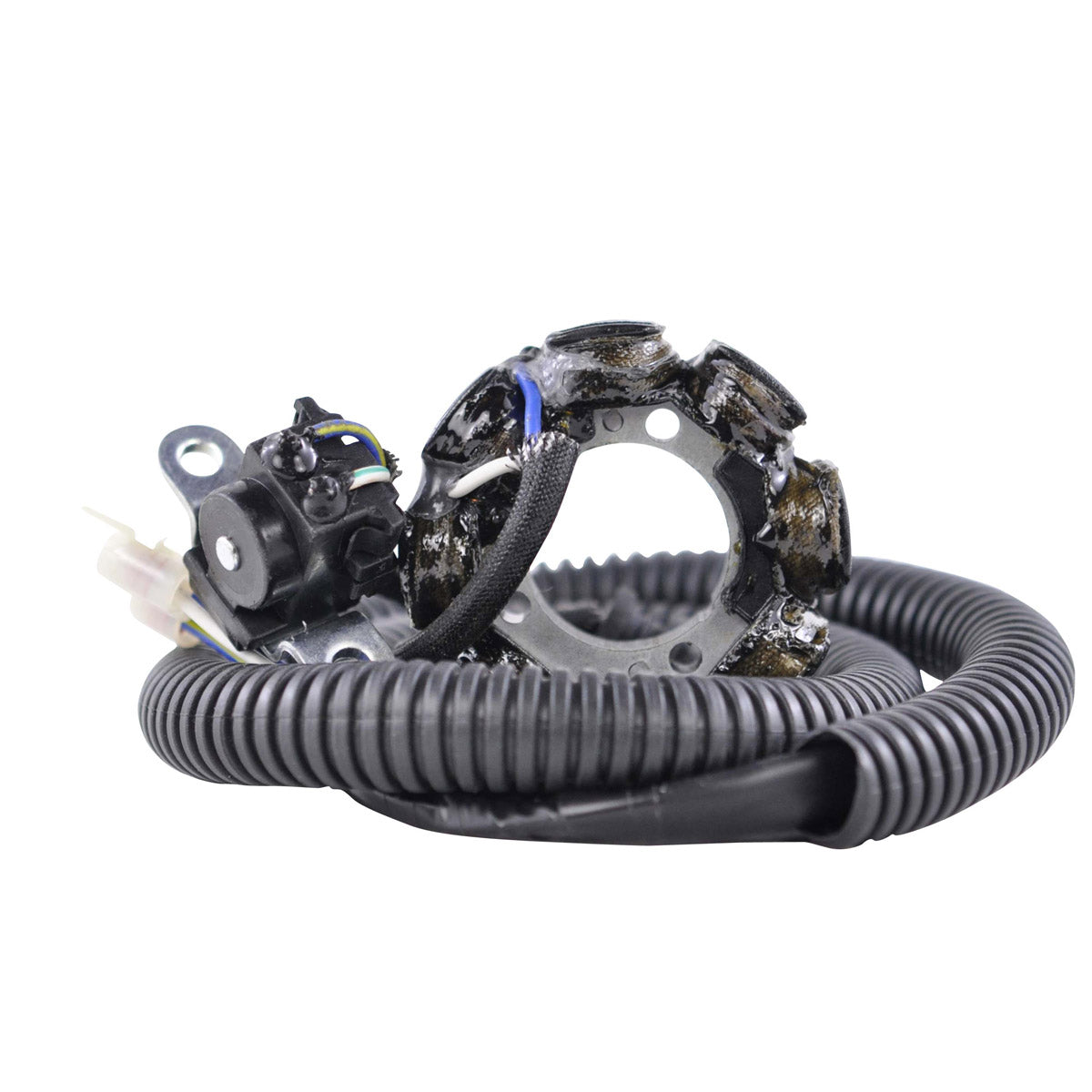

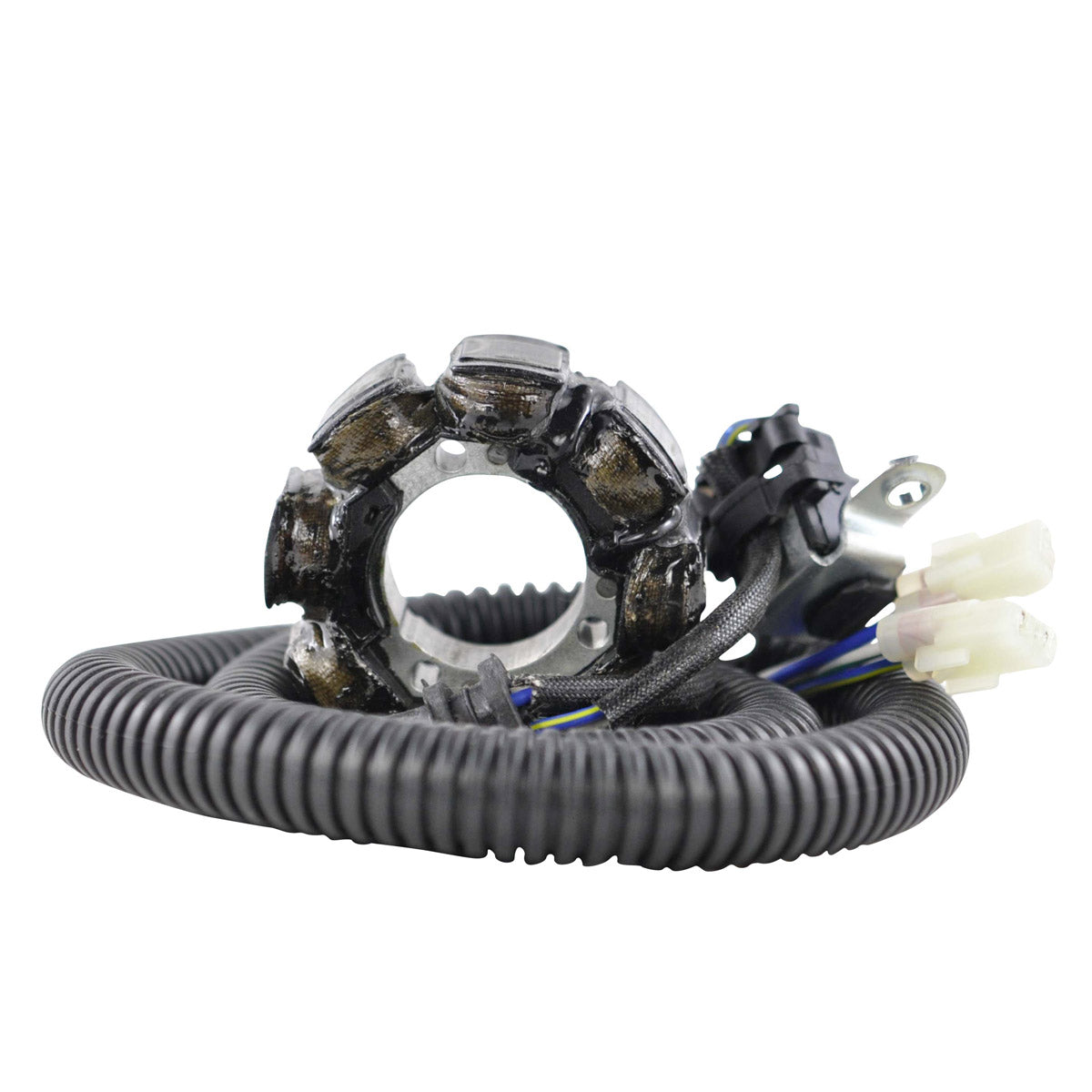

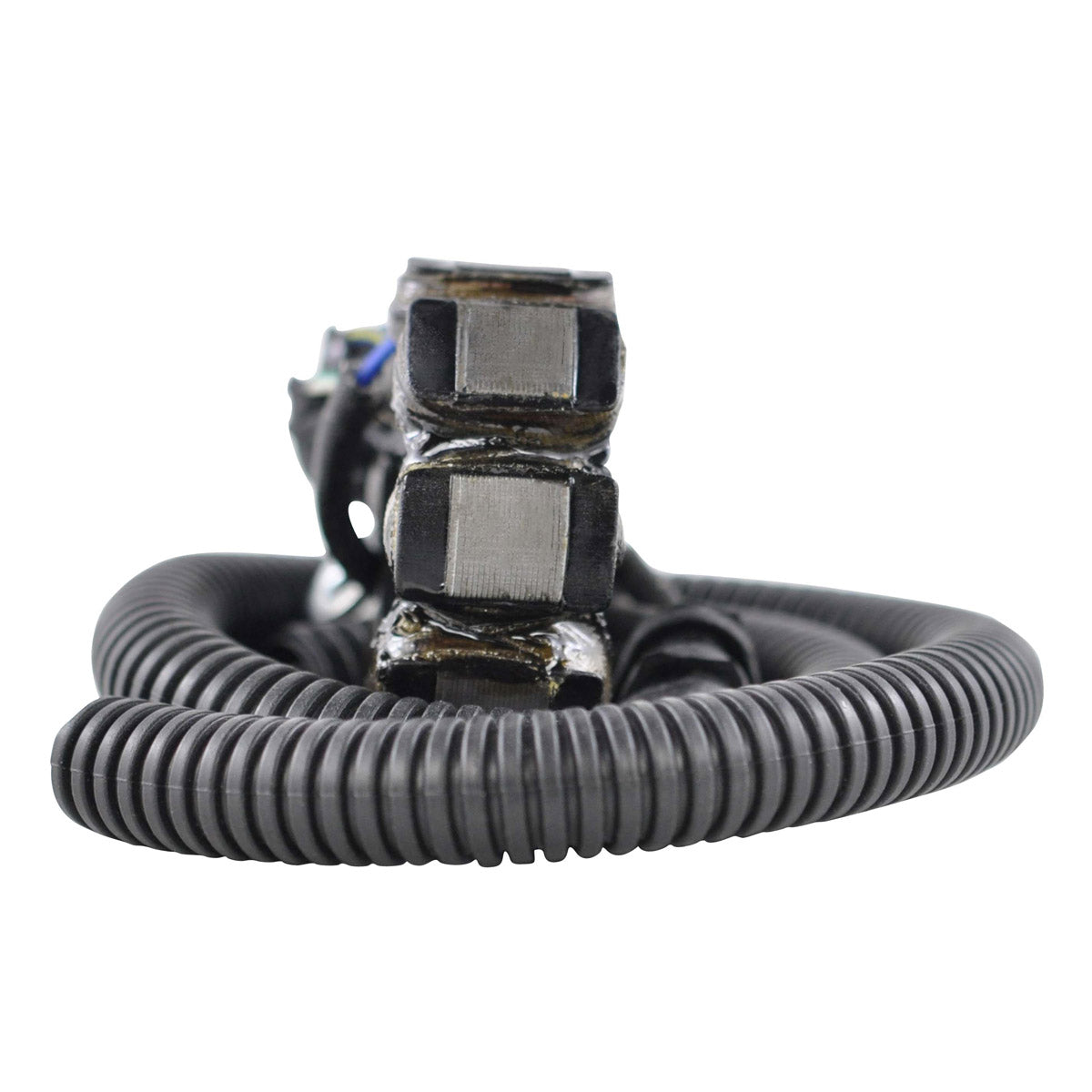

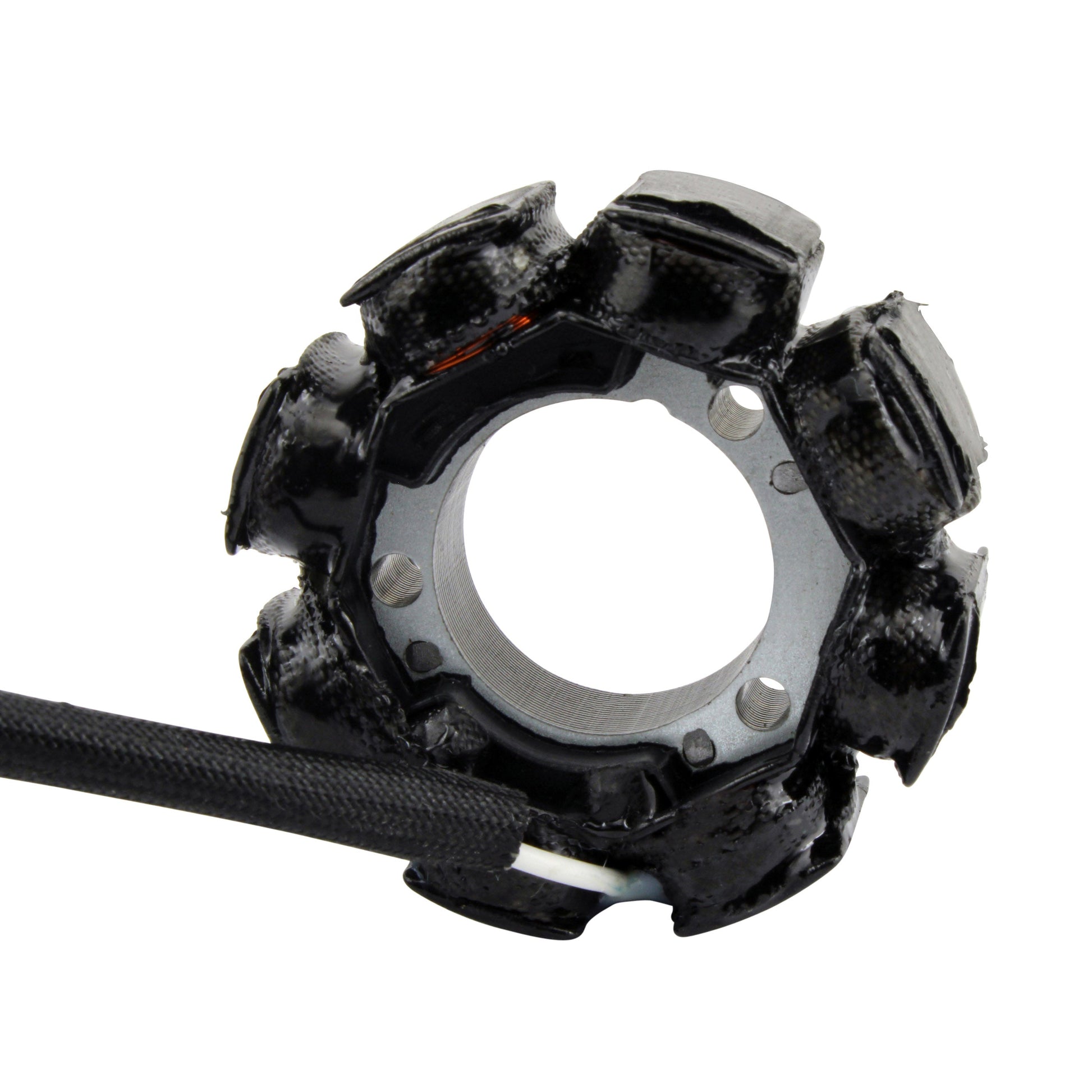

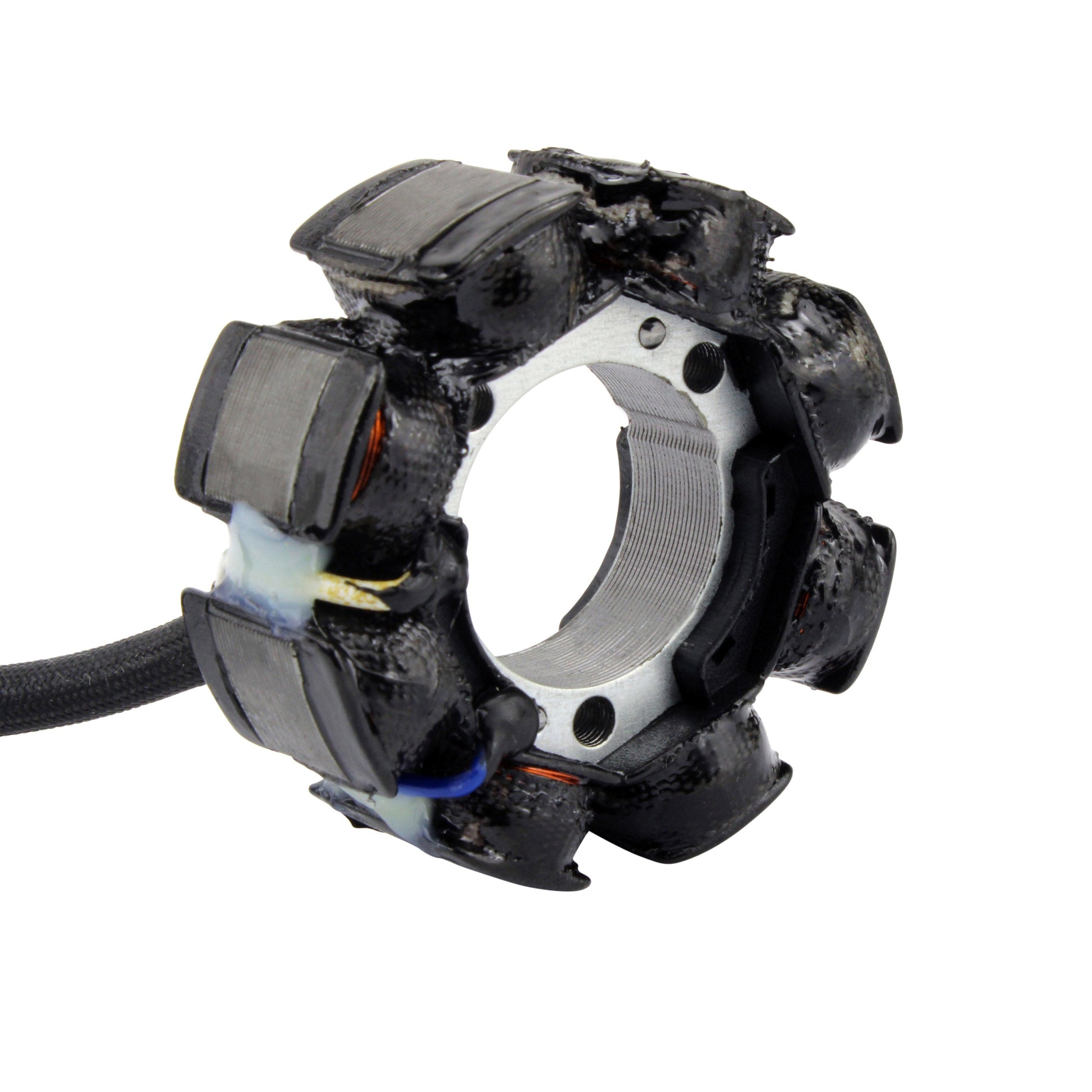

A brand new aftermarket stator built as a direct replacement for the original unit fitted to the Honda CRF250R and CRF450R motocross machines. It is a plug-and-play, direct fit part that mounts straight into the ignition cover with no modification to the engine or the loom. The part number is RM01465.
The assembly is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. The pick up pulsar coil, the connector and the rubber grommet are all supplied fitted, on a 700 mm tail from the grommet to the plug. Every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

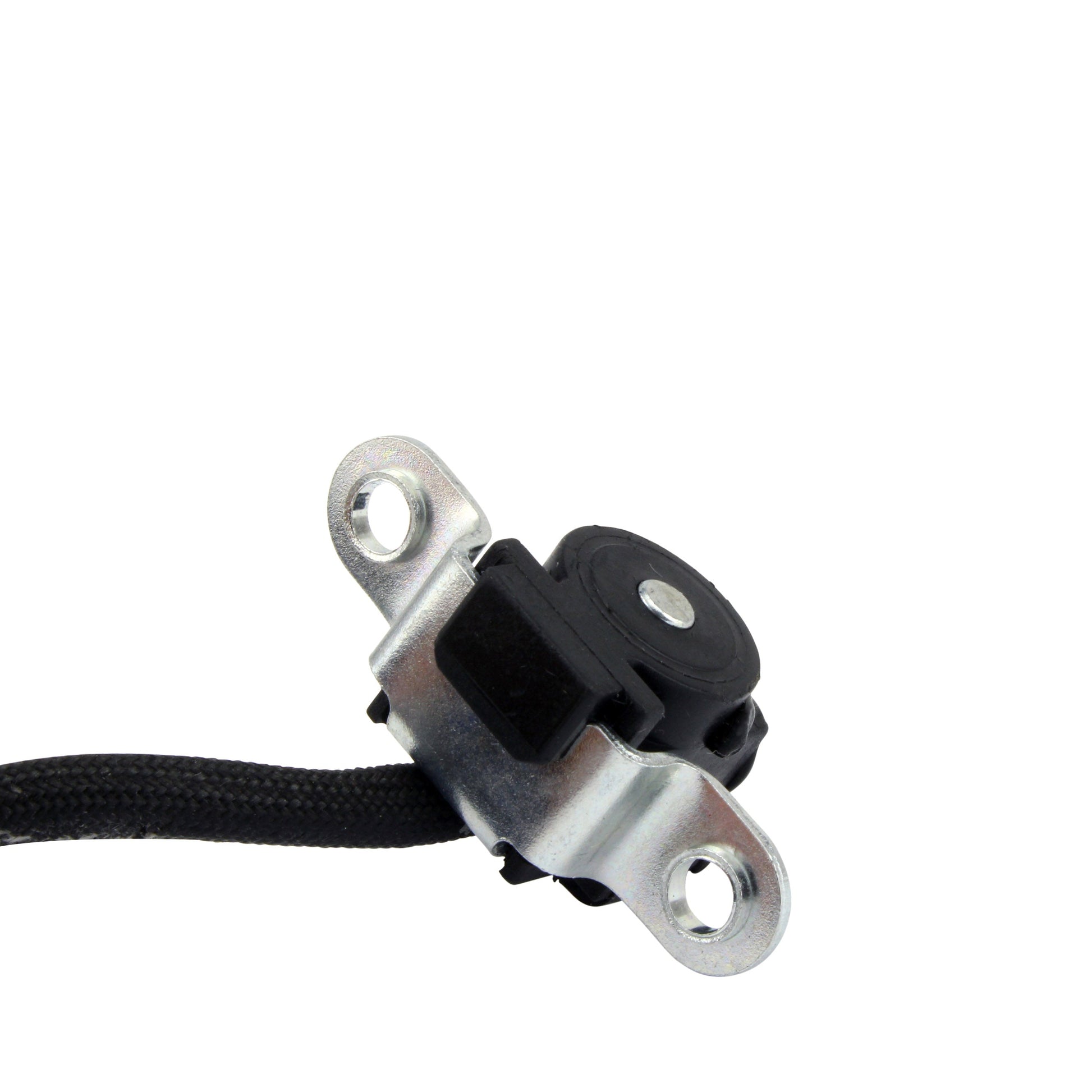

- Pick up pulsar coil included

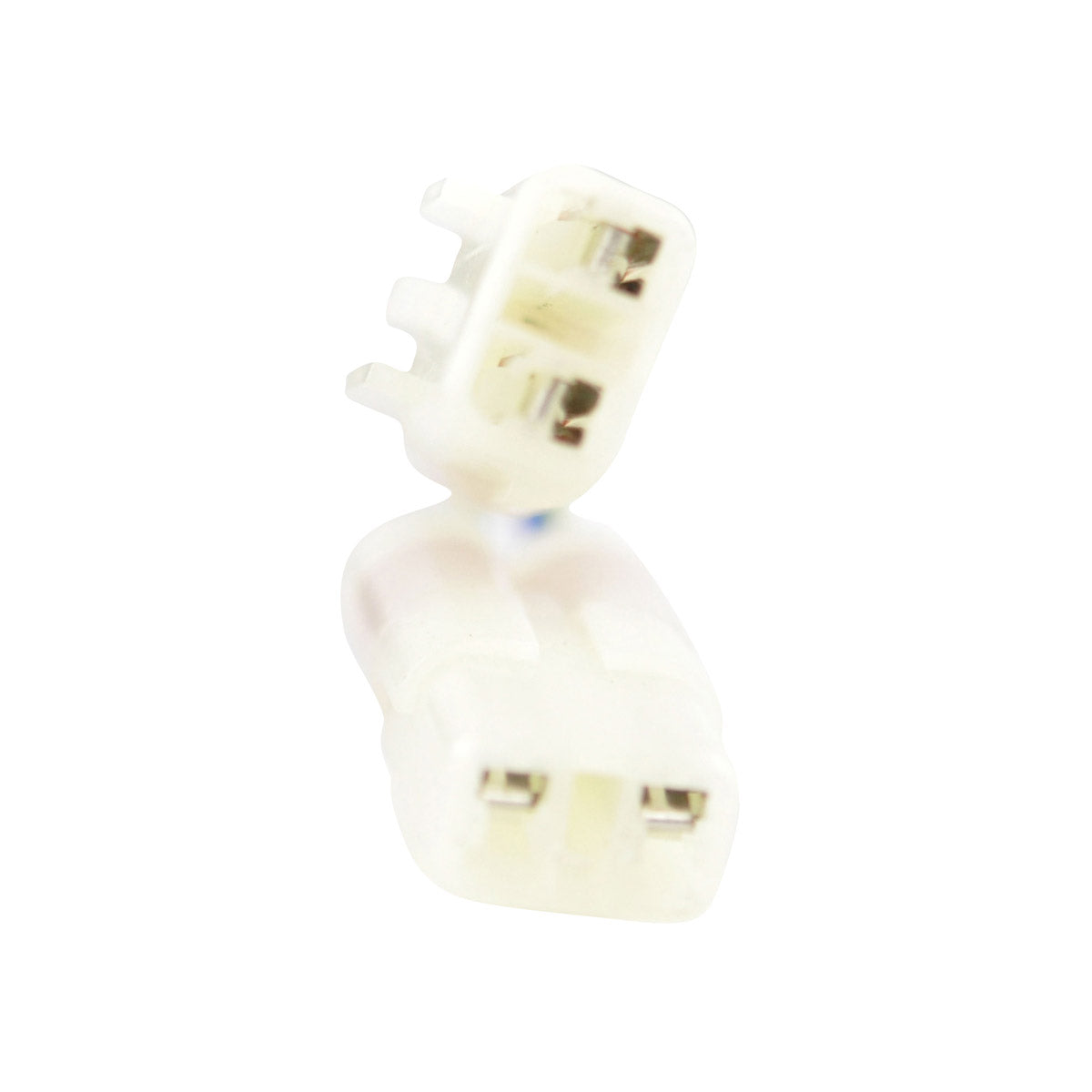

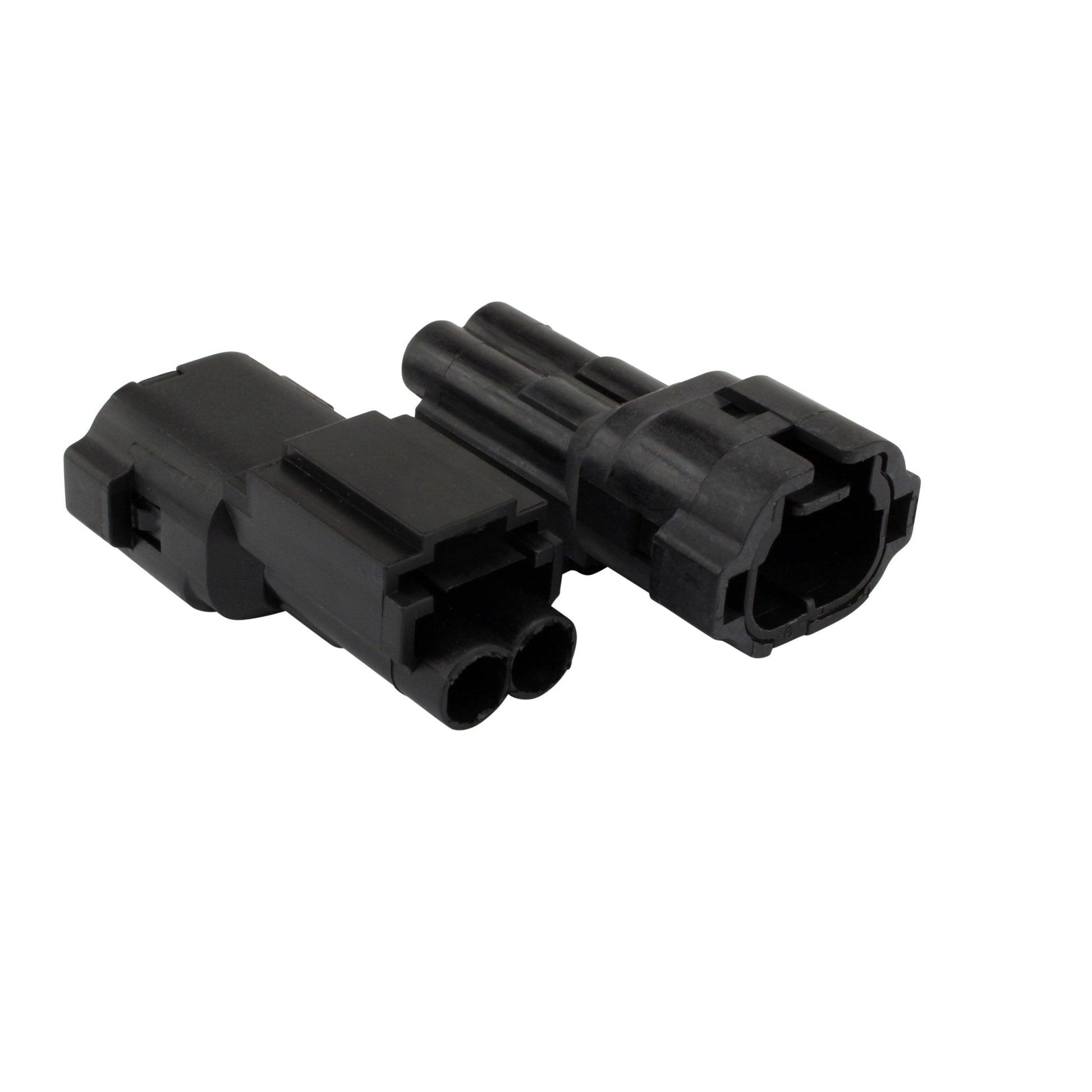

- Connector included
- Rubber grommet included
- All products shipped are tested
- Part number RM01465
Technical Specs
| Specification |
Detail |
| Part number |
RM01465 |
| Interior diameter |
28 mm |
| Exterior diameter |
61 mm |
| Thickness |
13 mm |
| Wire length, stator to grommet |
90 mm |
| Wire length, grommet to plug |
700 mm |
| Pickup coil wire length to grommet |
30 mm |
| Number of wires |
4 |
| Number of plugs |
2 |
| Number of pins |
4 |
| Pickup resistance, blue/yellow to green/white |
250 ohms +/- 20% |
| Source resistance, white to blue |
22 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CRF250R |
2004-2009 |
| Honda CRF450R |
2004-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-KRN-670 |
Honda |
| 31120-MEN-730 |
Honda |
| 31120-MEN-731 |
Honda |
| 31120-MEN-A11 |
Honda |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Honda unit on the CRF250R and CRF450R, supplied with the connector and rubber grommet already fitted. No cutting or splicing of the loom is required.
What is included in the box?

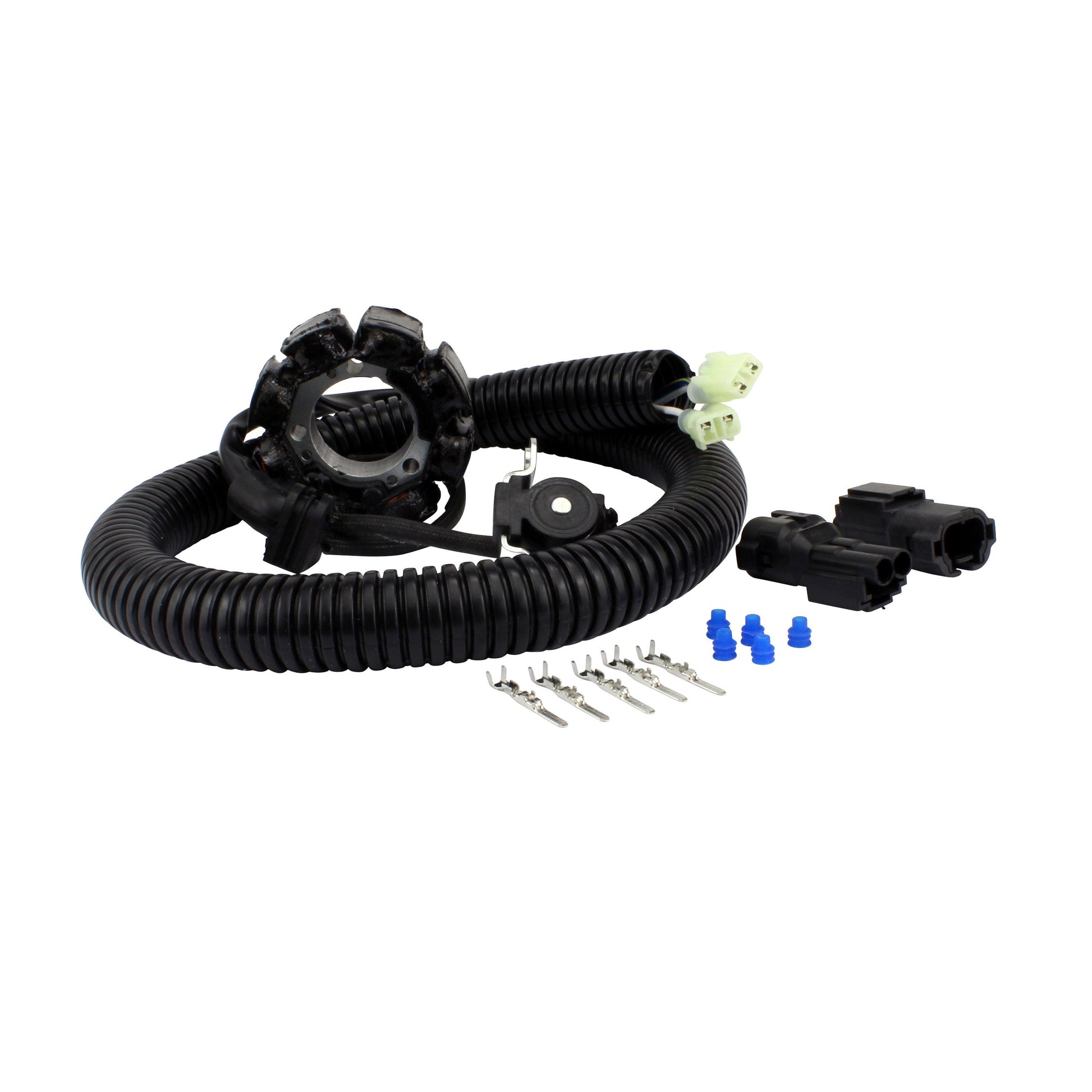

The stator assembly, the pick up pulsar coil, the connector and the rubber grommet, supplied as one ready to fit unit. All products shipped are tested.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 250 ohms +/- 20% blue/yellow to green/white across the pickup and 22 ohms +/- 20% white to blue across the source coil. A reading that is open circuit, shorted to earth, or well outside those figures points to a failed stator.
Is this the same as the 2002-2003 CRF450R stator?
No. This unit is 61 mm outside diameter with two plugs and replaces the MEN and KRN series Honda numbers listed above. The 2002-2003 CRF450R uses a different part. Check the number on your original stator before ordering.
