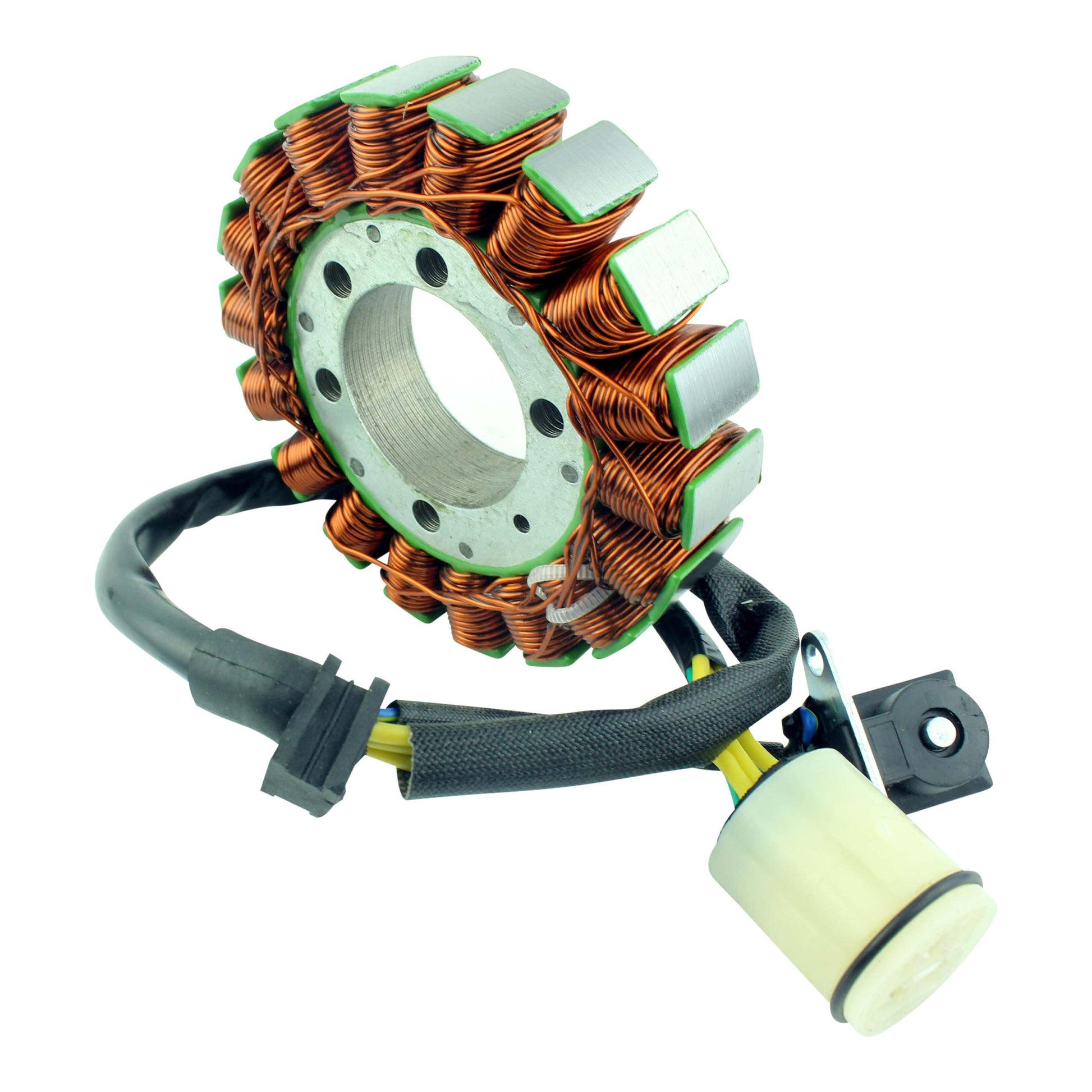

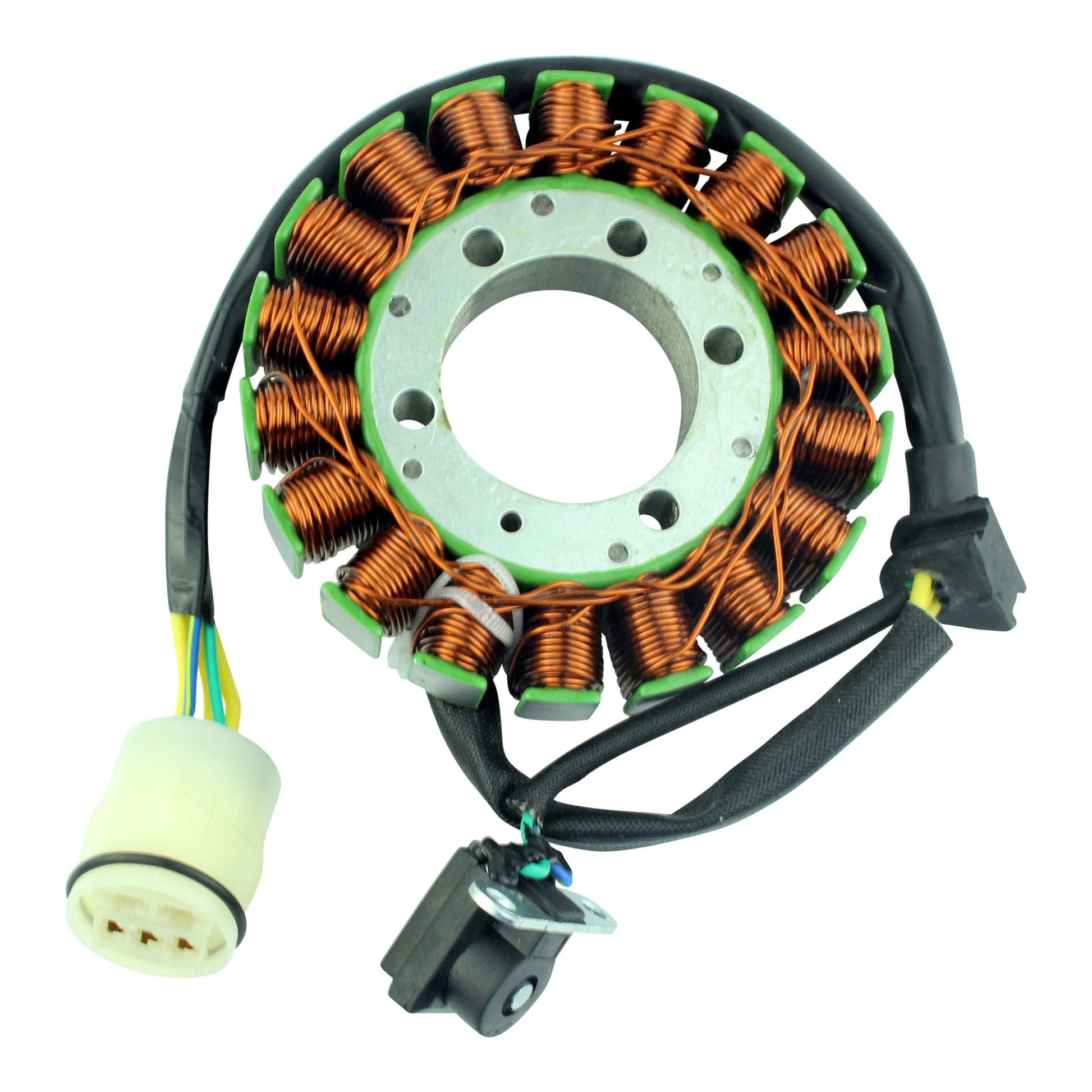

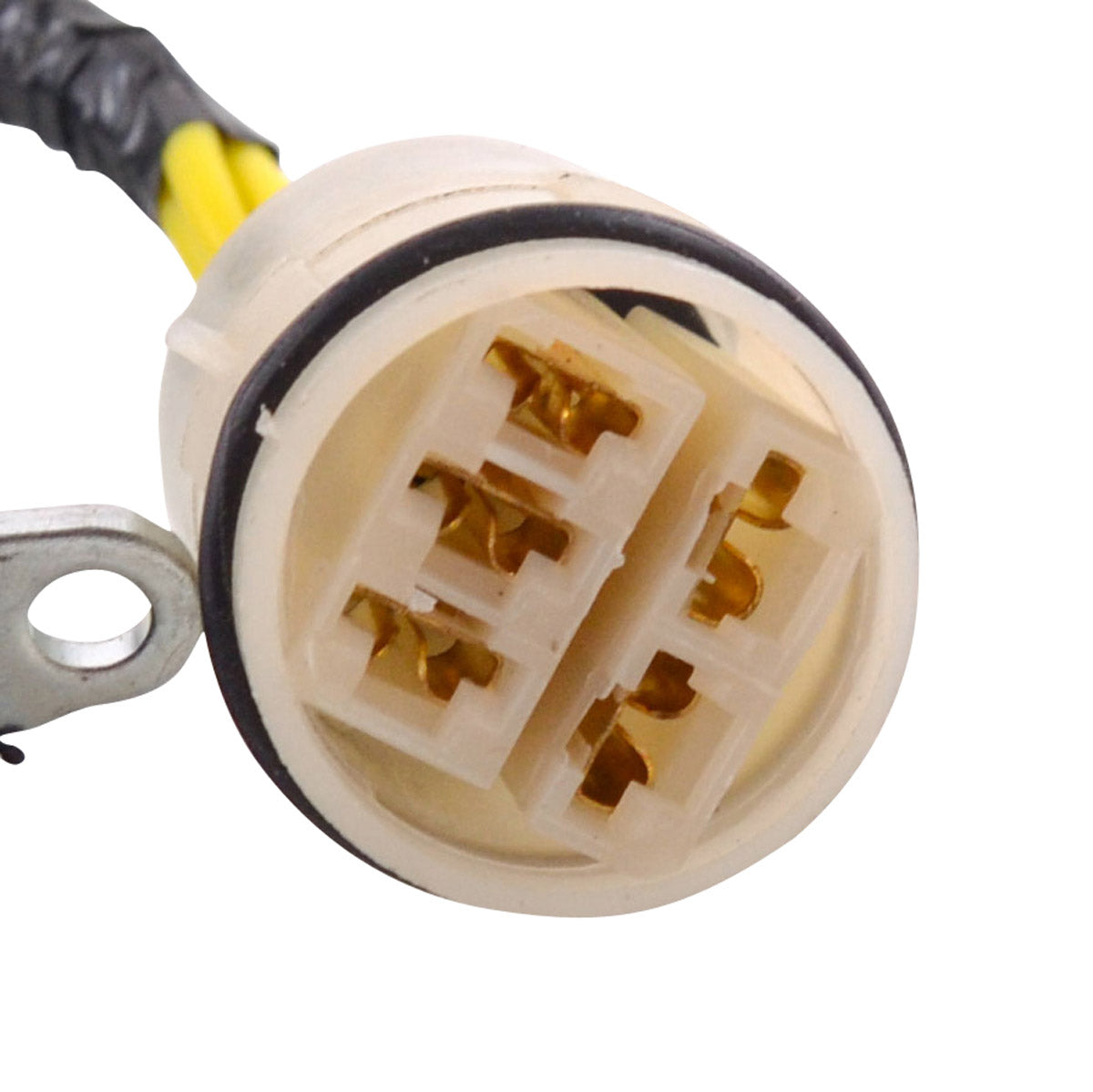

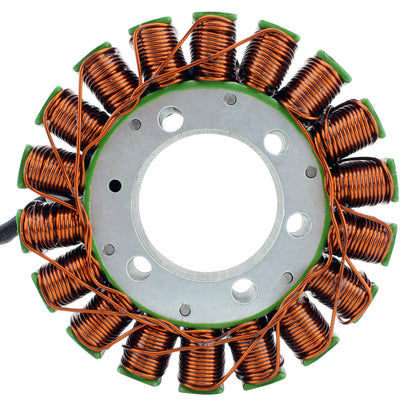

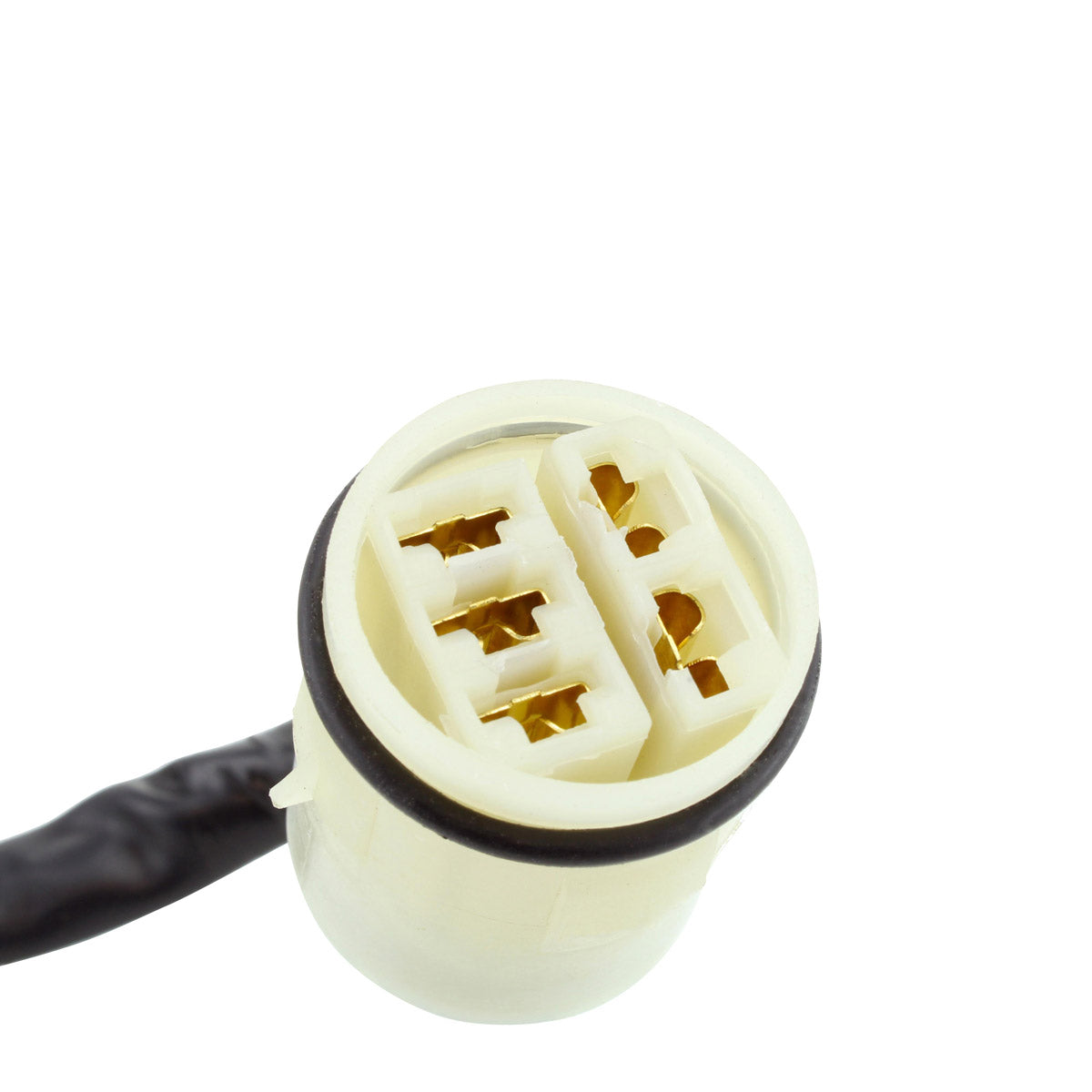

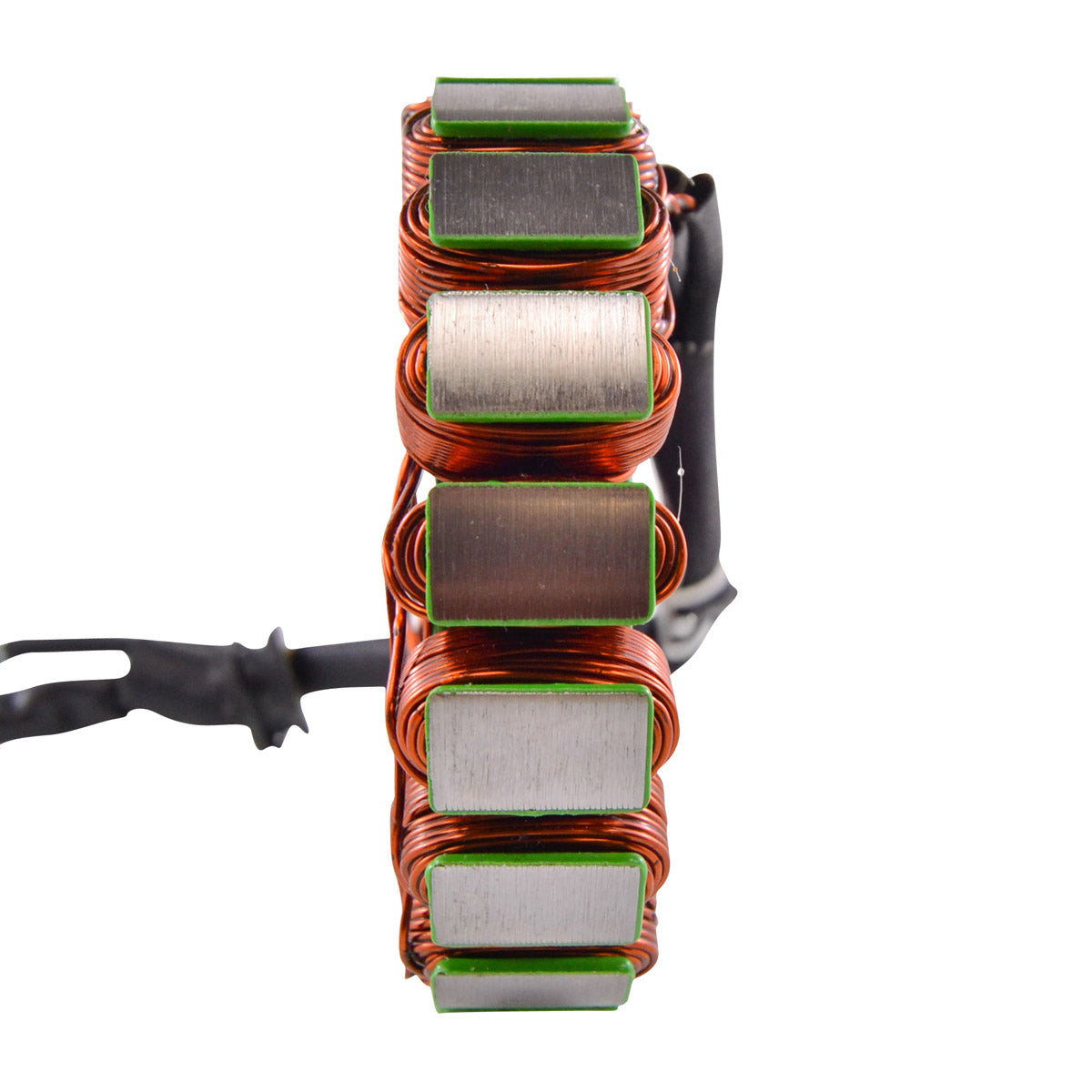

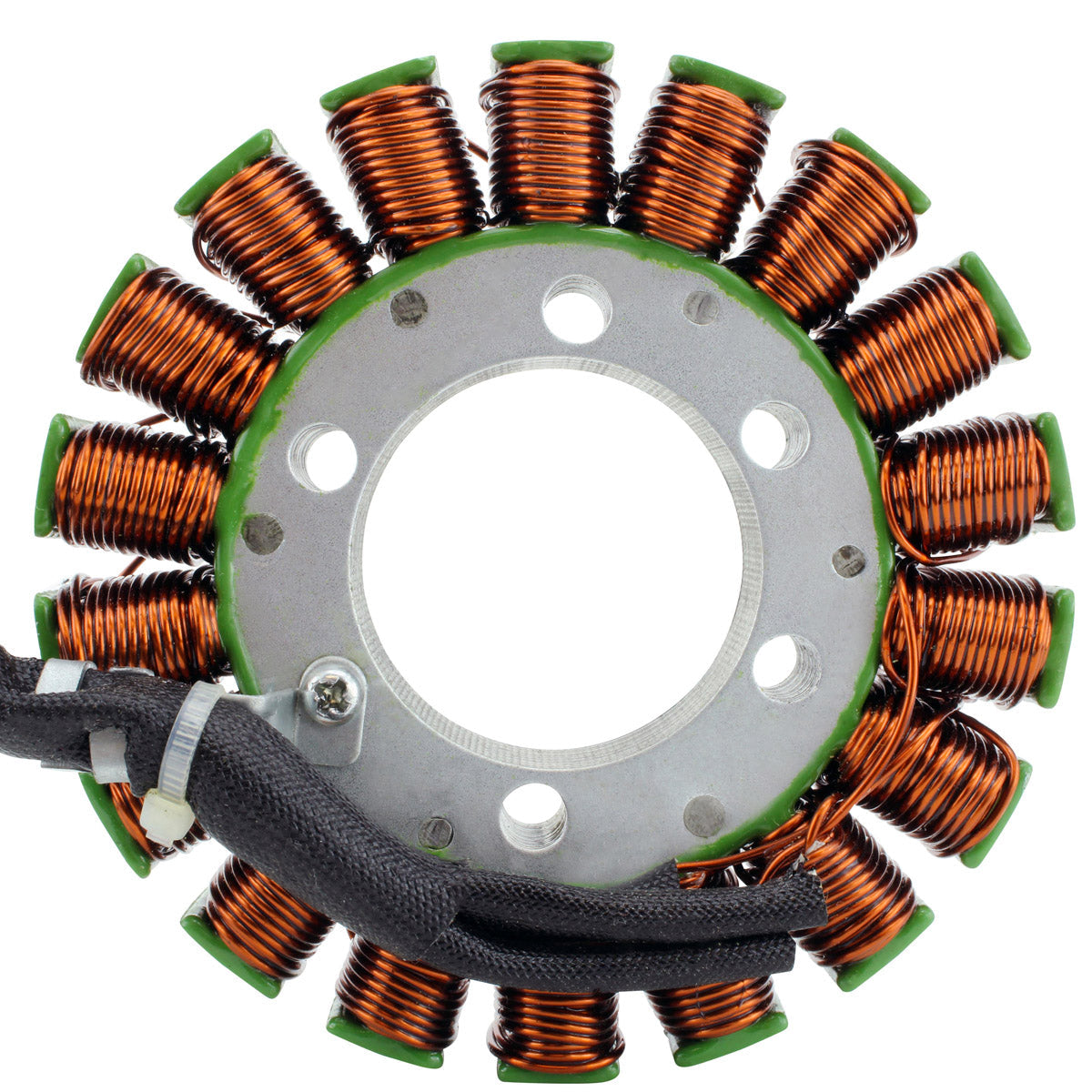

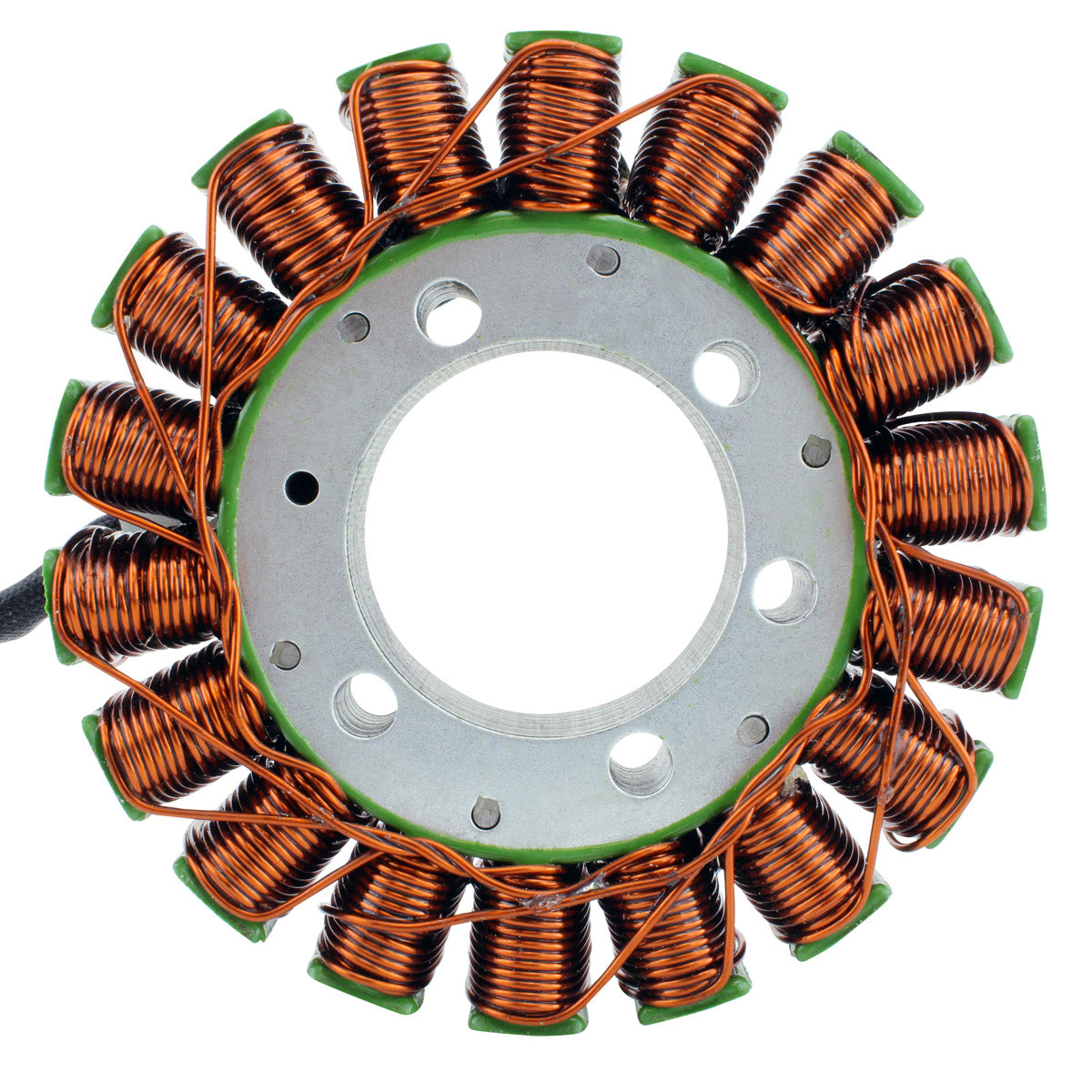

RM01437 is a brand new generator stator supplied as a direct replacement for the original unit fitted to the Honda TRX 420 Rancher in FA 4x4 Auto and FPA 4x4 Auto Power Steering specification from 2009 to 2014. It is a plug-and-play, direct-fit part: the core mounts in the factory position and the five wires terminate in a single five-pin plug that mates with the machine's existing loom, so no cutting, splicing or rewiring is involved.

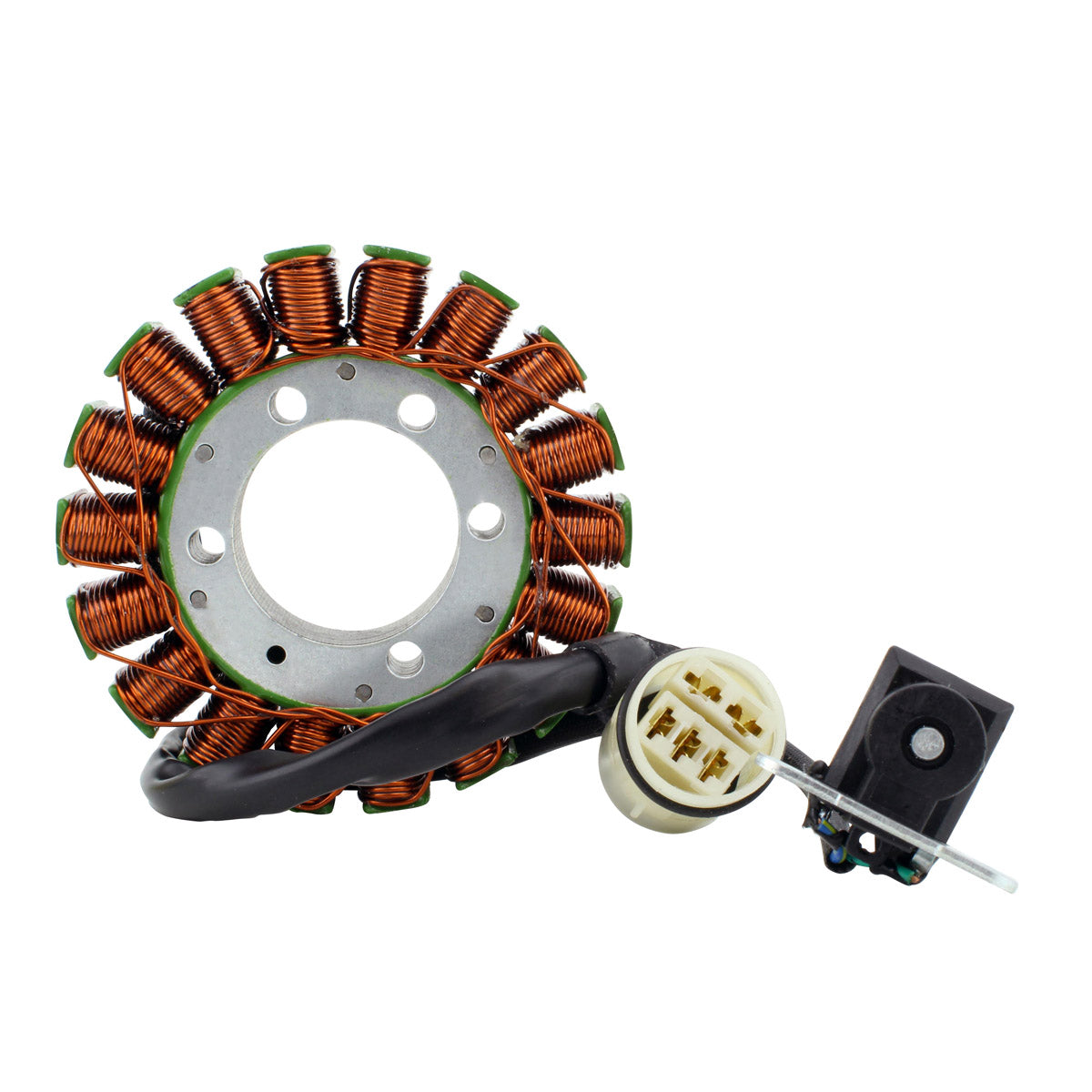

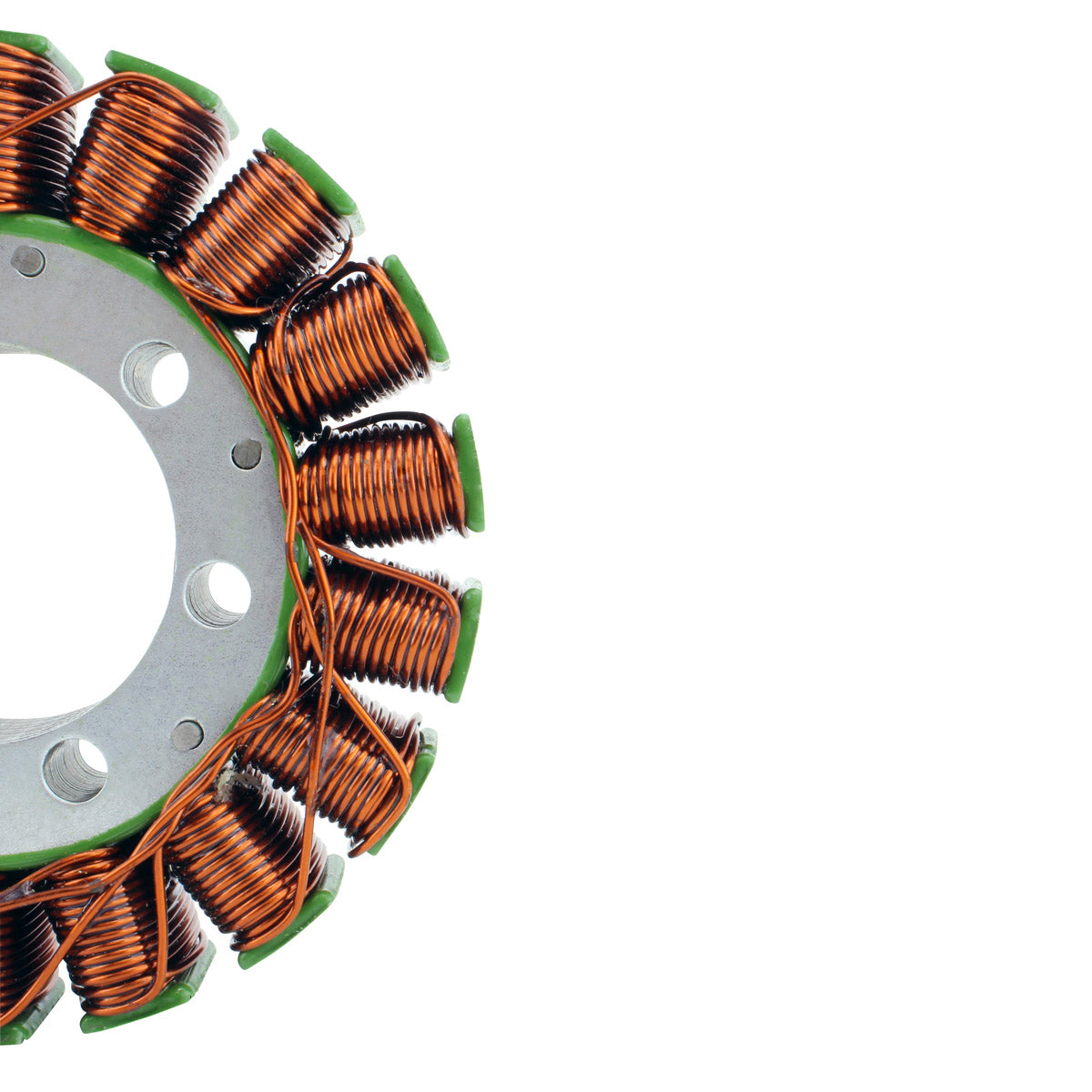

The pickup pulsar coil is included with this assembly, so the ignition trigger and the charging windings are renewed together. That is worth having on the FPA in particular, where electric power steering adds a constant load to the charging system and a weak stator shows up first as steering assist that drops out, a low battery or a starter that cranks slowly when the machine is hot. Construction uses the highest grade lamination materials and highest grade copper windings rated to 200 degrees Celsius, the connector and rubber grommet are supplied, and all products are tested before shipment.
Key Features
- Brand new generator stator, direct replacement for the original unit
- Plug-and-play, direct fit installation
- Pickup pulsar coil included

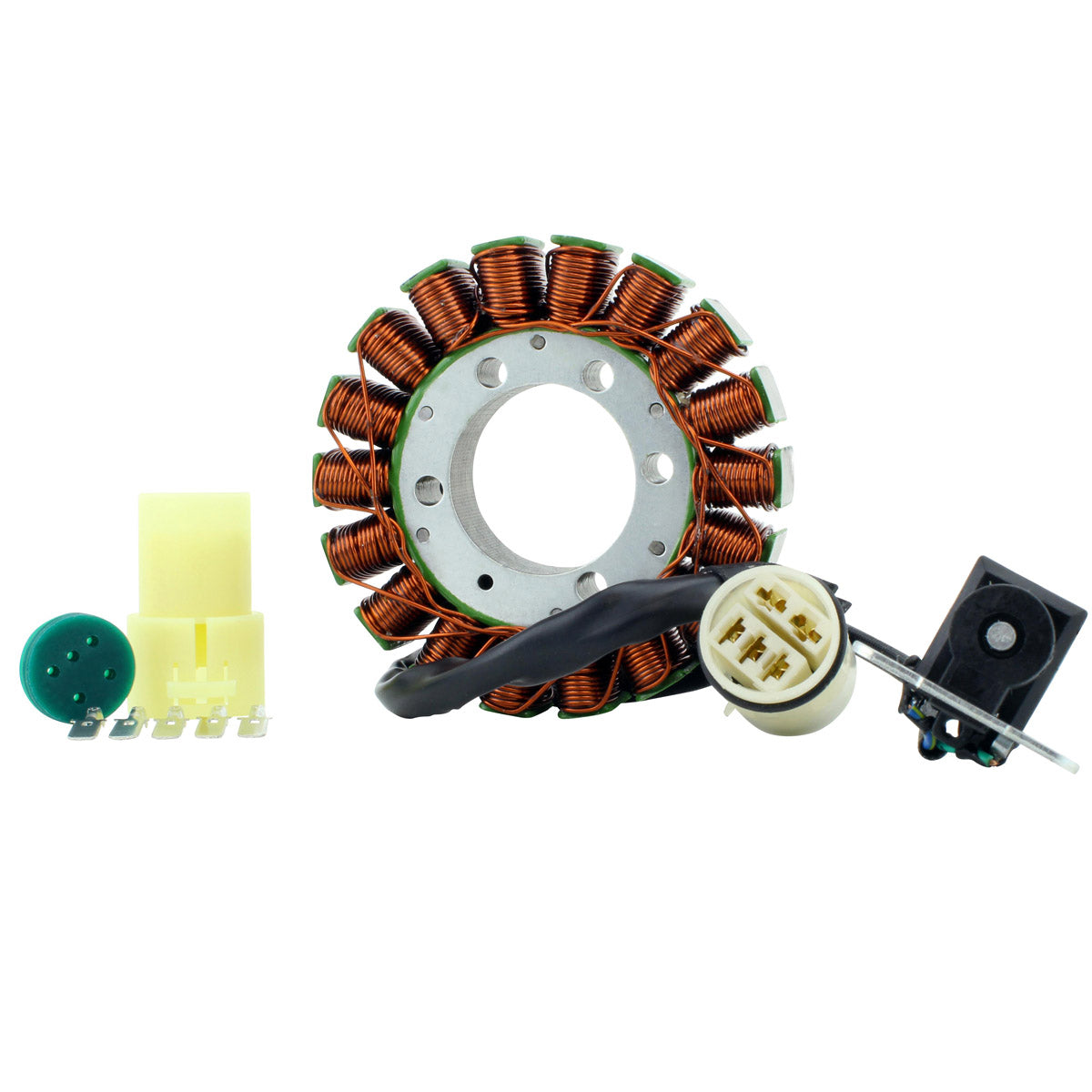

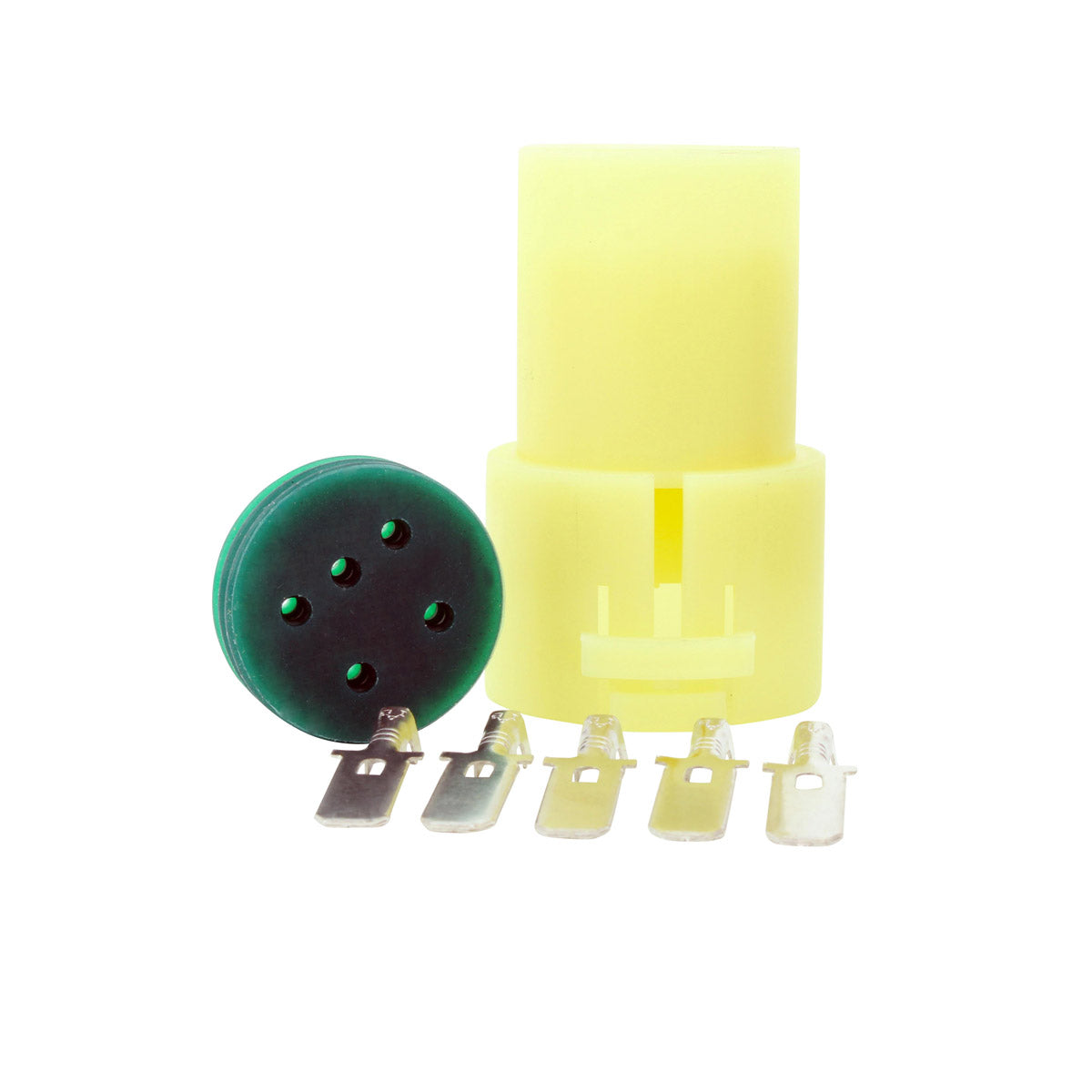

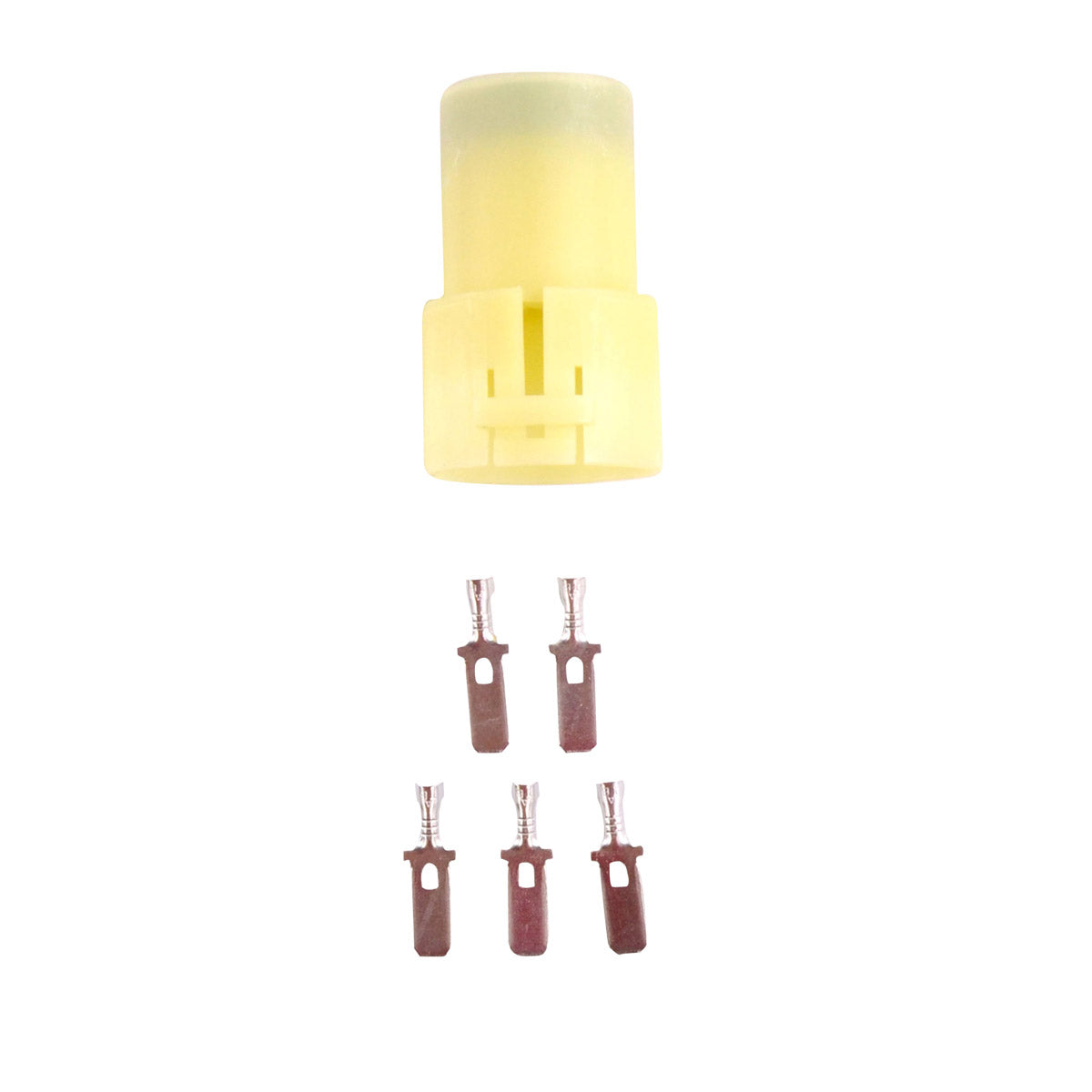

- Connector included
- Rubber grommet included
- Highest grade lamination materials
- Copper windings rated to 200 degrees Celsius
- All products tested before shipment
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
106 mm |
| Thickness |
20 mm |
| Wire length, stator to grommet |
100 mm |
| Wire length, grommet to plug |
250 mm |
| Pickup coil wire to grommet |
80 mm |
| Number of wires |
5 |
| Number of plugs |
1 |
| Number of pins |
5 |
| Alternator resistance (yellow to yellow) |
0.4 ohms +/-20% |
| Pickup resistance (blue to green) |
115 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda TRX 420 Rancher FA 4x4 Auto |
2009 - 2014 |
| Honda TRX 420 Rancher FPA 4x4 Auto Power Steering |
2009 - 2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HP7-A00 |
Honda |
| 31120-HP7-A01 |
Honda |
| RM01437 |
RMSTATOR (this part) |
Frequently Asked Questions
Does it need any modification to fit?
No. It is a plug-and-play, direct-fit replacement for the original unit. It mounts in the factory location and the five-pin plug connects to the existing harness, so nothing needs cutting or splicing.
What comes with it?

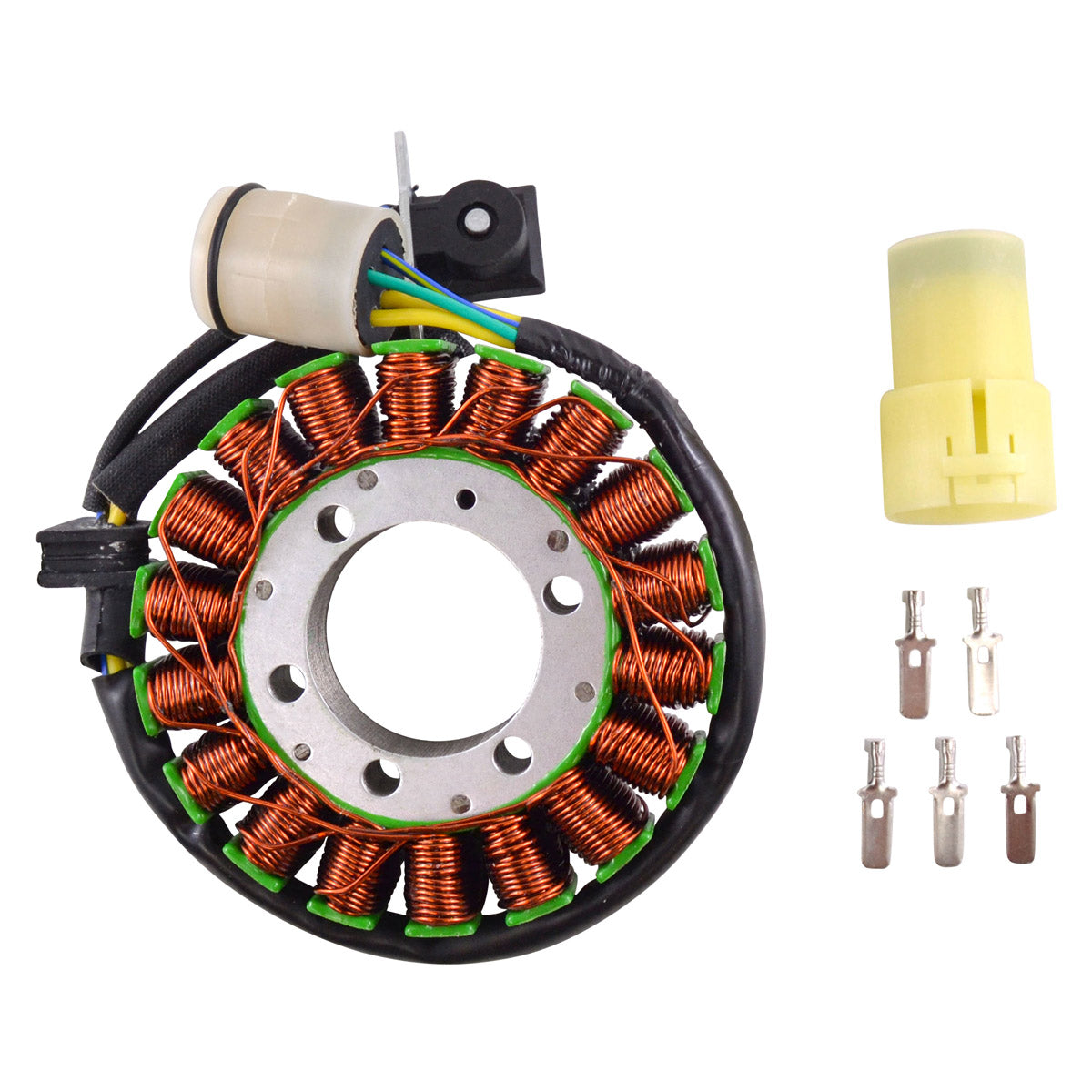

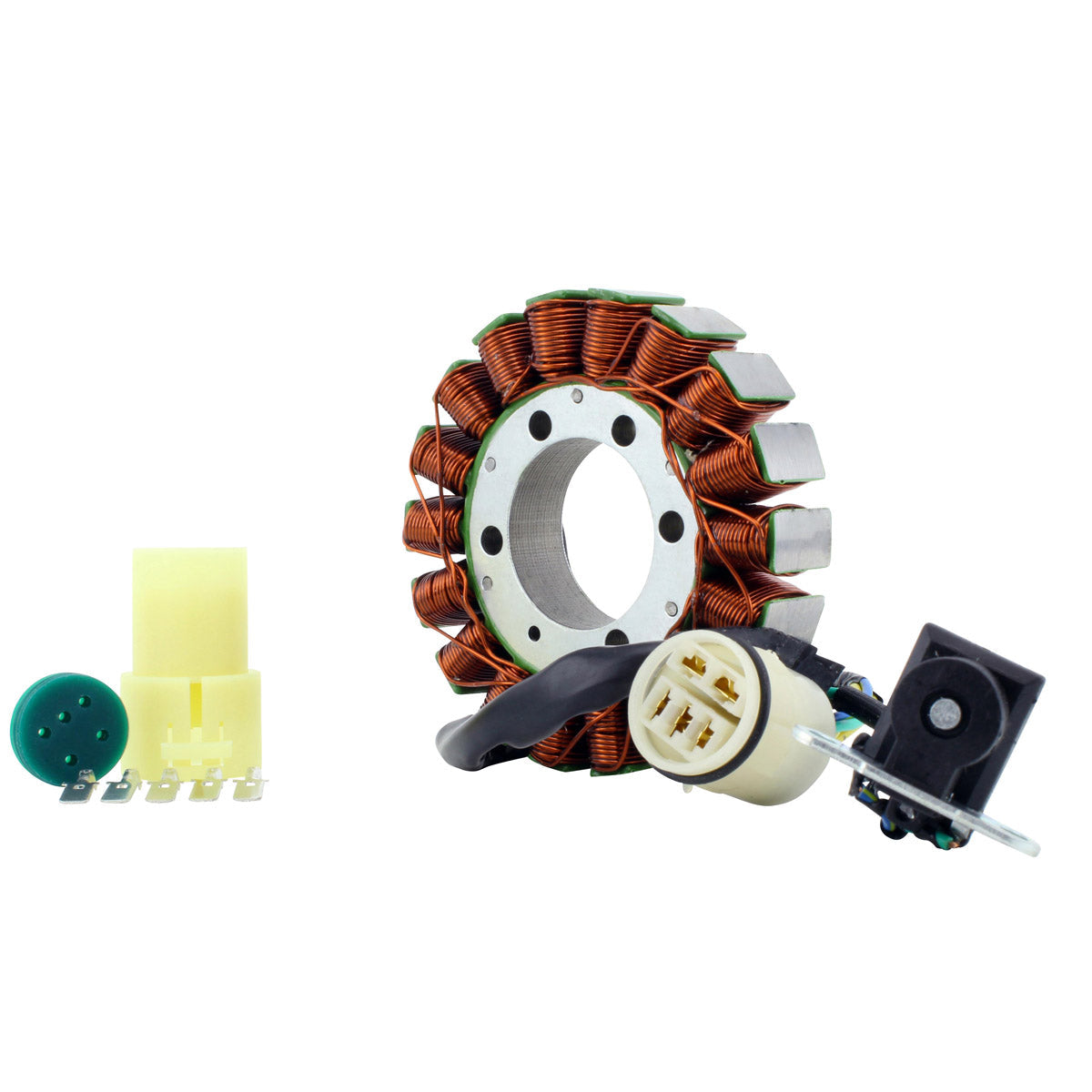

The stator assembly, the pickup pulsar coil, the connector and the rubber grommet.
How do I tell that my stator has failed?
Disconnect the plug and test cold. Yellow to yellow should read about 0.4 ohms and the pickup about 115 ohms blue to green, both within 20 per cent. An open circuit where a resistance is expected, or continuity from any yellow wire to the stator core, confirms a failed winding.
Is the same part used on the power steering model?
Yes. Both the FA 4x4 Auto and the FPA 4x4 Auto Power Steering versions of the TRX 420 Rancher use this stator across the 2009 to 2014 model years, cross-referencing to Honda numbers 31120-HP7-A00 and 31120-HP7-A01.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
