Stator for Honda VF 700 Magna VF700C 1987 & VF 750 Magna VF750C 1988
Stator for Honda VF 700 Magna VF700C 1987 & VF 750 Magna VF750C 1988
SKU:RM01461
Free shipping over £150. Terms apply
Couldn't load pickup availability
Generator Stator for Honda VF 700 Magna VF700C and VF 750 Magna VF750C
Honda VF700C Magna 1987 and VF750C Magna 1988 - replaces OEM 31120-MN0-003 and 31120-MN0-004

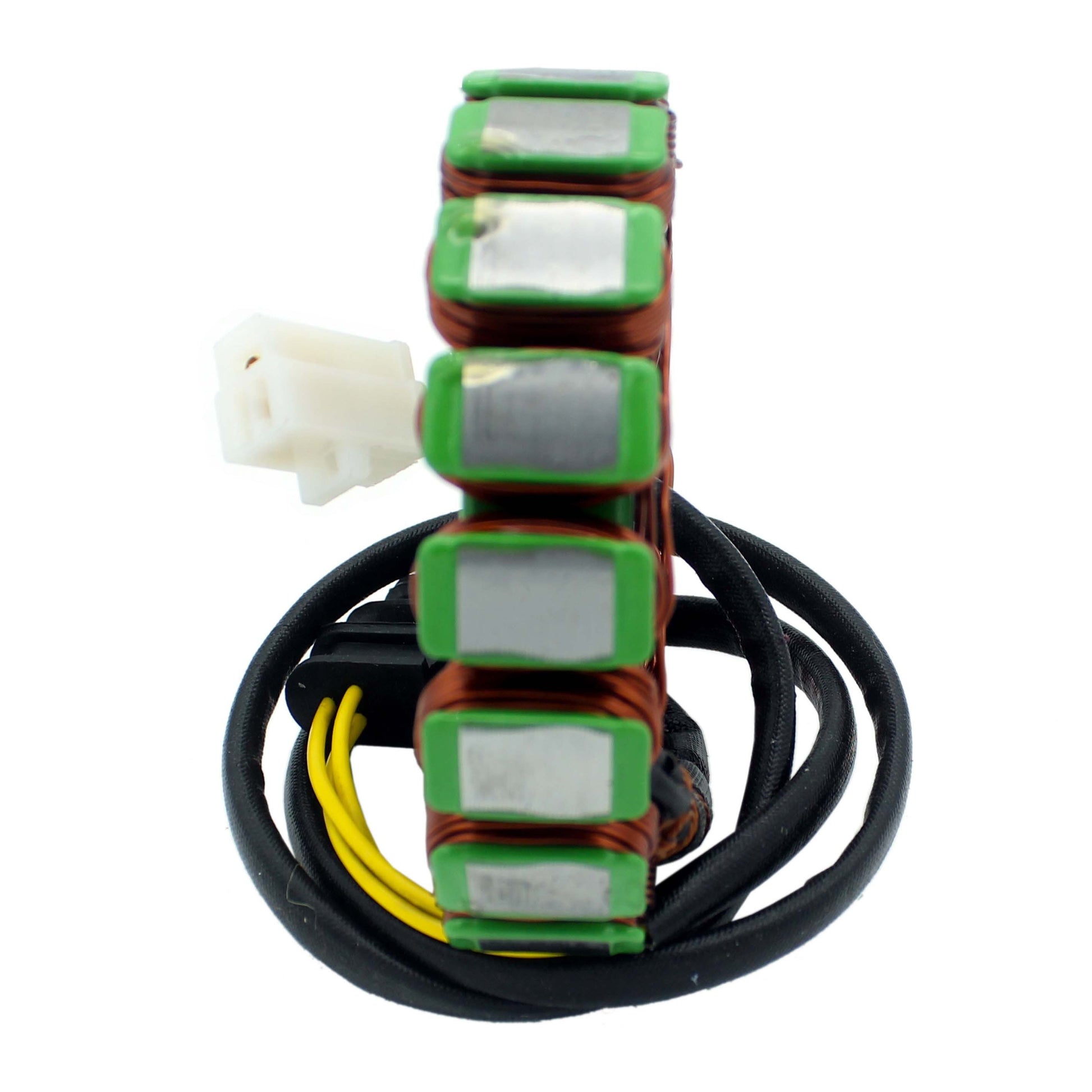

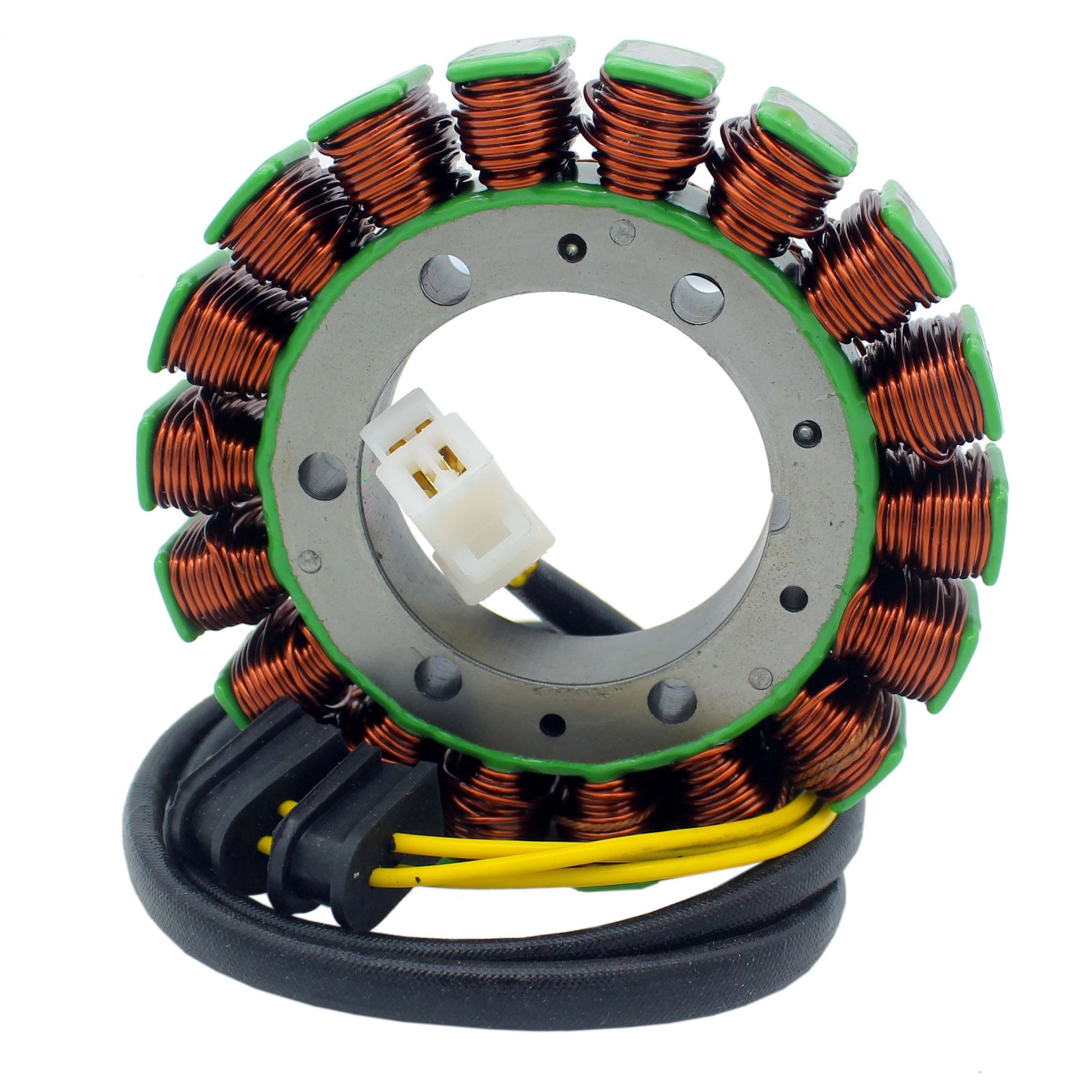

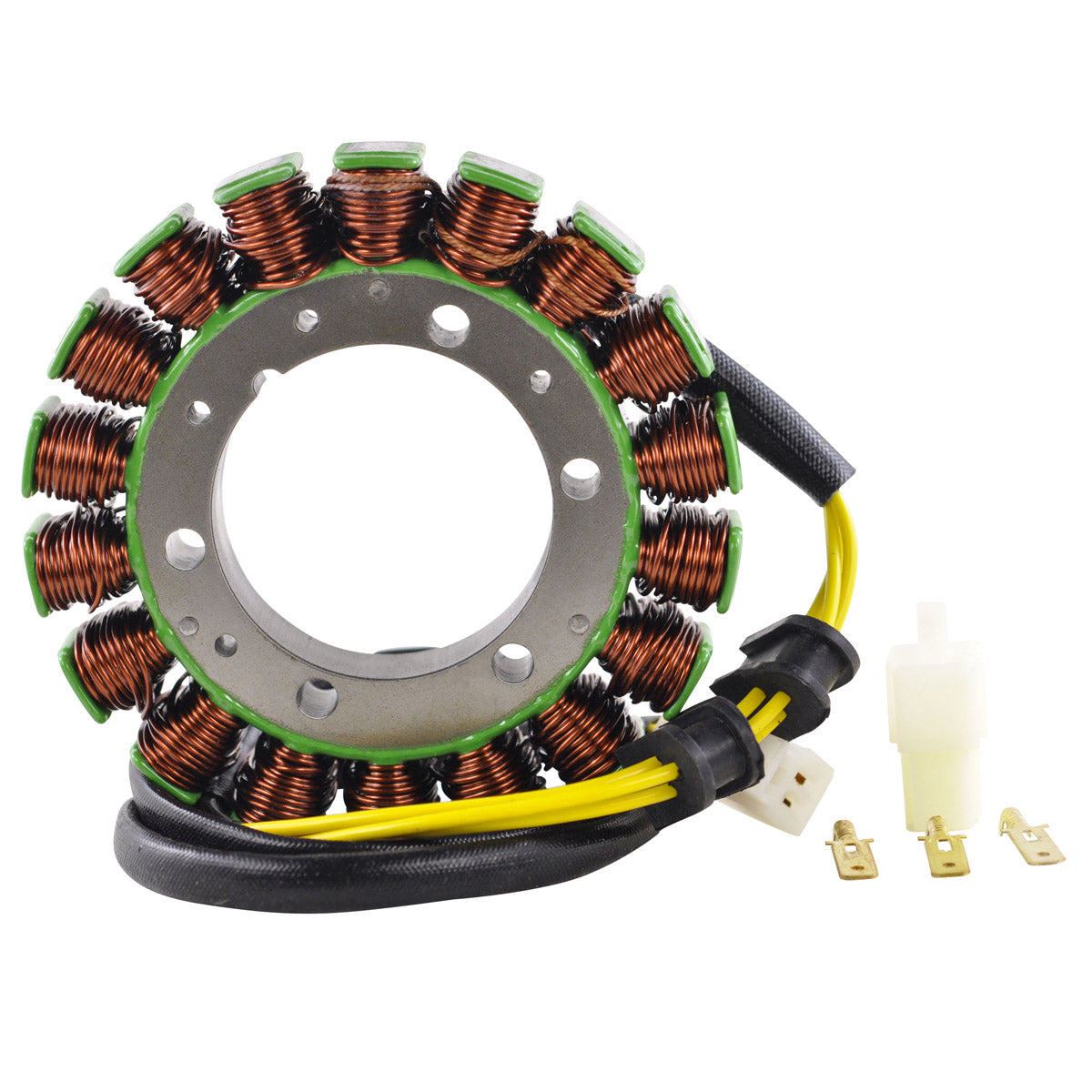

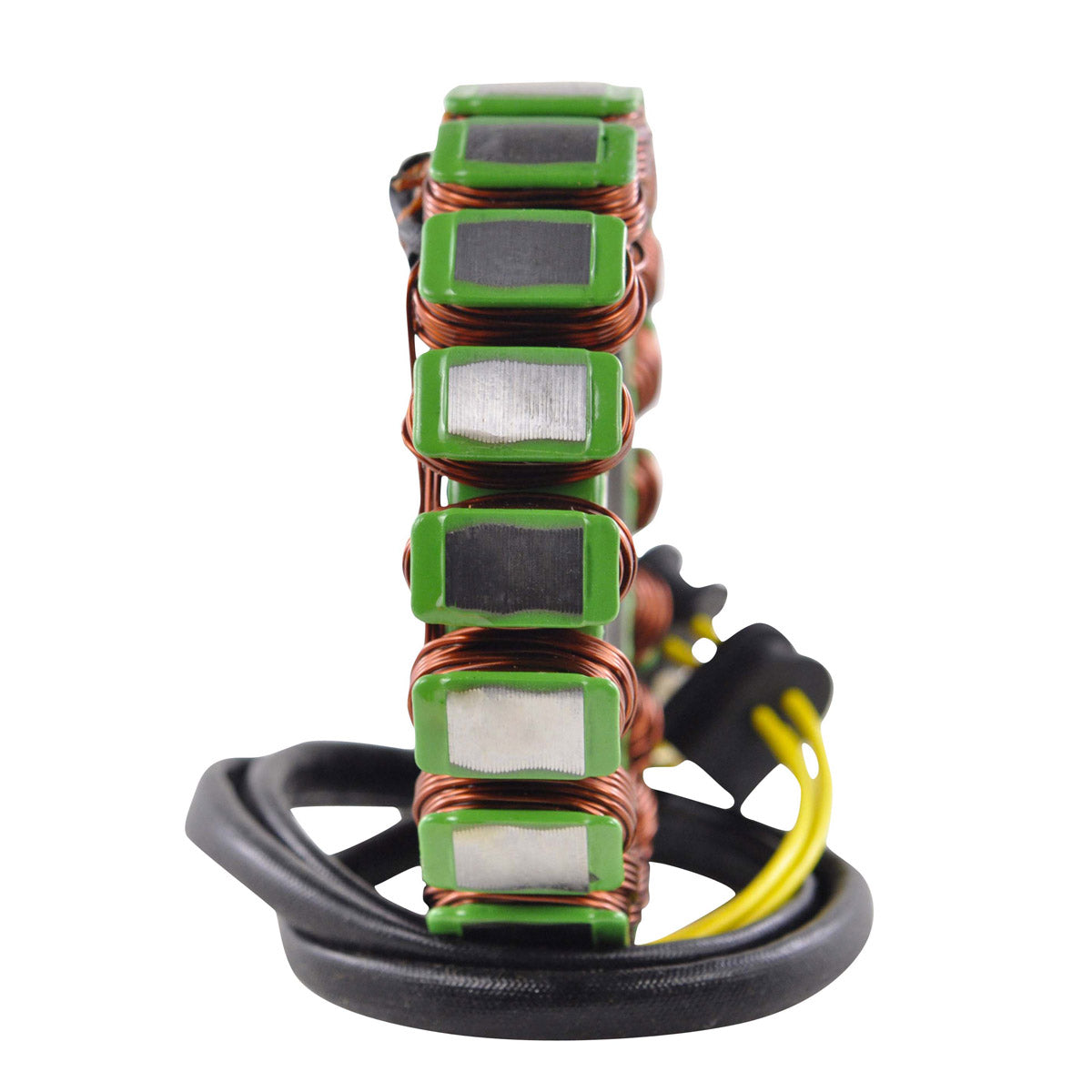

A brand new aftermarket generator stator built as a direct replacement for the original charging unit on the Honda VF Magna. It is a plug-and-play, direct fit part that goes straight back into the original position with no modification to the engine cases or the wiring loom. The part number is RM01461.

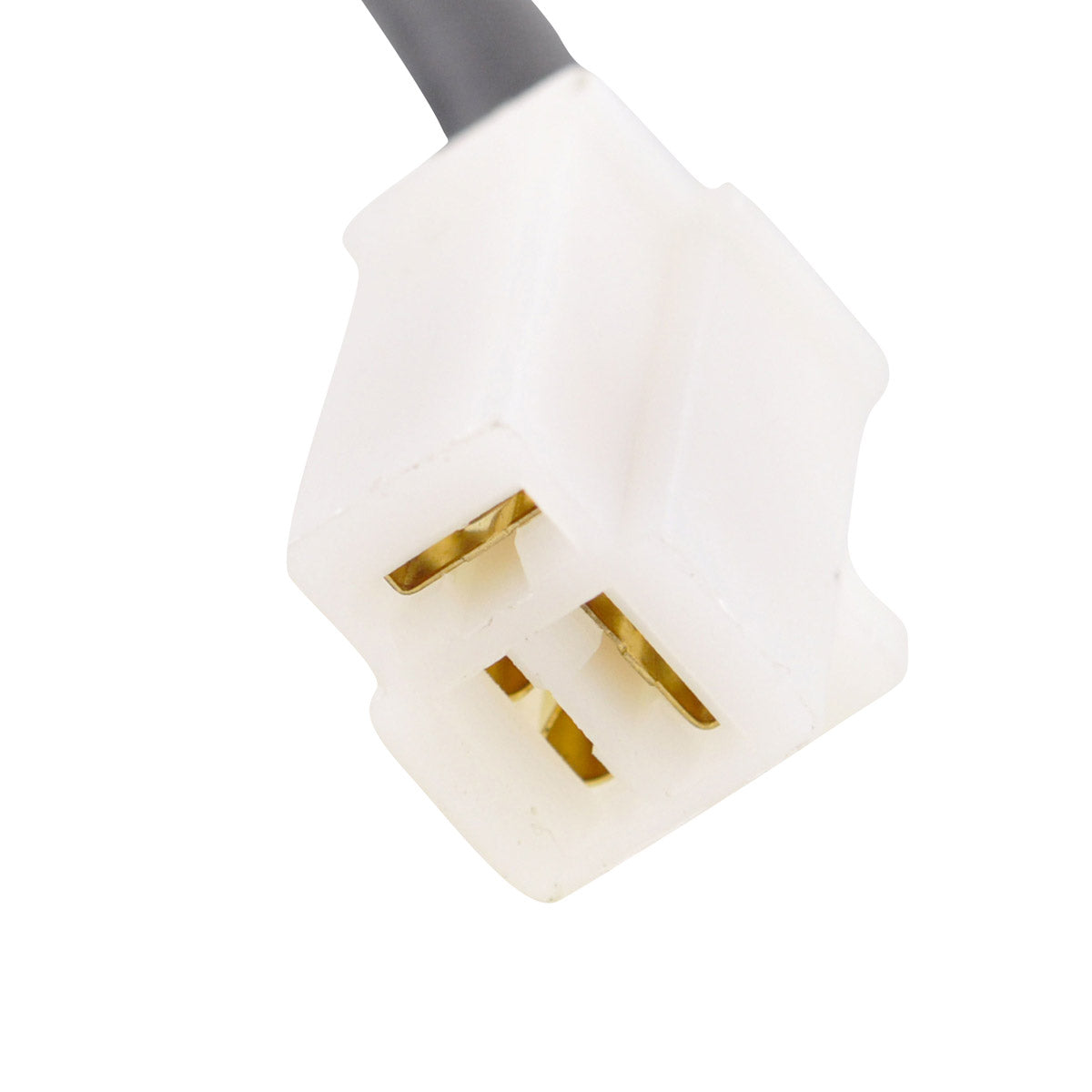

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. Three wires run to a single three pin plug on a 700 mm tail, and the connector and rubber grommet are supplied already fitted. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

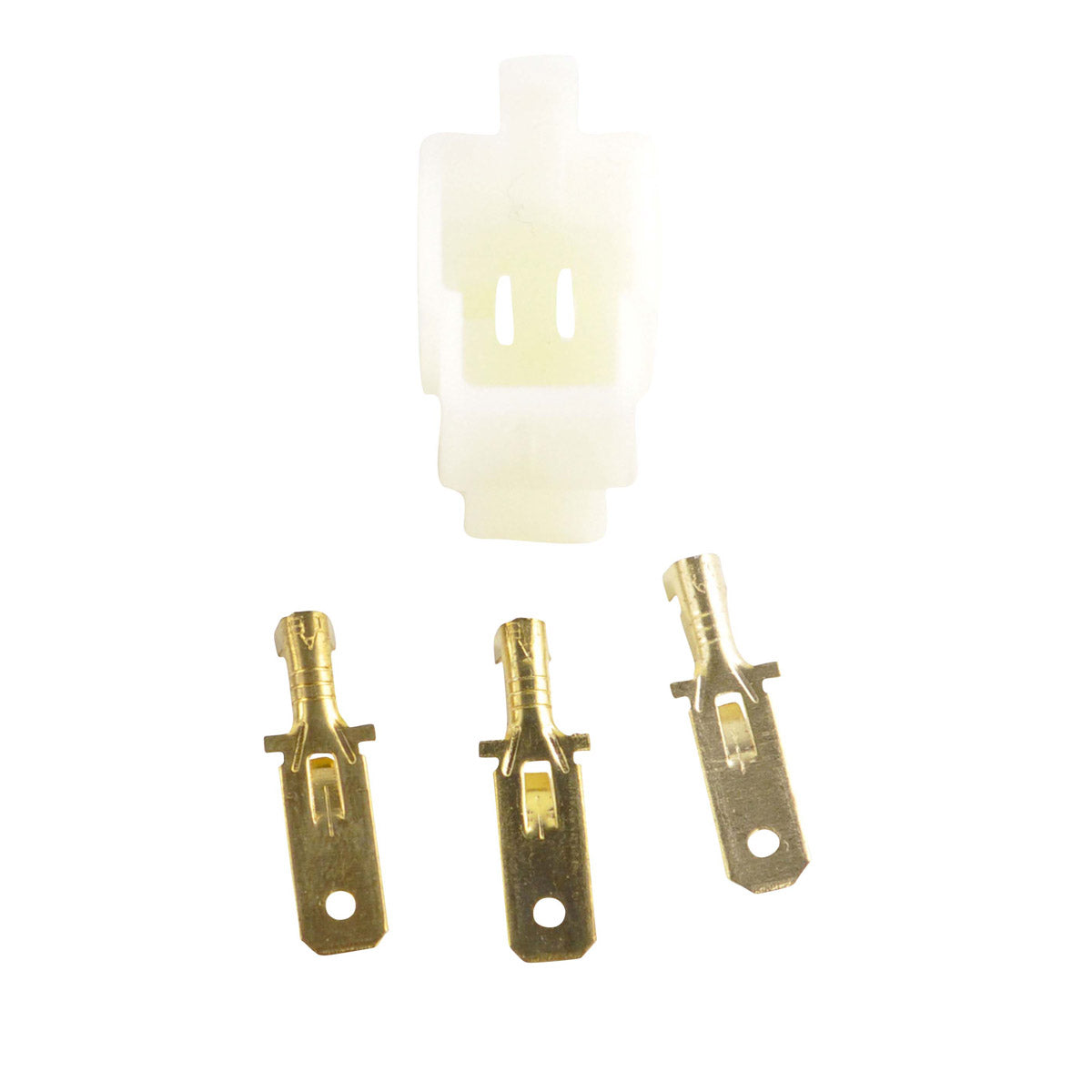

- Connector included
- Rubber grommet included
- All products shipped are tested
- Part number RM01461
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01461 |
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 17 mm |
| Wire length, stator to grommet | 70 mm |
| Wire length, grommet to plug | 700 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire to wire resistance, black to black | 0.4 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda VF700 Magna VF700C | 1987 |
| Honda VF750 Magna VF750C | 1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MN0-003 | Honda |
| 31120-MN0-004 | Honda |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Honda unit on the VF700C Magna and the VF750C Magna, supplied with the connector and rubber grommet already fitted. No cutting or splicing of the loom is required.
What is included in the box?
The stator assembly, the connector and the rubber grommet. All products shipped are tested before they leave us.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 0.4 ohms +/- 20% black to black across the windings. A reading that is open circuit, shorted to earth, or well outside that figure points to a failed stator.
Is this the same stator as the earlier VF Sabre and Magna models?
No. This part is specific to the 1987 VF700C and 1988 VF750C Magna and replaces Honda 31120-MN0-003 and 31120-MN0-004. It measures 114 mm outside diameter by 17 mm thick, which is a different case dimension to the earlier MB series stators. Always check the number on your original unit before ordering.
