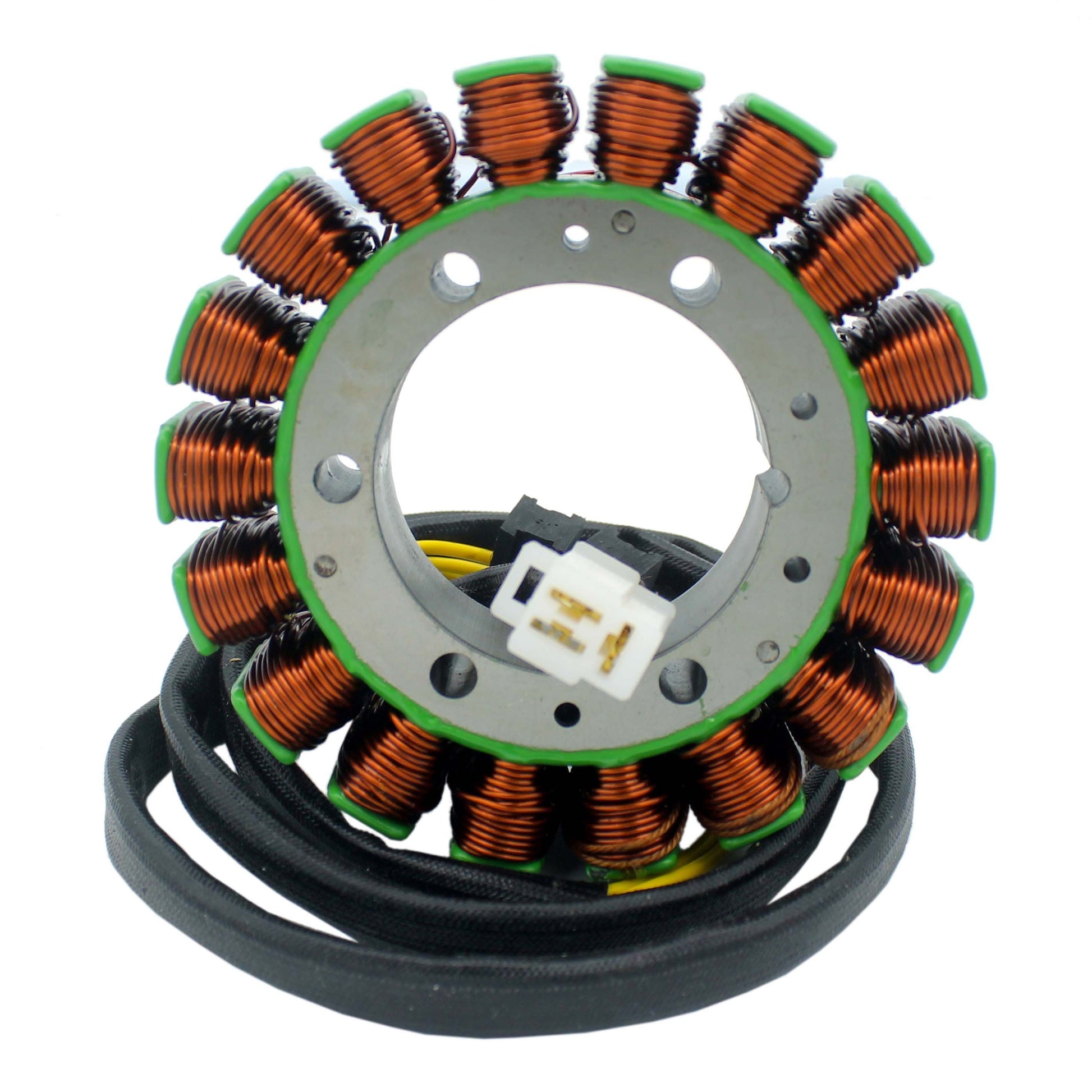

Generator Stator for Honda VF 700 and VF 750 Magna
Honda VF 700 Magna and VF 750 Magna 1982-1984 - RMSTATOR part RM01462

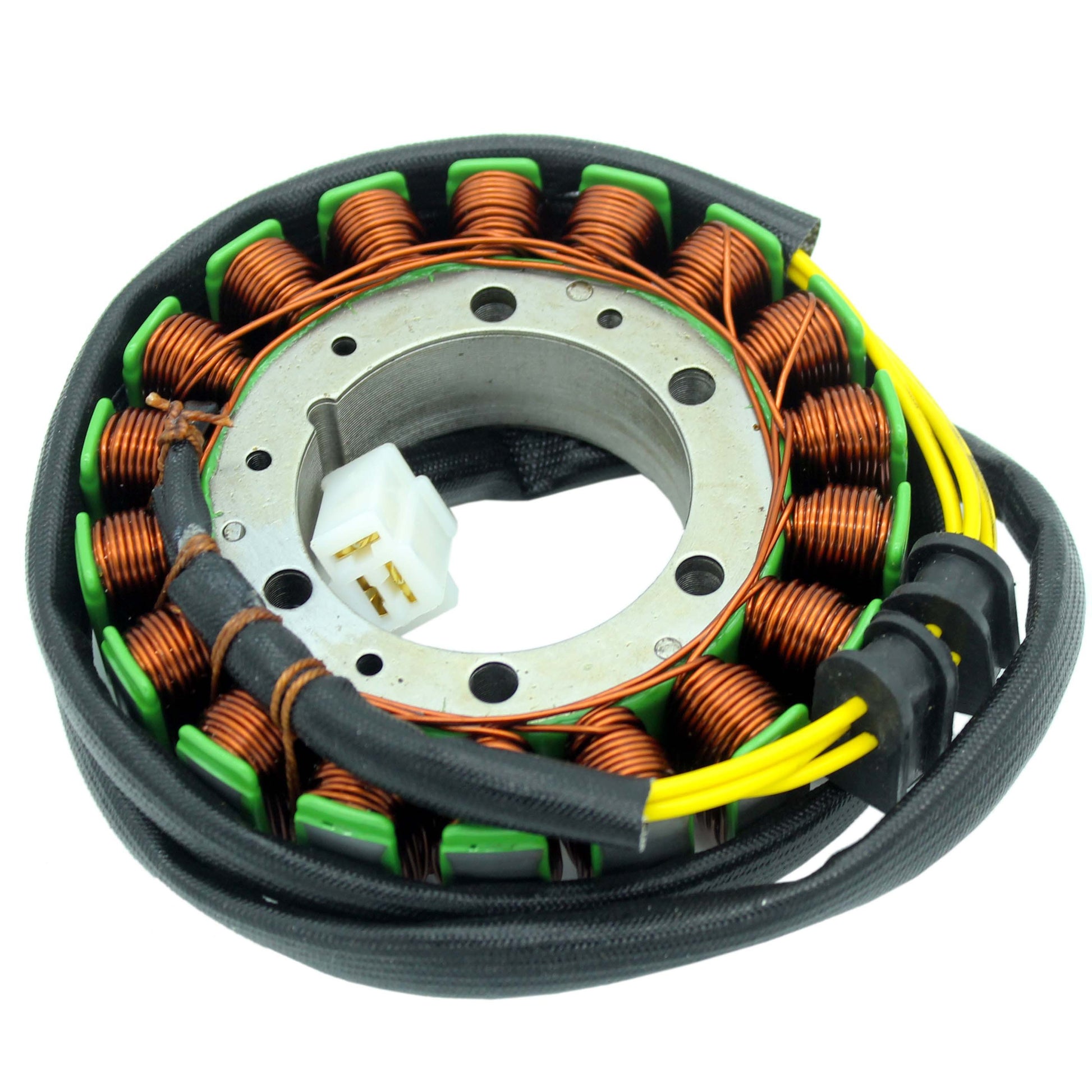

This is a brand new aftermarket generator stator, built as a direct replacement for the original charging unit fitted to the Honda VF 700 Magna and VF 750 Magna from 1982 to 1984. It is a plug-and-play, direct fit part: it sits in the original position and connects to the existing main harness, so the loom does not need to be cut, spliced or modified to fit it.
The unit is wound with the highest grade copper on the highest grade lamination materials, and the windings are resistant to 200 degrees Celsius. A connector, a rubber grommet and an additional connector for the main harness side are supplied with the stator, and all products shipped are tested. This is RMSTATOR part number RM01462.
Key Features
- Brand new aftermarket generator stator, not a rewind of a used core
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

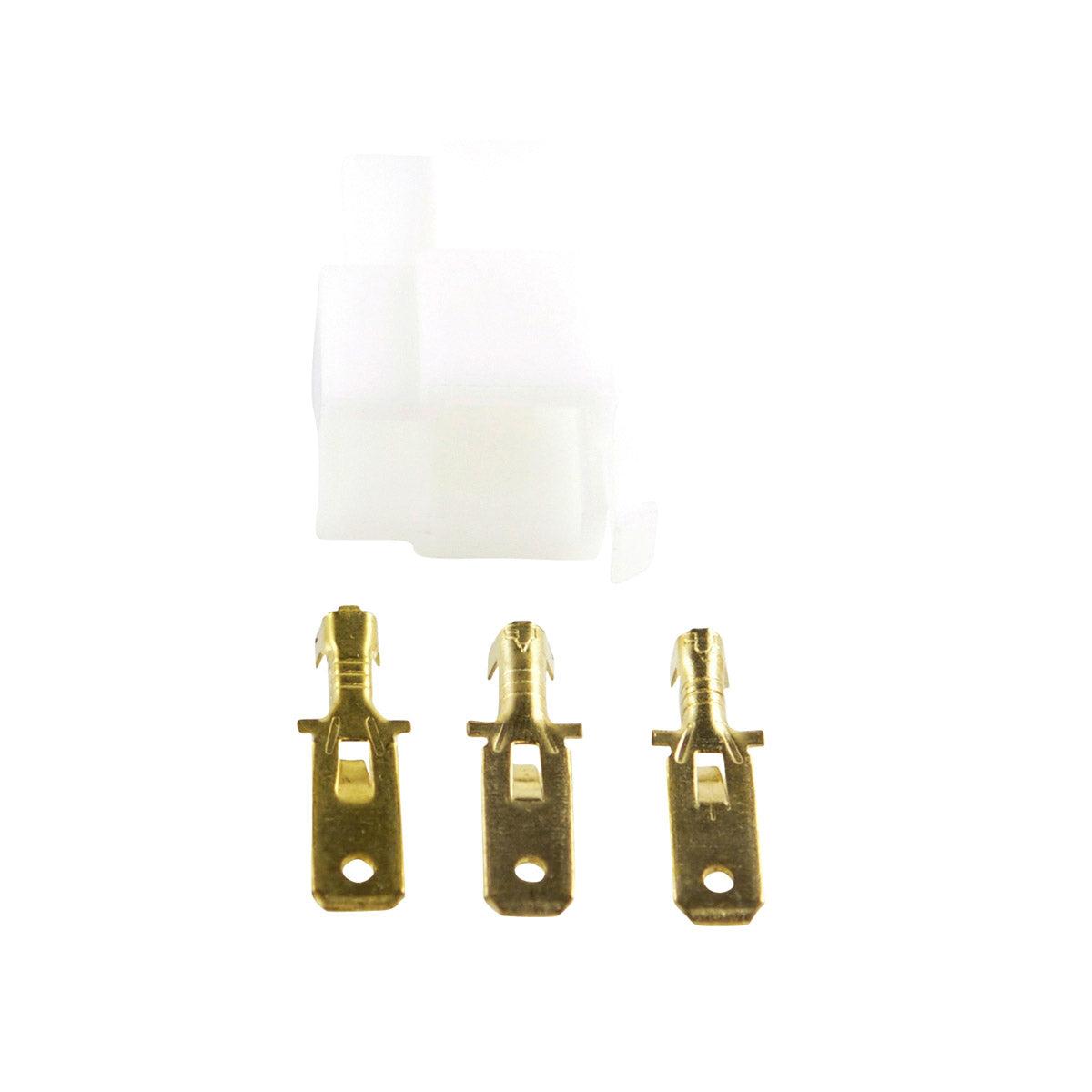

- Connector, rubber grommet and an additional main harness side connector included

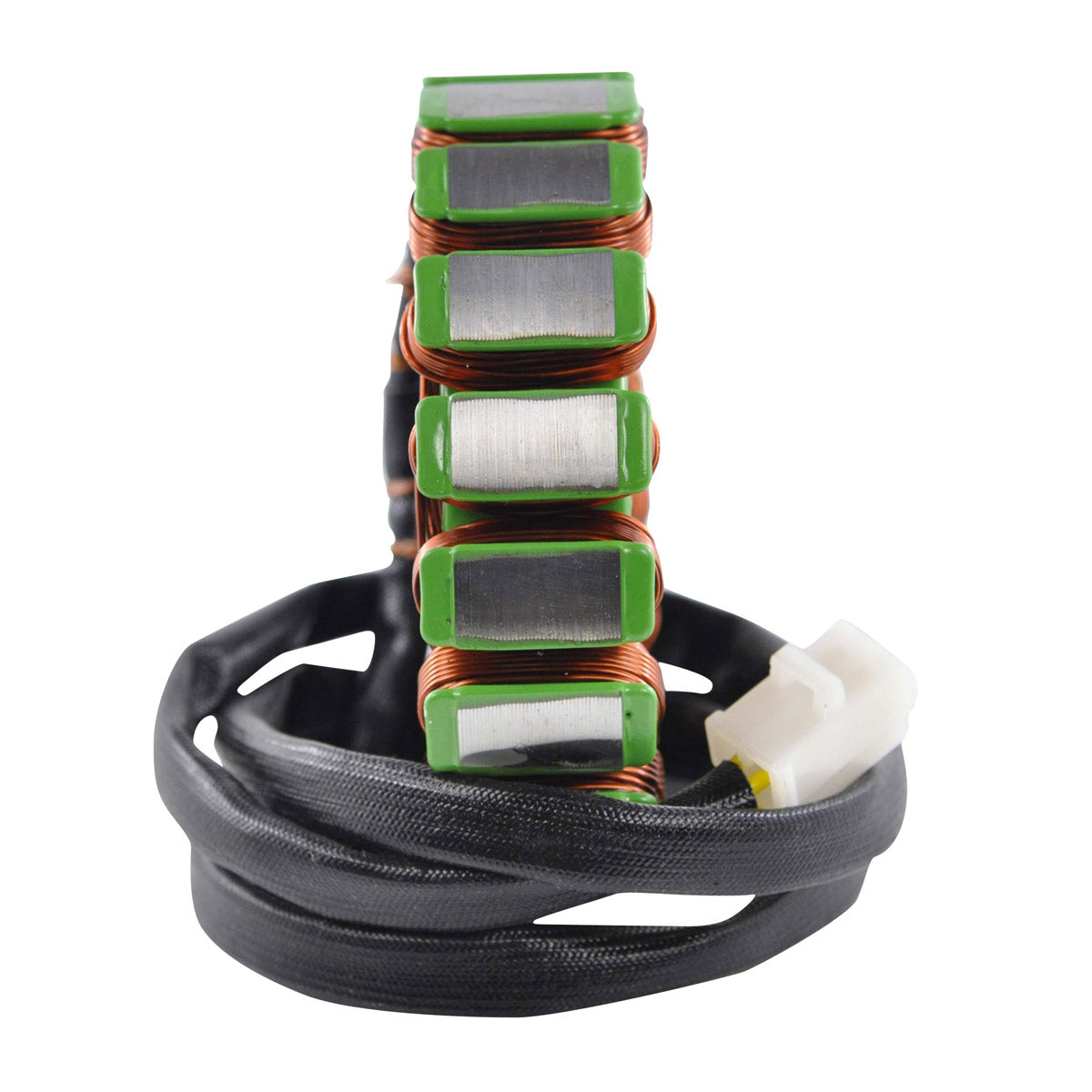

- Three wires, one plug, two pins
- All products shipped are tested
Technical Specs

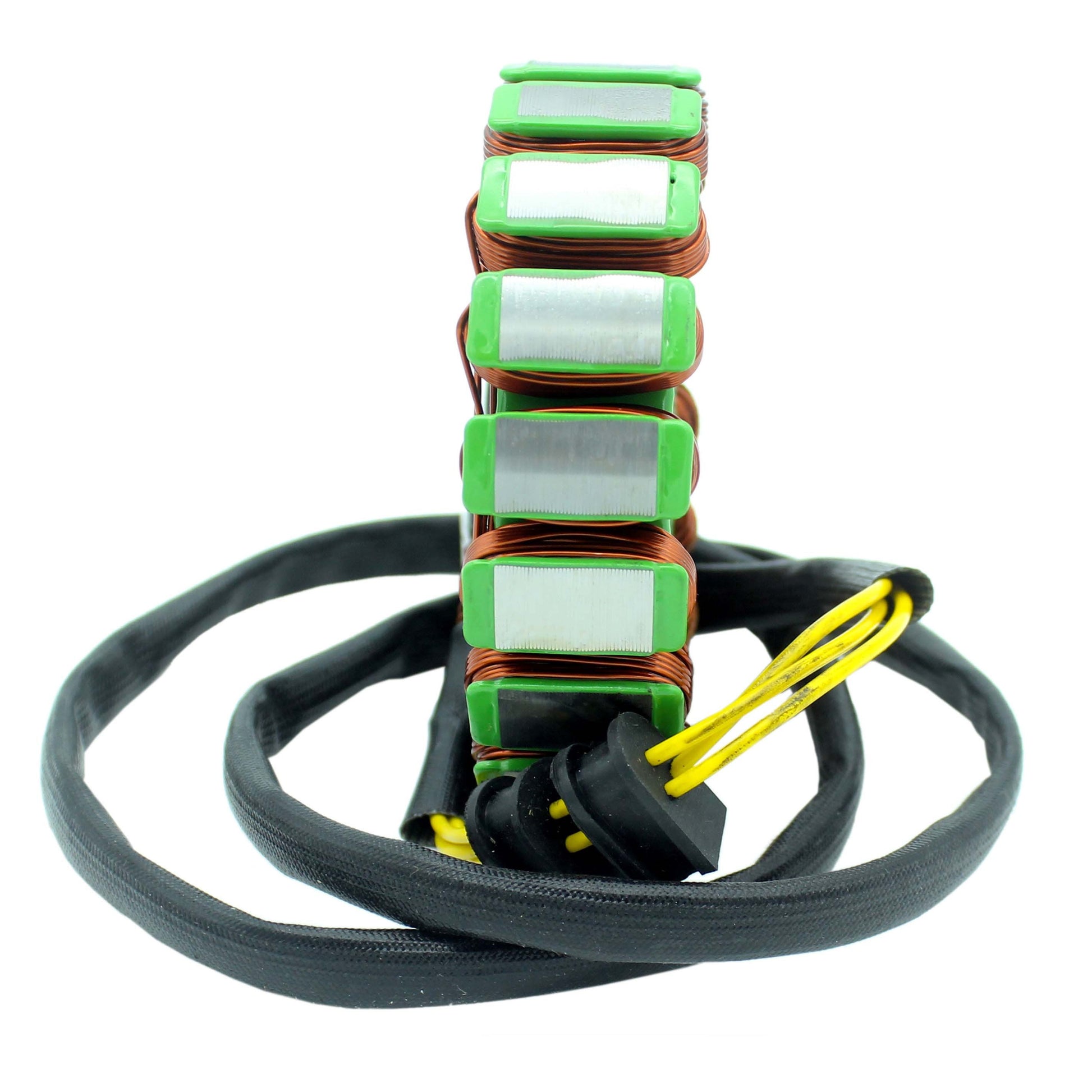

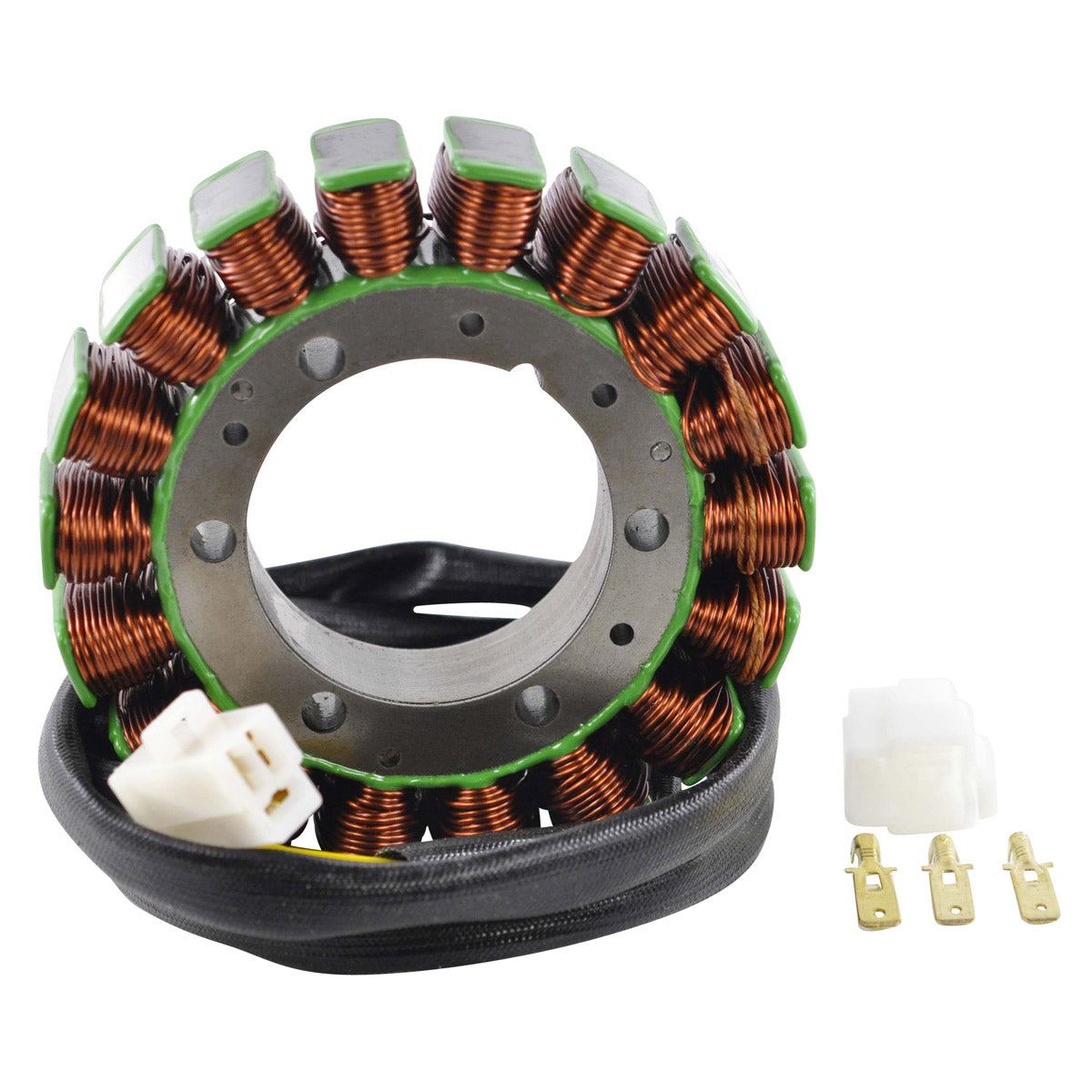

| Specification | Detail |
|---|---|
| Interior diameter | 53mm |
| Exterior diameter | 115mm |
| Thickness | 22mm |
| Length of wires, stator to grommet | 40mm |
| Length of wires, grommet to plug | 850mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 2 |
| Wire to wire resistance (black to black) | 0.4 ohms +/-20% |
| Included in the box | Generator stator unit, connector, rubber grommet, additional connector (main harness side) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda VF 700 Magna | 1982-1984 |
| Honda VF 750 Magna | 1982-1984 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MB1-004 | Honda |
| 31120-MB1-014 | Honda |
| 31120-MB1-024 | Honda |
Frequently Asked Questions
Does this stator fit without modifying the bike?
Yes. It is a direct fit for the 1982-1984 VF 700 Magna and VF 750 Magna and is supplied with the correct connector, so it plugs into the existing main harness in the original position. No cutting or splicing of the loom is required.
What is included in the box?
The generator stator unit, the connector, the rubber grommet that seals the wires where they leave the engine case, and an additional connector for the main harness side. All products shipped are tested.
How do I tell whether my old stator has failed?
A failing stator normally shows up as a battery that will not hold its charge, or one that goes flat after a short ride, often with lights that dim badly at idle. You can test the old unit with a multimeter: the wire to wire resistance between the black wires should read about 0.4 ohms, plus or minus 20 per cent, and none of the three wires should show continuity to the stator body or to engine earth. An open circuit, a reading well outside that range, or a short to earth all point to a failed stator.

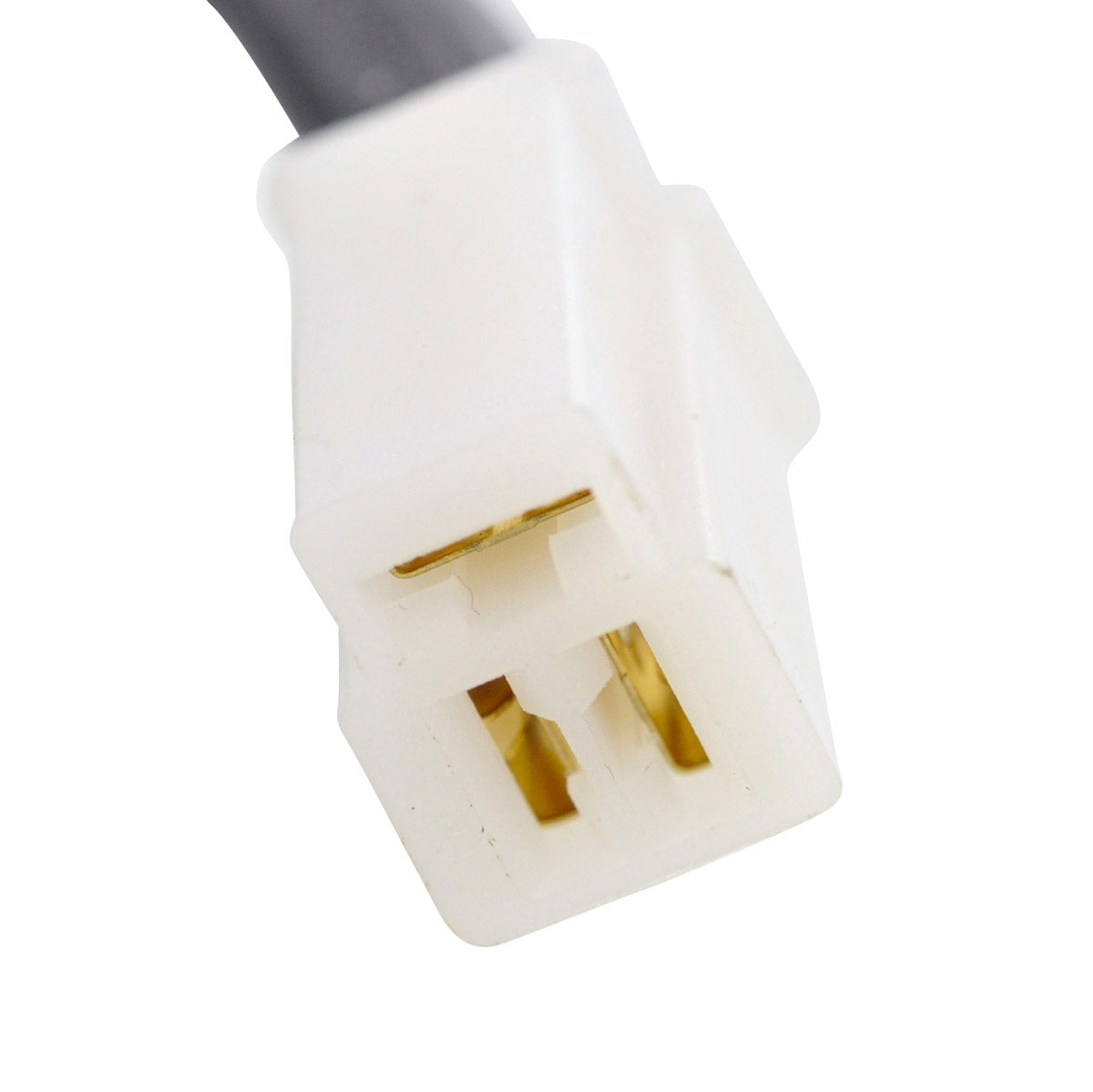

Why does this unit have a two pin plug when it has three wires?
That is how this particular stator is built: three wires leave the stator, and they terminate in a single plug carrying two pins, matching the arrangement used on these early VF Magna models. The additional main harness side connector is supplied so that the joint can be renewed at the same time if the original one on the bike is corroded.
