Stator for Honda VF 700, VF 750 & VF 1100 Sabre & Magna 1982-1988
Stator for Honda VF 700, VF 750 & VF 1100 Sabre & Magna 1982-1988
SKU:RM01460
Free shipping over £150. Terms apply
Couldn't load pickup availability

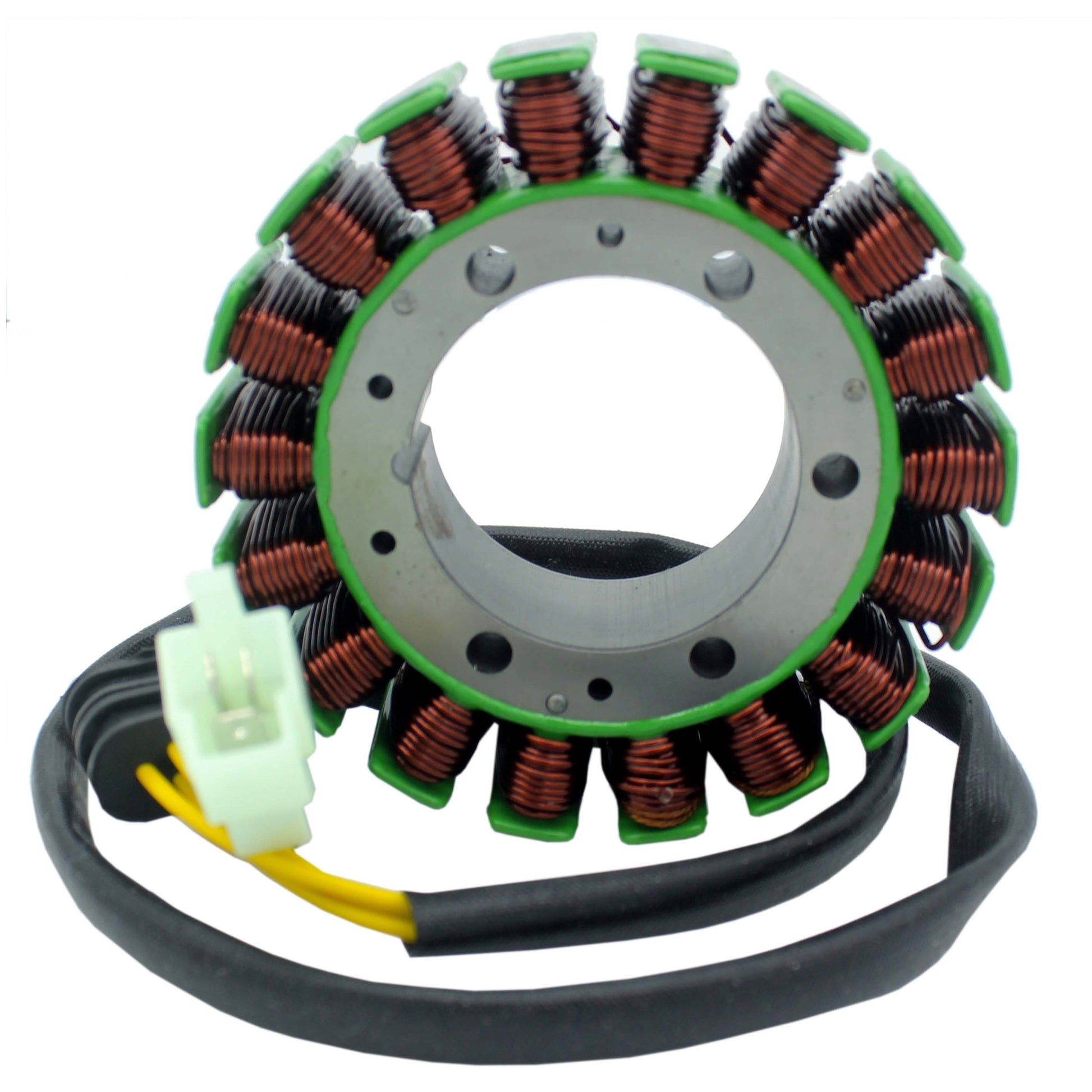

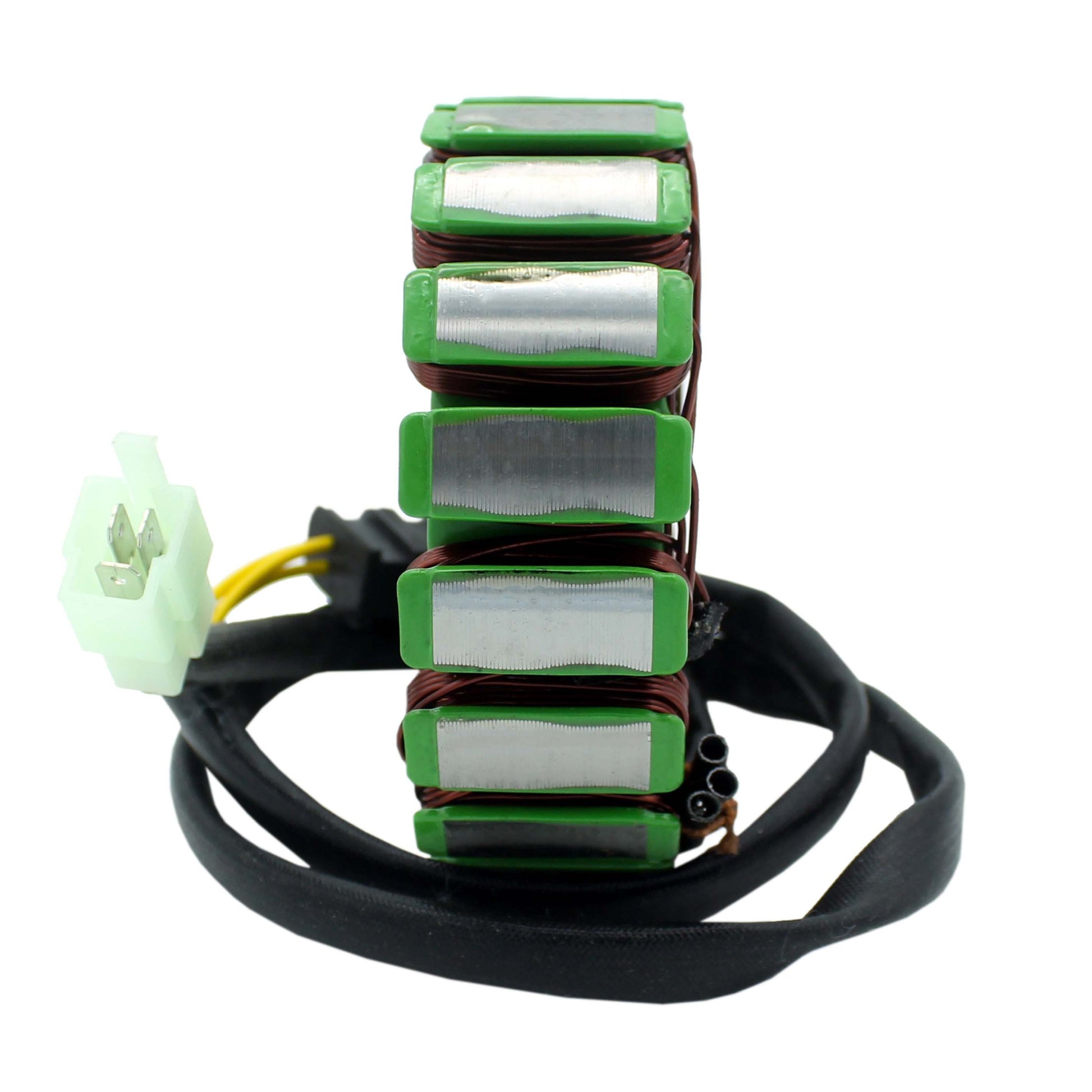

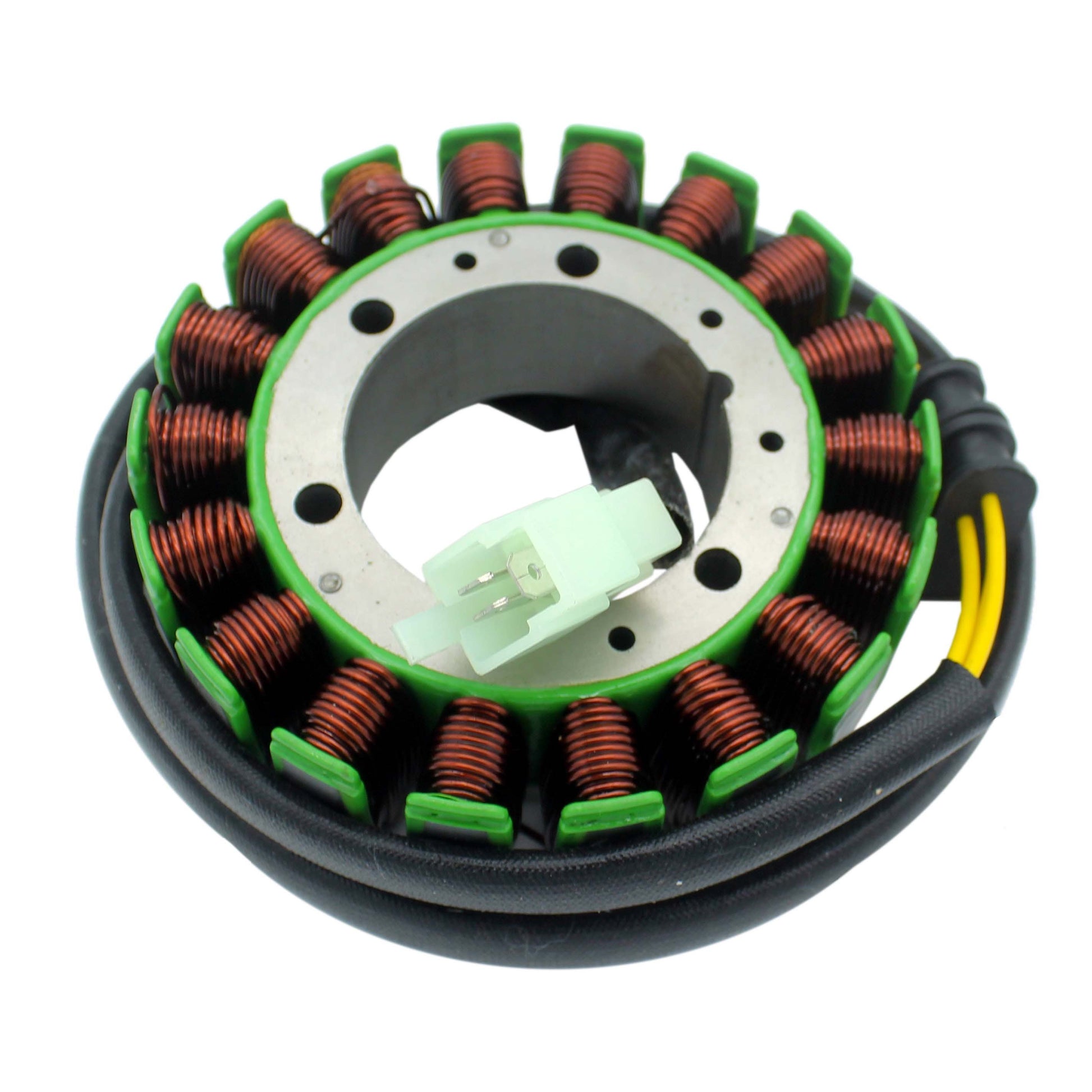

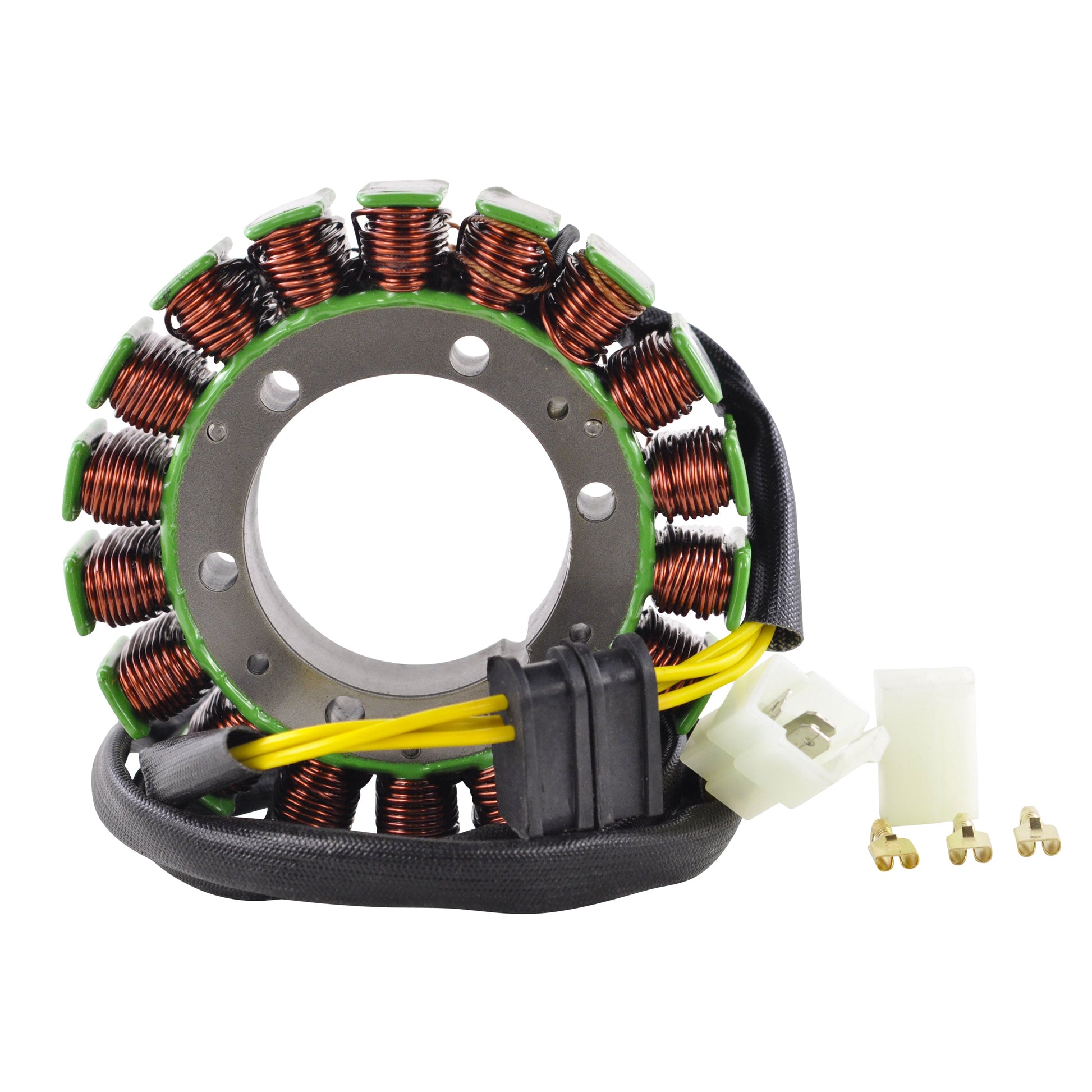

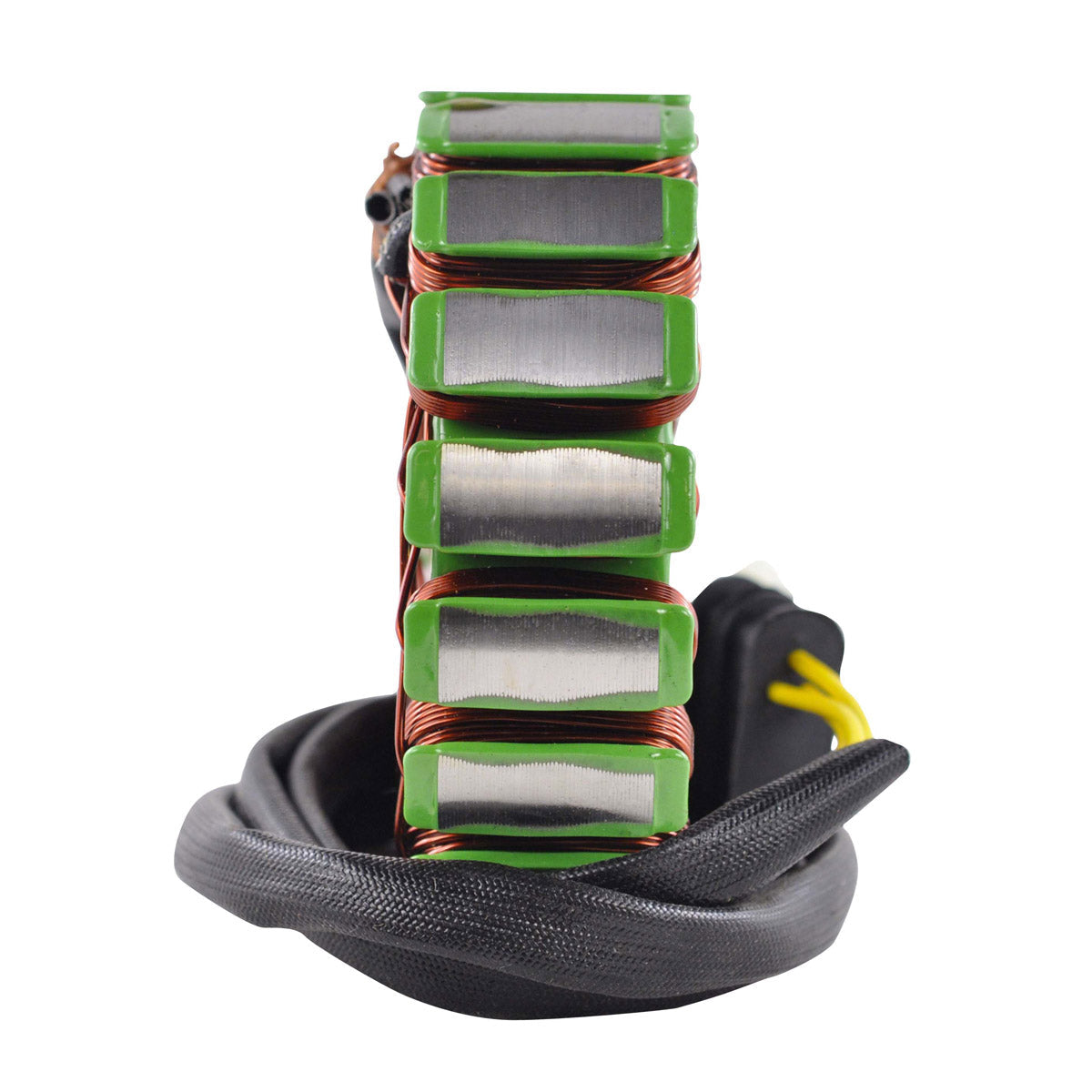

Generator Stator for Honda VF 700, VF 750 and VF 1100 Sabre / Magna
Honda VF700, VF750 and VF1100 Sabre and Magna, 1982-1988
A brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to the Honda VF Sabre and Magna V4 range. It is a plug-and-play, direct fit part that goes back in exactly where the original came out, with no modification to the engine cases or the wiring loom. The part number is RM01460.

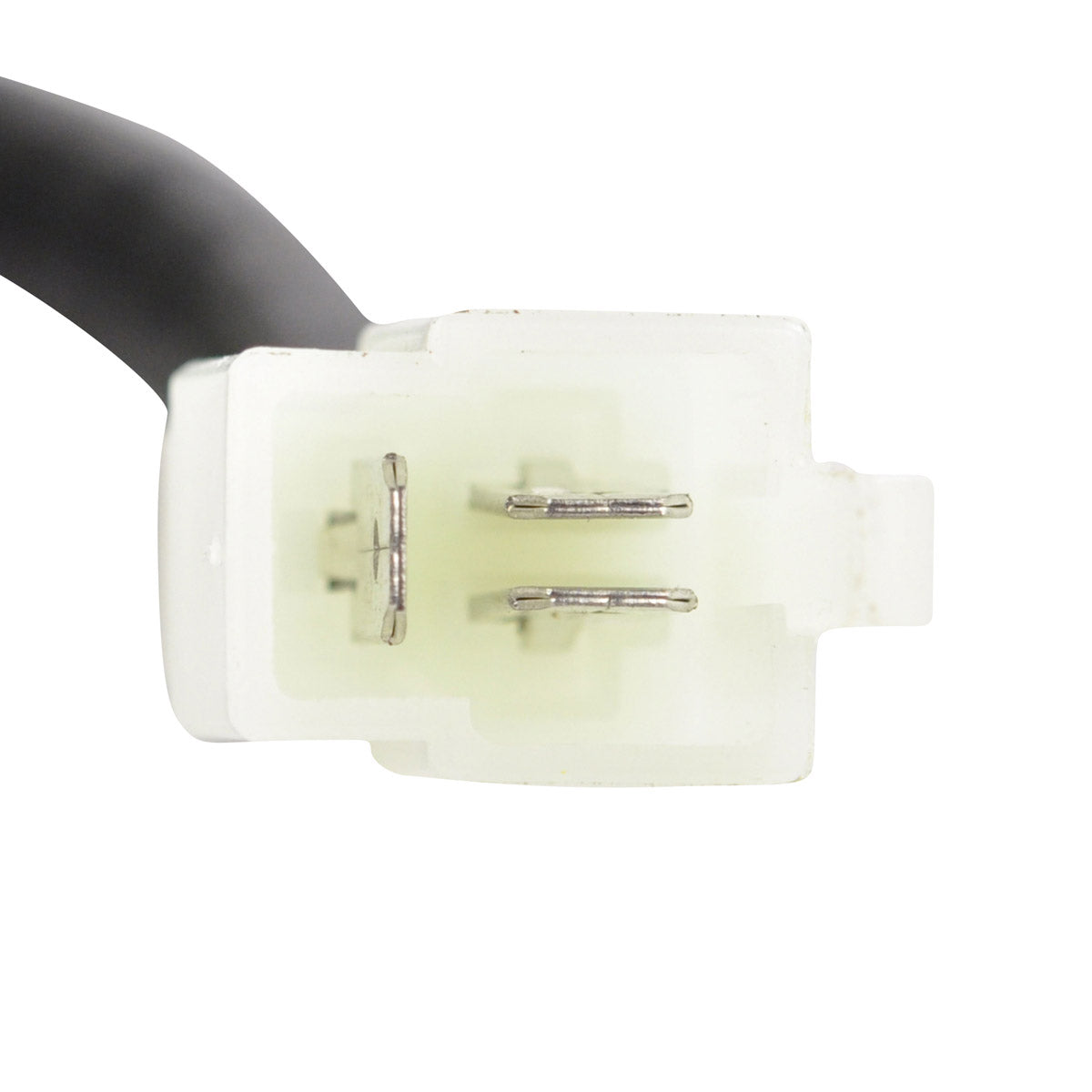

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius, which is the usual failure point on the original Honda units. It carries three wires into a single three pin plug on a generous 750 mm tail, and the connector and rubber grommet are supplied already fitted. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

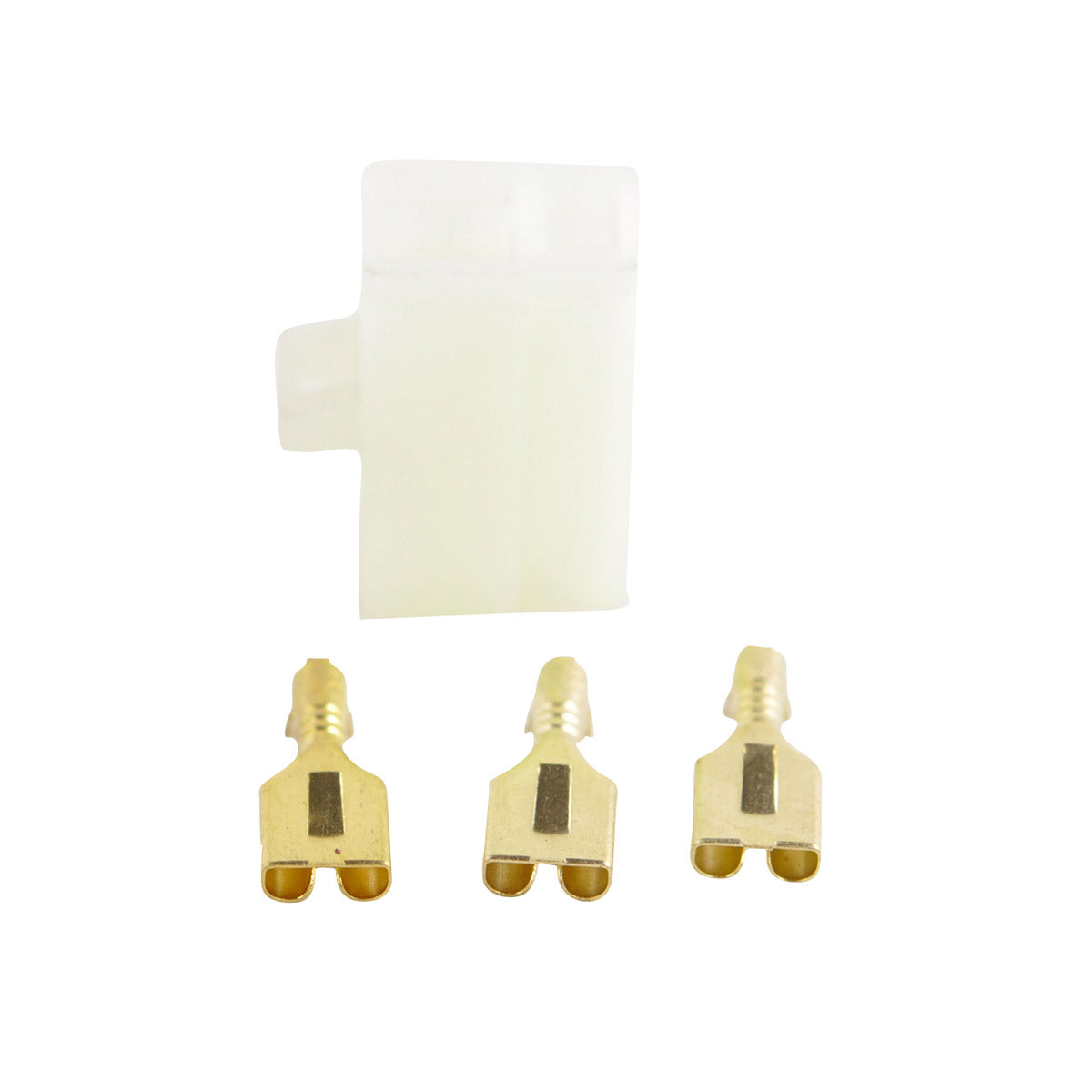

- Connector included
- Rubber grommet included
- All products shipped are tested
- Part number RM01460
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01460 |
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 28 mm |
| Wire length, stator to grommet | 70 mm |
| Wire length, grommet to plug | 750 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, black to black | 0.4 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda VF700 Sabre / Magna | 1982-1988 |
| Honda VF750 Sabre / Magna | 1982-1988 |
| Honda VF1100 Sabre / Magna | 1982-1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MB0-000 | Honda |
| 31120-MB0-005 | Honda |
| 31120-MB0-015 | Honda |
| 31120-MB0-025 | Honda |
| 31120-MB0-405 | Honda |
| 31120-MB0-415 | Honda |
| 31120-MB3-008 | Honda |
| 31120-MB4-005 | Honda |
| 31120-MB4-015 | Honda |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Honda unit, supplied with the connector and rubber grommet already fitted. No cutting or splicing of the loom is required.
What is included in the box?
The stator assembly, the connector and the rubber grommet. All products shipped are tested before they leave us.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 0.4 ohms +/- 20% black to black across the alternator windings. A reading that is open circuit, shorted to earth, or well outside that figure points to a failed stator.
How long is the wiring tail?
There is 70 mm from the stator to the grommet and 750 mm from the grommet to the plug, giving three wires into a single three pin connector.
