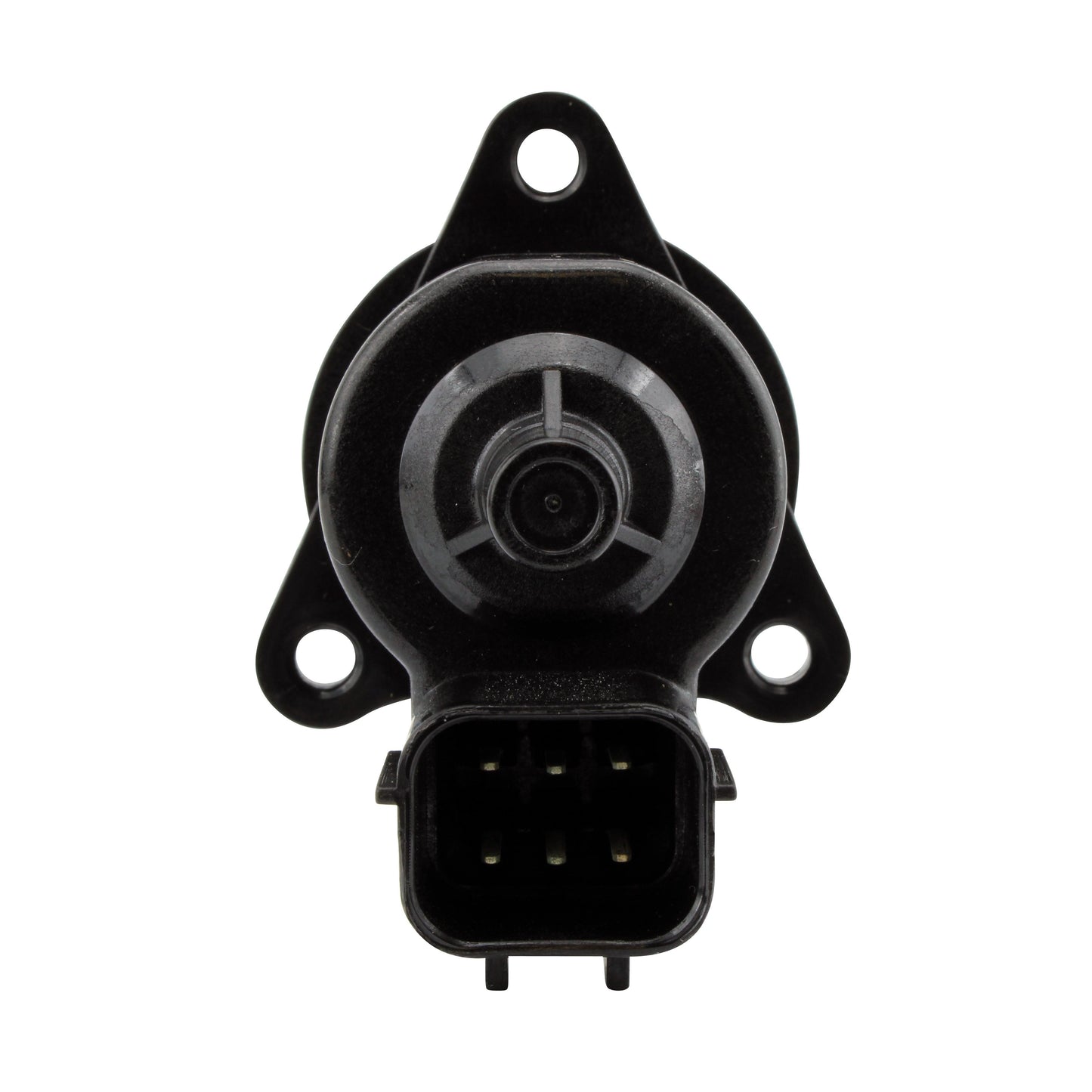

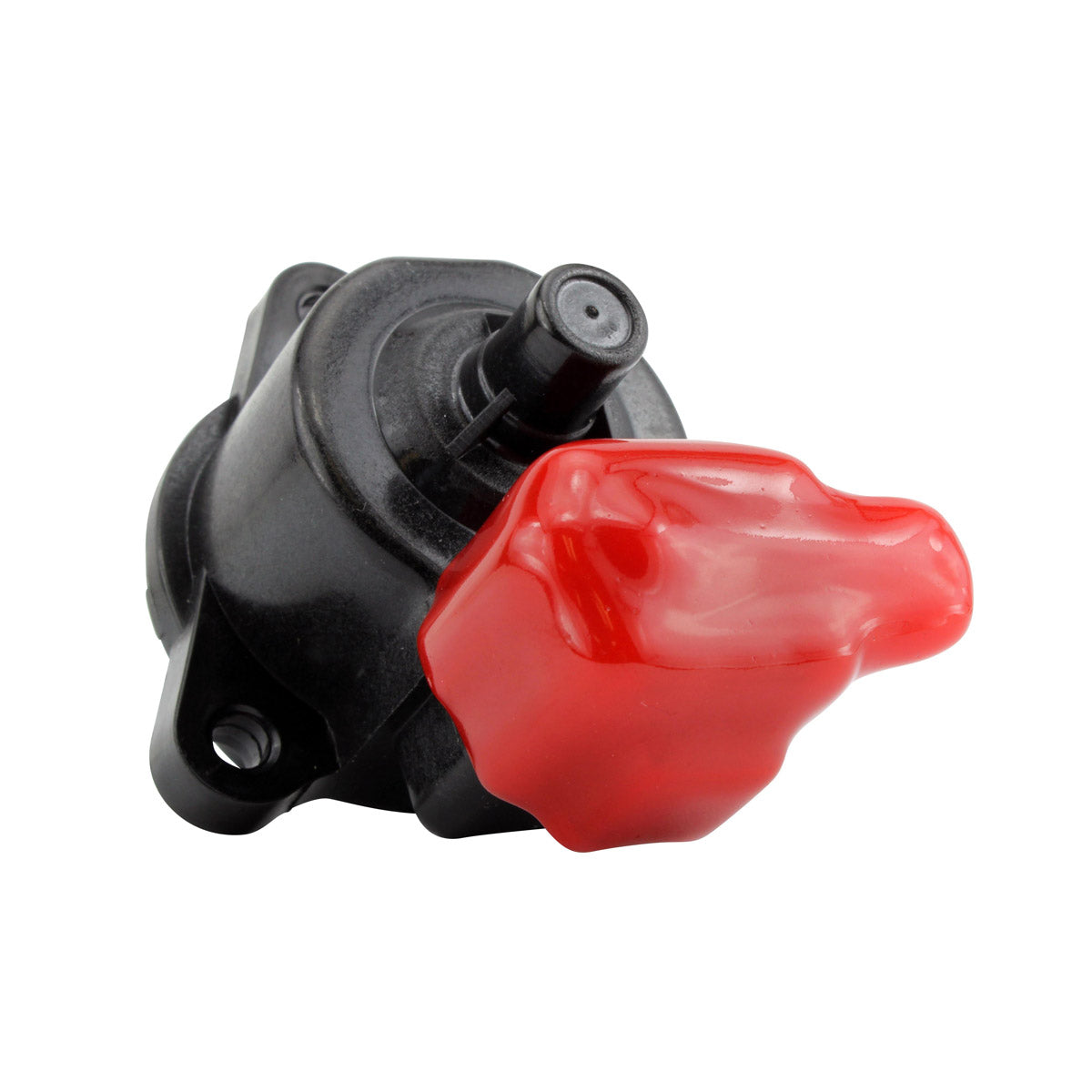

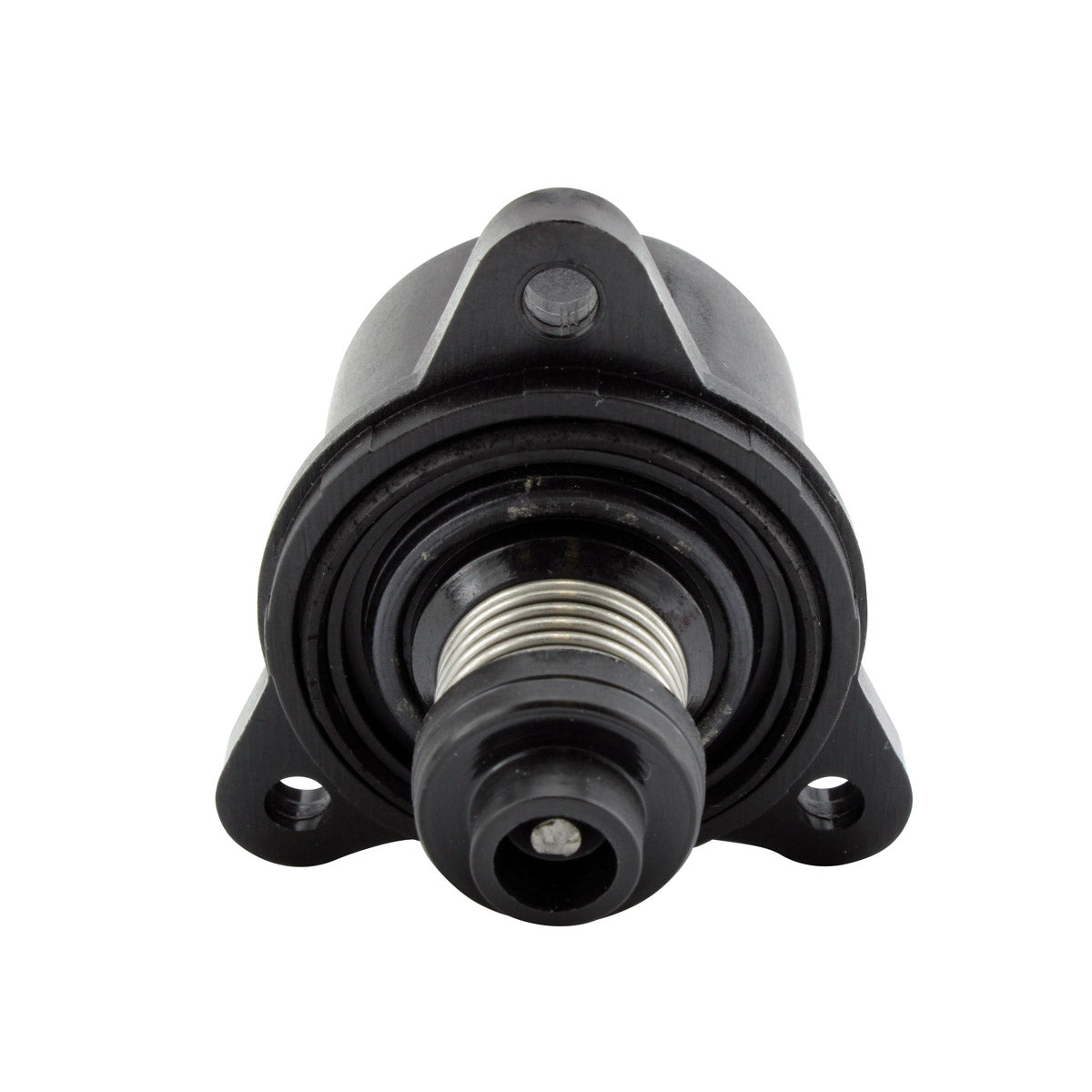

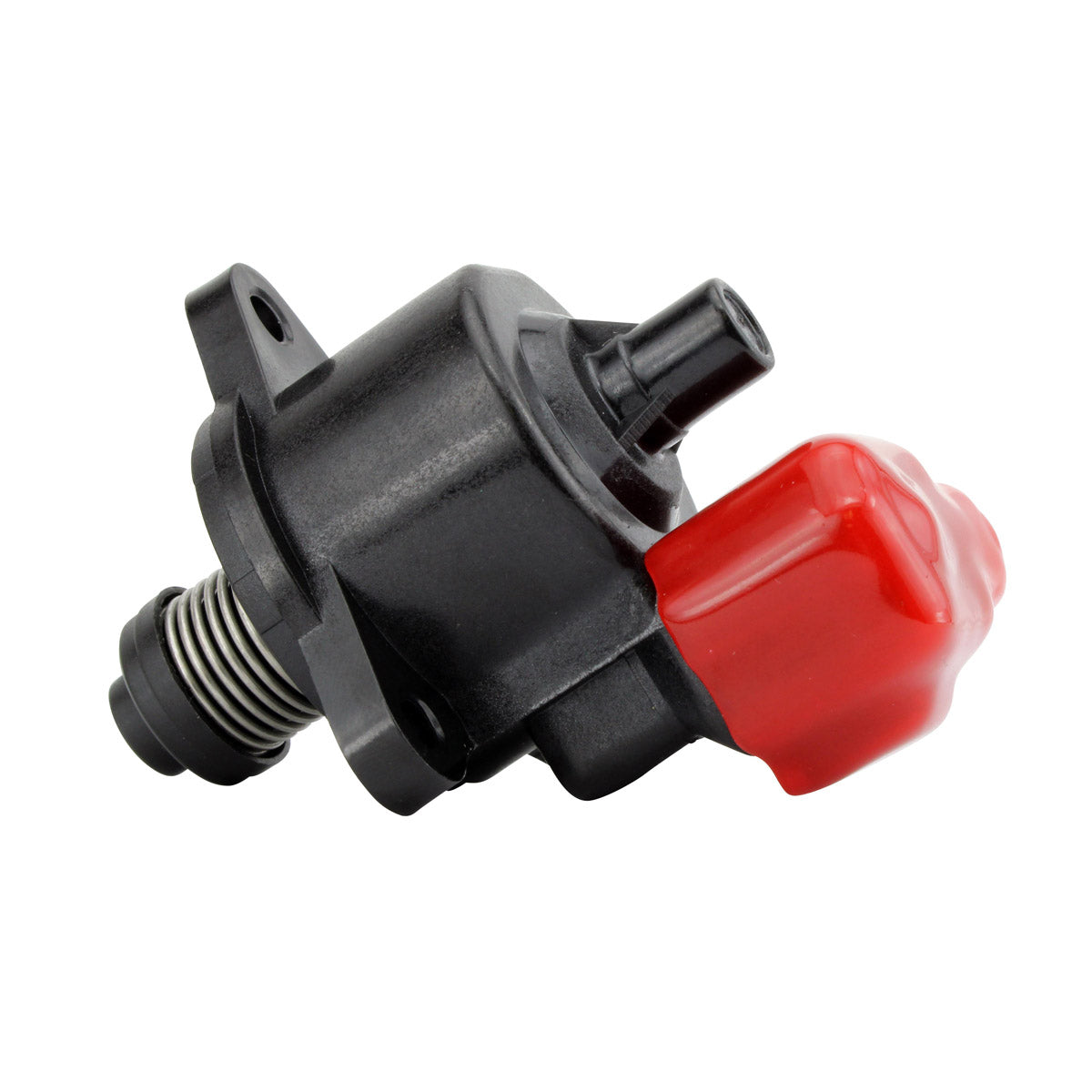

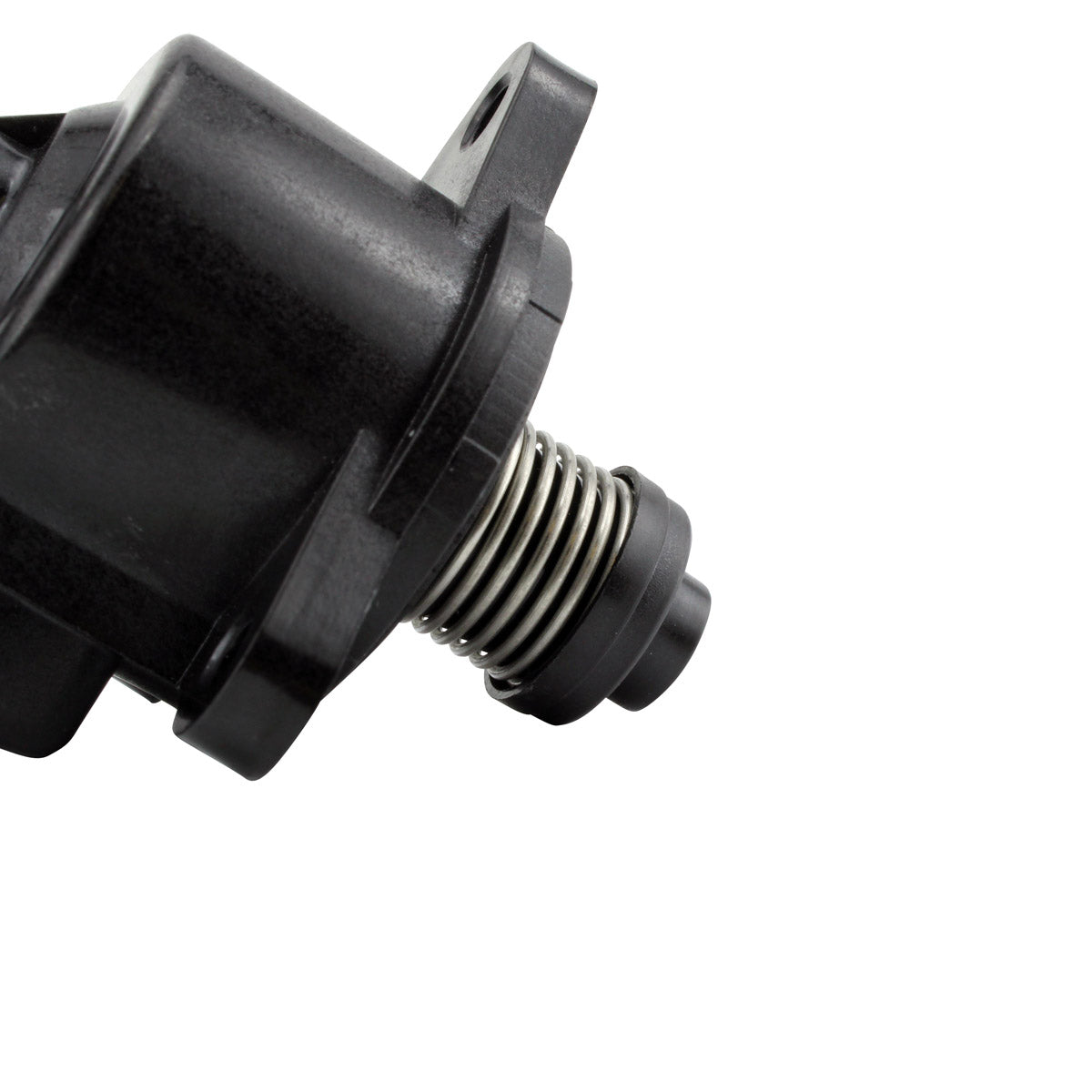

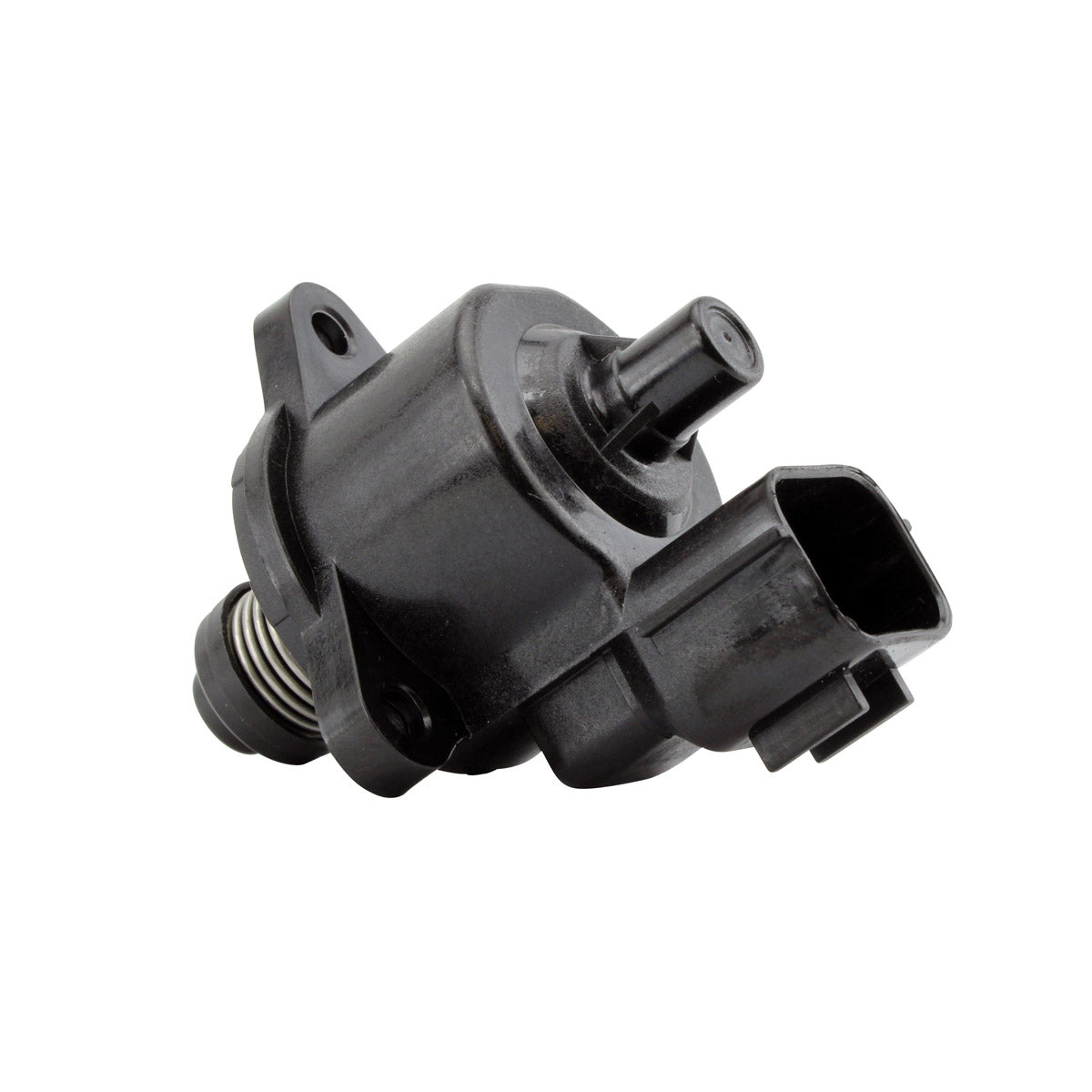

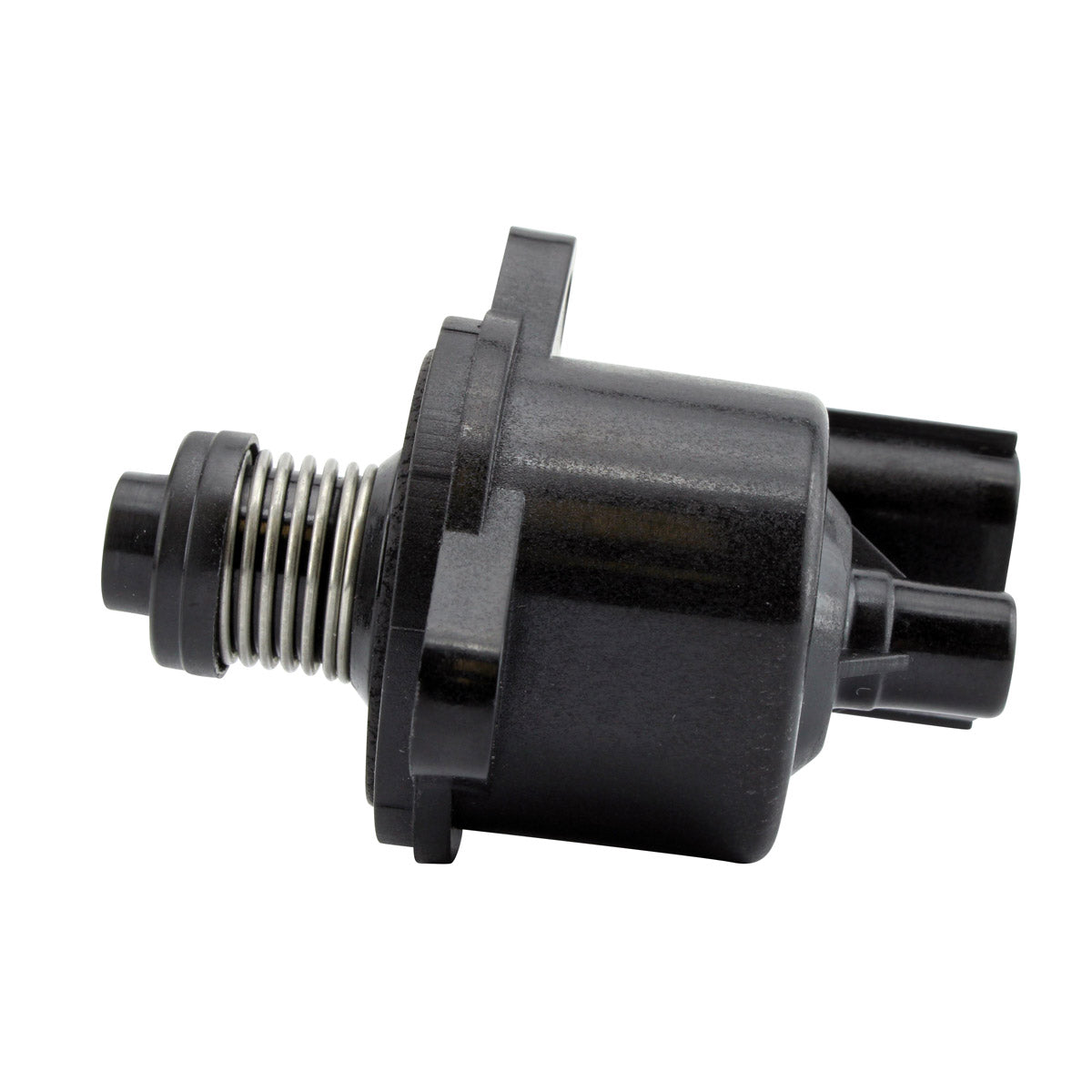

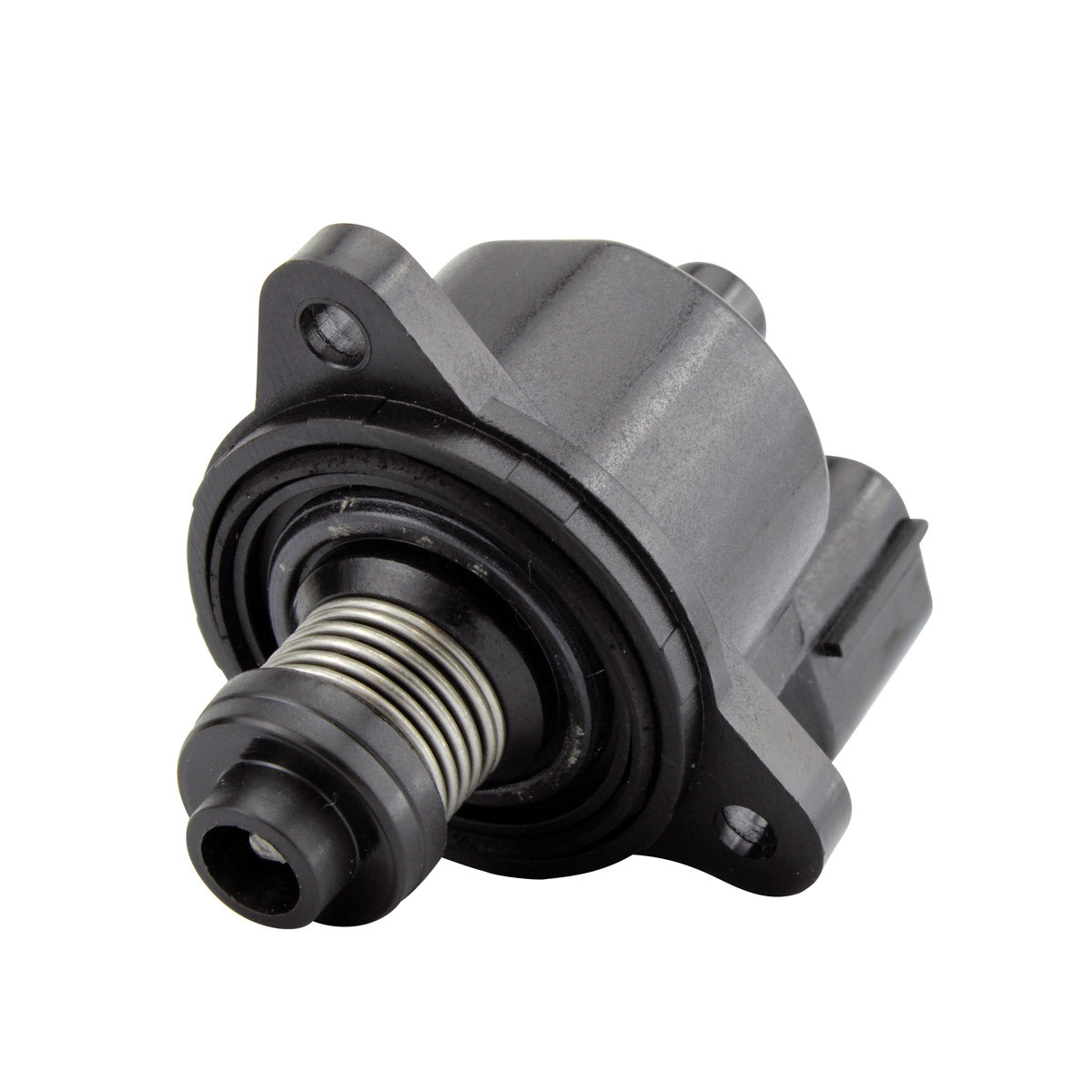

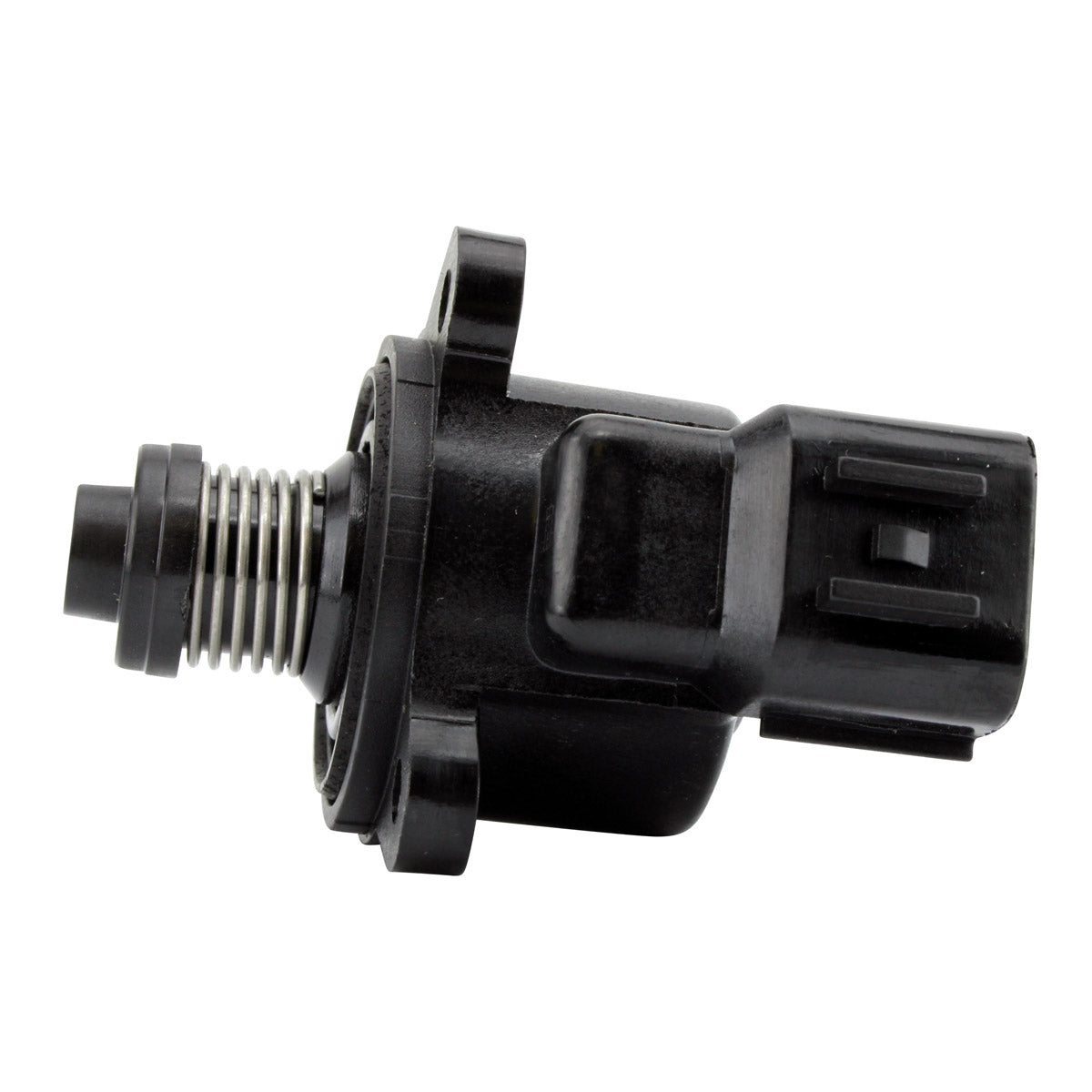

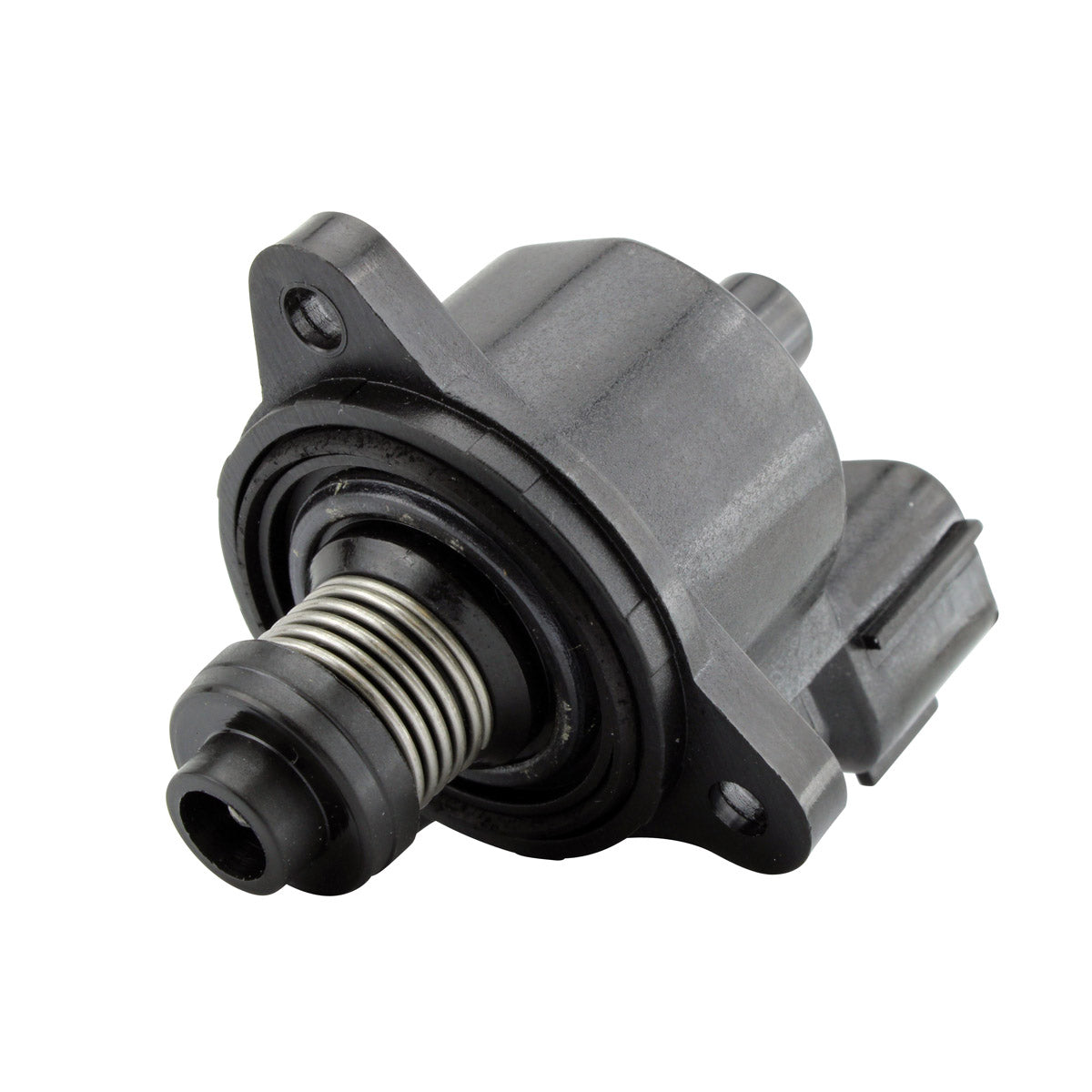

This is a brand new aftermarket Idle Air Control (IAC) valve - the throttle body stepping motor valve - for the Polaris Sportsman 500 and 550, the Ranger 500 and 800, and the RZR 800. It is a direct replacement for the original unit, plug-and-play, direct fit and easy to install on the applications listed below.
The IAC valve regulates engine speed by adjusting the amount of air allowed into the intake during idle. With the throttle plate closed, this is the only air path the engine control unit can meter, so the valve is what holds a steady idle when the machine is cold, when the fan cuts in, or when the winch draws current. A stepping motor valve that has become clogged with carbon, or whose motor has lost steps, shows up as a hunting or surging idle, an idle that sits far too high or dies as soon as you close the throttle, stalling when coming to a stop, and hard starting when hot. Please note that the original Polaris part consists of a metal housing with a sensor in it - this listing supplies the sensor only, so you reuse your existing housing.
Key Features
- Brand new aftermarket Idle Air Control (IAC) valve
- Throttle body stepping motor valve
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Regulates engine speed by metering intake air at idle

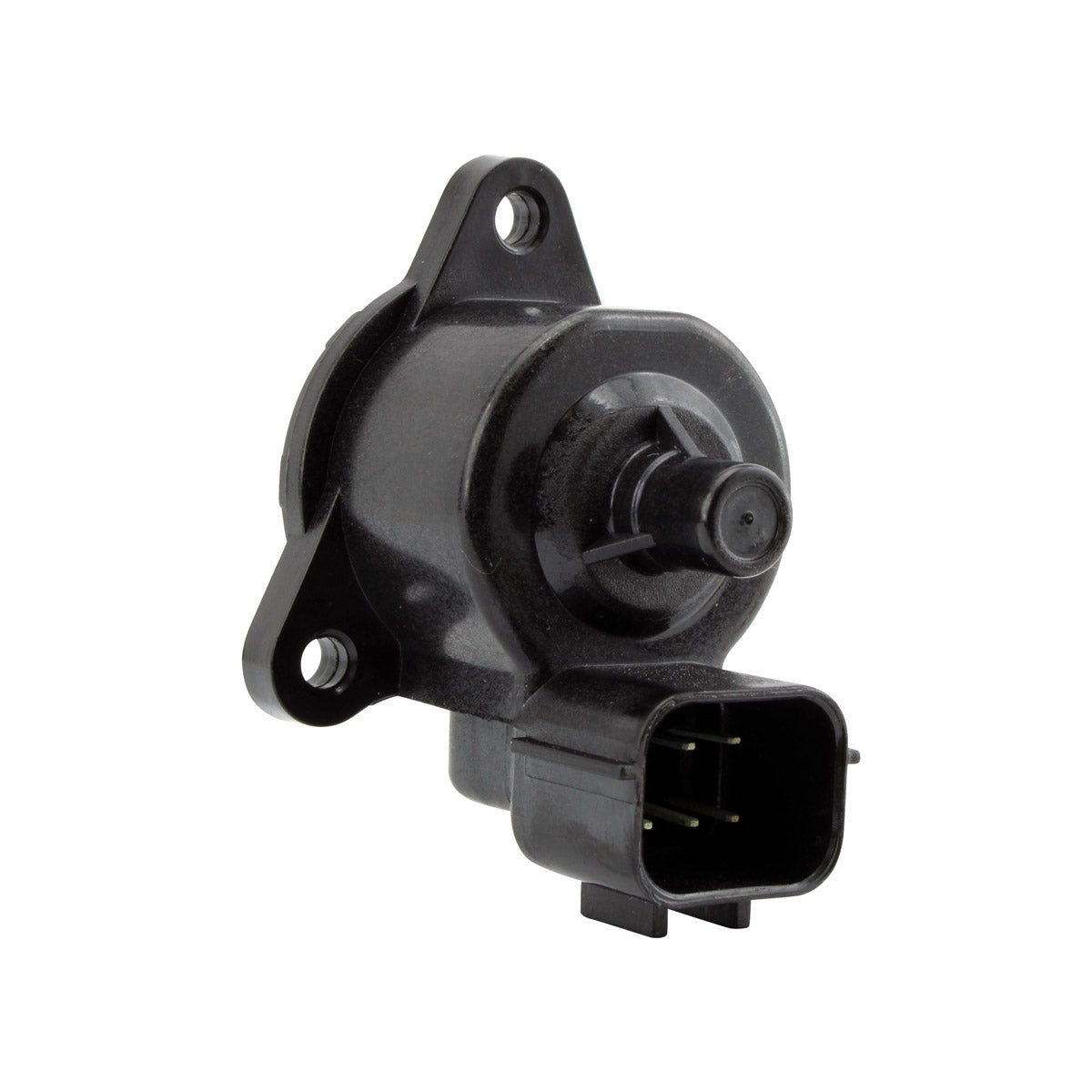

- Single plug with 6 terminals
- Sensor only - the OEM metal housing is not included
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RMS140-106703 |
| Width |
52 mm |
| Length |
64 mm |
| Height |
62 mm |
| Distance between fixation holes |
40 mm |
| Number of plugs |
1 |
| Number of terminals |
6 |
| Supplied as |
Sensor only, without the OEM metal housing |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Sportsman 500 |
2006-2017 |
| Polaris Sportsman 550 |
2006-2017 |
| Polaris Ranger 500 |
2006-2017 |
| Polaris Ranger 800 |
2006-2017 |
| Polaris RZR 800 |
2006-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3131629 |
Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes, on the applications listed above. It is a direct, plug-and-play replacement using the same single six-terminal plug and 40 mm fixing centres as the original sensor. Compare Polaris part number 3131629 against your original unit before ordering.
What exactly is included?
The sensor only. The original Polaris part is a metal housing with a sensor mounted in it, and this listing supplies the sensor on its own, so your existing housing is retained and reused. Please check the images against your part before ordering if you were expecting the complete assembly.
How do I tell whether the IAC valve has failed?
The symptoms all cluster around idle: a speed that hunts up and down instead of settling, an idle that stays far too high, stalling as you close the throttle at a junction, or refusing to restart hot. Before replacing anything, take the valve out and look at the pintle and seat - a heavy carbon deposit can cause every one of those symptoms and will simply build up again on a new part if the intake is not cleaned at the same time.
Does the machine need resetting after fitting?
Fit the sensor with the ignition off, reconnect, and let the engine idle from cold without touching the throttle so the control unit can relearn its idle position. If the idle is still unsettled once the engine is at temperature, check for air leaks around the throttle body and intake boot before suspecting the new part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
