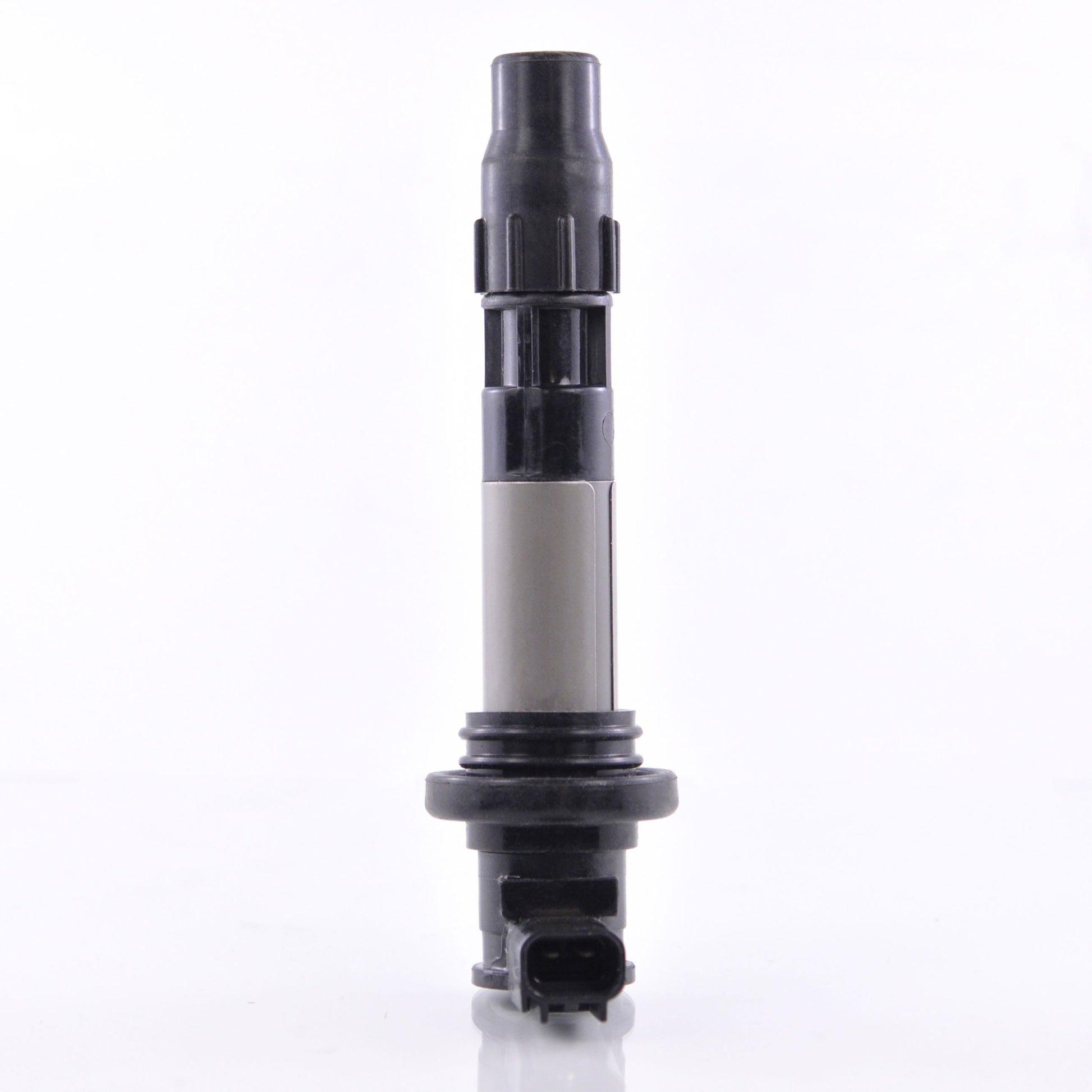

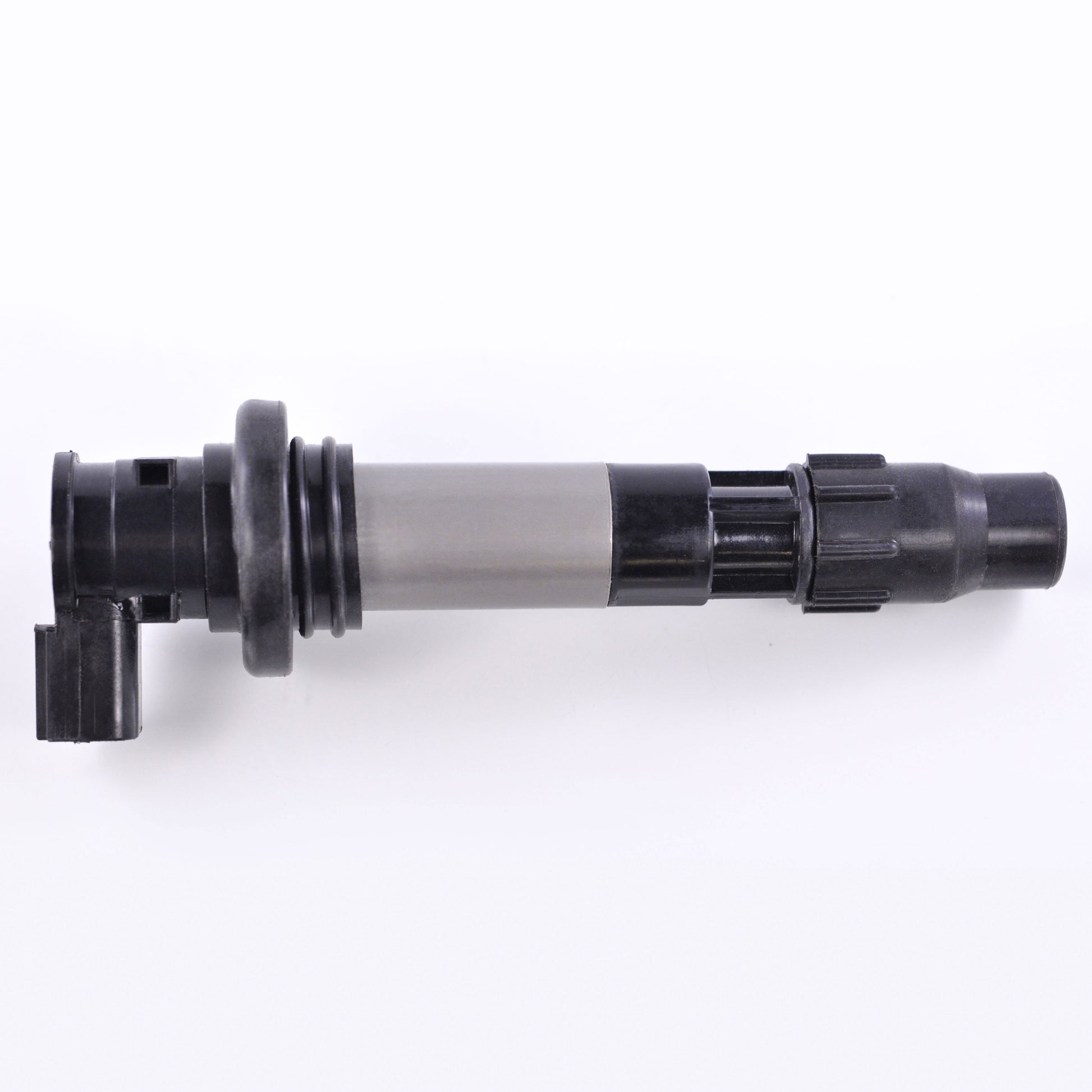

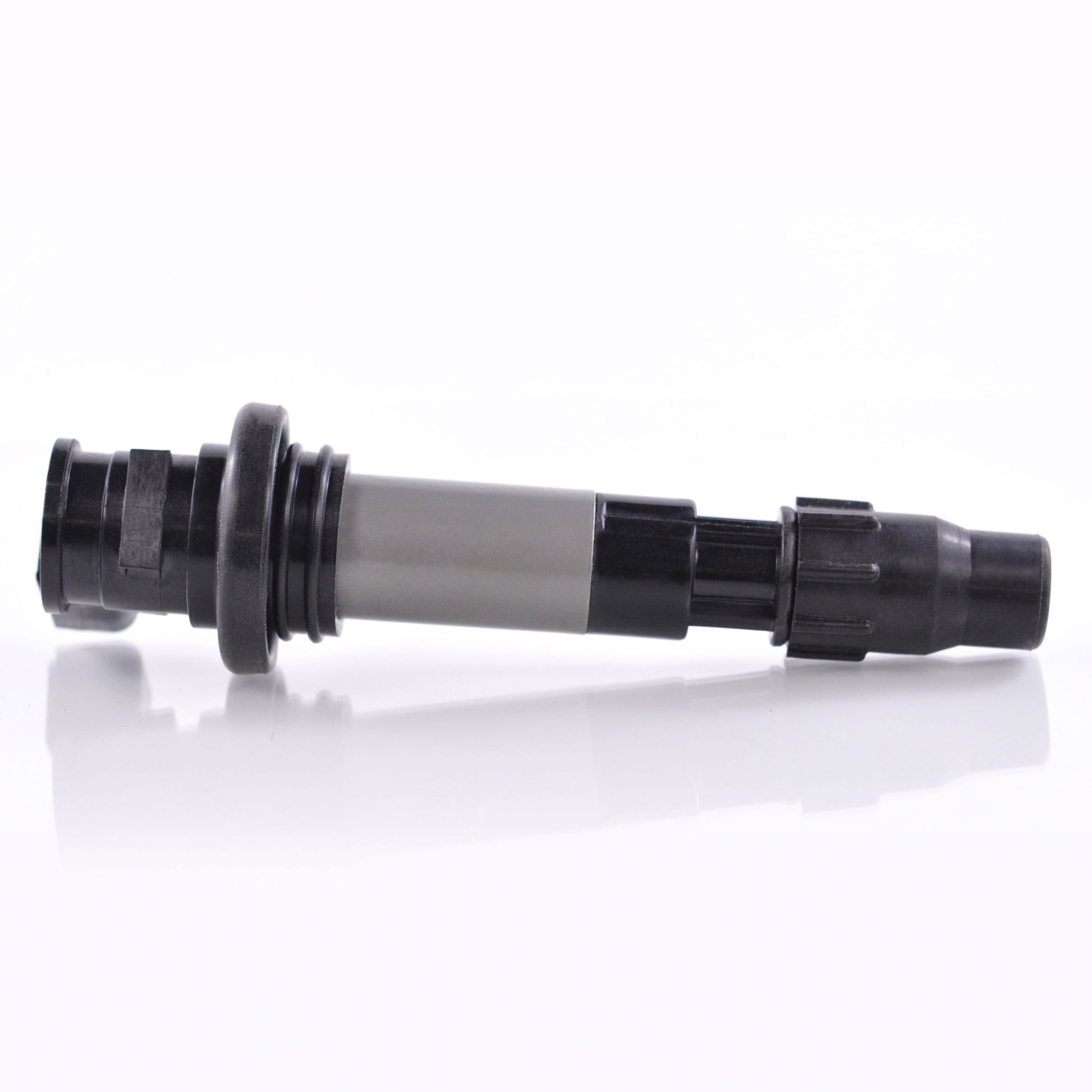

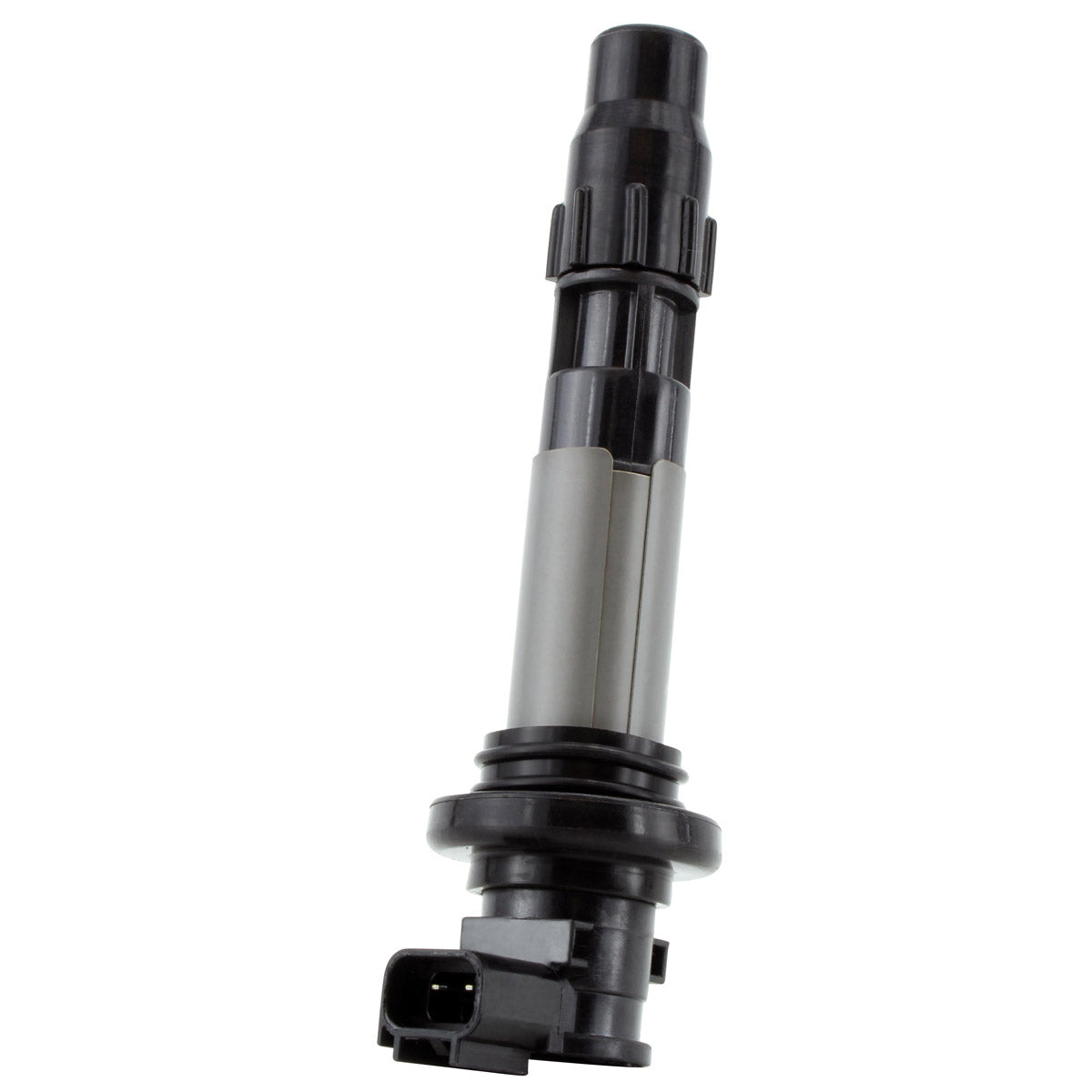

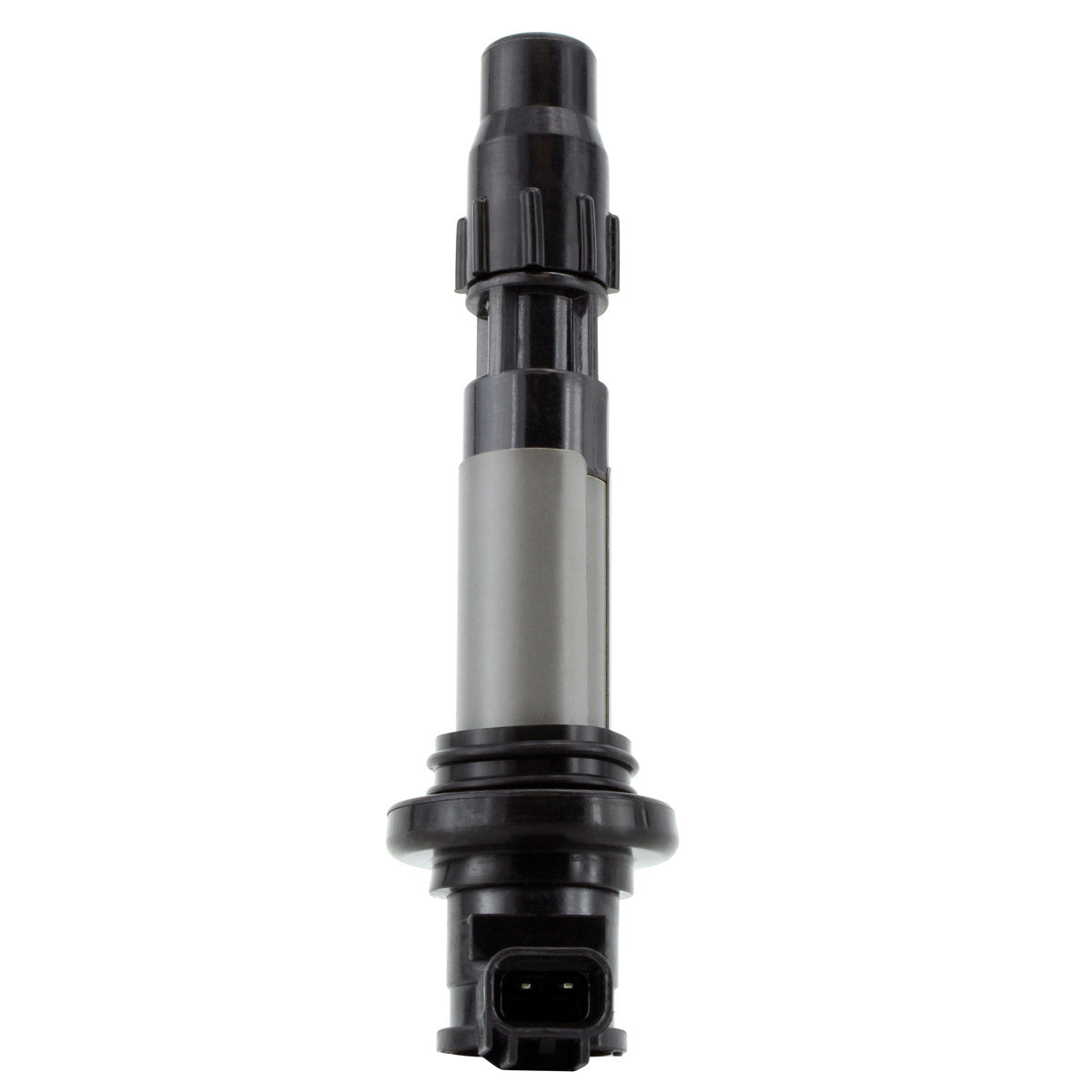

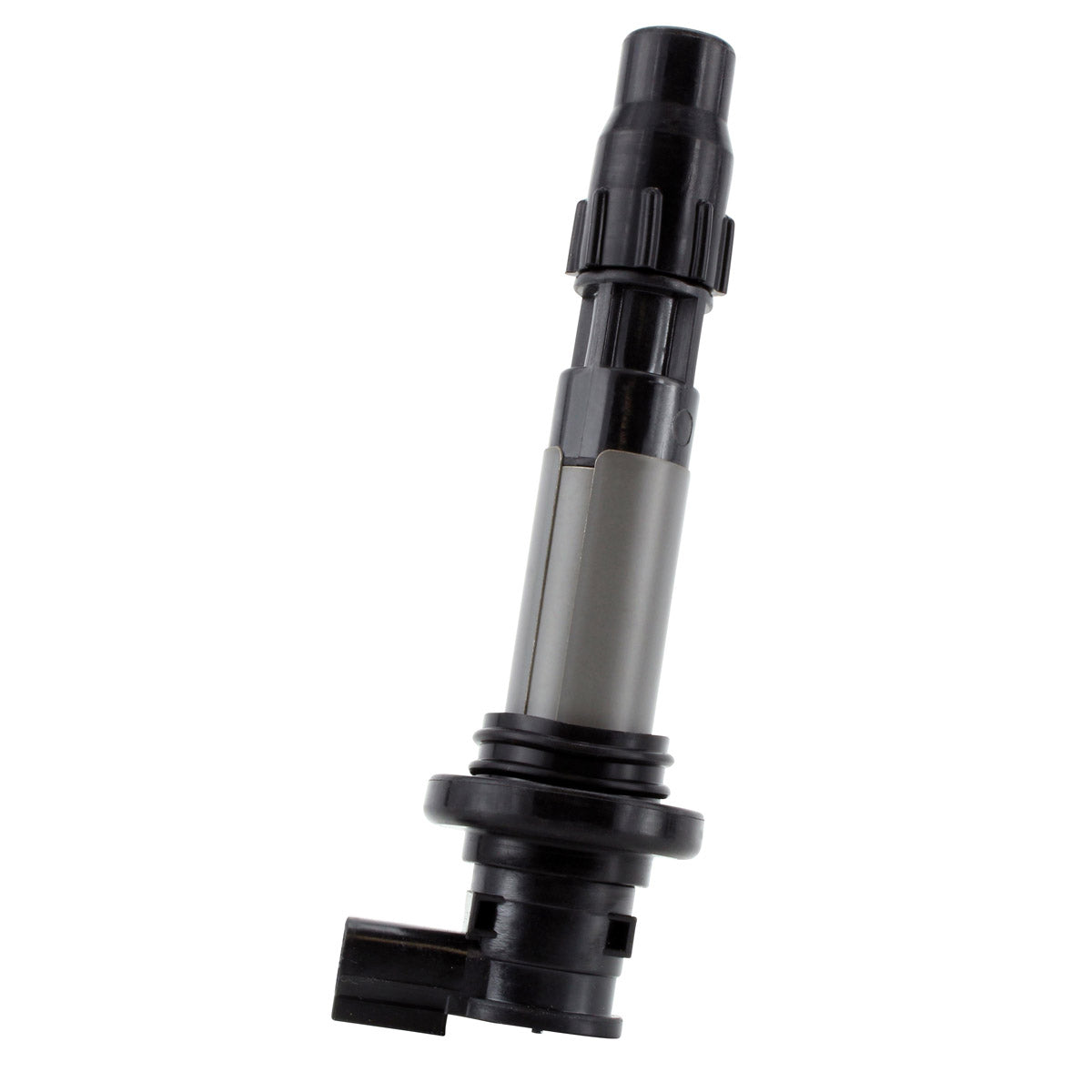

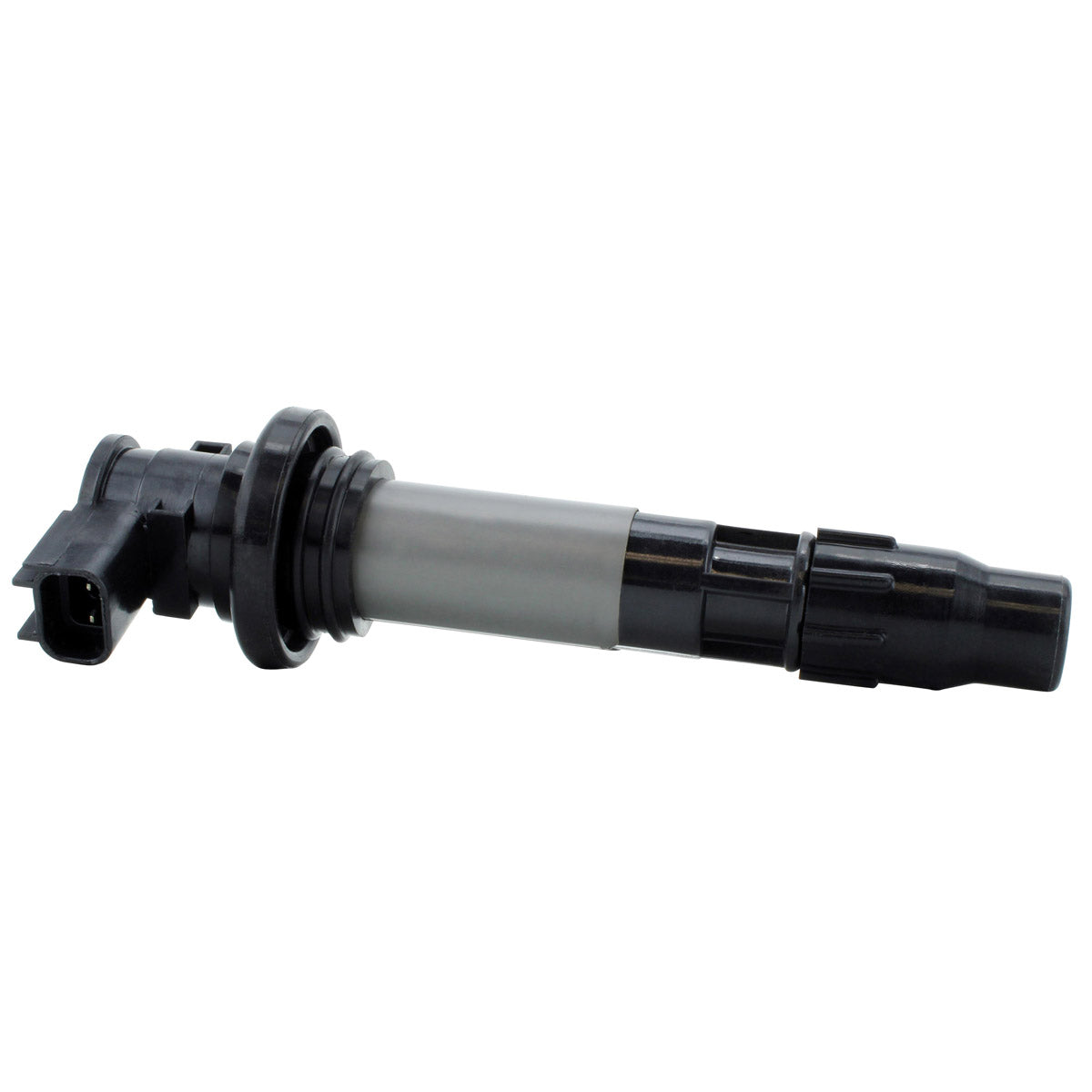

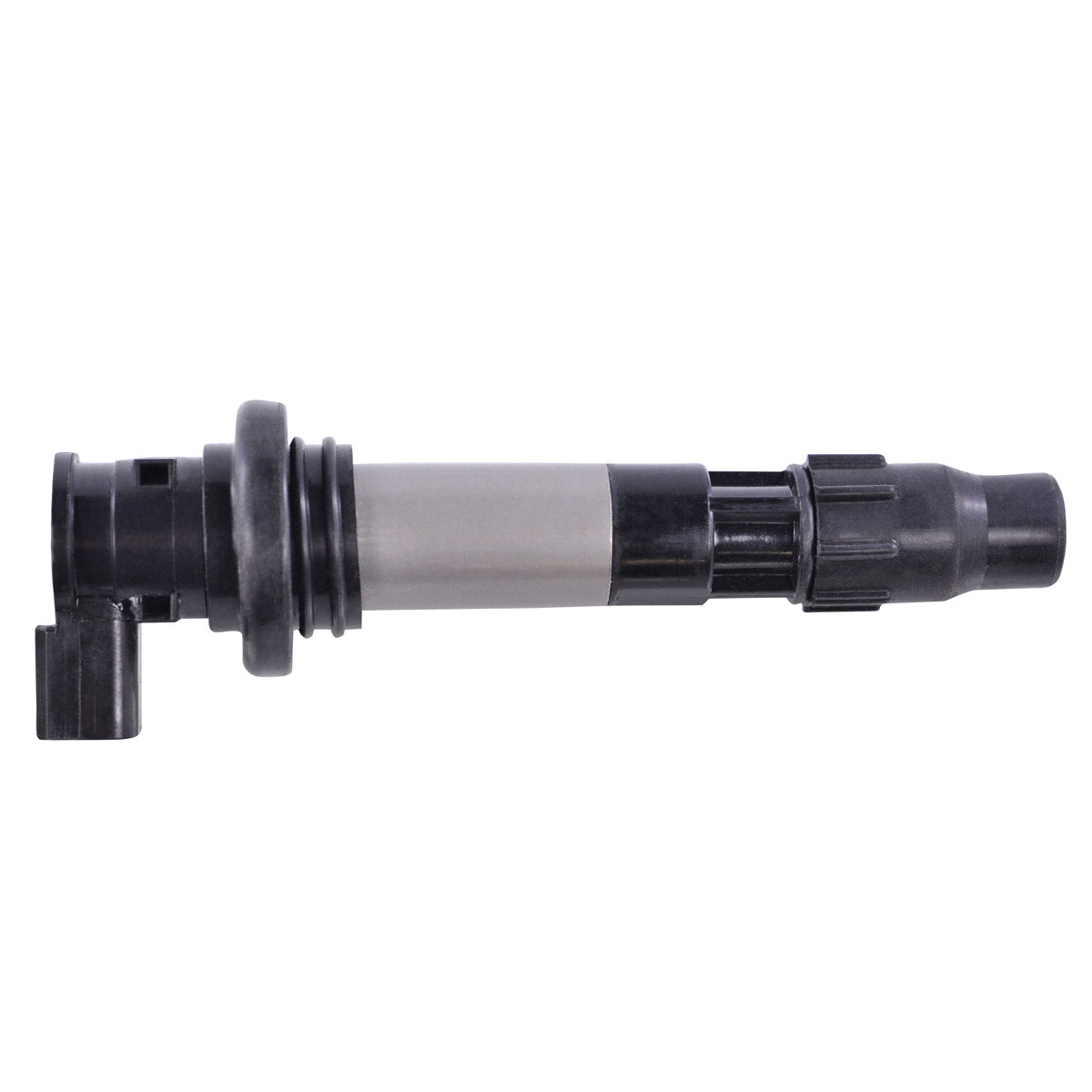

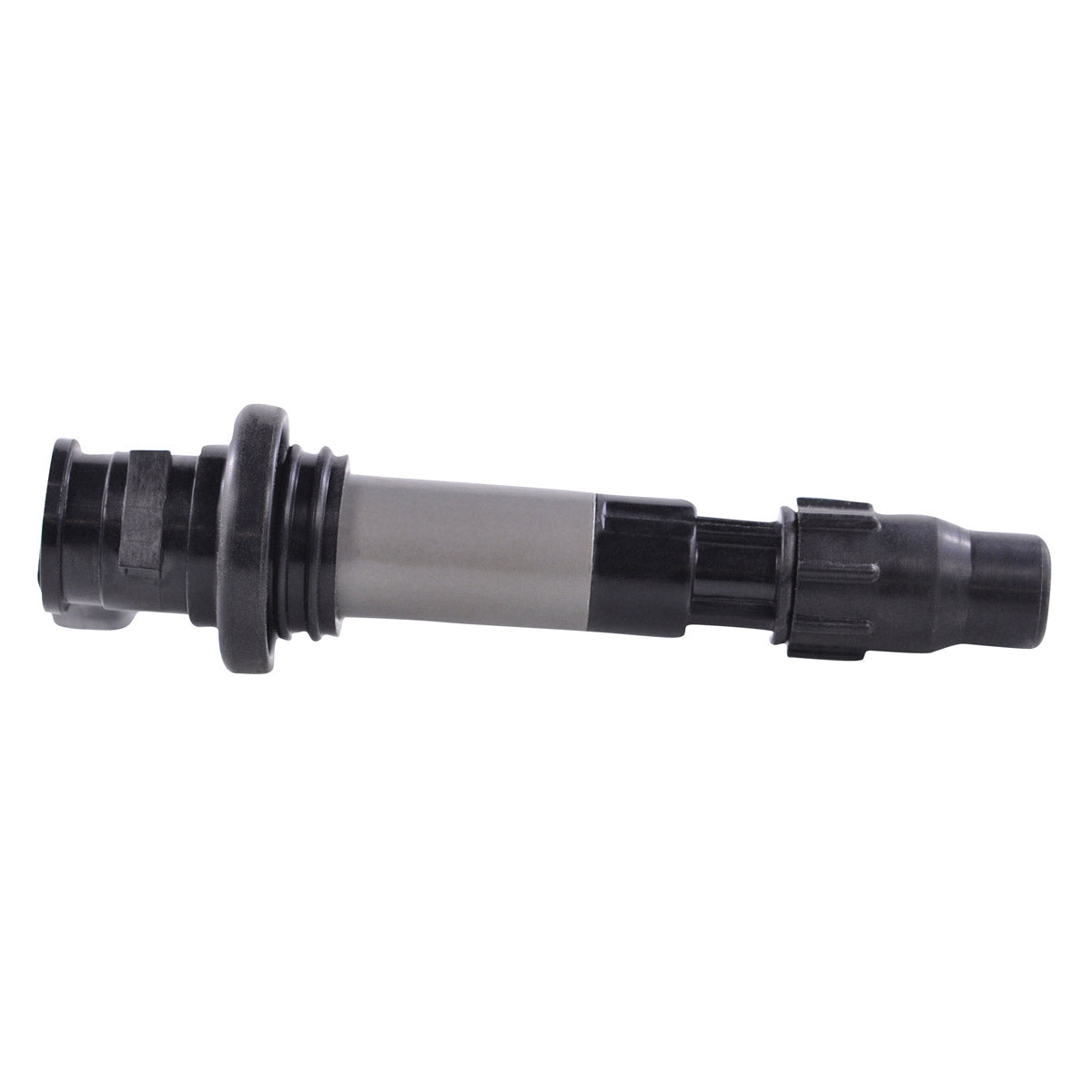

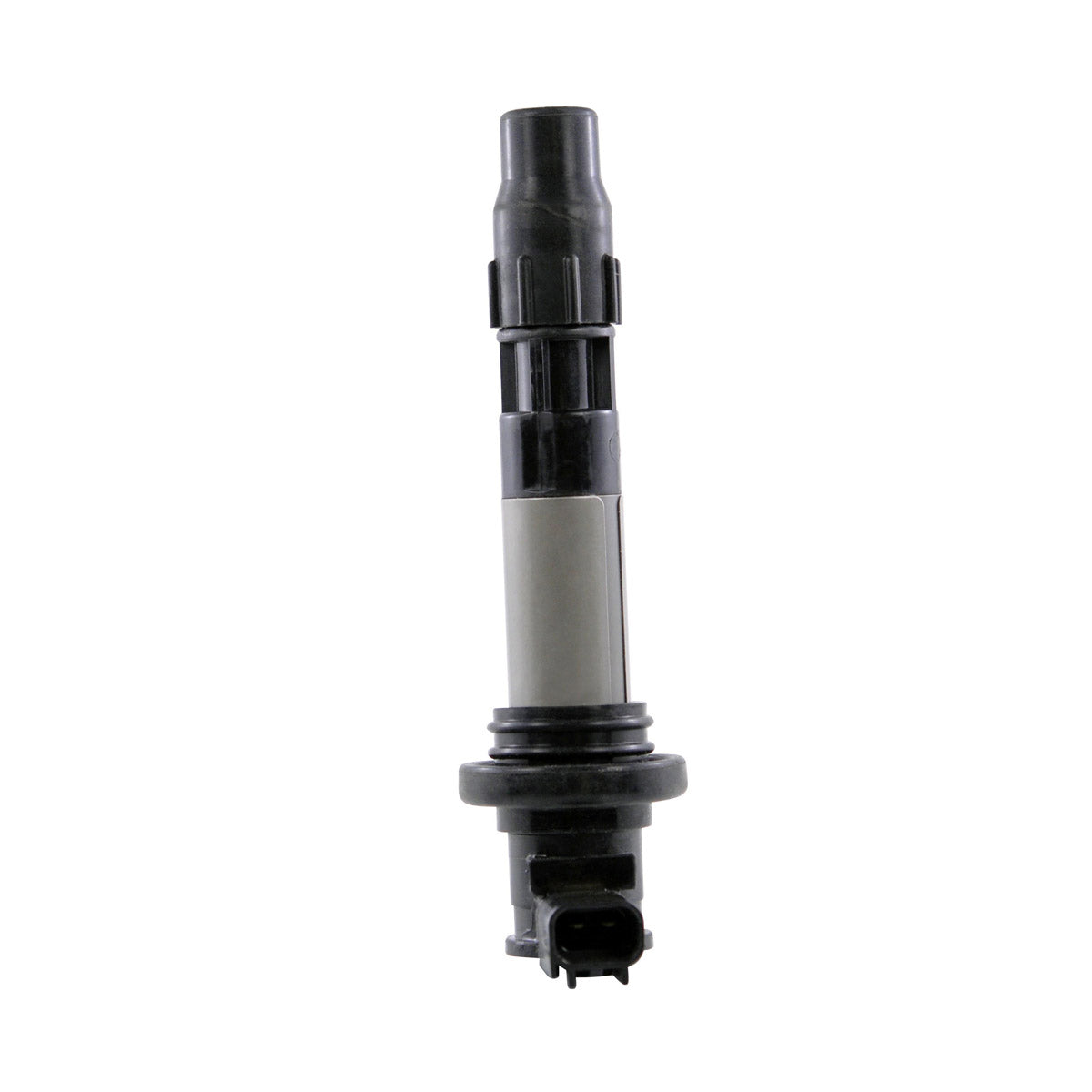

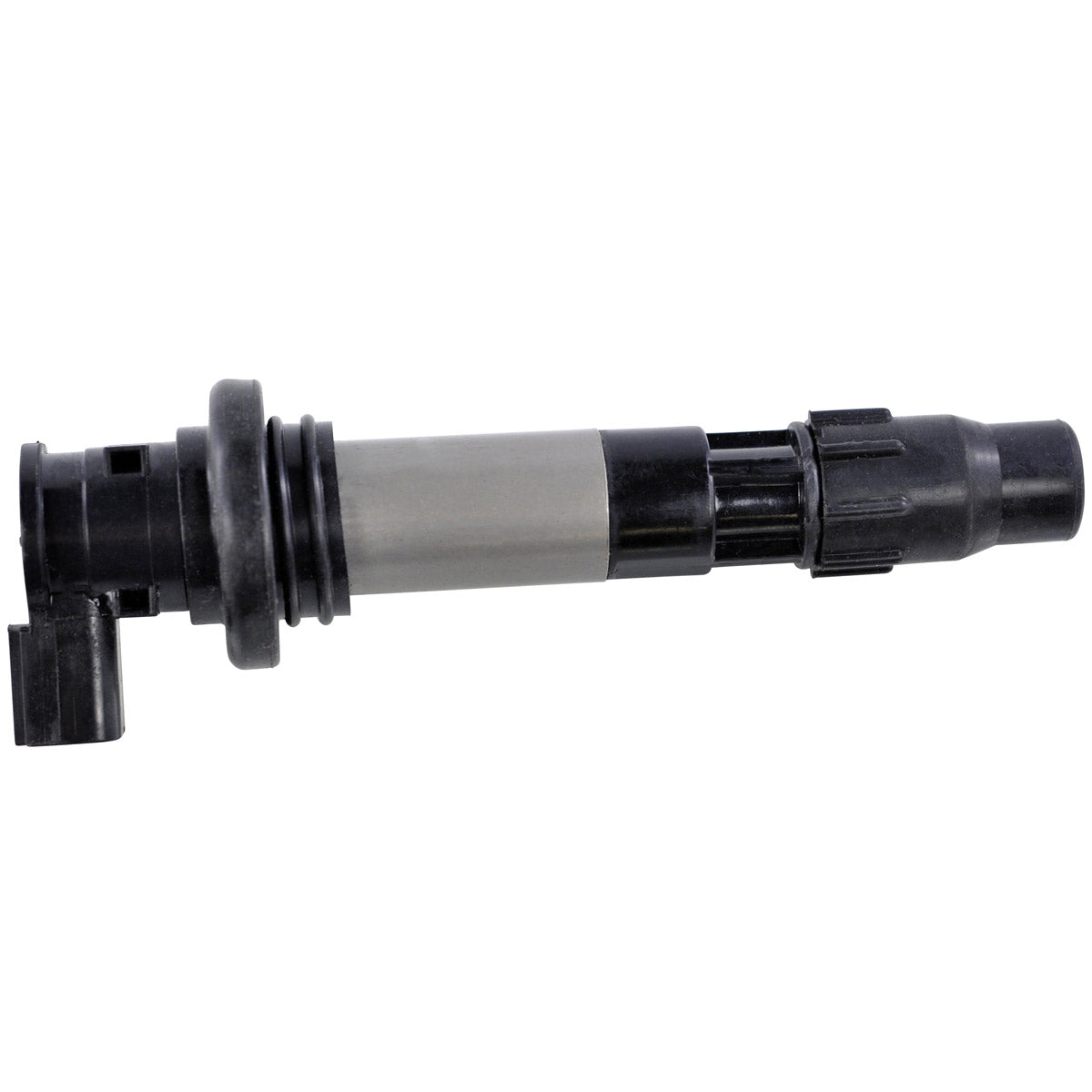

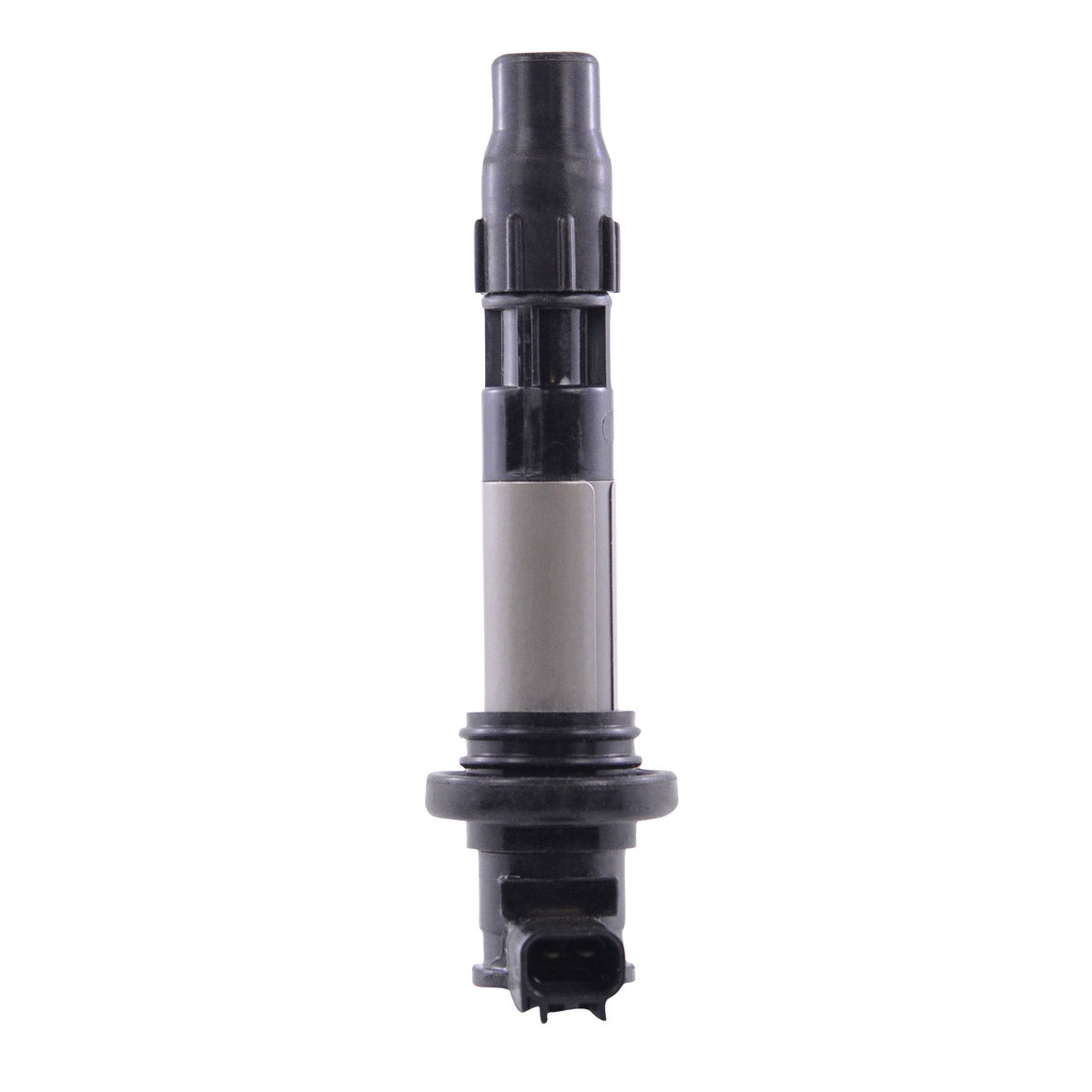

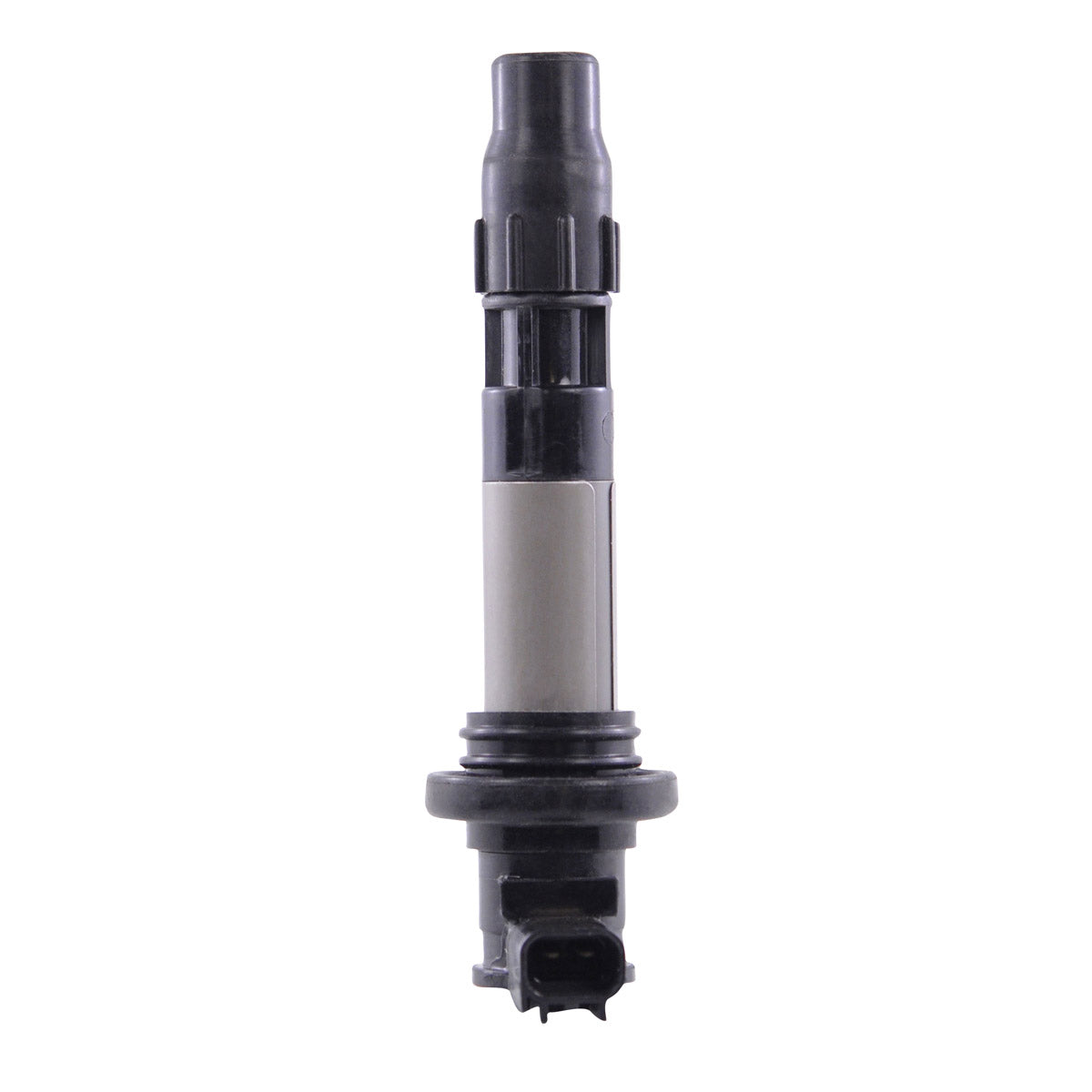

This is a brand new ignition stick coil built as a direct replacement for the original unit fitted to the Suzuki GSXR 750. Suzuki combined the spark plug cap and the ignition coil into a single sealed component to save space and improve efficiency, which works well until the unit wears out - at which point replacing it through the dealer network becomes expensive. This aftermarket stick coil solves that problem at a sensible price while keeping the original plug-in fitment, so no wiring changes or modifications are needed.
The coil is designed to deliver an ultra high output spark for smooth engine operation, with efficient power transfer connections through its two-terminal design. The quality exceeds the OEM equipment and every unit is tested before it is shipped. Primary resistance is 1.6 ohms and the overall body length is 144 mm, matching the dimensions of the original Suzuki part so it seats correctly in the plug well.
Key Features
- Brand new ignition stick coil - not a repaired or refurbished unit
- Direct replacement to your original unit
- Ultra high output spark for smooth engine operation
- Efficient power transfer connections
- Quality exceeds the OEM equipment
- All products are tested before dispatch

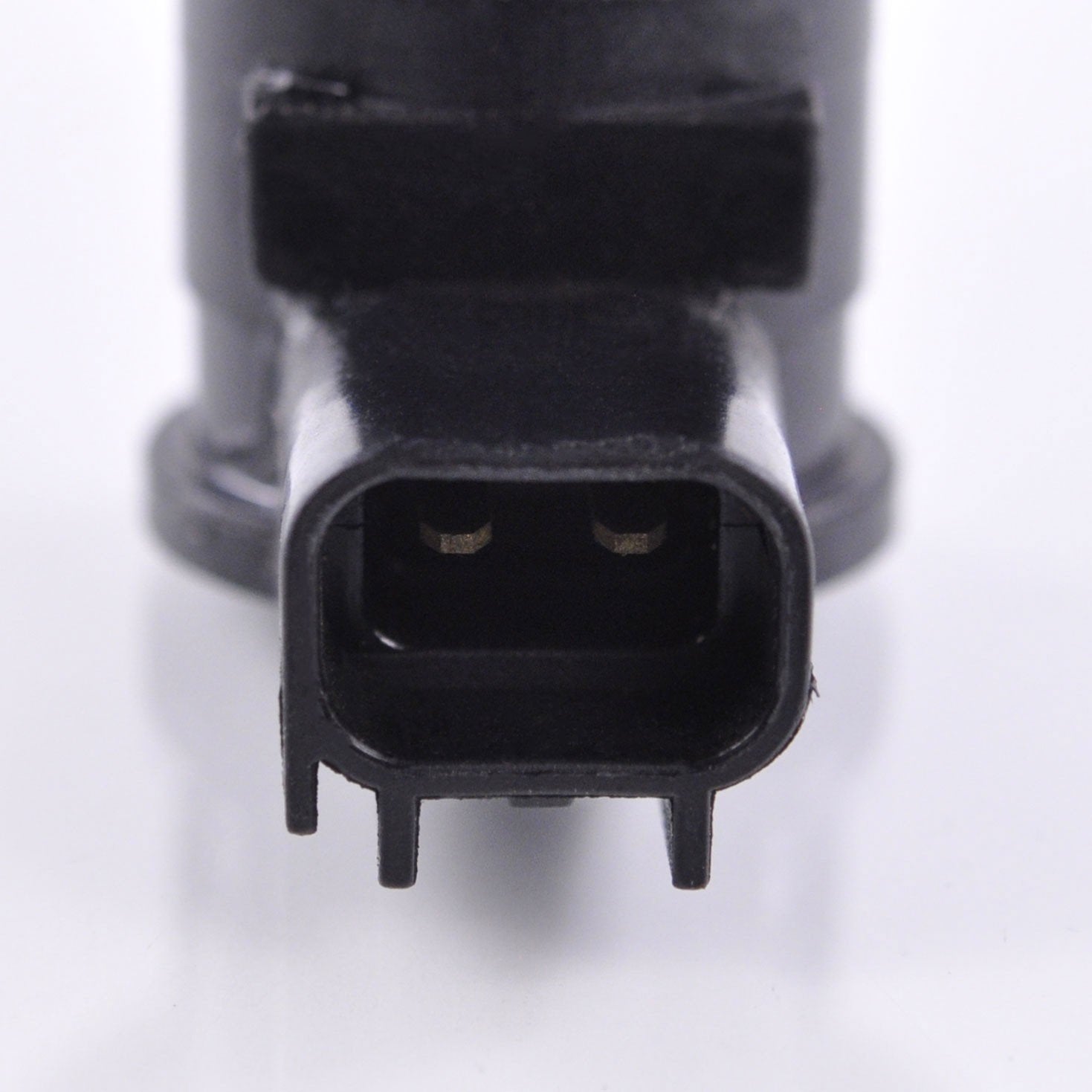

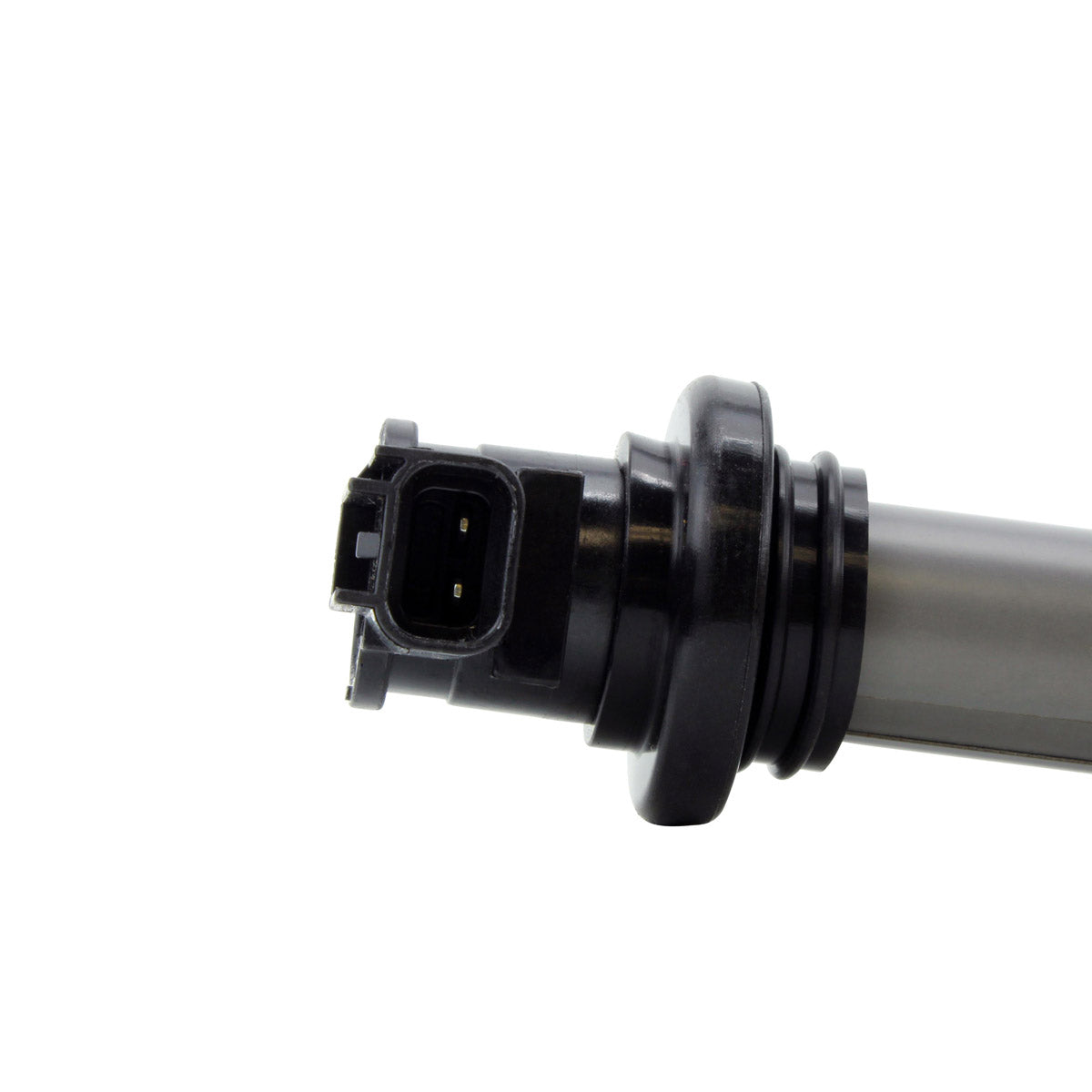

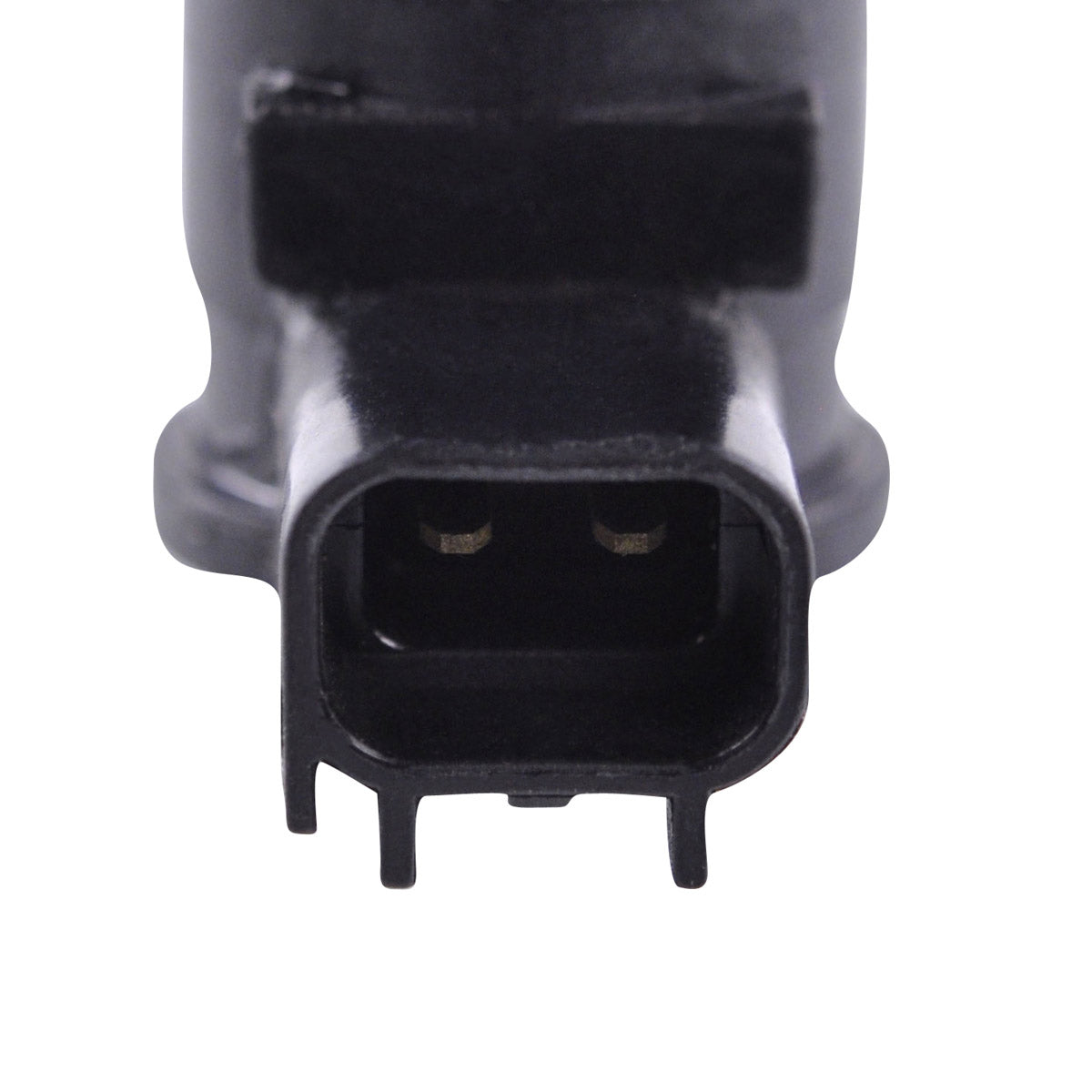

- Two-terminal connection matching the original
- Sealed spark plug cap and coil in one unit
Technical Specs
| Specification |
Detail |
| Part number |
RM06196 |
| Length |
144 mm |

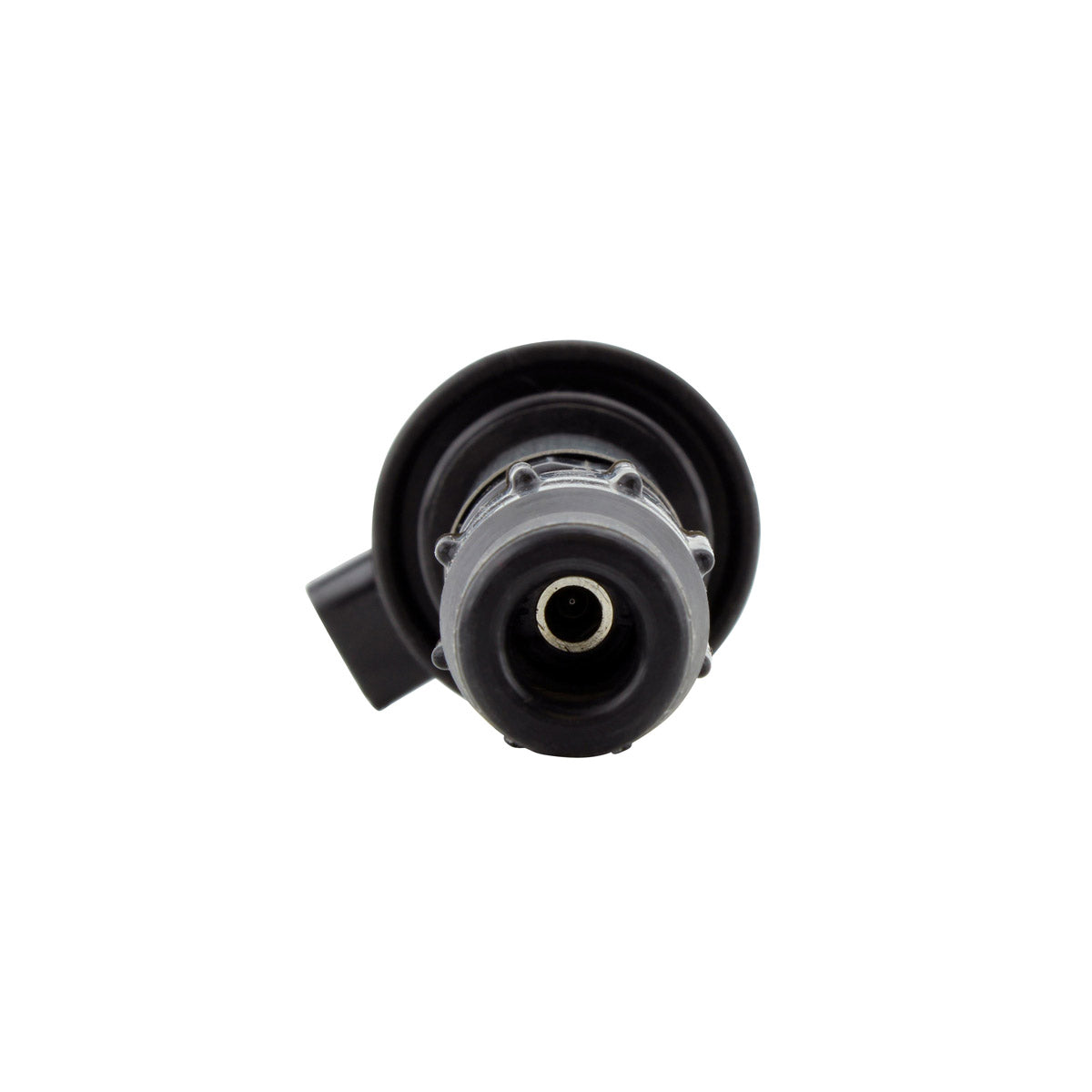

| Spark plug hole external diameter (bottom) |
16.6 mm |
| Spark plug hole internal diameter (bottom) |
9 mm |
| Seal diameter |
38 mm |
| Seal length |
21.5 mm |
| Number of terminals |
2 |
| Resistance |
1.6 ohms |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki GSXR 750 |
2008-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 33410-38H00 |
Suzuki |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement to your original unit and uses the same two-terminal connection, so it plugs straight into the existing harness. Check the OEM number 33410-38H00 against your original unit before ordering.
What do I receive?
One brand new ignition stick coil, combining the spark plug cap and coil in a single sealed unit, tested before dispatch.
How do I know my original stick coil has failed?
Typical symptoms are a misfire on one cylinder, rough running, hard starting and a loss of power. A resistance check is the quickest confirmation - this unit measures 1.6 ohms, and a reading far outside that on your original coil points to a failed winding.
How many do I need for a GSXR 750?
This listing is for one coil. The GSXR 750 uses one stick coil per cylinder, so order the quantity that matches the number of cylinders you intend to replace. Many owners replace all of them at once so that spark output is even across the engine.
