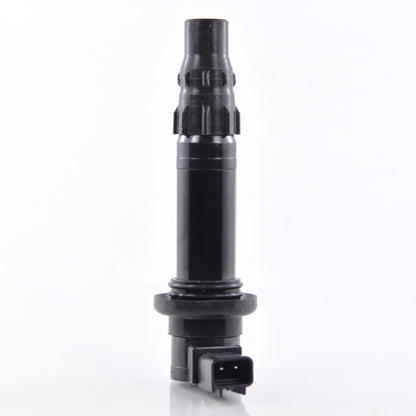

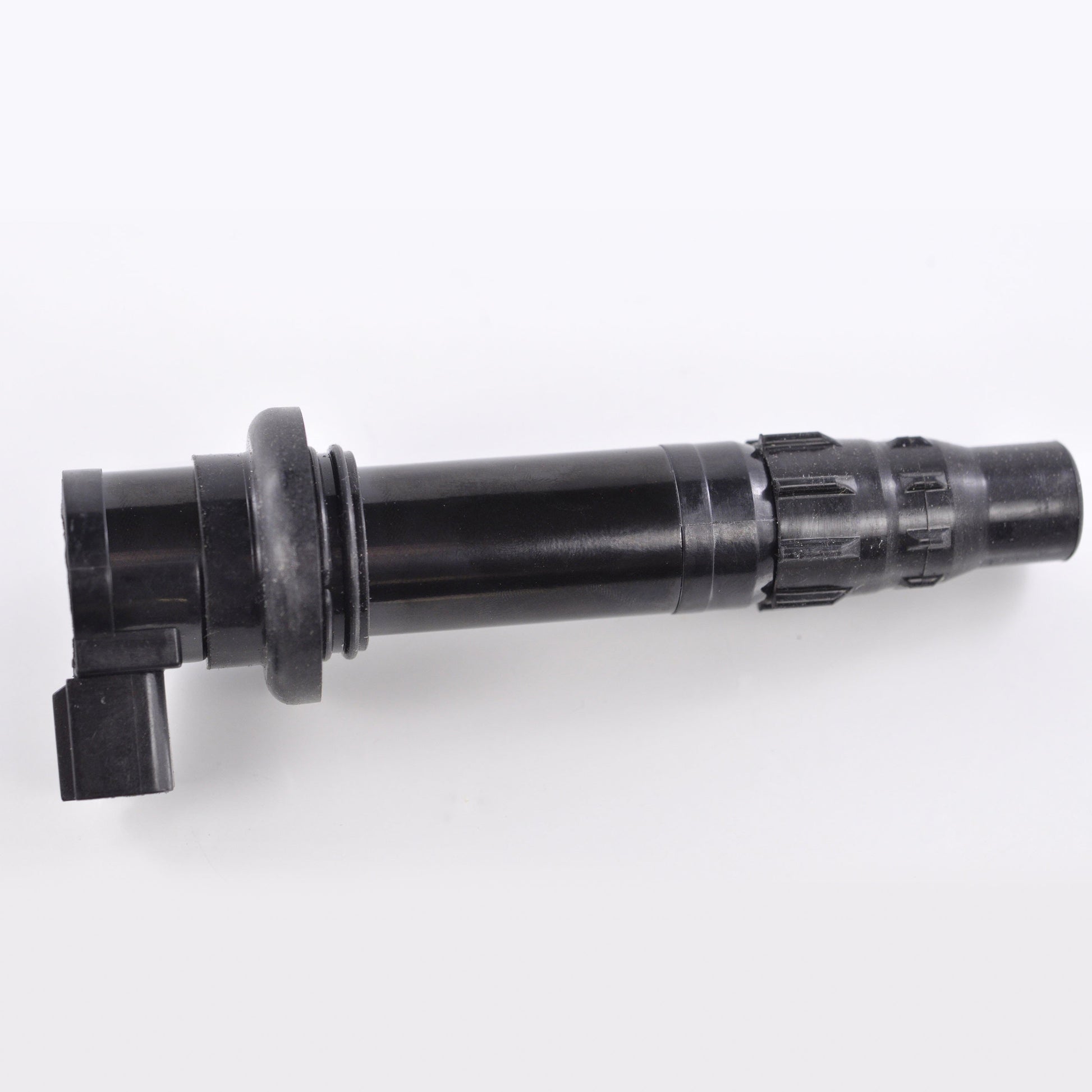

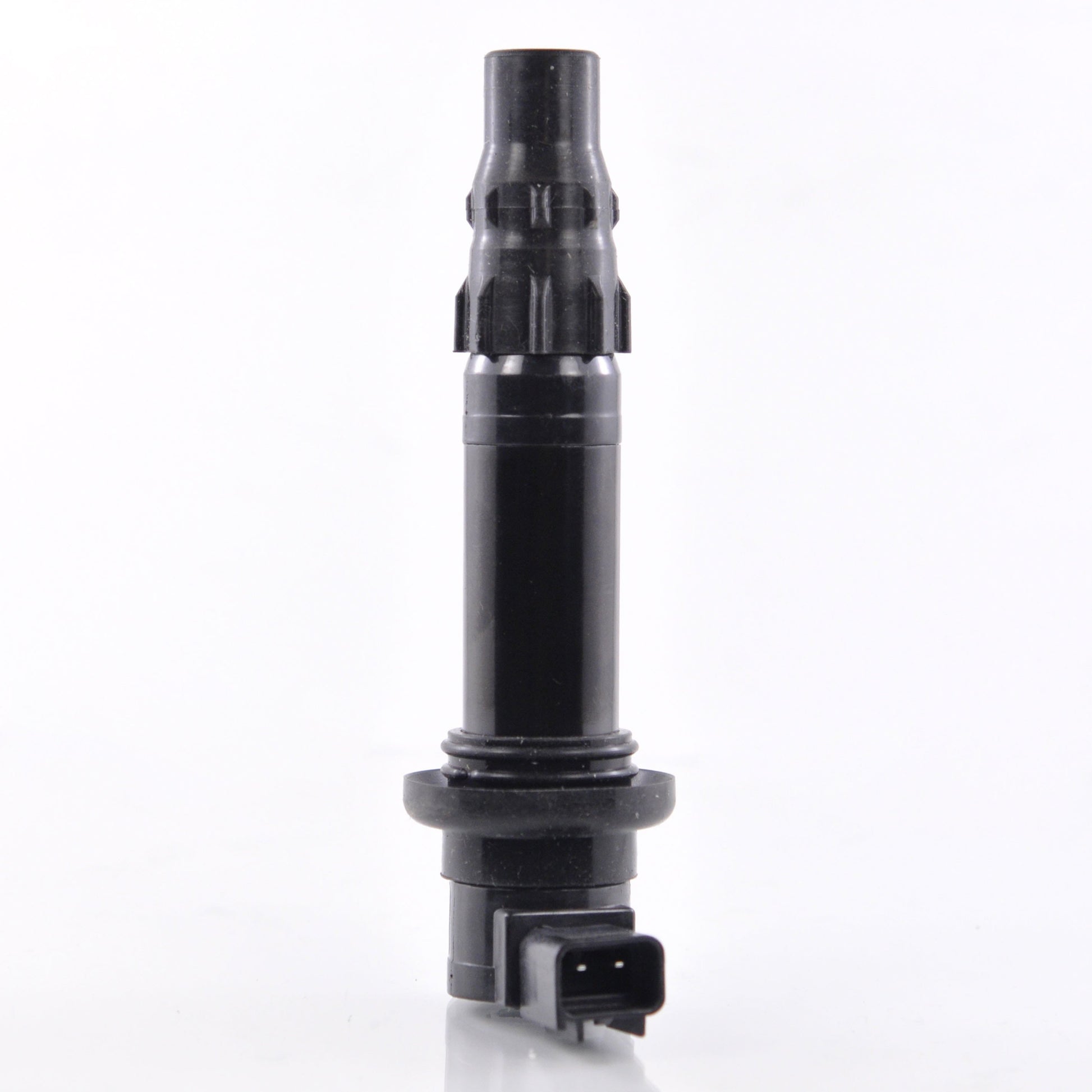

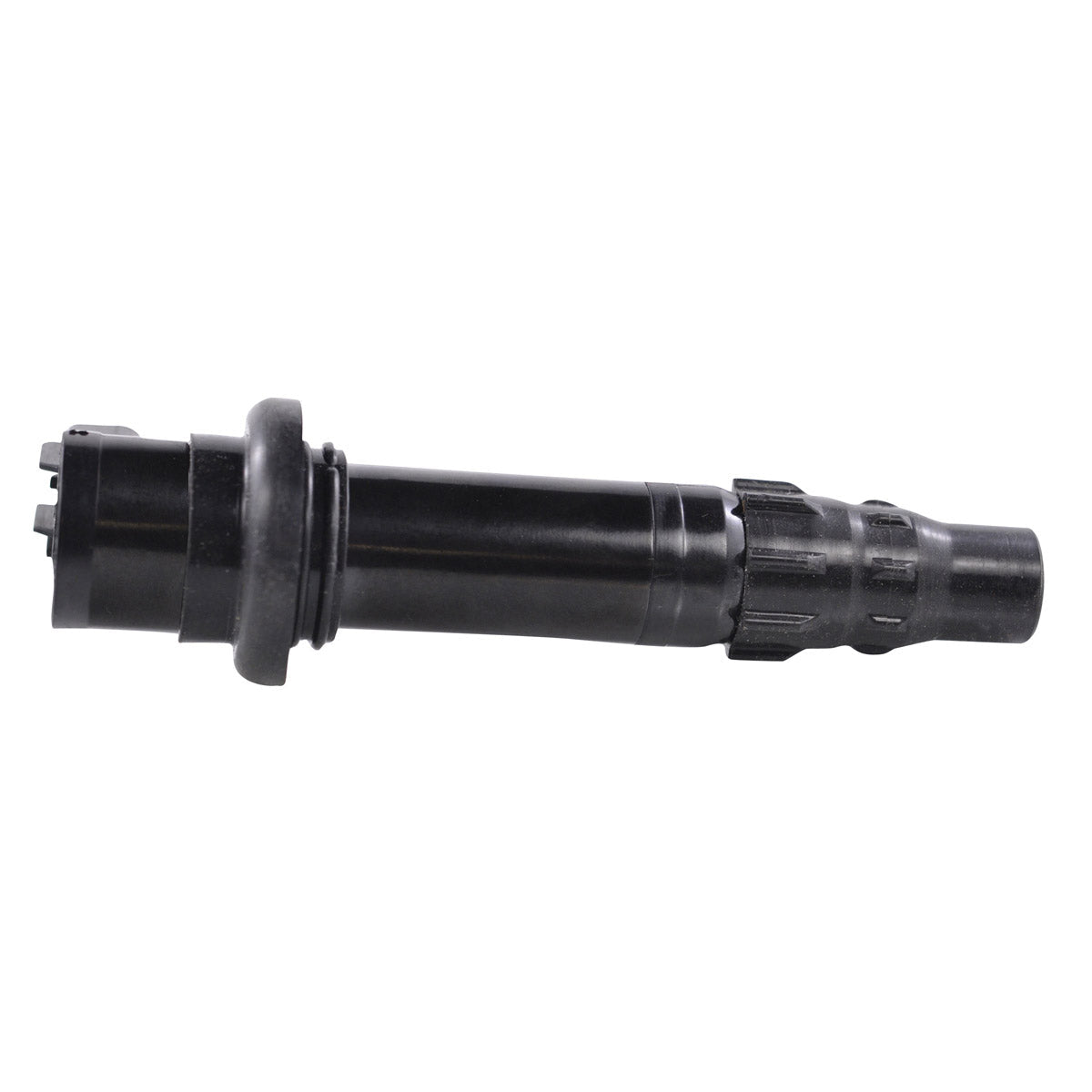

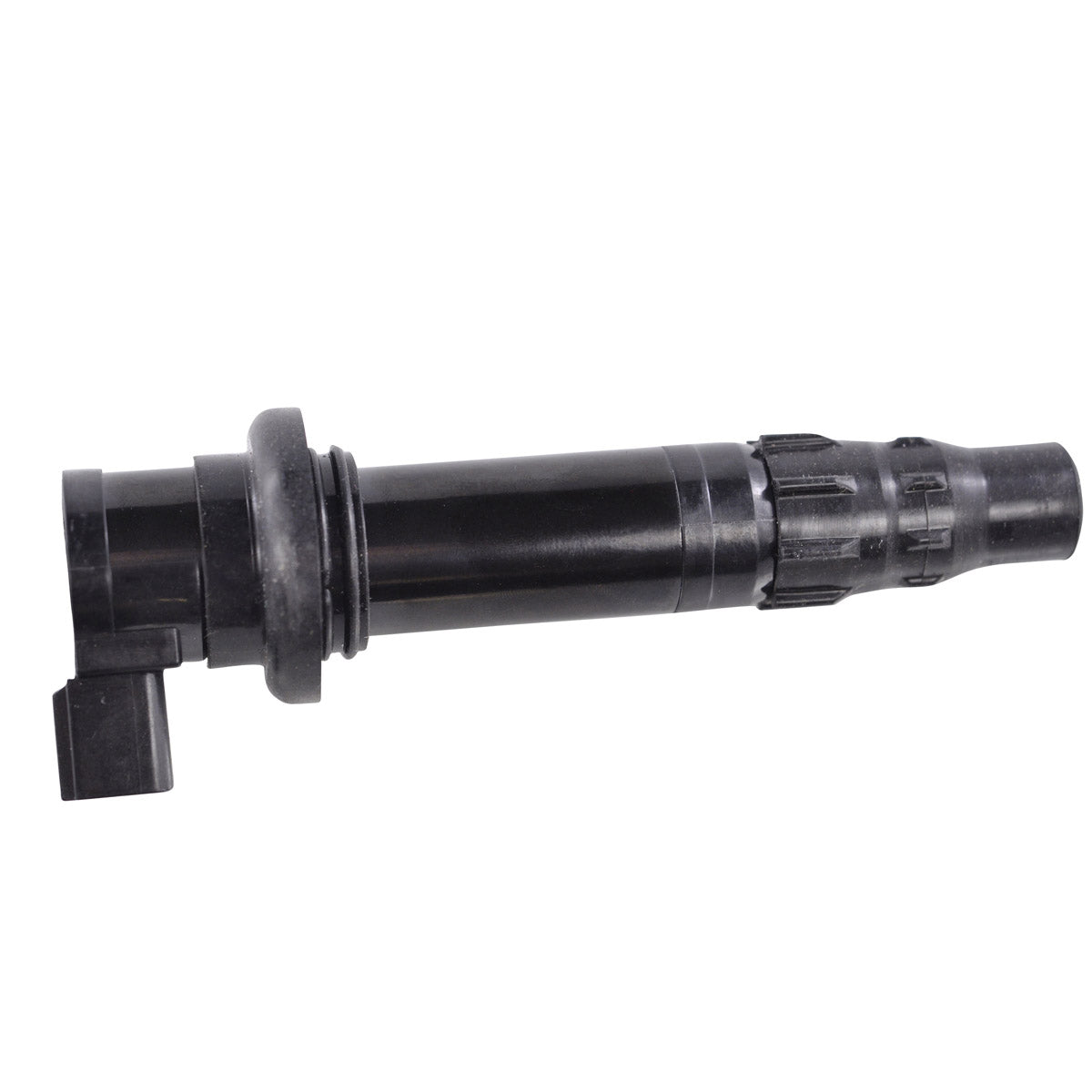

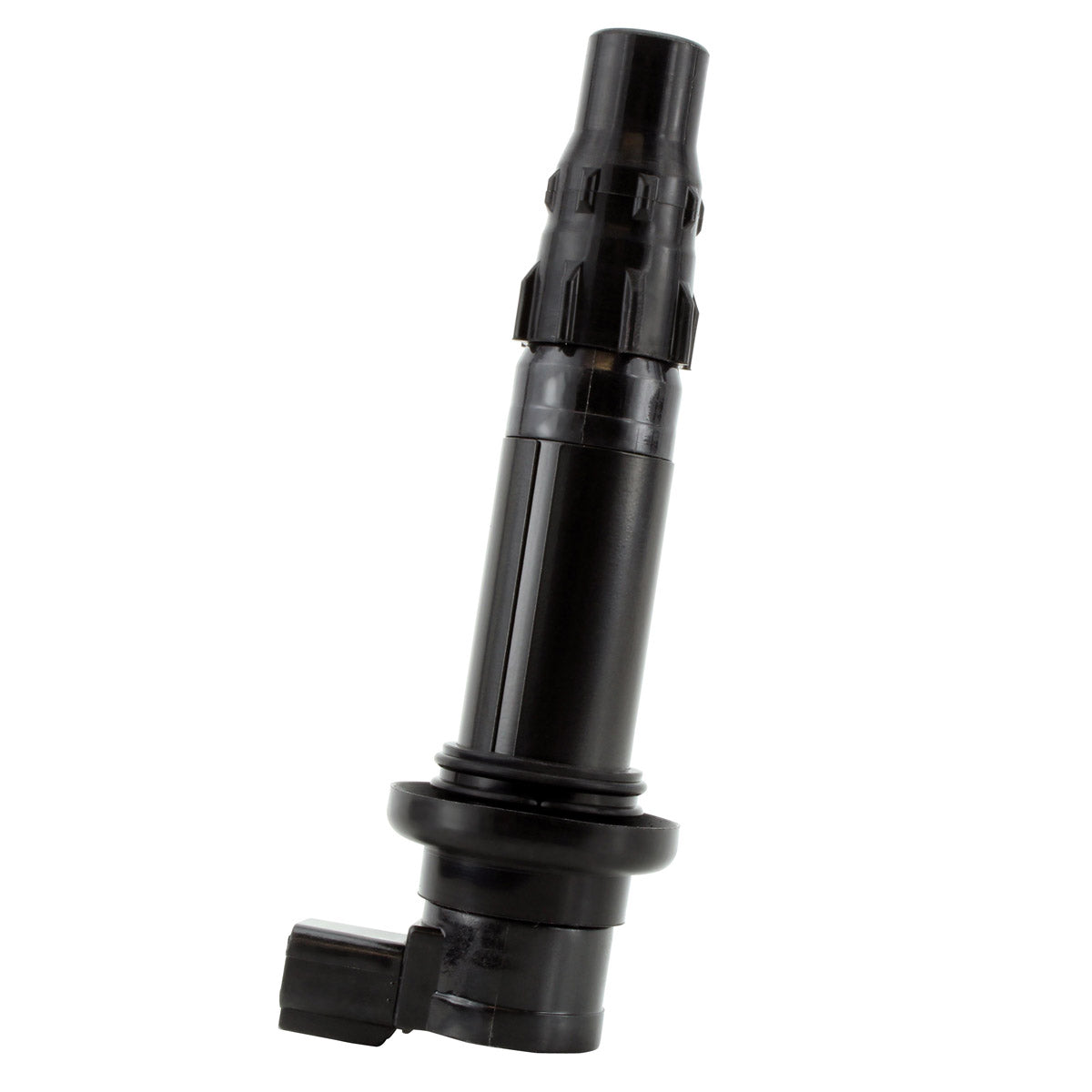

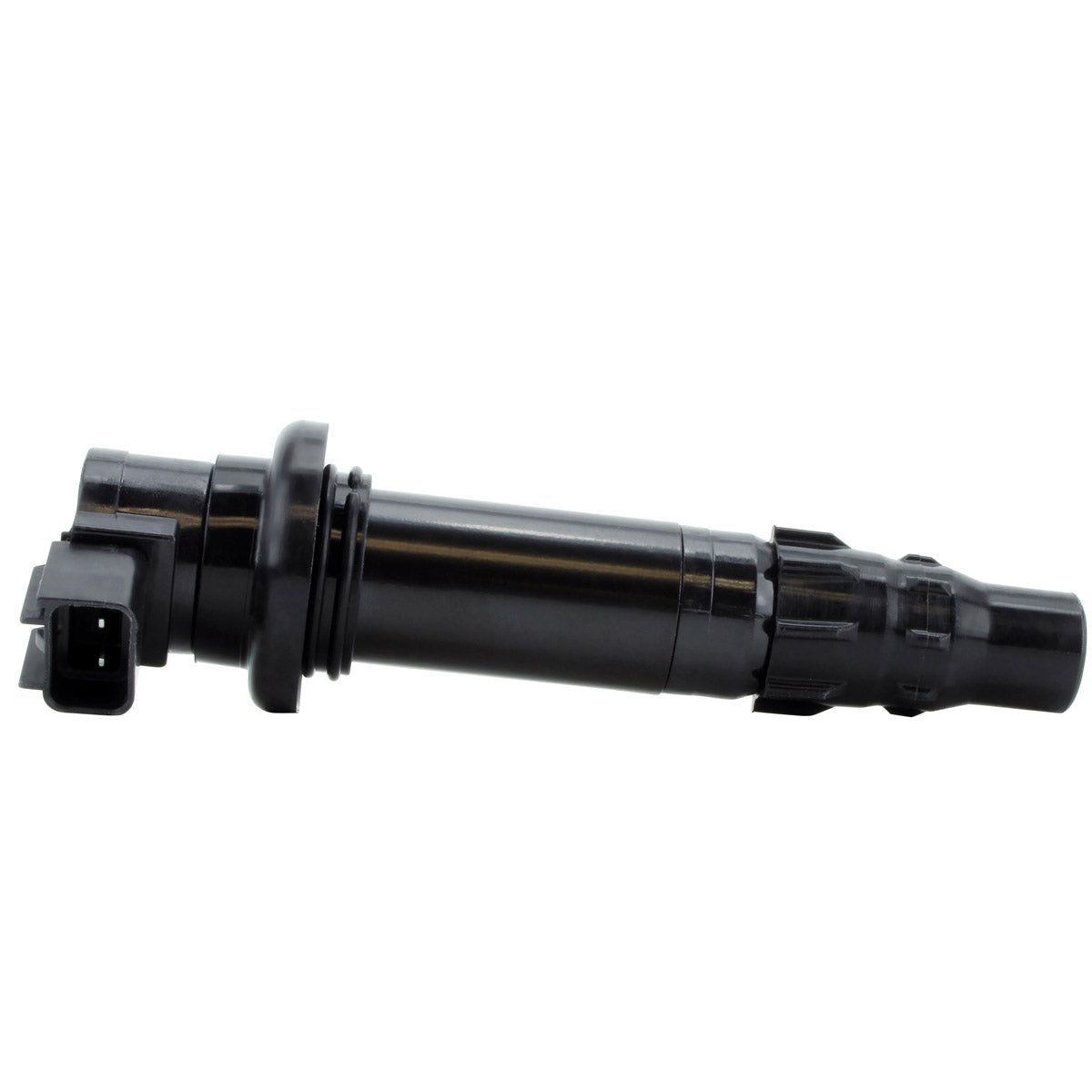

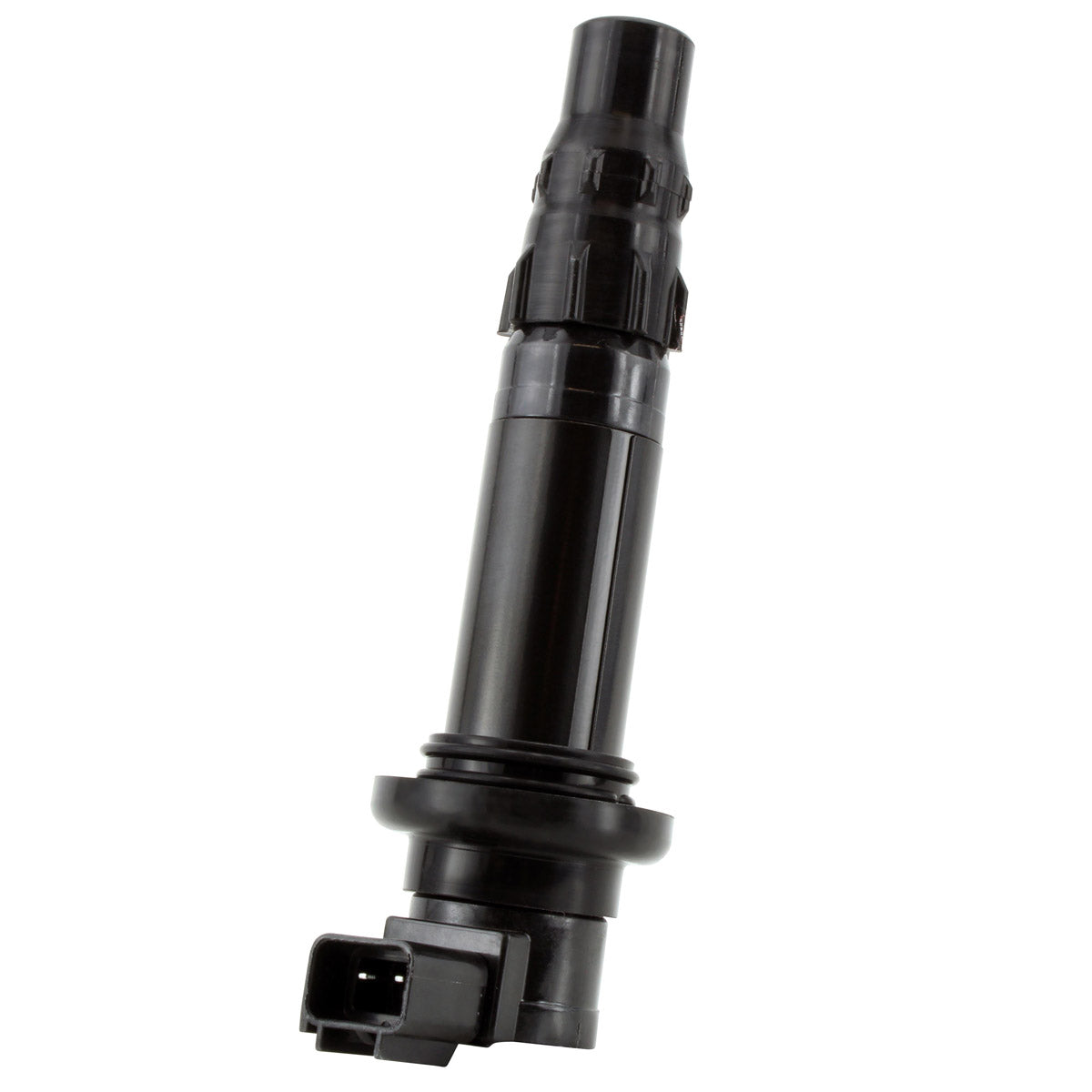

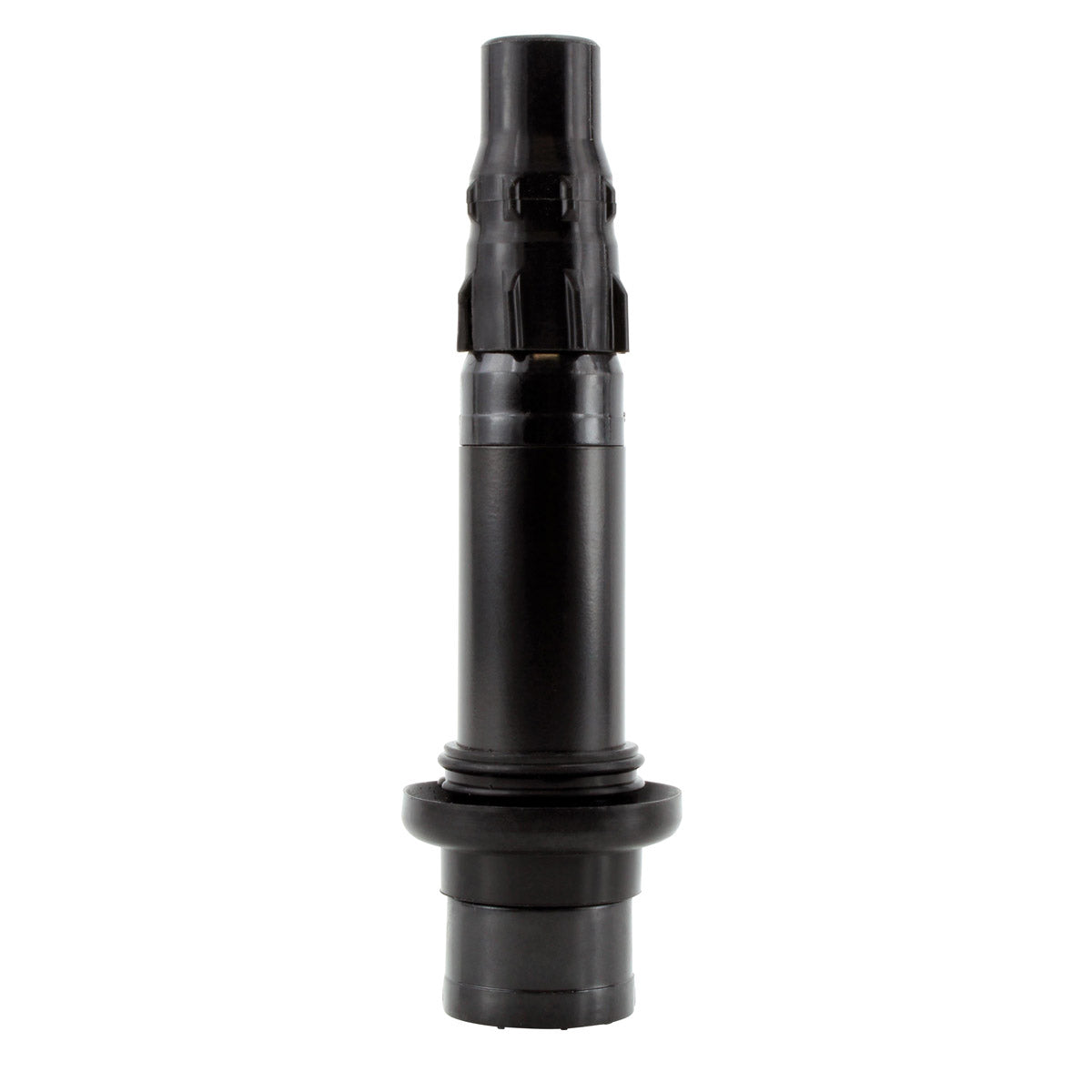

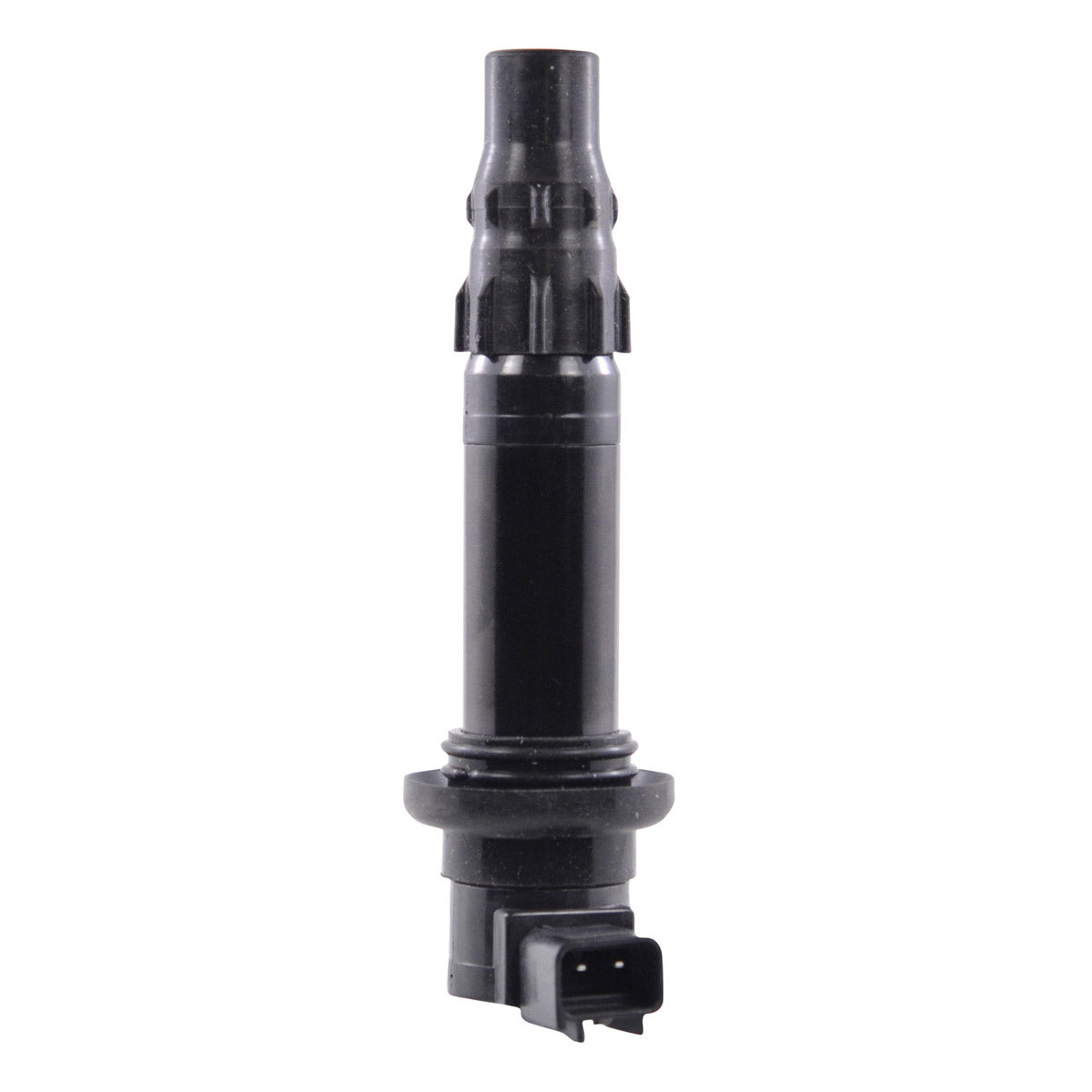

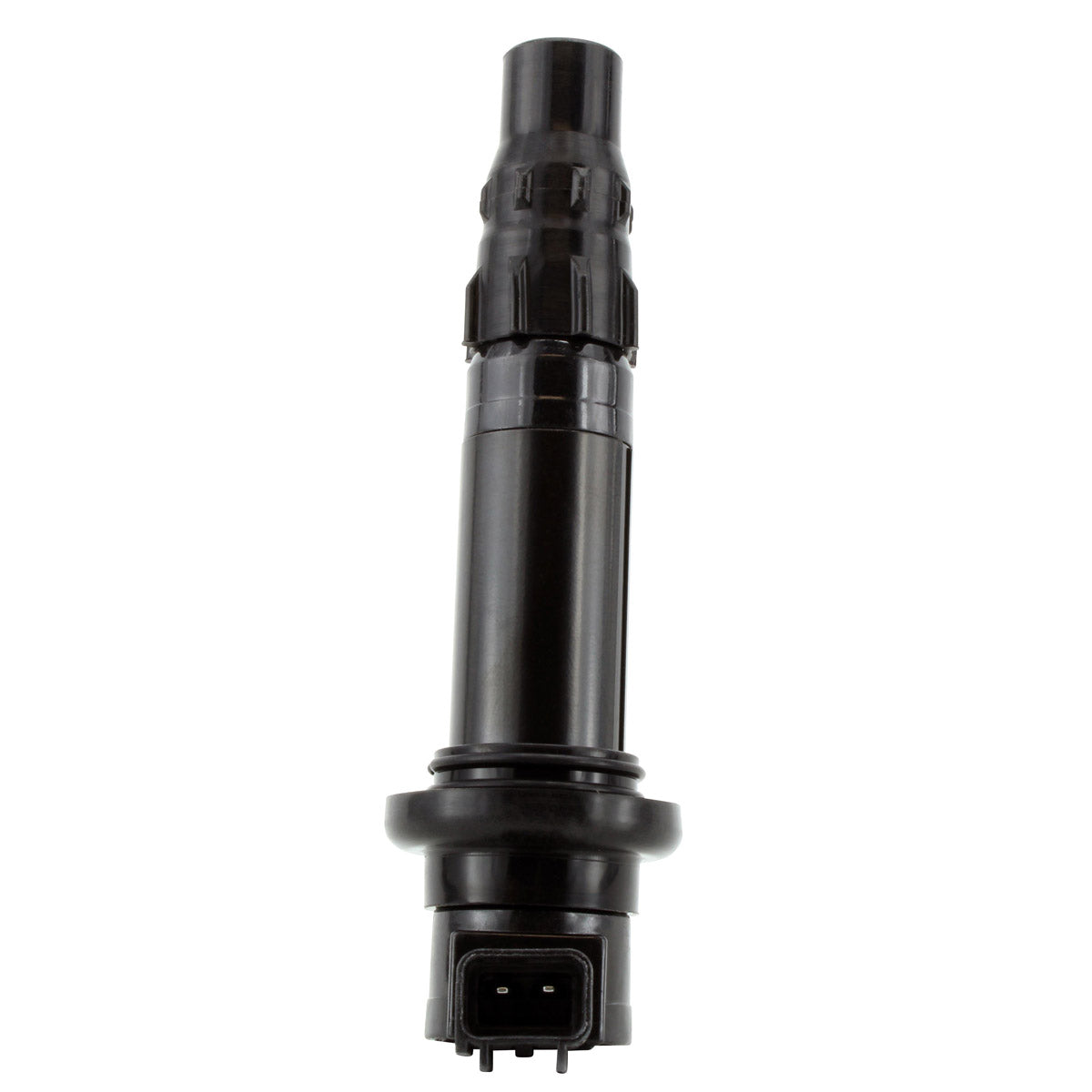

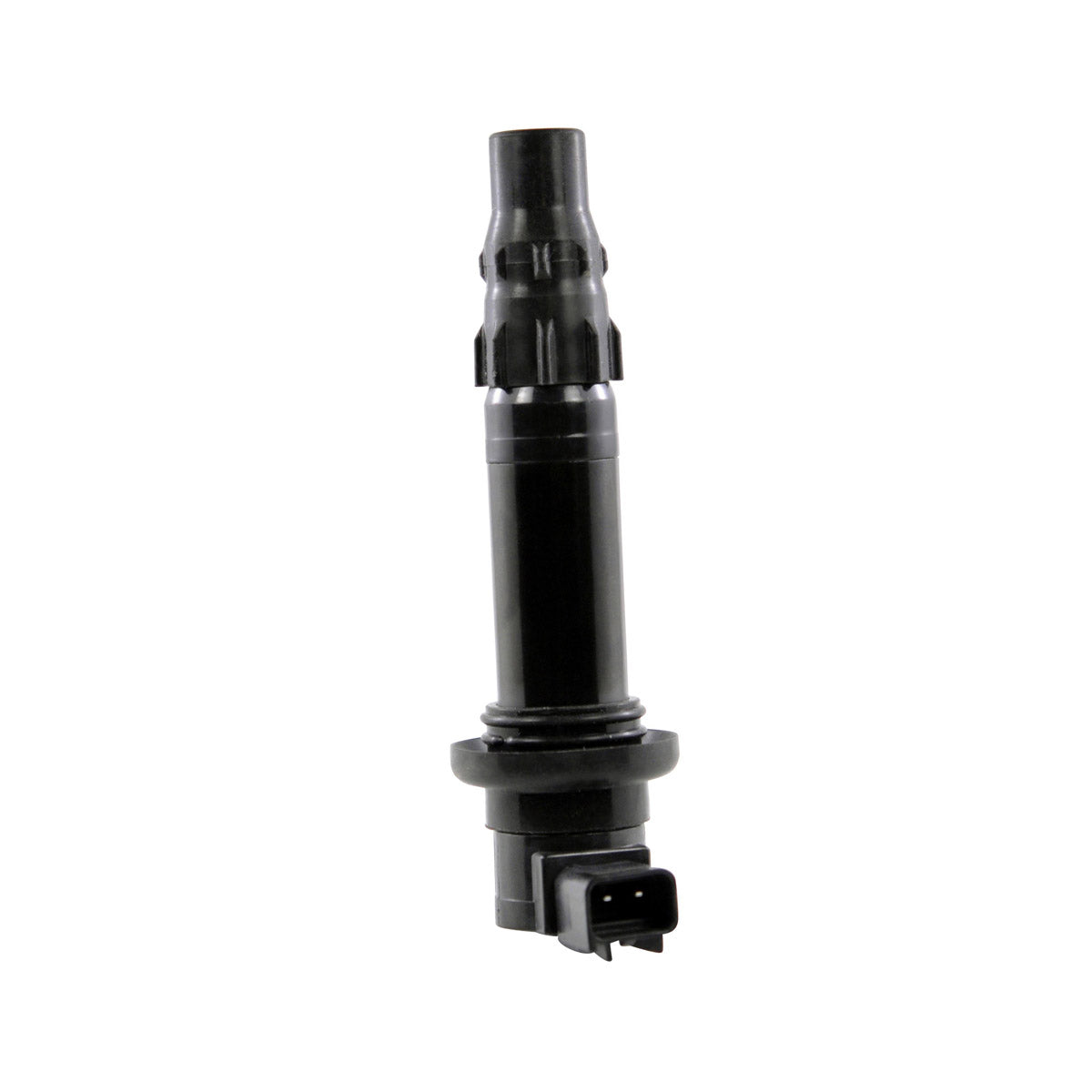

This is a brand new ignition stick coil supplied as a direct replacement for the original unit. A stick coil combines the ignition coil and the plug cap in one component that fits down into the spark plug well and sits directly on the plug, so there is no separate HT lead to break down and replacement is a straightforward plug-in job through the existing 2-terminal connection.

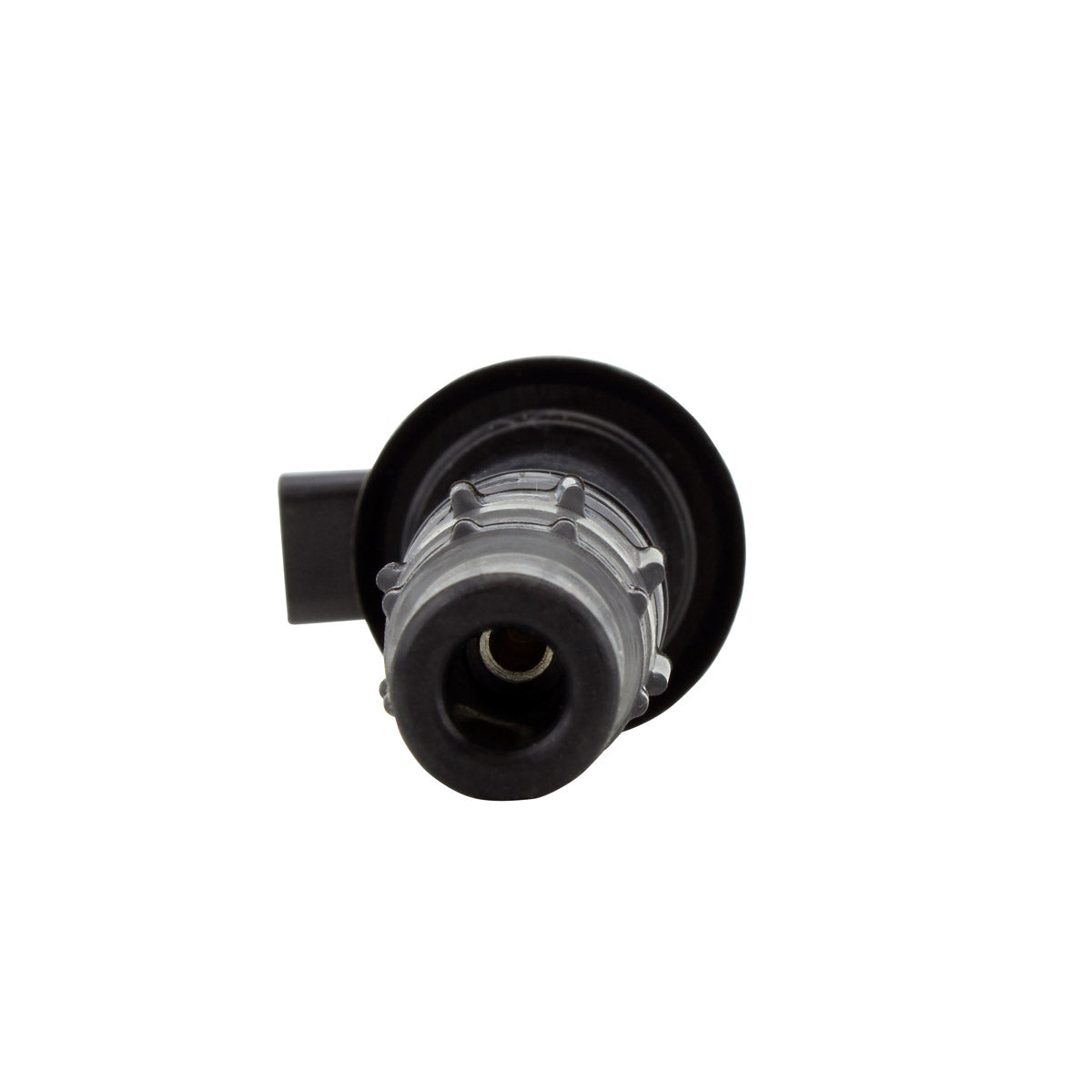

It is built for ultra high output spark and smooth engine operation, with efficient power transfer connections, and the quality exceeds the OEM equipment. The coil is dimensionally matched to the original at 132 mm long, with a 37 mm seal diameter and a 13 mm seal length, and a spark plug hole measuring 16 mm externally and 9 mm internally at the bottom. Primary resistance is 1.4 ohms. This is a ride specific part, so check it against the OEM number on your existing coil. All products are tested.
Key Features
- Brand new ignition stick coil
- Direct replacement to your original unit
- Ultra high output spark for smooth engine operation
- Efficient power transfer connections
- The quality exceeds the OEM equipment

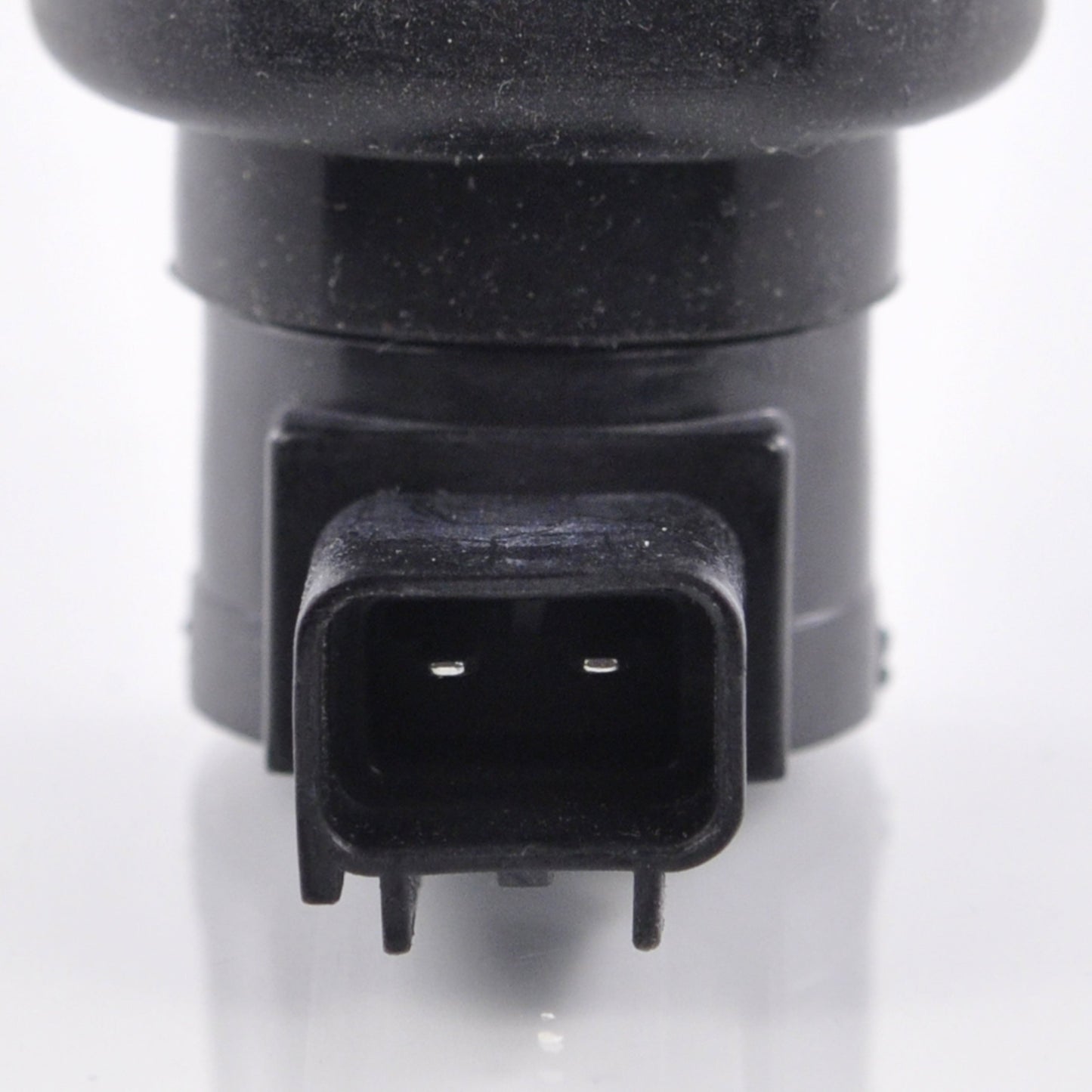

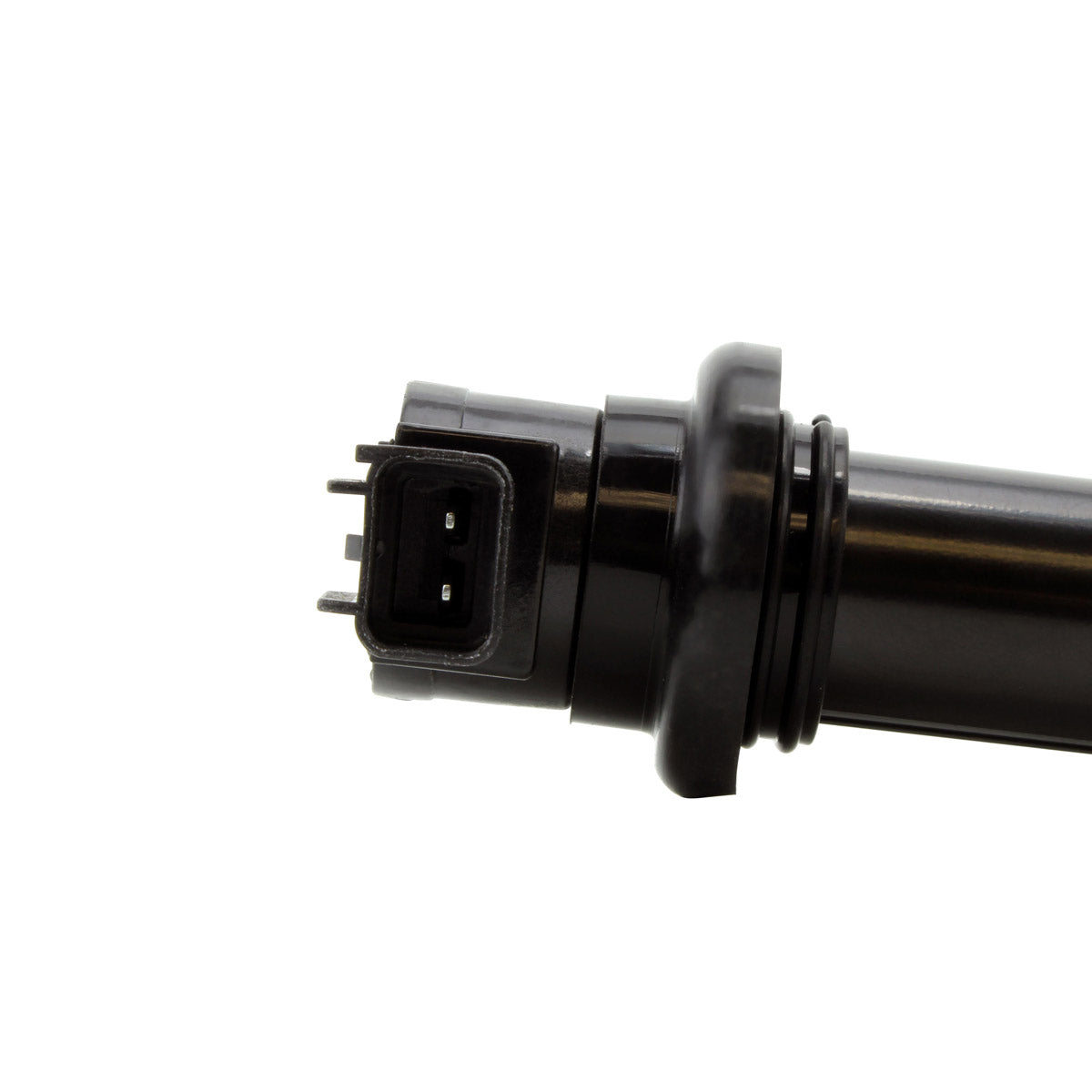

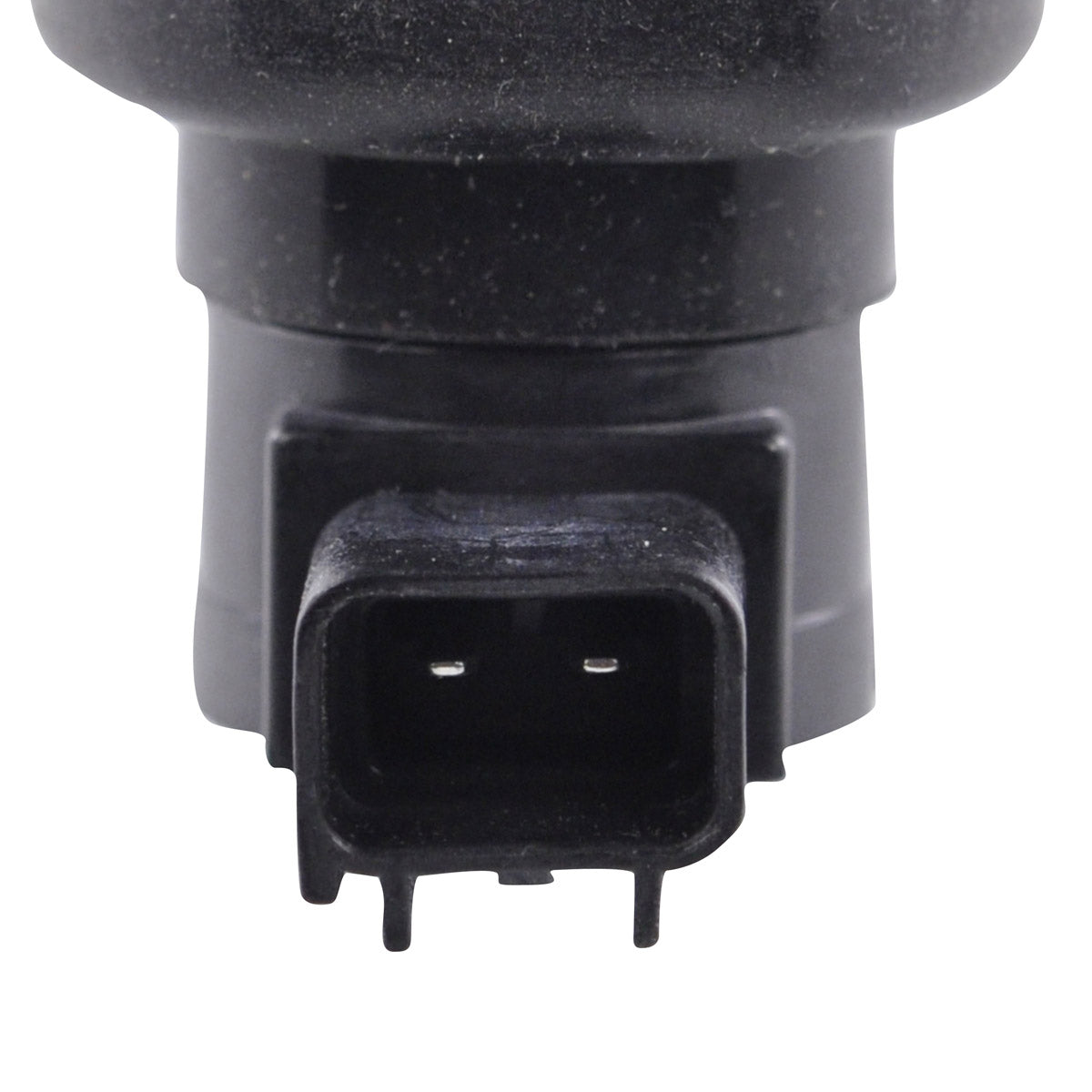

- 2-terminal connection with 1.4 ohms resistance
- Cross references four OEM part numbers
- All products are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM06201 |
| Length |
132 mm |
| Spark plug hole external diameter (bottom) |
16 mm |
| Spark plug hole internal diameter (bottom) |
9 mm |
| Seal diameter |
37 mm |
| Seal length |
13 mm |
| Number of terminals |
2 |
| Resistance |
1.4 ohms |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat XF 7000 |
2012-2025 |
| Arctic Cat XF 9000 |
2012-2025 |
| Arctic Cat ZR 7000 |
2012-2025 |
| Arctic Cat ZR 9000 |
2012-2025 |
| Kawasaki Ninja ZX-10R |
2012-2025 |
| Yamaha SR Viper 1000 |
2012-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 1WS-82310-00-00 |
Yamaha |
| 1KB-82310-00-00 |
Yamaha |
| 3020-168 |
Arctic Cat |
| 21171-0741 |
Kawasaki |
Frequently Asked Questions
Does this coil need any modification to fit?
No. It is a direct replacement for the original unit, dimensionally matched at 132 mm long with a 37 mm seal diameter, and it uses the same 2-terminal connection, so no wiring changes or adapters are needed.
What is included?
You receive one ignition stick coil with its integrated cap, tested before dispatch. Spark plugs are not included, and this is a single coil - a multi-cylinder engine uses one coil per cylinder.
How do I know the old coil has failed?
Look for a misfire on one cylinder, a rough or uneven idle, hesitation under load and poor starting. Measuring across the two terminals is the quick confirmation: this coil is specified at 1.4 ohms, so an open circuit or a reading well away from that figure points to a failed coil.
How do I confirm this is the right coil for my machine?
This is a ride specific part, so check the number on your existing coil against the cross reference list above - 1WS-82310-00-00, 1KB-82310-00-00, 3020-168 and 21171-0741. If your original carries one of those numbers, this coil is the correct replacement.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
