External Ignition Coil for Arctic Cat Snowmobiles 340-700
Bearcat, Cheetah, Cougar, El Tigre, EXT, Jag, Wildcat, Z, ZL and ZR 340-700, 1987-2002 - OEM 3005-185 - Part RM06048

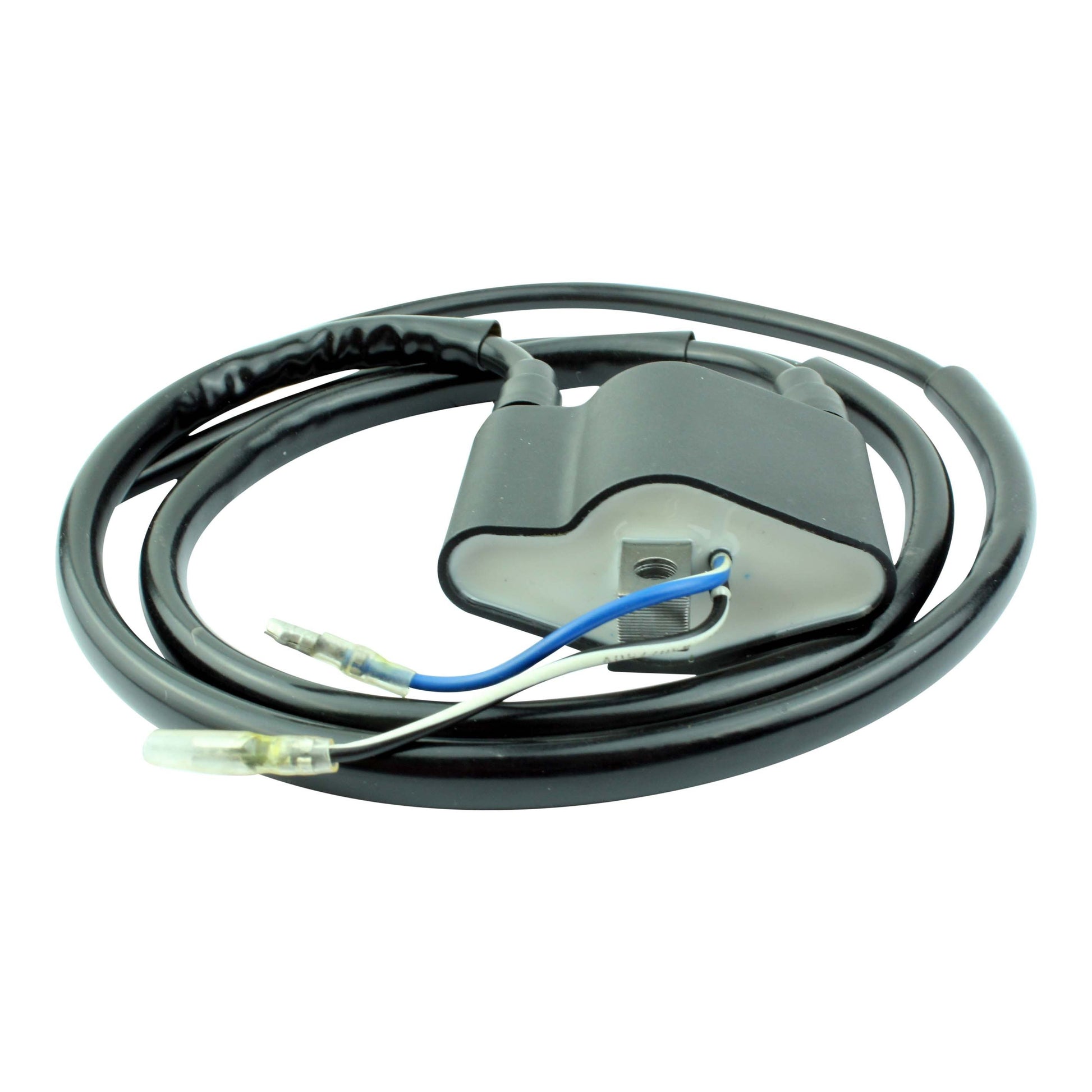

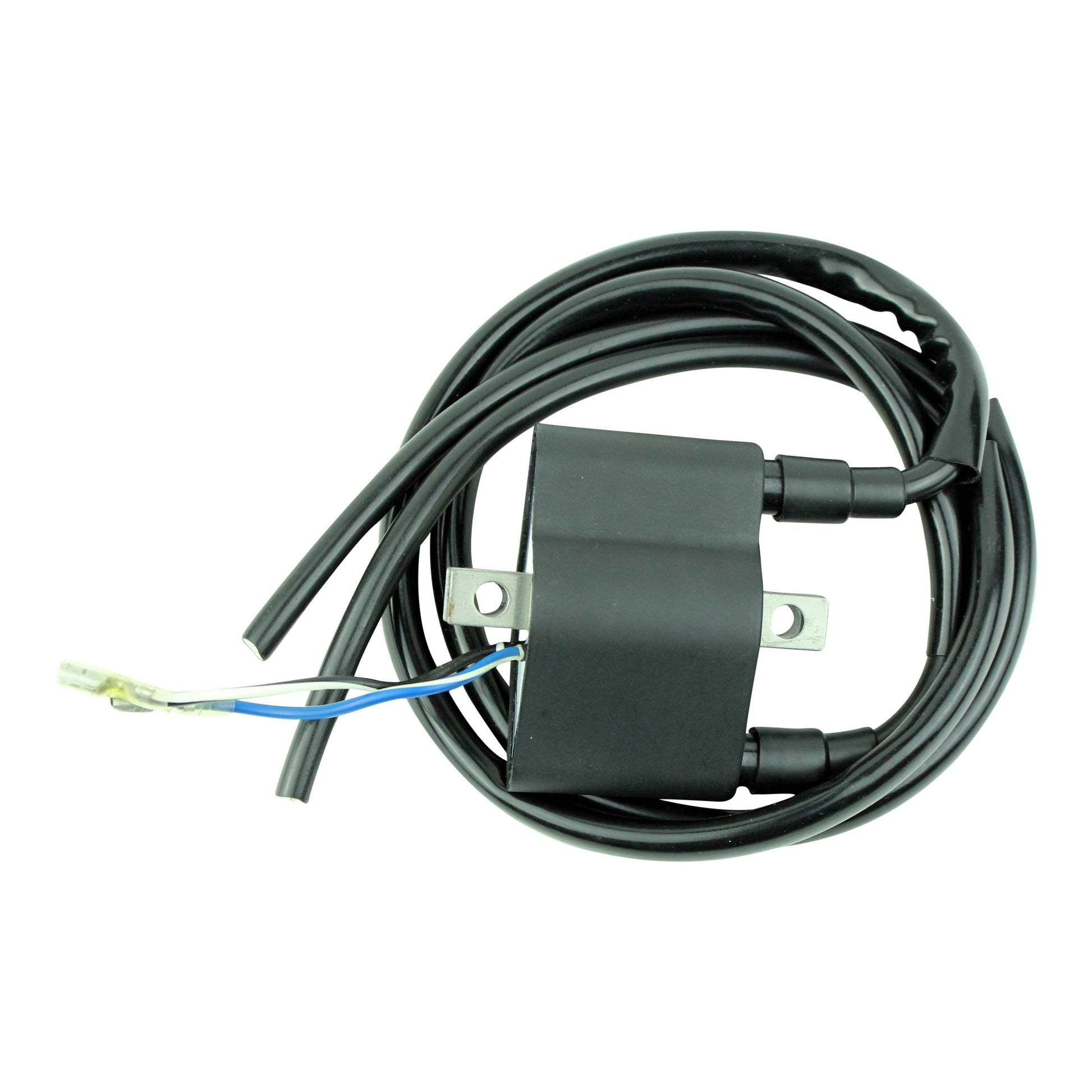

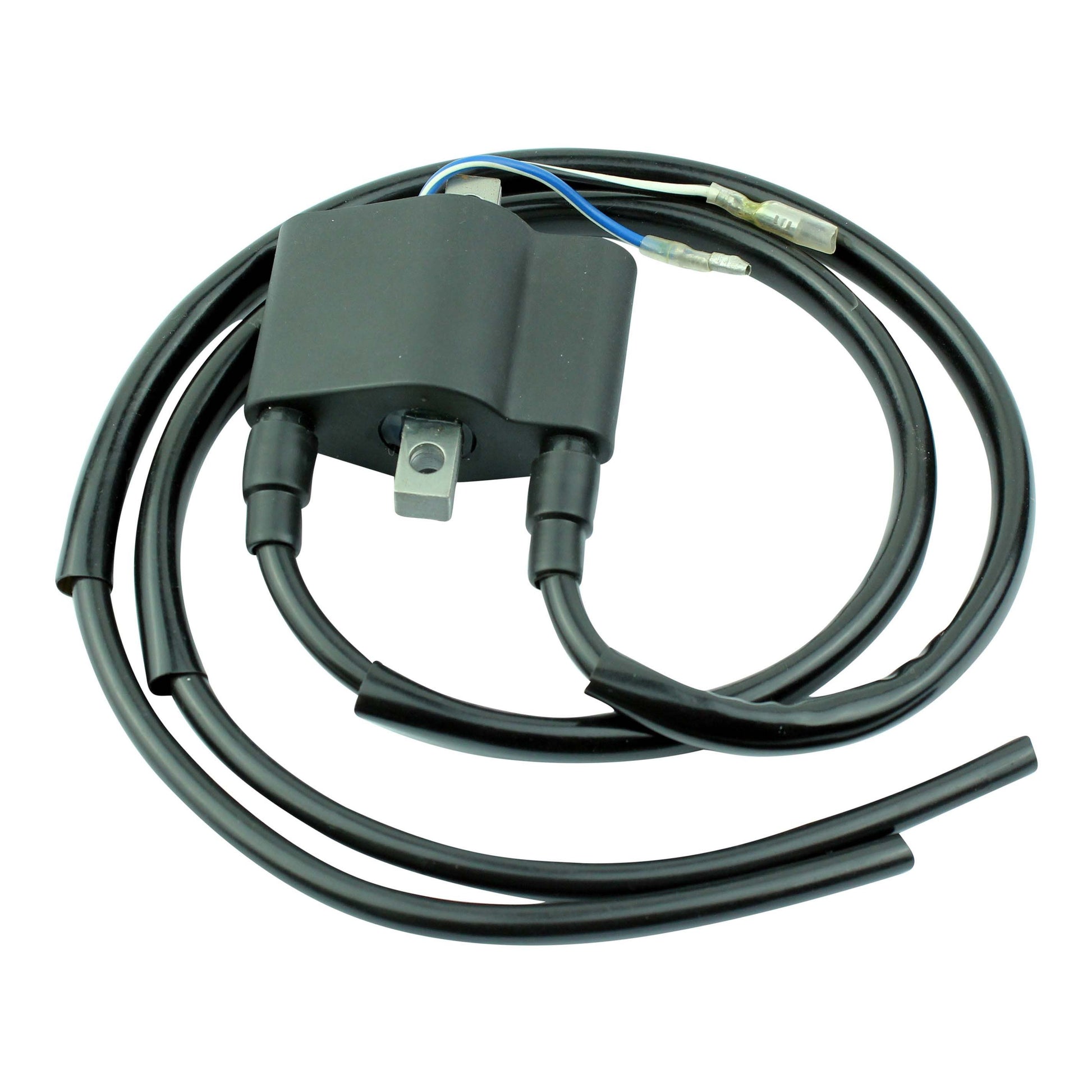

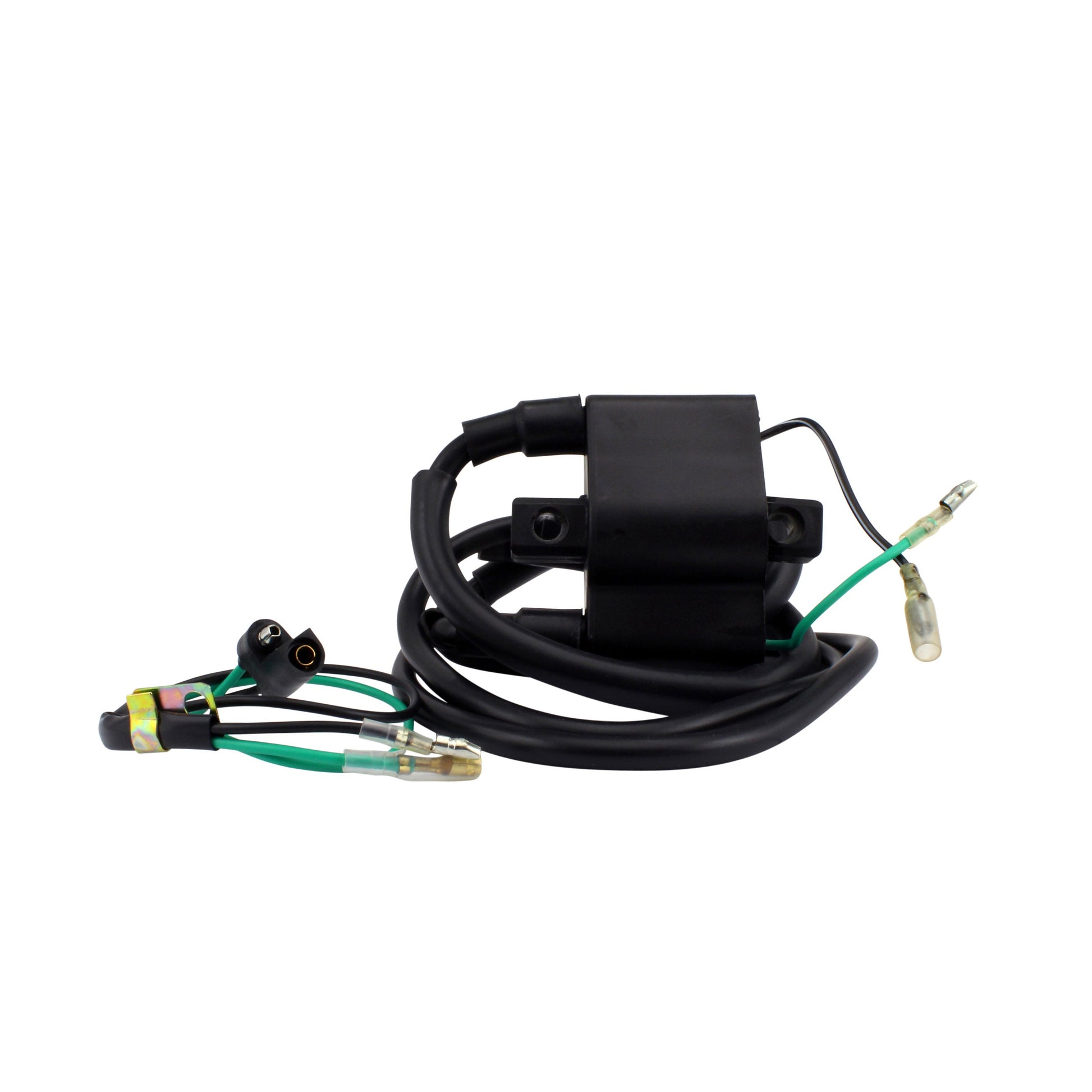

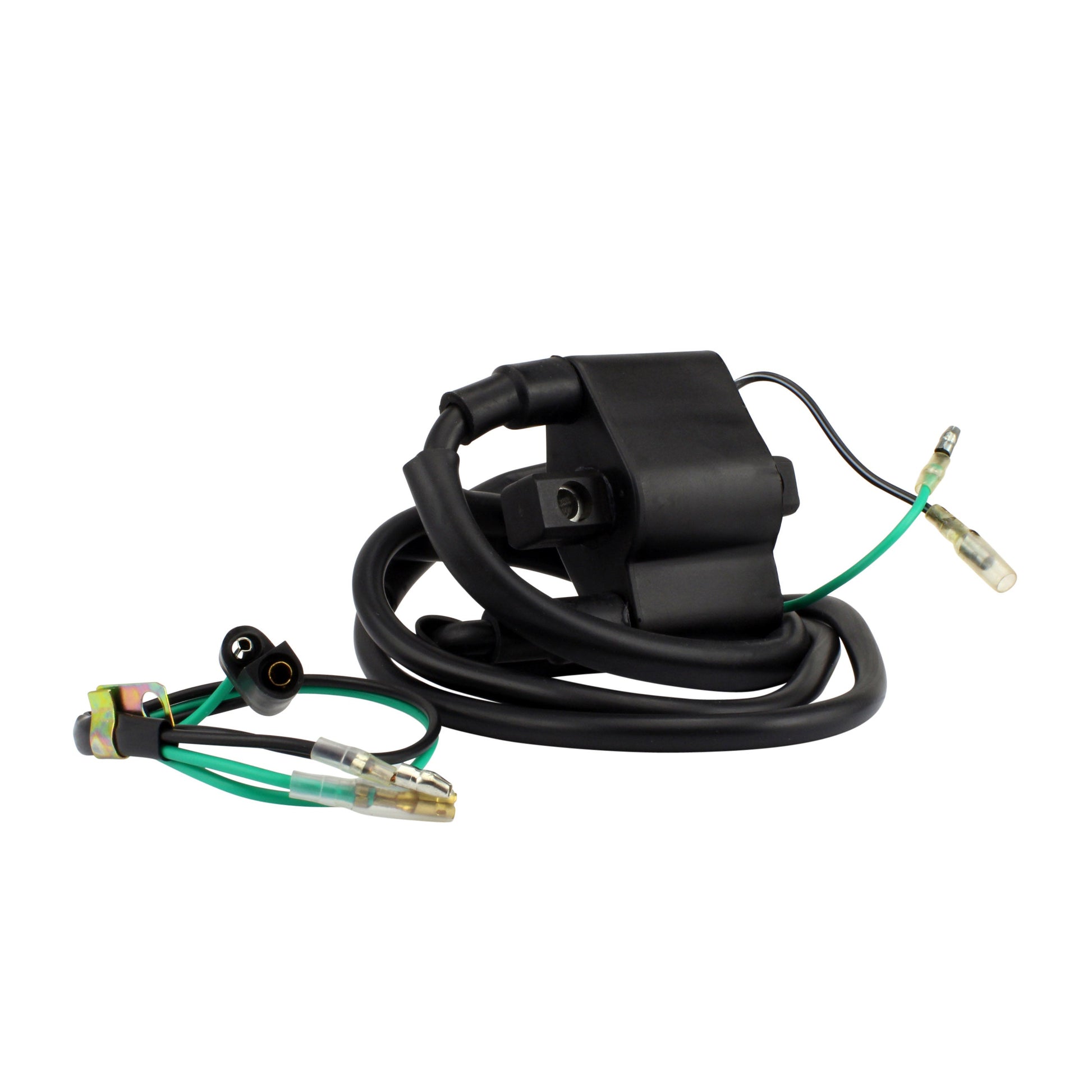

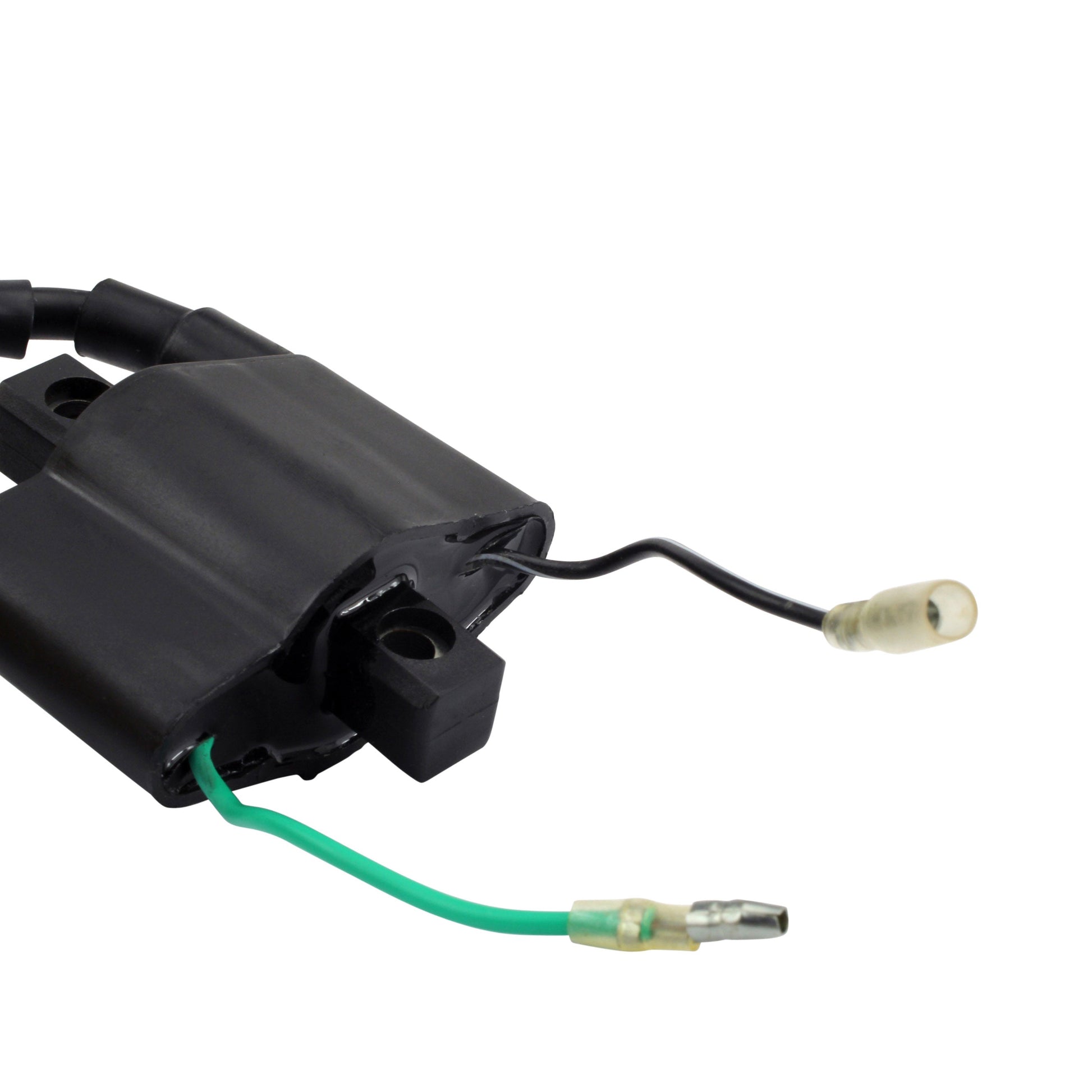

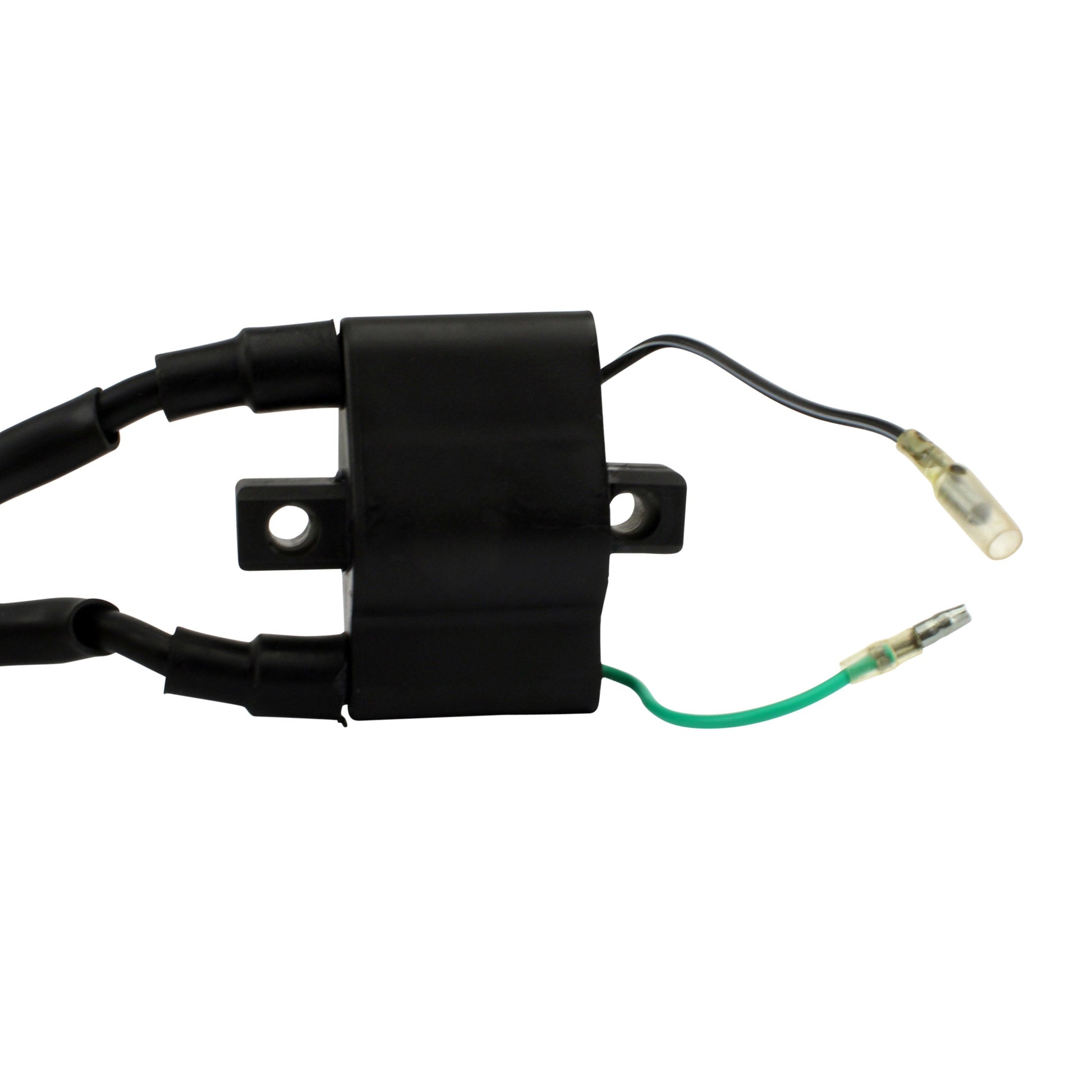

This is a brand new external ignition coil for a wide range of Arctic Cat snowmobiles built between 1987 and 2002, covering the 340 to 700 engine sizes across the Bearcat, Cheetah, Cougar, El Tigre, EXT, Jag, Wildcat, Z, ZL and ZR families. It is manufactured to replace the original external coil, the component that steps up the voltage from the ignition system and feeds the spark plug leads. When it breaks down the machine becomes hard to start, misfires or loses a cylinder entirely.

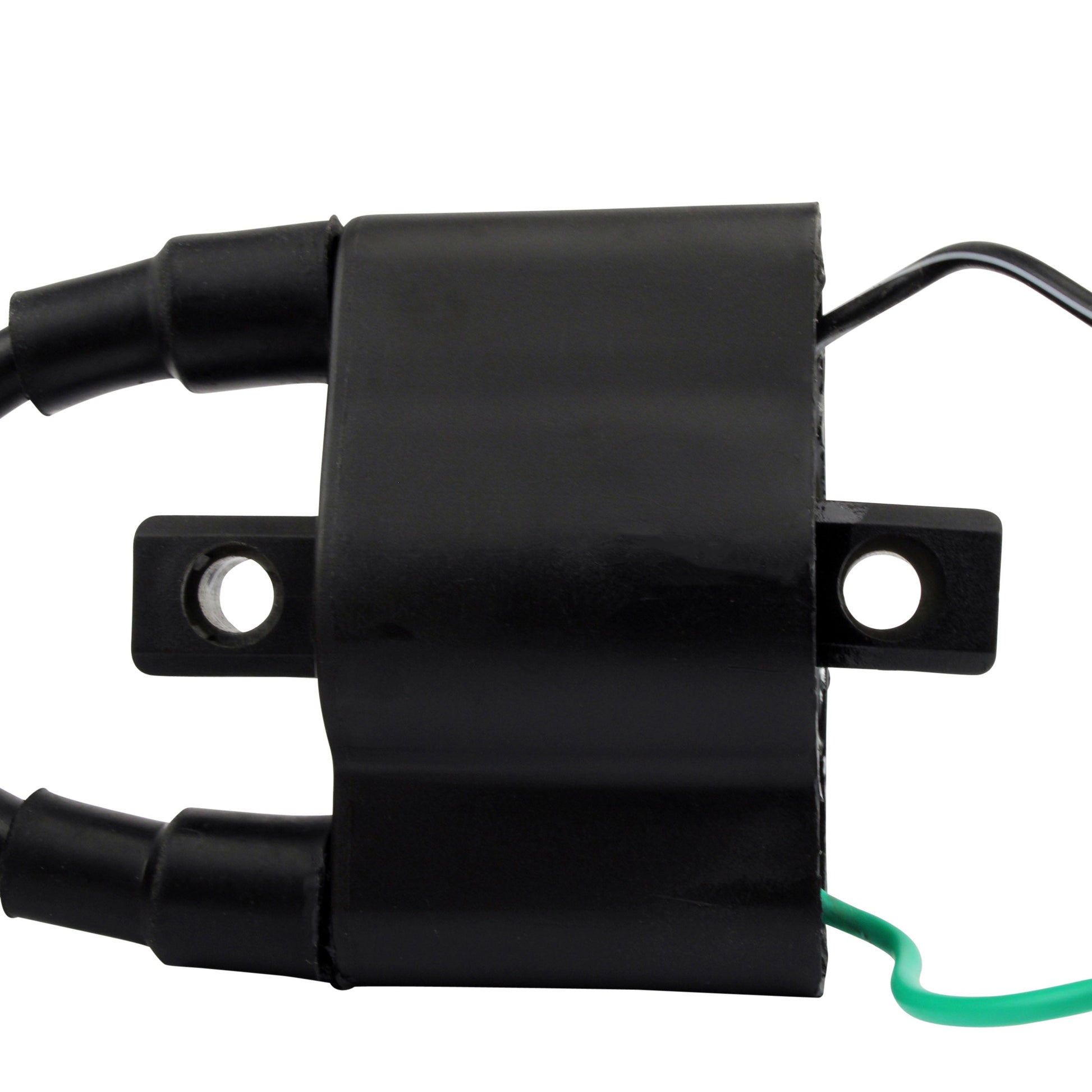

You must re-install your OEM spark plug cap(s) onto this coil. Once your original caps are in place, the part becomes a plug-and-play unit, a direct fit and easy to install. To transfer them, unscrew the spark plug caps from the old coil and screw them onto the new one; if your model does not use the yellow wire, remove it. The coil is built with the highest grade of lamination materials and all products shipped are tested. Primary coil resistance is 1.7 ohms and the fixing holes are 55 mm apart, matching the original mounting.
Key Features
- Brand new external ignition coil
- Plug-and-play once your OEM spark plug caps are re-installed
- Direct fit and easy to install
- Highest grade of lamination materials
- All products shipped are tested
- 55 mm fixing hole spacing matching the original mounting
- Yellow wire can be removed if your model does not use it
- Covers a very broad range of 1987-2002 Arctic Cat models
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM06048 |
| Distance between fixation holes | 55 mm |
| Primary coil resistance | 1.7 ohms |
| Type | External ignition coil |
| Spark plug caps | Re-use your OEM caps |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Bearcat 340-700 | 1987-2002 |
| Arctic Cat Cheetah 340-700 | 1987-2002 |
| Arctic Cat Cougar 340-700 | 1987-2002 |
| Arctic Cat El Tigre 340-700 | 1987-2002 |
| Arctic Cat EXT 340-700 | 1987-2002 |
| Arctic Cat Jag 340-700 | 1987-2002 |
| Arctic Cat Wildcat 340-700 | 1987-2002 |
| Arctic Cat Z 340-700 | 1987-2002 |
| Arctic Cat ZL 340-700 | 1987-2002 |
| Arctic Cat ZR 340-700 | 1987-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3005-185 | Arctic Cat |
| 3003-977 | Arctic Cat |
| 3003-971 | Arctic Cat |
| 3003-411 | Arctic Cat |
| 3003-877 | Arctic Cat |
| 3003-576 | Arctic Cat |
| 3003-796 | Arctic Cat |
| 3003-574 | Arctic Cat |
| 3003-573 | Arctic Cat |
| 3003-284 | Arctic Cat |
| 3004-039 | Arctic Cat |
| 3003-686 | Arctic Cat |
| 3003-685 | Arctic Cat |
| 3003-735 | Arctic Cat |
| 3003-978 | Arctic Cat |
| 3003-475 | Arctic Cat |
| 3003-983 | Arctic Cat |
| 3003-389 | Arctic Cat |
| 3003-639 | Arctic Cat |
| 3003-734 | Arctic Cat |
Frequently Asked Questions
Does it fit without modification?
It is a direct fit with 55 mm fixing hole spacing, but you must re-install your OEM spark plug cap(s) onto the new coil. Once those are transferred it is a plug-and-play unit. If your model does not use the yellow wire, simply remove it.
What is included?
One brand new external ignition coil, tested before shipping. Spark plug caps are not supplied - your original caps unscrew from the old coil and screw onto this one.
How do I know the original coil has failed?
Typical symptoms are no spark, a weak or intermittent spark, a cylinder dropping out under load, hard starting when cold and a machine that cuts out once it warms up. Comparing the primary resistance of your original against the 1.7 ohms of this replacement is a useful check.
Will it suit my engine size?
This coil covers Arctic Cat models from 340 through to 700 across the model families listed above for 1987-2002. Because the same coil was used on many chassis, matching the OEM number on your original unit is the most reliable way to confirm fitment.
