Ignition Coil for Honda CBR 1000 RR 2004-2007 - Replaces 30700-MEL-003
Ignition Coil for Honda CBR 1000 RR 2004-2007 - Replaces 30700-MEL-003
SKU:RM06204
Free shipping over £150. Terms apply
Couldn't load pickup availability

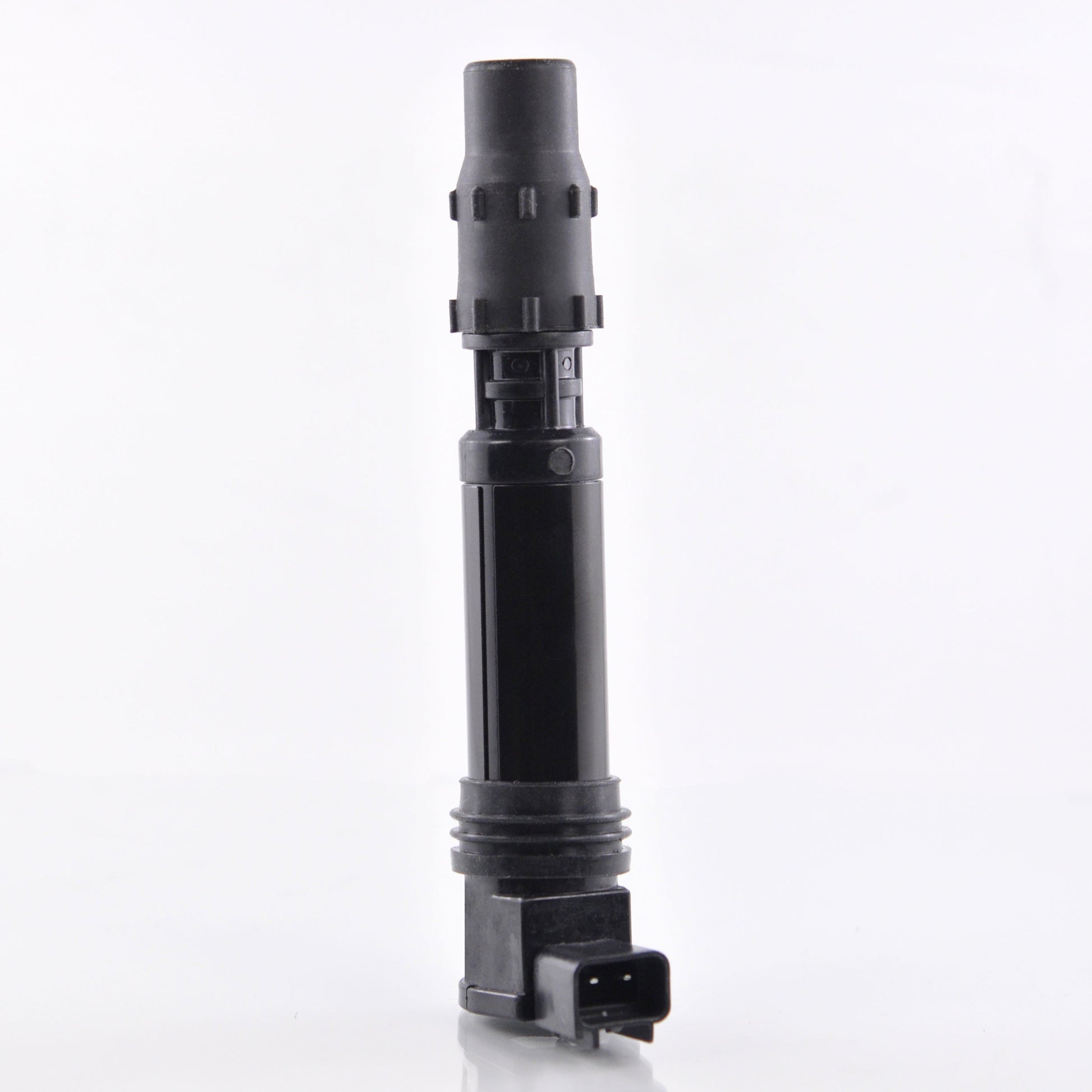

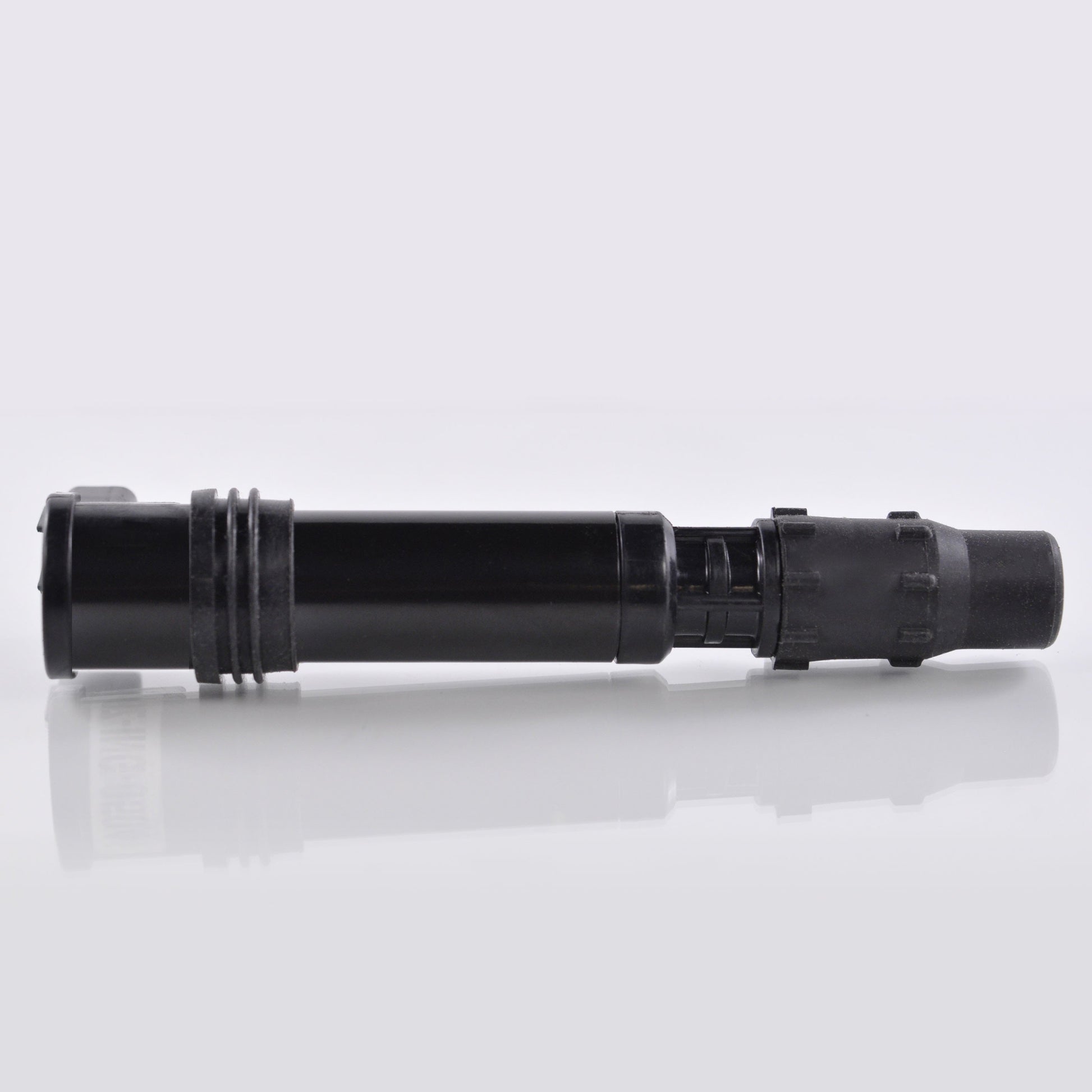

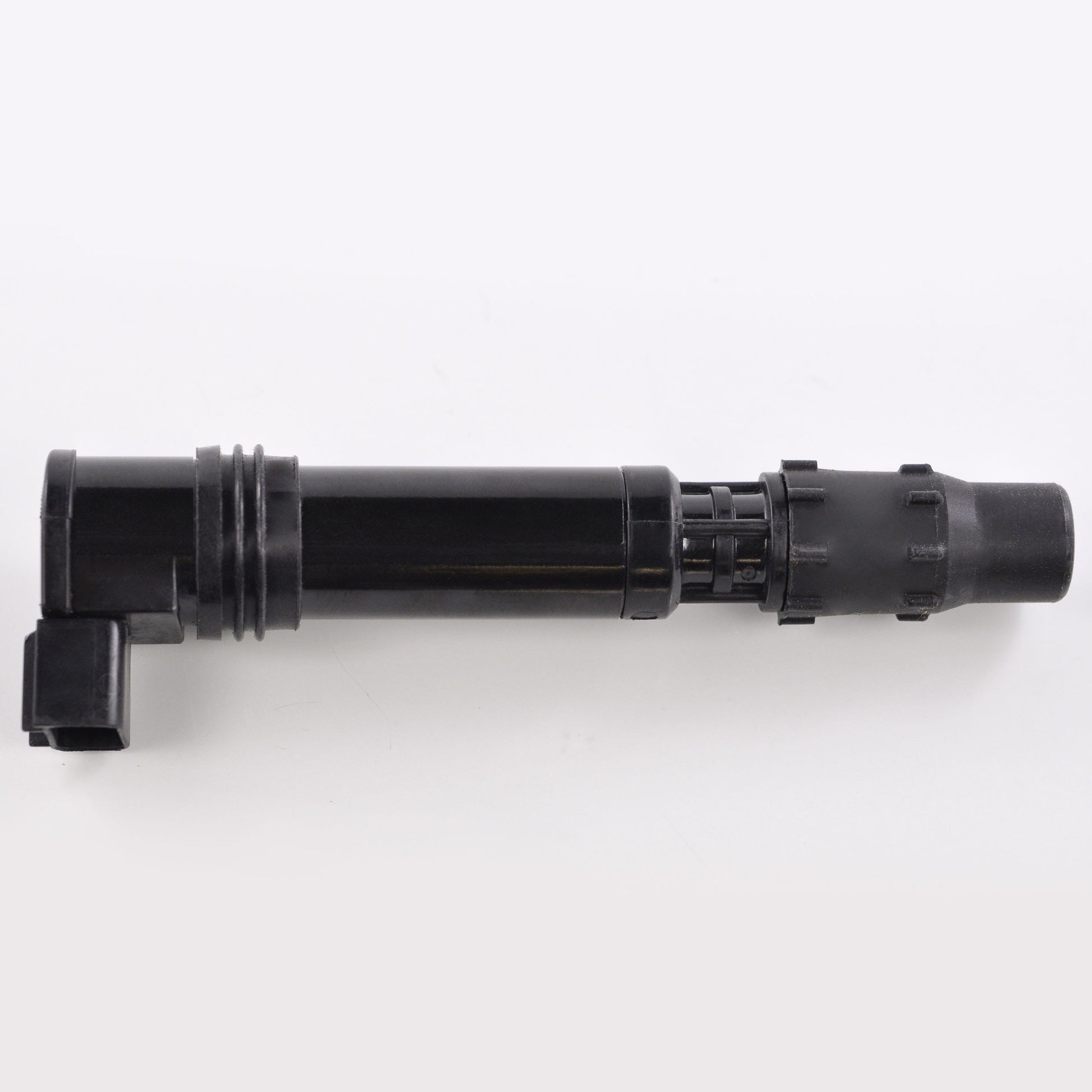

Ignition Coil for Honda CBR 1000 RR
Honda CBR 1000 RR, 2004-2007
This ignition coil is a direct replacement for the original unit fitted to the Honda CBR 1000 RR (2004-2007), built to OEM specifications for correct fit, function and spark output.
It is a coil-on-plug design that fits directly over the spark plug well, using the factory two-terminal connector for a straightforward swap without any re-wiring. This layout removes the separate HT lead used on older designs, which is a common source of arcing and misfires as it ages.
Key Features
- Direct OEM fit for the Honda CBR 1000 RR (2004-2007)
- Coil-on-plug design, fits directly over the spark plug

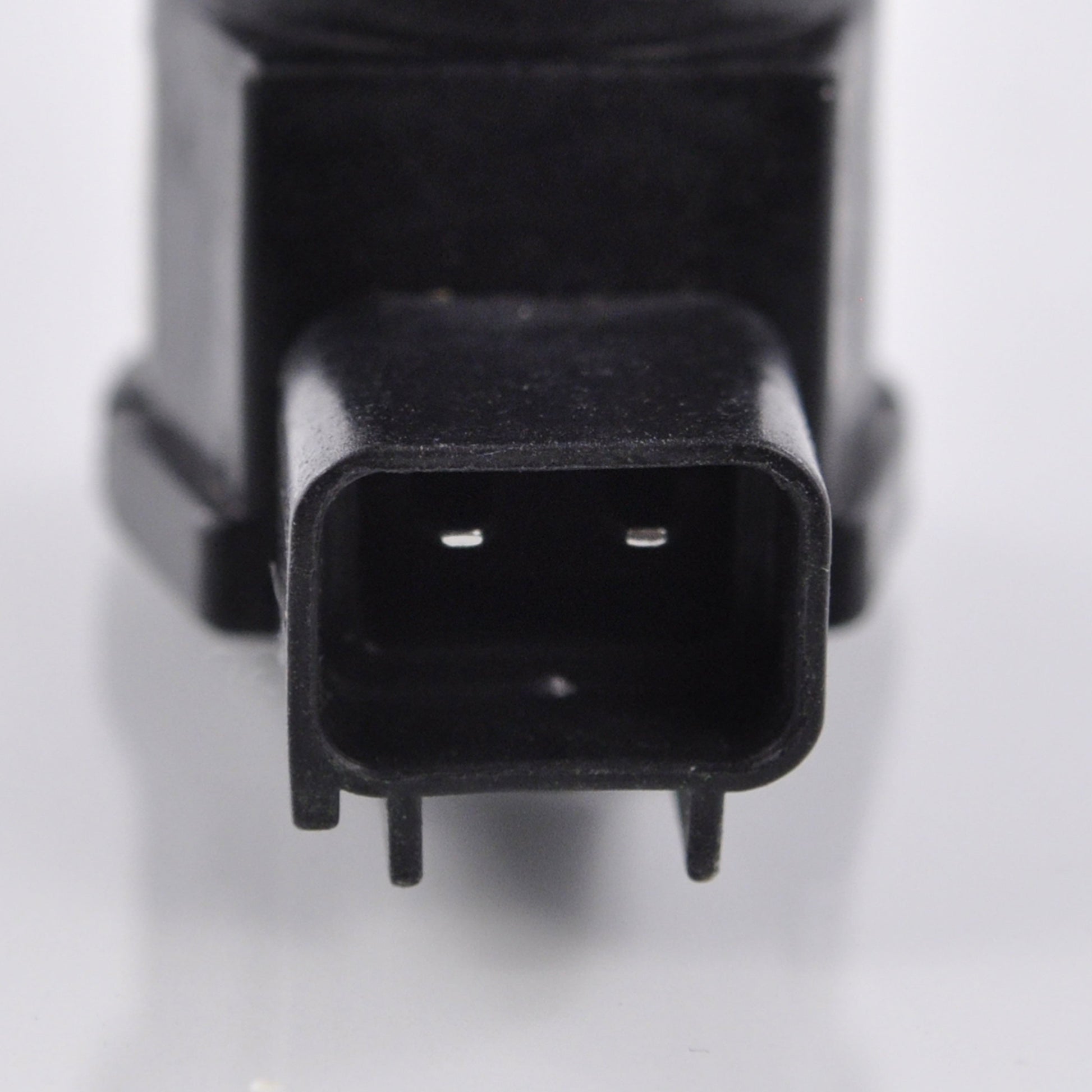

- 2-terminal factory connector
- 1.6 ohm coil resistance
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Spark Plug Hole External Diameter (Bottom) | 16.6 mm |
| Spark Plug Hole Internal Diameter (Bottom) | 9 mm |
| Length | 145 mm |
| Seal Diameter | 27 mm |
| Seal Length | 14 mm |
| Terminals | 2 |
| Resistance | 1.6 ohms |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda CBR 1000 RR | 2004-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 30700-MEL-003 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes, this coil-on-plug unit fits directly over the spark plug using the factory connector, so no cutting or splicing is required.
What's included?
One ignition coil, ready to fit in place of the original unit.
How can I tell my old coil has failed?
Common symptoms include a weak or no spark, misfiring, rough idling, or the engine cutting out under load.
Do I need any special tools to fit this?
No special tools are needed - unplug the coil connector, pull the coil out of the spark plug well, and press the new one into place in the reverse order.
Does this replace OEM part 30700-MEL-003?
Yes, this coil is a direct replacement for Honda OEM part number 30700-MEL-003.
