Ignition Coil for Honda CBR 600 F4 & F4i 1999-2006
Fits Honda CBR 600 F4, F4i, CBR 929 RE/RR & CBR 954 RR
This ignition cap coil is a direct-fit replacement for the Honda CBR 600 F4/F4i and CBR 929/954 RR range, built to OEM specifications for reliable spark delivery. It replaces Honda part number 21066-0016 and restores consistent ignition performance without any modification to the original wiring or mounting points.
Rated at 1.3 ohms resistance with a 2-terminal connection, the coil measures 145 mm in length and is manufactured to match the original seal and spark plug hole dimensions for a precise, leak-free fit.
Key Features
- Direct OEM fit and finish, no modification required
- Resistance: 1.3 ohms

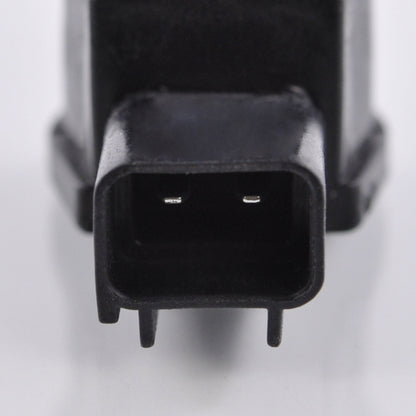

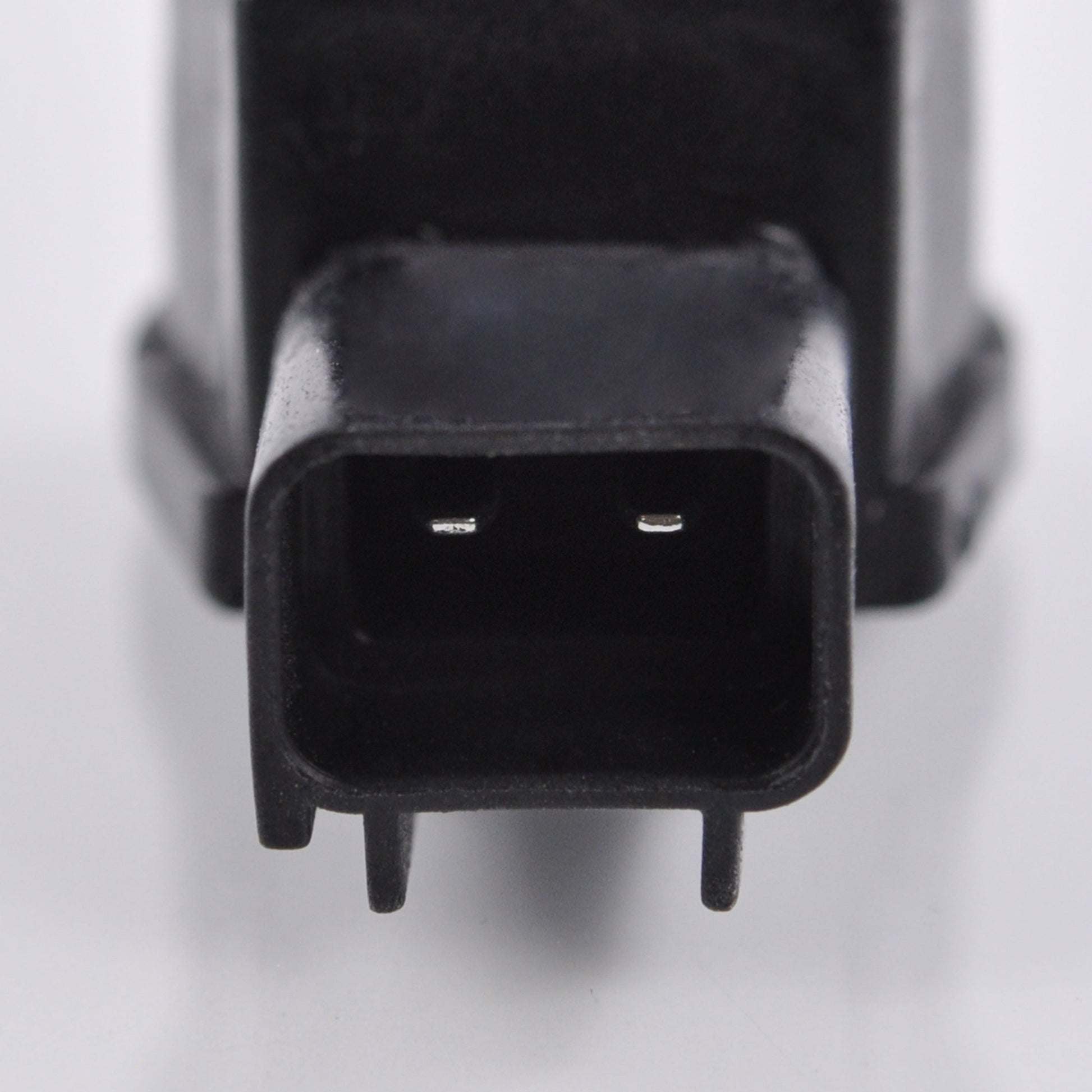

- 2-terminal connector for straightforward installation
- Precision-matched seal and spark plug hole dimensions
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Spark Plug Hole External Diameter (Bottom) | 16.6 mm |
| Spark Plug Hole Internal Diameter (Bottom) | 9 mm |
| Length | 145 mm |
| Seal Diameter | 26 mm |
| Seal Length | 22 mm |
| Number of Terminals | 2 |
| Resistance | 1.3 ohms |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda CBR 600 F4 | 1999-2000 |
| Honda CBR 600 F4i | 2001-2006 |
| Honda CBR 929 RE | 2001 |
| Honda CBR 929 RR | 2000-2001 |
| Honda CBR 954 RR | 2002-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21066-0016 | Honda |
Frequently Asked Questions
Will this ignition coil fit my bike without any modification?
Yes. This coil is a direct OEM-fit replacement across the CBR 600 F4/F4i and CBR 929/954 RR range and installs using the factory mounting points and connector, no cutting or splicing required.
What's included?
One ignition cap coil, ready to fit directly in place of the original unit.
How can I tell my ignition coil has failed?
Common signs include difficulty starting, misfiring, rough idling, or a complete loss of spark to one cylinder.
Does this coil match the original resistance rating?
Yes, it is built to the same 1.3 ohm resistance specification as the OEM part for correct ignition timing and spark energy.
