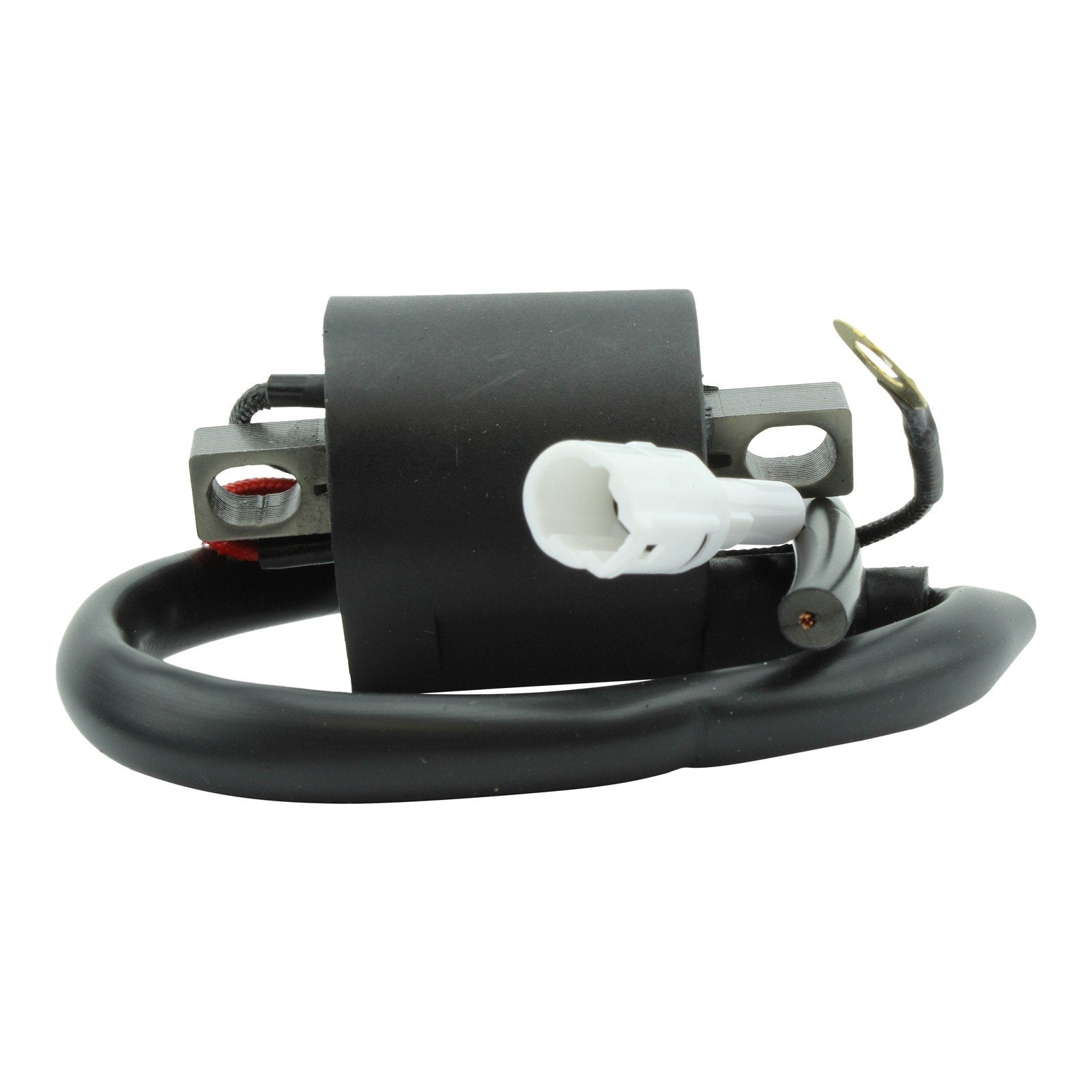

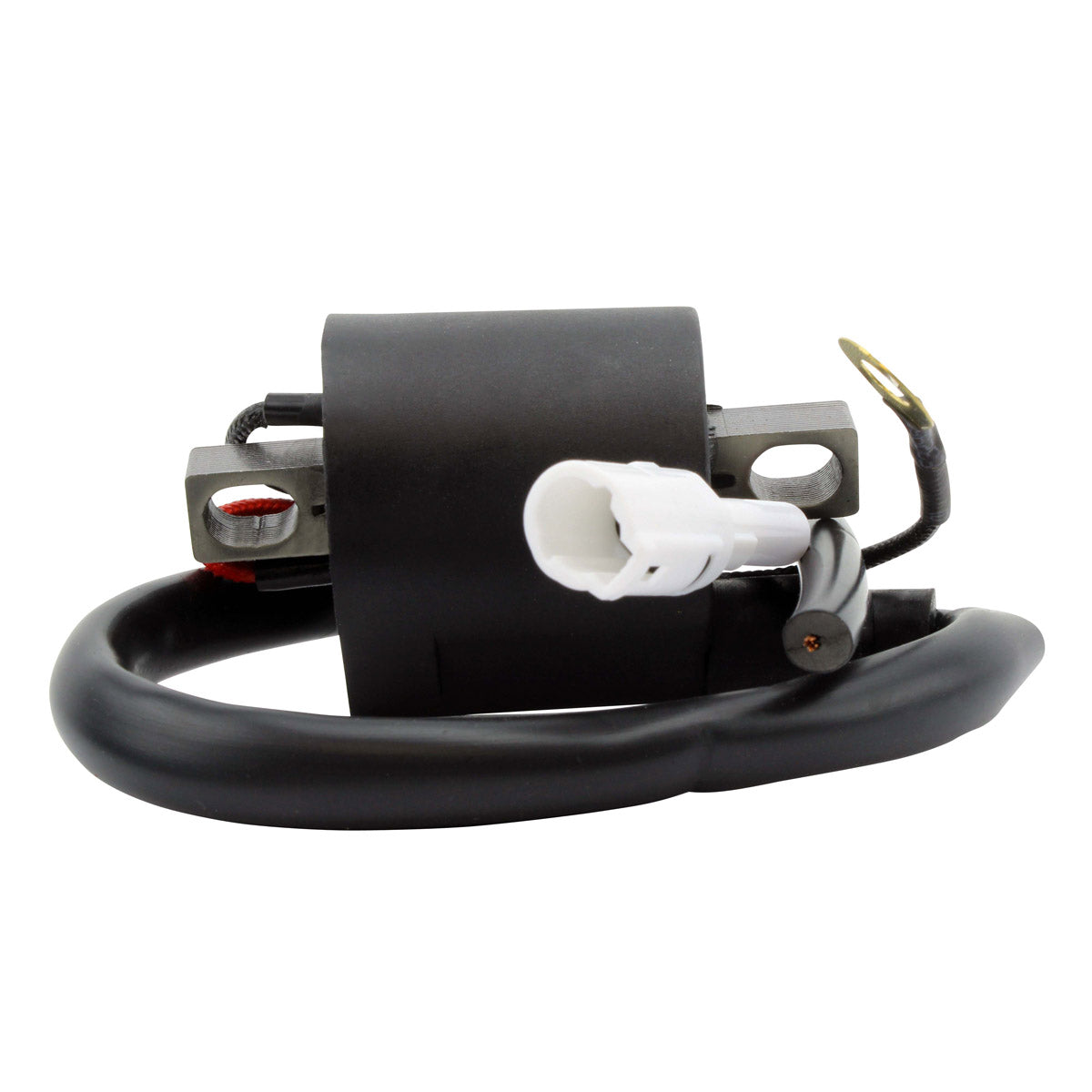

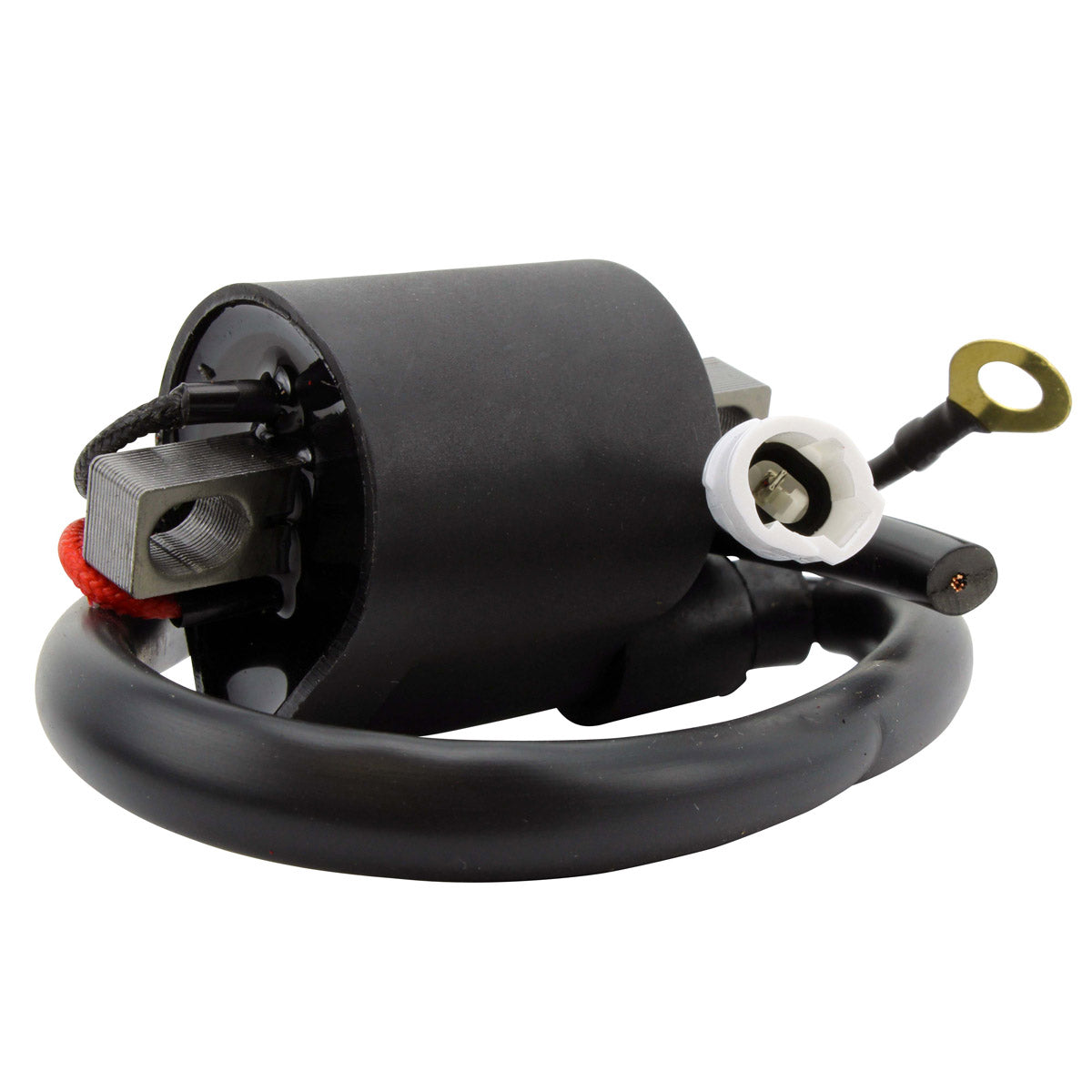

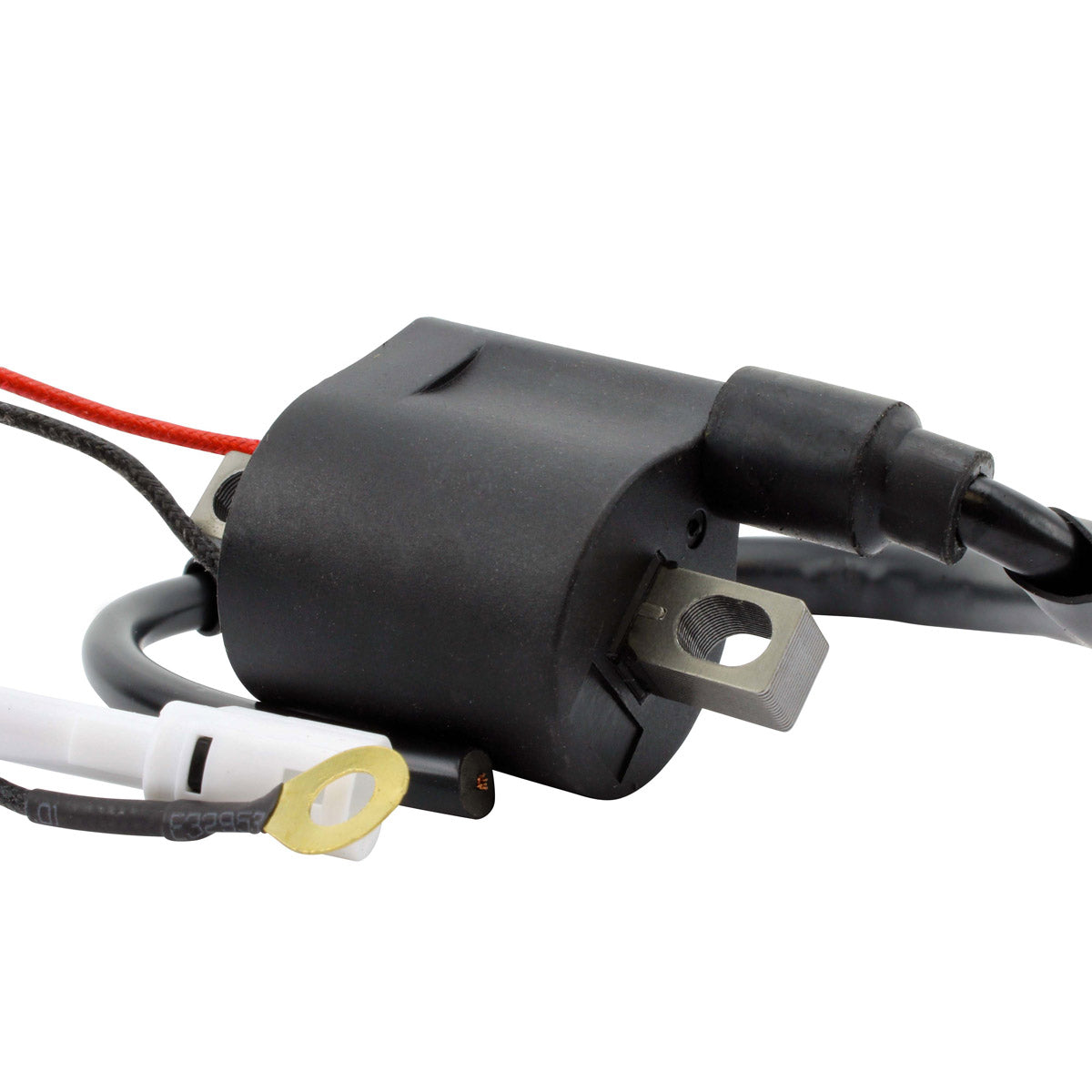

This is a brand new aftermarket external ignition coil supplied under RMSTATOR part number RMS060-105954. It is a direct replacement for the original ignition coil fitted to the Kawasaki KX 65, KX 85, KX 100 and KX 112 motocross models built between 2006 and 2024, and it replaces Kawasaki OEM part numbers 21121-0722 and 21121-0022.
The unit is plug-and-play and a direct fit, so it installs using the original mounting points and the original wiring - no modification, no splicing and no adaptor harness is required. RMSTATOR tests every product before it is shipped. The coil measures 67 mm long, 46 mm wide and 37 mm high, with 54 mm between the centres of the two fixation holes, and carries a measured resistance of 0.6 ohms.
Key Features
- Brand new aftermarket external ignition coil - not a repaired or reconditioned unit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Replaces Kawasaki OEM 21121-0722 and 21121-0022
- Resistance of 0.6 ohms

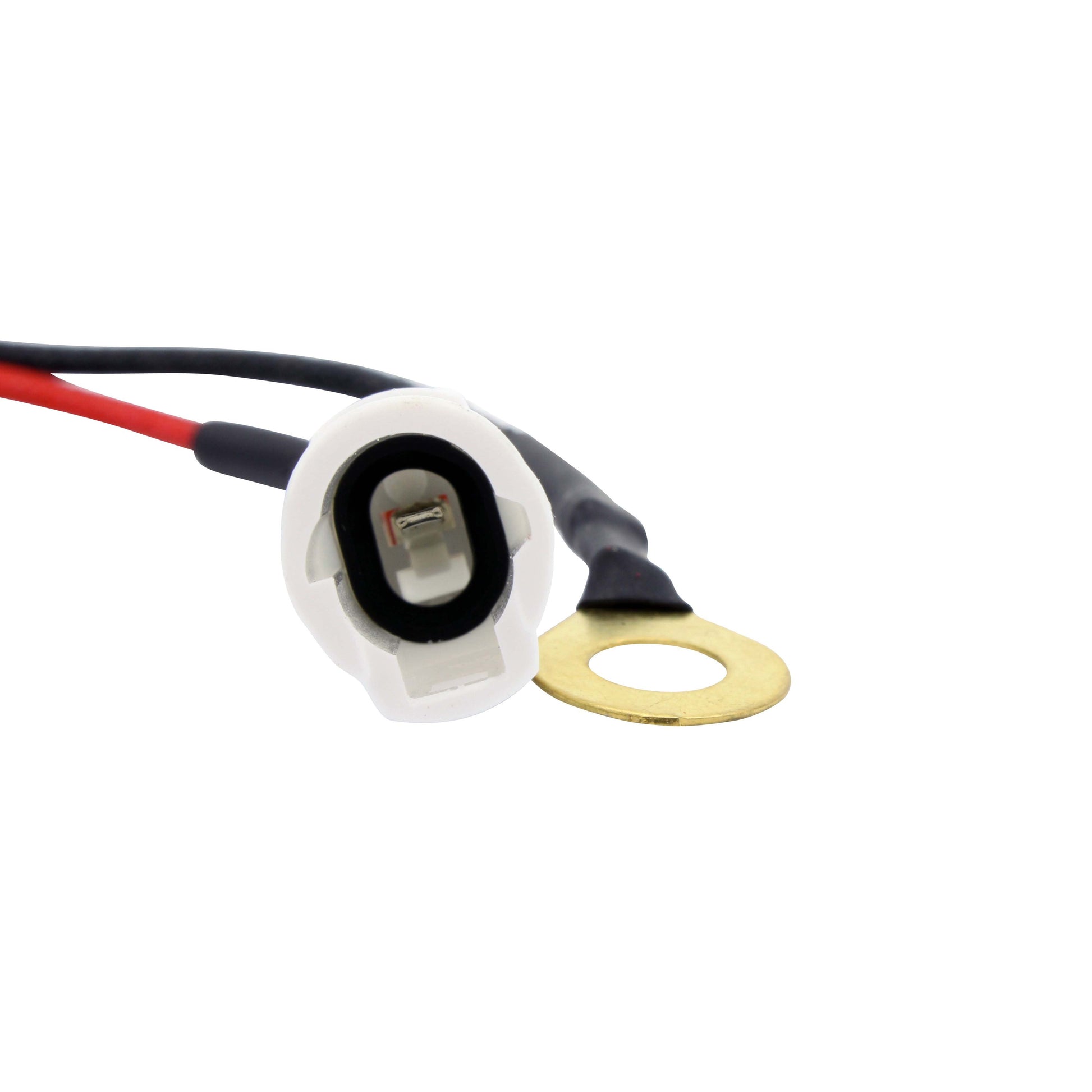

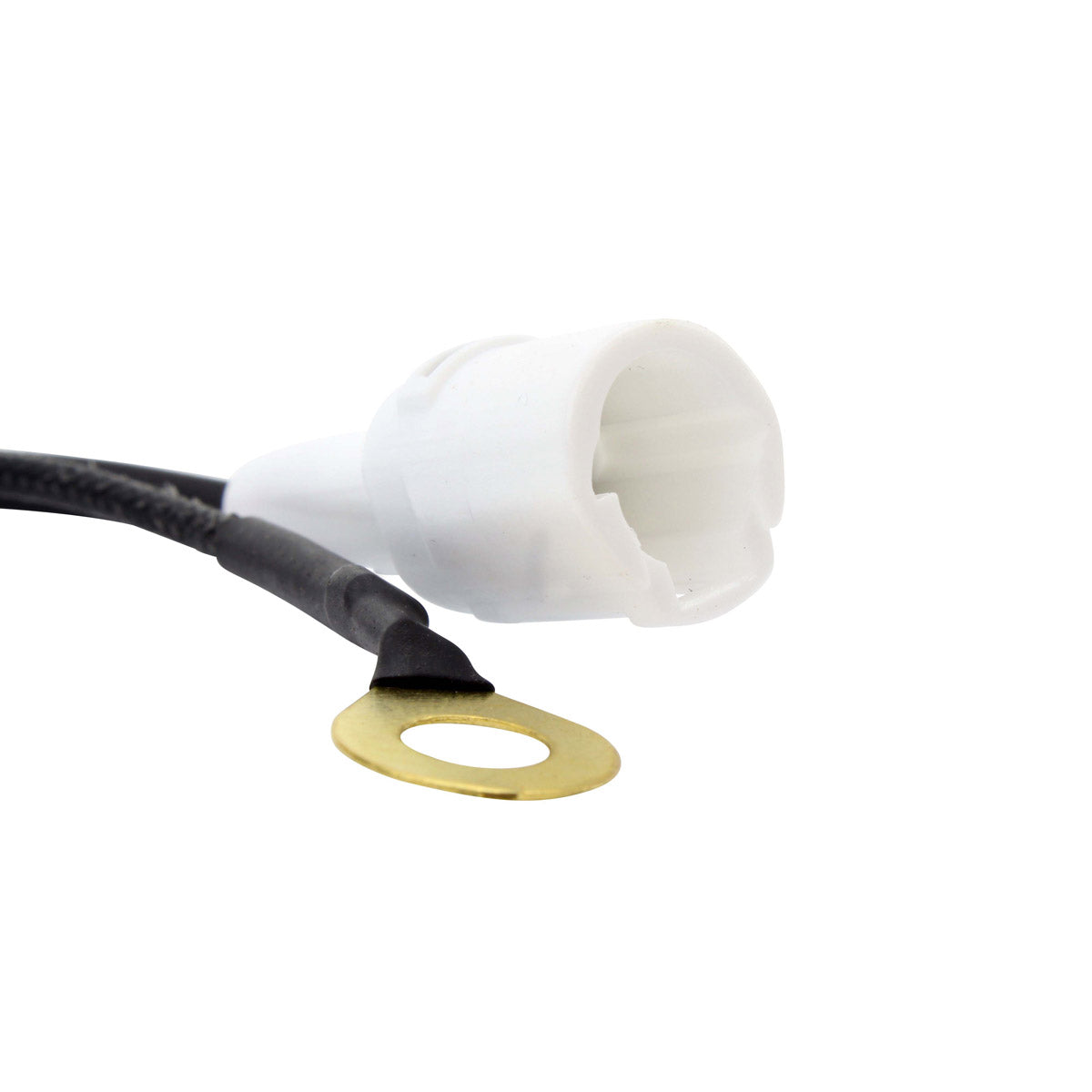

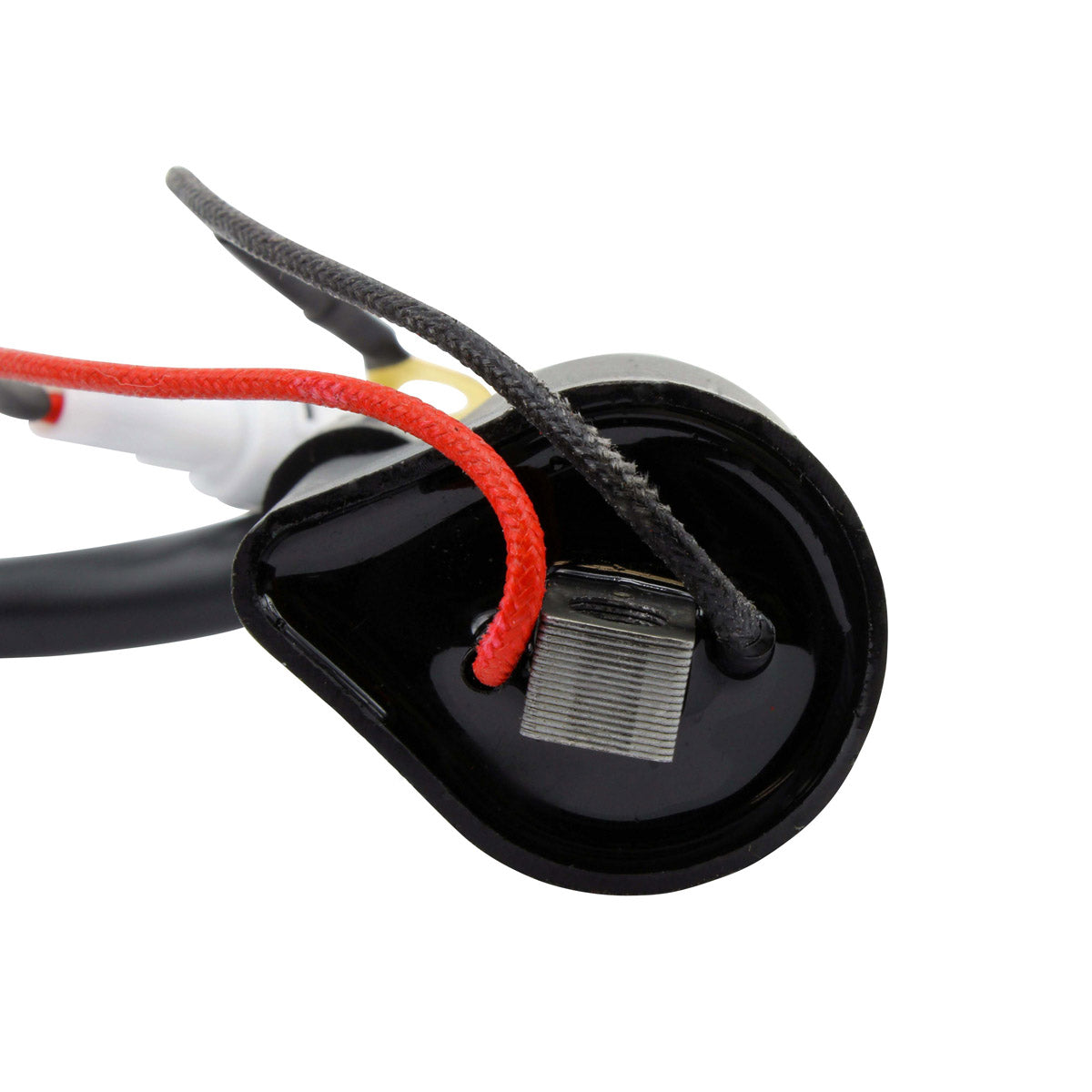

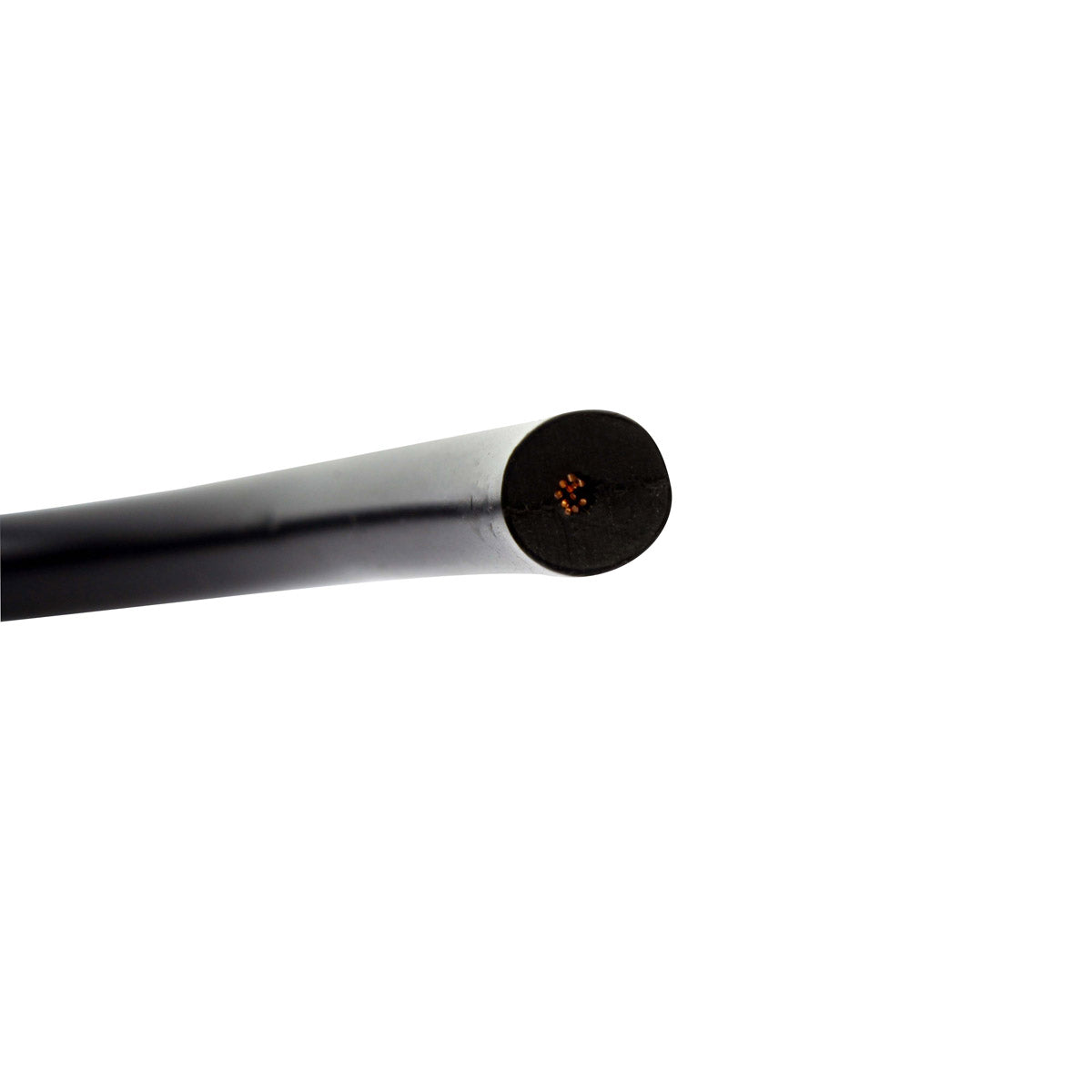

- Two lead wires, 90 mm and 283 mm long

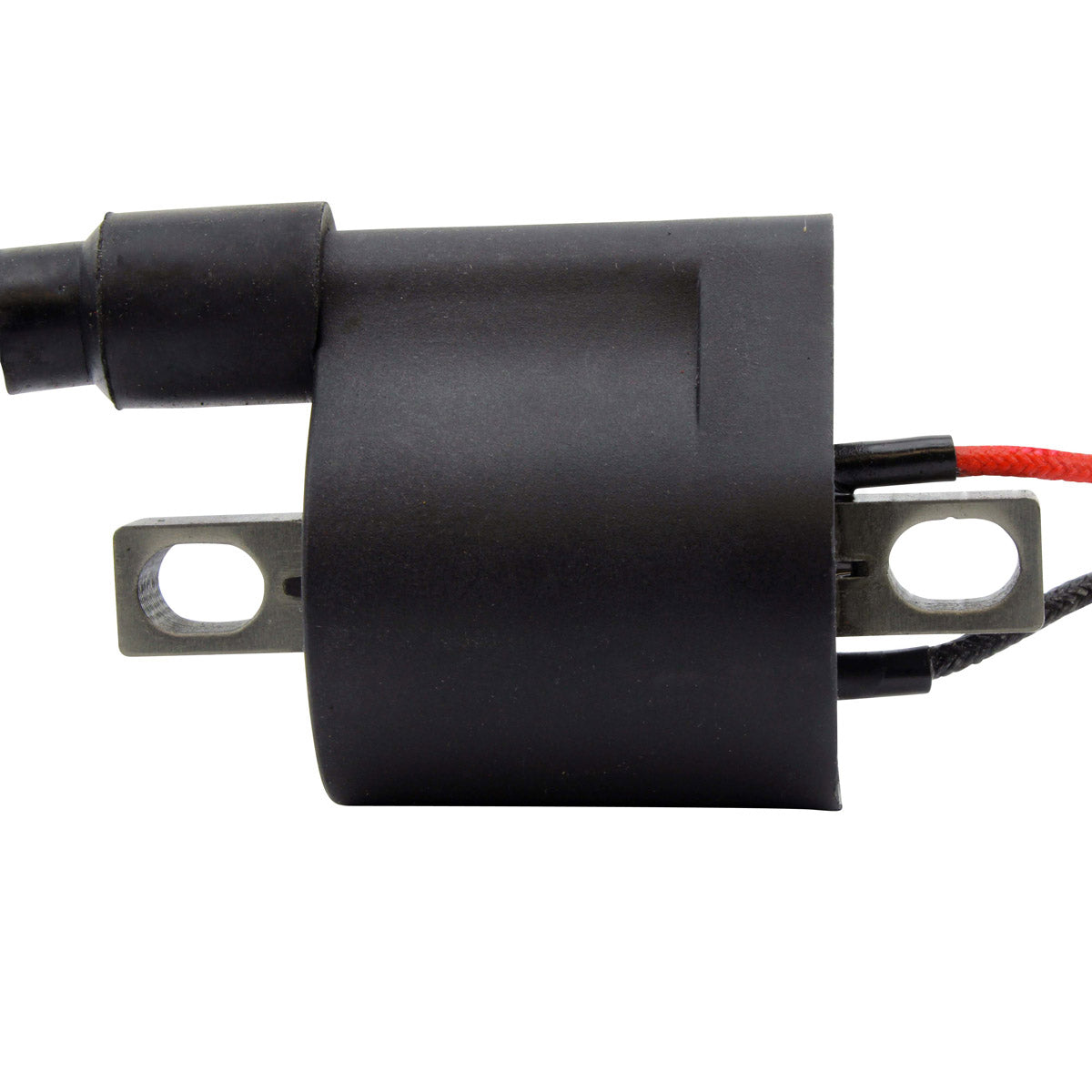

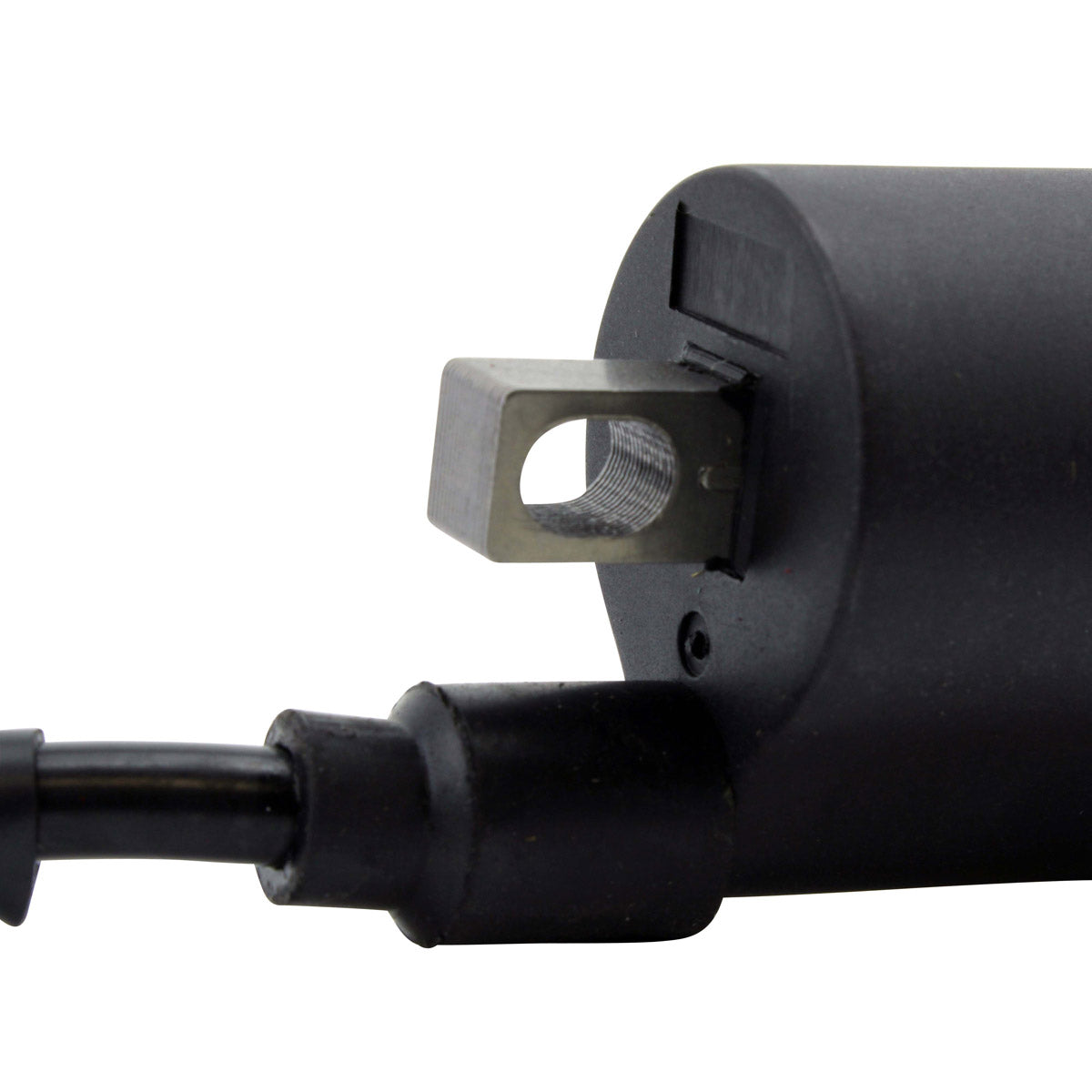

- Fixation holes 54 mm apart, centre to centre, matching the original mounting
- Every product is tested before it is shipped
Technical Specs
| Specification |
Detail |
| Part Number |
RMS060-105954 |
| Component |
External ignition coil |
| Length |
67 mm |
| Width |
46 mm |
| Height |
37 mm |
| Wire lengths |
90 mm and 283 mm |
| Fixation holes, centre to centre |
54 mm |
| Resistance |
0.6 ohms |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KX 65 |
2006-2024 |
| Kawasaki KX 85 |
2006-2024 |
| Kawasaki KX 100 |
2006-2024 |
| Kawasaki KX 112 |
2006-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21121-0722 |
Kawasaki |
| 21121-0022 |
Kawasaki |
Frequently Asked Questions
Will this coil fit without modification?
Yes. RMSTATOR describes this unit as plug-and-play and a direct fit, so it is a direct replacement for your original coil. The two fixation holes sit 54 mm apart, centre to centre, to match the original mounting, and the lead wires are supplied at their original 90 mm and 283 mm lengths. No cutting, splicing or bracket modification is needed.
What is included?
You receive one brand new external ignition coil, RMSTATOR part number RMS060-105954. No further contents are listed for this part, so any hardware, boots or fasteners you need should be carried over from your original unit.
How do I know my old ignition coil has failed?
Typical symptoms are a bike that will not start or is very hard to start, a weak or intermittent spark, misfiring, cutting out under load, or a machine that runs when cold but dies once it warms up. A resistance check is the usual confirmation - this coil reads 0.6 ohms, so a reading far above or far below that on your original unit, or an open circuit, points to a failed coil.
Does it fit every KX 65, 85, 100 and 112 in the 2006 to 2024 range?
The 2006 to 2024 span is the overall coverage for this part across those four models. The most reliable check is the number on your original coil - if it reads 21121-0722 or 21121-0022, this is the correct replacement. If you are unsure, send us your model and year and our technical team will confirm before you order.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
