Ignition Coil for Suzuki SV 650 & GS 500 1989-2009 and Arctic Cat ZRT 1993-2016
Ignition Coil for Suzuki SV 650 & GS 500 1989-2009 and Arctic Cat ZRT 1993-2016
SKU:RM06177
Free shipping over £150. Terms apply
Couldn't load pickup availability

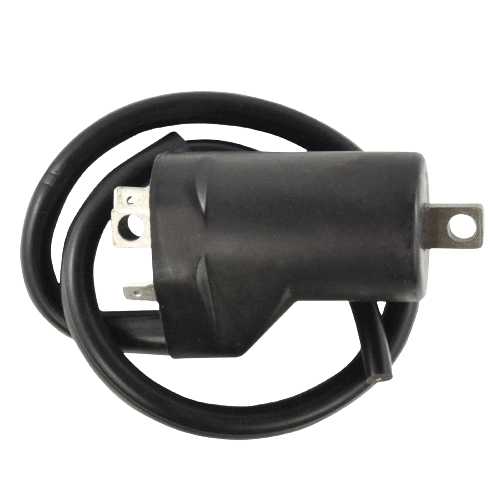

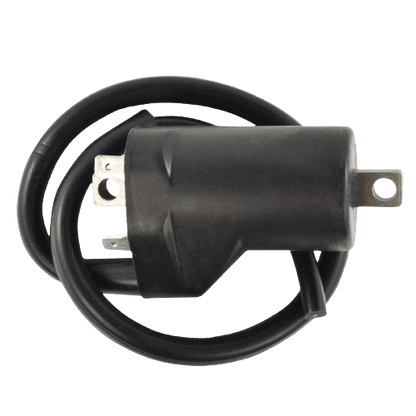

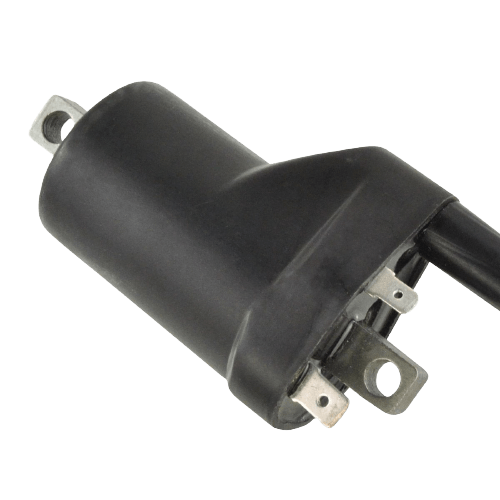

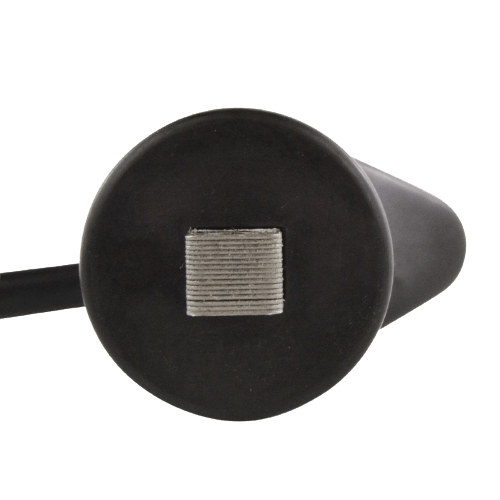

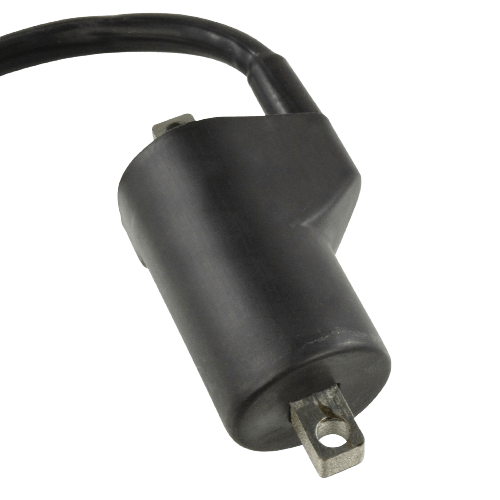

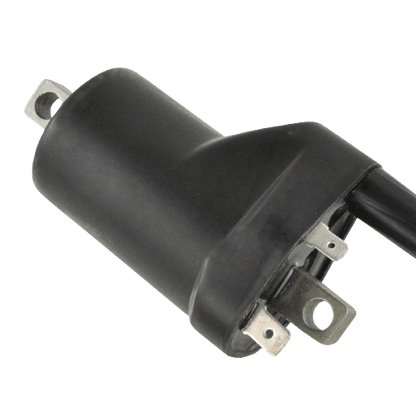

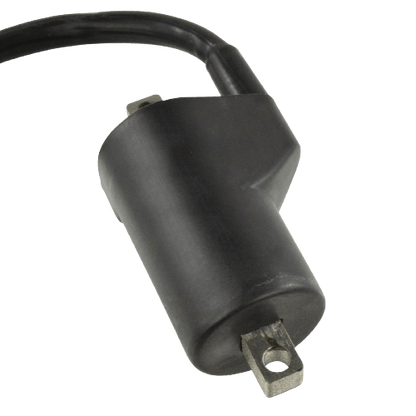

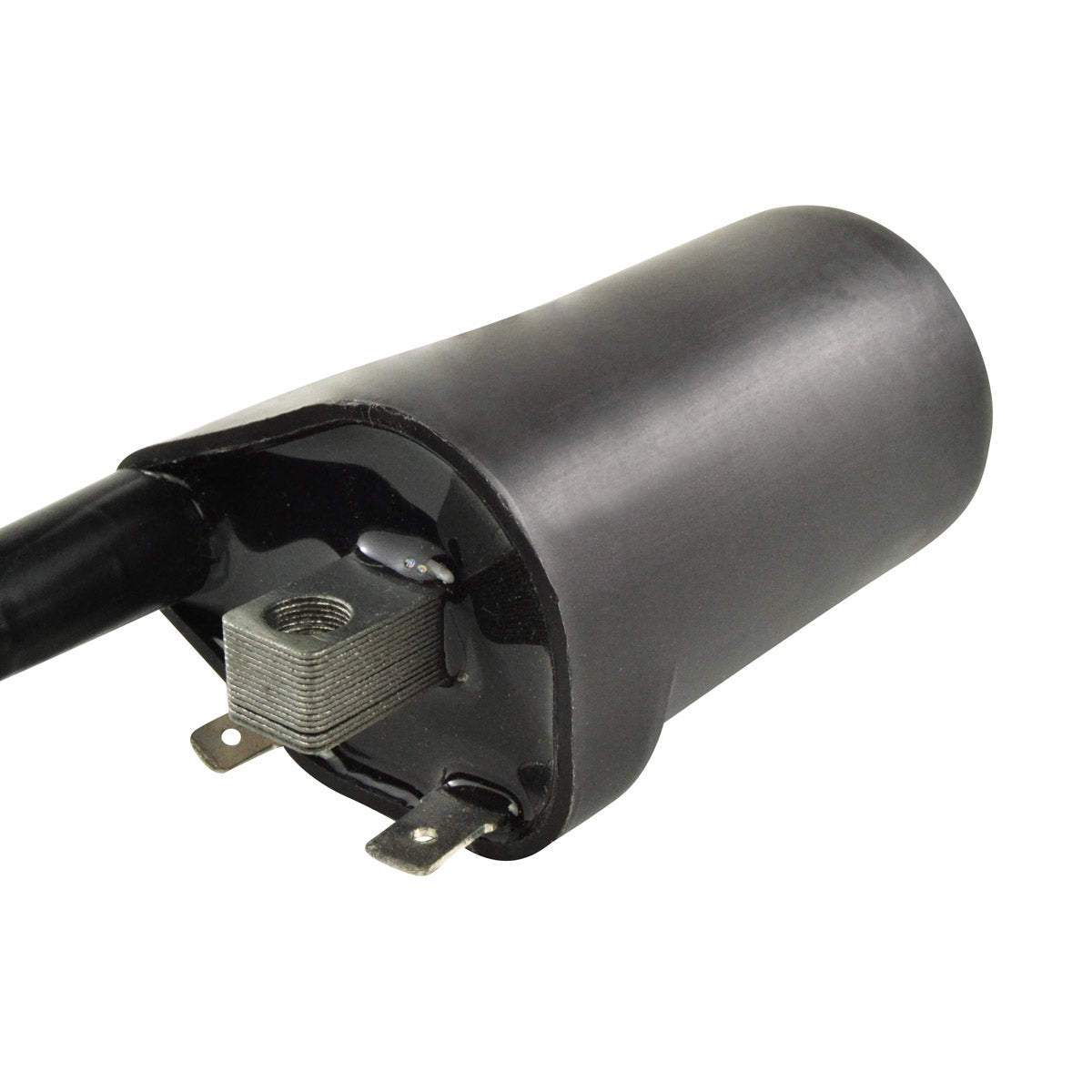

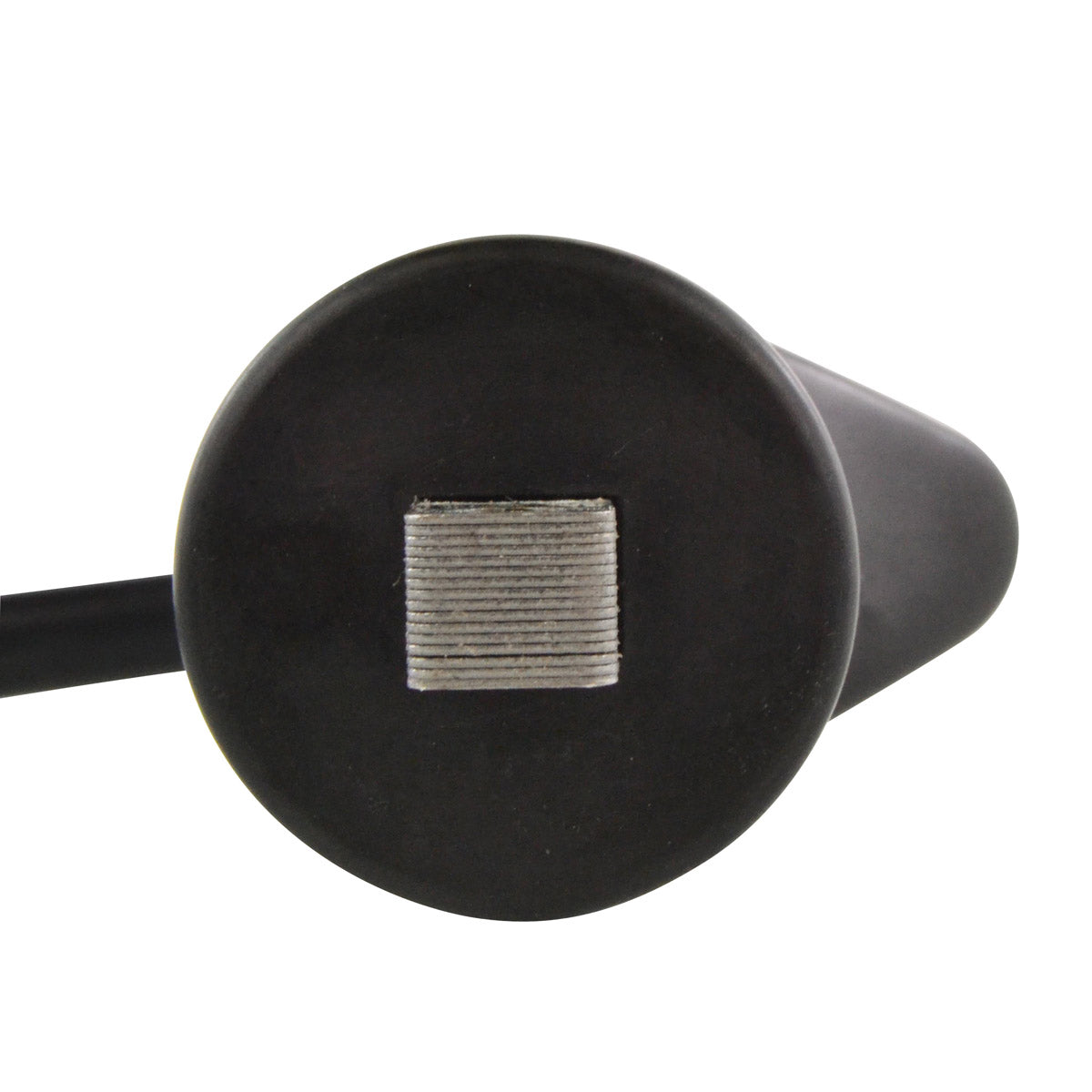

External Ignition Coil for Suzuki and Arctic Cat - RM06177
Suzuki SV 650 and GS 500 1989-2009 - Arctic Cat ZRT 600 / 800 1993-2016

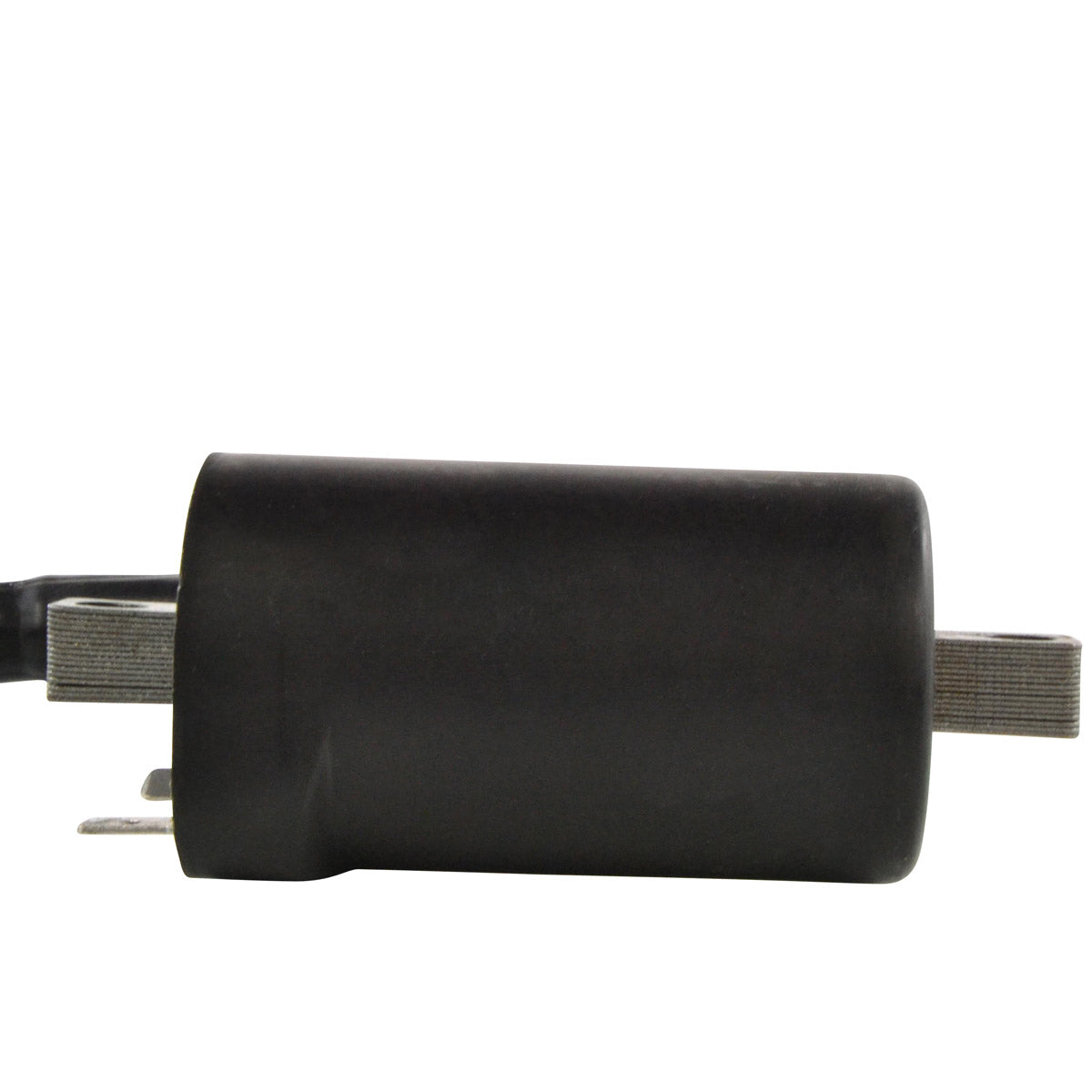

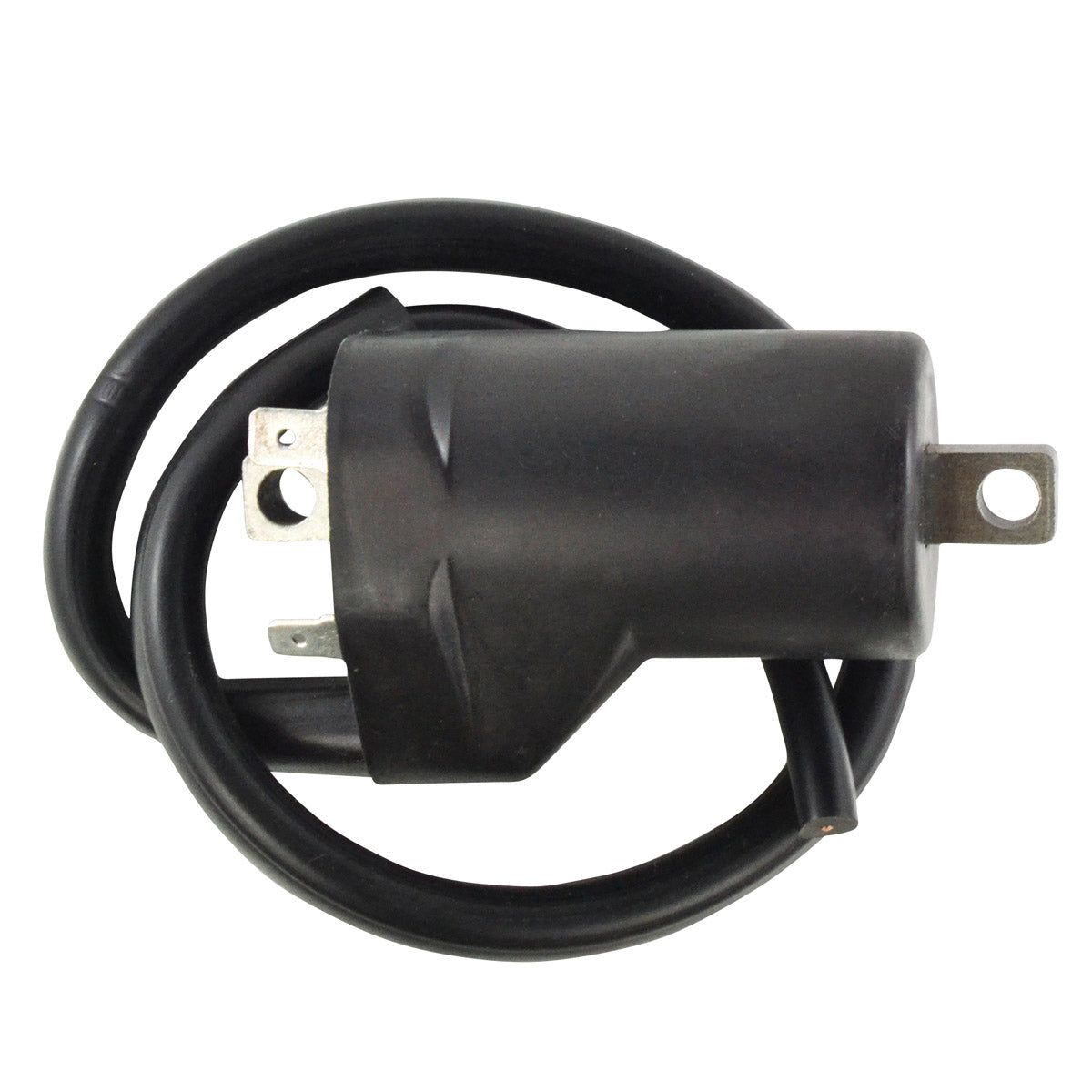

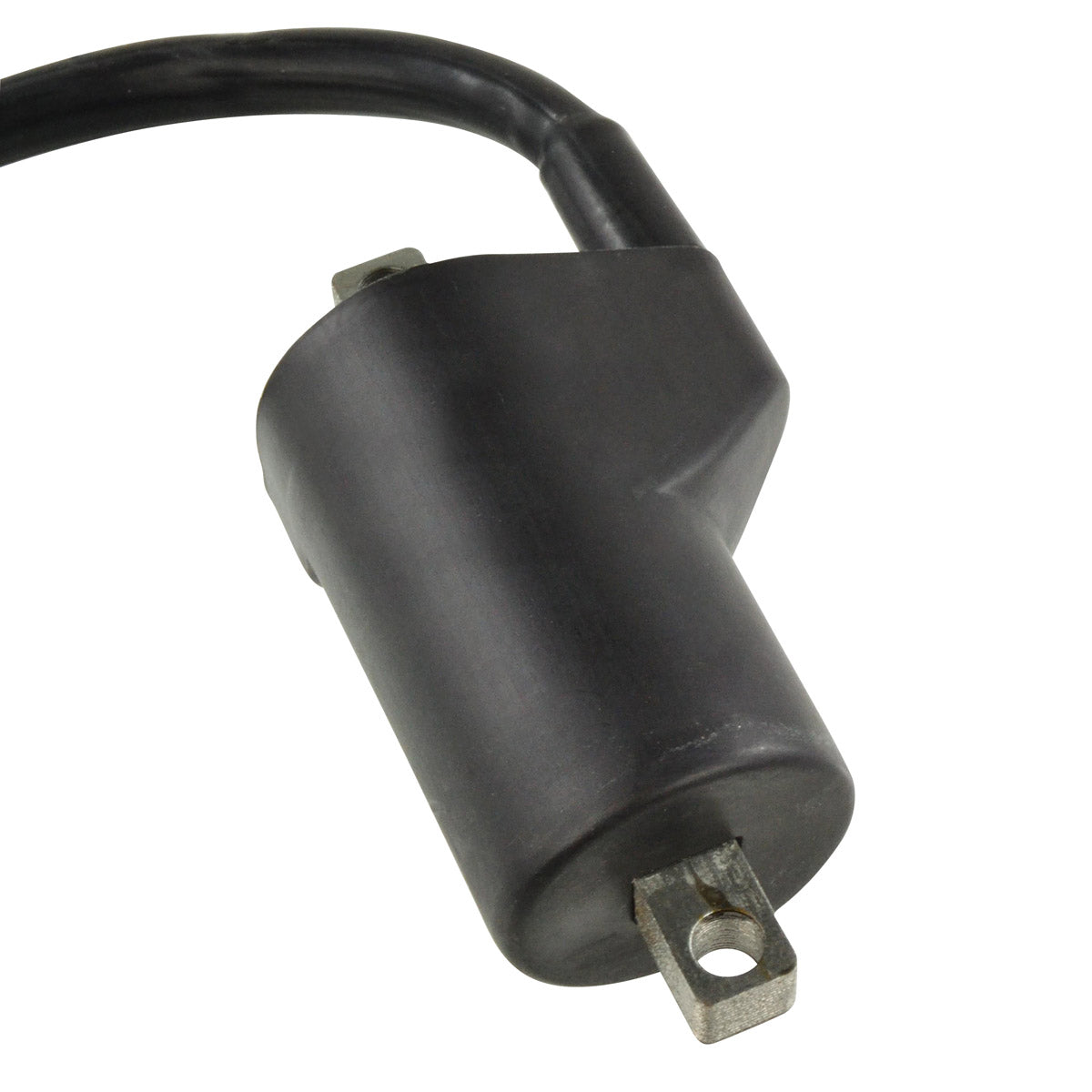

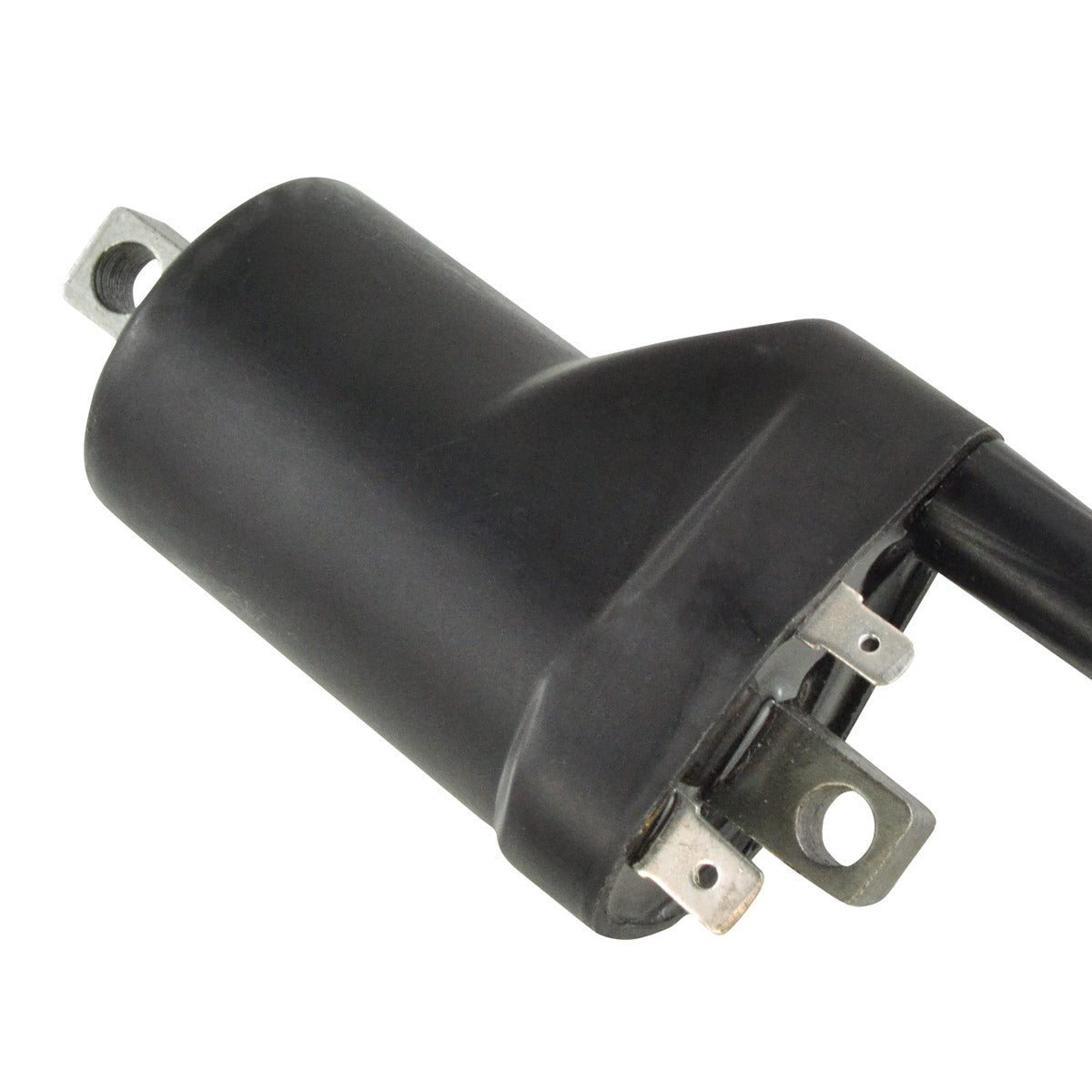

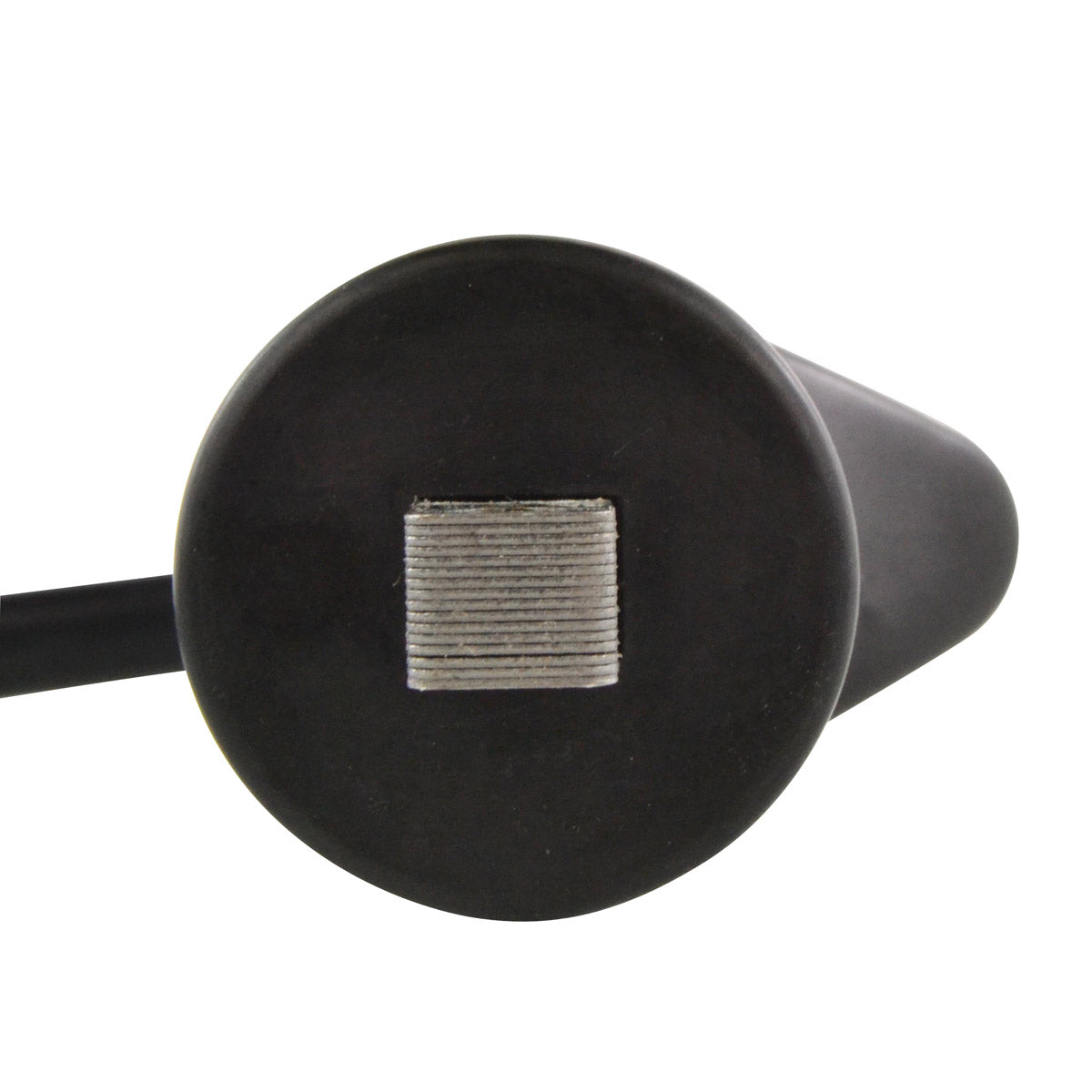

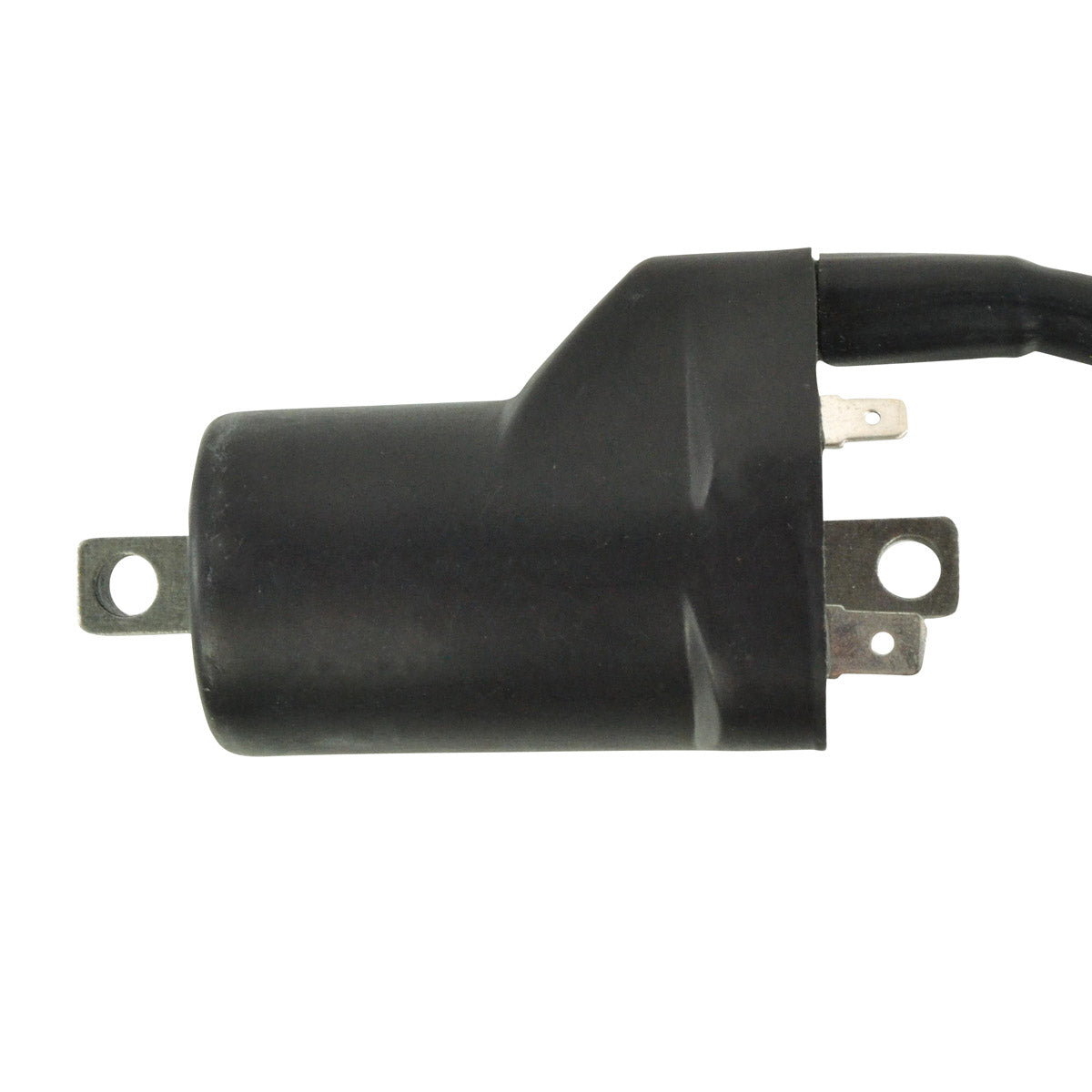

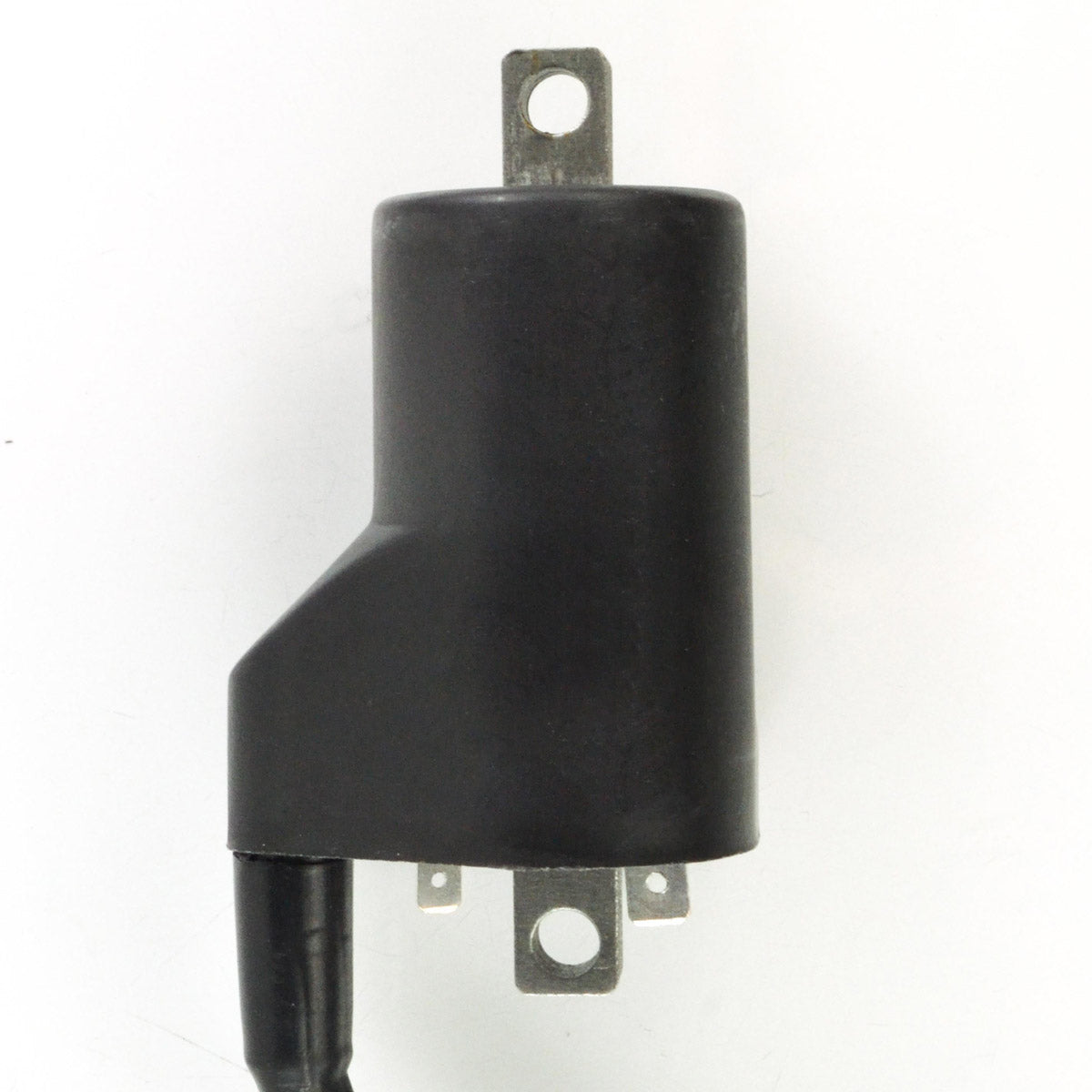

A brand new aftermarket external ignition coil, supplied as a direct replacement to your original unit on the Suzuki SV 650 and GS 500 and on the Arctic Cat ZRT 600 and ZRT 800. The ignition coil is what converts the low voltage feed from the ignition system into the high voltage needed to fire the spark plug, and it is a part that degrades slowly rather than failing outright. As the windings and insulation age the spark weakens, which shows up as hard starting, misfires and hesitation long before the engine refuses to run at all.
This coil measures 91 mm long, 33 mm wide and 47 mm high, with 80 mm between the fixation holes so it bolts back into the original mounting position, and it reads 5.0 ohms. The 430 mm HT lead gives enough length to route the plug cap back to the head as standard. Installation is plug-and-play, direct fit and easy: unscrew the spark plug cap or caps from your OEM external ignition coil and screw them onto the new coil, then mount and reconnect. No modification to the loom is required. All products shipped are tested.
Key Features
- Brand new aftermarket external ignition coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- 80 mm fixation hole spacing for a standard mount
- 430 mm wire length
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Length | 91 mm |
| Width | 33 mm |
| Height | 47 mm |
| Distance between fixation holes | 80 mm |
| Wire length | 430 mm |
| Resistance | 5.0 ohms |
| Part number | RM06177 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki SV 650 | 1989-2009 |
| Suzuki GS 500 | 1989-2009 |
| Arctic Cat ZRT 600 | 1993-2016 |
| Arctic Cat ZRT 800 | 1993-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 33410-01D00 | Suzuki |
| 33410-01D10 | Suzuki |
| 33410-19F00 | Suzuki |
| 33420-19F00 | Suzuki |
| 0824-043 | Arctic Cat |
| 3004-126 | Arctic Cat |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct fit with 80 mm fixation hole spacing to match the original mount, and installation is plug-and-play with no changes to the wiring. The only step before fitting is transferring your existing spark plug cap or caps onto the new coil.
What is included, and what do I reuse?
The external ignition coil is supplied. Your original spark plug cap or caps are reused - unscrew them from the old coil and screw them onto the new one before installation.
How do I know the old coil has failed?
Typical symptoms are difficulty starting, a weak or intermittent spark, misfiring on one cylinder, cutting out at higher revs and poor running under load, usually worse when hot or in damp conditions. A resistance check is a useful confirmation - this coil is rated at 5.0 ohms, so a reading well away from the specification for your original unit indicates a fault.
Does one coil really cover both the Suzuki models and the Arctic Cat sleds?
Yes. The same unit is listed against Suzuki 33410 and 33420 series numbers and against Arctic Cat 0824-043 and 3004-126. The deciding factor is the part number stamped on your original coil and the physical dimensions, so check those against the tables above rather than going by the model name alone.
